Spectare SP 02091 User Manual

9 in 1 Media

Player / Recorder

User Guide

Model: SP 02091

Warranty

Please contact the original retail location where this product was
purchased to obtain warranty information and service.

Contact

For questions and support on this product that can not be solved
by your retailer please contact:

Spectare Products
6081 Meridian Ave Suite 70-308
San Jose, CA 95120
http://spectareproducts.com
[email protected]

The Spectare Logo and the Spectare brand are trademarked by SuMaWah LLC, San Jose, CA.
Copyright 2008 SuMaWah LLC, All Rights Reserved Worldwide.

Contents

Important Notes ............................................................... 2

What’s Included ............................................................. 3

Product Description .......................................................... 4

Quick Start Guide ............................................................ 6

Installing the Software Drivers ......................................... 8

Installing the Software Tools ........................................... 9

Capture Mode ................................................................ 10

Video Mode .................................................................... 11

Audio Record Mode ....................................................... 12

Setup Mode ................................................................... 13

Music Mode ................................................................... 14

PlayBack Mode ............................................................. 16

e-Book Mode ................................................................. 17

Game Mode ................................................................... 17

Connecting to a TV ....................................................... 18

Remote Control ............................................................. 19

Connecting to a Printer ................................................... 19

Mass Storage: USB Connection ..................................... 20

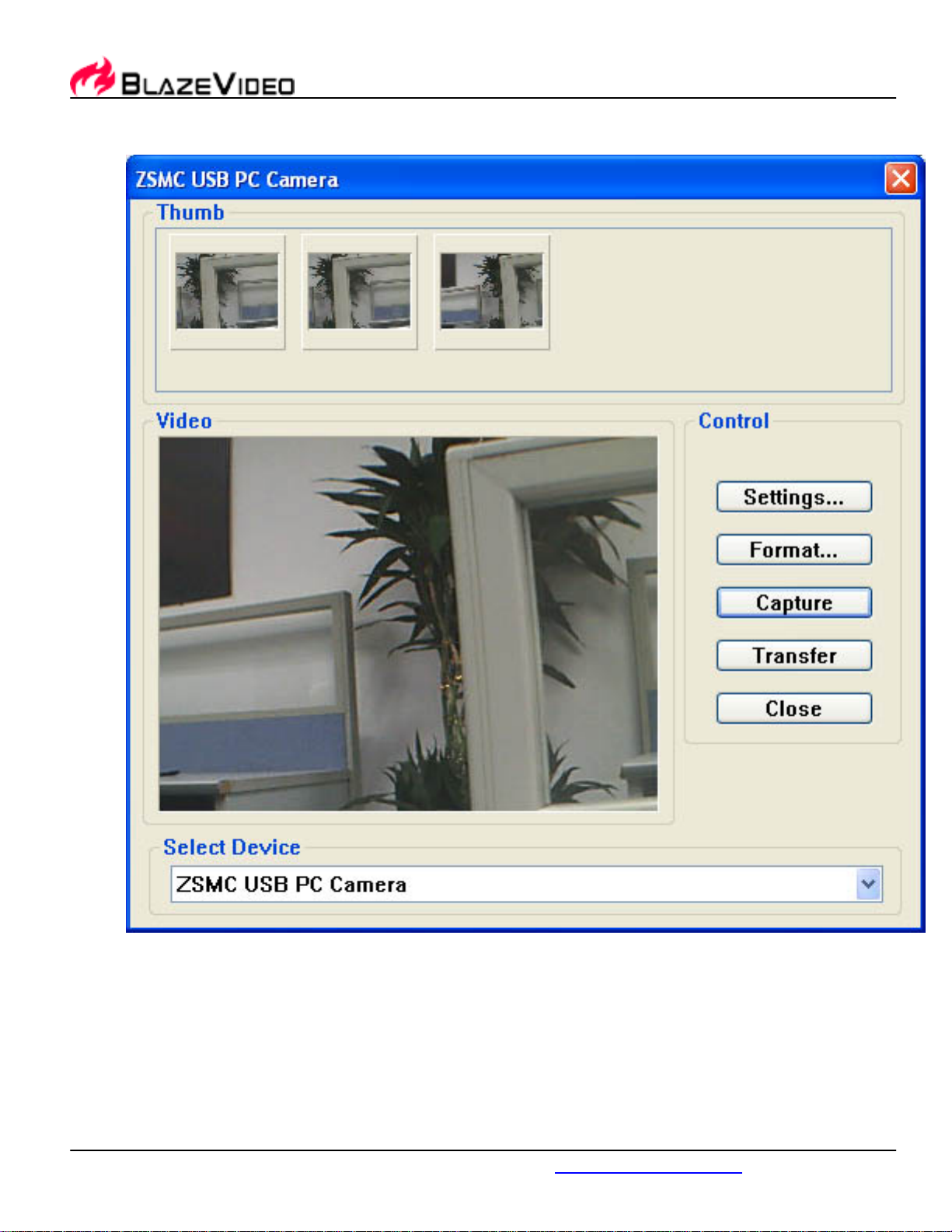

PC Web Cam ................................................................. 22

Troubleshooting .............................................................. 23

Technical Specifications ................................................. 24

Discarded electric appliances are recyclable and should not be discarded n
domestic waste. Please actively support us in conserving resources and
protecting the environment by returning this appliance to the collection
centers (if available).

Battery Disposal: Do not incinerate, disassemble or short circuit the battery.
Do not expose the battery to temperatures above
113o Fahrenheit.

Please observe the local regulations regarding the
disposal of exhausted batteries and old equipment.

user's guideSpectare 9 in 1 Media Player / Recorder

1

Thank you for purchasing the Spectare 9 in 1 Media Player / Recorder. Please

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT

CAUTION: RISK OF ELECTRIC SHOCK. DO NOT DISASSEMBLE THIS UNIT.

VENTILATION - The device should be situated so that its location or position does

HEAT - The device should be situated away from sources of high heat such as

POWER SOURCE - The device should be connected to a power supply only of

CLEANING - The device should be cleaned gently using a soft cloth dampened

NON USE PERIOD - The power cord for the device should be unplugged from the

AVOIDING SURGES- For added protection during a lightning storm, unplug the

OVERLOADING - Do not overload wall outlets or extension cords, as this may

SERVICING - The user should not attempt to service the device beyond those

take some time to read through and follow these important safety and
operation instructions.

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER. NO USER- SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED PERSONNEL.

not interfere with its proper ventilation. For example, the unit should
not be situated on a bed, sofa, rug or similar surface that may block
the ventilation openings.

radiators or stoves.

the type described in the technical specification of this user guide.

with water. Do not clean the inside of the unit.

outlet when the unit is left unused for a long period of time.

device from wall outlets to prevent damage to the product due to
power line surges.

result in fire or electrical shock

means described in the operating instructions. All other servicing
should be referred to qualified service personnel.

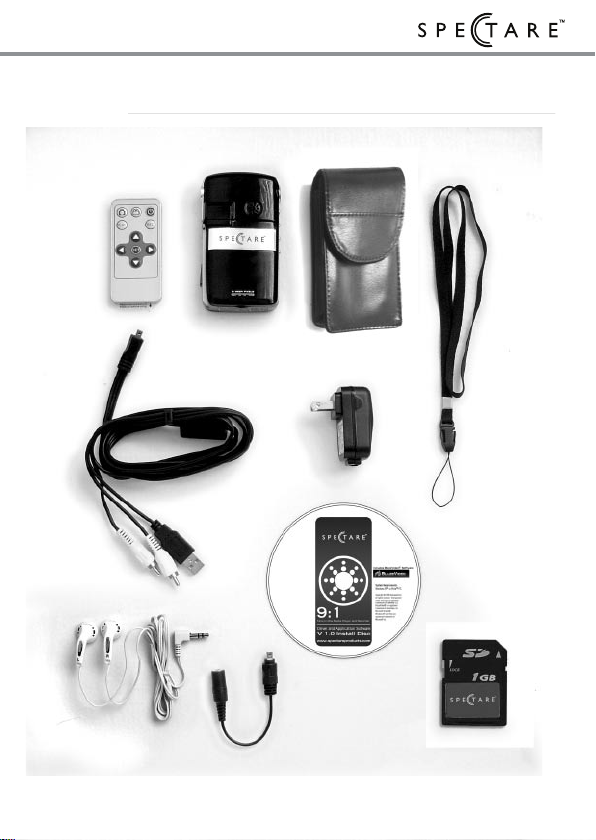

What’s Included:

The following items should be included:

Please contact your retailer if you have not received any of these items

Remote control
Camera/ Player
Soft Case

USB/ AC Adapter Strap
TV Connection

CD ROM Installer
for driver and
software applications

Ear Phones 1 GB SD memory Card
USB Audio / Headphone adapter

user's guide2 Spectare 9 in 1 Media Player / Recorder

3

Product Description:

SIDE

: UP Selection

selects the next upward selection

^

>>I

: LEFT Selection

>

selects the file or media to the right or fast forward

I<<

<

selects the file or media to the left or fast backward

: DOWN Selection

V

selects the next downward selection

SELECT



START



 / II

LIGHT

: RIGHT Selection

: Changes Modes
: Begins the Photo and Video Viewing mode

:Starts or pauses the playback of a Photo Slide show, movie or Music file
: Turns on/off the Video light in Video Mode

Battery Compartment:

BOTTOM

:Slide open to reveal the battery and SD Card slot

FRONT

Product Description:

TOP

POWER

θ

Led Indicator

Frame Setting in the Capture Mode
PAN in Viewing Mode

W

WIDE angle in Capture Mode
LAST photo in Viewing Mode

Frame selector in Capture mode
RESET Image selector in Viewing mode

T

Telephoto ZOOM in Capture mode
NEXT photo in Viewing mode

Flash Setting in Capture mode
PAN in Viewing Mode

>





Light for Video
Flash
USB / Power cover

: Press and hold to turn on

: Press and hold to turn on



: Upward Selection

: Upward Selection

SET



: SET

: Right Selection



: Down Selection

SHUTTER

: Take the photo in Capture mode

MENU
MODE
DISP

: Choose the settings

: Change from Capture, Video, Music....

: Change the on screen display

: Fill Light for Video
: Flask for Still image Capture
: Access to USB / power connector

BACK

user's guide4 Spectare 9 in 1 Media Player / Recorder

5

Quick Start Guide Quick Start Guide

To begin using your Spectare 9 in 1
Media Player / Recorder follow these
simple instructions:

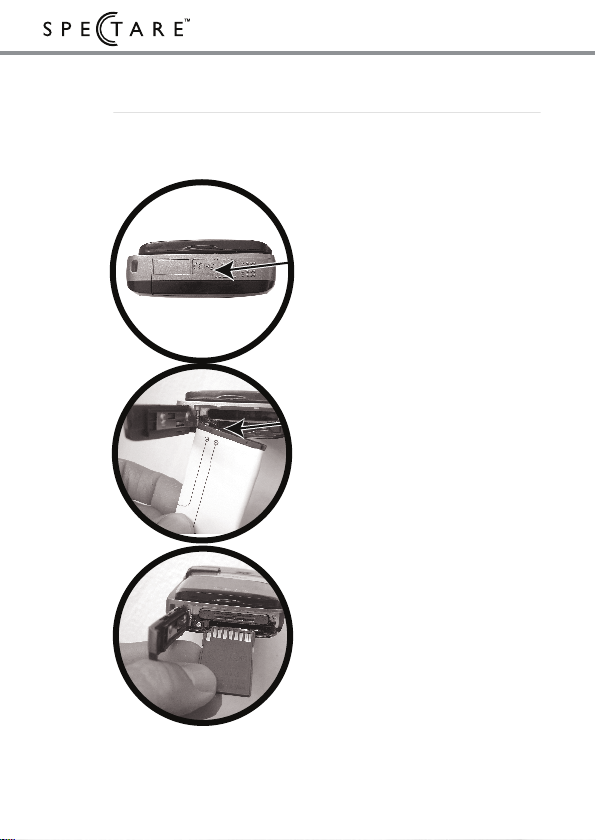

Turn the camera over to the
bottom and slide the battery
compartment open.

1

Insert the battery included in the
package into the slot on the
bottom.

2

3

Spectare 9 in 1 Media Player / Recorder

NOTE: Please ensure the battery
contact are in this position before
inserting into the camera.

Insert the included SD Card into
the memory Slot.

NOTE: The camera will accept
any SD or MMC memory cards
up to 4GB

4

5

6

7

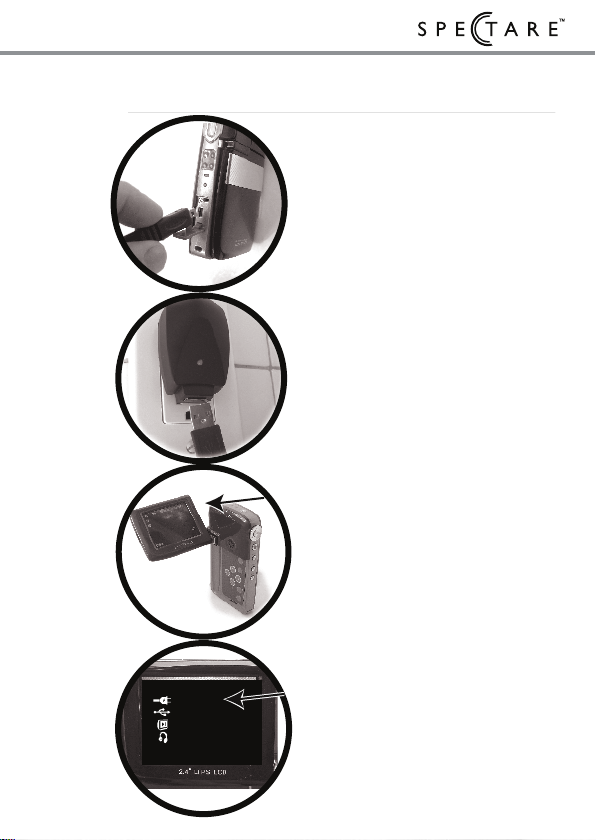

Choose the connection type:

AC POWER

COMPUTER CONNECTION
TV OUTPUT
HEADPHONES

use the  buttons to select

SET

press 

to confirm

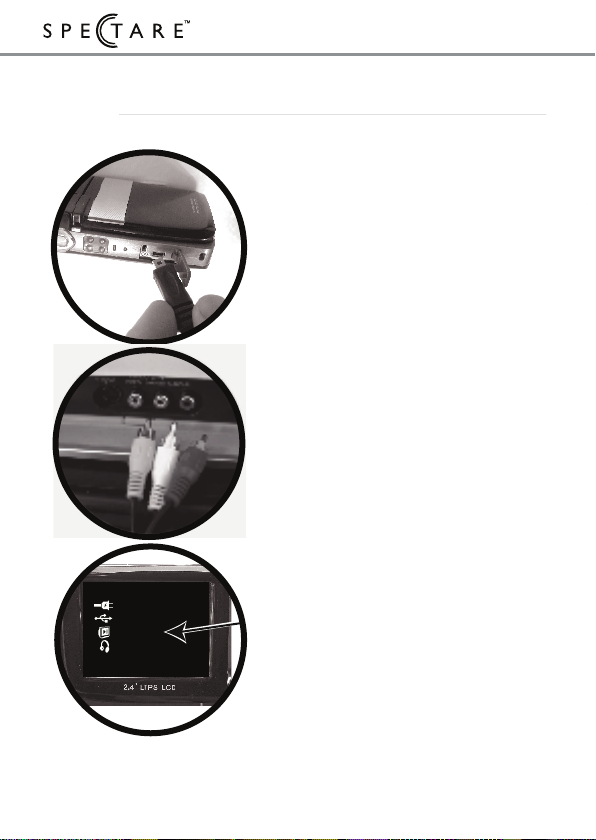

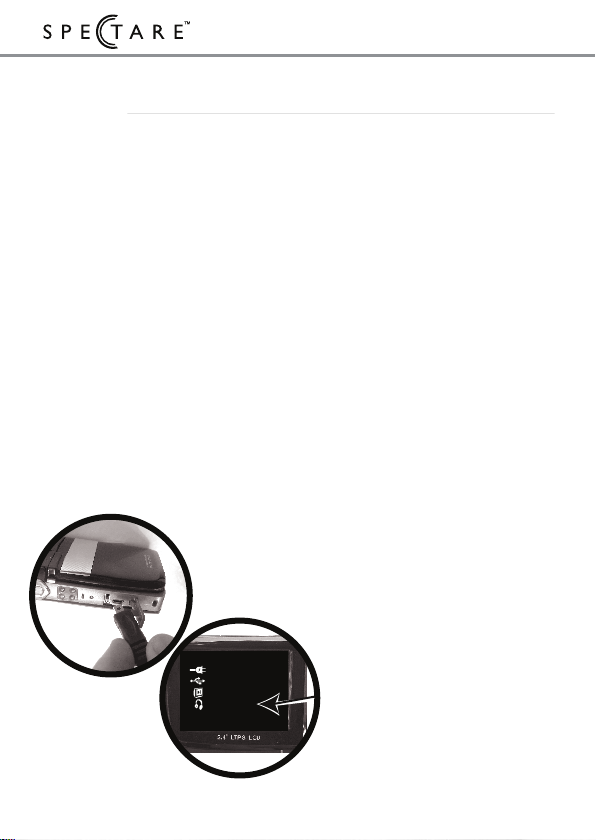

Open the USB Connection
cover on the Front Panel and
plug in the SMALL end of the
USB/AV cable into the
connection on the camera.

Plug in the AC Adapter to a Wall
Outlet and then plug in the
LARGE end of the USB/ AV
cable into bottom of the AC
Adapter

Open the Side Panel/Monitor
and the power should
automatically turn on or press

POWER

the

θ

button on the top.

On the First Screen choose the
connection type with the arrow
keys on the back panel:

 :Makes the selection

SET



:Confirms the Selection

NOTE: For Charging the battery

and using the camera
under AC power select
and confirm the AC
POWER Choice.

Let the camera battery charge

for 24 hours before the
first use

user's guide6

7

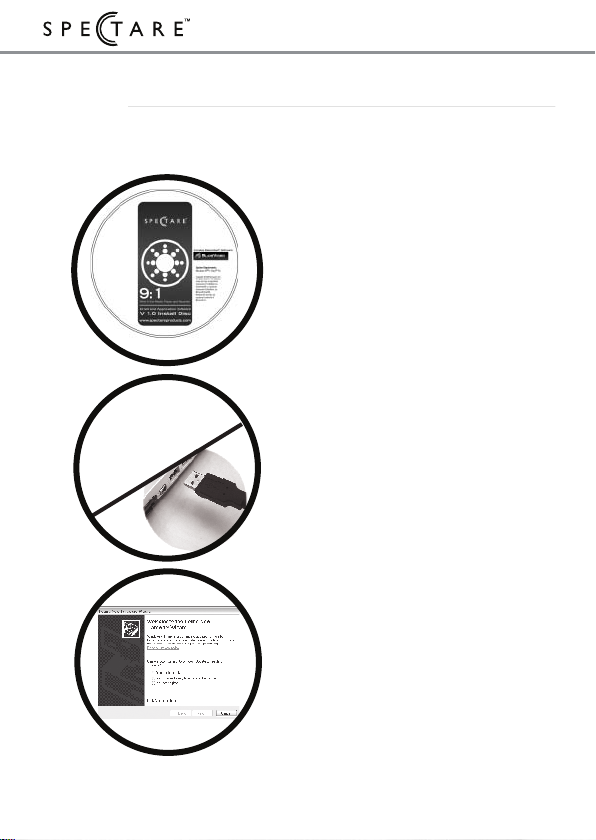

Installing the Software Drivers

IMPORTANT: INSTALL THE DRIVER

SOFTWARE BEFORE CONNECTING THE
CAMERA FOR THE FIRST TIME.

Insert the software CD into the

CD-ROM, and the CD will run
automatically. (If the CD does not run
automatically, double click
Bdvdarun.Exe in the CD root folder)

On the Main Menu screen of the CD click:

“Install Device Driver”

Follow the on Screen instructions to

RESTART
COMPUTER

then

install the drivers onto your computer
system

NOTE: You must agree to the License
Agreement and accept the terms to
continue the installation

Click “Finish” to complete installation
Restart your computer

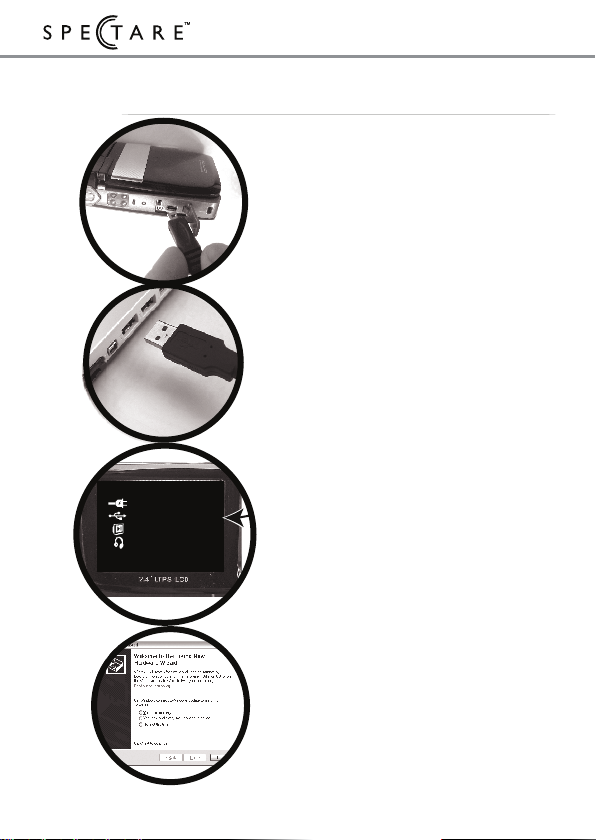

After Restart connect the 9 in 1

Camera using the USB Cable provided
upon the first connection the Hardware
Wizard will automatically launch.
Follow the on Screen instructions to
install the drivers onto your system.

Spectare 9 in 1 Media Player / Recorder

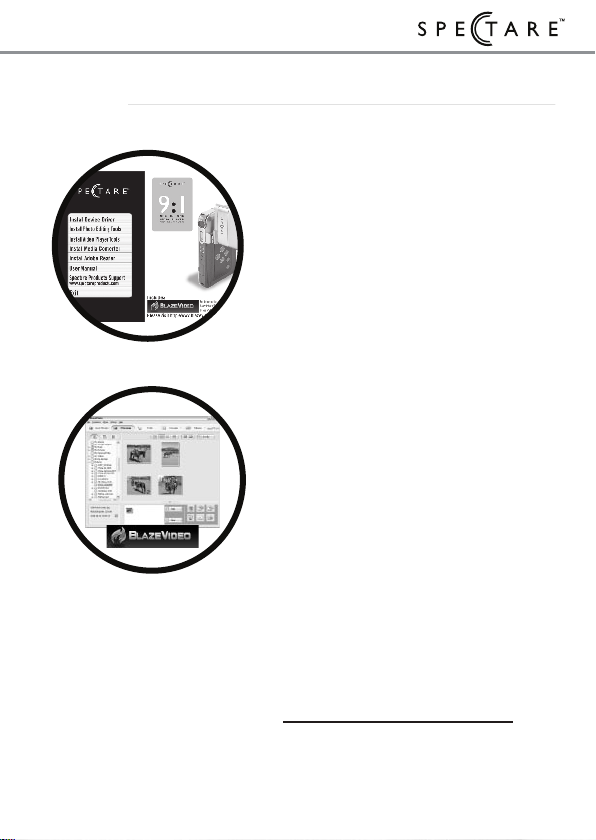

Installing the Software Tools

From the CD ROM main menu interface:
Click on “Install Photo Editing Tools” and

follow the on screen instructions. This
will install the BlazePhoto software that
will allow you to edit and organize your
photos.

Click on “Install Video Player Tools” and

follow the on screen instructions. This
will install the BlazeVideo Media Player
software that will allow you playback
movies and other media on your
computer.

Click on “Install Media Converter” and follow

the on screen instructions. This will
install the BlazeVideo Magic software
that will allow you convert movies and
other media into specific formats.

These programs will be automatically

installed into your programs menu. To
use these programs click on the START
button and choose the desired
application

Please refer to the user manual that is

included on the CD ROM for instructions
on the use of these software applica­tions or go to:

http://www.blazevideo.com/support.htm

for technical support on the software

user's guide8

9

Capture Mode

On Screen Display:

5 6 7

4

5M

3
2

AWB

1

0000/0021

Entering CAPTURE Mode:

Flip out the LCD panel or press the

mode(Default mode)

Taking Photos:

press the

SHUTTER

>

Changing Capture Settings:

Press the
Then use the



MENU

W T

button

White Balance,
EV,
Color Effect,
Quality

SET

Press the
Press the



button to confirm the selection.

MENU



button to return to CAPTURE mode

CAPTURE Controls:

Press the
Press the

(Single frame shooting, burst shooting, 10 sec self timer, 20 second self timer)

Press the

(On, Off, Auto, Red-eye reduction)

` Press the

W T

buttons to ZOOM in and out



button to change the Frame setting



buttons to Change the Flash setting.

SET



button on the side panel to select photo frame border.

Brightness Control:Press the

buttons to select the ;EV icon; then use the

lighter

① Power Capacity
② White Balance
③ Flash mode
④ Capture mode
⑤ Resolution
⑥ Image Quality
⑦ Counter(Recorded/Allowance)

POWER

θ

button to enter CAPTURE

button take the image

buttons to Choose the following Settings

MODE



button and then use the

sbuttons to make th e photo darker or



T



Video Mode

On Screen Display:

3

4

2

1

Entering VIDEO Mode:

Press the

to enter VIDEO mode.

Taking Video:

press the

when the camera is recording.

press the

Changing VIDEO Settings:

Press the
Then use the

Resolution,
Frame/Sec,
White Balance,
EV,
Color Effect
Audio

Press the
Press the

VIDEO Controls:

Press the
Brightness Control: Press the

buttons to select the ;EV icon; then use the
darker or lighter

Press the l LIGHT button to turn on or OFF the Fill light. This will enhance

Video under low light conditions

5

①Power Capacity
②White Balance
③Video mode
④Resolution
⑤Recording time

MODE



>

>





button to choose AVI icon, then press the

SHUTTER

SHUTTER



W T

button start the Video recording, A Red Dot will appear
button again to stop the recording

MENU

button

W T

buttons to Choose the following Settings

SET

button to confirm the selection.

MENU

button to return to VIDEO mode

buttons to ZOOM in and out



MODE

button and then use the



sbuttons to make the photo

SET



button



user's guide10 Spectare 9 in 1 Media Player / Recorder

T

11

Audio Record Mode

On Screen Display:

3

2

1

00:15:48

Start:Shutter

① Power Capacity
② Allowance of record-

ing time

③ Audio mode icon

Entering AUDIO RECORD Mode:

Press the



MODE

button to enter AUDIO RECORD mode.

Making a Audio Recording:

press the

SHUTTER

>

the camera is recording.

press the

SHUTTER

>

To Playback and Audio Recording:

Press the
Use the

START



W T

the Side Panel to choose the File to play.

Use the



SET

the audio recording.

Spectare 9 in 1 Media Player / Recorder

12

button to choose WAV icon, then press the

button start the recording, A Red Dot will appear when
button again to stop the recording

button on the side panel to enter the Playback mode.

buttons on the back panel or the

button on the back panel or the

I<<

< >

 / II

to play and pause

>>I

buttons on



SET

Setup Mode

Entering SETUP Mode:

Press the



MODE

button to choose SETUP icon, then press the

button to enter SETUP mode.

Changing the Settings:

Then use the

W T

buttons to Choose the following Settings
Animation,
Beep,
Frequency,
Default, Language,
Auto power off,
Date/Time,
TV

Press the
Press the

SET



button to confirm the selection.

MENU



button to return

SET



user's guide

13

Music Mode

Entering MUSIC Mode:

Press the



MODE

button to choose MUSIC icon, then press the

button to enter MUSIC mode.

NOTE: Standard .MP3 files should be copied to the memory card that is

inserted into the camera in order to be played by the camera. The camera
can not play .WMA or protected MP3 files-- See the following page details.

MUSIC Controls

Back Panel controls
Press the
Press the
Press the
Press the





W T





buttons to select the song from the list

buttons to adjust the volume during playback

SET

button to select a file for playback

MENU

button repeatedly to select the Repeat mode as:
Repeat ALL > Repeat Once > Do not Repeat
Side Panel controls

Press the
Press the
Press the

 / II

button to Play or Pause the Music

>>I

button to select to the next song; Press

>

I<<

button to select to the previous song

<

SET



Headphone connection

Open the USB connection cover on the Front panel of

the camera

Turn on the camera by opening the LCD panel

On the First Screen choose the
connection type as

Choose the connection type:

AC POWER
COMPUTER CONNECTION
TV OUTPUT
HEADPHONES

use the  buttons to select

SET

press 

to confirm

HEADPHONES with the arrow
keys on the back panel:

 :Makes the selection

SET



:Confirms the Selection

SET



to confirm

Spectare 9 in 1 Media Player / Recorder

14

Music Mode

Copying and Playing MP3 Files:

To play music on your 9 in 1 Player you can simply copy the files directly onto a

memory card that is inserted into the player.

* Connect the camera to the computer using the USB cable as described on

page 20. The camera's memory or a memory card on the camera will mount
as a drive on your computer.

* Once it is connected you can copy files onto the player by simply dragging

and dropping them onto the window for the player. You may also use the
BlazeVideo Magic Software to covert and copy files for playback on your 9

in 1 Player
* After the files have been copied disconnect the camera from the computer.
* Turn on the camera and go to the Music Player from the main menu to

playback the files.
The 9 in 1 Player will play all "standard MP3 files" (non-rights protected music).

There are other music file formats that are available on other sites that will

not play such as .WMA and other formats. If you have music in a format

other than .MP3 you will need to convert it with the BlazeVideo Magic

Software. Please refer to the User Manual provided on the CD ROM for

instructions on converting file types
If you purchase Music from the Apple iTunes® store it will not be recognized

since Apple® will only allow their files to be played on iPods®. There are

also other sites that when you download it will set privacy restrictions that

will not allow it to play on some players or only on the computer you

download it on. There many sites that you can purchase and download

standard MP3 files that can be played directly on the 9 in 1 player. Make

certain you are downloading a “STANDARD.MP3” file that is not limited for

playback on your computer only or certain MP3 Players.

NOTE: Download and use 3rd party software and enter web sites at your

own risk. Spectare products is not responsible for any damage caused by

the use of software provided by other companies.

user's guide

15

Playback Mode

Entering PLAYBACK Mode:

Press the
Press the

file is movie or voice, press the
playback file, then press it again to stop

Changing PLAYBACK Settings:

press the
Then use the

Delete files,
Slideshow,
Crop,
Lock,
Start Screen,
Rotate,
Print

PLAYBACK Controls:

Press the
When in ZOOM Mode Press the

the image and press
Press the
choose a file you want to play with the
then press the
Press the
then use the

START



button on the side panel to enter Playback mode

I<<

< >

MENU



W T



button to enter Zoom mode,



button for the thumbnail view

DISP



button To adjust volume or playback speed



W T

>>I

or

button

buttons to Choose the following Settings



SET



button to select the Thumbnail to view



buttons to adjust speed and volume

buttons to browse images you want. If the

 / II

button to start the movie or

W T



buttons to enlarge or minimize

to Pan the Image

W T

buttons

e-Book Mode

Entering MUSIC Mode:

Press the



MODE

button to choose E-BOOK icon, then press the

button to enter E-BOOK mode.

Choosing the Text File

Then use the





buttons to choose the file you want to read that has

been copied to the memory card on your camera.
NOTE: .txt files should be copied to the memory card that is inserted into

the camera in order to be read by the camera-- See “Connection to

Computer for the procedures on copying files.

Press the
Press the
Press the

 / II

button to Read the file





to Page UP or Page DOWN on the Text File

MENU



button to return back and choose another file

SET



Game Mode

Entering MUSIC Mode:

Press the



MODE

button to enter GAME mode.

Playing the games

SET

Press the
Press the
Press the
Press the
Press the

Press the



button to Start



button to Trasmute



button to speed up

W T

 / II

button to Pause / Start

MODE



button to choose GAME icon, then press the

button to move

button to return back to the Menu

user's guide16 Spectare 9 in 1 Media Player / Recorder

SET



17

Connecting to a TV

To Connect to Television

Using the supplied AV connector insert the

small end of the cable into the side panel of
the device.

Connect the Yellow (video) and White

(Audio) connections on the other end of the
cable to the Video and Audio input
connection on the back of your television or
VCR unit.

Turn on the power to the camera by
pressing the
the LCD Panel.

On the First Screen choose the connection
type as TV OUTPUT with the arrow keys
on the back panel:

 :Makes the selection

SET



:Confirms the Selection

Turn on your TV and switch the input mode

until you get an image. Refer to your

Choose the connection type:

AC POWER
COMPUTER CONNECTION
TV OUTPUT
HEADPHONES

use the  buttons to select

SET

press 

to confirm

television owners manual for guidance on
setting the input to your

NOTE: If you do not have RCA connections

on your TV you will need to purchase an
adapter at your local electronics store.

Once connected to your TV use the

controls on your device to access features
normally. Go to the PLAYBACK mode on
your camera to view the photos and
movies.

θ

POWER

button or opening

Remote Control

CAPTURE

: Changes to the Capture mode

VIDEO

: Changes to the Video Mode

POWER

θ

PLAY

>

Start and Stop the recording in Video Mode



Frame Setting in the Capture Mode | PAN in Viewing Mode



Telephoto ZOOM in Capture mode| NEXT photo in Viewing mode



Frame selector in Capture mode | RESET Image selector in Viewing mode



Flash Setting in Capture mode | Thumbnail in Viewing Mode

W

WIDE angle in Capture Mode | LAST photo in Viewing Mode

: Press and hold to turn on

: Changes to Playback Mode

REC /SHUTTER

: Take the photo in Capture mode /

: Upward Selection

T

: Right Selection

SET

: SET

: Down Selection

: Upward Selection

Connecting to a Printer

The camera can print photos directly by connecting it to a printer by

following these steps.

NOTE: The printer must have a standard USB connection in order
to be used for direct printing from a camera. Please refer to your
printer’s user manual for specific instructions on connecting a
camera to your printer.

Turn the camera on and enter Playback mode by pressing

START

the



button on the side panel,
Select a photo to be printed using the
Press the



MENU

button and select the PRINT function from the

menu .
Connect the camera to the printer with a USB cable
Select YES on PRINT menu of the camera and the file will be printed

directly on the printer

W T

buttons

user's guide18 Spectare 9 in 1 Media Player / Recorder

19

Mass Storage: Computer USB Connection

To connect to your Windows PC or

Mac Computer

Turn on the camera
Press the

select Mass Storage with the

Connect the small end of the USB cable

to the USB port on the side panel of the
device.

Connect the larger end of the USB cable

to a free USB port on the computer.

MODE



button then select the

and Choose the PC icon with the

W T

buttons





buttons

Choose the connection type:

AC POWER

COMPUTER CONNECTION
TV OUTPUT
HEADPHONES

use the  buttons to select

SET

press 

to confirm

On the First Screen choose the

connection type as COMPUTER
CONNECTION with the arrow keys on
the back panel:

:makes the selection

SET



:Confirms the Selection

Upon first connection the hardware

device will be detected under Windows
XP , Vista and Mac OS-X. The
hardware drivers will automatically
install. Click OK on the hardware wizard
installation screens

Mass Storage: Computer USB Connection

A partition entitled "removable disc" will

automatically be mounted under the "My
Computer" Window. This partition will
give access to the Memory card that is
placed in the camera.

Double click the removable disk icons

to access, copy and manage the files
in on your camera.

To Disconnect from the Computer.

On Windows click this icon on the bottom

task bar labeled "Safely Remove
Hardware."

A dialog box will appear "Safely Remove

Hardware."

Select USB Mass Storage Device and click

"STOP."

On the next dialog box click OK to remove

the storage device.

System Requirements
operating system Microsoft windows

CPU Intel Pentium 166MHZ
Memory More than 128MB

CD-ROM at least 4X speed
Disk More than 100MB free

Connection USB1.1 or USB2.0

98SE/Me/2000/XP/Vista
or higher

space

On the final dialog box select "CLOSE" and

disconnect the device from the computer.
A final message should appear under
Windows that says “Safe to Remove
Hardware" afterwhich you can remove the
USB cable from the device.

Once the player / recorder has been

disconnected from the computer it will
return to normal operation

user's guide20 Spectare 9 in 1 Media Player / Recorder

21

PC Web Camera

To connect to your Windows PC as a

Web Camera

Turn on the camera
Press the



MODE

button then select the

and Choose the PC MODE icon with

W T

the

press



SET

buttons
to confirm

select PC CAMERA with the





buttons

Connect the small end of the USB cable

to the USB port on the side panel of the
device.

Connect the larger end of the USB cable

Choose the connection type:

AC POWER
COMPUTER CONNECTION
TV OUTPUT
HEADPHONES

use the  buttons to select

SET

press 

to confirm

to a free USB port on the computer.

On the First Screen choose the

connection type as COMPUTER
CONNECTION with the arrow keys on
the back panel:

:makes the selection

SET



:Confirms the Selection

The Camera will be automatically

connected under Windows XP and
Vista. go to the MY COMPUTER
Window to access the web cam under
the icons entitles “Coach Video camera”
and “Coach Digital Camera”.

Troubleshooting

The SD card is loaded，but the camera does not capture or record

Check if the SD card is locked
Check if the SD card has enough space for storage

The camera turns off automatically

Check the battery level and charge the battery if necessary.
Check the power off settings on the camera and change to a longer time as needed (see page 13).

Image is not recorded when the shutter button is pressed

Check if the camera is set to the capture mode
Check if the flash mode is set to Auto, Force or Red-eye reduction. If the flash unit is turned on it

will take a longer amount of time to take photos since the flash needs to be charged each time

The color of the photo taken is abnormal

Reset the White Balance in the camera menu.

The image is too bright or too dark

Reset the EV value

The flash does not go off

Check if the flash mode is set to “Auto”, “Force”, “Red-eye reduction”

The date displayed is not correct

Reset the date and time in Setup mode

Can not print the photos

Check if the camera is set to Print mode. If not, reset the camera to Print mode and then connect

the camera to the printer with the USB cable

For support, updates and answers that can not be answered by this
user manual please go to: http://spectareproducts.com/support

user's guide22 Spectare 9 in 1 Media Player / Recorder

23

Technical Specifications

LENS： f=6.4mm
SENSOR： 5.1 Mega Pixels CMOS Sensor
LCD: 2.4 inch LTPS LCD Display
Aperture： F/2.8
Sensitization： Auto
White Balance： Auto，Sunny，Cloudy, Tungsten，Fluorescent
Shutter Speed： 1/10Sec－1/2650Sec
Memory： 32MB built in memory 　or SD card or MMC card

Maximum 4GB
Resolution： 1024x768, 2048x1536, 2592x1944, 3264x2448,

4000x3000
Digital Zoom： 1～8×Digital Zoom
Normal Distance： 1m～∞
Self-timer： 10sec Self-timer，20 sec Self-timer
Flash Mode： Off/Auto/Red-eye reduction /Force
TV-Out： NTSC/PAL
USB: USB1.1 or above
POWER： Li-Battery
Appearance Size： 111x62x22.5mm
Weight： 122G（ without battery and SD card）

MADE IN CHINA

This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.

user's guide24 Spectare 9 in 1 Media Player / Recorder

25

Blaze Photo

User’s Guide

Table of Contents

. Overview ............................................................................................................................................................. 2

1.1 Introduction..................................................................................................................................................... 2

1.2 Features ......................................................................................................................................................... 2

1.3 System Requirements .................................................................................................................................... 3

. Appearance................................................................................................................... ...................................... 4

. Operation Guide.................................................................................................................................................. 4

3.1 Importing Photos.................................................................................................................................. 4

3.2 Organizing Photos ............................................................................................................................... 8

3.3 Previewing Photos ............................................................................................................................. 10

3.4 Editing Photos.................................................................................................................................... 13

3.5 Creating ............................................................................................................................................. 21

3.6 Sharing Photos .................................................................................................................................. 23

3.7 Settings.............................................................................................................................................. 26

. Contact Support............................................................................................................................................. 31

. Overview

1.1 Introduction

BlazePhoto, a powerful and complete digital photo utility, integrates photo importing, previewing, organizing, editing,
creating and sharing. Compliant with multiple locations, BlazePhoto allows you to import digital photo from hard disc
folder, CD/DVD disc, DC/DV, PC Cam or any other removable devices; lets you flexibly classify, view and edit image.
There are also multiple sharing choices available for you to choose, you can print, email, burn CD, create slideshow
DVD and create html album. BlazePhoto provides an ideal solution for your lifetime of memories organizing and
enjoying, brings you an exciting and easy way to share your memories with anyone, at any time and anywhere.

BlazePhoto supports most popular image formats: such as JPG, BMP, TIF, GIF, PNG, WMF, EMF, etc. BlazePhoto also
supports EXIF2.1, for those edited or converted JPG, TIF, and their EXIF info will not lose.

1.2 Features

•

Import Photos: BlazePhoto supports multiple image locations, can import image from hard
disk folder, CD/DVD disc, DC/DV, PC Cam or any other removable devices; BlazePhoto can
real-timely capture and save image from PC Cam, transfer image between DC and hard disk
folder; BlazePhoto also allows you to freely search for your desired image.

•

Organize Photos: BlazePhoto sorts image by people, place and events tags, and you can
also create your own favorite tags.

•

Preview Photos: Provided with multiple image preview modes: get photo from disk, from
history record or from catalog; supports Single Picture, Big Thumbnail, Small thumbnail,
Preview Thumbnail view modes, you can also view full screen image and image slide show.

BlazeVideo, Inc.

2

www.blazevideo.com

•

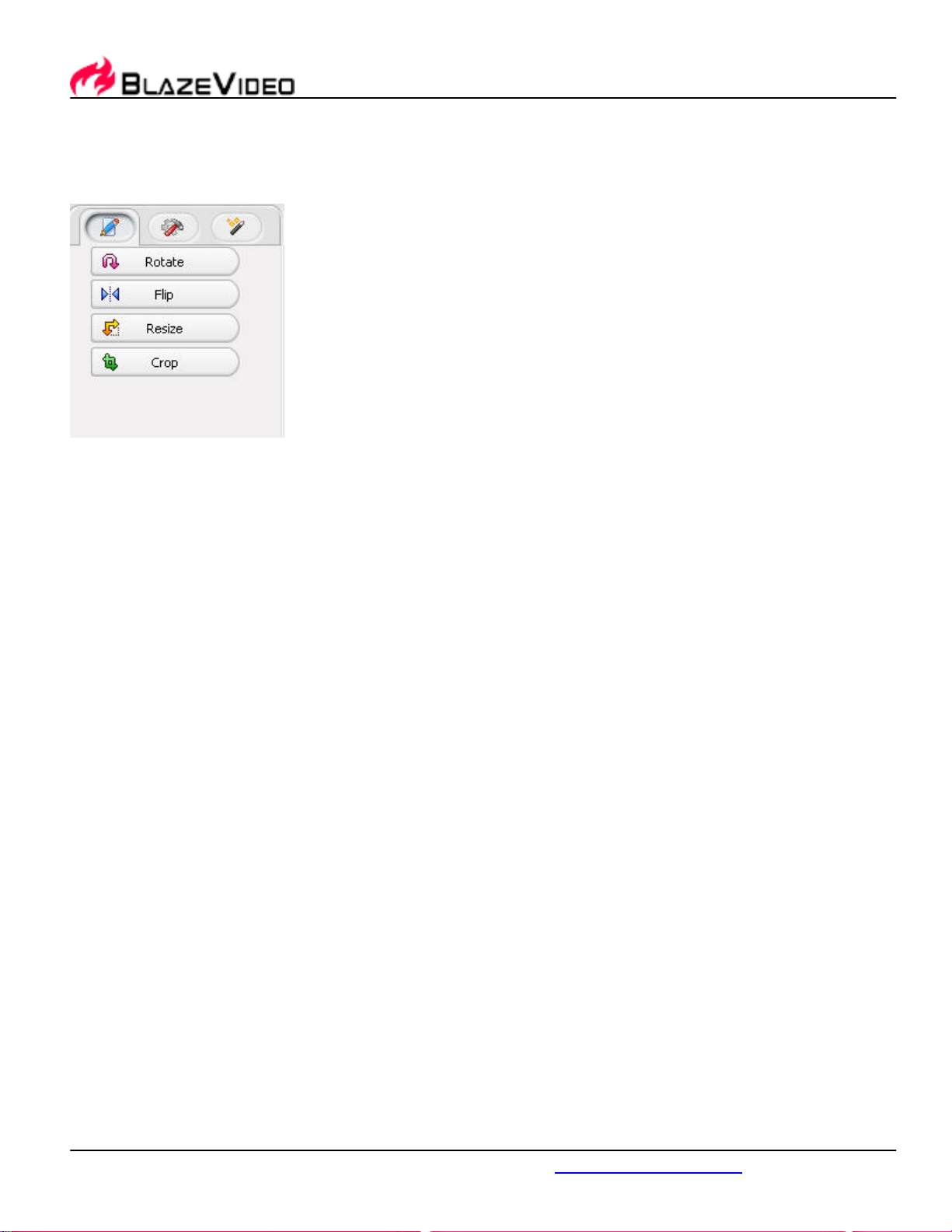

Edit Photos: Easily edit image, provided with multiple popular edit functions, such as rotate,
crop, flip, resize, etc. Supports enhance function: remove red eye, adjust color, blur/sharp,

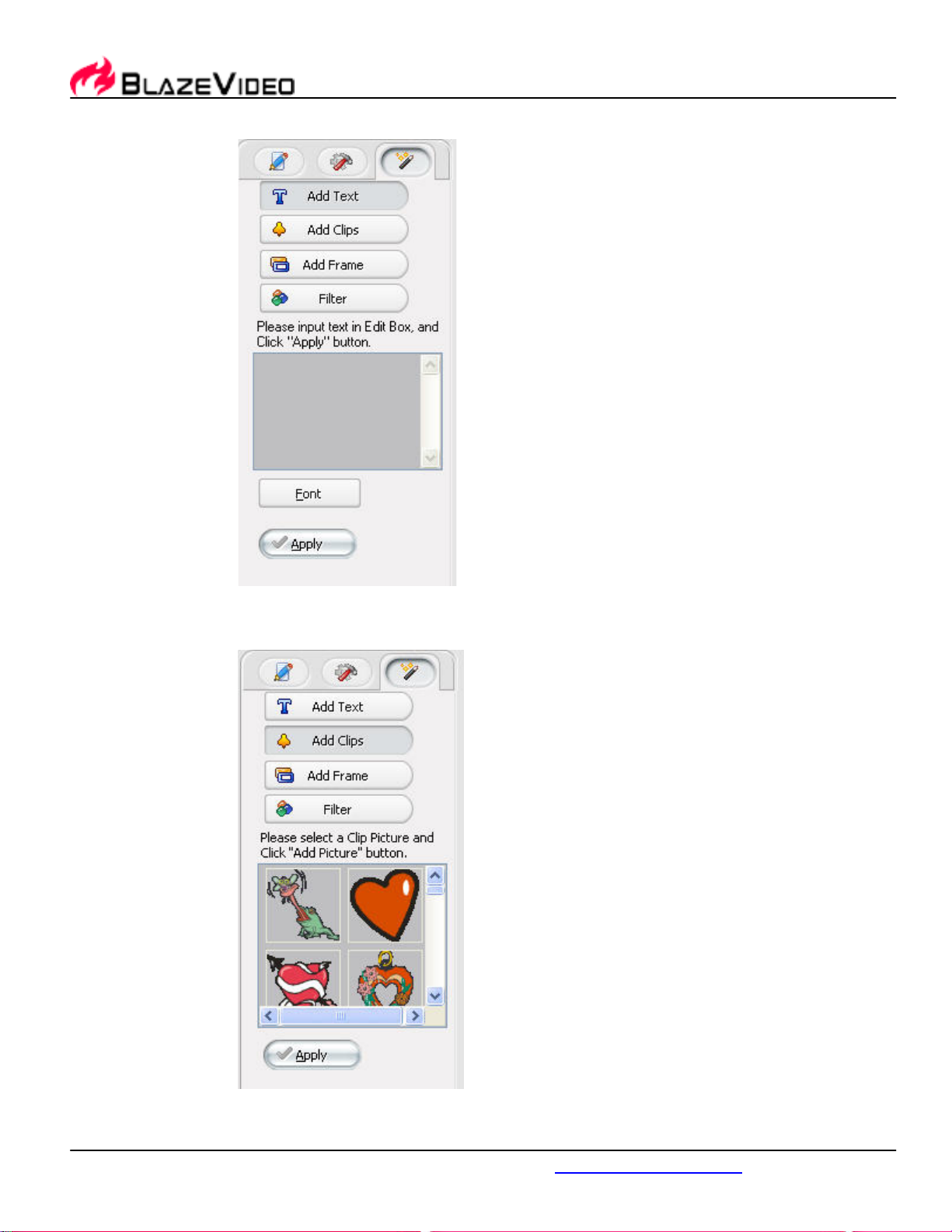

auto enhance; supports creating function: add text, add clip, add frame, add filter such as
Mosaic, Windy, Motion, Gray, Emboss, etc.

•

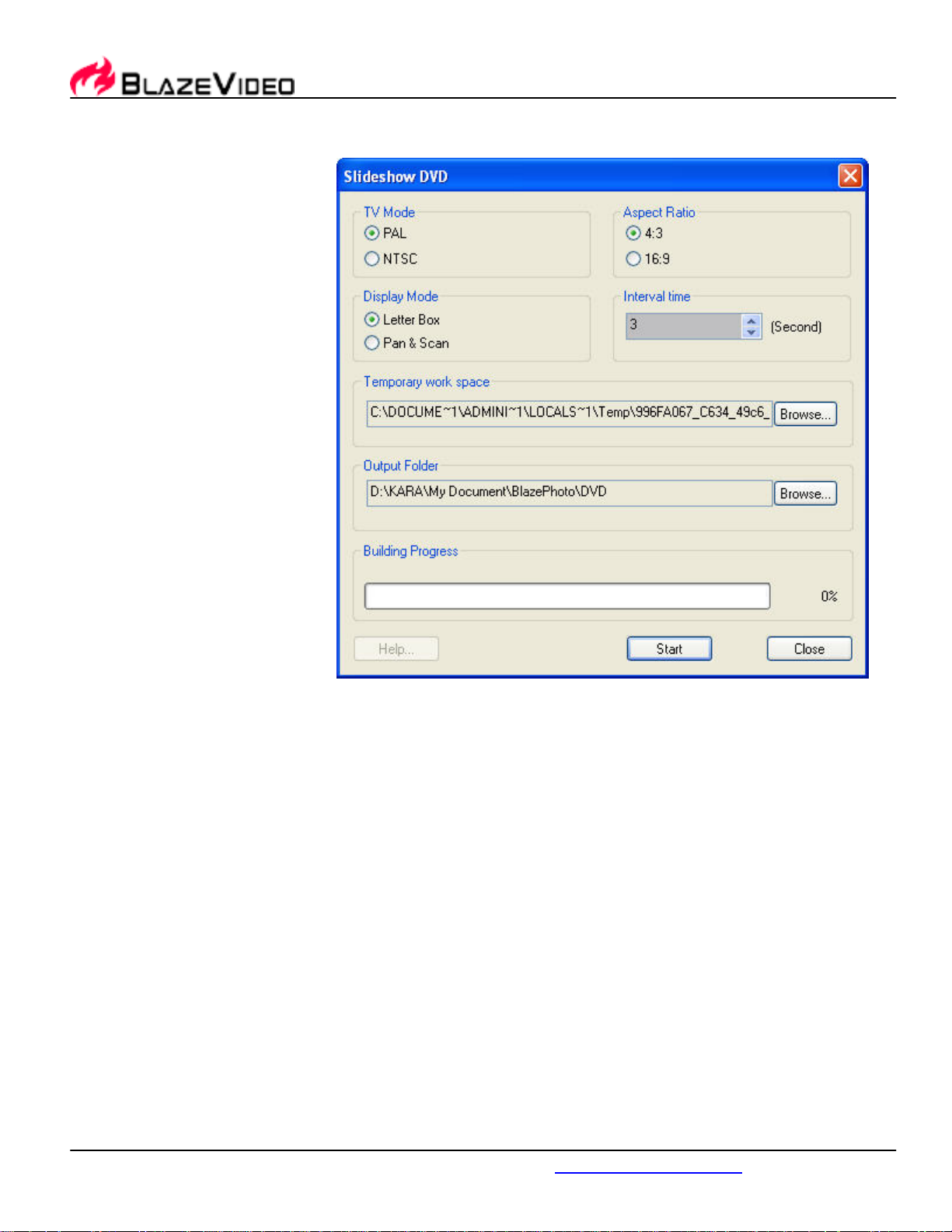

Create: Create single or multiple images into html album, burn to CD disc or create
slideshow DVD.

•

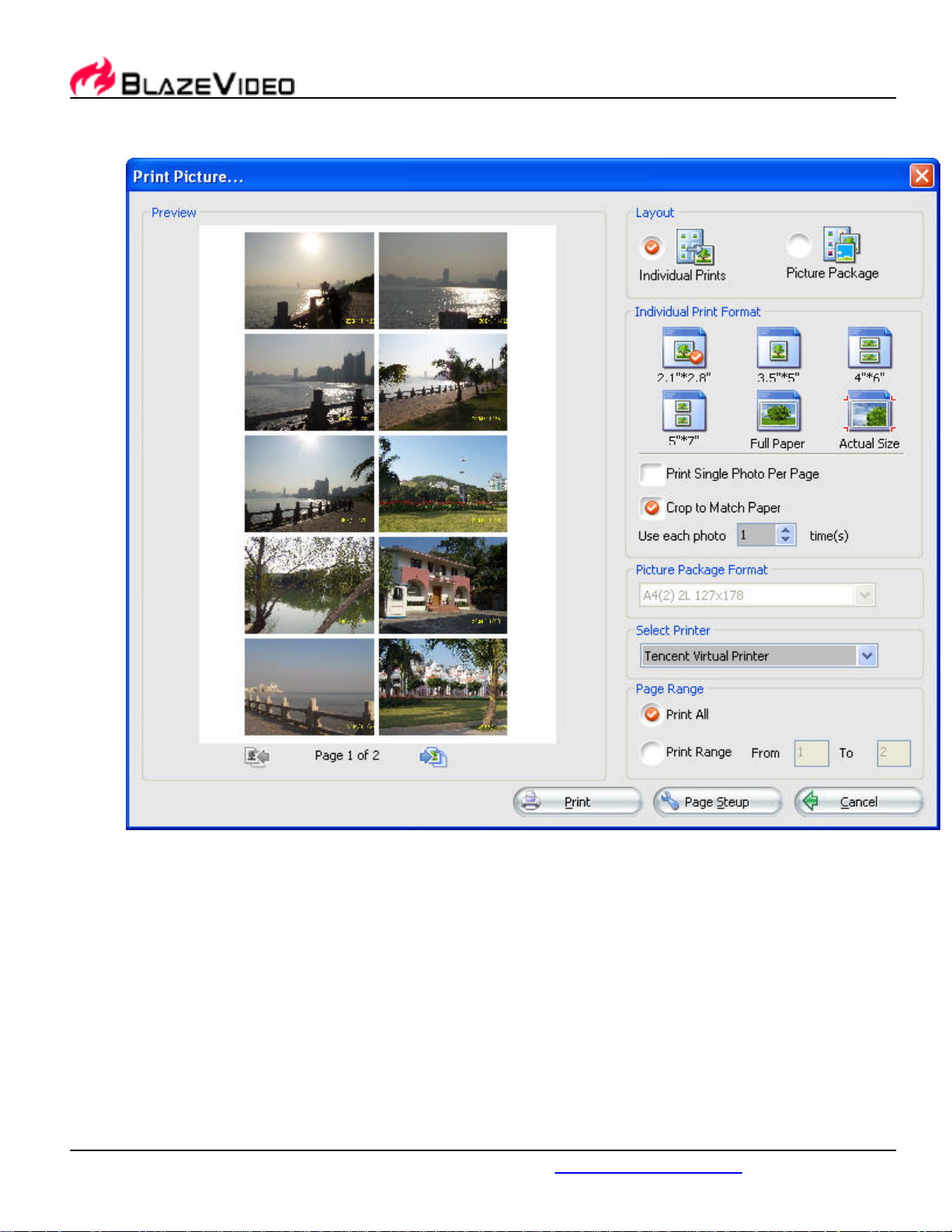

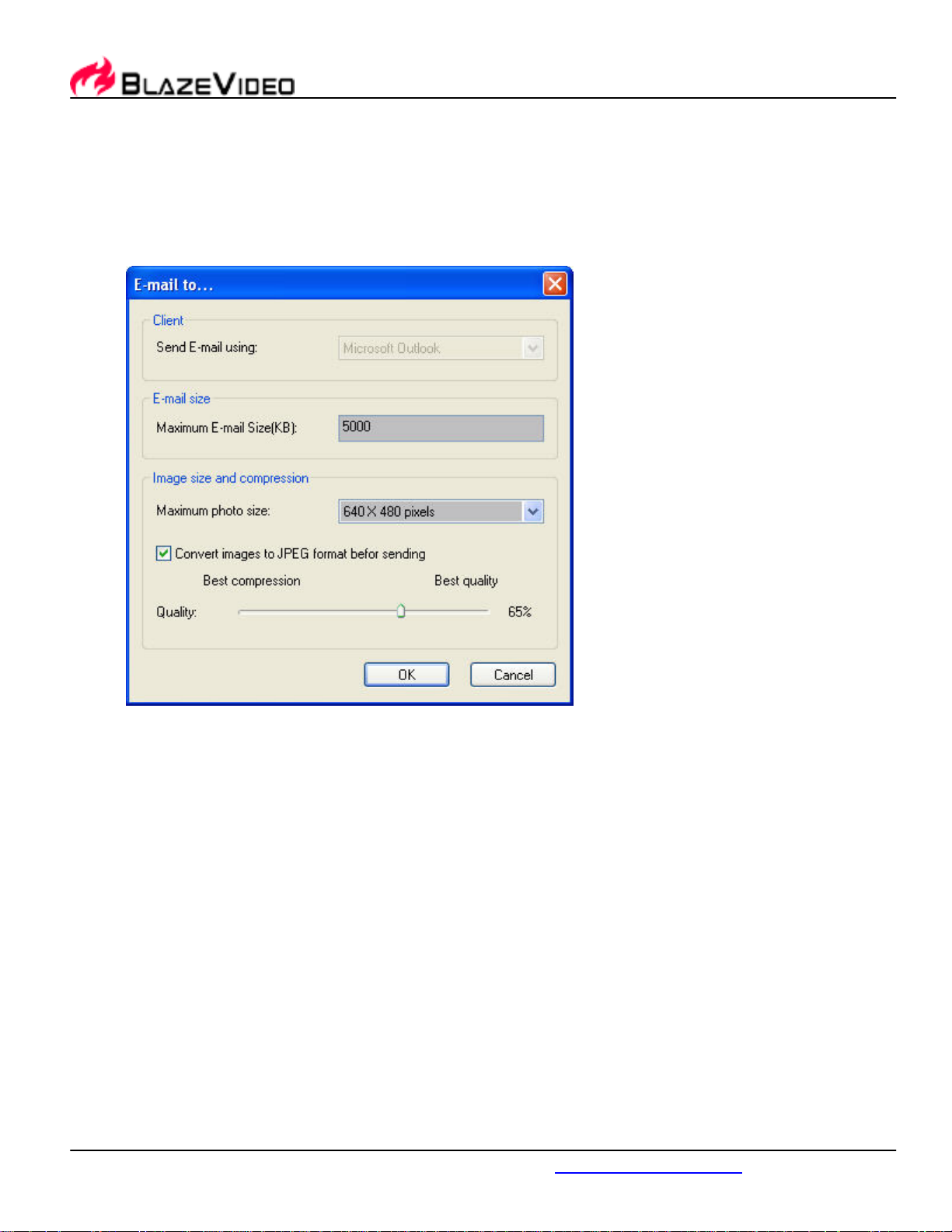

Share Photos: Print single or multiple images, send email, batch resize, rename and change
image format.

1.3 System Requirements

CPU Intel Celeron 400MHz or higher Intel Pentium III 700 MHz
System Memory 128MB RAM or higher 256 MB RAM
Operating

System
Display Card 16 bit, 4MB memory, supports DirectX

Sound Card

DirectX DirectX 8.1 or later
Hard-disk

Available
Capacity

PCI sound cards, Integration chipset on Mother Board, USB audio devices etc. compatible with
Windows and stereo speakers

Basic Recommended

Windows 98 SE/ME/ 2000/ XP

24 bit, 8MB memory, supports DirectX

At least 10 MB

BlazeVideo, Inc.

3

www.blazevideo.com

. Appearance

. Operation Guide

3.1 Importing Photos

You can get photos from hard disk folder, Scanner Video Device, Camera& Removable Device, you can also
freely search for your desired photos on local disk.

BlazeVideo, Inc.

4

www.blazevideo.com

• Browse Fold ers

Default get photo from hard disc folder, you can select folder from the folder tree on the left of the main
window.

• Get Photo from Scanner & Video Device

1. Capture photo from scanner or video device, the captured photos will be saved into the specified
folder.

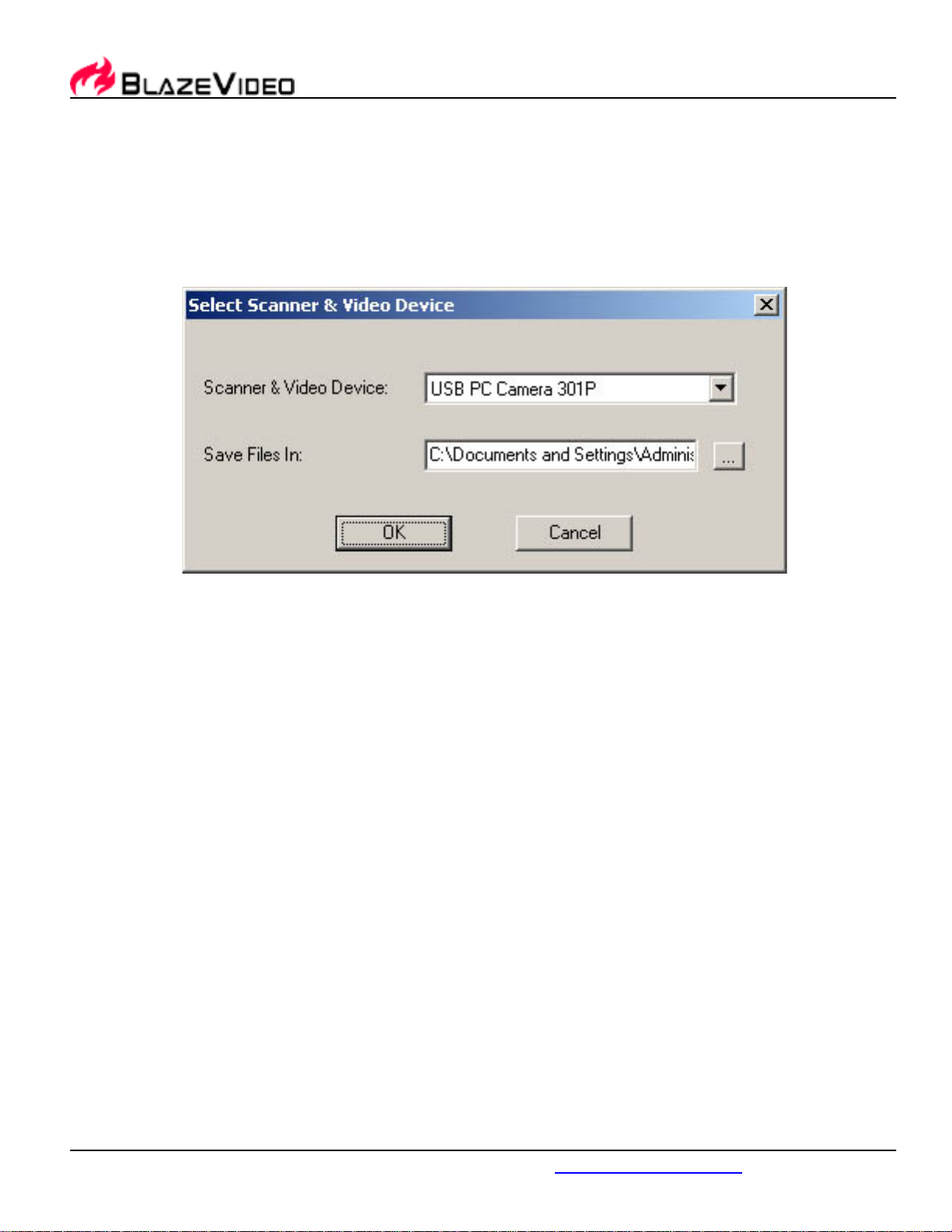

Drop-down click "Get Photo" button and select "Scanner&Video Device", or select File->Get
Photo->Scanner&Video Device, below dialog box pops up:

BlazeVideo, Inc.

5

www.blazevideo.com

2. Click "Browse" button to specify saving directory and click "OK" button, below menu pops up:

3. Click "Capture" button, thumbnail of current image will appear, you can also continually capture
image, after selecting the image, and the image will be saved into the specified directory.
BlazePhoto will auto display the captured images as thumbnails in Preview window.

• Get Photo From Camera & Removable Devices

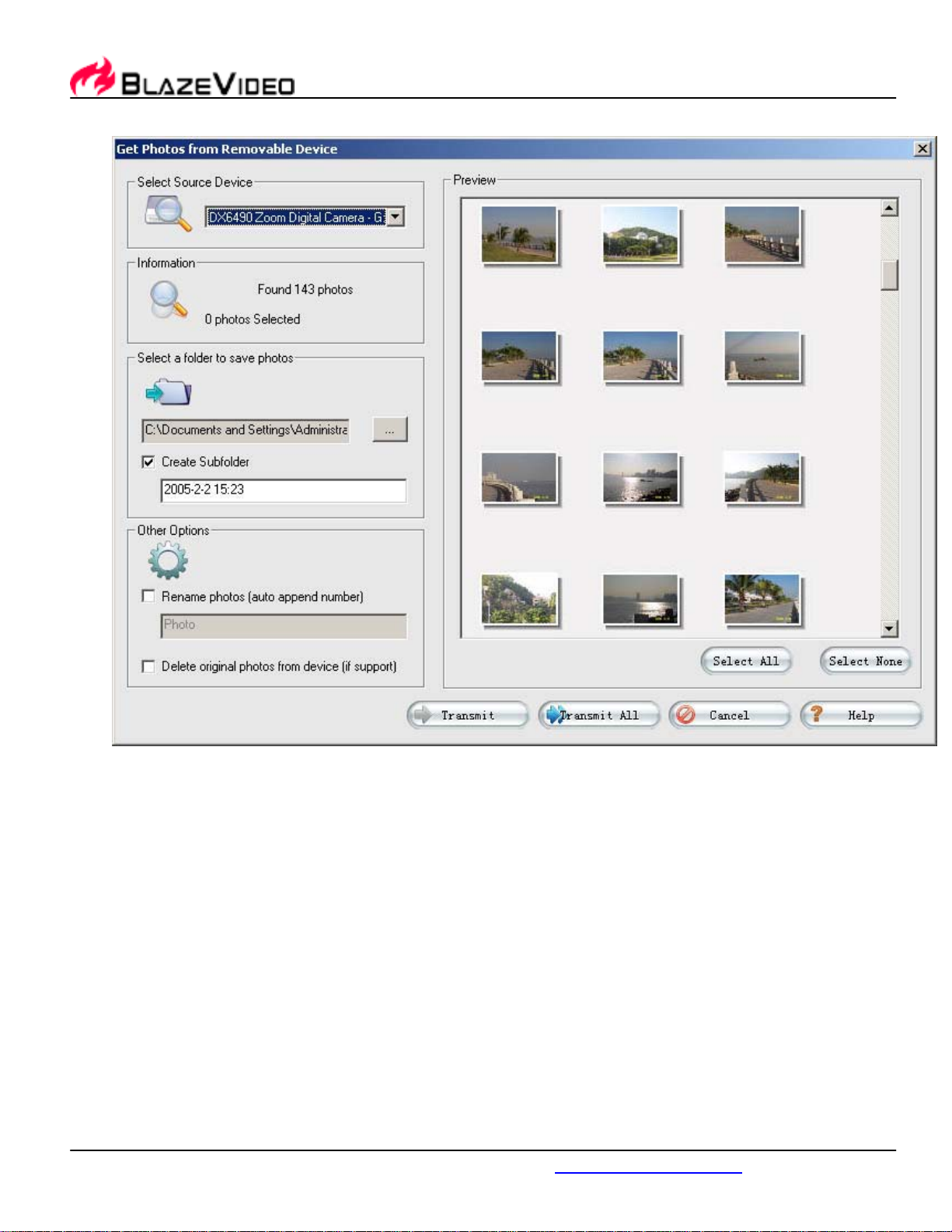

1. Get photo from camera or removable devices. Once connects camera or removable device to PC,

below dialog box will auto pops up:

BlazeVideo, Inc.

6

www.blazevideo.com

2. After select the desired image, click "Transmit" button, the selected images will be transmitted into
specified folder; Click "Transmit All", all images in the device will be transmitted into specified
folder, BlazePhoto will auto display all the selected images.

• Search on L ocal Disc

1. Click "Get Photo-> Searc h on Local Disc" or select "File ->Get Photo->Search on Local Disc" to
eject below dialog box:

BlazeVideo, Inc.

7

www.blazevideo.com

2. Drop -down click "Look In" box under "Search Options" to select your desired destination, default is
"All Hard Discs";
Drop-down click "Search Filter" to select the desired image format, default is "All Pictures";
Fill in the minimum size of the desired image, default is 50K.

3. Click "Search" button to start searching files, click "Stop Search" to stop searching files.

4. After search finishing, all the images will be listed in Search Results area, click a selected folder,
you will preview the thumbnails of all the images under it.

3.2 Organizing Photos

Organizing photo by different catalogs: by People, Place, Events, etc, you can also create your
desired tags.

1.

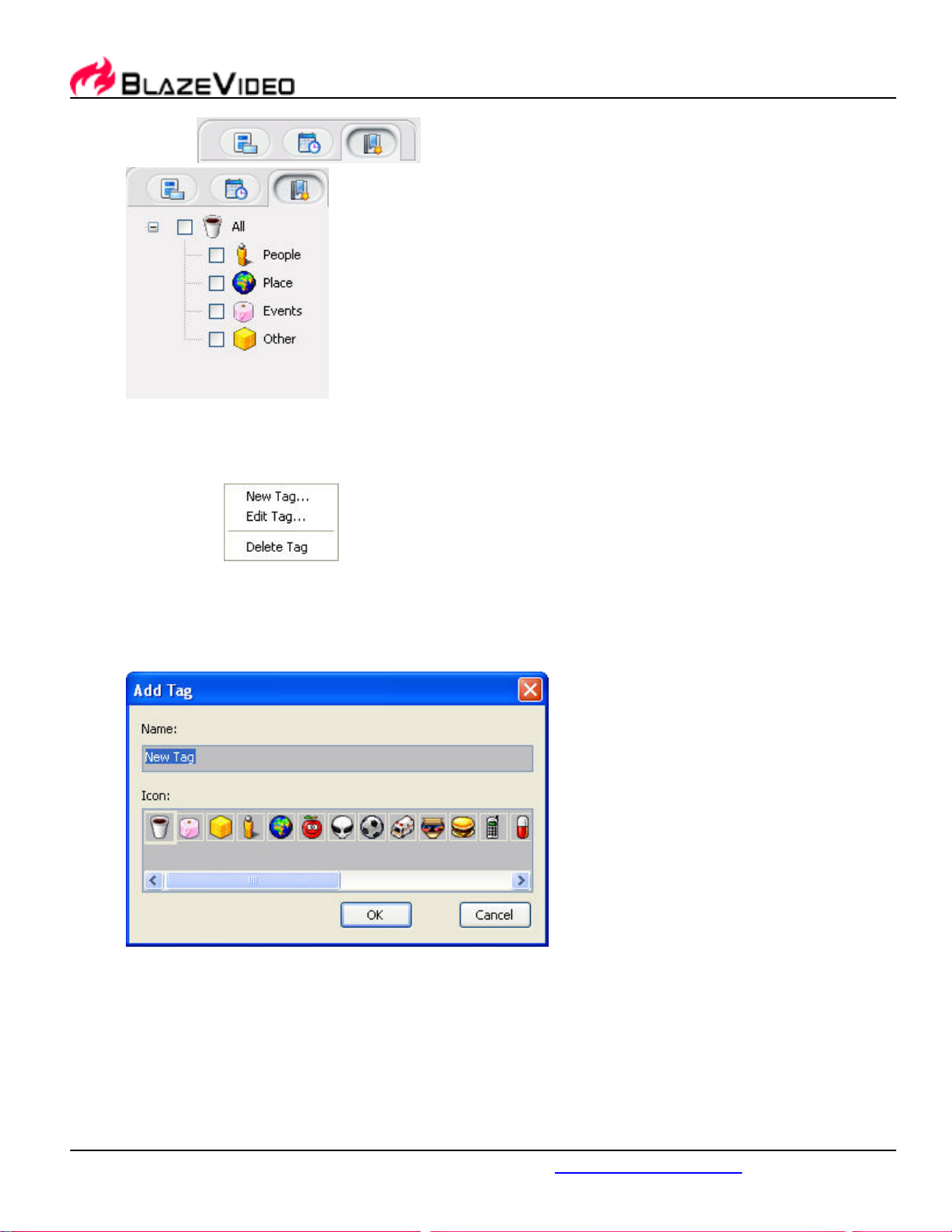

Get Photo from Catalog

In "Preview" window, click the third button "Get Photo from

BlazeVideo, Inc.

8

www.blazevideo.com

Catalog" , below tag folder tree will display:

Move mouse to blank area and right click, you will perform New Tag, Edit Tag, Delete Tag

operations.

2.

Create New Tag

Right click to select "New Tag", you will create a new tag.
Create new sub-tag: Move mouse to an existing tag, right click to select "New Tag", you will
create a new sub-tag under this tag.

Type your desired tag name, and select a tag icon, click "OK", a new tag name will be added
in tag tree.

3.

Edit Tag

Select a tag and right click "Edit Tag", below dialog box pops up for you to modify:

BlazeVideo, Inc.

9

www.blazevideo.com

Type new tag name and select a tag icon, click "OK", the tag will be modified.

4.

Delete Tag:

Move mouse to the desired tag, right click to select "Delete Tag", and click "Yes" to delete
this tag.

5.

Sort Photo by Tag:

Please take any one of below steps to add tag into image:

1. Click a tag, drag and drop it to a target image, the tag icon will display at the left
bottom of the image.

2. Select one or multiple images, right click to select "Attach to Tag", then select a target
tag, the tag icon will display at the left bottom of the image.

3. Select one or multiple images, drag and drop them into target tag, the tag icon will
display at the left bottom of these images.

6.

Remove Tag:

Right click a tagged image, select 'Remove Tag" and select the desired tag name you want
to remove, the tag icon will disappear from the image.

7.

View Photo by Tag:

Tick-on a tag, all photos with this tag will be displayed in right preview area.

8. Hide Tag Icons:
Move mouse to blank area in Thumbnail mode, right click to select "Hide Tag Icons".

3.3 Previewing Photos

Select a picture folder either from disc, from history record, or from catalog, if there are photos
under this folder, the images will display with thumbnails or single picture mode on the right preview
area.

• Select Photo Source:

Below three modes are available:

1. Get Photo from Disc: select a picture folder in folder tree, the right window will display
all the supported photos under this folder as thumbnails or single picture.

BlazeVideo, Inc.

10

www.blazevideo.com

2. Get Photo from History Record: BlazePhoto can auto add the viewed picture folder

3. Get Photo from Catalog: View photos by sort. (For the detailed sort ways, please refer

• Preview Modes:

There are below preview modes available:

1. Single Picture: display a current selected image

2. Big Thumbnails: display big thumbnails of all the images

3. Small Thumbnails: display small thumbnails of all the images

4. Preview_Thumbnail: upper area displays the selected image with large size, below

5. Full Screen Display: full screen display image.

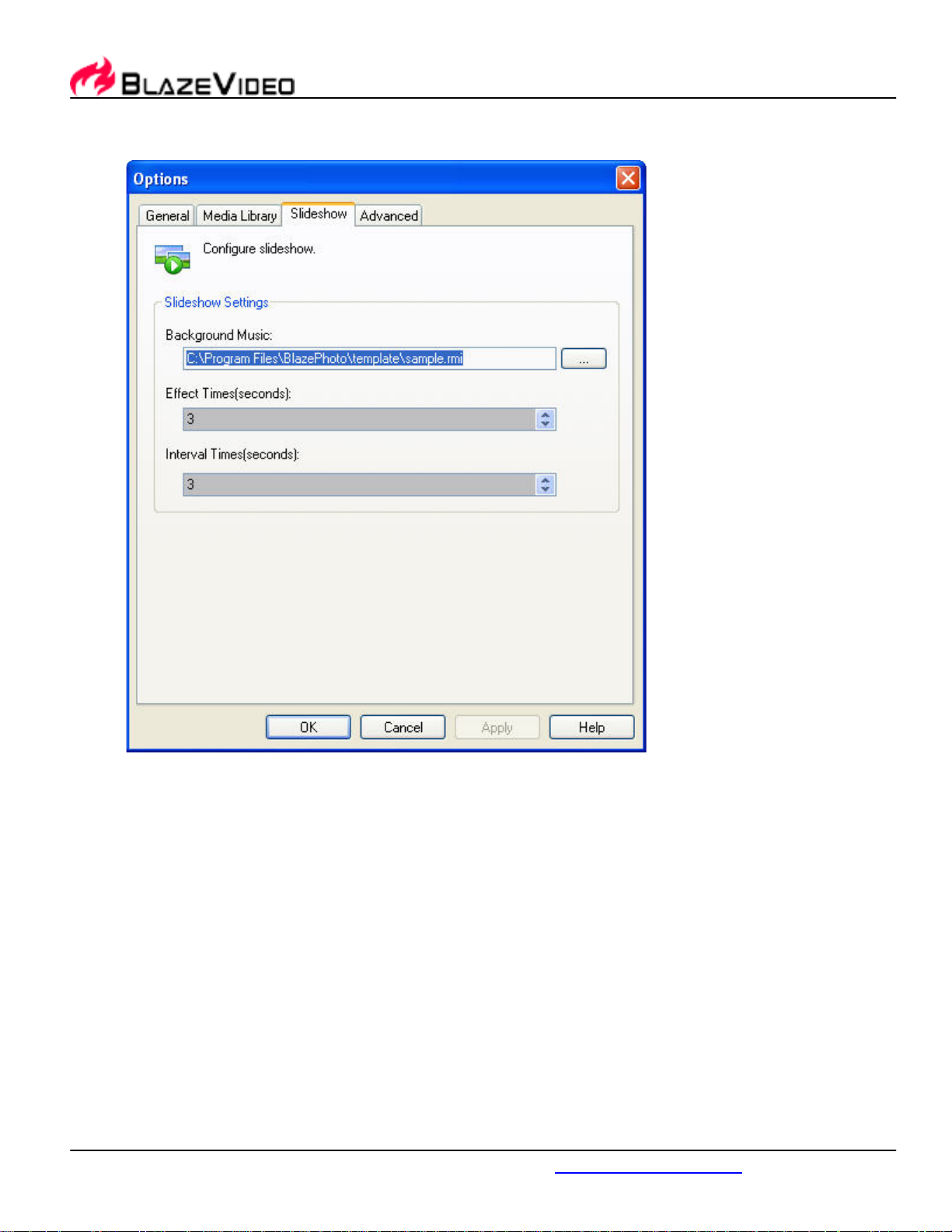

6. Slideshow: Slideshow preview all the images, you can also set background music,

Shortcut to switch preview modes:

into history record. Select a folder in history record, the right window will display all the
supported photos under this folder as thumbnails or single picture.

to Organizing Photos). Tick-on a desired sort, all the photos of this sort will display as
thumbnails or single picture.

area display thumbnails of all the other images.

effect time and interval time in Options Setting.

Double click thumbnails to switch to Single Picture mode;
Double click single picture to switch to thumbnail mode.

• Sort By:

1. Sort by Name: sort pictures by file name.

2. Sort by Time: sort pictures by time of creating file.

3. Sort by Size: sort pictures by file size.

4. Sort by Type: sort pictures by file type, for same type files, sort by file name.

• Right Click Menu:

There are three menus available:

1. Right click a thumbnail to pop up below menu:

BlazeVideo, Inc.

11

www.blazevideo.com

View the selected image
Edit the selected image
Add the selected image into System Tray
Copy the selected image
Cut the selected image
Delete the selected image from hard disk
Add tag into selected image
Remove tag icon from selected image
Print the selected image
Set the selected image as desktop wallpaper
Locate the selected image on hard disk

Show properties of the selected image

2. Move mouse to blank space between thumbnails, right click to popup below menu:

Select all the thumbnail photos
Hide tag icon on the photos

3. In Single Picture displaying status, right click the image to popup below menu:

counter clockwise rotate photo
clockwise rotate photo
Zoom in or zoom out to make photo fit in window

Display photo with actual size

BlazeVideo, Inc.

12

www.blazevideo.com

3.4 Editing Photos

Select an image, click "Edit" button, or right click a thumbnail then select "Edit", Edit window will
appear as below:

1. Select Photos
in Preview stage, select one or more photos, and the selected photos will display in Picture
Tray.
Note: If holding photos in Picture Tray, you will keep the selected photos in Picture Tray
even when you switch to other window.
Hold Photos:

1. Select a photo and click "Hold" button in Picture Tray;

2. Select a photo and drag it into Picture Tray;

3. Select a photo and right click to select "Hold in Picture Tray"
Clear Photos from Picture Tray:

1. Select the desired photo and click "Clear" button, you will clear the selected photo from
Picture Tray.
Note: If not select any photo in Picture Tray, you will clear all photos in Picture Tray.

2. Edit Photos
Select an image, click "Edit" button, or right click a thumbnail then select "Edit", Edit window
will appear.

General:

1.



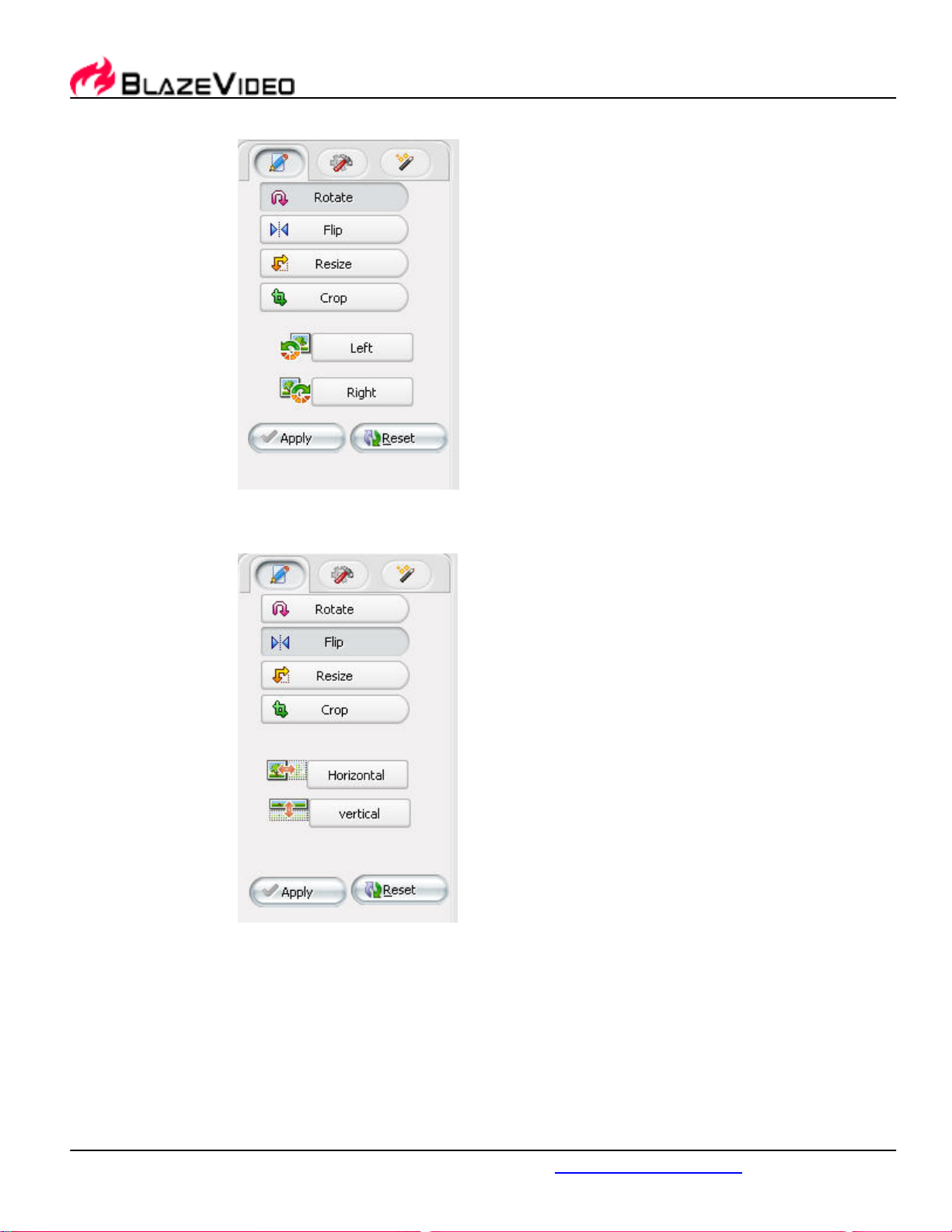

Rotate: Click “Left" button to counter-clockwise rotate image; click "Right"
button to clockwise rotate image.

BlazeVideo, Inc.

13

www.blazevideo.com

Click "Apply" to apply the result, click "Reset" to keep the original status.



Flip: Click "Horizontal" to horizontally flip image, click "Vertical" to vertically flip
image.
Click "Apply" to apply the result, click "Reset" to keep the original status.



Resize: Default is to "Manual" resize, there are below three ways to resize:

1. Drag the arrow button around the image to resize, the current image size will
display in the left edit box;

2. Type your desired width and height, or type your desired percent number;

3. Drop down click to select desired resolution to resize.
Keep Ratio: Select to keep the width to height ratio as same as original image.

BlazeVideo, Inc.

14

www.blazevideo.com

Click "Apply" to apply the result, click "Reset" to keep the original status.



Crop: There are two crop modes available, "Free Crop" and "Keep Aspect
Ratio". Default is "Free Crop".
Free Crop: Move highlight area or freely drag the arrow button around the
image to select crop area.
Keep Aspect Ratio: Select to keep the width to height ratio as same as
original image.
Click "Apply" to apply the result, click "Reset" to keep the original status.

2.

Enhance Photos:



Remove Red Eye: drag and drop to select the red eye area, you will see the
after effect of removing red eye.

BlazeVideo, Inc.

15

www.blazevideo.com

Click "Apply" to apply the result, click "Reset" to keep the original status.



Adjust Color: To change brightness, contrast, hue and saturation of the image.
Drag the slide bar or click "-", "+" button to adjust.
Click "Apply" to apply the result, click "Reset" to keep the original status.



Blur/Sharp: Rightwards drag the slide bar to make image sharp; leftwards drag
to be blur.

BlazeVideo, Inc.

16

www.blazevideo.com

Click "Apply" to apply the result, click "Reset" to keep the original status.



Enhance: Auto adjust color of photos. There are three enhance effects:
Normalize, Stretch, Equalize. Click one desired effect to enhance image.
Click "Apply" to apply the result, click "Reset" to keep the original status.

3.

Create:



Add Text: Type characters in Edit Box, click "Font" button to select font style,
size, effect and color in the pop-up box.
Click "Apply", the characters will be added into image. Left click the text, you

BlazeVideo, Inc.

17

www.blazevideo.com

can modify the size and color of text.



Add Clips: Click and select a clip in the clip list, the clip will be added into the
image.
Click "Apply" to add clips; click other clip, you will change to other clip.

BlazeVideo, Inc.

18

www.blazevideo.com



Add Frame:
Click and select a frame in the frame list, the frame will be added into the image.
Click "Apply" to add frames; left click the frame, you will select other frame.



Filter:
Select a filter, drag the intension bar to adjust the effect, click "Apply" to apply

BlazeVideo, Inc.

19

www.blazevideo.com

the filter.

3. Save Phot os
After finishing editing, click "Save" or "Save As" button in the tool bar, or select "File->Save"
or "File->Save As" menu, you will save the edited image.
Note: If directly save image, BlazePhoto will backup the original photo and append .BAK to
extension in current directory. You can also set the saving option in Setting by tick-on or tick­off "Backup files and append .BAK to extension".

4. Edit Tool Bar

1. Undo: cancel last operation.

2. Redo: repeat last operation.

3. Copy: copy selected item onto clipboard.

4. Paste: paste the item on clipboard onto image.

5. Delete: delete the selected items, such as added clip, frame or text.

6. Merge All: merge all the added items(clip, frame, text, etc) into the image, not allowed
to modify again.

7. Save: save current image.

8. Save As: save current image as another file.

9. Zoom Out: display current image with smaller size(keeping original image size)

10. Zoom Bar: drag to change image displaying size(keeping original image size).

11. Zoom In: display current image with larger size(keeping original image size)

12. Fit to Window: make current image fit to window.

BlazeVideo, Inc.

20

www.blazevideo.com

13. Actual Size: display picture with actual size.

14. Show/Hide Original Picture: toggle-switch to show or hide the original picture

3.5 Creating

BlazePhoto provides three creating modes: Create Disc, Create Slideshow DVD, Create html
albums. Drop down click "Create" button or click the relative create button at the right bottom of the
main interface to select your desired create items.

• Create Disc:

Backup and burn image collections in the Picture Tray into CD disc, the interface is as below:

Select a CD writer and fill in the right disc volume info, click "Burn", you will begin to burn the
images.
Note: If you have not installed CD writer in your PC, the Target Drive box and below relative
info will not be available, you will not burn the images to CD disc.

BlazeVideo, Inc.

21

www.blazevideo.com

• Create Slideshow DVD:

Make all the image collections in Picture Tray into slideshow DVD, and select to burn it or not,

the interface is as below:

o

TV Mode: Set video standard as PAL or NTSC.
NTSC--National Television System Committee, mainly used in Japan, US, Canada,
Mexico, etc, with 720*480 resolution;
PAL--Phase Alternating Line, mainly used in China, Hongkong, Middle East and
Europe, with 720*576 resolution.

o

Display Mode: Set video display mode as LetterBox or Pan & Scan.

o

Aspect Ratio: Set aspect ratio as 4:3 or 16:9.

o

Interval Time: Set the interval time between two images.

o

Temporary Work Space: Specify a directory as the temp folder to create slideshow
DVD.

o

Output Folder: Specify a directory to save the created slideshow DVD.

Click "Start" button to create slideshow DVD. After creating finished, a dialog box will appear
to enquire you whether to burn into disc, if click "Yes", you will burn the DVD into disc just
like burn a normal DVD movie.

• Create Html Album:

Create all the image collections in Picture Tray into html page, and enquire you whether to
burn into disc, the interface is as below:

BlazeVideo, Inc.

22

www.blazevideo.com

Select your desired album style, destination folder and other settings, click "OK", you will
begin to create a html page. After creating finished, a dialog box will popup to enquire you
whether to burn into disc, if click "Yes", you will burn the html page into disc just like burn a
normal data disc.

3.6 Sharing Photos

BlazePhoto provides three sharing modes: Print, Export to Folder and Send Email. Drop down click
"Share" button or click the relative share button at the right bottom of the main interface to select
your desired share items.

BlazeVideo, Inc.

23

www.blazevideo.com

• Print:

Print all the image collections in Picture Tray, the operation interface is as below:

o

Layout: There are two modes available: Individual Prints and Picture Package, which
are described as below:

1. Individual Prints: print selected pictures one by one, multiple different images
on one page is possible.

2. Picture Package: same one picture per page, the copies depends on the image
size and picture package format.

o

Individual Print Format: multiple prints size available: 2.1"×2.8", 3.5"×5", 4"×6", 5"×7",
Full Paper, Actual Size.

o

Print Single Photo Per Page: print one image per page, maybe there is some blank
space on paper.

o

Crop to Match Paper: the aspect ratio of the image may differ with the printed one,
crop some part to fit paper size.

BlazeVideo, Inc.

24

www.blazevideo.com

o

Picture Package Format: if select "Picture Package" layout, decides how many copies
of the same image printed on each page.

o

Select Printer: if multiple printers installed, please select a target printer.

o

Page Range: Print All: Print all previewed image; Print Range: select to print specified
images.

o

Page Setup: Set options of print paper, such as size and specification, etc.

After finishing above setting, click "Print", you will begin to print your image collections.

• Output to Folder

Batch change the info of all the images collected in Picture Tray, such as file size, format,
and name, the interface is shown as below:

o

Destination:

1. Place modified image in source folder: Save all the image collections in Picture
Tray into their original folder.

2. Place modified image in following folder: Export all the image collections in
Picture Tray into specified folder.

o

Image Size and Format:

1. Maximum Photo Size: the changed image si ze is limited within your specified
size.

2. Convert Image to: Change image format.

o

File Options

1. Remove original files: delete the original image files from hard disk folder after
conversion finishes.

BlazeVideo, Inc.

25

www.blazevideo.com

2. Rename modified files: rename the modified image files as "character in edit
box" + number.

After finish above settings, click "OK", you will begin to batch convert files.

• Send Email

Send all the image collections in Picture Tray as mail, interface is as below:

o

Client: to specify mail client, such as Outlook, Outlook Express, Hotmail, etc.

o

E-Mail Size: to specify the maximum size of the mail.

o

Image Size and Compression: to select the maximum image size and the quality of
JPEG file after conversion.

After finishing above settings, click "OK", the selected email program will launch to send
email.

3.7 Settings

1. General

BlazeVideo, Inc.

26

www.blazevideo.com

o

Language: Select the interface language, you should relaunch the program after
setting to make the change take effects.

o

Default Start Folder: Set the default folder to open after launching program.

o

Capture Picture Save Folder: Select a folder to save the image captured from digital
devices.

o

Backup Files on Save: after editing images, backup the original files as "file
name.BAK" before saving edited file.

BlazeVideo, Inc.

27

www.blazevideo.com

2. Media Library

o

Location: specify the location of the media library.

o

Compact Now: there is maybe some useless info for media library, click "Compact
Now" to delete useless info to reduce media library size.

BlazeVideo, Inc.

28

www.blazevideo.com

3. Slideshow

o

Background Music: add background music for slideshow preview, can be mp3 or wma
file.

o

Effect Time: the effect time between two images.

o

Interval Time: the interval time between two images.

BlazeVideo, Inc.

29

www.blazevideo.com

4. Advanced

o

Show tags icon: show tags icon while previewing pictures.

o

File Associations: Set BlazePhoto as default application to view pictures, click it to pop
up below menu:

BlazeVideo, Inc.

30

www.blazevideo.com



Select All-Select all file formats in the list to be default opened by BlazePhoto



Select None-Cancel all file associations with BlazePhoto



Default-Click to select the file type default associated with BlazePhoto



OK-Submit the file associations setting, the selected file format will be directly
opened by BlazePhoto



Cancel-Exit and keep original setting

. Contact Support

Please collect the following information and E-mail us. We will respond you as soon as possible:

• Your device brand name and model

• BlazePhoto’s version num ber

• Windows Operating System’s version

• Hardware configuration (sound card, VGA card, Image Capture card) and their specifications

• The warning message

• The time and process descriptions about your troubles.

Email: [email protected]
Web site:

http://www.blazevideo.com

BlazeVideo, Inc.

31

www.blazevideo.com

BlazeVideo Media Player

User’s Guide

Table of Contents

Ⅰ. Overview.................................................................................................................................................................................2

1.1 Introduction.........................................................................................................................................................................2

1.2 Features...............................................................................................................................................................................2

1.3 System Requirements..........................................................................................................................................................2

Ⅱ. Appearance..............................................................................................................................................................................3

Ⅲ. Operation Guide......................................................................................................................................................................3

3.1 Open File ................................................................................................................................................................3

3.2 Switch File ..............................................................................................................................................................4

3.3 Seek Special Moment ..............................................................................................................................................4

3.4 Take Snapshot..........................................................................................................................................................4

Ⅳ. Contact Support ..................................................................................................................................................................5

Ⅰ. Overview

1.1 Introduction

BlazeVideo Media Player is a simple and easy to use media file player. You can playback all media file type, capture
the motion video as still image file, freely switch to previous and next media file to playback, and drag the slide bar to
seek the special video moment.

1.2 Features

• Playback most popular media file type

• Capture video as still image

• Freely manage playlist and switch media file

• Seek the special video moment

• High Definition & Crystal Clear Video Quality

• Superior Audio Quality

1.3 System Requirements

Basic
CPU Intel Celeron 600MHz or higher
System Memory 128MB RAM or higher
Operating System Windows 98 SE/ME/ 2000/ XP

BlazeVideo, Inc.

www.blazevideo.com

Display Card Have 24 Bits resolution and support DirectX, 8MB Video-ROM or more

Sound Card

DirectX DirectX 8.1 or later

PCI sound cards, Integration chipset on Mother Board, USB audio
devices etc. compatible with Windows and stereo speakers

Ⅱ. Appearance

Ⅲ. Operation Guide

3.1 Open File

Click to select target media files on your PC to playback. You can select one or multiple files to play.

BlazeVideo, Inc.

www.blazevideo.com

3.2 Switch File

Click to switch to previous file to playback.

Click

Or you can double click a file in playlist to directly switch to play this file.

to switch to next file to playback.

3.3 Seek Special Moment

Drag and drop the slide bar in the main menu, you will seek special moment to play. The video keeps change while you
are dragging.

3.4 Take Snapshot

Click to take snapshot, you will capture the current motion video as still image. Every one click captures one image.
The captured image will auto display in Capture floating panel with the sequence number 0, 1, 2, 3, etc.

You can freely capture, preview, delete, copy or save the snapshot in Capture floating panel.

Preview: Click to preview the selected image in Paint.

Remove: Remove the selected image from capture list.

Copy to Clipboard: Copy the selected image to clipboard.

Save: Save the selected image, the saving directory is default as “My Pictures”.

BlazeVideo, Inc.

www.blazevideo.com

Ⅳ. Contact Support

Please collect the following information and E-mail us. We will respond you as soon as possible:

• Your device brand name and model

• BlazeVideo Media Player’s version number

• Windows Operating System’s version

• Hardware configuration (sound card, VGA card, Image Capture card) and their specifications

• The warning message

• The time and process descriptions about your troubles.

Email: [email protected]
Web site:

http://www.blazevideo.com

BlazeVideo, Inc.

www.blazevideo.com

BlazeVideo Magic

V2.0 User Manual

Blaze Video Magic is a powerful but easy to use utility for multimedia

file conversion. Expanding your multimedia entertainment, Blaze Video
Magic realizes you to freely access and enjoy video, music, photo on
PC, MP3 player, portable MPEG4 device, PS game player or 3G smart
phone. Possessing Blaze Video Magic, you will have a wonderful and
extensive digital entertainment life.

Convert Video: You can convert *.RM, *.RMVB, *.AVI, *.WMV, *.ASF,
*.MPG, *.MPEG, *.MPE, *M1V, *MPV2, *.MP4, *.DAT, *.MOV, *.VOB
file to AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, PSP-MPEG4,
3GP-MPEG4, AVI-DIVX file. You can also split a large file into smaller
video clips to fit your device memory.

Convert Music: You can convert all files with audio to MP3 format. You
can directly convert audio file, or extract sound tracks from video and
save as MP3 format.

Convert Photo: You can convert pictures such as *.BMP, *.JPG, *.GIF,
*.TIF, *.PNG to JPEG format.

There are three main programs:

z

Convert Video

Blaze Video Magic allows you to convert multiple video files, the source file
can be *.RM, *.RMVB, *.AVI, *.WMV, *.ASF, *.MPG, *.MPEG, *.MPE, *.MP4,
*.DAT, *.MOV, *.VOB, the target output file can be AVI-MPEG4, ASF-MPEG4,
MP4-MPEG4, PSP-MPEG4, 3GP-MPEG4, AVI-DIVX.

The operation is very easy, just follow below main steps:

1. Add Video File:

Add: Click "Add" button to select the source video file you want

to convert.

Delete: Delete the selected file from source file list.

Play: Click to preview and play the selected

video file.

Stop:Click to stop playing the current playback file.

2.

Output Format: Drop down click to select your desired output format, five
items available: AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, 3GP-MPEG4,
AVI-DIVX.

Setting: Click to popup a box for video output setting, please refer to Video

Output Setting.

3.
Path:

Video output path is defaultly set as "My Document/My Videos".

Browse: click "Browse" you can change the output path.
Location: click "Location" you can quickly open the output folder and access

the converted video file.

Output Setting:

Set Output

4.

Click "Start" button at the bottom of window, you will begin to convert the
added files.

In Video convert page, move mouse to "Output Format ", drop down click to
select your desired output format, then click “Setting” , “Video Output Setting”
box will eject for video output setting.

Note: This setting will take effect for all files added in the file list.

Convert

Here you can freely set audio and video parameter of your desired output file,
including audio compressor & format, VCD Channel (availabl e only for *.DAT
source file), video compressor, size, bit rate, quality, FPS, key frame according
to your requirement.

Split: Split a large video file into smaller video clips to fit your device memory,
drop down click to freely select Not Split, Split to 1 part, Split to 2 parts, Split to
3 parts or Split to 4 parts.

Note: Depending on the output file format, some of the parameter options will
not be available for change of setting.

Convert Music

z

Click "Music" button at the top of Main window to switch to Music convert
window, here you can freely convert music file.

Blaze Video Magic allows you to convert all files with audio into MP3 format,
you can directly convert audio file, or extract sound tracks from video and save
as MP3 format .

Please follow below steps to convert music file:

1. Add Source File:

Add: Add the source file you want to convert, the source file may

be audio or video file.

Delete: Delete the selected file from source file list.

Play: Click to play the selected file.

Stop:Click to stop playing the current playback file.

2.

Output Setting:

Output Format: Drop down click to select your desired output format, five
items available: CD Quality MP3(CBR), High Definition Quality MP3(CBR), CD
Quality MP3(VBR), High Definition Quality MP3(VBR), User Defined MP3.

Setting: Only activated for "User Defined MP3" format. Click to popup "MP3
Output Setting" box, here you can freely set the output MP3 file's properties,
including MP3 mode, sample rate, channel, quality, bit rate, etc.

Set Output

Path:

Video output path is defaultly set as "My Document/My Music".

Browse: click "Browse" you can change the output path.
Location: click "Location" you can quickly open the output folder and access

the converted video file.

4.

Click "Start" button at the bottom of window, you will begin to convert the
added files.

Convert

z

Convert Photo

Click "Photo" button at the top of Main window to switch to Photo convert
window, here you can freely convert picture file.

You can convert mulitple pictures including *.BMP, *.JPG, *.GIF, *.TIF, *.PNG
to JPEG format, and you can freely set the output picture's resolution to
change output picture's file size. The operation is very easy, just follow below
main steps:

1.

Add: Select the picture you want to convert.

Delete: Delete the selected picture from source file list.
Preview: Click a picture in file list, you can preview the selected picture in right

Preview window.

Add Picture:

2.

Output Setting:

Output Format: defaultly set as "JPEG" format.
Resolution: defaultly set as "800x600", you can also drop down click to set

resolution as"1024x768".

Quality: defaultly set as "100%".

3.

Set Output Path:

Photo output path is defaultly set as "My Document/My Pictures".

Browse: click "Browse" you can change the output path.
Location: click "Location" you can quickly open the output folder and access

the converted picture.

4.

Click "Start" button at the bottom of window, you will begin to convert the
added pictures.

Convert

System Requirements

Basic Recommended
CPU 1.0GHZ 2.0GHZ
System Memory 256MB RAM 512MB RAM
Operating

System
Hard-disk

Available
Capacity

DirectX DirectX 8.0 or later

Required
Software

Microsoft Windows 98/ME/2000/XP

Depends on converted file's size and coding
method, At least 1 GB free space on system
disc

Windows Meida Player 9.0 or later
Real Player 10.0 or later
QuickTime p layer 6.5 or lat e r
* For above required software, higher v ersion
is better.
