Spectare SP 02070, 70-HD User Manual

Download

Page 1

User Guide

Model: SP 02070

Page 2

Warranty

Please contact the original retail location where this product was purchased to obtain warranty information and service.

Contact

For questions and support on this product that can not be solved by your retailer please contact:

Spectare Products 6081 Meridian Ave Suite 70-308 San Jose, CA 95120 http://spectareproducts.com [email protected]

Page 3

Contents

Important Notes ............................................................... 2

What’s Included ............................................................. 3

Product Description .......................................................... 4

Quick Start Guide ............................................................ 6

Installing the Software Drivers ......................................... 8

Installing the Software Tools ........................................... 9

Using the Menu ............................................................. 10

Capture Mode ................................................................. 11

Video Mode .................................................................... 12

Audio Record Mode .................................................... 13

Music Mode ................................................................... 14

Playback Mode ............................................................. 16

e-Book Mode ................................................................. 17

Game Mode ................................................................... 17

Connecting to a TV ....................................................... 18

Remote Control ............................................................. 19

Connecting to a Printer ................................................... 19

Mass Storage: USB Connection ..................................... 20

PC Web Cam ................................................................. 22

Troubleshooting .............................................................. 23

Technical Specifications ................................................. 24

Discarded electric appliances are recyclable and should not be discarded in domestic waste. Please actively support us in conserving resources and protecting the environment by returning this appliance to the collection centers (if available).

Battery Disposal: Do not incinerate, disassemble or short circuit the battery. Do not expose the battery to temperatures above 113o Fahrenheit.

Please observe the local regulations regarding the disposal of exhausted batteries and old equipment.

Spectare 70-HD Camera / Player / Recorder

user's guide

Page 4

Thank you for purchasing the Spectare 70-HD Camera / Player / Recorder. Please

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT

CAUTION: RISK OF ELECTRIC SHOCK. DO NOT DISASSEMBLE THIS UNIT.

VENTILATION - The device should be situated so that its location or position does

HEAT - The device should be situated away from sources of high heat such as

POWER SOURCE - The device should be connected to a power supply only of

CLEANING - The device should be cleaned gently using a soft cloth dampened

NON USE PERIOD - The power cord for the device should be unplugged from the

AVOIDING SURGES- For added protection during a lightning storm, unplug the

OVERLOADING - Do not overload wall outlets or extension cords, as this may

SERVICING - The user should not attempt to service the device beyond those

take some time to read through and follow these important safety and operation instructions.

EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings.

radiators or stoves.

the type described in the technical specification of this user guide.

with lens cleaning fluid (not included). Do not clean the inside.

outlet when the unit is left unused for a long period of time.

device from wall outlets to prevent damage to the product due to power line surges.

result in fire or electrical shock

means described in the operating instructions. All other servicing should be referred to qualified service personnel.

2 Spectare 70-HD Camera / Player / Recorder

Page 5

What’s Included

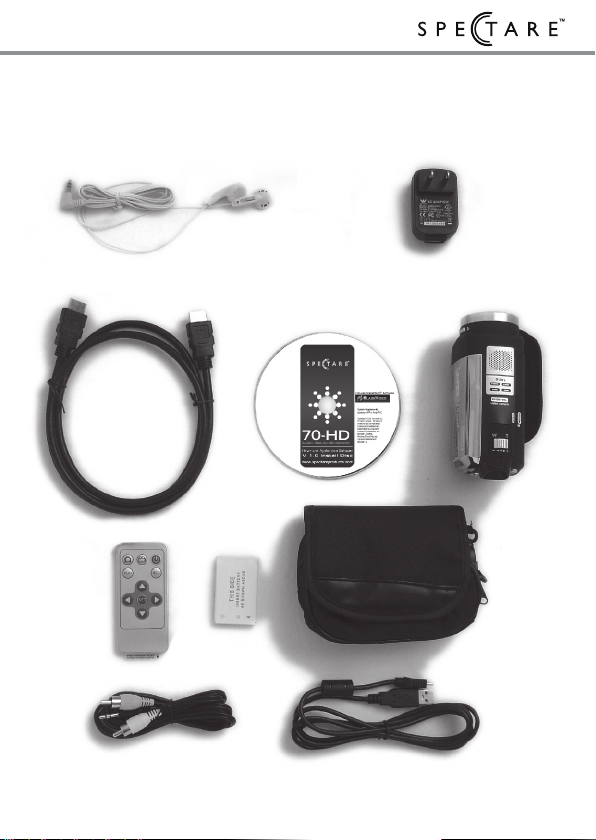

The following items should be included:

Please contact your retailer if you have not received any of these items

Earphones AC Adapter Plug

HDMI Video Cable

CD ROM 70-HD Camera

Battery Soft Case Remote control

Audio/ Video Cable USB Cable

user's guide

Page 6

Product Description

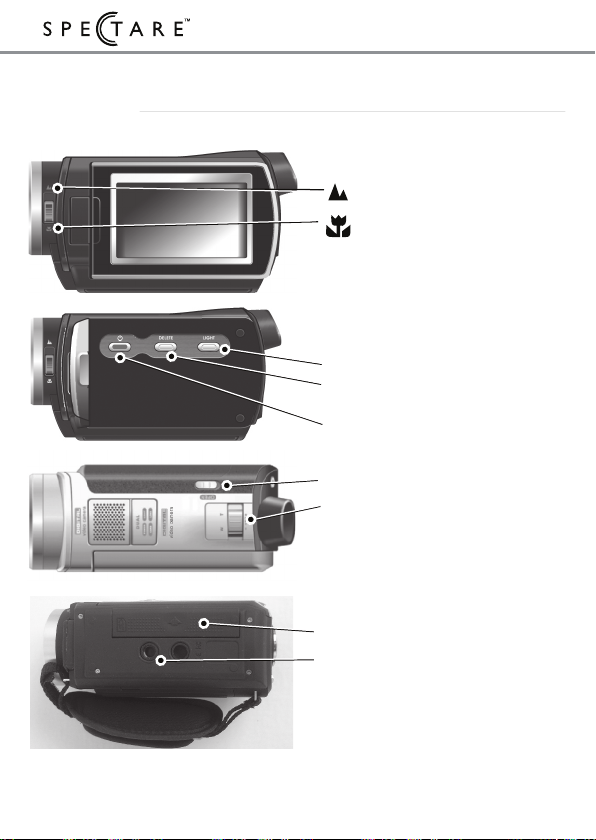

SIDE: camera closed

Normal / Far Focus

(over 15”)

Close Focus

(12” to 15”)

SIDE: inside panel

LIGHT

Press for video fill light

DELETE

Press to delete images in

playback mode

POWER

Press and hold to turn on/off

TOP

Battery Cover Access Zoom Control

W: T:

BOTTOM

Press and hold for wide angle

Press and hold for telephoto

SD Memory card access Tripod socket

4 Spectare 70-HD Camera / Player / Recorder

Page 7

Product Description

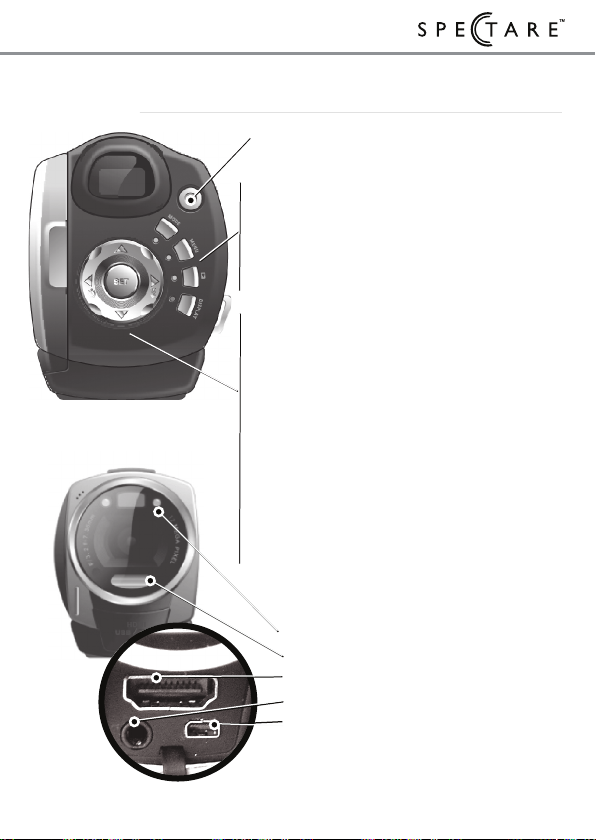

BACK

SHUTTER

m m m u m

LED Indicator s

Takes the photo in Camera mode, stops

and starts the recording in Video and Audio Record modes.

MODE

: Change from Camera, Video, Music....

: Access to the settings menu

: Enters the playback mode

DISPLAY

: Changes the on-screen display

: Indicates battery charging and power to

the camera.

: Upward Selection

Selects the item above or has specific functions depending on the mode.

: Left Selection

Selects the left item or has specific

SET

: SET

functions depending on the mode.

Confirms the selection or has specific functions depending on the mode.

: Right Selection

Selects the right item or has specific functions depending on the mode.

: Down Selection

Selects the item below or has specific functions depending on the mode.

Light for Vi deo

Flash

HDMI Video Connection

Audio/ Vide o Out:

USB

: Fill light for video

: Flash for still image Capture

: Access to USB / power connector

FRONT

user's guide

Page 8

Quick Start Guide: Installing the battery and cards

To begin using your Spectare 70-HD Camera / Player / Recorder follow these simple instructions:

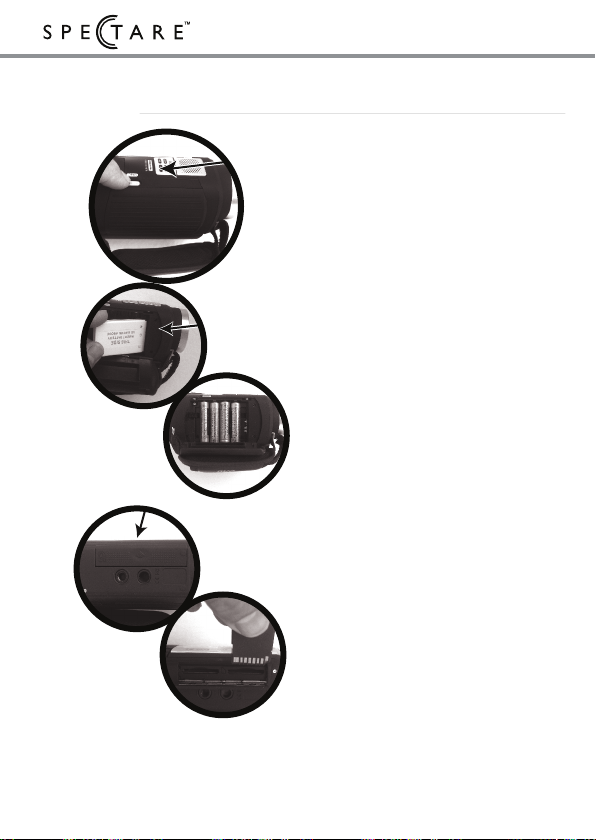

1. Press the button marked “open” on the top of the camera as shown to access the battery compartment.

2. Insert the Lithium rechargeable battery included in the package into battery compartment as shown.

NOTE: Please ensure the battery is in the position shown on the left before inserting into the camera.

Alternately, you can insert 4 AAA batteries (not included) into the battery compartment as shown.

3. Turn the camera over on the bottom and press the bottom panel in the direction of the arrow to release the door to the memory card slots.

Insert one or two SD Cards (not included) into either or both of the memory slots in the bottom of the camera. The cards can only be placed in one direction so if they do not fit then turn them around. Press to “click” them in place then close the door.

Spectare 70-HD Camera / Player / Recorder

Page 9

Quick Start Guide: Charging the battery

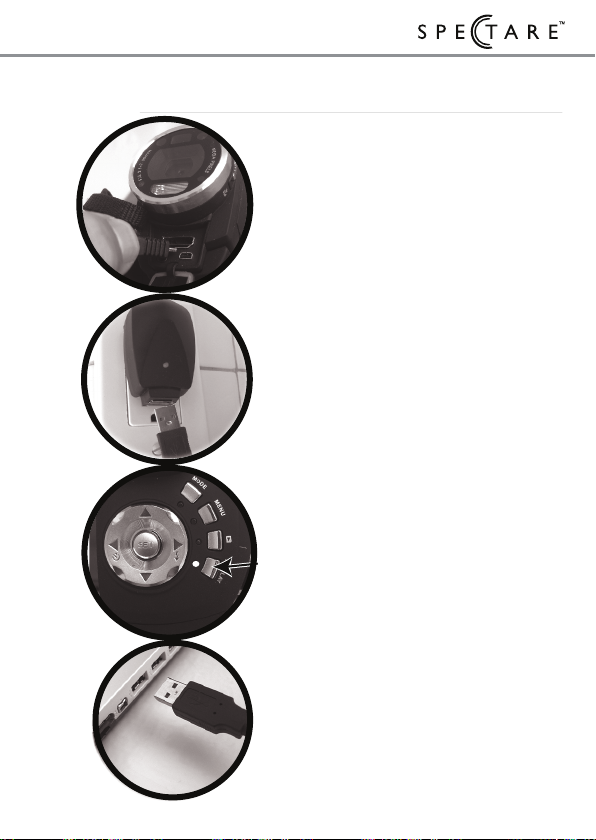

4. With the Lithium rechargeable battery installed, open the connection cover on the front panel and plug in the SMALL end of the USB cable into the camera.

5. Plug in the AC Adapter to a wall outlet and then plug in the LARGE end of the USB cable into bottom of the AC Adapter

6. When the camera battery is charging a red light will be illuminated on the back panel.

Let the camera battery charge for 24 hours before the first use

NOTE: You may use the camera normally while it is connected to the AC power adapter and the battery is charging.

7. Alternately, you can charge the camera battery by connecting the large end of the USB cable to a computer. Before connecting the camera to the computer please follow the steps on page 8 to install the drivers. However, while connected to a PC the camera monitor will go blank and you will not be able to use the camera.

After you have completed these steps turn on the camera and go to the General Settings Menu to set the date and time (see page 10)

user's guide

Page 10

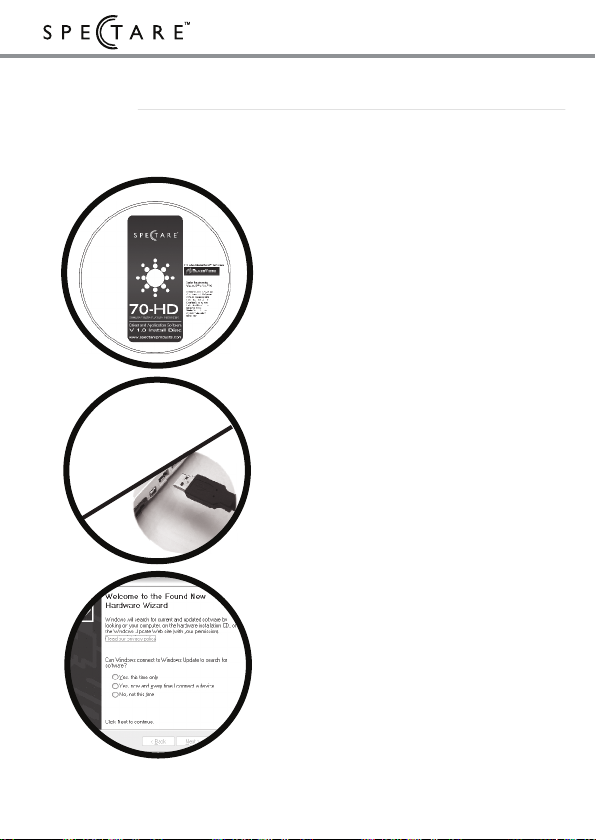

Installing the Software Drivers

IMPORTANT: INSTALL THE DRIVER

SOFTWARE BEFORE CONNECTING THE CAMERA FOR THE FIRST TIME.

Insert the software CD into your

Windows PC computer and the installer application will run automatically. (If the CD does not run automatically, double click Bdvdarun.Exe in the CD root folder)

NOTE: The drivers are for Windows PC

computers only, there are no drivers needed for Mac computers.

RESTART COMPUTER

then

On the Main Menu screen of the CD click:

“Install Device Driver”

Follow the on Screen instructions to

install the drivers onto your computer system

NOTE: You must agree to the License Agreement and accept the terms to continue the installation

Click “Finish” to complete installation Restart your computer

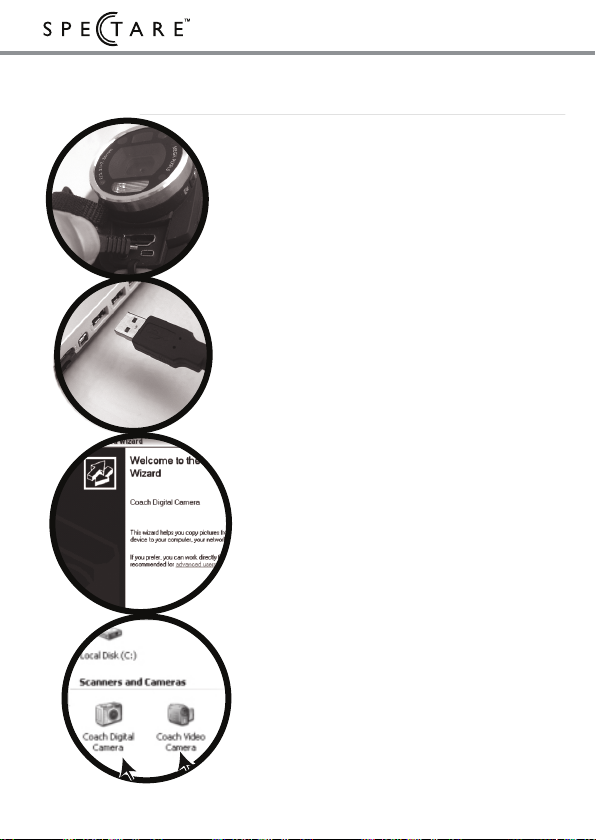

After Restart connect the 70-HD

Camera using the USB Cable provided upon the first connection the Hardware Wizard will automatically launch. Follow the on Screen instructions to install the drivers onto your system.

Spectare 70-HD Camera / Player / Recorder

Page 11

Installing the Software Tools

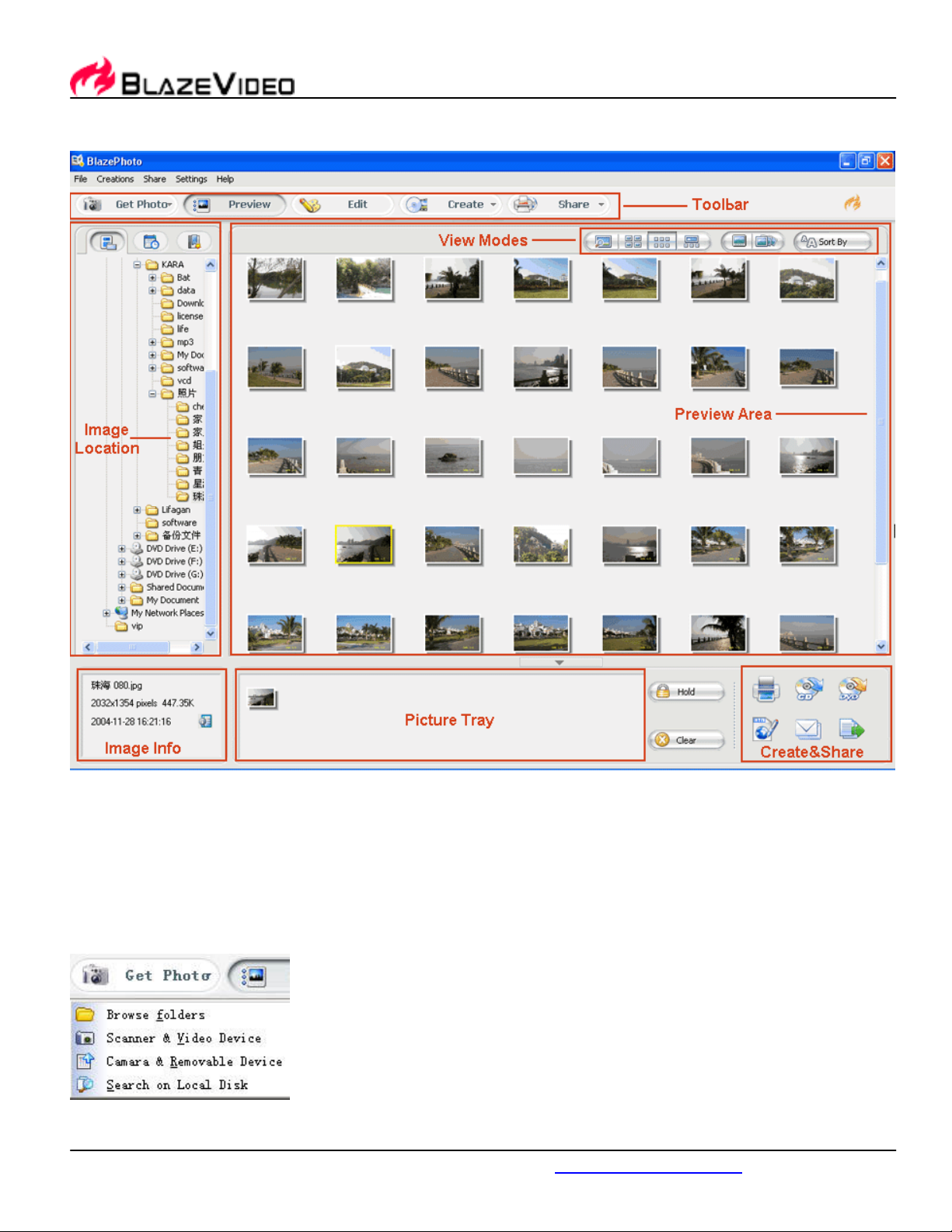

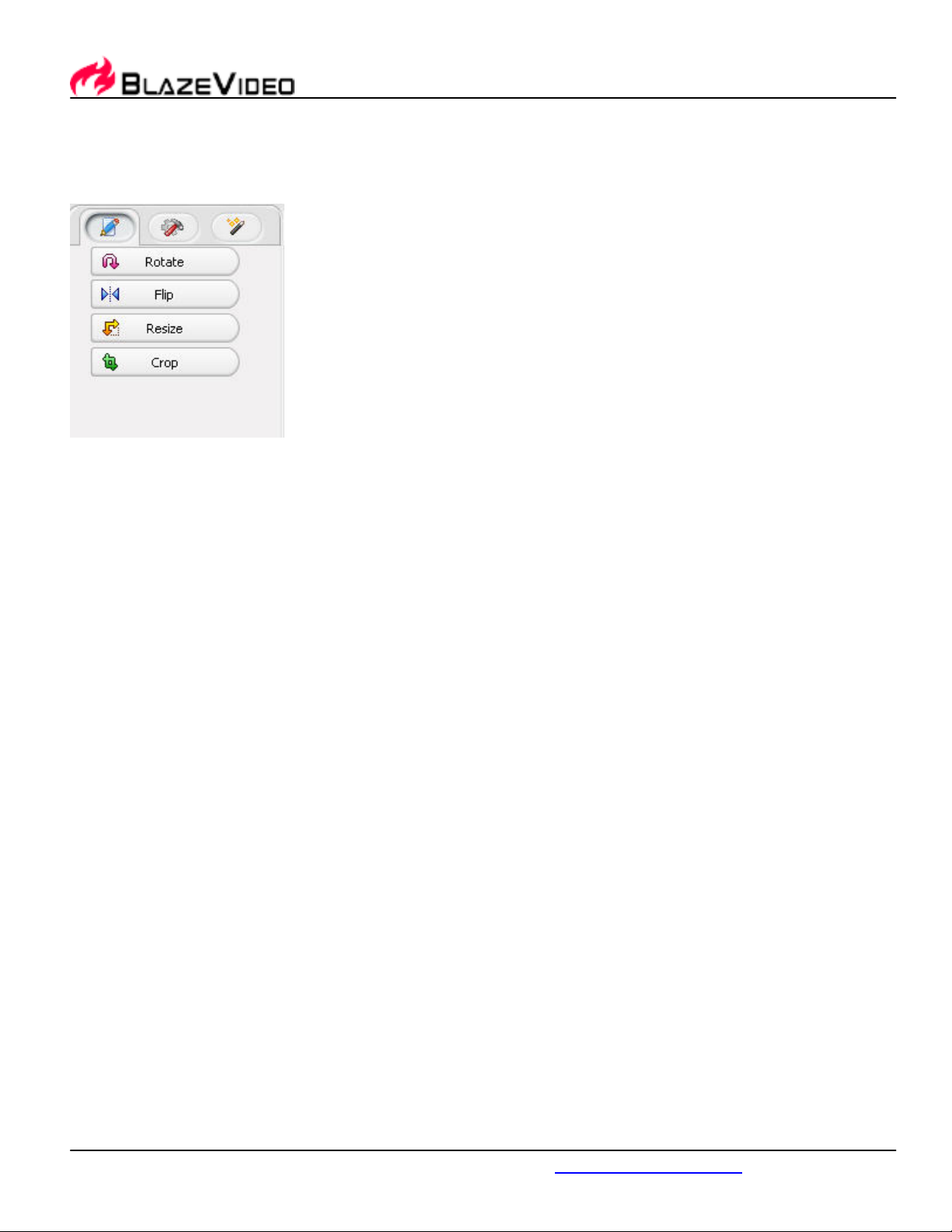

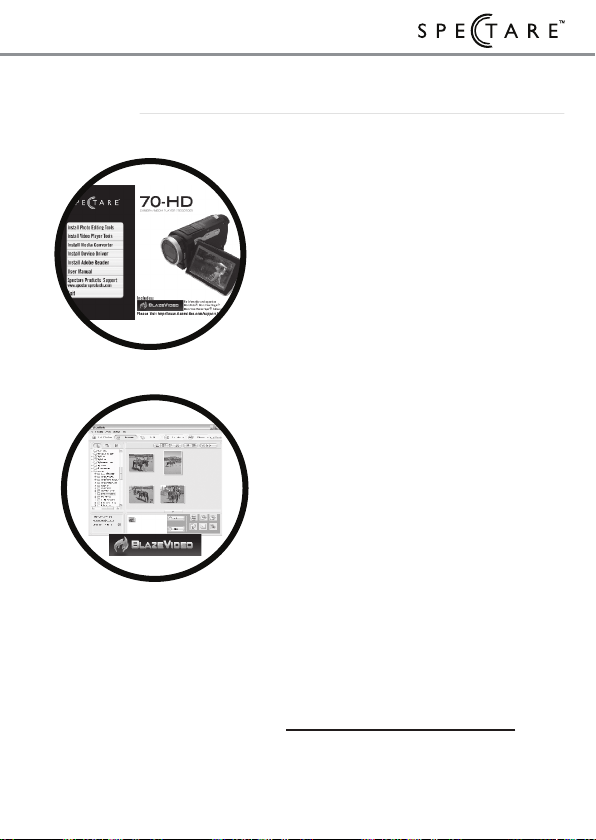

From the CD ROM main menu interface: Click on “Install Photo Editing Tools” and

follow the on screen instructions. This will install the BlazePhoto software that will allow you to edit and organize your photos.

Click on “Install Video Player Tools” and

follow the on screen instructions. This will install the BlazeVideo Media Player software that will allow you playback movies and other media on your computer.

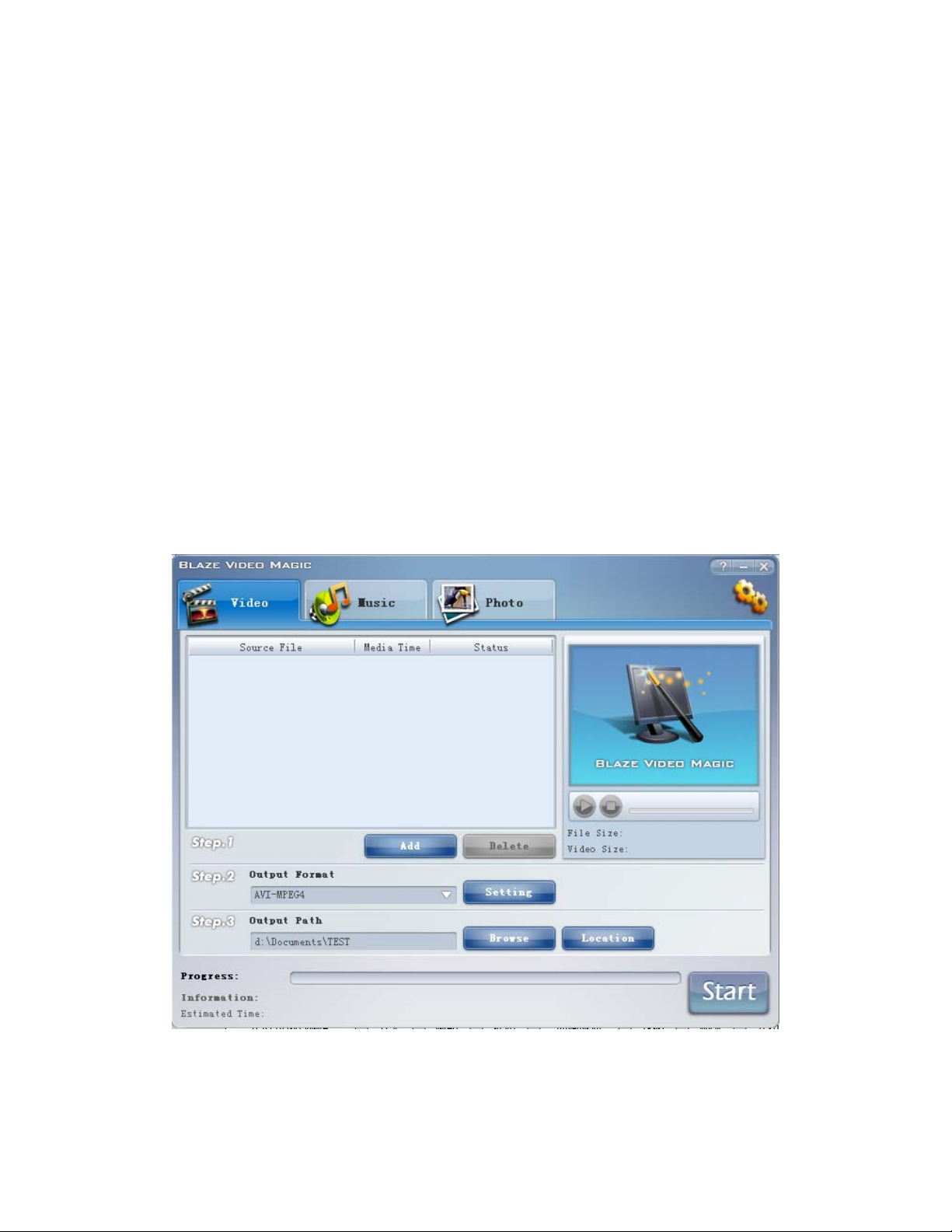

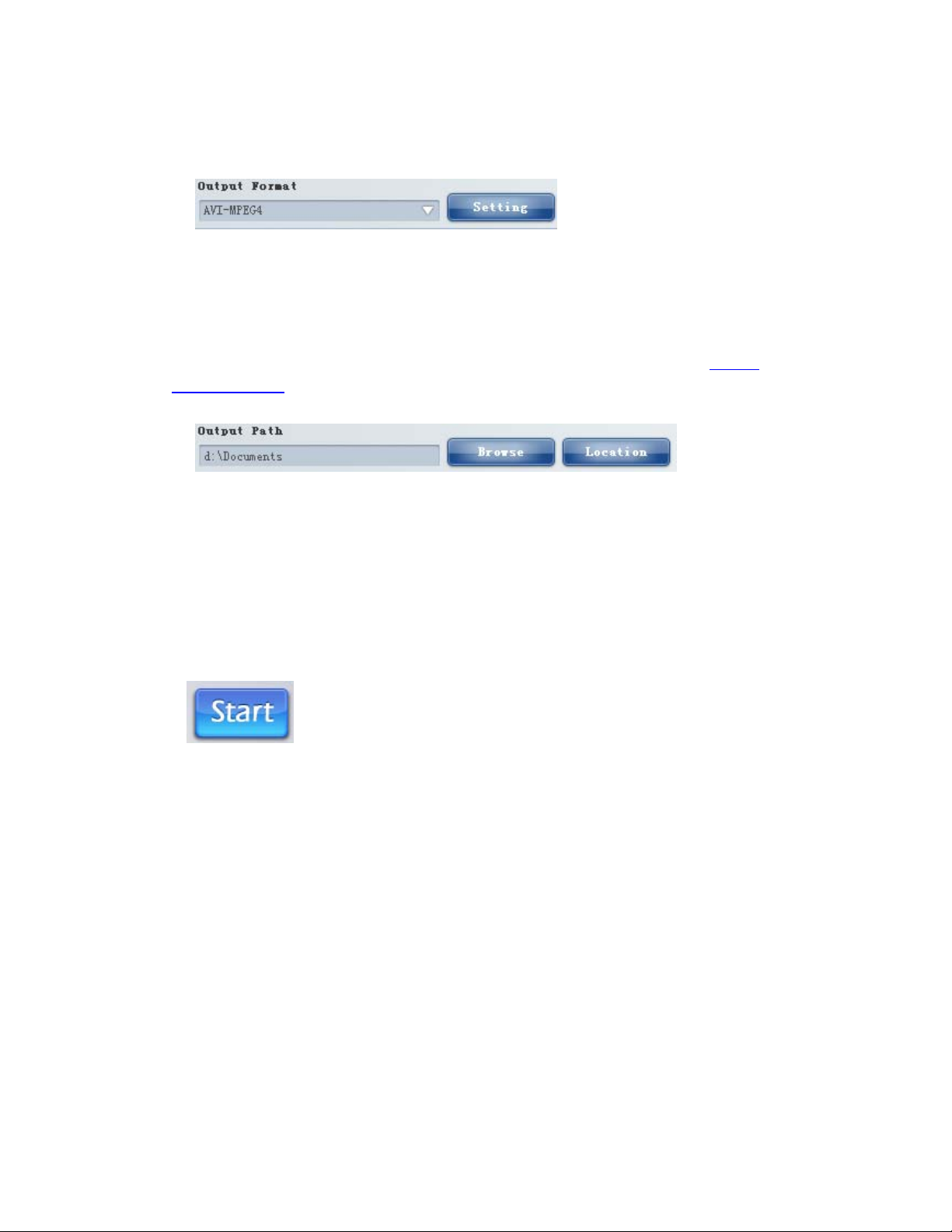

Click on “Install Media Converter” and follow

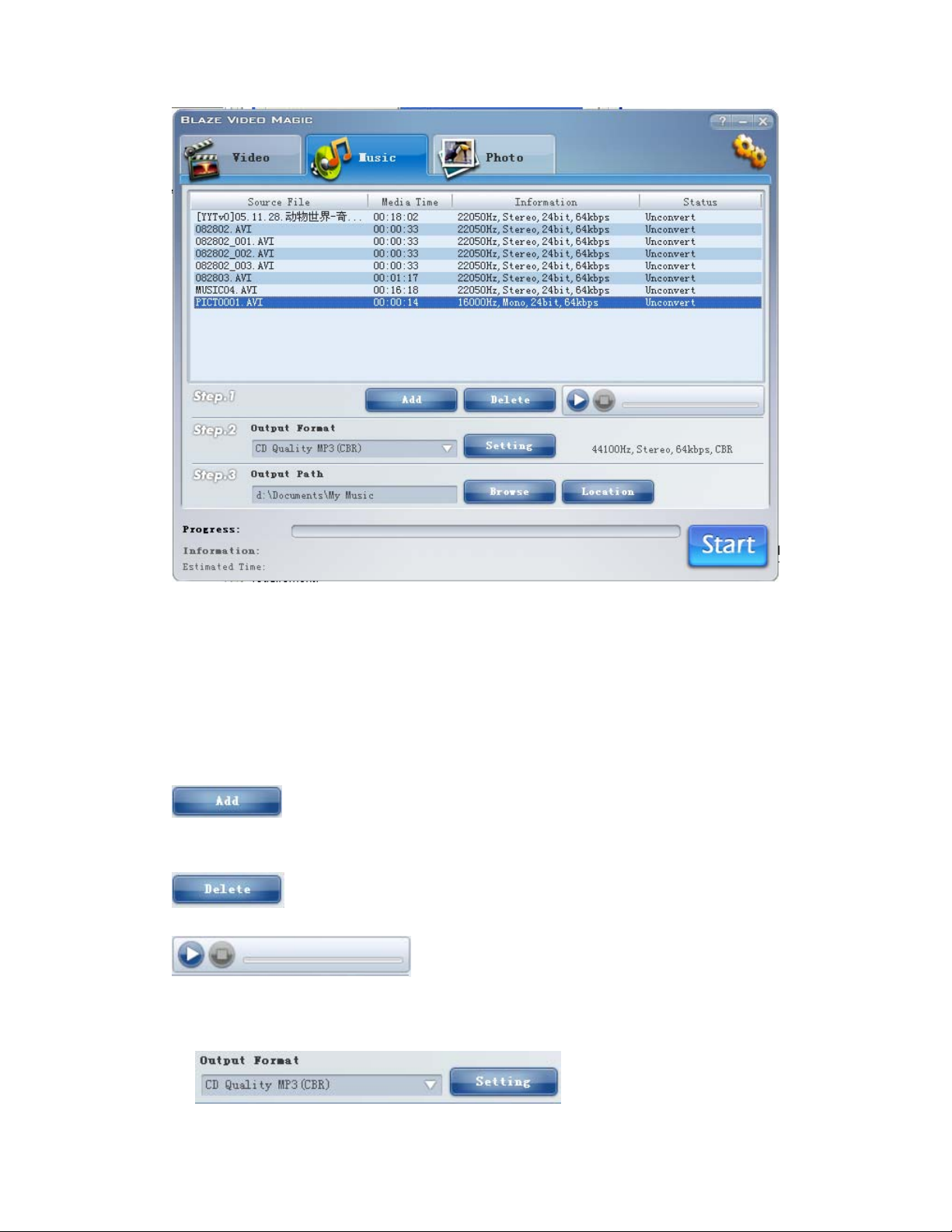

the on screen instructions. This will install the BlazeVideo Magic software that will allow you convert movies and other media into specific formats.

These programs will be automatically

installed into your programs menu. To use these programs click on the START button and choose the desired application

Please refer to the user manual that is

included on the CD ROM for instructions on the use of these software applications or go to:

http://www.blazevideo.com/support.htm

for technical support on this software.

user's guide

Page 12

Using the Menu

To access the set up menus:

Press the

button when the camera is set to Camera, Video or

Playback mode.

There is a specific set up menu for each of the modes plus a General

Settings menu. For example when you are in the Video mode you will have access to a Video settings menu plus the General Settings Menu.

Then use the v

buttons to toggle between the specific mode menu

or the General Settings menu. Use the Press the Press the Press the

Press the

buttons to highlight the setting you wish to change.

SET

button to choose the setting and bring up the options.

to change the setting options.

SET

button again to confirm your choice.

button to return to normal operation.

General Settings Menu:

Beep: Animation: Frequency: Format:

Default: Language: Auto Power Off: Date / Time: TV Out: Version:

Card Select: Card Copy:

Turn on or off the button beep.

Turn the start up animation on or off

Choose 50Hz for EU voltage or 60 Hz for USA

Choose this option to reformat the memory on the camera. NOTE: All files will

be deleted.

Return settings to the factory default values.

Set the interface language.

Time for auto shut off if the camera is inactive.

Change the time and date by using the arrow buttons.

Choose the TV output setting : NTSC for USA; PAL for EU.

Use this setting only if you have received a firmware upgrade from Spectare

Products Support.

Select the card for viewing and/or capturing files to

Choose to copy files from one card to the other

10 Spectare 70-HD Camera / Player / Recorder

Page 13

Camera Mode

6 7 8 5 4 3 2

Entering CAMERA Mode:

Flip out the LCD panel and the camera will automatically turn on. Press the

MODE

button and use the v

CAMERA icon, then press the

Taking Photos:

press the

SHUTTER

button take the image

Camera Controls:

Press the

W / T

switch on the top of the camera to zoom in and out.

Press the w button on the back panel to change the flash setting.

(On, Off, Auto, Red-eye reduction) NOTE: the flash will be disabled when the lens is set to close focus.

Press the v button on the back panel to change the self timer setting.

(Single frame shooting, continuous shooting, 10 sec self timer, 20 second self timer)

` Change the focus on the lens as needed

Press the

Camera Menu options:

Resolution: Quality: WB: EV: Color Effect: Self Timer: Driver Mode: Date stamp:

select for normal photos or for close up photos from 12” to 15”

SET

button on the back panel to select photo frame border.

(see page 10 on how to enter and use the menu)

Choose from 1 MegaPixel to 12 MP resolution.

Choose fine or normal quality.

Choose Auto White Balance or a color setting based on lighting conditions.

Allows manual control of the exposure (darker or lighter) from +2 to -2.

Choose normal, black and white or sepia color effect.

Choose off, 10 sec or 20 sec self timer mode.

Choose single frame or continuos shooting modes.

Turn on or off the date stamp to appear on the image.

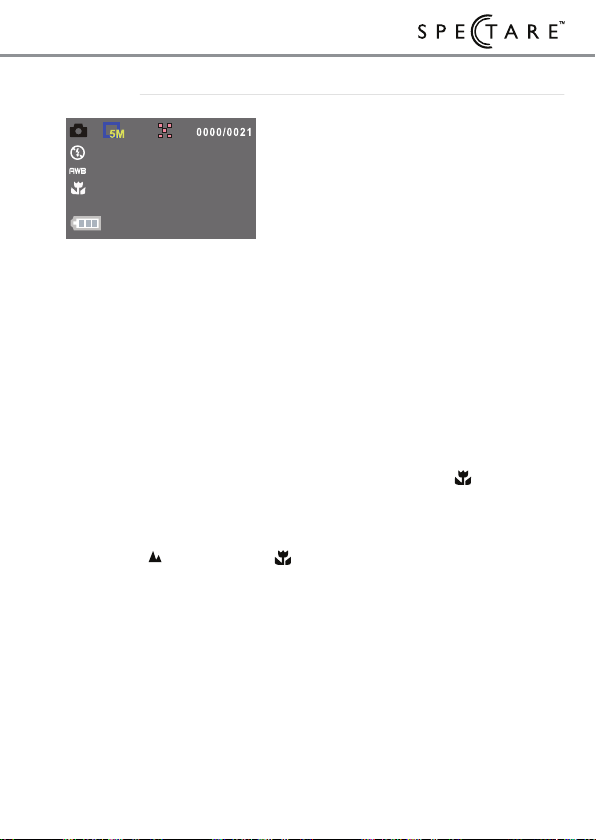

On-Screen Display:

1. Battery level

2. Close Focus Indication

3. White Balance Setting

4. Flash Mode

5. Camera mode: Single or continuous shooting

6. Image Resolution (MP)

7. Image Quality: normal or fine

8. Counter(Recorded/Allowance)

buttons to choose the

SET

button to enter CAMERA mode.

user's guide

Page 14

4 5

Video Mode

On-Screen Display:

1. Battery level

2. White Balance Setting

3. Video Mode

4. Video Resolution

5. Recording time

Entering VIDEO Mode:

Press the

MODE

VIDEO icon, then press the

button and use the v

SET

button to enter VIDEO mode.

buttons to choose the

Taking Video:

press the

SHUTTER

button start the Video recording. A red dot will appear

when the camera is recording.

press the

SHUTTER

button again to stop the recording

VIDEO Controls:

Press the Press the

W / T

switch on the top of the camera to zoom in and out

LIGHT

button to turn on or off the fill light. This will enhance

the video under low light conditions Change the focus on the lens as needed: select for normal photos select for close up photos from 12” to 15”

Changing VIDEO Settings:

Resolution: Quality: WB: EV:

Choose fine or normal quality.

Choose Auto White Balance or a color setting based on lighting conditions.

Allows manual control of the exposure (darker or lighter) from +2 to -2

Color Effect: Frame Rate: Audio:

Spectare 70-HD Camera / Player / Recorder

Turns the microphone on or off.

(see page 10 on how to enter and use the menu)

Choose from VGA (640x480), D1 (720x480), or HD (1280x720)

Choose normal, black and white or sepia color effect.

Choose a frame rate of 15 frames per sec. or 30 frames per sec.

Page 15

Audio Record Mode

On-Screen Display:

1. Battery level

2. Recording Time

3. Audio Mode

Entering AUDIO RECORD Mode:

Press the

icon, then press the

MODE

button and use the v

SET

button to enter RECORD mode.

buttons to choose RECORD

Making a Audio Recording:

press the

SHUTTER

button start the recording, The Red dot will change to

a square and the counter will begin

press the

SHUTTER

button again to stop the recording, The square will

change back the red dot and the counter will stop.

To Playback and Audio Recording:

Press the u

playback button on the back panel to enter the Playback

mode.

Use the sbutton to enter the thumbnail view and then use the arrow

buttons v Press the Press the Press the w Press the

to highlight the audio recording you wish to listen to.

SET

button to select the audio recording

SET

button again to listen

button to hear the next file

MODE

button to return to the Audio record mode and record

again.

user's guide

Page 16

Music Mode

Entering MUSIC Mode:

Press the

MUSIC icon, then press the

MODE

button and use the v

SET

NOTE: Standard .MP3 files should be copied to the memory card that is

inserted into the camera in order to be played by the camera. The camera can not play .WMA or protected MP3 files-- See page 15 for details.

MUSIC Controls

Press the Press the v Press the Press the

buttons to select the song from the list.

buttons to adjust the volume during playback.

SET

button to play or pause the playback of the selected song.

button repeatedly to select the repeat mode as:

Repeat ALL > Repeat Once > Do not Repeat.

change on the right side of the screen.

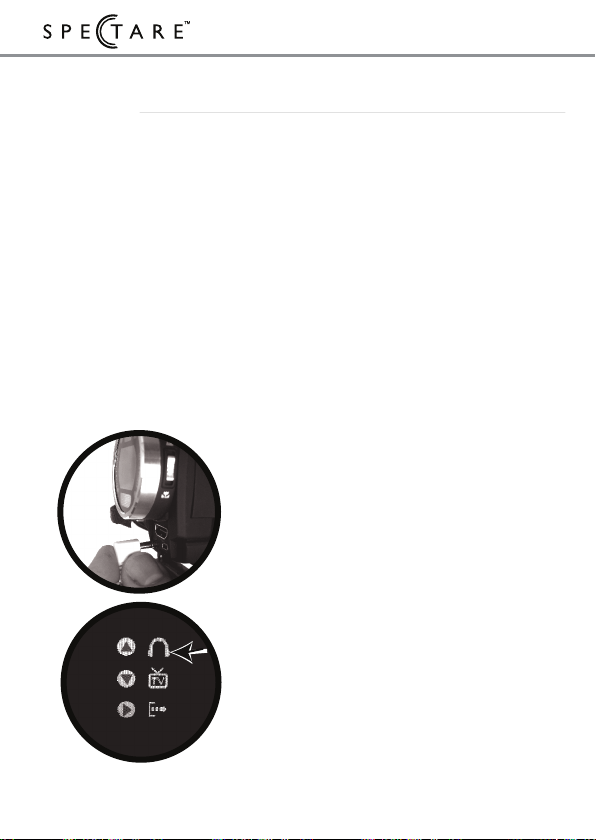

Headphone connection

1. Open the connection cover on the front panel of the camera

Connect the headphone to the audio/video output

connection.

2. After connection of the earphones a menu will appear to choose the type of output.

Press the r arrow on the back panel to hear the

sound through the earphones.

After disconnection of the headphones the menu

will appear again. Select the w arrow to exit

and listen through the speakers on the camera.

button to enter the MUSIC mode.

buttons to choose the

Note that the icon will

Spectare 70-HD Camera / Player / Recorder

Page 17

Music Mode

Copying and Playing MP3 Files:

To play music on your 70-HD Player you can simply copy the files directly onto a

memory card that is inserted into the player.

* Connect the camera to the computer using the USB cable as described on

page 20. The camera's memory or a memory card on the camera will mount as a drive on your computer.

* Once it is connected you can copy files onto the player by simply dragging

and dropping them onto the window for the player. You may also use the BlazeVideo Magic Software to covert and copy files for playback on your

70-HD Player. * After the files have been copied disconnect the camera from the computer. * Turn on the camera and go to the Music Player from the main menu to

playback the files. The 70-HD Player will play all "standard MP3 files" (non-rights protected music).

There are other music file formats that are available on other sites that will

not play such as .WMA and other formats. If you have music in a format

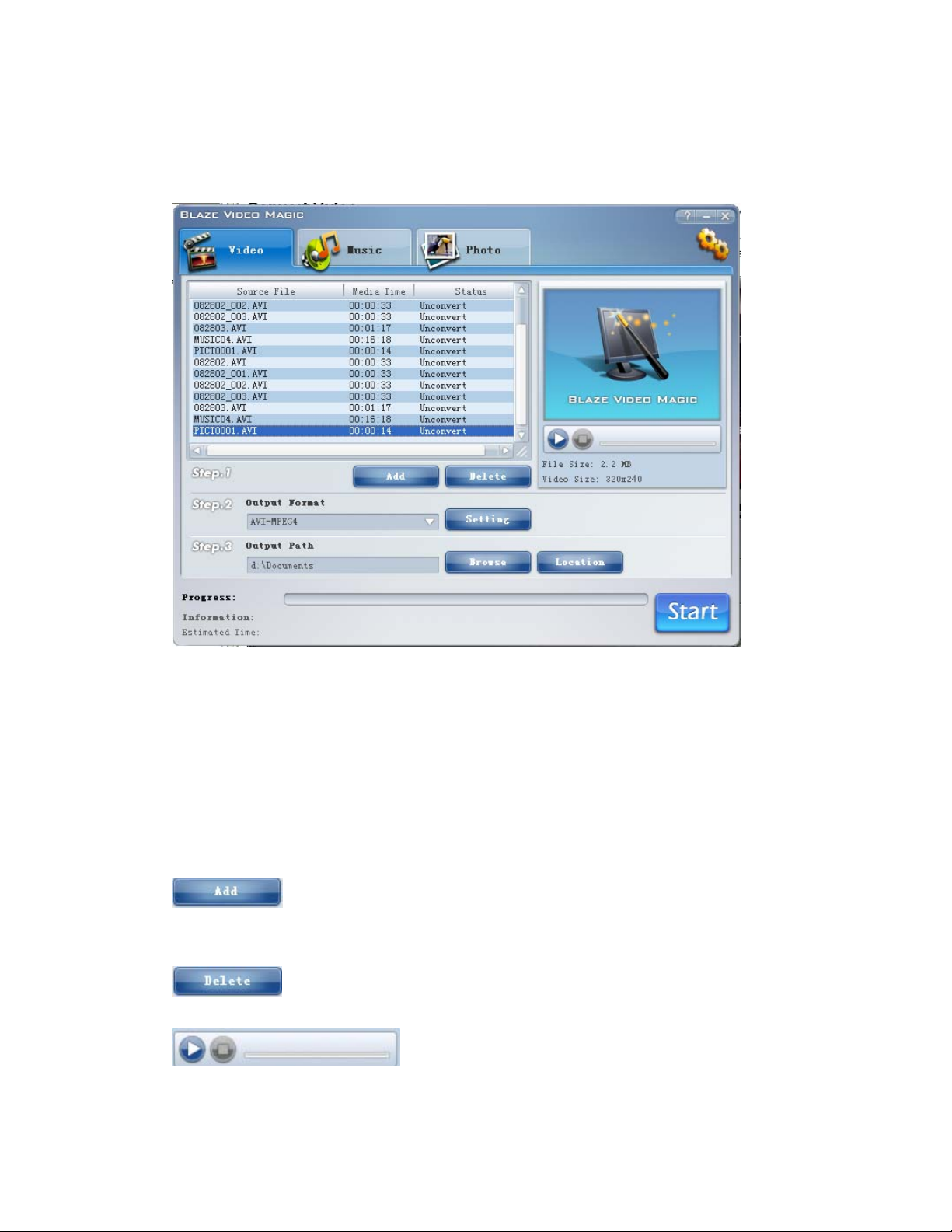

other than .MP3 you will need to convert it with the BlazeVideo Magic

Software. Please refer to the User Manual provided on the CD ROM for

instructions on converting file types

If you purchase Music from the Apple iTunes® store it will not be recognized since

Apple® will only allow their files to be played on iPods®. There are also

other sites that when you download it will set privacy restrictions that will not

allow it to play on some players or only on the computer you download it on.

There many sites that you can purchase and download standard MP3 files

that can be played directly on the 70-HD player. Make certain you are

downloading a “STANDARD.MP3” file that is not limited for playback on your

computer only or certain MP3 Players.

NOTE: Download and use 3rd party software and enter web sites at your

own risk. Spectare Products is not responsible for any damage caused by

the use of software provided by other companies.

user's guide

Page 18

Playback Mode

Entering PLAYBACK Mode:

Press the

Thumbnail view:

Press the

Choose a file you want to view with the

then press the

Full Screen View:

Press the v

If the file is movie or audio recording, press the

movie or playback file, then press it again to stop.

If the file is an image press the r

When in Zoom Mode press the v

image and press return.

To delete a file press the

check mark box using the

Playback Menu Settings:

Delete files: Slideshow:

Crop:

Lock: Logo: Rotate:

Print:

16 Spectare 70-HD Camera / Player / Recorder

playback button on the back panel to enter Playback mode

button for the thumbnail view

buttons

SET

button to select the chosen thumbnail for full screen.

buttons to move forward and back through the files.

button to enter Zoom mode,

to Pan the Image, press the

DELETE

(see page 10 on how to enter and use the menu)

Choose to delete only the selected file, all files or cancel.

Turns on/off the slideshow playback.

To crop an image, bring up the image in full screen view and then select this

feature. After selection use the

crop and press the

Use this feature to lock or unlock images and prevent them from deletion.

This will turn on or off the start up screen.

To rotate an image bring up the image in full screen view and then select this

feature. Use the

See page 19 for more details.

v w

SET

buttons to enlarge or minimize the

button on the side panel, then select the

buttons and press

v w

to confirm.

buttons to rotate and press

SET

button to start the

SET

button to

SET

to delete.

buttons to choose the area to

SET

to confirm. .

Page 19

e-Book Mode

Entering eBOOK Mode:

Press the

icon, then press the

MODE

button and use the v

SET

button to enter eBOOK mode.

Choosing the Text File

Use the

buttons to choose the file you want to read that has been

copied to the memory card on your camera.

NOTE: .txt files should be copied to a memory card that is inserted into

the camera in order to be read-- See “Connection to Computer for the procedures on copying files.

Press the m Press the Press the

SET

button to Read the file

to Page UP or Page DOWN on the Text File

button to return back and choose another file

buttons to choose eBOOK

Game Mode

Entering GAME Mode:

Press the

MODE

icon, then press the

Playing the games

SET

Press the Press the r Press the Press the v Press the

Press the

button to Start

button to trasmute

button to speed up

button to move

SET

MODE

button and use the v

SET

button to enter GAME mode.

buttons to choose GAME

button to Pause / Start

button to return back to the mode menu.

user's guide

Page 20

Connecting to a TV

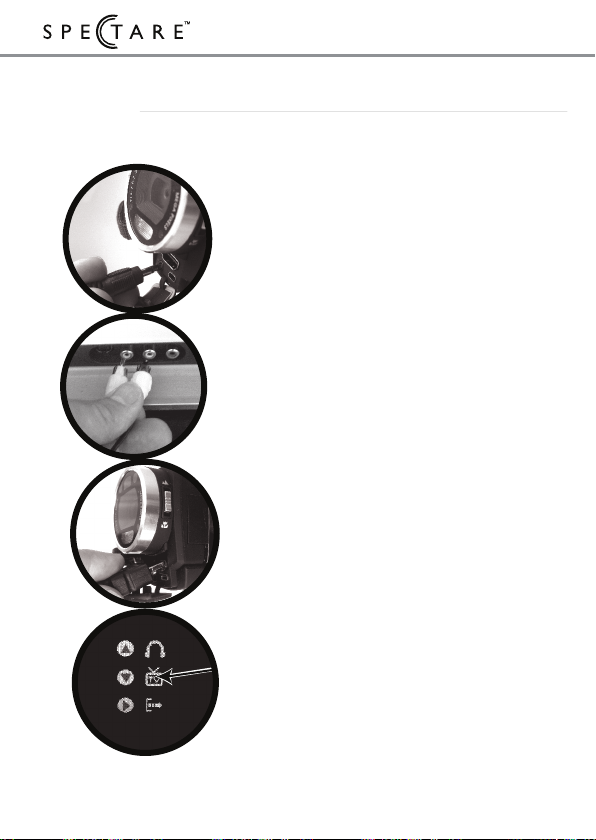

To Connect to Television

1. Using the supplied AV connector insert the small end of the cable into the front panel of the camera.

2. Connect the Yellow (video) and White (Audio) connections on the other end of the cable to the

Spectare 70-HD Camera / Player / Recorder

Video and Audio input connection on the back of your television or VCR unit.

3. If you have an HD Television or DVD player with an HDMI port you can use the supplied HDMI cable. Connect one end of the cable to the HDMI port on the front of the camera and connect the other end of the cable to the HDMI port on your TV or DVD.

Turn on the power to the camera by pressing the

POWER

menu shown on the left will appear.

Press the s arrow on the camera back panel to

view the camera through the TV.

Turn on your TV and switch the input mode until you

get an image. Refer to your television owners manual for guidance on setting the input.

NOTE: If you do not have RCA or HDMI connections

on your TV you will need to purchase an adapter at your local electronics store.

Once connected to your TV use the controls on your

device to access features normally. Go to the PLAYBACK mode on your camera to view the photos and movies.

After disconnection of the cable the menu will

appear again. Select the w arrow to exit and the view through the monitor on the camera.

button or opening the LCD Panel and the

Page 21

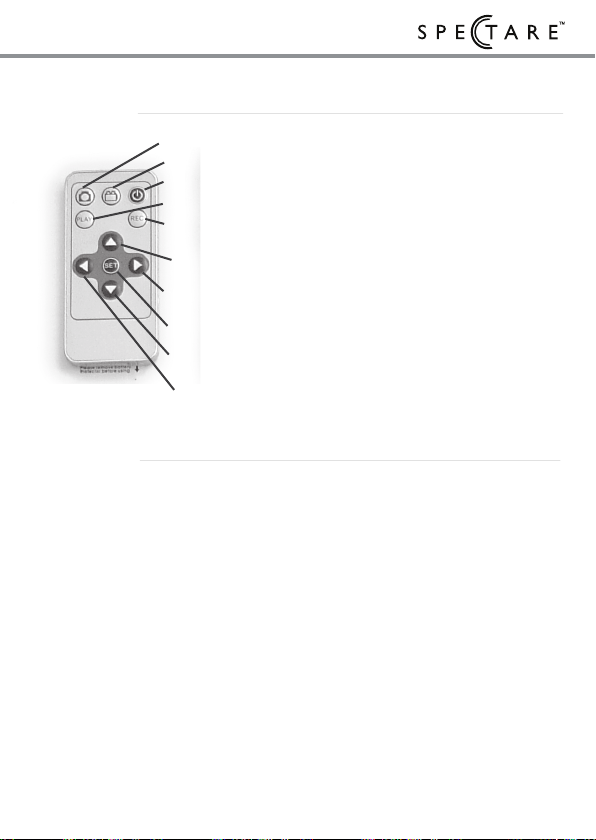

Remote Control

CAMERA

: Changes to the Camera mode

VIDEO

: Changes to the Video Mode

POWER

PLAY

Start and Stop the recording in Video mode

: Press and hold to turn on

: Changes to Playback Mode

REC /SHUTTE R

: Take the photo in Camera mode /

: Upward Selection

: Right Selection

SET

: SET

: Down Selection

: Upward Selection

Connecting to a Printer

The camera can print photos directly by connecting it to a printer by

following these steps.

NOTE: The printer must have a standard USB connection in order to be used for direct printing from a camera. Please refer to your printer’s user manual for specific instructions on connecting a camera to your printer.

Press the

mode

Select a photo to be printed using the Wv

Press the

general settings menu (see page 10). Select YES on PRINT option of the menu Connect the camera to the printer with the USB cable and the file will

be printed directly.

playback button on the back panel to enter Playback

buttons

button and select the PRINT function from the

user's guide

Page 22

Mass Storage: Computer USB Connection

To connect to your Windows PC or Mac

Computer

Before connecting to a PC computer please make certain

you have installed the device drivers first (see page 6). For connecting to a Macintosh computer with OS-X there is no installation that is required.

Turn on the camera Press the

the and choose the PC icon with the

v Select USB with the v

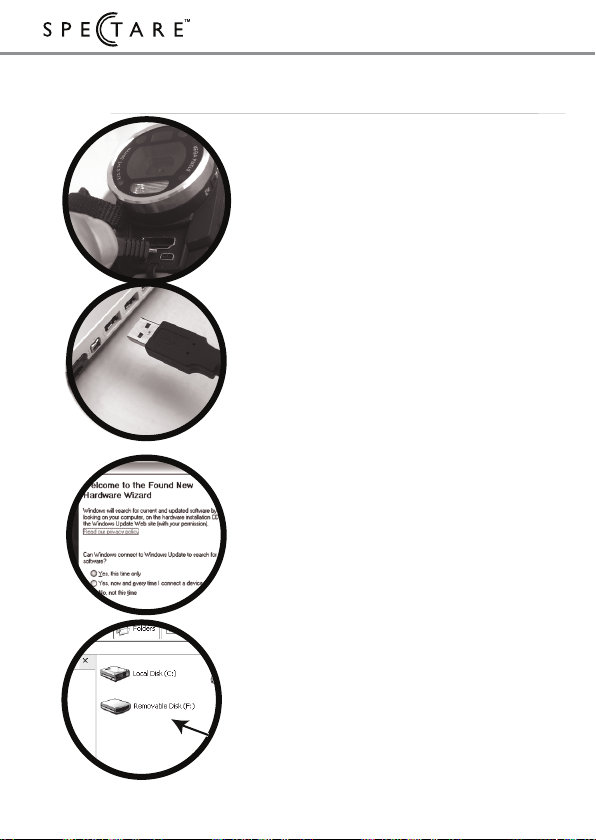

1. Connect the small end of the USB cable to the USB port on the front panel of the device.

2. Connect the large end of the USB cable to a free USB port on the computer.

3. Upon first connection the hardware device will be detected under Windows XP , Vista and Mac OS-X. The hardware drivers will automatically install. Click OK on the Windows hardware wizard installation screens.

4. A partition entitled "removable disc" will automatically be mounted under the "My Computer" Window. This partition will give access to the Memory card(s) that is placed in the camera.

buttons.

MODE

button then select

buttons.

20 Spectare 70-HD Camera / Player / Recorder

Page 23

Mass Storage: Computer USB Connection

System Requirements operating system Microsoft windows

CPU Intel Pentium 4 2.8 GHz

Memory More than 512 MB

CD-ROM at least 4X speed Disk More than 100MB free

Connection USB1.1 or USB2.0

98SE/Me/2000/XP/Vista

or higher

RAM

space

On a Mac computer the memory card(s) will

appear under “devices” in the finder Window.

Double click the removable disk icons to

access, copy and manage the files in on your camera.

To Disconnect from the Computer.

On Windows click this icon on the bottom task

bar labeled "Safely Remove Hardware."

A dialog box will appear "Safely Remove

Hardware."

Select USB Mass Storage Device and click

"STOP."

On the next dialog box click OK to remove the

storage device.

On the final dialog box select "CLOSE" and

disconnect the device from the computer. A final message should appear under Windows that says “Safe to Remove Hardware" afterwhich you can remove the USB cable from the device.

From a Mac computer highlight the disc icon

and click the “eject” icon.

Once the player / recorder has been

disconnected from the computer it will return to normal operation

user's guide

Page 24

PC Web Camera

To connect to your PC as a Web Camera

Before connecting to a PC computer please make certain you have installed the device drivers first (see page 6). NOTE: You

CAN NOT use this as a Web Cam on a Mac computer.

Turn on the camera

Press the

PC icon with the v

Press Select PC CAM with the v

1. Connect the small end of the USB cable to the USB port on the side panel of the device.

2. Connect the large end of the USB cable to a free USB port on the computer.

3. Upon first connection the hardware device will be detected under Windows XP and Vista. The hardware drivers will automatically install. Click OK on the hardware wizard installation screens. NOTE: There are two installations one for Coach Digital Camera and another for Coach

Video Camera

4. After installation the Camera will be automatically connected under Windows XP and Vista. Go to the MY COMPUTER Window and look for the icons entitled “Coach Video camera” and “Coach Digital Camera” under the “Scanners and Cameras” heading. Double click these icons to access the features

SET

MODE

button then select the

to confirm

buttons

Spectare 70-HD Camera / Player / Recorder

Page 25

Troubleshooting

The SD card is loaded, but the camera does not capture or record

Check if the SD card is locked Check if the SD card has enough space for storage

The camera turns off automatically

Check the battery level and charge the battery if necessary. Check the power off settings on the camera and change to a longer time as needed (see page 13).

Image is not recorded when the shutter button is pressed

Check if the camera is set to the capture mode Check if the flash mode is set to Auto, Force or Red-eye reduction. If the flash unit is turned on it

will take a longer amount of time to take photos since the flash needs to be charged each time

The color of the photo taken is abnormal

Reset the White Balance in the Camera menu.

The image is too bright or too dark

Reset the EV value in the Camera menu.

The flash does not go off

Check if the flash mode is set to “Auto”, “Force”, “Red-eye reduction”

The date displayed is not correct

Reset the date and time in Setup mode

Can not print the photos

Check if the camera is set to Print mode. If not, reset the camera to Print mode and then connect

the camera to the printer with the USB cable

For support, updates and answers that can not be answered by this user manual please go to: http://spectareproducts.com/support

user's guide

Page 26

Technical Specifications

LENS f= 7.36 mm SENSOR 5.1 Mega Pixels CMOS Sensor LCD 3 inch LTPS LCD Display Aperture F/3.2 Sensitization Auto White Balance Auto, Sunny, Cloudy, Tungsten, Fluorescent Shutter Speed 1/10Sec - 1/2650Sec Memory 32MB built in memory or SD card or MMC card

Maximum 8GB Still Photo Resolution 1024x768, 2048x1536, 2592x1944, 3264x2448,

Video Resolution 1280x720, 720x480, 640x480, 320x240 Digital Zoom 1~8× Digital Zoom

Normal Distance 1m~∞

Close Focus Distance 12” - 15” Self-timer 10sec Self-timer, 20 sec Self-timer Flash Mode Off/Auto/Red-eye reduction /Force TV-Out NTSC/PAL USB USB 2.0 POWER Li-Battery or AAA x 4 alkaline batteries Size 5”x 2.5” x 2” Weight 11 oz. (without battery and SD card)

4000x3000

MADE IN CHINA

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

24 Spectare 70-HD Camera / Player / Recorder

Page 27

user's guide

Page 28

Table of Contents

. Overview ............................................................................................................................................................. 2

1.1 Introduction..................................................................................................................................................... 2

1.2 Features ......................................................................................................................................................... 2

1.3 System Requirements .................................................................................................................................... 3

. Appearance................................................................................................................... ...................................... 4

. Operation Guide.................................................................................................................................................. 4

3.1 Importing Photos.................................................................................................................................. 4

3.2 Organizing Photos ............................................................................................................................... 8

3.3 Previewing Photos ............................................................................................................................. 10

3.4 Editing Photos.................................................................................................................................... 13

3.5 Creating ............................................................................................................................................. 21

3.6 Sharing Photos .................................................................................................................................. 23

3.7 Settings.............................................................................................................................................. 26

. Contact Support............................................................................................................................................. 31

. Overview

1.1 Introduction

BlazePhoto, a powerful and complete digital photo utility, integrates photo importing, previewing, organizing, editing, creating and sharing. Compliant with multiple locations, BlazePhoto allows you to import digital photo from hard disc folder, CD/DVD disc, DC/DV, PC Cam or any other removable devices; lets you flexibly classify, view and edit image. There are also multiple sharing choices available for you to choose, you can print, email, burn CD, create slideshow DVD and create html album. BlazePhoto provides an ideal solution for your lifetime of memories organizing and enjoying, brings you an exciting and easy way to share your memories with anyone, at any time and anywhere.

BlazePhoto supports most popular image formats: such as JPG, BMP, TIF , GIF, PNG, WMF, EMF, etc. BlazePhoto also supports EXIF2.1, for those edited or converted JPG, TIF, and their EXIF info will not lose.

1.2 Features

•

Import Photos: BlazePhoto supports multiple image locations, can import image from hard disk folder, CD/DVD disc, DC/DV, PC Cam or any other removable devices; BlazePhoto can real-timely capture and save image from PC Cam, transfer image between DC and hard disk folder; BlazePhoto also allows you to freely search for your desired image.

•

Organize Photos: BlazePhoto sorts image by people, place and events tags, and you can also create your own favorite tags.

•

Preview Photos: Provided with multiple image preview modes: get photo from disk, from history record or from catalog; supports Single Picture, Big Thumbnail, Small thumbnail, Preview Thumbnail view modes, you can also view full screen image and image slide show.

BlazeVideo, Inc.

www.blazevideo.com

Page 29

•

Edit Photos: Easily edit image, provided with multiple popular edit functions, such as rotate, crop, flip, resize, etc. Supports enhance function: remove red eye, adjust color, blur/sharp, auto enhance; supports creating function: add text, add clip, add frame, add filter such as Mosaic, Windy, Motion, Gray, Emboss, etc.

•

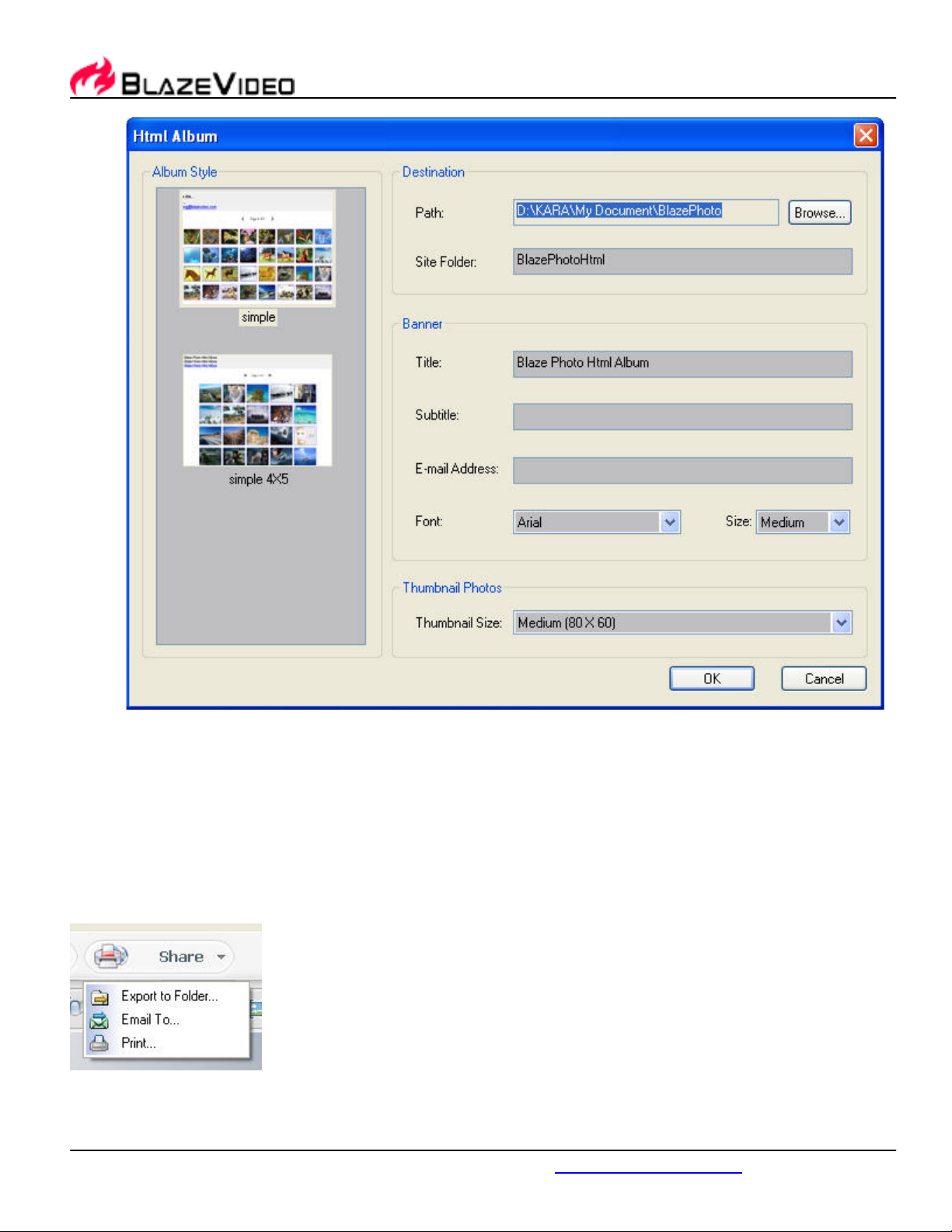

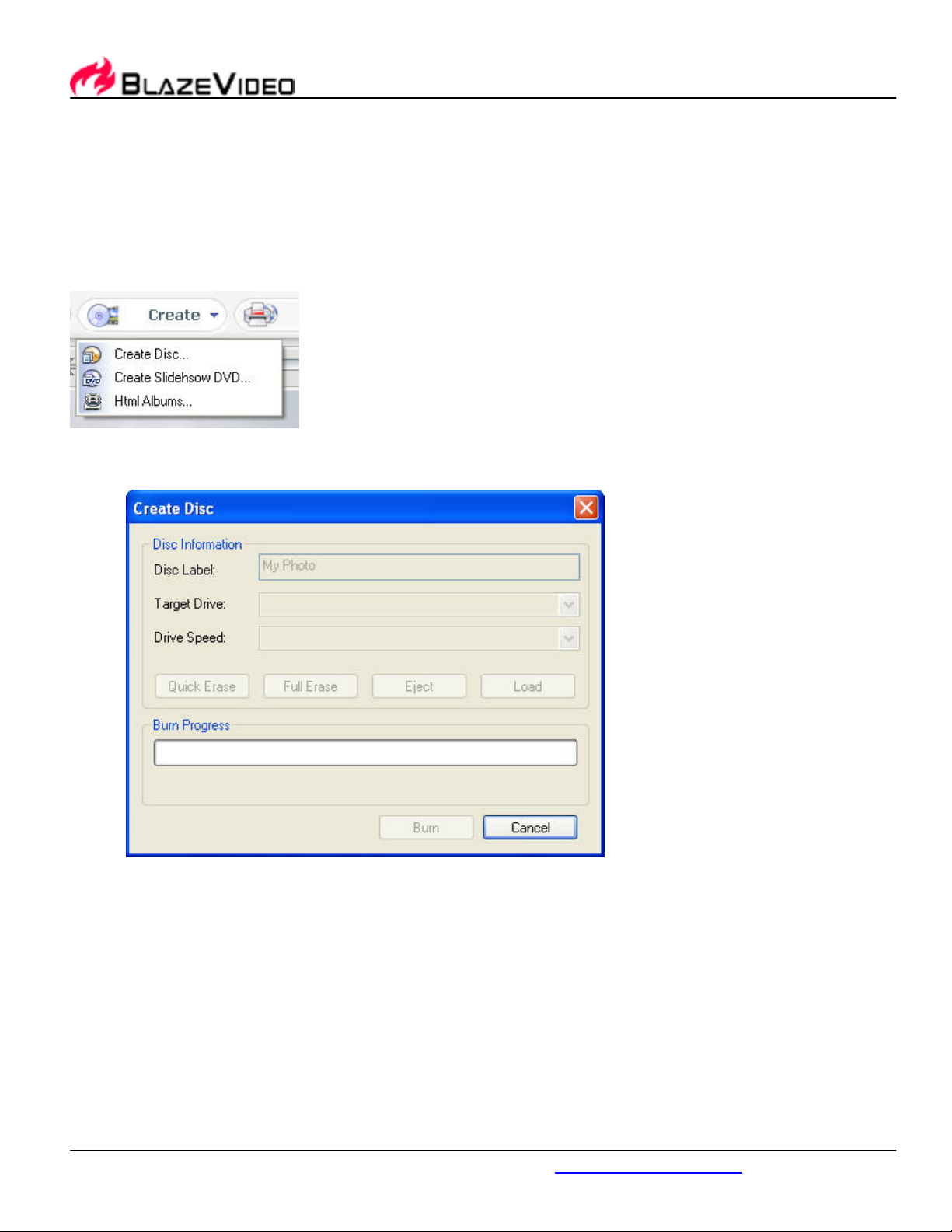

Create: Create single or multiple images into html album, burn to CD disc or create slideshow DVD.

•

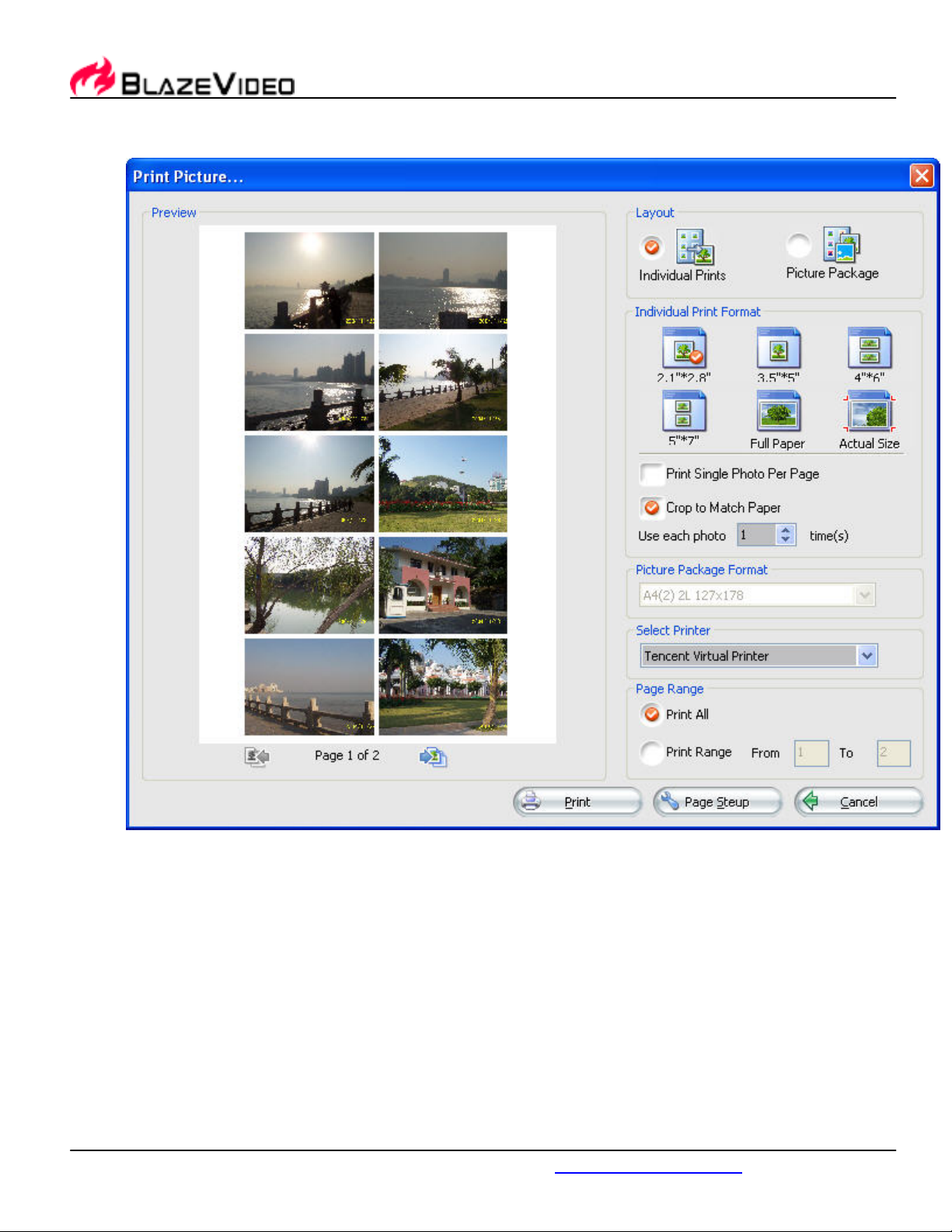

Share Photos: Print single or multiple images, send email, batch resize, rename and change image format.

1.3 System Requirements

CPU Intel Celeron 400MHz or higher Intel Pentium III 700 MHz System Memory 128MB RAM or higher 256 MB RAM Operating

System Display Card 16 bit, 4MB memory, supports DirectX

Sound Card

DirectX DirectX 8.1 or later Hard-disk

Available Capacity

PCI sound cards, Integration chipset on Mother Board, USB audio devices etc. compatible with Windows and stereo speakers

Basic Recommended

Windows 98 SE/ME/ 2000/ XP

24 bit, 8MB memory, supports DirectX

At least 10 MB

BlazeVideo, Inc.

www.blazevideo.com

Page 30

. Appearance

. Operation Guide

3.1 Importing Photos

You can get photos from hard disk folder, Scanner Video Device, Camera& Removable Device, you can also freely search for your desired photos on local disk.

BlazeVideo, Inc.

www.blazevideo.com

Page 31

• Browse Folders

Default get photo from hard disc folder, you can select folder from the folder tree on the left of the main window.

• Get Photo from Scanner & Video Device

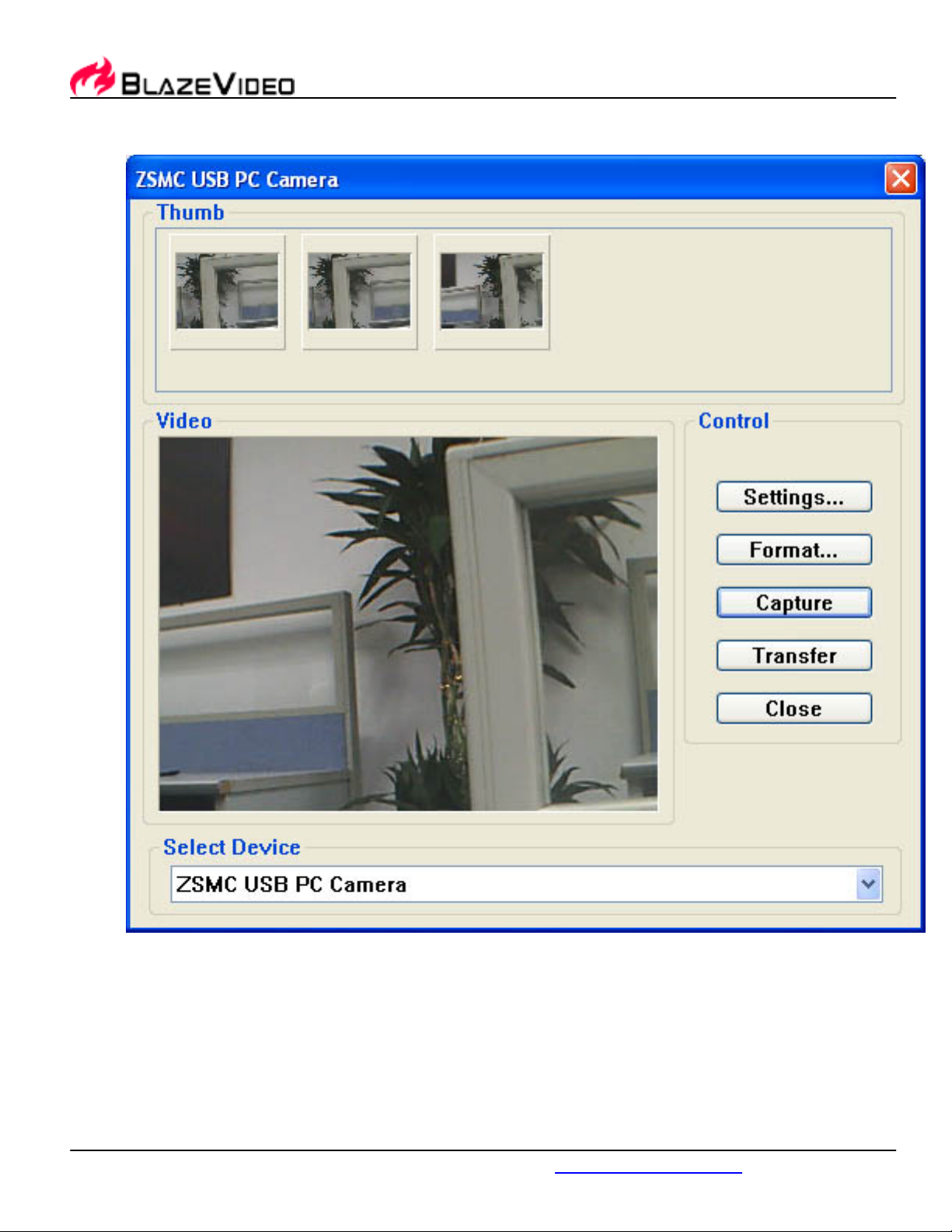

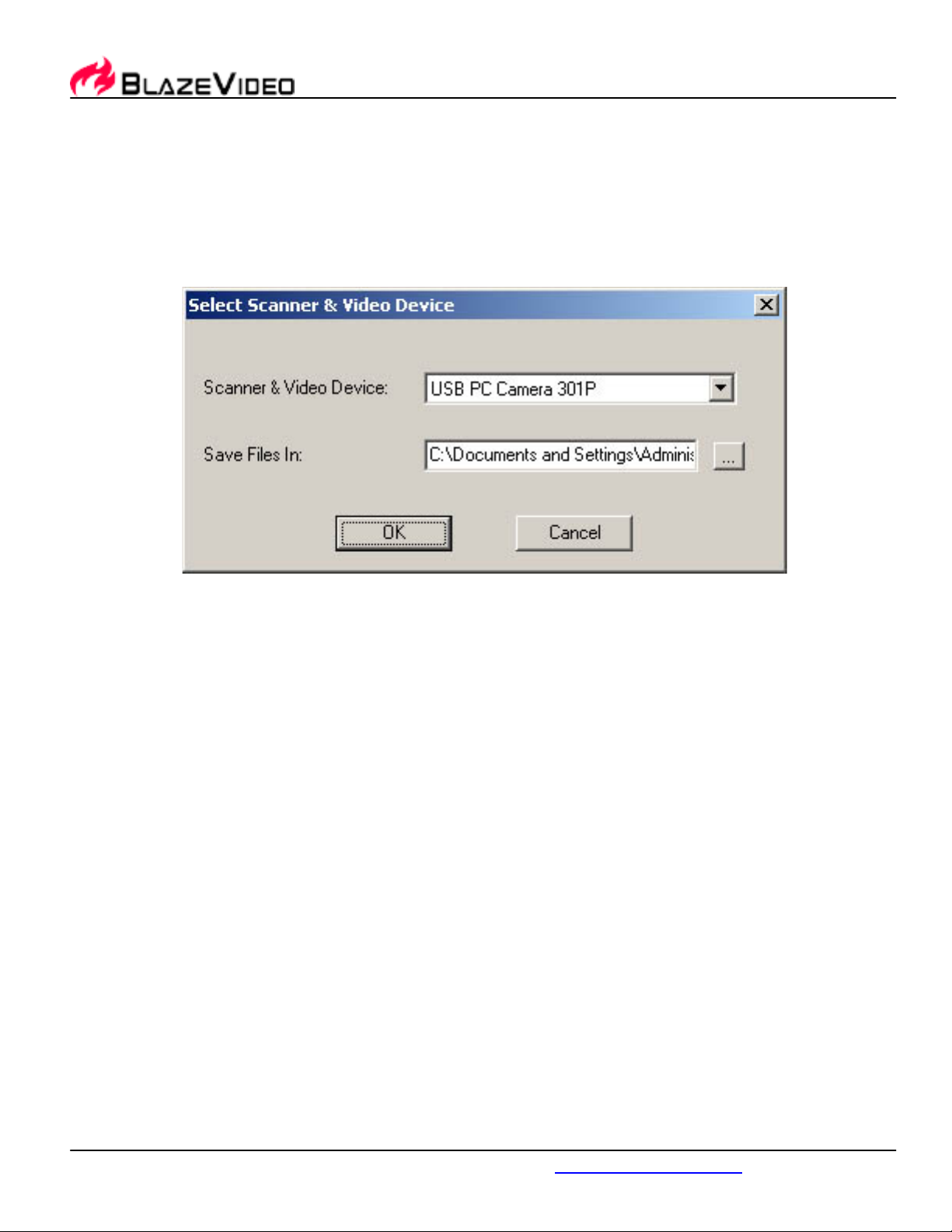

1. Capture photo from scanner or video device, the captured photos will be saved into the specified folder. Drop-down click "Get Photo" button and select "Scanner&Video Device", or select File->Get Photo->Scanner&Video Device, below dialog box pops up:

BlazeVideo, Inc.

www.blazevideo.com

Page 32

2. Click "Browse" button to specify saving directory and click "OK" button, below menu pops up:

3. Click "Capture" button, thumbnail of current image will appear, you can also continually capture image, after selecting the image, and the image will be saved into the specified directory. BlazePhoto will auto display the captured images as thumbnails in Preview window.

• Get Photo From Camera&Removable Devices

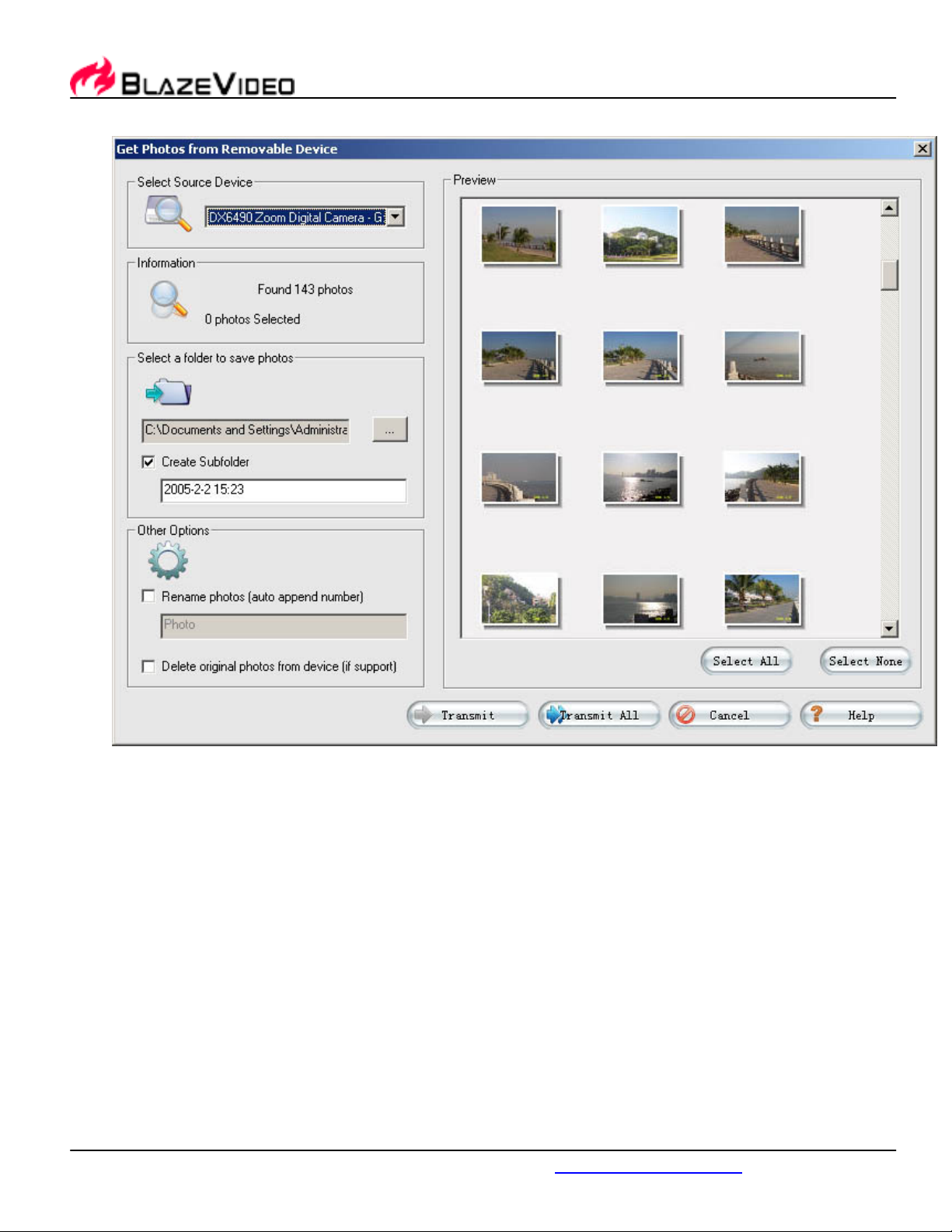

1. Get photo from camera or removable devices. Once connects camera or removable device to PC,

below dialog box will auto pops up:

BlazeVideo, Inc.

www.blazevideo.com

Page 33

2. After select the desired image, click "Transmit" button, the selected images will be transmitted into specified folder; Click "Transmit All", all images in the device will be transmitted into specified folder, BlazePhoto will auto display all the selected images.

• Search on Local Disc

1. Click "Get Photo-> Searc h on Local Disc" or select "File ->Get Photo->Search on Local Disc" to eject below dialog box:

BlazeVideo, Inc.

www.blazevideo.com

Page 34

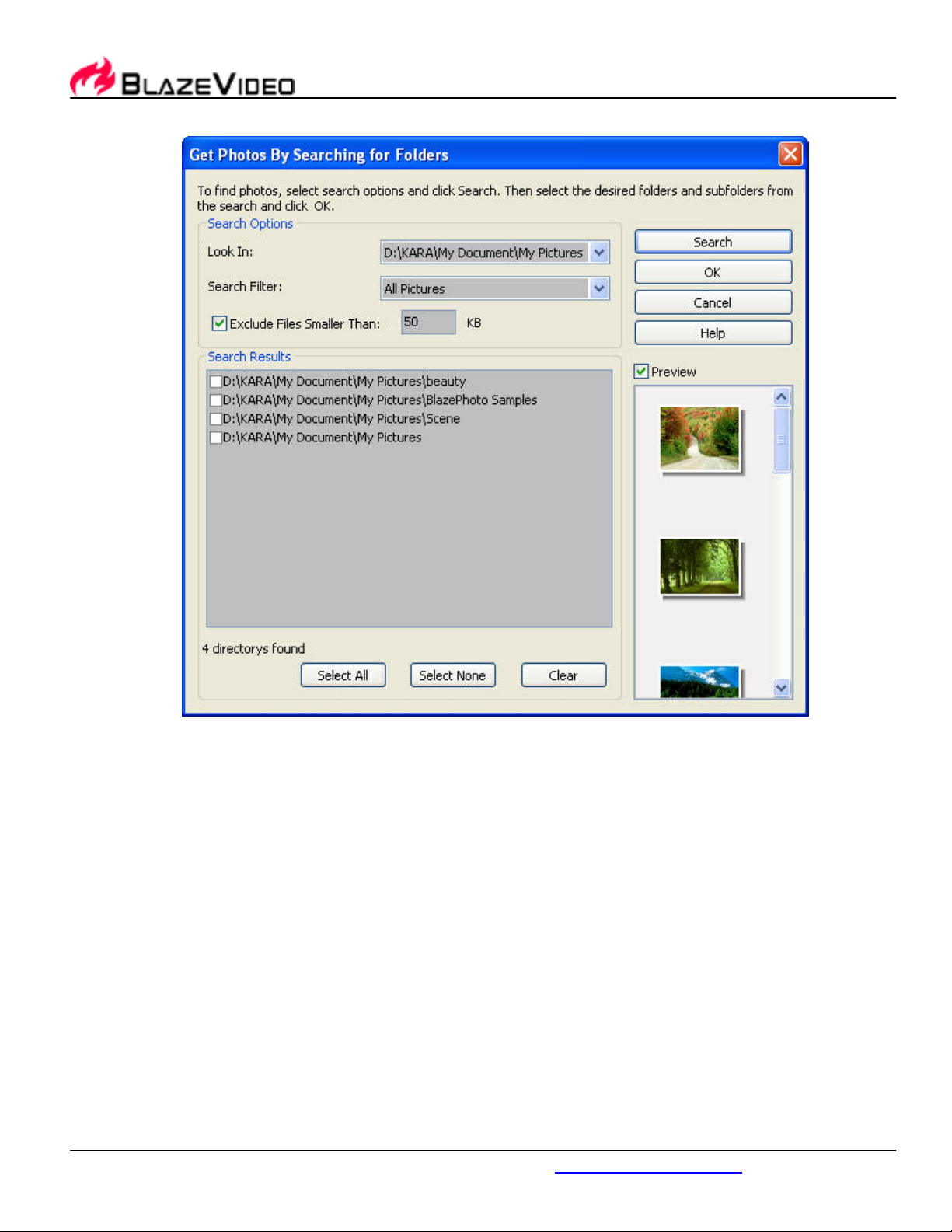

2. Drop -down click "Look In" box under "Search Options" to select your desired destination, default is "All Hard Discs"; Drop-down click "Search Filter" to select the desired image format, default is "All Pictures"; Fill in the minimum size of the desired image, default is 50K.

3. Click "Search" button to start searching files, click "Stop Search" to stop searching files.

4. After search finishing, all the images will be listed in Search Results area, click a selected folder, you will preview the thumbnails of all the images under it.

3.2 Organizing Photos

Organizing photo by different catalogs: by People, Place, Events, etc, you can also create your desired tags.

Get Photo from Catalog

In "Preview" window, click the third button "Get Photo from

BlazeVideo, Inc.

www.blazevideo.com

Page 35

Catalog" , below tag folder tree will display:

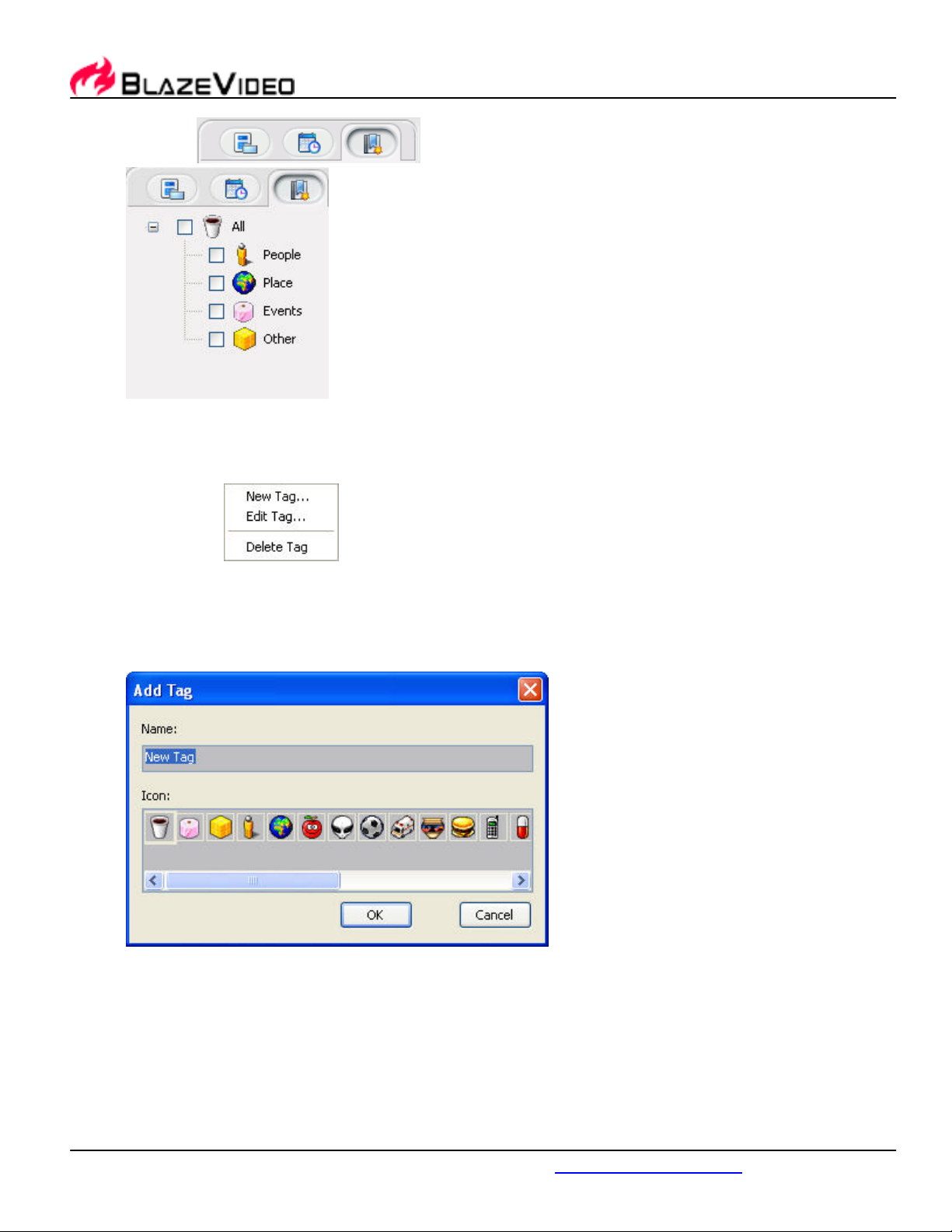

Move mouse to blank area and right click, you will perform New Tag, Edit Tag, Delete Tag

operations.

Create New Tag

Right click to select "New Tag", you will create a new tag. Create new sub-tag: Move mouse to an existing tag, right click to select "New Tag", you will create a new sub-tag under this tag.

Type your desired tag name, and select a tag icon, click "OK", a new tag name will be added in tag tree.

Edit Tag

Select a tag and right click "Edit Tag", below dialog box pops up for you to modify:

BlazeVideo, Inc.

www.blazevideo.com

Page 36

Type new tag name and select a tag icon, click "OK", the tag will be modified.

Delete Tag:

Move mouse to the desired tag, right click to select "Delete Tag", and click "Yes" to delete this tag.

Sort Photo by Tag:

Please take any one of below steps to add tag into image:

1. Click a tag, drag and drop it to a target image, the tag icon will display at the left bottom of the image.

2. Select one or multiple images, right click to select "Attach to Tag", then select a target tag, the tag icon will display at the left bottom of the image.

3. Select one or multiple images, drag and drop them into target tag, the tag icon will display at the left bottom of these images.

Remove Tag:

Right click a tagged image, select 'Remove Tag" and select the desired tag name you want to remove, the tag icon will disappear from the image.

View Photo by Tag:

Tick-on a tag, all photos with this tag will be displayed in right preview area.

8. Hide Tag Icons: Move mouse to blank area in Thumbnail mode, right click to select "Hide Tag Icons".

3.3 Previewing Photos

Select a picture folder either from disc, from history record, or from catalog, if there are photos under this folder, the images will display with thumbnails or single picture mode on the right preview area.

• Select Photo Source:

Below three modes are available:

1. Get Photo from Disc: select a picture folder in folder tree, the right window will display all the supported photos under this folder as thumbnails or single picture.

BlazeVideo, Inc.

www.blazevideo.com

Page 37

2. Get Photo from History Record: BlazePhoto can auto add the viewed picture folder

3. Get Photo from Catalog: View photos by sort. (For the detailed sort ways, please refer

• Preview Modes:

There are below preview modes available:

1. Single Picture: display a current selected image

2. Big Thumbnails: display big thumbnails of all the images

3. Small Thumbnails: display small thumbnails of all the images

4. Preview_Thumbnail: upper area displays the selected image with large size, below

5. Full Screen Display: full screen display image.

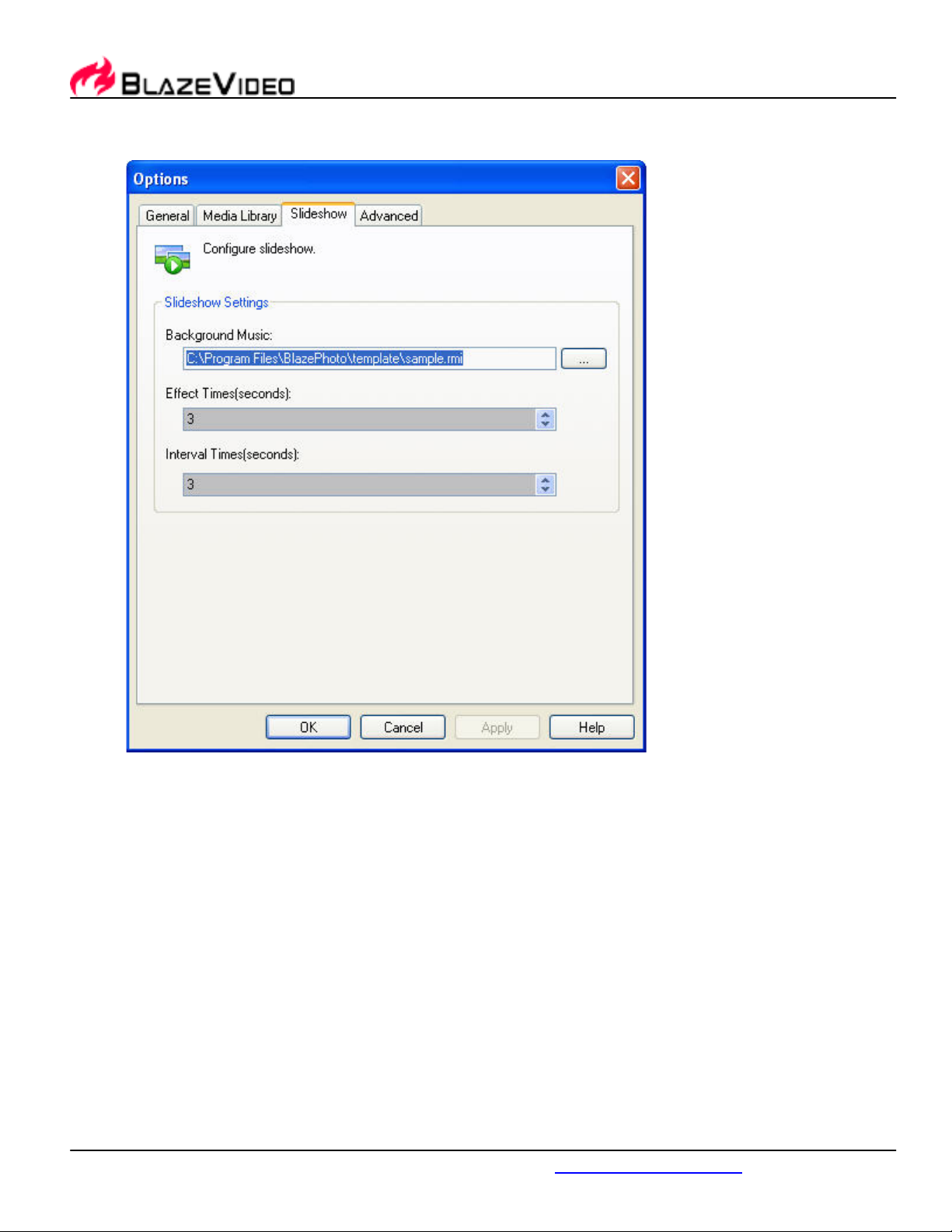

6. Slideshow: Slideshow preview all the images, you can also set background music,

Shortcut to switch preview modes:

into history record. Select a folder in history record, the right window will display all the supported photos under this folder as thumbnails or single picture.

to Organizing Photos). Tick-on a desired sort, all the photos of this sort will display as thumbnails or single picture.

area display thumbnails of all the other images.

effect time and interval time in Options Setting.

Double click thumbnails to switch to Single Picture mode; Double click single picture to switch to thumbnail mode.

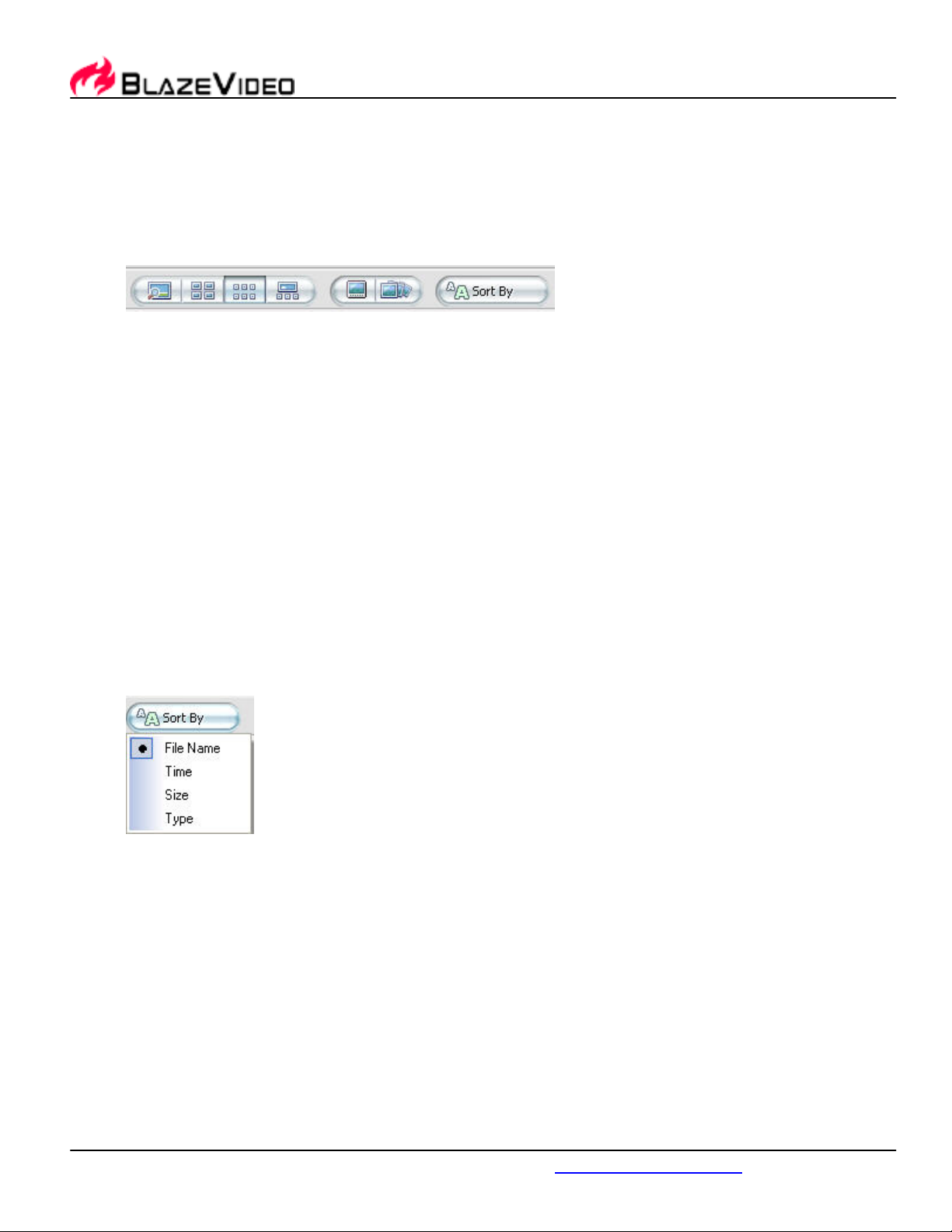

• Sort By:

1. Sort by Name: sort pictures by file name.

2. Sort by Time: sort pictures by time of creating file.

3. Sort by Size: sort pictures by file size.

4. Sort by Type: sort pictures by file type, for same type files, sort by file name.

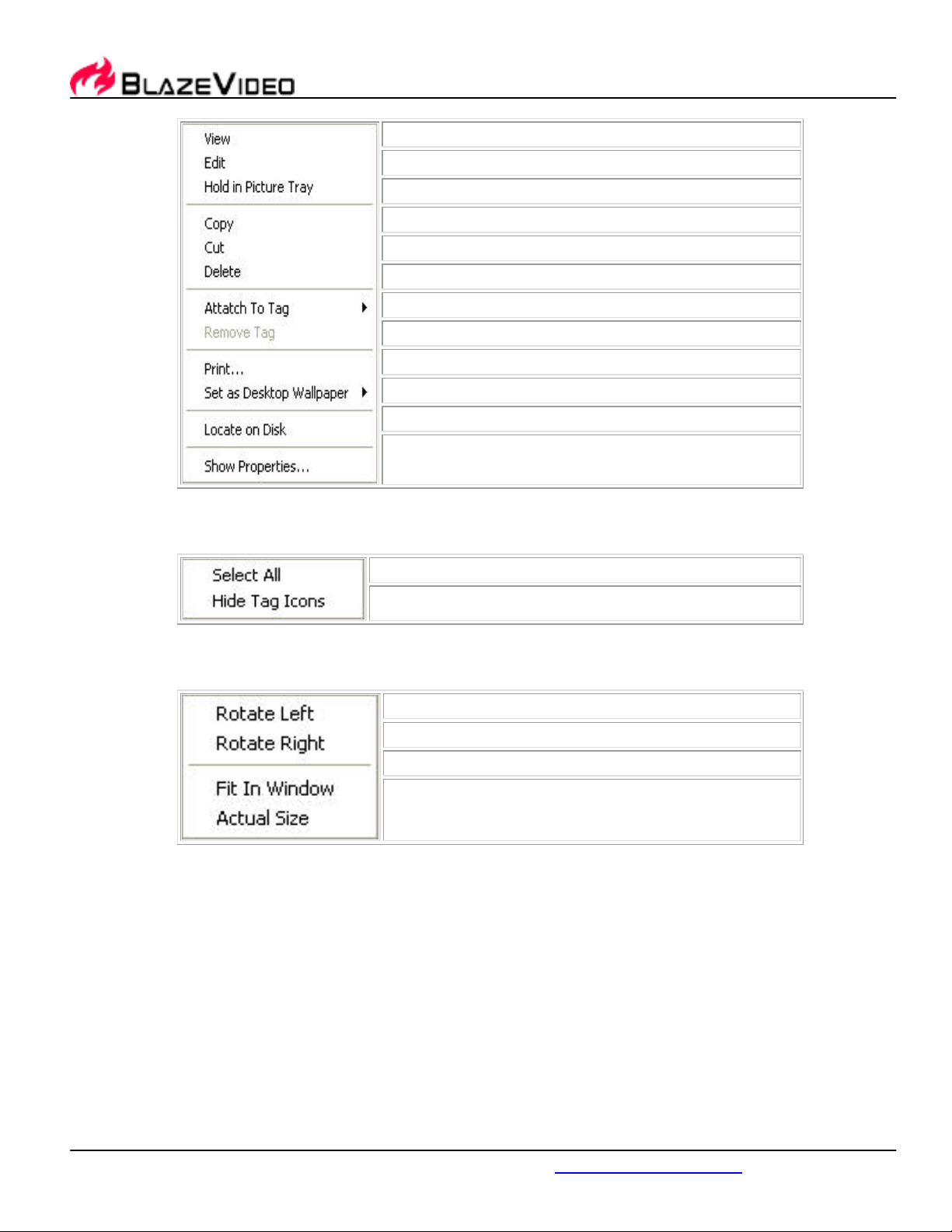

• Right Click Menu:

There are three menus available:

1. Right click a thumbnail to pop up below menu:

BlazeVideo, Inc.

www.blazevideo.com

Page 38

View the selected image Edit the selected image Add the selected image into System Tray Copy the selected image Cut the selected image Delete the selected image from hard disk Add tag into selected image Remove tag icon from selected image Print the selected image Set the selected image as desktop wallpaper Locate the selected image on hard disk

Show properties of the selected image

2. Move mouse to blank space between thumbnails, right click to popup below menu:

Select all the thumbnail photos Hide tag icon on the photos

3. In Single Picture displaying status, right click the image to popup below menu:

counter clockwise rotate photo clockwise rotate photo Zoom in or zoom out to make photo fit in window

Display photo with actual size

BlazeVideo, Inc.

www.blazevideo.com

Page 39

3.4 Editing Photos

Select an image, click "Edit" button, or right click a thumbnail then select "Edit", Edit window will appear as below:

1. Select Photos in Preview stage, select one or more photos, and the selected photos will display in Picture Tray. Note: If holding photos in Picture Tray, you will keep the selected photos in Picture Tray even when you switch to other window. Hold Photos:

1. Select a photo and click "Hold" button in Picture Tray;

2. Select a photo and drag it into Picture Tray;

3. Select a photo and right click to select "Hold in Picture Tray" Clear Photos from Picture Tray:

1. Select the desired photo and click "Clear" button, you will clear the selected photo from Picture Tray. Note: If not select any photo in Picture Tray, you will clear all photos in Picture Tray.

2. Edit Photos Select an image, click "Edit" button, or right click a thumbnail then select "Edit", Edit window will appear.

General:



Rotate: Click “Left" button to counter-clockwise rotate image; click "Right" button to clockwise rotate image.

BlazeVideo, Inc.

www.blazevideo.com

Page 40

Click "Apply" to apply the result, click "Reset" to keep the original status.



Flip: Click "Horizontal" to horizontally flip image, click "Vertical" to vertically flip image. Click "Apply" to apply the result, click "Reset" to keep the original status.



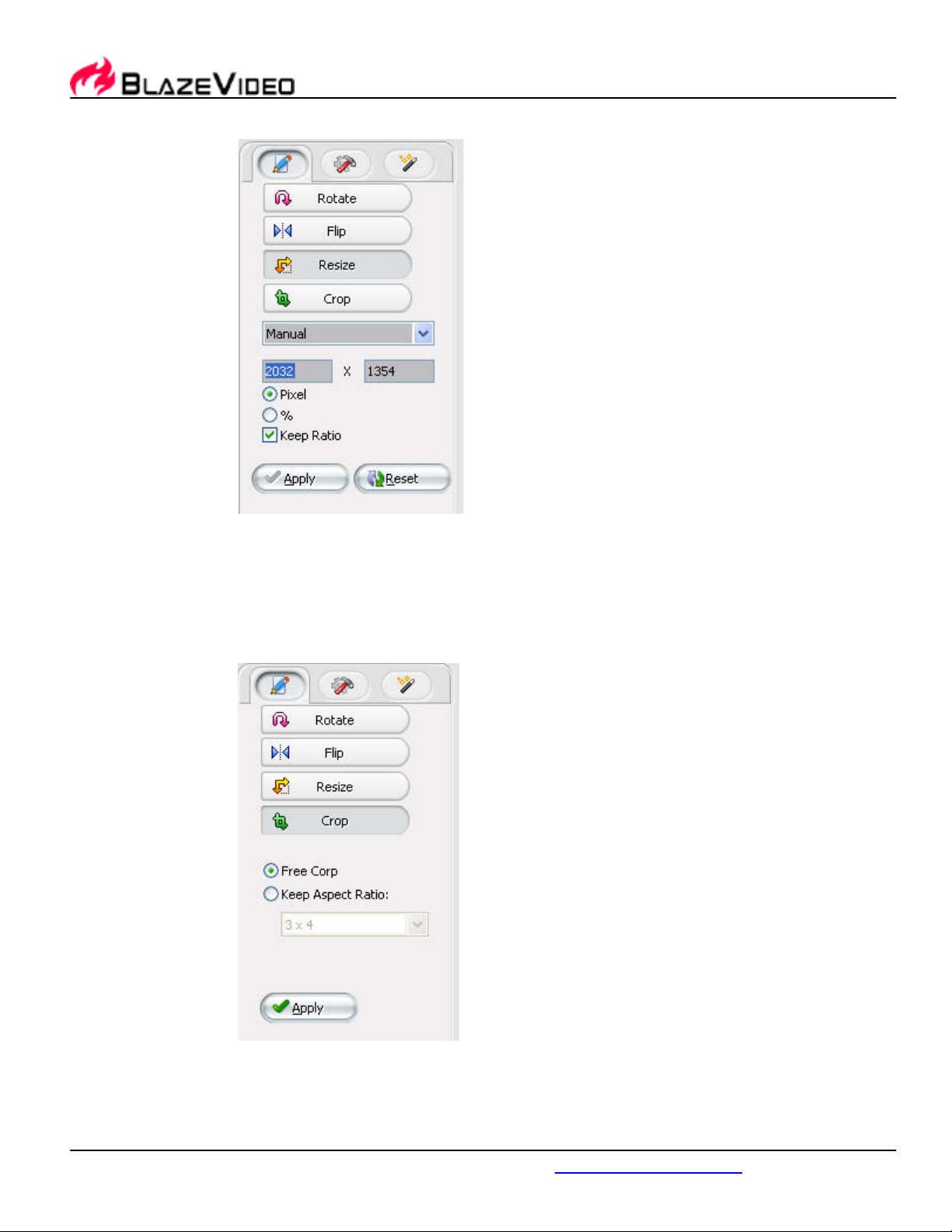

Resize: Default is to "Manual" resize, there are below three ways to resize:

1. Drag the arrow button around the image to resize, the current image size will display in the left edit box;

2. Type your desired width and height, or type your desired percent number;

3. Drop down click to select desired resolution to resize. Keep Ratio: Select to keep the width to height ratio as same as original image.

BlazeVideo, Inc.

www.blazevideo.com

Page 41

Click "Apply" to apply the result, click "Reset" to keep the original status.



Crop: There are two crop modes available, "Free Crop" and "Keep Aspect Ratio". Default is "Free Crop". Free Crop: Move highlight area or freely drag the arrow button around the image to select crop area. Keep Aspect Ratio: Select to keep the width to height ratio as same as original image. Click "Apply" to apply the result, click "Reset" to keep the original status.

Enhance Photos:



Remove Red Eye: drag and drop to select the red eye area, you will see the after effect of removing red eye.

BlazeVideo, Inc.

www.blazevideo.com

Page 42

Click "Apply" to apply the result, click "Reset" to keep the original status.



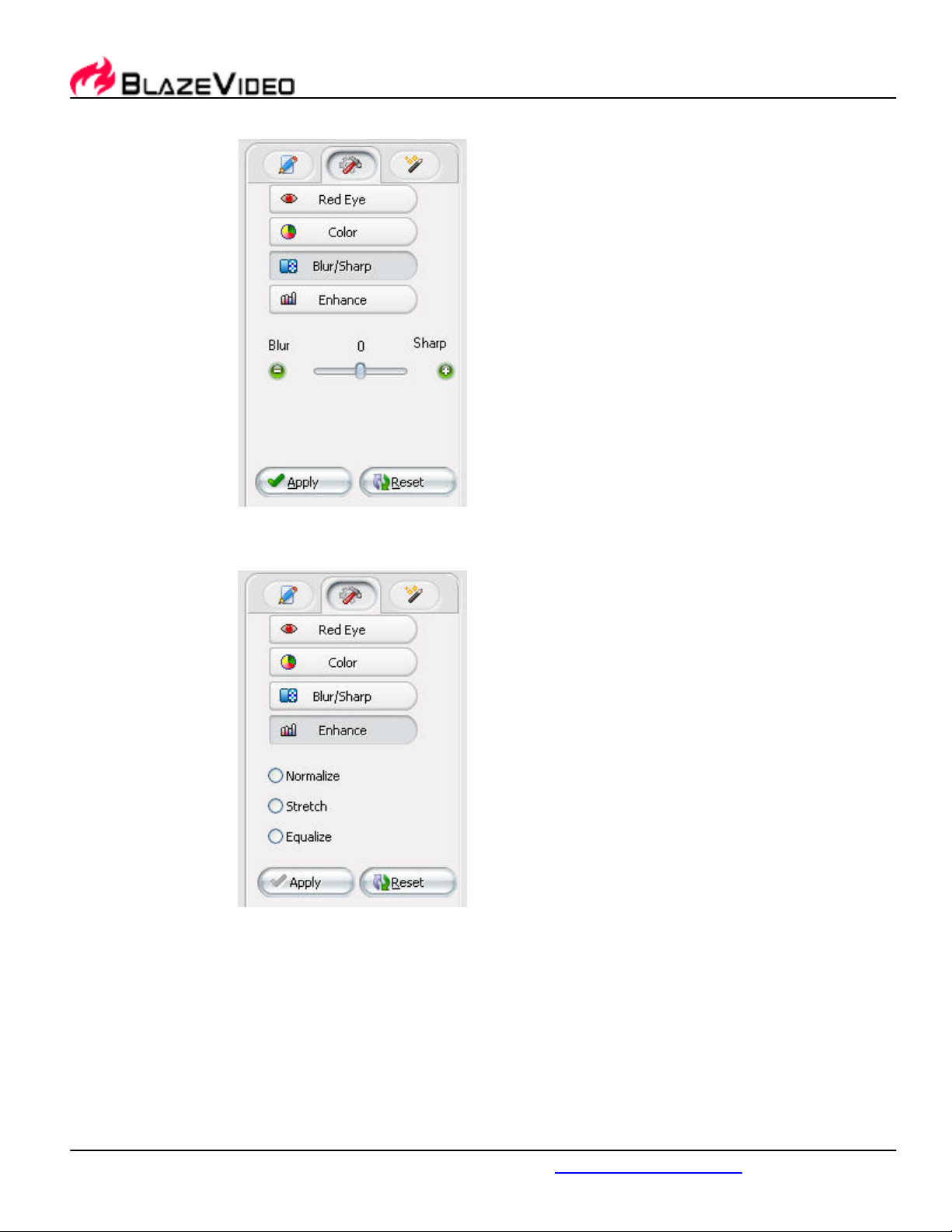

Adjust Color: To change brightness, contrast, hue and saturation of the image. Drag the slide bar or click "-", "+" button to adjust. Click "Apply" to apply the result, click "Reset" to keep the original status.



Blur/Sharp: Rightwards drag the slide bar to make image sharp; leftwards drag to be blur.

BlazeVideo, Inc.

www.blazevideo.com

Page 43

Click "Apply" to apply the result, click "Reset" to keep the original status.



Enhance: Auto adjust color of photos. There are three enhance effects: Normalize, Stretch, Equalize. Click one desired effect to enhance image. Click "Apply" to apply the result, click "Reset" to keep the original status.

Create:



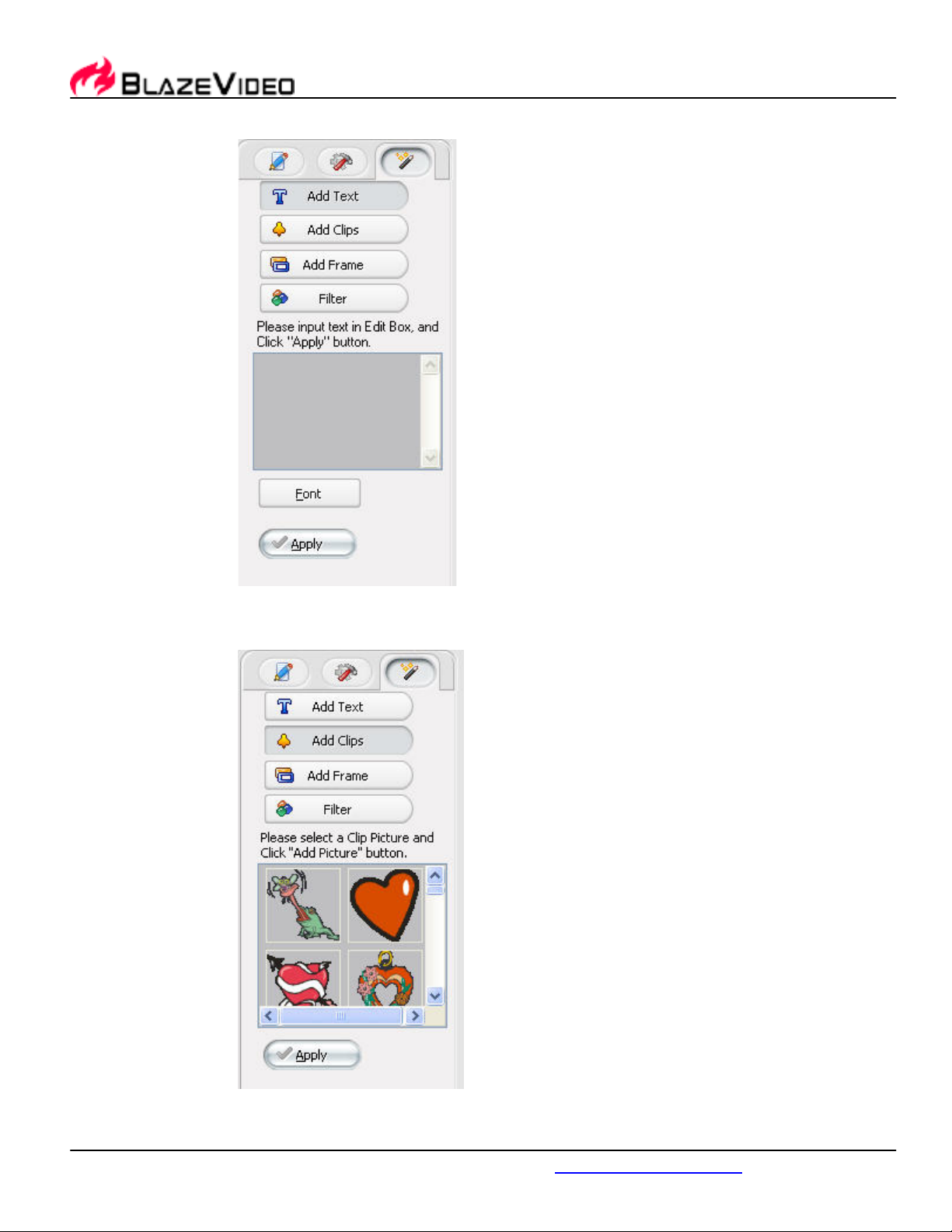

Add Text: Type characters in Edit Box, click "Font" button to select font style, size, effect and color in the pop-up box. Click "Apply", the characters will be added into image. Left click the text, you

BlazeVideo, Inc.

www.blazevideo.com

Page 44

can modify the size and color of text.



Add Clips: Click and select a clip in the clip list, the clip will be added into the image. Click "Apply" to add clips; click other clip, you will change to other clip.

BlazeVideo, Inc.

www.blazevideo.com

Page 45



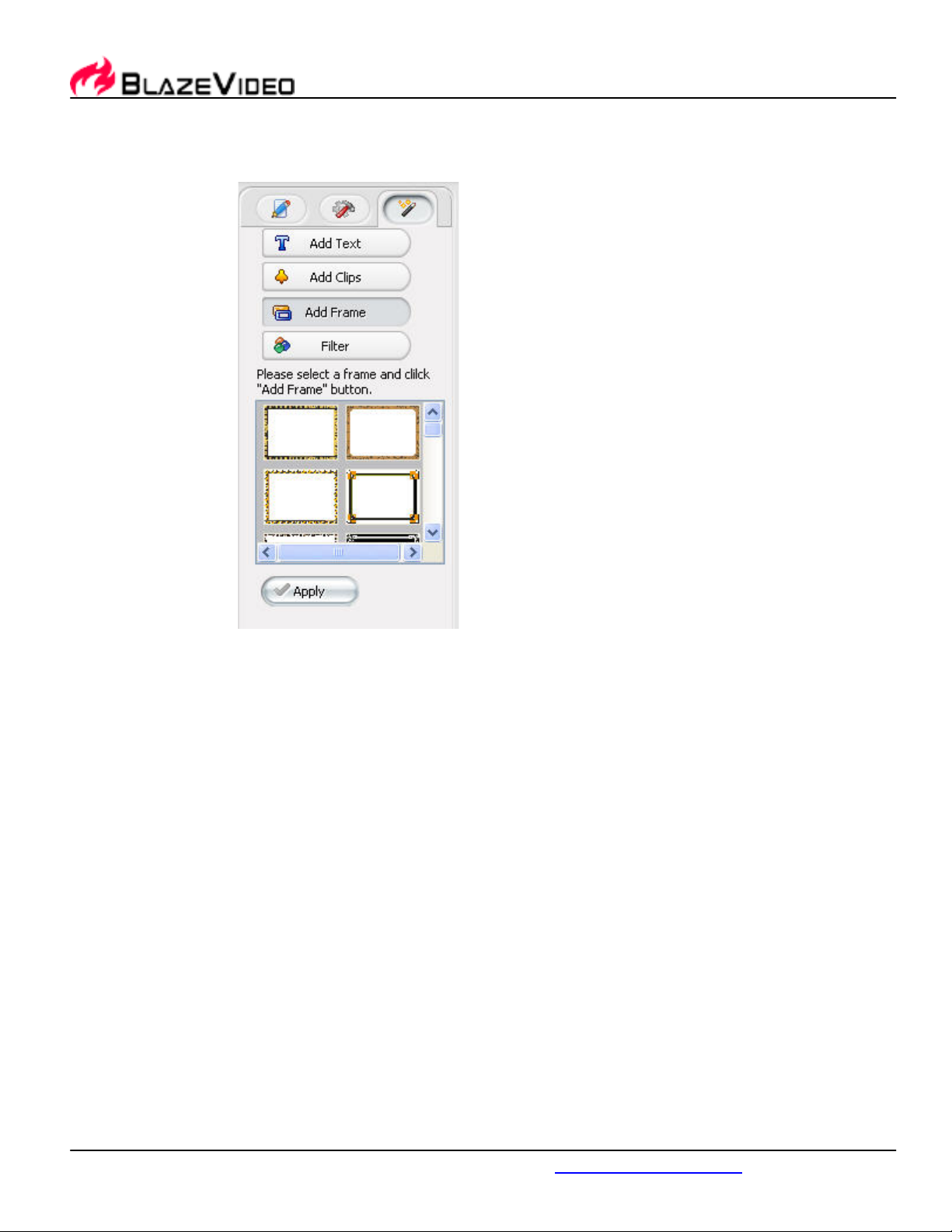

Add Frame: Click and select a frame in the frame list, the frame will be added into the image. Click "Apply" to add frames; left click the frame, you will select other frame.



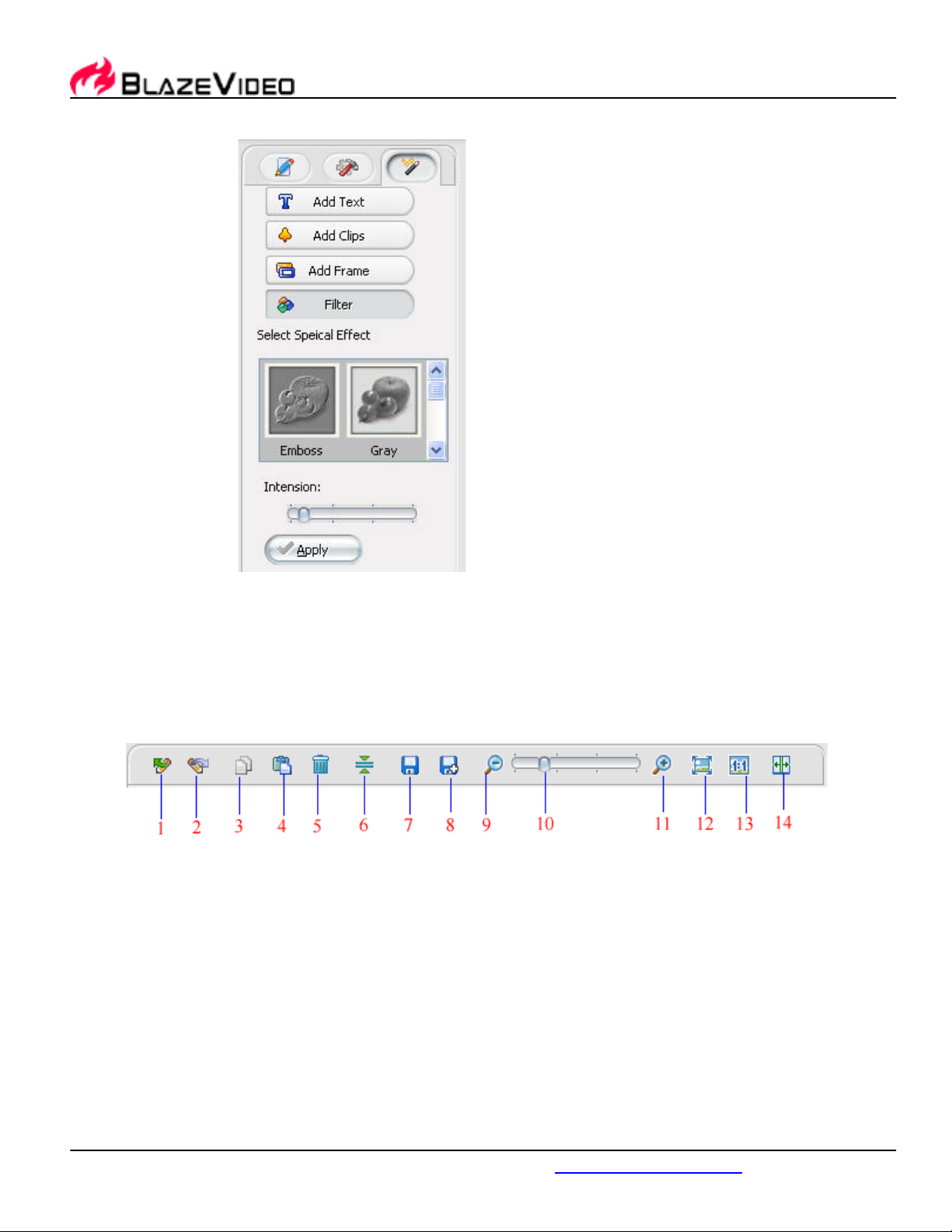

Filter: Select a filter, drag the intension bar to adjust the effect, click "Apply" to apply

BlazeVideo, Inc.

www.blazevideo.com

Page 46

the filter.

3. Save Photos After finishing editing, click "Save" or "Save As" button in the tool bar, or select "File->Save" or "File->Save As" menu, you will save the edited image. Note: If directly save image, BlazePhoto will backup the original photo and append .BAK to extension in current directory. You can also set the saving option in Setting by tick-on or tickoff "Backup files and append .BAK to extension".

4. Edit Tool Bar

1. Undo: cancel last operation.

2. Redo: repeat last operation.

3. Copy: copy selected item onto clipboard.

4. Paste: paste the item on clipboard onto image.

5. Delete: delete the selected items, such as added clip, frame or text.

6. Merge All: merge all the added items(clip, frame, text, etc) into the image, not allowed to modify again.

7. Save: save current image.

8. Save As: save current image as another file.

9. Zoom Out: display current image with smaller size(keeping original image size)

10. Zoom Bar: drag to change image displaying size(keeping original image size).

11. Zoom In: display current image with larger size(keeping original image size)

12. Fit to Window: make current image fit to window.

BlazeVideo, Inc.

www.blazevideo.com

Page 47

13. Actual Size: display picture with actual size.

14. Show/Hide Original Picture: toggle-switch to show or hide the original picture

3.5 Creating

BlazePhoto provides three creating modes: Create Disc, Create Slideshow DVD, Create html albums. Drop down click "Create" button or click the relative create button at the right bottom of the main interface to select your desired create items.

• Create Disc:

Backup and burn image collections in the Picture Tray into CD disc, the interface is as below:

Select a CD writer and fill in the right disc volume info, click "Burn", you will begin to burn the images. Note: If you have not installed CD writer in your PC, the Target Drive box and below relative info will not be available, you will not burn the images to CD disc.

BlazeVideo, Inc.

www.blazevideo.com

Page 48

• Create Slideshow DVD:

Make all the image collections in Picture Tray into slideshow DVD, and select to burn it or not,

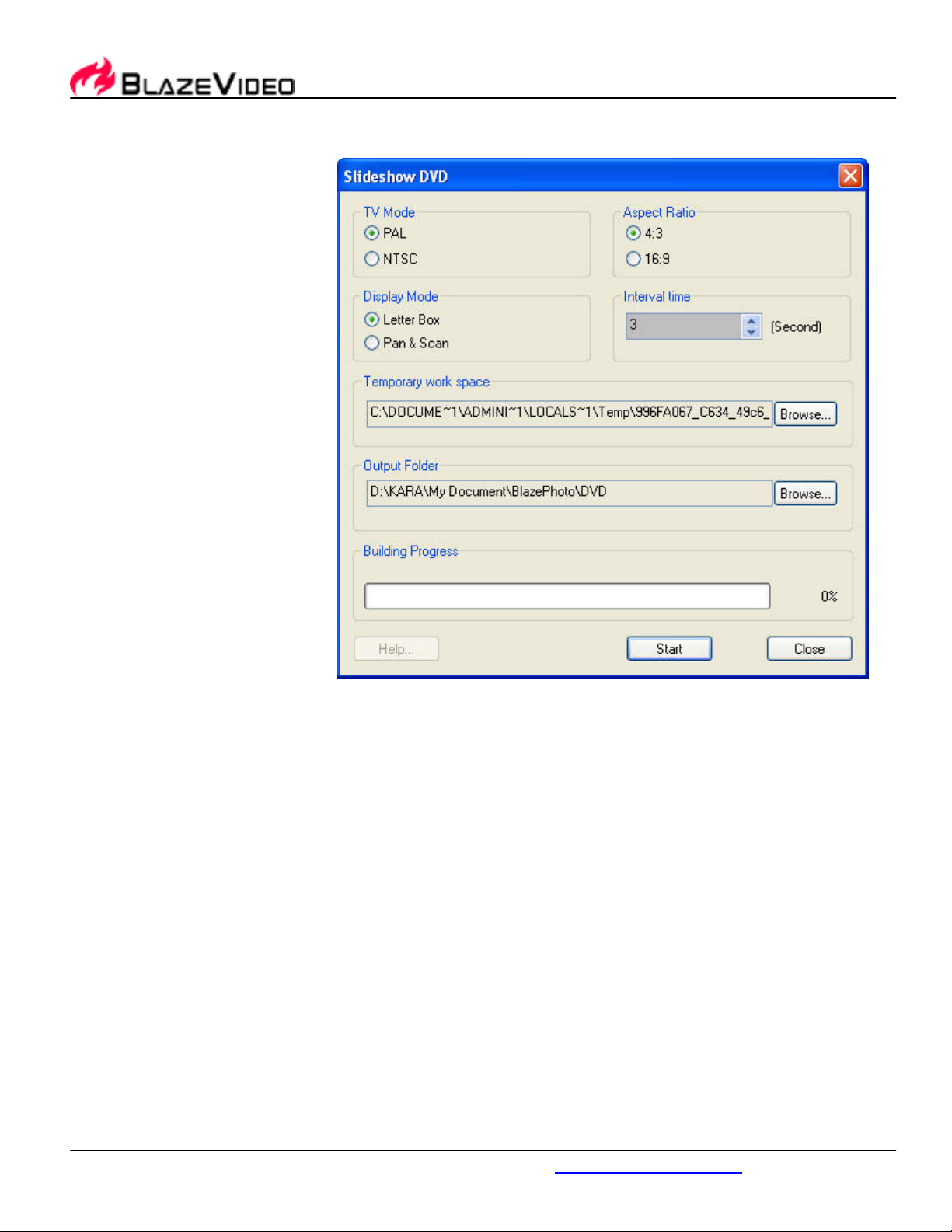

the interface is as below:

TV Mode: Set video standard as PAL or NTSC. NTSC--National Television System Committee, mainly used in Japan, US, Canada, Mexico, etc, with 720*480 resolution; PAL--Phase Alternating Line, mainly used in China, Hongkong, Middle East and Europe, with 720*576 resolution.

Display Mode: Set video display mode as LetterBox or Pan & Scan.

Aspect Ratio: Set aspect ratio as 4:3 or 16:9.

Interval Time: Set the interval time between two images.

Temporary Work Space: Specify a directory as the temp folder to create slideshow DVD.

Output Folder: Specify a directory to save the created slideshow DVD.

Click "Start" button to create slideshow DVD. After creating finished, a dialog box will appear to enquire you whether to burn into disc, if click "Yes", you will burn the DVD into disc just like burn a normal DVD movie.

• Create Html Album:

Create all the image collections in Picture Tray into html page, and enquire you whether to burn into disc, the interface is as below:

BlazeVideo, Inc.

www.blazevideo.com

Page 49

Select your desired album style, destination folder and other settings, click "OK", you will begin to create a html page. After creating finished, a dialog box will popup to enquire you whether to burn into disc, if click "Yes", you will burn the html page into disc just like burn a normal data disc.

3.6 Sharing Photos

BlazePhoto provides three sharing modes: Print, Export to Folder and Send Email. Drop down click "Share" button or click the relative share button at the right bottom of the main interface to select your desired share items.

BlazeVideo, Inc.

www.blazevideo.com

Page 50

• Print:

Print all the image collections in Picture Tray, the operation interface is as below:

Layout: There are two modes available: Individual Prints and Picture Package, which are described as below:

1. Individual Prints: print selected pictures one by one, multiple different images on one page is possible.

2. Picture Package: same one picture per page, the copies depends on the image size and picture package format.

Individual Print Format: multiple prints size available: 2.1"×2.8", 3.5"×5", 4"×6", 5"×7", Full Paper, Actual Size.

Print Single Photo Per Page: print one image per page, maybe there is some blank space on paper.

Crop to Match Paper: the aspect ratio of the image may differ with the printed one, crop some part to fit paper size.

BlazeVideo, Inc.

www.blazevideo.com

Page 51

Picture Package Format: if select "Picture Package" layout, decides how many copies of the same image printed on each page.

Select Printer: if multiple printers installed, please select a target printer.

Page Range: Print All: Print all previewed image; Print Range: select to print specified images.

Page Setup: Set options of print paper, such as size and specification, etc.

After finishing above setting, click "Print", you will begin to print your image collections.

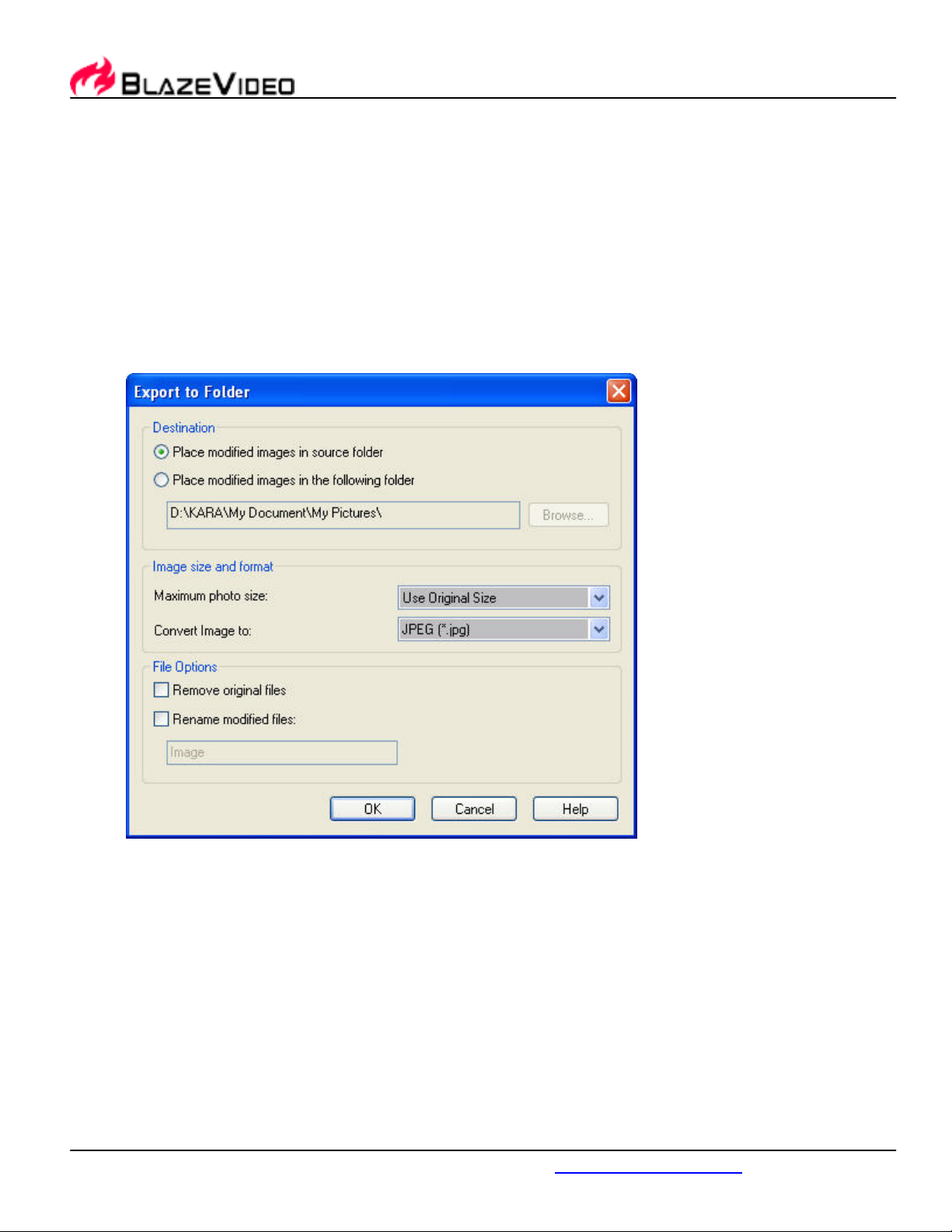

• Output to Folder

Batch change the info of all the images collected in Picture Tray, such as file size, format, and name, the interface is shown as below:

Destination:

1. Place modified image in source folder: Save all the image collections in Picture Tray into their original folder.

2. Place modified image in following folder: Export all the image collections in Picture Tray into specified folder.

Image Size and Format:

1. Maximum Photo Size: the changed image size is limited within your specified size.

2. Convert Image to: Change image format.

File Options

1. Remove original files: delete the original image files from hard disk folder after conversion finishes.

BlazeVideo, Inc.

www.blazevideo.com

Page 52

2. Rename modified files: rename the modified image files as "character in edit box" + number.

After finish above settings, click "OK", you will begin to batch convert files.

• Send Email

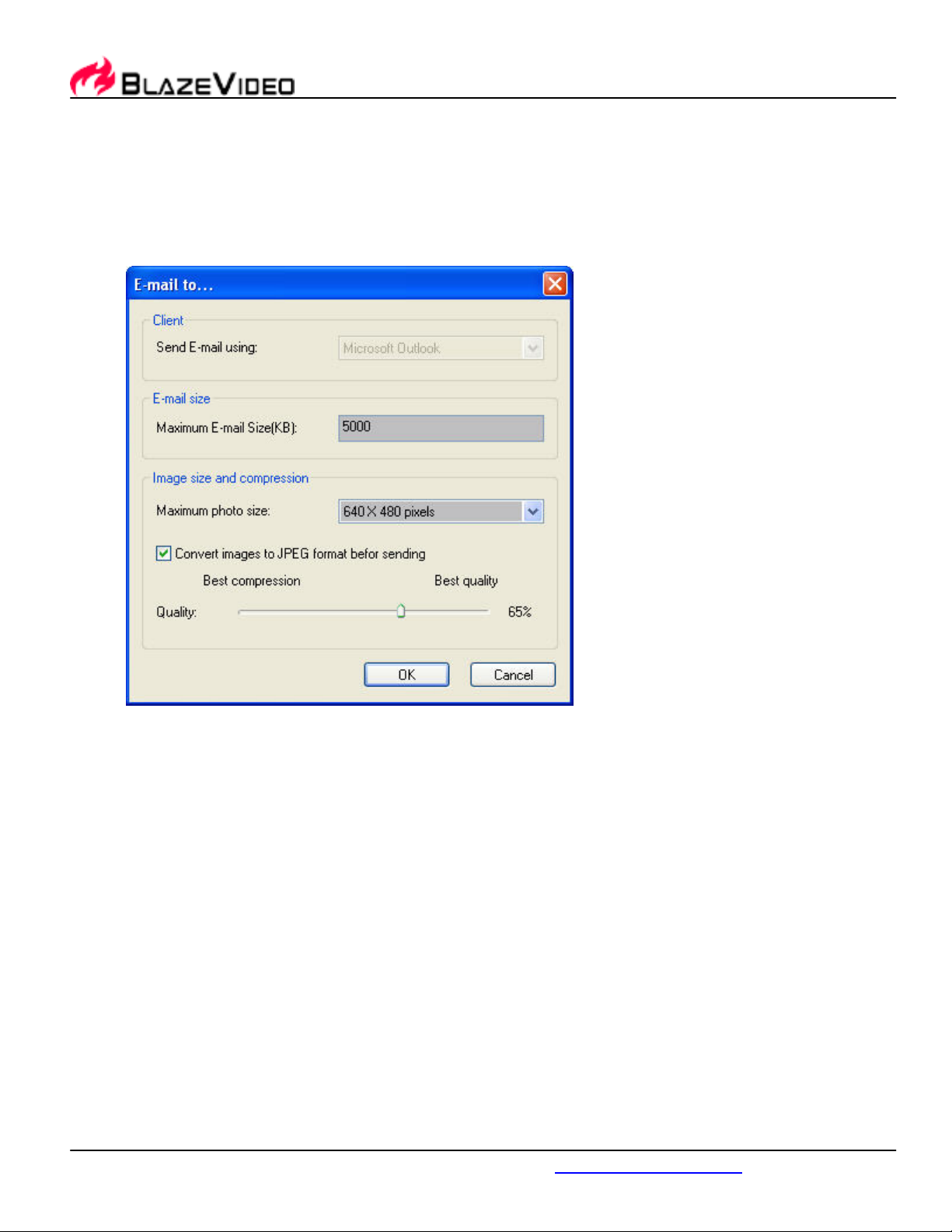

Send all the image collections in Picture Tray as mail, interface is as below:

Client: to specify mail client, such as Outlook, Outlook Express, Hotmail, etc.

E-Mail Size: to specify the maximum size of the mail.

Image Size and Compression: to select the maximum image size and the quality of JPEG file after conversion.

After finishing above settings, click "OK", the selected email program will launch to send email.

3.7 Settings

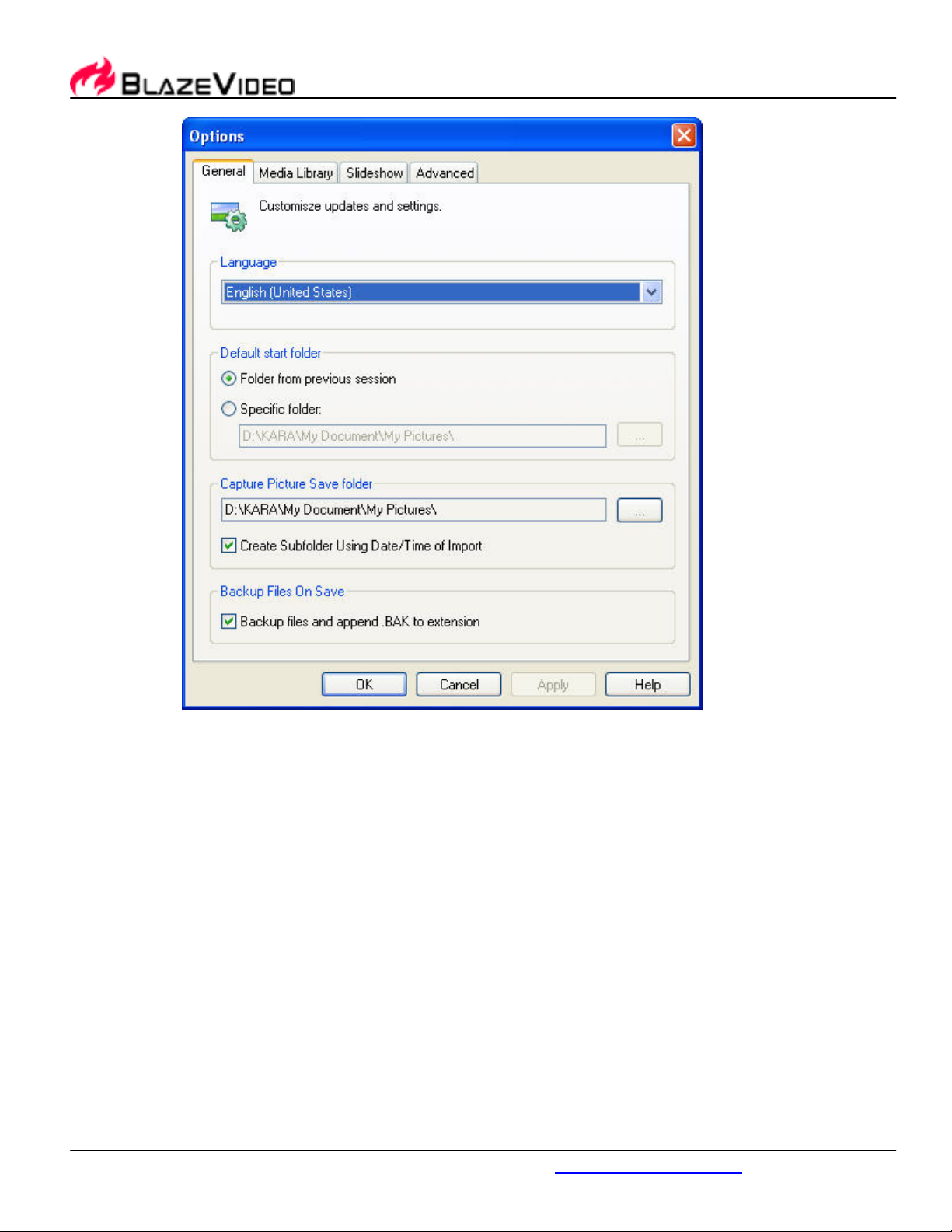

1. General

BlazeVideo, Inc.

www.blazevideo.com

Page 53

Language: Select the interface language, you should relaunch the program after setting to make the change take effects.

Default Start Folder: Set the default folder to open after launching program.

Capture Picture Save Folder: Select a folder to save the image captured from digital devices.

Backup Files on Save: after editing images, backup the original files as "file name.BAK" before saving edited file.

BlazeVideo, Inc.

www.blazevideo.com

Page 54

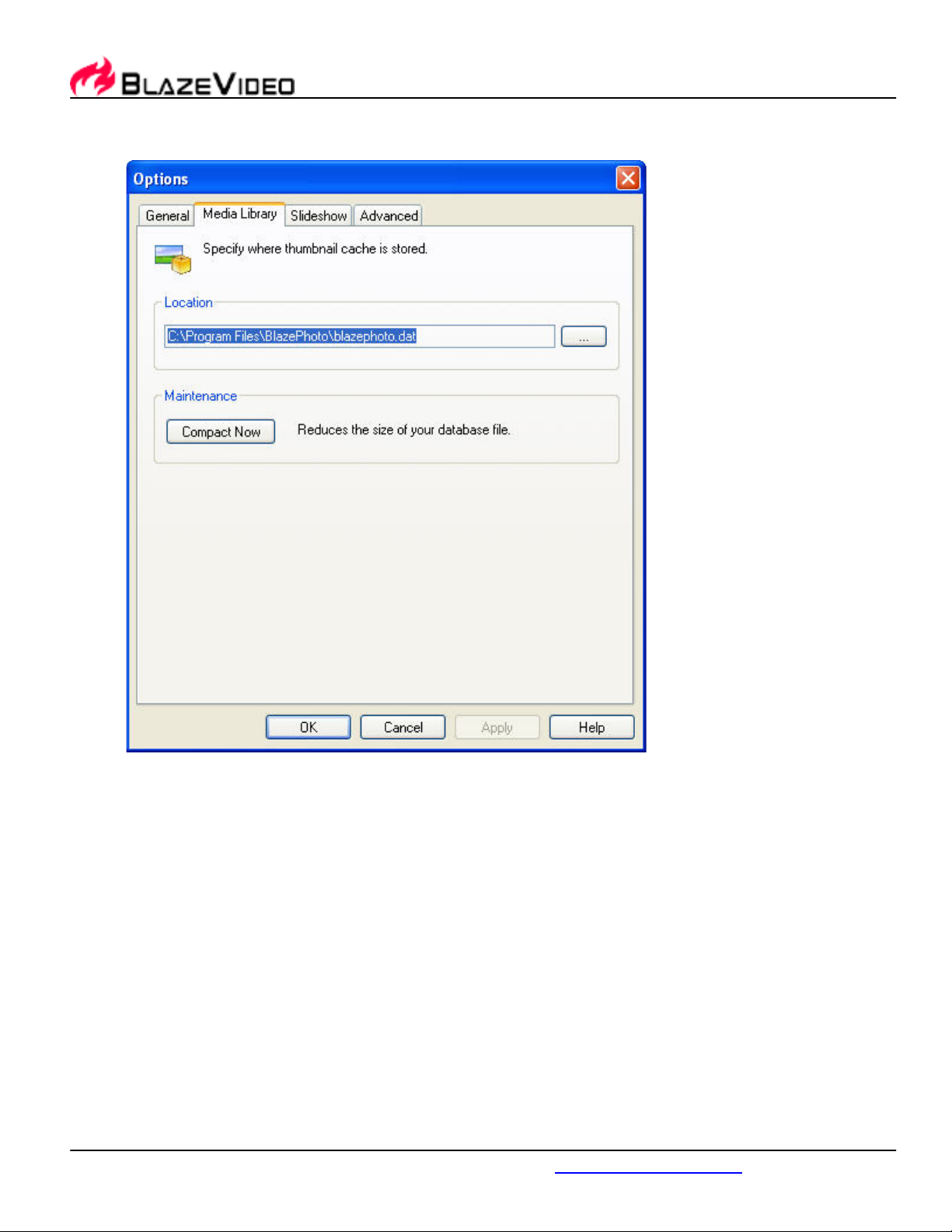

2. Media Library

Location: specify the location of the media library.

Compact Now: there is maybe some useless info for media library, click "Compact Now" to delete useless info to reduce media library size.

BlazeVideo, Inc.

www.blazevideo.com

Page 55

3. Slideshow

Background Music: add background music for slideshow preview, can be mp3 or wma file.

Effect Time: the effect time between two images.

Interval Time: the interval time between two images.

BlazeVideo, Inc.

www.blazevideo.com

Page 56

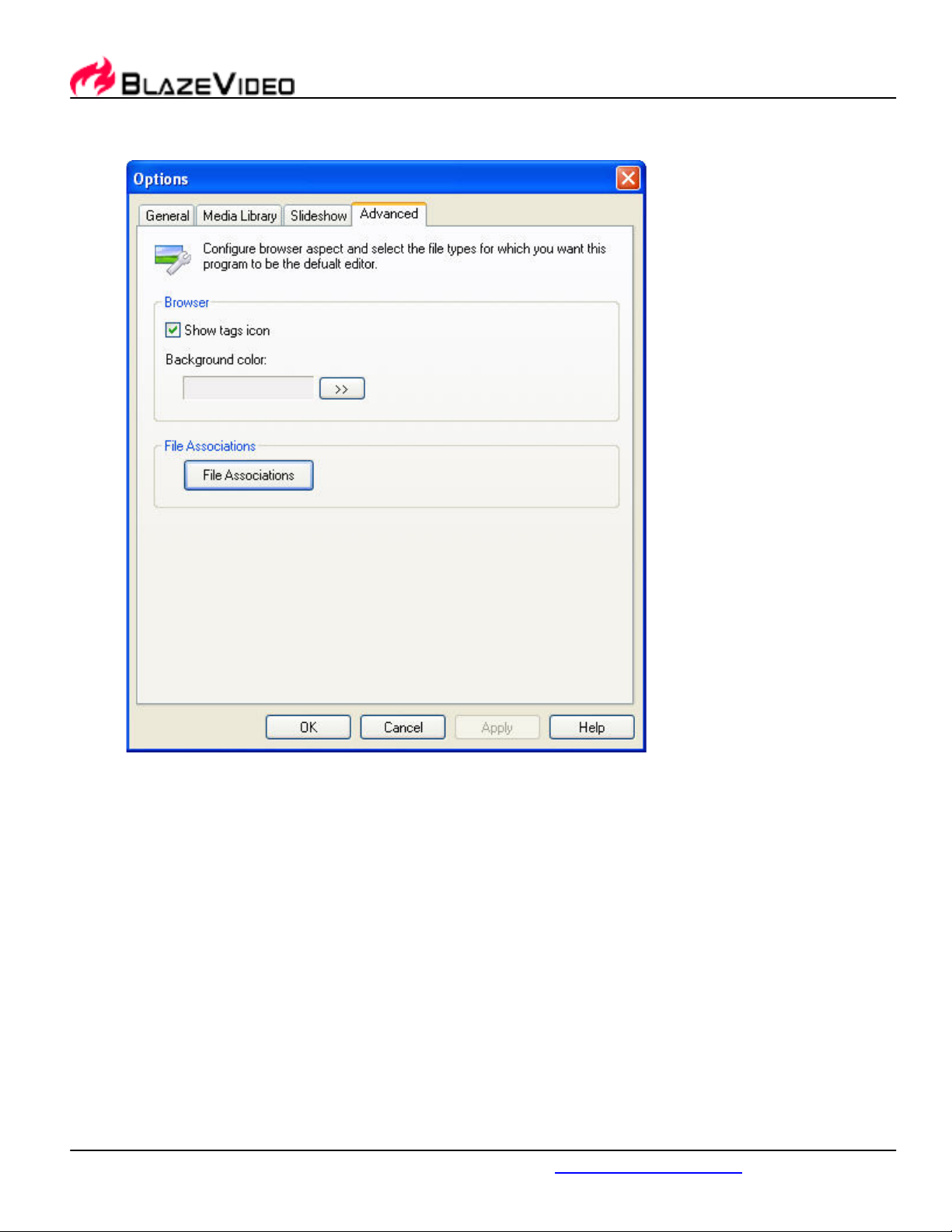

4. Advanced

Show tags icon: show tags icon while previewing pictures.

File Associations: Set BlazePhoto as default application to view pictures, click it to pop up below menu:

BlazeVideo, Inc.

www.blazevideo.com

Page 57



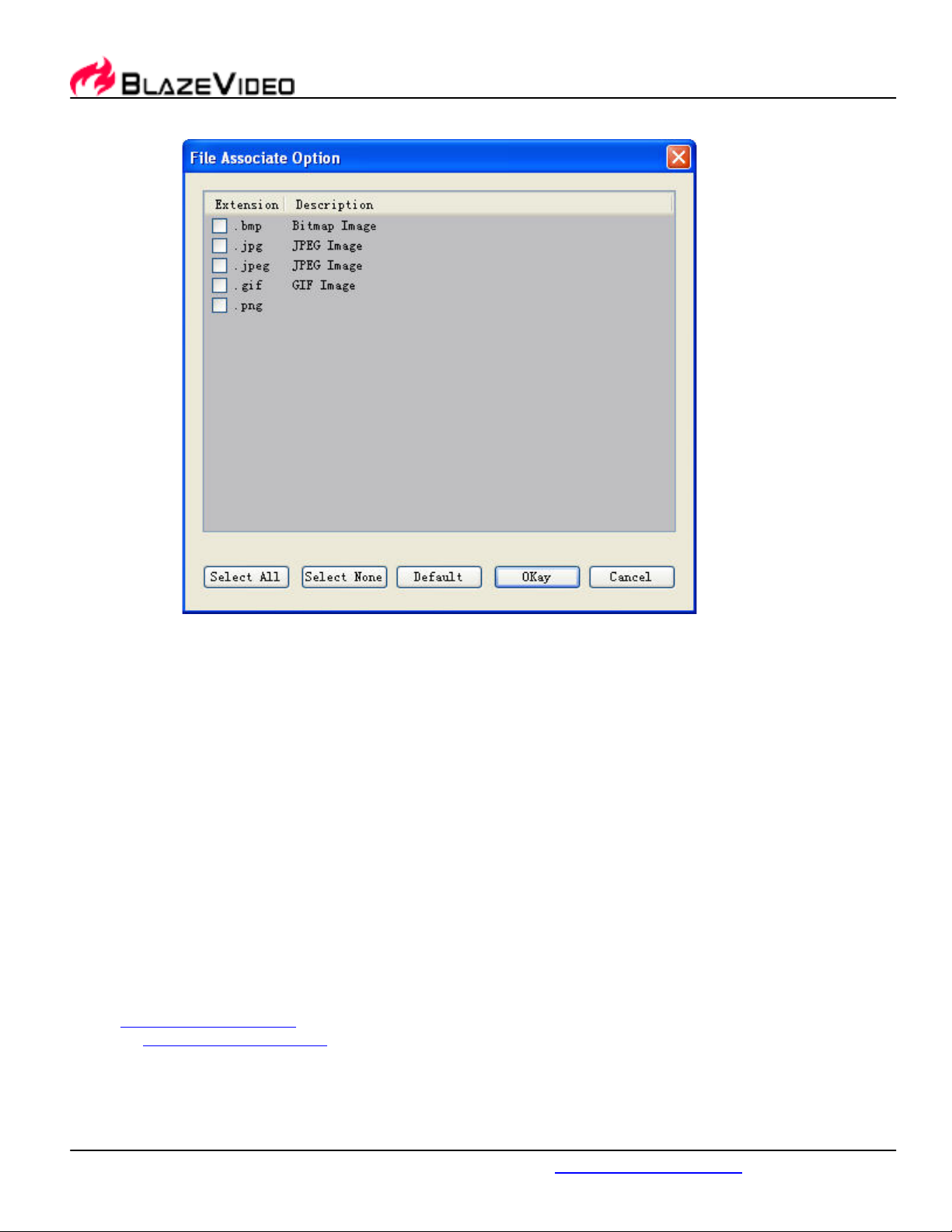

Select All-Select all file formats in the list to be default opened by BlazePhoto



Select None-Cancel all file associations with BlazePhoto



Default-Click to select the file type default associated with BlazePhoto



OK-Submit the file associations setting, the selected file format will be directly opened by BlazePhoto



Cancel-Exit and keep original setting

. Contact Support

Please collect the following information and E-mail us. We will respond you as soon as possible:

• Your device brand name and model

• BlazePhoto’s version number

• Windows Operating System’s version

• Hardware configuration (sound card, VGA card, Image Capture card) and their specifications

• The warning message

• The time and process descriptions about your troubles.

Email: [email protected] Web site:

http://www.blazevideo.com

BlazeVideo, Inc.

www.blazevideo.com

Page 58

BlazeVideo Media Player

User’s Guide

Page 59

Table of Contents

Ⅰ. Overview.................................................................................................................................................................................2

1.1 Introduction.........................................................................................................................................................................2

1.2 Features...............................................................................................................................................................................2

1.3 System Requirements..........................................................................................................................................................2

Ⅱ. Appearance..............................................................................................................................................................................3

Ⅲ. Operation Guide......................................................................................................................................................................3

3.1 Open File ................................................................................................................................................................3

3.2 Switch File ..............................................................................................................................................................4

3.3 Seek Special Moment ..............................................................................................................................................4

3.4 Take Snapshot..........................................................................................................................................................4

Ⅳ. Contact Support ..................................................................................................................................................................5

Ⅰ. Overview

1.1 Introduction

BlazeVideo Media Player is a simple and easy to use media file player. You can playback all media file type, capture the motion video as still image file, freely switch to previous and next media file to playback, and drag the slide bar to seek the special video moment.

1.2 Features

• Playback most popular media file type

• Capture video as still image

• Freely manage playlist and switch media file

• Seek the special video moment

• High Definition & Crystal Clear Video Quality

• Superior Audio Quality

1.3 System Requirements

Basic CPU Intel Celeron 600MHz or higher System Memory 128MB RAM or higher Operating System Windows 98 SE/ME/ 2000/ XP

BlazeVideo, Inc.

www.blazevideo.com

Page 60

Display Card Have 24 Bits resolution and support DirectX, 8MB Video-ROM or more

Sound Card

DirectX DirectX 8.1 or later

PCI sound cards, Integration chipset on Mother Board, USB audio devices etc. compatible with Windows and stereo speakers

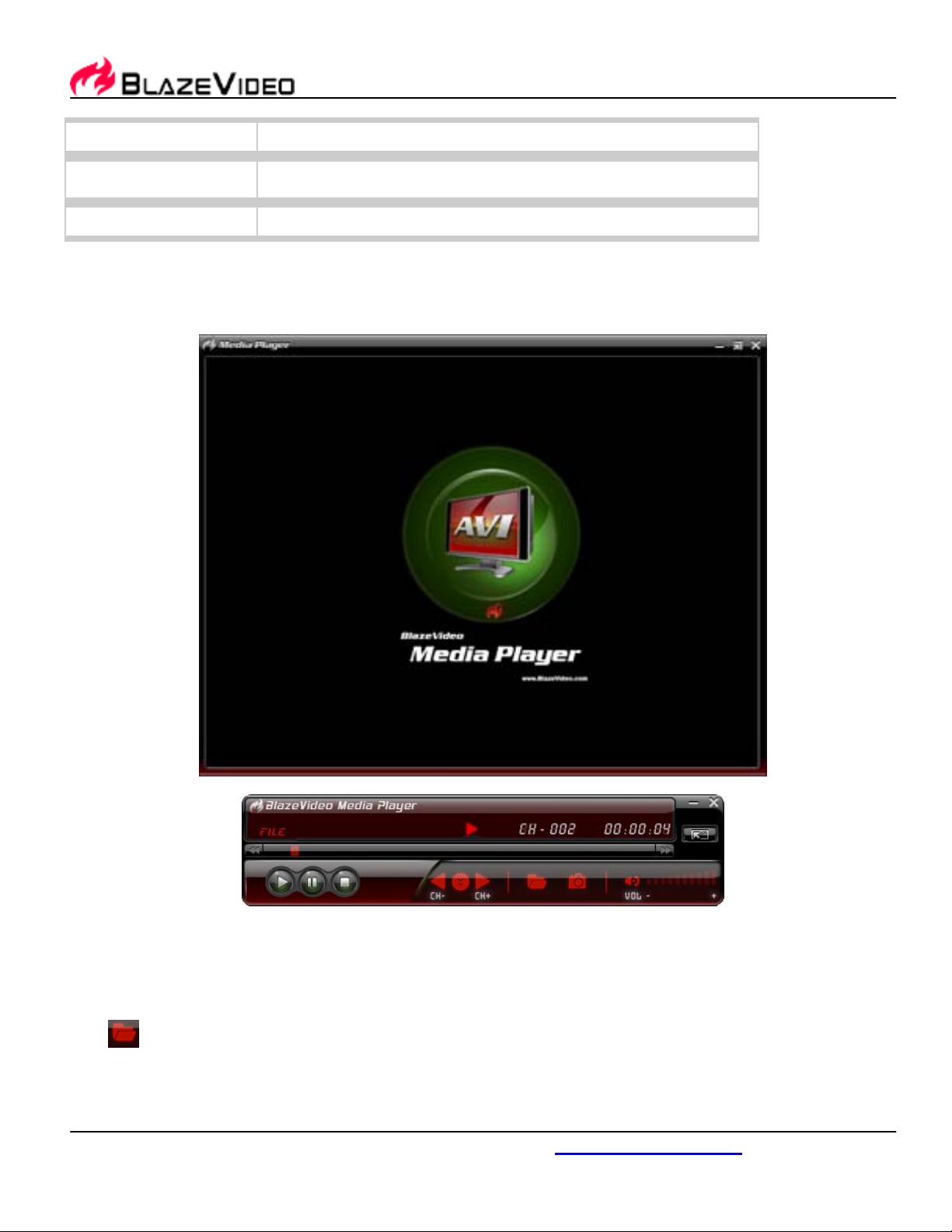

Ⅱ. Appearance

Ⅲ. Operation Guide

3.1 Open File

Click to select target media files on your PC to playback. You can select one or multiple files to play.

BlazeVideo, Inc.

www.blazevideo.com

Page 61

3.2 Switch File

Click to switch to previous file to playback.

Click

Or you can double click a file in playlist to directly switch to play this file.

to switch to next file to playback.

3.3 Seek Special Moment

Drag and drop the slide bar in the main menu, you will seek special moment to play. The video keeps change while you are dragging.

3.4 Take Snapshot

Click to take snapshot, you will capture the current motion video as still image. Every one click captures one image. The captured image will auto display in Capture floating panel with the sequence number 0, 1, 2, 3, etc.

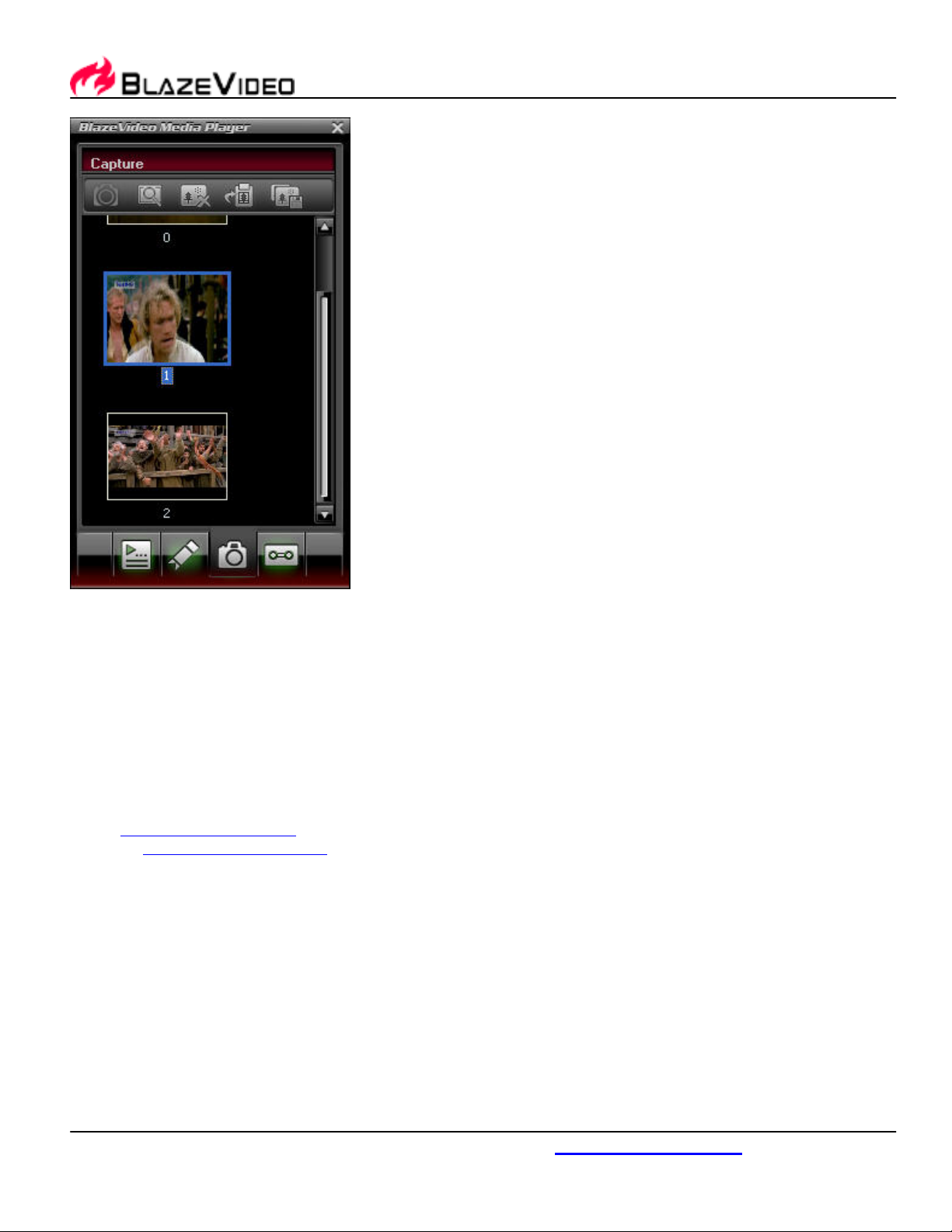

You can freely capture, preview, delete, copy or save the snapshot in Capture floating panel.

Preview: Click to preview the selected image in Paint.

Remove: Remove the selected image from capture list.

Copy to Clipboard: Copy the selected image to clipboard.

Save: Save the selected image, the saving directory is default as “My Pictures”.

BlazeVideo, Inc.

www.blazevideo.com

Page 62

Ⅳ. Contact Support

Please collect the following information and E-mail us. We will respond you as soon as possible:

• Your device brand name and model

• BlazeVideo Media Player’s version number

• Windows Operating System’s version

• Hardware configuration (sound card, VGA card, Image Capture card) and their specifications

• The warning message

• The time and process descriptions about your troubles.

Email: [email protected] Web site:

http://www.blazevideo.com

BlazeVideo, Inc.

www.blazevideo.com

Page 63

BlazeVideo Magic

V2.0 User Manual

Page 64

Blaze Video Magic is a powerful but easy to use utility for multimedia

file conversion. Expanding your multimedia entertainment, Blaze Video Magic realizes you to freely access and enjoy video, music, photo on PC, MP3 player, portable MPEG4 device, PS game player or 3G smart phone. Possessing Blaze Video Magic, you will have a wonderful and extensive digital entertainment life.

Convert Video: You can convert *.RM, *.RMVB, *.AVI, *.WMV, *.ASF, *.MPG, *.MPEG, *.MPE, *M1V, *MPV2, *.MP4, *.DAT, *.MOV, *.VOB file to AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, PSP-MPEG4, 3GP-MPEG4, AVI-DIVX file. You can also split a large file into smaller video clips to fit your device memory.

Convert Music: You can convert all files with audio to MP3 format. You can directly convert audio file, or extract sound tracks from video and save as MP3 format.

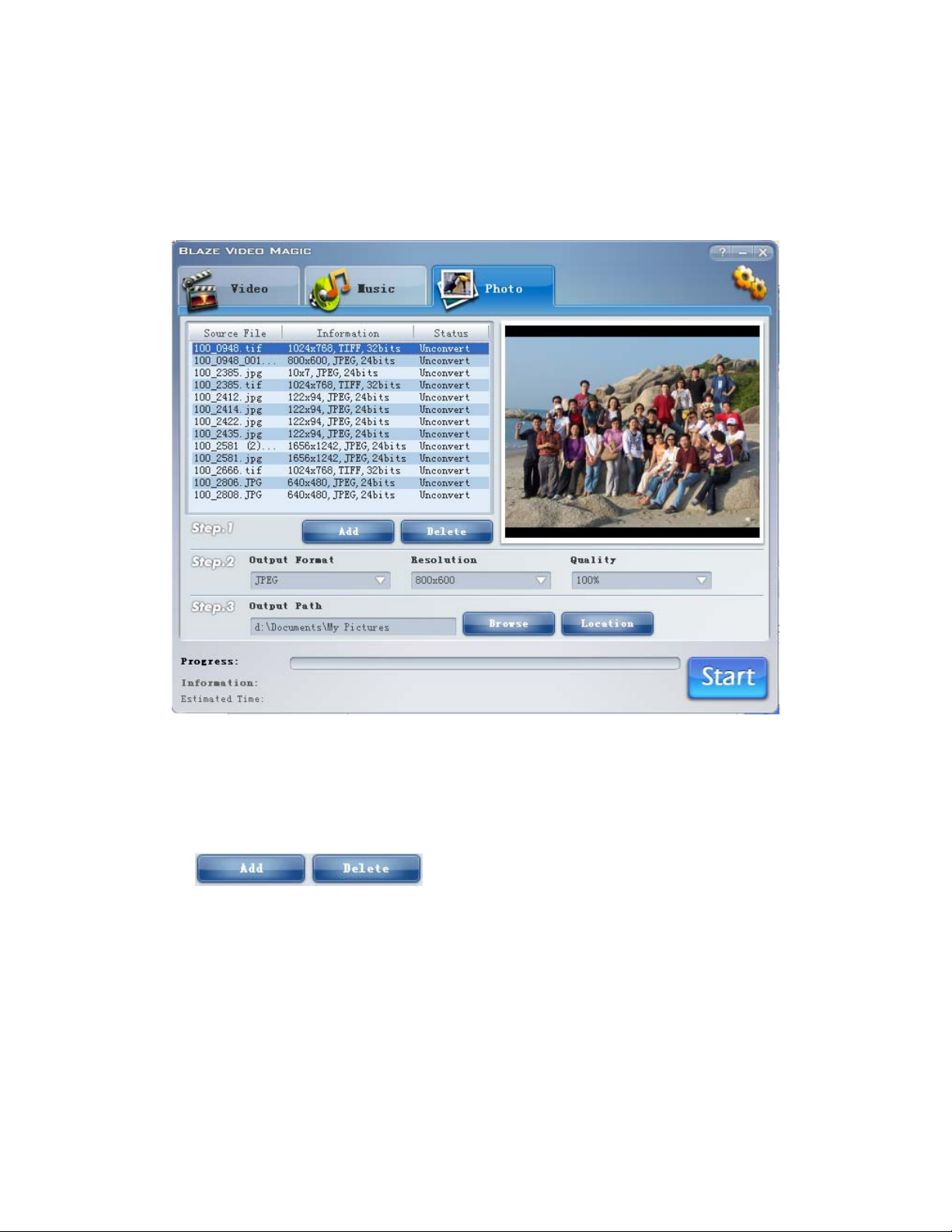

Convert Photo: You can convert pictures such as *.BMP, *.JPG, *.GIF, *.TIF, *.PNG to JPEG format.

Page 65

There are three main programs:

Convert Video

Blaze Video Magic allows you to convert multiple video files, the source file can be *.RM, *.RMVB, *.AVI, *.WMV, *.ASF, *.MPG, *.MPEG, *.MPE, *.MP4, *.DAT, *.MOV, *.VOB, the target output file can be AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, PSP-MPEG4, 3GP-MPEG4, AVI-DIVX.

The operation is very easy, just follow below main steps:

1. Add Video File:

Add: Click "Add" button to select the source video file you want

to convert.

Delete: Delete the selected file from source file list.

Play: Click to preview and play the selected

video file.

Page 66

Stop:Click to stop playing the current playback file.

Output Format: Drop down click to select your desired output format, five items available: AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, 3GP-MPEG4, AVI-DIVX.

Setting: Click to popup a box for video output setting, please refer to Video

Output Setting.

3. Path:

Video output path is defaultly set as "My Document/My Videos".

Browse: click "Browse" you can change the output path. Location: click "Location" you can quickly open the output folder and access

the converted video file.

Output Setting:

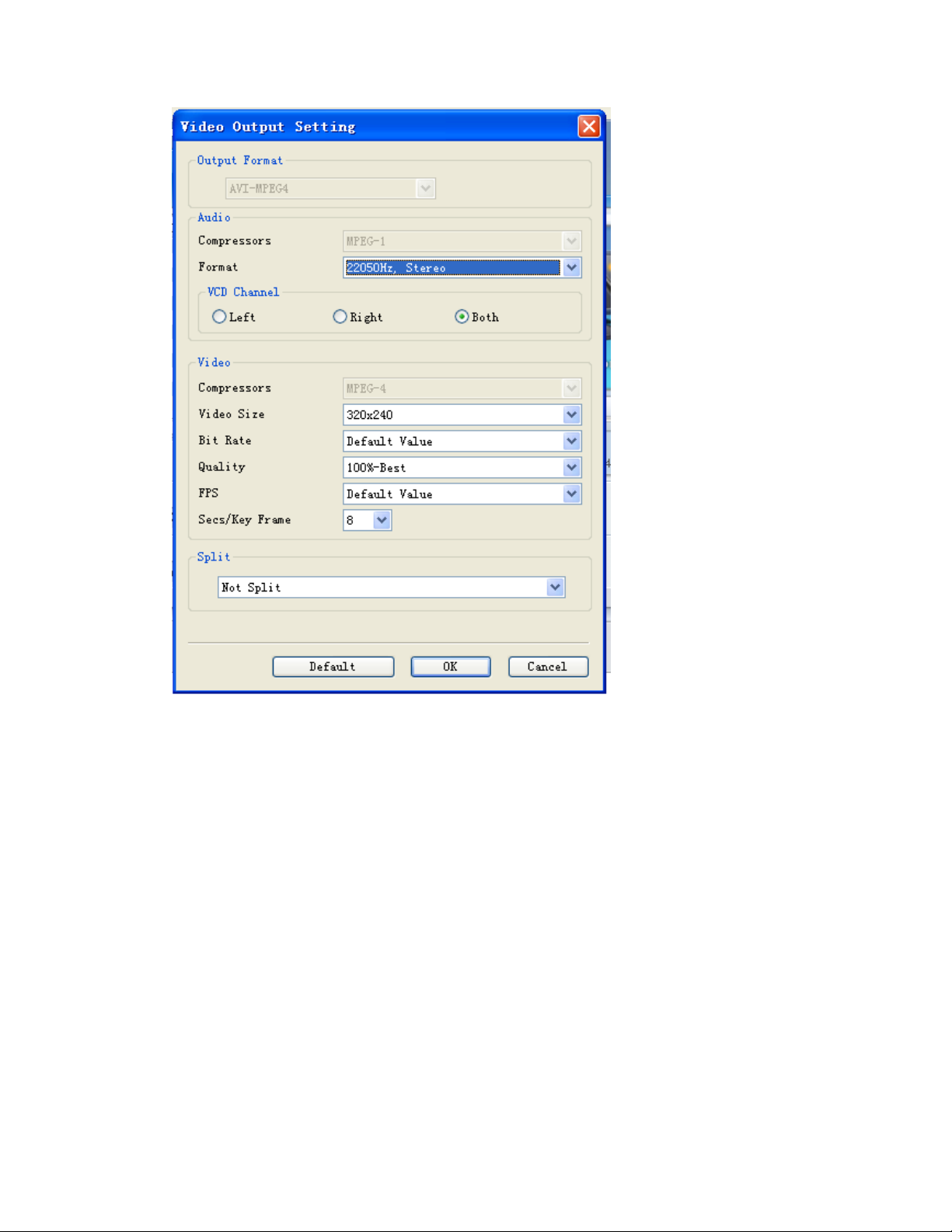

Set Output

Click "Start" button at the bottom of window, you will begin to convert the added files.

In Video convert page, move mouse to "Output Format ", drop down click to select your desired output format, then click “Setting” , “Video Output Setting” box will eject for video output setting.

Note: This setting will take effect for all files added in the file list.

Convert

Page 67

Here you can freely set audio and video parameter of your desired output file, including audio compressor & format, VCD Channel (availabl e only for *.DAT source file), video compressor, size, bit rate, quality, FPS, key frame according to your requirement.

Split: Split a large video file into smaller video clips to fit your device memory, drop down click to freely select Not Split, Split to 1 part, Split to 2 parts, Split to 3 parts or Split to 4 parts.

Note: Depending on the output file format, some of the parameter options will not be available for change of setting.

Convert Music

Click "Music" button at the top of Main window to switch to Music convert window, here you can freely convert music file.

Page 68

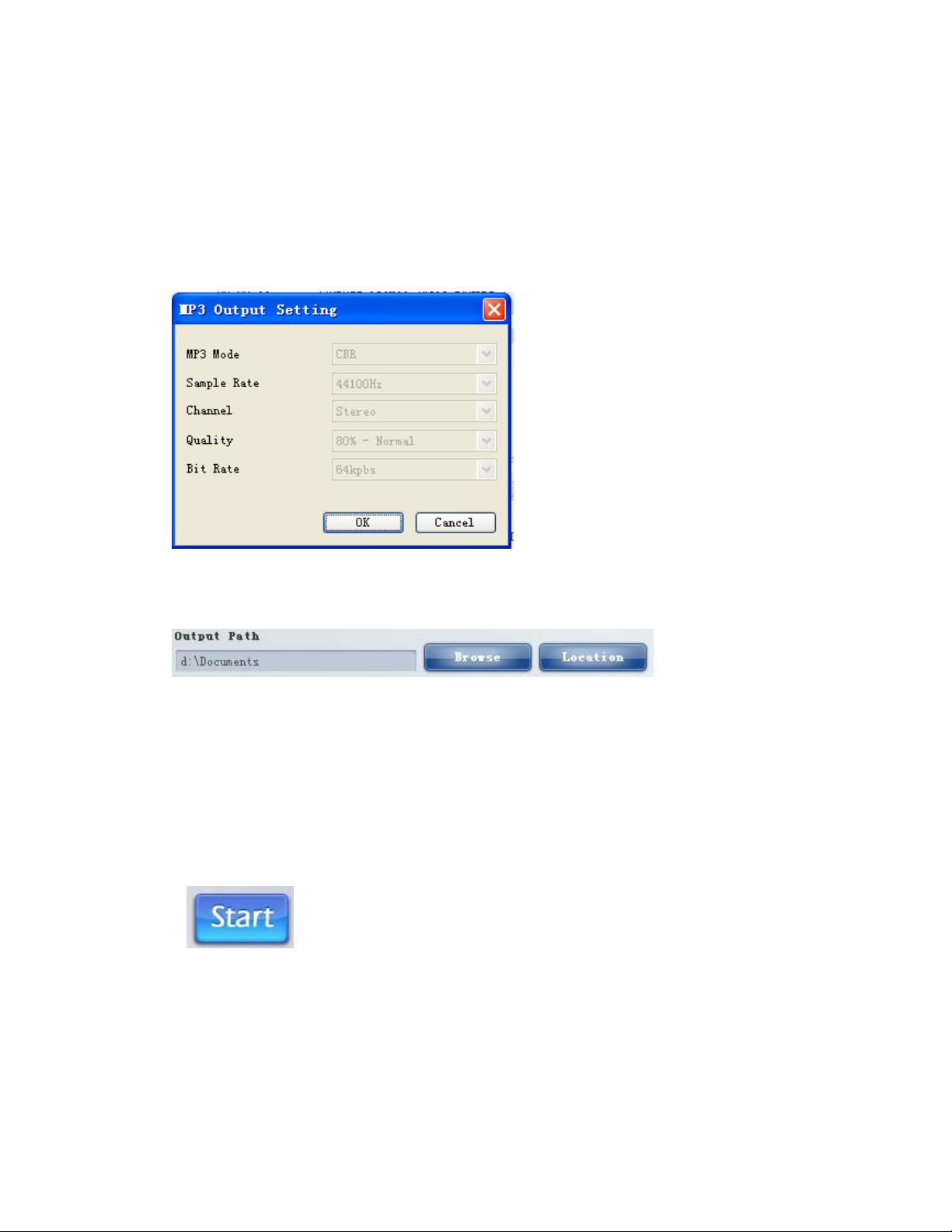

Blaze Video Magic allows you to convert all files with audio into MP3 format, you can directly convert audio file, or extract sound tracks from video and save as MP3 format .

Please follow below steps to convert music file:

1. Add Source File:

Add: Add the source file you want to convert, the source file may

be audio or video file.

Delete: Delete the selected file from source file list.

Play: Click to play the selected file.

Stop:Click to stop playing the current playback file.

Output Setting:

Page 69

Output Format: Drop down click to select your desired output format, five items available: CD Quality MP3(CBR), High Definition Quality MP3(CBR), CD Quality MP3(VBR), High Definition Quality MP3(VBR), User Defined MP3.

Setting: Only activated for "User Defined MP3" format. Click to popup "MP3 Output Setting" box, here you can freely set the output MP3 file's properties, including MP3 mode, sample rate, channel, quality, bit rate, etc.

Set Output

Path:

Video output path is defaultly set as "My Document/My Music".

Browse: click "Browse" you can change the output path. Location: click "Location" you can quickly open the output folder and access

the converted video file.

Click "Start" button at the bottom of window, you will begin to convert the added files.

Convert

Page 70

Convert Photo

Click "Photo" button at the top of Main window to switch to Photo convert window, here you can freely convert picture file.

You can convert mulitple pictures including *.BMP, *.JPG, *.GIF, *.TIF, *.PNG to JPEG format, and you can freely set the output picture's resolution to change output picture's file size. The operation is very easy, just follow below main steps:

Add: Select the picture you want to convert.

Delete: Delete the selected picture from source file list. Preview: Click a picture in file list, you can preview the selected picture in right

Preview window.

Add Picture:

Page 71

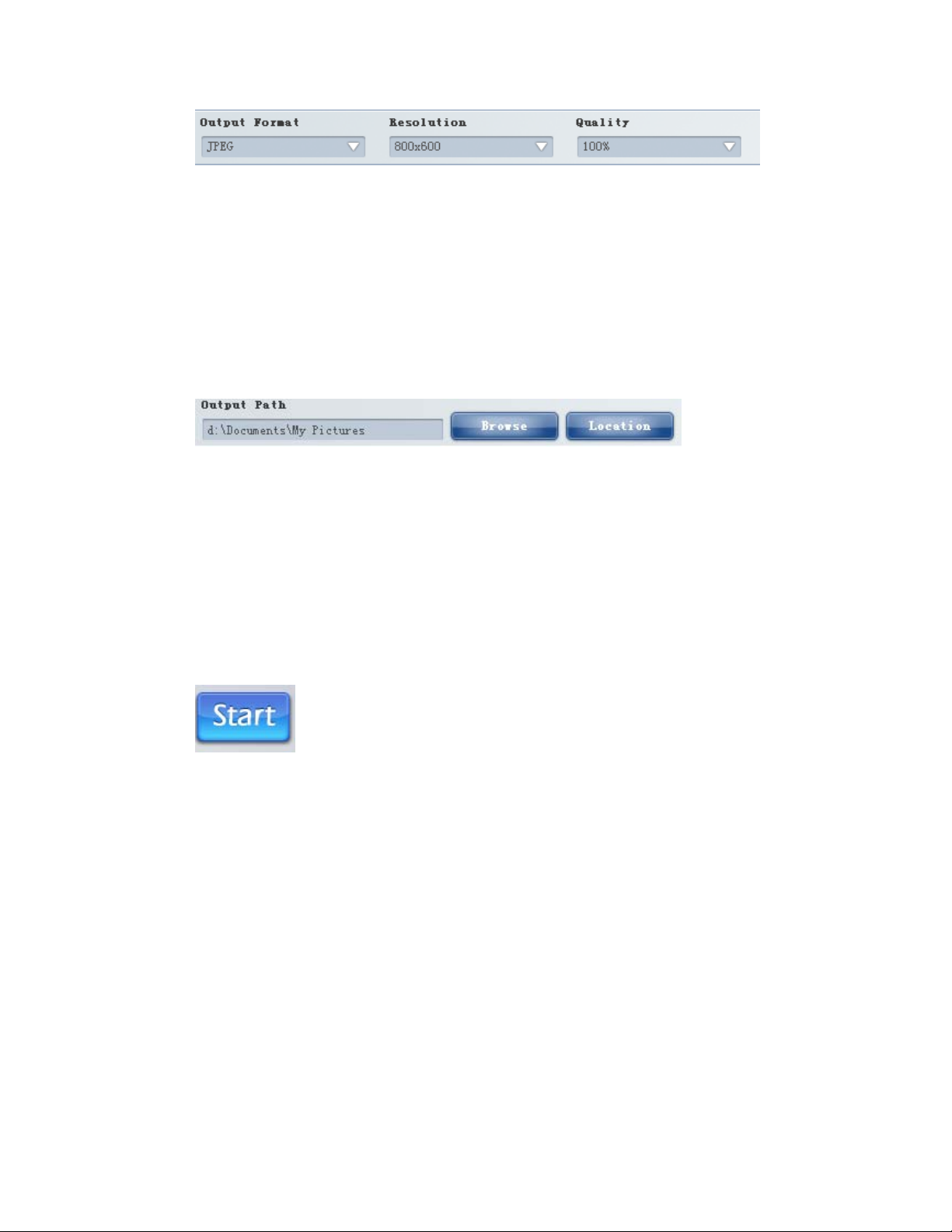

Output Setting:

Output Format: defaultly set as "JPEG" format. Resolution: defaultly set as "800x600", you can also drop down click to set

resolution as"1024x768".

Quality: defaultly set as "100%".

Set Output Path:

Photo output path is defaultly set as "My Document/My Pictures".

Browse: click "Browse" you can change the output path. Location: click "Location" you can quickly open the output folder and access

the converted picture.

Click "Start" button at the bottom of window, you will begin to convert the added pictures.

Convert

Page 72

System Requirements

Basic Recommended CPU 1.0GHZ 2.0GHZ System Memory 256MB RAM 512MB RAM Operating

System Hard-disk

Available Capacity

DirectX DirectX 8.0 or later

Required Software

Microsoft Windows 98/ME/2000/XP

Depends on converted file's size and coding method, At least 1 GB free space on system disc

Windows Meida Player 9.0 or later Real Player 10.0 or later QuickTime p layer 6.5 or lat e r * For above required software, higher v ersion is better.
