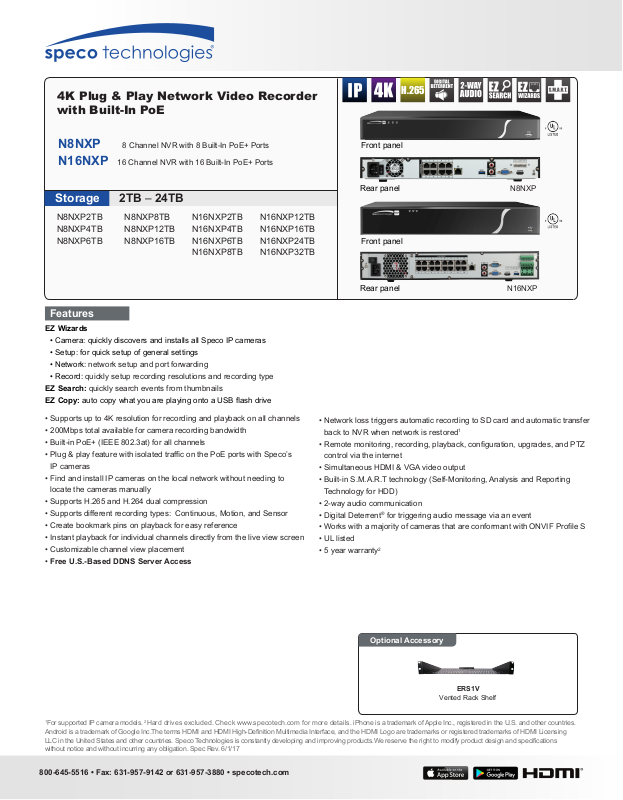

Speco N16NXP6TB, N8NXP12TB, N8NXP8TB, N8NXP6TB, N8NXP4TB Specsheet

4K Plug & Play Network Video Recorder
with Built-In PoE

H.265

N8NXP 8 Channel NVR with 8 Built-In PoE+ Ports
N16NXP 16 Channel NVR with 16 Built-In PoE+ Ports

Storage

N8NXP2TB
N8NXP4TB
N8NXP6TB

Features

EZ Wizards

• Camera: quickly discovers and installs all Speco IP cameras

• Setup: for quick setup of general settings

• Network: network setup and port forwarding

• Record: quickly setup recording resolutions and recording type

EZ Search: quickly search events from thumbnails

EZ Copy: auto copy what you are playing onto a USB ash drive

• Supports up to 4K resolution for recording and playback on all channels

• 200Mbps total available for camera recording bandwidth

• Built-in PoE+ (IEEE 802.3at) for all channels

• Plug & play feature with isolated trafc on the PoE ports with Speco’s

IP cameras

• Find and install IP cameras on the local network without needing to

locate the cameras manually

• Supports H.265 and H.264 dual compression

• Supports different recording types: Continuous, Motion, and Sensor

• Create bookmark pins on playback for easy reference

• Instant playback for individual channels directly from the live view screen

• Customizable channel view placement

• Free U.S.-Based DDNS Server Access

2TB ‒ 24TB

N8NXP8TB
N8NXP12TB
N8NXP16TB

N16NXP2TB
N16NXP4TB
N16NXP6TB
N16NXP8TB

N16NXP12TB
N16NXP16TB
N16NXP24TB
N16NXP32TB

Front panel

Rear panel

Front panel

Rear panel

• Network loss triggers automatic recording to SD card and automatic transfer

back to NVR when network is restored

• Remote monitoring, recording, playback, conguration, upgrades, and PTZ

control via the internet

• Simultaneous HDMI & VGA video output

• Built-in S.M.A.R.T technology (Self-Monitoring, Analysis and Reporting

Technology for HDD)

• 2-way audio communication

• Digital Deterrent® for triggering audio message via an event

• Works with a majority of cameras that are conformant with ONVIF Prole S

• UL listed

• 5 year warranty

2

1

N8NXP

N16NXP

Optional Accessory

ERS1V

Vented Rack Shelf

1

For supported IP camera models. 2Hard drives excluded. Check www.specotech.com for more details. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google Inc.The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries. Speco Technologies is constantly developing and improving products.We reserve the right to modify product design and specications
without notice and without incurring any obligation. Spec Rev. 6/1/17

800-645-5516 • Fax: [phone] or 631-957-3880 • specotech.com

Technical Specications:

4K Plug & Play Network Video Recorder with Built-In PoE

Model NXP

Input

Video

Output

Input IP Camera (Network) 8 16

Audio

Recording

Playback

Backup

Storage

Alarm

Network

Network

Access

Additional Features Digital zoom, Daylight saving time, Email notication, NTP (network time protocol)

Power

Environment

Weight Unit Weight (Gross Weight) 7 lbs. (without drives) 11.5 lbs. (without drives)

Dimensions Unit Dimensions (W x H x D) 14.8” (W) x 2.1” (H) x 12.9” (D) 17.3” (W) x 3.0” (H) x 16.2” (D)

2-Way Audio Local 1 input (RCA), 1 output (RCA)

HDD

Remote Setup and Upgrade Supported

Operating Temperature 14°F – 131°F

Please note that specications and unit exterior design are subject to change without notication.

Max. IP Channels 8 16

Resolution Max. 4K (3840x2160)

HDMI® / VGA 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

Split View 1, 4, 8 1, 4, 8, 9, 16

Codec G.711

Compression H.265/H.264

Resolution Max. 4K

Bandwidth Max. 200Mbps

Camera Bit Rate Max. 20Mbps each

Recording Mode Continuous / Motion / Sensor / Schedule / Manual

Pre-Recording Max. 30 seconds

Post Recording Max. 5 minutes

Search EZ Search, Date/Time

Multi-Decoding 1, 4, 8 1, 4, 16

Playback Speed x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16

Media USB ash drive, USB HDD, Network

File Format Proprietary format, ASF, JPG

Interface SATA III

Capacity 16TB 32TB

Internal Slots 2 4

USB Ports 1 USB 3.0, 1 USB 2.0

Sensor Input 4 local, 8 IP 16 local, 16 IP

Alarm Output 2 4

PoE 8 (IEEE 802.3at) PoE+ 16 (IEEE 802.3at) PoE+

Ethernet 10/100/1000Base-T (Gigabit)

Throughput Max. 96Mbps

Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, SMTP, NTP

Mobile Client Speco One

PC Web Viewer Internet Explorer, Firefox

MAC Viewer Safari (plugin required)

PC Client SecureGuard® VMS

User Access Max. 128 users

Power Supply AC 100~240V, 50~60 Hz

Total PoE Budget 80W 150W

Relative Humidity 10% - 90% RH

800-645-5516 • Fax: [phone] or 631-957-3880 • specotech.com

Spec Rev. 11/11/13

Rev. 6/1/17
