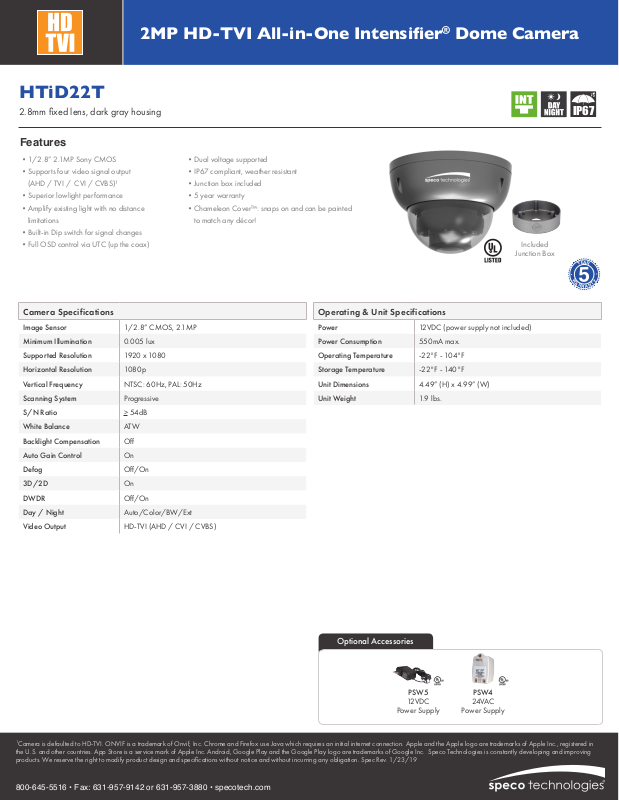

Speco HTiD22T Specsheet
2MP HD-TVI All-in-One Intensier® Dome Camera
IP6
7
HTiD22T
2.8mm fixed lens, dark gray housing
Features
•1/2.8” 2.1MP Sony CMOS
•Supports four video signal output
(AHD / TVI / CVI / CVBS)¹
•Superior lowlight performance
•Amplify existing light with no distance
limitations
•Built-in Dip switch for signal changes
•Full OSD control via UTC (up the coax)
•Dual voltage supported
•IP67 compliant, weather resistant
•Junction box included
•5 year warranty
•Chameleon Cover™: snaps on and can be painted
to match any décor!
Included
Junction Box
A
R
E
Y
W
Y
A
T
R
N
R
A
Camera Specifications
Image Sensor 1/2.8” CMOS, 2.1MP
Minimum Illumination 0.005 lux
Supported Resolution 1920 x 1080
Horizontal Resolution 1080p
Vertical Frequency NTSC: 60Hz, PAL: 50Hz
Scanning System Progressive
S/N Ratio > 54dB
White Balance ATW
Backlight Compensation Off
Auto Gain Control On
Defog Off/On
3D/2D On
DWDR Off/On
Day / Night Auto/Color/BW/Ext
Video Output HD-TVI (AHD / CVI / CVBS)
Operating & Unit Specifications
Power 12VDC (power supply not included)
Power Consumption 550mA max.
Operating Temperature -22°F - 104°F
Storage Temperature -22°F - 140°F
Unit Dimensions 4.49” (H) x 4.99” (W)
Unit Weight 1.9 lbs.
Optional Accessories
PSW5
12VDC
Power Supply
1
Camera is defaulted to HD-TVI. ONVIF is a trademark of Onvif, Inc. Chrome and Firefox use Java which requires an initial internet connection. Apple and the Apple logo are trademarks of Apple Inc., registered in
the U.S. and other countries. App Store is a service mark of Apple Inc. Android, Google Play and the Google Play logo are trademarks of Google Inc. Speco Technologies is constantly developing and improving
products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Spec Rev. 1/23/19
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
PSW4
24VAC
Power Supply
