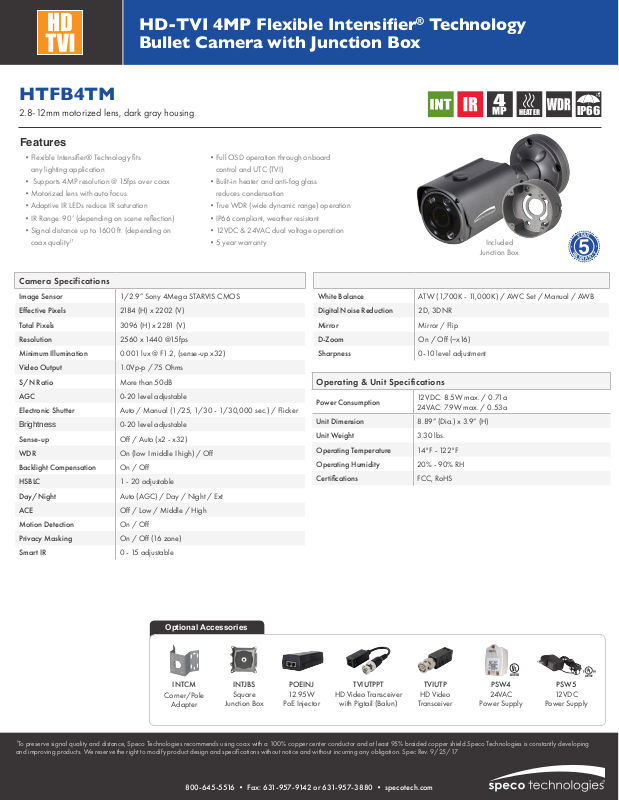

Speco HTFB4TM Specsheet
HD-TVI 4MP Flexible Intensier® Technology
IP6
6
HEATER
Bullet Camera with Junction Box
HTFB4TM
2.8-12mm motorized lens, dark gray housing
Features
•Flexible Intensifier® Technology fits
any lighting application
• Supports 4MP resolution @ 15fps over coax
•Motorized lens with auto focus
•Adaptive IR LEDs reduce IR saturation
•IR Range: 90’ (depending on scene reflection)
•Signal distance up to 1600 ft. (depending on
coax quality
)1
Camera Specifications
Image Sensor 1/2.9” Sony 4Mega STARVIS CMOS
Effective Pixels 2184 (H) x 2202 (V)
Total Pixels 3096 (H) x 2281 (V)
Resolution 2560 x 1440 @15fps
Minimum Illumination 0.001 lux @ F1.2, (sense-up x32)
Video Output 1.0Vp-p / 75 Ohms
S/N Ratio More than 50dB
AGC 0-20 level adjustable
Electronic Shutter Auto / Manual (1/25, 1/30 - 1/30,000 sec.) / Flicker
Brightness
Sense-up Off / Auto (x2 - x32)
WDR On (low I middle I high) / Off
Backlight Compensation On / Off
HSBLC 1 - 20 adjustable
Day/Night Auto (AGC) / Day / Night / Ext
ACE Off / Low / Middle / High
Motion Detection On / Off
Privacy Masking On / Off (16 zone)
Smart IR 0 - 15 adjustable
0-20 level adjustable
•Full OSD operation through onboard
control and UTC (TVI)
•Built-in heater and anti-fog glass
reduces condensation
•True WDR (wide dynamic range) operation
•IP66 compliant, weather resistant
•12VDC & 24VAC dual voltage operation
•5 year warranty
A
E
Included
Junction Box
Y
W
A
R
R
White Balance ATW (1,700K - 11,000K) / AWC Set / Manual / AWB
Digital Noise Reduction 2D, 3DNR
Mirror Mirror / Flip
D-Zoom On / Off (~x16)
Sharpness 0-10 level adjustment
Operating & Unit Specifications
Power Consumption
Unit Dimension 8.89” (Dia.) x 3.9” (H)
Unit Weight 3.30 lbs.
Operating Temperature 14°F - 122°F
Operating Humidity 20% - 90% RH
Certifications FCC, RoHS
12VDC: 8.5W max. / 0.71a
24VAC: 7.9W max. / 0.53a
R
Y
T
N
A
Optional Accessories
INTCM
Corner/Pole
Adapter
1
To preserve signal quality and distance, Speco Technologies recommends using coax with a 100% copper center conductor and at least 95% braided copper shield.Speco Technologies is constantly developing
and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Spec Rev. 9/25/17
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
INTJBS
Square
Junction Box
POEINJ
12.95W
PoE Injector
TVIUTPPT
HD Video Transceiver
with Pigtail (Balun)
TVIUTP
HD Video
Transceiver
PSW4
24VAC
Power Supply
Power Supply
PSW5
12VDC
