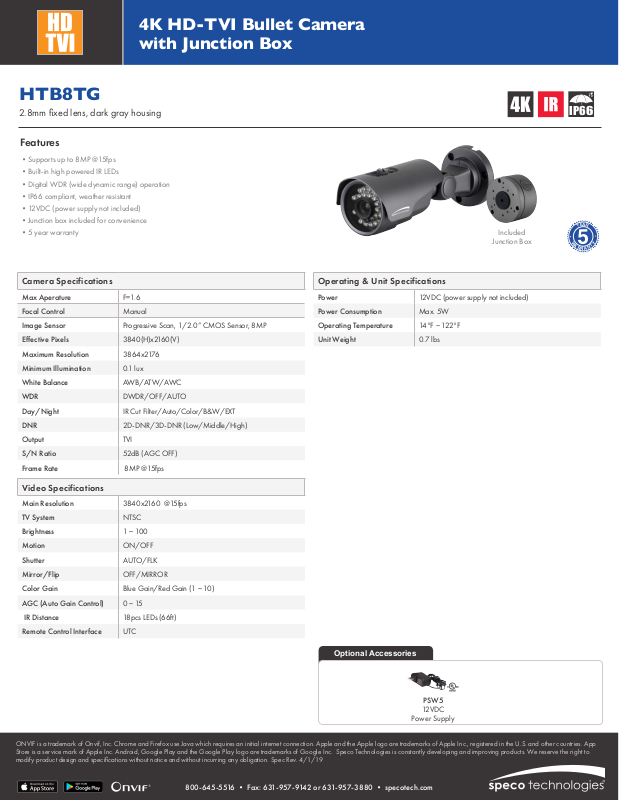

Speco HTB8TG Specsheet
4K HD-TVI Bullet Camera
IP6
6
with Junction Box
HTB8TG
2.8mm fixed lens, dark gray housing
Features
•Supports up to 8MP @15fps
•Built-in high powered IR LEDs
•Digital WDR (wide dynamic range) operation
•IP66 compliant, weather resistant
•12VDC (power supply not included)
•Junction box included for convenience
•5 year warranty
Included
Junction Box
A
R
E
Y
W
Y
A
T
R
N
R
A
Camera Specifications
Max Aperature F=1.6
Focal Control Manual
Image Sensor Progressive Scan, 1/2.0” CMOS Sensor, 8MP
Effective Pixels 3840(H)x2160(V)
Maximum Resolution 3864x2176
Minimum Illumination 0.1 lux
White Balance AWB/ATW/AWC
WDR DWDR/OFF/AUTO
Day/Night IR Cut Filter/Auto/Color/B&W/EXT
DNR 2D-DNR/3D-DNR (Low/Middle/High)
Output TVI
S/N Ratio 52dB (AGC OFF)
Frame Rate 8MP @15fps
Video Specifications
Main Resolution 3840x2160 @15fps
TV System NTSC
Brightness 1 ~ 100
Motion ON/OFF
Shutter AUTO/FLK
Mirror/Flip OFF/MIRROR
Color Gain Blue Gain/Red Gain (1 ~ 10)
AGC (Auto Gain Control) 0 ~ 15
IR Distance 18pcs LEDs (66ft)
Remote Control Interface UTC
Operating & Unit Specifications
Power 12VDC (power supply not included)
Power Consumption Max. 5W
Operating Temperature 14°F ~ 122°F
Unit Weight 0.7 lbs
Optional Accessories
PSW5
12VDC
Power Supply
ONVIF is a trademark of Onvif, Inc. Chrome and Firefox use Java which requires an initial internet connection. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc. Android, Google Play and the Google Play logo are trademarks of Google Inc. Speco Technologies is constantly developing and improving products. We reserve the right to
modify product design and specifications without notice and without incurring any obligation. Spec Rev. 4/1/19
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
