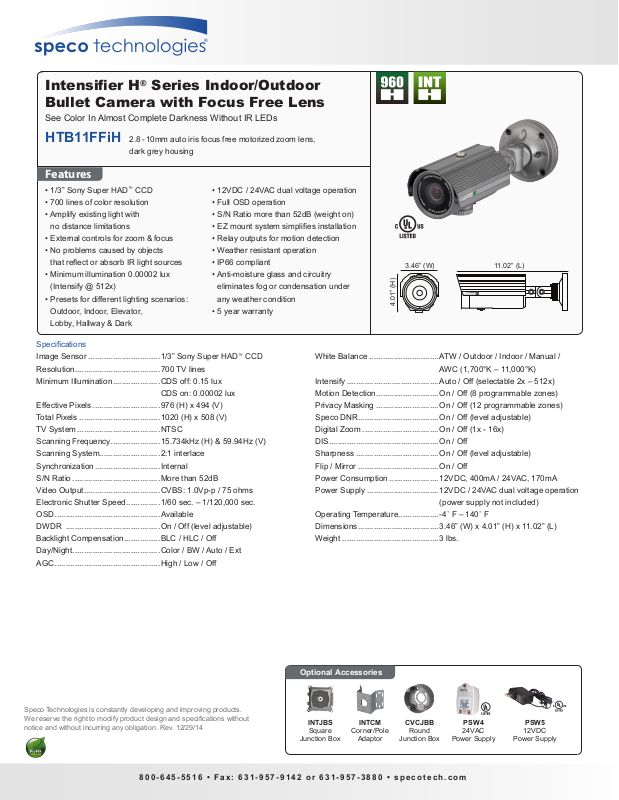

Speco HTB11FFiH Specsheet
Intensier H® Series Indoor/Outdoor
Bullet Camera with Focus Free Lens
See Color In Almost Complete Darkness Without IR LEDs
HTB11FFiH 2.8 -10mm auto iris focus free motorized zoom lens,
dark grey housing
Features
• 1/3” Sony Super HAD™ CCD
• 700 lines of color resolution
• Amplify existing light with
no distance limitations
• External controls for zoom & focus
• No problems caused by objects
that reect or absorb IR light sources
• Minimum illumination 0.00002 lux
(Intensify @ 512x)
• Presets for different lighting scenarios:
Outdoor, Indoor, Elevator,
Lobby, Hallway & Dark
Specications
Image Sensor ................................ 1/3” Sony Super HAD™ CCD
Resolution......................................700 TV lines
Minimum Illumination ..................... CDS off: 0.15 lux
CDS on: 0.00002 lux
Effective Pixels ..............................976 (H) x 494 (V)
Total Pixels ....................................1020 (H) x 508 (V)
TV System ..................................... NTSC
Scanning Frequency......................15.734kHz (H) & 59.94Hz (V)
Scanning System...........................2:1 interlace
Synchronization ............................. Internal
S/N Ratio ....................................... More than 52dB
Video Output ..................................CVBS: 1.0Vp-p / 75 ohms
Electronic Shutter Speed ............... 1/60 sec. – 1/120,000 sec.
OSD ............................................... Available
DWDR ..........................................On / Off (level adjustable)
Backlight Compensation ................ BLC / HLC / Off
Day/Night ....................................... Color / BW / Auto / Ext
AGC ............................................... High / Low / Off
• 12VDC / 24VAC dual voltage operation
• Full OSD operation
• S/N Ratio more than 52dB (weight on)
• EZ mount system simplies installation
• Relay outputs for motion detection
• Weather resistant operation
• IP66 compliant
• Anti-moisture glass and circuitry
eliminates fog or condensation under
any weather condition
• 5 year warranty
3.46” (W)
4.01” (H)
White Balance ...............................ATW / Outdoor / Indoor / Manual /
AWC (1,700°K – 11,000°K)
Intensify ......................................... Auto / Off (selectable 2x ‒ 512x)
Motion Detection............................On / Off (8 programmable zones)
Privacy Masking ............................On / Off (12 programmable zones)
Speco DNR....................................On / Off (level adjustable)
Digital Zoom ..................................On / Off (1x - 16x)
DIS.................................................On / Off
Sharpness .....................................On / Off (level adjustable)
Flip / Mirror ....................................On / Off
Power Consumption ...................... 12VDC, 400mA / 24VAC, 170mA
Power Supply ................................12VDC / 24VAC dual voltage operation
(power supply not included)
Operating Temperature ..................-4˚ F – 140˚ F
Dimensions .................................... 3.46” (W) x 4.01” (H) x 11.02” (L)
Weight ...........................................3 lbs.
11.02” (L)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specications without
notice and without incurring any obligation. Rev. 12/29/14
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
Optional Accessories
INTJBS
Square
Junction Box
INTCM
Corner/Pole
Adaptor
CVCJBB
Round
Junction Box
PSW4
24VAC
Power Supply
PSW5
12VDC
Power Supply
