User Guide (VN Ver. 0.91)

Model: D4VN, D8VN, D16VN

4, 8 & 16 Channel HD TVI Digital Video Recorder

About the User’s Guide

Before operating the unit, please read this user’s guide thoroughly and retain it for future reference.

Cautions

Explanation of Graphic Symbols

This symbol indicates the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.

WARNING

To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION

Changes or modifications not approved by the manufacturer will void the warranty of the product.

Using an incompatible battery may increase the risk of fire or explosion.

Replace only with the same or equivalent type battery recommended by the manufacturer.

Discard used batteries according to manufacturer’s instructions.

This symbol indicates the presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric
shock, property damage, personal injury, or death.

2

These Precautions must be followed for Safety Reasons

Warning

 Do not use if the unit emits smoke.

 Do not disassemble the unit.

 Do not place any heavy or sharp objects on the unit.

 Do not place on uneven surface.

 Do not expose to shock or vibration.

 Do not move the unit when the unit is powered on.

 Do not block, and allow dust to accumulate in the air vents.
 Do not restrict airflow of the unit; doing so can damage the unit.

 Only qualified and experienced personnel should perform installation and

servicing.

 Turn off the power of the DVR when connecting Cameras, Audio or Sensor

Cables.

 The manufacturer is not responsible for any damage caused by improper use

of the product or failure to follow instructions for the product.

 The manufacturer is not responsible for any problems caused by or resulting

from the user physically opening the DVR for examination or attempting to

repair the unit.

 The manufacturer may not be held liable for any issues with the unit if the

warranty seal is removed.

3

Product Components

Please make sure the following components are included as specified below.

DVR Unit

Remote Control

Battery1.5V (AAA x 2EA)

Quick Start Guide &

Quick User Guide

Mouse

Software & Manual CD

Adaptor (DC12V 3A) & Power

cable (110V)

4

Specifications

MODEL NAME D4VN D8VN D16VN

Video Input Number of Channels 4 8 16

Camera Types 960H, HD-TVI 1/2/3/4/5/8MP

Output Main Monitor VGA and HDMI

(Max. 1920x1080)

VGA and HDMI

(Max. 3840x2160)

Sub Monitor CVBS or SPOT (Selectable) N/A

Audio Input Local Input 4

Output Local Output 1

Audio Codec G.711

Alarm Sensor In 4 4 4

Alarm Output 1

Serial RS-232C None

RS-485 1

Recording Compression H.265 / H.264

1920x2160 7fps 1920x2160 7fps 1920x1080 15fps

1280x1944 10fps 1280x1944 10fps

1280x1440 15fps 1280x1440 15fps

2560x1440 10fps 2560x1440 10fps

2048x1535 13fps 2048x1535 13fps

1920x1080 15fps 1920x1080 15fps

1280x1944 10fps

1280x1440 15fps

2560x1440 10fps

2048x1535 13fps

1920x1080 15fps

Local Resolution &

Frame Rate

8MP@15fps

5MP@20fps

QHD@30fps

QHD@15fps

3MP@18fps

2MP@30fps

Recording Quality Grade 5 Levels

Recording Mode Smart / Continuous / Motion / Sensor / Schedule /Manual

Pre Recording Max. 20 Minutes

Post Recording Max. 60 Seconds

Playback Search EZ Search, Date/Time, Event, Log

Multi-Decoding 1, 4 1, 4, 8 1, 4, 9, 16

Playback Speed x0.25, x0.5, x2, x4, x8, x16, x32, x64

Backup Media USB drive, External HDD, Network

File Format JPEG, AVI, Proprietary Format and EXE

Huge Backup Yes (Max. 24 hours)

Storage HDD Capacity of 1 HDD 10TB

Internal HDDs 1

e-SATA N/A

USB Front 1

Rear 1

User I/F Input Method IR Remote Control, Mouse, Keyboard Controller

Network Interface 100Mbps 1Gbps

Dynamic DNS Yes (Free Speco DDNS)

5

Dual Streaming Yes

Features Camera Control OSD and PTZF Control via UTC

Digital Zoom Yes

DLS (Day Light Saving) Yes

NTP (Network Time Protocol) Yes

S.M.A.R.T Yes

Internal Beep Yes

Multi-Language Yes

System Event Notification Health, Restart, Shutdown, Panic Recording, Alarm,

Motion, HDD Alert and email

Network

Access

Power Power Supply Voltage DC 12V3A

Temperature Operation 41° F ~ 104° F (5°C ~ 40°C)

Humidity Operation 20% ~ 80% (Non-condensing)

Weight Unit Weight (Gross weight) Approximately 4.35 lbs

Dimension Unit Dimension (W x H x D) 11.8"x 2.0"x 9.9" (300 x 53 x 252mm)

Please note that specifications and unit exterior design are subject to change without notification.

3G/4G Mobile Viewer Speco Player (iPad / iPhone / Android))

PC Web Viewer Windows (IE, Edge, Chrome and Firefox)

PC Client SecureGuard CMS and SpecoTech Multi-Client Viewer

Remote Setup and Upgrade Yes

Storage 14° F ~ 122° F (-10°C ~ 50°C)

6

Table of Contents

1. Main Features ............................................................................................................................... 9

2. Initial Boot up Process ................................................................................................................. 10

2-1. Initial Boot up and Basic Time Setup ..................................................................................... 10

2-2. Setting Daylight Saving Time ................................................................................................ 11

2-3. Setting NTP (Network Time Protocol) .................................................................................... 12

2-4. EZ Setup ............................................................................................................................... 15

3. Name, Function and Connection ................................................................................................. 16

3-1. Front Panel ........................................................................................................................... 16

3-2. Connectors ........................................................................................................................... 17

3-3. Remote Control ..................................................................................................................... 18

4. Setting up the DVR ...................................................................................................................... 19

4-1. Setup – Main Live Screen ..................................................................................................... 19

4-2. Setup – System Mode ........................................................................................................... 20

4-3. Setup – Record Mode ........................................................................................................... 24

4-4. Setup – Device Mode ............................................................................................................ 27

4-4-1. Digital Deterrent ............................................................................................................. 28

4-4-2. Keyboard Controller & PTZ Setup .................................................................................. 29

4-5. Setup – Display Mode ........................................................................................................... 33

4-6. Setup – Network Mode .......................................................................................................... 34

4-6-1. Network Types ................................................................................................................ 35

4-6-2. DDNS ............................................................................................................................. 35

4-6-3. Network Port and Web Port ............................................................................................ 36

4-6-4. Network Stream .............................................................................................................. 36

4-7. Setup – User Management Mode .......................................................................................... 38

4-8. Setup – Storage Mode .......................................................................................................... 41

4-9. Setup - Config Mode ............................................................................................................. 42

4-9-1. Software Upgrade .......................................................................................................... 43

5. Live, Search and Playback .......................................................................................................... 45

5-1. Live View .............................................................................................................................. 45

5-1-1. PTZ Control .................................................................................................................... 48

5-2. Digital Zoom in Live and Playback Screen ............................................................................ 49

5-3. Search Screen ...................................................................................................................... 49

5-3-1. EZSearch ....................................................................................................................... 50

5-3-2. Time Line Search ........................................................................................................... 51

5-3-3. Event Search .................................................................................................................. 51

5-3-4. Go To First Time ............................................................................................................. 52

5-3-5. Go To Last Time ............................................................................................................. 52

5-3-6. Go To Specific Time ........................................................................................................ 52

5-3-7. Archive List ..................................................................................................................... 52

7

5-3-8. Log List .............................................................................................................................. 53

5-4. Playback Mode ..................................................................................................................... 53

6. Export and Back Up..................................................................................................................... 55

6-1. Still Image Backup onto USB Flash Drive .............................................................................. 55

6-2. Video Backup onto USB Flash Drive during playback ........................................................... 56

6-3. EZCopy: Video Backup onto USB Flash Drive during playback............................................. 57

6-5. Playback of Backup Video ..................................................................................................... 58

6-5-1. AVI Format ..................................................................................................................... 58

6-5-2. NSF Format .................................................................................................................... 59

7. Network Access Using the Multi-Sites Network Viewer ................................................................ 60

7-1. Overview ............................................................................................................................... 60

7-2. PC Requirements .................................................................................................................. 60

7-3. Installation of the Program .................................................................................................... 61

7-4. Live Window.......................................................................................................................... 62

7-4-1. Main User Interface ........................................................................................................ 62

7-4-2. Control Buttons............................................................................................................... 63

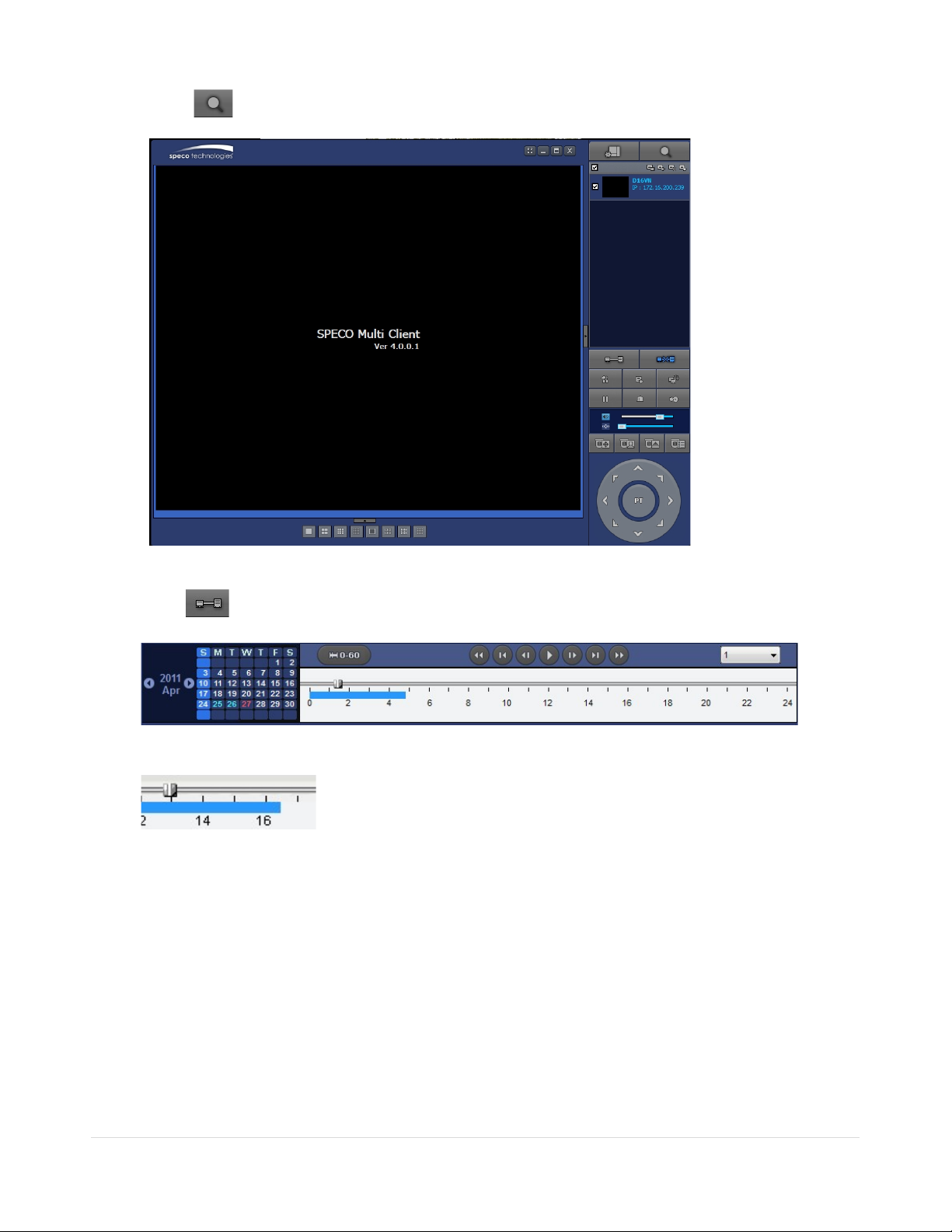

7-5. Search and Playback Window ............................................................................................... 64

7-5-1. Main User Interface ........................................................................................................ 64

7-5-2. Main Control Panel ......................................................................................................... 65

7-5-3. SMART SEARCH ........................................................................................................... 67

7-6. Setup of SpecoTech Multi Client ............................................................................................ 69

7-6-1. General .......................................................................................................................... 69

7-6-2. Event .............................................................................................................................. 70

7-6-3. Record ........................................................................................................................... 71

7-6-4. Display ........................................................................................................................... 72

7-6-5. Language ....................................................................................................................... 72

7-6-6. About .............................................................................................................................. 73

7-7. Remote Setup ....................................................................................................................... 74

7-8. Operation .............................................................................................................................. 81

8. Network Access Using the Web-Browser Viewer ......................................................................... 90

9. Network Access Using the Smart Phone Viewer .......................................................................... 92

9-1. App Viewer for iPhone ........................................................................................................... 92

9-2. App Viewer for Android Phone............................................................................................... 95

APPENDIX: Network Connection - LAN ............................................................................................. 98

APPENDIX: Network Connection – Internet and DDNS .................................................................... 100

8

1. Main Features

 Easy Record, Copy and Setup

 Easy Search by Thumbnail Preview

 Easy Copy

 Digital Deterrent function

 H.265 & H.264 high quality compression saves HDD space

 Simultaneous live view/playback while continuing to record/network transfer or backup

 Remote monitoring/recording/playback/configuration and control via internet

 4 Channel Audio Recording

 Switch between low and high quality stream during simultaneous Continuous + Motion or

Continuous + Sensor recording modes for storage optimization

NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime

Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18

 Individual Channel Operation

U.S.C. § 2510, et seq.), and the Foreign Intelligence Surveillance Act of 1978 (50 U.S.C. 1801, et seq.)

permit government agents, acting with the consent of a party to a communication, to engage in warrantless

interceptions of telephone communications, as well as oral and electronic communications.

 Automatic camera detection (Plug & Play)

 Covert camera operation provides enhanced security and administrator control

 Dynamically programmable recording priority, motion detection, alarms and scheduling

 Simple and Easy Graphic User Interface

 HDMI Output (Up to 3840 x 2160, 16Ch model)

 Password to secure access

 Network software supports 10/100/1000Mbps

 USB 2.0 port for video clip exporting and easy firmware upgrade via USB Flash Drive

 Exclusive File Format Backup and Player

 Variety of ways to Remote access via SecureGuard® CMS, SpecoTech Multi-Client Software, Web-

Viewer, and Mobile App

 S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology for HDD)

9

2. Initial Boot up Process

2-1. Initial Boot up and Basic Time Setup

1. During the first boot up, the following logo and message will be displayed.

2. After the logo, select the language as specified below.

1) User has to set a password before using.

Can not use ‘1111’ when the initial boot up password set.

But user can set ‘1111’ as a password through [Setup > User Management > Password Setup]

2) DVR will not proceed when user put the password ‘1111’.

(EZ Setup Page Reference, Page 16 ~ 17)

10

2-2. Setting Daylight Saving Time

To enable Daylight Saving feature/NTP synchronization, take the following steps.

1. Enter the Setup mode. The default Username is “admin” and enter a password set on the initial

boot-up process.

2. Go to Setup > System > Date & Time Setup

11

3. Select ‘ok” from the Daylight Saving dropdown menu.

2-3. Setting NTP (Network Time Protocol)

1. Setup > System > NTP Setup > On > Select

2. Select the proper GMT Time Zone.

12

Table 2.3.1. GMT Time Zone

State Standard Time Daylight-Saving Time

AL Alabama GMT-6 GMT-5

AK Alaska GMT-9 GMT-8

AK Alaska (Aleutian Islands) GMT-10

AZ Arizona GMT-7

NA

NA

AZ Arizona (Navajo) GMT-7 GMT-6

AR Arkansas GMT-6 GMT-5

CA California GMT-8 GMT-7

CO Colorado GMT-7 GMT-6

CT Connecticut GMT-5 GMT-4

DC District of Columbia GMT-5 GMT-4

DE Delaware GMT-5 GMT-4

FL Florida GMT-5 GMT-4

FL Florida (W) GMT-6 GMT-5

GA Georgia GMT-5 GMT-4

HI Hawaii GMT-10

NA

ID Idaho (N) GMT-8 GMT-7

ID Idaho (S) GMT-7 GMT-6

IL Illinois GMT-6 GMT-5

IN Indiana GMT-5 GMT-4

IN Indiana (SW / NW) GMT-6 GMT-5

IA Iowa GMT-6 GMT-5

KS Kansas GMT-6 GMT-5

KS Kansas (W) GMT-7 GMT-6

KY Kentucky (E) GMT-5 GMT-4

KY Kentucky (W) GMT-6 GMT-5

LA Louisiana GMT-6 GMT-5

ME Maine GMT-5 GMT-4

MD Maryland GMT-5 GMT-4

MA Massachusetts GMT-5 GMT-4

MI Michigan GMT-5 GMT-4

MI Michigan (W) GMT-6 GMT-5

MN Minnesota GMT-6 GMT-5

MS Mississippi GMT-6 GMT-5

MO Missouri GMT-6 GMT-5

MT Montana GMT-7 GMT-6

NE Nebraska GMT-6 GMT-5

NE Nebraska (W) GMT-7 GMT-6

13

NV Nevada GMT-8 GMT-7

NH New Hampshire GMT-5 GMT-4

NJ New Jersey GMT-5 GMT-4

NM New Mexico GMT-7 GMT-6

NY New York GMT-5 GMT-4

NC North Carolina GMT-5 GMT-4

ND North Dakota GMT-6 GMT-5

ND North Dakota (W) GMT-7 GMT-6

OH Ohio GMT-5 GMT-4

OK Oklahoma GMT-6 GMT-5

OR Oregon GMT-8 GMT-7

OR Oregon (E) GMT-7 GMT-6

PA Pennsylvania GMT-5 GMT-4

RI Rhode Island GMT-5 GMT-4

SC South Carolina GMT-5 GMT-4

SD South Dakota (E) GMT-6 GMT-5

SD South Dakota (W) GMT-7 GMT-6

TN Tennessee (E) GMT-5 GMT-4

TN Tennessee (W) GMT-6 GMT-5

TX Texas GMT-6 GMT-5

TX Texas (W) GMT-7 GMT-6

UT Utah GMT-7 GMT-6

VX Vermont GMT-5 GMT-4

VA Virginia GMT-5 GMT-4

WA Washington GMT-8 GMT-7

WV West Virginia GMT-5 GMT-4

WI Wisconsin GMT-6 GMT-5

WY Wyoming GMT-7 GMT-6

NOTE: If you want the unit to automatically synchronize the local time, the Time Zone
must must be properly set according to your local time zone.

14

2-4. EZ Setup

1

2

3

4 5

6

VN Easy Setup(Click the right button on mouse > Advanced Menu > EZ Setup)

Figure 2.4. EZ Setup Screen

2.4.1. Setup Date/Time and Record configuration

Figure 2.4.1. EZ Record Setup Procedure

① Select EZ Record for Date/Time and Record Setup, click “next” to proceed.

② When the description of EZ Record Setup is displayed, click “next” to proceed.

③ Set up the Date/Time settings and click “next” to get to the recording setup.

④ Select the recording mode and click “next” to get to the recording setup.

⑤ Select one of options and click “finish” to finish the setup.

15

1 2

3

4

2.4.2. EZ Network (Using an internet connection)

Figure 2.4.2. EZ Network Setup Procedure

① DVR automatically checking the network and configuration by scanning in few seconds.

② DVR will show the DDNS host name when configuration is finished automatically.

③ If you need to edit the host name please select ‘edit’ button.

④ Everything is OK, then select ‘finish’. Host name and status pop-up screen will be showed.

3. Name, Function and Connection

3-1. Front Panel

Figure 3.1.1. Front panel

Table 3.1.1. Front LED and Port of VN model

Name Description

POWER

LED light is on when power is applied to the system.

HDD

USB Port This USB port for archiving footage into a USB device. (USB 2.0 connector)

LED light is on when the system is recording video data.

16

3-2. Connectors

1

2

3

4

5

6

7

8

9

10 11 1

3

4

5

6

7

8 9

10 11

1 2

3

4

5

6

7

8

9

10

11

12

12

12

D4VN

D8VN

D16VN

Figure 3.2.1. Rear Panel Connections

① VIDEO IN: Video input port.

② VIDEO OUT: CVBS – Composite Video Output / SPOT (D16VN does not have this port.)

③ VGA: VGA (Video Graphics Array) output port. Connects to the PC VGA monitor.

④ HDMI VIDEO OUT: HDMI Video Output, Connections to the HDMI monitor

(D4VN & D8VN: Max.1920x1080, D16VN: Max.3840x2160).

⑤ AUDIO IN: Four connectors for audio input.

⑥ AUDIO OUT: One connector for audio output.

⑦ ETHERNET: Network terminal

⑧ USB: USB terminal

⑨ SENSOR IN, ALARM OUT, RS-485: External sensor terminal, External alarm out terminal & RS-485

for PTZ Camera control

⑩ POWER: DC12V input

⑪ Ground: Use for ground port

⑫ Power Switch: Power On / Off

17

3-3. Remote Control

① ID: To set the remote control ID.

② REC: To start and stop manual recording

③ SEARCH: To go to SEARCH menu.

④ F/ADV:

 During playback – To move the playback position 60 seconds forward .

 During Pause – To move the playback position moves 1 frame forward

⑤ F/REW:

 During playback – To move the playback position 60 seconds back.

 During Pause – To move the playback postion 1 frame back.

⑥ FF: To fast forward the recording.

⑦ PLAY/PAUSE: To play or to pause the recording in playback mode

⑧ REW: To rewind the recording.

⑨ ESC:

 During setup – To retun to the preivous menu screen.

 During Playback – To exit playback mode

 System lock – To lock a system when pressing ESC button for 5 seconds.

 System unlock – To unlock a system when pressing ESC button for 5 seconds.

⑩ SETUP: To open the SETUP menu.

⑪ Direction buttons: To move menu items or select a channel.

⑫ SEQ: To start auto sequencing the screen in full screen mode. (Toggle)

⑬ BACKUP: To start a backup operations in live or playback mode

⑭ 0~9: To select channel (1,2,3,..) or to enter a DVR ID number or use as number key.

18

4. Setting up the DVR

The following sections detail the initial setup of the DVR.

Menu screen will close if user input is not received in 5 minutes.

4-1. Setup – Main Live Screen

To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup

button on the remote control.

Figure 4.1.1. Live Screen and Quick Operation Window

When the DVR prompts the Login window, the default User ID is “admin” and enter the password set on the

initial boot-up procedure by a virtual keyboard, or a remote control. It is highly recommended to assign a

new password to protect the system frequently. New passwords can be set up in the Security setup menu.

19

4-2. Setup – System Mode

In the Setup menu, select the System tab. Then, the System menu is displayed as pictured below. Navigate

through the menu items using the mouse or the remote control and change the value of the menu.

Figure 4.2.1. System Setup Screen

Table 4.2.1. Menu Items in System Setup Screen

Item Description

Description

Press “select” to view the system information. (Software Version, Storage Size, IP

Address, MAC Address and DDNS Status)

Language Select the display language using the mouse or the remote control. Once a language is

selected, the display language will change. (English, Spanish and French)

Date Display

Format

Select the date display format using the mouse or the remote control. Options are:

MM/DD/YYYY, YYYY/MM/DD, DD/MM/YYYY, YYYY-MM-DD, MM-DD-YYYY, DD-MM-YYYY

Date & Time

Setup

Select the display date and time using the mouse or the remote control and press “ok”

button to set the present date and time.

20

Select Daylight Saving using the mouse or the remote control and select the appropriate

daylight saving time zone. The options are:

OFF: Daylight saving is turned off.

ON: Applies the USA daylight saving time.

- Select Begin or End using the remote control and press the “ok” button.

Caution

- Do not set the start time to 23:00 for DLS.

- DLS cannot be applied if the date of Begin and End is the same.

Client Access

NTP

Setup

Enable/Disable remote access through the network.

NTP (Network Time Protocol) which synchronizes the time of the computer systems over

variable-latency data networks.

Primary SNTP Server: Input the address of the primary NTP time-server.

Secondary SNTP Server: Input the address of the secondary NTP time-server.

Time Zone: NTP synchronizes with GMT (Greenwich Mean Time) regardless of

geography, user must set their own time difference.

Connection Mode: Select the NTP time-server connection mode from Time, Interval,

and Once.

- TIME – Refresh the time at the designated time (e.g. 01:00 AM)

- INTERVAL – Every 1 hour ~ 24 hours

- ONCE – Synchronizes time only once. NTP will not synchronize unless the

Connection Mode is changed.

Connection Period: Set the time (12:00 AM ~ 11:00 PM) when select “Time” on

Connection Mode.

DVR sends e-Mail Notification when the NTP server time is faster than the system

time with bellow message.

21

e-Mail Setup

“NTP server time is faster than the system time.

In this case, NTP server time is ignored to protect the user data.

User must set the time manually.

System Time: Mon Oct 10 13:46:49 2011

Server Time: Mon Oct 10 13:33:12 2011

DVR ID: DVR

IP ADDRESS: 172.16.2.46”

Server Type: Manual, Gmail, Hotmail, Aol or Yahoo

Mail Server: Enter the appropriate mail server information.

Mail Port: Assign Mail Port number.

Secure Option: Select the secure mail server connection method. (SSL or TLS)

Mail ID: Enter the appropriate mail server ID.

Password: Enter the appropriate mail server Password.

Mail To: Enter the appropriate email address to enable sending e-mail reports using a

virtual keyboard.

Unit Name

System

Restart

System

Shutdown

EZ Setup

Mail From: To set the email address sent to the destination host.

Test: Test the user’s email input settings.

Name the DVR (e.g. Factory)

This feature is to identify the name of the DVR under the same network.

Make the system restart.

Make the system shutdown.

Refer to Page 16 ~ 17

22

System Event

Notification

Health Check

(Allows the user to set e-Mail Status periodically) : Daily or Weekly or Monthly

Video Clip Setup: Setup the duration of video clip for Pre Record and Post Record.

Event And Notification – Yes or No

(Allows the user to set Event Notification On or Off)

Health Check / Restart / Shutdown / Panic Record

- Enable Email Notification in the event a problem occurs with the VN.

Alarm-In – Enable Email Notification when the camera detects sensor.

Motion Detection – Enable Email Notification when the camera detects motion.

Video Loss – Enable Email, Beep and Alarm output Notification when the camera

signal is lost.

HDD Temperature Over – Enable Email, Beep and Alarm output Notification when

the HDD temperature.

HDD Bad Sectors Over – Enable Email Notification when the HDD has bad

Sectors.

HDD Almost Full Over – Enable Email Notification when the HDD is almost full

HDD Full – Enable Email Notification when the HDD is full

HDD Failure – Enable Email, Beep and Alarm output Notification when the

HDD fails.

23

4-3. Setup – Record Mode

In the Setup menu, select the Record tab. Then, the Record menu is displayed as pictured below. Navigate

through the menu items or change the settings using the mouse or the remote control.

Figure 4.3.1. Record Setup Screen

Table 4.3.1. Menu Items in Record Setup Screen

Menu Item Description

ite

Select a channel for applying the following settings using a mouse or a remote

control. Select the “select” button beside of channel button to change the values of

all channels.

24

Resolution

Frame Rate

Quality

Recording

Mode

Select 1920x2160, 1280x1944, 2580x1440, 1280x1440, 2048x1535, 1920x1080,

1920x540, 1280x720 and 640x360 using a mouse or a remote control.

*Selectable recording resolutions are differ from input camera resolution.
Set the frame rate for the specified channel. The sum of the frame rate values per

channel cannot exceed the maximum frame rates for a specific recording resolution.
Select the recording quality for the selected channel. Options are;
Level 1 (Low), Level 2, Level 3, Level 4, and Level 5 (High)
Assign the recording mode for the selected channel. Options are: Continuous,
Motion, Sensor, Schedule, Disable and Smart Recording (c + m : continuous &
motion, c + s : continuous & sensor)
When Motion Recording is selected, Continuous + Motion recording option can be
used.

Sensor

Recording

Pre Record Enable/disable pre-event recording. Pre-event recording time is up to 20 minutes.

Post Record

Audio

Schedule

Codec Type

Select the sensor setting for the selected channel.

Set the post event recording time duration for the specified channel.

(10~60 seconds)

Enable/disable audio recording for the specified channel. It supports only on Ch1~4.

Set the recording schedule. (Refer to Page 27 Recording Schedule)

Select the recording codec (H.264 or H.265)

H.265 is over 30% better than H.264 while recording.

25

4-3-1. Recording Schedules

To setup a recording schedule, select Schedule in the Record menu. Navigate through the menu items or

change the settings using the mouse or the remote control. Select the Channel; select one of the recording

settings: None, Continuous or Motion, then highlight the area for the selected setting. To copy a schedule to

a different channel, select the channel from the Copy Schedule menu, then click the Copy button.

Figure 4.3.2. Schedule Recording Setup Screen

 none: Disable recording

 continuous: Continuous recording (Highlighted in Green)

 motion: Motion recording (Highlighted in Yellow)

 sensor: Sensor recording (Highlighted in Red)

26

4-4. Setup – Device Mode

In the Setup menu, select the Device tab. Then, the device menu is displayed as pictured below. Navigate

through the menu items or change the settings using the mouse or the remote control.

Figure 4.4.1. Device Setup Screen

Table 4.4.1. Menu Items in Device Setup Screen

Item Description

Alarm Out/

Alarm Duration

Digital Deterrent Set schedule and audio recordings for Digital Deterrent. (Refer to

Controller & PTZ

Spot-Out

Set the sensor, motion, and video loss for triggering alarm relay

HDD Error and Video Loss can trigger beeping

.

Page 29)

Set the PTZ baud rate, protocol, and ID. (Refer to Page 30~31)

CVBS Out is can be used as Composite Video Output or Spot-Out

depending on the Sub Monitor Out of Display setup menu. *D16VN

does not have CVBS/Spot-out port due to the limited space on a

rear panel.

(Spot-On Event on/off, Spot Event Dwell Time, Sequence On/off,

Sequence Dwell Time, Spot Channel) *The last image will keep on

the screen until the next event occurred.

27

Site

Select specified channel for motion zone setup.

Motion Zone

Motion Sensitivity

Key Tone

Remote Controller ID

Sensor

Software Triger

Select either Full Zone or Partial Zone for motion detection. (Refer

to #33)

Press the right button of mouse to exit from Motion Zone grid

screen.

Set the motion sensitivity for the selected channel.

Control the motion sensitivity from 1 to 9. (1 : Low, 9 : High)

Enable/disable key tone.

Set the remote control ID.

1. Select ID.

2. Input the remote control ID number. (0 is all)

3. An icon will indicate on the Live Screen if the remote control ID is

synchronized. The options are from 0 to 99

Select the type of each sensor.

Option is Off, Normal Open or Normal Close.

Remote trigger channels. User can set the channels that want to

make a sensor recording through remotely with Software record

mode.

4-4-1. Digital Deterrent

Trigger audio message via motion detection or sensor.

Figure 4.4.2. Digital Deterrent setup screen

28

Table 4.4.2. Item for Digital Deterrent Setup Screen

Item Description

Import From USB

Export To USB Export the sound file to USB

Record

Schedule

Import up to 8 sound files from USB.

Select a channel and set up the date and the duration.

And, select the sound file to play.

Schedule the sound file considering the expected situation.

4-4-2. Keyboard Controller & PTZ Setup

To control the PTZ functions of the camera, connect the PTZ controller to the RS-485 port on the back of

the chassis with CAT5 (or equivalent) cable.

① Connect the RS-485 cables of PTZ camera to the RS-485 port on the rear panel.

29

Figure 4.4.3. Sensor, Alarm & RS-485 Ports

② Open the PTZ sub menu by selecting the submenu button.

Figure 4.4.4. PTZ Control Setup Screen

Note: Connect PTZ cameras that support RS-485 directly to the RS-485 port. If the camera is controlled

through an RS-232C interface, use an RS-232C to RS-485 to RS-232C signal converter.

Use the PTZ setup screen to select the following options for the camera PTZ controller:

- Channel: Channel connected to a PTZ device

- Camera: Protocol Type

- Speed: 19200, 14400, 9600, 4800, 2400 (Baud rate)

- ID: 0-63

Controller (Keyboard Controller): If a PTZ controller is used, select a controller protocol from Controller

menu. Set Speed (Baud Rate) and ID number.

Figure 4.4.5. Controller Selection Screen

30

Notice : VN series can use UTC feature.

: UTC(Up To Coax) allows for control of the camera’s OSD menu via the coax cable.

User does not need extra connection via RS-485 to control the camera’s OSD menu

- How to set (Setup > Device > PTZ & Controller > UTC General)

4-4-3. Spot Out

Item Description

Spot Out

Figure 4.4.6. Setup – UTC Camera Protocol

Figure 4.4.7. Spot-Out Setup Screen

Table 4.4.3. Menu Item in Spot-Out Setup Screen

Only 1 Spot Out is available to use.

Spot Type Spot 1 supports only Full type. (1 channel only)

Spot On Event

Spot Event

Dwell Time

Sequence

Enable/disable channel change if an event occurs on a channel.

Set the dwell time for the display of the event activated channel.

(3-10 sec)

Enable/disable sequential display of spot channel in full screen.

If select “on”, the selected channel will be displayed on the monitor

31

periodically.

Sequence Dwell

Time

Spot Channel

Set the dwell time for the spot channel display.(3-10 sec)

Select a channel for spot monitoring using the mouse or the remote

control and press “ok” button.

4-4-4. Motion Zone Setup

Select Motion Zone using the mouse or the remote control and select either Partial Zone or Full Zone using

the mouse control. The default value is Full Zone.

If Full Zone is selected, the motion zone grid screen is not displayed. Only set the level of sensitivity for

Motion Sensitivity.

Full Zone: The motion sensor is active on the whole screen.

Partial Zone: The motion sensor is active in the set detection frame.

Select the motion detection position using the mouse or the remote control. Then left click on the mouse or

left click and drag the mouse pointer to select or deselect the area. Highlighted area indicates the partial

motion detection zone. Press the “ESC” button or right click on the mouse to return to the previous menu.

Figure 4.4.8. Motion Zone Grid Screen

32

4-5. Setup – Display Mode

In the Setup menu, select the Display tab. Then, the Display menu is displayed as pictured below. Navigate

through the menu items or change the settings using the mouse or the remote control. To return to the

previous setup menu screen, press the “ESC” button on front panel or select the other menu tab with

mouse.

Figure 4.5.1. Display Setup Screen

Table 4.5.1. Menu Items in Display Setup Screen

Item Description

OSD

OSD Contrast Set the visibility level of the On Screen Display (OSD) (50~100)

Main Monitor

Sequence

Sequence-Dwell

Time

Enable/Disable displaying Channel Name/ Video Loss/ Status Bar &

Icon/ Camera Type and Record Mode

Enable/disable sequential display of video in full screen mode.

Set the dwell time of each,

Single channel display time in sequence mode (3~60 seconds)

Site

Select a channel to apply the name and covert settings change using the

mouse or the remote control.

33

Select a channel to apply the following settings using the mouse.

Name

Covert

Color Tuning

Video Output

(HDMI)

Sub Monitor

Output

Set the channel name. Press the mouse button and set the channel

name on the virtual keyboard. Press “Enter” key when finished its

naming. The name can be made up to 36 characters.

Enable/disable display of the specified video channel in live display.

Control the Brightness, Contrast, Hue and Saturation.

Select video output resolution

(D4VN & D8VN: Max. 1920 X 1080, D16VN: Max. 3840 X 2160)

Select Sub Monitor Video out through BNC port.

CVBS or Spot

4-6. Setup – Network Mode

Select the Network tab. Then, the network menu is displayed as pictured below. Navigate through the menu

items or change the settings using the mouse or the remote control.

Figure 4.6.1. Network Setup Screen

Table 4.6.1. Menu Items in Network Setup Screen

Item Description

Network Type DHCP: DVR will automatically retrieve an IP address.

Static: Network information must be manually configured.

IP Address

Subnet Mask

Enter IP address that is assigned for the DVR

Enter Subnet Mask that is assigned for the DVR

34

Gateway

Enter Gateway that is assigned for the DVR.

DNS (Primary)

DNS (Secondary)

DDNS

Network Video Port

Network Audio Port

Web Port

Network Stream Set the value for network streaming.

Enter Primary DNS address that is assigned for the DVR

Enter Secondary DNS address that is assigned for the DVR

Dynamic Domain Name System (DDNS) allows a DNS name to be

constantly synchronized with a dynamic IP address. In other words, it

allows using a dynamic IP address to be associated with a static

domain name so others can connect to it by the static name.

Enable/disable using domain name address through DDNS server.

Enter the port number, (Default: 5445)

Display the network audio port (Network Port + 1).

Enter the port number for connection using web. (Default: 80)

4-6-1. Network Types

4-6-1-1. DHCP

An IP address is automatically assigned by the DHCP server, which automatically assigns the IP

address and other parameters to new devices.

4-6-1-2. Static

IP address, Subnet Mask, Gateway, and DNS are manually assigned by the user.

 IP Address: The fixed IP address of the DVR unit.

 Subnet Mask: The subnet mask for the LAN.

 Gateway: The IP address of the Gateway.

 DNS (Primary) The primary address of Domain Name Server

 DNS (Secondary): The secondary address of Domain Name Server

NOTE

Unless DNS is properly set, the DDNS and the e-mail features will not work.

4-6-2. DDNS

DDNS (Dynamic Domain Name System) allows a DNS name to be constantly synchronized with a dynamic

IP address. It allows using a dynamic IP address to be associated with a static domain name.

Once the setting is completed, the DDNS address will be:

http://hostname.ddns.specoddns.net

For example, if you enter the host name as “D8VN”, then the address will be:

http://d8vn.ddns.specoddns.net

Select Network > DDNS. The menu displays as below.

35

Figure 4.6.2. Network Setup Screen – DDNS

Table 4.6.2. DDNS

Item Description

Enable DDNS

Host Name

Enable/disable the Dynamic Domain Name Service.

This item allows the user to setup a domain name manually,

using virtual keyboard displays as shown.

Subnet/Update

When manual host name input is done, move the cursor to this

item and select ON to submit the settings.

ezDDNS

Enable/disable ezDDNS to register the host name automatically.

4-6-3. Network Port and Web Port

Connecting DVR/DVRs through an IP sharing device, each DVR must be assigned a unique TCP port

number for access from outside the LAN. This port number is displayed on Network > Network Port Setup

Menu.

NOTE

If you access the DVR only within the same LAN, the TCP port number does not need to

be changed.

Network access beyond a router

To access DVR beyond a router (firewall), you must open the proper TCP ports for live/playback streaming,

for commands, for remote backup, and for audio streaming. If these ports are not opened properly, you

can’t access the DVR beyond a router.

o For live/playback streaming, for commands, for remote backup: Open the port number

on Network > Network Video Port menu. The default port number is 5445.

o For bi-directional audio: Open the port number on Network Audio Port. The default port

number is [Network Video Port number + 1].

o For web-viewer downloading and remote firmware upgrading: Open the port number on

Network > Web Port menu. The default port number is 80.

4-6-4. Network Stream

User can set the Resolution, Frame Rate, and the Quality for the network stream.

36

- D4VN: Up to 60 fps @ 640x360, 320x 240 for 4 channels.

- D8VN: Up to 120 fps @ 640x360, 320x 240 for 8 channels.

- D16VN: Up to 240 fps @ 640x360, 320x240 for 16 channels.

<Note> Individual Channels can be set with different Resolution, Frame Rate, and Quality.

Figure 4.6.4. Network Setup Screen – Network Stream

37

4-7. Setup – User Management Mode

In the Setup menu, select the User Management tab. Then, the User Management menu is displayed as

pictured below. Navigate through the menu items or change the settings using the mouse or the remote

control.

Figure 4.7.1. User Management Setup Screen

Table 4.7.1. Menu Items in User Management Setup Screen

Item Description

Authority

Setup

Only the Admin will have access to the menu.

Password Check: Select the Checkbox to enable the functions or leave the Checkbox

blank to disable the functions.

 Setup: Enable/Disable of access to Setup

 PB: Enable/Disable of access to Playback

 PTZ: Enable/Disable of access to PTZ Control

 Rec Off: Enable/Disable of manual Record

 Network: Enable/Disable of access to Network

Selected Checkbox: The DVR will ask for a password when the given function is

selected for all users.

Blank Checkbox: The DVR will not ask for a password when the given function is

selected for all users.

38

ADMIN, USER1, USER2, USER3, USER4, USER5, USER6, USER7, USER8, USER9:

Selected Checkbox: The user can access the function.

Blank Checkbox: The user cannot access the function.

User Name

Setup

Password

Setup

Playback

Authority

Change the name of USER1, USER2, USER3, USER4, USER5, USER6, USER7,

USER8, and USER9. Click “select” and change the user name on the virtual keyboard.

Options are ADMIN, USER1, USER2, USER3, USER4, USER5, USER6, USER7,

USER8, and USER9:

Select User Password using the mouse or the remote control. Select “User ID” and

enter the current password. And enter a new password and enter the same password

again to confirm and select “ok”. Then the message “Password Changed” is displayed.

It is highly recommended to change password to protect the system frequently.

Set authority level of playback on each user.

Checked box: authorized to playback. Blank check box: no authority.

39

Remote

Playback

Timeout

Disconnect the remote playback after the specific time (Disable, 5min, 10min, 15min,

30min, 60min.

Import

Certificate From

USB

Advanced

Setup

Debug Port

Network

Connection

Status

Upload https certificate through USB

Send IP address and ports information to the control center

Open or Close the ports for remote checking

Shows the current network connection status (User, IP Address, Date/Time).

And do disconnect the user’s network connection to click ‘disconnect’ button.

Network User

Limits

User can select network access user number (4 users of 12 users).

DVR system will be restarted if user change this network user number.

40

4-8. Setup – Storage Mode

In the Setup menu, select the Storage tab. Then, the Storage menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

Figure 4.8.1. Storage Setup Screen

Table 4.8.1. Menu Items in Storage Setup Screen

Item Description

Overwrite

Disk Format User will have an option for formatting the Hard Drive.

When enabled, the DVR will continue recording and overwrite the oldest existing

recorded data once the hard drive is full. When disabled, recording will stop once

the hard drive is full.

After formatting HDD, the DVR will reboot.

Caution: It is recommended to archive any data that you may need in the

future before formatting the hard drive.

41

Disk Info

Recording Limit

Hard drive information.

Displays the following information:

Enable recording limit: The amount of data recorded in HDD will be limited to the

most recent number of days as set by “Recording Limit Days”.

Disable recording limit: When Overwrite is on, DVR will continue to record when

HDD is full and overwrite older data. When Overwrite is off, DVR will stop recording

when the HDD is full.

Recording Limit

Days

Set the recording limit days. (1- 90 days)

If the Recording Limit Days are set to 1, the data will be overwritten after 24 hours.

4-9. Setup - Config Mode

In the Setup menu, select the Config tab. Then, the configuration menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

Figure 4.9.1. Configuration Setup Screen

42

Table 4.9.1. Configuration Setup

Item Description

Export To

USB

Import From

USB

Load Default

Load Factory

Default

Software

Upgrade

User can save the current configuration (Setting values) of the DVR to the

USB flash drive. Plug in the USB flash on the front panel and press the

button to start the saving process.

User can upload the configuration of the DVR to another DVR using the USB

Flash drive. Plug in the USB flash drive on the front panel and press the

button to start the loading process.

Press the button to reset the system to the default settings.

The following settings such as Language, DVR ID, Security User

Authentication, Security User P/W, Date Format, DLS settings, Network

settings, HDD overwrite, Limit recording, HDD serial number, and HDD

ERROR time will not be included.

Press the button to reset the system to the factory default settings.

Upgrade softeware to the latest version.

After connecting USB flash drive to USB port on the DVR, click SEARCH.

It will automatically find the upgrade file.

4-9-1. Software Upgrade

1. In the USB flash drive root directory, create a new folder named “upgrade”

2. Create sub-folder for each model under “upgrade” folder and copy each software file to their folder.

 “d4vn” for D4VN: “main_d4vn_speco_*.*.*_202****”

 “d8vn” for D8VN: “main_d8vn_speco_*.*.*_202****”

 “d16vn” for D16VN: “main_d16vn_speco_*.*.*_202****”

3. Plug in the USB flash drive.

4. Navigate to Config menu of Setup.

5. Select Software Upgrade.

6. Follow the procedure from Figure 4.9.2 to Figure 4.9.5.

43

Figure 4.9.2 Figure 4.9.3

Figure 4.9.4 Figure 4.9.5

NOTICE

If selecting “Restart Now” when the USB flash drive is plugged, the following message will pop up

with beep sound.

44

5. Live, Search and Playback

5-1. Live View

In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup

screen. When the mouse is right clicked, and the quick operation window will be displayed as below.

Figure 5.1.1. Live Screen and Quick Operation Window

On the bottom of the screen, various On-Screen Display (OSD) symbols, which indicate the status of the

DVR, are described in Table 5.1.1.

45

Table 5.1.1. Status Indicator Icons in Live Viewing Screen

Icon Description

Indicates the DVR is locked.

Note) to unlock, right click on the live view screen and select on Unlock.

Audio mute.

Audio channel output can be selected from the quick operation menu

Indicates that alarm is set.

Indicates that alarm output is activated.

Event indicator. When there is an event (motion recording, video loss, HDD

fail, S.M.A.R.T), this icon will be highlighted.

Indicates that a network client is connected to the DVR.

Indicates that sequencing mode is enabled.

Displays the current date and time.

RC: ALL Remote control ID display. If a remote ID is not set, the message “ALL” is

displayed.

When Overwrite is not enabled, this displays the percent of the hard disk

usage from 0-99%.

When Overwrite is enabled, the Bar will indicate with Overwrite

Continuous recording in progress.

Manual recording in progress. To set the Manual recording mode, press the

Record button on the front panel.

Motion alarm recording in progress.

Sensor recording in progress.

Table 5.1.2. Menu Items in Quick Operation Window

Icon Description

Search Select this option to enter the Search menu.

Setup Select this option to enter the Setup menu.

Display Display layout. Select between different multi-view display formats.

D8VN: 1x1, 2x2, 3x3; D16VN: 1x1, 2x2, 3x3, 4x4

Snapshot Click this option to create a snapshot of selected channel image.

(JPEG Still Image)

Super EZ Copy Direct Backup of the selected channel to USB flash drive without

46

going through the search mode.

Enable Manual

Record

Instant Playback Instant playback on each channel for 10 / 20 / 30 / 60 seconds

Advanced Menu

EZ Setup Select this option to start EZ Setup Wizard

Audio Mute Select audio output on or off

Camera PTZ Select this option and the PTZ user interface will appear.

Enabel Main

Monitor Sequence

Disable Alarm Out Click this button to enable/disable Alarm outputs

Manual

Digital Deterrent

Manual Record button. Click this button to enable manual recording.

Also known as Panic Record.

(Refer to 5-1-1, PTZ Control on page 49)

Select this option to enable/disable sequence function.

Window where users can manually trigger the digital deterrent audio

“Right now it just says “use”.

Camera information Press the button to view the camera signal information of a selected

channel.

System Information Press the button to view the system information.

Export Help Displays window with instructions for exporting video.

System Lock Locks the DVR from user access.

System Shutdowm Click this button to shutdown system.

47

5-1-1. PTZ Control

(UP/DOWN)/ focus (LEFT/RIGHT)position using the

Image Item Description

Table 5.1.3. Menu Items in PTZ Control Window

INITIALIZE

PAN/TILT Select PAN/TILT using the ▲▼◀ and ▶button,

ZOOM/FOCUS Select ZOM/FOCUS using the▲▼◀ and ▶

OSD

AUTOSCAN Press the right key(▶) to start auto scan. Press the

PRESET Select PRESET, then press the left key(◀). A

Initialize the PTZ settings of the selected camera

then press SEL. Adjust the tilt (UP/DOWN)/pan

(LEFT/RIGHT) position using the ▲▼◀and ▶

buttons.

buttons, then press SEL. Adjust the zoom

▲▼◀ and ▶ buttons.

Select OSD to enter the menu. Control keys are

Right, Left, UP, Down, Select, Far (REW KEY), and

Near (FF KEY). Press the ESC button to return to

the previous menu. Press the PTZ button to close

the OSD menu.

left key (◀) to stop auto scan.

number input window will appear. Set the number

(3digits) using the number key, then press the SEL

to confirm the preset number for the current

position. Press the right key (▶) and enter the

number (3digits) to go to the preset position.

TOUR Select TOU and press the right (▶) key. A number

input window will open. Select a number (1digit)

using a number key, then press SEL to start the

NUMBER

tour. Press the left (◀) key to stop the tour.

Preset the number of the tour group in the OSD

menu.

For the TOUR and PRESET menu.

Press ESC to return to the main menu

48

5-2. Digital Zoom in Live and Playback Screen

VN series supports Digital Zoom feature during live and playback mode.

1. Double click the target channel.

2. Click the left button of the mouse and drag to make rectangular shape.

5-3. Search Screen

To enter the search screen menu, select Search menu on the screen using the mouse or press Search icon

on live screen.

Figure 5.3.1. Search Screen

49

There are 7 options in the Search Menu, they are: EZSearch, Time Line (Calendar), Event, Go To First

Time, Go To Last Time, Go To Specific Time, Archive list, and Log list on the screen.

5-3-1. EZSearch

The EZSearch window is used to find stored video with ease using the thumb nail playback screen.

Figure 5.3.2. Calendar Screen Figure 5.3.3. Channel Selection Screen

Step1. 24 Hourly Thumbnail Screen Step2. Every 2 minutes and 30 seconds

Figure 5.3.4. Second Thumbnail Screen

When the EZSearch menu is selected, a calendar is displayed that highlights dates with recorded data.

1. Select a specific date on the calendar.

2. Select a channel from Channel Selection Screen.

Then the Thumbnail Search screen displays 24 thumbnails, one for each hour of the day.

3. Second step shows every 2 minutes and 30 seconds screen.

4. Playback the selected image.

50

5-3-2. Time Line Search

The Calendar Search window is used to find the stored video by using the time line bar.

Figure 5.3.5. Calendar Screen Figure 5.3.6. Time-Line Search Screen

When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with

highlights. Select a specific date and time. Click and drag the red time indicator bar to the desired hour.

User can select a specific minutes using a button in the above red box. Press the “play” button after

selecting the specific time. Press the “prev” to return to the Search window.

5-3-3. Event Search

The Event Search window is used to find stored video.

Figure 5.3.7. Event Search Screen

When the Event menu is selected, a calendar is displayed that highlights dates with recorded event data.

Select a specific date and the event log will be displayed. After selecting the event, Press the “play” button

to playback the recorded data or press the “backup” button to export the data. User can find a data of the

specific channel and event using a button in the above red box as following Figure 5.3.9. Press the “prev”

to return to the Search window.

51

Figure 5.3.8. Event Search Screen

5-3-4. Go To First Time

You can access the oldest recorded data on the DVR hard drive by selecting Go To First Time on the

Search window. Press the “prev” to return to the Search window.

5-3-5. Go To Last Time

You can access the latest recorded data on the DVR hard drive by selecting Go To Last Time on the

Search window. Press the “prev” to return to the Search window.

5-3-6. Go To Specific Time

User can search for video data from a specific instance by setting the date and time in the GO TO

SPECIFIC TIME menu. Use the mouse or the remote control to change the date and time value and

press the PLAY button after setting. If there is no video data in the set date and time, No Data Exist

message displays.

5-3-7. Archive List

The ARCHIVE Search window is used to find previously stored video or images.

Figure 5.3.9 Archive Search Screen

When the Archive menu is selected, the user can see a calendar, which has archive data. Select a specific

date and then the archived data will be displayed. Press the Display button to view the still image or the first

frame of the selected video, then the user can export the selected data.

52

5-3-8. Log List

You can access the LOG list search screen by selecting LOG on the SEARCH window.

Figure 5.3.10. Log List Screen

When the Log menu is selected, the user can see a calendar, which has a log data. Select a specific date

and press NEXT button, and then the log data will be displayed. Press the SAVE button to save the data

and then the data is saved as a text file format.

5-4. Playback Mode

During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you

may return to the SEARCH screen by pressing the X button on the status bar.

Figure 5.4.1. Play Mode Screen

The following status bar hides automatically and appears again if a mouse pointer is positioned to the

bottom of the screen.

Table 5.4.1. Button Functions in PLAY Mode

Button Description

 1x, 2x, 4x, 8x,16x, 32x for D4VN

 1x, 2x, 4x, 8x,16x for D8VN

 1x, 2x, 4x, 8x for D16VN

53

Single Channel backward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x

Jump/Step backward. The playback position moves 60 seconds backward.

Press to play or pause recorded video.

Jump/Step forward. Playback position moves 60 seconds forward.

 2x, 4x, 8x,16x, 32x for D4VN

 2x, 4x, 8x,16x for D8VN

 2x, 4x, 8x for D16VN

Single Channel forward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x

Slow Mode play. Forward playback speed x1/4, x1/2

Press to back up the video. User can select archive file formats (Still image,

NSF, AVI and EXE).

EZCopy button. User can copy video data as NSF, AVI and EXE format.

Return to the previous menu screen, search window, or exit from the Menu.

54

6. Export and Back Up

6-1. Still Image Backup onto USB Flash Drive

Still images can be captured and archived onto a USB flash drive or an USB external hard drive in live

mode or while playing back recorded video.

1. Select a specific channel, which wants to back up on live screen.

2. When you press “Snapshot” button on Quick operation window, the media selection window screen will

display.

3. Once you press “start” button, the system will capture a still image and archive onto a USB flash drive.

NOTICE

USB Flash Drive must be in FAT32 file format.

55

6-2. Video Backup onto USB Flash Drive during playback

Video can be captured and archived onto the USB flash drive or a hard drive while playing back the

recorded video. In playback mode, press the “Export” button to launch the backup function.

1. When you press “Export” button on the selected channel or all channels, the DVR will ask

whether to archive a Still Image, NSF, AVI or EXE and select the proper media type.

2. Select USB Drive (Flash Drive) to back up less than an hour.

Select USB HDD (Large Backup) to back up from 1 hour to 24 hours. (Only for NSF type)

3. Once you select the channel and duration, the system will start to archive the data to the USB drive.

4. The following image shows the progress of archiving the data.

56

5. The following shows the image to complete the backup. Select lose to return to the previous screen.

6-3. EZCopy: Video Backup onto USB Flash Drive during playback

Using EZCopy feature, Video can be easily archived onto the USB flash drive or a hard drive.

In playback mode, press the “EZCopy” button to launch the backup function.

1. Press “EZCopy” button on the selected channel or all channels.

2. Then, EZCopy START time will display.

3. Move time bar cursor to the time of end of backup and press EZCopy button. Then, EZCopy

STOP time will display.

4. EZCopy window will display. The DVR will ask whether to archive a NSF, AVI or EXE.

57

5. After backup format is selected, also select media type and channel(s) to archive the data to the

media.

6-5. Playback of Backup Video

6-5-1. AVI Format

AVI format: AVI format video can be played back by Window Media Player™ or other media player that is

compatible with AVI format video.

1. Please install the Decoder Filter that the DVR copies “DvrPlayer” folder on USB flash drive with

the video. Decoder Filter is exported to the “/DvrPlayer” folder of the USB drive.

Decoder

Filter

2. Otherwise, the video and time stamp over video can’t be properly played back and won’t be

displayed on Window Media Player™.

58

Timestamp On AVI. The subtitle is embedded to the video clip file.

The subtitle is embedded to the AVI file. To display a subtitle, user should install a special filter

called “Decoder Filter”.

6-5-2. NSF Format

NSF format: NSF format video can be played back using the HDplayer that the DVR copies to

“DvrPlayer” folder on USB flash drive with video. Use the mouse scroll to use digital zoom in and out

feature.

59

7. Network Access Using the Multi-Sites Network Viewer

7-1. Overview

The SpecoTech Multi Client is a multiple site monitoring client software with; video, audio, and alarm signals

from the DVRs over the network. The SpecoTech Multi Client does not limit the number of DVR units to

register.

The program displays up to 16 DVRs and supports dual monitors.

On the program, user may control PTZ cameras on the DVRs. By attaching a microphone and speaker

system to devices on site, the user may make bi-directional audio communication over the network.

7-2. PC Requirements

Minimum PC Requirements

CPU Intel Core i3

1.8Ghz
Memory 2GB DDR2
VGA 512MB
Resolution 1280x720
Disk Space 1GB
OS Windows 7, 8, 10
Network 10/100Base T
Others Direct X 9.0c or Higher

Recommended PC Requirements

CPU Intel Core i5

2Ghz or higher.
Memory 4GB DDR3 or higher.
VGA 512MB or higher.
Resolution 1920x1080
Disk Space 1GB
OS Windows 7, 8, 10
Network 10/100/1000Base T
Others Direct X 10 or higher.

Before installing the program, check the PC specifications. The DVR remote software may not perform

correctly if the PC does not meet the minimum requirements.

60

7-3. Installation of the Program

1. Insert the provided CD in the CD drive and double-click “SpecoTech Multi Client (XXXX).exe”

2. Select a destination folder and click “Next”.

3. Select the program folder and click “Next”.

4. The installation status screen is displayed.

5. After the installation is completed, “SpecoTech Multi Client” icon displays on the desktop screen.

61

7-4. Live Window

When installation is completed, double click the “SpecoTech Multi Client” icon on your desktop to start

the program.

7-4-1. Main User Interface

62

7-4-2. Control Buttons

Button Description

Click this icon to run a playback window to search and play videos that

LOCAL PLAYBACK

REMOTE PLAYBACK

SITE MANAGEMENT

are recorded in the local PC.

Click this icon to run a playback window to search and play videos that

are recorded in the remote DVR.

THUMBNAIL REFRESH: Click this icon to refresh and renew

thumbnail image of the connected sites.

SITE ADDITION: Click this icon to open ‘Site Addition’ window.

SITE DELETE: Click this icon to delete site from the index window,

after disconnect a site.

NET FINDER: Select the site from the index window and click this

icon to modify the information of specific site.

AUDIO

CONNECT

DISCONNECT

SETUP

CAPTURE

EVENT LIST

PAUSE

ALARM ON

RECORD ON

Click this icon to connect the selected site/sites.

Click this icon to disconnect the selected site/sites.

Click this icon to setup configuration of SpecoTech Multi Client.

Click this icon to capture a still image.

Opens list of events logged by the SpecoTech Multi Client.

Click this icon to play/pause live video.

Click this icon to turn on/off alarm outputs.

Enable or disable recording of live video to local disk, which has set in

setup menu.

Use the volume control bar to set the audio level.

MIC

PRESET/TOUR/SCAN/MENU

CHANNEL SPLIT

DVR SITE SPLIT

Use the microphone volume control bar to set the micro phone level.

User can control PRESET/TOUR/SCAN/MENU

To select the numbers of display channel/channels (Single, quad, 9

channels, and 16 channels) of highlighted site.

To select the numbers of DVR/DVRs (1 DVR, 4 DVRs, 9 DVRs, 16

DVRs) on main display screen.

63

7-5. Search and Playback Window

7-5-1. Main User Interface

You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the

upper right of the Live Window.

64

7-5-2. Main Control Panel

Button Description

Click this icon to run a playback window to search and play videos that

LOCAL PLAYBACK

REMOTE PLAYBACK

are recorded in the local PC.

Click this icon to run a playback window to search and play videos that

are recorded in the remote DVR.

Display the site information and the connection status.

AUDIO

CONNECT

DISCONNECT

SETUP

CAPTURE

EVENT LIST

EZCopy Start

EZCopy End

BACKUP

Click this icon to connect the selected site/sites.

Click this icon to disconnect the selected site/sites.

Click this icon to setup configuration of SpecoTech Multi Client.

Click this icon to capture a still image.

Opens list of events logged by the SpecoTech Multi Client.

Click this icon to set the beginning time for backup of the recorded

video in AVI format.

Click this icon to set the ending time for backup of the recorded video

in AVI format.

Click this icon to backup the recorded video in AVI format.

Use the volume control bar to set the audio level.

To select the numbers of DVR/DVRs (1 DVR, 4 DVRs, 9 DVRs, 16

DVRs) on main display screen.

To select the numbers of display channel/channels (Single, quad, 9

channels, and 16 channels) of highlighted site.

To select the channel to playback.

The calendar shows dates with recorded video in color.

To display the recorded data of selected channel or all channels on a

time line scale.

65

To change a timeline scale from 24 hours to 60 minutes.

The timeline shows recorded data in color on the bar. You can adjust

the timeline scale and move it to the time you wish to playback. Then

click the play icon to display the recorded video.

Playback buttons.

EZSEARCH: Thumbnail search over the network.

- Shows 24 thumbnail images, one for each hour from 00:00 to 23:00.

- Each hour is further broken up 24 segments; each is 150sec.

- Then select the tile to play

* Click the “PREVIOUS” button to go the previous step.

Digital Zoom Window in Live and Playback. (Only available in Single

Channel Viewing)

66

7-5-3. SMART SEARCH

1) User can search with selected area

2) Click right mouse button when playback

3) ‘Smart Search’ will search in the selected area only.

4) ‘Smart Search’ checking the motion and event from the selected area.

5) User can set, Sensitivity, Internal, Thumbnail size, Date and Time

67

6) Select any of search Thumbnail then selected event will playing.

68

7-6. Setup of SpecoTech Multi Client

Click the setup icon to setup the configuration of SpecoTech Multi Client software. The SETUP

window is displayed as below.

7-6-1. General

Security Option: Set a password for security options. Select security options and set a password.

Then when you access any of selected functions, you need to enter the password.

You can also set the save path for capturing and backup.

Save Path: Specify the location to save captured still image for Capture and Backup data.

Miscellaneous

Automatic Reconnection: If enabled, the software will automatically try to reconnect to the last

successful IP address. But, when CLIENT ACCESS is OFF on the DVR, the software will not try to

reconnect even if it is enabled.

Always On Top: If enabled, the software display will be continuously on the top of other windows.

Time Format: Change the way the Client software displays the time.

69

7-6-2. Event

Event log can be archived and searched.

Event Log: Specify the location to save event logs and select event to archive.

Event Search: Event log can be searched from the selected time.

70

7-6-3. Record

Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And

you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event,

you can set event for motion or alarm with duration.

Record Local Storage Setup: You can select the local disk to record and the amount of disk space you

want to allow the program to use for recording. You can also select the option to overwrite data or stop

recording when the maximum amount of disk space is full.

71

7-6-4. Display

You can select the OSD (On Screen Display) to be displayed.

7-6-5. Language

English, French and Spanish is selectable.

72

7-6-6. About

“About” provides network client version information.

73

7-7. Remote Setup

The menu settings for the DVR unit can be set over network.

Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to

open the submenu. Then the following window is displayed as below. Select the REMOTE SETUP.

Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen.

Enter the password of the DVR when prompted. (NOTE: The password is same with DVR setup password.)

Setting is the same as with the DVR menu setting. Refer to the corresponding pages for details on the

setting items.

NOTICE

Web Setup is prohibited when DVR is in local Setup Menu.

74

7-7-1. System

Select System to set system and time settings.

 DATE DISPLAY FORMAT: Select the date display format.

 CLIENT ACCCESS: Enable/Disable remote access through network client software.

 NTP SETUP: Sets whether to synchronize the time using NTP server or not.

o Primary SNTP Server: Input the NTP primary server address.

o Secondary SNTP Server: Input the NTP secondary server address.

o Time Zone: Select the time zone.

o Connection Mode: Select the connection mode to NTP time server.

 SEND E-Mail SETUP: Sets whether to enable/disable e-mail sending function.

o SEVER TYPE: Select GMAIL, HOTMAIL, AOL, YAHOO or MANUAL)

o MAIL SERVER: Input the SMTP server name as well as the user ID and password.

o MAIL PORT: Mail port setting.

o SEURE OPTION: Select a secure mail server connection. (SSL or TLS)

o ID : Email User ID

o PASSWORD : Email User Password

o MAIL TO: Input the appropriate email address to enable sending e-mail reports

o MAIL FROM (Return Mail Address): Set the source e-mail address to be notified to the

destination.

75

o SEND MAIL TEST: Examine the function with registered information.

 USER NAME: Name the DVR

 SYSTEM RESTART

 SYSTEM EVENT NOTIFICATION

Allows the user to set EVENT NOFICIATION ON or OFF

o HEALTH CHECK

(Allows the user to set MAIL STATUS periodically): DAILY or WEELY or MONTHLY

o HDD TEMPERATURE

o HDD BAD SECTOR

o HDD ALMOST FULL

o VIDEO CLIP SETUP: Setting the duration for pre and post recording.

o EVENTS AND NOTIFICATION

o HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD

Enable Email Notification in the event a problem occurs with the VN.

o ALARM-IN : Enable Email Notification when the camera detects sensor

o MOTION DETECTION : Enable Email Notification when the camera detects motion

o VIDEO LOSS: Enable Email, Beep and Alarm output Notification when the camera signal is

lost.

o HDD TEMPERATURE : Enable Email Beep and Alarm output Notification when the HDD

reaches the maximum temperature

o HDD BAD SECTOR: Enable Email Notification when the HDD has bad sectors.

o HDD ALMOST FULL: Enable Email Notification when the HDD is almost full.

o HDD FULL: Enable Email Notification when the HDD is full.

o HDD FAILURE: Enable Email, Beep and Alarm output Notification when the HDD fails.

76

7-7-2. Record

Select RECORD tab to set the recording conditions.

These settings apply to the specified channel only.

 Recording Setup

o RESOLUTION: Sets the resolution for the recordings. The value applies to an individual channel.

o FRAME RATE: Sets the recording rate.

o QUALITY: Sets the image quality in 5 levels.

o RECORDING: Sets the recording mode.

o RECORDING MODE: CONTINUOUS, SCHEDULE, MOTION, SENSOR

o PRE RECORD: Sets whether to perform or not prerecording.

o POST EVENT RECORD: Sets the duration of the event recording.

o AUDIO: Sets whether to perform or not audio recording.

o SECHDULE: Sets the schedule recording.

These settings apply to all channels.

 EZRECORD

o RESOLUTION: Sets the resolution for the recordings. The set value applies to an individual

channel.

o FRAME RATE: Sets the recording rate.

o QUALITY: Sets the image quality in 5 levels.

o RECORDING MODE: Sets the recording mode.

o RECORD DAYS: By the setting value, the Recording Days will change accordingly.

77

7-7-3. Device

Select Device to set Spot Out, Enable/Disable CVBS Out, motion zone.

 ALARM OUT: Set the alarm out duration.

 DIGITAL DETERRENT: Set the schedule of digital deterrent function and upload the sound file to

DVR.

 CONTROLLER: Set the controller baud rate and ID.

 PTZ: Set the PTZ baud rate, protocol, and ID.

 SPOT: Enable/Disable the SPOT OUT and SEQUENCE.

 MOTION: Setup the motion detection area and the sensitivity.

o SITE: Select the channel

o MOTION ZONE: FULL Zone or PARTIAL Zone

o MOTION SENSITIVITY: 1~9 (High sensitivity level)

 KEYTONE: Sets On or Off of Key Tone.

 REMOTE CONTROLLER ID: Sets an ID number on the supplied remote control for its identification.

 SENSOR: Select the type of each sensor.

78

7-7-4. Display

Select the DISPLAY tab to set the DISPLAY conditions.

These settings apply to all channels.

 OSD: Sets whether to display or not, the date and time as well as channel number on the screen.

 OSD CONTRAST: Adjust the character contrast on the screen.

 MAIN MONITOR SEQUENCE: Setting for automatically switching the displayed video.

SEQUENCE DWELL TIME: Sets the interval for automatically switching the screens.

 SITE: Name, Covert, Brightness, Contrast, Hue, Saturation

These settings apply to the specified channel only.

7-7-5. Network

 NETWORK TYPE

o STATIC: The address setting mode is manual. Input IP, Gateway, Subnet Mask, and DNS IP.

o DHCP: The address setting mode is automatic.

 DDNS: Set whether to use DDNS service or not.

o HOST NAME: Allows the user to setup a domain name manually

o SUMBIT/UPDATE: Select ON to submit the settings

o ezDDNS: Enable/disable ezDDNS to register the host name automatically

 NETWORK PORT: When connecting multiple DVRs to the network, set a unique port number.

 NETWORK AUDIO PORT: Display the network audio port (NETWORK PORT + 1).

 WEB PORT: Set a web server port number.

 NETWORK STREAM: Set the Resolution, Frame Rate, and the Quality and enable/disable USE

MOBILE.

79

7-7-6. User Management

Select the USER MANAGEMENT tab to set the DISPLAY conditions.

7-7-7. Storage

Select Storage to configure continued recording settings by overwriting the hard disk and the storage

period for the recording data.

 OVERWRITE: Continues recording by writing over previous recordings when HDD is full.

 DISK INFO: Shows the information of HDD installed in DVR

 RECORDING LIMIT: Sets whether to limit or not, the recording data storage period.

7-7-8. Remote Upgrade

Shows the current Firmware version installed on DVR.

 Browse: Select BROWSE to locate the firmware file.

 Upgrade: Select UPGRADE to upgrade the firmware of the DVR.

80

7-8. Operation
7-8-1. Addition, Delete, and Modify of DVR Sites

7-8-1-1. Addition of Sites

1. Click SITE ADDITION button. And then the following window will be displayed as below.

o Site Name: Input a name that properly describes a site.

o IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain

name

o Port Number: Default Port Number is “5445”.

o ID: Input ID of DVR. Default ID is “admin”.

o Password: Input network password of DVR that is same with DVR setup password.

2. Click OK button. And then the registered site is added on the directory window.

7-8-1-2. Deleting a Site

1. Select the site/sites to delete from the directory window.

2. Click SITE DELETE button. And then the selected site/sites is/are deleted.

7-8-1-3. Modify of Sites

1. Select the site/sites to modify from the directory window.

81

2. Click NET FINDER button. And then the following window will be displayed as below.

3. Click Modify button. And then the modified information is displayed as below.

82

7-8-2. Connect and Disconnect

7-8-2-1. Connect

1. Select site/sites to connect from the directory window.

2. Click CONNECT button, and then site/sites displays/display as connected.

7-8-2-2. Disconnect

1. Select site/sites to disconnect from the directory window.

2. Click DISCONNECT button, and then selected site/sites disconnected.

83

7-8-3. Still-image Capture During Live

1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.).

2. Click CAPTURE button. And then a Capture window will be displayed as below.

3. Set Save Path, File Name, and File Format. And then click OK button.

4. Still image is saved as set in Capture window.

D4VS

84

7-8-4. Recording Video on Local PC During Live

1. Click SETUP button. And then a setup window will be displayed as below.

2. Select Record and set the values.

3. Select Disk and set the values.

4. Click RECORD ON button. And the color of button is changed.

5. Live video data is recorded as set in Record and Disk setup. These video data can be searched and

play-backed with Local Playback.

85

7-8-5. Local Playback and Remote Playback

7-8-5-1. Playback of Recorded Video on a Local PC

1. Click LOCAL PLAYBACK. And then Playback Window will be displayed over the Live

Window.

2. Select site/sites to connect from the directory window.

3. Click CONNECT button. And then Green bar displays on Search calendar

and timeline scale window.

6. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7. Video data that is recorded on local PC will be play-backed.

8. Use the mouse scroll to digitally zoom in and out from a single channel display.

86

7-8-5-2. Playback of Recorded Video on Remote DVR

1. Click REMOTE PLAYBACK. And then Playback Window will be displayed.

2. Select the site to connect from the directory window.

3. Click CONNECT. And then Green bar displays on Search calendar and timeline scale.

4. Move the marker on the timeline scale to where there is video data and press the PLAY button.

5. Video data that is recorded on the remote DVR is play-backed.

87

7-8-6. AVI Backup during Playback

You can back up the recorded videos in AVI format during playback.

1. Double-click the target channel to backup.

2. Select the beginning time by using the search calendar and timeline scale bar.

3. Click EZCOPY START button on the timeline scale to select the beginning point of the backup.

4. Click EZCOPY END button on the timeline scale to select the ending point of the backup. Then,

the selected starting point and the ending point on the timeline scale bar will be marked in green.

5. Click BACKUP. And then the BACKUP window will be displayed as below.

88

6. You can also set the beginning time and ending time on this window. After selecting a channel for backup,

click the OK button. The backup will begin.

7. AVI video data is recorded as selected in AVI Backup window. AVI format video can be played back by

using Window Media Player™ or other media player that is compatible with AVI format video.

89

8. Network Access Using the Web-Browser Viewer

The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Brower is only

available for Internet Explorer)

1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or

2. Input the IP address or Domain name address that you pre-registered.

3. Click this bar. Then the dialog box is displayed.

4. Click “Install” to download and install the ActiveX control.

5. The Web Browser Viewer will be displayed as below after the ActiveX installation

6. Click the CONNECT button on the Left upper corner of web-viewer. Then “Connect” dialog is

displayed.

90

 Site Name: Input a name that properly describes a site.

 IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain

name

 Port Number: Default Port Number is “5445”.

 ID: Input ID of DVR. Default ID is “admin”.

7. Password: Input network password of DVR that is same with DVR setup password.

8. Then the cameras connected to the DVR are displayed on the screen.

9. Use mouse scroll to digitally zoom in and out from a single channel display.

91

9. Network Access Using the Smart Phone Viewer

Notice

Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier.

9-1. App Viewer for iPhone

1. Enter the Apple App Store.

2. Search “Speco Player” in the App Store.

Notice

SPECO Player is for the VN, VX2, VX, VT, HT, HS, ZS, NS, DS, RS and HD series

DVRs. SPECO VIEWER is not compatible with the T Series DVR’s (TH, TN or TL) or

the PC Series DVR’s.

9-1-1. Live

1. Open the installed “Speco Player” App and click button to add a remote device.

2. Enter the site name, IP or DDNS address, Network Port number (default 5445), ID(default admin)

and Password that is same with DVR setup password. Then, click “Save” button.

* Note: Network Port and Web Port must be forwarded before adding a new site.

3. Select a registered device and select “Live”. Then click “Connect” button.

92

4. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel

display to 4, 8, 10, 16 channels split display depending on the DVR.

5. To select the display mode(1, 4, 9, 10 or 16 split display), tap the arrow menus button

6. Drag and drop channels

Touch and drag one channel to the other channel to swap the channel location. To swap the channel,

drag a channel to another channel.

7. Digital Zoom In-Out

Double tap on the desired channel to view in 1channel mode. Then use the iPhone zoom feature

using two fingers to pinch the screen to zoom in or out on the video image. User can also move the

zoomed image around by touching the desired spot and dragging the zoom image.

93

9-1-2.PTZ Control

To control the PTZ functions of the camera, tap the menu button. Then PTZ menu icons will display. Using

the PTZ icon on the screen, can control PTZF functions.

9-1-3. Playback

1. Select mode as ‘Playback’ and click ‘Connect’ button. Then select Date & Time and click

‘Connect’ button.

2. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel

display to 4, 8, 10, 16 channels split display depending on the DVR.

94

3. Tap the menu button. Then Playback menu icons will display.

9-2. App Viewer for Android Phone

1. Enter the Android Play Store.

2. Search “Speco Player” in the Android Market and install the “Speco Player” app.

Notice

SPECO Player is for the VN, VX2, VX, VT, HU, HT, NU, NS, HS, DS, RS and HD series

DVRs. SPECO VIEWER is not compatible with the T Series DVR’s (TH, TN or TL) or

the PC Series DVR’s.

9-2-1. Live

1. Open the installed “Speco Player” App and select the “Live view / Playback”. Then click the menu

button of the phone to add a remote device.

2. Select the registered device and select ‘Live view’ and select up to 4 channels to monitor. Then click

‘Start’ button.

95

3. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4

channels split display.

9-2-2. Playback

1. Select the registered device and select ‘Play back’ and select up to 4 channels to search. Then click ‘Start’

button. As soon as setting the date and time to search, the app will start the playback.

96

2. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4

channels split display.

9-2-3.PTZ Control

To control the PTZ function of the camera, tap the channel screen, and then the channel name will be
highlighted in Light Green. Using the PTZ menu icons on the screen, control PTZF.

97

APPENDIX: Network Connection - LAN

1. Install the network client software from the supplied CD.

2. Check the IP address from SETUP > SYSTEM > DESCRIPTION or SETUP>NETWORK of DVR.

3. Run the network client software.

4. Input Site Name, Site Address (IP address), Port Number, and Password on the connect window.

 Site Name: Input a name that properly describes a site.

 IP Address: Input IP address

 Port Number: Default Port Number is “5445”.

 ID: Input ID of DVR. Default ID is “admin”.

 Password: Input network password of DVR that is same with DVR setup password

5. Select a site by checking the box, and Press button to connect to the site.

98

99

APPENDIX: Network Connection – Internet and DDNS

Dynamic Domain Name System (DDNS) allows a domain name to be constantly synchronized with a

dynamic IP address. A current dynamic IP address is being associated with a static domain name.

1. Go to SETUP>NETWORK>DDNS and set the DDNS SERVER to ON.

If you set ezDDNS to ON, the host name is automatically generated and registered.

2. Go to SETUP>NETWORK>DDNS>HOST NAME. Manually enter a domain name using the virtual

keyboard and click ENTER button.

3. When a manual host name is completed, Go to SETUP>NETWORK>DDNS>SUBMIT/UPDATE

and select ON to submit the settings on the SPECO DDNS.

Once the setting is completed, the DDNS address will be:

http://hostname.ddns.specoddns.net

For example, if you enter the host name as “D16VN”, then the address will be:

http://d16vn.ddns.specoddns.net

4. When DDNS setting is done, click the APPLY button. Otherwise DDNS setting will not be applied.

100
