USER MANUAL

Page 2

Page 3

TABLE OF CONTENTS

1. INTRODUCTION .................................................................................................................... 1

1.1. WARRANTY ..........................................................................................................................................................................1

2. VADO COMPONENTS ........................................................................................................... 2

3. GENERAL INFORMATION ABOUT YOUR VADO ...................................................................... 3

3.1. INTENDED USE ...................................................................................................................................................................3

3.2. PEDELEC / EPAC ................................................................................................................................................................ 3

3.3. L1e S-PEDELEC (SPEED PEDELEC) ................................................................................................................................3

3.4. STARTING THE SYSTEM ...................................................................................................................................................3

4. GENERAL NOTES ABOUT ASSEMBLY ................................................................................... 4

4.1. BOTTOM BRACKET ............................................................................................................................................................ 4

4.2. HEADSET ............................................................................................................................................................................4

4.3. SPEED SENSOR .................................................................................................................................................................4

4.4. SEATPOST ..........................................................................................................................................................................5

4.5. REPLACEMENT PARTS AND ACCESSORIES .................................................................................................................5

5. GENERAL NOTES ABOUT RIDING ......................................................................................... 6

5.1. RIDING TIPS .........................................................................................................................................................................6

5.2. BEFORE YOUR FIRST RIDE ..............................................................................................................................................7

5.3. RIDING WITH KIDS ............................................................................................................................................................7

6. GENERAL NOTES ABOUT MAINTENANCE ............................................................................. 8

7. REPLACING PARTS ON YOUR L1e S-PEDELEC ...................................................................... 9

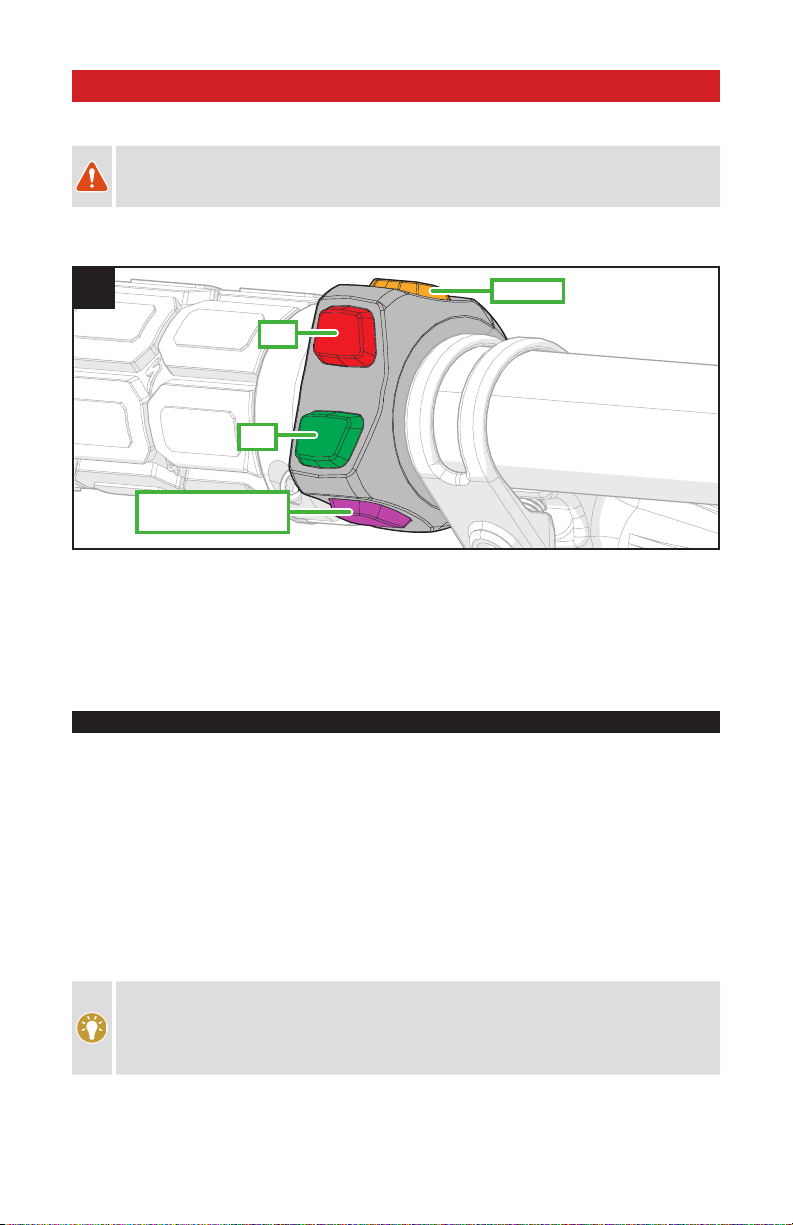

8. SYSTEM INTERFACE ............................................................................................................ 10

8.1. SUPPORT MODES ..............................................................................................................................................................10

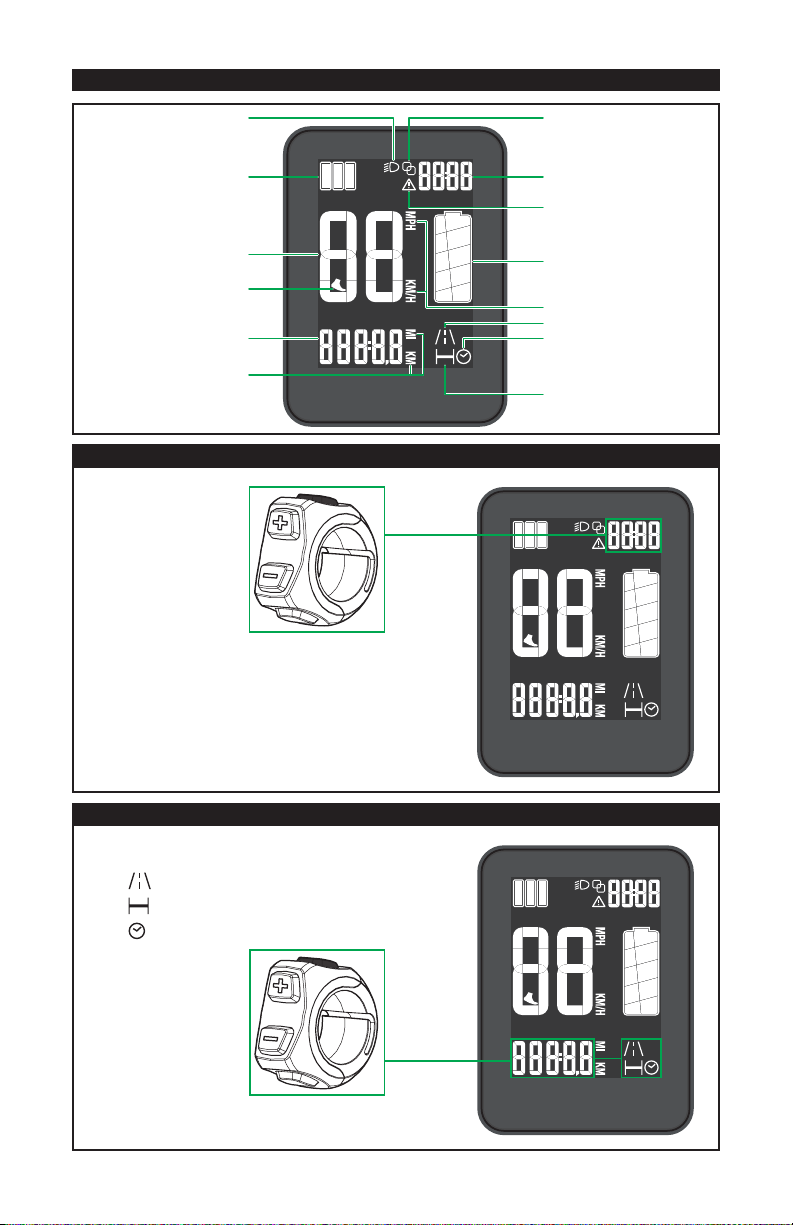

8.2. DISPLAY FUNCTIONS (LCD DISPLAY) ............................................................................................................................11

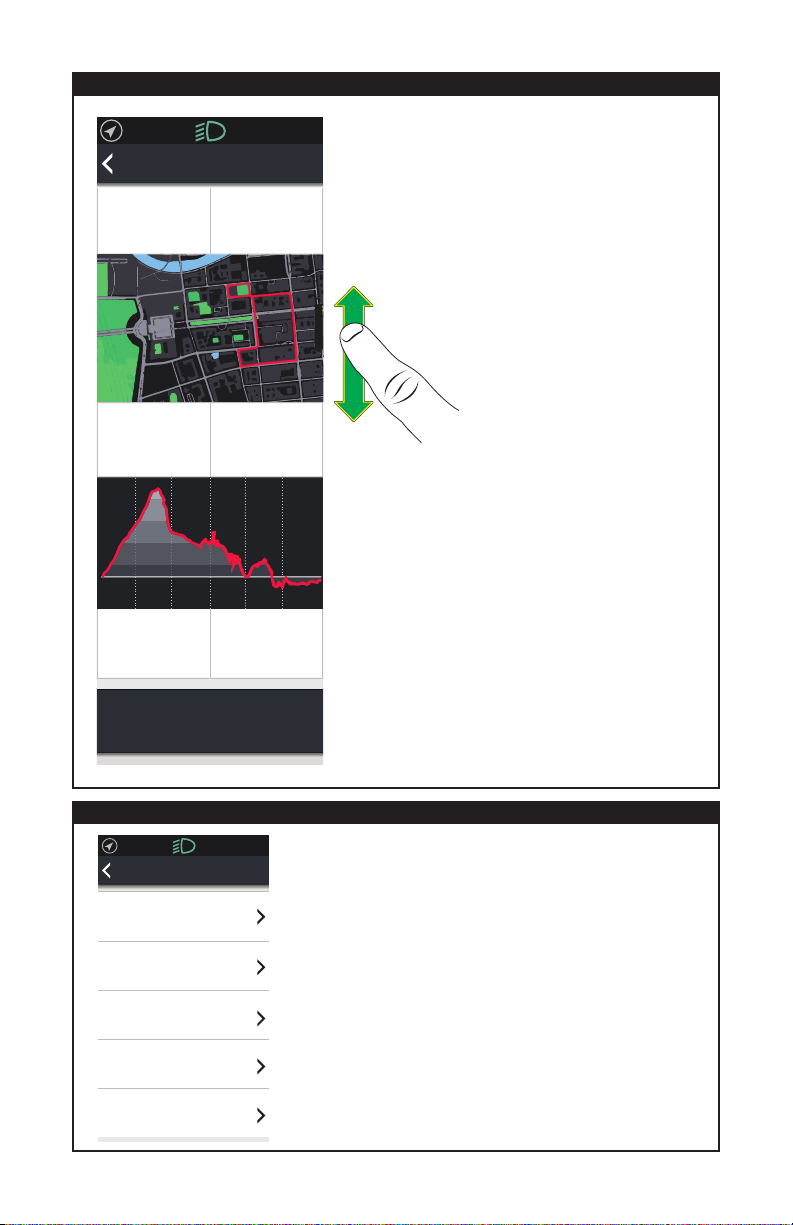

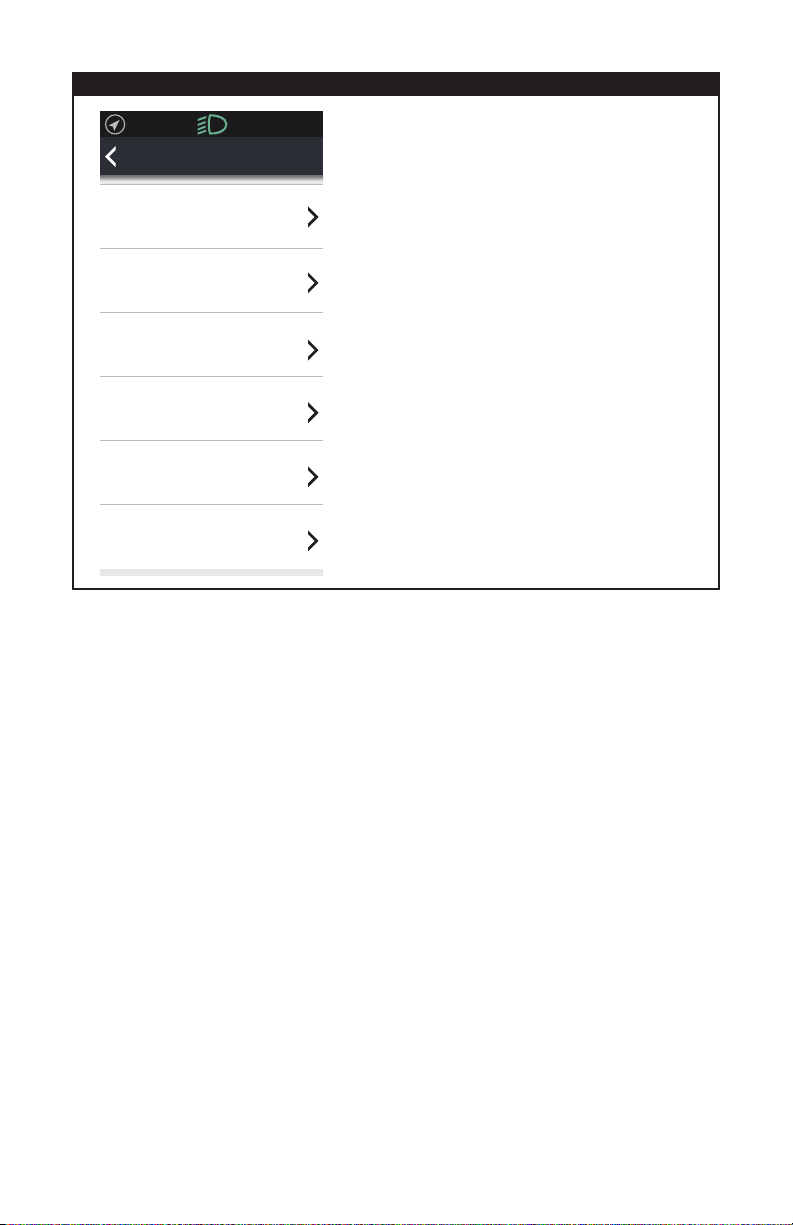

8.3. DISPLAY FUNCTIONS (TFT DISPLAY) .............................................................................................................................13

9. BATTERY / CHARGER .......................................................................................................... 20

9.1. OBSERVE AND OBEY .........................................................................................................................................................20

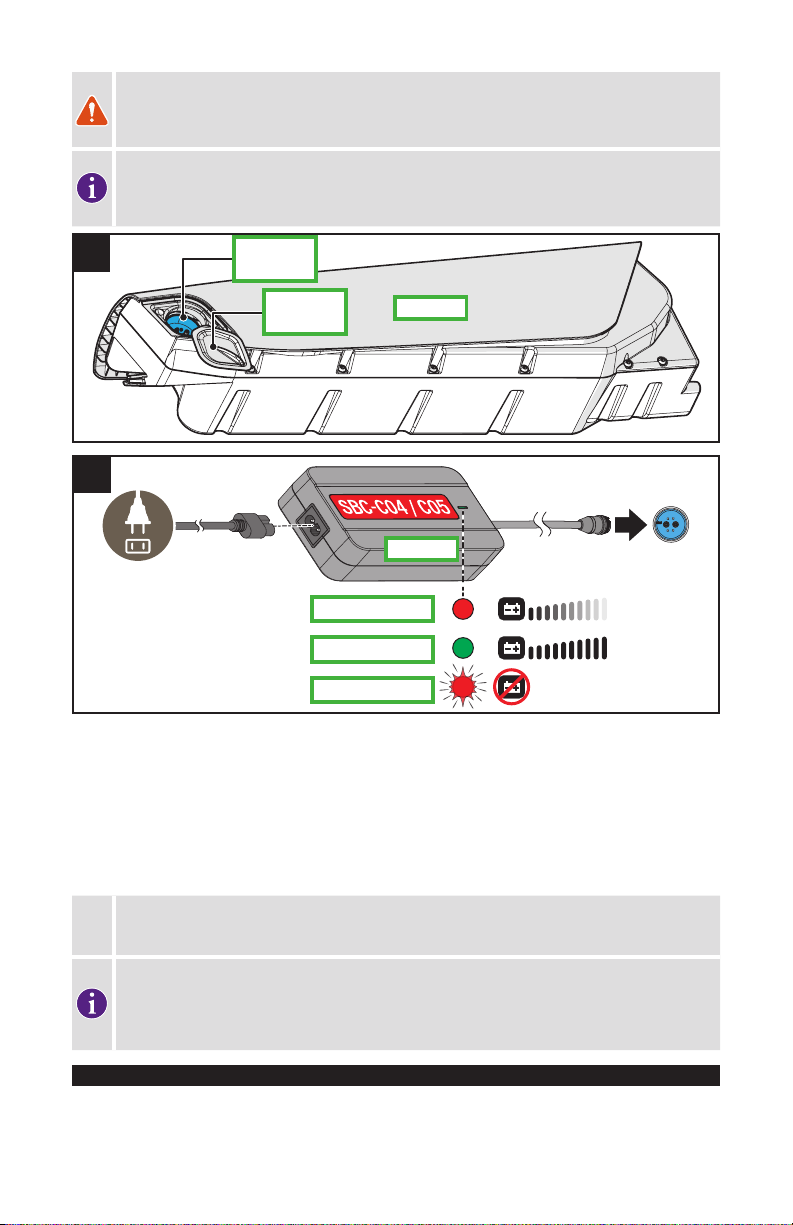

9.2. CHARGING AND USING THE BATTERY ........................................................................................................................... 20

9.3. CHARGE LEVEL DISPLAY ................................................................................................................................................. 21

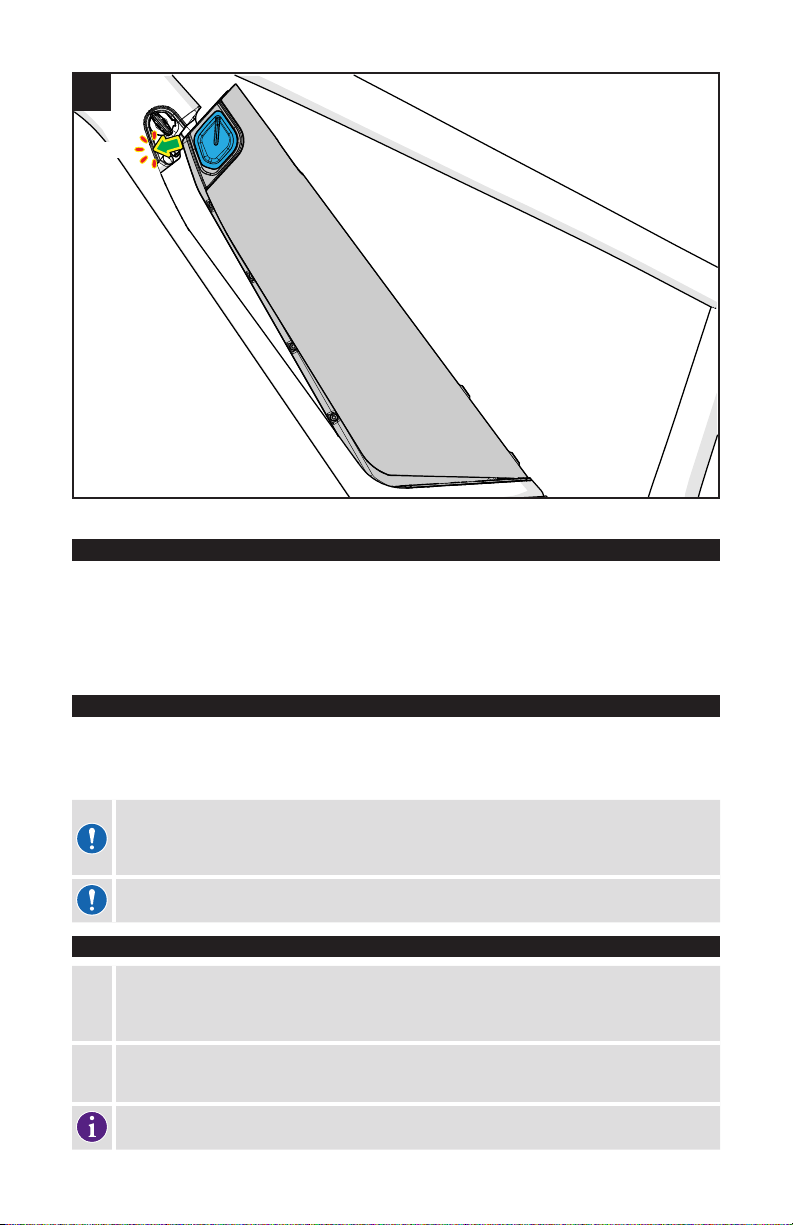

9.4. INSTALLING THE BATTERY ..............................................................................................................................................22

9.5. REMOVING THE BATTERY ................................................................................................................................................23

9.6. CLEANING ...........................................................................................................................................................................23

9.7. STORAGE............................................................................................................................................................................. 23

9.8. BATTERY TECHNICAL DATA ............................................................................................................................................. 24

9.9. CHARGER TECHNICAL DATA ...........................................................................................................................................24

9.10. TRANSPORT .....................................................................................................................................................................25

9.11. DISPOSAL...........................................................................................................................................................................25

10. LIGHTING ........................................................................................................................... 25

11. SPECIFICATIONS................................................................................................................. 26

11.1. BOLT SIZE / TORQUE SPECS ............................................................................................................................................26

11.2. FRAME SPECIFICATIONS ................................................................................................................................................. 26

11.3. RECOMMENDED TIRE PRESSURES ...............................................................................................................................26

12. EC – DECLARATION OF CONFORMITY ................................................................................. 27

13. RETAILER SERVICE SCHEDULE .......................................................................................... 28

This manual was drafted in the English language (Original instructions) and may have been translated into other languages as applicable (translation of Original instructions).

EN 15194

SPECIALIZED BICYCLE COMPONENTS

15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229 0000080799_UM_EN_R1, 01/17

Please note all instructions and notices are subject to change and updates without notice. Please visit www.specialized.com for periodic tech updates. Feedback: techdocs@specialized.com

Page 4

1. INTRODUCTION

IMPORTANT:

This user manual is speciﬁc to your Specialized Turbo VADO bicycle (the VADO) and should be read in addition to the Specialized Bicycle Owner’s Manual (“Owner’s Manual”). It contains important safety, performance and technical information, which you should read before your ﬁrst ride and keep for reference. You should also read the entire Owner’s Manual, because it has additional important general information and instructions which you should follow. If you do

not have a copy of the Owner’s Manual, you can download it at no cost at www.specialized.com, or obtain it from your nearest Authorized Specialized Retailer or Specialized Rider Care.

Additional safety, performance and service information for speciﬁc components such as suspension or pedals on your bicycle, or for accessories such as helmets or lights, may also be available. Make sure that your Authorized Specialized Retailer has given you all the manufacturers’ literature that was included with your bicycle or accessories. In case of a conﬂict between the information in this user manual and information provided by a component manufacturer, please contact your nearest Authorized Specialized Retailer.

Depending on the model, the VADO is either a Pedelec (Pedal Electric Cycle), EPAC (Electrically Pedal Assisted Cycle) or L1e S-Pedelec (Speed Pedelec), and is referred to in this manual as a bicycle unless otherwise noted.

ADDITIONAL LANGUAGES ARE AVAILABLE FOR DOWNLOAD AT www.specialized.com.

When reading this user manual, you will note various important symbols and warnings, which are explained below:

WARNING! The combination of this symbol and word indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death. Many of the Warnings say “you may lose control and fall.” Because any fall can result in serious injury or even death, we do not always repeat the warning of possible injury or death.

CAUTION: The combination of the safety alert symbol and the word CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury, or is an alert against unsafe practices.

The word CAUTION used without the safety alert symbol indicates a situation which, if not avoided, could result in serious damage to the bicycle or the voiding of your warranty.

INFO: This symbol alerts the reader to information which is particularly important.

TECH TIP: Tech Tips are useful tips and tricks regarding installation and use.

GREASE: This symbol means that high quality grease should be applied as illustrated.

CARBON FRICTION PASTE: This symbol means that carbon friction paste should be applied as illustrated to increase friction.

TORQUE: This symbol highlights the correct torque value for a speciﬁc bolt. In order to achieve the speciﬁed torque value, a quality torque wrench must be used.

1.1. WARRANTY

Please refer to the written warranty provisions provided with your bicycle, or visit www.specialized.com. A copy is also available at your Authorized Specialized Retailer.

Page 5

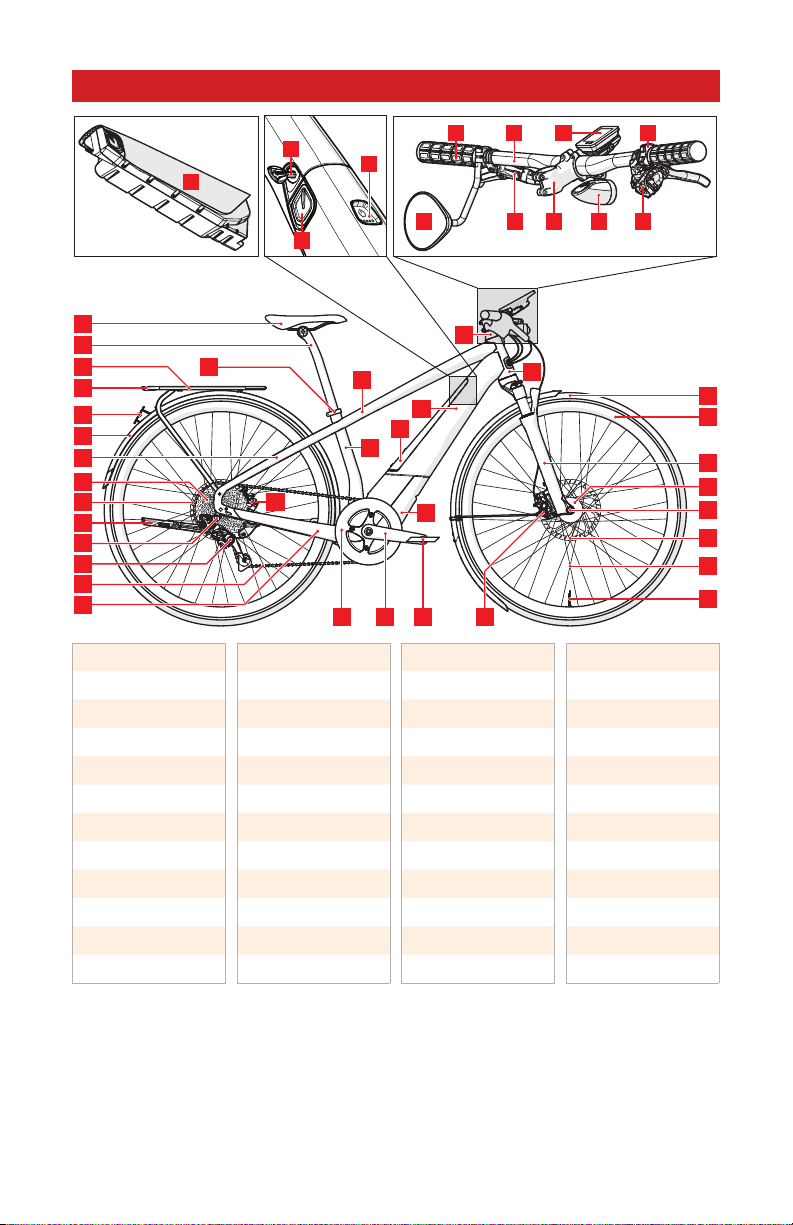

2. VADO COMPONENTS

9 44 45

46 47

11 36 43

12 13 14

1. Top tube

2. Down tube

3. Seat tube

4. Head tube

5. Chainstay

6. Seatstay

7. Fork

8. Saddle

9. Seatpost

10. Seatpost clamp

11. Cassette

12. Derailleur hanger

13. Rear derailleur

14. Chain

15. Chainring

16. Crank arm

17. Pedal

18. Motor

19. Handlebar

20. Grip

21. Shifter

22. Brake lever

23. Remote**

24. Mirror*

15 16 17

25. Headlight

26. Display

27. Stem

28. Headset

29. Battery

30. Charging socket

31. Lock

32. Power switch

33. Front brake caliper

34. Front brake rotor

35. Rear brake caliper

36. Rear brake rotor

20 2319

27 25 21

39 38

7 40 42

37. Spoke

38. Rim

39. Ti re

40. Hub

41. Valve

42. Quick-release

43. Kickstand

44. Rear rack

45. Taillight

46. License plate*

47. Fender

* 45 km/h VADO version only

** Left side on 25 km/h (20 mph USA) VADO version only

Page 6

3. GENERAL INFORMATION ABOUT YOUR VADO

80-100%

60-79%

40-59%

20-39%

0-19%

3.1. INTENDED USE

The VADO is intended and tested for General Purpose Riding (Condition 2) use only. For more information on intended use and structural weight limits for the frame and components, please refer to the Owner’s Manual.

The VADO is classiﬁed either as a Pedelec/EPAC or an S-Pedelec. Regardless of its classiﬁcation, it will provide motor support only while pedaling. Depending on the classiﬁcation, there can be different requirements and regulations affecting your use of the bicycle.

Before using your VADO bicycle, please inform yourself of all applicable legal requirements and regulations in your country or state. There may be restrictions on riding your VADO bicycles on public roads, cycling paths, and/or trails. There may also be applicable helmet requirements, age restrictions or license or insurance requirements. Specialized does not, and will not, make any promise, representation, or warranty regarding the use of your VADO bicycle. As laws and regulations regarding electric bicycles vary by country and/or state and are constantly changing, please make sure to obtain the latest information. You should also regularly see your Authorized Specialized Retailer for updated information.

CAUTION: All VADO bicycles have a ﬁxed pre-set speed limit at which the motor support will automatically shut off. Any (attempted) tampering with the power output and/or system is prohibited and will void the warranty.

3.2. PEDELEC / EPAC

If your VADO is classiﬁed as a Pedelec, your motor support will automatically switch off when you reach a maximum speed of 25 km/h (15.5 mph) or 20 mph in the US. A driver’s license or insurance is typically not required.

3.3. L1e S-PEDELEC (SPEED PEDELEC)

If your VADO is classiﬁed as a S-Pedelec, your motor support will automatically switch off when you reach a maximum speed of 45 km/h (28 mph). A driver’s license or insurance may be required.

In many countries, S-Pedelecs are considered motor vehicles and may require an operating license and insurance. There may also be requirements for tire tread depth, use of rear view mirrors, license plates, head and tail lights.

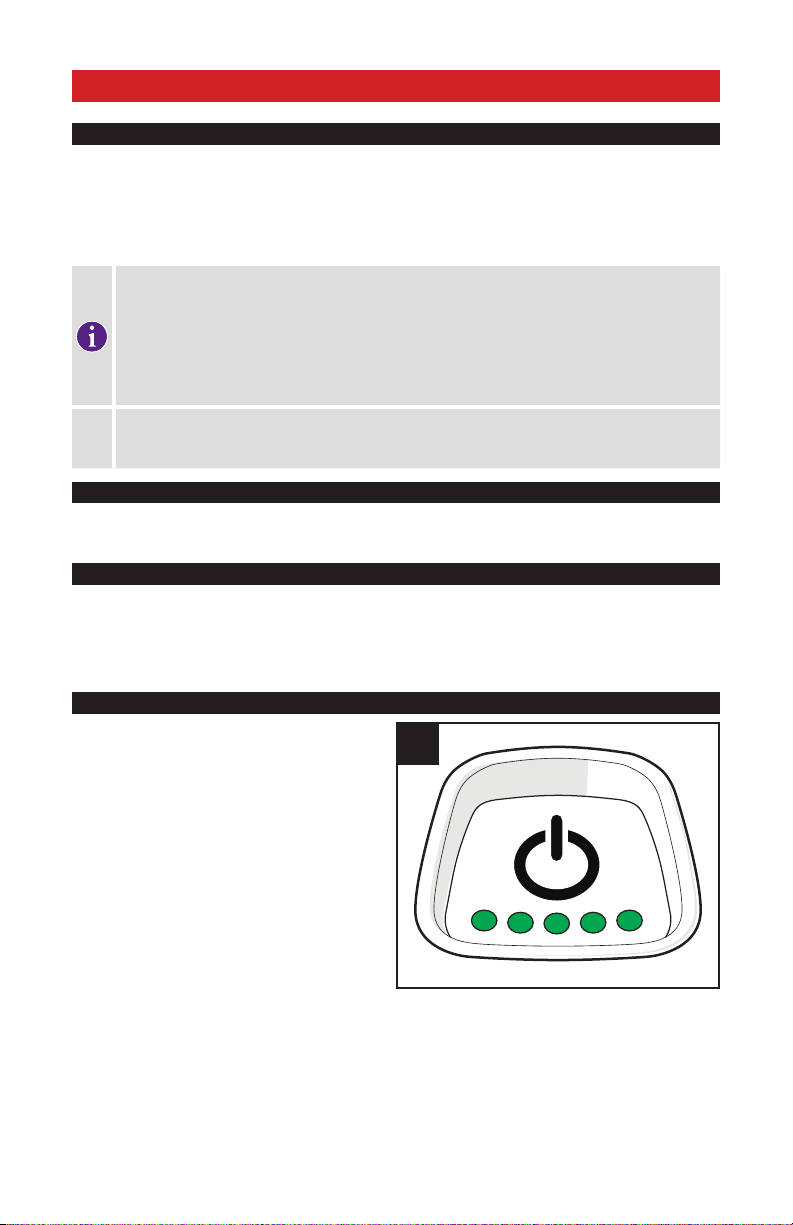

3.4. STARTING THE SYSTEM

 To start the system, press and hold the power button

(ﬁg.1) located on the top of the battery, until the LEDs glow green. The number of LEDs that glow green will depend on the level of charge in the battery.

 To turn the battery (and support) off again, press and

hold the power button until the LEDs turn off.

Page 7

4. GENERAL NOTES ABOUT ASSEMBLY

This user manual is not intended as a comprehensive use, service, repair or maintenance guide. Please see your Authorized Specialized Retailer for all service, repairs or maintenance. Your Authorized Specialized Retailer may also be able to refer you to classes, clinics or books on bicycle use, service, repair, and maintenance.

WARNING! Due to the complexity of the VADO bicycle, proper assembly requires a high degree of mechanical expertise, skill, training and specialty tools. Therefore, it is essential for your safety that the assembly, maintenance and troubleshooting be performed by an Authorized Specialized Retailer.

WARNING! Do not sand, drill, ﬁle or remove parts from your bicycle. Do not install incompatible components or hardware. Failure to follow this warning may result in serious personal injury or death.

WARNING! Electrical components can be exposed when working on your bicycle. Do not touch any part of the electrical system while under electric charge. Do not expose the connections of the battery and frame to water. If any live components or the battery are damaged, stop riding immediately and bring your bicycle to your Authorized Specialized Retailer.

4.1. BOTTOM BRACKET

Your VADO frame does not require any bottom bracket or head tube pre-installation preparation. All surfaces are already prepared from the factory.

4.2. HEADSET

The VADO frames use a 1 1/8” (41.8mm x 8mm x 45°) Campagnolo Standard compatible top and bottom bearing. Ensure that replacement bearings are compatible with the Specialized headset speciﬁcation. No tools are needed for installation or removal of both bearings. Grease bearing surfaces before installation.

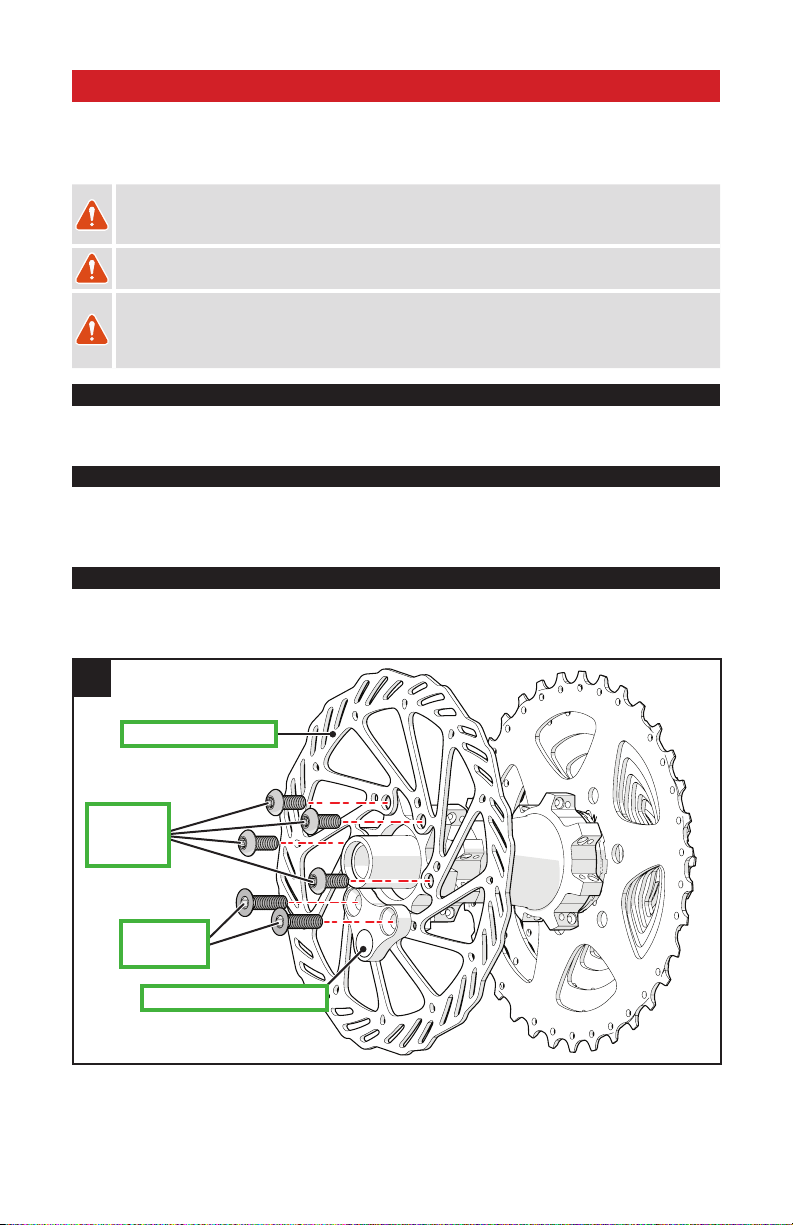

4.3. SPEED SENSOR

When assembling the rear brake disc, the Speed Sensor Magnet must be installed on the rotor (ﬁg.2). Four of the six bolts are standard rotor bolts. The remaining two bolts (M5 x 0.8 pitch x 15mm length, with countersunk ﬂat head) attach the Speed Sensor Magnet to the rotor.

DISC BRAKE ROTOR

STANDARD

ROTOR

BOLTS

FLAT HEAD M5 x 15mm

SPEED SENSOR MAGNET

Page 8

4.4. SEATPOST

When inserting the seatpost into the seat tube, the seatpost must not extend out of the seat tube beyond the minimum insertion/maximum extension line (min/max) on the seatpost. If the seatpost is at the min/max line and the saddle is not high enough, the seatpost must be replaced with a longer one. For general instructions regarding the installation of the seatpost, refer to the appropriate section in the Owner’s Manual.

The VADO frames have a 30.9mm seatpost diameter and require that the seatpost have a tolerance of 30.78mm to

30.95mm.

WARNING! Failure to follow seatpost related min/max requirements may result in damage to the frame and/or seatpost, which could cause you to lose control and fall.

If the seatpost is cut short, the min/max mark on the seatpost may no longer be accurate. Before cutting the seatpost, note the min/max depth required by the seatpost manufacturer.

WARNING! Riding with an improperly tightened seatpost can allow the saddle to turn or move and cause you to lose control and fall.

CAUTION: Inspect the seatpost and seat tube to ensure that there are no burrs or sharp edges. Remove any burrs or sharp edges using ﬁne grit sandpaper.

4.5. REPLACEMENT PARTS AND ACCESSORIES

Specialized replacement parts and accessories are available through your Authorized Specialized Retailer.

Page 9

5. GENERAL NOTES ABOUT RIDING

The VADO motor provides pedal assistance only while you are pedaling and the bicycle is in motion. The amount of pedal assistance will be higher or lower depending on the amount of force applied to the pedals. If you stop pedaling, the motor will stop providing any assistance.

The VADO bicycle can also be ridden as a normal bicycle without motor assistance by switching the display to the OFF mode. The same applies if the battery charge drops below 1%.

The VADO bicycle has a walk-assist mode (the motor engages without pedal force being applied) which is designed to provide assistance when walking the bicycle up a hill, up to a speed of 6 km/h (3.7 mph), so long as the + button is pressed down.

5.1. RIDING TIPS

Because of the electric motor assist, the VADO offers a unique ride compared to a bicycle without motor assist. Below are some riding tips which may also reduce component wear and increase battery range:

 Pay attention to your speed going into a corner and be sure to stop pedaling well before entering the corner.

Otherwise you may carry too much speed as you enter the corner.

 Ride efﬁciently and look ahead. Any time braking force is applied, more energy is needed to get the bicycle back

up to speed.

 Shift gears regularly to stay in an optimal cadence range and downshift before coming to a stop.  Reduce pedal force before initiating a gear shift to reduce drivetrain wear.  Check the tire pressure regularly. Low pressure can cause the tires to roll inefﬁciently.  If your bicycle is exposed to cooler weather, keep the battery stored indoors until just before riding.  Do not expose your bicycle to prolonged excessive heat (e.g. direct sunlight).  Only carry the cargo you need. More cargo weight requires more energy to move.

WARNING! The acceleration of an electric bicycle can be faster than anticipated and may feel unusual at ﬁrst. Before your ﬁrst ride, you should use the lowest power ECO mode and become familiar with the operation of the electric bicycle by practicing starting and stopping, cornering and navigating obstacles in a safe environment away from other bicycles, pedestrians and/or vehicles. Please note the default motor support mode upon startup is always SPORT mode.

WARNING! The motor support is activated as soon as you step onto the pedals and the bicycle is in motion. You should be seated on the bicycle and engage at least one brake before starting to pedal. Do not put one foot on a pedal and throw a leg over the bicycle, as it could accelerate unexpectedly. Failure to follow this warning may result in serious personal injury or even death.

WARNING! Since the motor support allows for greater speeds and acceleration, you should pay particular attention to terrain conditions, other riders, pedestrians, and/or cars when riding. You may approach obstacles much faster than expected.

CAUTION: The weight of your VADO is signiﬁcantly higher than a bicycle without motor support. Use caution when handling the bicycle (including, but not limited to parking, lifting, pushing, loading it into a car or onto a bicycle carrier and unloading it).

CAUTION: During extended rides up steep grades, the motor may become very hot. Let it cool down before touching it.

CAUTION: Do not ride your VADO without the battery installed. Riding without a battery may damage exposed electrical components.

Page 10

5.2. BEFORE YOUR FIRST RIDE

Regardless of your experience level, you should read the “FIRST” section of your Owner’s Manual (Bike Fit, Safety First, Mechanical Safety Check and First Ride) and carry out all important safety checks. In addition, make sure you are familiar with the following areas of the bicycle that are speciﬁc to electric bicycles.

BEFORE EVERY RIDE

 Battery

• Are all connections plugged in correctly?

• Do you have sufficient battery charge?

• Is the battery properly inserted and locked in the frame?

 Display

• Is the display functioning correctly?

BEFORE YOUR FIRST RIDE

 Battery

• Is the battery fully charged?

 Display

• Are you familiar with the function of the display features?

 Remote

• Are you familiar with the function of the buttons on the remote?

• Do you know how to use the remote to change the motor support level from ECO to SPORT to TURBO?

WARNING! If your battery, charger or other component exhibits any signs of damage, do not use the bicycle and immediately bring it to your Authorized Specialized Retailer for inspection.

5.3. RIDING WITH KIDS

There are many different setups that allow you to ride with kids. Please look at the Riding Safely section in the Owner’s Manual regarding general information and instructions on child carriers or trailers.

WARNING! Specialized bicycles are only designed and tested for use by one person at a time. Carrying a child on your Specialized bicycle is at your own risk. If you choose to install an accessory on your Specialized bicycle such as a trailer, carrier, or trailer cycle, make sure it is compatible and refer to the manufacturer’s instructions and your Authorized Specialized Retailer. You should make sure your bicycle is still safe to ride with the accessory installed. Be sure to not exceed the structural weight limit of the bicycle if you use a trailer, trailer cycle or child carrier. Also make sure not to exceed the maximum cargo weight if you use a child carrier.

If you regularly ride with kids on your bicycle, your Authorized Specialized Retailer should conduct a periodic safety inspection.

WARNING! Riding with kids on your bicycle will affect the handling by altering the center of gravity, weight and balance. It may also negatively impact your cornering ability, increase your stopping distance and reduce your ability to slow down and maneuver, especially at higher speeds or down a steep grade. All of this can result in a loss of control, potentially causing serious injury and/or death. You should also become familiar with and practice riding with the accessory in a controlled environment away from trafﬁc.

Before riding with kids on your bicycle, please inform yourself of all applicable legal requirements and regulations in your country and state. There may be restrictions on riding your bicycle with certain or any accessory(ies). This is especially true for electric and pedal-assist bicycles.

WARNING! Do not attach a child carrier, trailer or similar accessory to a composite or carbon ﬁber part or component, either directly or indirectly. For example, do not attach a trailer to a rear axle when the rear triangle is made of composite or carbon ﬁber. Likewise, do not attach a trailer cycle bicycle to a composite or carbon seatpost or a child carrier to a composite or carbon fork. Either may potentially apply unusual forces on your bicycle frame or component which could result in damage and cause a complete failure, with the risk of serious injury or death. If you have previously attached an accessory to a composite or carbon ﬁber part or component, do not ride until you have had your Authorized Specialized Retailer conduct a careful safety inspection.

Page 11

6. GENERAL NOTES ABOUT MAINTENANCE

The VADO is a high performance bicycle. All regular maintenance, troubleshooting, repair and parts replacement must be performed by an Authorized Specialized Retailer. For general information regarding maintenance of your bicycle, please refer to the Owner’s Manual. In addition, routinely perform a Mechanical Safety Check before each ride, as described in the Owner’s Manual.

• Great care should be taken to not damage carbon fiber or composite material. Any damage may result in a loss of structural

integrity, which may result in a catastrophic failure. This damage may or may not be visible in inspection. Before each ride, and after any crash, you should carefully inspect your bicycle for any fraying, gouging, scratches through the paint, chipping, bending, or any other signs of damage. Do not ride if your bicycle shows any of these signs. After any crash, and before you ride any further, take your bicycle to an Authorized Specialized Retailer for a complete inspection.

• Lifespan and the type and frequency of maintenance depends on many factors, such as frequency and type of use, rider

weight, riding conditions and/or impacts. Additionally, the VADO uses a power-assisted drive system, which means more distance is covered in the same amount of time. Components may be subject to increased wear at different rates, depending on the component. Drivetrain and brake components are especially subject to wear. Periodically have your Authorized Specialized Retailer inspect your bicycle and components.

• Exposure to harsh elements, especially salty air (such as riding near the ocean or in the winter), can result in galvanic

corrosion of components, which can accelerate wear and shorten the lifespan. Dirt can also accelerate wear of surfaces and bearings. The surfaces of the bicycle should be cleaned before each ride. Proper care and regular maintenance can help increase the longevity of components. If you notice any signs of corrosion or cracking on the frame or any component, the affected item must be replaced.

• While riding, listen for any creaks, as a creak can be a sign of a problem with one or more components. Periodically examine

all surfaces in bright sunlight to check for any small hairline cracks or fatigue at stress points, such as welds, seams, holes, and points of contact with other parts. If you hear any creaks or discover any cracks, no matter how small, or any damage to components, immediately stop riding the part and have it inspected by your Authorized Specialized Retailer. The bicycle should also be maintained regularly by an Authorized Specialized Retailer, which means it should be cleaned, inspected for signs of corrosion and/or cracks and lubricated. Regularly clean and lubricate the drivetrain according to the drivetrain manufacturer’s instructions.

• Do not use a high pressure water spray directly on the bearings. Even water from a garden hose can penetrate bearing seals

and crank interfaces, which can result in increased bearing and crank wear, which can affect the normal function of the bearings. Use a clean, damp cloth and bicycle cleaning agents for cleaning.

• Do not expose the bicycle to prolonged direct sunlight or excessive heat, such as inside a car parked in the sun or near a

heat source such as a radiator.

WARNING! Failure to follow the instructions in this section may result in damage to the components on your bicycle and will void your warranty, but, most importantly, may result in serious personal injury or death. If your bicycle exhibits any signs of damage, do not use it and immediately bring it to your Authorized Specialized Retailer for inspection.

CAUTION: Do not open the motor assembly. The motor assembly is a sealed maintenance-free system. Any work on the motor assembly must be performed by a Specialized Service Center.

Your bicycle should be inspected and serviced by your Authorized Specialized Retailer on a regular basis, depending on use. The ﬁrst inspection should be performed within 200 km / 120 miles. See detailed service schedule on page 28.

WARNING! Always turn off the battery when not in use and/or when working on it.

Page 12

7. REPLACING PARTS ON YOUR L1e S-PEDELEC

The VADO bicycle, as originally spec’d, is approved as a Pedelec or an L1e S-Pedelec. If you change components on the bicycle, it may no longer be approved by your local regulatory authority Below is a general summary of components that may affect governmental approval if changed.

Make sure to consult with your local regulatory authority when making any modiﬁcations. Refer also to the appropriate section in the Owner’s Manual about changing components or adding accessories.

S-PEDELEC ONLY: The following parts are type approved and need to carry an e-mark:

LIGHTS REAR VIEW MIRROR RETRO REFLECTORS

HORN

PEDELEC AND S-PEDELEC: The following parts must only be replaced with original components:

FRAME ELECTRIC CONTROLLERS FENDERS

FORK ELECTRIC WIRING BRAKES

MOTOR UNIT HANDLEBAR REMOTE BRAKE PADS

BATTERY DISPLAY BRAKE HOSES

CHARGER CRANKSET

SENSORS REAR RACK

The following parts do not require type approval:

CHAINRINGS BOTTOM BRACKET STEM

CHAIN WHEELS HANDLEBAR

PEDALS (IF NOT WIDER) HUBS GRIPS

CASSETTE TIRES (IF ETRTO IS FOLLOWED) KICKSTAND

DERAILLEURS RIM TAPES SADDLE

SHIFTERS SPOKES SEATPOST

SHIFTING CABLES TUBES

SHIFTING HOUSINGS HEADSET

Page 13

8. SYSTEM INTERFACE

Depending on the model, the VADO is equipped with either an LCD display or a TFT touch-enabled display.

WARNING! Use caution when viewing or using the display while riding, especially if the touch controls are enabled, as it can be distracting and can lead to accidents. You should always stop before changing settings or operating the various functions of the display.

The display must be connected when operating the bike. If it is removed from the mount, the motor will not work.

The handlebar remote (ﬁg.3) controls certain functions of the display and the level of motor support.

SET

25 km/h VADO: LIGHT 45 km/h VADO: HORN

 SET BUTTON: Allows for the user to toggle through the functions (trip distance, available range, ride time and

odometer). Also allows for the clock and unit (metric/imperial) to be adjusted.

 + BUTTON: Increases the amount of support. Pressing and holding activates the walk-assist mode.  - BUTTON: Decreases the amount of support.  LIGHT/HORN: Turns the light on/off (25 km/h or 20 MPH USA VADO models) or activates the horn (45 km/h

VADO models).

8.1. SUPPORT MODES

The VADO motor support is available in three different drive settings - TURBO, SPORT and ECO.

 TURBO MODE: The motor, while pedaling, provides maximum (100%) support.  SPORT MODE: The motor, while pedaling, provides 50% support (default).  ECO MODE: The motor, while pedaling, provides 20% (default).  OFF MODE: The motor will not offer any assistance, but the display and lights will still function.

You can change between the different support modes (TURBO, SPORT and ECO) by pressing the +/- buttons on the handlebar remote (ﬁg.3).

To switch into a different support mode, press the + or - button on the remote. After reaching the strongest or weakest mode, the system will not continue to switch. To reduce from TURBO to SPORT to ECO, you have to press the - button. To increase from ECO to SPORT to TURBO, you have to press the + button.

The support modes affect how much support the motor delivers based on your pedaling input. Generally, more support provides faster acceleration and easier climbing at the expense of shorter range and greater chance of wheelspin. Lower power modes that provide less support result in longer battery run times, longer range, and more control in situations where traction is limited. You should experiment with the power settings that work best for your riding style and conditions.

Page 14

8.2. DISPLAY FUNCTIONS (LCD DISPLAY)

HEADLIGHT

SUPPORT LEVEL

SPEED

WALK-ASSIST

- TRIP DISTANCE

- RIDE TIME

- ODOMETER

METRIC / IMPERIAL

SETTING THE TIME / UNIT

 To set the time, long-press the SET button once. When the

time is blinking, press the + and - buttons to adjust the time.

 To set the unit (metric or imperial), long-press the SET

button twice, then toggle between the two units to choose miles/12hr or kilometers/24hr.

 To lock in the unit and time, press SET, wait or pedal the bike.

BLUETOOTH

CLOCK (12/24hr)

WARNING

BATTERY

METRIC / IMPERIAL TRIP DISTANCE RIDE TIME

ODOMETER

CHOOSING THE FUNCTION

 To toggle between the different functions, press

and release the SET button.

• Trip distance

Odometer

•

Ride time

•

 NOTE: The trip related functions automatically reset when the

system is shut off, but can be accessed through the app at any time.

Page 15

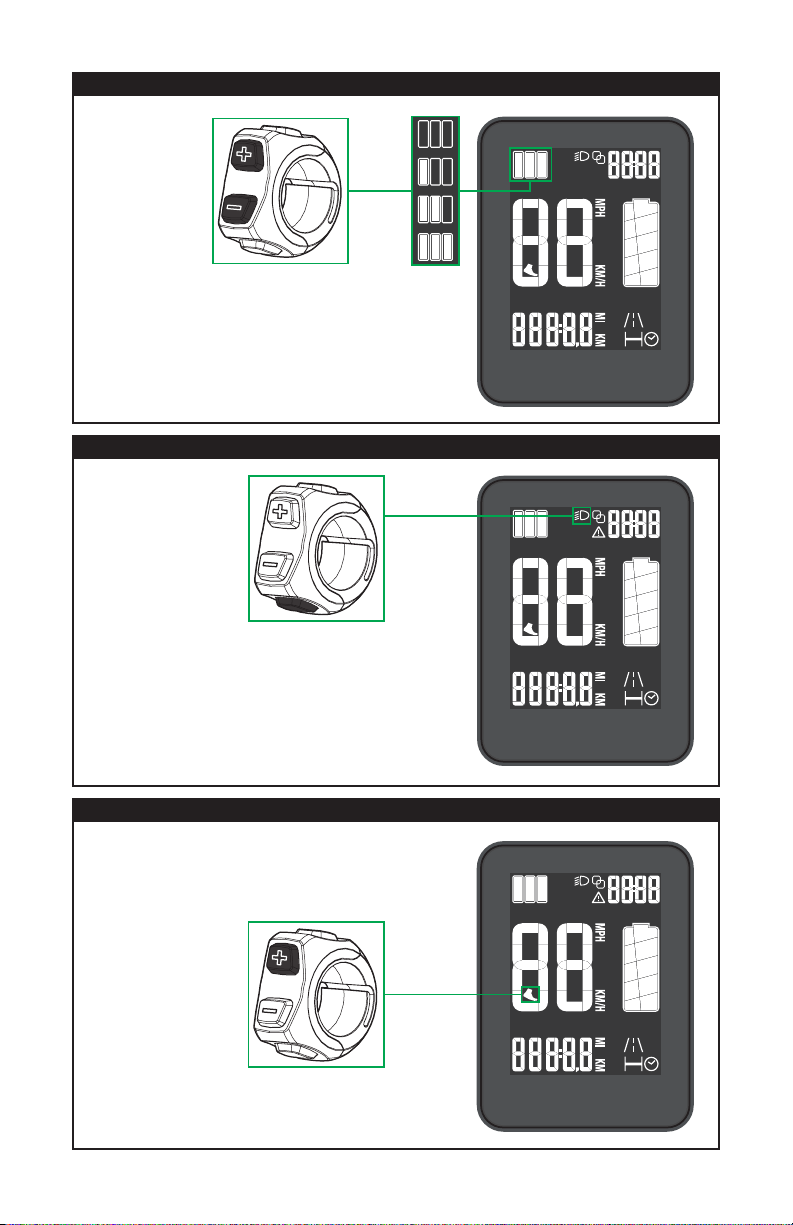

ADJUSTING THE MOTOR SUPPORT

OFF

ECO

SPORT

TURBO

 Press the “+” or “-” button to increase or decrease the level of

motor support.

TURNING THE LIGHT ON AND OFF

 Press and release the light button to turn the light on or off.

ACTIVATING THE WALK-ASSIST MODE

 To activate the walk-assist mode, press and hold the “+” button

at any time. Once released, the walk-assist will shut off.

 The maximum speed of the walk-assist mode is 6 km/h (3.7 mph).

Page 16

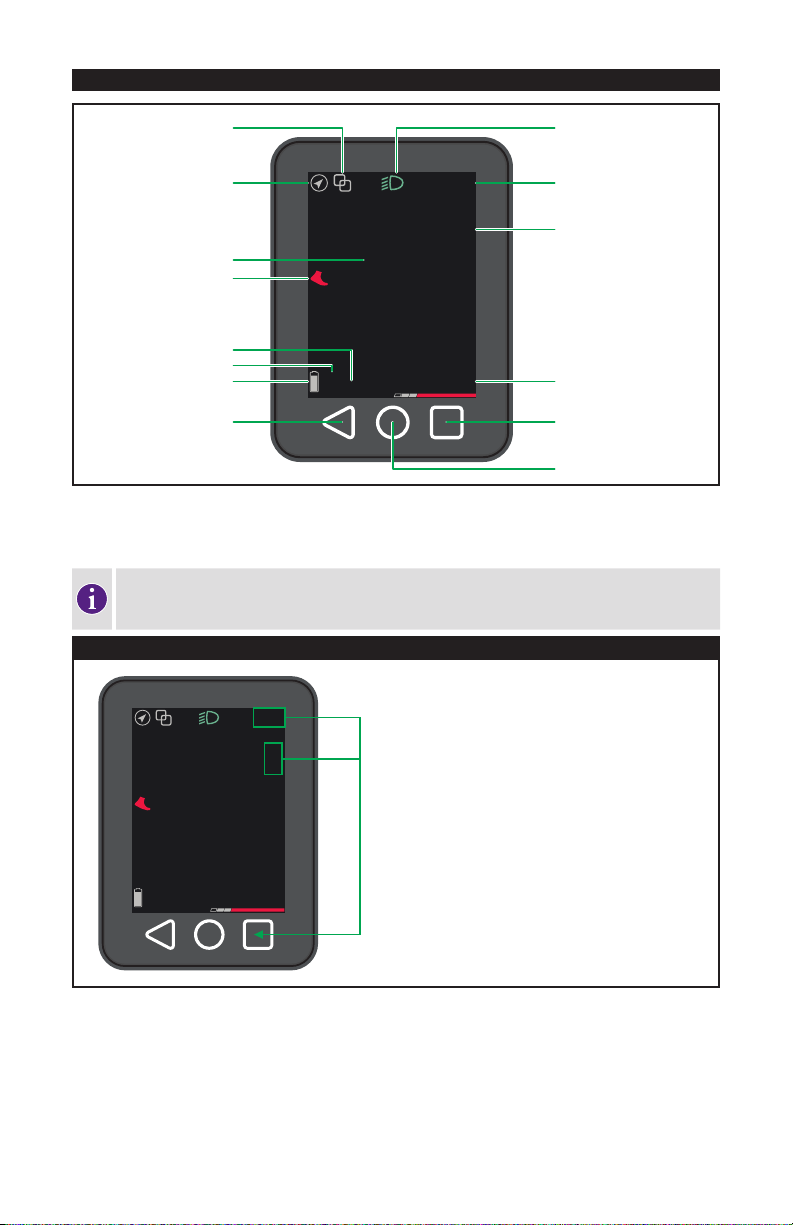

8.3. DISPLAY FUNCTIONS (TFT DISPLAY)

BLUETOOTH

GPS

SPEED

WALK-ASSIST

METRIC / IMPERIAL

REMAINING CHARGE

The display is controlled using the buttons on the handlebar remote (ﬁg.3), as well as the three touch buttons below the display and the touch-enabled display itself. The touch screen can be navigated using touch, swipe, pinch and spread gestures.

The TFT display is equipped with a highly adjustable operating system that may improve over time. Make sure you periodically visit your Authorized Specialized Retailer for potential software updates to make sure you have the latest software and features.

SETTING THE TIME / UNIT

RANGE

HISTORY / BACK

99km TURBO

12:34

km/h

HEADLIGHT

CLOCK (12/24hr)

METRIC / IMPERIAL

SUPPORT LEVEL

HOME

12:34

99km TURBO

km/h

The time and unit of measure can be set for 24hr / km/h or 12hr / mph.

 To set the time and unit of measure, press the Menu button

and choose the desired function you wish to update.

 The time can also be set automatically with the dealer

tool.

Page 17

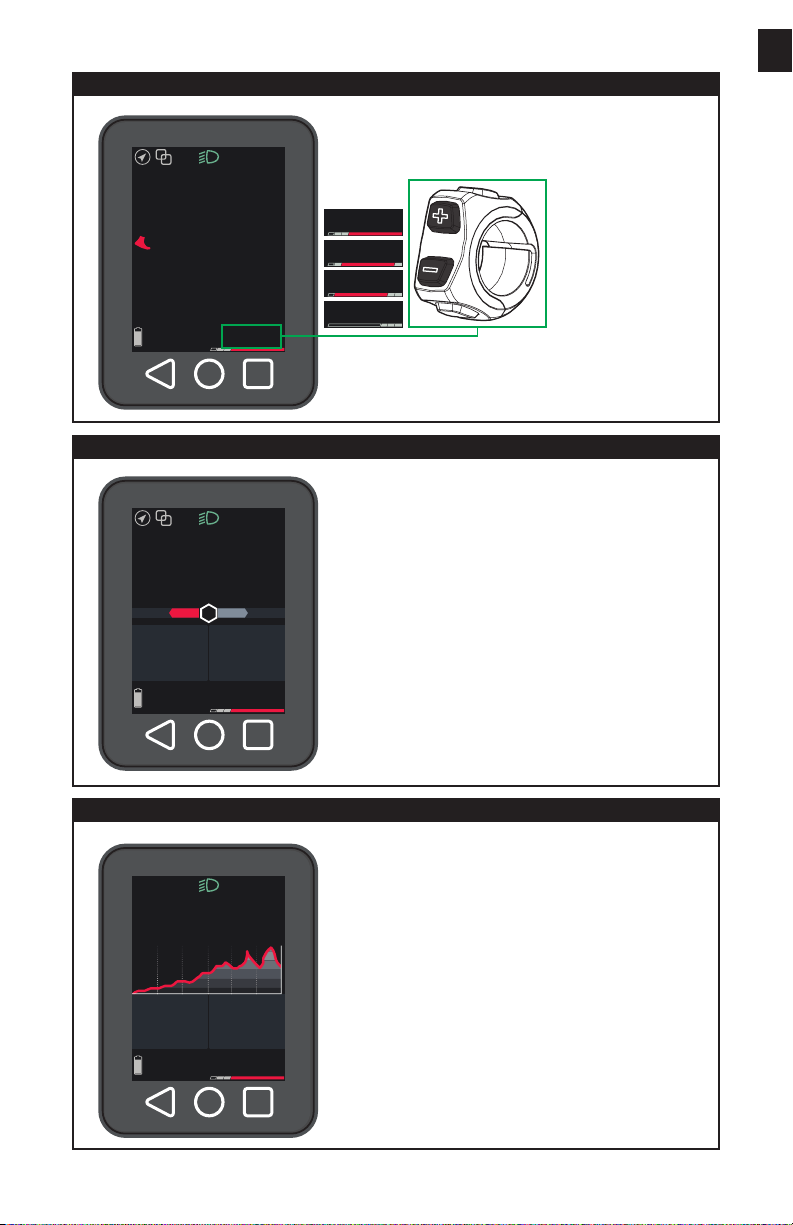

ADJUSTING THE MOTOR SUPPORT

12:34

km/h

99km TURBO

POWER SCREEN

12:34

km/h

TURBO SPORT

ECO OFF

The VADO is equipped with several levels of motor support.

 Press the “+” or “-” button on the remote to increase or decrease

the level of motor support.

WAT T

99km TURBO

ENVIRONMENT SCREEN

km/h

CLIMB

1987 45

99km TURBO

SLOPE

CADENCE

12:34

In addition to the Home screen information, the Power screen shows:

 A graph illustrating the distribution of power between the rider

(left) and motor (right).

 Current rider watt-input and cadence.

In addition to the Home screen information, the Environment screen shows:

 A graph illustrating the elevation proﬁle for the last 5km (3 miles).  Current meters or feet climbed.  Current slope.

Page 18

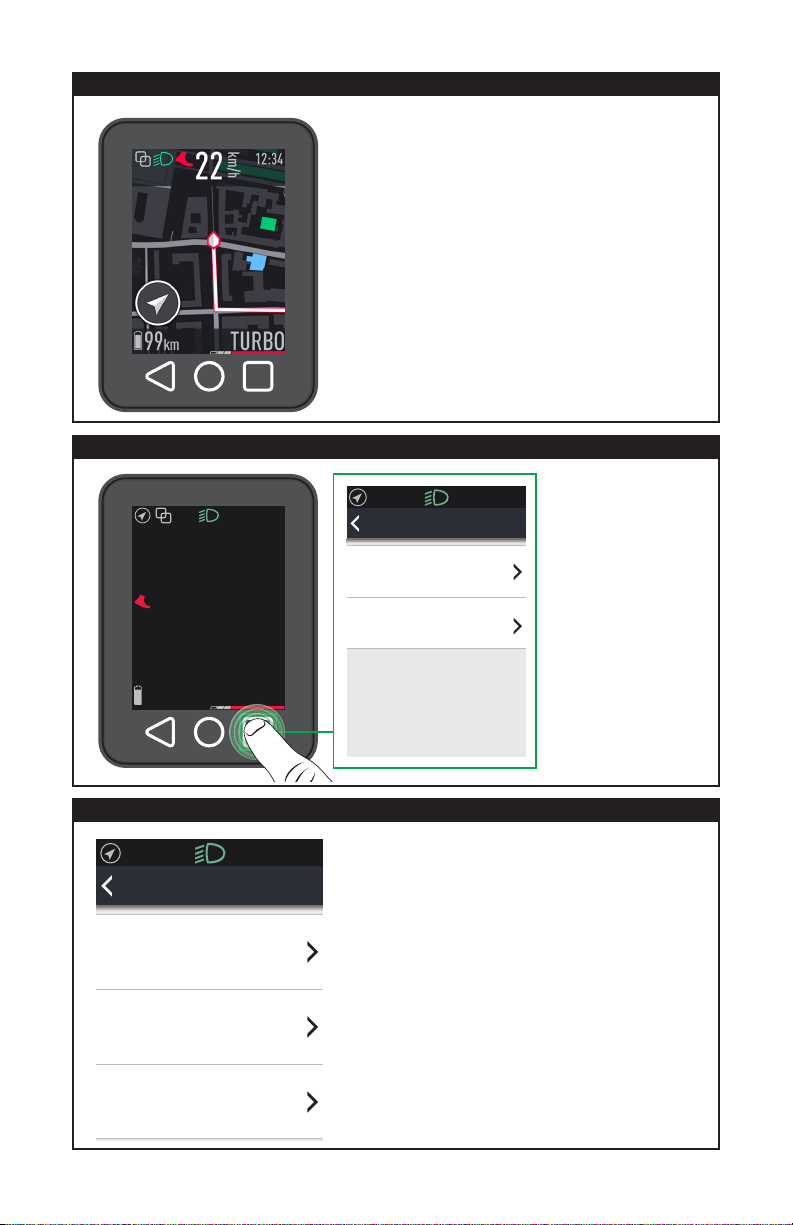

MAP SCREEN

FUNCTIONS/MENU

In addition to the Home screen information, the Map screen shows:

 The rider’s current position.  A trace of the distance covered or a planned route.

The rider can interact with the map by:

 Pinching and spreading to zoom in and out.  Swiping to move the map.  Change between North-facing and Direction-facing.  Centering the map (when not centered).

99km TURBO

TRIP ARCHIVE

2.4.16 16:45

3.4.16 06:32

6.4.16 12:02

TRIPS

1,5 km

63,5 km

13 km

12:34

km/h

12:34

Trips

234

Settings

Saved trips can be accessed in sequential order, based on when the ride took place.

 Trips are started when the bike is powered up and stops when

the bike is powered down.

 When accessing an archived trip, a screen similar to the Stop

Screen is shown (without battery information).

The menu, accessed by pressing the square icon below the screen provides access to the following functions:

 Trips: Records trips from

when the power is turned on to turned off.

 Settings: Adjusts settings

for unit of measure, time, battery display, language.

Page 19

TRIP

03:30

TIME

12:34

27.10.2016

Delete this trip

Ø SPEED

23 km

MAX SPEED

54 km

CLIMB

582 m 1024 km

MAX HEIGHT

ARCHIVED TRIP

A user proﬁle is created when a rider logs in and creates an account by connecting to the bike via a smartphone.

All archived trips are associated to this account. The proﬁle shows the following information:

 Date  Trip distance  Ride time  Route map  Total elevation gain  Maximum elevation reached  Ride proﬁle graph  Average speed  Maximum speed

SETTINGS

Touch Control

Battery

Units

Language

Bike

12:34

The Settings menu provides access to the following functions:

 Touch Control  Battery  Units  Language  Bike

Page 20

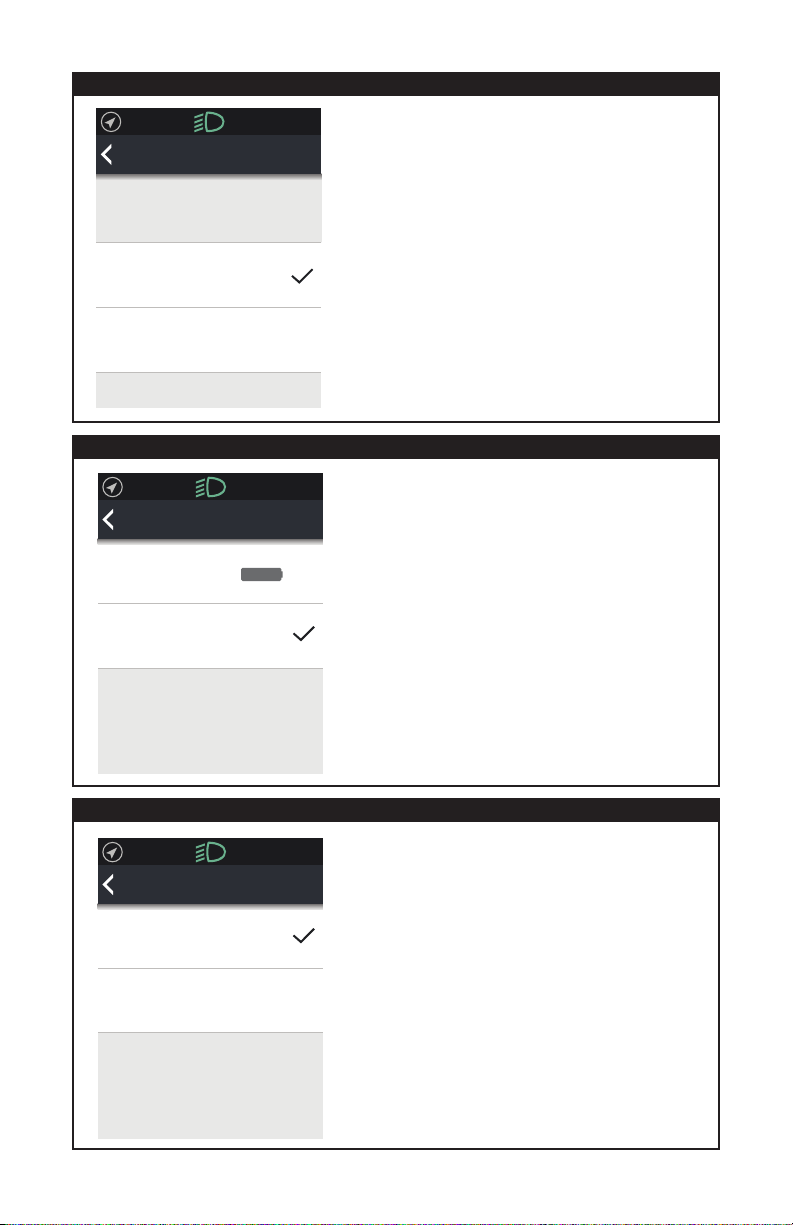

TOUCH CONTROL

Always obey the traffic laws and pay attention to traffic.

Standstill

12:34

Always

BATTERY

Battery

Percent

UNITS

BATTERY

UNITS

100

12:34

 Standstill: The setting means touch screen functionality is

disabled when riding (default).

 Always: The setting means touch screen functionality is enabled

when riding.

The remaining charge of the battery can be displayed as:

 Icon showing a visual of the remaining charge  Percent of the remaining charge

Metric

Imperial

km & 24:00

The rider can choose between Metric and Imperial units:

 Km & 24:00hr  Miles & 12:00hr

Page 21

LANGUAGE

English

Deutsch

Français

12:34

LANGUAGE

Español

Italiano

Nederlands

The rider can choose between the following languages:

 English  Deutsch  Español  Français  Italiano  Nederlands

Page 22

BIKE

Bike

Frame ID WSBC601123456K

12:34

Inspection

172 Miles

Usage

123 Days

Charging Cycles

Odometer 1886 km

Software Versions

BLOKS. OS 1.1

Motor 4.6

Battery 2.1

SWITCHING OFF

When turning the battery off, the screen will display:

 Battery charge (Icon + %)  Ride time, percent, consumption  Time or distance to next inspection, if available or due

NOTE: This information will be displayed for 30 seconds after shut-down.

The BIKE setting displays the following speciﬁcation information:

 Bike  Usage  Software versions.

Page 23

9. BATTERY / CHARGER

Your bicycle is powered by a Lithium-Ion (Li-Ion) battery. Always adhere to the following instructions when handling or charging the battery or when using the VADO bicycle:

 Only operate the battery between the temperature range of -20° C (-4° F) and +70° C (+158° F).  Only use the VADO battery with the VADO bicycle. Do not use the VADO battery with any other bicycle or any

other battery with the VADO bicycle, even if it ﬁts.

 Always turn the battery off before connecting or disconnecting the wiring harness or charger to or from the battery.  Turn off the battery, unplug the charger from the battery and remove the battery from the VADO bicycle before

performing work of any kind, such as installation, maintenance, cleaning and/or repair. When transporting or

handling the battery separately from the VADO bicycle, ensure the battery is OFF. Touching the contacts when

the battery is ON can result in electric shock and/or injury.

 Before riding the bicycle, make sure the battery is properly secured in the frame.

9.1. OBSERVE AND OBEY

 Do not modify, open or disassemble the battery or charger. Modiﬁcation or disassembly may result in a short

circuit, ﬁre or malfunction.

 The battery is very heavy. Be careful when handling it and do not drop it.  Do not allow any nails, screws or other small, sharp and/or metallic objects to come in contact with the battery or

the battery’s charging socket.

 Do not allow the battery to overheat. Protect the battery from excessive sun exposure.  Do not expose the battery to an open ﬁre or radiator heat.  Do not submerge the battery in water.  Keep the battery away from metal objects as that can cause a short-circuit.  Do not use a battery that shows any signs of damage to the casing or charging port, or is leaking any ﬂuids.

Battery liquid can cause skin irritation and burns. In the event of damage that results in skin or eye contact with

any liquid from the battery, immediately ﬂush with water and seek medical assistance.

WARNING! Failure to follow the instructions in this section may result in damage to electrical components on your bicycle and will void your warranty, but, most importantly, may result in serious personal injury or death. If your battery or charger exhibits any signs of damage, do not use it and immediately bring it to your Authorized Specialized Retailer for inspection.

9.2. CHARGING AND USING THE BATTERY

 Regularly inspect the battery and charger for damage. Never charge a battery which you suspect is damaged or

know is broken, and do not use it.

 Make sure the charging socket and plug are dry before connecting and charging the battery.  Only use the Specialized charger supplied with the bicycle or other chargers approved by Specialized. Inspect

the charger before every use for possible damage to the charger itself, the cable or the charging plug. Never use

a charger which you suspect is damaged or know is broken.

 Place the charger on a stable, level surface unaffected by heat. If the battery is charged outside of the frame,

place the battery on the same surface as the charger.

 You should charge the battery in a dry, well ventilated area and make sure the battery and charger are uncovered

during the charging process. Ensure that the battery and charger are not exposed to any ﬂammable or

dangerous substances.

Page 24

The battery can be charged whether installed in the bicycle or not. Refer to the appropriate instructions regarding removing and installing the battery. Only charge the battery at an ambient temperature between 0° C and +50° C (+32° F and +122° F). If outside temperatures are too hot or too cold, charge the battery inside. For safety reasons, if the battery is too hot, it will not charge.

CHARGING

SOCKET

COVER

BATTERY

CHARGER

CHARGING

FULLY CHARGED

PROBLEM

 Plug the charger’s plug into an outlet (100 - 240V), using the appropriate plug for the country’s standards.  Uncover the charging socket on the battery, then connect the charging plug with the charging socket on the

battery (ﬁg.4). You should charge the battery in an area with a smoke detector.

 When charging is complete, disconnect the charging plug from the battery socket.  Unplug the charger from the wall socket.

During the charging process, the diode on the charger will glow red (ﬁg.5). When the battery is fully charged, the diode on the charger will turn green.

CAUTION: If the red LED ﬂashes during the charging process, a charging error has occurred. In that case, immediately remove the charger from the socket, discontinue use of the motor support and contact your Authorized Specialized Retailer.

Please note that Li-ion batteries gradually lose capacity depending on age and use. Strongly reduced operating time after charging can be a sign that the battery is reaching the end of its useful life and has to be replaced. Provided the bicycle has been used properly, approximately 75% of the battery’s original capacity should remain after 300 charging cycles or two years. Replacement batteries can be purchased from your Authorized Specialized Retailer.

9.3. CHARGE LEVEL DISPLAY

The charge level of the battery is permanently displayed during your ride. The number of LEDs glowing will indicate the remaining battery charge. When the battery charge reaches 20%, the last LED will glow red (ﬁg.6).

Page 25

At 10% battery charge remaining, the system will start to reduce the amount of support. At 1%, the system switches off the motor support.

If your bicycle is at a standstill for at least 10 minutes, the Battery Management System will switch the system off. In order to continue riding with support, you have to switch the system on again.

CAUTION: ALWAYS

TURN OFF THE

BATTERY BEFORE

INSTALLING OR

REMOVING!

80-100%

60-79%

40-59%

20-39%

0-19%

9.4. INSTALLING THE BATTERY

BATTERY

CONNECTOR

 Lower the bottom edge of the battery into the bottom of the battery cavity (ﬁg.7), then align the top of the battery

with the top of the cavity.

The key does not need to be in the lock to install the battery. The battery will lock in place automatically when installed. The key is required only to remove the battery.

Page 26

CLICK!

 Press down on the battery near the power button until it clicks and engages with the lock (ﬁg.8).

9.5. REMOVING THE BATTERY

Reverse the installation steps:

 Turn the key clockwise until the top end of the battery pops up slightly.  Holding the battery with two hands, lift the battery up slightly at the top, rotate the battery out toward the non-

drive-side of the bike then pull it out of the frame.

 Turn the key counter-clockwise to remove the key from the lock.

9.6. CLEANING

Always turn the battery off and remove the charger from the battery before cleaning the bicycle. Remove the battery from the bicycle before cleaning the battery.

Always unplug the charger from the battery and the wall socket before cleaning.

CAUTION: Never use a high-pressure cleaner when cleaning your VADO. Instead, use a dry or slightly damp cloth. Please ensure no water comes into contact with the electrical components while washing. Ask your Authorized Specialized Retailer for additional information about cleaning your bicycle.

CAUTION: Do not use alcohol, solvents or abrasive cleaners to clean the charger or battery. Instead, use a dry or slightly damp cloth.

9.7. STORAGE

CAUTION: If the battery is not being used for an extended period of time, remove the battery from the frame and store it in a dry, well ventilated area and leave it uncovered. Only store the battery at an ambient temperature between -20° C and +35° C (-4° F and +95° F). If outside temperatures are too hot or too cold, store the battery inside.

CAUTION: If the battery is stored and not in use for extended periods of time, be sure to charge the battery at least every three months to at least 2 LEDs (20-39%) are glowing green. If the battery is not charged over a period longer than three months, it can cause damage to the battery.

Do not leave the battery connected to the charger for extended periods after the battery is charged.

Page 27

9.8. BATTERY TECHNICAL DATA

DESCRIPTION UNIT SPECIFICATION

OPERATING VOLTAGE V 36

CHARGING TEMPERATURE

DISCHARGING TEMPERATURE

STORAGE TEMPERATURE

DEGREE OF PROTECTION IP67

WEIGHT

BATTERY SBC-B09 SBC-B10 SBC-B11

RATED CAPACITY 16.8AH 14AH 12.5AH

ENERGY 604WH 504WH 460WH

CHARGE TIME (SBC-C04) 4:35H 3:50H 3:30H

CHARGE TIME (SBC-C05) 9:10H 7:40H 7:00H

DESCRIPTION UNIT SPECIFICATION

CHARGER MODEL NUMBER SBC-C04 SBC-C05

CHARGING TEMPERATURE

STORAGE TEMPERATURE

OPERATING VOLTAGE V 42 42

AC INPUT VOLTAGE V 100 — 24 0 100 — 240

FREQUENCY Hz 50 / 60 50 / 60

MAX CHARGE CURRENT A 4 2

DIMENSIONS mm 179 X 80 X 37.2 147 X 65.5 X 34.2

°C 0 — +50

°F +32 — +122

°C -20 — +70

°F -4 — +158

°C -20 — +35

°F -4 — +95

KG 2.7

LB 6.0

9.9. CHARGER TECHNICAL DATA

°C -10 — +40 0 — +40

°F 14 — +104 +32 — +104

°C -20 — +65 -20 — +60

°F -4 — +149 -4 — +140

The range of the battery can vary considerably depending on the model/capacity of the battery and riding conditions, such as the gradient of your route and the support mode. See “GENERAL NOTES ABOUT RIDING” on

page 6 for additional information about battery range and tips on maximizing range.

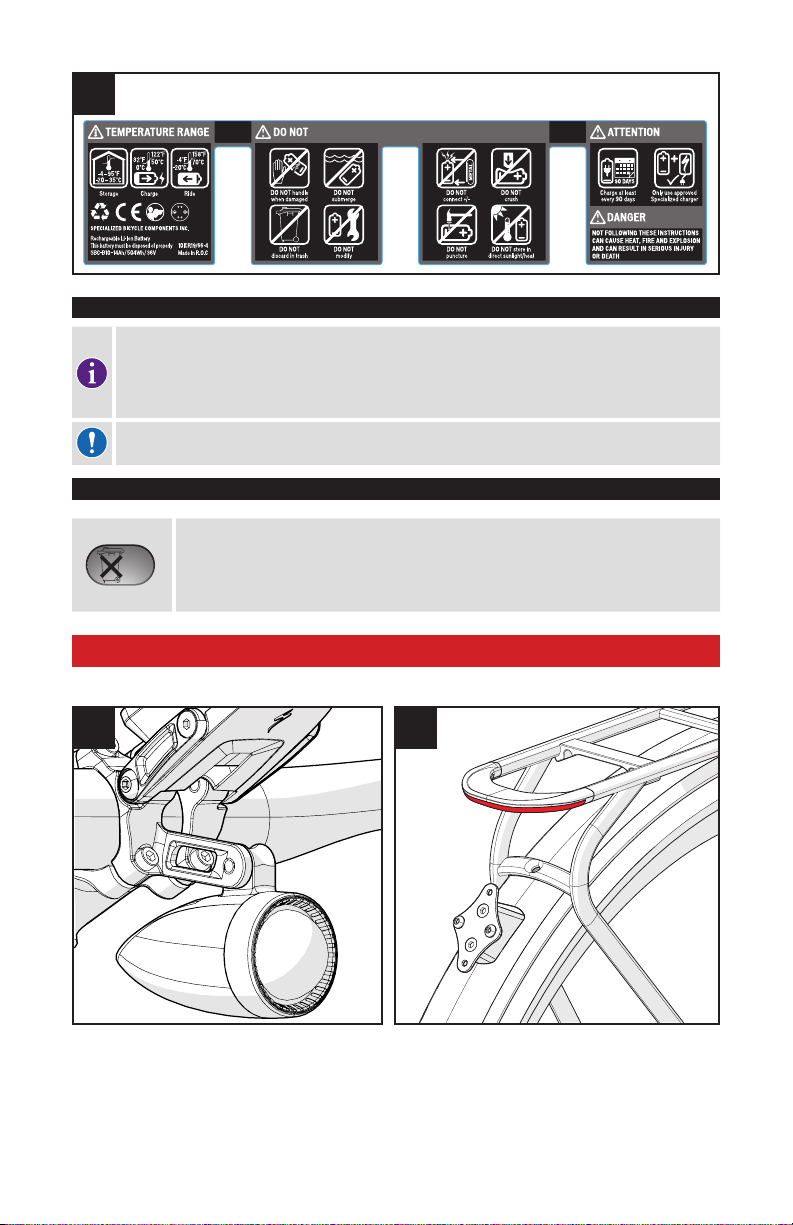

WARNING! Please read the label on the battery (ﬁg.9) supplied with your bicycle before ﬁrst use.

Page 28

9.10. TRANSPORT

Transporting and/or shipping your VADO battery may be subject to certain restrictions and may require special handling, labelling, and/or packaging. Be sure to inform yourself beforehand of all applicable legal requirements and regulations in your country or state. Your Authorized Specialized Retailer may also have helpful information available. When carrying the battery outside the frame, you should use an approved battery transport box.

CAUTION: Be aware that your VADO bicycle is signiﬁcantly heavier than a bicycle without motor support. Use caution when handling, carrying or lifting your VADO bicycle.

9.11. DISPOSAL

Batteries and chargers must not be disposed of in your household trash! All batteries and chargers must be disposed of in an environmentally friendly manner, in accordance

LI-

with the battery disposal regulations in your country or state. Ask your Authorized

ION

Specialized Retailer for information about how to dispose of a battery or charger and any applicable take-back program.

10. LIGHTING

The VADO is equipped with an LED headlight and taillight.

10 11

The headlight (ﬁg.10) is wired to the battery system and turns on when the bike is turned on.

The taillight (ﬁg.11) is wired through the rack and fender. Removal of the rack and/or fender will result in no longer having a taillight charged and powered by the bicycle’s battery.

Page 29

11. SPECIFICATIONS

11.1. BOLT SIZE / TORQUE SPECS

WARNING! Correct tightening force on fasteners (nuts, bolts, screws) on your bicycle is important for your safety. If too little force is applied, the fastener may not hold securely. If too much force is applied, the fastener can strip threads, stretch, deform or break. Either way, incorrect tightening force can result in component failure, which can cause you to lose control and fall.

Where indicated, ensure that each bolt is torqued to speciﬁcation. After your ﬁrst ride, and consistently thereafter, recheck the tightness of each bolt to ensure secure attachment of the components. The following is a summary of torque speciﬁcations in this guide:

LOCATION IN-LBF Nm LOCATION IN-LBF Nm

SEAT COLLAR 45 5.1 FRONT AXLE 133 15

SEATPOST @ SADDLE 120 13.5 CRANK BOLTS 443 50

STEM @ STEERER TUBE 52 6.0 CHAINRING BOLTS 89 10*

STEM @ HANDLEBAR 52 6.0 SPIDER LOCKRING 443 50

DERAILLEUR HANGER 35 4 REAR BRAKE GUIDES 6 0.7

REAR AXLE 133 15 WATER BOTTLE BOLTS 25 2.8

CAUTION: Ensure all contact surfaces are clean and bolt threads are greased or have a threadlocking compound (refer to the instructions for each bolt) prior to installation.

* Apply blue loctite to chainring bolts.

11.2. FRAME SPECIFICATIONS

ITEM SPECIFICATION

HEADSET 1 1/8” UPPER / LOWER

SEAT COLLAR DIAMETER 34.9MM

SEATPOST DIAMETER 30.9MM

DERAILLEUR HANGER S172600003 (AMAZINGER 2.1)

REAR HUB 148MM X 12MM

FRONT HUB 100MM X 12MM

WARNING! VADO frames are compatible only with VADO rigid forks or suspension forks with 50mm maximum fork travel. Use of different forks negatively affect geometry and ride quality, and, most importantly, may result in catastrophic failure of the frame which may result in serious personal injury or death.

11.3. RECOMMENDED TIRE PRESSURES

Proper tire pressure is critical for optimal performance. Tires with higher pressure will typically roll faster and provide less rolling resistance, but provide less traction. Tires with lower pressure will typically provide increased traction and control at the expense of rolling resistance.

Use a quality pressure gauge and refer to the tire pressure recommendations written on the side of the tires.

Because of the extra weight of the VADO, as a rule of thumb, tire pressure should generally be higher compared to a regular bicycle.

Page 30

12. EC – DECLARATION OF CONFORMITY

The manufacturer:

Specialized Bicycle Components Inc. 15130 Concord Circle Morgan Hill, CA 95037, USA Tel: +1 408 779-6229

hereby conﬁrms for the following products:

Product description:

EPAC (Electrically Pedal Assisted Cycle)

Model designation:

 Specialized Turbo VADO 2.0  Specialized Turbo VADO 3.0  Specialized Turbo VADO 4.0

Year of construction:

2017

The conformity with all applicable directives from the guideline:

Machines (2006/42/EC).

The machine also conforms to all the directives in the guideline:

Electromagnetic compatibility (2004/108/EC).

The following harmonizing norms were applied to the product:

DIN EN 15194: Bicycles - electrically power assisted cycles - EPAC bicycles.

Technical documentation by:

Specialized Europe GmbH Werkstattgasse 10 6330 Cham, Switzerland

Signature:

Jan Talavasek (European Engineering Manager)

Specialized Europe GmbH 6330 Cham, Switzerland Jan 1st, 2017

NOTE: This declaration of conformity applies only to countries following the CE marking directives.

Page 31

13. RETAILER SERVICE SCHEDULE

1st Inspection:

After approx. 200 kilometers (120 miles)

Work done:

______________________________________________

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

4th Inspection:

Work done:

______________________________________________

2nd Inspection:

After approx. 1000 kilometers (600 miles)

Work done:

______________________________________________

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

5th Inspection:

Work done:

______________________________________________

3rd Inspection:

After approx. 2000 kilometers (1200 miles)

Work done:

______________________________________________

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

6th Inspection:

Work done:

______________________________________________

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

Materials used:

______________________________________________

Date:________________________________________

Signature:___________________________________

Retailer Stamp:

Page 32

Page 33

Page 34

Page 35

Page 36

SPECIALIZED BICYCLE COMPONENTS

15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229

Specialized VADO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
