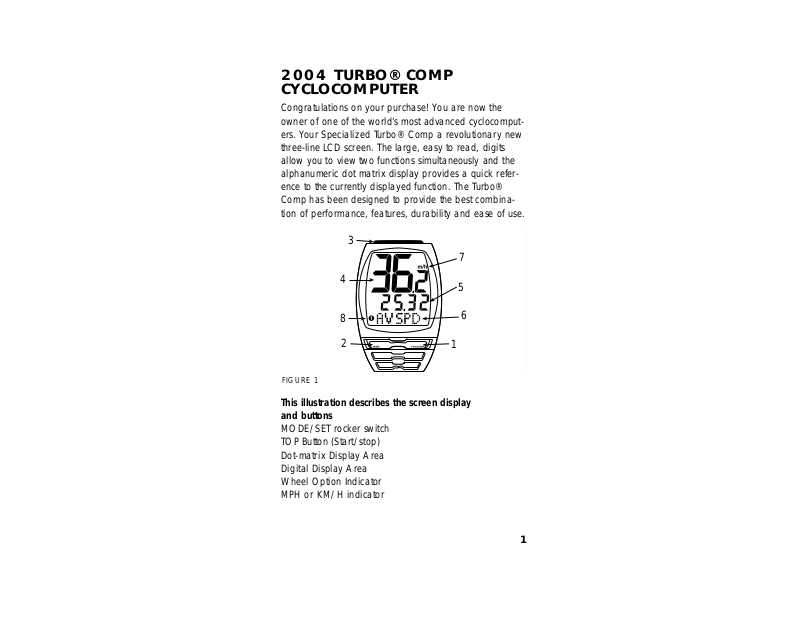

2004 TURBO® COMP CYCLOCOMPUTER
Congratulations on your purchase! You are now the owner of one of the world’s most advanced cyclocomput­ers. Your Specialized Turbo® Comp a revolutionary new three-line LCD screen. The large, easy to read, digits allow you to view two functions simultaneously and the alphanumeric dot matrix display provides a quick refer­ence to the currently displayed function. The Turbo® Comp has been designed to provide the best combina­tion of performance, features, durability and ease of use.
This illustration describes the screen display and buttons
MODE/SET rocker switch TOP Button (Start/stop) Dot-matrix Display Area Digital Display Area Wheel Option Indicator MPH or KM/H indicator
FIGURE 1
3
7
4
5
8
2
6
1
3
Figure 3) If, after battery replacement, the LCD dis­play is blank or shows incomplete digits, turn the computer over and press the “AC” button on the bot­tom of the case with the tip of a pen or a paper clip. This will clear all the data and re-start the computer. If you need to replace the battery, make a note of your odometer reading and wheel circumference settings before removing it. You can then re-enter the data when you restart the computer.
The following 10 functions are available on your Turbo® Comp:
SPEED – Current Speed AVSPD – Average speed MXSPD – Maximum Speed TRIP – Trip Distance ODO – Odometer (total distance) ATM – Automatic Start/Timer TIMER – Stopwatch With Lap-timer INT – Interval Timer DISTÚ– Distance Countdown CLOCK – Digital 12/24 Hour Clock
This computer also features:
Wired speed sensing Two function LCD Display Second Wheel Option Easy Calibration Mode Water resistant housing 2 Year Warranty
THE FOLLOWING ITEMS ARE INCLUDED IN YOUR TURBO® COMP PACKAGE:
Turbo® Computer
CR-2032 Lithium Battery (1) Battery Door (1)
26.0mm mounting bracket (1)
31.8mm mounting bracket (1) Wired Speed sensor (1) Magnet with screw (1) Adhesive backed magnet (1) Cable tie wraps (5) Mounting bracket sizing straps (3)
FIGURE 2
BATTERY INSTALLATION AND REPLACEMENT-
Before using your Turbo® Comp Computer you will need to install the battery. Turn the computer over so the display is facing down­ward. Use a coin to unthread the battery cap from the computer. Install the battery (model CR2032, Specialized P/N 481-3004) with the posi­tive pole (+) facing upward. Carefully thread the battery cap back onto the case with a coin. (See
2
FIGURE 2
FIGURE 3
FIGURE 3: BATTERY INSTALLATION
Tightening
sequence
4 screws
CR2032 battery
Rubber O-ring
audible click. Plug the wire from the speed sensor into the socket on the bottom of your computer To remove the computer, remove the speed wire (if connected) then push it backward until it releases from the mount.
To test for proper installa­tion of the magnet, trans­mitter and computer, acti­vate the computer by push­ing the MODE (right side) button. Pick up the front of the bicycle and spin the front wheel. The wheel option indicator will flash. If it does not flash, check the sensor and magnet alignment. Realign as nec­essary until the wheel option indicator flashes while spinning the wheel
OPERATION AND PROGRAMMING
When your Turbo® Comp
has not detected any speed input for 30 min­utes, it will enter sleep­mode in order to conserve battery power. During sleep mode only the digital clock is displayed. The computer will wake it up when wheel speed is detected or when the MODE or SET button is pressed. In order to oper­ate your computer it must be placed in various modes (i.e. odometer mode, distance mode). The computer can be cycled through these modes by pressing the MODE but­ton located on the right­hand side the MODE/SET rocker switch. There are nine cycling modes avail­able: 1) Clock Mode, 2) Odometer Mode, 3) Trip Distance Mode 4) Average Speed Mode, 5) Maximum Speed Mode, 6) Automatic Timer Mode, 7) Timer/Stopwatch Mode,
8)Interval Mode and
9)Distance Countdown mode. Once you familiar­ize yourself with the mode operation you will find it
5
MOUNTING THE TURBO® COMP:
The Turbo® Comp wired speed sensor can mount on the right or the left side of the fork blade. Use the cable tie-wraps provided to position the sensor. Do not tighten until the final place­ment of the sensor magnet is correct.. (See figure 4). Wheel magnets have been provided for both traditional round spokes and bladed (flat) aerody­namic spokes.
Attach the magnet to a spoke across from the transmitter with the magnet screw. The clearance between the magnet and the transmitter should be approximately 1/32-1/16 (1-2mm). Tighten the magnet and transmitter. Do not over-tighten
the magnet screw. (See figure 5).
For wheels with bladed spokes:
Use some isopropyl (rub­bing) alcohol or a mild detergent to thoroughly clean the spoke that you plan to attach the magnet to. Remove the backing from the adhesive tape and firmly press the magnet onto spoke. The tape uses a special pressure sensitive adhesive. To ensure a strong bond, please wait at least 12 hours for the adhesive to cure before riding your bicycle.
Attach the appropriate mount (26.0mm and
31.8mm sizes are includ­ed) to the handlebar using the bracket screw provid­ed. Tighten so that the bracket cannot rotate on the handlebar. There are several sizing straps pro­vided to fit different diame­ter bars. (See figure 6). Slide the computer forward onto the mount until it snaps into place with an
4
FIGURE 4
FIGURE 5
FIGURE 6
Display Area (This is called the odometer mode). Next, hold down the SET button for three seconds. The Km or “m” indicator will begin blinking. You may now alternate between miles and kilometers by pressing the MODE button. When the correct choice is flashing, select it by pressing the SET button. You will now enter the Programmable Odometer mode. If the odometer setting is correct push the SET button five times to exit odometer mode. (Otherwise, see Setting the programmable odometer below).
3. Setting the Programmable Odometer:
This mode is useful if you have replaced the battery and would like to retain the mileage you have already ridden. To access the Programmable odometer mode, first advance to the Odometer Mode by press­ing MODE button until ODO appears in the Dot­matrix Display Area. Hold
down the SET button for three seconds (If you have selected English language, the Km/h indicator will flash. If the Km/h setting is correct press the SET button once) and a five­digit number will appear. You are now in the pro­grammable odometer mode. To enter a mileage into the odometer, press the MODE button until the flashing digit is correct. (Note: The MODE button may be held to quickly scroll to the correct digit.) Press the SET button to select the next digit to the right. Repeat this process until all five digits are entered as your existing mileage. (See figure 7)
7
very easy to navigate. The following flowchart outlines the mode sequence. Once a particular mode has been entered, its values can be reset or adjusted by pressing and holding the SET button for three sec­onds.
1. Setting the Display Language
Your Turbo® can display information on the dot­matrix display area in six different languages: English (ENGL), German (GER), French (FR), Italian (ITA), Dutch (NED), and Spanish (ESP). To select your language push the
mode button repeatedly until CLOCK is displayed in the Dot-matrix Display Area. Then, depress hold the MODE button for three seconds. The selected language will be dis­played. Use the MODE button to scroll through the languages. When the selected language is dis­played (default language is English), press the SET button once to confirm your selection and exit dis­play language mode.
2. Miles or Kilometers selection (English only):
Your Turbo® Comp will record distance and speed in either miles (m & m/h) or kilometers (K & Km/h). Please note that miles can only be selected when the language setting is English. All other languages display only kilometers. (See Setting the Display Language above). To enter your selection of miles or kilometers, push the MODE button until ODO appears in the Dot-matrix
6
CLOCK
I
ODO
I
TRIP
I
AVSPD
I
MXSPD
I
ATM –
I
TIMER
I
INT
I
Dist
FIGURE 7
gram the wheel #2 tire size and tap the SET button to exit Easy Calibration Mode.
Roll Out Method
The roll out method will provide the most accurate computer calibration and can take into account vari­ables such as inflation pressure, rim width and rider weight.
1. Extend a tape measure out to 3000mm (120 inch­es) and lock it in place.
2. With your tire inflated to its proper pressure, place the valve at the 6:00 posi­tion (at the bottom) directly over the start of the meas­uring tape.
3. Roll the wheel one com­plete revolution until the valve stem is again at the 6:00 position. Read the tape directly under the valve and note the distance in millimeters. (To convert inches to millimeters, multi­ply inches by 25.4). Use this number to replace the default (default values are
2073 for wheel one, and 2134 for wheel two) when programming your com­puter. (See figure 12).
You may also use the following quick-reference chart:
Generic Tire Size Chart This chart is for non­Specialized tires 26 X 1.75 2140 26 X 2.0 2074 26 X 2.1 2090 650C X 20 1945 700C X 26 2124 700C X 38 2170
Programming the circumference:
To enter the tire circumfer­ence number, select the
9
4. Wheel Circumference Selection:
To set the circumference for the type of tires you are using, you can use Specialized’s Easy Calibration Mode or measure your actual tire circumference by the roll­out method. Two different tire diameters may be entered by using the com­puter’s Second Wheel Option.
Easy Calibration Mode:
Your Turbo® Comp has been preprogrammed with the following 14 Specialized tire sizes: 26 X 1.0 26 X 2.2 26 X 1.25 650c X 20 26 X 1.5 700c X 20 26 X 1.9 700c X 23 26 X 1.95 700c X 26 26 X 2.0 700c X 32 26 X 2.1 700c X 38
When using Easy Calibration Mode, the Turbo® Comp will display the tire size on its LCD dis­play screen. (See figure
11) The Easy Calibration Mode is accessed by enter­ing the Odometer (ODO) mode and holding down the MODE button for three seconds. The display will now show the currently selected tire size for wheel option #1. To scroll through the prepro­grammed tire sizes press the MODE button. When you reach the desired tire size press the SET button once to select it and enter Easy Calibration Mode for wheel option #2. Follow the same procedure to pro-
8
FIGURE 11
FIGURE 12
Roll Forward
stem
Wheel Circumfrence
11
right. Repeat the process until all four digits are entered as your tire cir­cumference. Press the SET button once to select it and enter the circumfer­ence for wheel option #2. Follow the same procedure to program the wheel #2 tire size and tap the SET button to exit circumfer­ence programming mode.
5. Setting the Clock
Your Turbo® Comp fea­tures a digital clock. To access the clock mode press and the “MODE” button repeatedly until CLOCK appears in the Dot-matrix Display Area. To set the clock, press the SET button for three sec­onds. The display will flash either twelve (12:) or twen­ty four (24:). Select between 12: or 24: mode by pressing the MODE button. Press the SET button to confirm your selection. The hour digit will now begin flashing. Press the MODE button to adjust the hour digits.
AM/PM is selected by scrolling the hour digit. Press the SET button to accept the hour selection. The minutes will flash and can be adjusted by press­ing the MODE button. (Hold the MODE button to scroll through the digits quickly) Press the SET button to set the minutes and return to clock mode.
6. Timer Selection
The Turbo® Comp has two timers; Automatic Timer Mode (ATM) and Timer Mode (TIMER). The ATM selection allows you to keep track of your actual riding time. The ATM timer only operates when the wheel is rotating and can-
10
Odometer (ODO) mode and then hold down the MODE button for three seconds. The display will now show the currently selected tire size for wheel option #1. (See figure
13). If necessary scroll through the prepro-
grammed tire sizes by tapping the MODE but­ton until the display shows MM and four-digit num­ber. This number repre­sents your tire circumfer­ence in millimeters. Press the MODE button until the flashing digit is cor­rect. (Note: The MODE button may be held to scroll to the correct digit.) Press the SET button to select the next digit to the
not be turned on or off manually. Note: The average speed (AVSPD) calculation is based upon the ATM time.
The TIMER function is just like a conventional stop­watch. The timer is activated manually and records the time whether the wheel is rotating or not. Tapping the TOP button starts and stops the stopwatch and when the timer is stopped, holding the SET button for three seconds will reset to stopwatch. The TIMER includes a 12-memory lap time feature. To record a lap time, press the “SET” button once while the stopwatch is running. Each time the SET button is depressed the Turbo® Comp will record the lap time. After the TIMER has been stopped (by pressing the TOP but­ton) the previous twelve lap times can be reviewed by pressing SET button. Additionally, the computer will display the total time when LPTOT is shown.
FIGURE 13
FIGURE 14
shortest interval that can be set is 5 seconds.
10. Distance Countdown (DISTÚ)
Your Turbo® Comp is equipped with Distance Countdown feature. This allows you to set an alarm when the selected mileage is reached. To enter the Distance Countdown mode, press the MODE button repeatedly until DISTÚ” appears in the Dot-matrix Display Area. Note: if your display says INT, press the
SET button to change toDISTÚ” To set the Distance
Countdown, hold the SET button for three seconds. The hour digit will begin
flashing. Press the MODE Button until the desired number appears. (Hold down the Mode button to scroll quickly) Press the SET button once to set this number and advance to minutes. Repeat this process until minutes and seconds are set to the desired settings. Press the SET button to exit pro­gramming mode. Once the time interval timer is programmed, press the TOP button to stop and start the Distance Countdown. Note: The shortest distance that can be set is .01 miles/km.
COMPUTER FUNCTIONS
Speedometer (SPEED)- Your current speed is always dis­played in large digits on the top line of the LCD screen. The speed is displayed up to 99.9 M/h (99.9 Km/h) with a resolution of 0.1 M/h (0.1 Km/h)
13
7. Interval Timer (INT)
Your Turbo® Comp is equipped with an Interval Timer. This feature allows you to customize your train­ing by integrating a pro­grammable repeating count­down timer into your work­out. To enter the interval timer mode, press the MODE button repeatedly until INT appears Dot Matrix Display Area of the screen. You are now in interval timer mode. To set the interval timer, hold the SET button for three sec­onds. The hour digit will begin flashing. Press the MODE Button until the desired number appears. (Hold down the “Mode” button to scroll quickly) Press the SET button once to set this number and advance to minutes. Repeat this process until minutes and seconds are set to the desired set­tings. Press the SET but­ton to exit programming mode. Once the time inter­val timer is programmed, press the “TOP” button to start/stop the countdown. (See figure 15). Note: The
12
Average Speed (AVSPD)-
The Average Speed is shown on the lower line Digital Display Area up to
99.9 M/h (99.9 Km/h) with a resolution of 0.1 M/h (0.1 Km/h) The average speed is based upon the ATM time. The resolution of the aver­age speed data on the Digital Display Area is shown in 0.1M/h or Km/h increments. (See figure 16)
Maximum Speed (MXSPD)-
The Maximum Speed is shown on the lower line of the Digital Display Area up to 99.9 M/h (99.9 Km/h) with a resolution of 0.1 M/h (0.1 Km/h) The max-
FIGURE 15
FIGURE 16
watch function will operate when the TOP button is pressed. The stopwatch will record the total time after the button is pressed regardless of whether there is speed input or not.
Interval Timer (INT)-
The interval timer is dis­played on the lower line of the screen when (INT) appears on the left. The timer indicates the end of an interval with one short beep per second for the last 4 seconds of the interval. This is followed by a long beep, indicating the begin­ning of a new interval.
Trip Distance (DST)-
Trip distance mode will record up to 999.99 miles or kilometers and then roll to zero. The trip distance can be reset by pressing the SET button for three seconds. The resolution is
0.01 miles (0.01 Kilometers). The trip dis­tance is shown on the lower line if the screen.
(See figure19)
Odometer (ODO)-
The odometer will record the total distance traveled up to 99,999 miles or kilo­meters and then roll to zero. The odometer can be reset by pressing the SET button for three seconds. The total distance is shown on the lower line if the screen.
Programmable Odometer-
The odometer digits are programmable. This is con­venient for transferring your hard-earned mileage that is usually lost when changing batteries or com­puters.
15
imum speed is retained in memory and updated when a higher speed is maintained for three sec­onds. The maximum speed can be reset by pressing the SET button for three seconds. (See figure 17)
Auto Start/Stop Timer (ATM)-
In ATM mode the timer function records the actual time spent riding. It oper­ates only when there is speed input and is dis­played In the Digital Display Area of the screen
Timer Mode (TIMER)-
In TIMER mode the stop-
14
Clock-
Your Turbo® Comp is equipped with a digital clock. The clock can be set to operate in either 12 or 24-hour mode.
Second Wheel Option-
For riders who own more than one bicycle or who frequently change tires, the Turbo® Comp is capable of storing two tire sizes. You can change between the two sizes by entering Distance Mode and select­ing TRIP. Then, press the MODE button for three seconds. The second wheel mode indicator will change from 1 to 2. Mileage recorded will be cumulative between the two sizes. (An accessory handlebar mount is available from your Specialized dealer. P/N 4814-5045)
TROUBLESHOOTING:
Display is blank:
Change the battery or press the AC button on the bottom of the case
FIGURE 17
FIGURE 19
are riding.
Do not disassemble you Turbo®. There are no user serviceable parts inside.
Make sure the magnet and the transmitter are well aligned. Check them regu­larly.
Keep the computer and all of its components tightly attached, and check them regularly. If any of the components come loose, it could become tangled in your spokes and cause an accident.
See your authorized Specialized dealer if you have any trouble installing or maintaining your com­puter.
Clean the unit with a mild detergent and a soft dry cloth. Never use any kind of solvent or alcohol.
The Turbo® Comp com- puter is intended for use on bicycles only and should not be used on any motor­ized vehicle.
Specifications:
Current Speed:
0.0 to 99.90 MPH
0.0 to 99.90 Km/H
Average Speed (AVS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Maximum Speed (MXS)
0.0 to 199.9 MPH to 199.9 Km/H
Trip Distance (DST)
0 to 999.99 miles or Km
Odometer (ODO)
0 to 99,999 miles or Km
Stopwatch (TM) 0 to 9hrs, 59min, 59sec. recycling type
Automatic Timer (ATM) 0 to 9hrs, 59min, 59sec. recycling type
Interval Timer (INT)
5 seconds to 9hrs, 59
min, 59 sec.
Distance Countdown(DISTÚ) .01 to 999.99Miles
.01 to 999.99Kilometers
17
Display shows partial digits:
Press the AC button on the bottom of the case.
Speed/distance not recording:
Check sensor/magnet alignment. Make sure that the sensor is no more than 1/16 (2mm) from the magnet. Replace transmit­ter battery if necessar y. Recalibrate Computer and transmitter.
Entire screen is dark:
Did you leave the bike parked in the hot direct sun when it was parked? If so, move the bike to the shade. The data will be OK.
Computer moves on handlebar:
Tighten mount or add sizing straps to improve fit on handlebar.
IMPORTANT!
Pay attention to traffic and road conditions at all times. Your first obligation is to be attentive and to ride safely.
Do not expose it to direct sunlight except when you
16
Operating Temperature 40°F to 104°F (4°C to 40°C)
The following replacement parts are available from your Specialized dealer or by visiting the Specialized S-store online at WWW.SPECIALIZED.COM
DESCRIPTION PART# STANDARD WHEEL MAGNET 480-3003 CR-2032 TURBO
®
BATTERY 480-3004 ADHESIVE BACKED WHEEL MAGNET
4800-3002
CENTER MOUNT
4814-5035 TURBO SPORT/COMP 2ND BIKE KIT
4814-5045 TURBO SPORT/COMP SENSOR WIRE
4814-5055 TURBO MOUNT ONLY
26.0MM 4814-5060 TURBO MOUNT ONLY
31.8MM 4814-5065
arising from any breach of any expressed or implied warranty on this product. This warranty is exclu­sive and in lieu of all other war­ranties, expressed or implied, and all other remedies, guaranties or liabilities arising by law or other­wise.
Note: This warranty does not per-
tain to batteries. No person or representative is authorized to assume any liability on behalf of Specialized Bicycle Components, Inc. in connection with the sale of this product. Some states do not allow the exclusion or limitation of incidental or conse­quential damages or limitations on how long an implied warranty lasts, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Turbo® is a registered trademark
of Specialized Bicycle Components Inc. © 2003 Specialized Bicycle
Components Inc.
WWW.SPECIALIZED.COM
