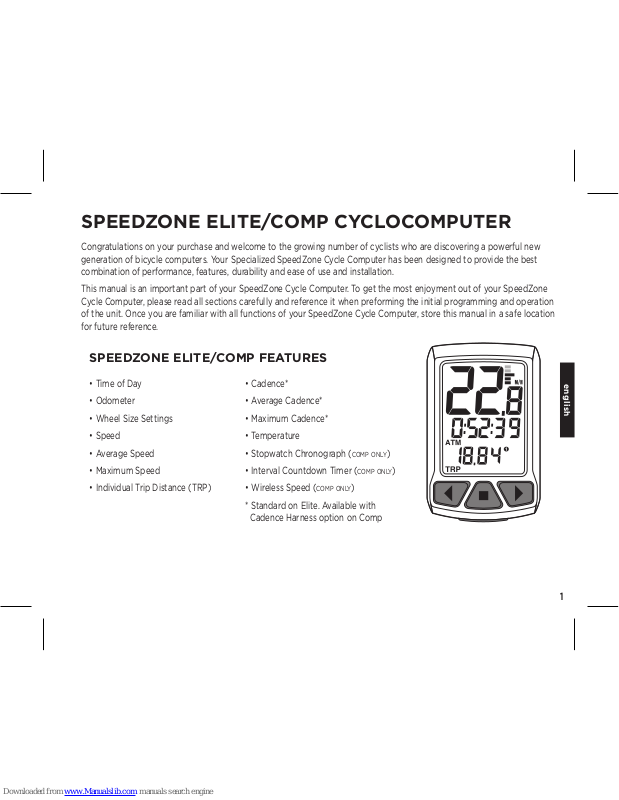

Congratulations on your purchase and welcome to the growing number of cyclists who are discovering a powerful new
generation of bicycle computers. Your Specialized SpeedZone Cycle Computer has been designed to provide the best
combination of performance, features, durability and ease of use and installation.
This manual is an important part of your SpeedZone Cycle Computer. To get the most enjoyment out of your SpeedZone
Cycle Computer, please read all sections carefully and reference it when preforming the initial programming and operation
of the unit. Once you are familiar with all functions of your SpeedZone Cycle Computer, store this manual in a safe location
for future reference.
SPEEDZONE ELITE/COMP FEATURES
• Time of Day
• Odometer
• Wheel Size Settings
• Speed
• Average Speed
• Maximum Speed
• Individual Trip Distance (TRP)
• Cadence*
• Average Cadence*
• Maximum Cadence*
• Temperature
• Stopwatch Chronograph (COMP ONLY)
• Interval Countdown Timer (COMP ONLY)
• Wireless Speed (COMP ONLY)
* Standard on Elite. Available with
Cadence Harness option on Comp
SPEEDZONE ELITE/COMP CYCLOCOMPUTER
2
engl ish
TABLE OF CONTENTS
3
engl ish
TABLE OF CONTENTS
COMPONENTS OF THE CYCLOCOMPUTER 4
CHANGING THE BATTERY 5
INSTALLING THE STEM MOUNT BRACKET (COMP ONLY) 6
INSTALLING THE HANDLE BAR BRACKET 7
INSTALLING THE SPEED & CADENCE SENSOR 8
DISPLAY ICONS AND THEIR MEANINGS 10
KEYS AND THEIR FUNCTIONS 14
MODES OF OPERATION 16
PROGRAMMING THE CYCLOCOMPUTER 22
SETTING THE INTERVAL TIMER 23
SETTING THE TIME 24
SETTING WHEEL SIZE WITH PRE-PROGRAMMED VALUES 25
MANUALLY SETTING WHEEL SIZE 26
SETTING ODOMETER 27
RESET THE CYCLOCOMPUTER 28
SWITCH BETWEEN BIKE 1 / BIKE 2 29
OPERATING THE INTERVAL TIMER 30
RESET SERVICE REMINDER 32
SPECIFICATIONS AND RANGES 33
TROUBLESHOOTING 34
WARRANTY INFORMATION 35
4
engl ish
5
engl ish

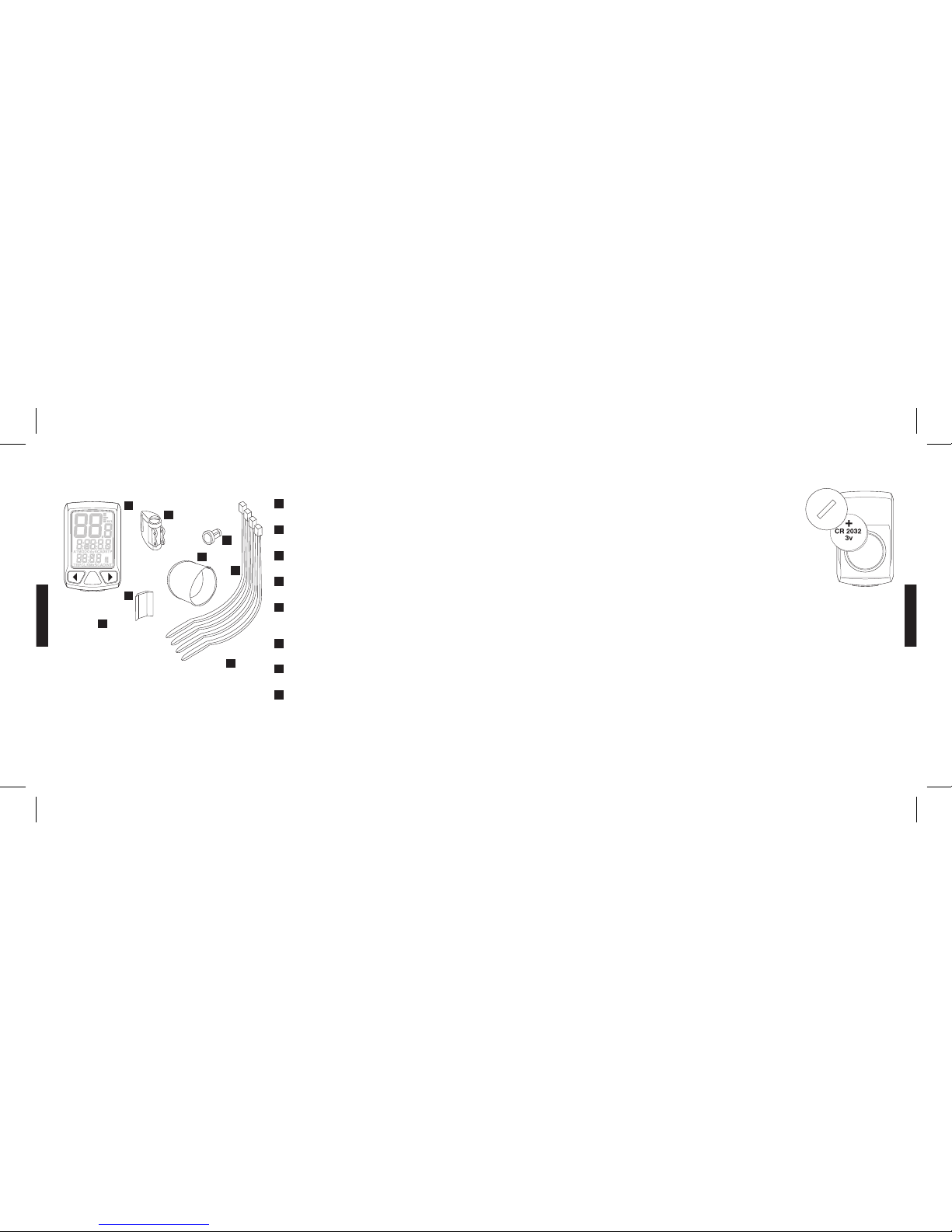

COMPONENTS OF THE CYCLOCOMPUTER
FACE OF COMPUTER
ZIP- TIES
BRACKET SLEEVE
WHEEL MAGNET
WIRED SPEED & CADENCE BRACKET
(ELITE ONLY)
WIRELESS SPEED (COMP ONLY)
WIRELESS FORK TRANSMITTER (COMP ONLY)
WIRELESS FORK TRANSMITTER
MOUNTING PAD (COMP ONLY)
1
4
2
3
8
7
5
6
1
2
3
4
5
6
7
8
CHANGING THE BATTERY
SpeedZone Cycle Computers are powered by a CR2032 3v Lithium Battery. Under normal
conditions, battery life should be approximately one year.
INSTALLING OR REPLACING THE COMPUTER BATTERY
1. Using a coin or flathead screwdriver, turn the battery door counter clockwise and
remove the battery compartment cover.
2. Carefully remove the old battery. Take care not to damage the O-ring seal.
3. Place a new battery in the battery compartment with the positive (+) side facing the
battery compartment door. CAUTION: Do not bend the battery contact.
4. Replace the battery compartment cover and tighten clockwise with a coin or flathead
screwdriver.
NOTE: If the O-ring is damaged, replace it before installing the battery compartment cover.
CAUTION: Extreme care should be taken to ensure the unit is fully water-resistant. Failure to properly replace the
battery and correctly seal the battery compartment cover may cause the unit to be damaged and void the
warranty.
ALWAYS: Check the batteries if you are experiencing problems with your computer. Most problems with the operation
of this unit are the result of dead or dying batteries.
6
engl ish
7
engl ish
INSTALLING THE HANDLE BAR BRACKET
SpeedZone computers give you the option of mounting the computer in-line with your stem.
This option is ideal for aero bars or to keep a visually balanced look to the handlebars.
1. Remove the bicycles’ steering column stem cap.
NOTE: It is not necessary to loosen the stem.
2. Install the Specialized steering column mount ring, with computer mount ON TOP of the
stem or any spacers present so that it partially overlaps the top of the steerer tube.
NOTE: It is important the stem mount ring be the last item mounted before the steering
column stem cap.
3. Rotate and align the steering column mount ring, with computer mount so it is parallel to
your stem extension.
4. Reinstall the bicycles’ steering column stem cap and tighten to manufacturer’s
specification.
IMPORTANT: The Specialized steerer tube mount may not work properly with some high-rise
stems. In the case of high-rise stems, the steerer tube (and spacers) must extend
beyond the stem enough to allow proper clearance of mounting bracket.
INSTALLING THE STEERING COLUMN BRACKET
On bikes with high-rise stems or threaded headsets, SpeedZone computers give you the
option of mounting the computer on your handle bars..
1. Remove the computer mount from the steering column mount using a 3mm hex wrench.
2. Install the molded rubber shim for 31.8mm handlebars and thread the included two (2)
zip-ties through the handlebar mount and molded rubber shim.
3. Loosely install the mount and shim assembly (for 25.4mm and 26.0mm handlebars, use
the additional flat rubber spacer underneath the molded rubber shim) and install to the
preferred handlebar location.
4. Rotate the zip-tie heads so they nest under the front of the mount, adjust the position as
necessary and tighten the zip-ties.
5. Trim the excess zip-ties for a finished appearance.
need illustration
of removing
steerer cap
need illustration of
installing the stem
mount on steerer
tube
need illustration of
securing steerer
tube cap & installed
unit
need illustration
for #1
(Image: exploded
view with all shims
& zip-ties threaded)
(image: installed
unit)
8
engl ish
9
engl ish
SPEEDZONE ELITE
On the SpeedZone Elite, both speed and cadence are picked up from the rear wheel using a special bracket, which has
two sensors at the end of a long wire. One sensor picks up speed and distance information from the rear wheel and the
other picks up cadence information from the crank. The cadence sensor is marked with a C.

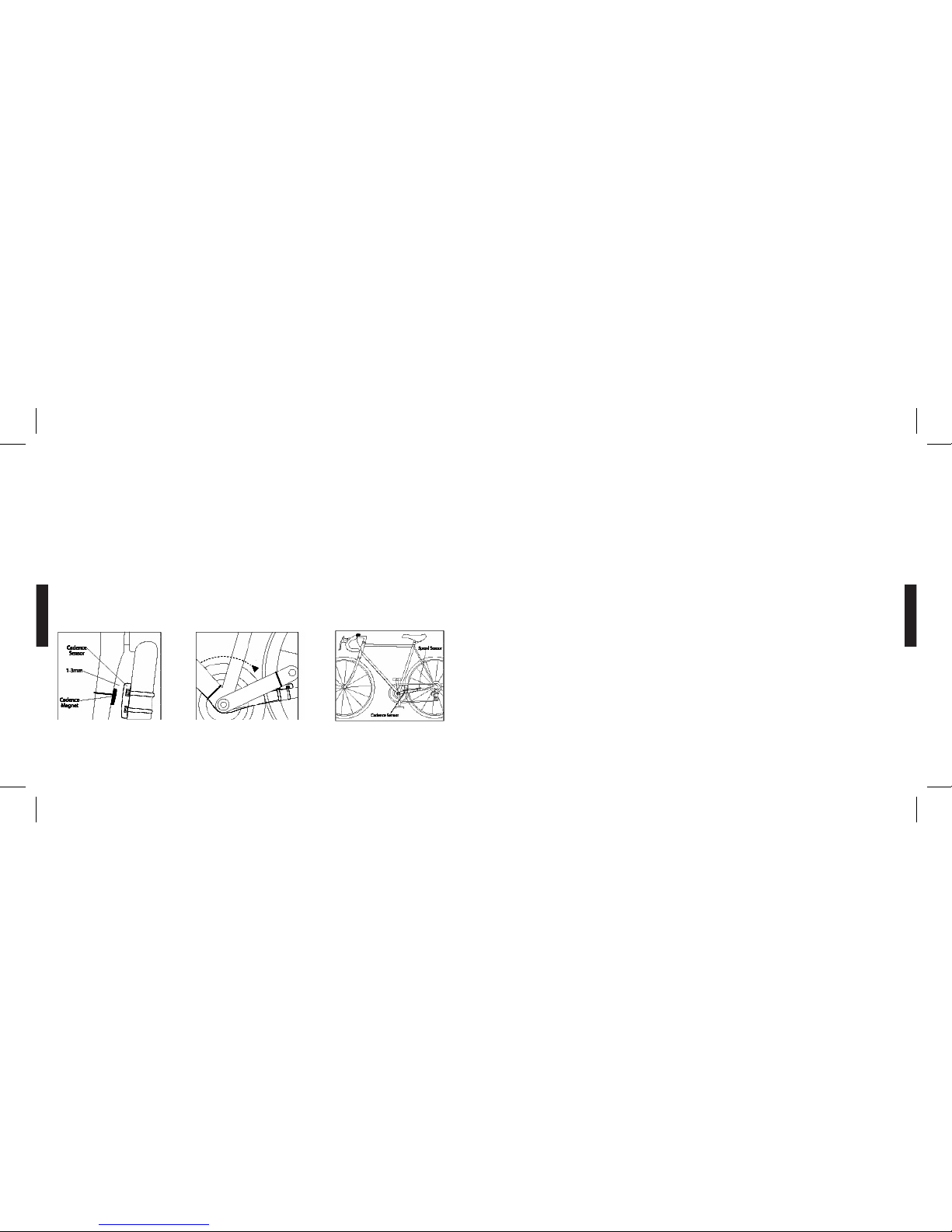

1. Attach the cadence sensor to the LEFT chain stay near where the crank/pedal pass the stay using the zip-ties
provided. Do not fully tighten zip-ties.
NOTE: The wires exiting the sensors should be pointing toward the front of the bike.
2. Attach the cadence magnet to the back side of the LEFT crank arm using the zip-tie provided.
3. Align the cadence sensor and magnet and rotate the sensor so the magnet passes within 1-3mm.
4. To position the speed sensor, wrap the speed sensor wire once or twice around the chainstay and attach using zip-
ties. DO NOT fully tighten the zip-ties until everything is aligned.
INSTALLING THE SPEED & CADENCE SENSOR INSTALLING THE SPEED & CADENCE SENSOR
5. Attach the spoke magnet to a spoke on the left side of the wheel. Tighten the attachment screw just enough to hold
the magnet in place but loose enough so that it is still movable.
6. Adjust the position of the sensor and magnet so they are in proper alignment as shown in the drawing. Tighten the
zip-ties and magnet.
7. Route the sensor wire forward and under the bottom bracket and along the bottom of the down tube securing it
occasionally with tape. Once you are near the head tube the sensor wire should be wrapped around the front or rear
derailleur cable housing and the around the front brake cable housing.
CAUTION: Make sure you leave enough slack in the sensor wire so the handle bars can turn fully from side to side.
8. Attach the bracket to the handlebars or stem.
10
engl ish
11
engl ish
INSTALLING THE SPEED & CADENCE SENSOR INSTALLING THE SPEED & CADENCE SENSOR
SPEEDZONE COMP - WIRELESS SPEED SENSOR
INSTALLATION

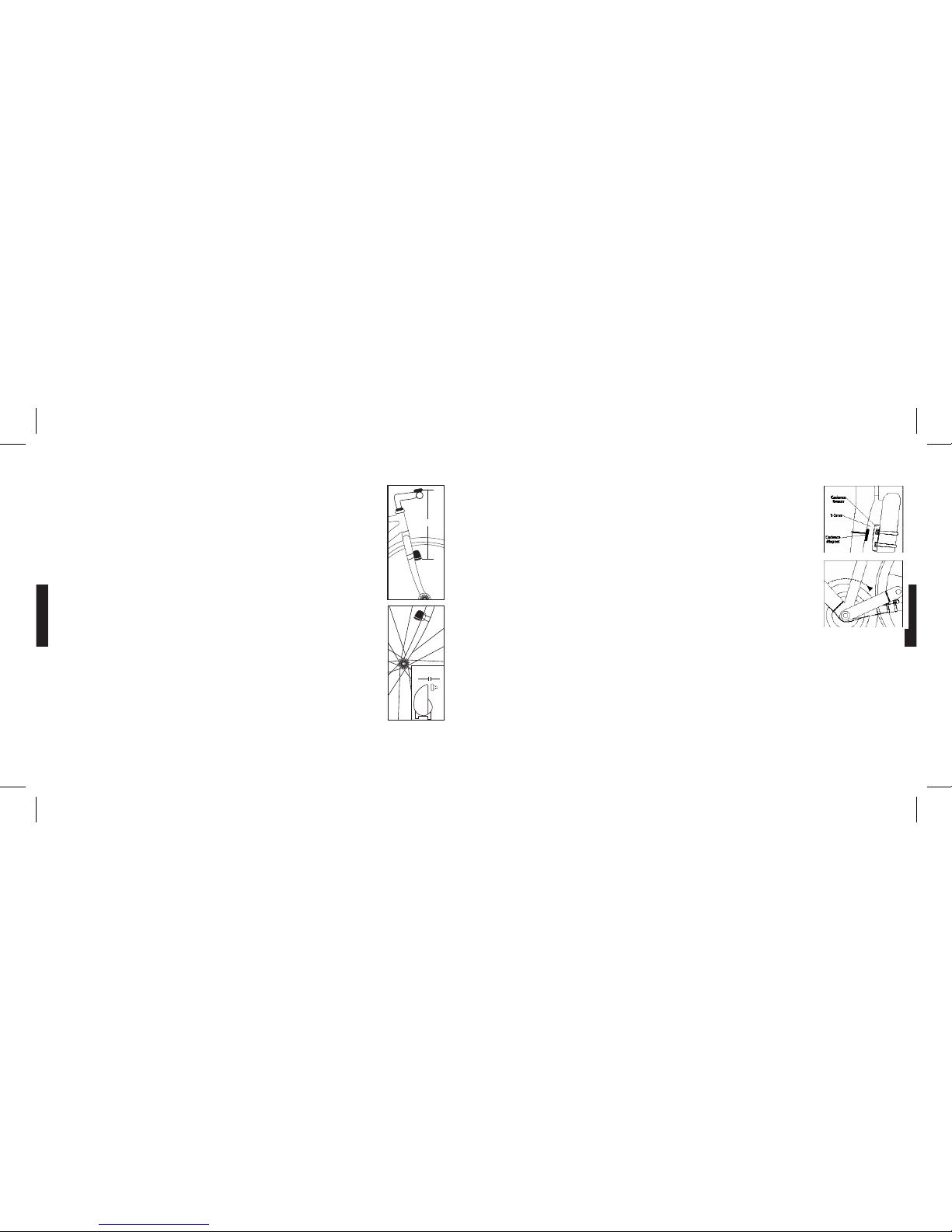

1. Pass the two cable ties through the sensor mounting holes and loosely mount to the left fork
leg using the rubber sensor mounting pad (do not fully tighten the cable ties at this point). The
sensor should be mounted as close to the top of the fork as possible with the cap of the battery
door toward the ground. Make sure that the distance between the sensor and the handlebars is
no more than 24 in. (610mm).
2. Loosely install the sensor magnet to one of the spokes of the front wheel. Adjust the position
of the magnet and sensor together so that the magnet is aligned with the line on the bottom
edge of the sensor and 1-2 mm separates the two parts and tighten both parts in place. DO NOT
over-tighten the magnet screw.
SPEEDZONE COMP - WIRED REAR CADENCE HARNESS
(CADENCE HARNESS AVAILABLE SEPARATELY)
1. Attach the cadence sensor to the LEFT chain stay near where the crank/pedal pass the
stay using the zip-ties provided. Do not fully tighten zip-ties. (see illustration on page 8)
NOTE: The wires exiting the sensors should be pointing toward the front of the bike.
2. Attach the cadence magnet to the back side of the LEFT crank arm using the zip-tie
provided.
3. Align the cadence sensor and magnet and rotate the sensor so the magnet passes within
1-3mm.
4. Route the sensor wire forward and under the bottom bracket and along the bottom of the
down tube securing it occasionally with tape. Once you are near the head tube the sensor
wire should be wrapped around the front or rear derailleur cable housing and the around
the front brake cable housing.
CAUTION: Make sure you leave enough slack in the sensor wire so the handle bars can turn
fully from side to side.
5. Attach the bracket to the handlebars or stem.
12
engl ish
13
engl ish
DISPLAY SYMBOLS
symbol description what it means
MULTI-STAGE SPEED
COMPARATOR
Indicates whether current speed is greater than, less than or equal to
the average calculated speed. One bar shown means average speed is
0-2.5 mph/kph above/below calculated average speed.
ACTIVE LINE INDICATOR
Indicates which line is active in independent mode
AM/PM
AM or PM time ( 12 hour mode only)
CELCIUS/FARENHEIT
Indicates whether tempurature is in C° or F°
SERVICE REMINDER
Displayed after 1500 miles has been acculmulated on the cyclocomputer
BIKE 1 /BIKE 2
Indicates which bike is chosen
DISPLAY ICONS AND THEIR MEANINGS
MODE SYMBOLS
symbol description what it means
RIDE TIME
Total ride time is displayed
ODOMETER
Odometer mode is active
AVERAGE SPEED
Average speed is displayed
CADENCE
Current Cadence
STOPWATCH
Flashes when the stopwatch and/or interval timer is running (
COMP ONLY)
TRIP
Trip distance is displayed
CLOCK
Time mode is active
MAXIMUM SPEED
Maximum speed is displayed
INTERVAL TIMER
Interval timer mode is active (
COMP ONLY)
AVERAGE CADENCE
Average Cadence for current ride
MAXIMUM CADENCE
Maximum Cadence for current ride
DISPLAY ICONS AND THEIR MEANINGS
14
engl ish
15
engl ish
KEYS AND THEIR FUNCTIONS KEYS AND THEIR FUNCTIONS

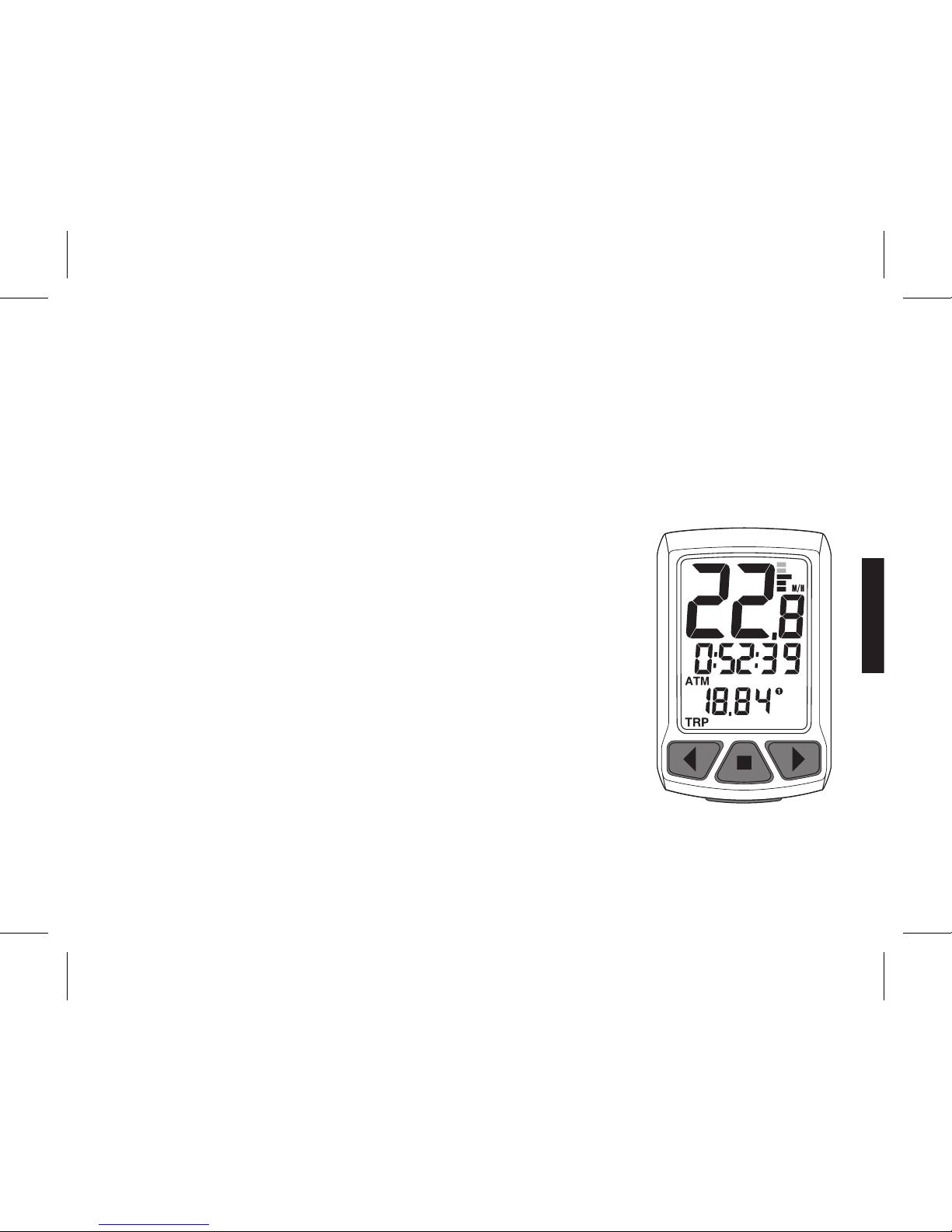

The SpeedZone Elite has 3 individual keys and the SpeedZone Comp has 4 induvidual keys. Each key has several functions.

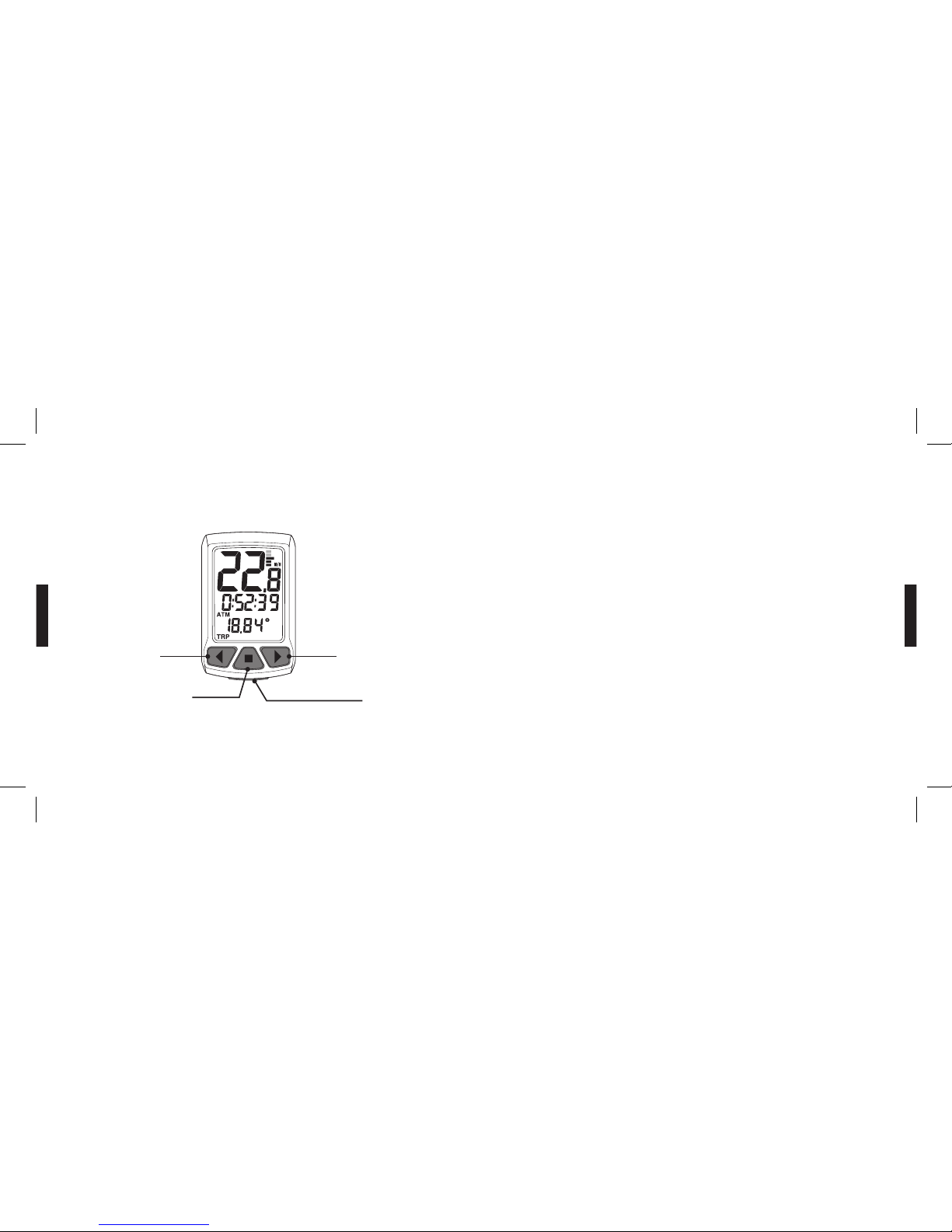

The drawing identifies the keys and their names as used in this manual.
PREV KEY
NEXT KEY
SELECT KEY
START/STOP KEY (COMP ONLY)
PREV KEY
• Scroll through Display Modes
• Enter Setting Sequence (Press & Hold)
• Scroll through Setting Modes
• Adjust Variable in Setting Sequence
NEXT KEY
• Scroll through Display Modes
• Adjust Variable in Setting Sequence
SELECT KEY
• Enter a Programming Sequence
• Set variable in Programming Sequence
• Switch from Fixed to Independent display modes
• Switch Active Line in Independent display mode
SS KEY (COMP ONLY)
• Start & Stop Chronograph & Interval Timer
• Reset Chronograph & Interval Timer
16
engl ish
17
engl ish
2. :Indicates
ACTIVE LINE.
MODES OF OPERATION MODES OF OPERATION

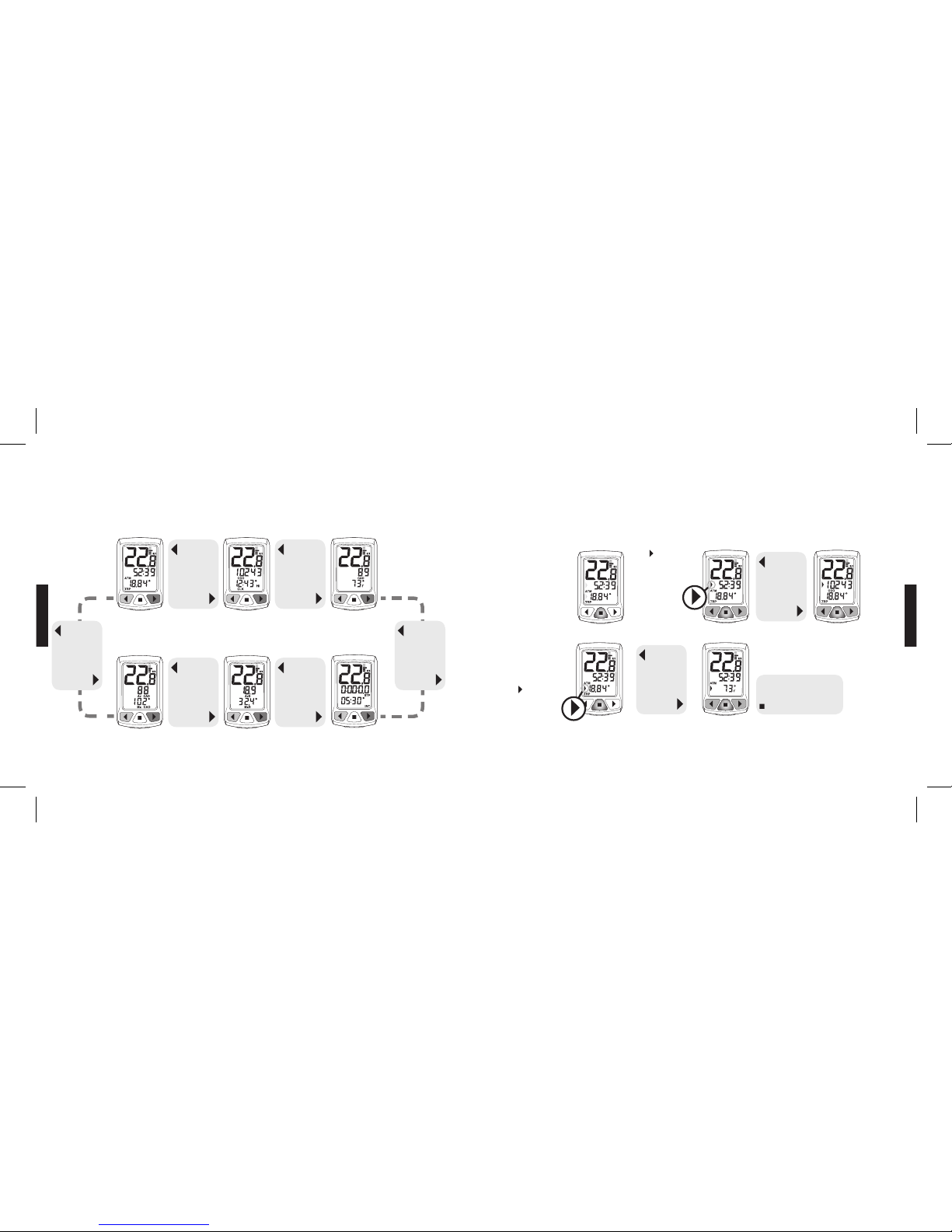

FIXED DISPLAY MODE
In FIXED display mode, MIDDLE and LOWER information lines are tied in display navigation. Scroll through display modes
by PRESSING the NEXT or PREV keys.
INDEPENDENT DISPLAY MODE
In INDEPENDENT display mode, MIDDLE and LOWER information lines can be navigated independent of each other. One
display line remains constant as you navigate through information of the ACTIVE LINE allowing you to pair any display
from the MIDDLE information line with any display from the LOWER information line.
To switch to INDEPENDENT display mode:
SPEED
RIDE TIME
TRIP DISTANCE
SPEED
ODOMETER
TIME OF DAY
SPEED
CADENCE
TEMPERATURE
SPEED
AVE. CADENCE
MAX. CADENCE
SPEED
AVERAGE SPEED
MAX. SPEED
SPEED
STOPWATCH
INTERVAL TIMER
(COMP ONLY)
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
PRESS
NEXT
PRESS
PREV
scroll through
DISPLAY
MODES
1. From any FIXED
display mode,
PRESS & HOLD
the SELECT key
for 2 seconds.
PRESS
NEXT
PRESS
PREV
scroll through
ACTIVE LINE
DISPLAYS
3. To switch ACTIVE
LINE: PRESS the
SELECT key.
:Indicates
ACTIVE LINE.
PRESS
NEXT
PRESS
PREV
scroll through
ACTIVE LINE
DISPLAYS
return to
FIXED DISPLAY MODE:
PRESS & HOLD
SELECT
18
engl ish
19
engl ish
PRESS
NEXT
PRESS
PREV
scroll through
SETTING
MODES
PROGRAMMING THE CYCLOCOMPUTER
PRIMARY SETTING SEQUENCE

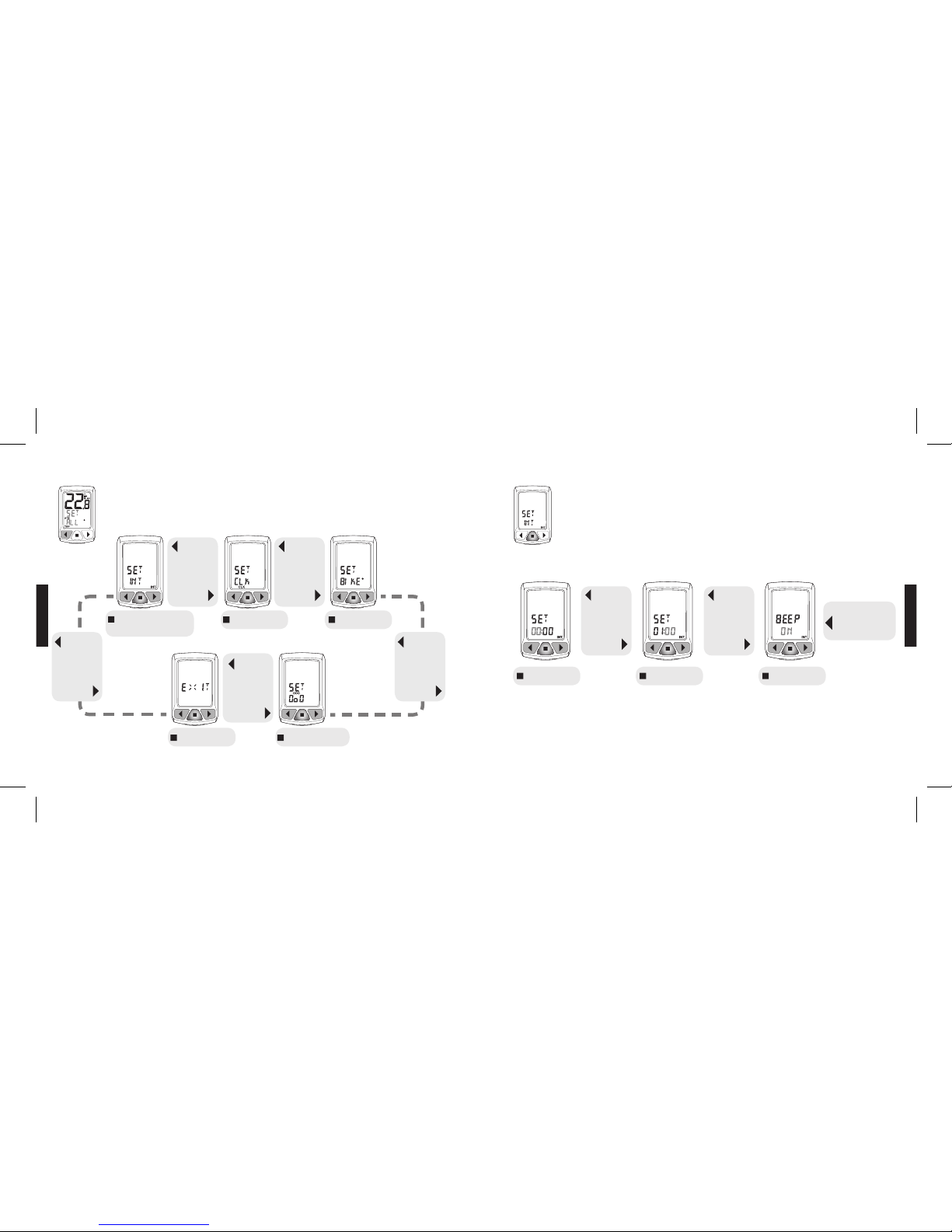

From any main mode screen PRESS & HOLD the PREV key to enter the primary setting sequence.
ADJUST the value being programmed by PRESSING the PREV (to increase) or NEXT (to decrease) keys.
SET the displayed value and advance to next variable by PRESSING the SELECT key.
PROGRAMMING THE CYCLOCOMPUTER
SET INTERVAL TIMER
PRESS SELECT
(
COMP ONLY)
SET CLOCK
PRESS SELECT
SET BIKE
PRESS SELECT
continue to
PRESS & HOLD
SETTING THE INTERVAL TIMER (COMP ONLY)
From the set interval timer screen PRESS the SELECT key to enter the set interval timer sequence.
ADJUST the value being programmed by PRESSING the PREV (to increase) or NEXT (to decrease) keys.
SET the displayed value and advance to next variable by PRESSING the SELECT key. ou may choose to
have an audible alarm (BEEP) at the completion of each Interval. Once set and started, the Interval timer
runs continuously until stopped.
NOTE:
PRESS & HOLD the SELECT key in any primary set screen to EXIT setting sequence and escape to main
operating mode.
NOTE: PRESS & HOLD the NEXT or PREV keys while adjusting a value to fast advance.
NOTE:
PRESS & HOLD the SELECT key in any primary set screen to EXIT setting sequence and escape to main
operating mode.
PRESS PREV
to return to
SET MENU
PRESS
NEXT
PRESS
PREV
scroll through
SETTING
MODES
SET ODOMETER
PRESS SELECT
EXIT
PRESS SELECT
PRESS
NEXT
PRESS
PREV
scroll through
SETTING
MODES
PRESS
NEXT
PRESS
PREV
adjust value
UP or DOWN
PRESS
NEXT
PRESS
PREV
adjust value
UP or DOWN
SET MINUTES
PRESS SELECT
SET SECONDS
PRESS SELECT
SET BEEP
PRESS SELECT
PRESS
NEXT
PRESS
PREV
scroll through
SETTING
MODES
PRESS
NEXT
PRESS
PREV
scroll through
SETTING
MODES
20
engl ish
21
engl ish
PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER
SETTING THE TIME

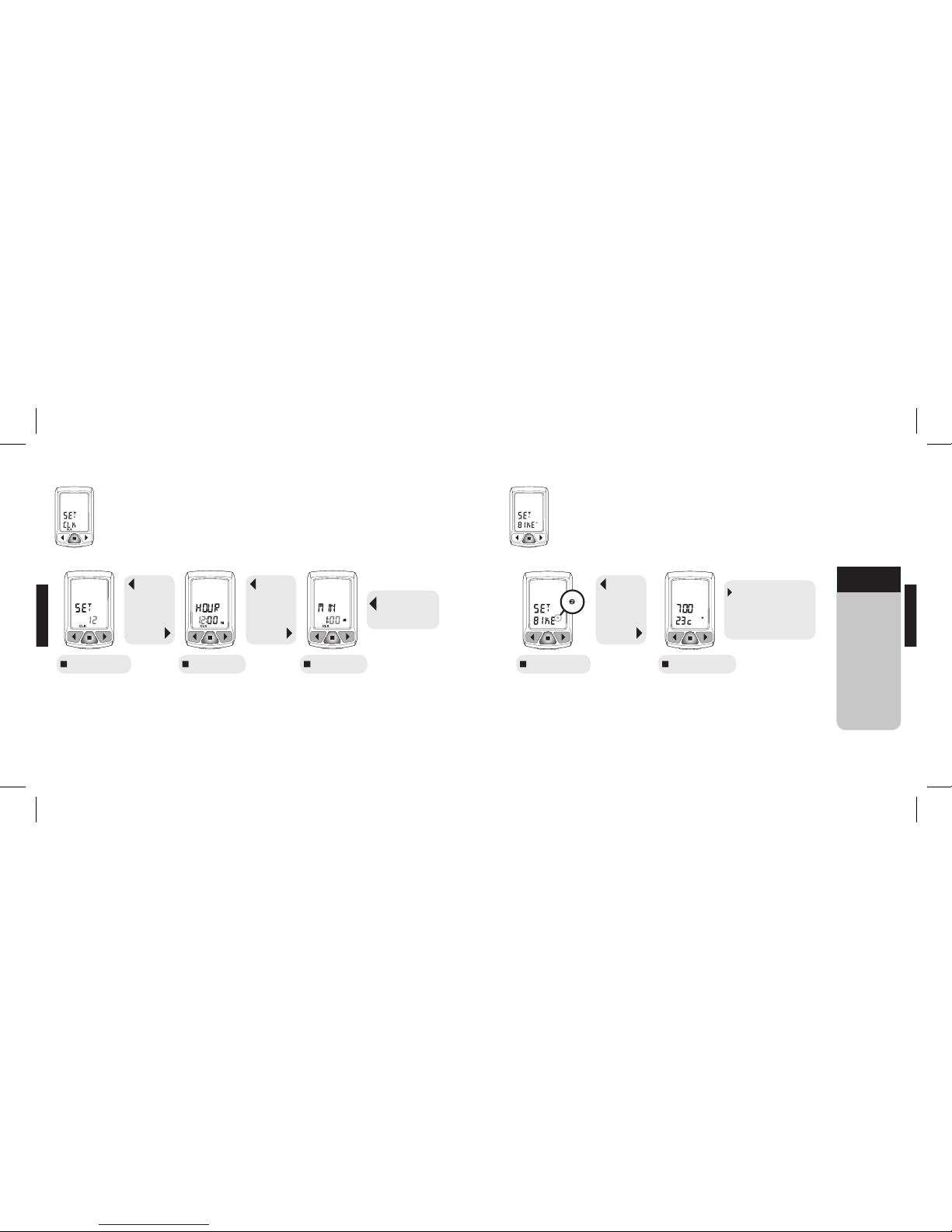

From the set clock screen PRESS the SELECT key to enter the set time sequence. ADJUST the value being
programmed by PRESSING the PREV (to increase) or NEXT (to decrease) keys. SET the displayed value
and advance to next variable by PRESSING the SELECT key.
NOTE:
PRESS & HOLD the NEXT or PREV keys while adjusting a value to fast advance in a
continuous loop.
SETTING WHEEL SIZE WITH PRE-PROGRAMMED VALUES
For easy setup, SpeedZone computers come with 14 pre-programmed wheel/tire sizes. Simply select the
size of your tire as you scroll through the list in the programming sequence and you are done.
From the SET BIKE screen PRESS the SELECT key to enter the setting sequence. Scroll through the
pre-programmed values by PRESSING the NEXT or PREV keys. Set the displayed value by PRESSING the
SELECT key.
NOTE: PRESS & HOLD the SELECT key in any primary set screen to EXIT setting sequence and escape to main
operating mode.
PRESS PREV
to return to
SET MENU
continue
PRESSING NEXT
to scroll through
pre-programmed sizes
and MANUALLY SET
WHEEL SIZE
PRESS
NEXT
PRESS
SELECT
adjust value
UP OR DOWN
PRESS
NEXT
PRESS
SELECT
adjust value
UP OR DOWN
SET 12/24 HOUR
PRESS SELECT
SET HOUR
PRESS SELECT
SET MINUTE
PRESS SELECT
PRESS
NEXT
PRESS
SELECT
select
BIKE 1/2
SET BIKE 1/2
PRESS SELECT
SET WHEEL SIZE
PRESS SELECT
26X1.0
26X1.25
26X1.95
26X2.0
26X2.1
26X2.2
26X2.3
650X20C
700X21C
700X23C
700X25C
700X28C
700X32C
700X35C
700X38C
Pre-programmed
wheel sizes
22
engl ish
23
engl ish
PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER
MANUALLY SETTING WHEEL SIZE

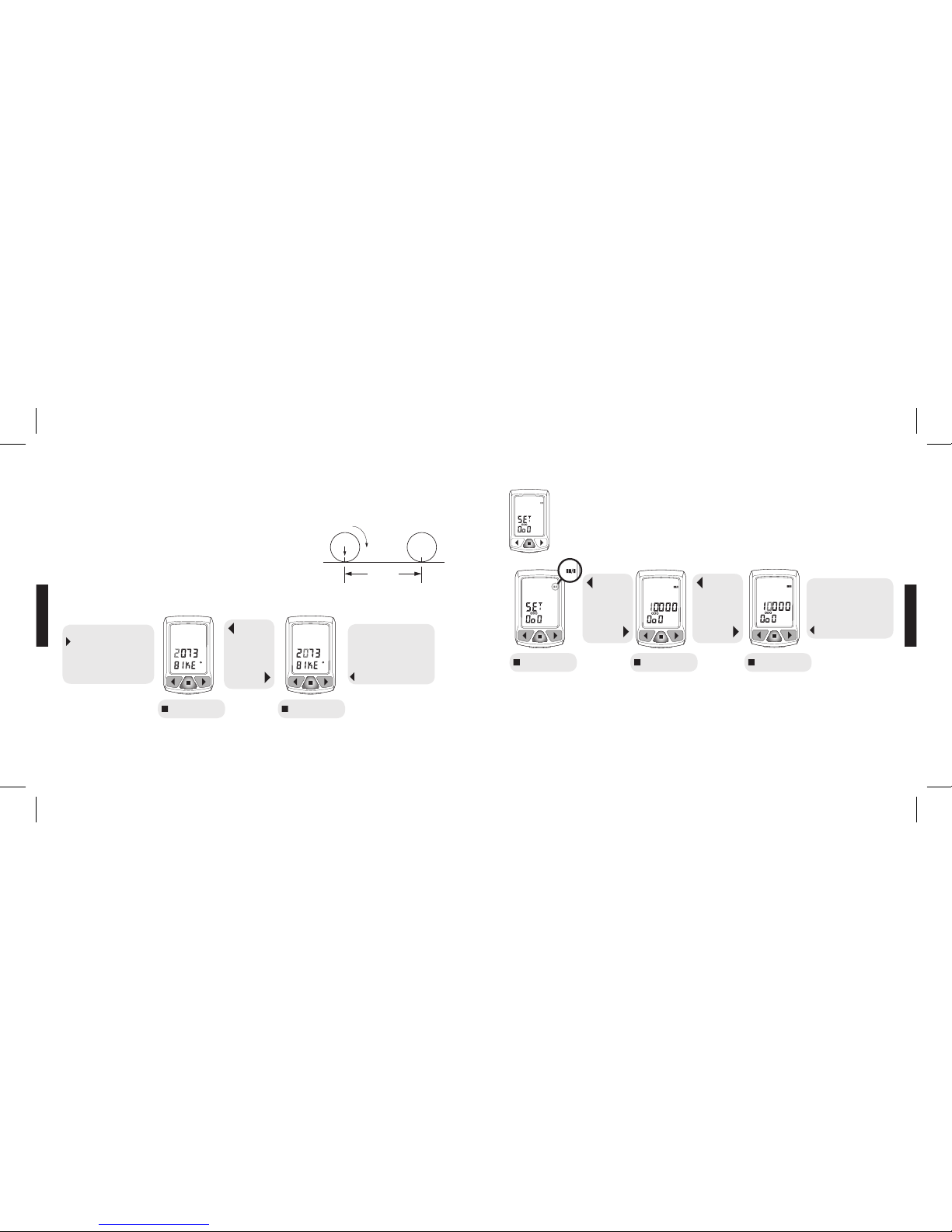

If your wheel/tire size is not one of the pre-programmed sizes, or if you desire absolute accuracy, you may enter an exact
wheel circumference into the system.
1. On a flat open surface make a mark on your tire and the floor exactly where
they meet.
2. Roll your bike forward one full revolution of the wheel and mark the point on
the floor where the revolution is complete.
3. Measure the distance from the first mark to the second in millimeters and enter
the resulting number into your computer using the following steps:
SETTING ODOMETER
SpeedZone Cycle Computers allow you to manually adjust the Odometer. From the SET ODO screen
PRESS the SELECT key to enter the setting sequence.
continue
PRESSING NEXT
to scroll through
pre-programmed sizes
and MANUALLY SET
WHEEL SIZE
continue
SETTING SEQUENCE
through all fields.
Return to MAIN
SET PROGRAM:
PRESS PREV
continue
SETTING SEQUENCE
through all fields.
Return to MAIN
SET PROGRAM:
PRESS PREV
NOTE: PRESS & HOLD the SELECT key in any primary set screen to EXIT setting sequence and escape to main
operating mode.
PRESS
NEXT
PRESS
SELECT
adjust value
UP OR DOWN
SET VALUE
PRESS SELECT
SET MPH/KPH
PRESS SELECT
PRESS
NEXT
PRESS
SELECT
adjust value
UP OR DOWN
PRESS
NEXT
PRESS
SELECT
adjust value
UP OR DOWN
SET VALUE
PRESS SELECT
SET VALUE
PRESS SELECT
SET VALUE
PRESS SELECT
24
engl ish
25
engl ish
SWITCH BETWEEN BIKE 1 / BIKE 2

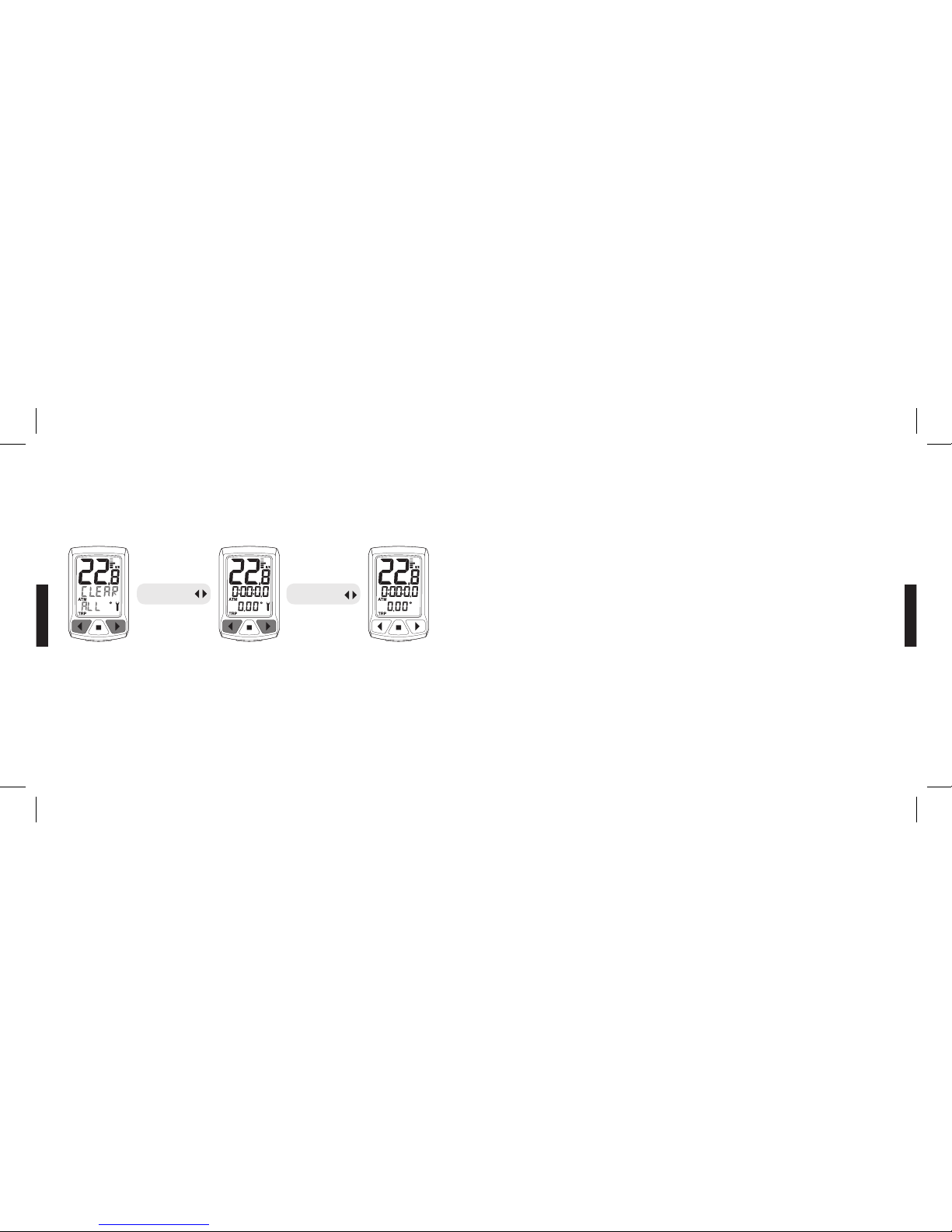

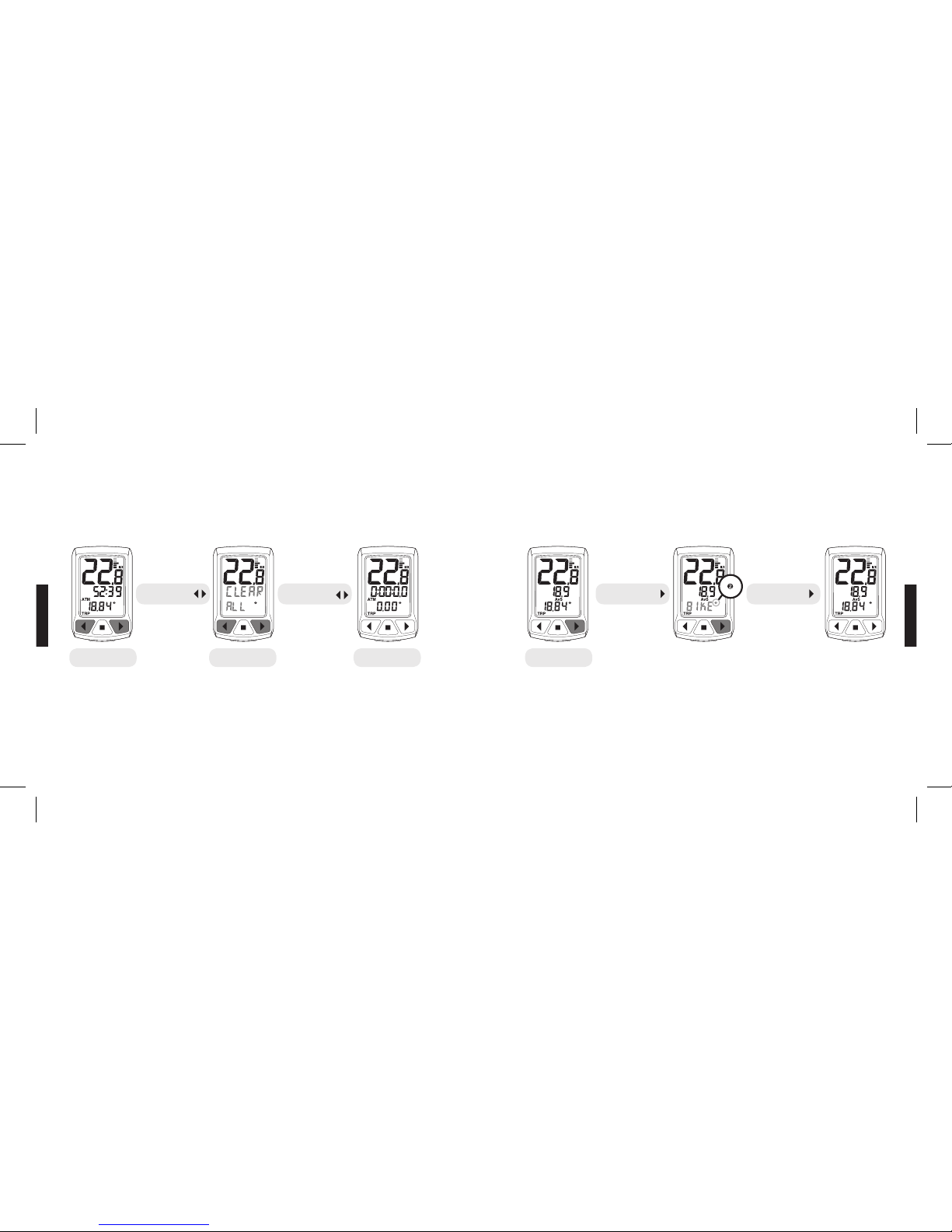

To reset the computer (to clear Ride Time & Trip Distance), from any operating mode screen PRESS & HOLD the PREV and
NEXT keys simultaneously to reset the cyclocomputer.
RESET THE CYCLOCOMPUTER
To switch between Bike 1 / Bike 2, from any operating mode screen PRESS & HOLD the NEXT key to switch between
Bike 1 / Bike 2.
PRESS & HOLD
.5 SEC
PRESS & HOLD
2 SEC
PRESS & HOLD
.5 SEC
PRESS & HOLD
2 SEC
MAIN MODE
SCREEN
MAIN MODE
SCREEN
RESET
SEQUENCE
SCREEN AFTER
REST
26
engl ish
27
engl ish
OPERATING THE INTERVAL TIMER (COMP ONLY)

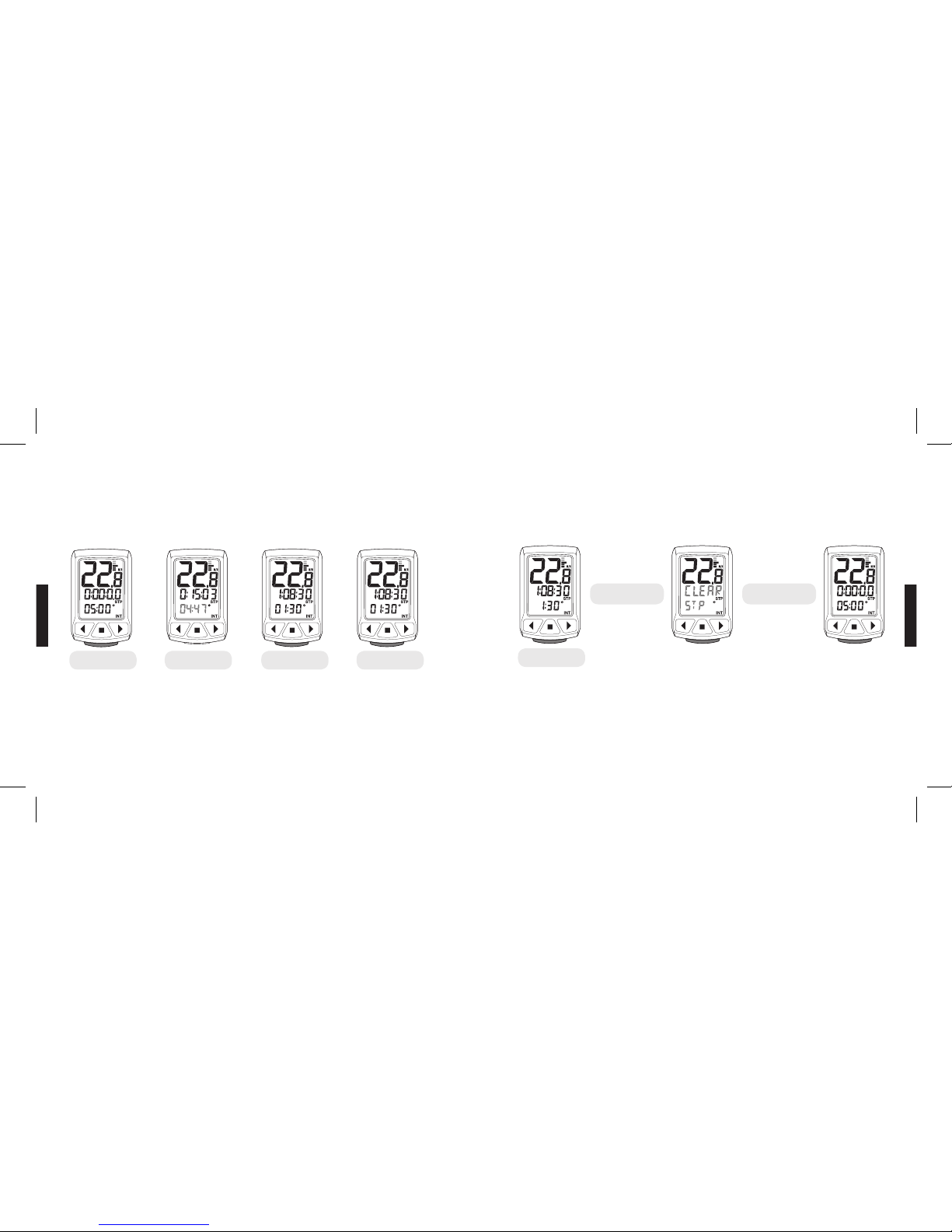

SpeedZone Comp Cycle Computers are equipped with a STOPWATCH / INTERVAL TIMER. The Stopwatch (STP) and
Interval Timer (INT) may be started, stopped and cleared only in Stopwatch (STP) mode.
The Interval Timer (
INT) is a countdown timer and will continue to repeat until stopped. At the completion of each
interval, the interval digits will flash on the display and if the BEEPER ALERT is set to ON it will sound.
OPERATING THE INTERVAL TIMER (COMP ONLY)
CLEARING THE STOPWATCH/ INTERVAL TIMER
The stopwatch and interval timer may be cleared by PRESSING & HOLDING the S/S key when the timer is stopped.
PRESS & HOLD S/S
2 SEC
PRESS & HOLD S/S
.5 SEC
START TIMING
PRESS S/S
STOP TIMING
PRESS S/S
RESUME TIMING
PRESS S/S
TIMING IN
PROGRESS
TIMER
STOPPED
28
engl ish
29
engl ish
RESET SERVICE REMINDER
The Service Reminder Icon will be displayed after 1500 miles have acculmulated on the units odometer. To reset the
Service Reminder Icon, from any main mode screen PRESS & HOLD the PREV and NEXT keys simultaneously.
SPECIFICATIONS AND RANGES
TIME OF DAY
• 24 hours with one minute resolution
• Functional in either 12 or 24 hour formats
• Default value = 12:00.00 PM, January 1, 2006
ODOMETER
• 99999 miles or kilometers
• 1 mile or 1 kilometer resolution
WHEEL SIZE
• 14 pre-programmed wheel sizes
• Wheel circumference measured in millimeters
SPEED
• 0-99.9 MPH or KPH
• 0.1 MPH or KPH resolution
CADENCE
• 0-250 RPM with 1 RPM resolution
TEMPERATURE
• -50°F to 130°F (-45.5°C to 54.5°C)
• 1°F to 0.5°C resolution
STOPWATCH CHRONOGRAPH
• 9h 59m 59s individual timing session
• 1 second resolution
INTERVAL COUNTDOWN TIMER
• 59m 59s individual timing session
• 1 second resolution
PRESS & HOLD
2 SEC
PRESS & HOLD
5 SEC
30
engl ish
31
engl ish
TROUBLESHOOTING
DISPLAY IS BLANK: Change the battery or reset the
computer (see page 15).
DISPLAY SHOWS PARTIAL DIGITS: Reset the computer.
SPEED/DISTANCE NOT RECORDING: Check sensor/mag
net alignment. Make sure that the sensor is no more than
1/16" (2mm) from the magnet.
ENTIRE SCREEN IS DARK: Did you have the bike parked in
the hot direct sun when it was parked? If so, move the bike
to the shade. The data will be OK.
COMPUTER MOVES ON HANDLEBAR: Tighten tie straps or
add sizing straps to improve fit on handlebar.
IMPORTANT
• Pay attention to traffic and road conditions at all times.
Your first obligation is to be attentive and to ride
safely.
• Keep your computer in good shape and use it safely.
• Do not expose the computer to direct sunlight except
when you are riding.
• Do not disassemble the computer.
• Make sure the magnet and the transmitter are well
aligned and check them regularly
• Keep the computer and all of its components tightly
attached and check them regularly. If any of the
components come loose, it could become tangled in
your spokes and cause and accident.
• See your authorized Specialized dealer if you have any
trouble installing or maintaining your computer.
• Clean the unit with a mild detergent and a soft dry
cloth. Never use any kind of solvent or alcohol.
• The SpeedZone Comp/Elite Cyclocomputer is intended
for use on bicycles only and should not be used on any
motorized vehicle.
WARRANTY INFORMATION
Specialized cycling computers are guaranteed to be free from defects in materials and/or workmanship (excluding
battery) for a period of two years from the date of purchase. Specialized will, at its option, repair or replace your defective
computer.
To recieve warranty service send the unit, a copy of the sales receipt and a brief description of the problem to:
Specialized Bicycle Components Inc.
15130 Concord Circle
Morgan Hill, CA 95037
ATTN: Product Services/Computer Warranty
SpeedZone is a registered trademark of Specialized Bicycle Components Inc.
© 2007 Specialized Bicycle Components Inc.
WWW.SPECIALIZED.COM
Loading...
