INSTRUCTION GUIDE SHIV

Page 2

Page 3

THIS INSTRUCTION GUIDE CONTAINS IMPORTANT INFORMATION.

PLEASE READ CAREFULLY AND STORE IN A SAFE PLACE.

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

HARDWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GEOMETRY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

CHAPTER 1: FORK / STEM / HANDLEBAR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CHAPTER 2: HANDLEBAR EXTENSION / RISER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CHAPTER 3: CABLE HOUSING / WIRE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CHAPTER 4: BRAKE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CHAPTER 5: SEATPOST INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

CHAPTER 6: FUELSELAGE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

1.1 INSTALLING THE FORK INTO THE STEERER TUBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 INSTALLING THE CARBON AERO HANDLEBAR ON THE AERO STEM . . . . . . . . . . . . . . . . . . 7

1.3 INSTALLING THE ALLOY HANDLEBAR WITH A STANDARD 31.8MM STEM . . . . . . . . . . . . . 8

1.4 INSTALLING THE EXPANDER PLUG AND TOP CAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 INSTALLING THE EXTENSION RISERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 INSTALLING THE CLAMPS, EXTENSIONS AND ARM PADS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 ADJUSTING THE CLAMPS, EXTENSIONS AND ARM PADS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1 INSTALLING THE BRAKE CABLE HOUSINGS AND SHIFTER WIRES . . . . . . . . . . . . . . . . . . . . 14

3.2 ROUTING THE DERAILLEUR CABLES / WIRES AT THE BOTTOM BRACKET . . . . . . . . . . . . 16

3.3 Di2 WIRING LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

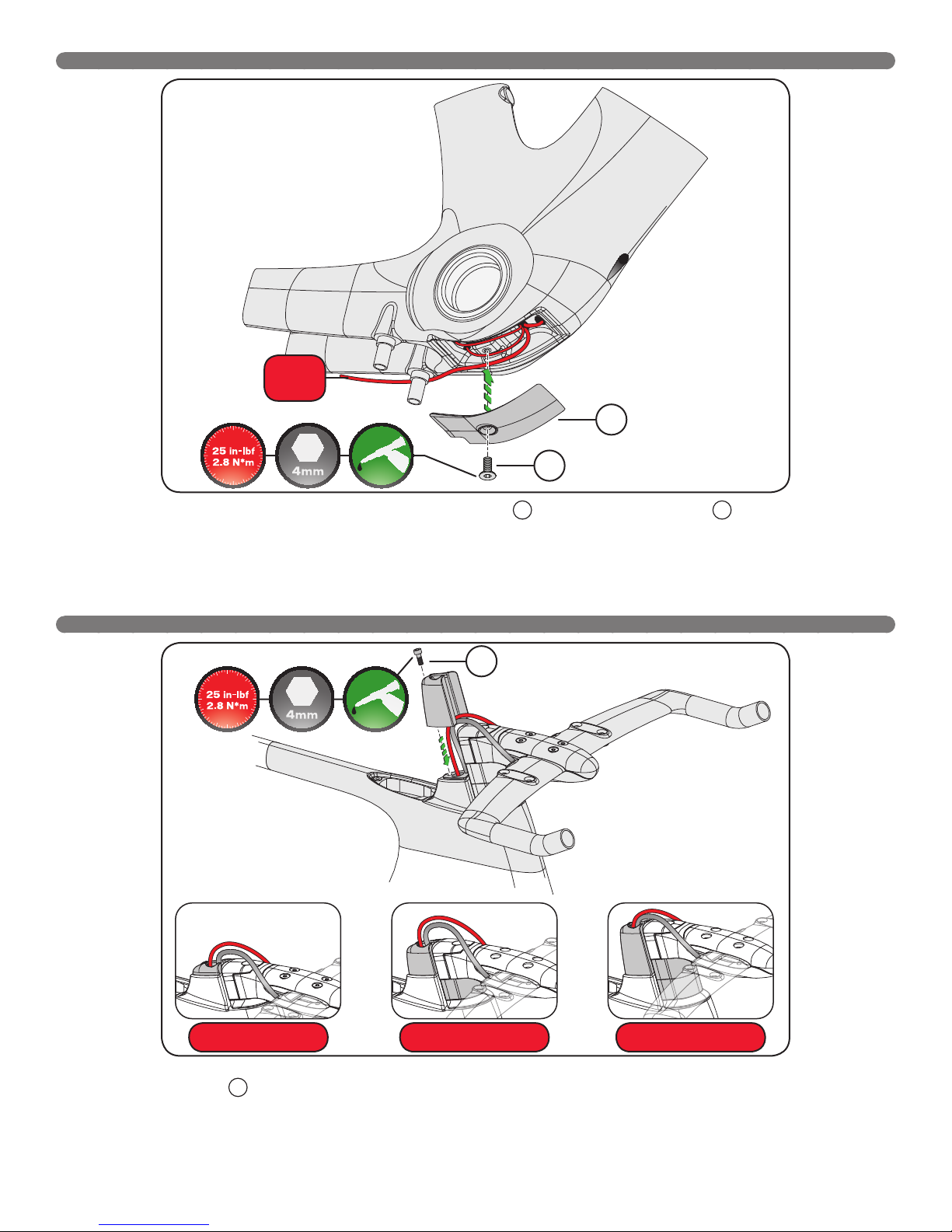

3.4 INSTALLING THE CABLE ROUTING COVER PLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.5 INSTALLING THE CABLE ROUTING CONTROL TOWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

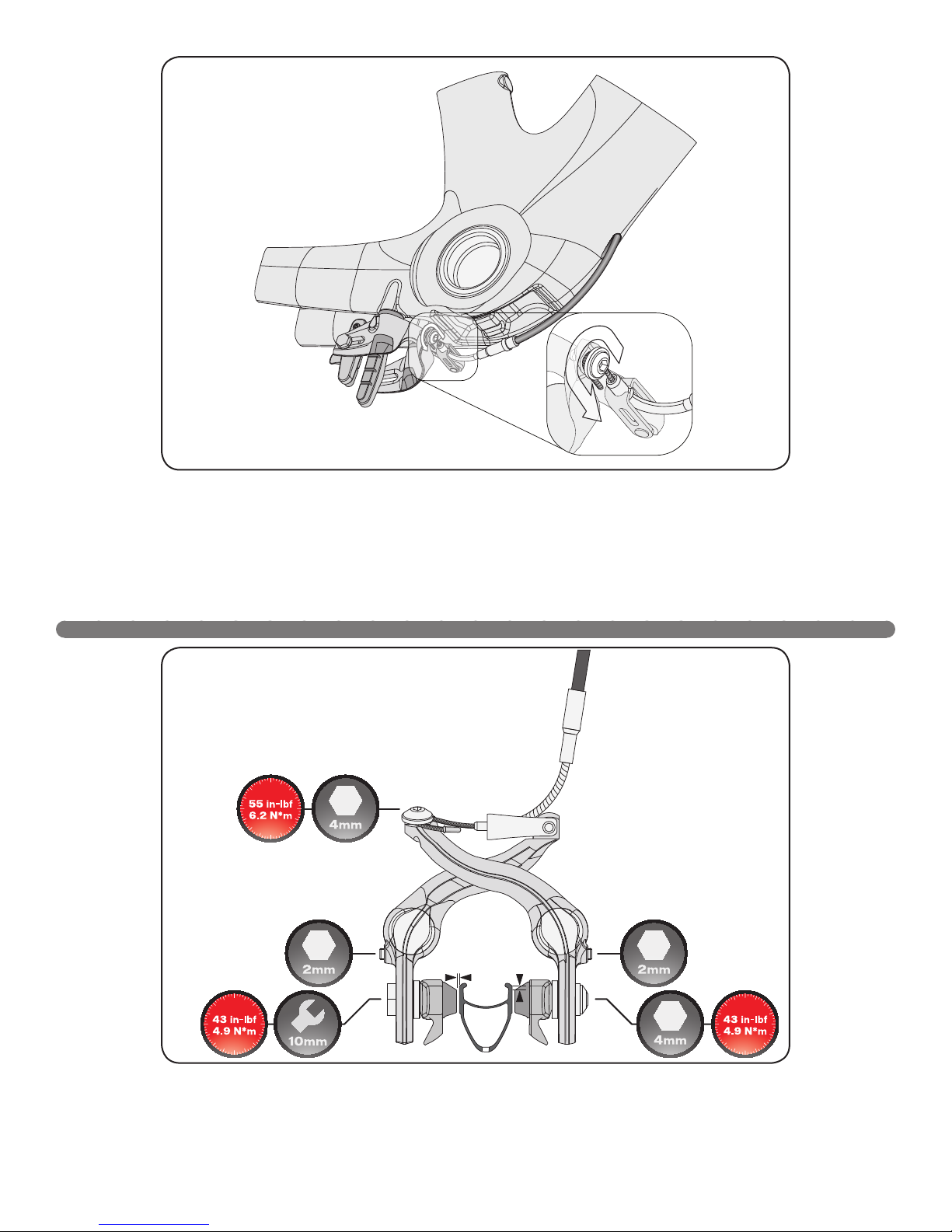

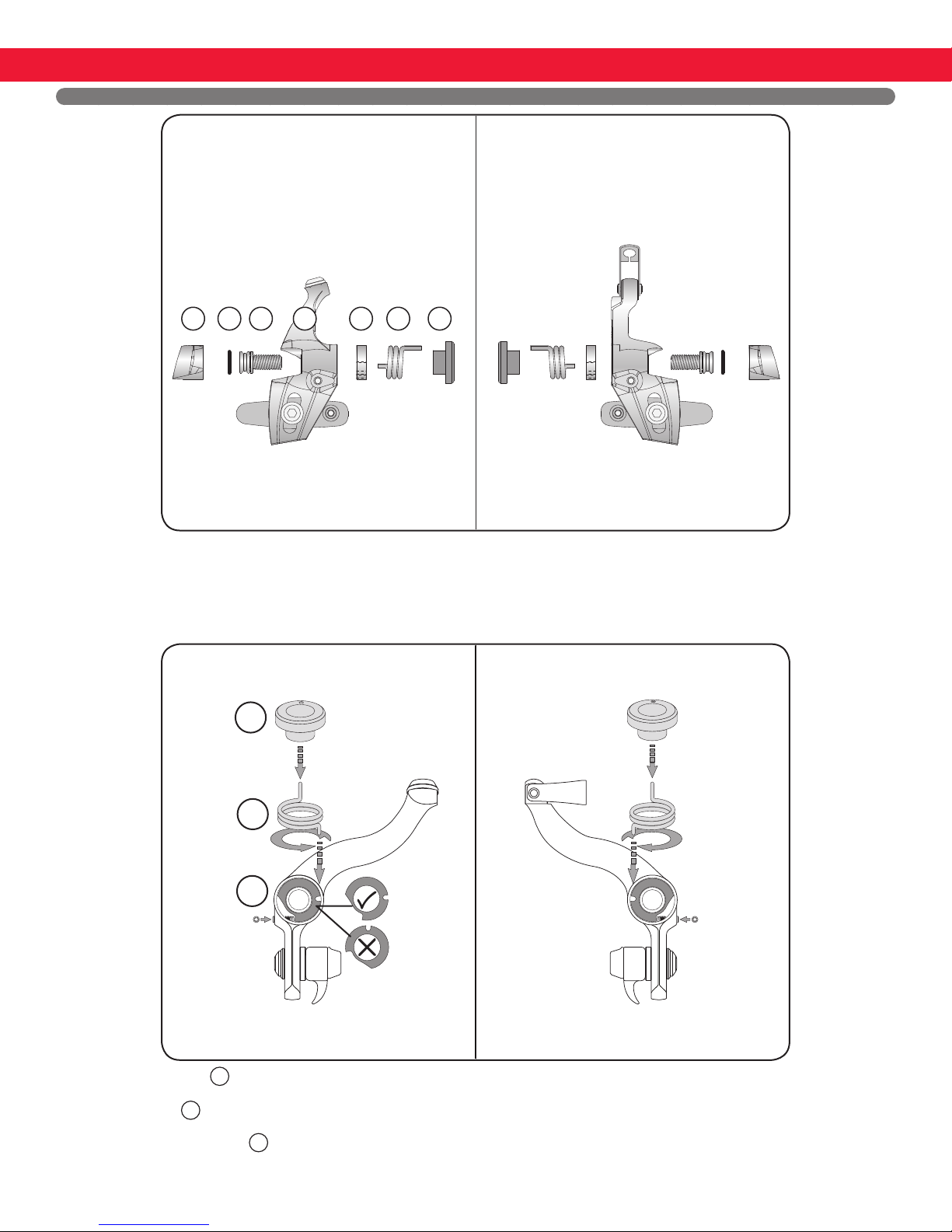

4.1 FRONT AND REAR BRAKE ASSEMBLY (Exploded view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

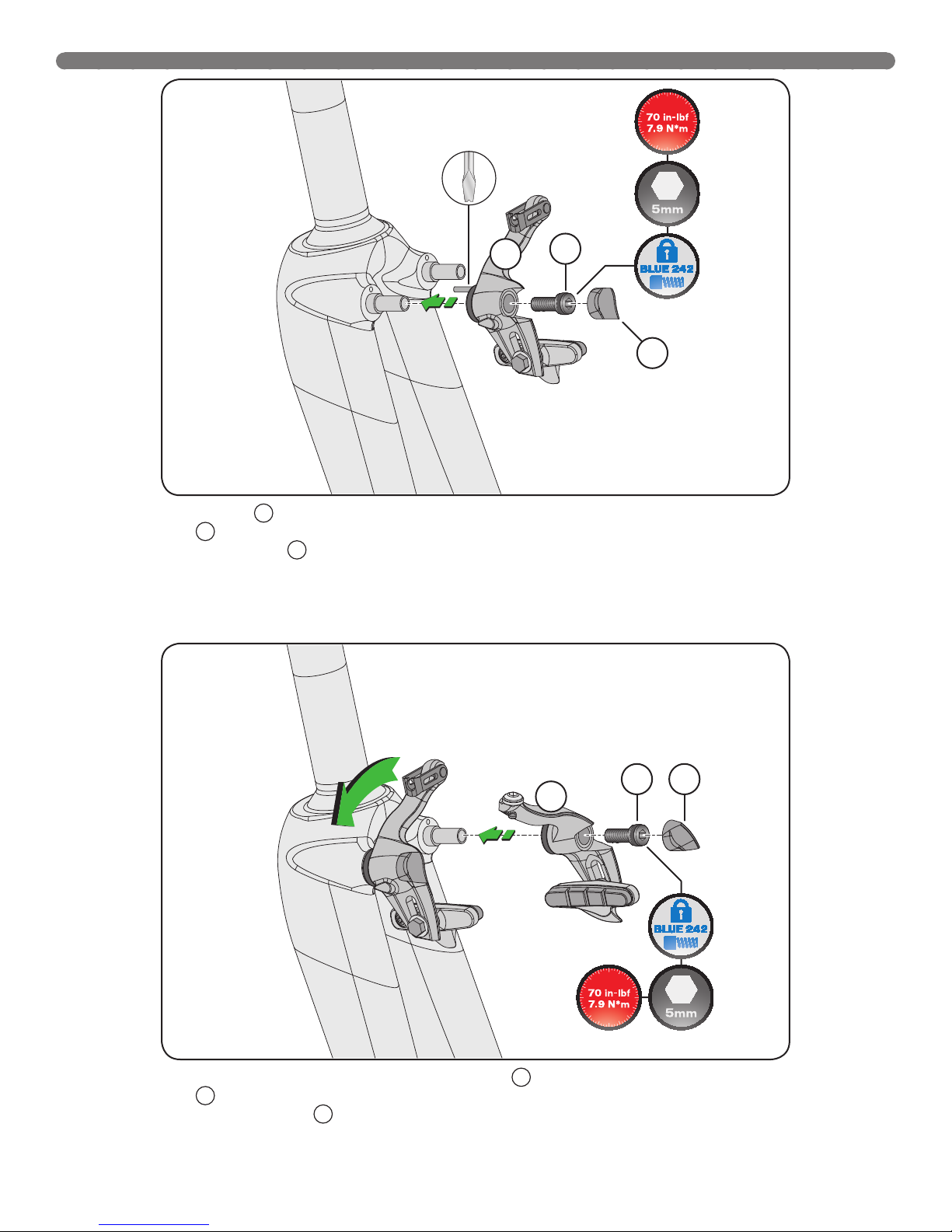

4.2 INSTALLING THE FRONT BRAKE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.3 INSTALLING THE REAR BRAKE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4 ADJUSTING THE FRONT AND REAR BRAKE ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1 INSTALLING AND ADJUSTING THE SHIV SEATPOST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.2 SEATPOST SETBACK OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

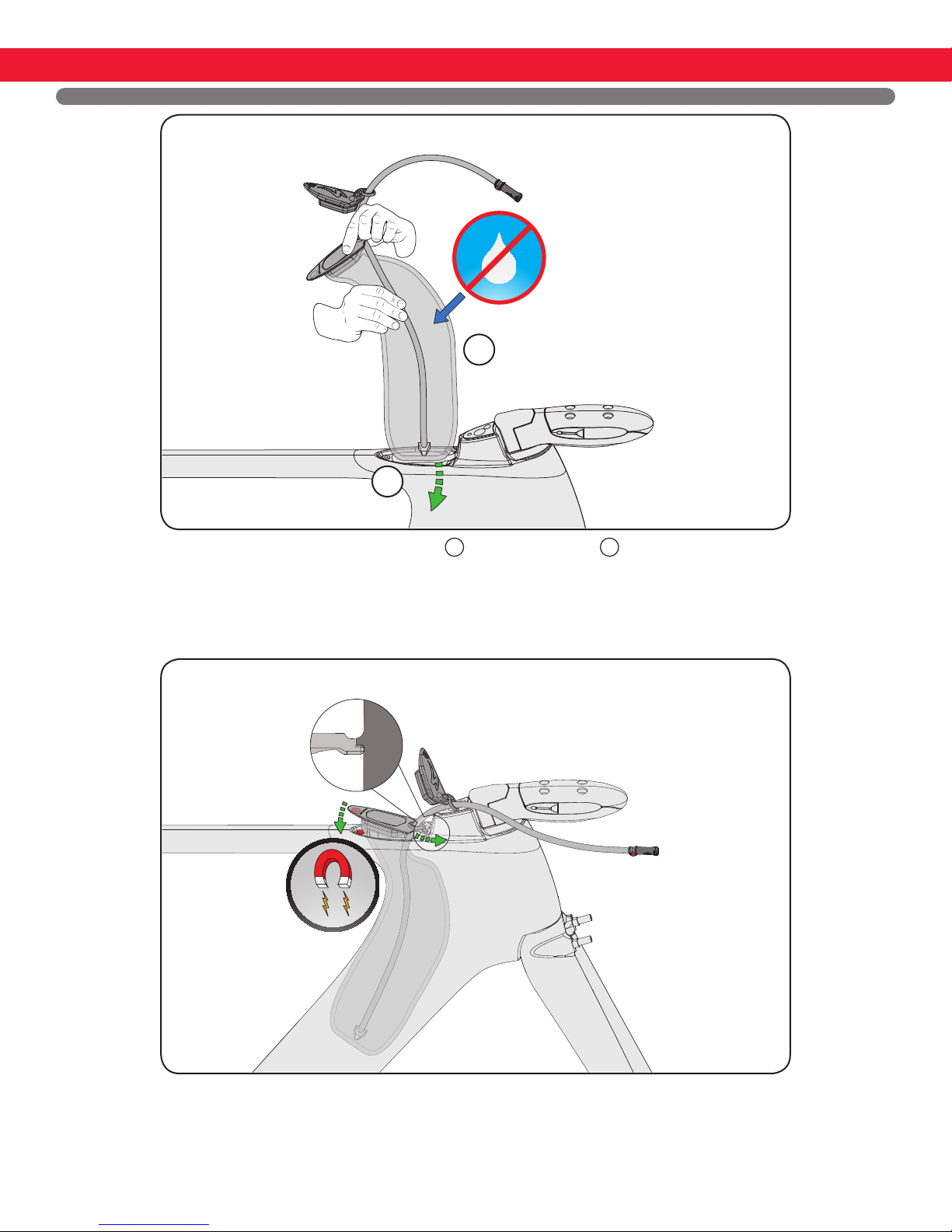

6.1 INSTALLING THE FUELSELAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6.2 INSTALLING THE SILICONE STRAP/MAGNET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

INTRODUCTION

WARNING! Failure to follow these instructions may result in a catastrophic failure of the frame and/or its components while riding, which may result in serious personal injury or death.

WARNING! Bicycle assembly is a complicated task which requires training and experience. Do not attempt installation of any component if you do not have experience and training as a bicycle mechanic. Failure to follow this warning may result in serious personal injury or death. Reference should also be made to Barnett’s or some other comprehensive bicycle manual.

WARNING! Failure to follow the torque speciﬁcations in this guide will void your warranty, but most importantly may result in damage to the frame or components which may not be visible. If the frame or any components are damaged, this can result in loss of structural integrity, which may result in serious personal injury or death. To ensure the best assembly possible and to prevent any damage to the frame and components, follow all torque speciﬁcations.

TOOLS REQUIRED

 2, 2.5, 3, 4, 5, 6mm Allen keys  3, 4, 5, 6mm socket-style Allen keys  10mm wrench  Torque wrench

FRAME PREPARATION

CAUTION: Do not face or ream the bottom bracket shell! This can possibly prevent proper installation of the crank. Your Specialized frame does not require any bottom bracket shell pre-installation preparation, as all surfaces have been precisely machined to speciﬁc tolerances at the factory for proper interface with the S-Works Carbon crankset.

WARNING! Great care should be taken to not damage carbon ﬁber or composite material. Any damage may result in a loss of structural integrity, which may result in a catastrophic failure. This damage may or may not be visible in inspection. Before each ride, and after any crash, you should carefully inspect your bicycle for any fraying, gouging, scratches through the paint, chipping, bending, or any other signs of damage. Do not ride if your bicycle shows any of these signs. After any crash, and before you ride any further, take your bicycle to a Specialized Authorized Dealer for a complete inspection.

SUPPLEMENTAL DOCUMENTATION

For additional instructions, please refer to the Carbon Crank Instruction Guide IG0338 and Shimano guide SM-EW79A-I, document SI-0100A, or

techdocs.shimano.com for all Shimano guides. A video is also available at http://vimeo.com/specializedgss/shiv-install.

WARRANTY

For the complete warranty provisions, please refer to www.specialized.com.

SPECIALIZED BICYCLE COMPONENTS

15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229 IG0382 Rev.A, September 2011

 High-quality grease  Blue threadlocker (Loctite 242)  Cable and housing cutters  Flathead screwdriver (notched)

Please note all instructions are subject to change for improvement without notice. Please visit www.specialized.com for periodic tech updates. Feedback: techdocs@specialized.com

Page 1 of 25

Page 4

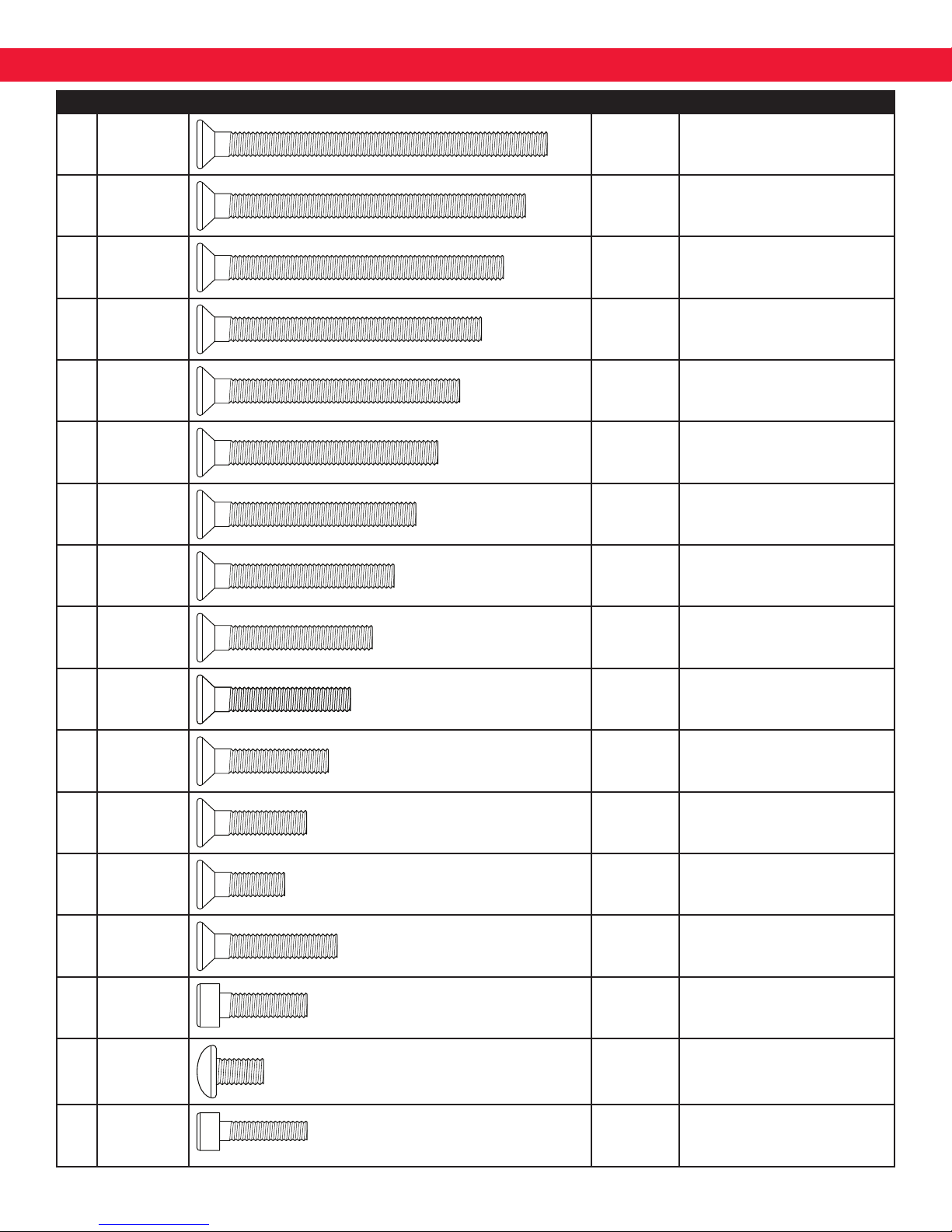

HARDWARE

QTY SIZE BOLT SHAPE (to scale) ALLEN KEY USE WITH

4 M6 x 80mm 4mm Alloy handlebar: 50mm risers

4 M6 x 75mm 4mm Alloy handlebar: 45mm risers

4 M6 x 70mm 4mm

4 M6 x 65mm 4mm

4 M6 x 60mm 4mm

4 M6 x 55mm 4mm

4 M6 x 50mm 4mm

4 M6 x 45mm 4mm

4 M6 x 40mm 4mm

4 M6 x 35mm 4mm

Carbon handlebar: 50mm risers

Alloy handlebar: 40mm risers

Carbon handlebar: 45mm risers

Alloy handlebar: 35mm risers

Carbon handlebar: 40mm risers

Alloy handlebar: 30mm risers

Carbon handlebar: 35mm risers

Alloy handlebar: 25mm risers

Carbon handlebar: 30mm risers

Alloy handlebar: 20mm risers

Carbon handlebar: 25mm risers

Alloy handlebar: 15mm risers

Carbon handlebar: 20mm risers

Alloy handlebar: 10mm risers

Carbon handlebar: 15mm risers

Alloy handlebar: 5mm risers

4 M6 x 30mm 4mm

4 M6 x 25mm 4mm Carbon handlebar: 5mm risers

4 M6 x 20mm 4mm Carbon handlebar: 0mm risers

4 M6 x 32mm 4mm Stem cap to stem base

2 M6 x 20mm 5 Extension clamps

4 M6 x 10mm 4mm Arm pads

3 M5 x 20mm 4mm Seat collar x 2,Control Tower x 1

Carbon handlebar: 10mm risers

Alloy handlebar: 0mm risers

Page 2 of 25

Page 5

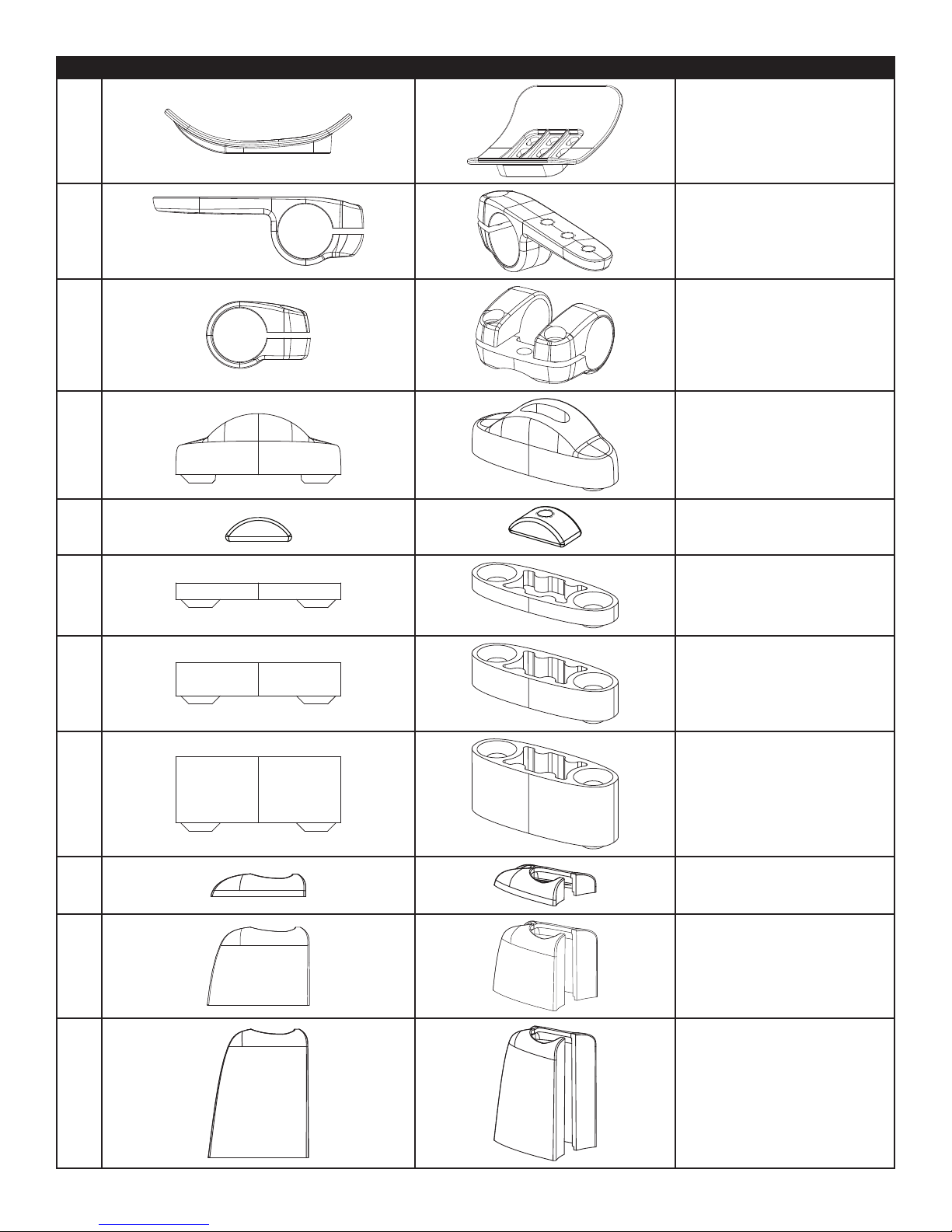

QTY ITEM SIDE VIEW ITEM ANGLED VIEW ITEM DESCRIPTION

2 Arm pad holder

2 Pad holder clamp

2 Extension riser clamp

2 Extension riser cap

2 Extension riser cap nut

2 5mm extension riser

2 10mm extension riser

4 20mm extension riser

1 Small Control Tower

1 Medium Control Tower

1 Large Control Tower

Page 3 of 25

Page 6

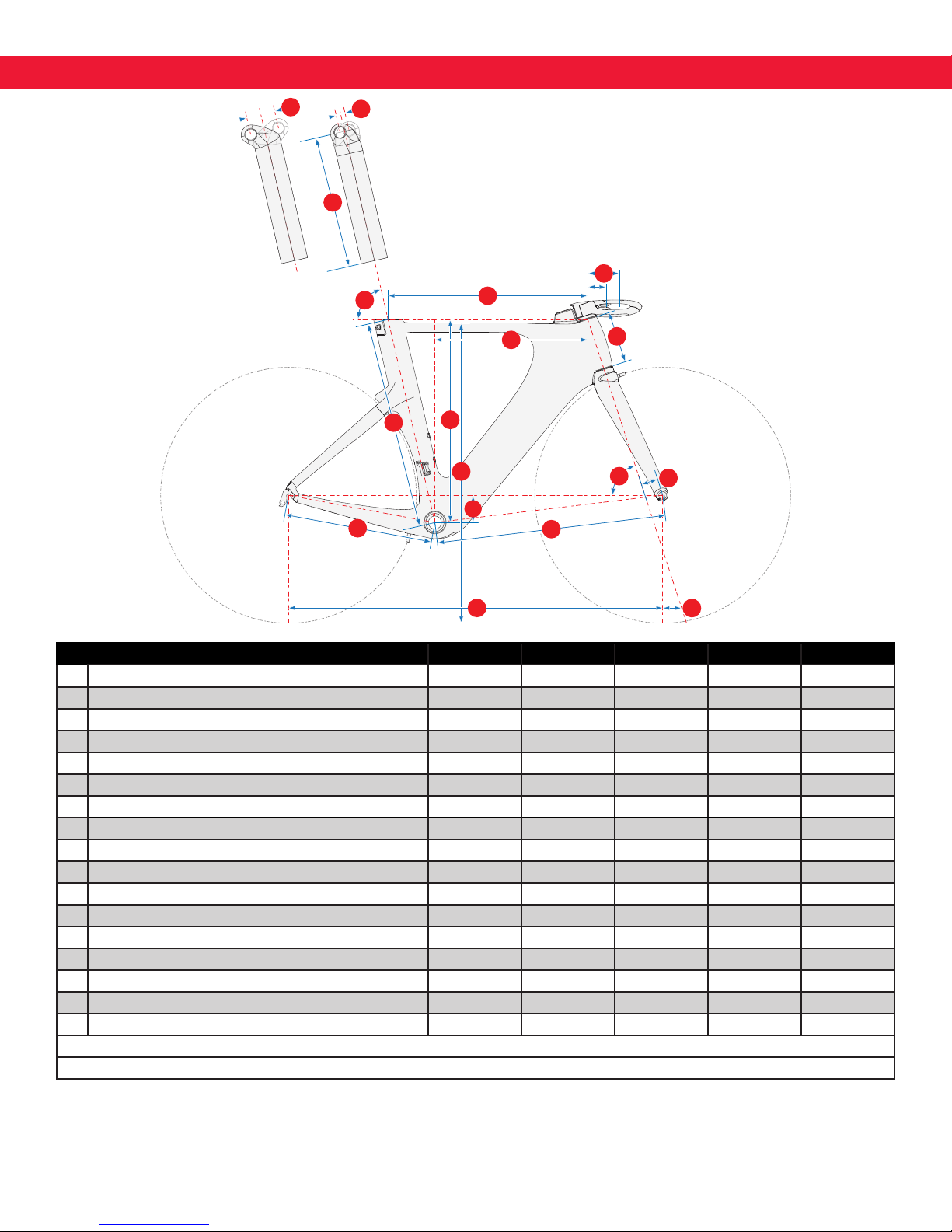

GEOMETRY

SIZE X-SMALL SMALL MEDIUM LARGE X-LARGE

1 Frame Reach (mm) 365 385 405 425 445

2 Frame Stack (mm) 495 515 540 565 590

3 Stem Length, -18° Horizontal (mm) * 60 / 90 60 / 90 60 / 90 60 / 90 60 / 90

4 Seat Tube Length, BB Center to Top (mm) 505 525 551 577 603

5 Top Tube Length (mm) 481 504 530 557 582

6 B-B Drop (mm) 72 72 72 72 72

7 Chain-Stay Length (mm) 395 395 395 395 395

8 Seat-Tube Angle (°) 77 77 77 77 77

9 Head-Tube Angle (°) 70.25 71.5 72 72.5 72.5

10 Fork Rake (mm) 50 50 45 45 45

11 Trail (mm) 69 61 63 60 60

12 Front-Center (mm) 573 589 608 631 659

13 Wheelbase (mm) 957 973 992 1016 1043

14 Stand-Over Height (mm) 752 772 797 822 847

15 Head-Tube Length (mm) 99 115 139 163 189

16 Seat Post Setback (mm) ** +/- 12.5 / 37.5 +/- 12.5 / 37.5 +/- 12.5 / 37.5 +/- 12.5 / 37.5 +/- 12.5 / 37.5

17 Seat-Post Length (mm) 350 350 350 350 350

* 60mm or 90mm length options are for the Specialized aero stem.

** Two seatpost options available. +/- 12.5mm or +/- 37.5mm

Page 4 of 25

Page 7

THIS PAGE INTENTIONALLY LEFT BLANK

Page 5 of 25

Page 8

CHAPTER 1: FORK / STEM / HANDLEBAR INSTALLATION

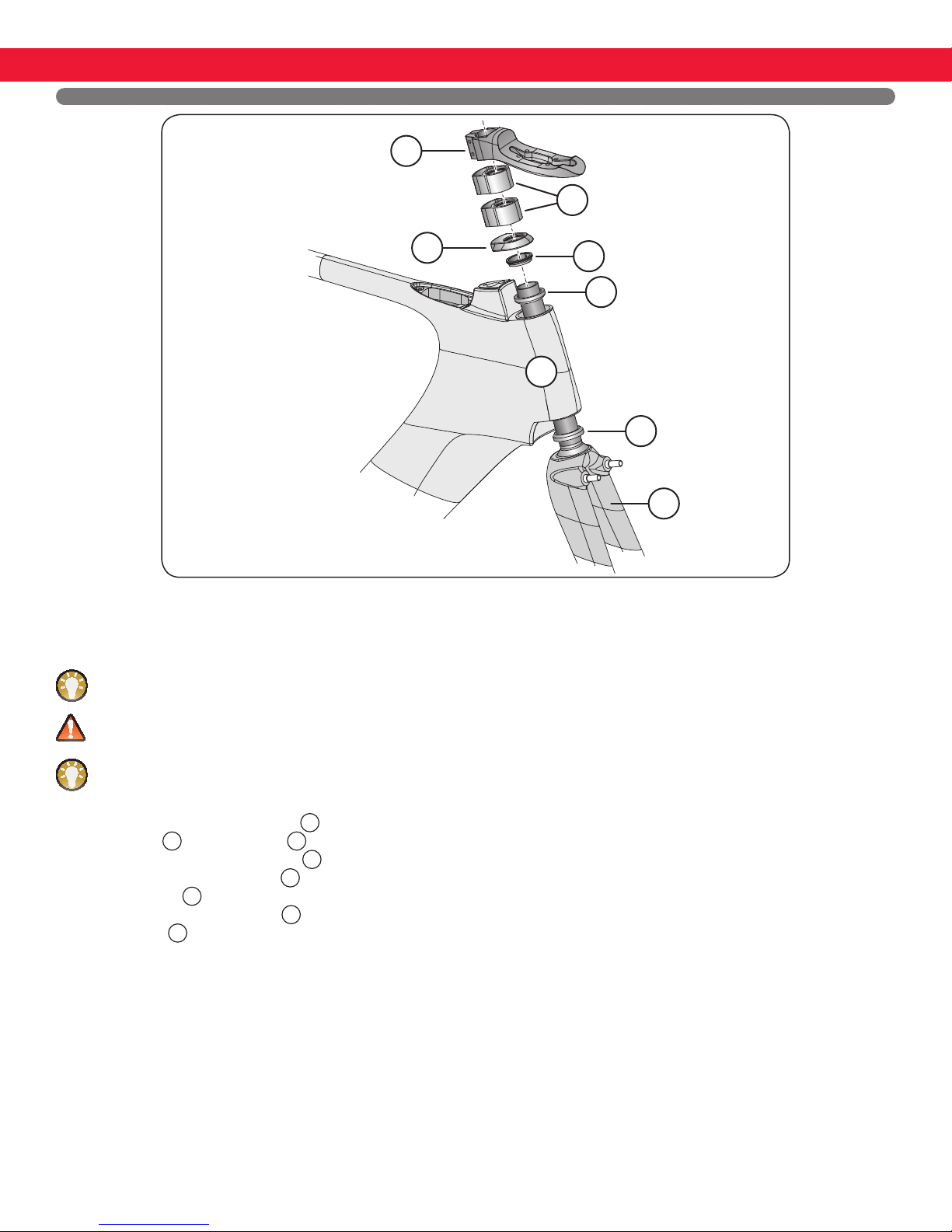

1.1 INSTALLING THE FORK INTO THE STEERER TUBE

Specialized Shiv frames are designed in conjunction with the Specialized aero stem/handlebar combo or a 1 1/8” x 31.8mm standard stem with the Specialized alloy aero handlebar. The Specialized aero handlebars work speciﬁcally with the handlebar risers and extensions to offer the greatest range of position adjustment.

When using a Specialized aero stem or a Specialized Multi-Position 1 1/8 x 31.8mm stem, Specialized strongly recommends following the speciﬁc instructions below to guarantee the best build possible.

TECH TIP:

Before starting the assembly of the bike, install the seatpost in the frame as shown in Chapter 5.

WARNING! When placing the bicycle in a repair stand, clamp the seatpost using a frame clamp speciﬁcally designed for thin-wall carbon tubes (for example, the Park Tools 100-X4 Extreme Range Clamp). Clamping the seatpost with a standard clamp can cause damage to the seatpost that may or may not be visible. Do not clamp the frame tubes.

TECH TIP: position for assembly (2 x 25mm steerer tube spacers), then cut the fork to the desired height once the build is complete and the bike has been ﬁt to the rider.

1. Install the lower 1 1/8” cartridge bearing A on the steerer tube of the fork.

2. Install the fork B into the head tube C of the Shiv frame and settle the bearing into the base of the head tube.

3. Install the upper 1 1/8” cartridge bearing D on the steerer tube of the fork and settle the bearing into the top of the head tube.

4. Install the bearing compression ring E over the bearing.

5. Install the top cap F over the compression ring.

6. Install 2 x 25mm head tube spacers G onto the steerer tube.

7. Install the stem H that will be used to build the bike onto the steerer tube. This is important to make sure the steerer tube is cut to the correct length.

8. Mark the steerer tube directly above the stem, then remove the fork from the steerer tube. Make a 2nd mark 2mm below the original mark.

9. Place a steerer tube cutting guide tool on the steerer tube, with the guide slot aligned with the 2nd mark. Double-check the measurement, so that the mark is 2mm below the top of the stem with 2x25mm spacers installed below the stem.

10. Cut the steerer tube (using a carbon cutting blade, or a blade with a minimum 36 teeth) at the cut mark, remove the tool, then remove any burrs from

the top of the steerer using a ﬁne grit sandpaper.

11. Repeat steps 1 through 7.

For the initial setup, since the proper height is not yet determined, it is recommended to cut the steerer tube at the highest

Page 6 of 25

Page 9

1.2 INSTALLING THE CARBON AERO HANDLEBAR ON THE AERO STEM

90mm

60mm

SPECIALIZED AERO STEM:

12. Determine the desired stem length (60 or 90mm) and install the carbon aero handlebar I along with the handlebar position wedge J.

TECH TIP: to 90mm position will require that the cable housings be replaced with longer ones to accommodate the additional stem length. It’s easier to trim cable housings to a shorter length if adjusting from the 90mm to the 60mm position.

If the stem length is not yet determined, it’s recommended to start at the 90mm position. Changing the stem from the 60mm

13. Install the stem’s upper section K and four bolts L (M6x32mm, 4mm countersunk Allen hex head).

14. Alternate the torque to the stem bolts in 5 in-lbf (0.6 N*m) increments, up to a ﬁnal torque setting of 80 in-lbf (9.0 N*m), to ensure an even load

distribution to the handlebar.

Page 7 of 25

Page 10

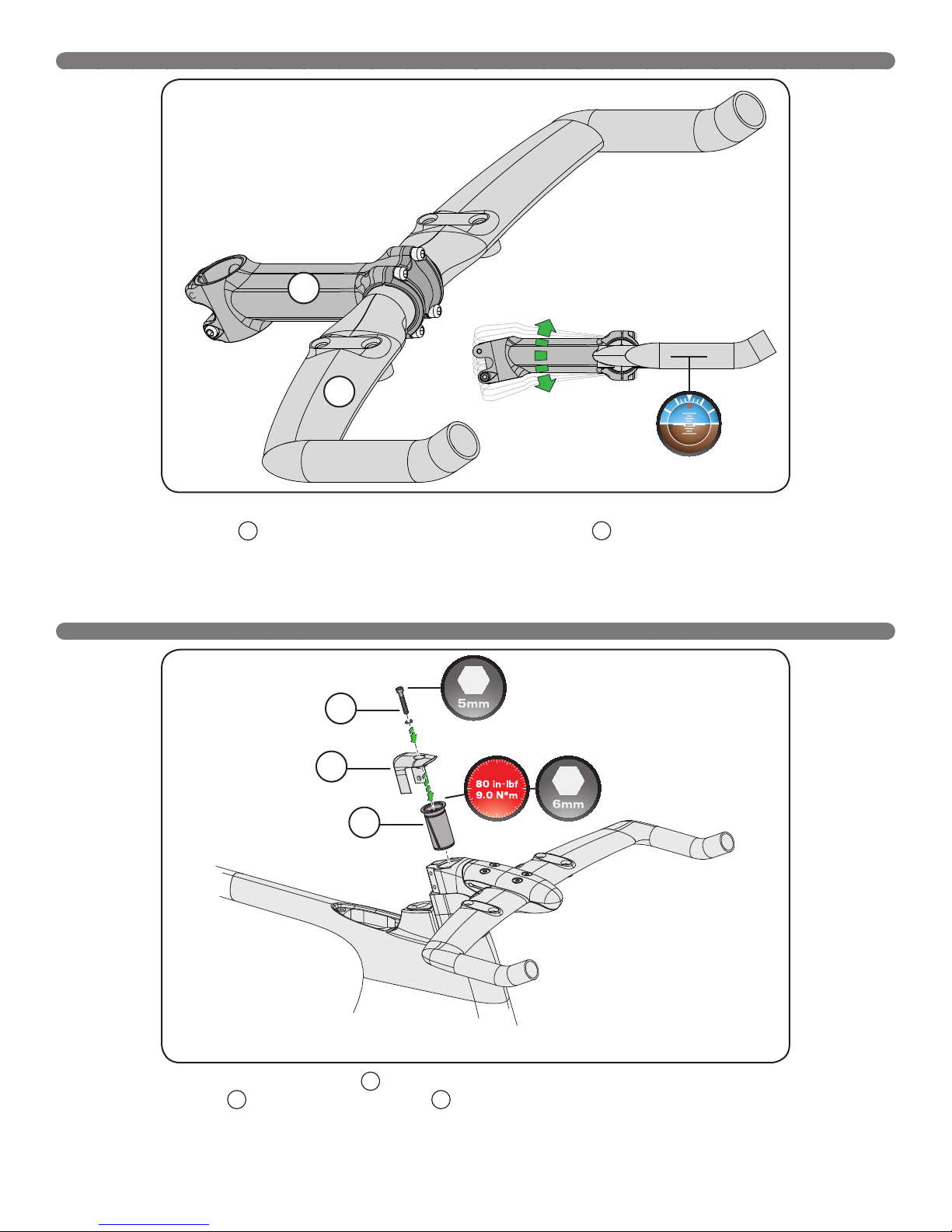

1.3 INSTALLING THE ALLOY HANDLEBAR WITH A STANDARD 31.8MM STEM

STANDARD 31.8MM STEM:

15. Determine the desired stem M length and angle, then place the Specialized aero handlebar N into the stem.

16. Orient the handlebar position horizontally, then torque the stem faceplate bolts to the manufacturer’s speciﬁcations.

1.4 INSTALLING THE EXPANDER PLUG AND TOP CAP

17. Install the Specialized 48mm Long Expander Plug O into the steerer tube, then torque to 80 in-lbf (9.0 N*m).

18. Install the preload top cap P, followed by the bolt with washer Q, then preload the headset bearings to remove any play.

19. Torque the stem bolts to the manufacturer’s speciﬁcations.

Page 8 of 25

Page 11

CHAPTER 2: HANDLEBAR EXTENSION / RISER INSTALLATION

5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm

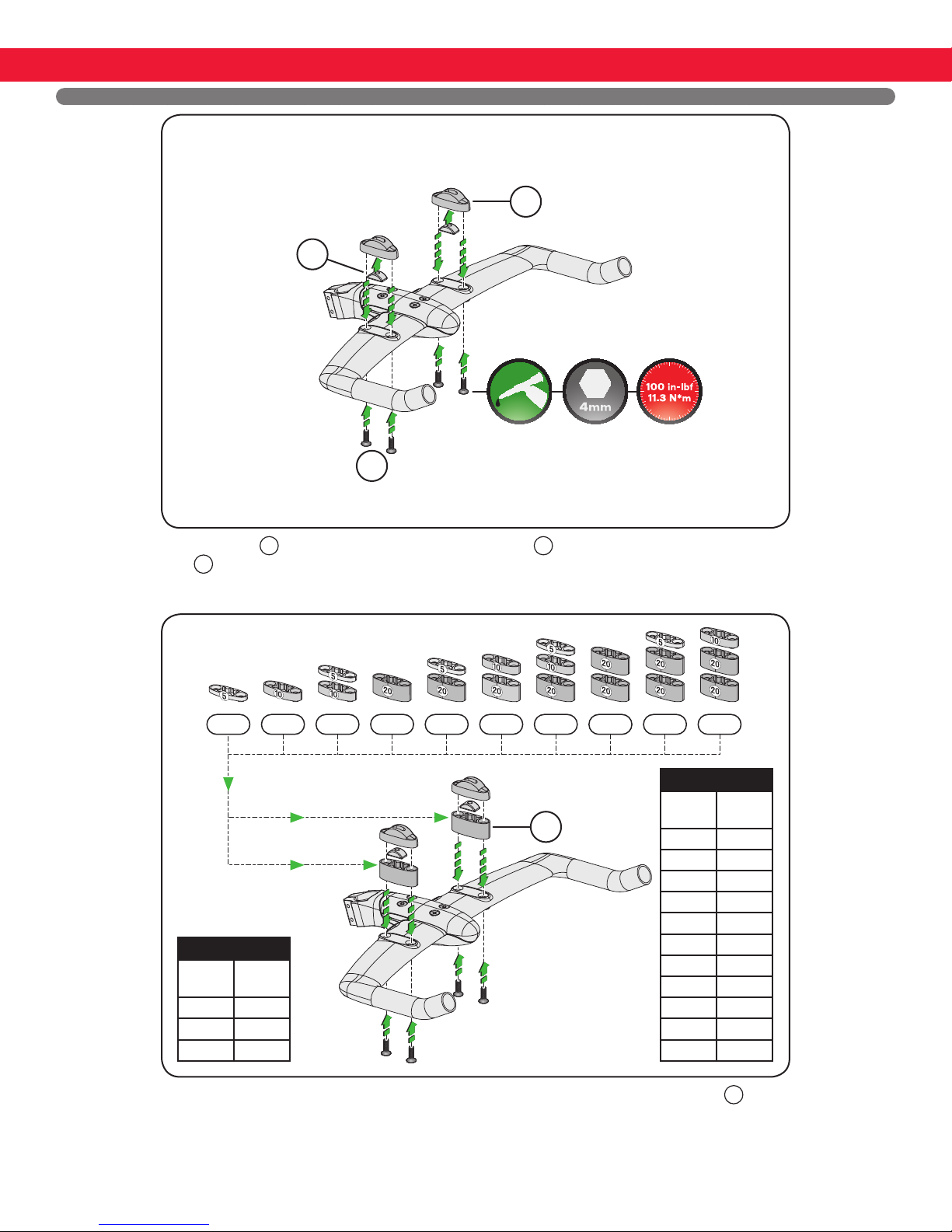

2.1 INSTALLING THE EXTENSION RISERS

1. Place an extension riser cap nut A into the underside of each extension riser cap B.

2. Install 4 x riser bolts C (M6x20mm length (carbon bar) or M6x30mm (alloy bar), 4mm countersunk Allen hex head).

3. Torque the bolts to 100 in-lbf (11.3 N*m).

CARBON BAR

Spacer

ALLOY BAR *

Spacer

Height

0 30

5 35

10 40

Bolt

length

Height

0 20

5 25

10 30

15 35

20 40

25 45

30 50

35 55

40 60

45 65

50 70

Bolt

length

4. Additional extension riser stack height can be achieved (5 to 50mm) by stacking different combinations of riser parts D, in increments of 5mm.

Refer to the inset chart for the corresponding bolt length.

* The alloy aero bars are equipped with a total of 10mm (2x5mm) of extension risers per side. Additional parts are available to provide up to 50mm of extension riser height, in a separate Service Parts Kit. This kit also includes the necessary bolts to achieve the additional 15-50mm of riser height.

Page 9 of 25

Page 12

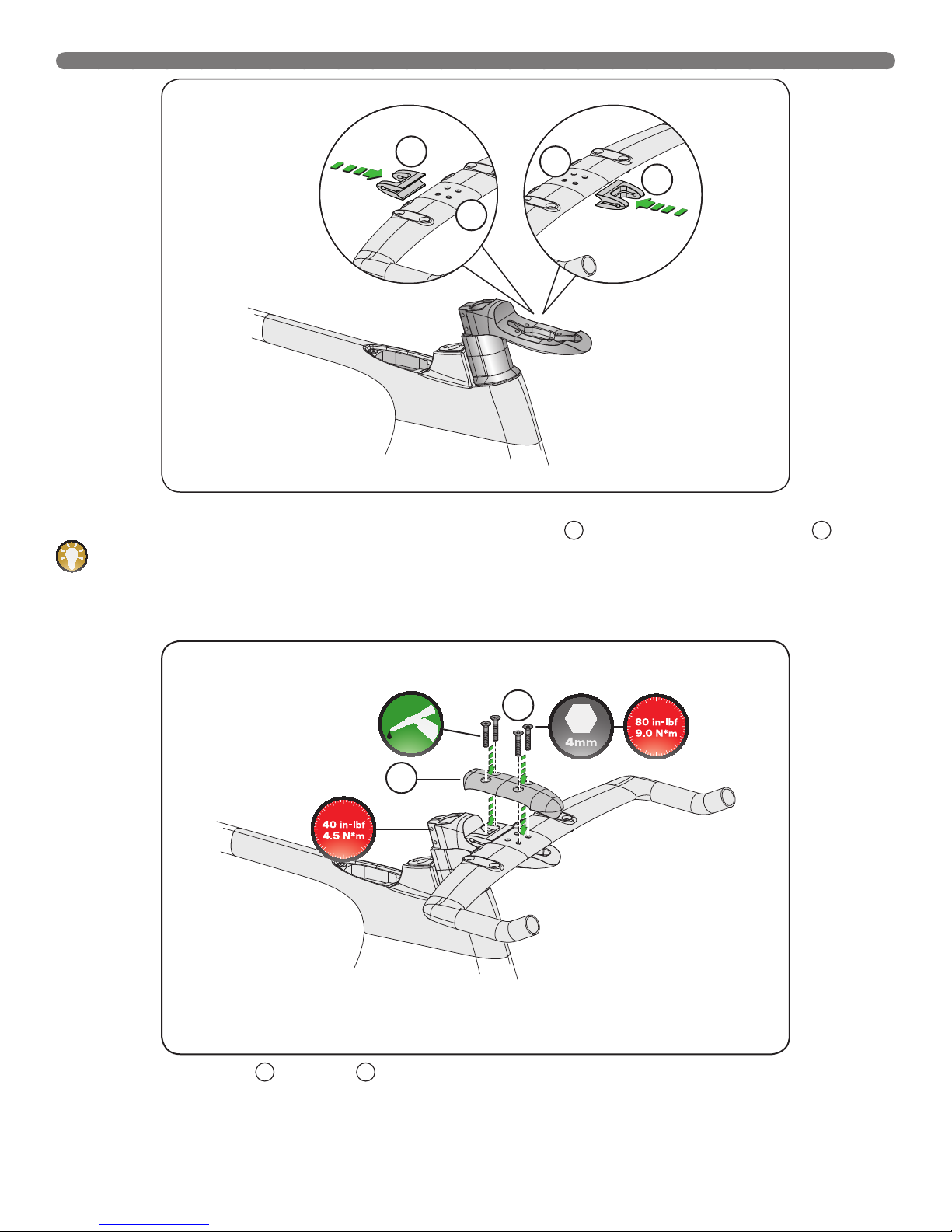

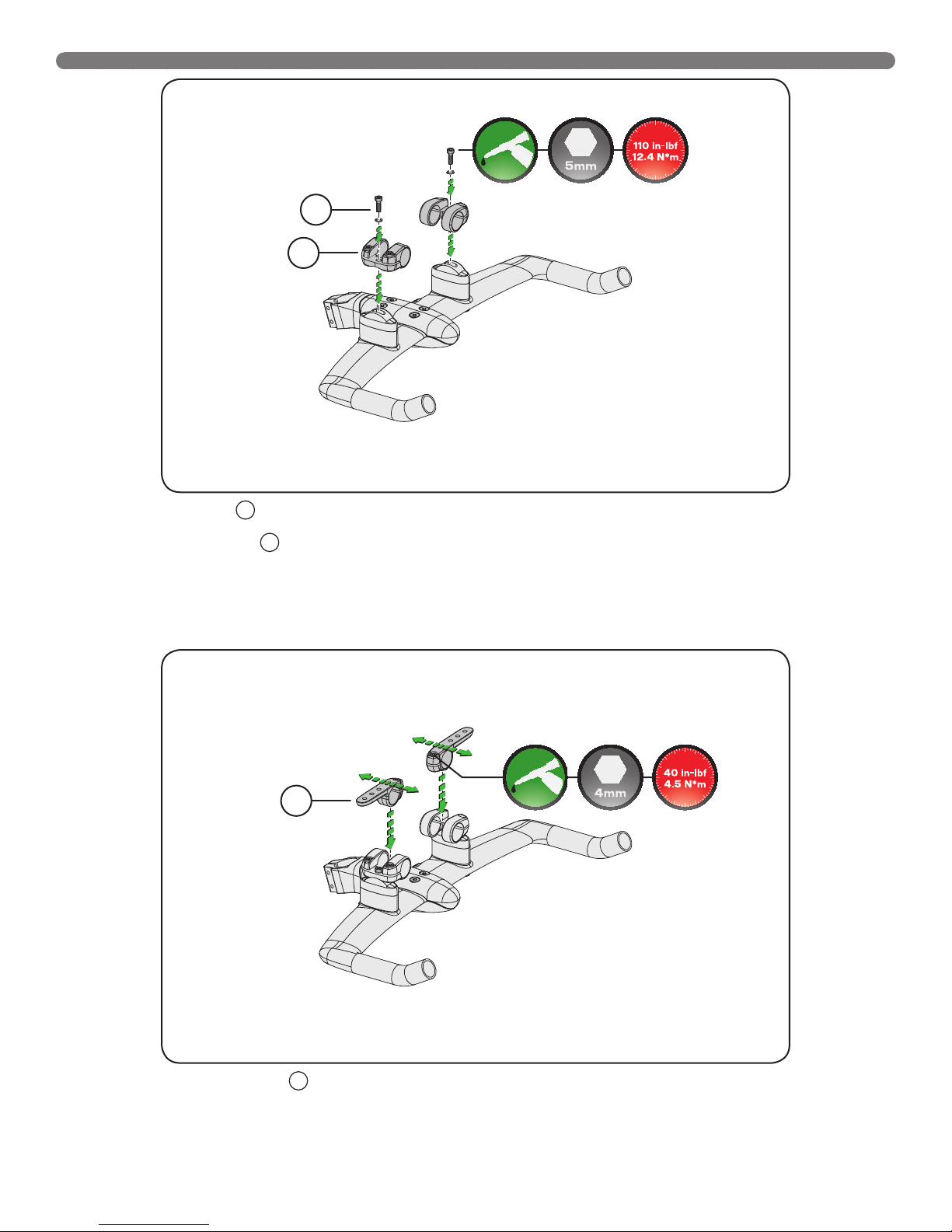

2.2 INSTALLING THE CLAMPS, EXTENSIONS AND ARM PADS

5. Place the extension clamps E on top of the extension caps, with the concave surface in contact with the convex surface of the extension caps and the clamps facing each other.

6. Install 2 x extension clamp bolts F (M6 x20mm length, 5mm standard Allen hex head) and washers through the extension clamps and into the extension cap nuts. Applying the torque speciﬁcation is not necessary until the bike has been ﬁt to the rider.

7. Place the two arm pad holder clamps G in position. The pad holder clamps can go either in front of, between or behind the extension clamps.

Page 10 of 25

Page 13

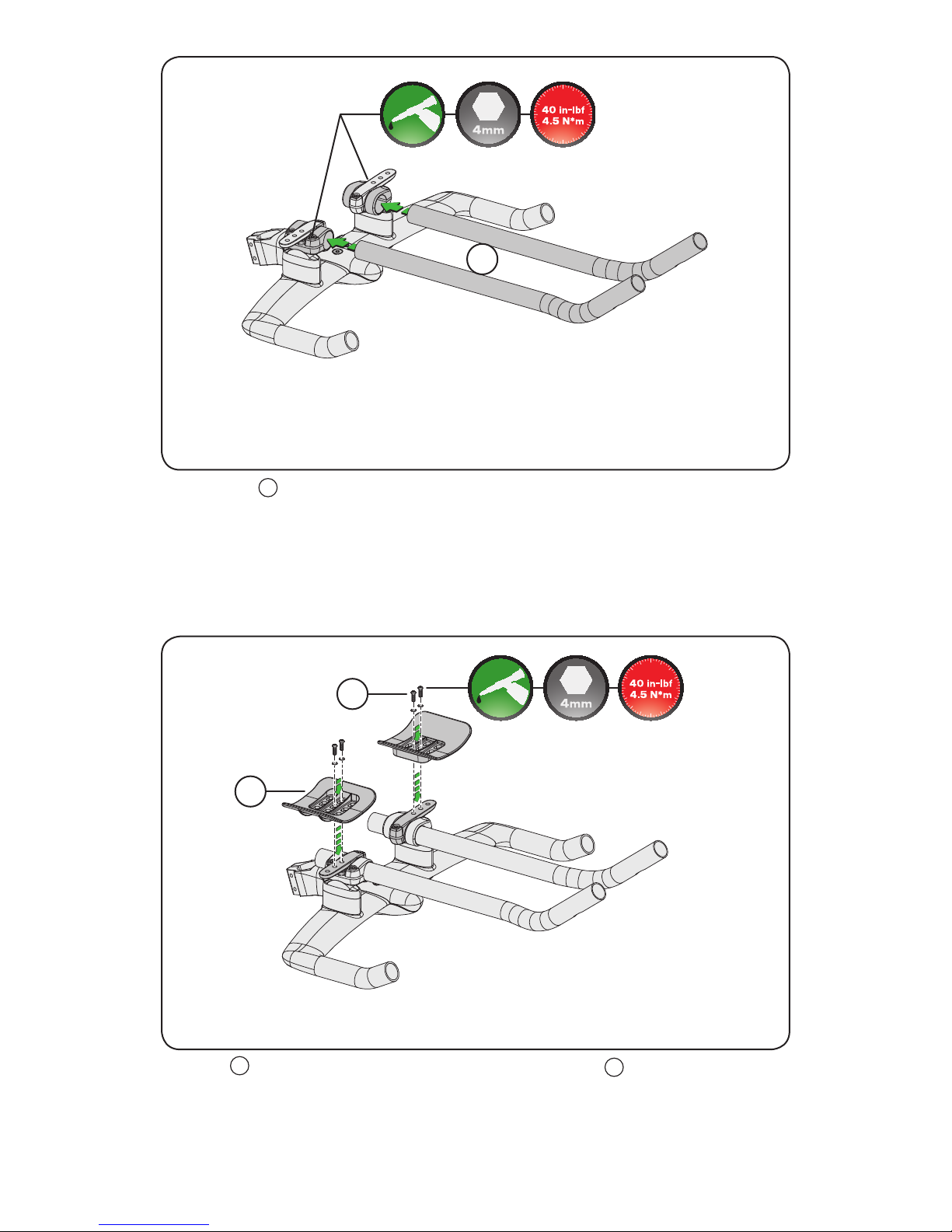

8. Install the handlebar extensions H through the extension clamps and the pad holder clamps. The extensions have the option of being switched to either side, for a wider or narrower hand position. They can also be rotated inward or outward to ﬁne-tune the angle of the hand position (see P.13).

9. Install the arm pad holders I on the pad holder clamps with 2 x pad holder bolts and washers J (M6x10mm length, 4mm Allen hex round head bolts). The pad holders have three lateral and three fore-aft position options.

10. Once the ﬁt is determined, torque the extension clamp, pad holder clamp and pad holder bolts to speciﬁcations, as illustrated in the images in section 2.2.

11. Place the foam pads on the pad holders.

Page 11 of 25

Page 14

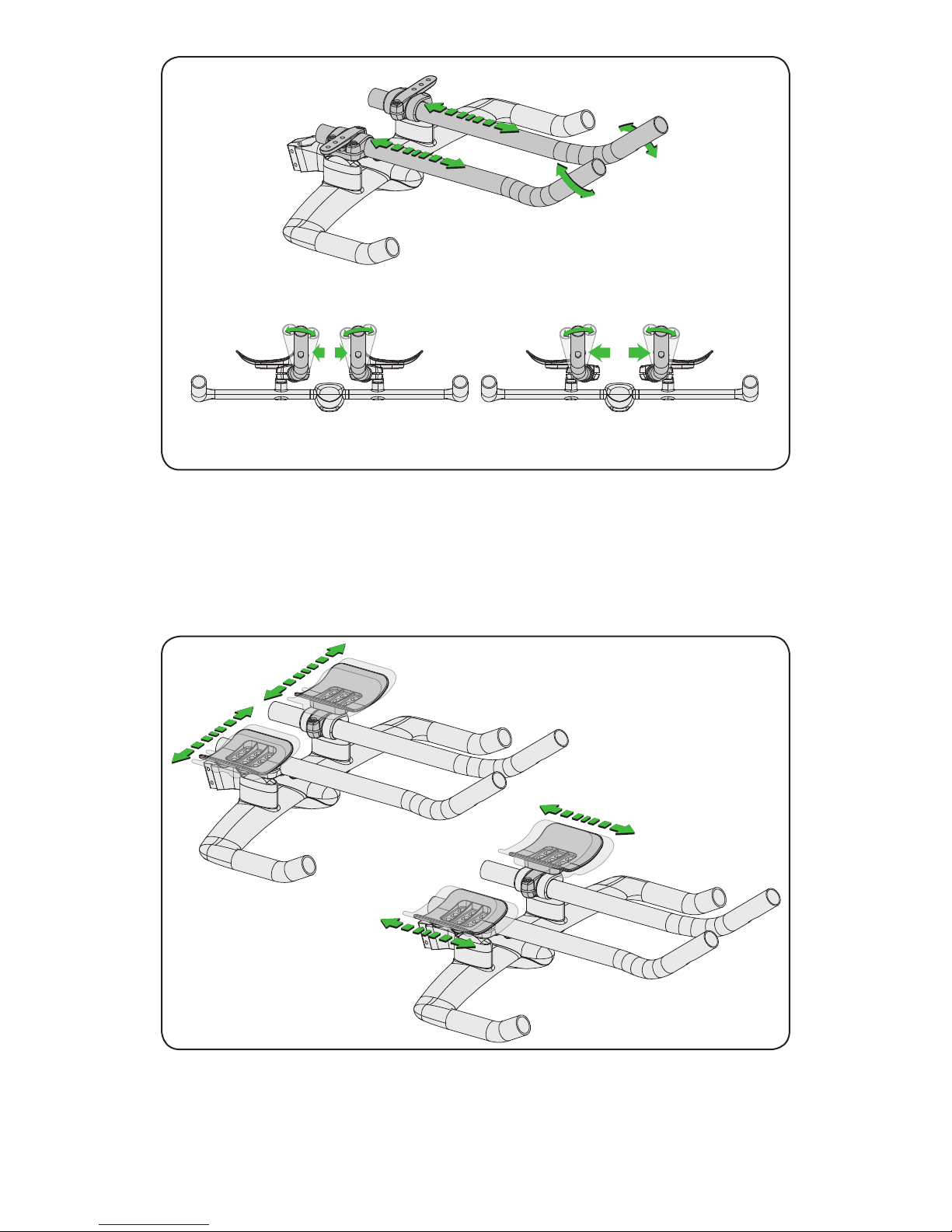

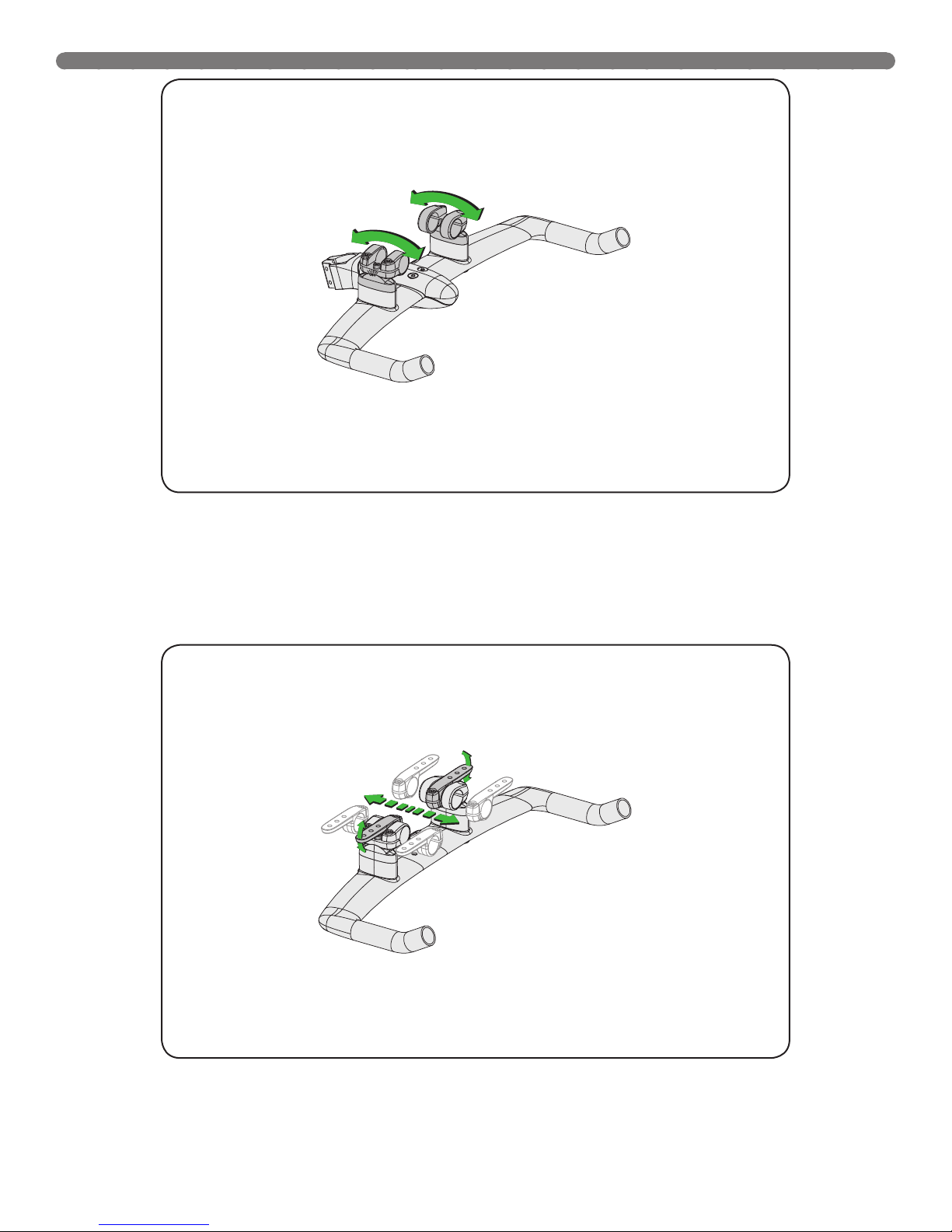

2.3 ADJUSTING THE CLAMPS, EXTENSIONS AND ARM PADS

12. The extension clamps have +/- 15˚ of horizontal angle adjustment.

13. The pad holder clamps have the ability to be positioned in front of, between or behind the extension clamps, and can be rotated up or down to ﬁne-

tune the angle of the arm pad.

Page 12 of 25

Page 15

14. The extensions have the ability to be swapped left to right, to adjust the stance width of the hand grip area. They can also be moved fore-aft for length adjustment and rotated for additional hand grip area width and angle ﬁne-tuning.

15. The arm pads have three lateral and three fore-aft positions to ﬁne-tune the rider’s elbow width and the position of the pad under the arm.

Page 13 of 25

Page 16

CHAPTER 3: CABLE HOUSING / WIRE INSTALLATION

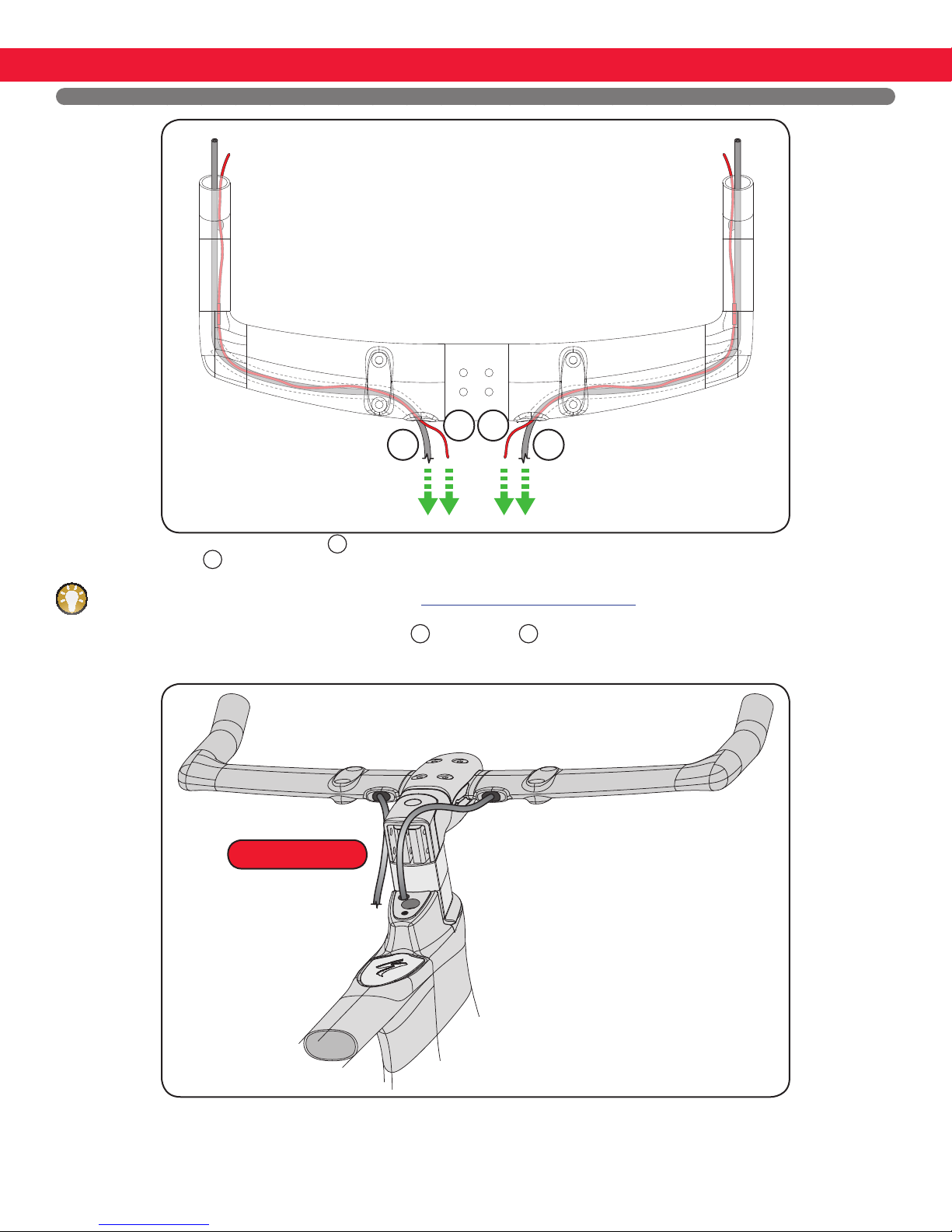

3.1 INSTALLING THE BRAKE CABLE HOUSINGS AND SHIFTER WIRES

C D

A B

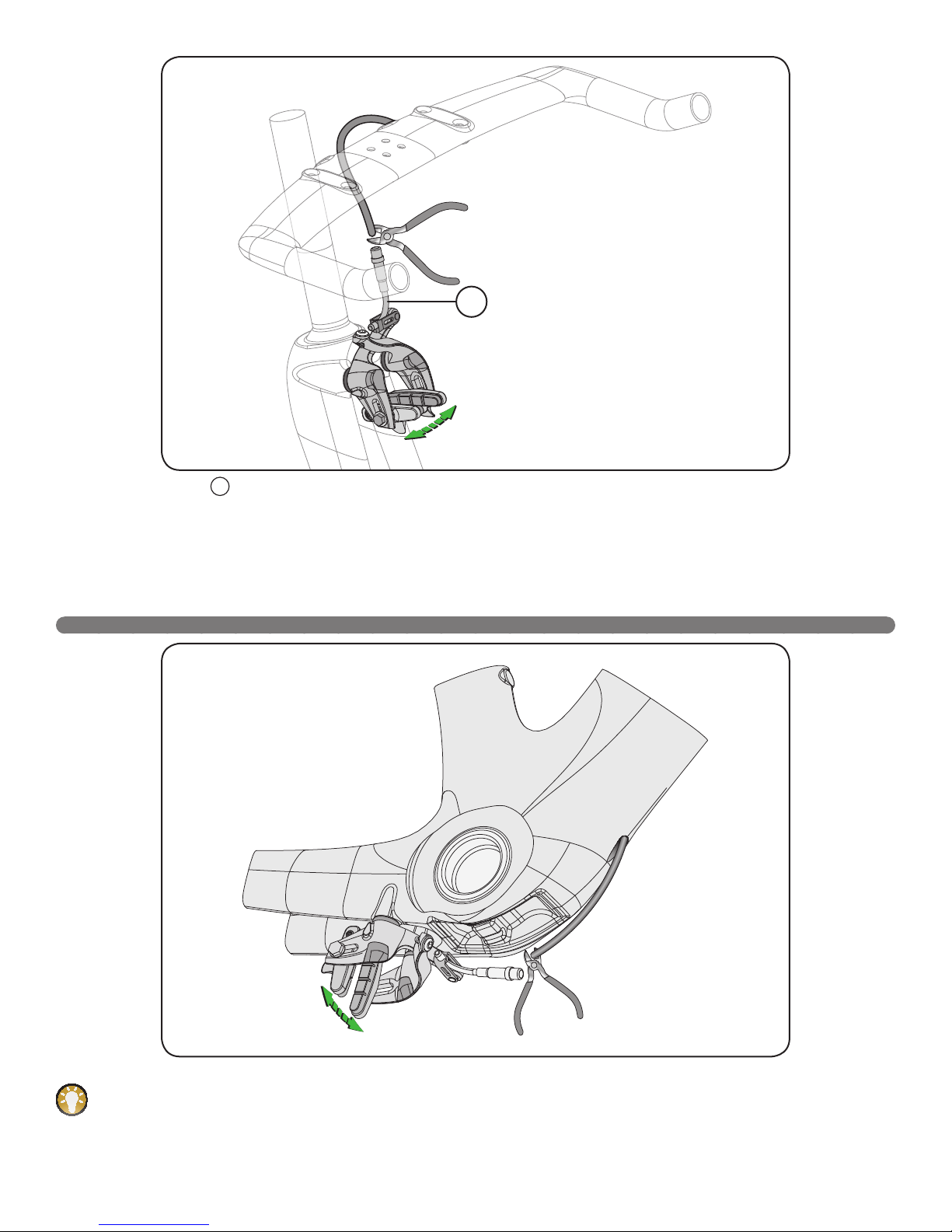

1. Route a section of front brake cable housing A through the non-drive-side portion of the handlebar. If running electronic shifters, route the electronic shifter wire C through the handlebar at before the cable housings, and according to the manufacturer’s instructions. Be careful not to damage the wiring with the cable housing.

TECH TIP:

2. Repeat on the drive-side of the handlebar for the rear brake B and rear shifter D.

3. Trim the brake cable housings to the appropriate length once the brakes have been installed on the bike (see chapter 4).

For Di2 instructions, refer to Shimano guide SM-EW79A-I, document SI-0100A.

Brake cable housings

4. Route the rear brake cable housing through the small port hole in the top of the top tube.

5. Install the brake levers into the ends of the handlebar according to the manufacturer’s instructions.

6. Route the front brake cable housing to the front brake for later trimming.

Page 14 of 25

Page 17

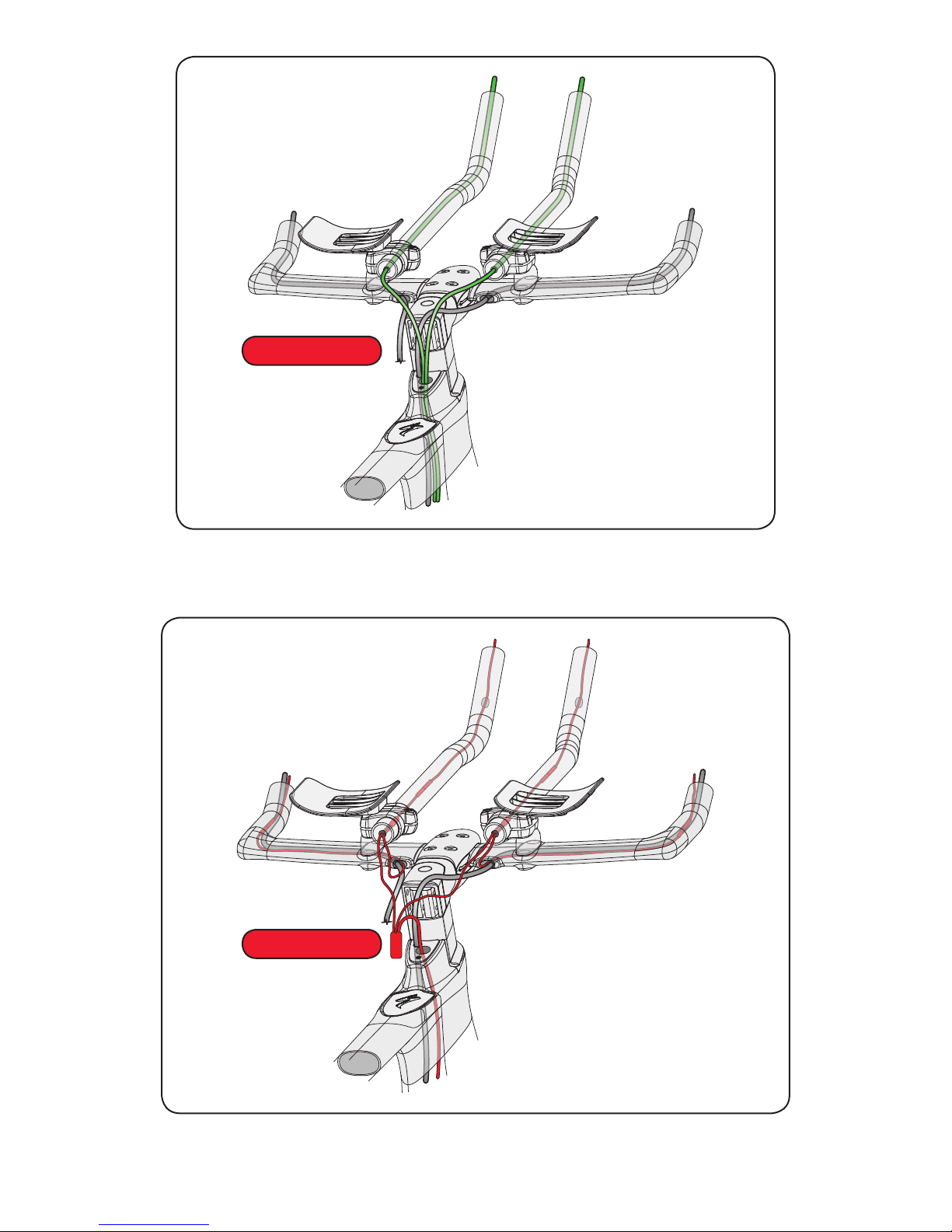

Shifter cable housings

7. Route the shifter cable housings through the handlebar extensions and into the large cable housing port in the top of the top tube.

8. Install the shift levers into the ends of the extensions according to the manufacturer’s instructions.

Electronic shifter wires

9. Route the wiring through the extensions and install the shift levers according to the manufacturer’s instructions.

Page 15 of 25

Page 18

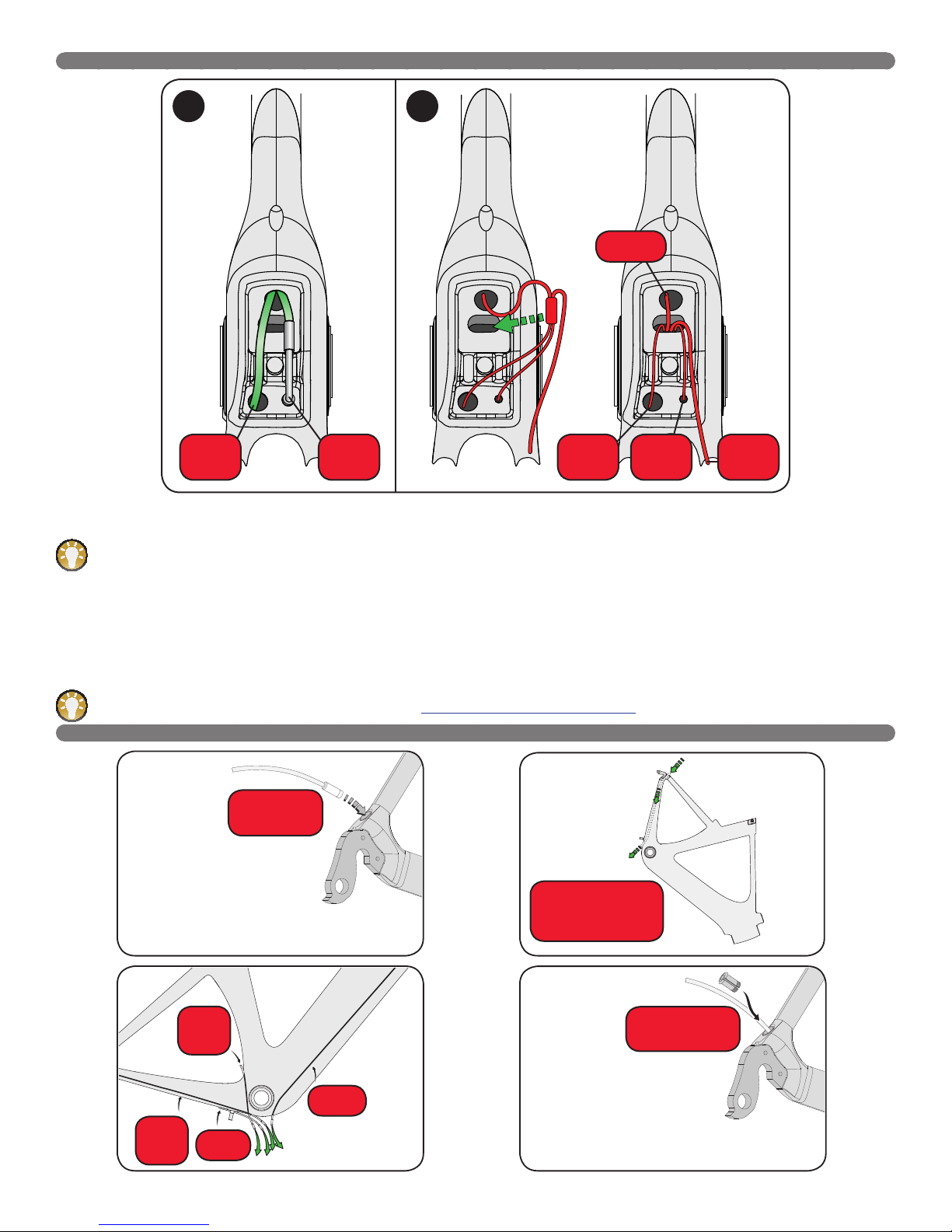

3.2 ROUTING THE DERAILLEUR CABLES / WIRES AT THE BOTTOM BRACKET

A B

CABLE

SYSTEM

ELECTRONIC

SYSTEM

To shifters

To rear

derailleur

OPTION A: STANDARD CABLE

 Rear derailleur: Route the rear derailleur cable housing through the large hole going into the drive-side chainstay.

TECH TIP: To help guide the rear derailleur cable housing through the chainstay, run a gear cable through the chainstay starting at the dropout and exiting at the bottom bracket cable guide port. This will help guide the housing through the chainstay and out the dropout.

 Front derailleur: Trim the front derailleur cable housing to the appropriate length to insert into the cable noodle, then route the noodle into the non-

drive-side hole going up toward the seat tube. This noodle acts as a cable stop, the cable will be bare leading to the front derailleur.

OPTION B: ELECTRONIC WIRING

 Rear derailleur: Route the rear derailleur cable housing or wire through the dropout hole and out the large drive-side hole at the bottom bracket.  Front derailleur: Route the wire through the hole in the seat tube and out the small non-drive-side hole at the bottom bracket.

 Join the connectors according to the manufacturer’s instructions, then place any excess wiring up into the frame in front of the bottom bracket shell.

To front

derailleur

To rear

derailleur

To front

derailleur

battery

TECH TIP:

For Di2 instructions, refer to Shimano guide SM-EW79A-I, document SI-0100A.

3.3 Di2 WIRING LOCATIONS

Rear derailleur

wire into dropout

Front

derailleur

Shifters

Rear

derailleur

Page 16 of 25

Battery

Point frame downward.

Rear derailleur wire exits

at bottom bracket

Insert split grommet

into dropout

Page 19

3.4 INSTALLING THE CABLE ROUTING COVER PLATE

battery

10. Once the wiring or cable housing is routed, install the cable routing cover plate E, followed by the cover plate bolt F (M6x15mm, 3mm countersunk Allen hex head).

11. Torque the bolt to 25 in-lbf (2.8 N*m).

3.5 INSTALLING THE CABLE ROUTING CONTROL TOWER

Small tower, no spacer Medium tower, 1 spacer Large tower, 2 spacers

12. Once the bike ﬁt has been ﬁnalized, choose the Control Tower that corresponds to the ﬁnal amount of spacers. Attach the Control Tower to the frame using the tower bolt G (M5x20mm, 4mm Allen hex head).

13. Torque the bolt to 25 in-lbf (2.8 N*m).

Page 17 of 25

Page 20

CHAPTER 4: BRAKE INSTALLATION

4.1 FRONT AND REAR BRAKE ASSEMBLY (Exploded view)

1. Aero bolt cap

2. Brake bolt O-ring

3. Brake pivot bolt

4. Brake arm

5. Spring plate

6. Spring

7. Spring cover

7654321

Non-drive-side Drive-side

NON-DRIVE SIDE (Rear View) DRIVE SIDE (Rear View)

Place long spring

tip facing out

Clockwise

wound

Counter-clockwise

wound

1. Place the spring plates 5 in the brake cavity. Make sure they’re facing the correct direction with the ﬂat edge against the adjuster screw. The spring plate is reversible for either side brake.

2. Install the springs 6, clockwise for the drive-side brake, counter-clockwise for the non-drive-side brake. The shorter of the two spring pins goes in the brake.

3. Install the brake spring covers 7.

Page 18 of 25

Page 21

4.2 INSTALLING THE FRONT BRAKE ASSEMBLY

4. Install the drive-side brake arm A. A ﬂathead screwdriver with a notch in the ﬂat edge can help rotate the spring into the fork’s spring hole.

5. Install the brake bolt B and tighten to 70 in-lbf (7.9 N*m).

6. Install the drive-side brake bolt cover C.

7. Rotate the drive-side brake out of the way and install the non-drive-side brake D.

8. Install the brake bolt E and tighten to 70 in-lbf (7.9 N*m).

9. Install the non-drive-side brake bolt cover F.

E F

Page 19 of 25

Page 22

10. Place the cable noodle G in the cable noodle guide and trim the cable housing so that it has a smooth path to the cable noodle that’s as short as possible while still fully seating in the noodle. Make sure it stays fully seated through the entire range of the brake, from closed to open.

4.3 INSTALLING THE REAR BRAKE ASSEMBLY

11. Install the rear brake arms, following the same steps as the front brake installation.

TECH TIP: Remove the crank to ease installation and adjustment of the rear brakes.

12. Place the cable noodle in the cable noodle guide and trim the cable housing so that it has a smooth path to the cable noodle that’s as short as

possible while still fully seating in the noodle. Make sure it stays fully seated through the entire range of the brake, from closed to open.

Page 20 of 25

Page 23

13. Route the cable through the brake lever, into the housing and through the rear brake cable noodle. Repeat the routing method for the front brake.

1-2mm1mm

14. Route the cable around the brake pinch bolt, then apply the speciﬁed torque shown below.

4.4 ADJUSTING THE FRONT AND REAR BRAKE ASSEMBLIES

15. Apply the same adjustments to the front and rear brakes.

Page 21 of 25

Page 24

CHAPTER 5: SEATPOST INSTALLATION

7x9mm

7x7mm

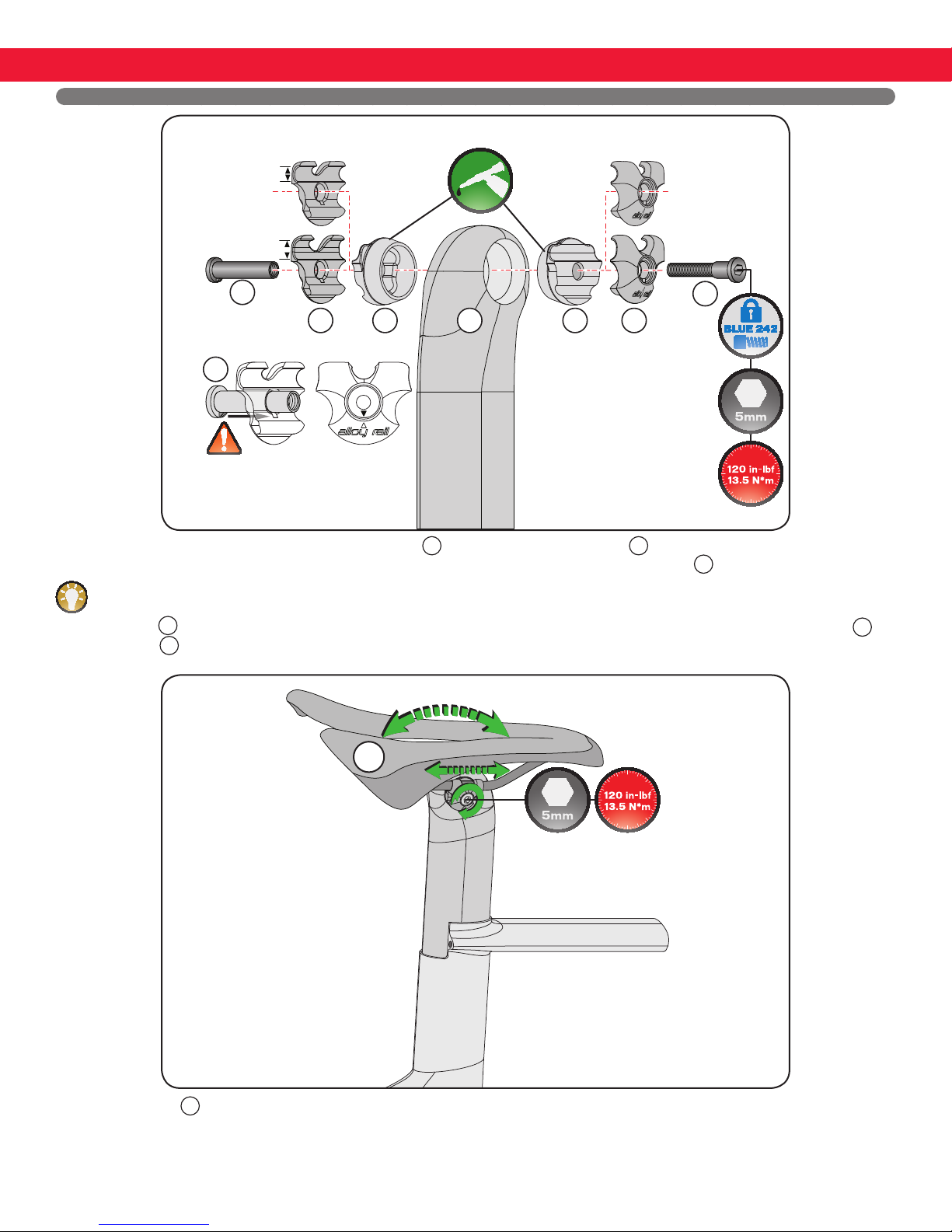

5.1 INSTALLING AND ADJUSTING THE SHIV SEATPOST

ANGLED SURFACES

C CA AB

Tab into groove Align arrows

1. Apply grease to the conical surfaces of the clamp mechanism A and install them into the seatpost B.

2. Engage the saddle rails into the slots of the conical portions of the clamp mechanism, then place the outer caps C over the saddle rails.

TECH TIP:

to the saddle.

3. Install the nut D. To avoid damage to the clamp mechanism, the arrows must align to ensure the tab is placed in the groove of the outer cap E.

4. Install the bolt F. Use blue threadlocker (Loctite 242) on the threads, place into the opposite side outer cap and thread into the nut. Tighten lightly.

5. Install the seatpost into the seat tube.

The Shiv seatpost can be assembled with outer rail clamps for 7x7 alloy rails or 7x9 carbon rails. Choose the rail clamps that correspond

6. Adjust the saddle G to the desired tilt angle and fore-aft position.

7. Torque the seatpost bolt to 120 in-lbf (13.5 N*m).

Page 22 of 25

Page 25

25mm

-12.5°

-37.5°

+37.5°

+12.5°

25mm25mm

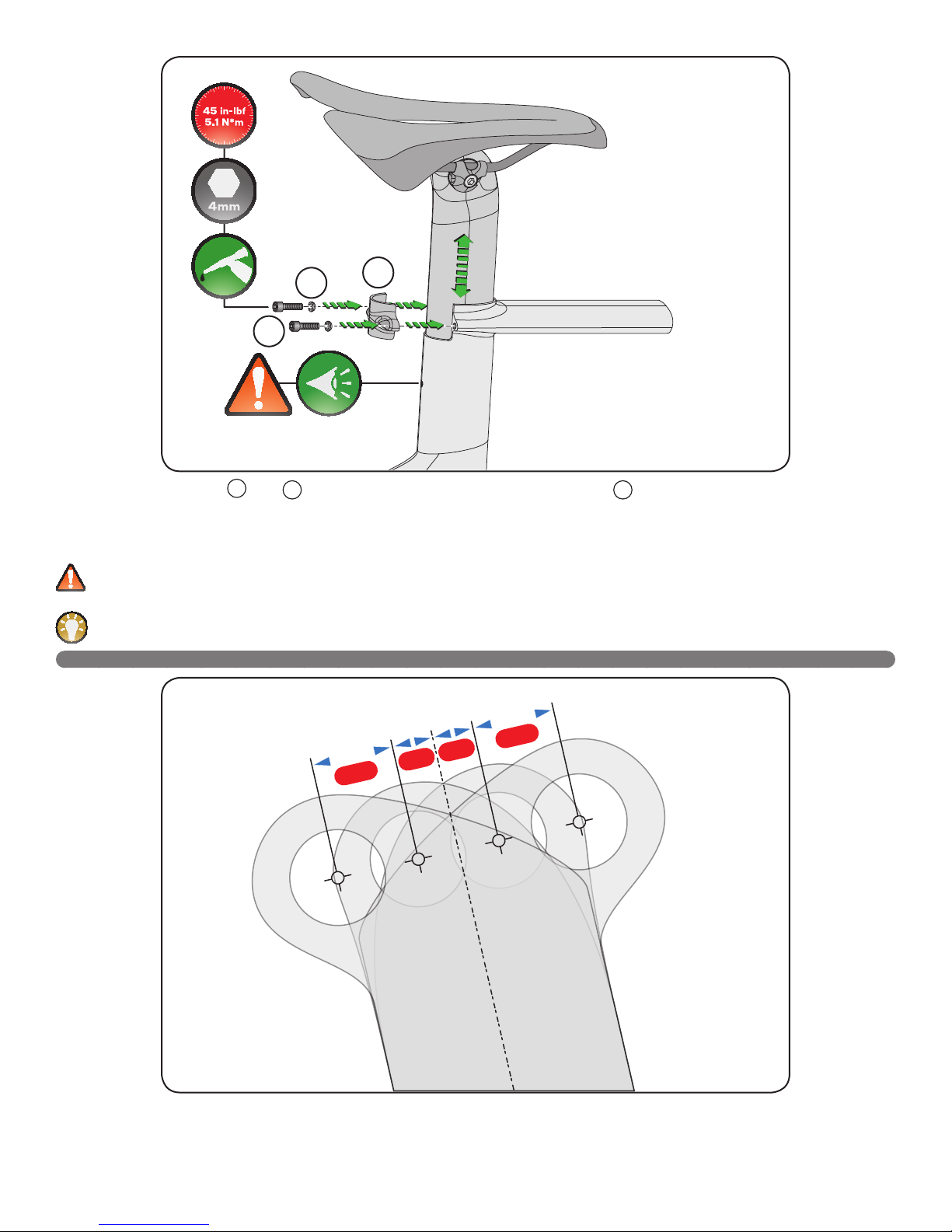

8. Install the seat collar plate H, bolts I (M5x20mm, 4mm Allen hex head) and domed washers J.

9. Adjust the seatpost to the desired height for proper leg extension.

10. Alternate the torque to the seat collar bolts, in 5 in-lbf (0.6 N*m) increments, up to a ﬁnal torque setting of 45 in-lbf (5.1 N*m) to ensure an even load

distribution to the seatpost. Once complete, the gap between the frame and the seat collar should be equal on both sides.

WARNING! The Shiv is equipped with a minimum insertion sight hole (see ﬁgure above). This is the minimum insertion required for the seatpost and frame to remain structurally safe. All frame sizes require a minimum post insertion of 75mm; the seatpost MUST be visible through the sight hole.

TECH TIP: The application of carbon assembly compound (ﬁber paste) can increase friction between carbon surfaces. Please visit your Specialized Authorized Dealer for additional information.

5.2 SEATPOST SETBACK OPTIONS

11. The Shiv seatposts are available in +/- 12.5˚ and 37.5˚ setbacks. The seatposts are also reversible, to offer four positions with 25mm offset.

Page 23 of 25

Page 26

CHAPTER 6: FUELSELAGE INSTALLATION

6.1 INSTALLING THE FUELSELAGE

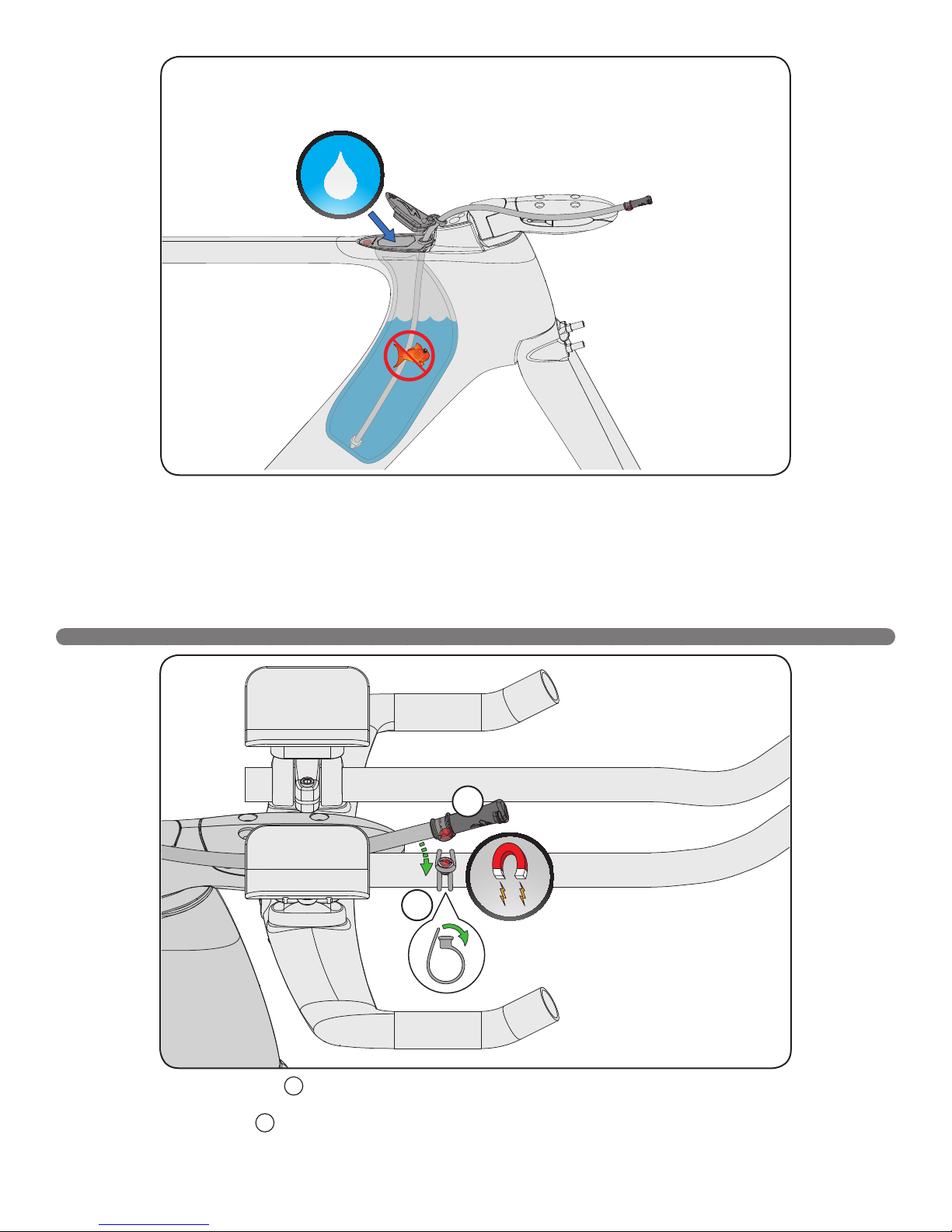

1. Install the empty Fuelselage Integrated Hydration System bladder A into the Fuelselage port B in the top tube of the frame.

2. Use the hose as a structure to help push and guide the bladder into the down tube.

3. Place the lip of the mouth of the bladder underneath the lip at the front of the port in the top tube.

4. Lower the mouth of the bladder ﬂush with the port. A small magnet in the mouth of the bladder will connect with the bolt hole at the back of the top

tube port.

Page 24 of 25

Page 27
