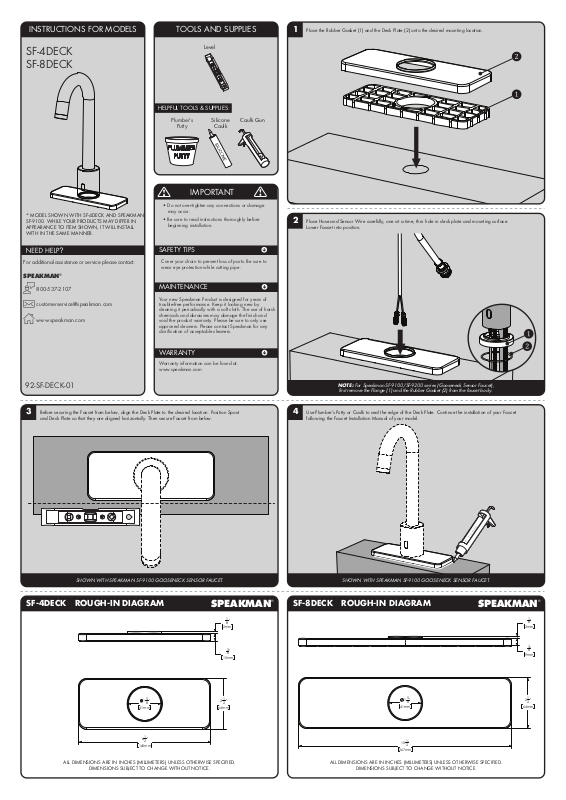

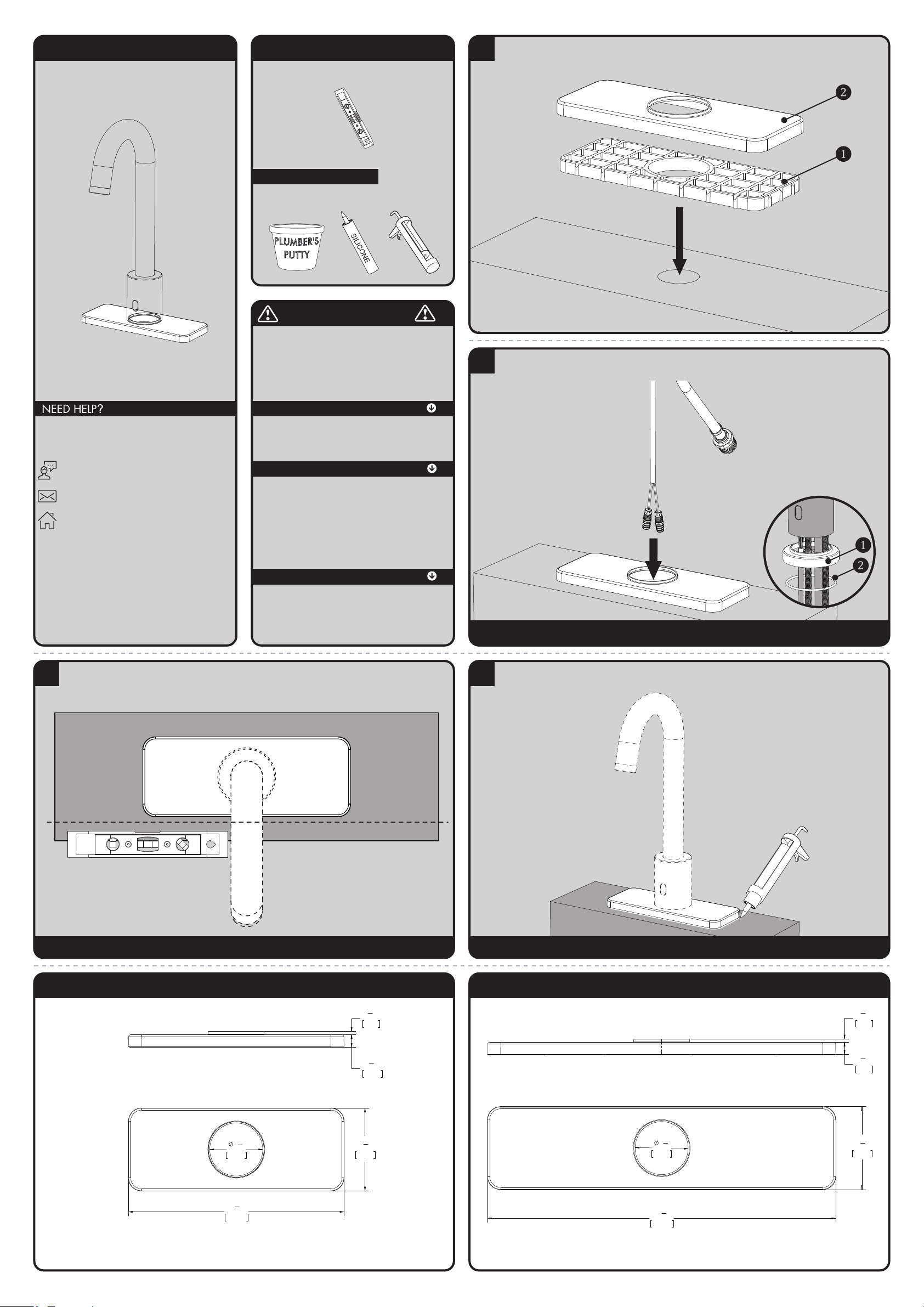

INSTRUCTIONS FOR MODELS
92-SF-DECK-01
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
SF-4DECK
SF-8DECK
* MODEL SHOWN WITH SF-4DECK AND SPEAKMAN
SF-9100. WHILE YOUR PRODUCTS MAY DIFFER IN
APPEARANCE TO ITEM SHOWN, IT WILL INSTALL
WITH IN THE SAME MANNER.
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Plumber’s
Putty
Silicone
Caulk
Caulk Gun
Level
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
1
Place the Rubber Gasket (1) and the Deck Plate (2) onto the desired mounting location.
2
Place Hose and Sensor Wire carefully, one at a time, thru hole in deck plate and mounting surface.
Lower Faucet into position.
NOTE: For Speakman SF-9100/SF-9200 series (Gooseneck Sensor Faucet),
first remove the Flange (1) and the Rubber Gasket (2) from the faucet body.
3
Before securing the Faucet from below, align the Deck Plate to the desired location. Position Spout
and Deck Plate so that they are aligned horizontally. Then secure Faucet from below.
SHOWN WITH SPEAKMAN SF-9100 GOOSENECK SENSOR FAUCET.
4
Use Plumber’s Putty or Caulk to seal the edge of the Deck Plate. Continue the installation of your Faucet
following the Faucet Installation Manual of your model.
SHOWN WITH SPEAKMAN SF-9100 GOOSENECK SENSOR FAUCET.
SF-4DECK ROUGH-IN DIAGRAM
SPEAKMAN
®
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) UNLESS OTHERWISE SPECIFIED.
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
5
8
"
41mm
2
1
2
"
64mm
6
1
2
"
165mm
3
8
"
10mm
1
8
"
2mm
SF-8DECK ROUGH-IN DIAGRAM
SPEAKMAN
®
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) UNLESS OTHERWISE SPECIFIED.
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
8
"
2mm
3
8
"
9mm
1
5
8
"
41mm
2
1
2
"
64mm
10
1
2
"
267mm
