Page 1

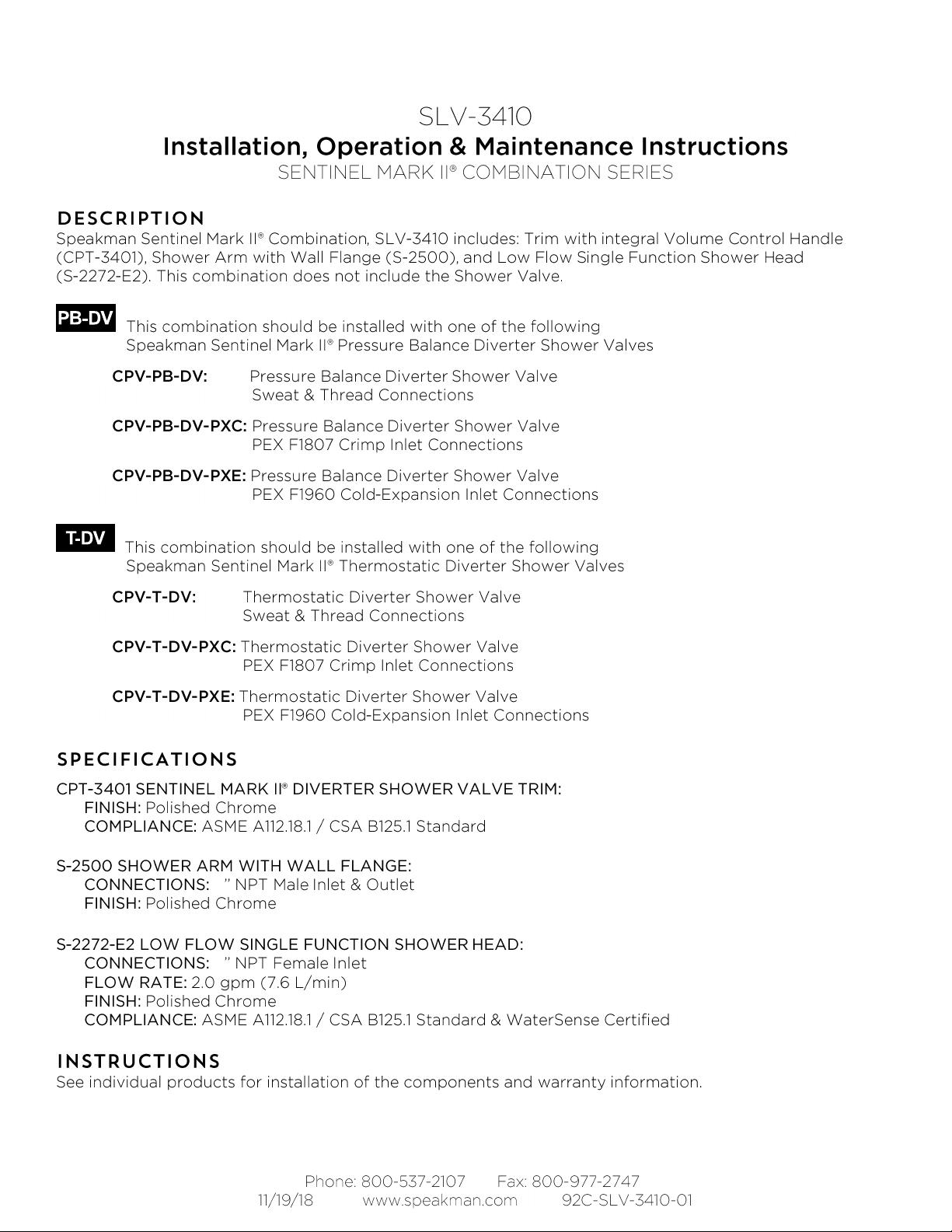

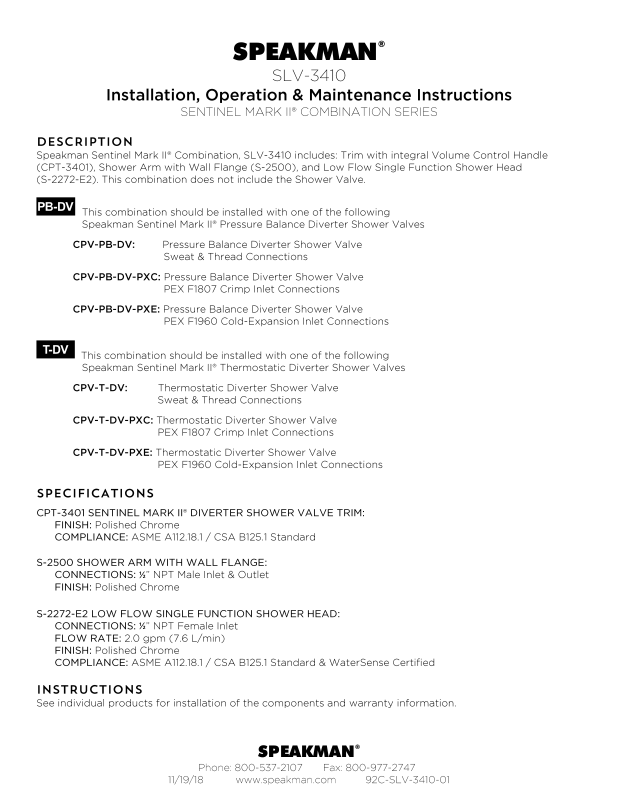

SPEAKMAN®
SPEAKMAN
®
½
½
Page 2

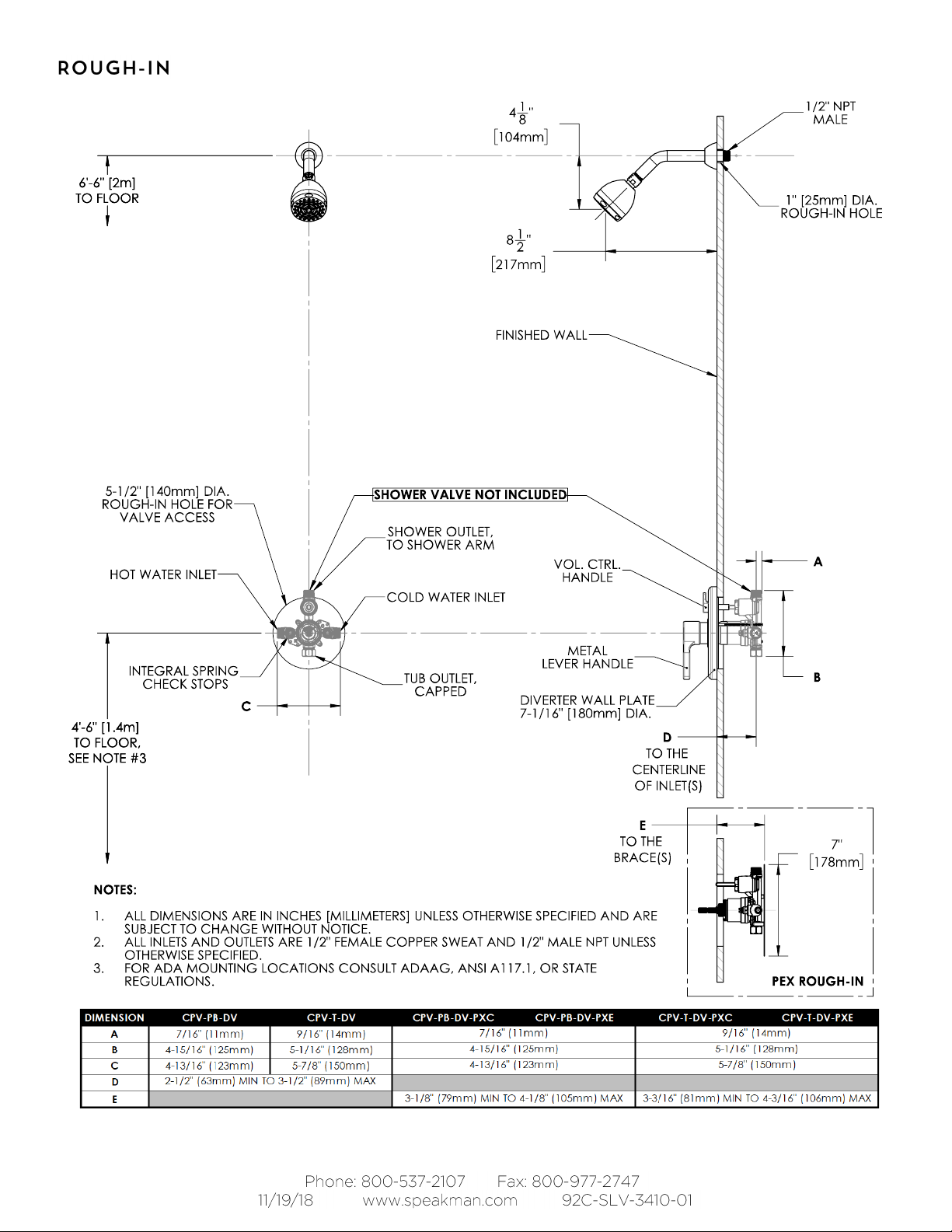

SPEAKMAN®
Page 3

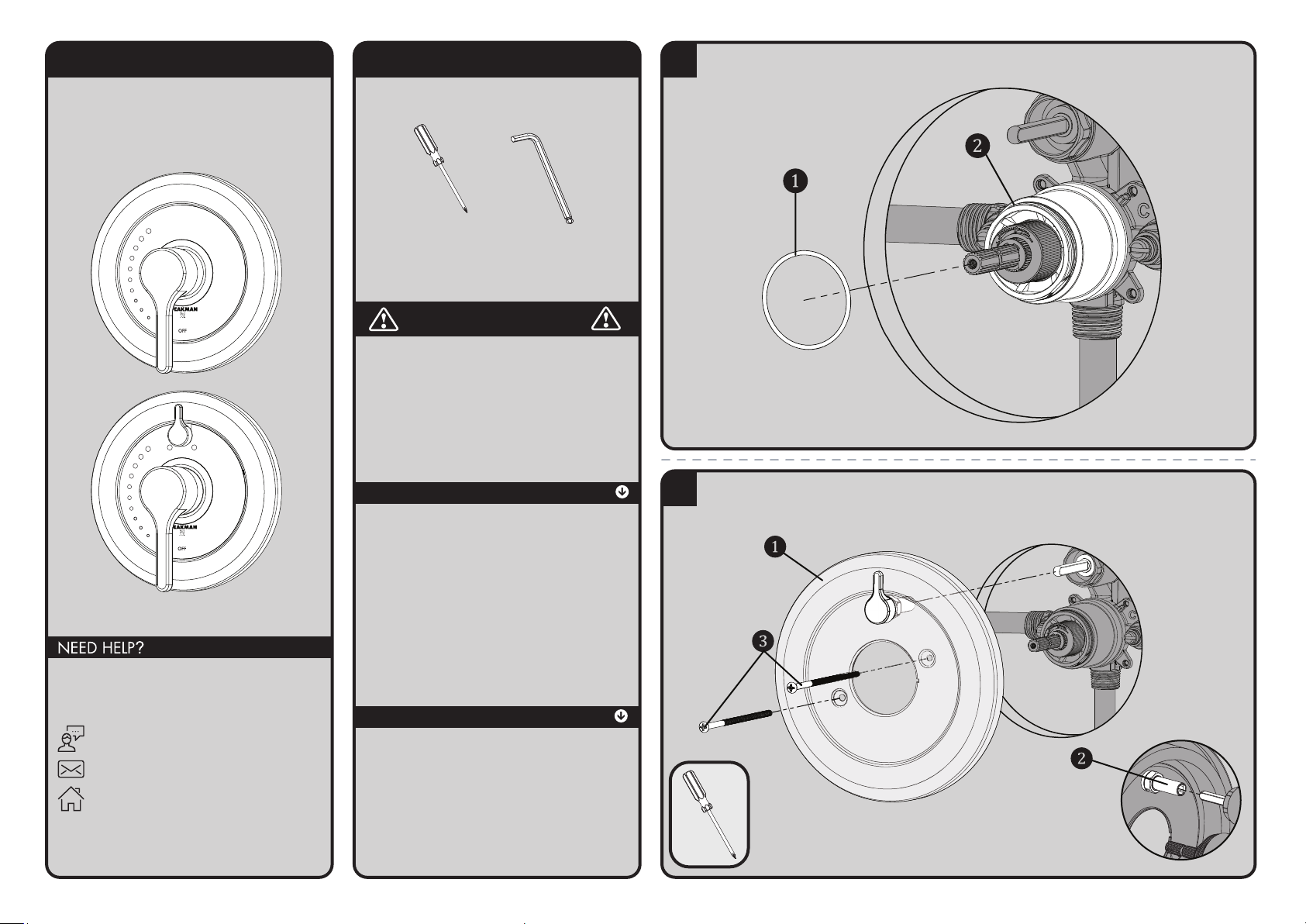

INSTRUCTIONS FOR MODELS
CPT-3001
TOOLS AND SUPPLIES
IMPORTANT
Warranty information can be found at:
www.speakman.com
MAINTENANCE
WARRANTY
Phillips
Screwdriver
Hex Key Wrench
(included)
• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as outlined in the Valve Installation
Manual.
• Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
1
OPTIONAL: If a firm fit is required, insert the O-Ring ❶ onto the Bonnet ❷ of the Shower Valve.
2
Verify that the Valve is in the “OFF” position. Install the Wall Plate ❶ to the Valve. If installing a Diverter
model of Trim, align the Diverter Handle to the 12 o’clock position and position the Diverter Drive Tube ❷
over the Diverter Spindle of the Valve. Secure with the included Mounting Screws ❸.
CPT-3401
For additional assistance or service please contact:
SPEAKMAN
800-537-2107
www.speakman.com
®
92-CPT-3001-01
Page 4

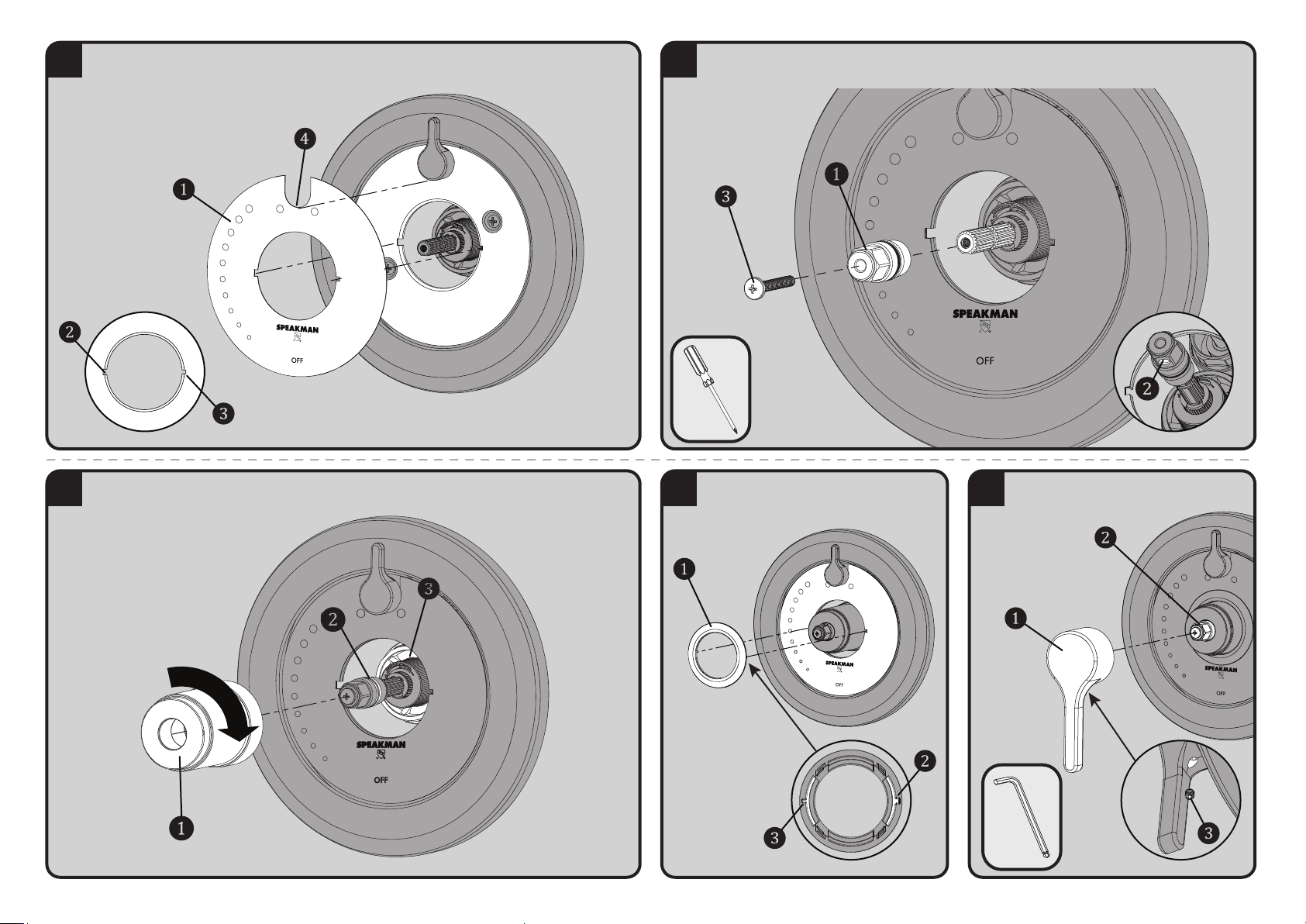

3
* VIEW WITHOUT VALVE
Align the Index Plate ❶ with the Large Slot ❷ and Small Slot ❸ on the Wall Plate. If installing onto a Diverter
Model, align the U shape ❹ under the Diverter Handle and then align to the slots.
4
Install the Spindle Adapter ❶ (with appropriate O-ring in its place) onto the Spindle so that the Circular Indent ❷
is pointing downward and is horizontal as shown below. Secure the Spindle Adapter with the included Screw ❸.
5
Push the Escutcheon ❶ gently over the O-ring ❷ of Spindle Adapter. Thread the Escutcheon onto the Bonnet ❸
of the Valve. Hand tighten into position.
6
Install Retaining Ring ❶. Align the Retaining Ring
with the Large Slot ❷ and Small Slot ❸ on the
Wall Plate. Snap in place.
* BACK OF RETAINING RING
7
* VIEW UNDER THE HANDLE
Orient the Handle ❶ as shown below and
position over the Spindle Adapter ❷. Secure with
the included Set Screw ❸.
Page 5

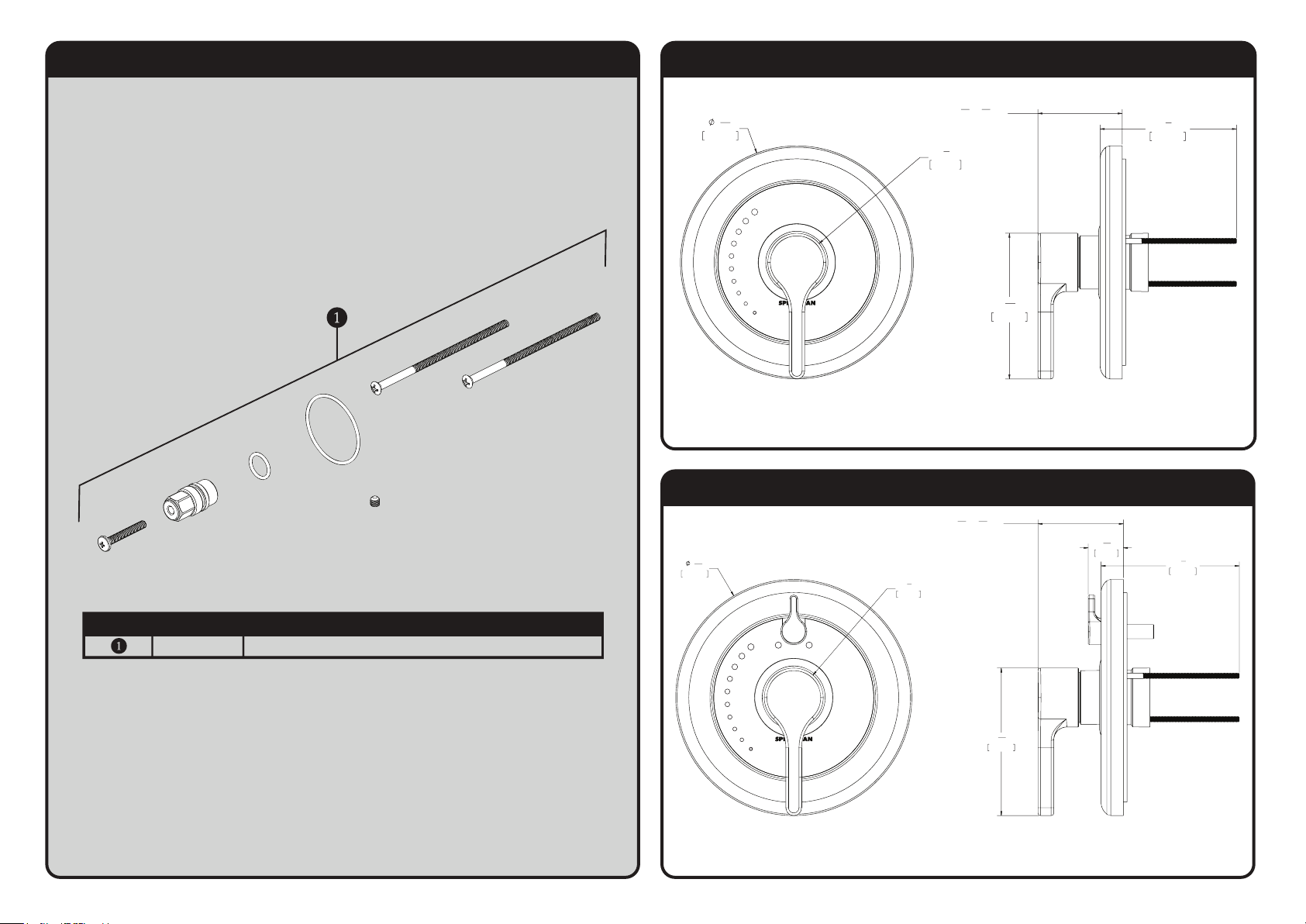

CPT-3001/3401 REPAIR PARTS
ITEM NO. PART NO. DESCRIPTION
RPG05-1126 REPAIR PARTS GROUP FOR CPT-3X01 TRIMS
CPT-3001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
4
7
16
"
112.5mm
4
1
8
"
105.4mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
CPT-3401 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
1
16
"
26.8mm
4
1
8
"
105.4mm
4
7
16
"
112.5mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
Page 6
INSTRUCTIONS FOR MODELS
92-S-2500-R5
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com

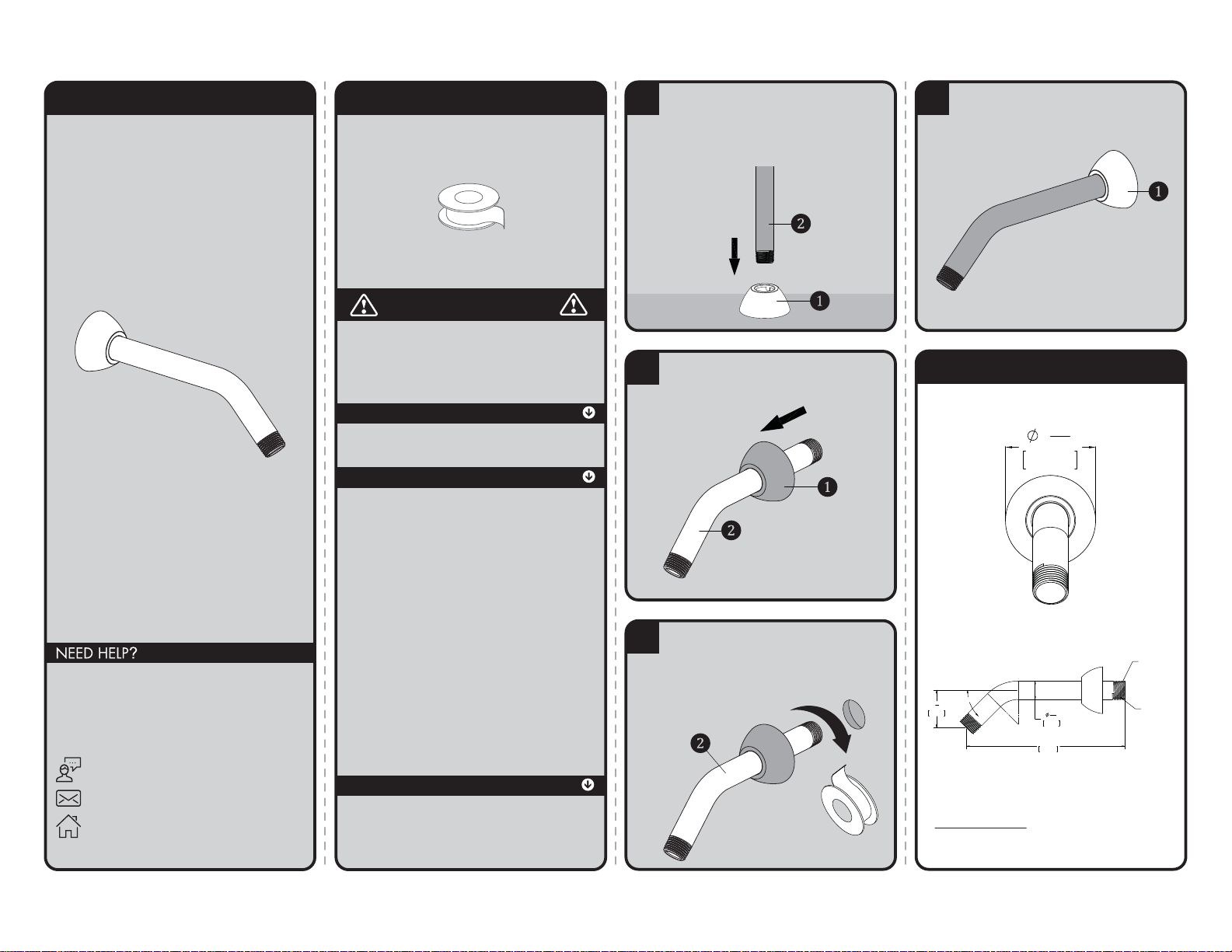

S-2500
TOOLS AND SUPPLIES
1
Place the Escutcheon Plate (1) on a flat
surface. Push the long end of the Shower
Arm (2) down into the plate. This will
help the teeth of the plate slide over the
arm easier.
2
Once the Escutcheon Plate (1) is on the
shower arm, slide the plate over the
Shower Arm (2).
3
Apply Teflon Tape to inlet side of Shower
Arm (2). Thread Shower Arm (2) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (2) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (1) flat against wall.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2
1
16
"
52mm
13
16
"
21mm
45.00°
7"
178mm
1
5
8
"
42mm
1/2" NPT THREADS
BOTH ENDS
INLET
Thread Seal
Tape
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 7

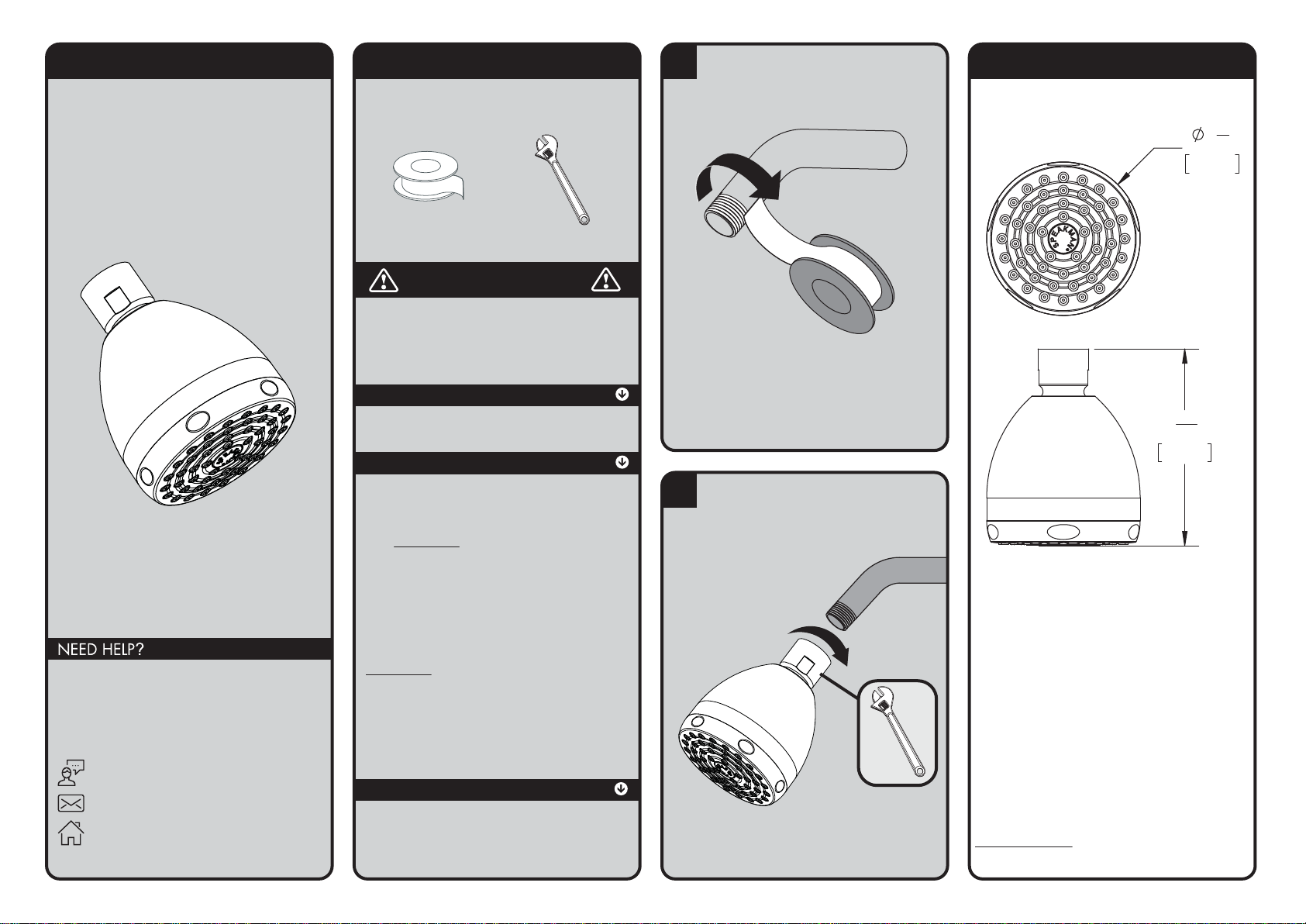

INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
1
Apply Teflon Tape to the outlet side of
shower arm in a clockwise direction.
2
Thread Shower head onto shower arm by
turning it in a clockwise direction. Tighten
with adjustable wrench. Turn water
supply on and check for leaks.
ROUGH IN DIMENSIONS
S-2272-E2
S-2272-E15
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
92-S-2272-01
®
Company
Thread Seal
Tape
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body (follow
manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the showerhead soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
3
2
4
70mm
9
3
"
16
90mm
Model: S-2272-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-2272-E15
Max. Flow Rate: 1.5 gpm (5.7 L/min)
Min. Flow Rate: 1.1 gpm (4.2 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.2 L/MIN (1.37 GPM) OR LESS.
Specifications:
Inlet: 1/2” NPSM FEMALE
"
