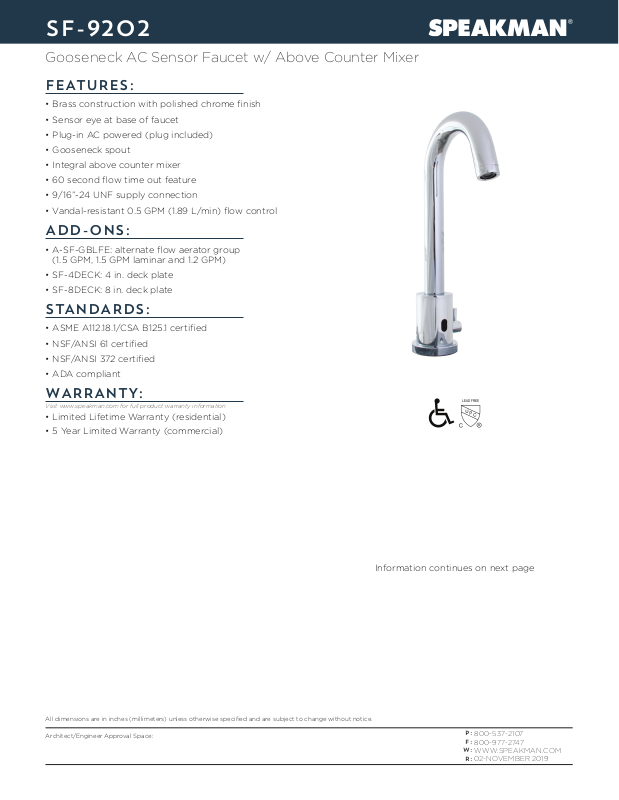

Page 1
S F-9202
LEAD FREE
Gooseneck AC Sensor Faucet w/ Above Counter Mixer
FEATURES:
• Brass construction with polished chrome finish
• Sensor eye at base of faucet
• Plug-in AC powered (plug included)
• Gooseneck spout
• Integral above counter mixer
• 60 second flow time out feature
• 9/16”-24 UNF supply connection
• Vandal-resistant 0.5 GPM (1.89 L/min) flow control
ADD-ONS:
• A-SF-GBLFE: alternate flow aerator group
(1.5 GPM, 1.5 GPM laminar and 1.2 GPM)
• SF-4DECK: 4 in. deck plate
• SF-8DECK: 8 in. deck plate
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• NSF/ANSI 61 certified
• NSF/ANSI 372 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (residential)
• 5 Year Limited Warranty (commercial)
Information continues on next page
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
02-NOVEMBER 2019
Page 2
S F-9202
Gooseneck AC Sensor Faucet w/ Above Counter Mixer
286mm
9
2
"
16
66mm
1"
25mm
1
11
"
4
2"
MAX DECK
THICKNESS
5
148mm
13
"
16
3
4
16
107mm
15.00°
"
3 X FLEX HOSES WITH
3/8" COMPRESSION
FEMALE FITTING
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
FLEX HOSES WITH
3/8-18 NPSM-2A
MALE FITTING
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
02-NOVEMBER 2019
