TOOLS AND SUPPLIES
Phillips
Screwdriver
Measuring
Tape
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing Valve Trim.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

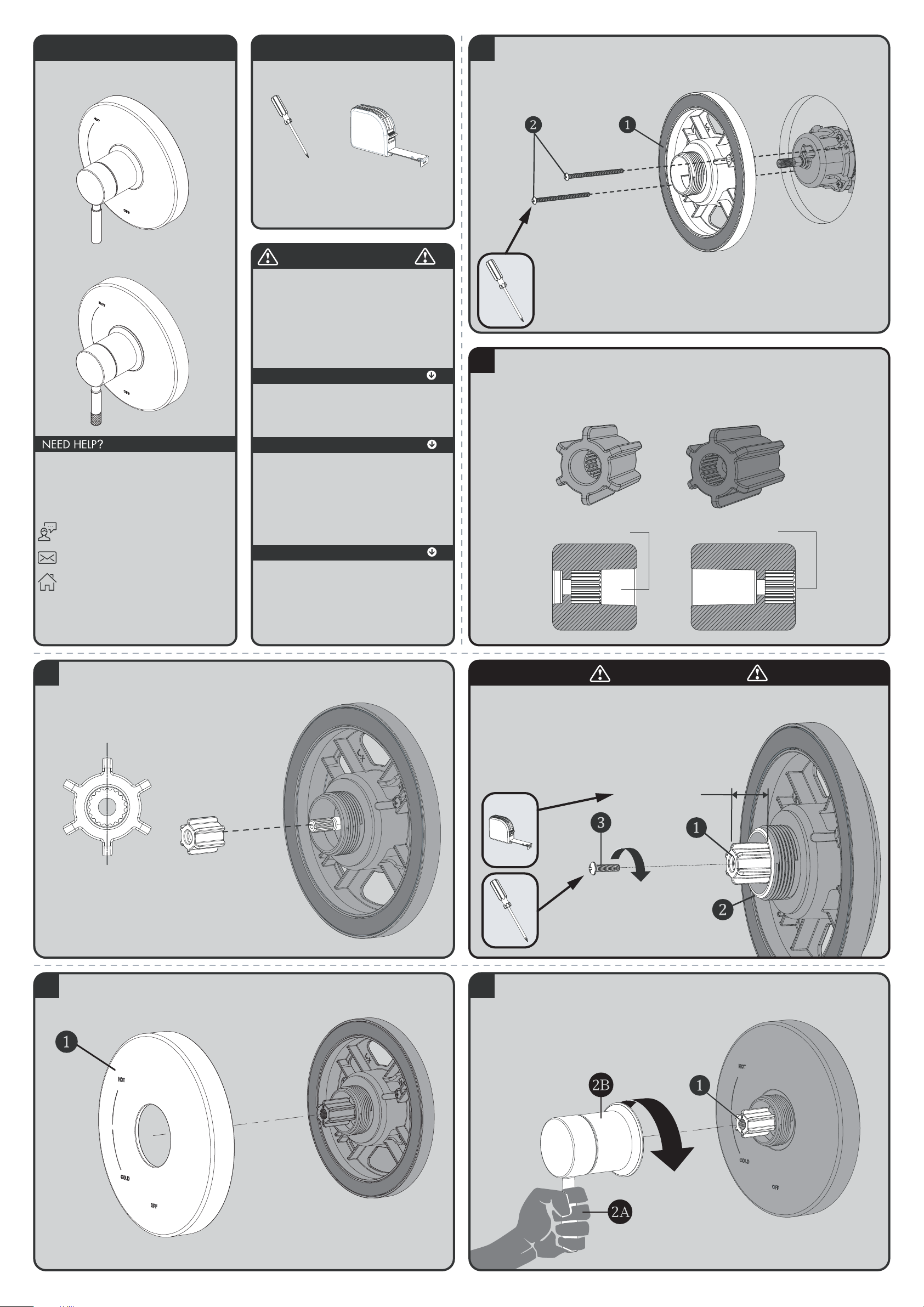

1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure with
supplied screws (2).
5
Place Escutcheon (1) on Mounting Base. Take care to orient the Escutcheon as shown below.
6
Align Handle Assembly with Connector (1) and Escutcheon as shown below. Keep Handle (2A) in a
stationary vertical position and place over Connector (1) and engage the Splines of the Connector
with the Handle Assembly. Keep Handle in the vertical position as you thread Handle Hub (2B) on
to Mounting Base. Tighten until snug.

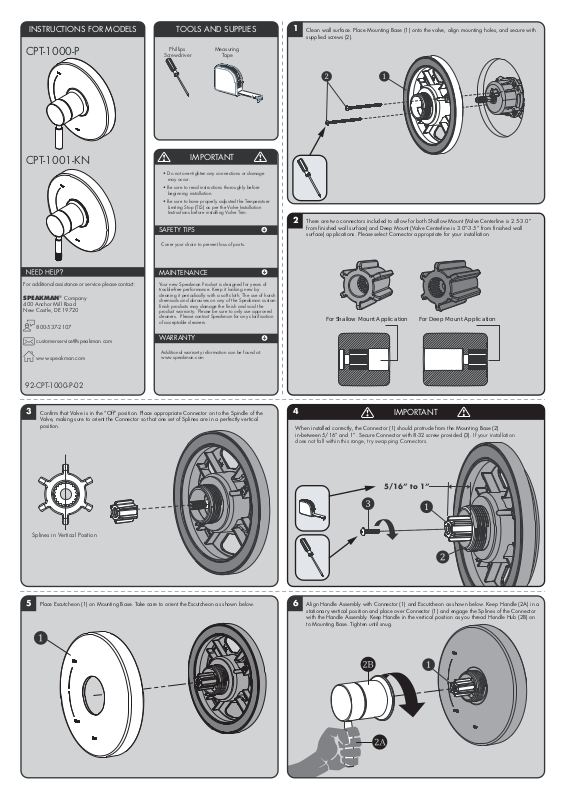

INSTRUCTIONS FOR MODELS
92-CPT-1000-P-02
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
CPT-1000-P
CPT-1001-KN
2
There are two connectors included to allow for both Shallow Mount (Valve Centerline is 2.5-3.0”
from finished wall surface) and Deep Mount (Valve Centerline is 3.0”-3.5” from finished wall
surface) applications. Please select Connector appropriate for your installation.
For Deep Mount Application
For Shallow Mount Application
3
Confirm that Valve is in the “Off” position. Place appropriate Connector on to the Spindle of the
Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical
position.
Splines in Vertical Position
4
When installed correctly, the Connector (1) should protrude from the Mounting Base (2)
in-between 5/16” and 1”. Secure Connector with 8-32 screw provided (3). If your installation
does not fall within this range, try swapping Connectors.
IMPORTANT
5/16” to 1”
Page 2
CPT-1000-P / CPT-1001-KN REPAIR PARTS
SPEAKMAN
®
RPG05-0874 SCREWS AND SPLINE ADAPTERS
RPG10-0093-XX (XX=FINISH) TRIM PLATE FOR CPT-1000-P
RPG10-104303-XX (XX=FINISH) TRIM PLATE FOR CPT-1001-KN (KNURLED)
RPG04-0388-XX (XX=FINISH) HANDLE ASSEMBLY FOR CPT-1000-P
RPG04-104314-XX (XX=FINISH) HANDLE ASSEMBLY FOR CPT-1001-KN (KNURLED)
ITEM NO. PART NO. DESCRIPTION

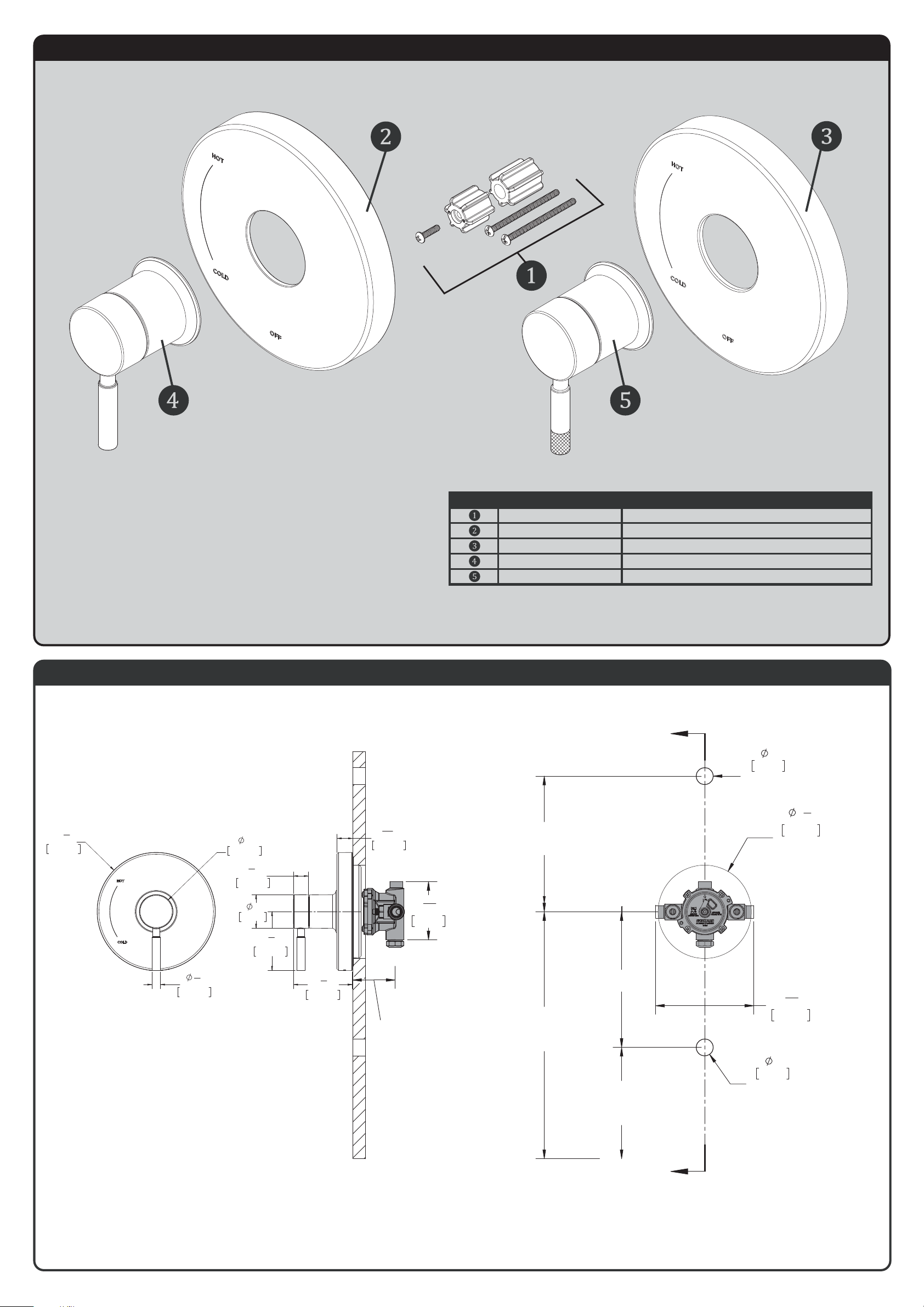

CPT-1000-P / CPT-1001-KN ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
"
R3
2
88.9mm
2"
50.4mm
7
8
22.6mm
51mm
"
2"
1
3
2
88.8mm
"
15
16
23.6mm
A
1"
25mm
HOLE FOR
SHOWER ARM
1
5
"
"
7
3
"
16
6'-6"
[2 METERS]
TO FLOOR
VAVLE ACCESS
87mm
2
140mm
HOLE FOR
1
"
2
12.7mm
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH
CPT-1000-P / CPT-1001-KN
3
88.4mm
1
"
2
SECTION A-A
2-1/2" [64mm] MINIMUM
3-1/2" [89mm] MAXIMUM
ROUGH IN DEPTH
4'-6"
[1.4 METERS]
TO FLOOR
1'-9"
[533mm]
5
147mm
13
16
"
(SHOWER INSTALL ONLY)
1"
25mm
4"
[102mm]
HOLE FOR
TUB SPOUT
TO TOP OF
TUB LEDGE
A
