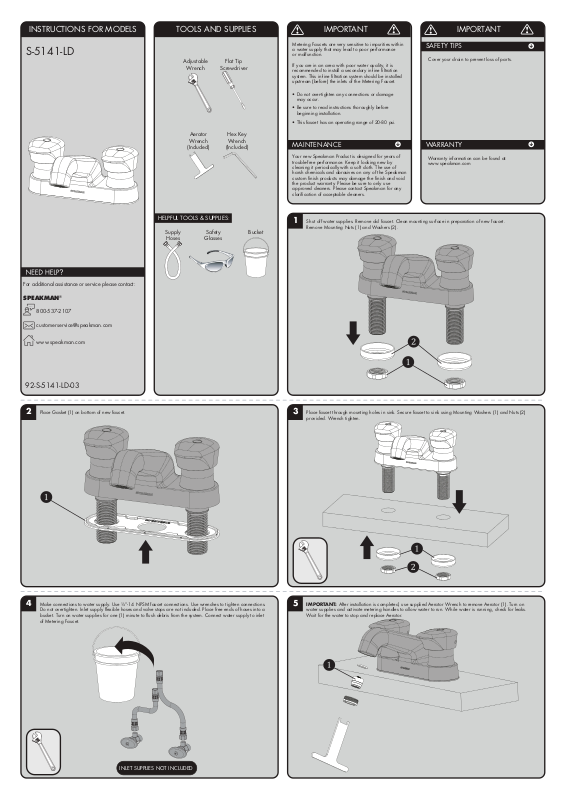

INSTRUCTIONS FOR MODELS
92-S-5141-LD-03
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
S-5141-LD
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Adjustable
Wrench
Flat Tip
Screwdriver
Supply
Hoses
Safety
Glasses
Aerator
Wrench
(Included)
Bucket
Hex Key
Wrench
(Included)
MAINTENANCE
IMPORTANT
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
Metering Faucets are very sensitive to impurities within
a water supply that may lead to poor performance
or malfunction.
If you are in an area with poor water quality, it is
recommended to install a secondary in-line filtration
system. This in-line filtration system should be installed
upstream (before) the inlets of the Metering Faucet.
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This faucet has an operating range of 20-80 psi.
Warranty information can be found at:
www.speakman.com
WARRANTY
IMPORTANT
Cover your drain to prevent loss of parts.
SAFETY TIPS

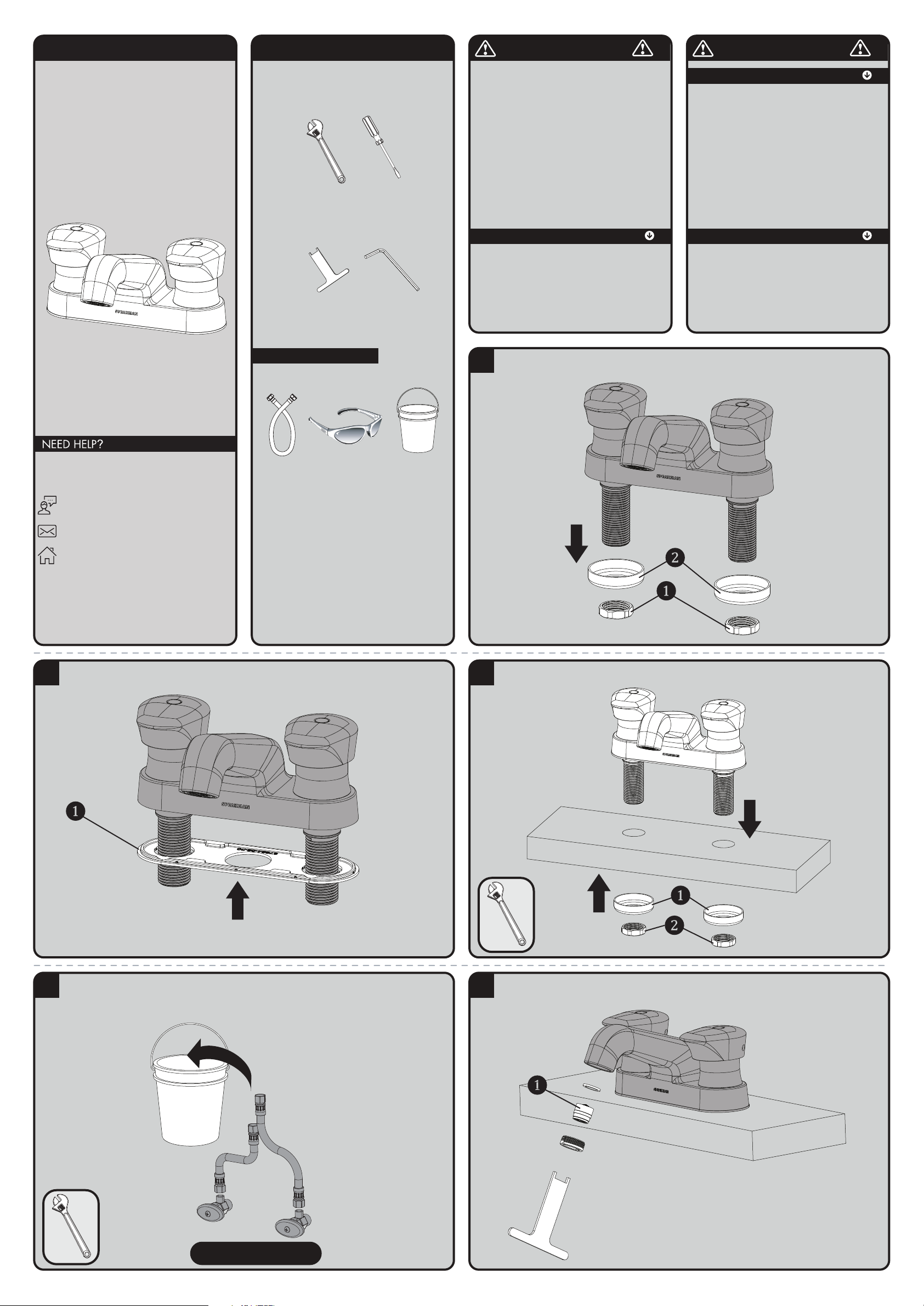

1
Shut off water supplies. Remove old faucet. Clean mounting surface in preparation of new faucet.
Remove Mounting Nuts (1) and Washers (2).
2
Place Gasket (1) on bottom of new faucet.
3
Place faucet through mounting holes in sink. Secure faucet to sink using Mounting Washers (1) and Nuts (2)
provided. Wrench tighten.
4
Make connections to water supply. Use ½”-14 NPSM faucet connections. Use wrenches to tighten connections.
Do not overtighten. Inlet supply flexible hoses and valve stops are not included. Place free ends of hoses into a
bucket. Turn on water supplies for one (1) minute to flush debris from the system. Connect water supply to inlet
of Metering Faucet.
INLET SUPPLIES NOT INCLUDED
5
IMPORTANT: After installation is completed, use supplied Aerator Wrench to remove Aerator (1). Turn on
water supplies and activate metering handles to allow water to run. While water is running, check for leaks.
Wait for the water to stop and replace Aerator.
Page 2

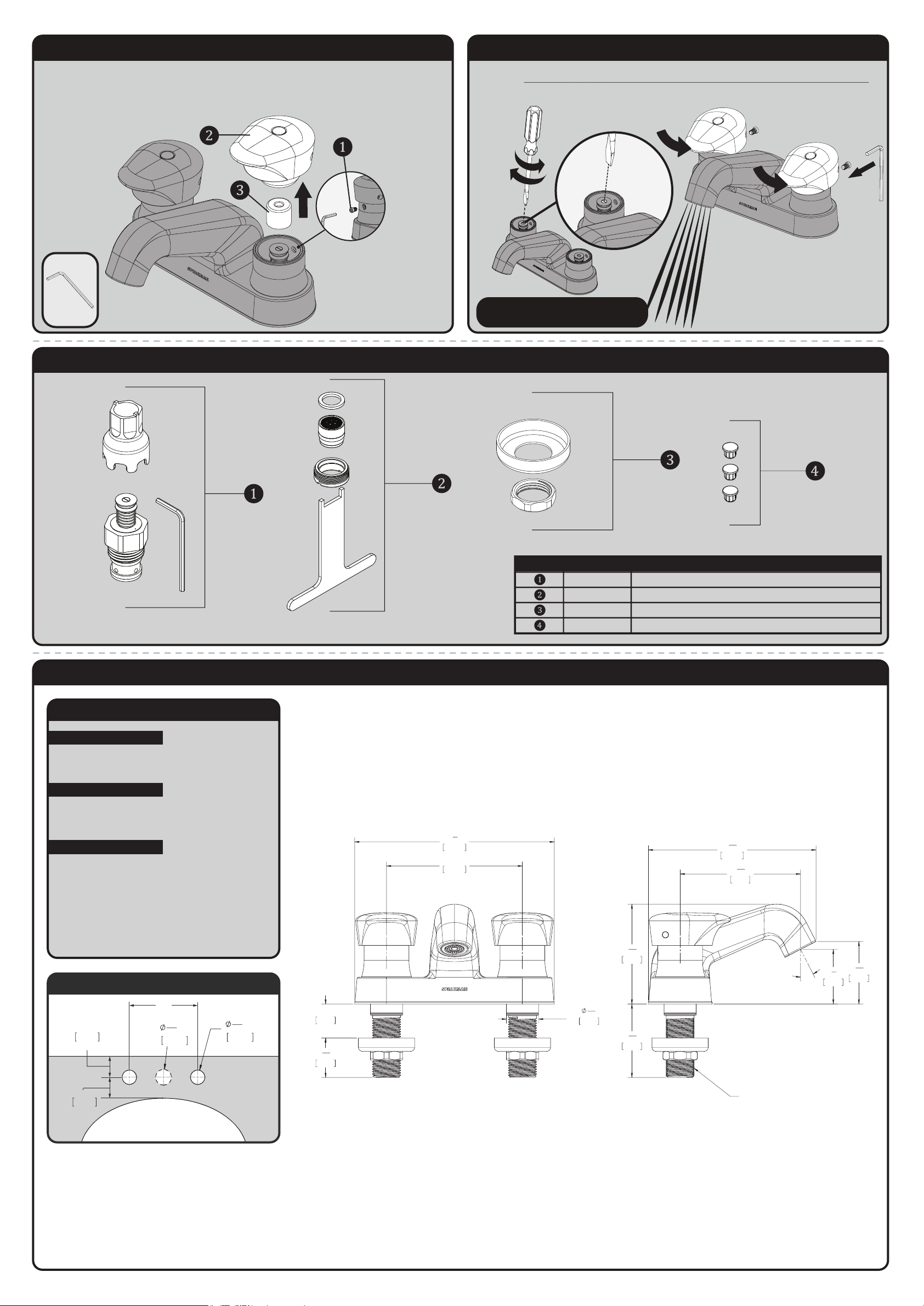

S-5141-LD REPAIR PARTS
SPEAKMAN
®
RPG05-108759 METERING VALVE
RPG05-109171 AERATOR
RPG05-108879 MOUNTING HARDWARE
RPG05-108060 HANDLE INDICATORS
ITEM NO. PART NO. DESCRIPTION
S-5141-LD ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
LAVATORY ROUGH-IN
15
16
"
24mm
15
16
"
24mm
MIN
MIN
2"
MIN. TO LEDGE
51mm
2"
MIN. TO WALL
51mm
4”
NOTES:
COMPLIANCE:
CONNECTIONS:
ASME A112.18.1/CSA B 125.1
FLOW DATA:
0.25gpc (0.95 L/cycle)
Supply Connection:
1/2"-14 NPSM Connection
Contractor to supply necessary inlet
connections.
27°
2
15
16
"
75mm
1
5
8
"
41mm
1
13
16
"
47mm
4
15
16
"
125mm
3
9
16
"
90mm
8
"
149mm
1"
MAX DECK THICKNESS
25mm
3
1
"
29mm
16
"
16
MIN DECK HOLE
24mm
15
5
7
4"
102mm
1/2"-14 NPSM THD
2
3
16
"
55mm
TIMING ADJUSTMENT 1
The spray timing is pre-adjusted at the factory. However, due to different field conditions, this adjustment may need to
be modified at the time of installation. Begin by removing the Screw (1) from the back side of the Cold Side of the
Faucet using the supplied Hex Wrench. Lift the Handle Assembly (2) to remove and place aside.
Remove the Cartridge Cap (3) and place aside. Repeat for Hot Side of the Faucet.
TIMING ADJUSTMENT 2
Using a Flat Tip Screwdriver, either thread in or out the end screw of the metering cartridge to adjust the duration of the
spray timing. IMPORTANT: Do NOT screw more than 1 complete rotation in either direction or damage may occur.
Replace the Cartidge Cap and Handle Assembly and press down on the handle to test spray duration. Once proper
timing is achieved on the Cold Side, replace the Screw to the back of the Faucet and tighten. Repeat for the Hot Side of
the Faucet.
¼ CLOCKWISE = INCREASE RUN TIME
¼ COUNTER CLOCKWISE = DECREASE RUN TIME
