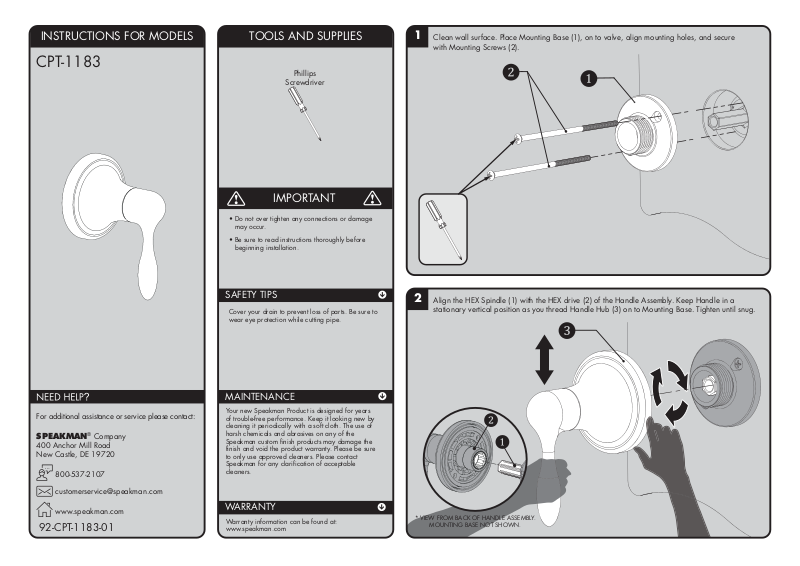

Page 1
INSTRUCTIONS FOR MODELS
CPT-1183
TOOLS AND SUPPLIES
Phillips
Screwdriver
1

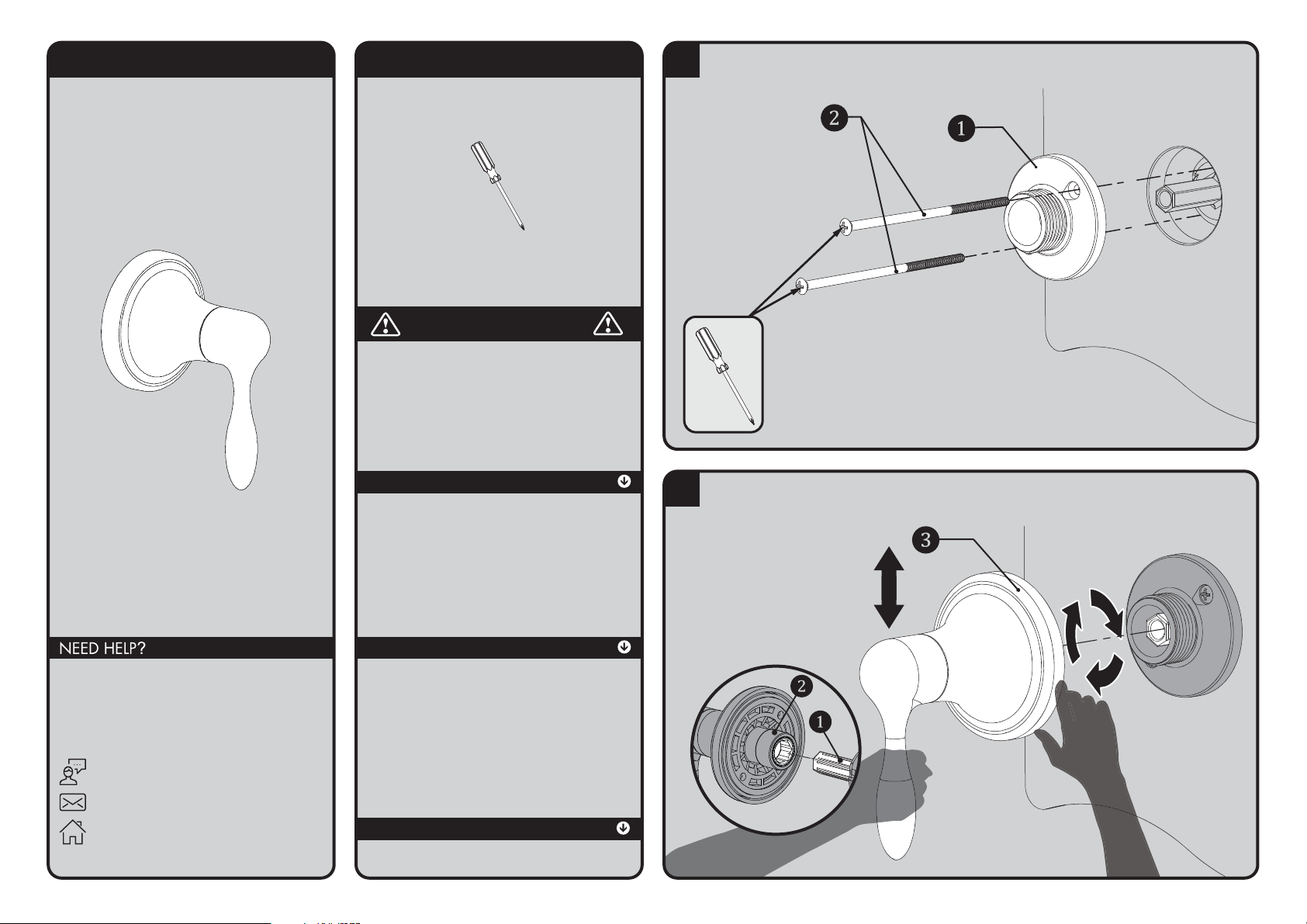

Clean wall surface. Place Mounting Base (1), on to valve, align mounting holes, and secure
with Mounting Screws (2).
2
Align the HEX Spindle (1) with the HEX drive (2) of the Handle Assembly. Keep Handle in a
stationary vertical position as you thread Handle Hub (3) on to Mounting Base. Tighten until snug.
* VIEW FROM BACK OF HANDLE ASSEMBLY.
MOUNTING BASE NOT SHOWN.
IMPORTANT
• Do not over tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
®
Company
92-CPT-1183-01
MAINTENANCE
Your new Speakman Product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the
Speakman custom finish products may damage the
finish and void the product warranty. Please be sure
to only use approved cleaners. Please contact
Speakman for any clarification of acceptable
cleaners.
WARRANTY
Warranty information can be found at:
www.speakman.com
Page 2

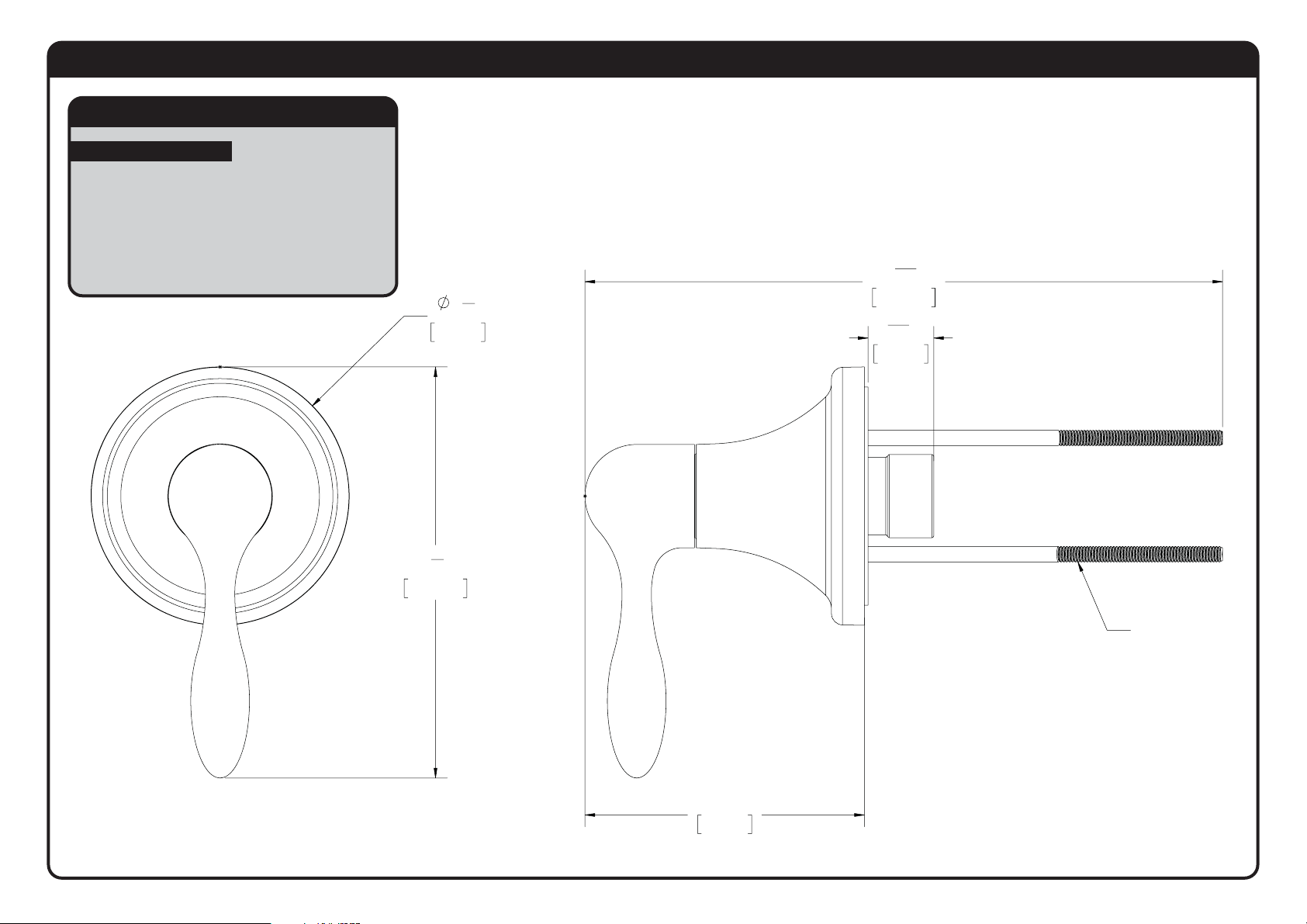

CPT-1183 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ASME A112.18.1/CSA B125.1
Contractor to supply necessary inlet
connections.
3"
76mm
11
16
"
18mm
6
13
16
"
172mm
8-32 THREAD
2
3
4
"
70mm
4
3
8
"
111mm
