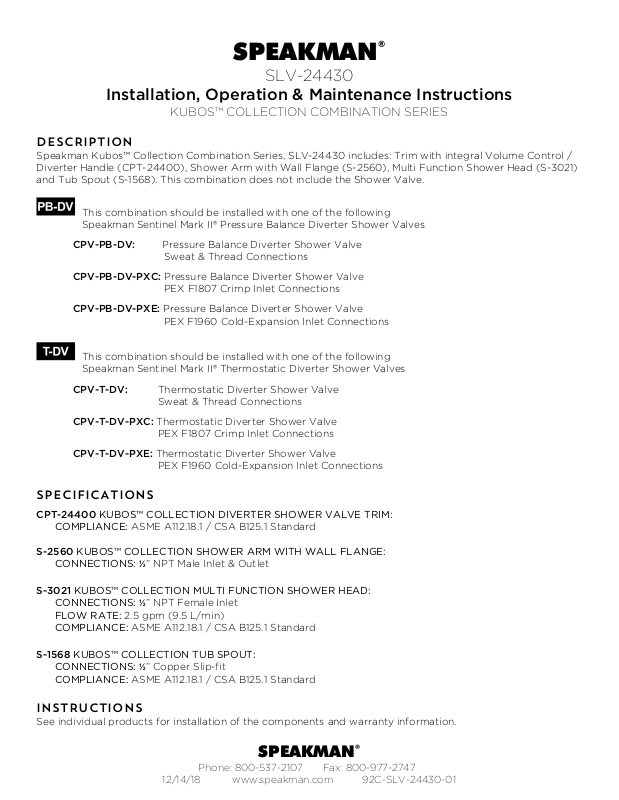

Page 1
®
SPEAKMAN
SLV-24430
Installation, Operation & Maintenance Instructions
KUBOS™ COLLECTION COMBINATION SERIES
DESCRIPTION
Speakman Kubos™ Collection Combination Series, SLV-24430 includes: Trim with integral Volume Control /
Diverter Handle (CPT-24400), Shower Arm with Wall Flange (S-2560), Multi Function Shower Head (S-3021)
and Tub Spout (S-1568). This combination does not include the Shower Valve.
This combination should be installed with one of the following
Speakman Sentinel Mark II® Pressure Balance Diverter Shower Valves
CPV-PB-DV: Pressure Balance Diverter Shower Valve
Sweat & Thread Connections
CPV-PB-DV-PXC: Pressure Balance Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-PB-DV-PXE: Pressure Balance Diverter Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
This combination should be installed with one of the following
Speakman Sentinel Mark II® Thermostatic Diverter Shower Valves
CPV-T-DV: Thermostatic Diverter Shower Valve
Sweat & Thread Connections
CPV-T-DV-PXC: Thermostatic Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-T-DV-PXE: Thermostatic Diverter Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
SPECIFICATIONS
CPT-24400 KUBOS™ COLLECTION DIVERTER SHOWER VALVE TRIM:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2560 KUBOS™ COLLECTION SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½” NPT Male Inlet & Outlet
S-3021 KUBOS™ COLLECTION MULTI FUNCTION SHOWER HEAD:
CONNECTIONS: ½” NPT Female Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-1568 KUBOS™ COLLECTION TUB SPOUT:
CONNECTIONS: ½” Copper Slip-fit
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/14/18 www.speakman.com 92C-SLV-24430-01
Page 2

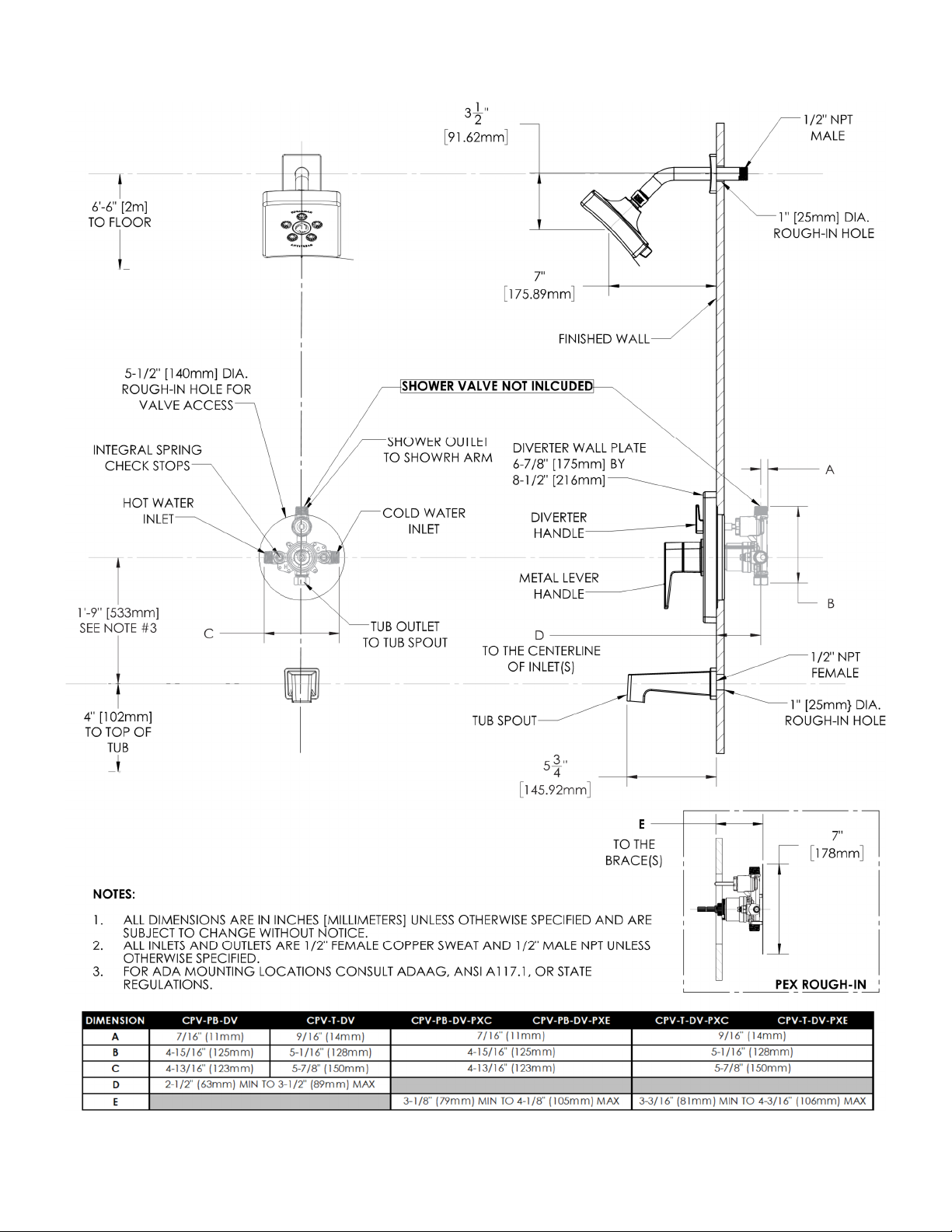

ROUGH-IN
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/14/18 www.speakman.com 92C-SLV-24430-01
Page 3
INSTRUCTIONS FOR MODELS
92-CPT-24400-02
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
CPT-24400
TOOLS AND SUPPLIES
Phillips
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

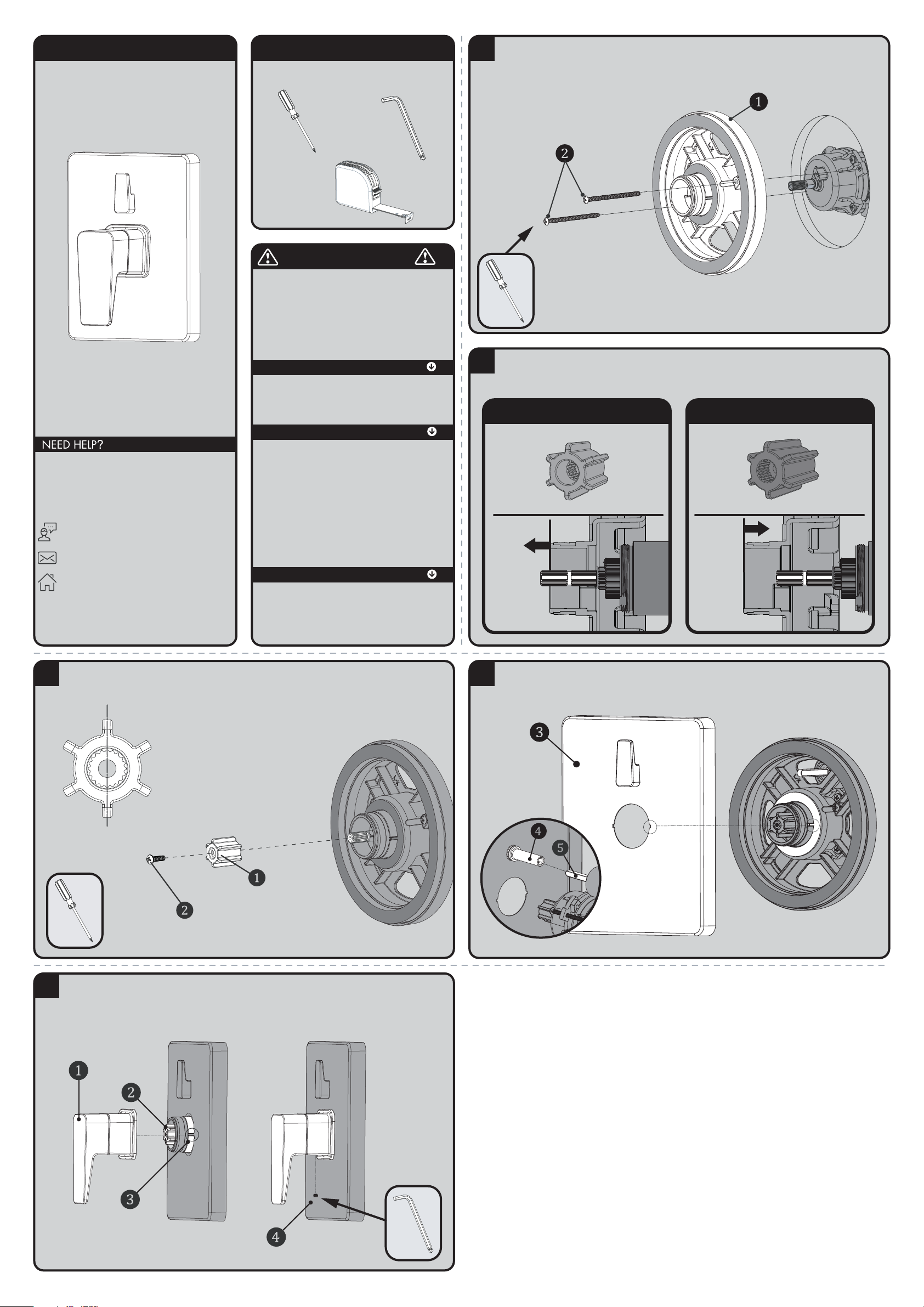

1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure
with supplied screws (2).
2
Verify the position of the Spindle within the Mounting Plate, as shown below. If the end of the
Spindle extends beyond the Mounting Plate, then use the Shallow Mount Adapter. If the end of the
Spindle is flush to, or is within the Mounting Plate, then use the Deep Mount Adapter.
FOR SHALLOW MOUNT APPLICATION
FOR DEEP MOUNT APPLICATION
3
Confirm that Valve is in the “Off” position. Place appropriate Connector (1) on to the Spindle of
the Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical
position. Secure Connector with 8-32 screw provided (2).
Splines in Vertical Position
4
Place Wall Plate (3) onto Mounting Base. Align the flat tabs on the Mounting Base with the cut
outs on the Wall Plate as shown for perfect fit. Verify the Diverter Valve Stem is in the OFF
(vertical) position. Align the Diverter Drive Tube (4) on the Wall Plate to the Stem (5) of the
Diverter Valve.
* VIEW FROM BACK OF WALL PLATE
5
Orient the Handle Assembly (1) as shown below. Place Handle Assembly (1) onto the Mounting
Base while guiding the splines of the Adapter (2) into the Handle Assembly (1). Align the
Mounting Base Tabs (3) into the corresponding recesses of the Handle Assembly (1). Once all
items are aligned, press Handle Assembly (1) inward toward Wall Plate. Secure Handle
Assembly (1) by tightening Set Screw (4) with supplied Allen Wrench.
Screwdriver
Hex Key Wrench
(Included)
Measuring
Tape
Page 4

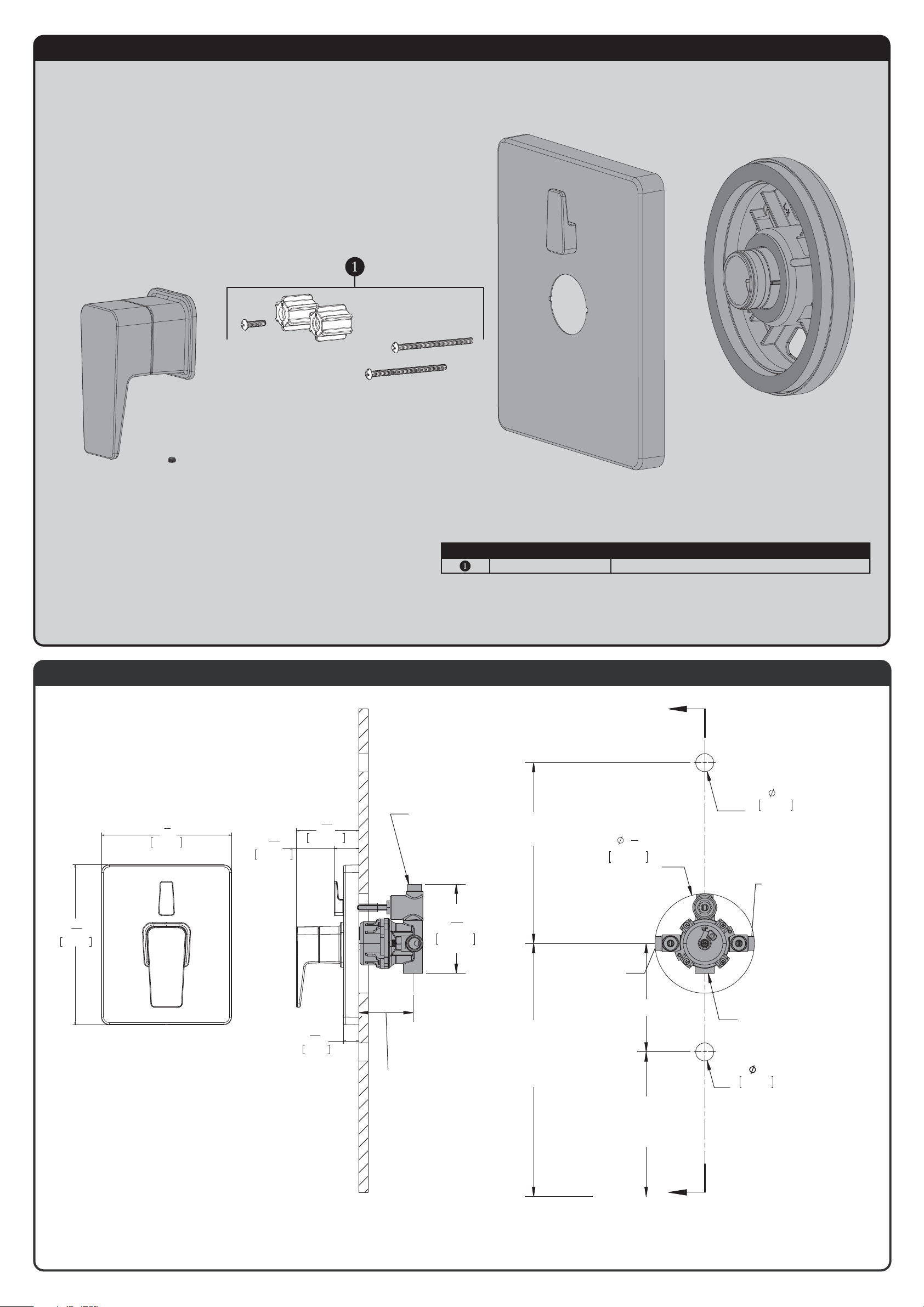

CPT-24400 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-24000
1"
25mm
HOLE FOR
SHOWER ARM
5
1
2
"
140mm
HOLE FOR
VALVE ACCESS
1"
25mm
HOLE FOR
TUB SPOUT
6'-6" [2 METERS]
TO FLOOR
4'-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION ONLY)
1'-9" [533mm]
4" [102mm
TO TOP OF
TUB LEDGE
A
A
1/2 NPT FEMALE
1/2" SWEAT
CONNECTION
1/2" SWEAT
CONNECTION
2-1/2"MIN
[64mm]
3-1/2"MAX
[89mm]
(ADJUSTMENT)
4
15
16
"
125mm
1/2" SWEAT
CONNECTION
8
7
16
"
215mm
6
7
8
"
175mm
3
5
16
"
83.96mm
1
5
16
"
33.30mm
13
16
"
21mm
CPT-24400 REPAIR PARTS
SPEAKMAN
®
ITEM NO. PART NO. DESCRIPTION
RPG05-0874 MOUNTING HARDWARE
Page 5
INSTRUCTIONS FOR MODELS
92-S-2560-R3
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com

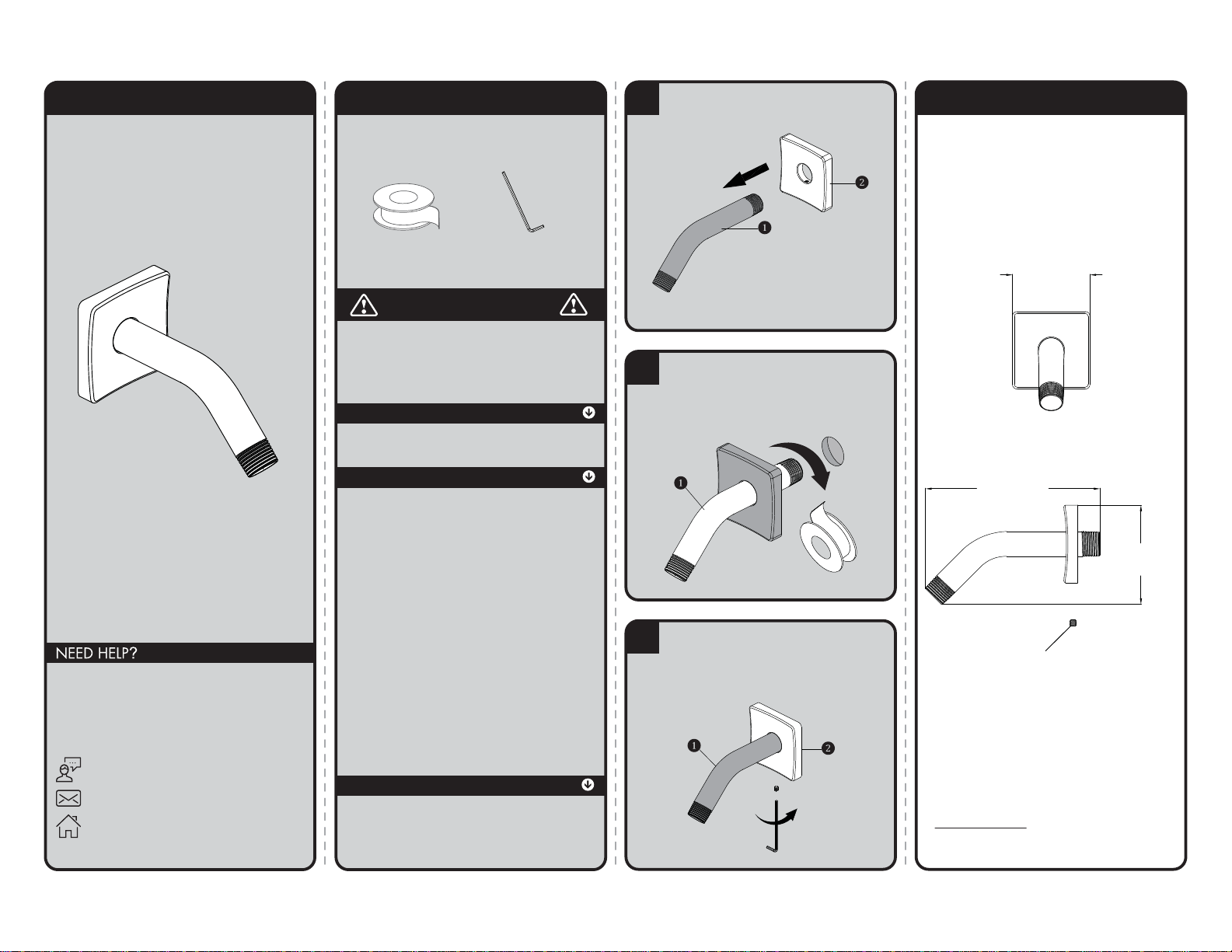

S-2560
TOOLS AND SUPPLIES
1
Slide Escutcheon Plate (2) over the long
end of the Shower Arm (1).
2
Apply Teflon Tape to inlet side of Shower
Arm (1). Thread Shower Arm (1) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (1) Outlet is
pointing in a downward position.
3
Position Escutcheon Plate (2) flat against wall.
Secure Escutcheon Plate (2) to Shower Arm
(1) by tightening set screw with allen wrench
(Hex: 2.0mm) provided.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2.50''
[63.50mm]
5.62''
[142.76mm]
3.20''
[81.22mm]
M4X0.7-6g
Thread Seal
Tape
IMPORTANT
Allen Wrench
(Included)
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 6
INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
ROUGH IN DIMENSIONS

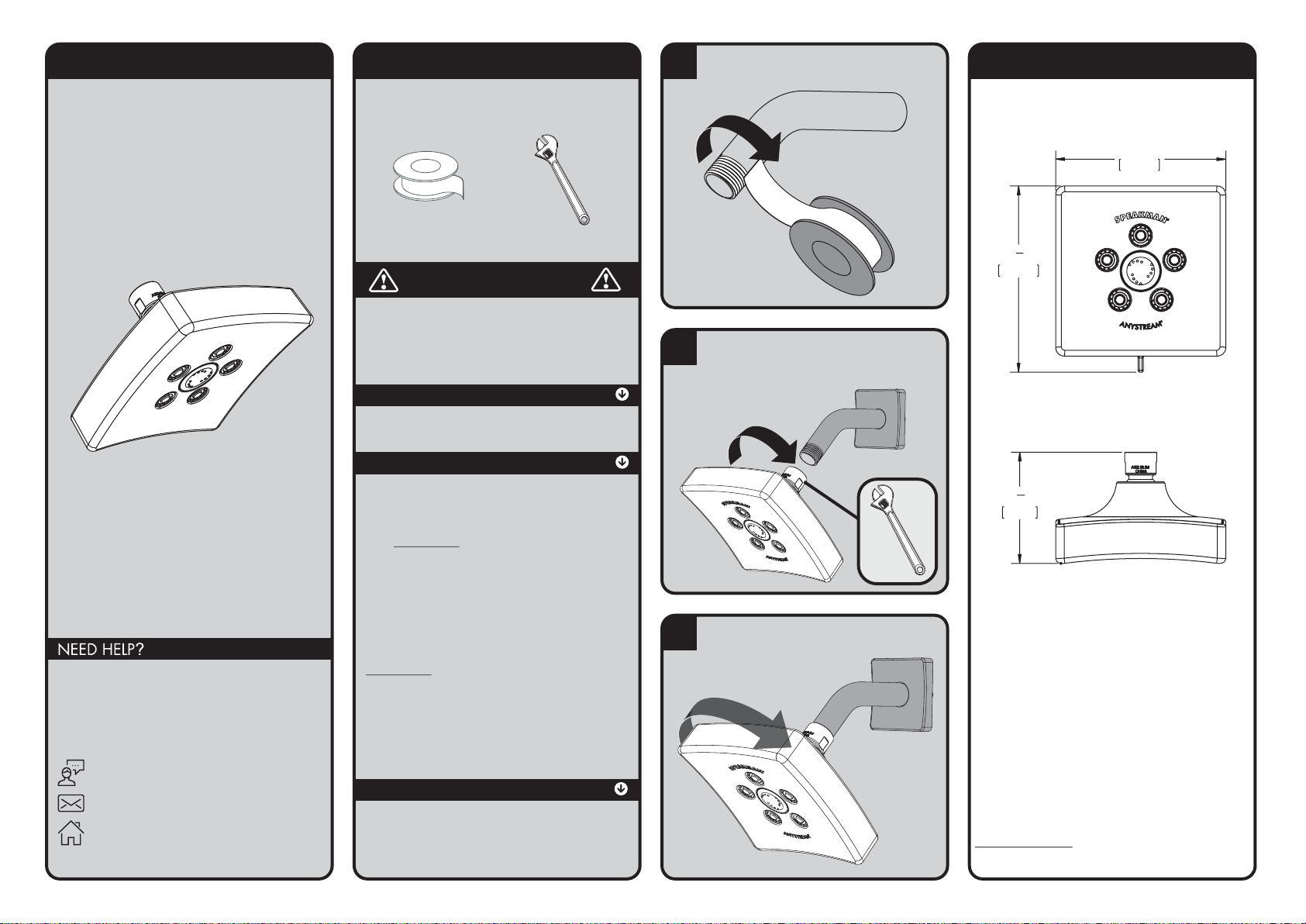

1
Apply Thread Seal Tape to the outlet side of
shower arm in a clockwise direction.
2
Thread Shower head onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
3
Adjust spray pattern by rotating faceplate to
preferred Anystream® position.
S-3021
S-3021-E2
S-3021-E175
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
92-S-3021-03
®
Company
Thread Seal
Tape
Adjustable
Wrench
(included)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body (follow
manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the showerhead soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
To reduce mineral build-up, turn the handle to FLOOD
position to let the water drain out after every use.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
5"
127mm
1
5
"
2
139mm
1
3
"
4
83mm
Model: S-3021
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
Model: S-3021-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-3021-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.5 GPM) OR LESS.
Specifications:
Inlet: 1/2” NPT FEMALE
Page 7
INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES

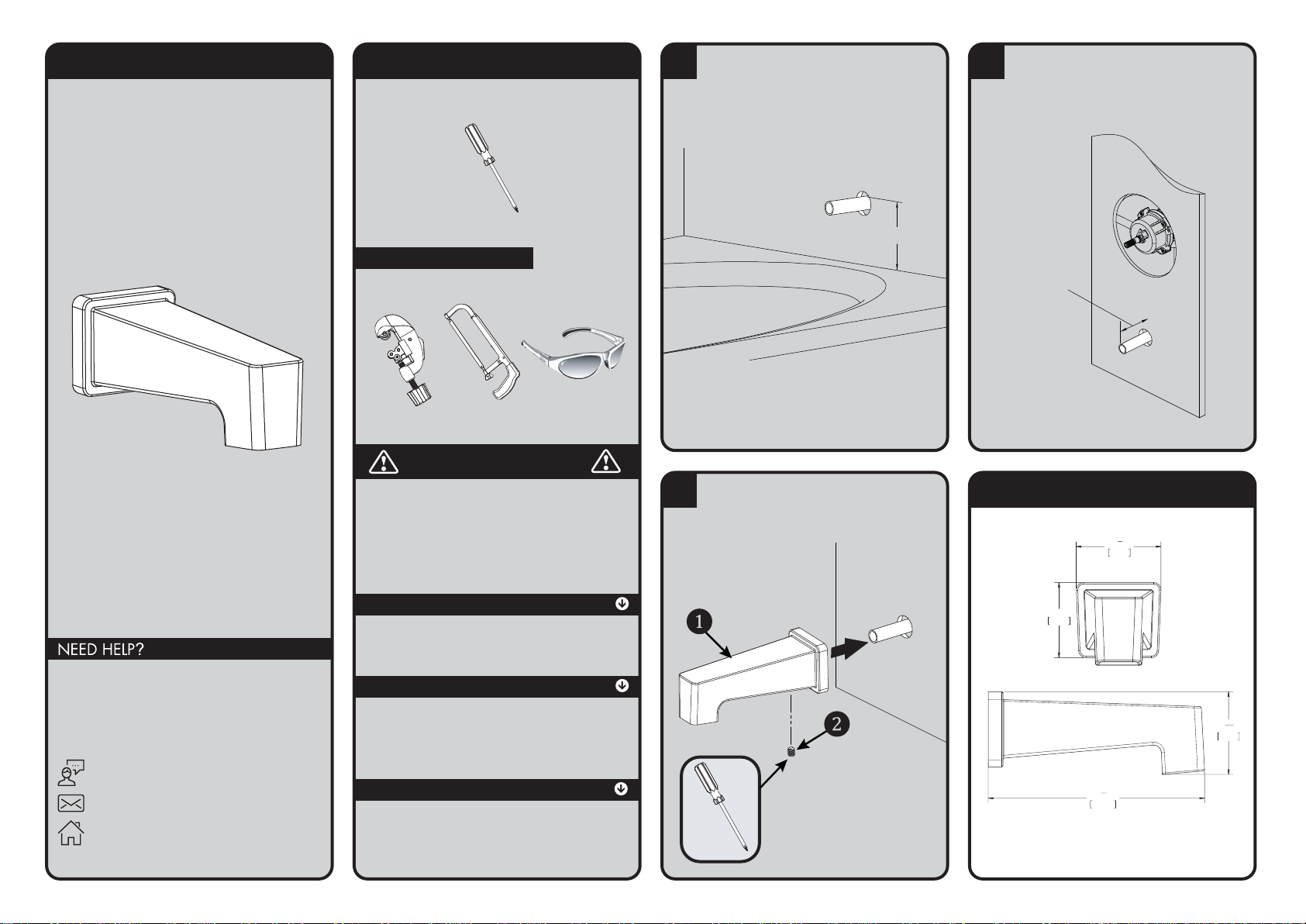

1
The minimum distance between the center of the
tub spout and the rim of the tub should be no
less than 4".
4'' Minimum
2
The stub out for the 1/2" pipe should extend a
minimum of 1.75" from the wall, but not to
exceed 4" from wall. Remove all burs and sharp
edges from the stub out 1/2" pipe.
1.75'' - 4.0''
MIN MAX
3
Slide Spout (1) over exposed stub out pipe until
flush to wall. Center the Spout (1) on the wall
and tighten Set Screw (2) from underneath with
a Phillips Screwdriver.
ROUGH-IN DIAGRAM
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
S-1568
Phillips
Screwdriver
HELPFUL TOOLS & SUPPLIES:
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
Tubing
Cutter
Hacksaw Safety
Glasses
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Speakman product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
2"
51mm
1
"
2
4
57mm
3
"
2
16
56mm
3
"
5
4
146mm
92-S-1568-01
