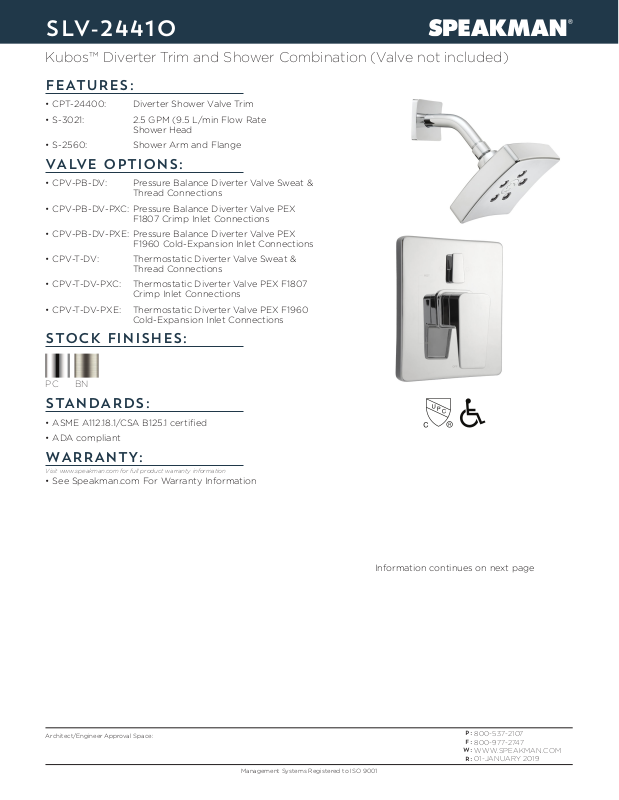

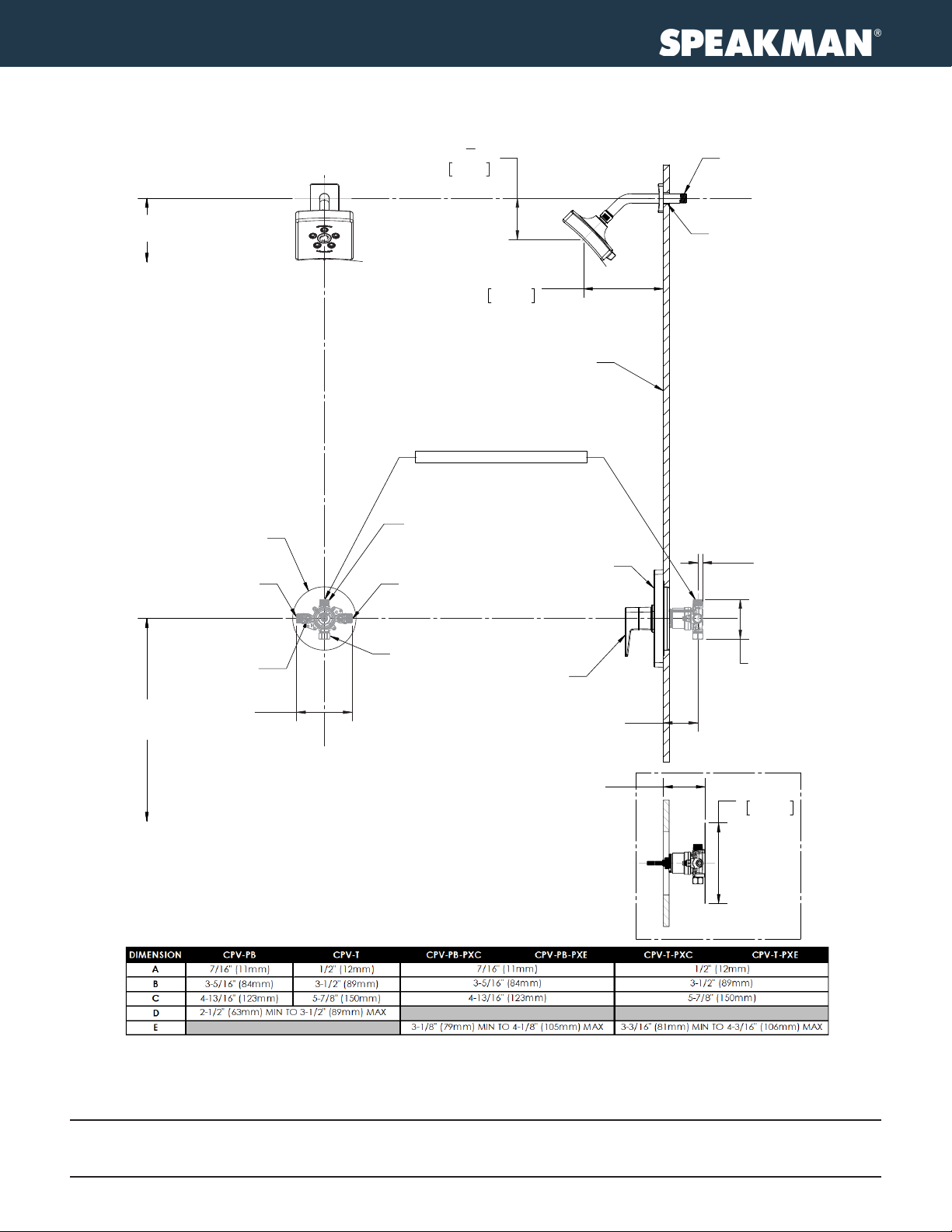

SLV-24 41 0

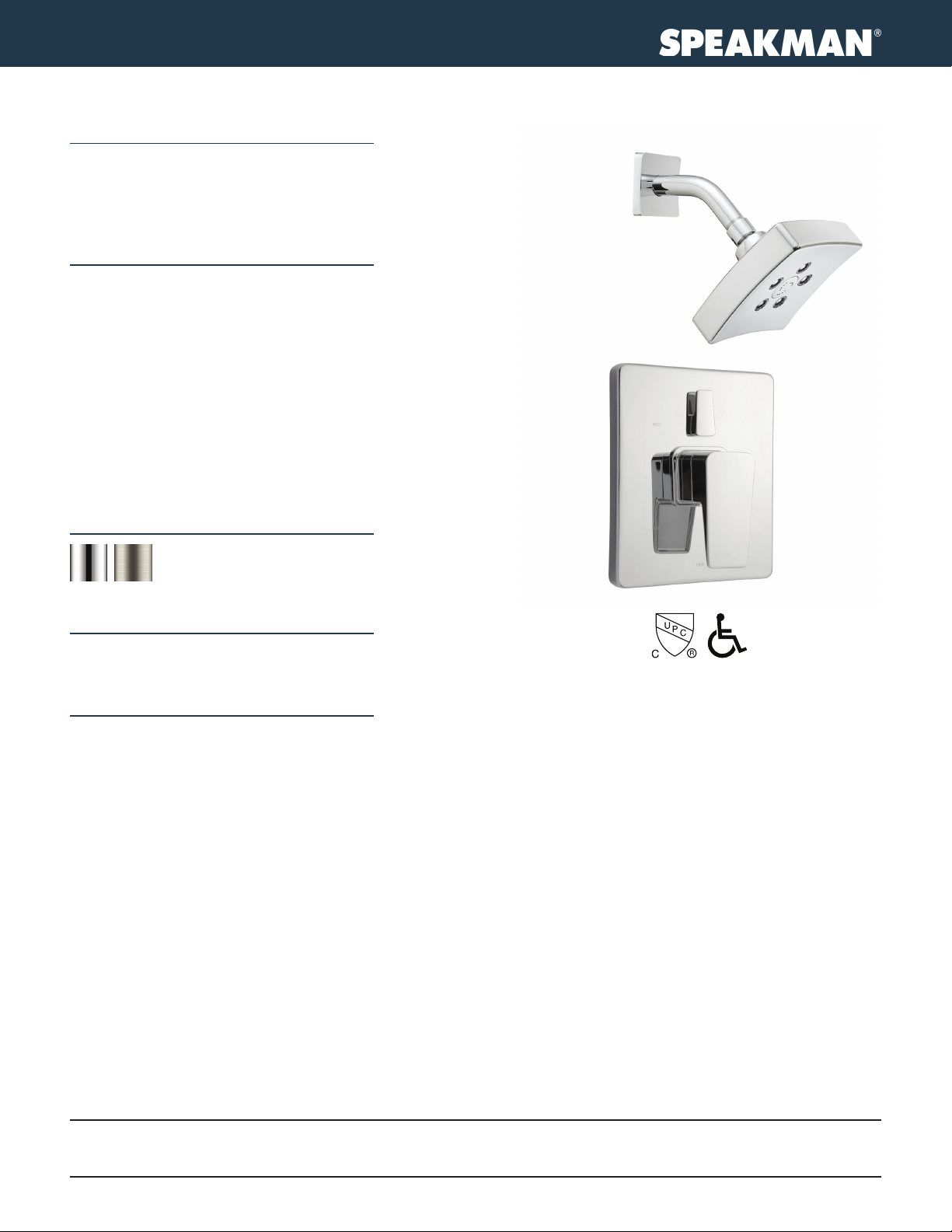

Kubos™ Diverter Trim and Shower Combination (Valve not included)
FEATURES:
• CPT-24400: Diverter Shower Valve Trim
• S-3021: 2.5 GPM (9.5 L/min Flow Rate
Shower Head
• S-2560: Shower Arm and Flange
VALVE OPTIONS:
• CPV-PB-DV: Pressure Balance Diverter Valve Sweat &
Thread Connections
• CPV-PB-DV-PXC: Pressure Balance Diverter Valve PEX
F1807 Crimp Inlet Connections
• CPV-PB-DV-PXE: Pressure Balance Diverter Valve PEX
F1960 Cold-Expansion Inlet Connections
• CPV-T-DV: Thermostatic Diverter Valve Sweat &
Thread Connections
• CPV-T-DV-PXC: Thermostatic Diverter Valve PEX F1807
Crimp Inlet Connections
• CPV-T-DV-PXE: Thermostatic Diverter Valve PEX F1960
Cold-Expansion Inlet Connections
STOCK FINISHES:
BNPC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
Page 2
SLV-24 41 0
Kubos™ Diverter Trim and Shower Combination (Valve not included)
1
"
3
6'-6" [2m]
6'-6" [2m]
TO FLOOR
TO FLOOR
2
91mm
1/2" NPT
MALE
1" [25mm] DIA.
ROUGH-IN HOLE
5-1/2" [140mm] DIA.
ROUGH-IN HOLE
FOR VALVE ACCESS
HOT WATER INLET
4'-6" [1.4m]
4'-6" [1.4m]
TO FLOOR,
TO FLOOR,
SEE NOTE #3
SEE NOTE #3
INTEGRAL SPRING
CHECK STOPS
C
7"
176mm
FINISHED WALL
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET
TO SHOWER ARM
COLD WATER INLET
TUB OUTLET
CAPPED
6-7/8" [175mm] BY
METAL
LEVER HANDLE
WALL PLATE
8-1/2" [216mm]
D
TO THE
CENTERLINE
OF INLET(S)
A
B
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE
1.
SUBJECT TO CHANGE WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS
2.
OTHERWISE SPECIFIED .
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE
3.
REGULATIONS.
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
E
TO THE
BRACE(S)
PEX ROUGH-IN
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
7"
178mm
