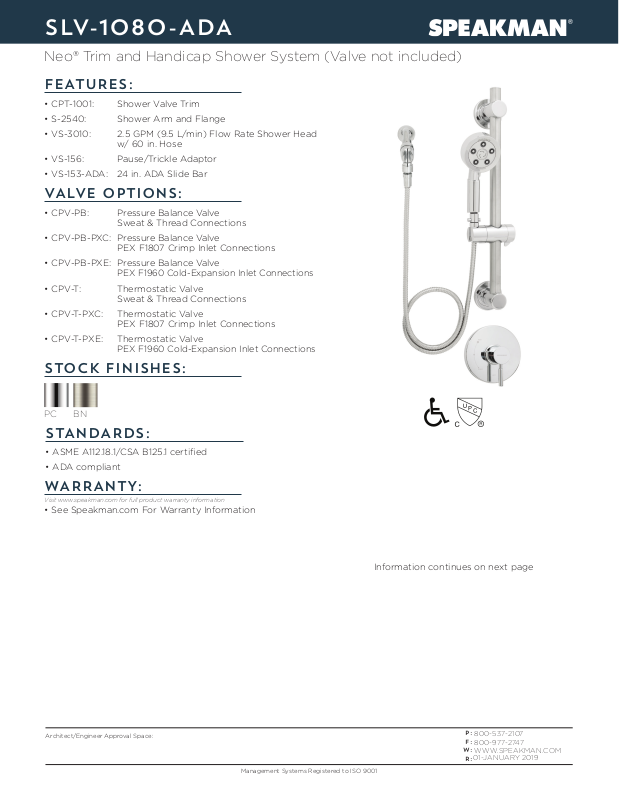

SLV-10 8 0 -ADA

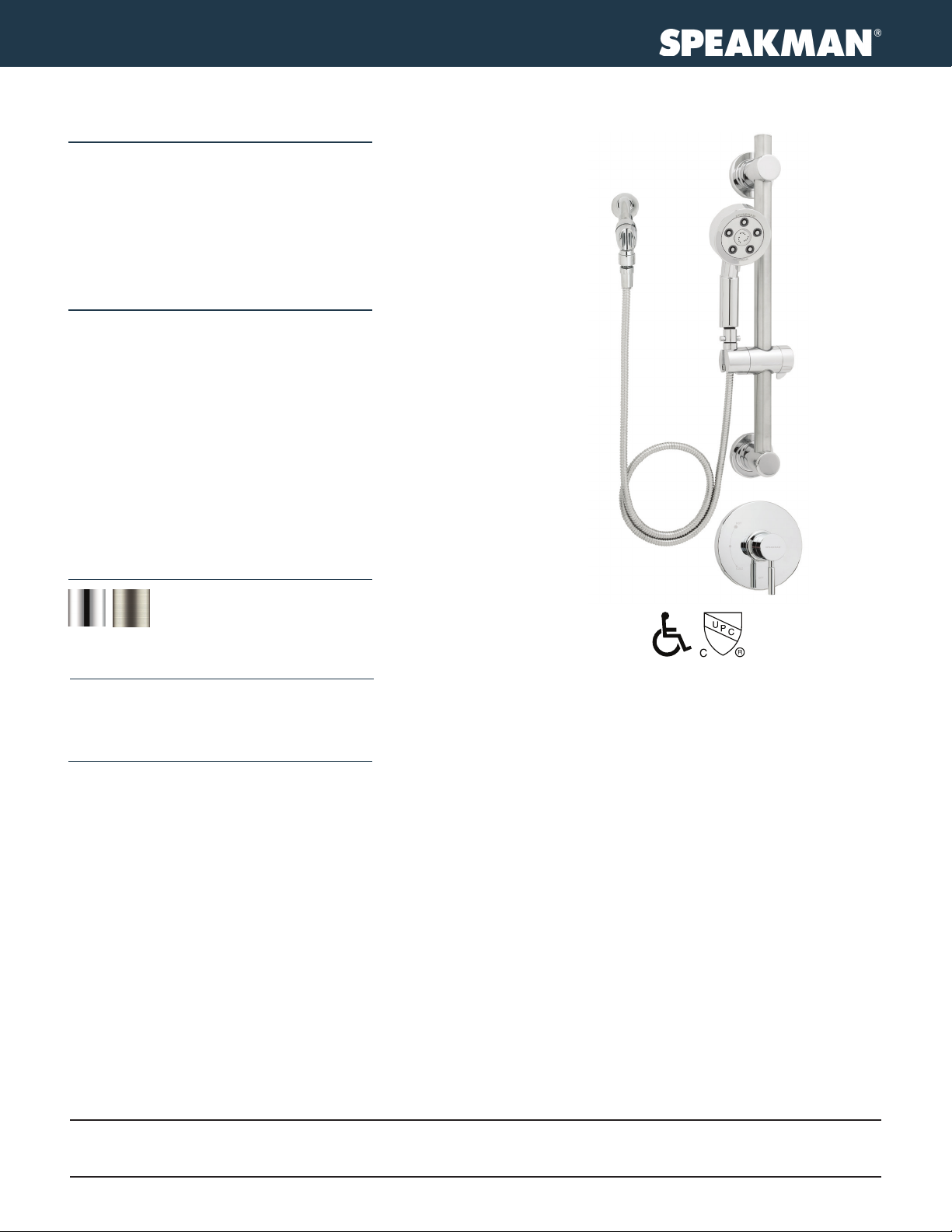

Neo® Trim and Handicap Shower System (Valve not included)
FEATURES:
• CPT-1001: Shower Valve Trim
• S-2540: Shower Arm and Flange
• VS-3010: 2.5 GPM (9.5 L/min) Flow Rate Shower Head
w/ 60 in. Hose
• VS-156: Pause/Trickle Adaptor
• VS-153-ADA: 24 in. ADA Slide Bar
VALVE OPTIONS:
• CPV-PB: Pressure Balance Valve
Sweat & Thread Connections
• CPV-PB-PXC: Pressure Balance Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-PXE: Pressure Balance Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T: Thermostatic Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Valve
PEX F1960 Cold-Expansion Inlet Connections
STOCK FINISHES:
PC
BN
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
01-JANUARY 2019
R:
Page 2
SLV-10 8 0 -ADA
Neo® Trim and Handicap Shower System (Valve not included)

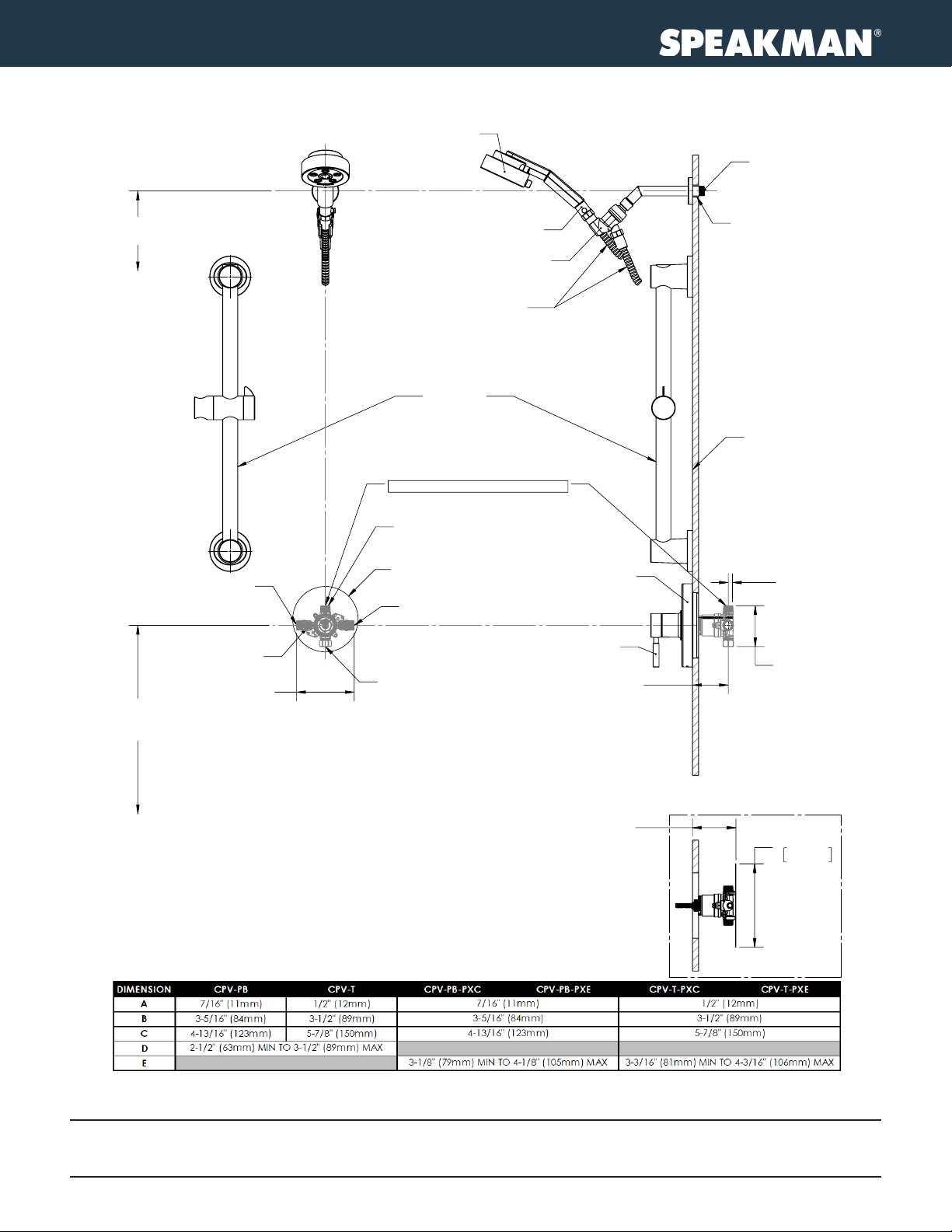

HAND SHOWER
1/2" NPT
MALE
6'6" [2m]
TO FLOOR
HOT WATER INLET
4'6" [1.4m]
TO FLOOR
SEE NOTE #4
INTEGRAL SPRING
CHECK STOPS
C
ADA PAUSE SWITCH
SHOWER ARM BRACKET
HOSE ASSEMBLY
WITH BUILT-IN
CHECK VALVE
SLIDE BAR
LOCATION
OPTIONAL
(SEE NOTE #3)
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET,
TO SHOWER ARM
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
COLD WATER INLET
TUB OUTLET,
CAPPED
WALL PLATE
7" [178mm] DIA.
METAL
LEVER HANDLE
CENTERLINE
OF INLET(S)
D
TO THE
1" [25mm] DIA.
ROUGH-IN HOLE
FINISHED WALL
A
B
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE
1.
SUBJECT TO CHANGE WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS
2.
OTHERWISE SPECIFIED.
THE LOCATION OF THE SLIDE BAR IS OPTIONAL, BUT RESTRICTED BY THE 60" HOSE LENGTH
3.
RUNNING FROM THE SHOWER ARM BRACKET TO THE HAND SHOWER.
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE
4.
REGULATIONS.
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
E
TO THE
BRACE(S)
7"
178mm
PEX ROUGH-IN
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
01-JANUARY 2019
R:
