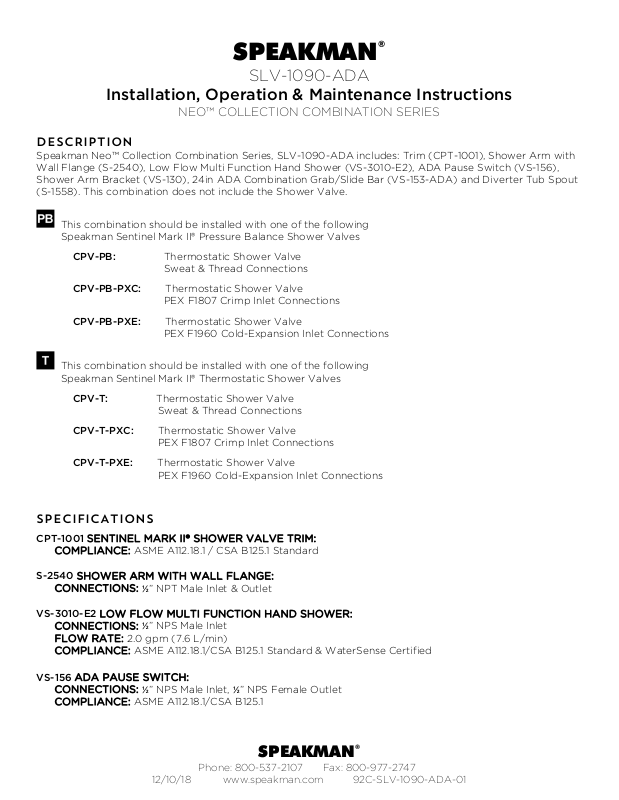

SPEAKMAN
SLV-1090-ADA
Installation, Operation & Maintenance Instructions
NEO™ COLLECTION COMBINATION SERIES
DESCRIPTION
Speakman Neo™ Collection Combination Series, SLV-1090-ADA includes: Trim (CPT-1001), Shower Arm with
Wall Flange (S-2540), Low Flow Multi Function Hand Shower (VS-3010-E2), ADA Pause Switch (VS-156),
Shower Arm Bracket (VS-130), 24in ADA Combination Grab/Slide Bar (VS-153-ADA) and Diverter Tub Spout
(S-1558). This combination does not include the Shower Valve.
This combination should be installed with one of the following
Speakman Sentinel Mark II® Pressure Balance Shower Valves
CPV-PB: Thermostatic Shower Valve
Sweat & Thread Connections
CPV-PB-PXC: Thermostatic Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-PB-PXE: Thermostatic Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
This combination should be installed with one of the following
Speakman Sentinel Mark II® Thermostatic Shower Valves
CPV-T: Thermostatic Shower Valve
Sweat & Thread Connections
CPV-T-PXC: Thermostatic Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-T-PXE: Thermostatic Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
SPECIFICATIONS
CPT-1001 SENTINEL MARK II® SHOWER VALVE TRIM:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2540 SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½” NPT Male Inlet & Outlet
VS-3010-E2 LOW FLOW MULTI FUNCTION HAND SHOWER:
CONNECTIONS: ½” NPS Male Inlet
FLOW RATE: 2.0 gpm (7.6 L/min)
COMPLIANCE: ASME A112.18.1/CSA B125.1 Standard & WaterSense Certified
VS-156 ADA PAUSE SWITCH:
CONNECTIONS: ½” NPS Male Inlet, ½” NPS Female Outlet
COMPLIANCE: ASME A112.18.1/CSA B125.1
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/10/18 www.speakman.com 92C-SLV-1090-ADA-01
Page 2
VS-130 SHOWER ARM BRACKET:
CONNECTIONS: ½”- 14 NPT Female

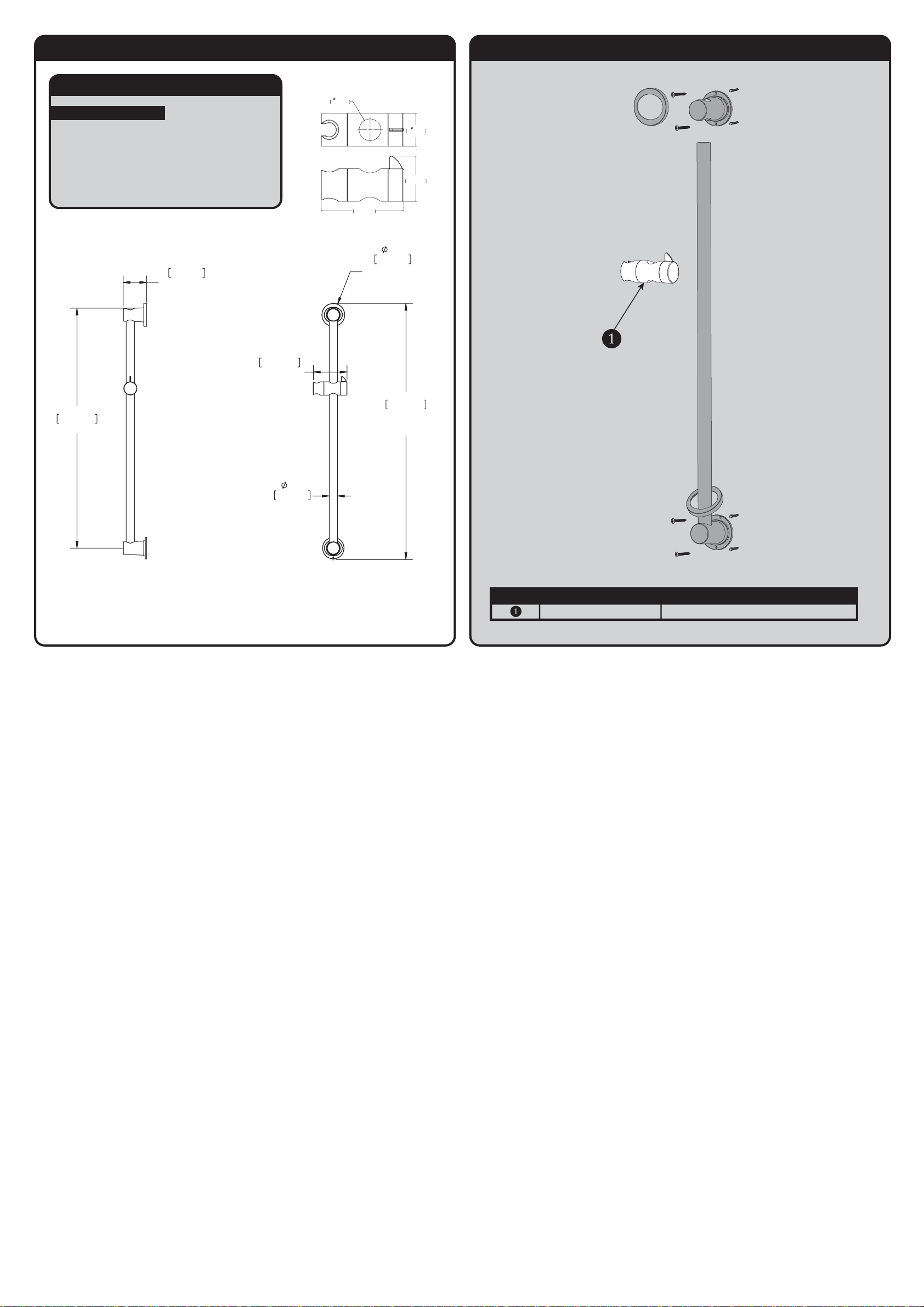

VS-153-ADA 24in ADA COMBINATION GRAB/SLIDE BAR:
COMPLIANCE: Meets 250 lbs pull test for Grab Bars per ANSI Standard;
Meets requirements of ADA Lever Handle for adjusting Slide Bar
S-1558 DIVERTER TUB SPOUT:
CONNECTIONS: ½” Copper Slip-fit
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/10/18 www.speakman.com 92C-SLV-1090-ADA-01
Page 3
ROUGH-IN
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/10/18 www.speakman.com 92C-SLV-1090-ADA-01
Page 4
INSTRUCTIONS FOR MODELS
92-CPT-1001-01
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
CPT-1001
TOOLS AND SUPPLIES
Phillips
Screwdriver
Measuring
Tape
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing Valve Trim.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

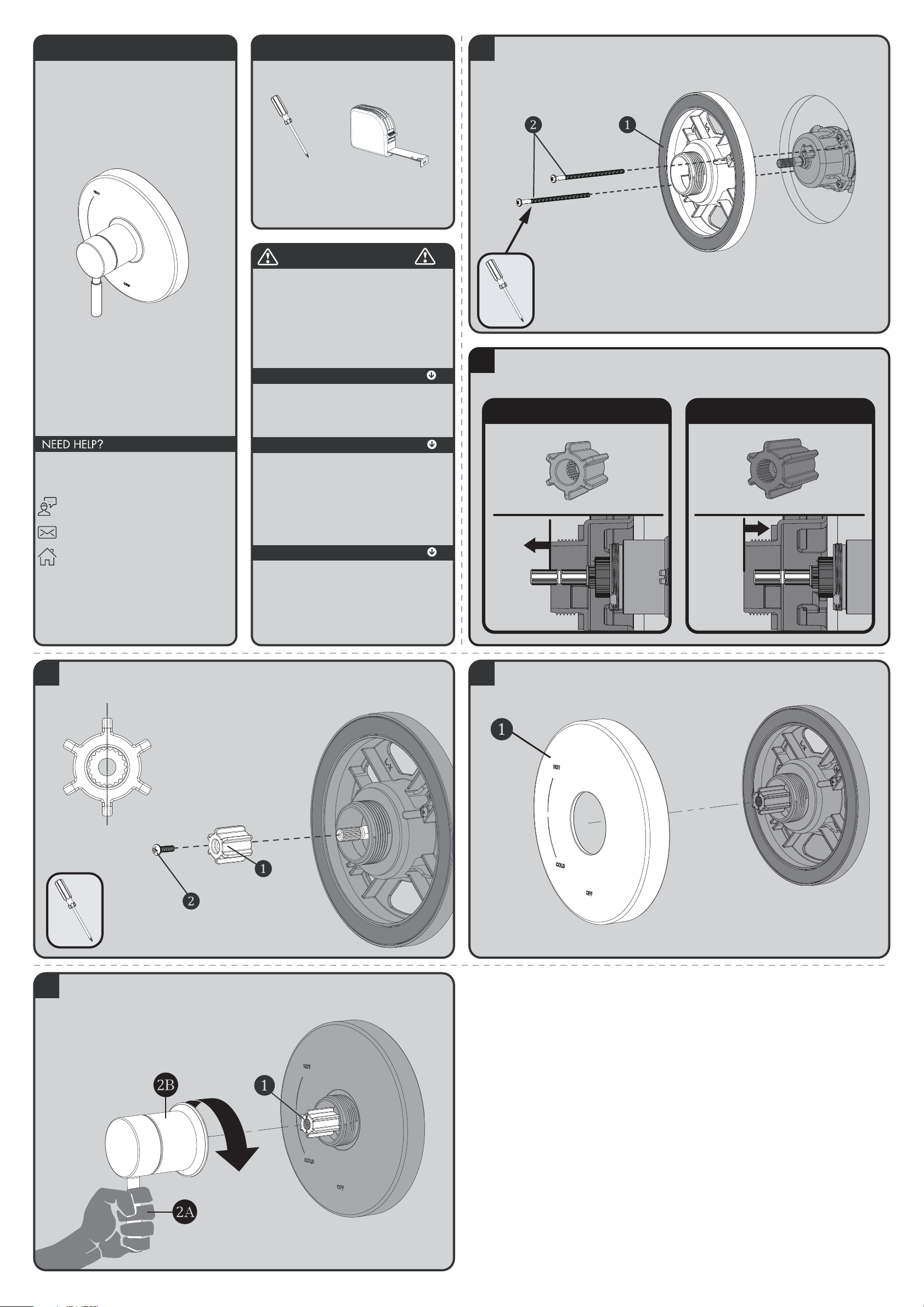

1
Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure with
supplied screws (2).
2
Verify the position of the Spindle within the Mounting Plate, as shown below. If the end of the
Spindle extends beyond the Mounting Plate, then use the Shallow Mount Adapter. If the end of the
Spindle is flush to, or is within the Mounting Plate, then use the Deep Mount Adapter.
FOR SHALLOW MOUNT APPLICATION
FOR DEEP MOUNT APPLICATION
3
Confirm that Valve is in the “Off” position. Place appropriate Connector (1) on to the Spindle of the
Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical
position. Secure Connector with 8-32 screw provided (2).
Splines in Vertical Position
4
Place Escutcheon (1) on Mounting Base. Take care to orient the Escutcheon as shown below.
5
Align Handle Assembly with Connector (1) and Escutcheon as shown below. Keep Handle (2A) in a
stationary vertical position and place over Connector (1) and engage the Splines of the Connector
with the Handle Assembly. Keep Handle in the vertical position as you thread Handle Hub (2B) on
to Mounting Base. Tighten until snug.
Page 5

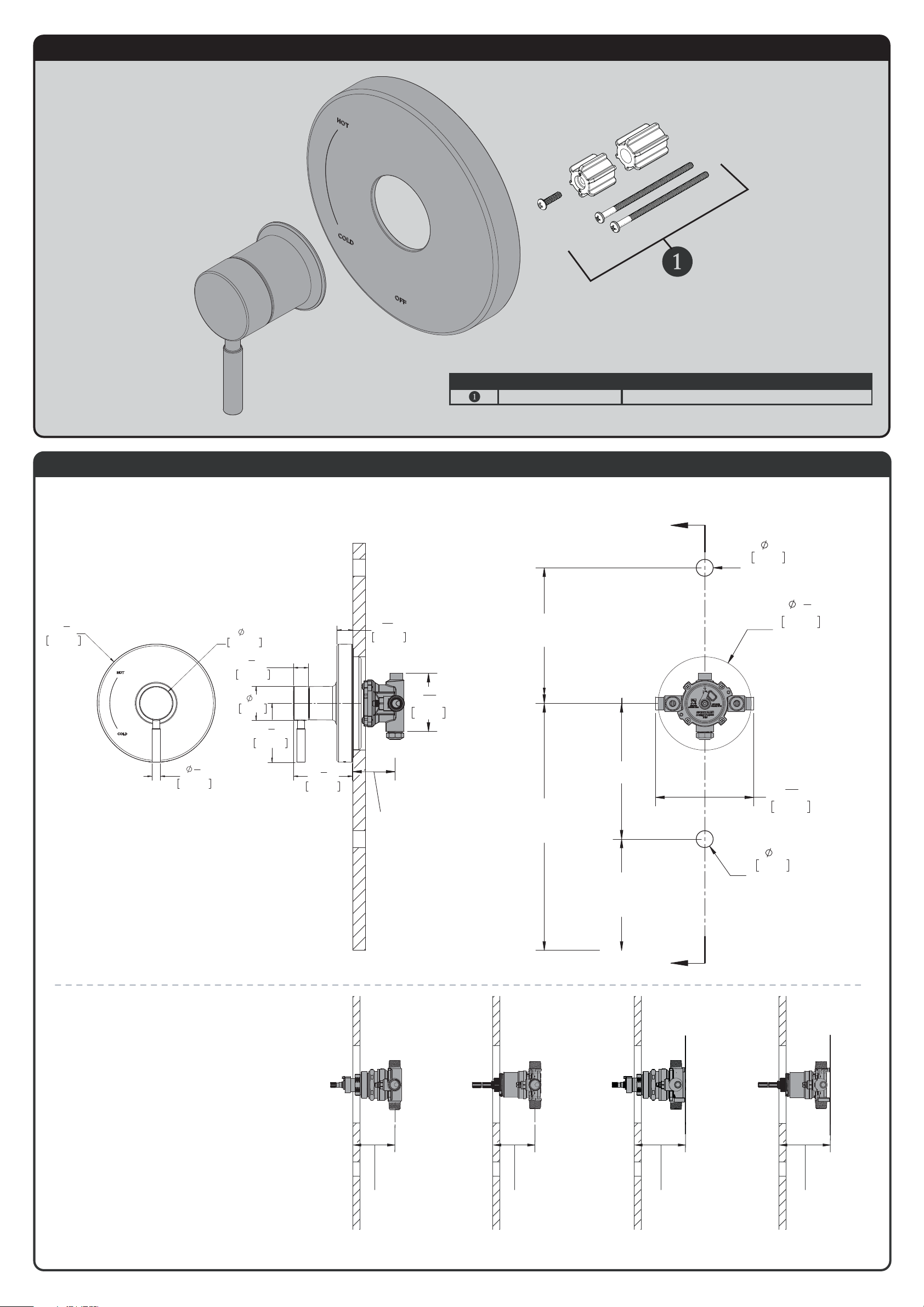

CPT-1001 REPAIR PARTS
SPEAKMAN
®
RPG05-0874 SCREWS AND SPLINE ADAPTERS
ITEM NO. PART NO. DESCRIPTION

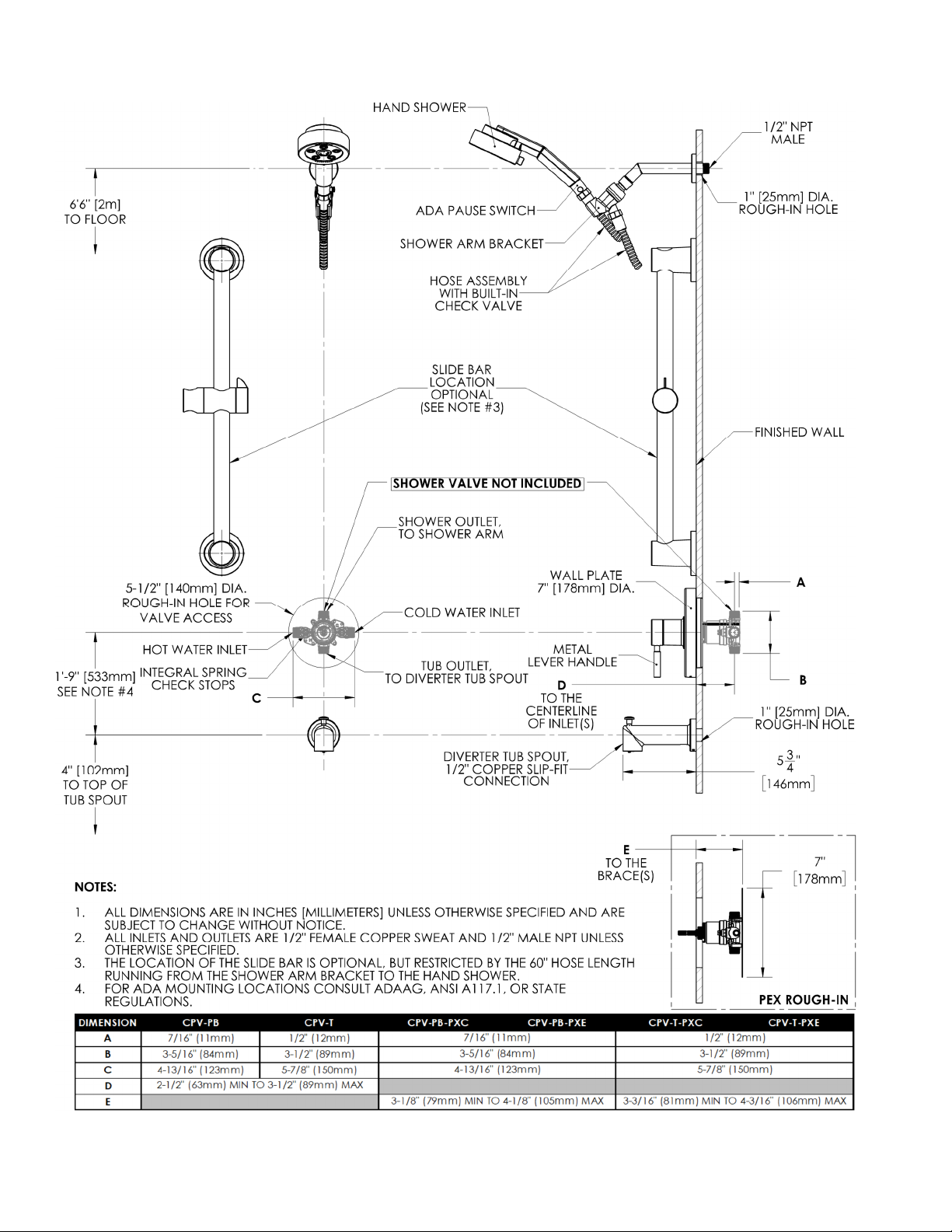

CPT-1001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-1001.
1"
25mm
HOLE FOR
SHOWER ARM
5
1
2
"
140mm
HOLE FOR
VAVLE ACCESS
5
13
16
"
147mm
1'-9"
[533mm]
4"
[102mm]
TO TOP OF
TUB LEDGE
4'-6"
[1.4 METERS]
TO FLOOR
(SHOWER INSTALL ONLY)
6'-6"
[2 METERS]
TO FLOOR
1"
25mm
HOLE FOR
TUB SPOUT
A
A
2-1/2" [64mm] MINIMUM
3-1/2" [89mm] MAXIMUM
ROUGH IN DEPTH
3
7
16
"
87mm
SECTION A-A
R3
1
2
"
88.9mm
2"
50.4mm
1
2
"
12.7mm
3
1
2
"
88.4mm
15
16
"
23.6mm
7
8
"
22.6mm
2"
51mm
3
1
2
"
88.8mm
NOTE: TRIM FITS DIFFERENT VALVES. ROUGH-IN
DIMENSIONS PROVIDED FOR REFERENCE ONLY.
2-1/2" MIN
CPV-T CPV-PB CPV-T-PXC
CPV-T-PXE
CPV-PB-PXC
CPV-PB-PXE
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
3-3/16" MIN
[81mm]
4-3/16" MAX
[106mm]
(ADJUSTMENT)
3-1/8" MIN
[80mm]
4-1/8" MAX
[105mm]
(ADJUSTMENT)
Page 6

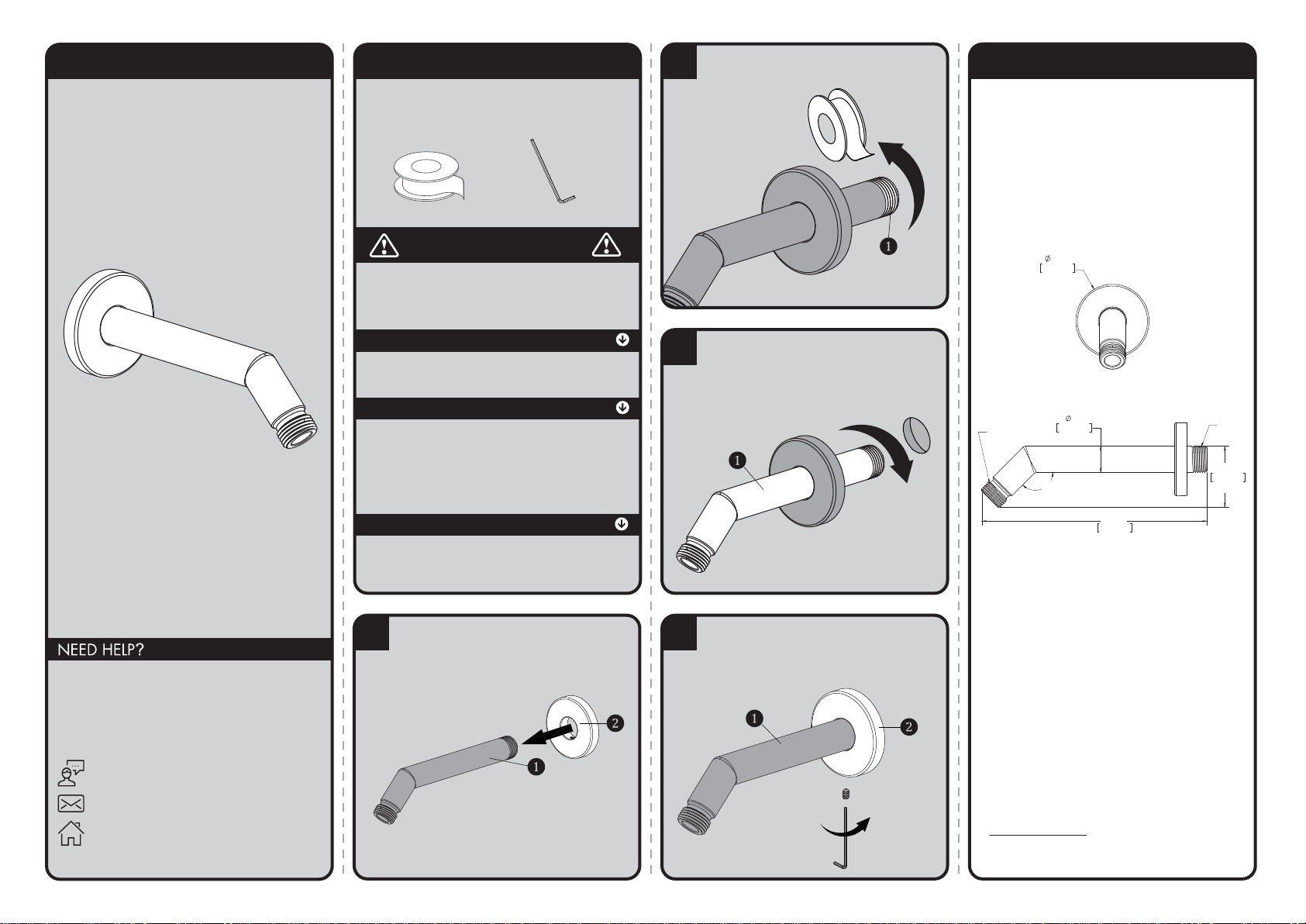

INSTRUCTIONS FOR MODELS
92-S-2540-03
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
S-2540

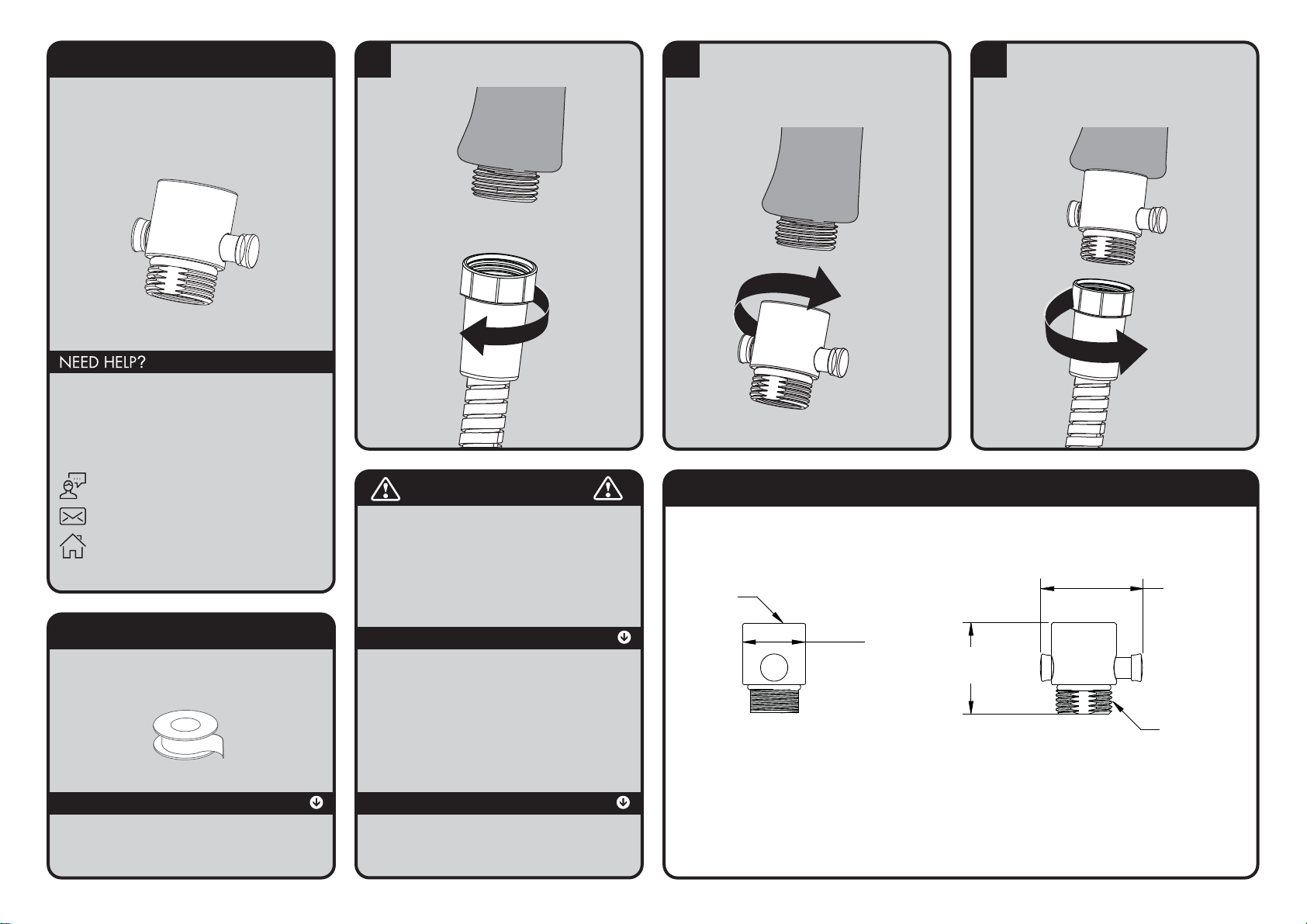

TOOLS AND SUPPLIES
1
Slide Escutcheon Plate (2) over the long
end of the Shower Arm (1).
2
Apply Thread Seal Tape to inlet side of
Shower Arm (1).
3
Thread Shower Arm (1) into Female Pipe
Fitting within the wall. Firmly tighten, and
make sure Shower Arm (1) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (2) flat against
wall. Secure Escutcheon Plate (2) to Shower
Arm (1) by tightening set screw with Allen
Wrench (Hex: 2.0mm) provided.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT
Outlet: 1/2" NPT
7in
175.4mm
REF
.8in
20.62mm
REF
1.9in
47.78mm
REF
135°
REF
1/2" NPT
1/2" NPT
2.25in
57.15mm
REF
Thread Seal
Tape
Allen Wrench
(Included)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 7

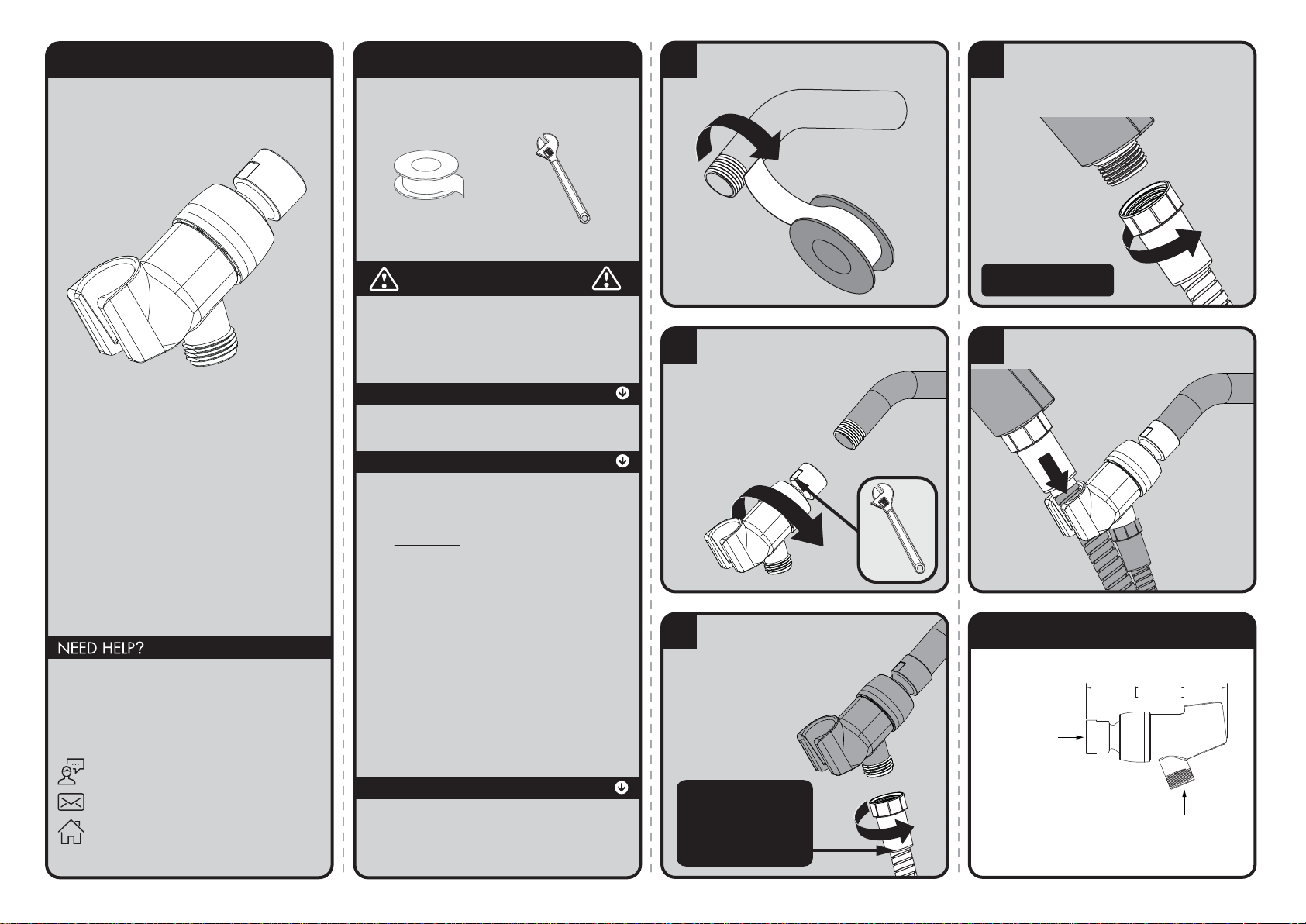

INSTRUCTIONS FOR MODELS
92-VS-3010-02
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com

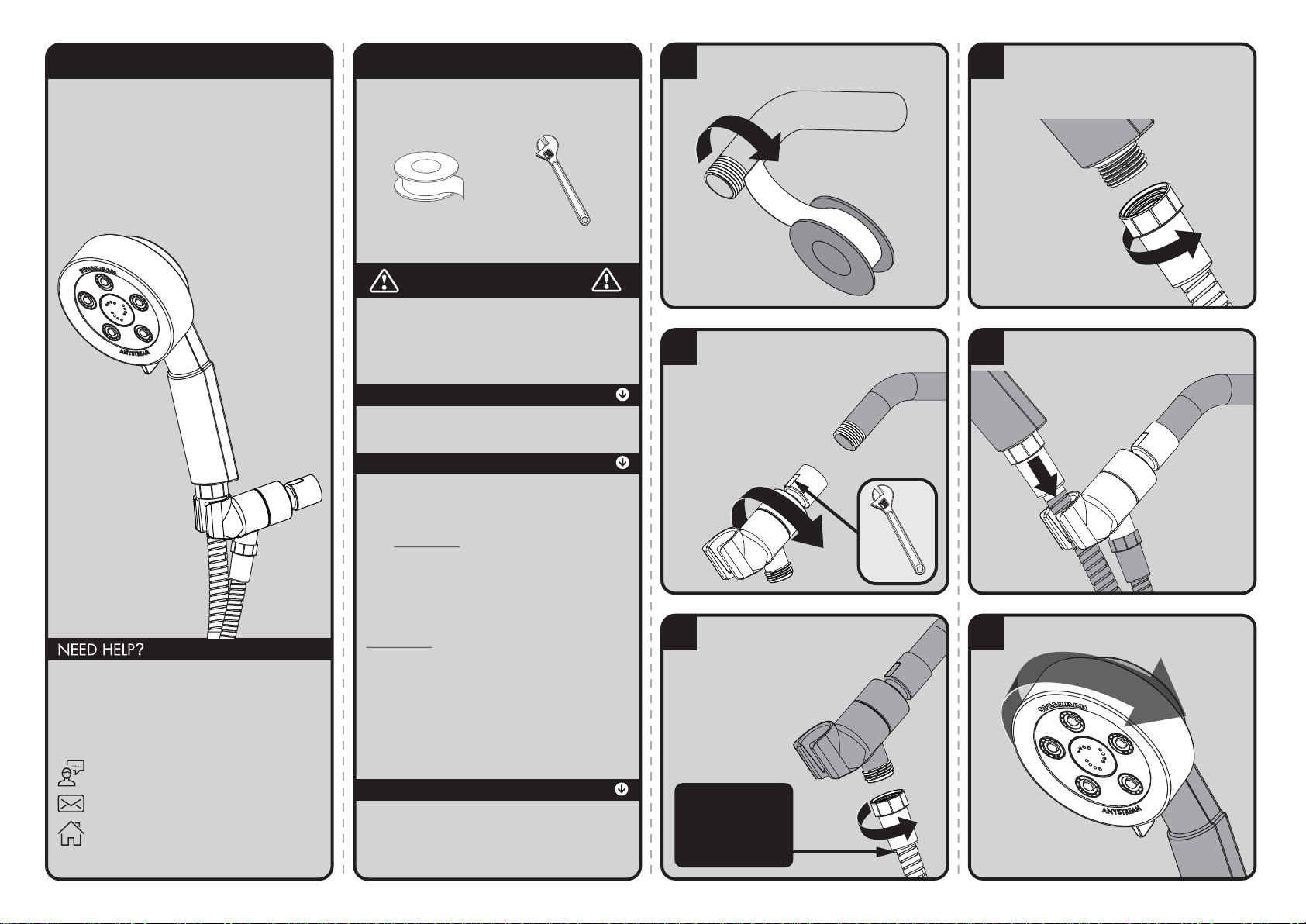

VS-3010
VS-3010-E2
VS-3010-E175
TOOLS AND SUPPLIES
1
Apply Thread Seal Tape to the outlet side
of shower arm in a clockwise direction.
2
Thread Bracket onto shower arm by
turning it in a clockwise direction.
Tighten with adjustable wrench.
3
Ensure Hose Washer is inserted inside
connector to avoid leaks.Thread Hose
End with Label to the outlet port of
Bracket. Hand tighten.
WATER WILL NOT FLOW
THROUGH THE HOSE IF
THE WRONG SIDE IS
CONNECTED.
NOTE: Label around
hose shows this end
assembles to water
supply. Remove label
before installation.
4
Ensure Hose Washer is inserted inside
connector to avoid leaks. Thread
remaining end of Hose to base of Hand
Shower. Hand tighten.
5
Place Hand Shower into Bracket. Turn on
water supplies and check for leaks.
6
Rotate Spray Face to change Spray Settings.
Thread Seal
Tape
(included)
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
To reduce mineral build-up, turn the handle to FLOOD
position to let the water drain out after every use.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 8

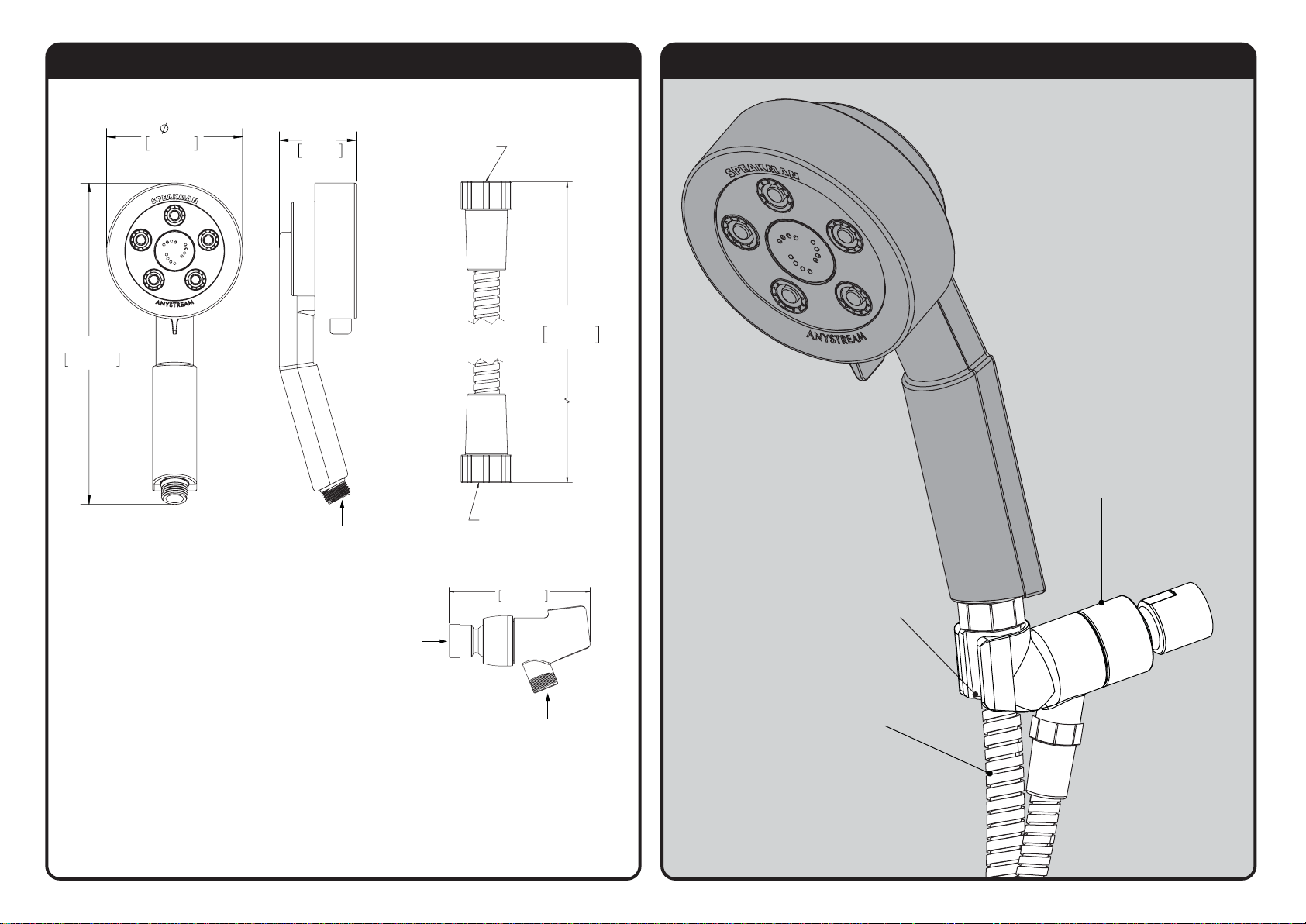

ROUGH IN DIMENSIONS
Model: VS-3010-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.5 GPM) OR LESS.
Model: VS-3010
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
Model: VS-3010-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
4”
9-1/2”
240mm
102mm
1/2-14 NPSM
THREADED
INLET
2-1/4”
58mm
4"
102mm
1/2-14 NPT
THREADED
INLET
1/2-14 NPSM
THREADED
OUTLET
61"
165mm
1/2"-14 NPSM FEMALE
THREADED OUTLET
1/2"-14 NPSM FEMALE
THREADED INLET
MARKED
"ATTACH THIS CHECK
VALVE END TO THE
WATER SUPPLY"
REPAIR PARTS
VS-130-XX
BRACKET ASSEMBLY
* XX = FINISH
RPG45-41791
HOSE WASHER GROUP
VS-158-XX
HOSE ASSEMBLY
Page 9
INSTRUCTIONS FOR MODELS
VS-156
IMPORTANT
TOOLS AND SUPPLIES
1
Turn off water supply. Remove hose from
existing Hand Held Shower Head.
2
Insert proper washer to ensure no leaking occurs
from Volume Control to Hand Held Shower
connections (multiple washers are included for
various types of installations). Screw on Volume
Control to Hand Held Shower and hand tighten.
3
Thread hose onto inlet port of Volume Control
and hand tighten. Turn on water supply and
check for leaks. If leaks are present, disassemble
all connections and apply Telon Tape.
Re-assemble.
VS-156 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1.36”
(34.5mm)
1.52”
(38.7mm)
1/2” NPSM
MALE
THREAD
1/2” NPSM
FEMALE
THREAD
.96”
(24.4mm)
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
92-VS-156-02
®
Company
Thread Seal
Tape
SAFETY TIPS
Cover your drain to prevent loss of parts.
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
MAINTENANCE
Your new Speakman Product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the
Speakman custom finish products may damage the
finish and void the product warranty. Please be sure
to only use approved cleaners. Please contact
Speakman for any clarification of acceptable
cleaners.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 10
INSTRUCTIONS FOR MODELS
92-VS-130-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-130
TOOLS AND SUPPLIES
1
Apply Thread Seal Tape to the outlet side
of shower arm in a clockwise direction.
2
Thread Bracket onto shower arm by
turning it in a clockwise direction.
Tighten with adjustable wrench.
3
Ensure Hose Washer is inserted inside
connector to avoid leaks.Thread Hose
End with Label to the outlet port of
Bracket. Hand tighten.
WATER WILL NOT FLOW
THROUGH THE HOSE IF
THE WRONG SIDE IS
CONNECTED.
Note: Hose not included.
Label around hose shows
“This end assembles to
water supply” Remove
label before installation.
4
Ensure Hose Washer is inserted inside
connector to avoid leaks. Thread
remaining end of Hose to base of Hand
Shower. Hand tighten.
Note: Hand Shower and
Hose are not included.
5
Place Hand Shower into Bracket. Turn on
water supplies and check for leaks.
ROUGH IN DIMENSIONS
4"
102mm
1/2-14 NPT
THREADED
INLET
1/2-14 NPSM
THREADED
OUTLET
Thread Seal
Tape
(included)
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This bracket
assembly has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Bracket's appearance in its original
condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED BRACKETS, a two (2) part white
vinegar, one (1) part water solution can be used to
break down excessive mineral deposits. Let the bracket
soak in the solution for about ½ hour then rinse
thoroughly. Brush off any remaining mineral deposits
if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 11

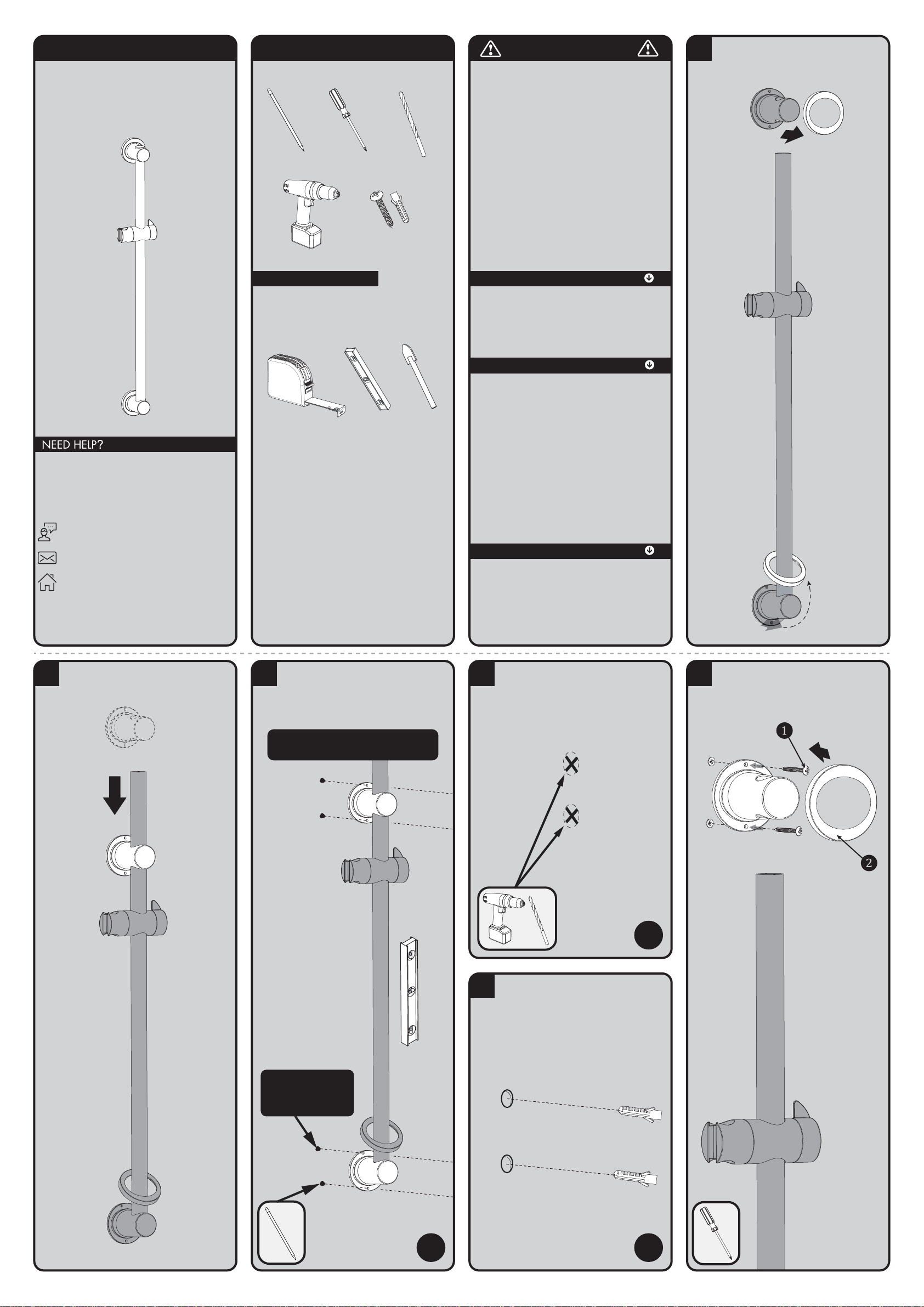

INSTRUCTIONS FOR MODELS
92-VS-153-ADA-02
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-153-ADA -30 -36
VS-153-30-RT
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Level
Measuring
Tape
Phillips
Screwdriver
Pencil
Drill
Drill Bit
No.10/5.5mm
Tile Drill Bit
x/xx”
Mounting Hardware
(included)
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
• Cover your drain to prevent loss of parts. Be sure
to follow all tool manufacturers safety guidelines.
• Use caution when drilling into walls to avoid
electrical and plumbing lines hidden within
the wall.
SAFETY TIPS
IMPORTANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
Your new Speakman Product is designed for years of
1
Remove Decorative Cover Plate from Upper
Mounting Bracket. Slide Lower Decorative Cover
Plate up and over Lower Mounting Bracket as
shown below.
2
Position the Upper Mounting Bracket over the
Slide Bar. Ensure the mounting location is within
the usable range of the hand shower hose.
3
Hold the Slide Bar against the wall in the chosen
location. Adjust the Upper Mounting Bracket
height location. Using a pencil, mark the Drill
Hole positions (x4) for the Upper and Lower
Mounting Brackets. Ensure the Slide Bar is level
vertically.
NOTE: If using as a Grab Bar, be sure to fasten
securely to proper bracing within the wall.
NOTE: Upper mounting
hole is intentionally off
center to allow for easier
installation.
X4
4
If mounting directly to wood stud or
a wood stud behind drywall, proceed
to Step 6. If mounting to tile or masonry wall,
Drill holes (x4) in the marked locations using a
No. 10 (0.1935 inches/5.5 mm) masonry drill
bit to make a hole approximately 1 3/8 inches
(35 mm) deep.
Ø No.10/5.5mm
X4
5
Push the Plastic Anchors (x4) into the drilled
holes. Ensure the plastic anchors are flush with
the wall. (Note: Plastic Anchors provided may
not be suitable for all types of wall construction,
seek professional help if in doubt).
X4
6
Remove Upper Mounting Bracket from Slide Bar.
Secure Upper Mounting Bracket in place using
the Mounting Screws provided (1) with a Phillips
Screwdriver. Reinstall the Decorative Cover Plate
(2) to the Upper Mounting Bracket.
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
Page 12

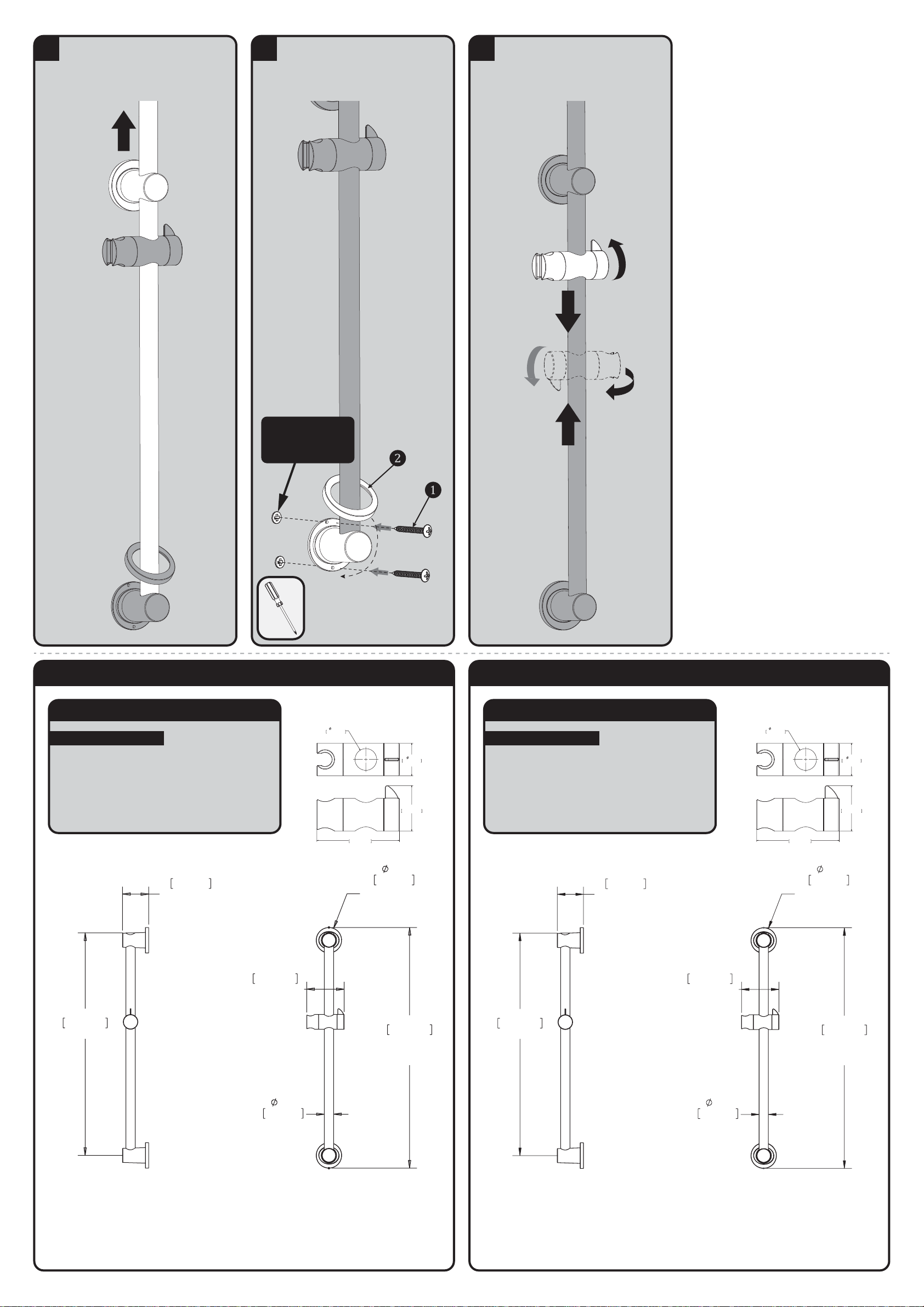

7
Position the Slide Bar flush against the mounting
surface and push the Slide Bar through the hole
in the Upper Mounting Bracket.
8
Secure the Lower Mounting Bracket (1) in place
to the wall using the Mounting Screws provided
with a Phillips Screwdriver. Reinstall the Lower
Decorative Cover Plate (2) to the Lower
Mounting Bracket.
NOTE: Upper mounting
hole is intentionally off
center to allow for easier
installation.
9
Orient the Hand Held Shower Bracket to your
desired position. Adjustments are made by
rotating the Locking Handle 1/4 turn
counter-clockwise to release the position, and
1/4 turn clockwise to lock into the desired
position.
LOCK
UNLOCK
VS-153-ADA ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
1.3in
31.75mm
REF
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
3.5in
87.63mm
REF
MOUNT COVER
TYP
32.5in
825.82mm
MAX
OVERALL
HEIGHT
24.1in
611.19mm
LENGTH OF BAR
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
VS-153-ADA-30 / VS-153-30-RT ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
1.3in
31.75mm
REF
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
3.5in
87.63mm
REF
MOUNT COVER
TYP
32.5in
825.82mm
MAX
OVERALL
HEIGHT
30in
763.59mm
LENGTH OF BAR
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
Page 13
VS-153-ADA REPAIR PARTS
SPEAKMAN
®
RPG56-0038-XX *XX = FINISH VS-153-ADA HOLDER REPAIR PART GROUP
ITEM NO. PART NO. DESCRIPTION
VS-153-ADA-36 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
1.3in
31.75mm
REF
3.5in
87.63mm
REF
MOUNT COVER
TYP
38.5in
976.63mm
MAX
OVERALL
HEIGHT
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
36.0in
914.40mm
LENGTH OF BAR
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
Page 14
INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
1
The minimum distance between the center of the
tub spout and the rim of the tub should be no
less than 4".
4'' Minimum
2
The stub out for the 1/2" pipe should extend a
minimum of 1.75" from the wall, but not to
exceed 4" from wall. Remove all burs and sharp
edges from the stub out 1/2" pipe.
1.75'' - 4.0''
MIN MAX
3
Slide Spout (1) over exposed stub out pipe until
flush to wall. Center the Spout (1) on the wall
and tighten Set Screw (2) from underneath with
a Phillips Screwdriver.
ROUGH-IN DIAGRAM
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
S-1558
Phillips
Screwdriver
HELPFUL TOOLS & SUPPLIES:
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
Tubin g
Cutter
Hacksaw Safety
Glasses
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Speakman product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
146.05mm
5
133.34mm
120.64mm
1
38.10mm
1
"
2
2
63.50mm
3
"
5
4
1
"
4
3
"
4
4
1
"
2
12.71mm
1
"
2
92-S-1558-03
Loading...
