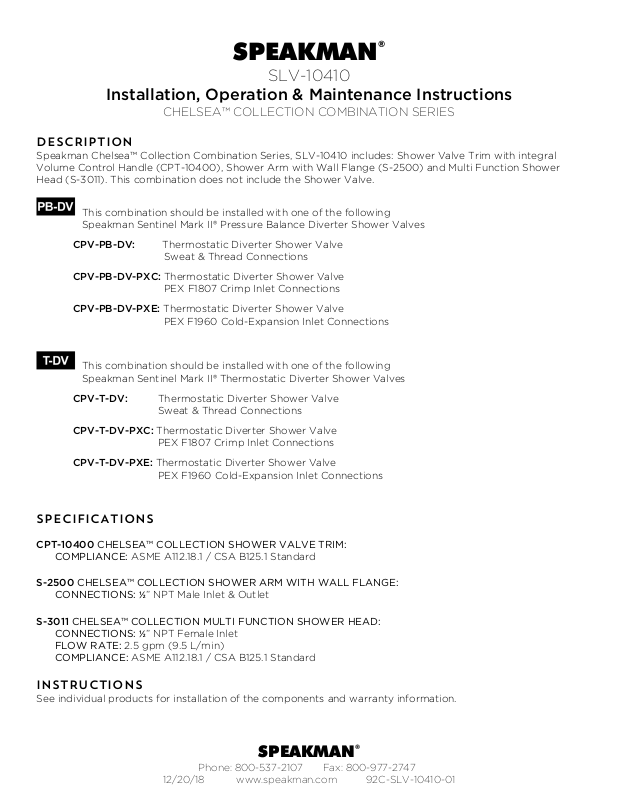

Page 1
®
SPEAKMAN
SLV-10410
Installation, Operation & Maintenance Instructions
CHELSEA™ COLLECTION COMBINATION SERIES
DESCRIPTION
Speakman Chelsea™ Collection Combination Series, SLV-10410 includes: Shower Valve Trim with integral
Volume Control Handle (CPT-10400), Shower Arm with Wall Flange (S-2500) and Multi Function Shower
Head (S-3011). This combination does not include the Shower Valve.
This combination should be installed with one of the following
Speakman Sentinel Mark II® Pressure Balance Diverter Shower Valves
CPV-PB-DV: Thermostatic Diverter Shower Valve
Sweat & Thread Connections
CPV-PB-DV-PXC: Thermostatic Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-PB-DV-PXE: Thermostatic Diverter Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
This combination should be installed with one of the following
Speakman Sentinel Mark II® Thermostatic Diverter Shower Valves
CPV-T-DV: Thermostatic Diverter Shower Valve
Sweat & Thread Connections
CPV-T-DV-PXC: Thermostatic Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-T-DV-PXE: Thermostatic Diverter Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
SPECIFICATIONS
CPT-10400 CHELSEA™ COLLECTION SHOWER VALVE TRIM:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2500 CHELSEA™ COLLECTION SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½” NPT Male Inlet & Outlet
S-3011 CHELSEA™ COLLECTION MULTI FUNCTION SHOWER HEAD:
CONNECTIONS: ½” NPT Female Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/20/18 www.speakman.com 92C-SLV-10410-01
Page 2

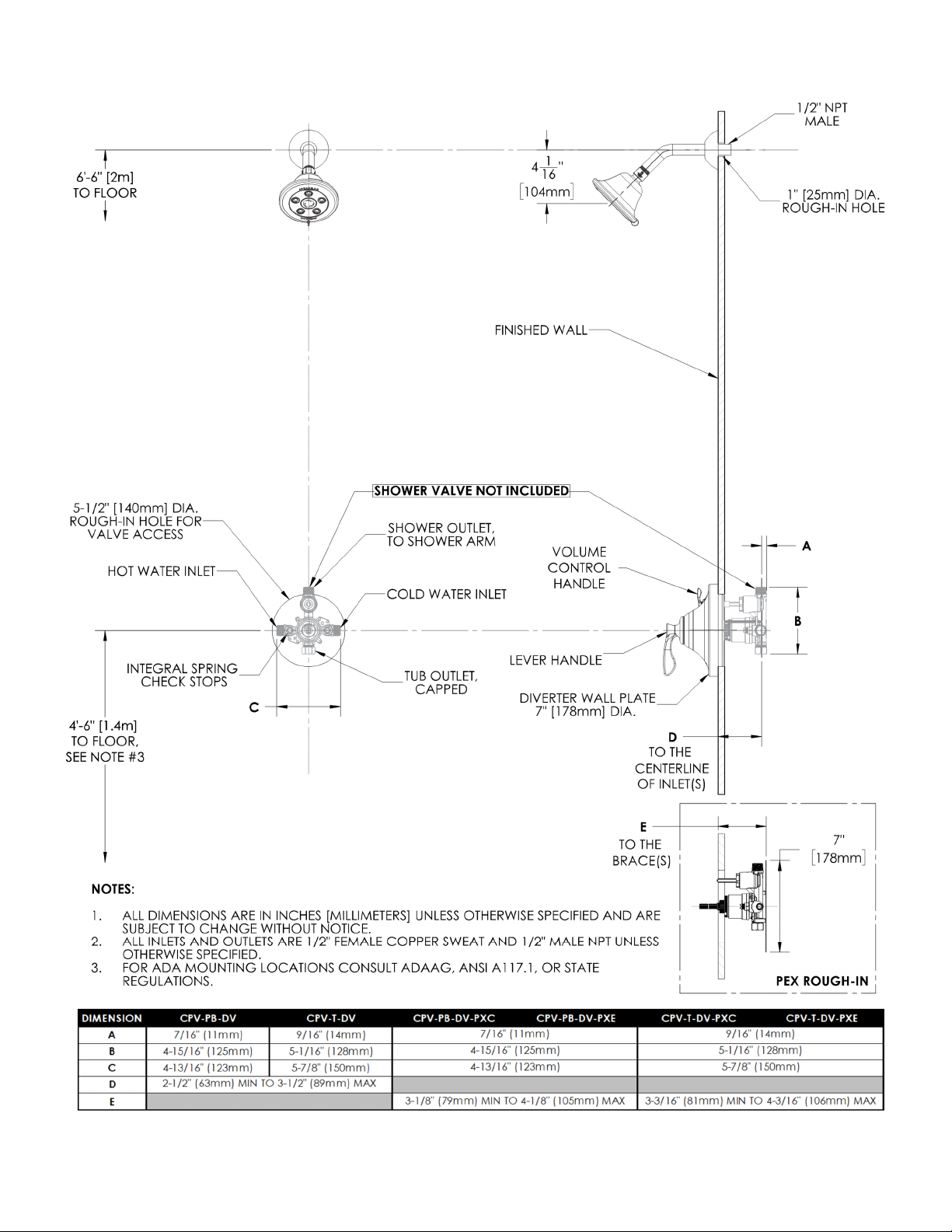

ROUGH-IN
SPEAKMAN®
Phone: 800-537-2107 Fax: 800-977-2747
12/20/18 www.speakman.com 92C-SLV-10410-01

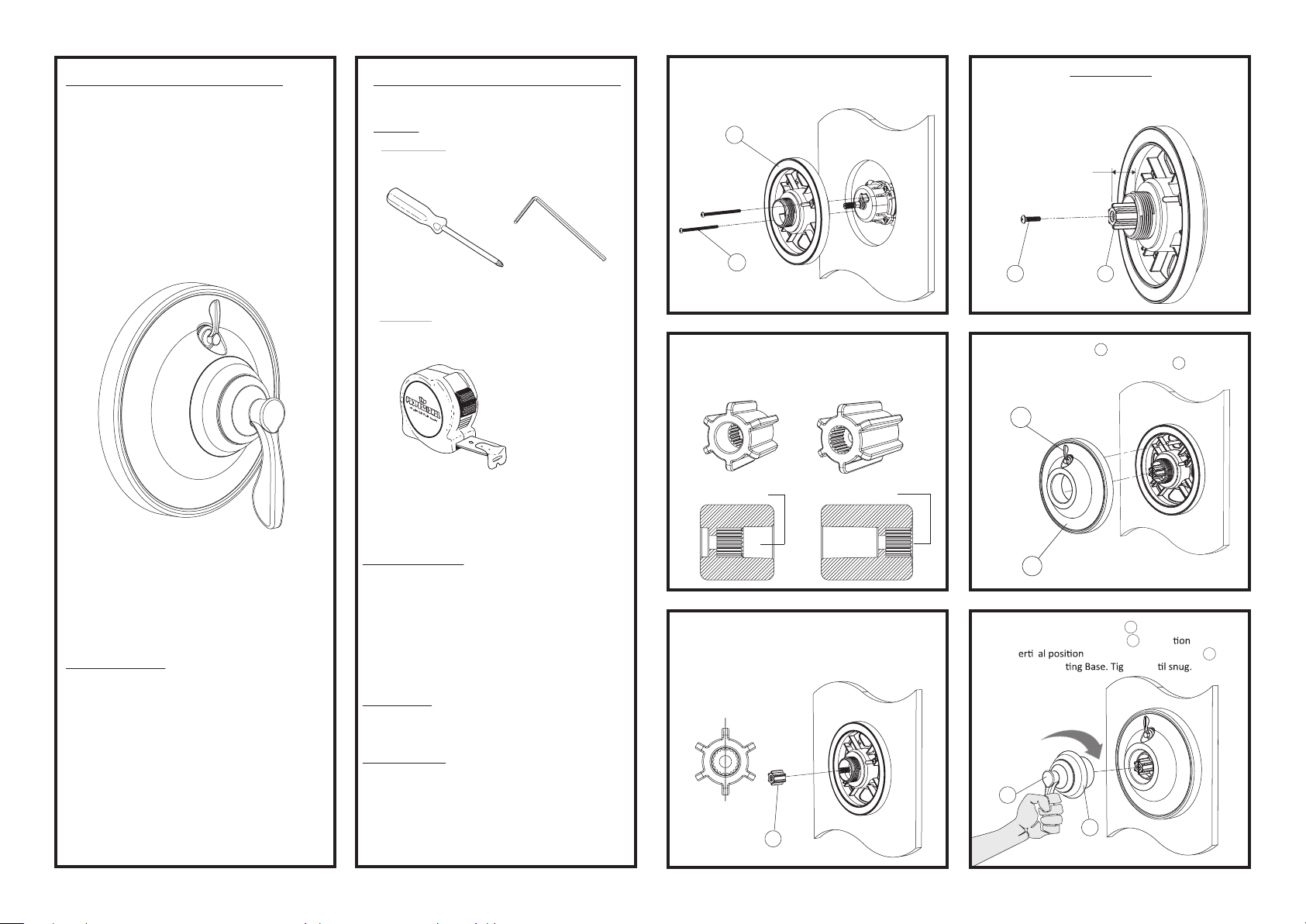

Page 3
Instructions for Models:
CPT-10400-P
What You Need To Know:
Tools:
Required:
*Phillips Screwdriver *2mm Allen Wrench
(included)
Clean wall surface. Place Mounting Base①
①
on to valve, align mounting holes, and secure
with screws②.
1
④
When installed correctly the Connector③
should protrude from the Mounting Base
inbetween 5/16” and 1”. Secure with Screw④.
*IMPORTANT*
5/16"-1"
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: [email protected]
WEB: www.speakmancompany.com
92-CPT-10400-P-R1
Helpful:
*Tape Measure
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
Be sure to have properly adjusted the
Temperature Limiting Stop (TLS) as per the
Valve Installation Instructions before installing
Valve Trim.
Safety Tips:
Cover your drain to prevent loss of parts.
Maintenance:
Your new Valve Trim is designed for years
of trouble-free performance. Keep it looking
new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
2
There are 2 Connectors③ included to allow for
②
both Shallow and Deep mount applications.
Please select Connector appropriate for your
installation.
For Shallow Mount
Application
Confirm that the valve is in the “OFF” position.
③
Place appropriate Connector③ on spindle of
valve making sure to orient the Connector so that
one set of splines are in a perfectly vertical
position.
3
For Deep Mount
Application
4
Place Escutcheon on Mounting Base. Take care
⑤
to align Diverter Handle assembly with
Diverter Spindle.
5A
3
5
5
Align Handle Assembly with Connector and
⑥
Escutcheon. Keep Handle in a sta ary
v
c as you thread Handle Hub
on to Moun
6A
6
6A
hten un
6B
5A
6B

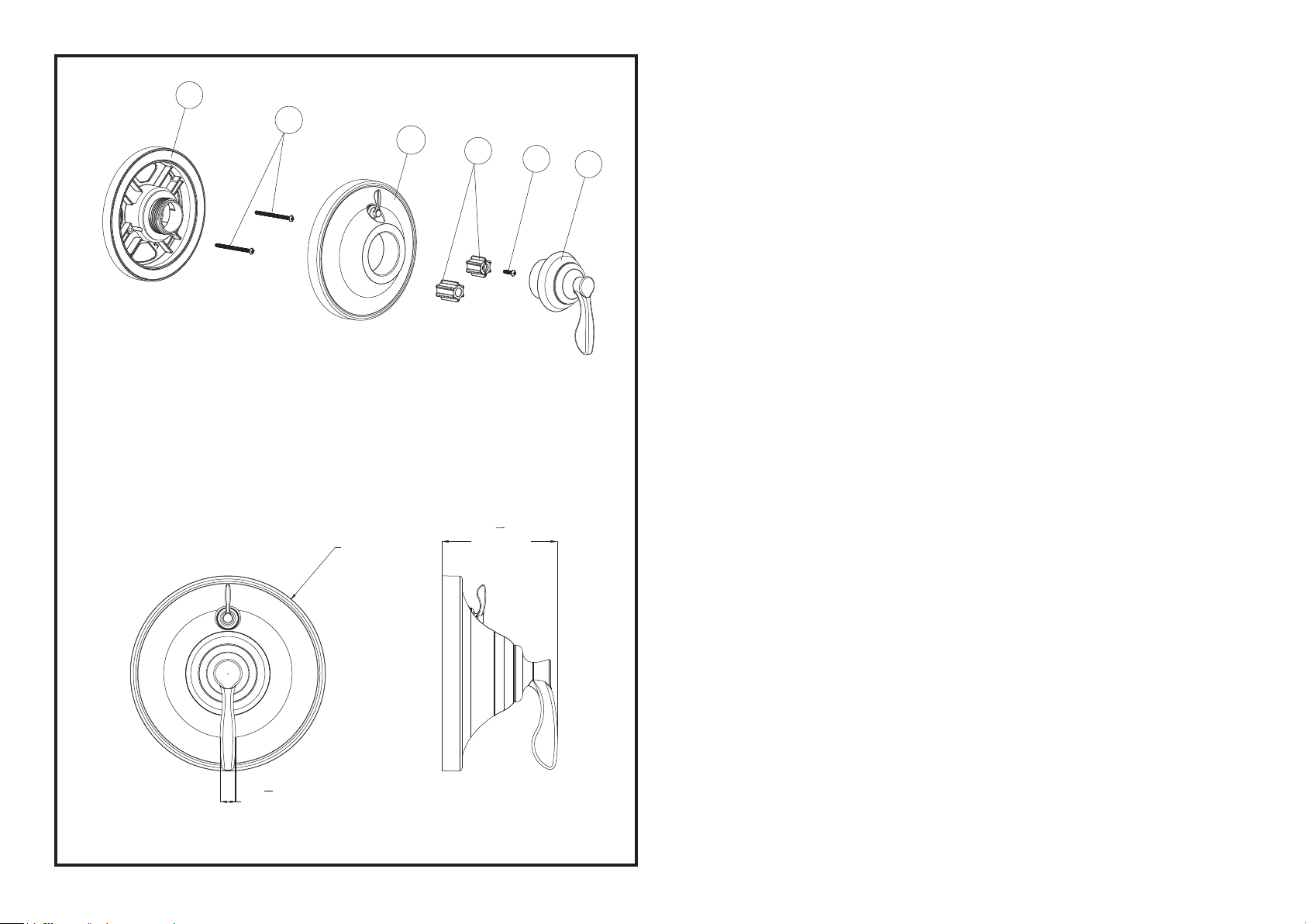

Page 4
1
2
RPG05-0874 ②③④
⑤
RPG10-0108-(PC,BN)
⑥
RPG04-0420-(PC,BN)
Ø7''
[Ø178mm]
5
3
4
1
''
4
8
6
[105mm]
1
''
2
[14mm]

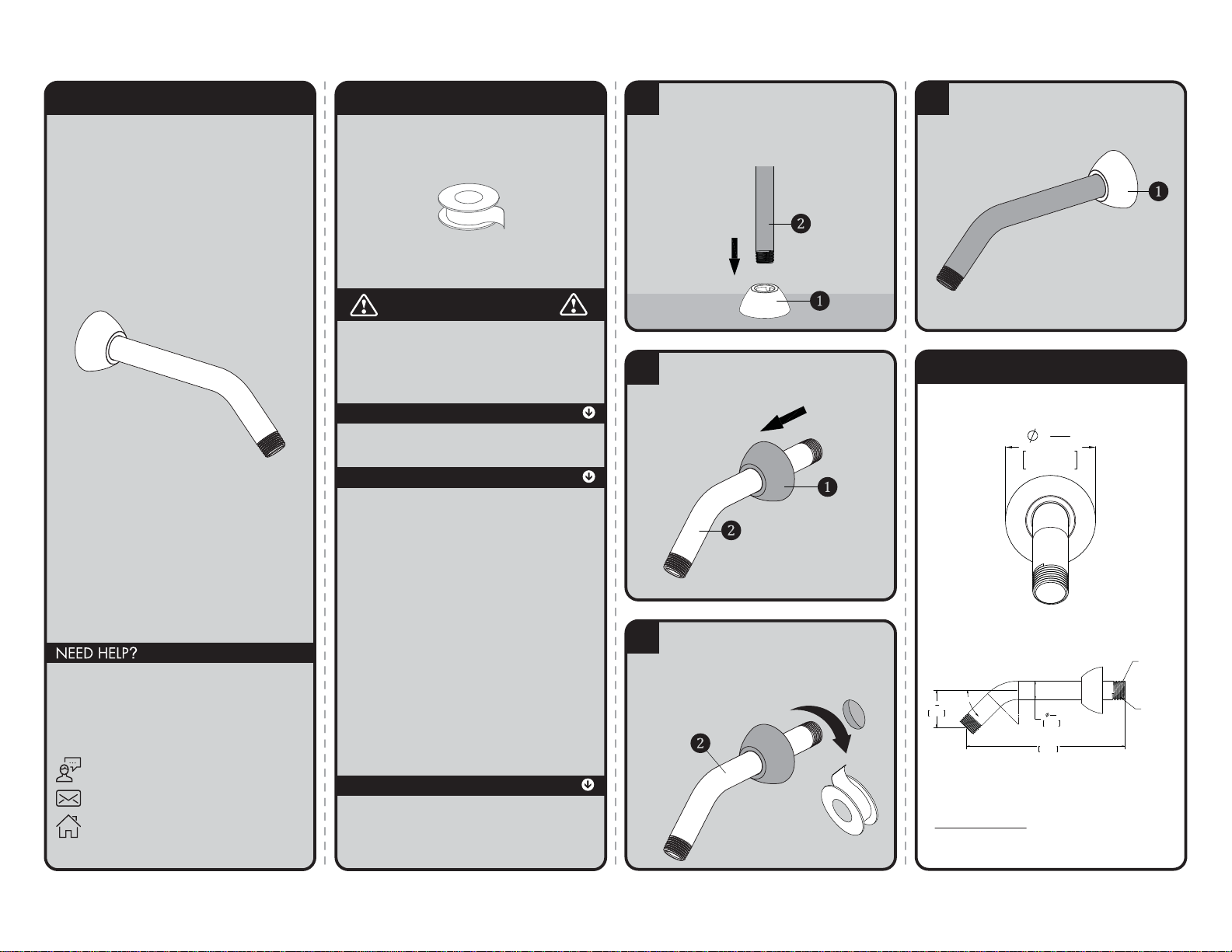

Page 5
INSTRUCTIONS FOR MODELS
92-S-2500-R5
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
S-2500
TOOLS AND SUPPLIES
1
Place the Escutcheon Plate (1) on a flat
surface. Push the long end of the Shower
Arm (2) down into the plate. This will
help the teeth of the plate slide over the
arm easier.
2
Once the Escutcheon Plate (1) is on the
shower arm, slide the plate over the
Shower Arm (2).
3
Apply Teflon Tape to inlet side of Shower
Arm (2). Thread Shower Arm (2) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (2) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (1) flat against wall.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2
1
16
"
52mm
13
16
"
21mm
45.00°
7"
178mm
1
5
8
"
42mm
1/2" NPT THREADS
BOTH ENDS
INLET
Thread Seal
Tape
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com

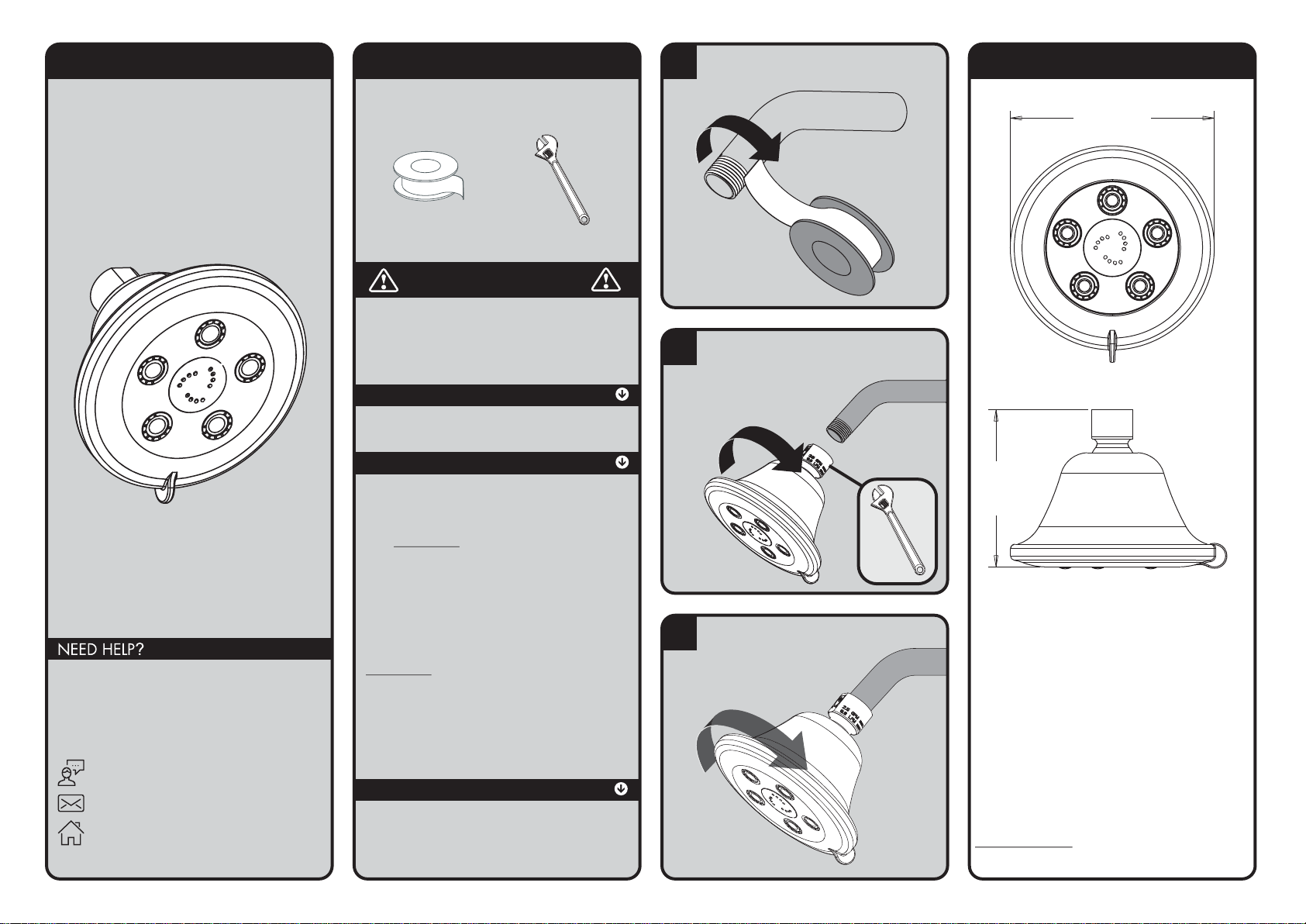

Page 6
INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
ROUGH IN DIMENSIONS
1
Apply Thread Seal Tape to the outlet side of
shower arm in a clockwise direction.
2
Thread Shower head onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
3
Adjust spray pattern by rotating faceplate to
preferred Anystream® position.
S-3011
S-3011-E2
S-3011-E175
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
92-S-3011-04
®
Company
Thread Seal
Tape
(included)
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body (follow
manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the showerhead soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
To reduce mineral build-up, turn the handle to FLOOD
position to let the water drain out after every use.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
4-1/2”
(114mm)
3-1/2”
(88mm)
Model: S-3011
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 7.6 L/MIN (2.0 GPM) OR LESS.
Model: S-3011-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-3011-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.7 L/MIN (1.5 GPM) OR LESS.
Specifications:
Inlet: 1/2” NPT FEMALE
