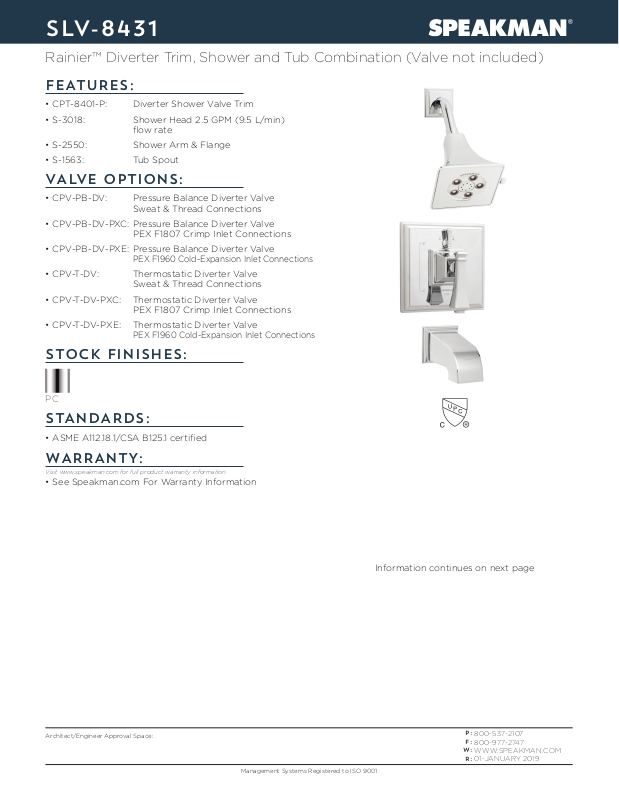

Page 1
SLV- 8 4 3 1

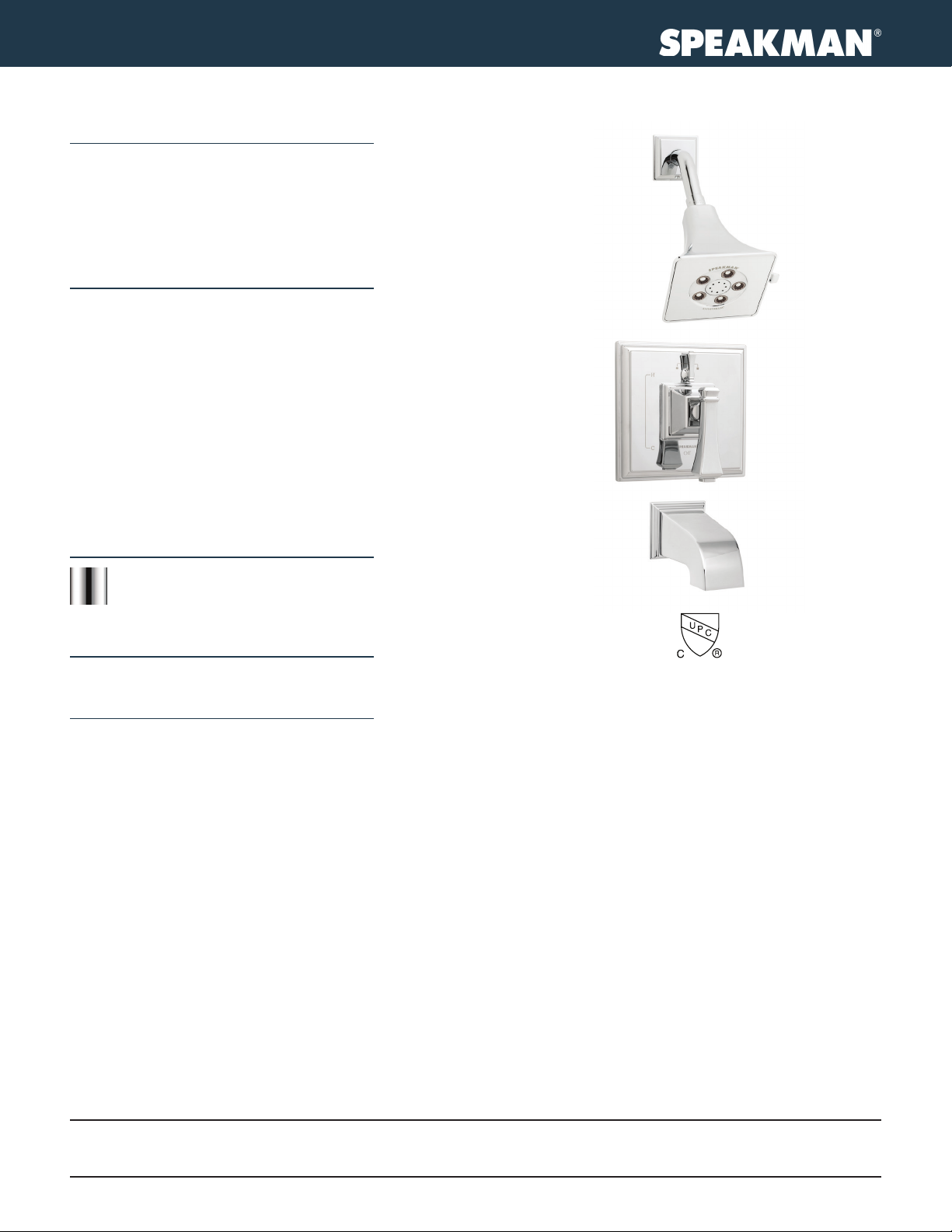

Rainier™ Diverter Trim, Shower and Tub Combination (Valve not included)
FEATURES:
• CPT-8401-P: Diverter Shower Valve Trim
• S-3018: Shower Head 2.5 GPM (9.5 L/min)
flow rate
• S-2550: Shower Arm & Flange
• S-1563: Tub Spout
VALVE OPTIONS:
• CPV-PB-DV: Pressure Balance Diverter Valve
Sweat & Thread Connections
• CPV-PB-DV-PXC: Pressure Balance Diverter Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-DV-PXE: Pressure Balance Diverter Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T-DV: Thermostatic Diverter Valve
Sweat & Thread Connections
• CPV-T-DV-PXC: Thermostatic Diverter Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-DV-PXE: Thermostatic Diverter Valve
PEX F1960 Cold-Expansion Inlet Connections
STOCK FINISHES:
PC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
Page 2
SLV- 8 4 3 1
Rainier™ Diverter Trim, Shower and Tub Combination (Valve not included)

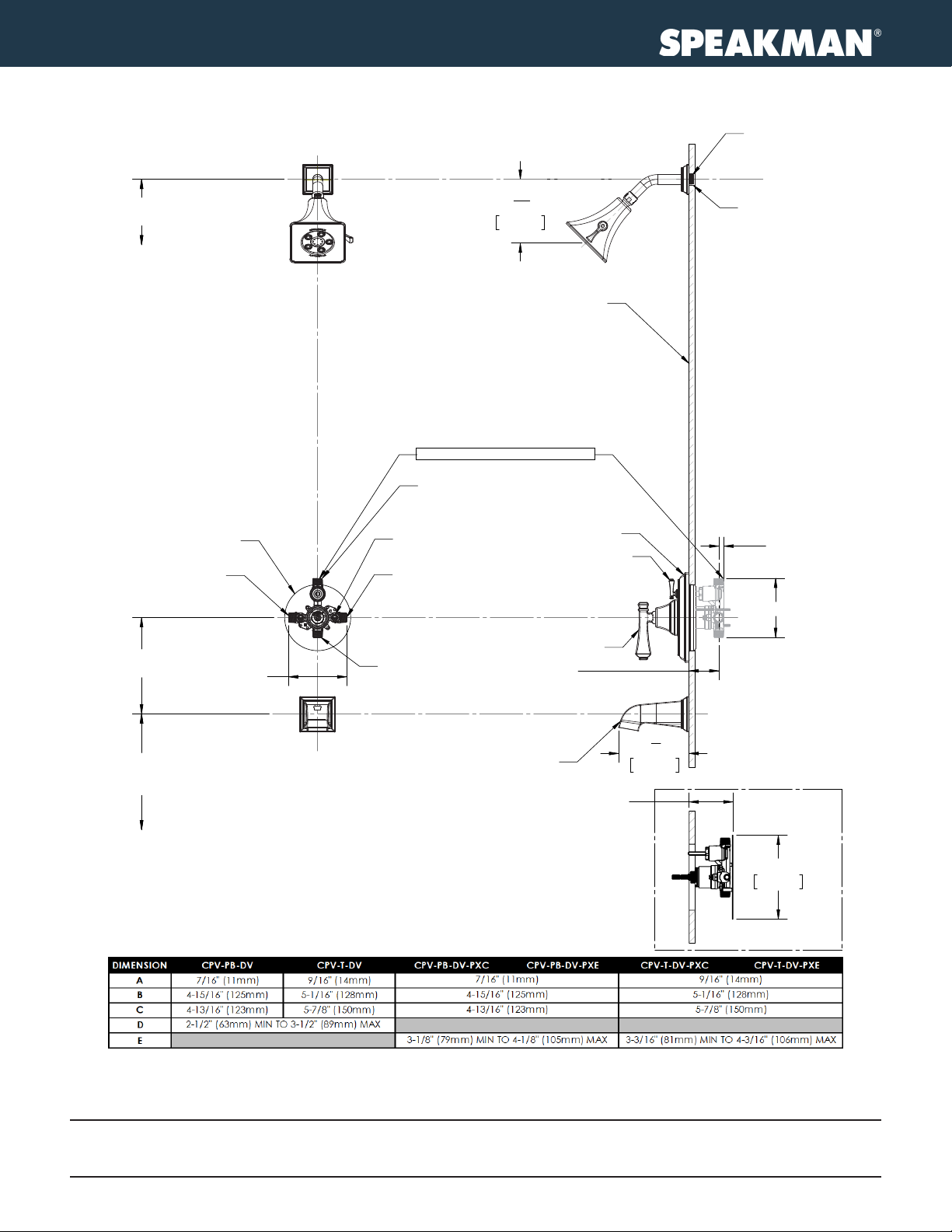

1/2" NPT MALE
5
"
6'-6" [2m]
6'-6" [2m]
TO FLOOR
TO FLOOR
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
HOT WATER INLET
SHOWER VALVE NOT INLCUDED
SHOWER OUTLET,
TO SHOWER ARM
INTEGRAL SPRING
CHECK STOPS
COLD WATER INLET
5
16
135mm
FINISHED WALL
DIVERTER WALL PLATE
7-1/2 x 7-1/2"
[191-191mm]
DIVERTER HANDLE
1" [25mm] DIA.
ROUGH-IN HOLE
A
1'-9" [533mm]
SEE NOTE #3
4" [102mm]
4" [102mm]
TO TOP
TO TOP
OF TUB
OF TUB
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE
1.
SUBJECT TO CHANGE WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS
2.
OTHERWISE SPECIFIED.
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE
3.
REGULATIONS.
C
TUB OUTLET,
TO TUB SPOUT
LEVER HANDLE
TO THE CENTERLINE
TUB SPOUT
D
OF INLET(S)
149mm
E
TO THE
BRACE(S)
B
7
"
5
8
178mm
PEX ROUGH-IN
7"
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
