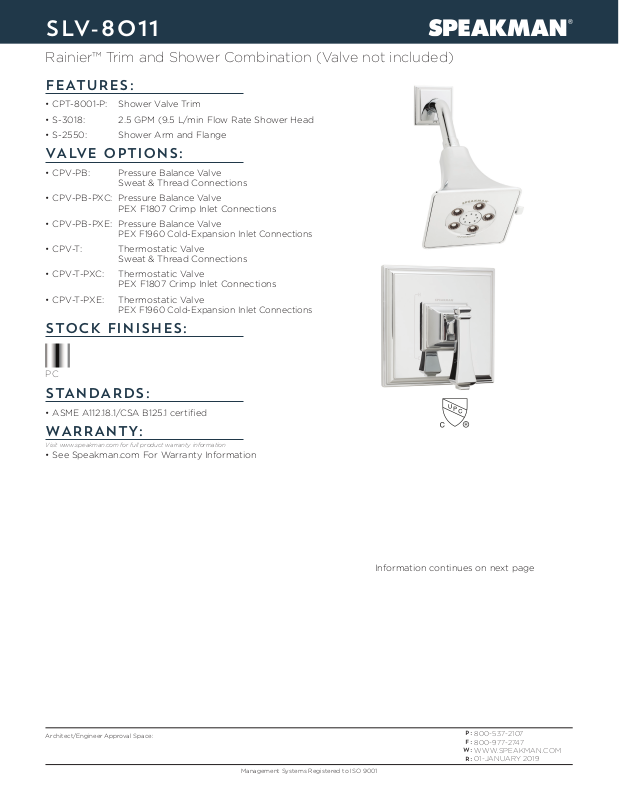

Page 1
SLV- 8 0 11

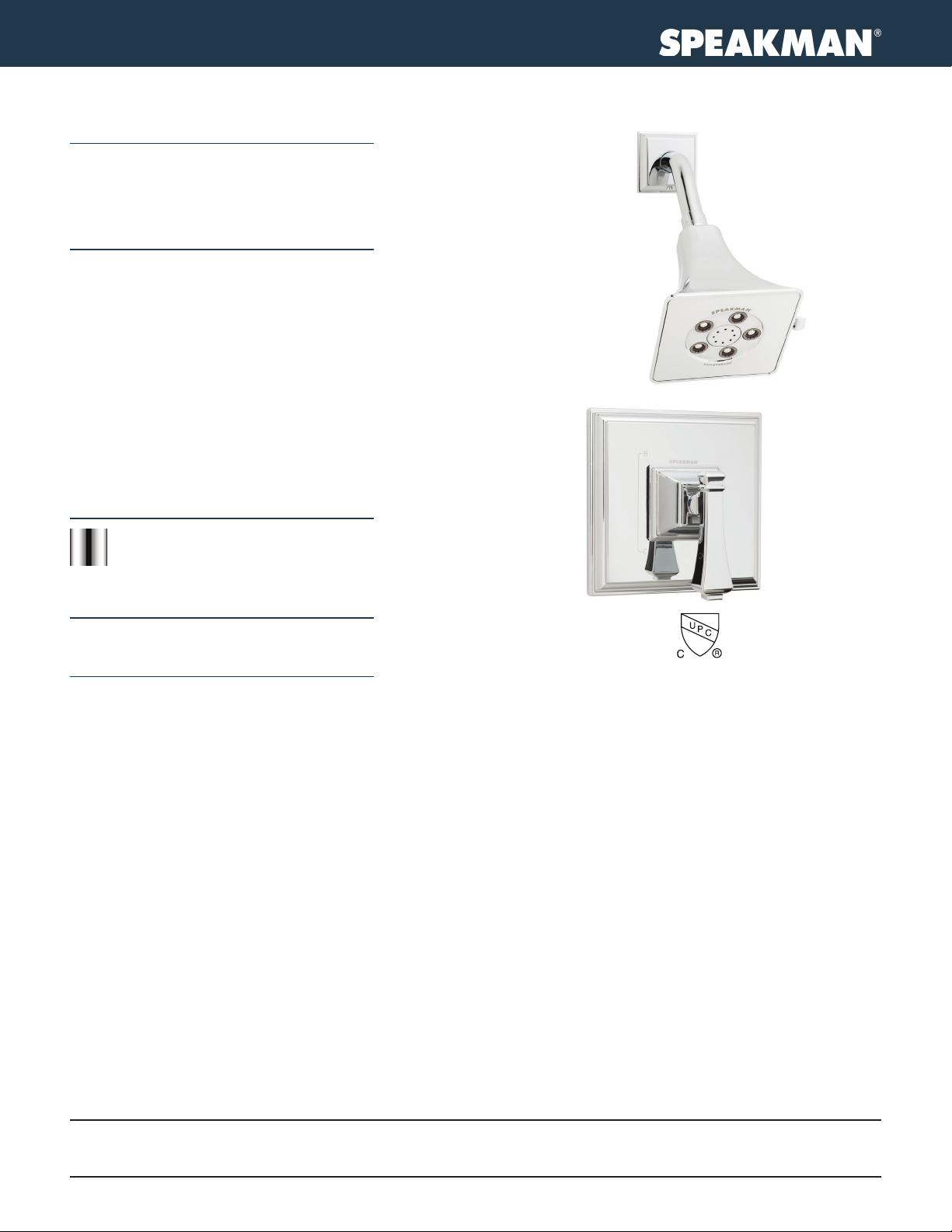

Rainier™ Trim and Shower Combination (Valve not included)
FEATURES:
• CPT-8001-P: Shower Valve Trim
• S-3018: 2.5 GPM (9.5 L/min Flow Rate Shower Head
• S-2550: Shower Arm and Flange
VALVE OPTIONS:
• CPV-PB: Pressure Balance Valve
Sweat & Thread Connections
• CPV-PB-PXC: Pressure Balance Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-PXE: Pressure Balance Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T: Thermostatic Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Valve
PEX F1960 Cold-Expansion Inlet Connections
STOCK FINISHES:
PC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
Page 2
SLV- 8 0 11
Rainier™ Trim and Shower Combination (Valve not included)

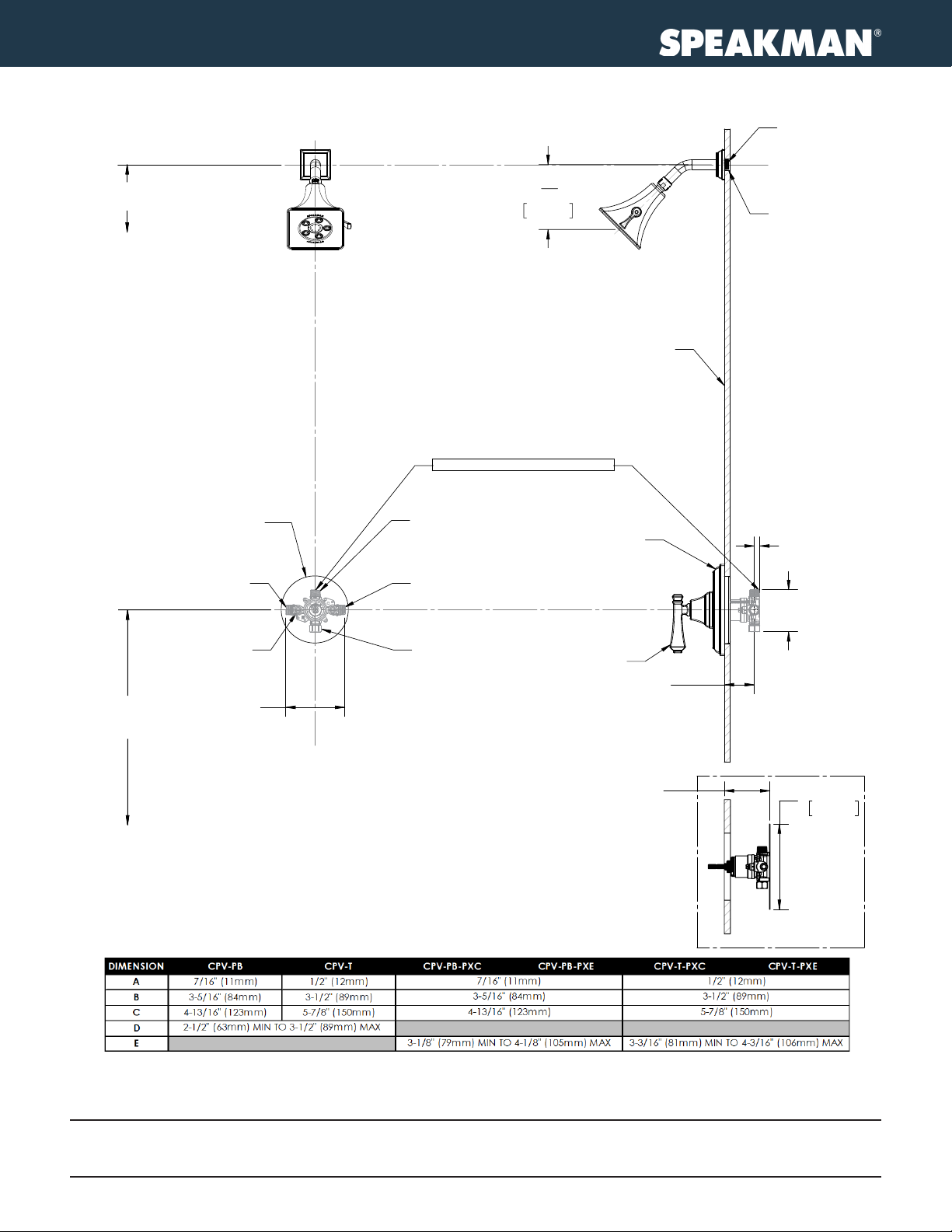

5
"
6'-6" [2m]
6'-6" [2m]
TO FLOOR
TO FLOOR
SHOWER VALVE NOT INCLUDED
5
16
135mm
FINISHED WALL
1/2" NPT
MALE
1" [25mm] DIA.
ROUGH-IN HOLE
HOT WATER INLET
INTEGRAL SPRING
CHECK STOPS
4'-6" [1.4m]
4'-6" [1.4m]
TO FLOOR,
TO FLOOR,
SEE NOTE #3
SEE NOTE #3
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE
1.
SUBJECT TO CHANGE WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS
2.
OTHERWISE SPECIFIED .
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE
3.
REGULATIONS.
5-1/2" [140mm] DIA.
ROUGH-IN HOLE
FOR VALVE ACCESS
C
SHOWER OUTLET,
TO SHOWER ARM
COLD WATER INLET
TUB OUTLET,
CAPPED
WALL PLATE
7-1/2" X 7-1/2"
[191-191-mm]
LEVER HANDLE
D
TO THE
CENTERLINE
OF INLET(S)
E
TO THE
BRACE(S)
A
B
7"
178mm
PEX ROUGH-IN
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
