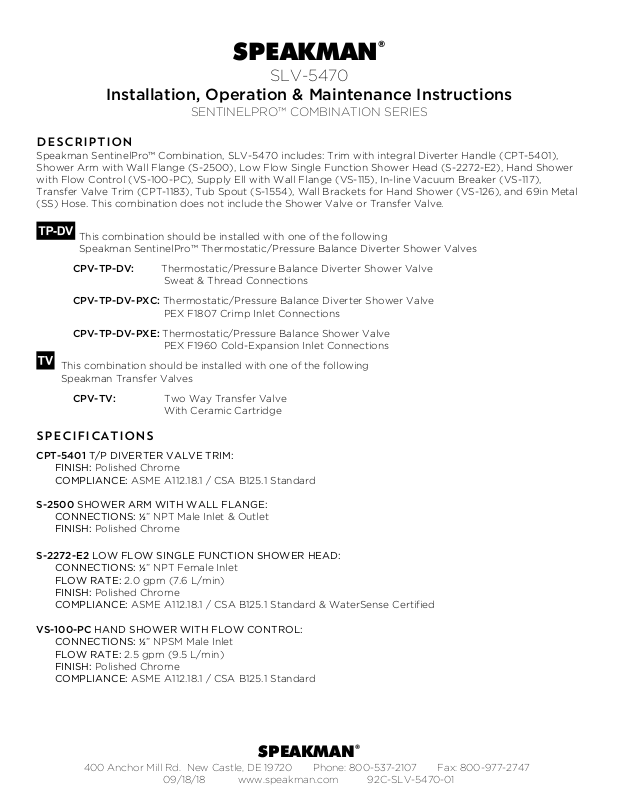

SPEAKMAN
SLV-5470
Installation, Operation & Maintenance Instructions
SENTINELPRO™ COMBINATION SERIES
DESCRIPTION
Speakman SentinelPro™ Combination, SLV-5470 includes: Trim with integral Diverter Handle (CPT-5401),
Shower Arm with Wall Flange (S-2500), Low Flow Single Function Shower Head (S-2272-E2), Hand Shower
with Flow Control (VS-100-PC), Supply Ell with Wall Flange (VS-115), In-line Vacuum Breaker (VS-117),
Transfer Valve Trim (CPT-1183), Tub Spout (S-1554), Wall Brackets for Hand Shower (VS-126), and 69in Metal
(SS) Hose. This combination does not include the Shower Valve or Transfer Valve.
This combination should be installed with one of the following
Speakman SentinelPro™ Thermostatic/Pressure Balance Diverter Shower Valves
CPV-TP-DV: Thermostatic/Pressure Balance Diverter Shower Valve
Sweat & Thread Connections
CPV-TP-DV-PXC: Thermostatic/Pressure Balance Diverter Shower Valve
PEX F1807 Crimp Inlet Connections
CPV-TP-DV-PXE: Thermostatic/Pressure Balance Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
This combination should be installed with one of the following
Speakman Transfer Valves
CPV-TV: Two Way Transfer Valve
With Ceramic Cartridge
SPECIFICATIONS
CPT-5401 T/P DIVERTER VALVE TRIM:
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2500 SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½” NPT Male Inlet & Outlet
FINISH: Polished Chrome
S-2272-E2 LOW FLOW SINGLE FUNCTION SHOWER HEAD:
CONNECTIONS: ½” NPT Female Inlet
FLOW RATE: 2.0 gpm (7.6 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard & WaterSense Certified
VS-100-PC HAND SHOWER WITH FLOW CONTROL:
CONNECTIONS: ½” NPSM Male Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
09/18/18 www.speakman.com 92C-SLV-5470-01
Page 2

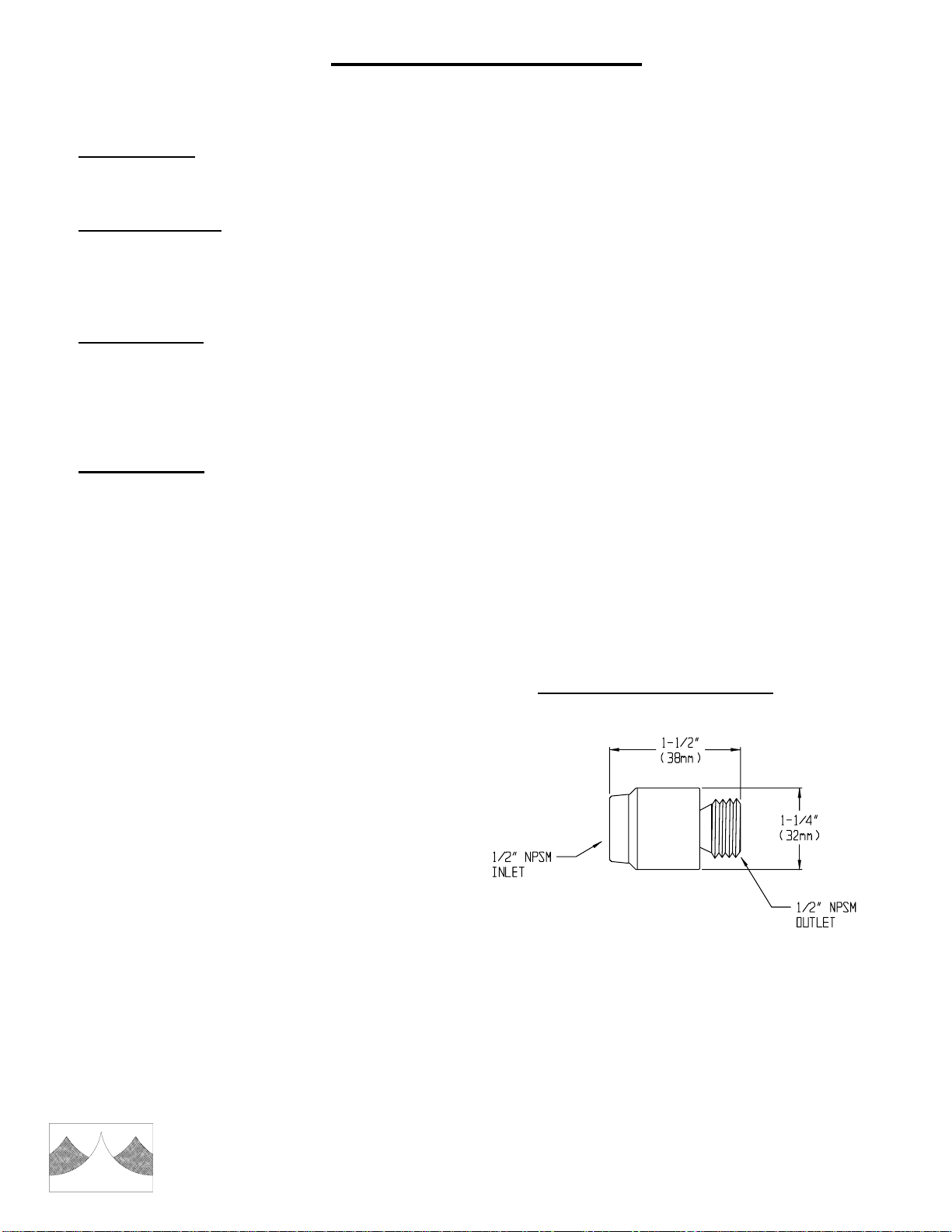

VS-115 SUPPLY ELL WITH WALL FLANGE:
CONNECTIONS: ½” NPT Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome
VS-117 IN-LINE VACUUM BREAKER:
CONNECTIONS: ½” NPSM Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome
COMPLIANCE: ASSE 1014 Standard
VS-126 WALL BRACKET:
FINISH: Polished Chrome
CPT-1183 TRANSFER VALVE TRIM:
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard

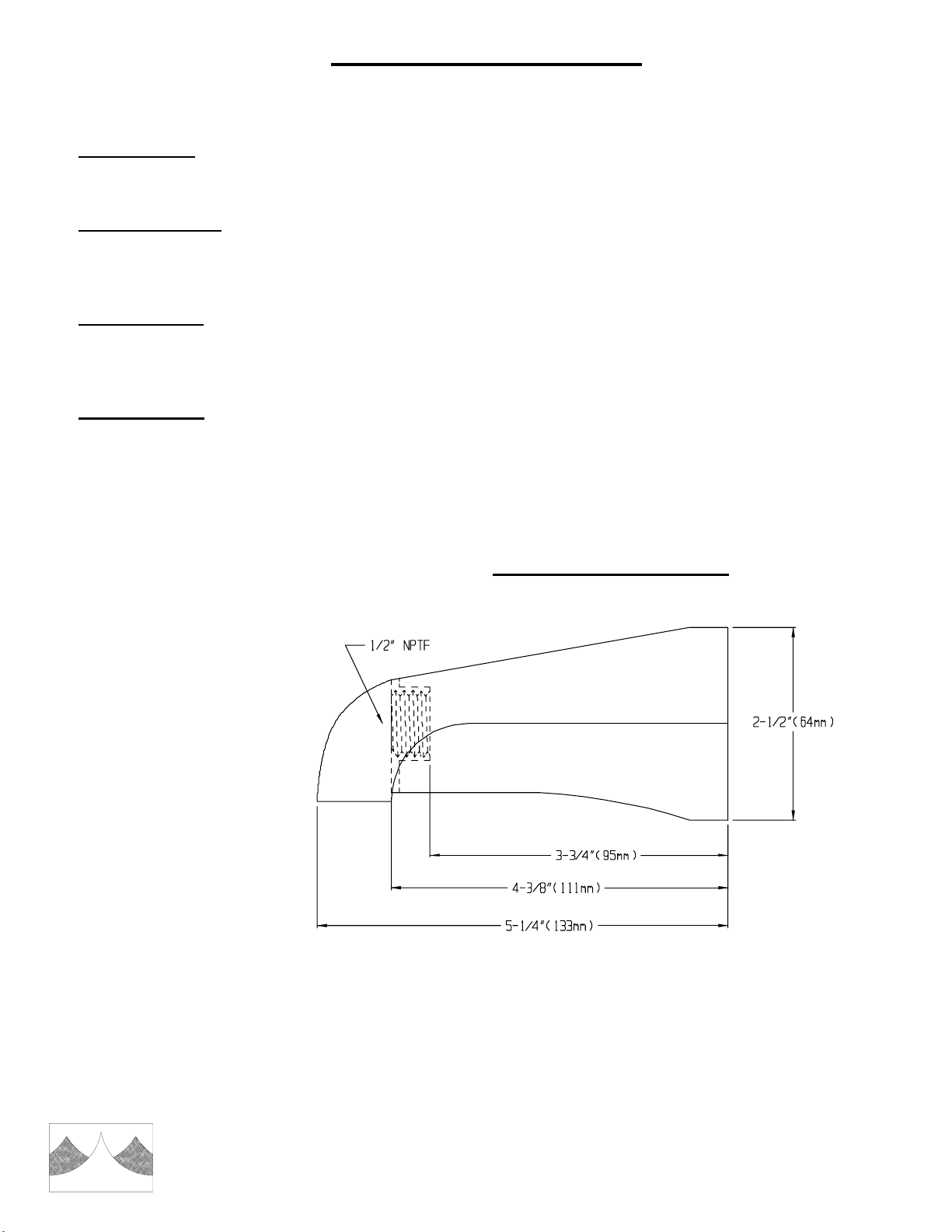

S-1554 TUB SPOUT:
CONNECTIONS: ½” NPT Female Inlet
FINISH: Polished Chrome
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
09/18/18 www.speakman.com 92C-SLV-5470-01
Page 3

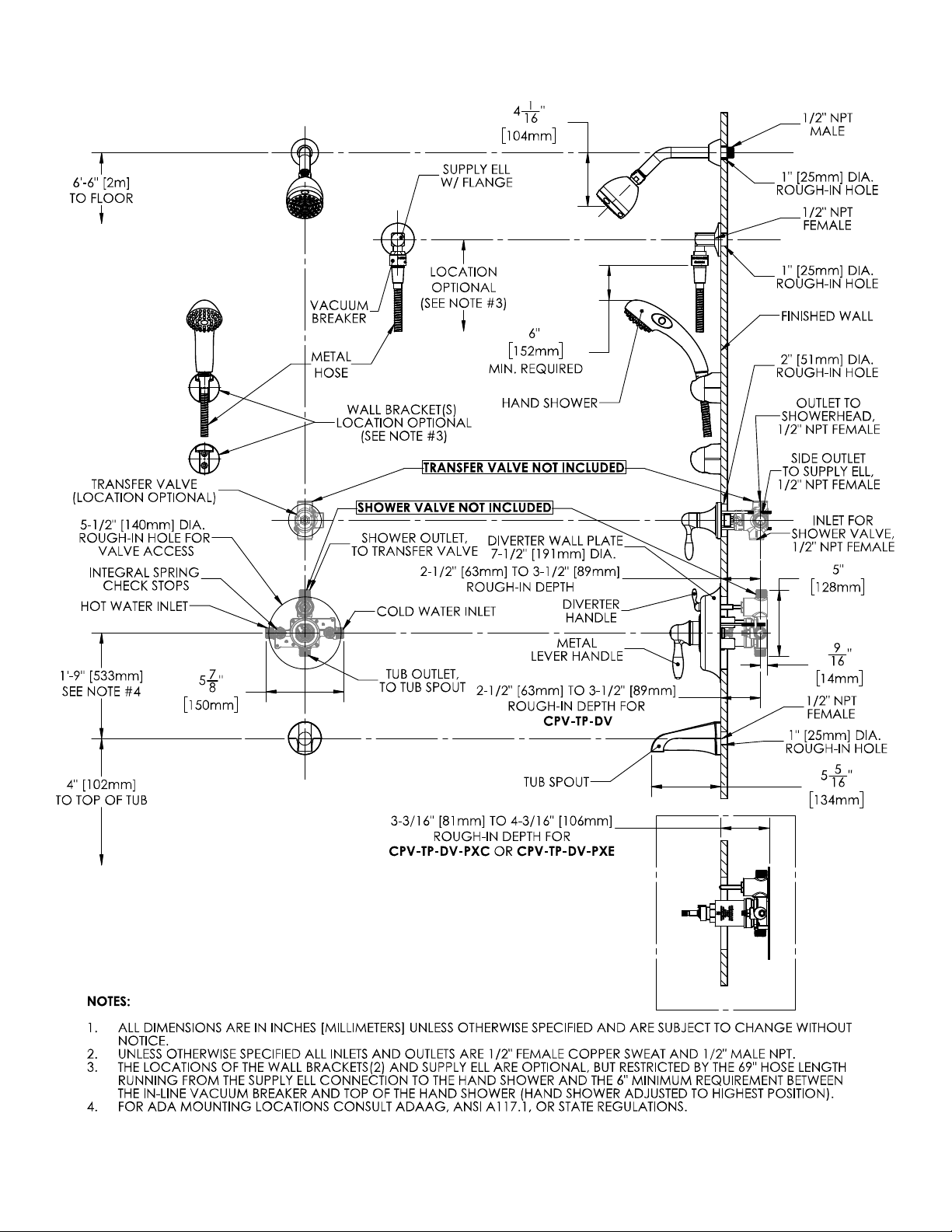

ROUGH-IN
SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
09/18/18 www.speakman.com 92C-SLV-5470-01
Page 4
INSTRUCTIONS FOR MODELS
92-CPT-5001-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
CPT-5001 / CPT-5401
TOOLS AND SUPPLIES
Phillips
Screwdriver
Silicone Caulk Gun
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This valve has an operating range of 20-80 psi.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

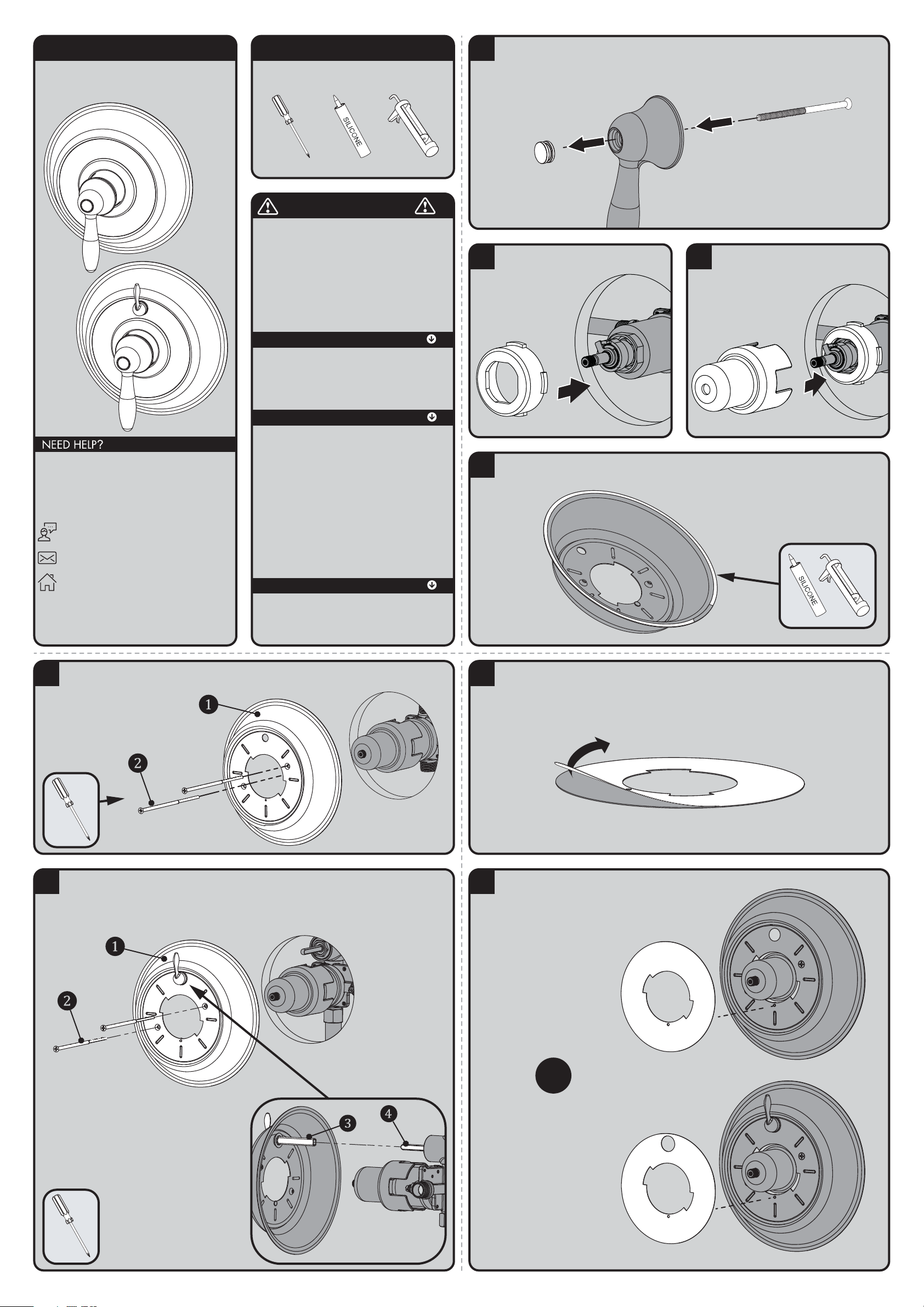

1

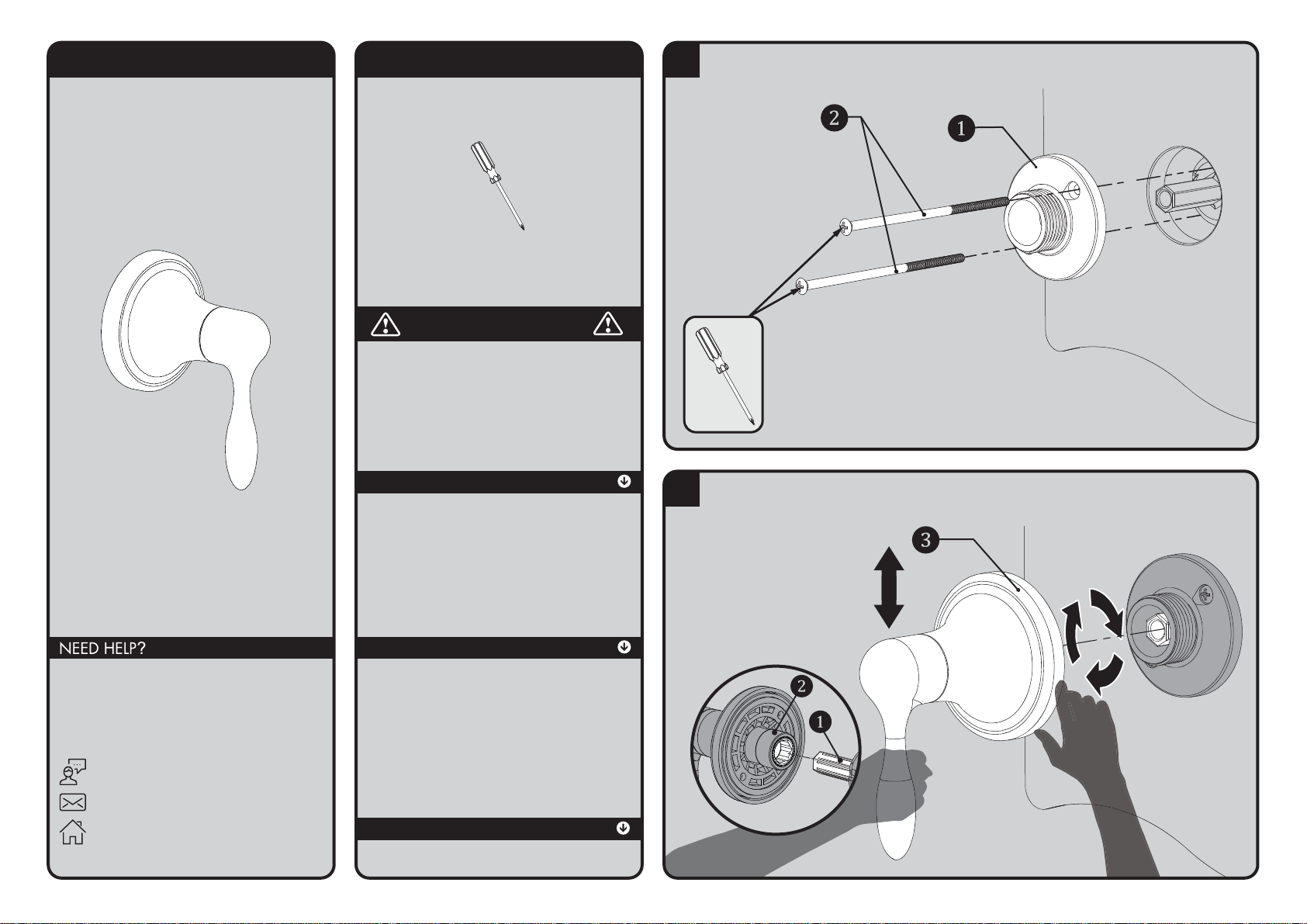

Remove the Handle Button Screw by inserting one of the included Mounting Screws thru the hole in the Handle.
2
Insert the T/P Rubber Sleeve with Tabs over
Valve Bonnet.
3
Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing
Valve Trim. Slide Trim Sleeve
over the Rubber Sleeve.
Ensure the tabs are
properly seated within
the grooves of the
Trim Sleeve.
4
Clean wall surface. Orient Wall Plate as shown below. Apply clear silicone sealant to the backside outer flat
surface of the Wall Plate, while leaving a small area open at the bottom. This will allow for any moisture to drain.
5A
FOR CPT-5001 - Align the Wall Plate (1) as shown below. Secure to Valve with the included Mounting Screws
(2). Take care to not over tighten Mounting Screws. Remove excess sealant after securing Wall Plate to wall.
5B
FOR CPT-5401 - Align the Wall Plate (1) as shown below. Verify the Diverter Valve Stem is in the OFF (vertical)
position. Align the Diverter Drive Tube (3) on the Wall Plate to the Stem (4) of the Diverter Valve. Secure to Valve
with the included Mounting Screws (2). Take care to not over tighten Mounting Screws. Remove excess sealant
after securing Wall Plate to wall.
* VIEW FROM BACK OF WALL PLATE
6
Remove protective film from Trim Index Plate.
7
OR
CPT-5001: Slide Index Plate over
the Trim Sleeve. Align Index Plate
with the small Alignment Pin on the
Wall Plate, and hold Index Plate in
place for the next step.
CPT-5401: Slip the upper hole of
the Index Plate over the Diverter
Handle and then align the large hole
of the Index Plate over the Trim
Sleeve. Align Trim Index Plate with
the small Alignment Pin on the Wall
Plate, and hold Index Plate in place
for the next step.
Page 5
8
Ensure the Rubber Gasket is correctly installed to the Retaining
Ring. Align the Retaining Ring with the slots on the Wall Plate.
Press and Rotate the ring clock-wise until it Locks / Seals in place.
Make sure the seal is secure with the Wall Plate.

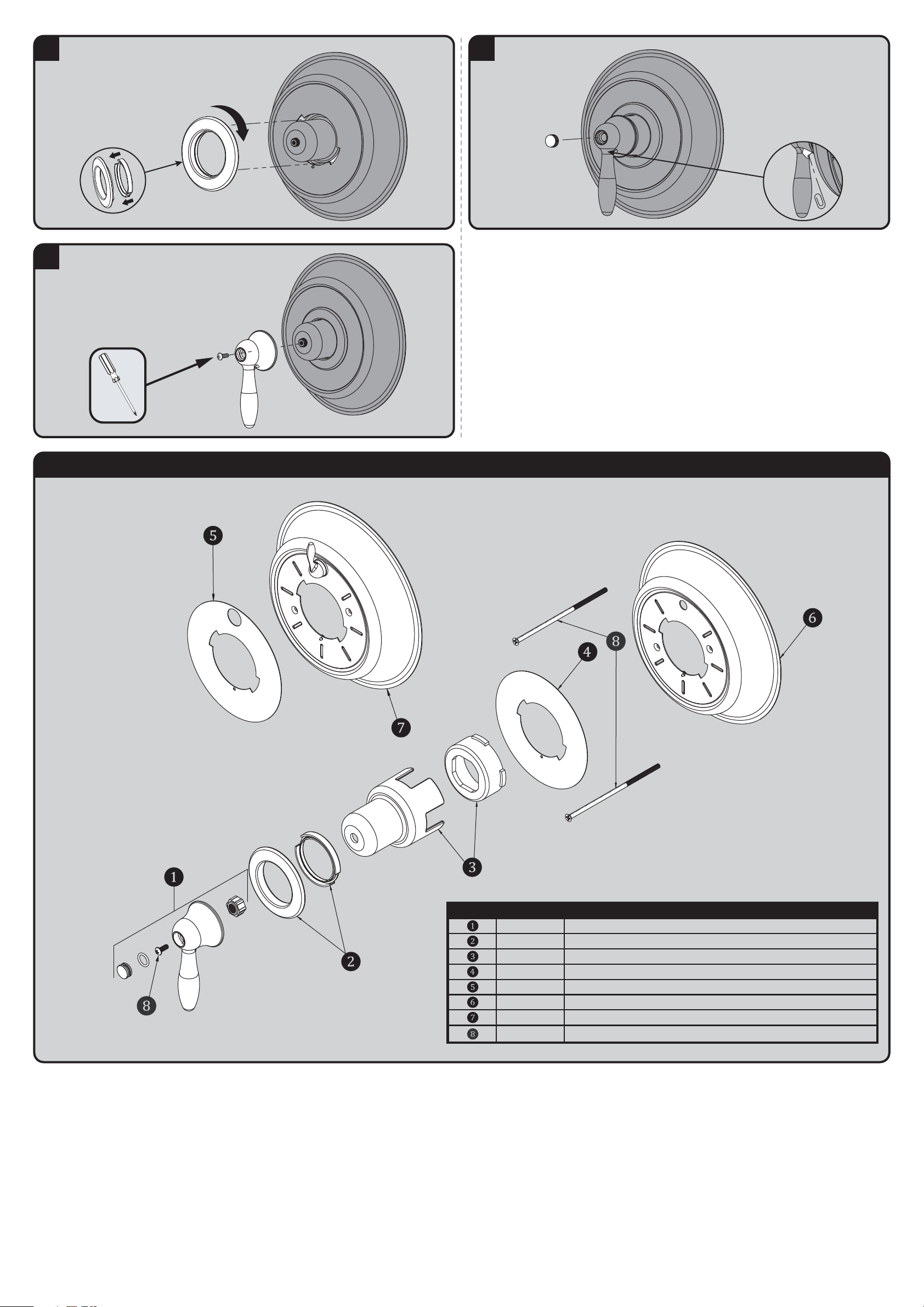

9
Temporarily place Handle over splines and adjust the valve to
the OFF position (as per the Valve Instructions). Then, align Handle
vertically as shown below. Secure Handle to Spindle with the
included #8 Screw.
10
Insert Handle Button into the Handle.
* VIEW FROM BACK UNDERSIDE OF HANDLE
If further adjustments need to be made after
the Handle Button is inserted, there is an
access hole at the back side of the handle.
Use a paper clip to push the Button back out.
CPT-5001 / CPT-5401 REPAIR PARTS
SPEAKMAN
®
ITEM NO. PART NO. DESCRIPTION
RPG04-0443 HANDLE ASSEMBL Y
RPG05-1111 RETAINING RING WITH SEAL
RPG05-1110 TRIM SLEEVE AND RUBBER SLEEVE
RPG41-0286 INDEX P LATE
RPG10-0120 WALL PLATE
RPG10-0121 WALL PLATE WITH DIVERTER
RPG10-0119 MOU NTIN G HARDW ARE (A LL S CREWS )
RPG41-0286-DV DIVERTER MODEL INDEX PLATE
Page 6

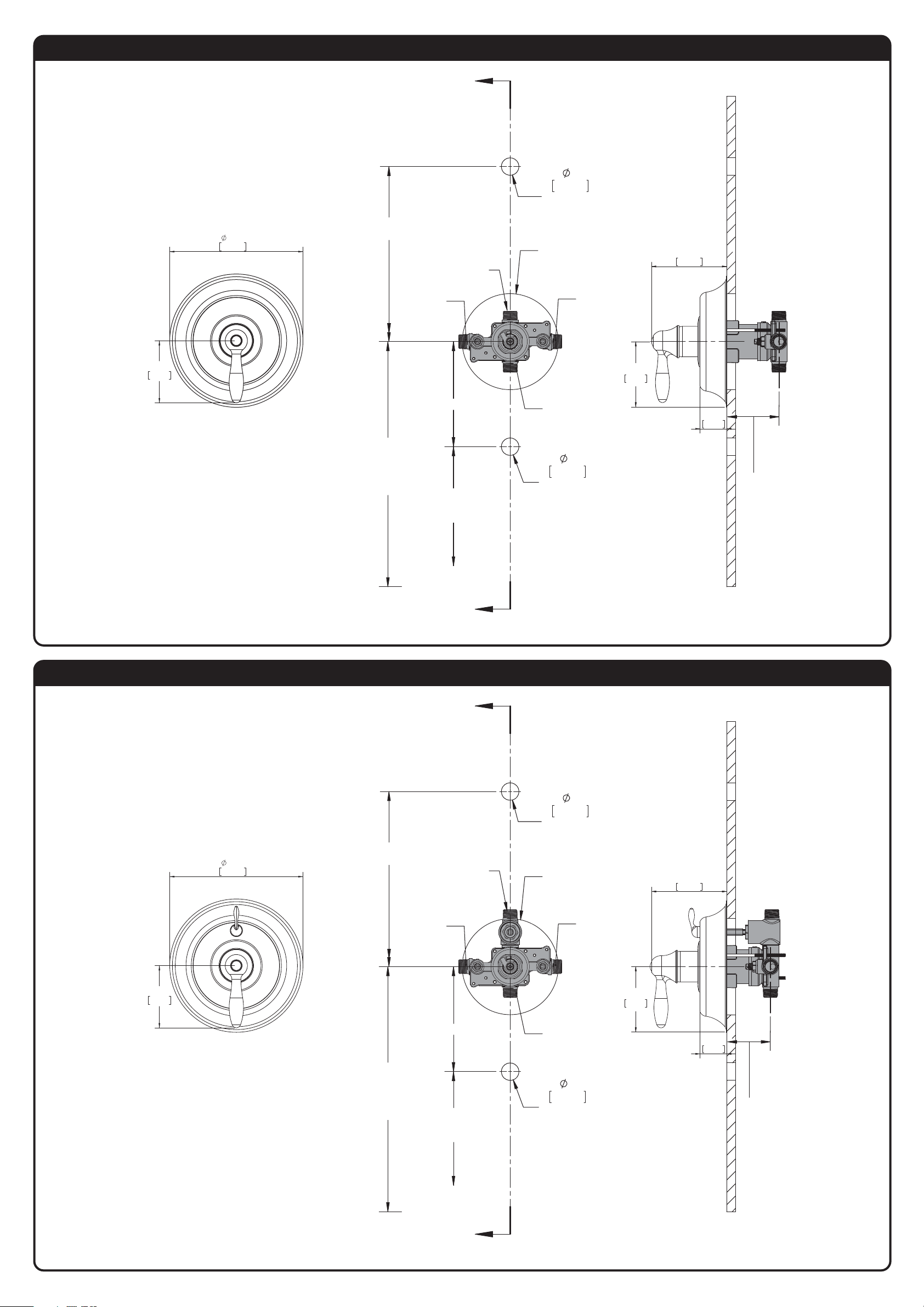

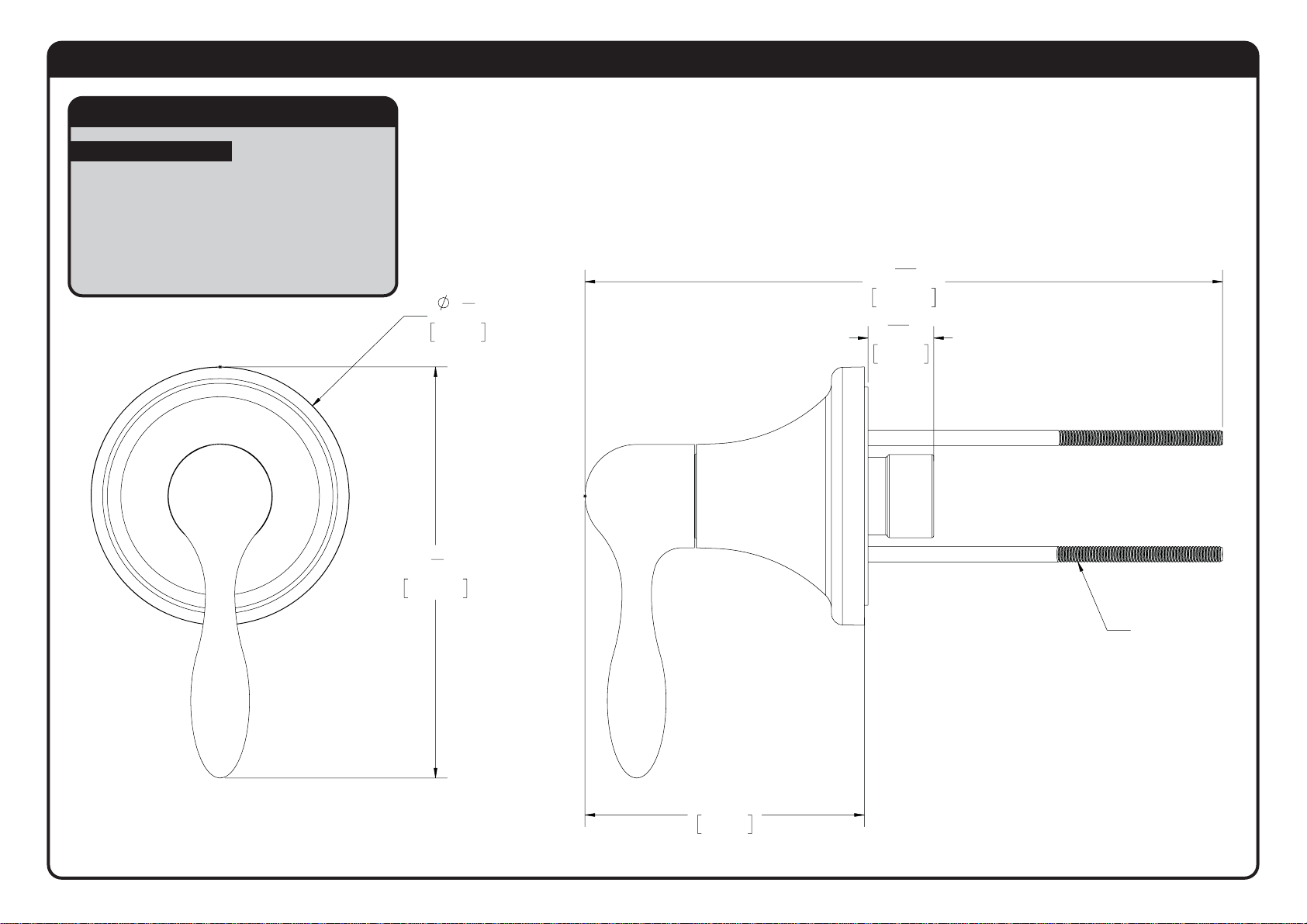

CPT-5001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
7.50in
CPT-5401 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
191mm
6'-6" [2 METERS]
TO FLOOR
1/2" NPT MALE
1/2" SWEAT
CONNECTION
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
1/2" NPT MALE
1/2" SWEAT
CONNECTION
4.31in
110mm
3.50in
89mm
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-5000
1'-9" [533mm]
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
4" [102mm]
TO TOP OF
TUB LEDGE
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
TUB SPOUT
3.75in
95mm
1.53in
39mm
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
3.50in
89mm
7.50in
191mm
6'-6" [2 METERS]
TO FLOOR
1/2" NPT MALE
1/2" SWEAT
CONNECTION
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
1/2" NPT MALE
1/2" SWEAT
CONNECTION
3.75in
95mm
4.31in
110mm
VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.
VALVE IS NOT INCLUDED WITH CPT-5400
1'-9" [533mm]
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
4" [102mm]
TO TOP OF
TUB LEDGE
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
TUB SPOUT
1.53in
39mm
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
Page 7
INSTRUCTIONS FOR MODELS
92-S-2500-R5
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
S-2500
TOOLS AND SUPPLIES

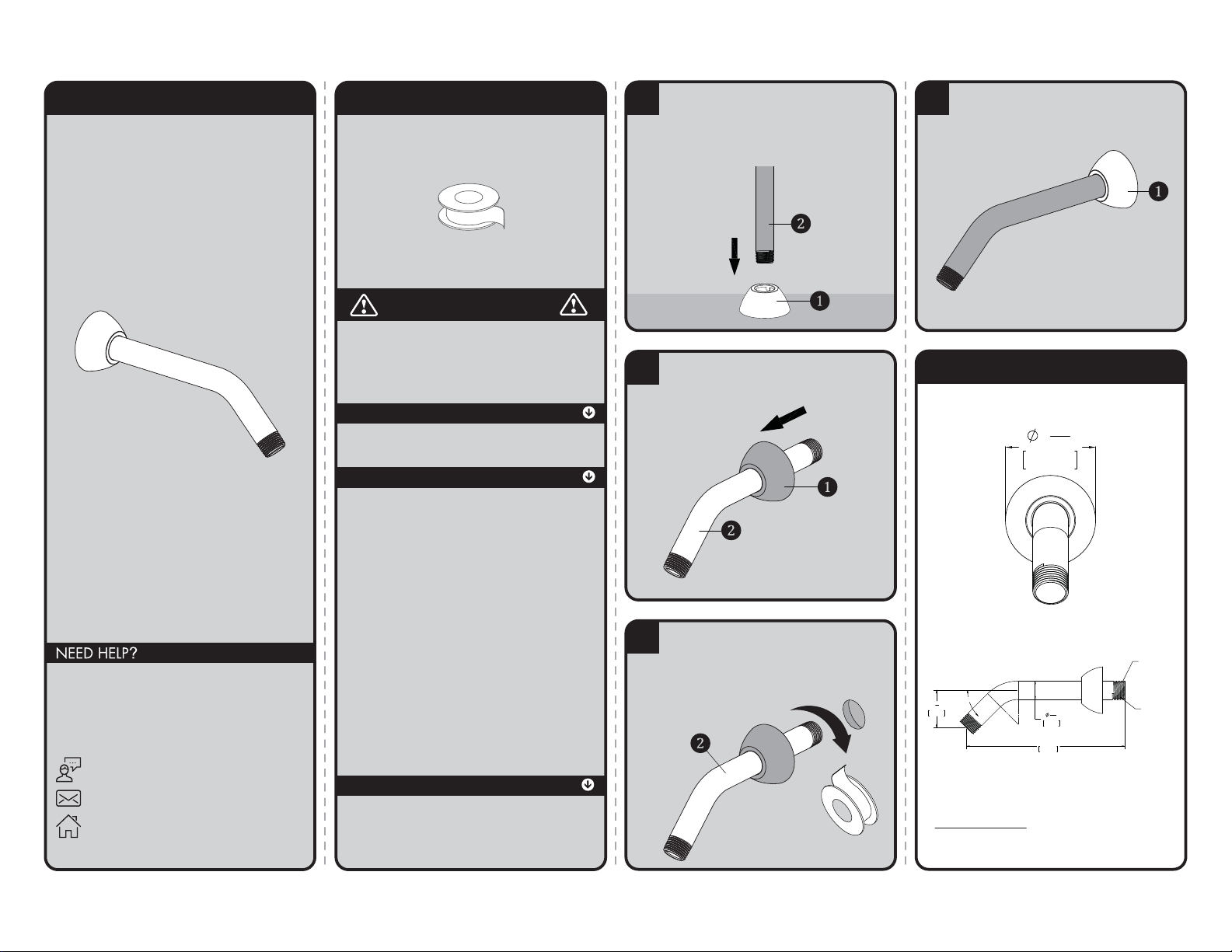

1
Place the Escutcheon Plate (1) on a flat
surface. Push the long end of the Shower
Arm (2) down into the plate. This will
help the teeth of the plate slide over the
arm easier.
2
Once the Escutcheon Plate (1) is on the
shower arm, slide the plate over the
Shower Arm (2).
3
Apply Teflon Tape to inlet side of Shower
Arm (2). Thread Shower Arm (2) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (2) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (1) flat against wall.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2
1
16
"
52mm
13
16
"
21mm
45.00°
7"
178mm
1
5
8
"
42mm
1/2" NPT THREADS
BOTH ENDS
INLET
Thread Seal
Tape
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 8
INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES

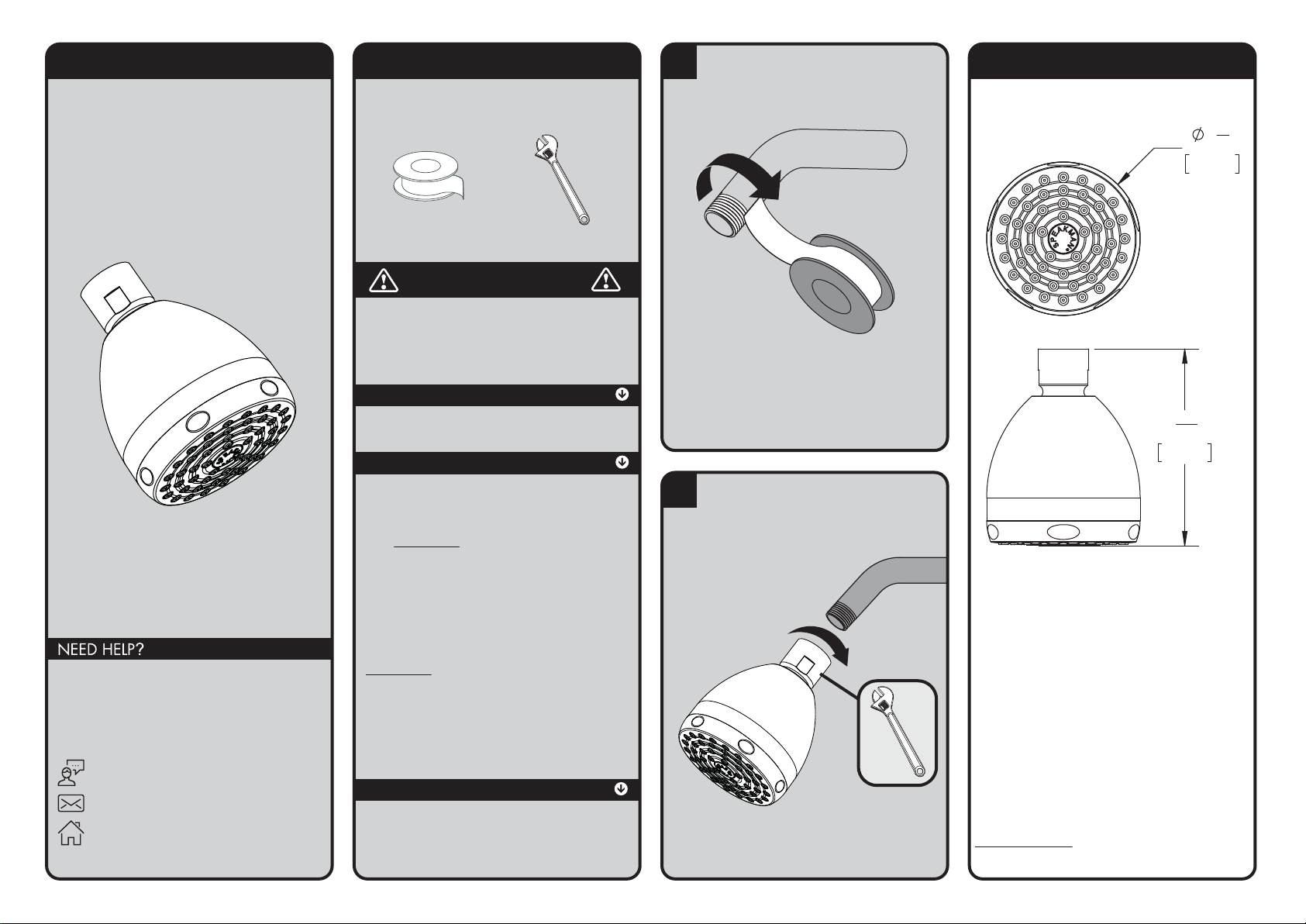

1
Apply Teflon Tape to the outlet side of
shower arm in a clockwise direction.
2

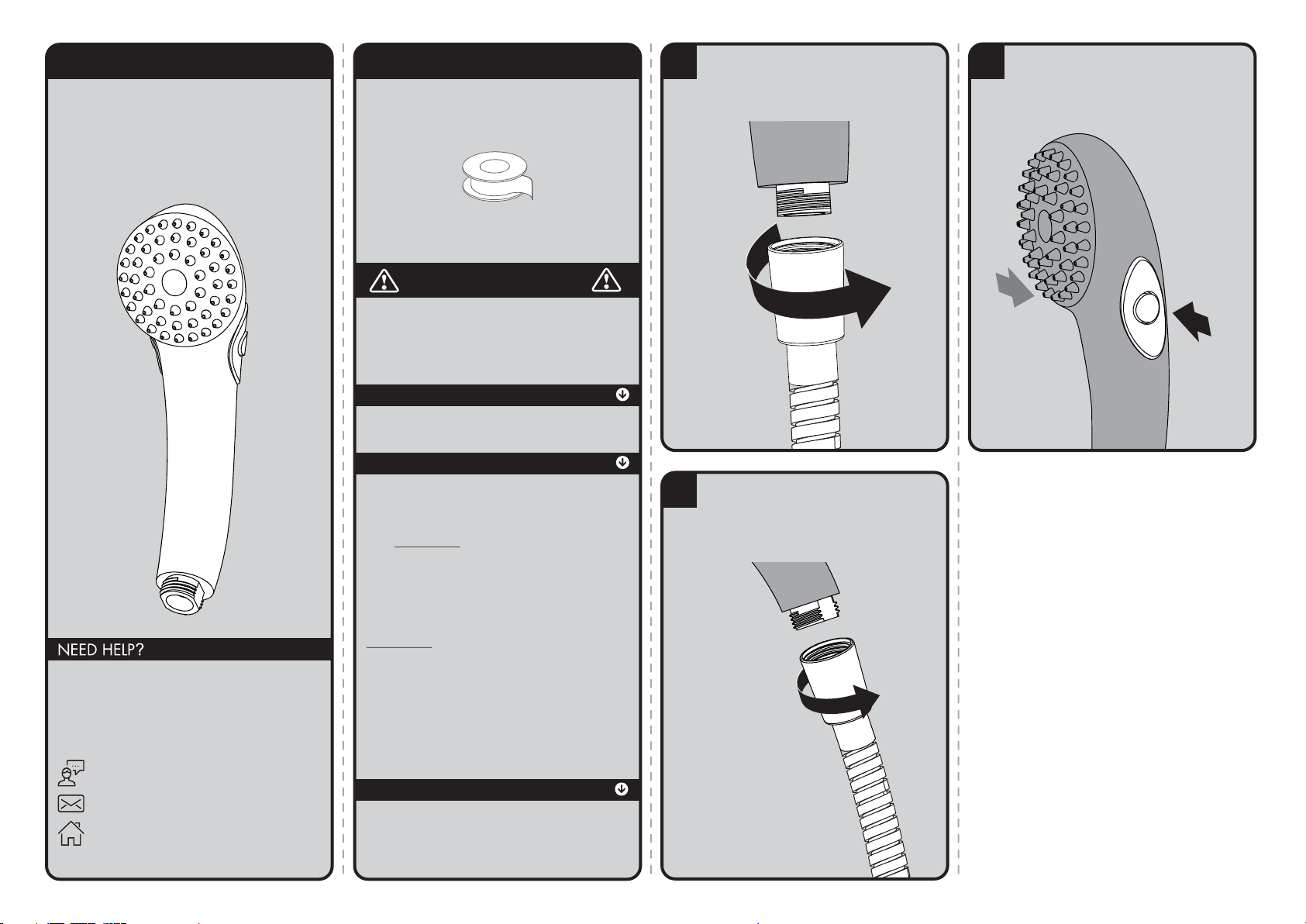

Thread Shower head onto shower arm by
turning it in a clockwise direction. Tighten
with adjustable wrench. Turn water
supply on and check for leaks.

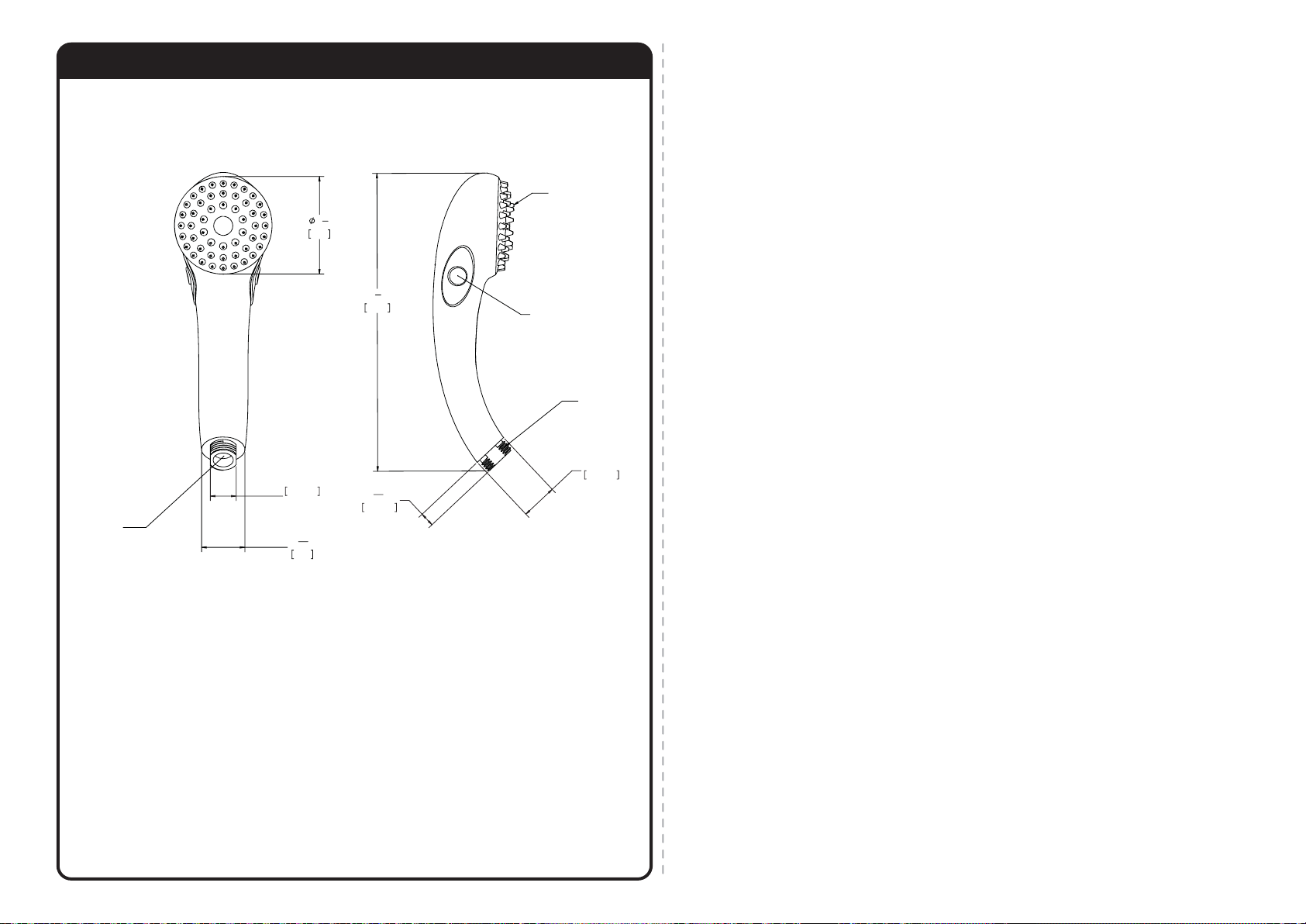

ROUGH IN DIMENSIONS
S-2272-E2
S-2272-E15
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
92-S-2272-01
®
Company
Thread Seal
Tape
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Showerhead's appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body (follow
manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the showerhead soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
3
2
4
70mm
9
3
"
16
90mm
Model: S-2272-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-2272-E15
Max. Flow Rate: 1.5 gpm (5.7 L/min)
Min. Flow Rate: 1.1 gpm (4.2 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED
AT 5.2 L/MIN (1.37 GPM) OR LESS.
Specifications:
Inlet: 1/2” NPSM FEMALE
"
Page 9
INSTRUCTIONS FOR MODELS
92-VS-100-PC-04
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-100-PC
VS-100-PC-E2
VS-100-PC-E175
TOOLS AND SUPPLIES
2
Connect remaining end of Hose to inlet
of Hand Shower. Hand tighten. If there
are leaks at the hose connections, look
into using thicker washers to ensure a
tight seal.
1
Connect the correct side of your hose
(not included) to the water supply.
Hand tighten.
3
To pause the flow of water, press the integral
thumb operated pause/trickle button located
on the side of the hand shower. To return the
hand held shower to full flow, press the shuttle
button from the opposite side.
Thread Seal
Tape
(included)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 10
ROUGH IN DIMENSIONS
VS-100-PC-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.
VS-100-PC-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
VS-100-PC
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.
13
32
"
10.16mm
8
1
2
"
215.90
1"
25.40mm
1/2-14 NPSM
MALE THREADED
INLET
50 RUBBER
TIPPED SPRAYS
PAUSE
BUTTON
.714in
18.14mm
ACROSS
FLATS
3
1
8
"
79.38
1
3
16
"
30.18
FLOW CONTROL
INSERTED INTO
HANDLE
Page 11
SPEAKMAN COMPANY
VS-115 Installation, Maintenance & Operation Instructions
VERSATILE ® SUPPLY ELL
DESCRIPTION
VERSATILE® chrome plated brass supply ell with wall flange.
SPECIFICATIONS
SUPPLY INLET: ½” NPT FEMALE
OUTLET: ½” NPSM MALE
SHIPPING WEIGHT: 0.4 LBS.
INSTALLATION
Slip the wall flange on to the inlet pipe. Using teflon tape or pipe dope on threads, screw ell onto pipe and wrench
tighten. Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks.
MAINTENANCE
The gleaming finish of your SPEAKMAN
VERSATILE® VS-115 supply ell can be cleaned by
using mild soap and warm water. Dry immediately
with a soft, clean cloth for best results.
Product improvements may cause
specification and dimensional
changes without notice.
ROUGH-IN MEASUREMENTS
®
SPEAKMAN
PO Box 191 Wilmington, DE 19899 Phone: 800-537-2107 Fax: 800-977-2747
Visit us on the web at www.speakmancompany.com
09/07
REV 1
92-1775
Page 12
SPEAKMAN COMPANY
VS-117 Installation, Maintenance & Operation Instructions
VERSATILE ® VACUUM BREAKER
DESCRIPTION
VERSATILE® chrome plated brass in-line vacuum breaker.
SPECIFICATIONS
SUPPLY INLET: ½” NPSM FEMALE
OUTLET : ½” NPSM MALE
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Connect, using rubber washer, to supply piping. Connect accessories to vacuum breaker. Firmly hand tighten
connection. Turn water supply on and check for leaks.
Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause
water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker).
MAINTENANCE
The gleaming finish of your SPEAKMAN
VERSATILE® VS-117 vacuum breaker can be
cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.
Product improvements may cause
specification and dimensional
changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: 1-800-977-2747
ROUGH-IN MEASUREMENTS
04/00
92-1783
Page 13
INSTRUCTIONS FOR MODELS
CPT-1183
TOOLS AND SUPPLIES
Phillips
Screwdriver
1
Clean wall surface. Place Mounting Base (1), on to valve, align mounting holes, and secure
with Mounting Screws (2).
2
Align the HEX Spindle (1) with the HEX drive (2) of the Handle Assembly. Keep Handle in a
stationary vertical position as you thread Handle Hub (3) on to Mounting Base. Tighten until snug.
* VIEW FROM BACK OF HANDLE ASSEMBLY.
MOUNTING BASE NOT SHOWN.
IMPORTANT
• Do not over tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
®
Company
92-CPT-1183-01
MAINTENANCE
Your new Speakman Product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the
Speakman custom finish products may damage the
finish and void the product warranty. Please be sure
to only use approved cleaners. Please contact
Speakman for any clarification of acceptable
cleaners.
WARRANTY
Warranty information can be found at:
www.speakman.com
Page 14
CPT-1183 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ASME A112.18.1/CSA B125.1
Contractor to supply necessary inlet
connections.
3"
76mm
11
16
"
18mm
6
13
16
"
172mm
8-32 THREAD
2
3
4
"
70mm
4
3
8
"
111mm
Page 15
SPEAKMAN COMPANY
S-1554 Installation, Maintenance & Operation Instructions
TUB SPOUT
DESCRIPTION
Speakman polished chrome plated metal tub spout.
SPECIFICATIONS
½” NPT FEMALE INLET
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Apply teflon tape or pipe dope to male threads and thread spout onto piping. Wrench tighten carefully. Check all
connections for leaks.
MAINTENANCE
The gleaming finish of your SPEAKMAN tub spout can
be cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.
ROUGH-IN MEASUREMENTS
Product improvements may cause
specification and dimensional
changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: 1-800-977-2747
04/00
92-1819
Loading...
