Speakman TCTA1329 Installation & Assembly

®

SPEAKMAN

SLV-5450

Installation, Operation & Maintenance Instructions

SENTINELPRO™ COMBINATION SERIES

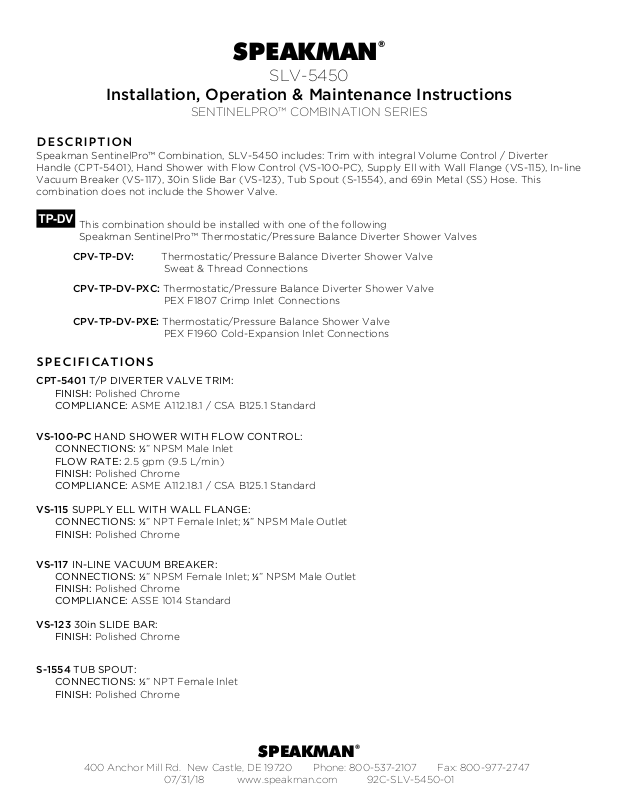

DESCRIPTION

Speakman SentinelPro™ Combination, SLV-5450 includes: Trim with integral Volume Control / Diverter
Handle (CPT-5401), Hand Shower with Flow Control (VS-100-PC), Supply Ell with Wall Flange (VS-115), In-line
Vacuum Breaker (VS-117), 30in Slide Bar (VS-123), Tub Spout (S-1554), and 69in Metal (SS) Hose. This
combination does not include the Shower Valve.

This combination should be installed with one of the following

Speakman SentinelPro™ Thermostatic/Pressure Balance Diverter Shower Valves

CPV-TP-DV: Thermostatic/Pressure Balance Diverter Shower Valve

Sweat & Thread Connections

CPV-TP-DV-PXC: Thermostatic/Pressure Balance Diverter Shower Valve

PEX F1807 Crimp Inlet Connections

CPV-TP-DV-PXE: Thermostatic/Pressure Balance Shower Valve

PEX F1960 Cold-Expansion Inlet Connections

SPECIFICATIONS

CPT-5401 T/P DIVERTER VALVE TRIM:

FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard

VS-100-PC HAND SHOWER WITH FLOW CONTROL:

CONNECTIONS: ½” NPSM Male Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard

VS-115 SUPPLY ELL WITH WALL FLANGE:

CONNECTIONS: ½” NPT Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome

VS-117 IN-LINE VACUUM BREAKER:

CONNECTIONS: ½” NPSM Female Inlet; ½” NPSM Male Outlet
FINISH: Polished Chrome
COMPLIANCE: ASSE 1014 Standard

VS-123 30in SLIDE BAR:

FINISH: Polished Chrome

S-1554 TUB SPOUT:

CONNECTIONS: ½” NPT Female Inlet
FINISH: Polished Chrome

SPEAKMAN®

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

07/31/18 www.speakman.com 92C-SLV-5450-01

INSTRUCTIONS

See individual products for installation of the components and warranty information.

ROUGH-IN

SPEAKMAN®

400 Anchor Mill Rd. New Castle, DE 19720 Phone: [phone] Fax: [phone]

07/31/18 www.speakman.com 92C-SLV-5450-01

INSTRUCTIONS FOR MODELS

92-CPT-5001-01

For additional assistance or service please contact:

SPEAKMAN

®

Company
400 Anchor Mill Road
New Castle, DE 19720

800-537-2107

[email protected]

www.speakman.com

CPT-5001 / CPT-5401

TOOLS AND SUPPLIES

Phillips

Screwdriver

Silicone Caulk Gun

Additional warranty information can be found at:
www.speakman.com

WARRANTY

MAINTENANCE

Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before
beginning installation.

• Do not over-tighten any connections or damage
may occur.

• This valve has an operating range of 20-80 psi.

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

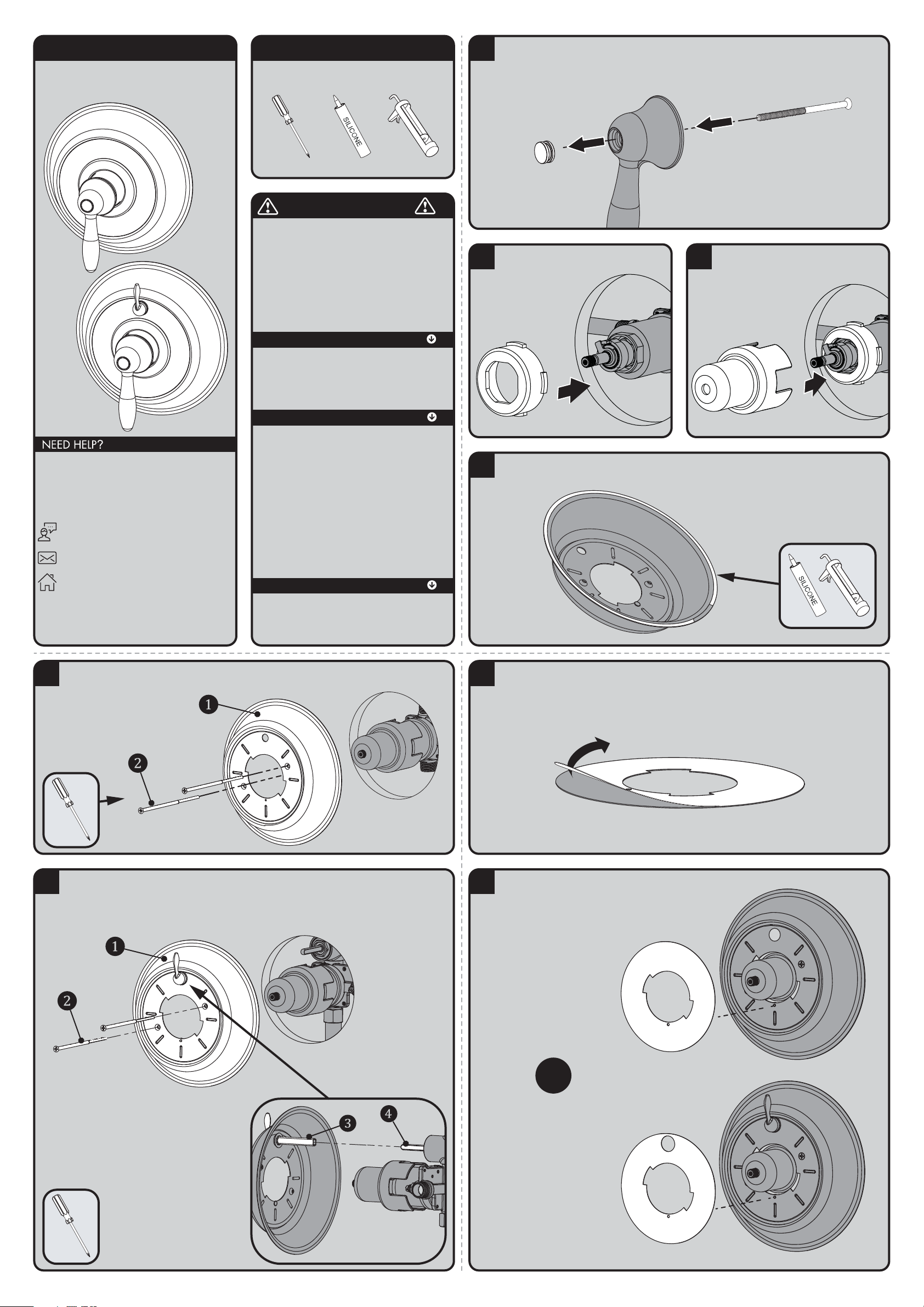

1

Remove the Handle Button Screw by inserting one of the included Mounting Screws thru the hole in the Handle.

2

Insert the T/P Rubber Sleeve with Tabs over
Valve Bonnet.

3

Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing
Valve Trim. Slide Trim Sleeve
over the Rubber Sleeve.
Ensure the tabs are
properly seated within
the grooves of the
Trim Sleeve.

4

Clean wall surface. Orient Wall Plate as shown below. Apply clear silicone sealant to the backside outer flat
surface of the Wall Plate, while leaving a small area open at the bottom. This will allow for any moisture to drain.

5A

FOR CPT-5001 - Align the Wall Plate (1) as shown below. Secure to Valve with the included Mounting Screws

(2). Take care to not over tighten Mounting Screws. Remove excess sealant after securing Wall Plate to wall.

5B

FOR CPT-5401 - Align the Wall Plate (1) as shown below. Verify the Diverter Valve Stem is in the OFF (vertical)

position. Align the Diverter Drive Tube (3) on the Wall Plate to the Stem (4) of the Diverter Valve. Secure to Valve
with the included Mounting Screws (2). Take care to not over tighten Mounting Screws. Remove excess sealant
after securing Wall Plate to wall.

* VIEW FROM BACK OF WALL PLATE

6

Remove protective film from Trim Index Plate.

7

OR

CPT-5001: Slide Index Plate over

the Trim Sleeve. Align Index Plate
with the small Alignment Pin on the
Wall Plate, and hold Index Plate in
place for the next step.

CPT-5401: Slip the upper hole of
the Index Plate over the Diverter
Handle and then align the large hole
of the Index Plate over the Trim
Sleeve. Align Trim Index Plate with
the small Alignment Pin on the Wall
Plate, and hold Index Plate in place
for the next step.

8

Ensure the Rubber Gasket is correctly installed to the Retaining
Ring. Align the Retaining Ring with the slots on the Wall Plate.
Press and Rotate the ring clock-wise until it Locks / Seals in place.
Make sure the seal is secure with the Wall Plate.

9

Temporarily place Handle over splines and adjust the valve to
the OFF position (as per the Valve Instructions). Then, align Handle
vertically as shown below. Secure Handle to Spindle with the
included #8 Screw.

10

Insert Handle Button into the Handle.

* VIEW FROM BACK UNDERSIDE OF HANDLE
If further adjustments need to be made after
the Handle Button is inserted, there is an
access hole at the back side of the handle.
Use a paper clip to push the Button back out.

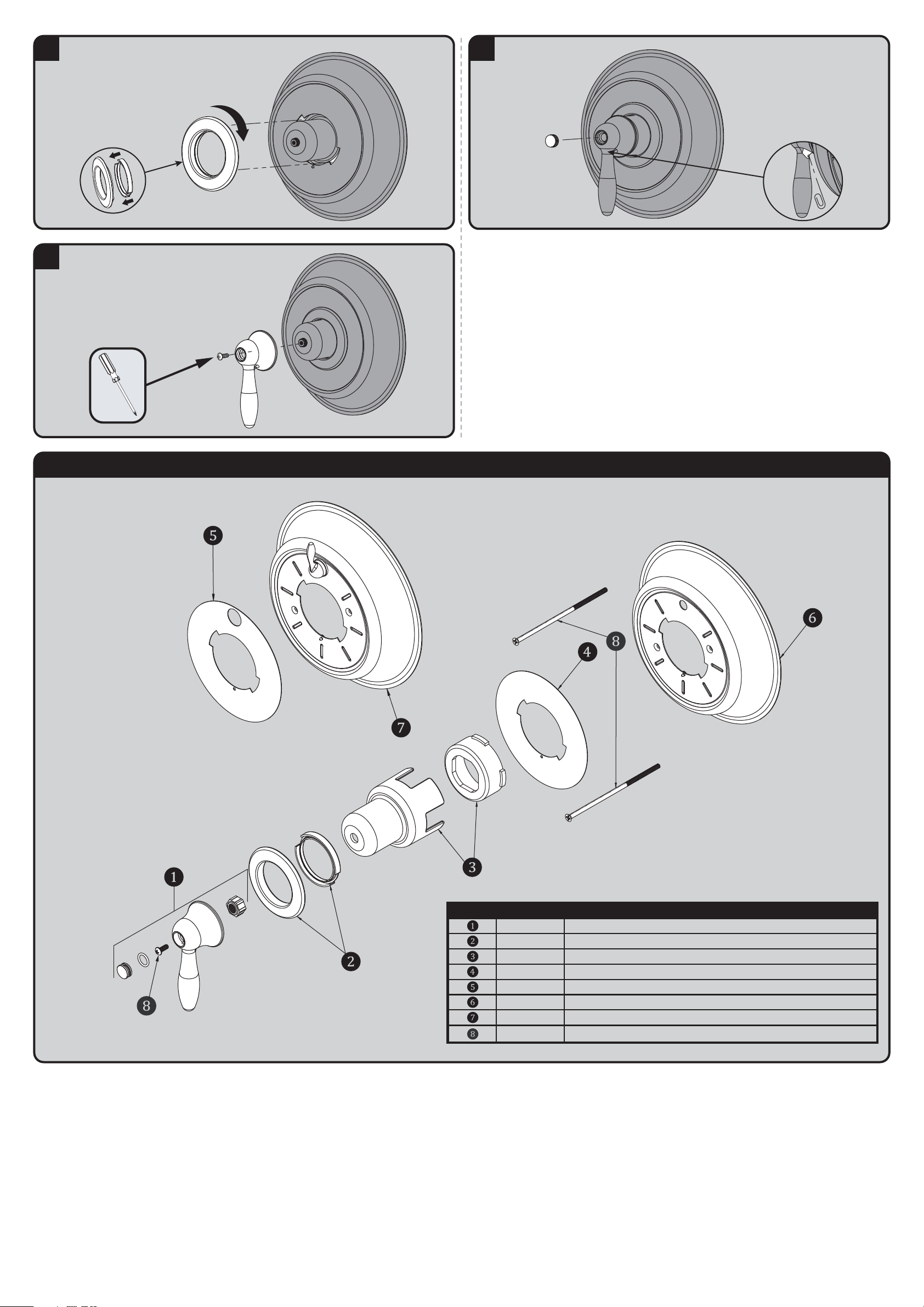

CPT-5001 / CPT-5401 REPAIR PARTS

SPEAKMAN

®

ITEM NO. PART NO. DESCRIPTION

RPG04-0443 HANDL E AS SEMB LY

RPG05-1111 RETAINING RING WITH SEAL

RPG05-1110 TRIM SLEEVE AND RUBBER SLEEVE

RPG41-0286 INDEX PLATE

RPG10-0120 WALL PLAT E

RPG10-0121 WALL PLAT E WITH DIVERTER

RPG10-0119 MOU NTING HARDW ARE (A LL SCRE WS)

RPG41-0286-DV DIVERTER MODEL INDEX PLATE

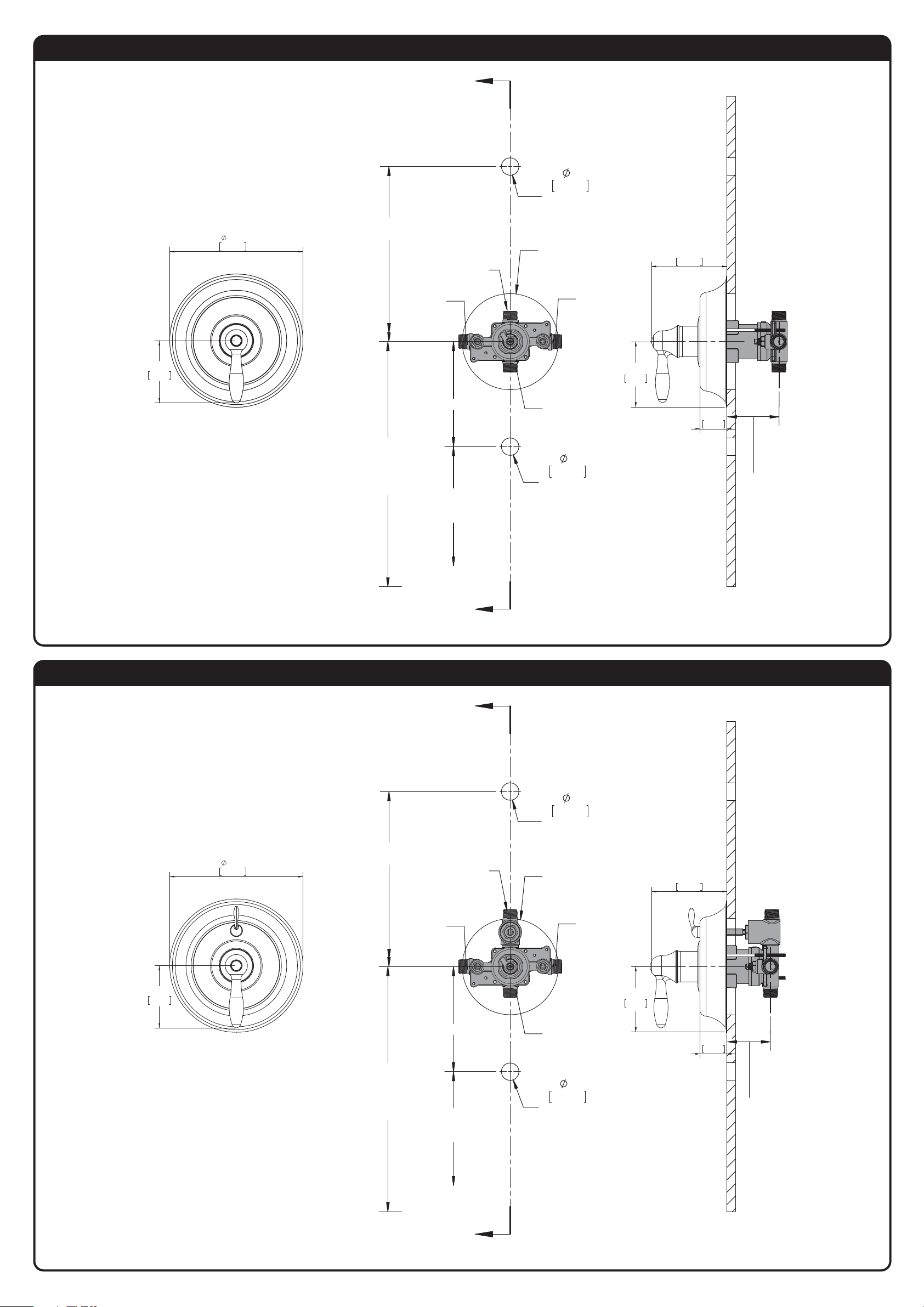

CPT-5001 ROUGH-IN DIAGRAM

SPEAKMAN

®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

7.50in

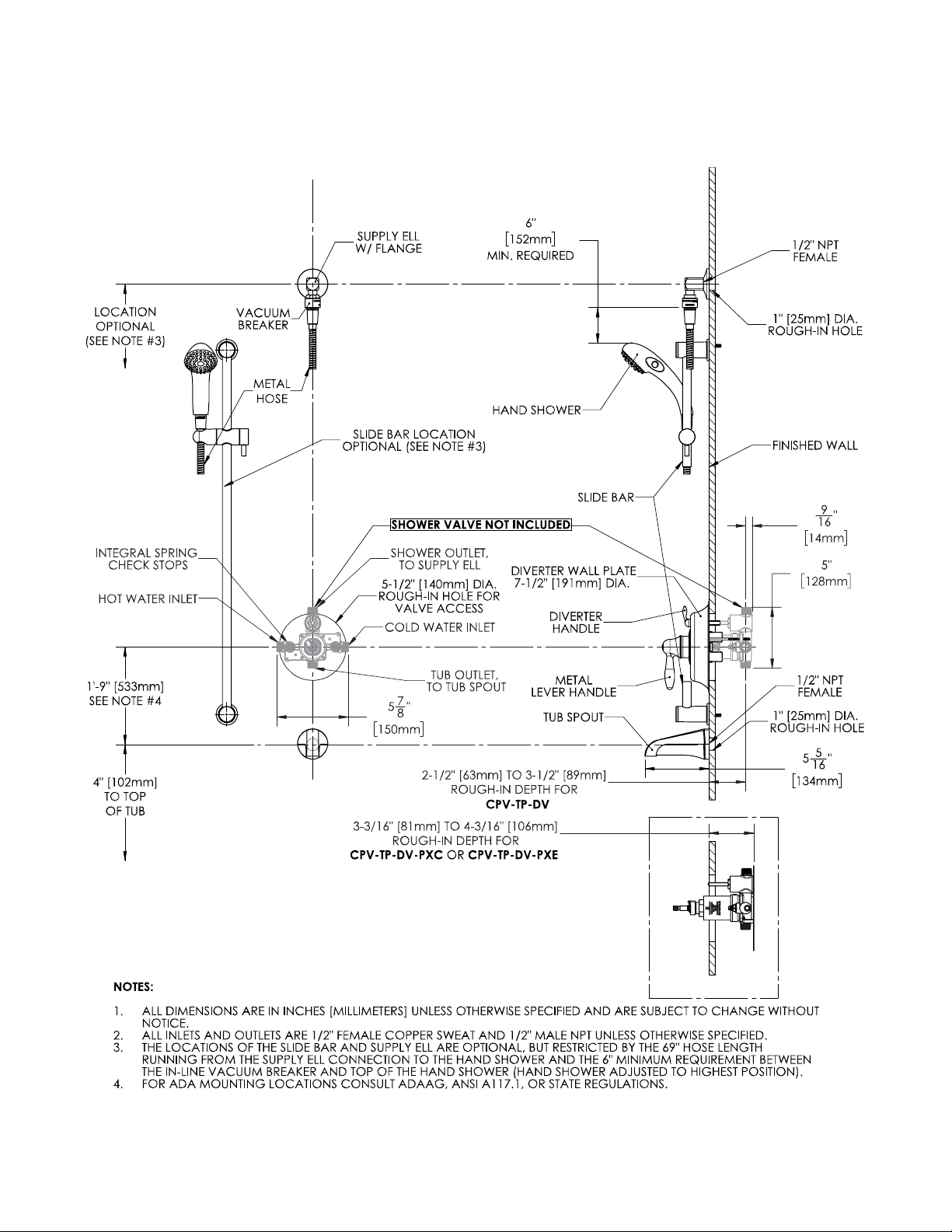

CPT-5401 ROUGH-IN DIAGRAM

SPEAKMAN

®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

191mm

6'-6" [2 METERS]

TO FLOOR

1/2" NPT MALE
1/2" SWEAT
CONNECTION

A

1/2" NPT MALE
1/2" SWEAT
CONNECTION

1"

25mm

HOLE FOR

SHOWER ARM

5-1/2" (140MM) DIA.

HOLE FOR
VALVE ACCESS

1/2" NPT MALE
1/2" SWEAT
CONNECTION

4.31in

110mm

3.50in

89mm

VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.

VALVE IS NOT INCLUDED WITH CPT-5000

1'-9" [533mm]

4’-6" [1.4 METERS]

TO FLOOR
(SHOWER

INSTALLATION

ONLY)

4" [102mm]

TO TOP OF

TUB LEDGE

A

1/2" NPT MALE
1/2" SWEAT
CONNECTION

1"

25mm

HOLE FOR
TUB SPOUT

3.75in

95mm

1.53in

39mm

2-1/2" MIN

[64mm]

3-1/2" MAX

[89mm]

(ADJUSTMENT)

3.50in

89mm

7.50in

191mm

6'-6" [2 METERS]

TO FLOOR

1/2" NPT MALE
1/2" SWEAT
CONNECTION

A

1/2" NPT MALE
1/2" SWEAT
CONNECTION

1"

25mm

HOLE FOR

SHOWER ARM

5-1/2" (140MM) DIA.

HOLE FOR
VALVE ACCESS

1/2" NPT MALE
1/2" SWEAT
CONNECTION

3.75in

95mm

4.31in

110mm

VALVE MOUNTING IS SHOWN FOR REFERENCE ONLY.

VALVE IS NOT INCLUDED WITH CPT-5400

1'-9" [533mm]

4’-6" [1.4 METERS]

TO FLOOR
(SHOWER

INSTALLATION

ONLY)

4" [102mm]

TO TOP OF

TUB LEDGE

A

1/2" NPT MALE
1/2" SWEAT
CONNECTION

1"

25mm

HOLE FOR
TUB SPOUT

1.53in

39mm

2-1/2" MIN

[64mm]

3-1/2" MAX

[89mm]

(ADJUSTMENT)

INSTRUCTIONS FOR MODELS

92-VS-100-PC-04

For additional assistance or service please contact:

SPEAKMAN

®

Company
400 Anchor Mill Road
New Castle, DE 19720

800-537-2107

[email protected]

www.speakman.com

VS-100-PC
VS-100-PC-E2
VS-100-PC-E175

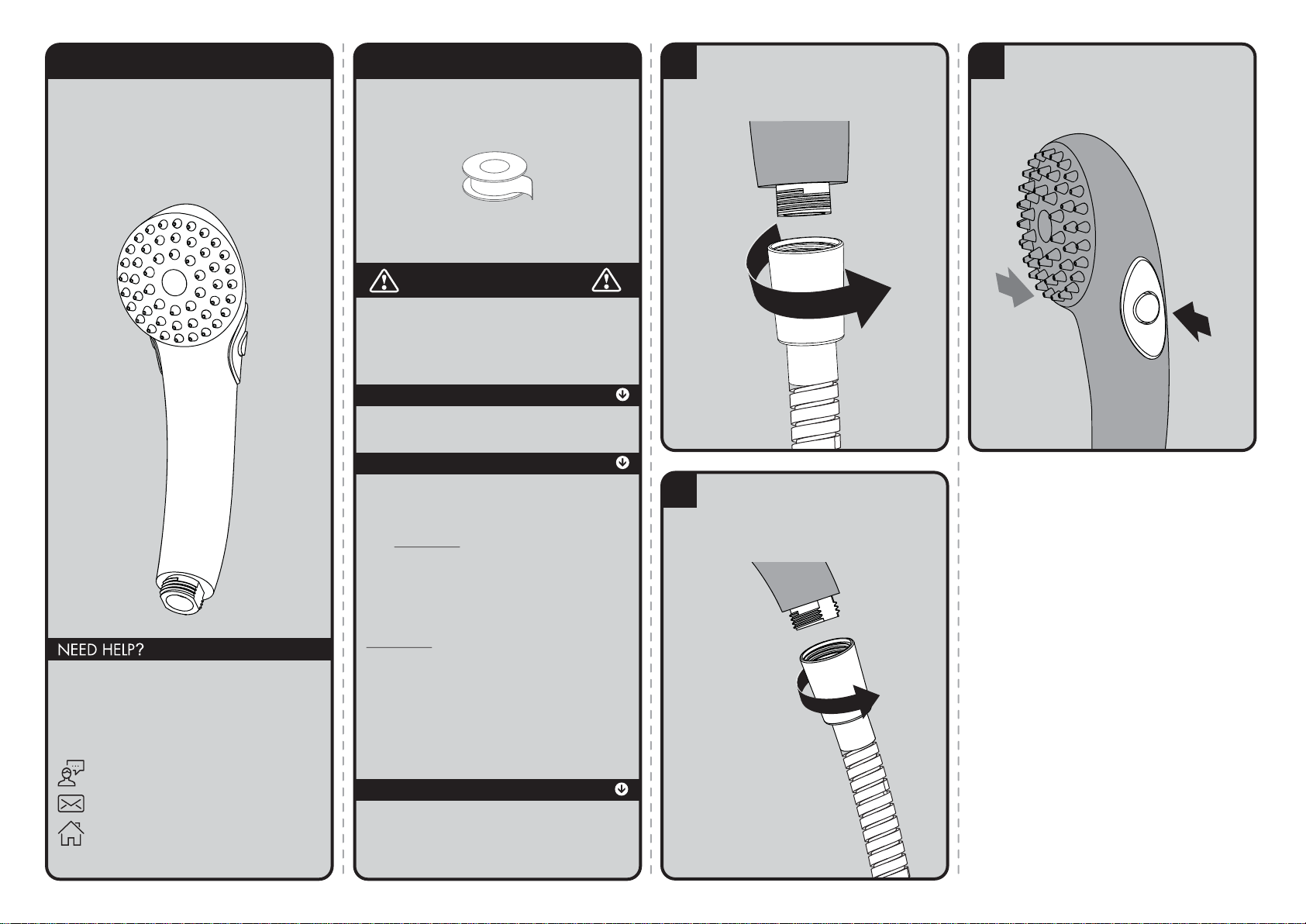

TOOLS AND SUPPLIES

2

Connect remaining end of Hose to inlet
of Hand Shower. Hand tighten. If there
are leaks at the hose connections, look
into using thicker washers to ensure a
tight seal.

1

Connect the correct side of your hose
(not included) to the water supply.
Hand tighten.

3

To pause the flow of water, press the integral
thumb operated pause/trickle button located
on the side of the hand shower. To return the
hand held shower to full flow, press the shuttle
button from the opposite side.

Thread Seal

Tape

(included)

IMPORTANT

Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.

For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.

On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.

DO NOT USE the vinegar/water treatment on any
finish other than Chrome.

WARRANTY

Additional warranty information can be found at:
www.speakman.com

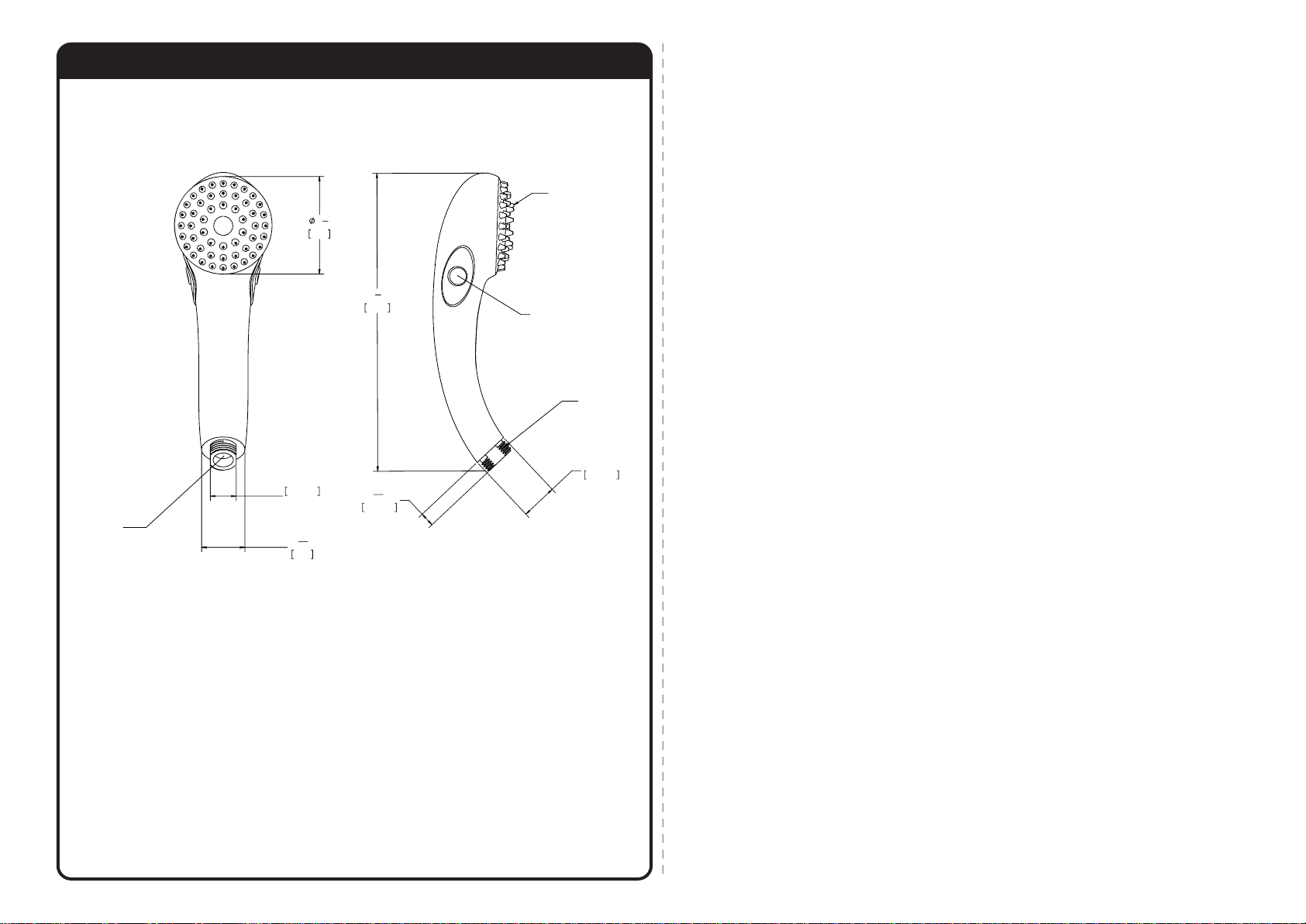

ROUGH IN DIMENSIONS

VS-100-PC-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.

VS-100-PC-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.

VS-100-PC
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.

13
32

"

10.16mm

8

1
2

"

215.90

1"

25.40mm

1/2-14 NPSM

MALE THREADED

INLET

50 RUBBER

TIPPED SPRAYS

PAUSE

BUTTON

.714in

18.14mm
ACROSS

FLATS

3

1
8

"

79.38

1

3

16

"

30.18

FLOW CONTROL

INSERTED INTO

HANDLE

SPEAKMAN COMPANY

VS-115 Installation, Maintenance & Operation Instructions

VERSATILE ® SUPPLY ELL

DESCRIPTION

VERSATILE® chrome plated brass supply ell with wall flange.

SPECIFICATIONS

SUPPLY INLET: ½” NPT FEMALE
OUTLET: ½” NPSM MALE
SHIPPING WEIGHT: 0.4 LBS.

INSTALLATION

Slip the wall flange on to the inlet pipe. Using teflon tape or pipe dope on threads, screw ell onto pipe and wrench
tighten. Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks.

MAINTENANCE

The gleaming finish of your SPEAKMAN
VERSATILE® VS-115 supply ell can be cleaned by
using mild soap and warm water. Dry immediately
with a soft, clean cloth for best results.

Product improvements may cause
specification and dimensional
changes without notice.

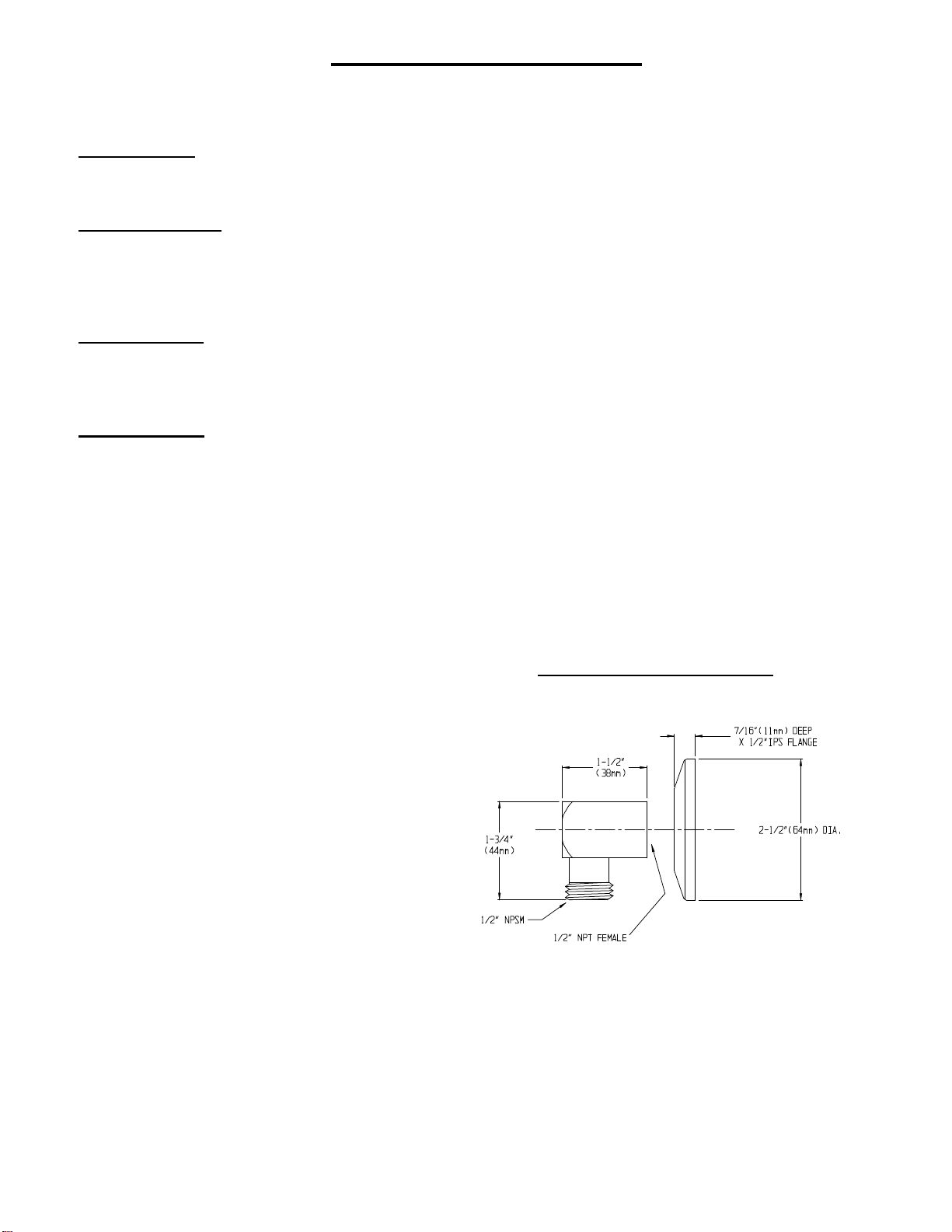

ROUGH-IN MEASUREMENTS

®

SPEAKMAN

PO Box 191 Wilmington, DE 19899 Phone: [phone] Fax: [phone]

Visit us on the web at www.speakmancompany.com

09/07

REV 1

92-1775

SPEAKMAN COMPANY

VS-117 Installation, Maintenance & Operation Instructions

VERSATILE ® VACUUM BREAKER

DESCRIPTION

VERSATILE® chrome plated brass in-line vacuum breaker.

SPECIFICATIONS

SUPPLY INLET: ½” NPSM FEMALE
OUTLET : ½” NPSM MALE
SHIPPING WEIGHT: XXX LBS.

INSTALLATION

Connect, using rubber washer, to supply piping. Connect accessories to vacuum breaker. Firmly hand tighten
connection. Turn water supply on and check for leaks.
Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause
water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker).

MAINTENANCE

The gleaming finish of your SPEAKMAN
VERSATILE® VS-117 vacuum breaker can be
cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.

Product improvements may cause
specification and dimensional
changes without notice.

SPEAKMAN COMPANY

The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: [phone]

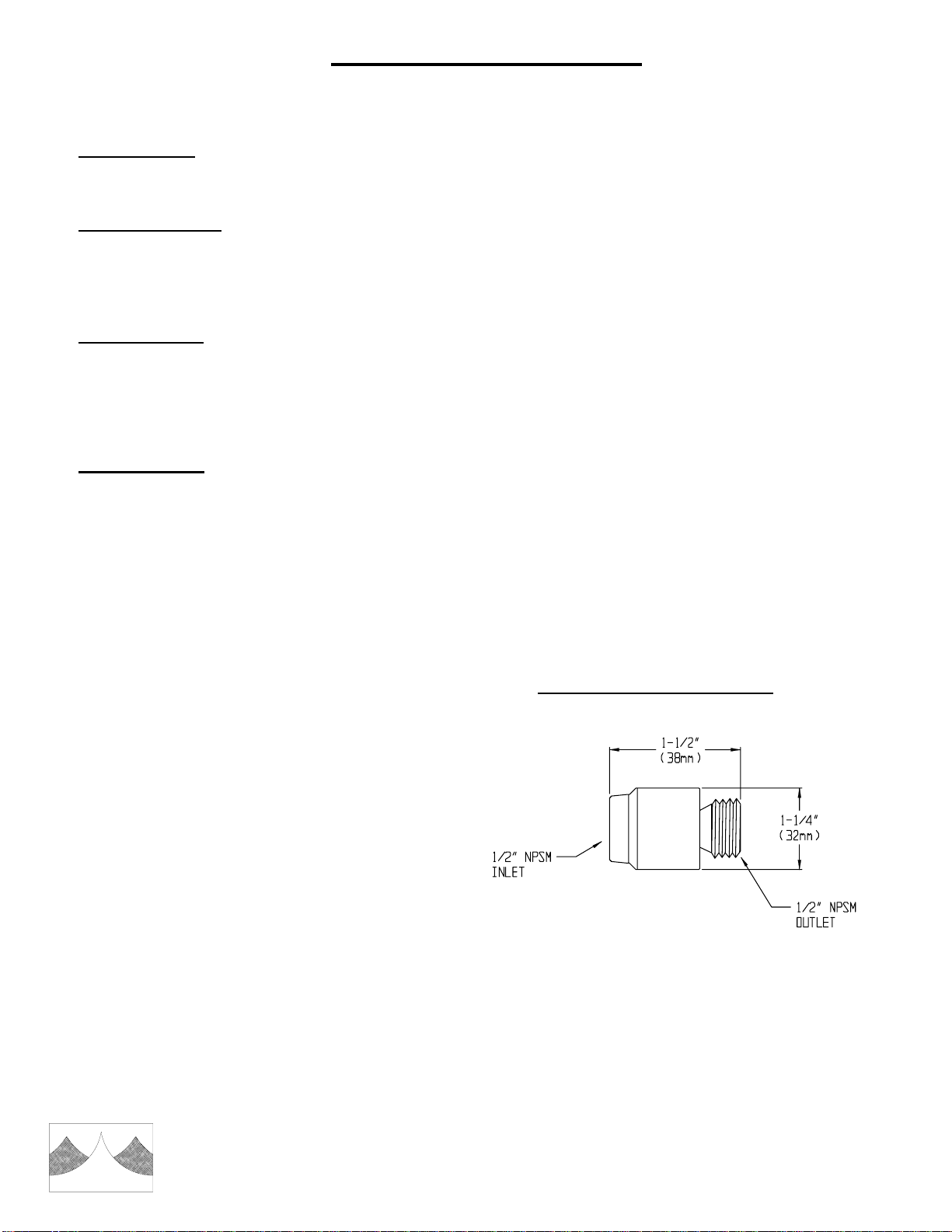

ROUGH-IN MEASUREMENTS

04/00

92-1783

INSTRUCTIONS FOR MODELS

92-VS-12X-01

For additional assistance or service please contact:

SPEAKMAN

®

Company
400 Anchor Mill Road
New Castle, DE 19720

800-537-2107

[email protected]

www.speakman.com

VS-123
VS-124

TOOLS AND SUPPLIES

Level

Phillips

Drive Bit

Measuring

Tape

Phillips

Screwdriver

Pencil

Drill

Drill Bit

Ø

1

/4”

Tile Drill Bit

Ø

1

/4”

Mounting Hardware

(included)

• Cover your drain to prevent loss of parts. Be sure
to wear eye protection.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Do not over-tighten any connections or damage

may occur.

Warranty information can be found at:
www.speakman.com

WARRANTY

MAINTENANCE

Your new Speakman Product is designed for years of

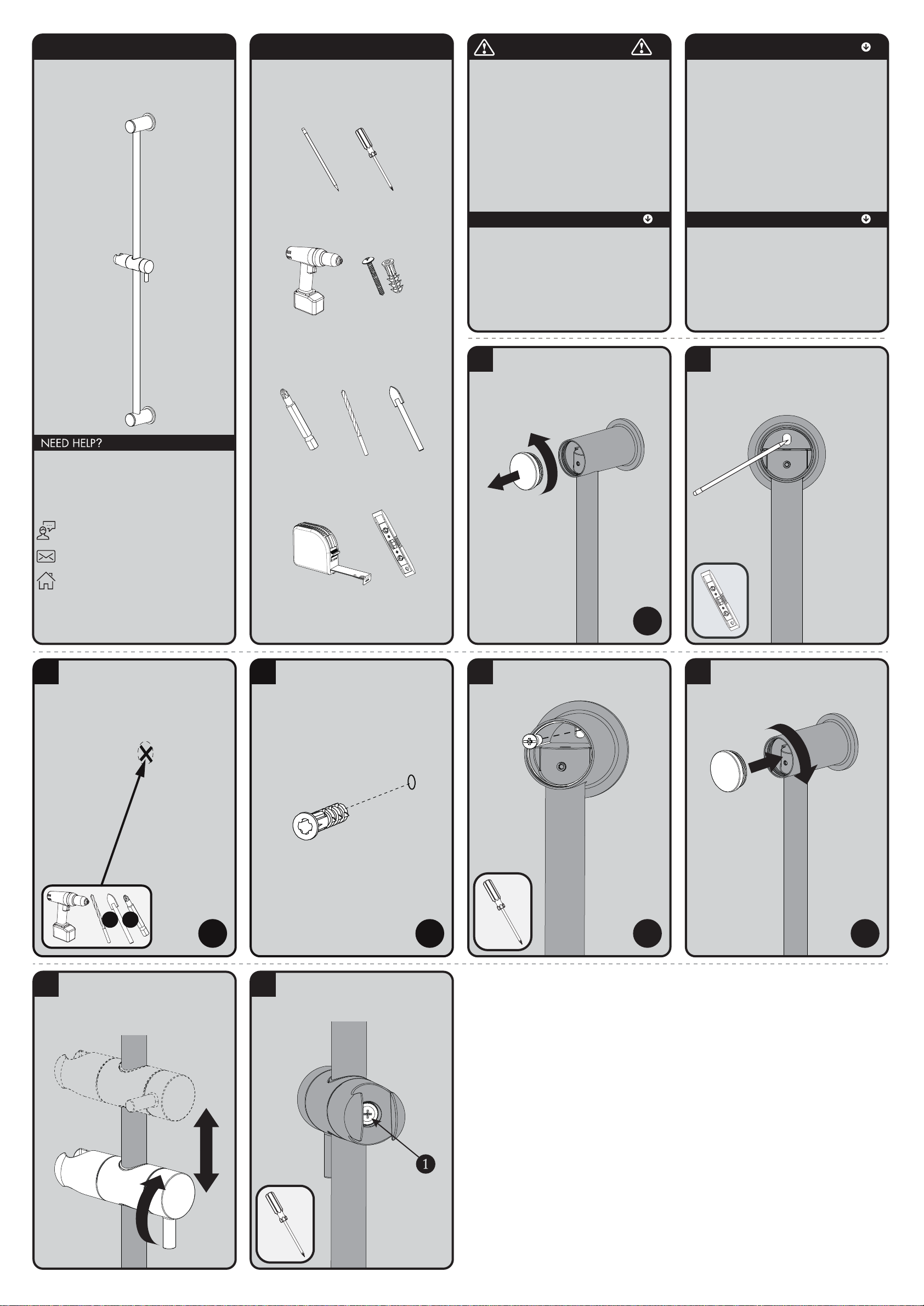

1

Remove End Caps from both ends of Slide Bar
assembly.

X2

2

Place Slide Bar Assembly on to wall in the
desired mounting position. Take care that the
Slide Bar is oriented in a vertical position. Using
a pencil, mark the 2 hole locations.

3

If mounting directly to wood stud, Plastic Anchors
are not required. If mounting to drywall or tile,
select appropriate 1/4" drill bit and drill guide
holes at marked locations.

Ø1/4”

OR OR

X2

4

Insert Plastic Anchors into drilled holes and
press/tap into place until the head is flush to the
wall surface. (Note: Plastic Anchors provided

may not be suitable for all types of wall
construction, seek professional help if in doubt).

X2

5

Secure Slide Bar Assembly to the wall with the
Mounting Screws provided.

X2

6

Re-install End Caps on both ends of Slide Bar
assembly.

X2

7

Orient the Hand Held Shower Bracket to your
desired position. Adjustments are made by
rotating the Handle counter-clockwise to release
the position, and clockwise to lock into the
desired position.

8

Note: If the Hand Shower Holder no longer
holds position, Tighten the Screw (1) in the
Shower Holder using a Philips Head
Screwdriver.

trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.

VS-123 / VS-124 REPAIR PARTS

SPEAKMAN

®

RPG05-108526 MOUNTING HARDWARE

RPG07-108527 END CAP REPAIR GROUP

RPG56-108517 HAND SHOWER HOLDER

ITEM NO. PART NO. DESCRIPTION

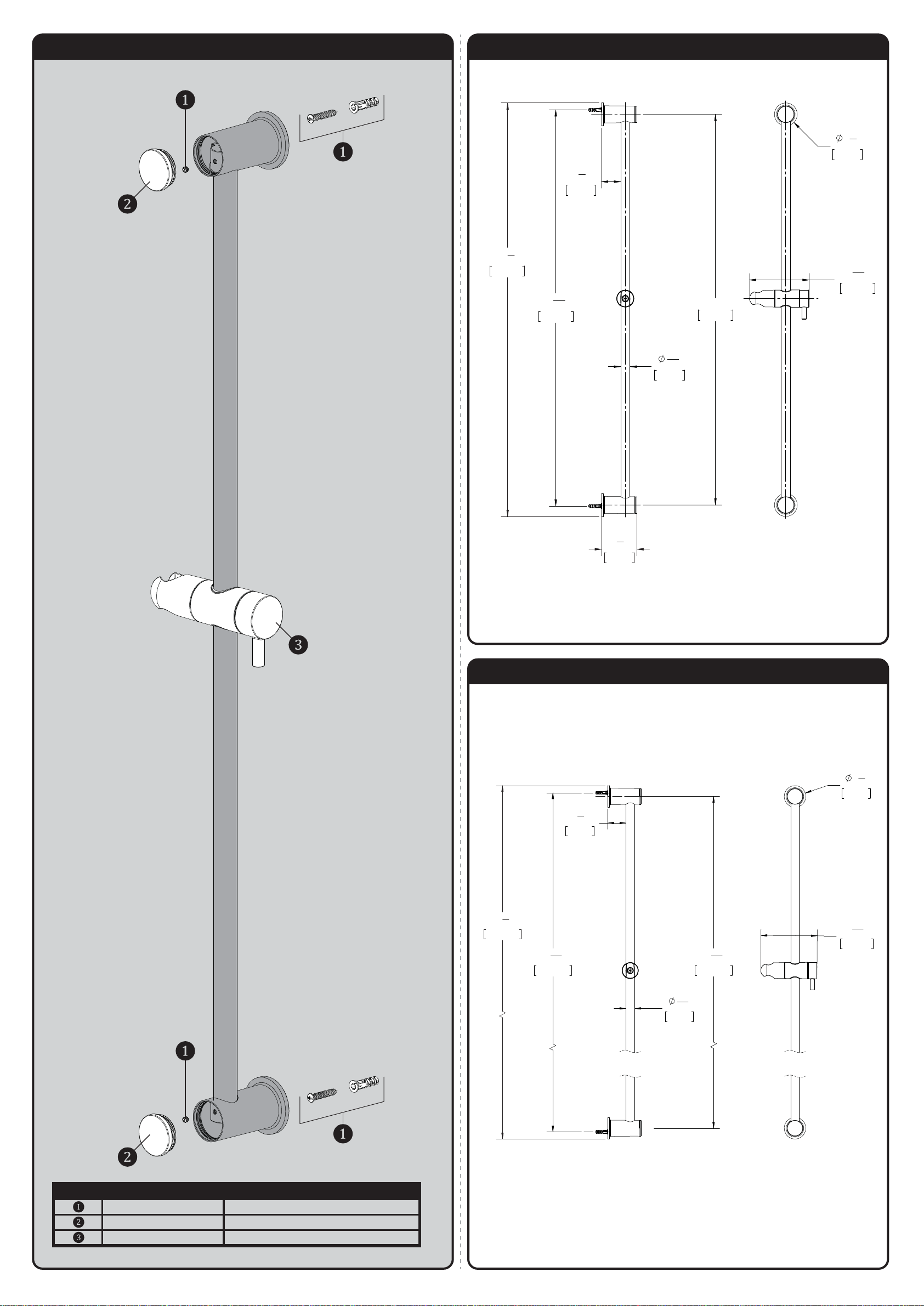

VS-123 ROUGH-IN DIAGRAM

SPEAKMAN

®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

1

3
4

"

45mm

4

9

16

"

116mm

11
16

"

18mm

2

3
4

"

69mm

30"

762mm

30

7

16

"

773mm

31

3
4

"

807mm

1

1
2

"

38mm

VS-124 ROUGH-IN DIAGRAM

SPEAKMAN

®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

1

3
4

"

45mm

4

9

16

"

116mm

11
16

"

18mm

41

15
16

"

1066mm

42

9

16

"

1081mm

43

3
4

"

1111mm

1

1
2

"

38mm

SPEAKMAN COMPANY

S-1554 Installation, Maintenance & Operation Instructions

TUB SPOUT

DESCRIPTION

Speakman polished chrome plated metal tub spout.

SPECIFICATIONS

½” NPT FEMALE INLET
SHIPPING WEIGHT: XXX LBS.

INSTALLATION

Apply teflon tape or pipe dope to male threads and thread spout onto piping. Wrench tighten carefully. Check all
connections for leaks.

MAINTENANCE

The gleaming finish of your SPEAKMAN tub spout can
be cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.

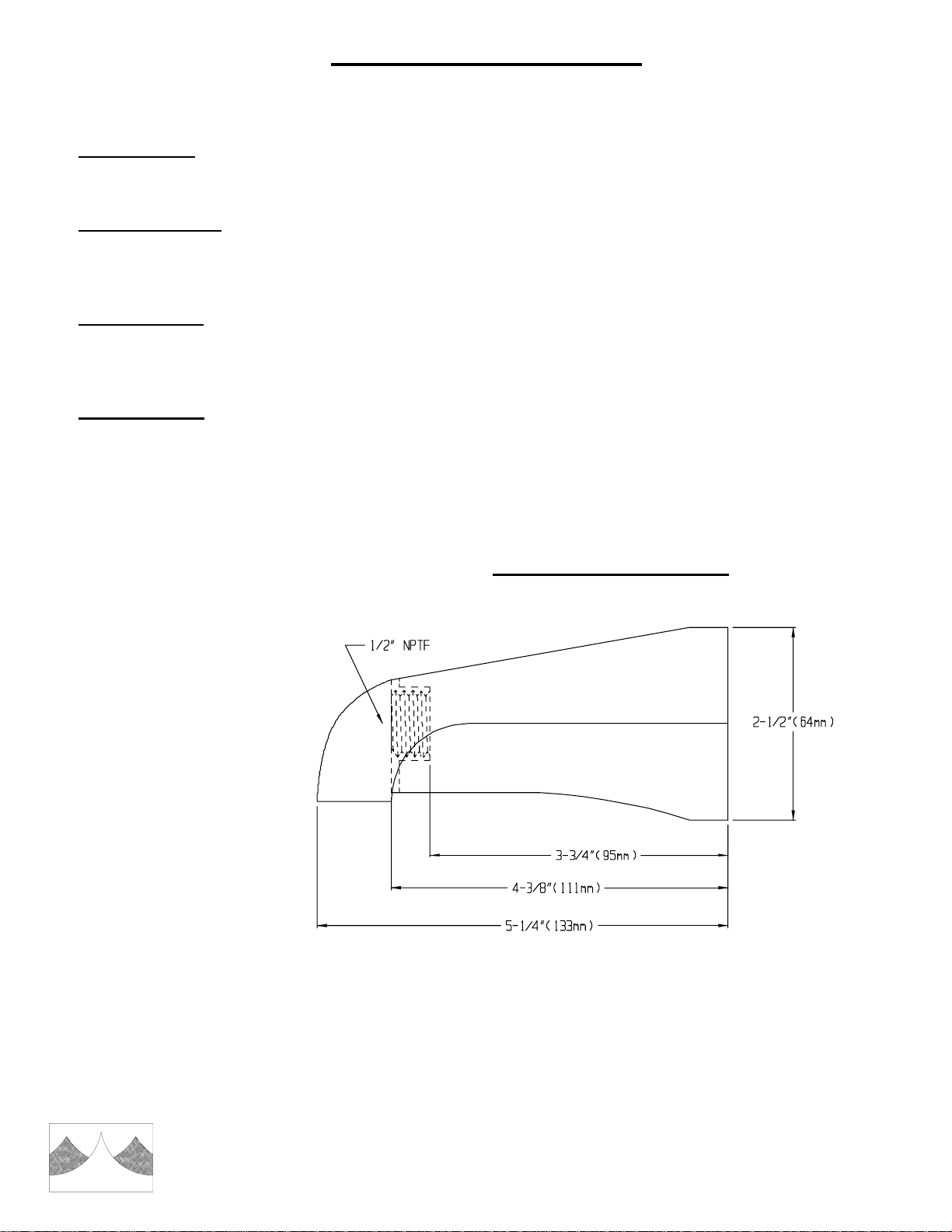

ROUGH-IN MEASUREMENTS

Product improvements may cause
specification and dimensional
changes without notice.

SPEAKMAN COMPANY

The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: [phone]

04/00

92-1819
