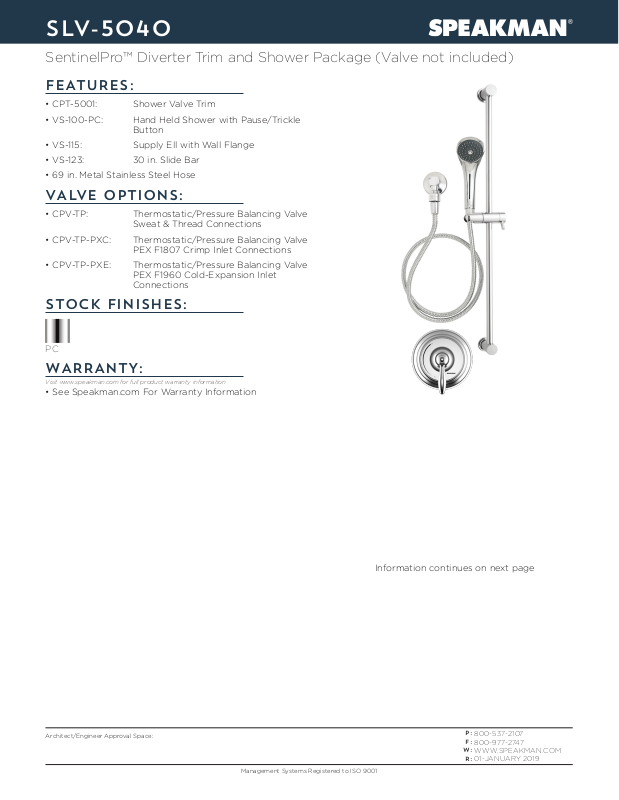

Page 1
SLV-5 0 4 0
SentinelPro™ Diverter Trim and Shower Package (Valve not included)
FEATURES:
• CPT-5001: Shower Valve Trim
• VS-100-PC: Hand Held Shower with Pause/Trickle
Button
• VS-115: Supply Ell with Wall Flange
• VS-123: 30 in. Slide Bar
• 69 in. Metal Stainless Steel Hose
VALVE OPTIONS:
• CPV-TP: Thermostatic/Pressure Balancing Valve
Sweat & Thread Connections
• CPV-TP-PXC: Thermostatic/Pressure Balancing Valve
PEX F1807 Crimp Inlet Connections
• CPV-TP-PXE: Thermostatic/Pressure Balancing Valve
PEX F1960 Cold-Expansion Inlet
Connections
STOCK FINISHES:
PC
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
Page 2
SLV-5 0 4 0
SentinelPro(TM) Diverter Trim and Shower Package (Valve not included)

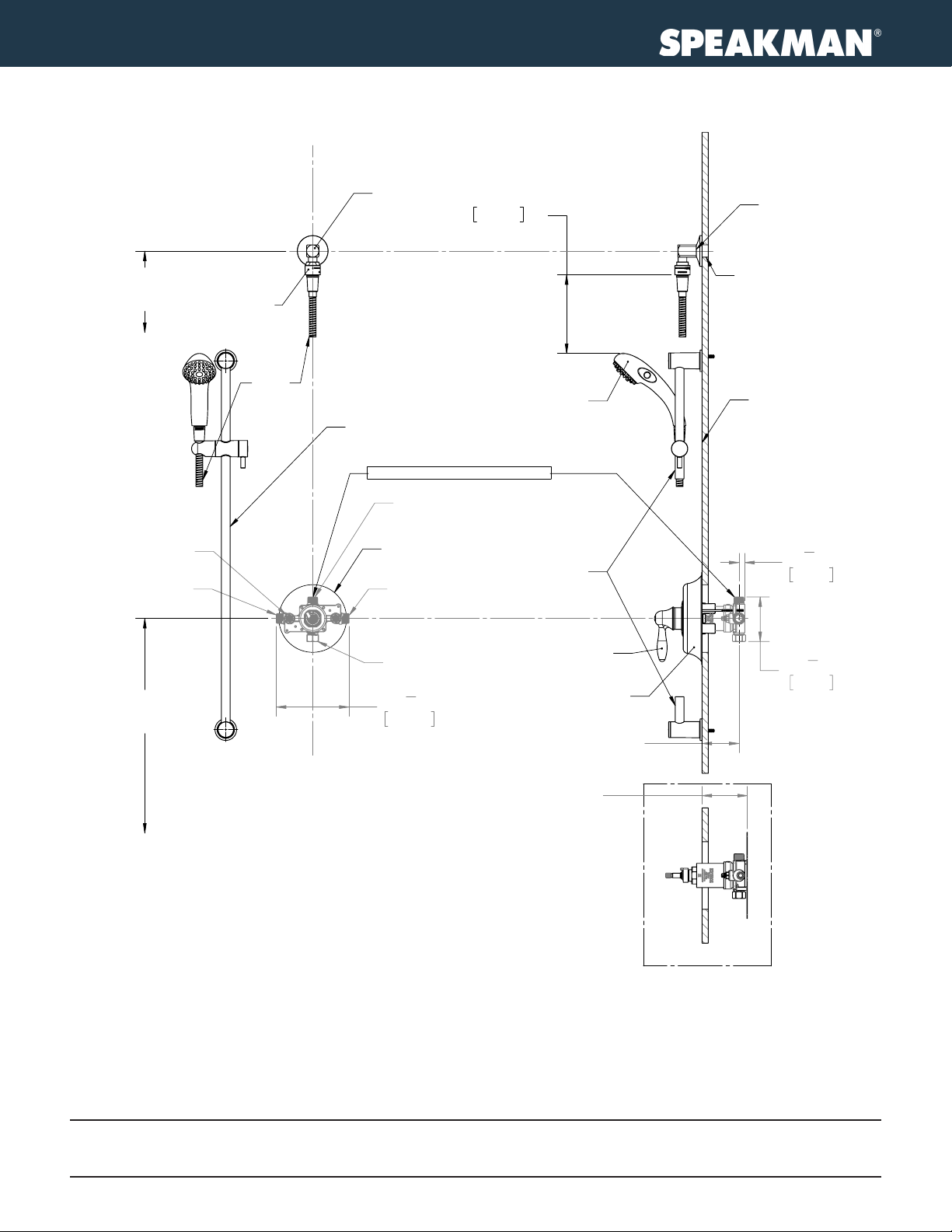

LOCATION
OPTIONAL
(SEE NOTE #3)
INTEGRAL SPRING
CHECK STOPS
HOT WATER INLET
VACUUM
BREAKER
METAL
HOSE
SUPPLY ELL
W/ FLANGE
SLIDE BAR LOCATION
OPTIONAL (SEE NOTE #3)
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET,
TO SUPPLY ELL
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
COLD WATER INLET
6"
152mm
MIN. REQUIRED
HAND SHOWER
SLIDE BAR
1/2" NPT
FEMALE
1" [25mm] DIA.
ROUGH-IN HOLE
FINISHED WALL
1
"
2
12mm
TUB OUTLET,
PLUGGED
7
"
4'-6" [1.4m]
TO FLOOR,
SEE NOTE #4
NOTES:
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) UNLESS OTHERWISE SPECIFIED AND ARE SUBJECT TO CHANGE WITHOUT
1.
NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS OTHERWISE SPECIFIED.
2.
THE LOCATIONS OF THE SLIDE BAR AND SUPPLY ELL ARE OPTIONAL, BUT RESTRICTED BY THE 69" HOSE LENGTH RUNNING
3.
FROM THE SUPPLY ELL CONNECTION TO THE HAND SHOWER AND THE 6" MINIMUM REQUIREMENT BETWEEN THE IN-LINE
VACUUM BREAKER AND TOP OF THE HAND SHOWER (HAND SHOWER ADJUSTED TO HIGHEST POSITION).
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE REGULATIONS.
4.
5
8
150mm
2-1/2" [63mm] TO 3-1/2" [89mm]
ROUGH-IN DEPTH FOR
3-3/16" [81mm] TO 4-3/16" [106mm]
ROUGH-IN DEPTH FOR
CPV-TP-PXC OR CPV-TP-PXE
METAL
LEVER HANDLE
WALL PLATE
7-1/2" [191mm] DIA.
CPV-TP
92mm
5
"
3
8
