INSTRUCTIONS FOR MODELS
CPT-3001
TOOLS AND SUPPLIES
IMPORTANT
Warranty information can be found at:
www.speakman.com
MAINTENANCE
WARRANTY
Phillips
Screwdriver
Hex Key Wrench
(included)
• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as outlined in the Valve Installation
Manual.
• Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.

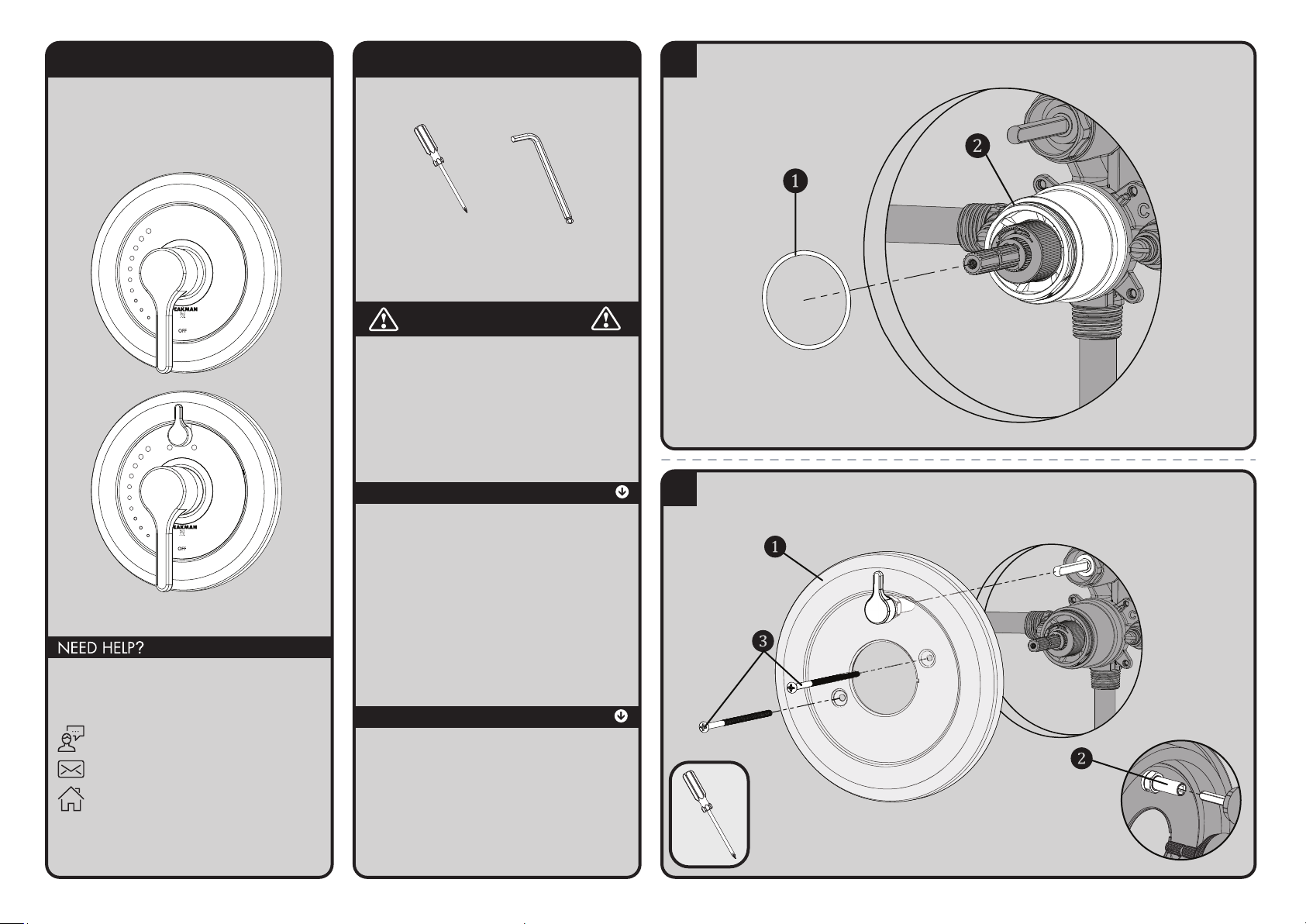

1
OPTIONAL: If a firm fit is required, insert the O-Ring ❶ onto the Bonnet ❷ of the Shower Valve.
2
Verify that the Valve is in the “OFF” position. Install the Wall Plate ❶ to the Valve. If installing a Diverter
model of Trim, align the Diverter Handle to the 12 o’clock position and position the Diverter Drive Tube ❷
over the Diverter Spindle of the Valve. Secure with the included Mounting Screws ❸.
CPT-3401
For additional assistance or service please contact:
SPEAKMAN
800-537-2107
www.speakman.com
®
92-CPT-3001-01
Page 5

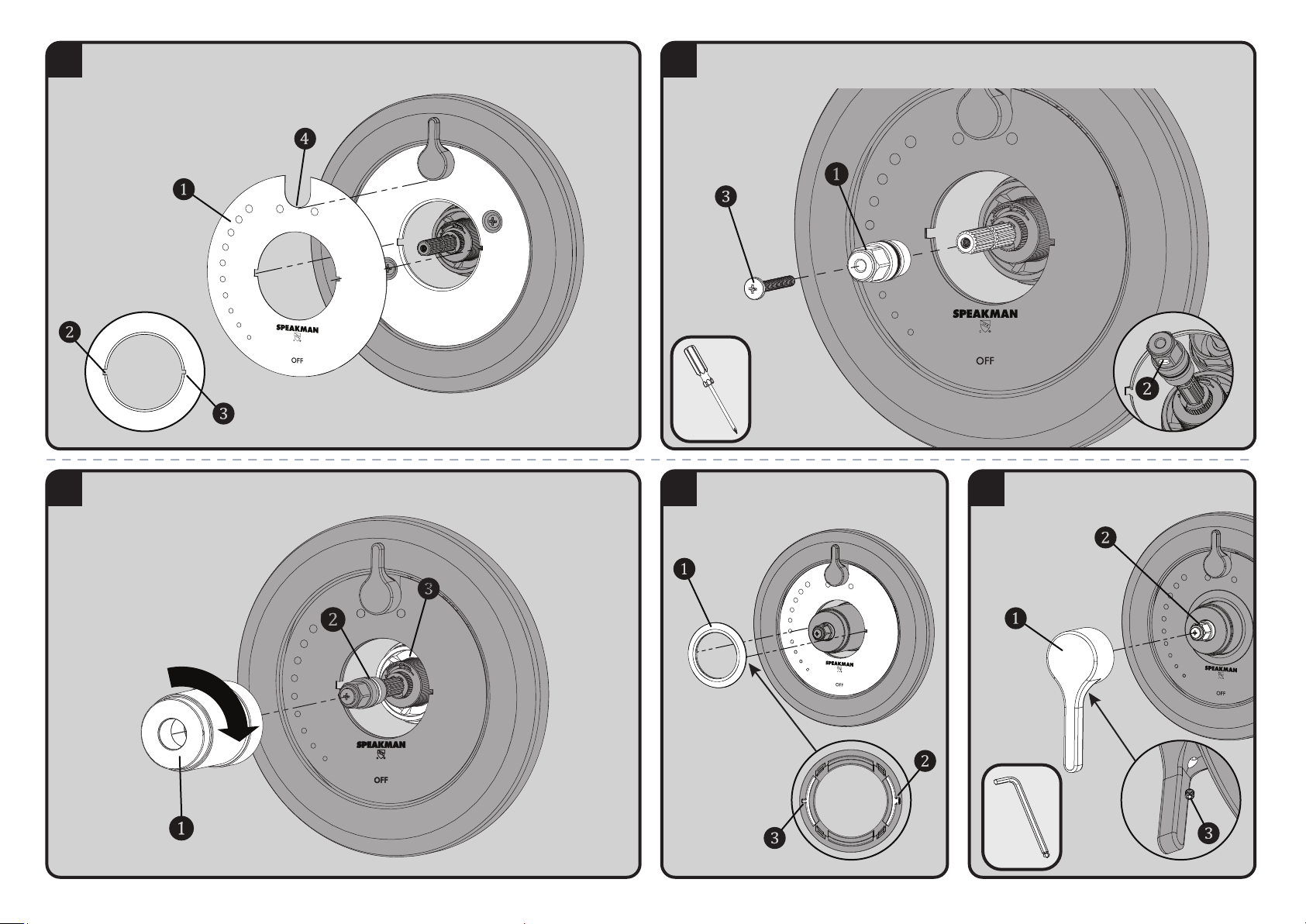

3
* VIEW WITHOUT VALVE
Align the Index Plate ❶ with the Large Slot ❷ and Small Slot ❸ on the Wall Plate. If installing onto a Diverter
Model, align the U shape ❹ under the Diverter Handle and then align to the slots.
4
Install the Spindle Adapter ❶ (with appropriate O-ring in its place) onto the Spindle so that the Circular Indent ❷
is pointing downward and is horizontal as shown below. Secure the Spindle Adapter with the included Screw ❸.
5
Push the Escutcheon ❶ gently over the O-ring ❷ of Spindle Adapter. Thread the Escutcheon onto the Bonnet ❸
of the Valve. Hand tighten into position.
6
Install Retaining Ring ❶. Align the Retaining Ring
with the Large Slot ❷ and Small Slot ❸ on the
Wall Plate. Snap in place.
* BACK OF RETAINING RING
7
* VIEW UNDER THE HANDLE
Orient the Handle ❶ as shown below and
position over the Spindle Adapter ❷. Secure with
the included Set Screw ❸.
Page 6

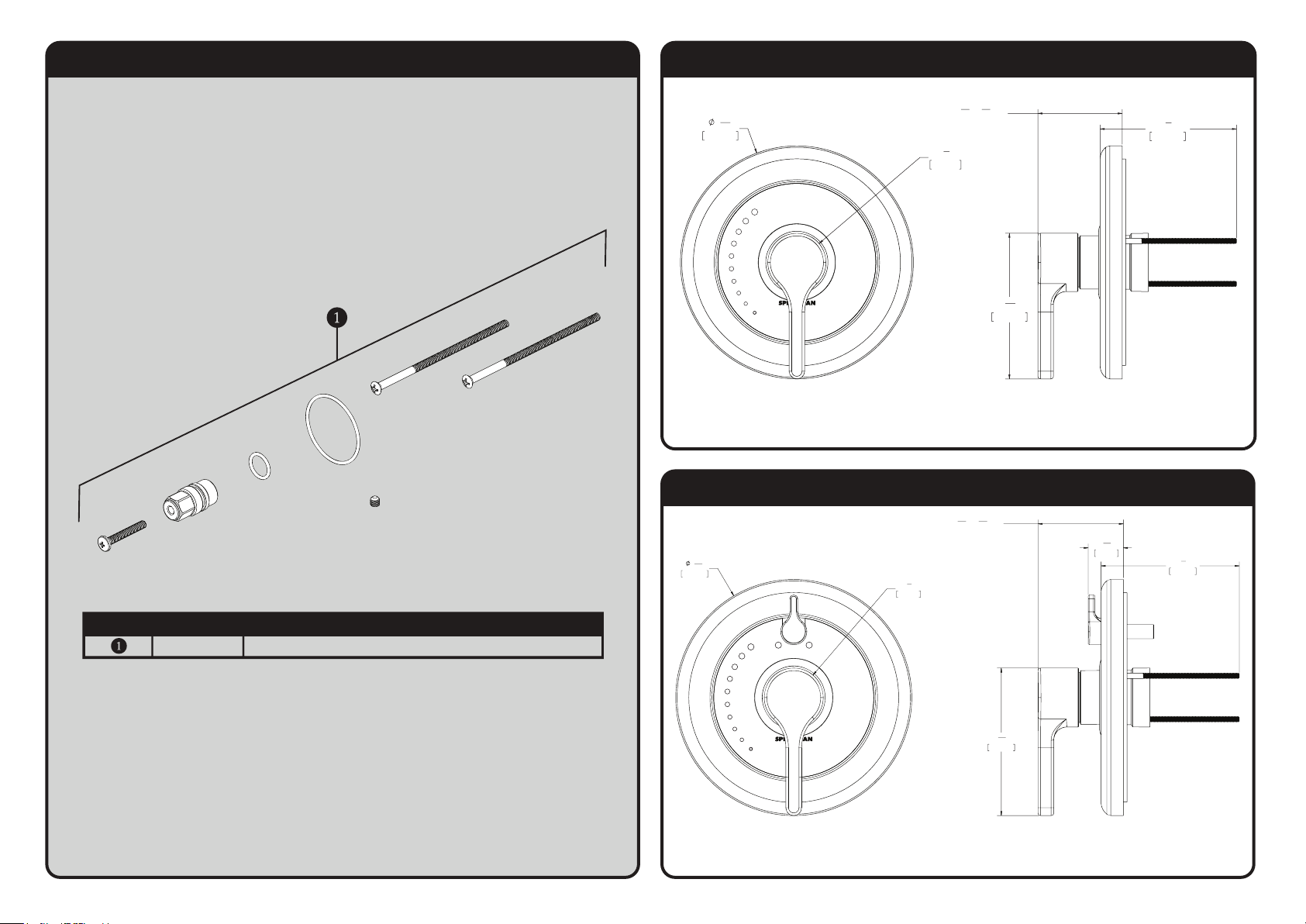

CPT-3001/3401 REPAIR PARTS
ITEM NO. PART NO. DESCRIPTION
RPG05-1126 REPAIR PARTS GROUP FOR CPT-3X01 TRIMS
CPT-3001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
4
7
16
"
112.5mm
4
1
8
"
105.4mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
CPT-3401 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
1
16
"
26.8mm
4
1
8
"
105.4mm
4
7
16
"
112.5mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
Page 7
INSTRUCTIONS FOR MODELS
92-S-2500-R5
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
S-2500

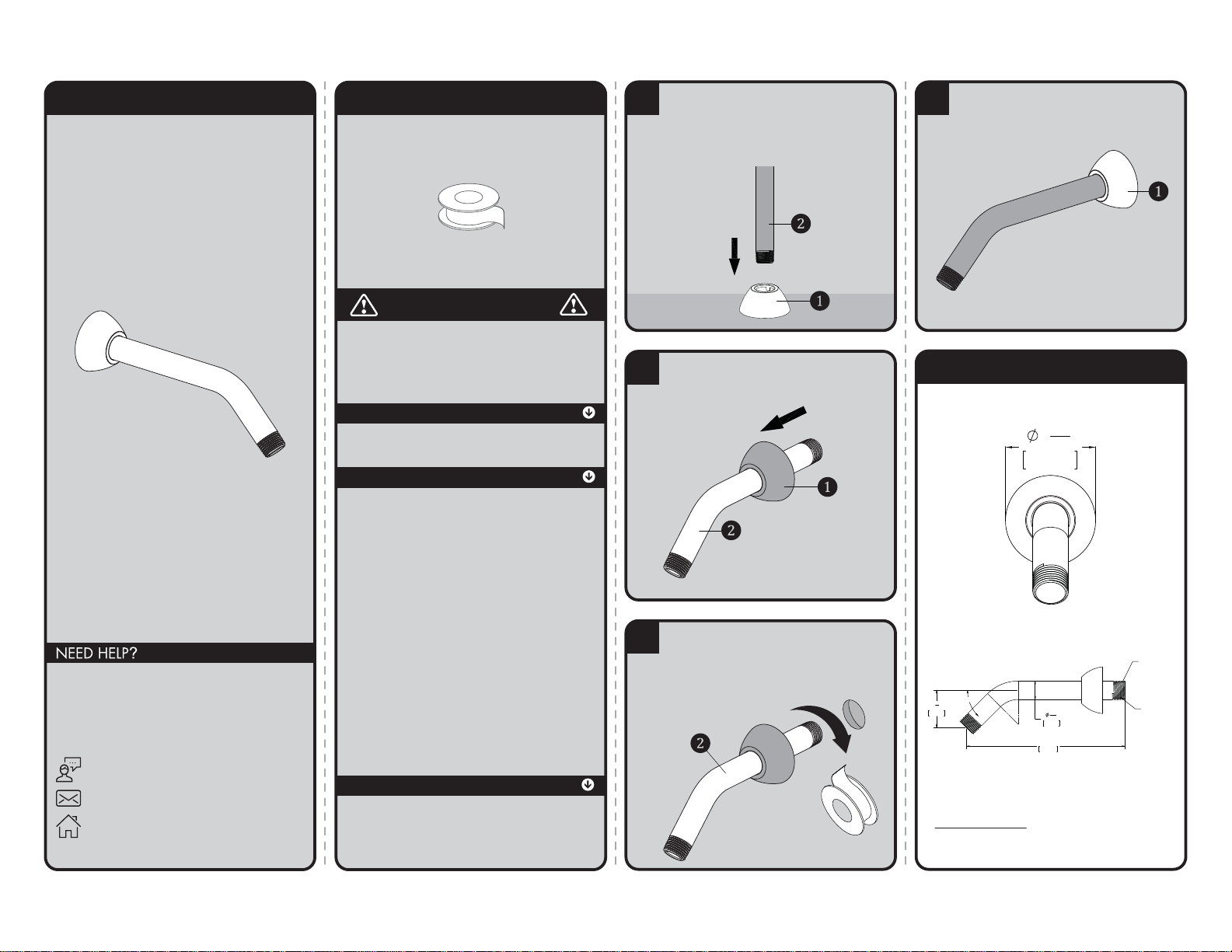

TOOLS AND SUPPLIES
1
Place the Escutcheon Plate (1) on a flat
surface. Push the long end of the Shower
Arm (2) down into the plate. This will
help the teeth of the plate slide over the
arm easier.
2
Once the Escutcheon Plate (1) is on the
shower arm, slide the plate over the
Shower Arm (2).
3
Apply Teflon Tape to inlet side of Shower
Arm (2). Thread Shower Arm (2) into Female
Pipe Fitting within the wall. Firmly tighten,
and make sure Shower Arm (2) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (1) flat against wall.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE
Outlet: 1/2" NPT MALE
2
1
16
"
52mm
13
16
"
21mm
45.00°
7"
178mm
1
5
8
"
42mm
1/2" NPT THREADS
BOTH ENDS
INLET
Thread Seal
Tape
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 8
®
SPEAKMAN
VS-2954, VS-1001-ADA-PC
Installation, Maintenance & Operation Instructions

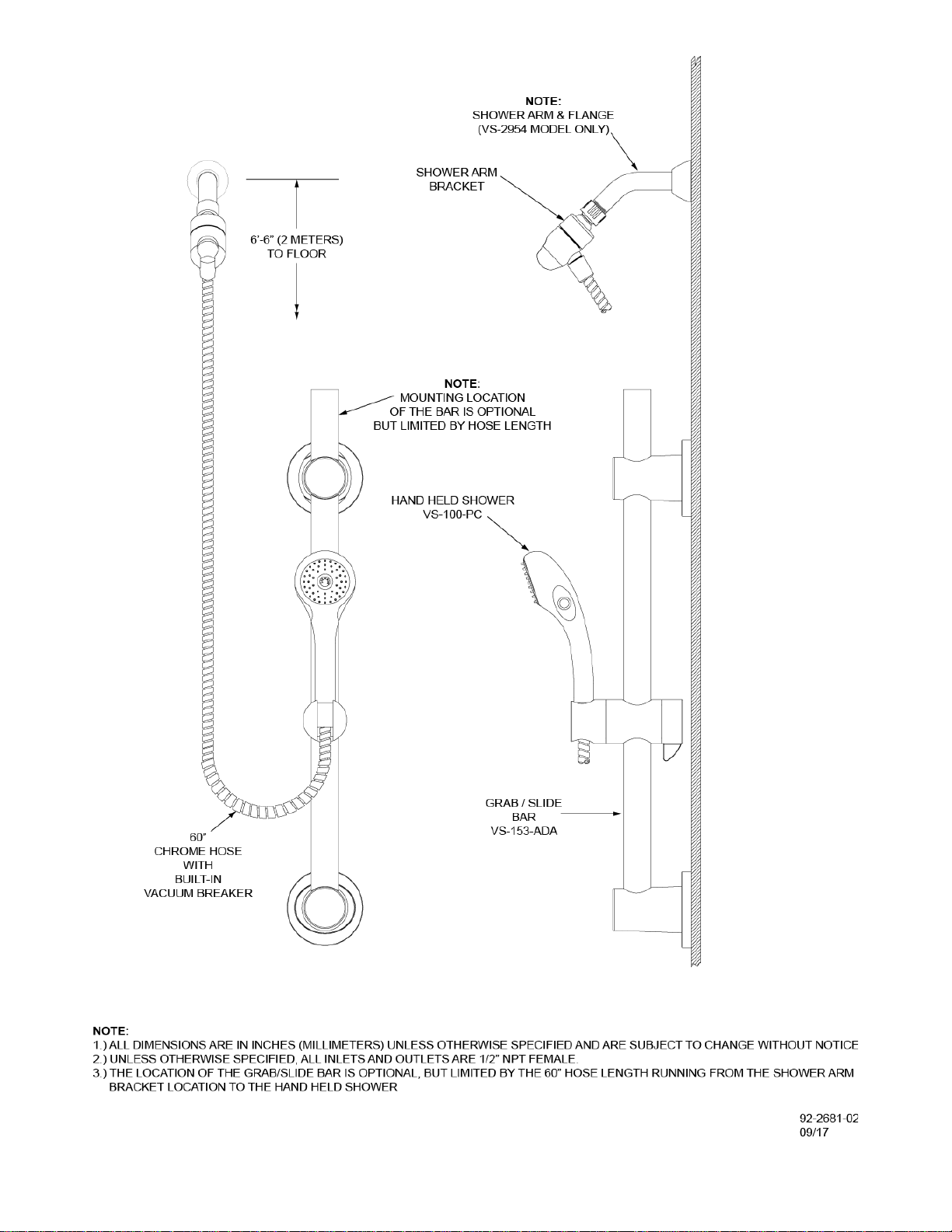

ADA / HANDICAP SHOWER AND BAR
DESCRIPTION
Speakman ADA handicap shower system includes hand held shower (VS-100-PC), 5’ stainless steel hose with
built in vacuum breaker, shower arm bracket, and 24” grab/ slide bar assembly (VS-153-ADA). Connects to
standard shower arm. Shower arm flange (10-0219-PC-P) and 8” shower arm (42-0029-PC) for VS-2954
model only. Chrome handheld shower puts out 2.5 GPM/9.46 LPM to meet ANSI A112.18.1 Standard. ADA
Compliant.
Specifications
INLET SUPPLY:
(VS-1001-ADA-PC) ½” NPT FEMALE
(VS-2954) ½” NPT MALE
FLOW RATE: 2.5 GPM/9.46 LPM, MAX., HAND HELD VARIABLE
SHIPPING WEIGHT:
(VS-1001-ADA-PC) 4.5 LBS.
(VS-2954) 4.9 LBS.
Installation
For VS-2954 model only. Slip the wall flange onto the shower arm. Apply thread seal tape clockwise onto the
male threads and screw arm into supply piping behind wall. Wrench tighten. Slip wall flange to wall. Check
for leaks.
Remove (turn counterclockwise) your existing showerhead from the shower arm. Clean the shower arm
threads of any debris and wrap thread seal tape in the clockwise direction around threads. Assemble shower
arm bracket to the shower arm. Hand tighten firmly. Assemble the 5’ hose to the bottom of the shower arm
bracket. Hand tighten firmly. Then attach the other end of the hose to the hand held shower. Make sure the
hose to hand held connection seals on the O-ring at the bottom of the hand held to prevent leaks. When
installing the bar, the location is optional but limited to the length of the hose. For installation of the grab/
slide bar, hold the bar against the wall in the chosen location. Using a pencil, mark the drill hole positions (4 in
total) for the lower and upper mounting brackets. If using as a grab bar, be sure to fasten securely to a wall
stud. (Note: upper mounting bracket height is adjustable) To mount the brackets, use a No. 10 (0.1935
inches/5.5mm) masonry drill bit to make a hole approximately 1-3/8 inches (35 mm) deep. Push the plastic
anchors (4 in total) into the drilled holes, unless your mounting to wall studs, where anchors can be omitted.
(Note: plastic anchors may not be suitable for all types of wall construction, seek professional help if in
doubt) Fix upper mounting bracket and then the lower mounting bracket to the wall using four (4) screws
provided. Push the bracket covers over the mounting brackets while paying close attention to cover
orientation for proper placement.
OPERATION
To operate the handheld shower, push the pause button to one side to bring the flow down to a trickle, then
simply push it to the other side to turn the flow back on full force.
MAINTENANCE
The finish of your SPEAKMAN VERSATILE® hand held shower and all the other components can be cleaned
by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results. The flow control
device limits water flow to 2.5 gallons per minute, and is in the base of the handheld. The small orifice in the
flow regulator, resulting in lower flow and a weaker performance, may become clogged. To clean the flow
regulator, simply remove the hose from the hand shower and clean as necessary.
SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
9/08/17 www.speakman.com 92-2681-02
Page 9
SPEAKMAN®
400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747
9/08/17 www.speakman.com 92-2681-02
Page 10
INSTRUCTIONS FOR MODELS
92-VS-100-PC-04
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-100-PC
VS-100-PC-E2
VS-100-PC-E175
TOOLS AND SUPPLIES

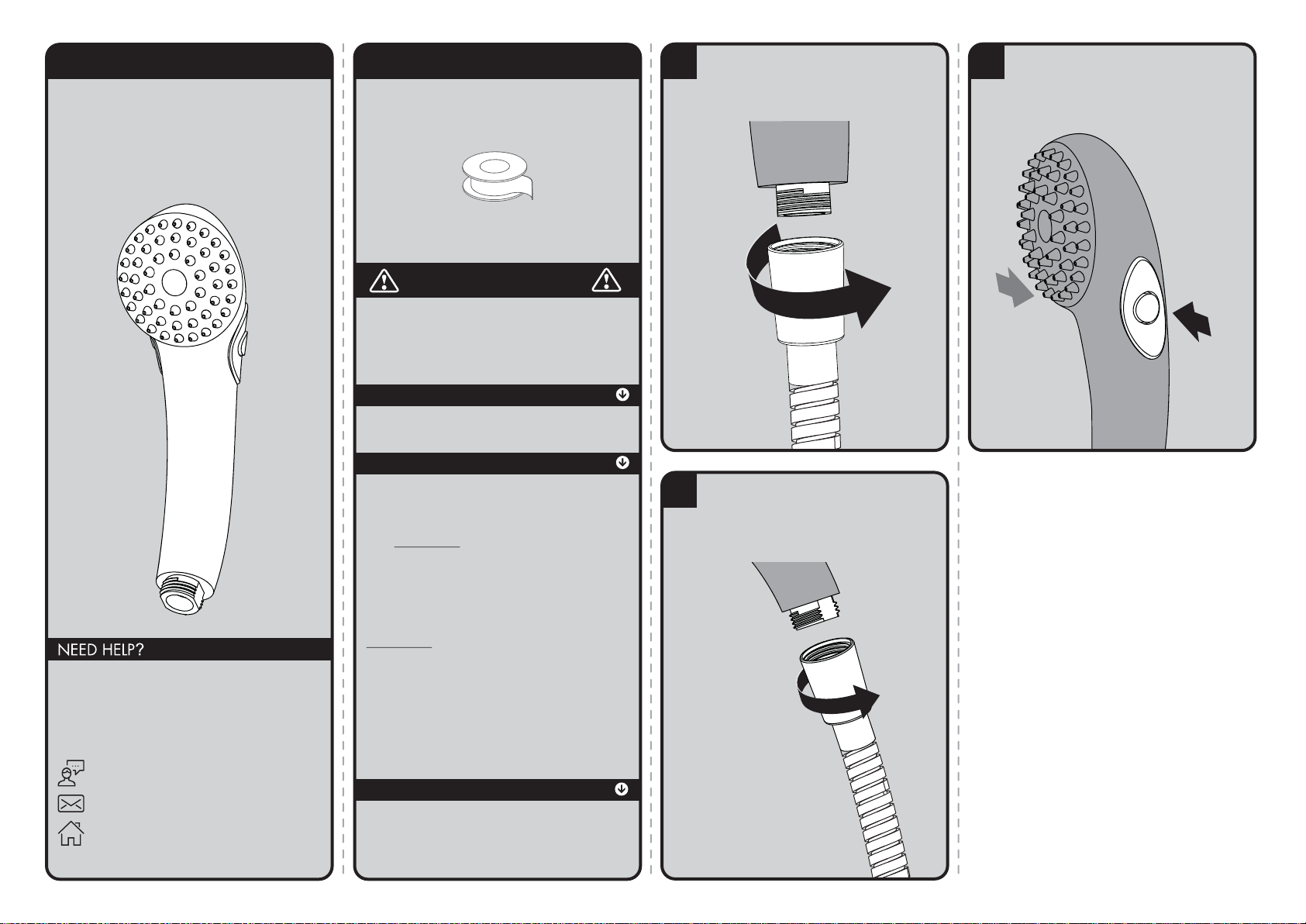

2
Connect remaining end of Hose to inlet
of Hand Shower. Hand tighten. If there
are leaks at the hose connections, look
into using thicker washers to ensure a
tight seal.
1
Connect the correct side of your hose
(not included) to the water supply.
Hand tighten.
3
To pause the flow of water, press the integral
thumb operated pause/trickle button located
on the side of the hand shower. To return the
hand held shower to full flow, press the shuttle
button from the opposite side.
Thread Seal
Tape
(included)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 11

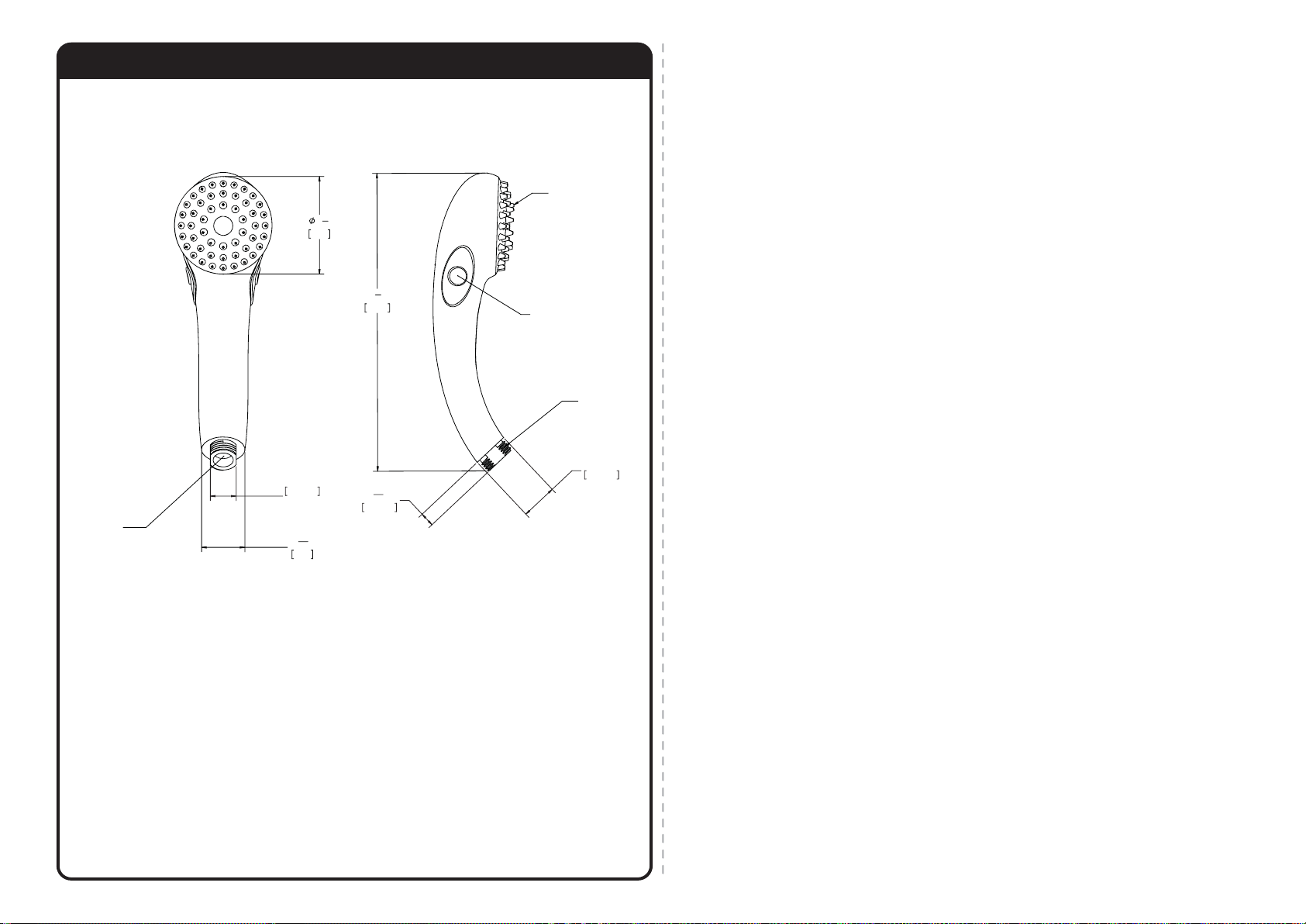

ROUGH IN DIMENSIONS
VS-100-PC-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.
VS-100-PC-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
VS-100-PC
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.
13
32
"
10.16mm
8
1
2
"
215.90
1"
25.40mm
1/2-14 NPSM
MALE THREADED
INLET
50 RUBBER
TIPPED SPRAYS
PAUSE
BUTTON
.714in
18.14mm
ACROSS
FLATS
3
1
8
"
79.38
1
3
16
"
30.18
FLOW CONTROL
INSERTED INTO
HANDLE
Page 12

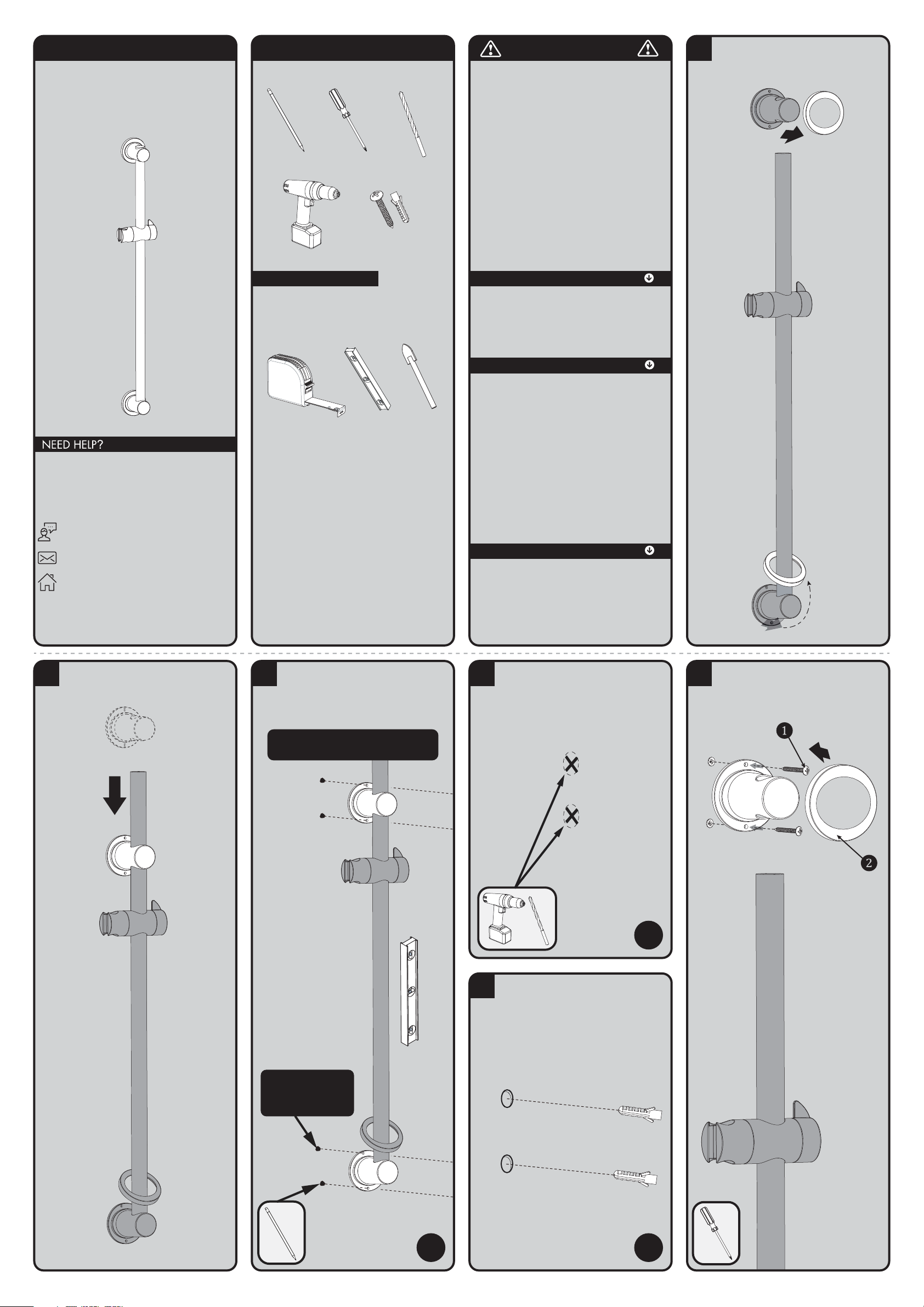

INSTRUCTIONS FOR MODELS
92-VS-153-ADA-02
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-153-ADA -30 -36
VS-153-30-RT
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Level
Measuring
Tape
Phillips
Screwdriver
Pencil
Drill
Drill Bit
No.10/5.5mm
Tile Drill Bit
x/xx”
Mounting Hardware
(included)
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
• Cover your drain to prevent loss of parts. Be sure
to follow all tool manufacturers safety guidelines.
• Use caution when drilling into walls to avoid
electrical and plumbing lines hidden within
the wall.
SAFETY TIPS
IMPORTANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
Your new Speakman Product is designed for years of
1
Remove Decorative Cover Plate from Upper
Mounting Bracket. Slide Lower Decorative Cover
Plate up and over Lower Mounting Bracket as
shown below.
2
Position the Upper Mounting Bracket over the
Slide Bar. Ensure the mounting location is within
the usable range of the hand shower hose.
3
Hold the Slide Bar against the wall in the chosen
location. Adjust the Upper Mounting Bracket
height location. Using a pencil, mark the Drill
Hole positions (x4) for the Upper and Lower
Mounting Brackets. Ensure the Slide Bar is level
vertically.
NOTE: If using as a Grab Bar, be sure to fasten
securely to proper bracing within the wall.
NOTE: Upper mounting
hole is intentionally off
center to allow for easier
installation.
X4
4
If mounting directly to wood stud or
a wood stud behind drywall, proceed
to Step 6. If mounting to tile or masonry wall,
Drill holes (x4) in the marked locations using a
No. 10 (0.1935 inches/5.5 mm) masonry drill
bit to make a hole approximately 1 3/8 inches
(35 mm) deep.
Ø No.10/5.5mm
X4
5
Push the Plastic Anchors (x4) into the drilled
holes. Ensure the plastic anchors are flush with
the wall. (Note: Plastic Anchors provided may
not be suitable for all types of wall construction,
seek professional help if in doubt).
X4
6
Remove Upper Mounting Bracket from Slide Bar.
Secure Upper Mounting Bracket in place using
the Mounting Screws provided (1) with a Phillips
Screwdriver. Reinstall the Decorative Cover Plate
(2) to the Upper Mounting Bracket.
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
Page 13

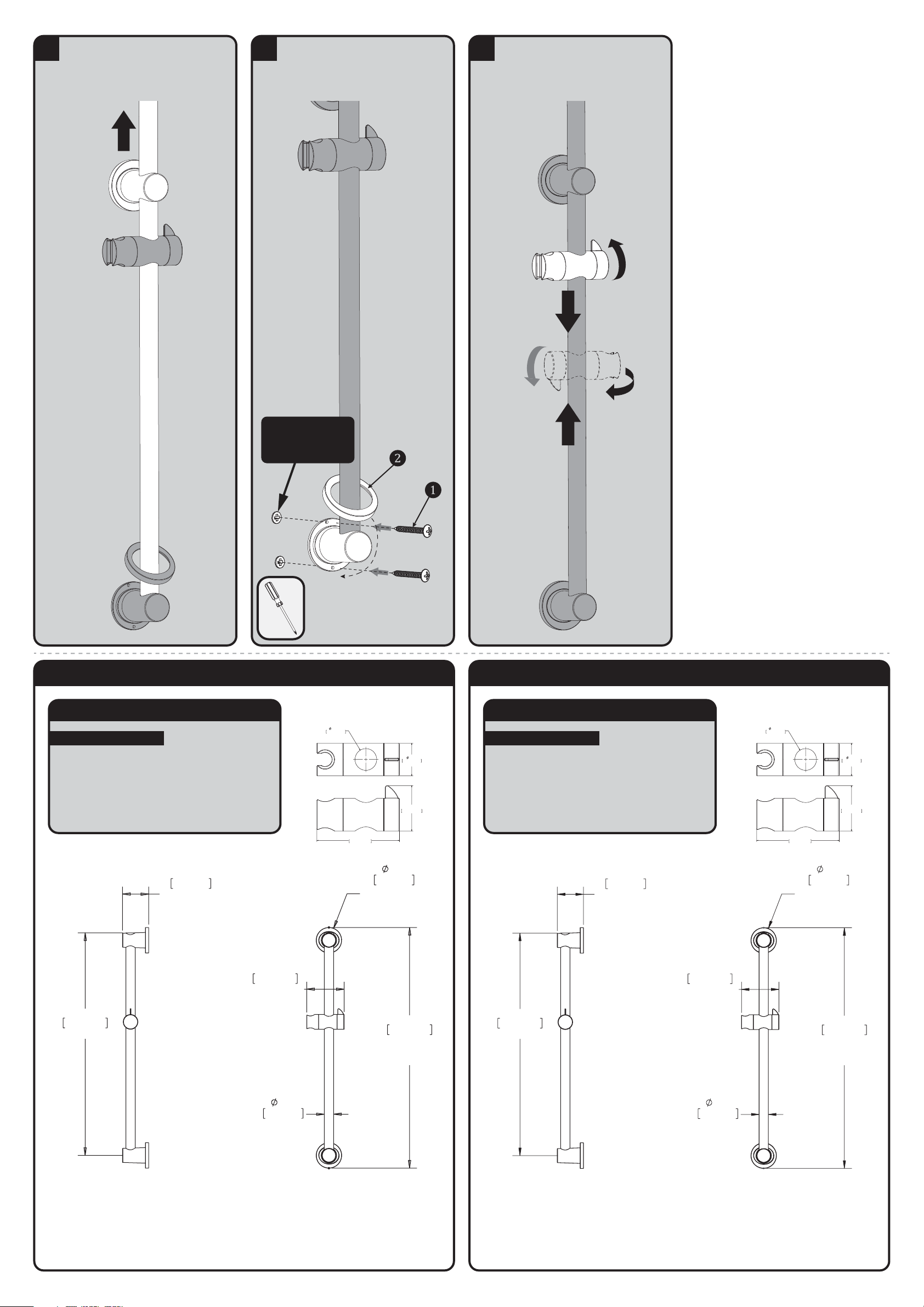

7
Position the Slide Bar flush against the mounting
surface and push the Slide Bar through the hole
in the Upper Mounting Bracket.
8
Secure the Lower Mounting Bracket (1) in place
to the wall using the Mounting Screws provided
with a Phillips Screwdriver. Reinstall the Lower
Decorative Cover Plate (2) to the Lower
Mounting Bracket.
NOTE: Upper mounting
hole is intentionally off
center to allow for easier
installation.
9
Orient the Hand Held Shower Bracket to your
desired position. Adjustments are made by
rotating the Locking Handle 1/4 turn
counter-clockwise to release the position, and
1/4 turn clockwise to lock into the desired
position.
LOCK
UNLOCK
VS-153-ADA ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
1.3in
31.75mm
REF
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
3.5in
87.63mm
REF
MOUNT COVER
TYP
32.5in
825.82mm
MAX
OVERALL
HEIGHT
24.1in
611.19mm
LENGTH OF BAR
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
VS-153-ADA-30 / VS-153-30-RT ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
1.3in
31.75mm
REF
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
3.5in
87.63mm
REF
MOUNT COVER
TYP
32.5in
825.82mm
MAX
OVERALL
HEIGHT
30in
763.59mm
LENGTH OF BAR
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
Page 14

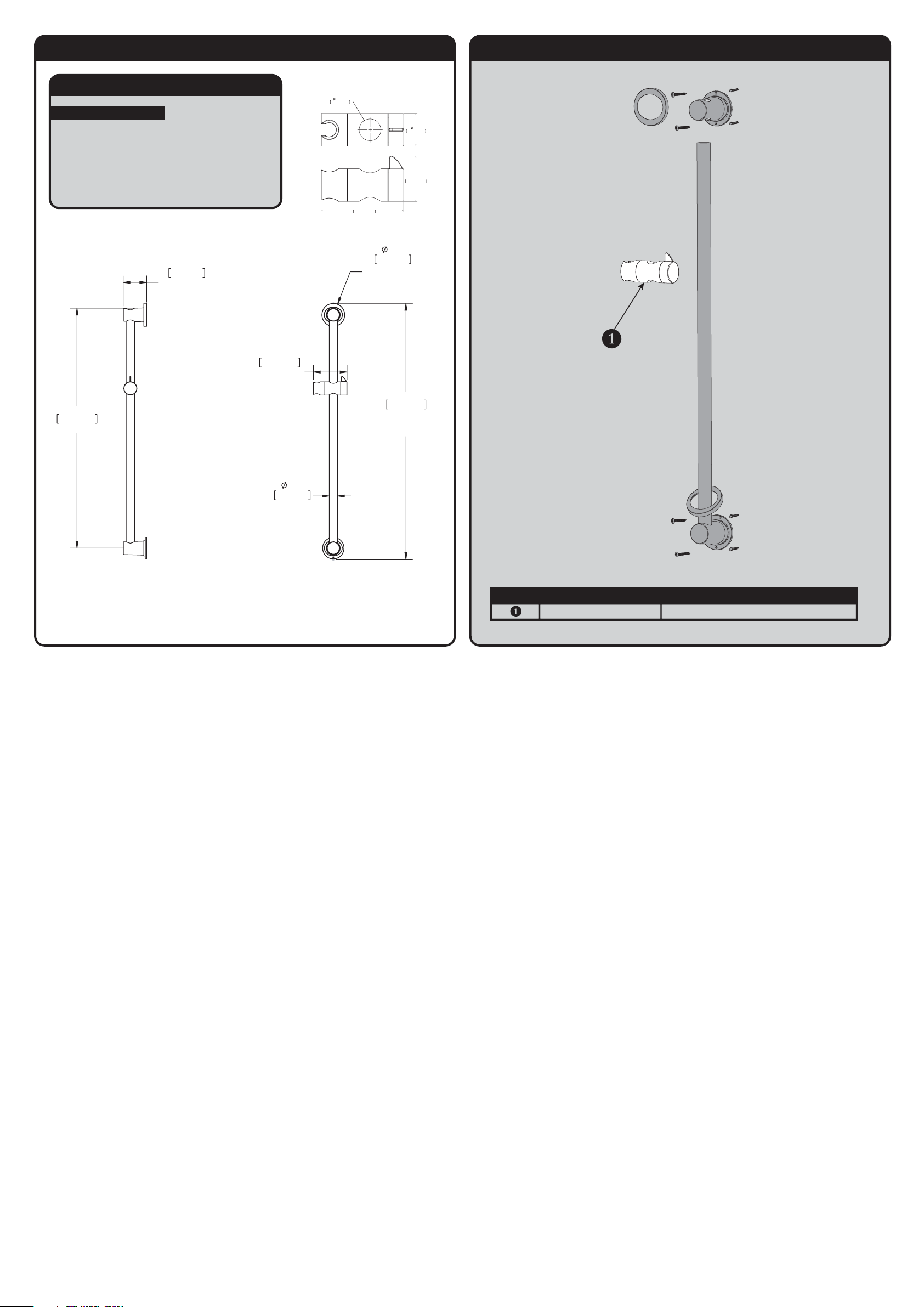

VS-153-ADA REPAIR PARTS
SPEAKMAN
®
RPG56-0038-XX *XX = FINISH VS-153-ADA HOLDER REPAIR PART GROUP
ITEM NO. PART NO. DESCRIPTION
VS-153-ADA-36 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
ADA COMPLIANT
• Meets the ANSI standard 250 lbs. pull-test for
grab bars and ADA lever handle for adjusting
slide bar.
• The VS-153-ADA Slide Bar meets ADA pull force
requirements only. It is not intended to replace an
ADA Grab Bar.
5.1in
128.80mm
REF
HOLDER ARM
LENGTH
1.3in
31.75mm
REF
3.5in
87.63mm
REF
MOUNT COVER
TYP
38.5in
976.63mm
MAX
OVERALL
HEIGHT
3.5in
89.66mm
REF
MOUNT HEIGHT
TYP
36.0in
914.40mm
LENGTH OF BAR
2.78in
70.73mm
5in
128.80mm
1.34in
33.91mm
2in
50.80mm
TYP.
Page 15
SPEAKMAN COMPANY
S-1554 Installation, Maintenance & Operation Instructions
TUB SPOUT
DESCRIPTION
Speakman polished chrome plated metal tub spout.
SPECIFICATIONS
½” NPT FEMALE INLET
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Apply teflon tape or pipe dope to male threads and thread spout onto piping. Wrench tighten carefully. Check all
connections for leaks.
MAINTENANCE
The gleaming finish of your SPEAKMAN tub spout can
be cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.

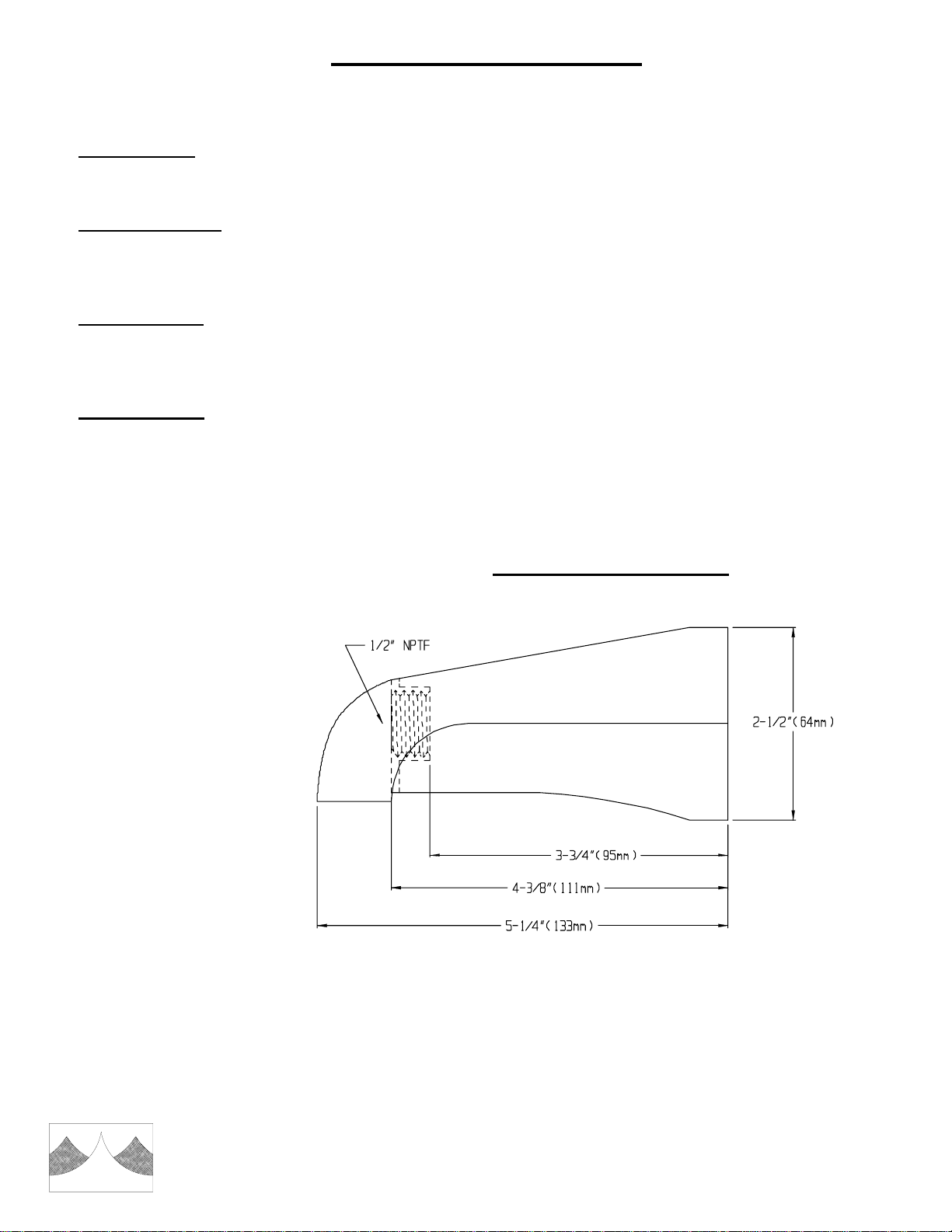

ROUGH-IN MEASUREMENTS
Product improvements may cause
specification and dimensional
changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: 1-800-977-2747
04/00
92-1819
Loading...
