Speakman TCTA1312 Installation & Assembly

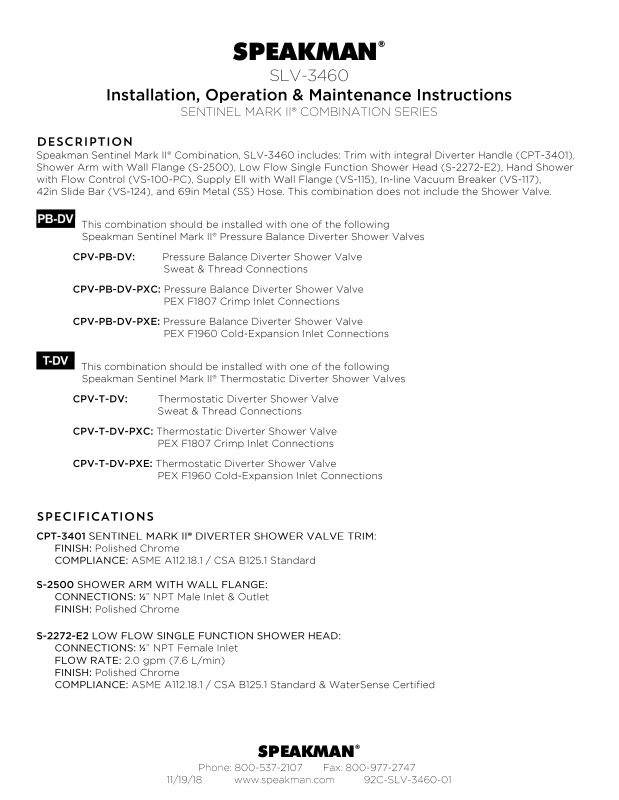

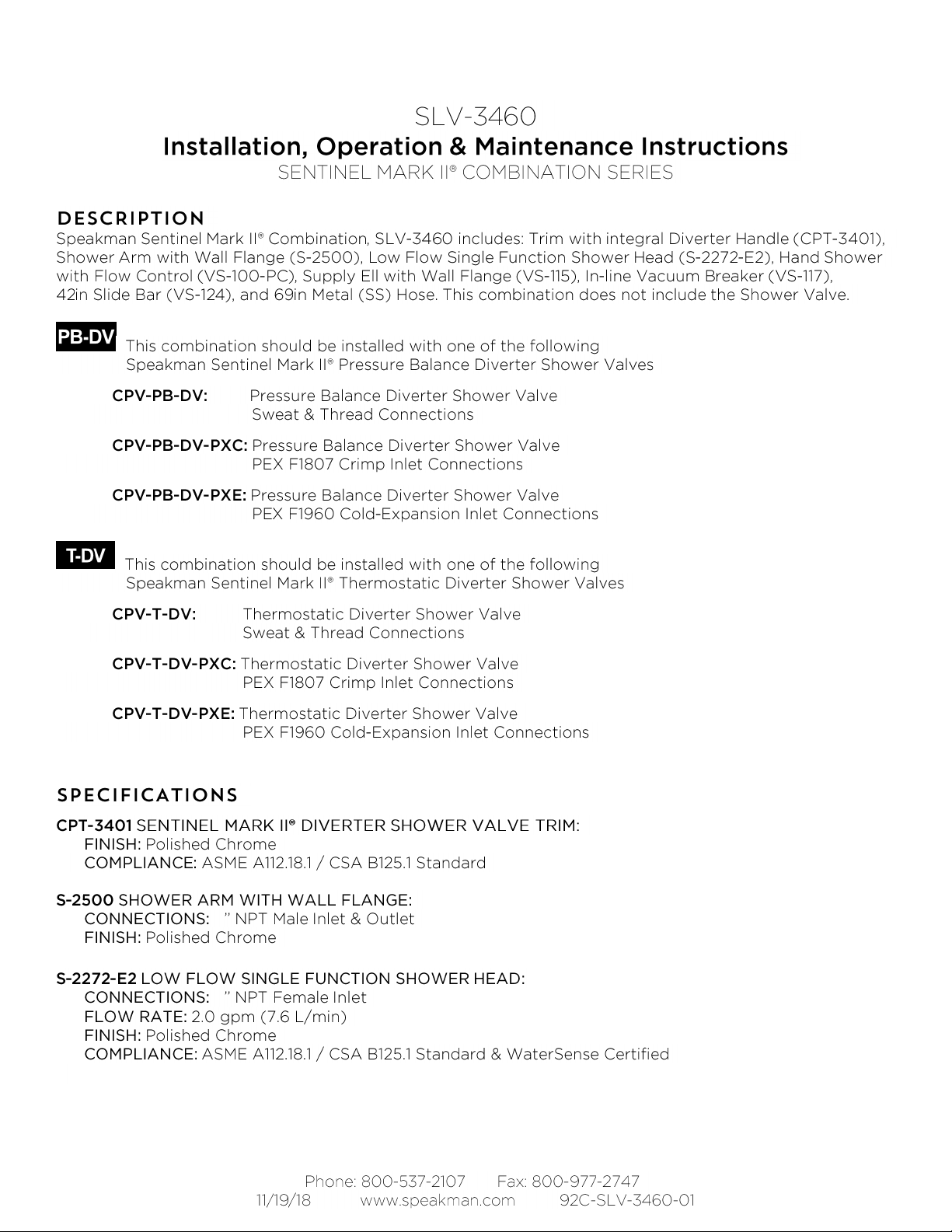

Page 1
SPEAKMAN®
SPEAKMAN
®
½
½

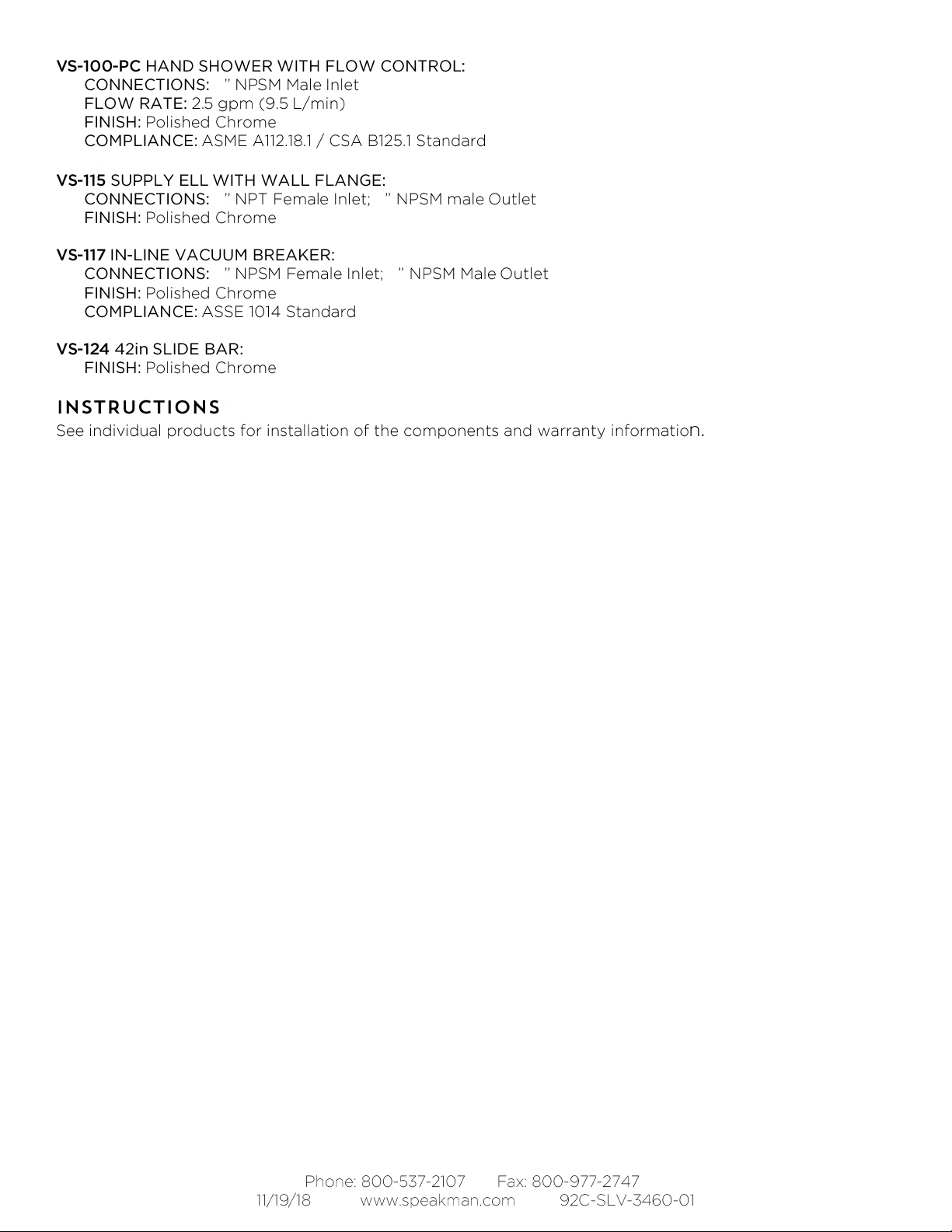

Page 2
SPEAKMAN®
½
½ ½

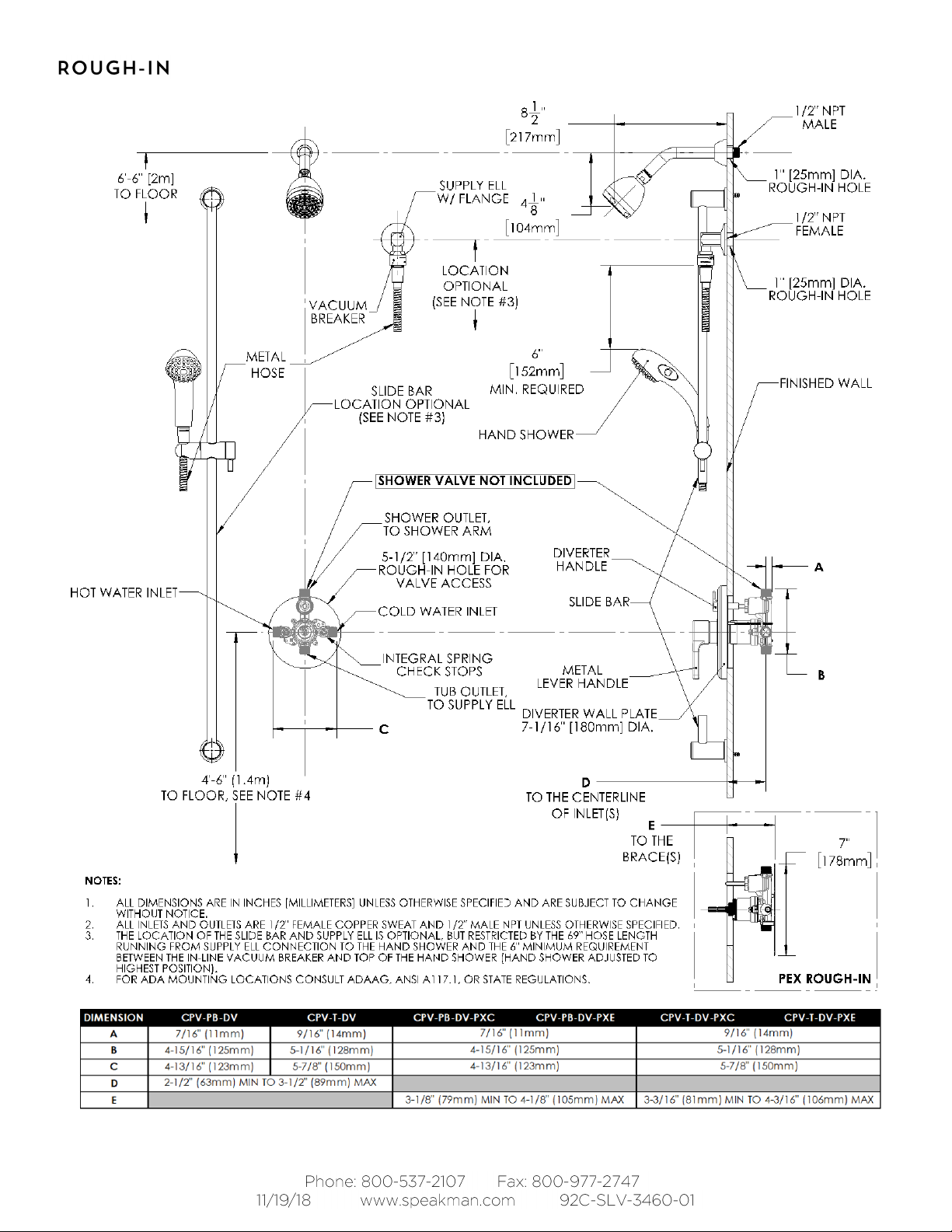

Page 3
SPEAKMAN®
Page 4

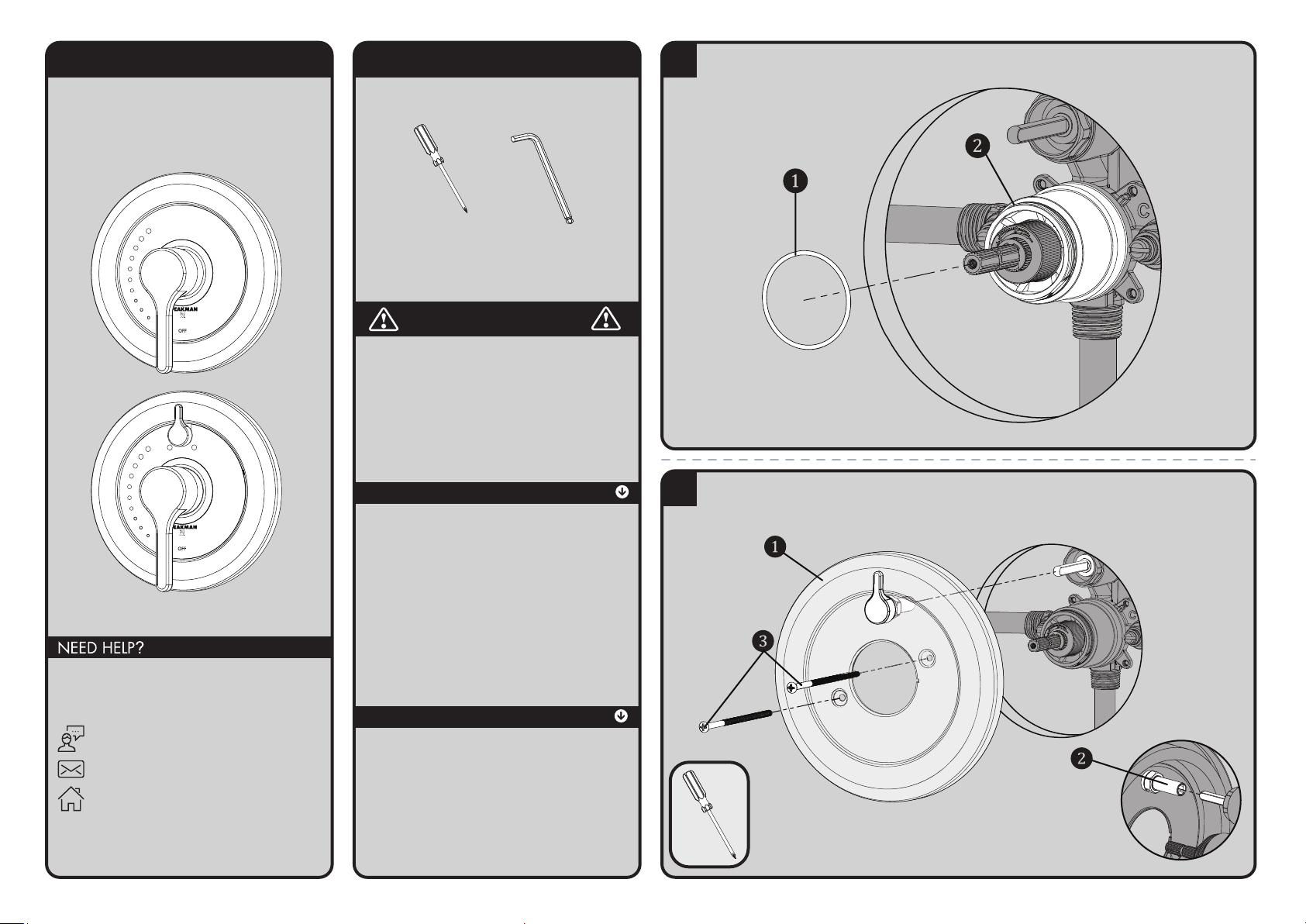

INSTRUCTIONS FOR MODELS
CPT-3001
TOOLS AND SUPPLIES
IMPORTANT
Warranty information can be found at: www.speakman.com
MAINTENANCE
WARRANTY
Phillips
Screwdriver
Hex Key Wrench
(included)
• Be sure to read instructions thoroughly before beginning installation.
• Be sure to have properly adjusted the Temperature Limiting Stop (TLS) as outlined in the Valve Installation Manual.
• Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
Your new Valve Trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh chemicals and abrasives on any of the Speakman custom finish products may damage the finish and void the product warranty. Please be sure to only use approved cleaners. Please contact Speakman for any clarification of acceptable cleaners.
1
OPTIONAL: If a firm fit is required, insert the O-Ring ❶ onto the Bonnet ❷ of the Shower Valve.
2
Verify that the Valve is in the “OFF” position. Install the Wall Plate ❶ to the Valve. If installing a Diverter model of Trim, align the Diverter Handle to the 12 o’clock position and position the Diverter Drive Tube ❷ over the Diverter Spindle of the Valve. Secure with the included Mounting Screws ❸.
CPT-3401
For additional assistance or service please contact:
SPEAKMAN
800-537-2107
www.speakman.com
®
92-CPT-3001-01
Page 5

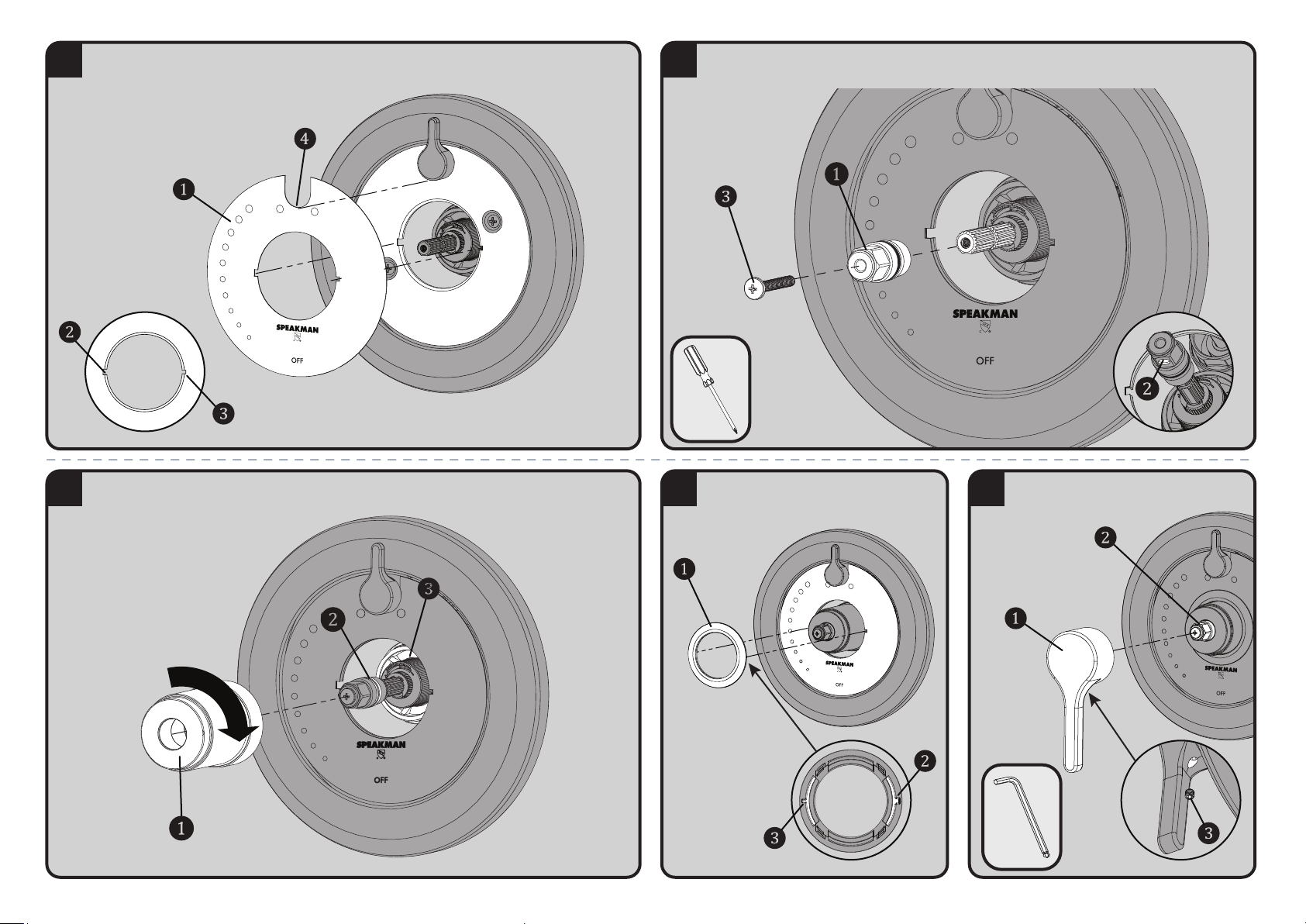

3
* VIEW WITHOUT VALVE
Align the Index Plate ❶ with the Large Slot ❷ and Small Slot ❸ on the Wall Plate. If installing onto a Diverter Model, align the U shape ❹ under the Diverter Handle and then align to the slots.
4
Install the Spindle Adapter ❶ (with appropriate O-ring in its place) onto the Spindle so that the Circular Indent ❷ is pointing downward and is horizontal as shown below. Secure the Spindle Adapter with the included Screw ❸.
5
Push the Escutcheon ❶ gently over the O-ring ❷ of Spindle Adapter. Thread the Escutcheon onto the Bonnet ❸ of the Valve. Hand tighten into position.
6
Install Retaining Ring ❶. Align the Retaining Ring with the Large Slot ❷ and Small Slot ❸ on the Wall Plate. Snap in place.
* BACK OF RETAINING RING
7
* VIEW UNDER THE HANDLE
Orient the Handle ❶ as shown below and position over the Spindle Adapter ❷. Secure with the included Set Screw ❸.
Page 6

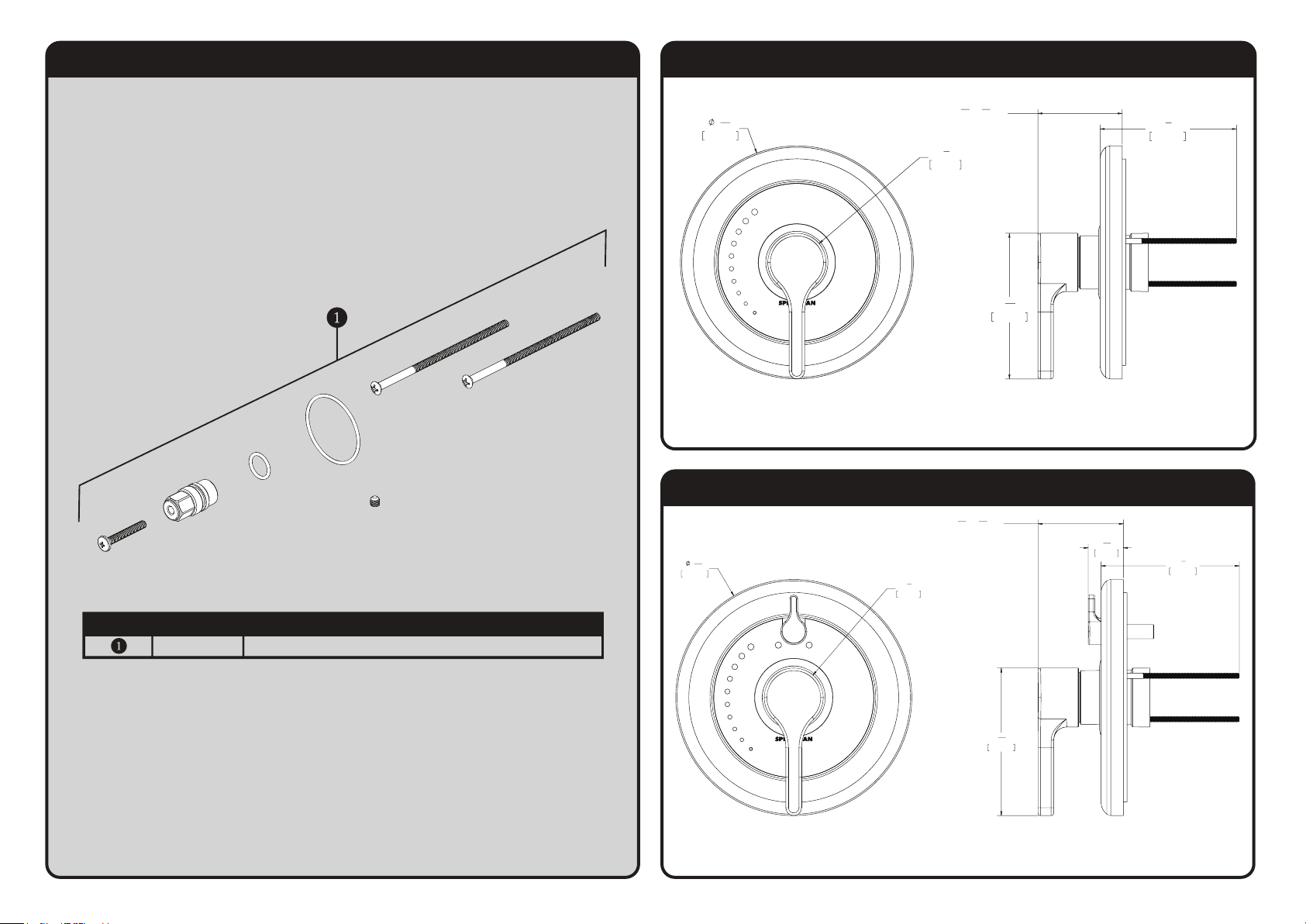

CPT-3001/3401 REPAIR PARTS
ITEM NO. PART NO. DESCRIPTION
RPG05-1126 REPAIR PARTS GROUP FOR CPT-3X01 TRIMS
CPT-3001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
4
7
16
"
112.5mm
4
1 8
"
105.4mm
7
1
16
"
180.0mm
R
7 8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
CPT-3401 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
1
16
"
26.8mm 4
1 8
"
105.4mm
4
7
16
"
112.5mm
7
1
16
"
180.0mm
R
7 8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
Page 7
INSTRUCTIONS FOR MODELS
92-S-2500-R5
For additional assistance or service please contact:
SPEAKMAN
®
Company 400 Anchor Mill Road New Castle, DE 19720
800-537-2107
www.speakman.com

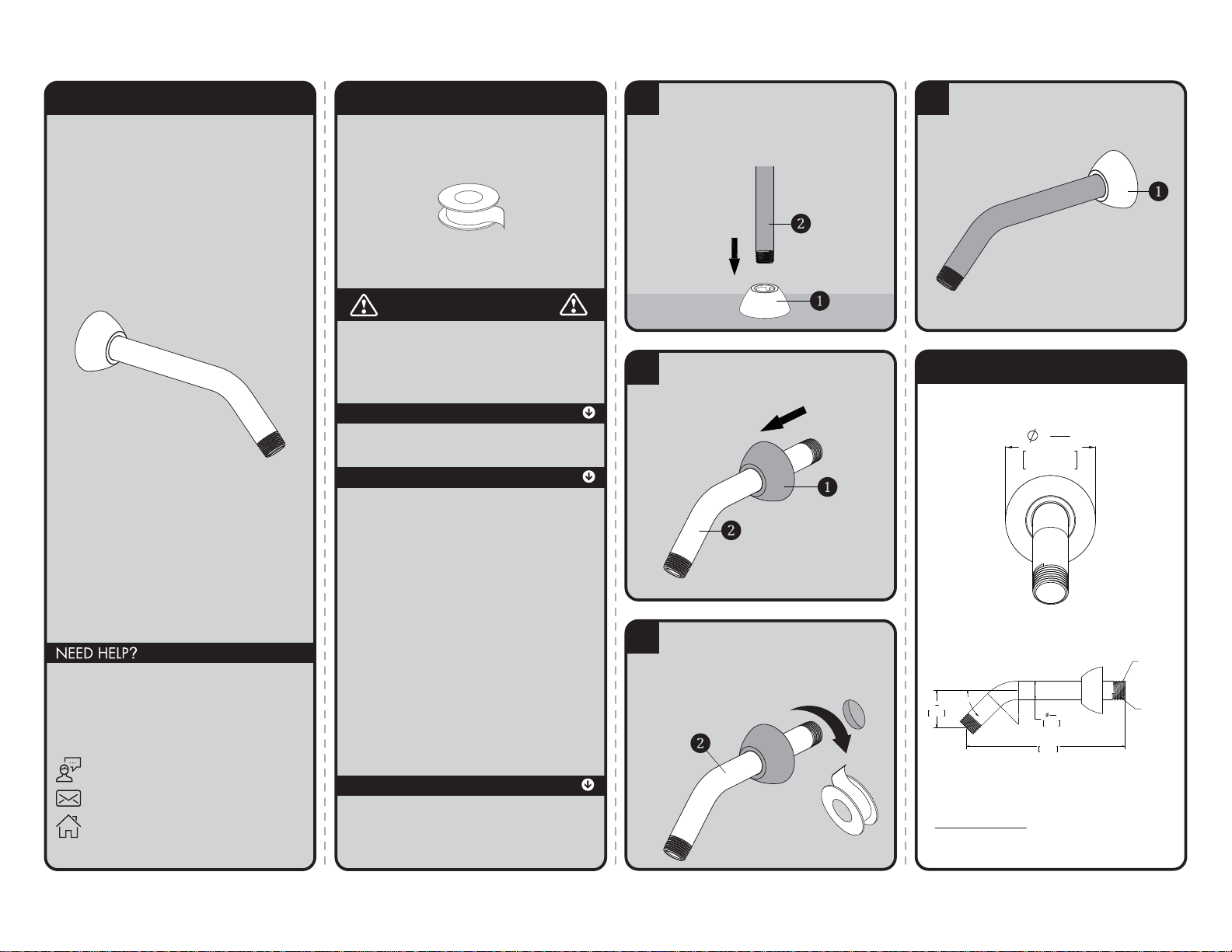

S-2500
TOOLS AND SUPPLIES
1
Place the Escutcheon Plate (1) on a flat surface. Push the long end of the Shower Arm (2) down into the plate. This will help the teeth of the plate slide over the arm easier.
2
Once the Escutcheon Plate (1) is on the shower arm, slide the plate over the Shower Arm (2).
3
Apply Teflon Tape to inlet side of Shower Arm (2). Thread Shower Arm (2) into Female Pipe Fitting within the wall. Firmly tighten, and make sure Shower Arm (2) Outlet is pointing in a downward position.
4
Position Escutcheon Plate (1) flat against wall.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT MALE Outlet: 1/2" NPT MALE
2
1
16
"
52mm
13 16
"
21mm
45.00°
7"
178mm
1
5 8
"
42mm
1/2" NPT THREADS BOTH ENDS
INLET
Thread Seal
Tape
IMPORTANT
Be sure to read instructions thoroughly before beginning installation. Do not overtighten any connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Your new Shower Arm is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh chemicals as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at: www.speakman.com
Page 8

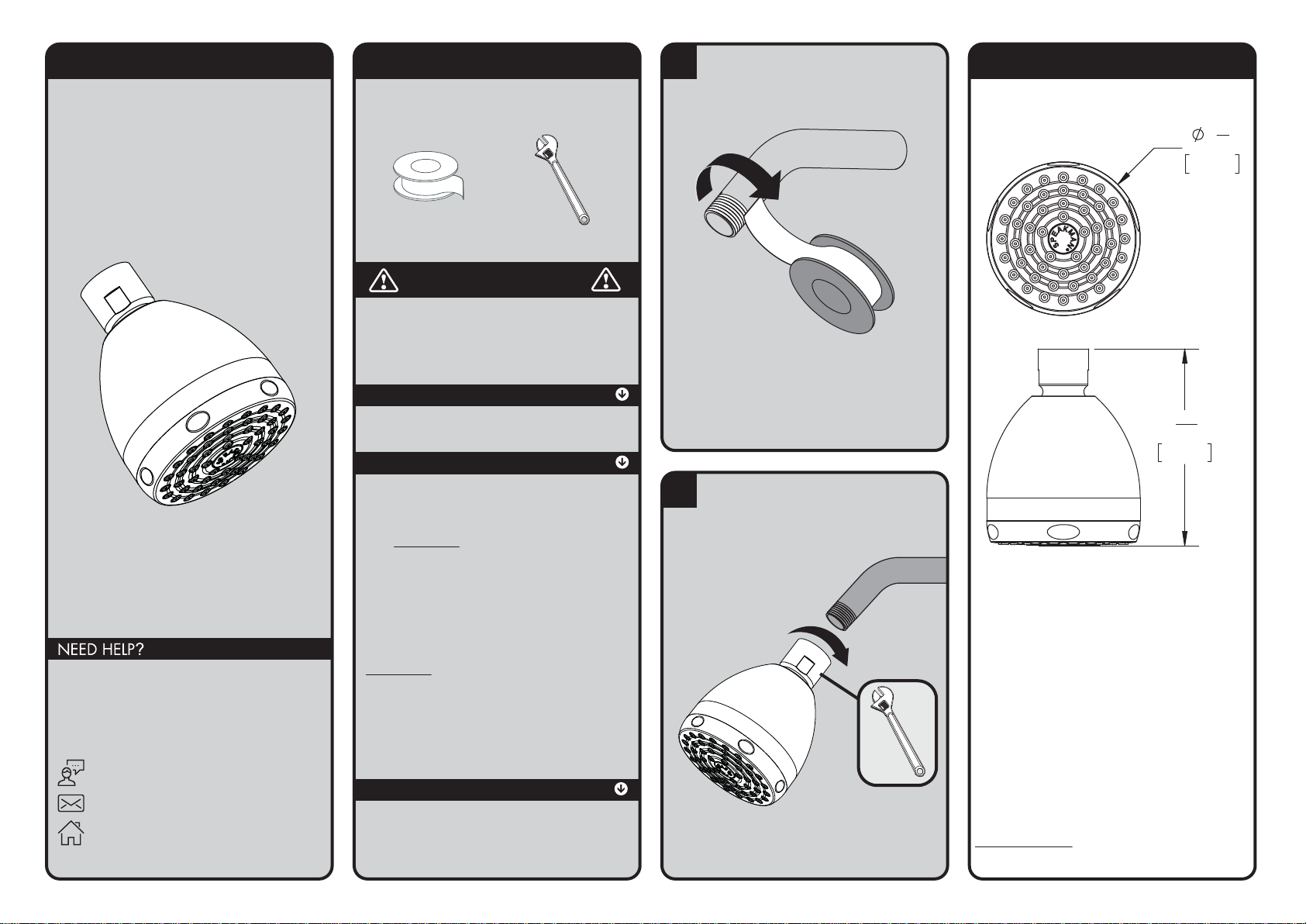

INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
1
Apply Teflon Tape to the outlet side of shower arm in a clockwise direction.
2
Thread Shower head onto shower arm by turning it in a clockwise direction. Tighten with adjustable wrench. Turn water supply on and check for leaks.
ROUGH IN DIMENSIONS
S-2272-E2 S-2272-E15
For additional assistance or service please contact:
SPEAKMAN
400 Anchor Mill Road New Castle, DE 19720
800-537-2107
www.speakman.com
92-S-2272-01
®
Company
Thread Seal
Tape
Adjustable
Wrench
IMPORTANT
Be sure to read instructions thoroughly before beginning installation. Do not overtighten any connections or damage may occur.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water will help keep your Showerhead's appearance in its original condition.
For best results, dry immediately with a soft, clean cloth. DO NOT USE harsh and/or abrasive cleaners.
To help restore the finish, occasionally apply a non-abrasive wax to your showerhead body (follow manufacturers’ instructions).
On CHROME PLATED SHOWER HEADS, a two (2) part white vinegar, one (1) part water solution can be used to break down excessive mineral deposits on the sprays. Let the showerhead soak in the solution for about ½ hour then rinse thoroughly. Brush off any remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any finish other than Chrome.
WARRANTY
Additional warranty information can be found at: www.speakman.com
3
2
4
70mm
9
3
"
16
90mm
Model: S-2272-E2 Max. Flow Rate: 2.0 gpm (7.6 L/min) Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
Model: S-2272-E15 Max. Flow Rate: 1.5 gpm (5.7 L/min) Min. Flow Rate: 1.1 gpm (4.2 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT 5.2 L/MIN (1.37 GPM) OR LESS.
Specifications:
Inlet: 1/2” NPSM FEMALE
"
Page 9

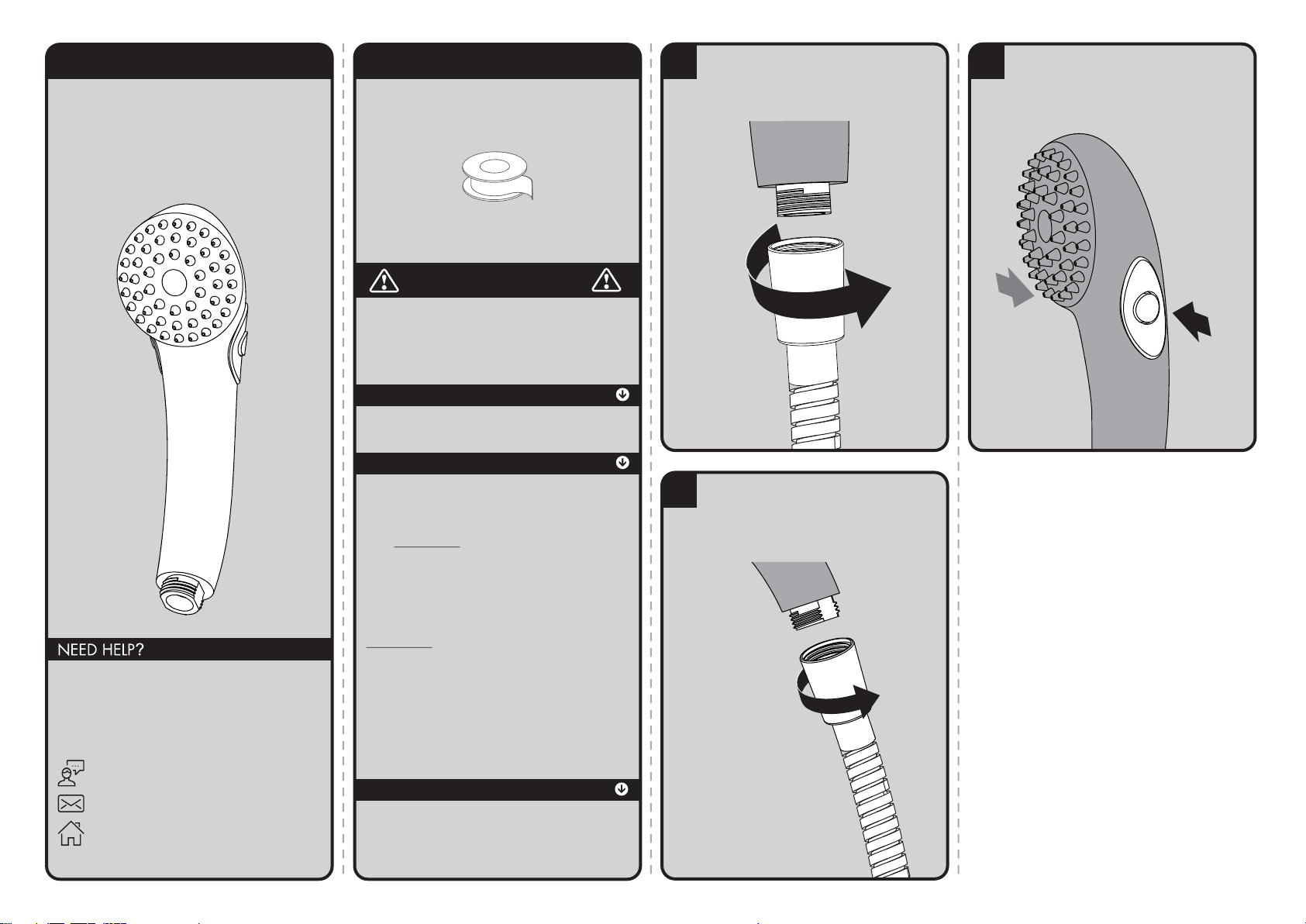

INSTRUCTIONS FOR MODELS
92-VS-100-PC-04
For additional assistance or service please contact:
SPEAKMAN
®
Company 400 Anchor Mill Road New Castle, DE 19720
800-537-2107
www.speakman.com
VS-100-PC VS-100-PC-E2 VS-100-PC-E175
TOOLS AND SUPPLIES
2
Connect remaining end of Hose to inlet of Hand Shower. Hand tighten. If there are leaks at the hose connections, look into using thicker washers to ensure a tight seal.
1
Connect the correct side of your hose (not included) to the water supply. Hand tighten.
3
To pause the flow of water, press the integral thumb operated pause/trickle button located on the side of the hand shower. To return the hand held shower to full flow, press the shuttle button from the opposite side.
Thread Seal
Tape
(included)
IMPORTANT
Be sure to read instructions thoroughly before beginning installation. Do not overtighten any connections or damage may occur. This hand shower has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water will help keep your Hand Shower’s appearance in its original condition.
For best results, dry immediately with a soft, clean cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2) part white vinegar, one (1) part water solution can be used to break down excessive mineral deposits on the sprays. Let the hand shower soak in the solution for about ½ hour then rinse thoroughly. Brush off any remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any finish other than Chrome.
WARRANTY
Additional warranty information can be found at: www.speakman.com
Page 10

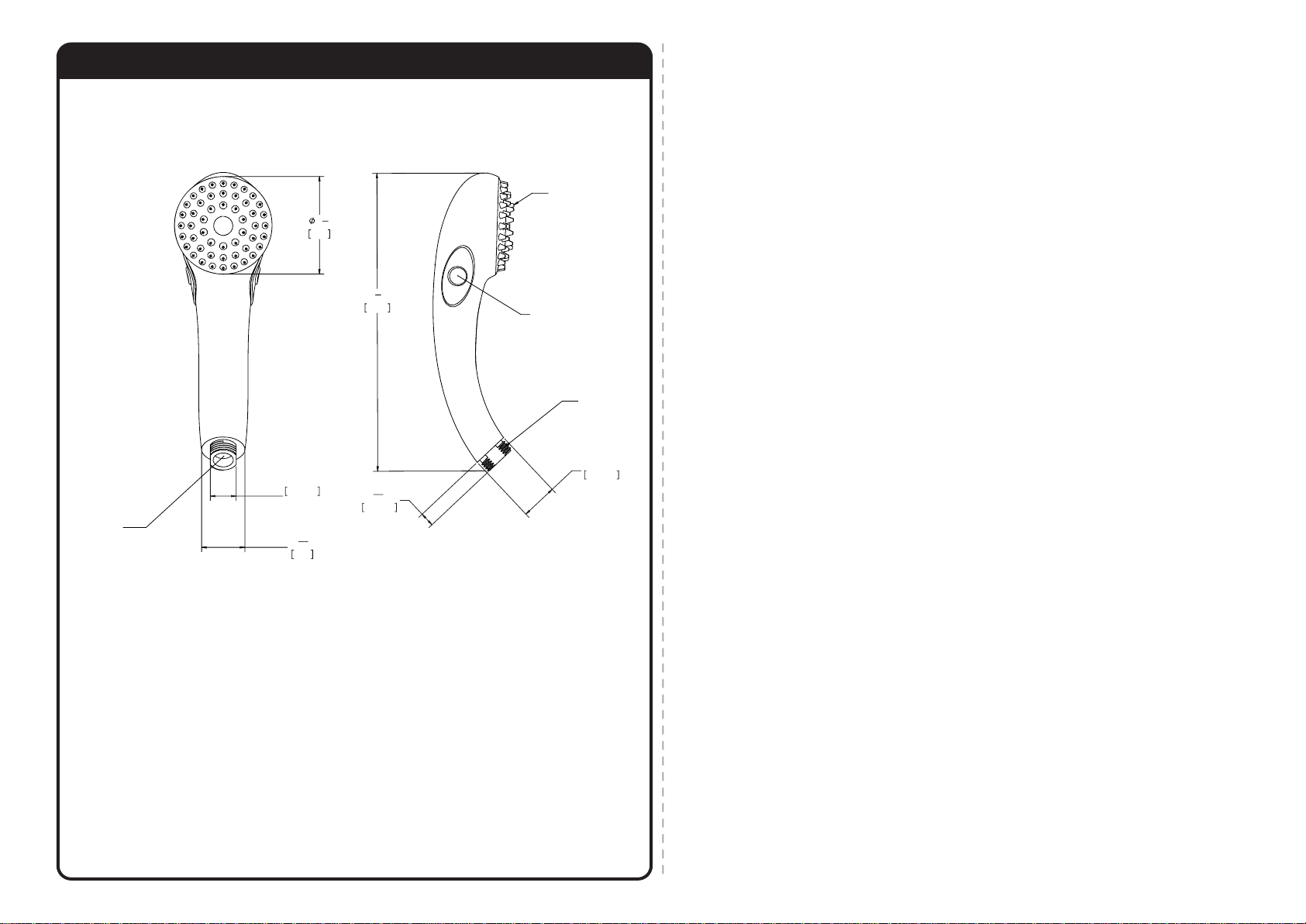

ROUGH IN DIMENSIONS
VS-100-PC-E175 Max. Flow Rate: 1.75 gpm (6.6 L/min) Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.
VS-100-PC-E2 Max. Flow Rate: 2.0 gpm (7.6 L/min) Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
VS-100-PC Max. Flow Rate: 2.5 gpm (9.5L/min) Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.
13 32
"
10.16mm
8
1 2
"
215.90
1"
25.40mm
1/2-14 NPSM
MALE THREADED
INLET
50 RUBBER
TIPPED SPRAYS
PAUSE
BUTTON
.714in
18.14mm ACROSS
FLATS
3
1 8
"
79.38
1
3
16
"
30.18
FLOW CONTROL
INSERTED INTO
HANDLE
Page 11
SPEAKMAN COMPANY
VS-115 Installation, Maintenance & Operation Instructions

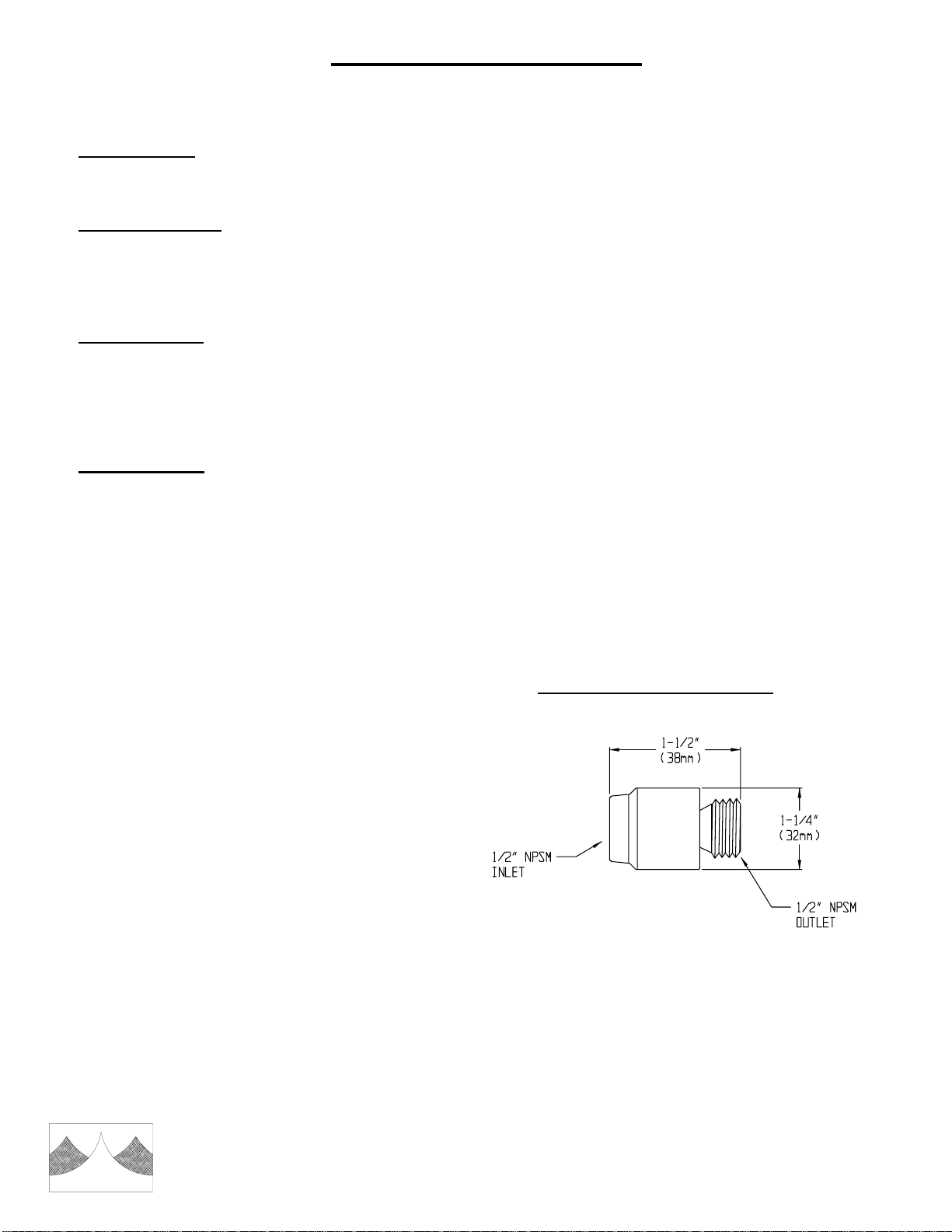

VERSATILE ® SUPPLY ELL
DESCRIPTION
VERSATILE® chrome plated brass supply ell with wall flange.
SPECIFICATIONS
SUPPLY INLET: ½” NPT FEMALE OUTLET: ½” NPSM MALE SHIPPING WEIGHT: 0.4 LBS.
INSTALLATION
Slip the wall flange on to the inlet pipe. Using teflon tape or pipe dope on threads, screw ell onto pipe and wrench tighten. Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks.
MAINTENANCE
The gleaming finish of your SPEAKMAN VERSATILE® VS-115 supply ell can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results.
Product improvements may cause specification and dimensional changes without notice.

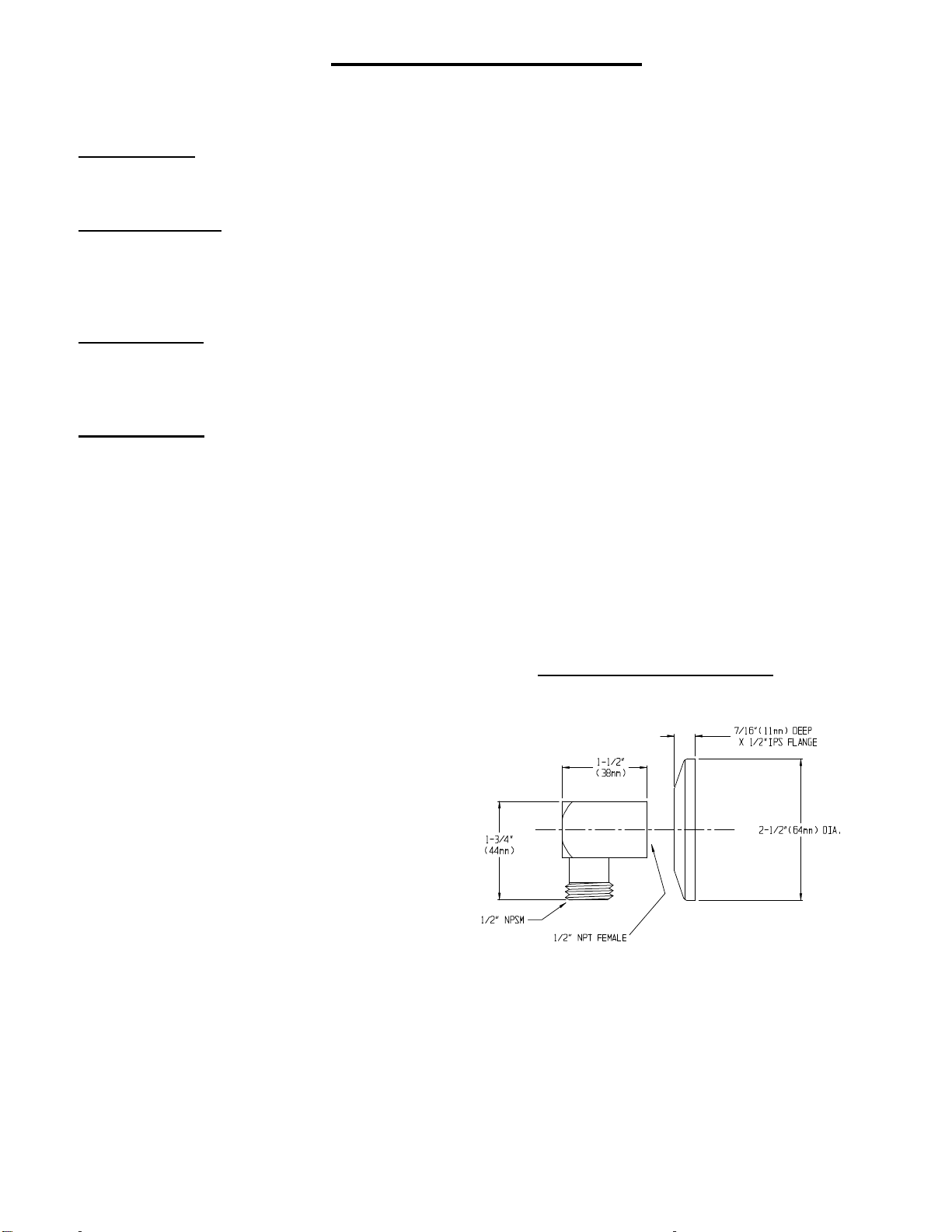

ROUGH-IN MEASUREMENTS
®
SPEAKMAN
PO Box 191 Wilmington, DE 19899 Phone: 800-537-2107 Fax: 800-977-2747
Visit us on the web at www.speakmancompany.com
09/07
REV 1
92-1775
Page 12
SPEAKMAN COMPANY
VS-117 Installation, Maintenance & Operation Instructions
VERSATILE ® VACUUM BREAKER
DESCRIPTION
VERSATILE® chrome plated brass in-line vacuum breaker.
SPECIFICATIONS
SUPPLY INLET: ½” NPSM FEMALE OUTLET : ½” NPSM MALE SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Connect, using rubber washer, to supply piping. Connect accessories to vacuum breaker. Firmly hand tighten connection. Turn water supply on and check for leaks. Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker).
MAINTENANCE
The gleaming finish of your SPEAKMAN VERSATILE® VS-117 vacuum breaker can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results.
Product improvements may cause specification and dimensional changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869 P.O. Box 191, Wilmington, DE 19899-0191 USA 1-800-537-2107, Fax: 1-800-977-2747
ROUGH-IN MEASUREMENTS
04/00
92-1783
Page 13
INSTRUCTIONS FOR MODELS
92-VS-12X-01
For additional assistance or service please contact:
SPEAKMAN
®
Company 400 Anchor Mill Road New Castle, DE 19720
800-537-2107
www.speakman.com
VS-123 VS-124
TOOLS AND SUPPLIES
Level
Phillips
Drive Bit
Measuring
Tape
Phillips
Screwdriver
Pencil
Drill
Drill Bit
Ø
1
/4”
Tile Drill Bit
Ø
1
/4”
Mounting Hardware
(included)
• Cover your drain to prevent loss of parts. Be sure to wear eye protection.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
Warranty information can be found at: www.speakman.com
WARRANTY
MAINTENANCE
Your new Speakman Product is designed for years of

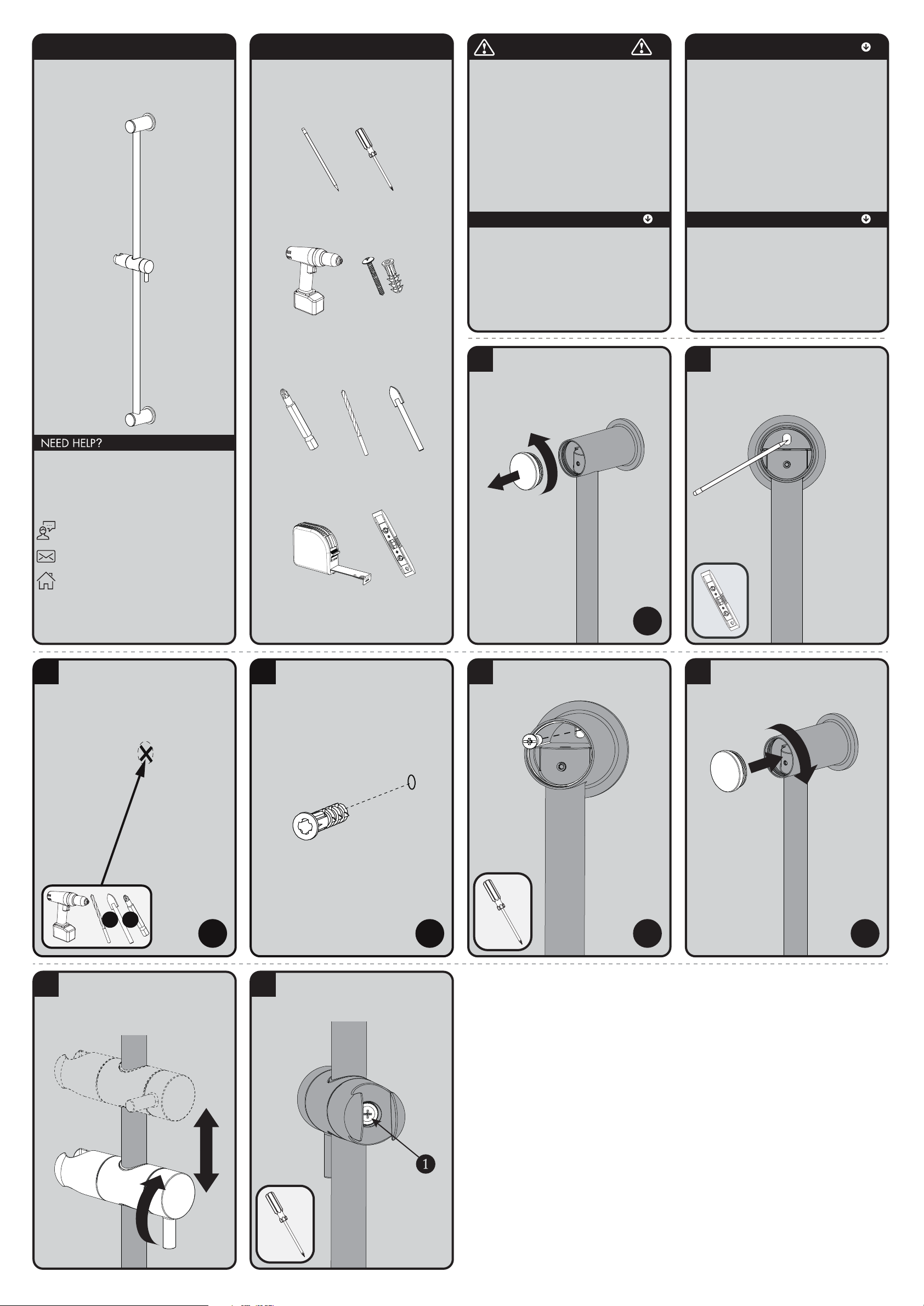

1
Remove End Caps from both ends of Slide Bar assembly.
X2
2
Place Slide Bar Assembly on to wall in the desired mounting position. Take care that the Slide Bar is oriented in a vertical position. Using a pencil, mark the 2 hole locations.
3
If mounting directly to wood stud, Plastic Anchors are not required. If mounting to drywall or tile, select appropriate 1/4" drill bit and drill guide holes at marked locations.
Ø1/4”
OR OR
X2
4
Insert Plastic Anchors into drilled holes and press/tap into place until the head is flush to the wall surface. (Note: Plastic Anchors provided
may not be suitable for all types of wall construction, seek professional help if in doubt).
X2
5
Secure Slide Bar Assembly to the wall with the Mounting Screws provided.
X2
6
Re-install End Caps on both ends of Slide Bar assembly.
X2
7
Orient the Hand Held Shower Bracket to your desired position. Adjustments are made by rotating the Handle counter-clockwise to release the position, and clockwise to lock into the desired position.
8
Note: If the Hand Shower Holder no longer holds position, Tighten the Screw (1) in the Shower Holder using a Philips Head Screwdriver.
trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh chemicals and abrasives on any of the Speakman custom finish products may damage the finish and void the product warranty. Please be sure to only use approved cleaners. Please contact Speakman for any clarification of acceptable cleaners.
Page 14

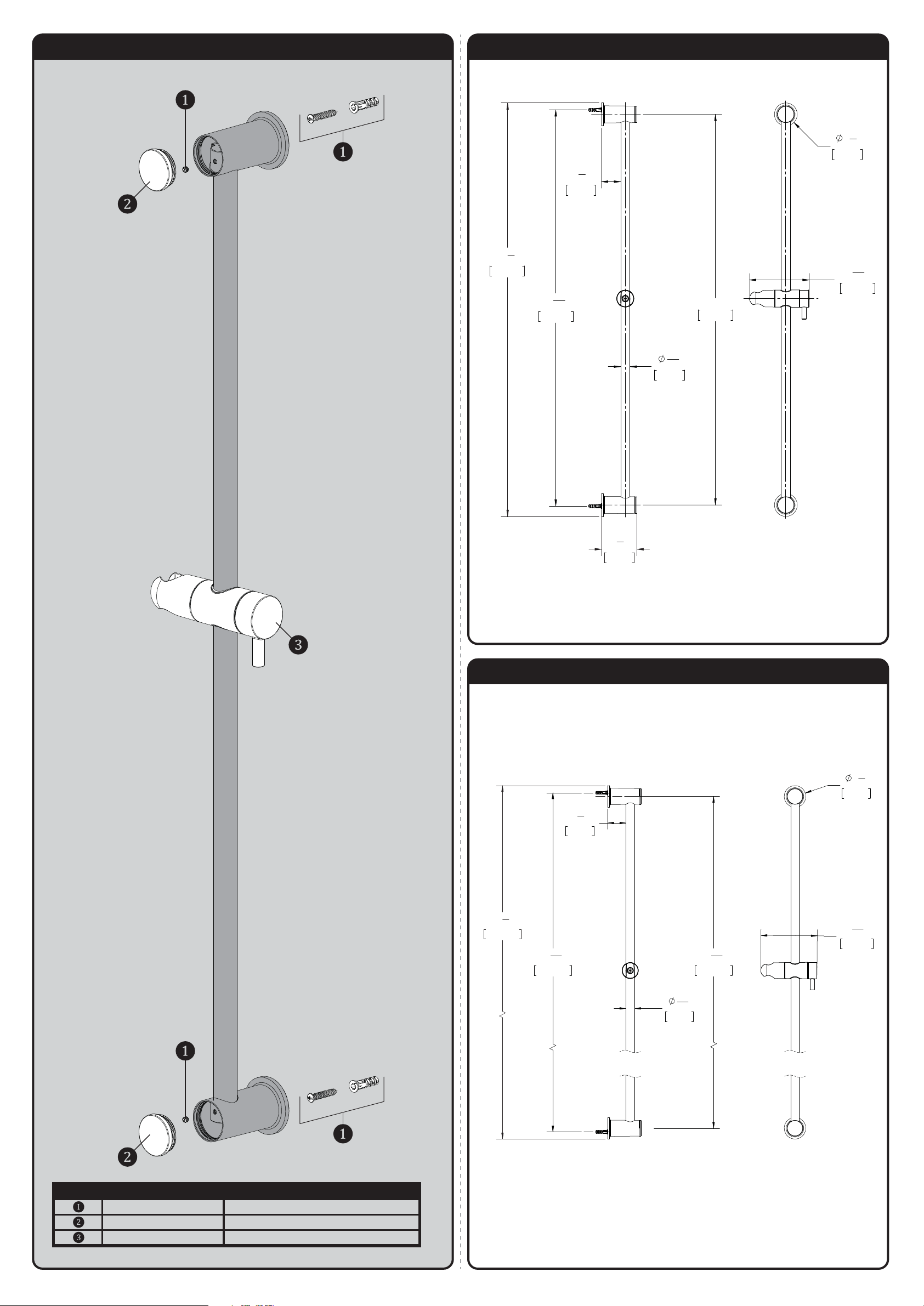

VS-123 / VS-124 REPAIR PARTS
SPEAKMAN
®
RPG05-108526 MOUNTING HARDWARE
RPG07-108527 END CAP REPAIR GROUP
RPG56-108517 HAND SHOWER HOLDER
ITEM NO. PART NO. DESCRIPTION
VS-123 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
3 4
"
45mm
4
9
16
"
116mm
11 16
"
18mm
2
3 4
"
69mm
30"
762mm
30
7
16
"
773mm
31
3 4
"
807mm
1
1 2
"
38mm
VS-124 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
3 4
"
45mm
4
9
16
"
116mm
11 16
"
18mm
41
15 16
"
1066mm
42
9
16
"
1081mm
43
3 4
"
1111mm
1
1 2
"
38mm
