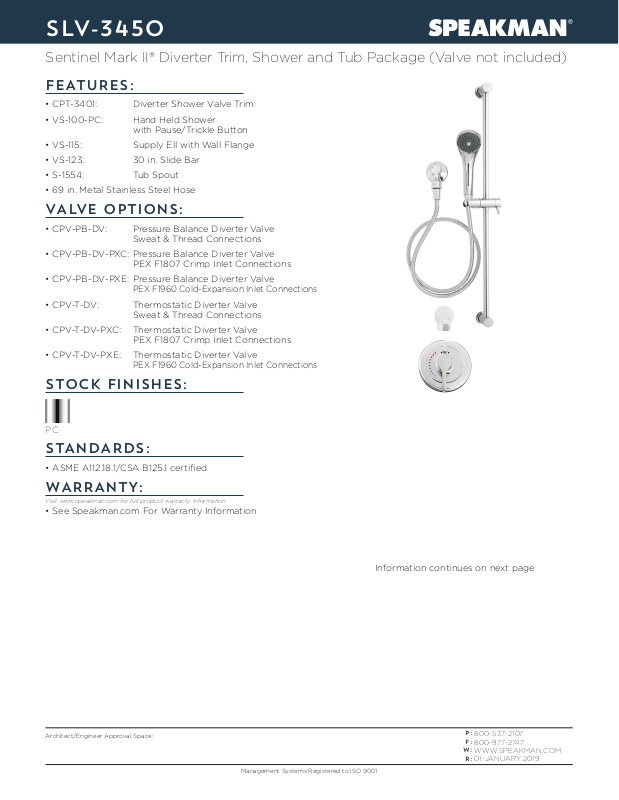

Page 1

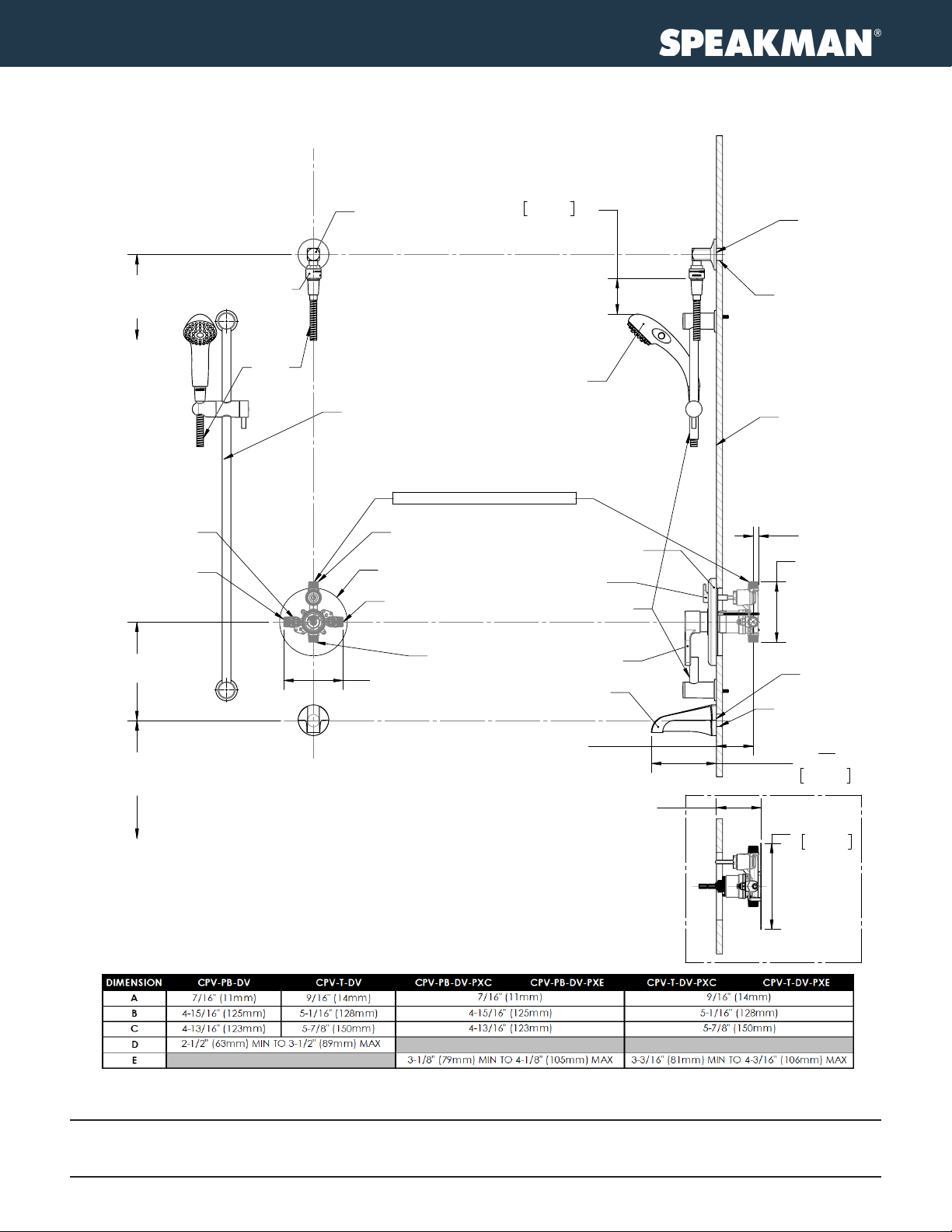

SLV-3450

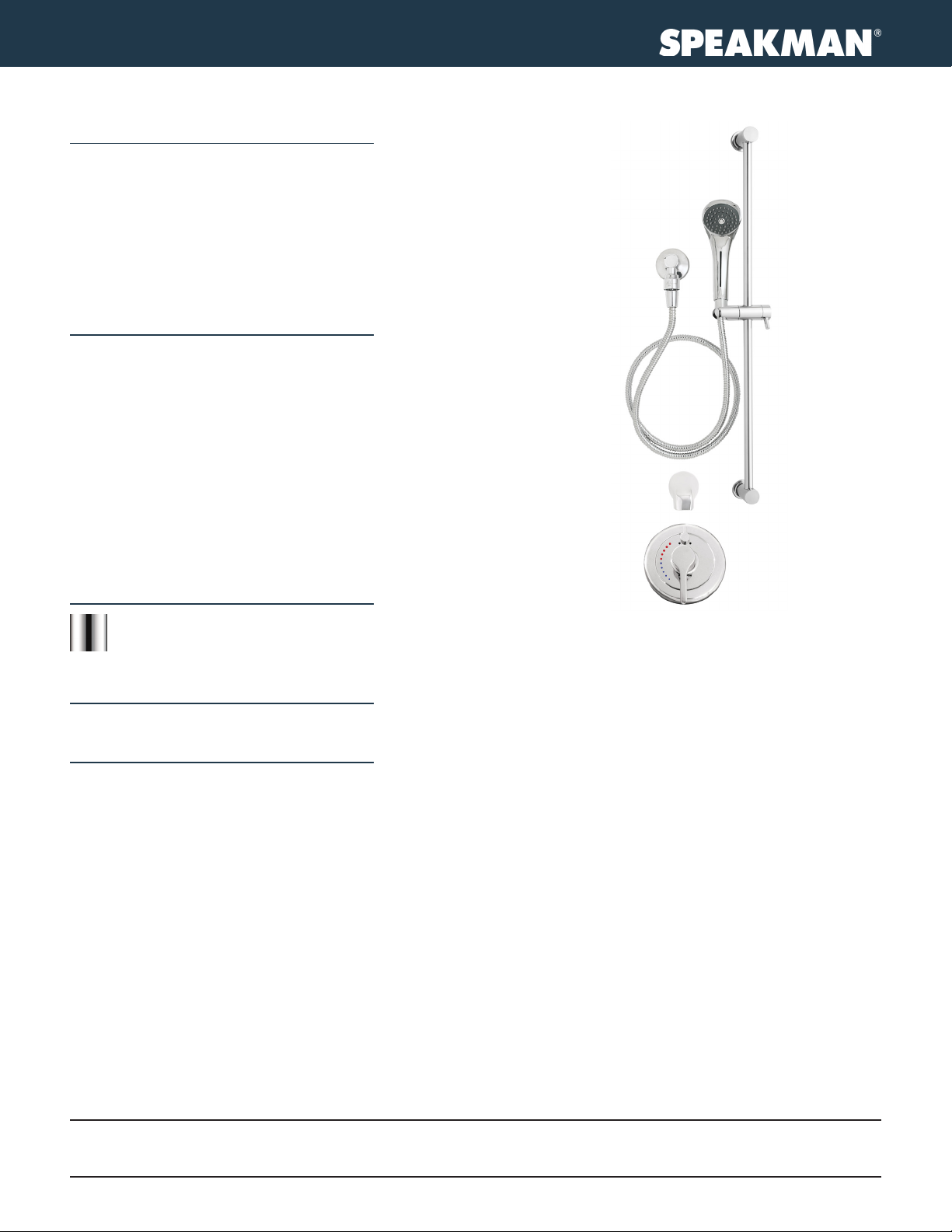

Sentinel Mark II® Diverter Trim, Shower and Tub Package (Valve not included)
FEATURES:
• CPT-3401: Diverter Shower Valve Trim
• VS-100-PC: Hand Held Shower
with Pause/Trickle Button
• VS-115: Supply Ell with Wall Flange
• VS-123: 30 in. Slide Bar
• S-1554: Tub Spout
• 69 in. Metal Stainless Steel Hose
VALVE OPTIONS:
• CPV-PB-DV: Pressure Balance Diverter Valve
Sweat & Thread Connections
• CPV-PB-DV-PXC: Pressure Balance Diverter Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-DV-PXE: Pressure Balance Diverter Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T-DV: Thermostatic Diverter Valve
Sweat & Thread Connections
• CPV-T-DV-PXC: Thermostatic Diverter Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-DV-PXE: Thermostatic Diverter Valve
PEX F1960 Cold-Expansion Inlet Connections
STOCK FINISHES:
PC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Information continues on next page
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
Page 2
SLV-3450
Sentinel Mark II® Diverter Trim, Shower and Tub Package (Valve not included)
LOCATION
LOCATION
OPTIONAL
OPTIONAL
(SEE NOTE #3)
(SEE NOTE #3)
INTEGRAL SPRING
CHECK STOPS
HOT WATER INLET
VACUUM
BREAKER
METAL
HOSE
SUPPLY ELL
W/ FLANGE
SLIDE BAR LOCATION
OPTIONAL (SEE NOTE #3)
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET,
TO SUPPLY ELL
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
COLD WATER INLET
6"
152mm
MIN. REQUIRED
HAND SHOWER
DIVERTER WALL PLATE
7-1/16" [180mm] DIA.
DIVERTER
HANDLE
SLIDE BAR
1/2" NPT
FEMALE
1" [25mm] DIA.
ROUGH-IN HOLE
FINISHED WALL
A
B
1'-9" [533mm]
SEE NOTE #4
4" [102mm]
4" [102mm]
TO TOP
TO TOP
OF TUB
OF TUB
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE SUBJECT TO CHANGE
1.
WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS OTHERWISE SPECIFIED.
2.
THE LOCATIONS OF THE SLIDE BAR AND SUPPLY ELL ARE OPTIONAL, BUT RESTRICTED BY THE 69" HOSE LENGTH
3.
RUNNING FROM THE SUPPLY ELL CONNECTION TO THE HAND SHOWER AND THE 6" MINIMUM REQUIREMENT
BETWEEN THE IN-LINE VACUUM BREAKER AND TOP OF THE HAND SHOWER (HAND SHOWER ADJUSTED TO
HIGHEST POSITION).
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE REGULATIONS.
4.
C
TUB OUTLET,
TO TUB SPOUT
METAL
LEVER HANDLE
TUB SPOUT
TO THE CENTERLINE
OF INLET(S)
D
E
TO THE
BRACE(S)
1/2" NPT
FEMALE
1" [25mm] DIA.
ROUGH-IN HOLE
5
"
5
16
134mm
7"
178mm
PEX ROUGH-IN
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
