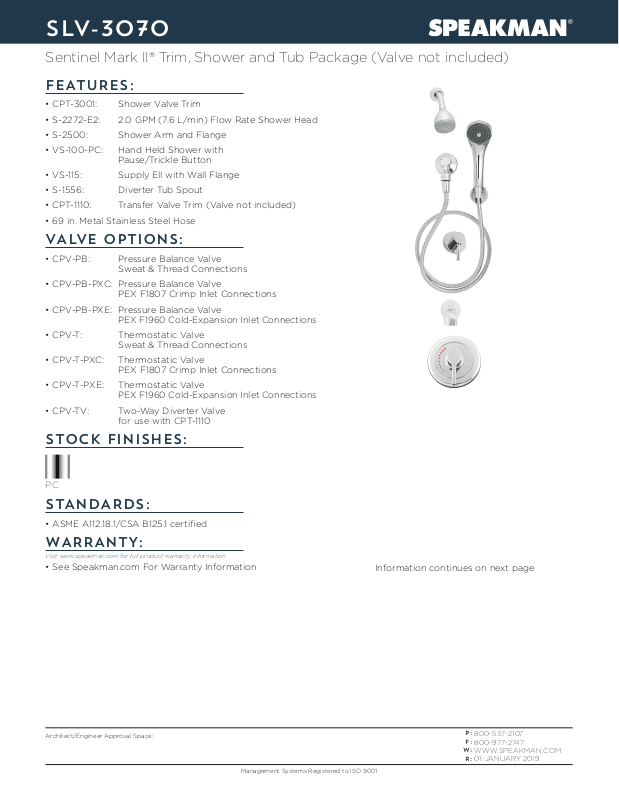

Page 1
SLV-3 07 0

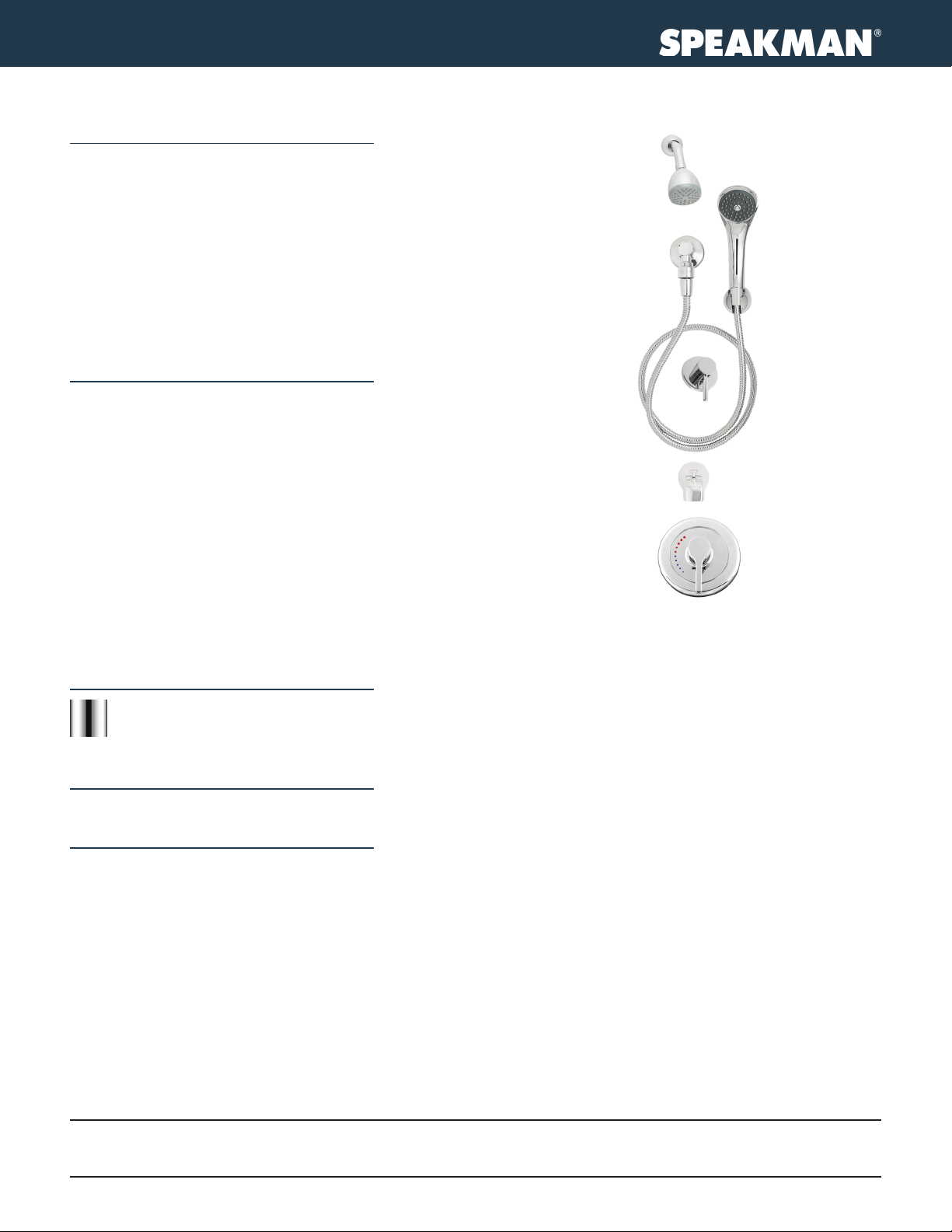

Sentinel Mark II® Trim, Shower and Tub Package (Valve not included)
FEATURES:
• CPT-3001: Shower Valve Trim
• S-2272-E2: 2.0 GPM (7.6 L/min) Flow Rate Shower Head
• S-2500: Shower Arm and Flange
• VS-100-PC: Hand Held Shower with
Pause/Trickle Button
• VS-115: Supply Ell with Wall Flange
• S-1556: Diverter Tub Spout
• CPT-1110: Transfer Valve Trim (Valve not included)
• 69 in. Metal Stainless Steel Hose
VALVE OPTIONS:
• CPV-PB: Pressure Balance Valve
Sweat & Thread Connections
• CPV-PB-PXC: Pressure Balance Valve
PEX F1807 Crimp Inlet Connections
• CPV-PB-PXE: Pressure Balance Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-T: Thermostatic Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Valve
PEX F1960 Cold-Expansion Inlet Connections
• CPV-TV: Two-Way Diverter Valve
for use with CPT-1110
STOCK FINISHES:
PC
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• See Speakman.com For Warranty Information
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
Information continues on next page
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019

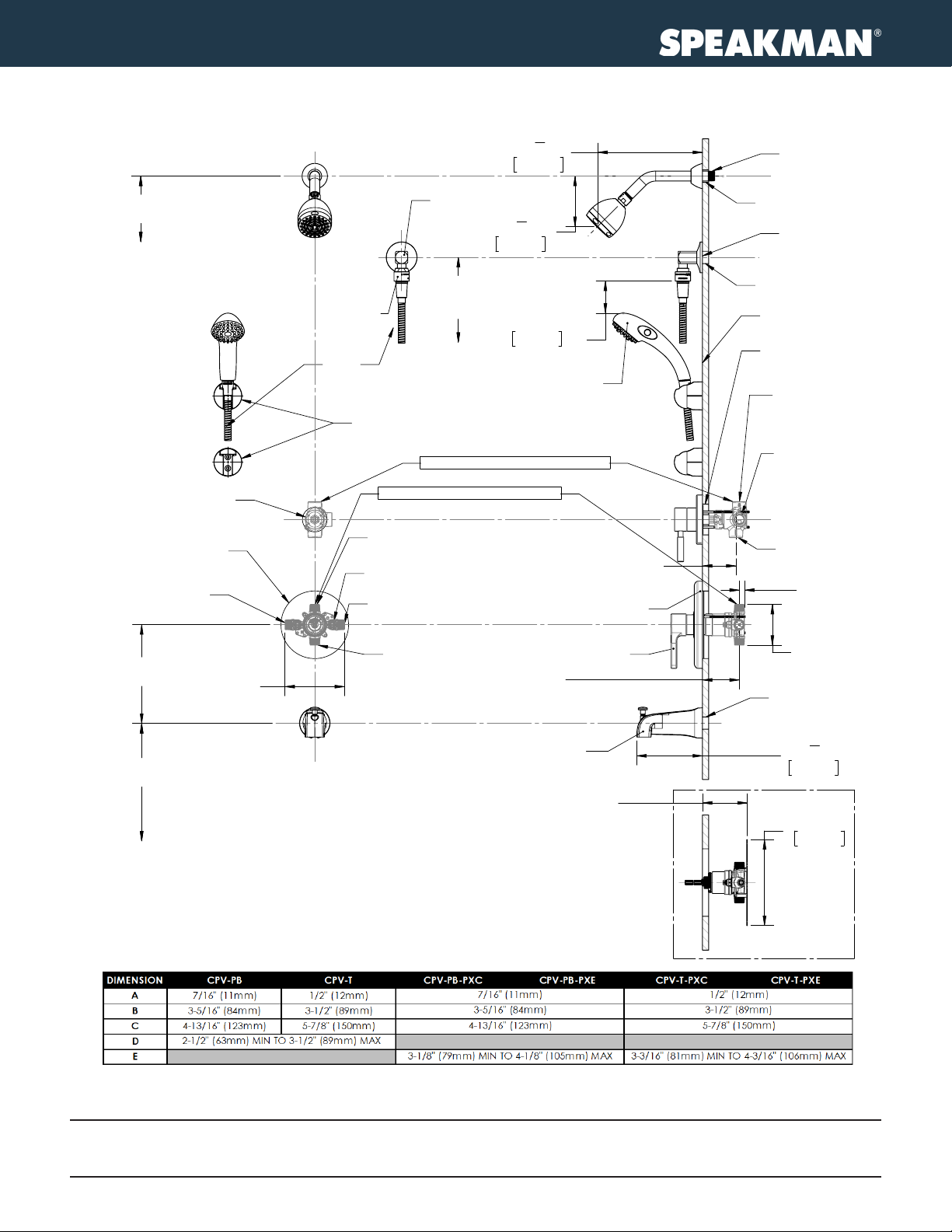

Page 2
SLV-3 07 0
Sentinel Mark II® Trim, Shower and Tub Package (Valve not included)
1
"
8
2
217mm
1/2" NPT
MALE
6'-6" [2m]
6'-6" [2m]
TO FLOOR
TO FLOOR
TRANSFER VALVE
(LOCATION OPTIONAL)
5-1/2" [140mm] DIA.
ROUGH-IN HOLE FOR
VALVE ACCESS
HOT WATER INLET
VACUUM
BREAKER
METAL
HOSE
WALL BRACKET(S)
LOCATION OPTIONAL
(SEE NOTE #3)
SHOWER VALVE NOT INCLUDED
SHOWER OUTLET,
TO TRANSFER VALVE
INTEGRAL SPRING
CHECK STOPS
COLD WATER INLET
SUPPLY ELL
W/ FLANGE
1
"
4
8
104mm
LOCATION
LOCATION
OPTIONAL
OPTIONAL
(SEE NOTE #3)
(SEE NOTE #3)
6"
152mm
MIN. REQUIRED
HAND SHOWER
TRANSFER VALVE NOT INCLUDED
2-1/2" [63mm] TO 3-1/2" [89mm]
ROUGH-IN DEPTH FOR
CPV-TV
WALL PLATE
7-1/16" [180mm] DIA.
1" [25mm] DIA.
ROUGH-IN HOLE
1/2" NPT
FEMALE
1" [25mm] DIA.
ROUGH-IN HOLE
FINISHED WALL
2" [51mm] DIA.
ROUGH-IN HOLE
OUTLET TO
SHOWER HEAD,
1/2" NPT FEMALE
SIDE OUTLET
TO SUPPLY ELL,
1/2" NPT FEMALE
INLET FOR
SHOWER VALVE,
1/2" NPT FEMALE
A
METAL
LEVER HANDLE
D
1'-9" [533mm]
SEE NOTE #4
C
TUB OUTLET, TO
DIVERTER TUB SPOUT
TO THE CENTERLINE
OF INLET(S)
DIVERTER TUB SPOUT,
1/2" COPPER SLIPFIT
4" [102mm]
4" [102mm]
TO TOP OF TUB
TO TOP OF TUB
NOTES:
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] UNLESS OTHERWISE SPECIFIED AND ARE SUBJECT TO CHANGE
1.
WITHOUT NOTICE.
ALL INLETS AND OUTLETS ARE 1/2" FEMALE COPPER SWEAT AND 1/2" MALE NPT UNLESS OTHERWISE SPECIFIED .
2.
THE LOCATIONS OF THE WALL BRACKETS(2) AND SUPPLY ELL ARE OPTIONAL, BUT RESTRICTED BY THE 69" HOSE
3.
LENGTH RUNNING FROM THE SUPPLY ELL CONNECTION TO THE HAND SHOWER AND THE 6" MINIMUM
REQUIREMENT BETWEEN THE IN-LINE VACUUM BREAKER AND TOP OF THE HAND SHOWER (HAND SHOWER
ADJUSTED TO HIGHEST POSITION).
FOR ADA MOUNTING LOCATIONS CONSULT ADAAG, ANSI A117.1, OR STATE REGULATIONS.
4.
CONNECTION
E
TO THE
BRACE(S)
B
1" [25mm] DIA.
ROUGH-IN HOLE
3
"
5
8
136mm
7"
178mm
PEX ROUGH-IN
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-JANUARY 2019
