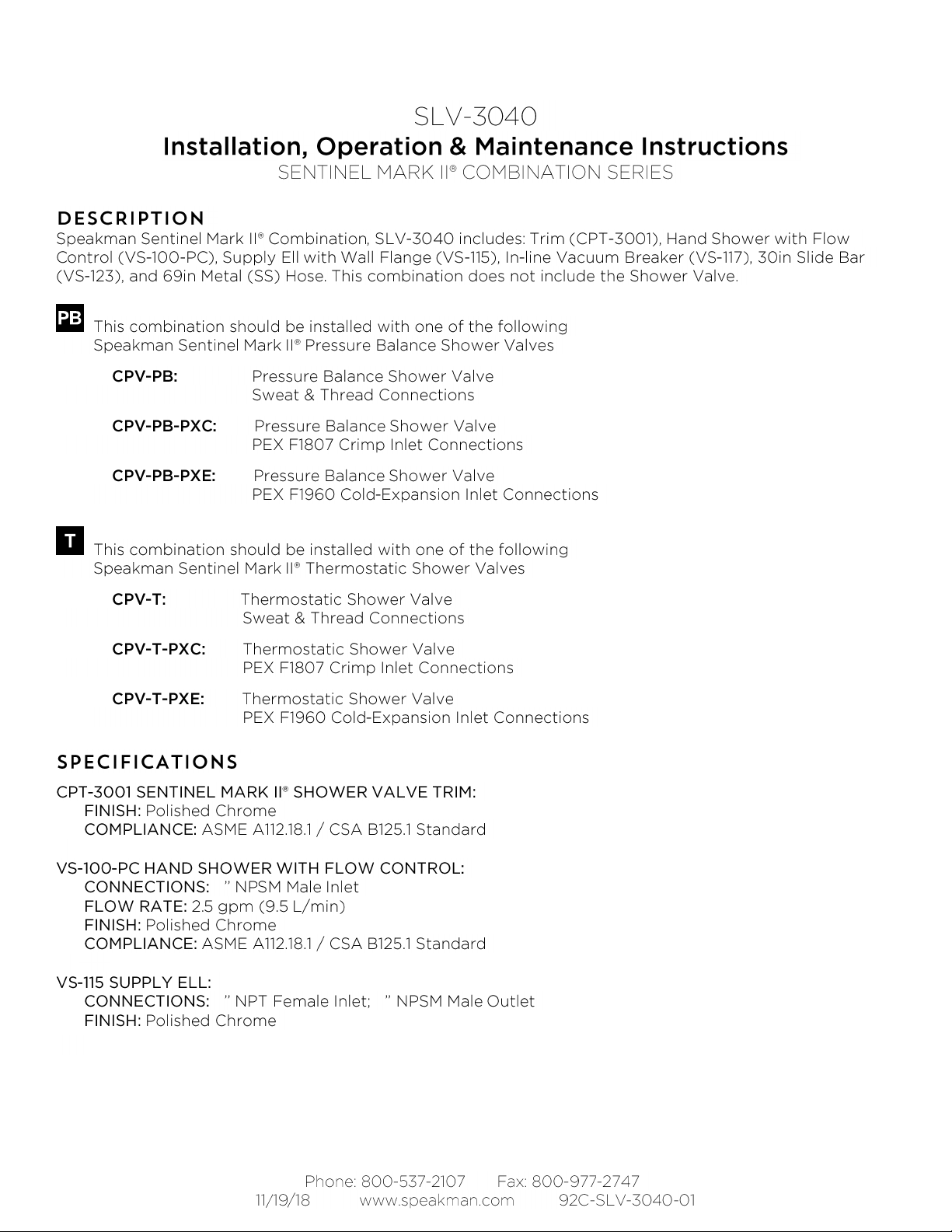

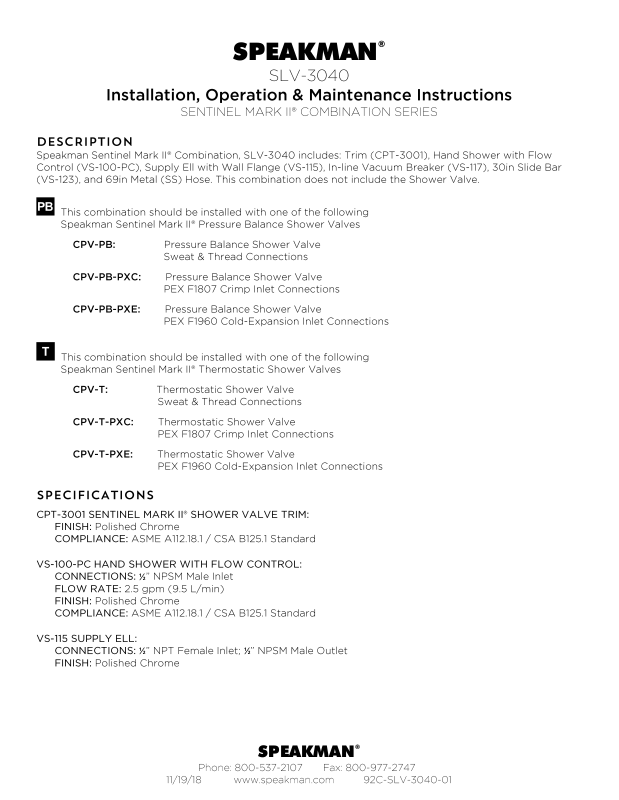

Page 1
SPEAKMAN®
SPEAKMAN
®
½
½ ½

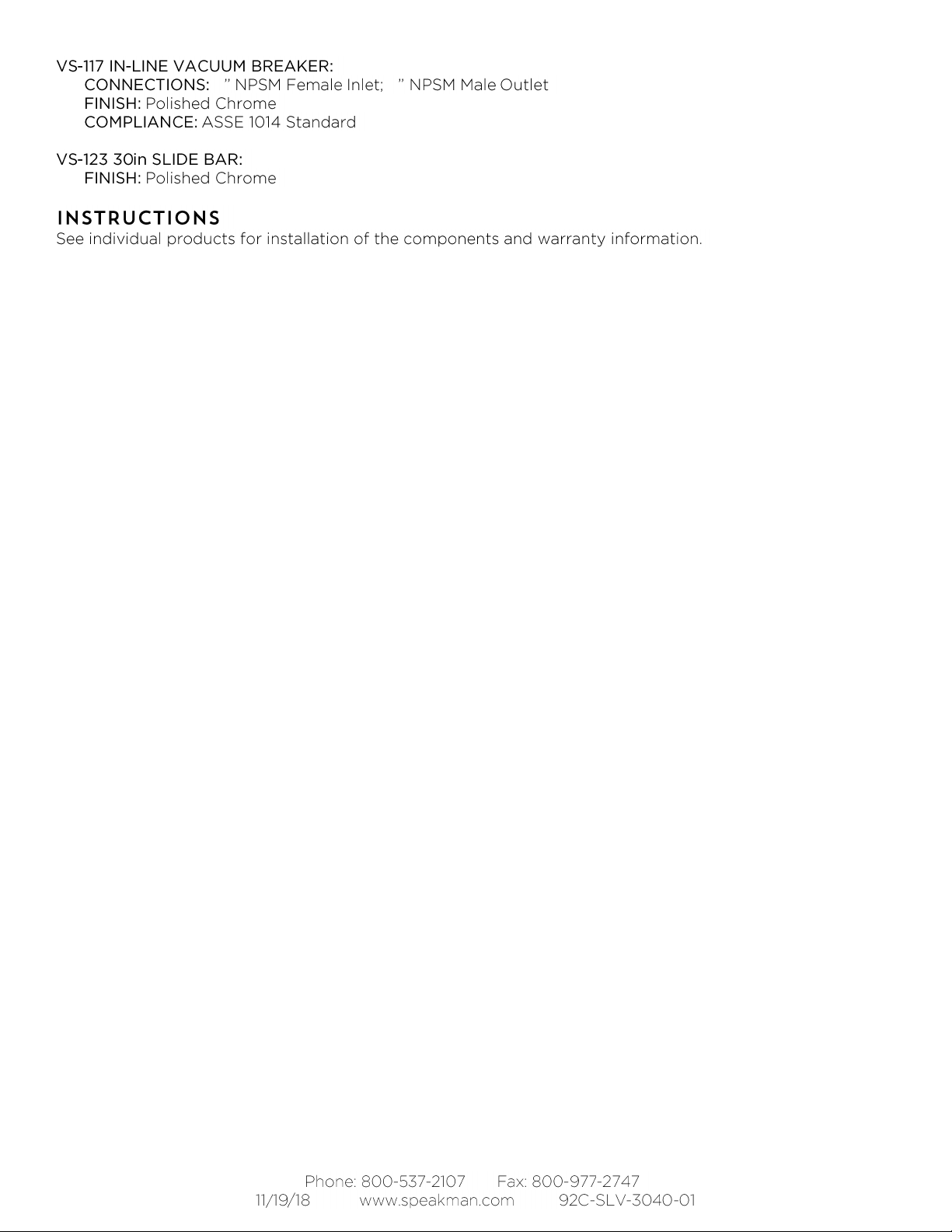

Page 2
SPEAKMAN®
½ ½

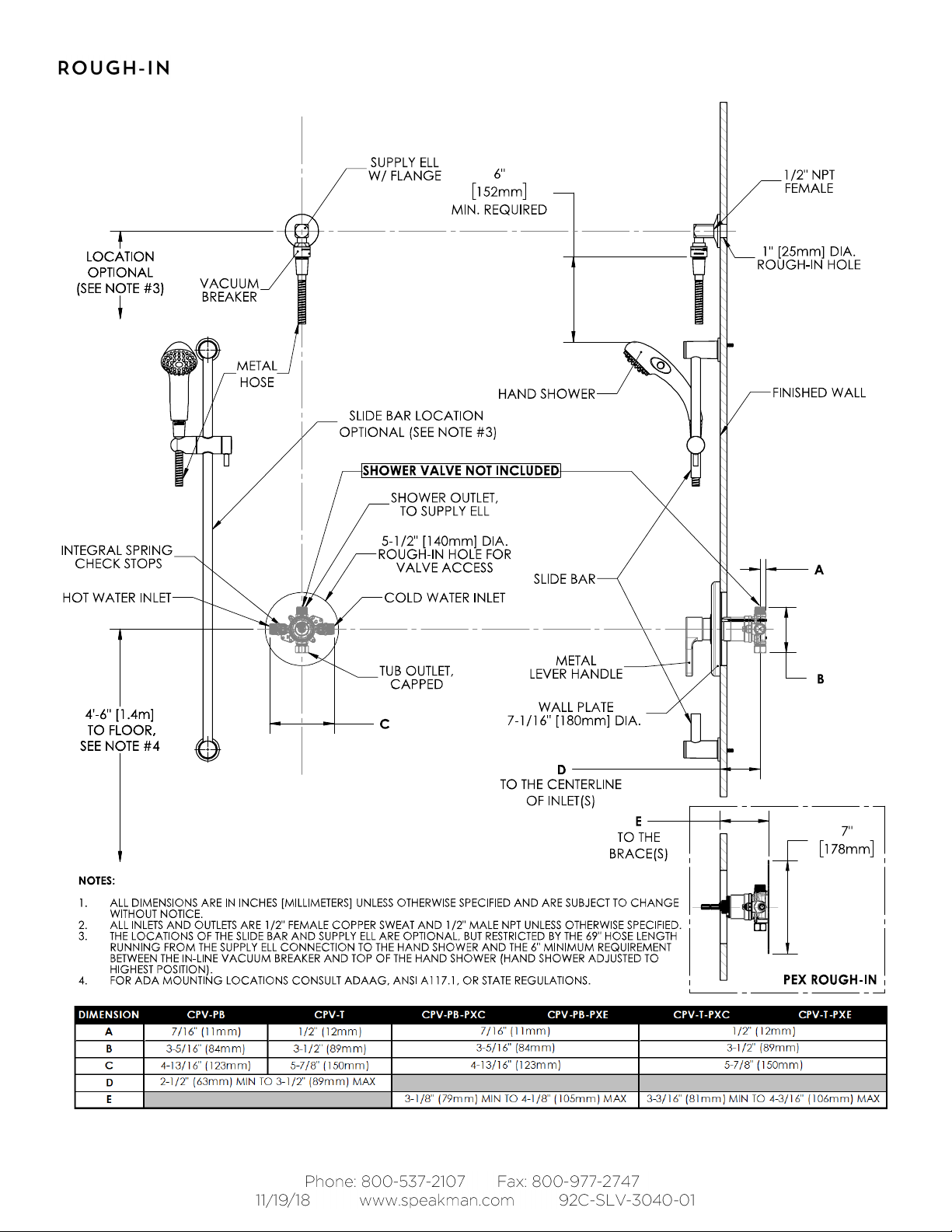

Page 3
SPEAKMAN®
Page 4
INSTRUCTIONS FOR MODELS
CPT-3001
TOOLS AND SUPPLIES
IMPORTANT
Warranty information can be found at:
www.speakman.com
MAINTENANCE
WARRANTY
Phillips
Screwdriver
Hex Key Wrench
(included)
• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as outlined in the Valve Installation
Manual.
• Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
Your new Valve Trim is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.

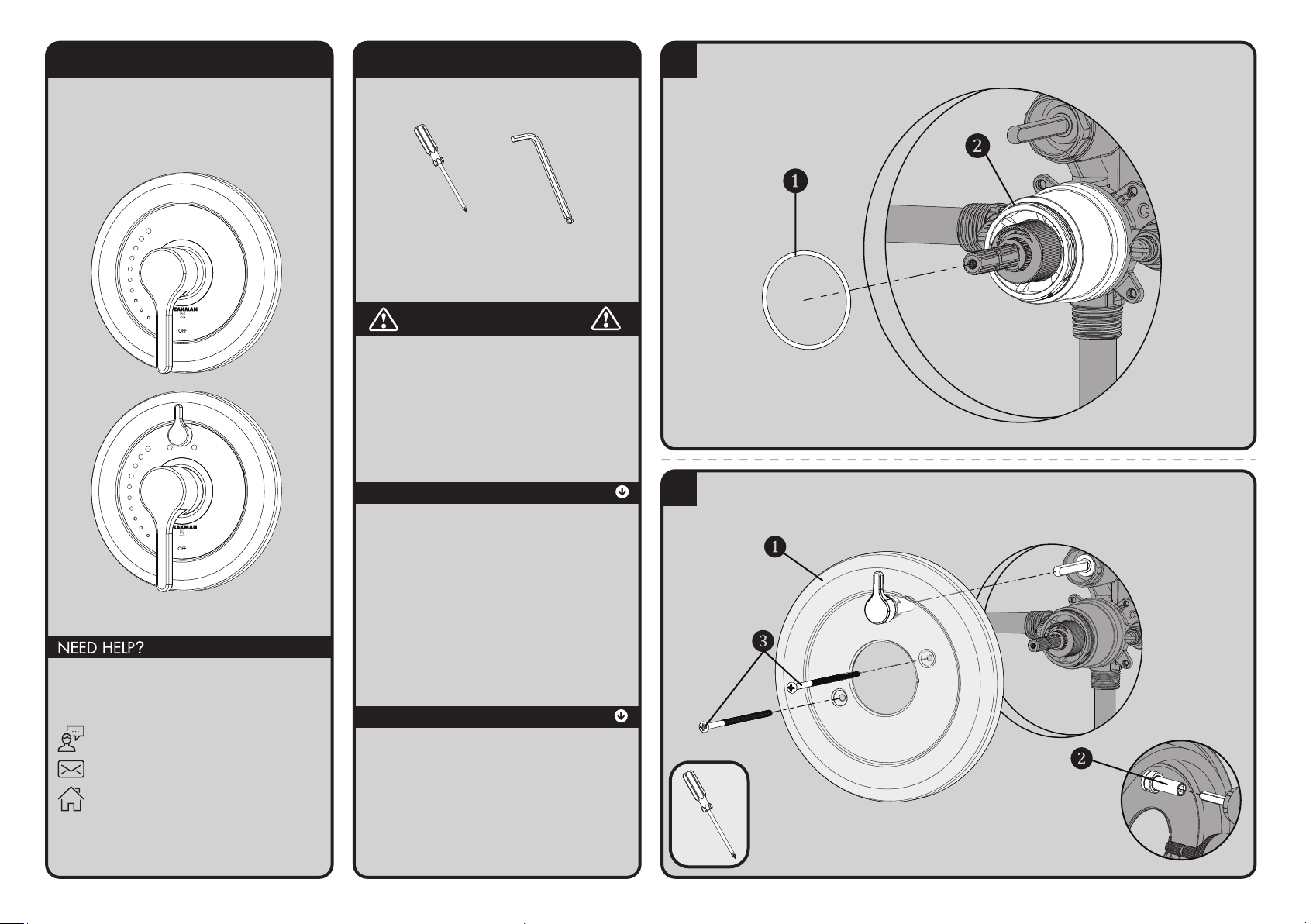

1
OPTIONAL: If a firm fit is required, insert the O-Ring ❶ onto the Bonnet ❷ of the Shower Valve.
2
Verify that the Valve is in the “OFF” position. Install the Wall Plate ❶ to the Valve. If installing a Diverter
model of Trim, align the Diverter Handle to the 12 o’clock position and position the Diverter Drive Tube ❷
over the Diverter Spindle of the Valve. Secure with the included Mounting Screws ❸.
CPT-3401
For additional assistance or service please contact:
SPEAKMAN
800-537-2107
www.speakman.com
®
92-CPT-3001-01
Page 5
3
* VIEW WITHOUT VALVE

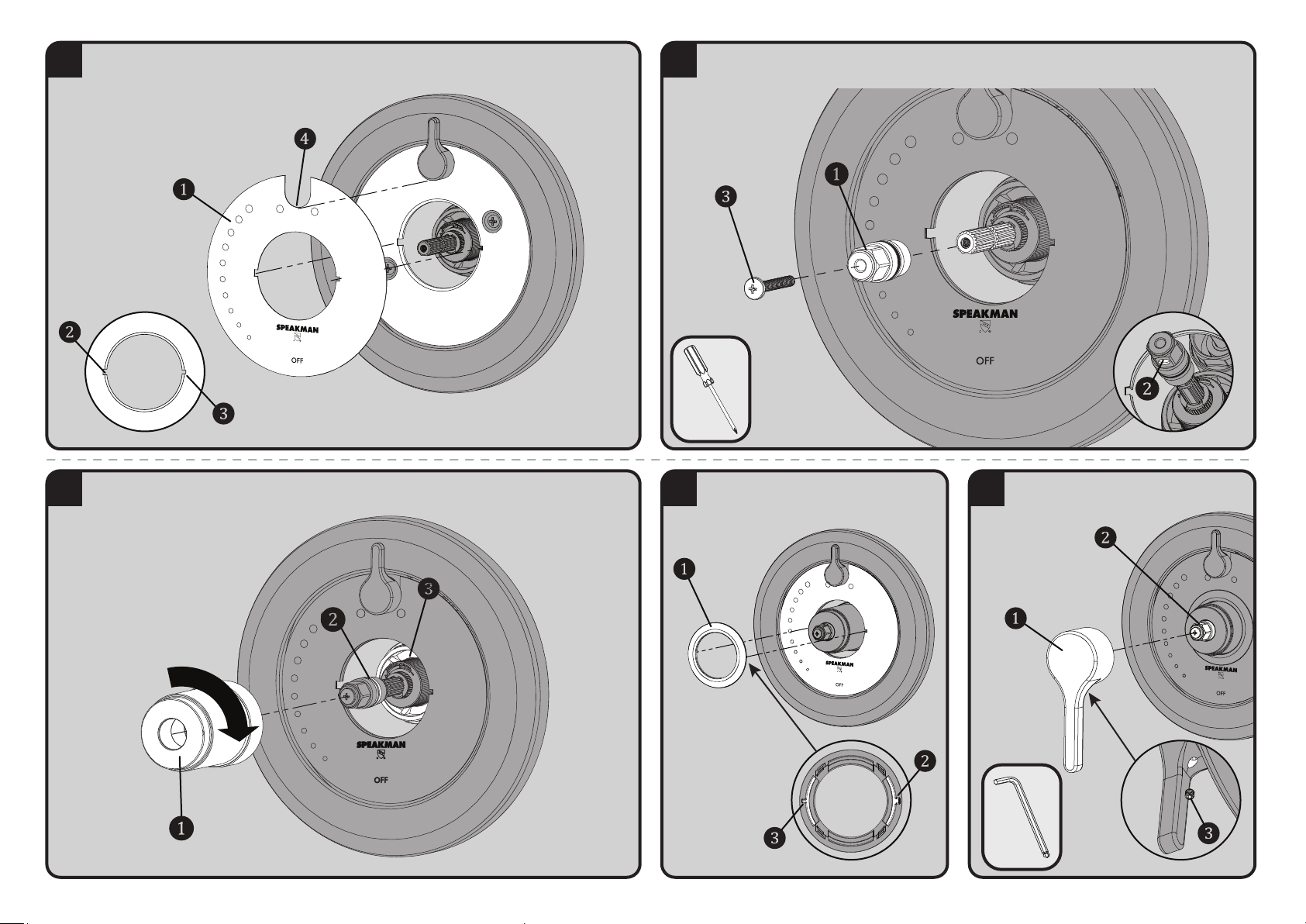

Align the Index Plate ❶ with the Large Slot ❷ and Small Slot ❸ on the Wall Plate. If installing onto a Diverter
Model, align the U shape ❹ under the Diverter Handle and then align to the slots.
4
Install the Spindle Adapter ❶ (with appropriate O-ring in its place) onto the Spindle so that the Circular Indent ❷
is pointing downward and is horizontal as shown below. Secure the Spindle Adapter with the included Screw ❸.
5
Push the Escutcheon ❶ gently over the O-ring ❷ of Spindle Adapter. Thread the Escutcheon onto the Bonnet ❸
of the Valve. Hand tighten into position.
6
Install Retaining Ring ❶. Align the Retaining Ring
with the Large Slot ❷ and Small Slot ❸ on the
Wall Plate. Snap in place.
* BACK OF RETAINING RING
7
* VIEW UNDER THE HANDLE
Orient the Handle ❶ as shown below and
position over the Spindle Adapter ❷. Secure with
the included Set Screw ❸.
Page 6

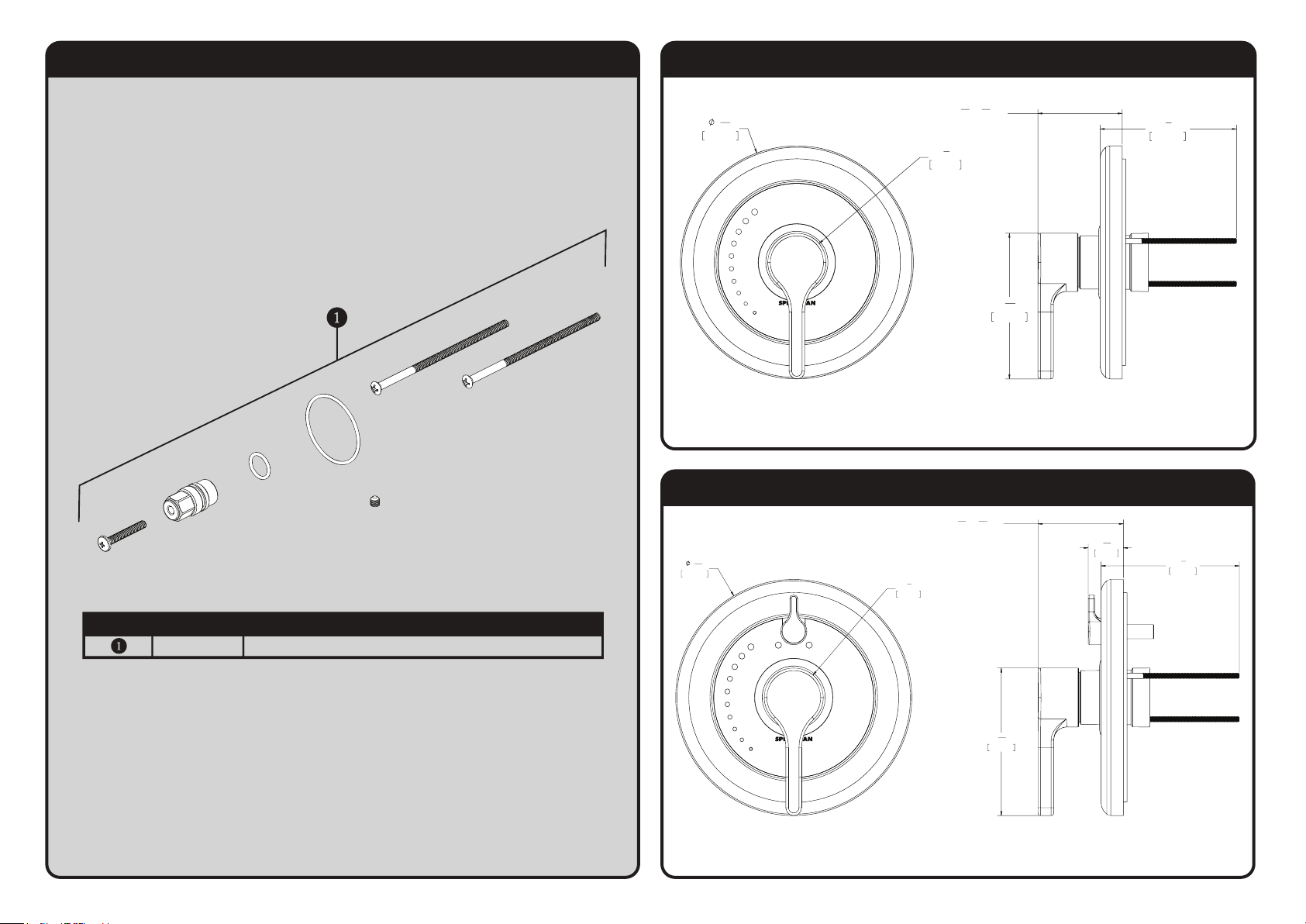

CPT-3001/3401 REPAIR PARTS
ITEM NO. PART NO. DESCRIPTION
RPG05-1126 REPAIR PARTS GROUP FOR CPT-3X01 TRIMS
CPT-3001 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
4
7
16
"
112.5mm
4
1
8
"
105.4mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
CPT-3401 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
1
16
"
26.8mm
4
1
8
"
105.4mm
4
7
16
"
112.5mm
7
1
16
"
180.0mm
R
7
8
"
22.5mm
TRIM IS SHOWN AT A ROUGH-IN DEPTH OF 3.0in
2
1
16
"
-
3
3
16
"
[52.4mm - 81.3mm]
Page 7
INSTRUCTIONS FOR MODELS
92-VS-100-PC-04
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-100-PC
VS-100-PC-E2
VS-100-PC-E175
TOOLS AND SUPPLIES

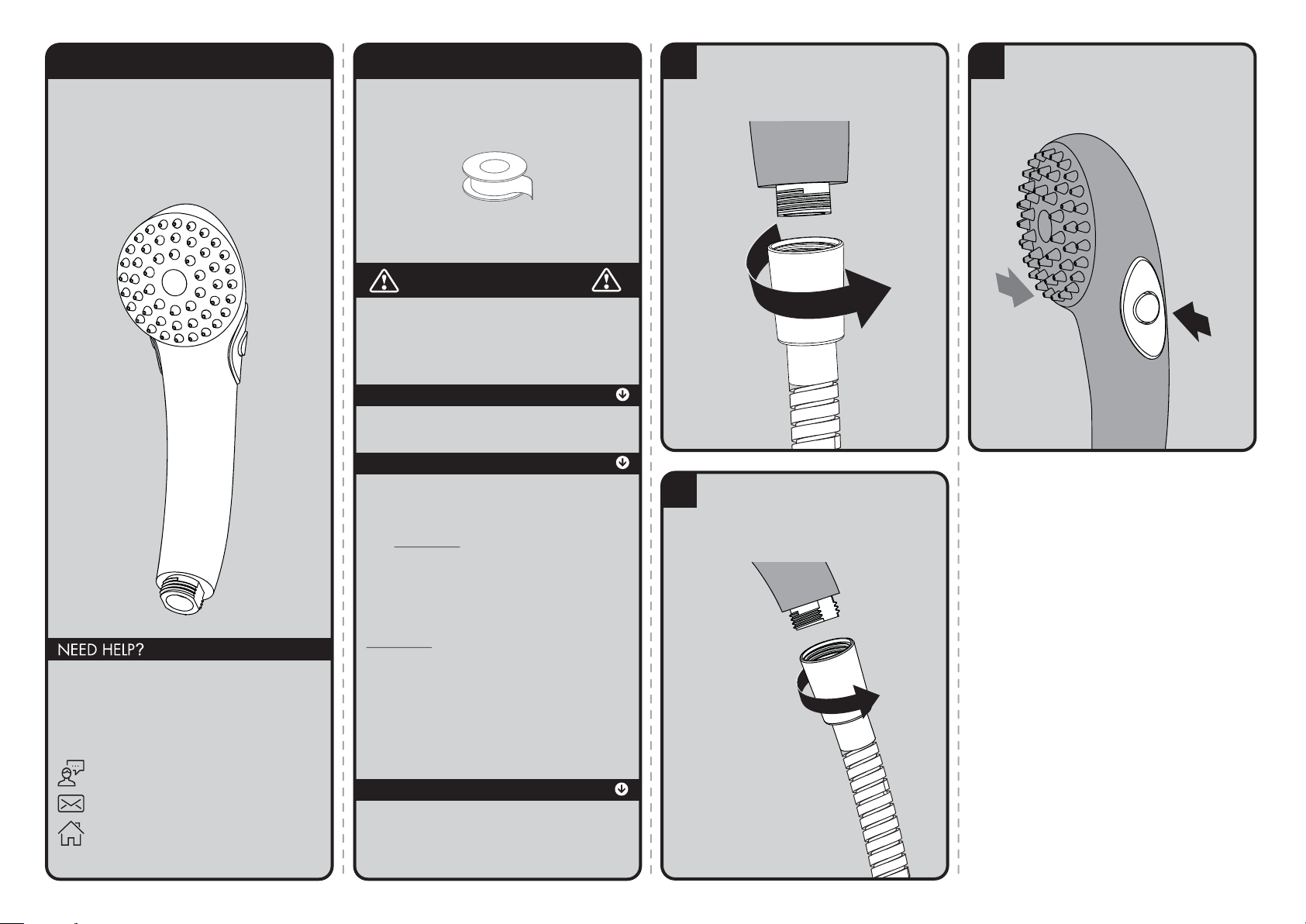

2
Connect remaining end of Hose to inlet
of Hand Shower. Hand tighten. If there
are leaks at the hose connections, look
into using thicker washers to ensure a
tight seal.
1
Connect the correct side of your hose
(not included) to the water supply.
Hand tighten.
3
To pause the flow of water, press the integral
thumb operated pause/trickle button located
on the side of the hand shower. To return the
hand held shower to full flow, press the shuttle
button from the opposite side.
Thread Seal
Tape
(included)
IMPORTANT
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This hand shower
has an optimal operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
Periodic cleaning using a mild soap and warm water
will help keep your Hand Shower’s appearance in its
original condition.
For best results, dry immediately with a soft, clean
cloth. DO NOT USE harsh and/or abrasive cleaners.
On CHROME PLATED HAND SHOWERS, a two (2)
part white vinegar, one (1) part water solution can be
used to break down excessive mineral deposits on the
sprays. Let the hand shower soak in the solution for
about ½ hour then rinse thoroughly. Brush off any
remaining mineral deposits if necessary.
DO NOT USE the vinegar/water treatment on any
finish other than Chrome.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Page 8

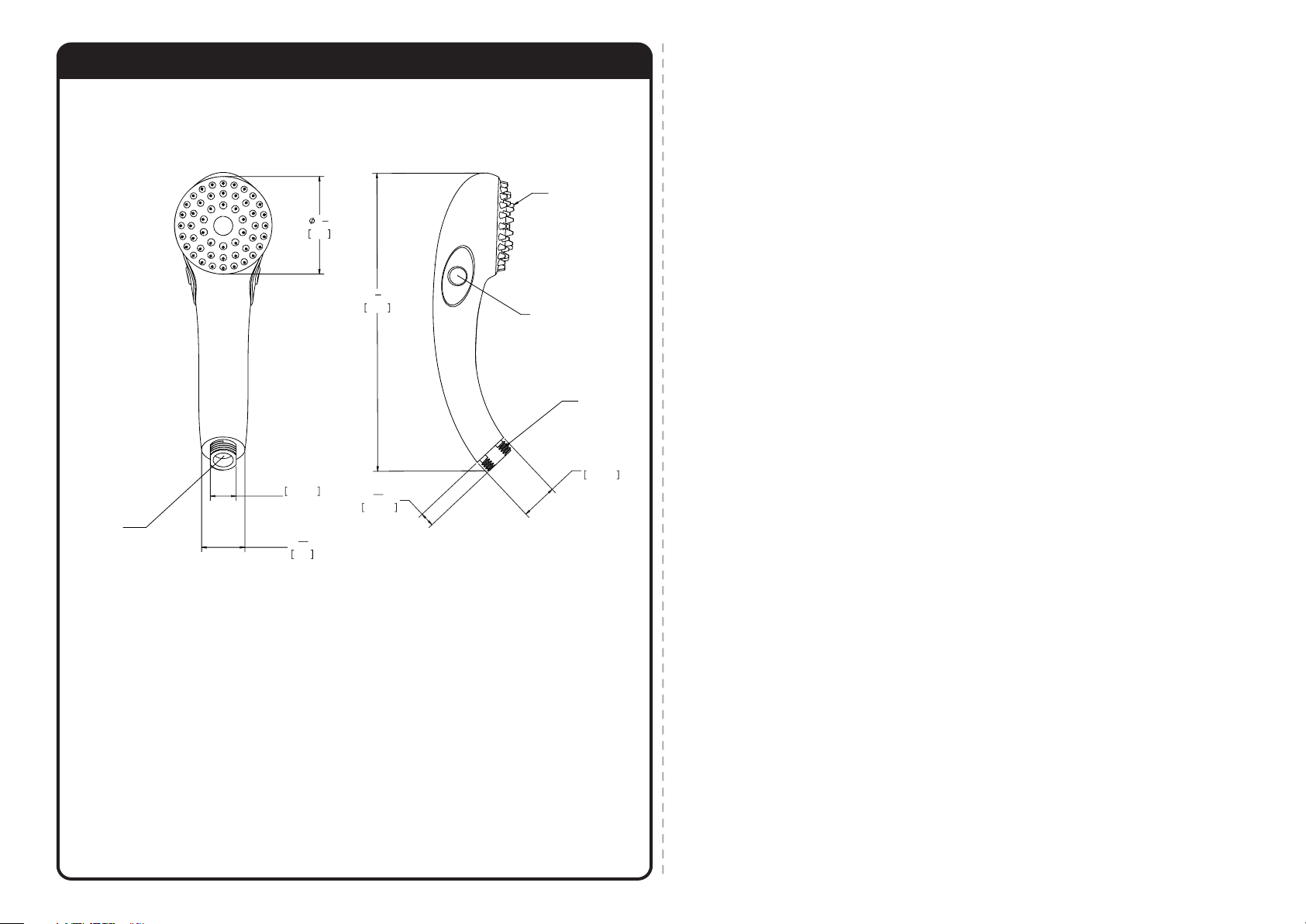

ROUGH IN DIMENSIONS
VS-100-PC-E175
Max. Flow Rate: 1.75 gpm (6.6 L/min)
Min. Flow Rate: 1.3 gpm (4.9 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 5.7 L/MIN (1.5 GPM) OR LESS.
VS-100-PC-E2
Max. Flow Rate: 2.0 gpm (7.6 L/min)
Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 6.6 L/MIN (1.75 GPM) OR LESS.
VS-100-PC
Max. Flow Rate: 2.5 gpm (9.5L/min)
Min. Flow Rate: 2.0 gpm (7.6 L/min) @ 45psi
FOR USE WITH AUTOMATIC COMPENSATING VALVES
RATED AT 7.6 L/MIN (2.0 GPM) OR LESS.
13
32
"
10.16mm
8
1
2
"
215.90
1"
25.40mm
1/2-14 NPSM
MALE THREADED
INLET
50 RUBBER
TIPPED SPRAYS
PAUSE
BUTTON
.714in
18.14mm
ACROSS
FLATS
3
1
8
"
79.38
1
3
16
"
30.18
FLOW CONTROL
INSERTED INTO
HANDLE
Page 9

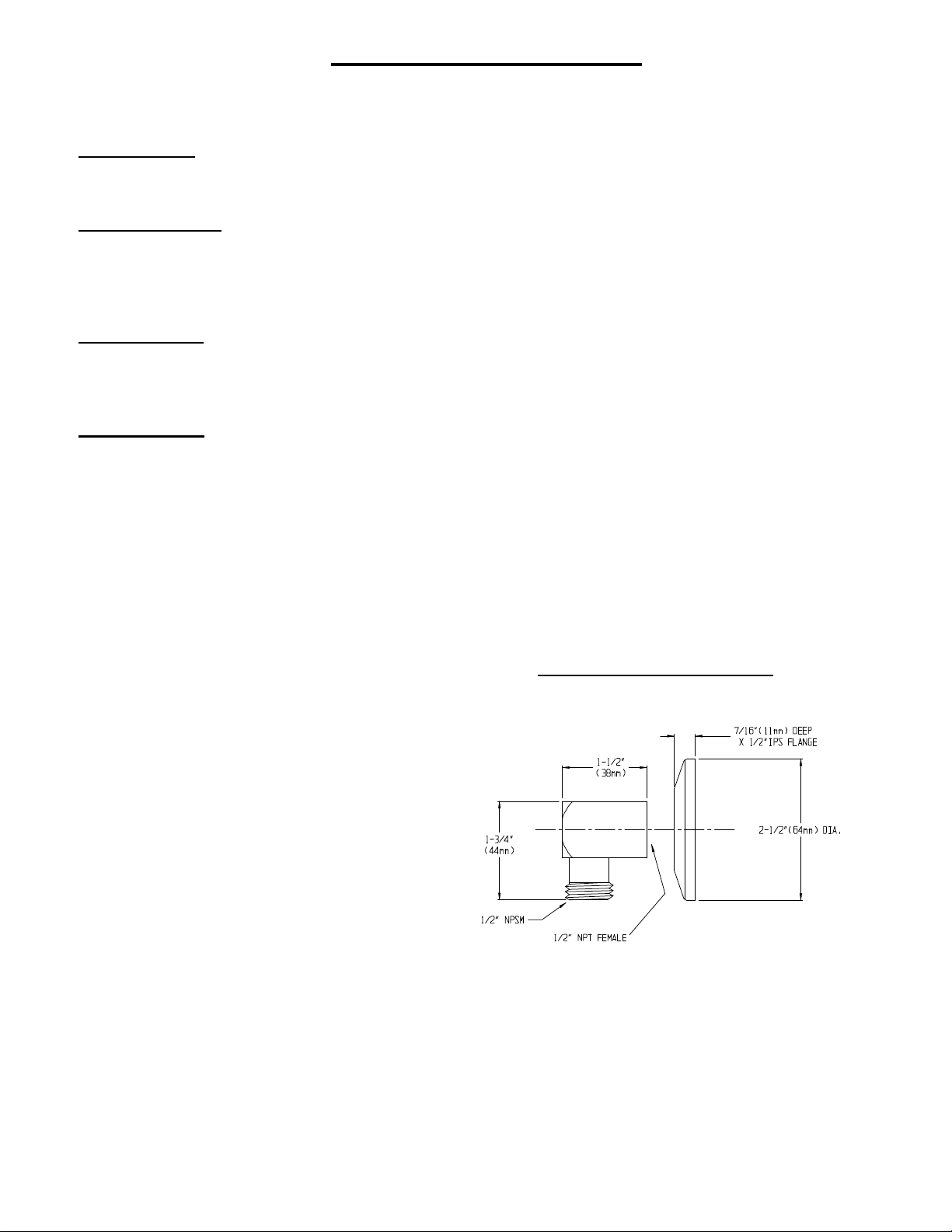

SPEAKMAN COMPANY
VS-115 Installation, Maintenance & Operation Instructions
VERSATILE ® SUPPLY ELL
DESCRIPTION
VERSATILE® chrome plated brass supply ell with wall flange.
SPECIFICATIONS
SUPPLY INLET: ½” NPT FEMALE
OUTLET: ½” NPSM MALE
SHIPPING WEIGHT: 0.4 LBS.
INSTALLATION
Slip the wall flange on to the inlet pipe. Using teflon tape or pipe dope on threads, screw ell onto pipe and wrench
tighten. Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks.
MAINTENANCE
The gleaming finish of your SPEAKMAN
VERSATILE® VS-115 supply ell can be cleaned by
using mild soap and warm water. Dry immediately
with a soft, clean cloth for best results.
Product improvements may cause
specification and dimensional
changes without notice.
ROUGH-IN MEASUREMENTS
®
SPEAKMAN
PO Box 191 Wilmington, DE 19899 Phone: 800-537-2107 Fax: 800-977-2747
Visit us on the web at www.speakmancompany.com
09/07
REV 1
92-1775
Page 10
SPEAKMAN COMPANY
VS-117 Installation, Maintenance & Operation Instructions
VERSATILE ® VACUUM BREAKER
DESCRIPTION
VERSATILE® chrome plated brass in-line vacuum breaker.
SPECIFICATIONS
SUPPLY INLET: ½” NPSM FEMALE
OUTLET : ½” NPSM MALE
SHIPPING WEIGHT: XXX LBS.
INSTALLATION
Connect, using rubber washer, to supply piping. Connect accessories to vacuum breaker. Firmly hand tighten
connection. Turn water supply on and check for leaks.
Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause
water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker).
MAINTENANCE
The gleaming finish of your SPEAKMAN
VERSATILE® VS-117 vacuum breaker can be
cleaned by using mild soap and warm water. Dry
immediately with a soft, clean cloth for best results.
Product improvements may cause
specification and dimensional
changes without notice.
SPEAKMAN COMPANY
The Quality Leader Since 1869
P.O. Box 191, Wilmington, DE 19899-0191 USA
1-800-537-2107, Fax: 1-800-977-2747

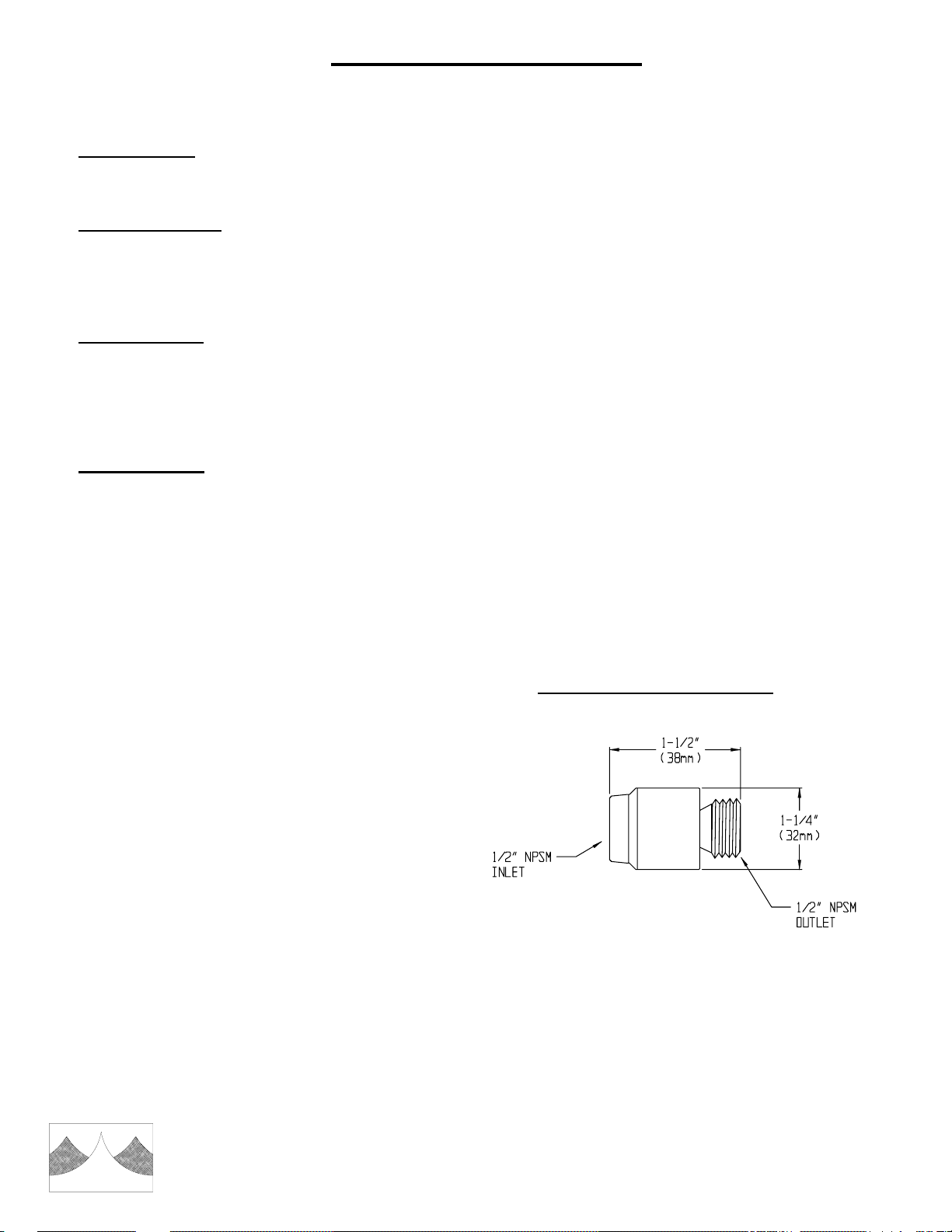

ROUGH-IN MEASUREMENTS
04/00
92-1783
Page 11
INSTRUCTIONS FOR MODELS
92-VS-12X-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
VS-123
VS-124
TOOLS AND SUPPLIES
Level
Phillips
Drive Bit
Measuring
Tape
Phillips
Screwdriver
Pencil
Drill
Drill Bit
Ø
1
/4”
Tile Drill Bit
Ø
1
/4”
Mounting Hardware
(included)
• Cover your drain to prevent loss of parts. Be sure
to wear eye protection.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
Warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Your new Speakman Product is designed for years of
1
Remove End Caps from both ends of Slide Bar
assembly.
X2
2
Place Slide Bar Assembly on to wall in the
desired mounting position. Take care that the
Slide Bar is oriented in a vertical position. Using
a pencil, mark the 2 hole locations.
3
If mounting directly to wood stud, Plastic Anchors
are not required. If mounting to drywall or tile,
select appropriate 1/4" drill bit and drill guide
holes at marked locations.
Ø1/4”
OR OR
X2
4
Insert Plastic Anchors into drilled holes and
press/tap into place until the head is flush to the
wall surface. (Note: Plastic Anchors provided
may not be suitable for all types of wall
construction, seek professional help if in doubt).
X2
5
Secure Slide Bar Assembly to the wall with the
Mounting Screws provided.
X2
6
Re-install End Caps on both ends of Slide Bar
assembly.
X2
7
Orient the Hand Held Shower Bracket to your
desired position. Adjustments are made by
rotating the Handle counter-clockwise to release
the position, and clockwise to lock into the
desired position.
8
Note: If the Hand Shower Holder no longer
holds position, Tighten the Screw (1) in the
Shower Holder using a Philips Head
Screwdriver.
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
Page 12

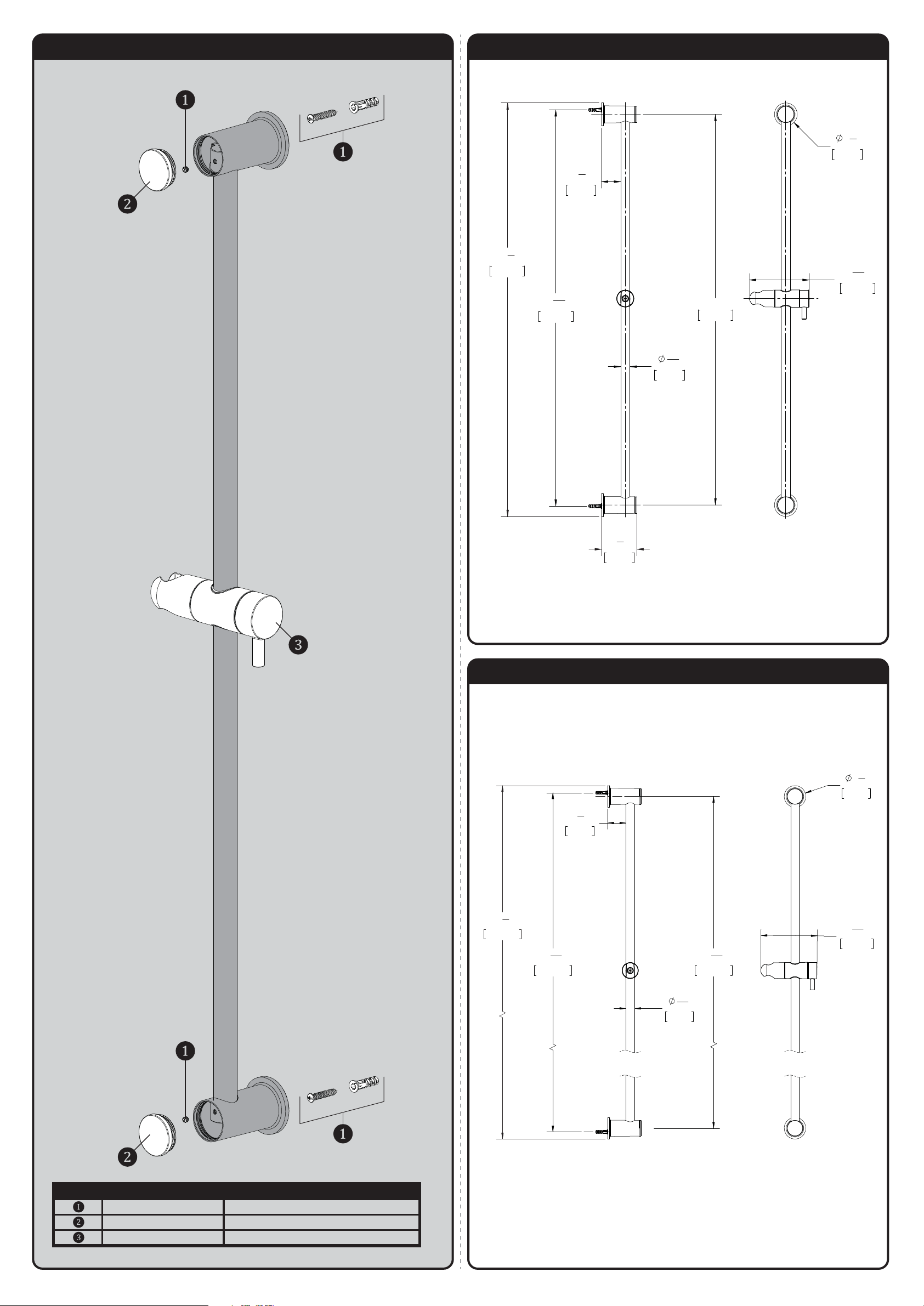

VS-123 / VS-124 REPAIR PARTS
SPEAKMAN
®
RPG05-108526 MOUNTING HARDWARE
RPG07-108527 END CAP REPAIR GROUP
RPG56-108517 HAND SHOWER HOLDER
ITEM NO. PART NO. DESCRIPTION
VS-123 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
3
4
"
45mm
4
9
16
"
116mm
11
16
"
18mm
2
3
4
"
69mm
30"
762mm
30
7
16
"
773mm
31
3
4
"
807mm
1
1
2
"
38mm
VS-124 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
1
3
4
"
45mm
4
9
16
"
116mm
11
16
"
18mm
41
15
16
"
1066mm
42
9
16
"
1081mm
43
3
4
"
1111mm
1
1
2
"
38mm
