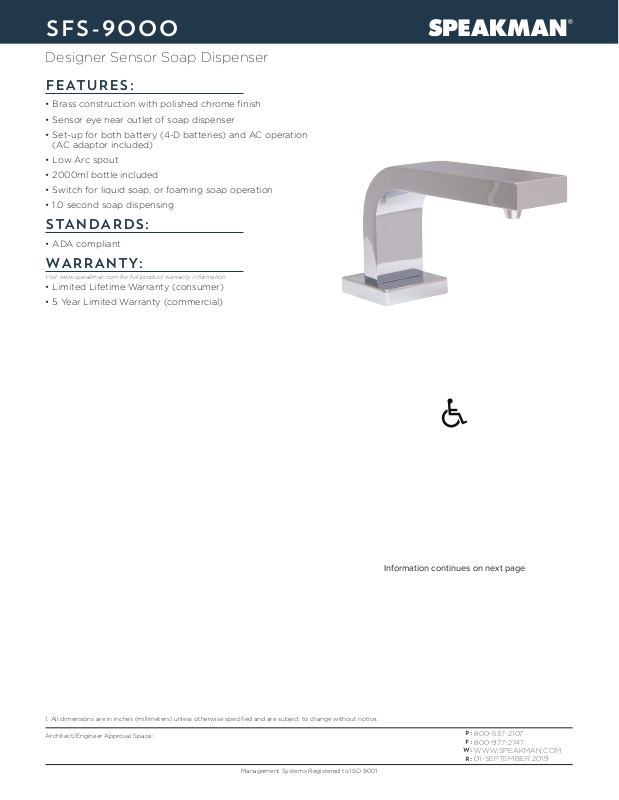

Page 1
SFS-9000
Designer Sensor Soap Dispenser
FEATURES:
• Brass construction with polished chrome finish
• Sensor eye near outlet of soap dispenser
• Set-up for both battery (4-D batteries) and AC operation
(AC adaptor included)
• Low Arc spout
• 2000ml bottle included
• Switch for liquid soap, or foaming soap operation
• 1.0 second soap dispensing
STANDARDS:
• ADA compliant
WARRANTY:
Visit www.speakman.com for full product warranty information
• Limited Lifetime Warranty (consumer)
• 5 Year Limited Warranty (commercial)
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
Information continues on next page
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-SEPTEMBER 2019
Page 2
SFS-9000
5
MAX
THICKNESS
Designer Sensor Soap Dispenser
7
3
"
16
88mm
161mm
112mm
6
"
16
3
4
"
8
2"
51mm
2"
45" MAX
WIRE LENGTH
MAX DECK
14" MAX
IN ALL DIRECTIONS
2"
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-SEPTEMBER 2019
