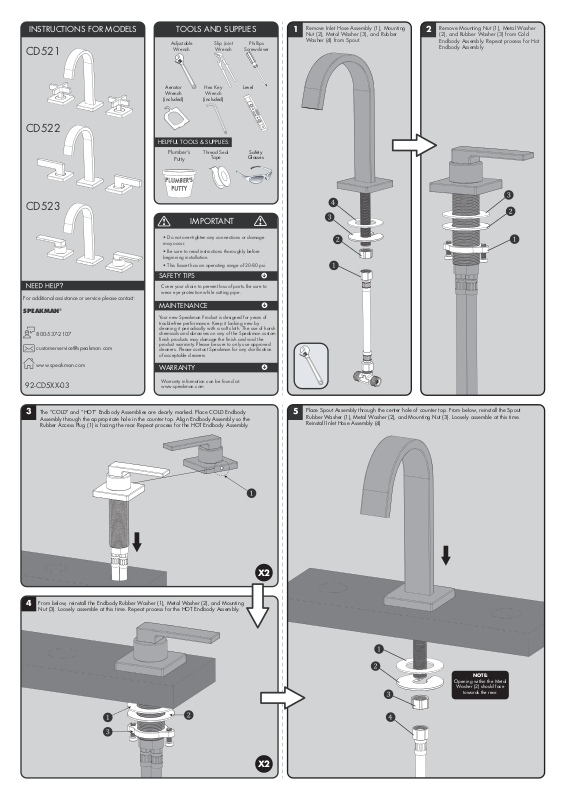

INSTRUCTIONS FOR MODELS
92-CD5XX-03
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
www.speakman.com
CD521
CD522
CD523
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Adjustable
Wrench
Slip Joint
Wrench
Thread Seal
Tape
Aerator
Wrench
(included)
Phillips
Screwdriver
Safety
Glasses
Plumber’s
Putty
Hex Key
Wrench
(included)
Level
Warranty information can be found at:
www.speakman.com
WARRANTY
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This faucet has an operating range of 20-80 psi.
1

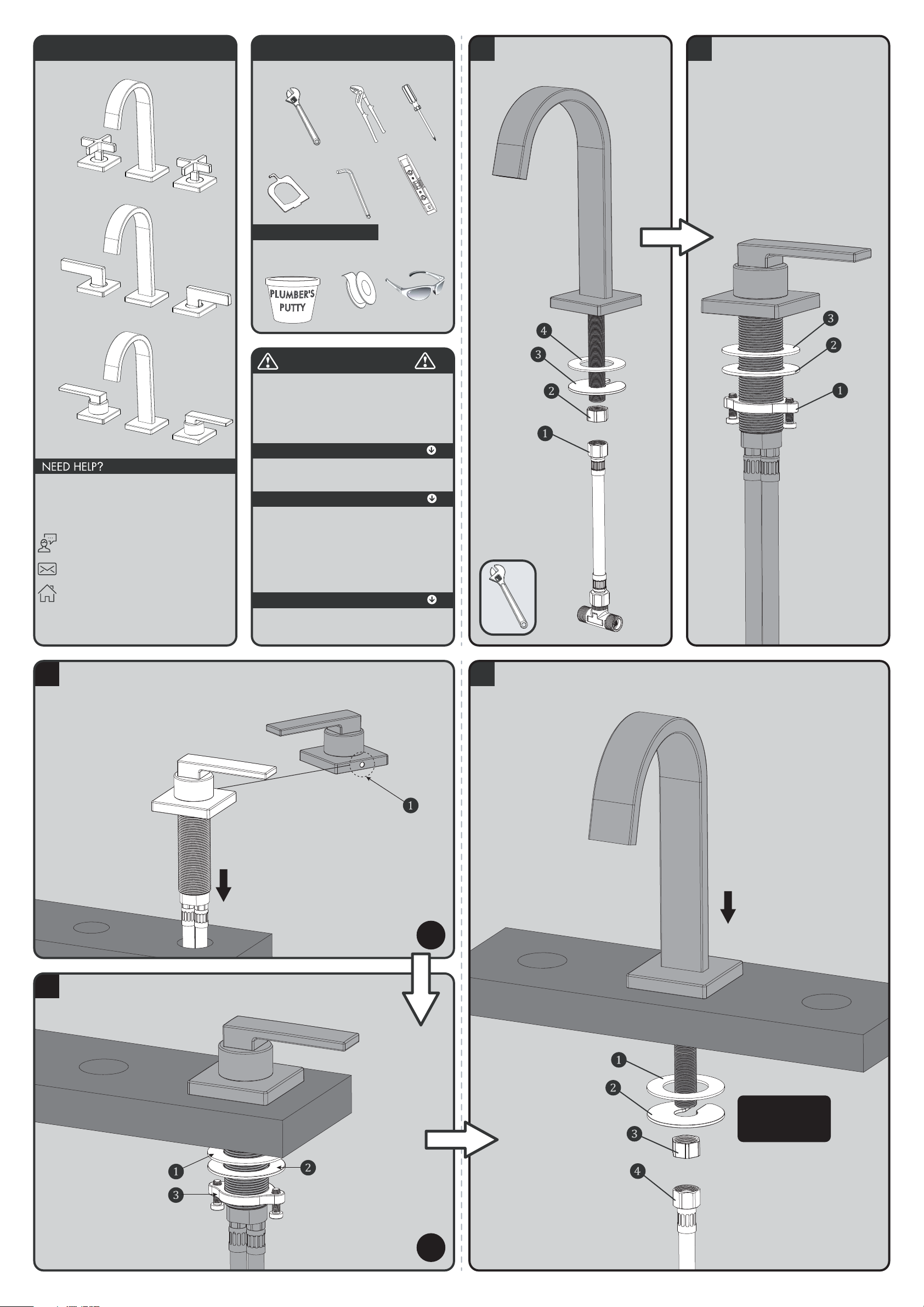

Remove Inlet Hose Assembly (1), Mounting
Nut (2), Metal Washer (3), and Rubber
Washer (4) from Spout.
2
Remove Mounting Nut (1), Metal Washer
(2), and Rubber Washer (3) from Cold
Endbody Assembly. Repeat process for Hot
Endbody Assembly
3
The “COLD” and “HOT” Endbody Assemblies are clearly marked. Place COLD Endbody
Assembly through the appropriate hole in the counter top. Align Endbody Assembly so the
Rubber Access Plug (1) is facing the rear. Repeat process for the HOT Endbody Assembly.
X2
4
From below, reinstall the Endbody Rubber Washer (1), Metal Washer (2), and Mounting
Nut (3). Loosely assemble at this time. Repeat process for the HOT Endbody Assembly.
X2
5
Place Spout Assembly through the center hole of counter top. From below, reinstall the Spout
Rubber Washer (1), Metal Washer (2), and Mounting Nut (3). Loosely assemble at this time.
Reinstall Inlet Hose Assembly (4)
NOTE:
Opening within the Metal
Washer (2) should face
towards the rear.
Page 2
6

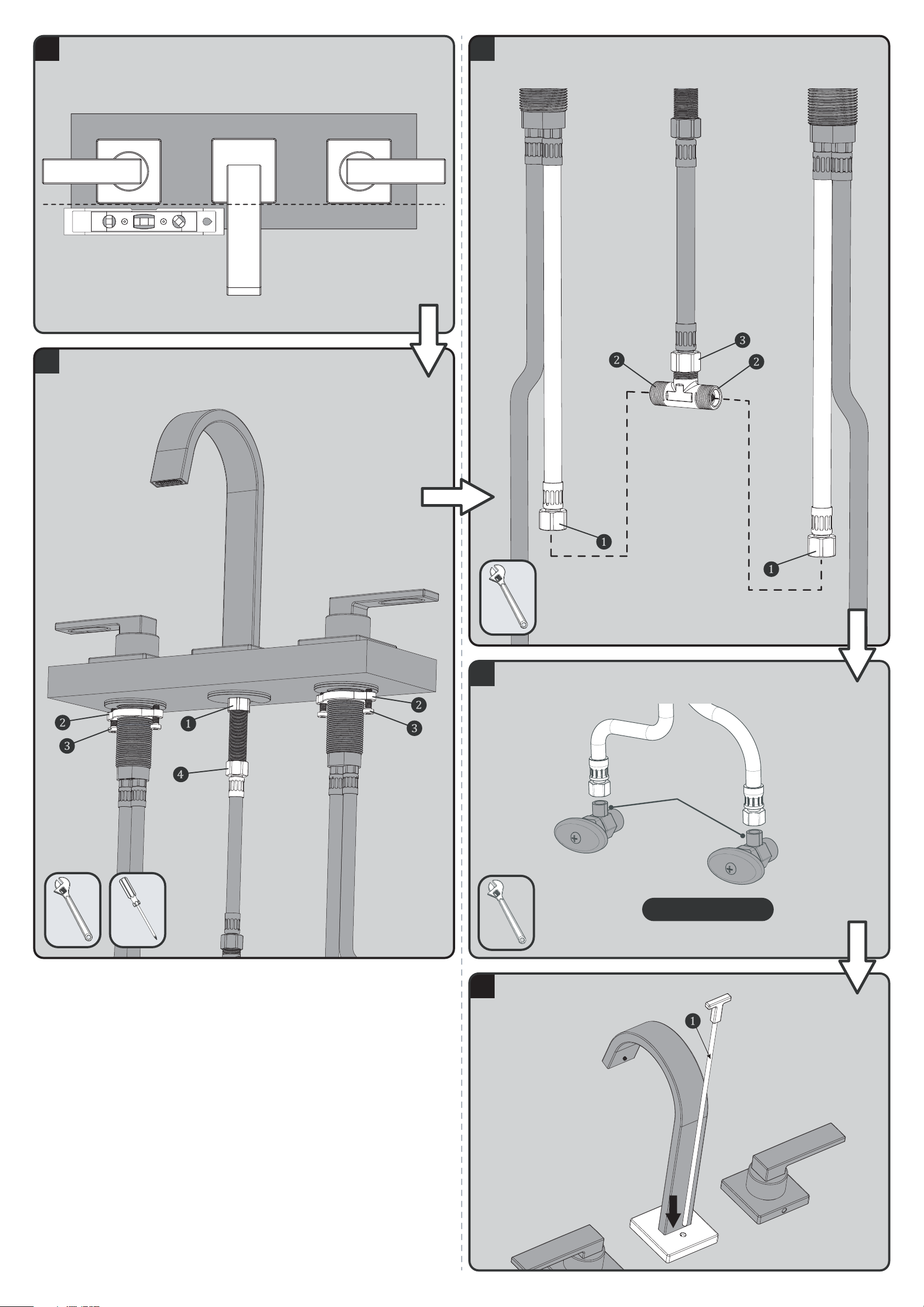

From above, align Spout and Handle bases so that they are aligned horizontally.
7
While maintaining the proper alignment, Wrench Tighten Spout Mounting Nut (1). Then
snug Endbody Mounting Nuts (2). Final tightening of Endbody mounting is accomplished
by Tightening the Mounting Screws (3) while using a Phillips Screwdriver. Wrench tighten
Spout Inlet Hose (4).
8
From below, install the Endbody Outlet Hoses (1) (shorter hose) to the Inlet Tee of the Spout (2).
Wrench Tighten. Wrench tighten Spout Inlet Hose (3) to Inlet Tee (2)
9
Make connections to water supplies. The inlet threads of the faucet are 9/16”-24 UNEF and will
accept a 3/8” Compression Fitting. Wrench Tighten.
Accepts a 3/8”
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
10
Insert Lift Rod (1) down into the hole in the flange in the back of the Spout.
Orient Lift Rod as shown below.
Page 3

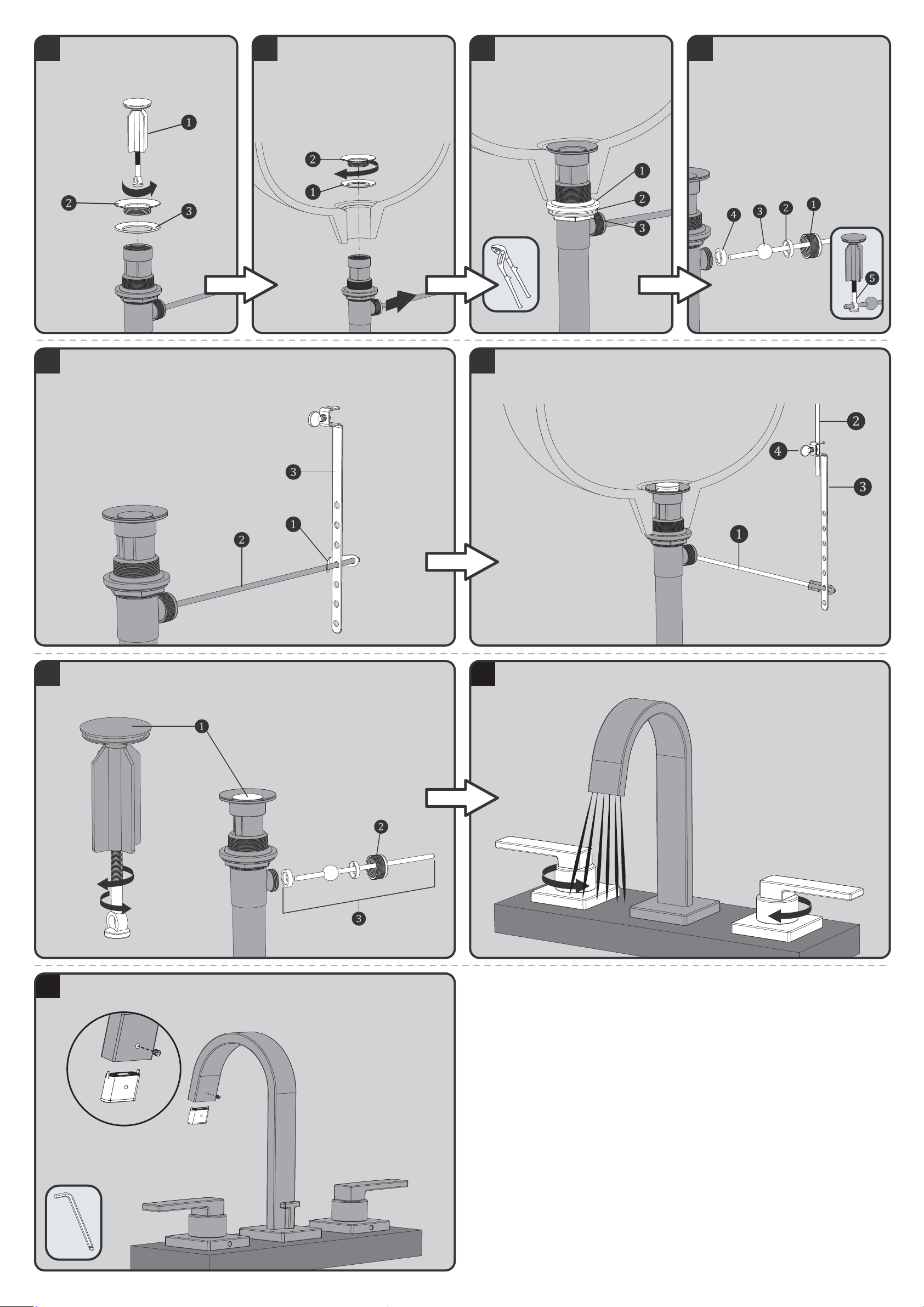

11
Remove Stopper ❶, Flange Nut ❷, and Flange
Washer ❸ from Drain Assembly.
12
From beneath, insert Drain Assembly through
drain hole in sink. Attach supplied Flange
Washer ❶ or plumber’s putty to the underside of
the Flange ❷. Secure Flange ❷ to the Drain
Assembly. Align the Drain Assembly as shown
below.
Align towards faucet.
13
From beneath, secure Rubber Washer ❶, Plastic
Washer ❷, and Mounting Nut ❸. Wrench
tighten.
14
Remove Pivot Nut ❶, from Drain Assembly.
Install Outer Pivot Washer ❷, and Pivot Rod ❸.
Ensure that Inner Pivot Washer ❹ is retained in
Drain Assembly. Insert Pivot Rod into Drain
Assembly and install Stopper ❺ as non-removable. Secure Pivot Rod to Drain Assembly by
tightening Pivot Nut ❶.
15
Place one end of Spring Clip ❶, on Pivot Rod ❷. Insert Pivot Rod ❷ through a hole in the Lift Rod Strap ❸.
Secure with Spring Clip ❶.
16
Place Drain into the open position by pressing downward on the Pivot Rod ❶. Insert Lift Rod ❷ into Strap ❸.
Adjust height of Lift Rod ❷, and tighten Thumb Screw ❹.
17
Additional adjustments can be made to ensure a proper seal between the Drain Stopper ❶ and Drain
Assembly. Remove Pivot Nut ❷, from Drain Assembly. Slide out Pivot Rod Assembly ❸ . Remove Drain Stopper
❶. Additional adjustments can be made by either threading in or out the eyelet portion of the Drain Stopper ❶.
18
Turn on water supplies and flush both COLD and HOT cartridges for one minute, while checking
for leaks. Return Handles to closed position when complete.
19
Align threaded hole of Aerator towards the rear as shown above. Install Aerator and secure into
position using the included Hex Wrench.
Page 4

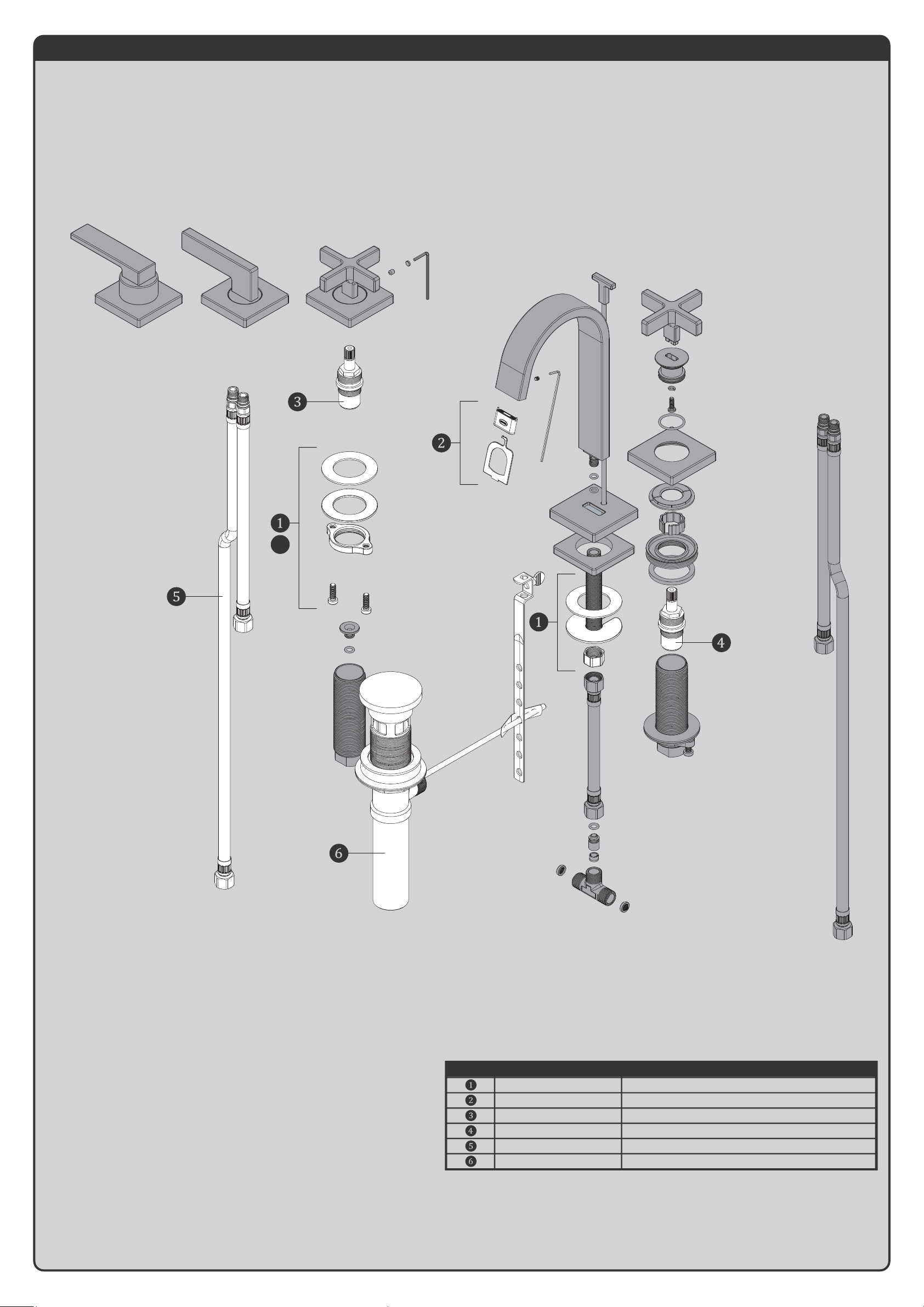

CD5XX REPAIR PARTS
SPEAKMAN
®
RPG05-106848 MOUNTING HARDWARE
RPG05-106849 AERATOR BAG GROUP
RPG05-106850 HOT WATER REPLACEMENT CARTRIDGE
RPG05-106851 COLD WATER REPLACEMENT CARTRIDGE
RPG63-106852 S/S BRAIDED SUPPLY HOSE REPLACEMENT GROUP
S-3357-XX (XX = FINISH) REPLACEMENT "LIFT ROD" DRAIN ASSEMBLY
ITEM NO. PART NO. DESCRIPTION
X2
Page 5

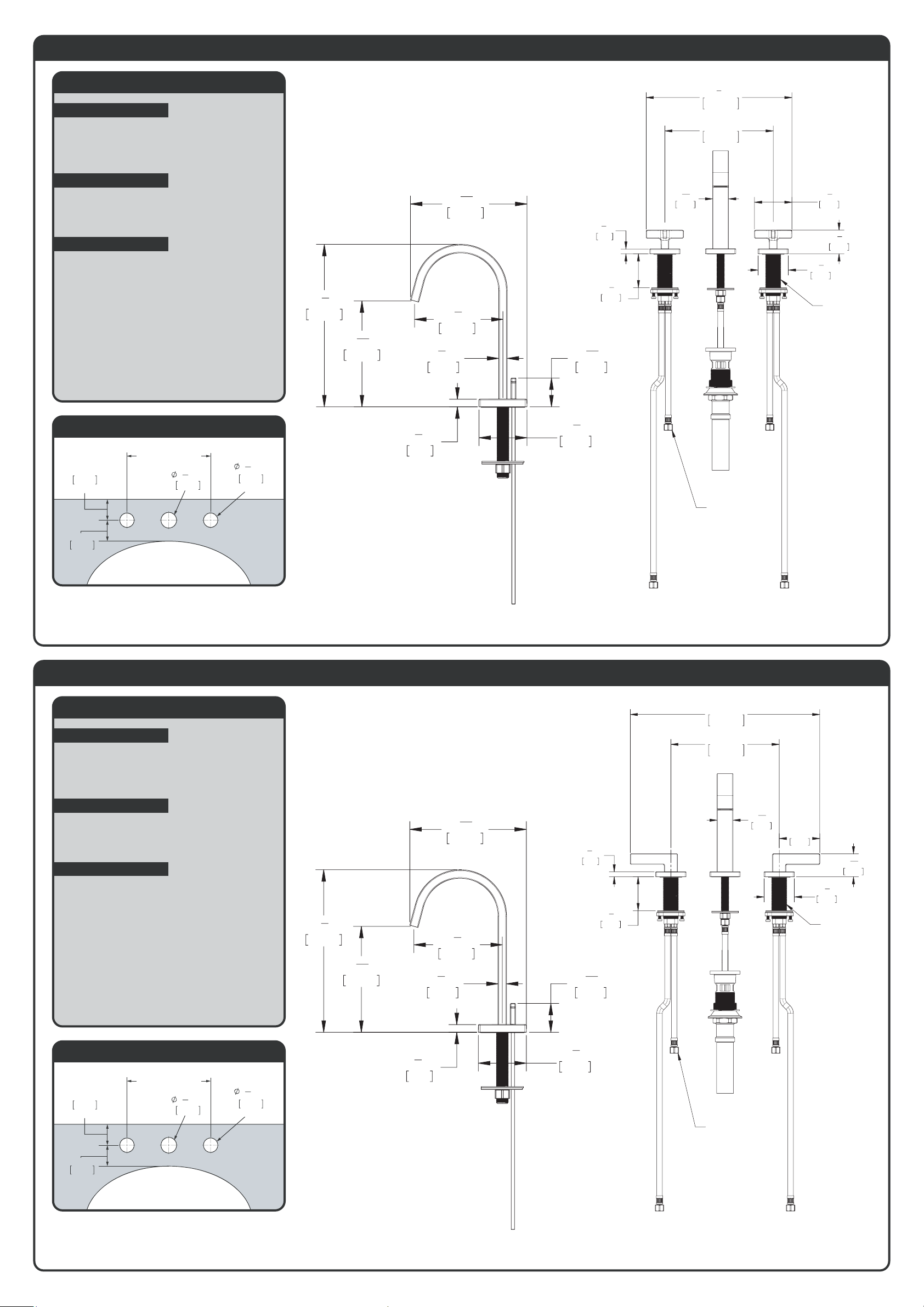

CD521 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
FLOW:
CONNECTIONS:
ASME A112.18.1/CSA B 125.1
AB1953
NSF 372
NSF 61
Flow Rate: 1.2 gpm
Flow Type: Aerated
For flexible hose connection
Hot Supply- 9/16-24UNEF-2B
Cold Supply- 9/16-24UNEF-2B
Contractor to supply necessary connections
to the inlets of the end bodies.
2
1
4
"
57mm
1
3
16
"
30mm
8"
+
-
4"
2"
203mm
+-102
51
2
1
2
"
64mm
MAX DECK
THICKNESS
1
3
4
"
44mm
2
3
4
"
70mm
(TYP)
10
3
4
"
+-4"
2"
273mm
+-102
51
3
8
"
9mm
1-1/8-16-UN-2A
9/16-24UNEF-2B
(ALL HOSES)
2
1
4
"
57mm
TYP
3
8
"
10mm
1
11
32
"
34mm
3
8
"
9mm
5
7
16
"
138mm
7
5
8
"
193mm
4
15
16
"
126mm
4
1
8
"
105mm
SPOUT ONLY VIEW
2"
MIN. TO LEDGE
51mm
2"
MIN. TO WALL
51mm
LAVATORY ROUGH-IN
32mm
1
1
4
"
MIN
32mm
(TYP.)
1
1
4
"
MIN
6” MIN - 12” MAX
CD522 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
FLOW:
CONNECTIONS:
ASME A112.18.1/CSA B 125.1
AB1953
NSF 372
NSF 61
Flow Rate: 1.2 gpm
Flow Type: Aerated
For flexible hose connection
Hot Supply- 9/16-24UNEF-2B
Cold Supply- 9/16-24UNEF-2B
Contractor to supply necessary connections
to the inlets of the end bodies.
2
1
4
"
57mm
TYP
3
8
"
10mm
1
11
32
"
34mm
3
8
"
9mm
5
7
16
"
138mm
7
5
8
"
193mm
4
15
16
"
126mm
4
1
8
"
105mm
SPOUT ONLY VIEW
2
1
4
"
57mm
(TYP)
1
11
16
"
43mm
3"
76mm
1
3
16
"
30mm
8"
+
-
4"
2"
203mm
+-102
51
14"
+
-
4"
2"
356mm
+-102
51
3
8
"
9mm
2
1
2
"
64mm
MAX DECK
THICKNESS
1-1/8-16-UN-2A
9/16-24UNEF-2B
(ALL HOSES)
2"
MIN. TO LEDGE
51mm
2"
MIN. TO WALL
51mm
LAVATORY ROUGH-IN
32mm
1
1
4
"
MIN
32mm
(TYP.)
1
1
4
"
MIN
6” MIN - 12” MAX
Page 6

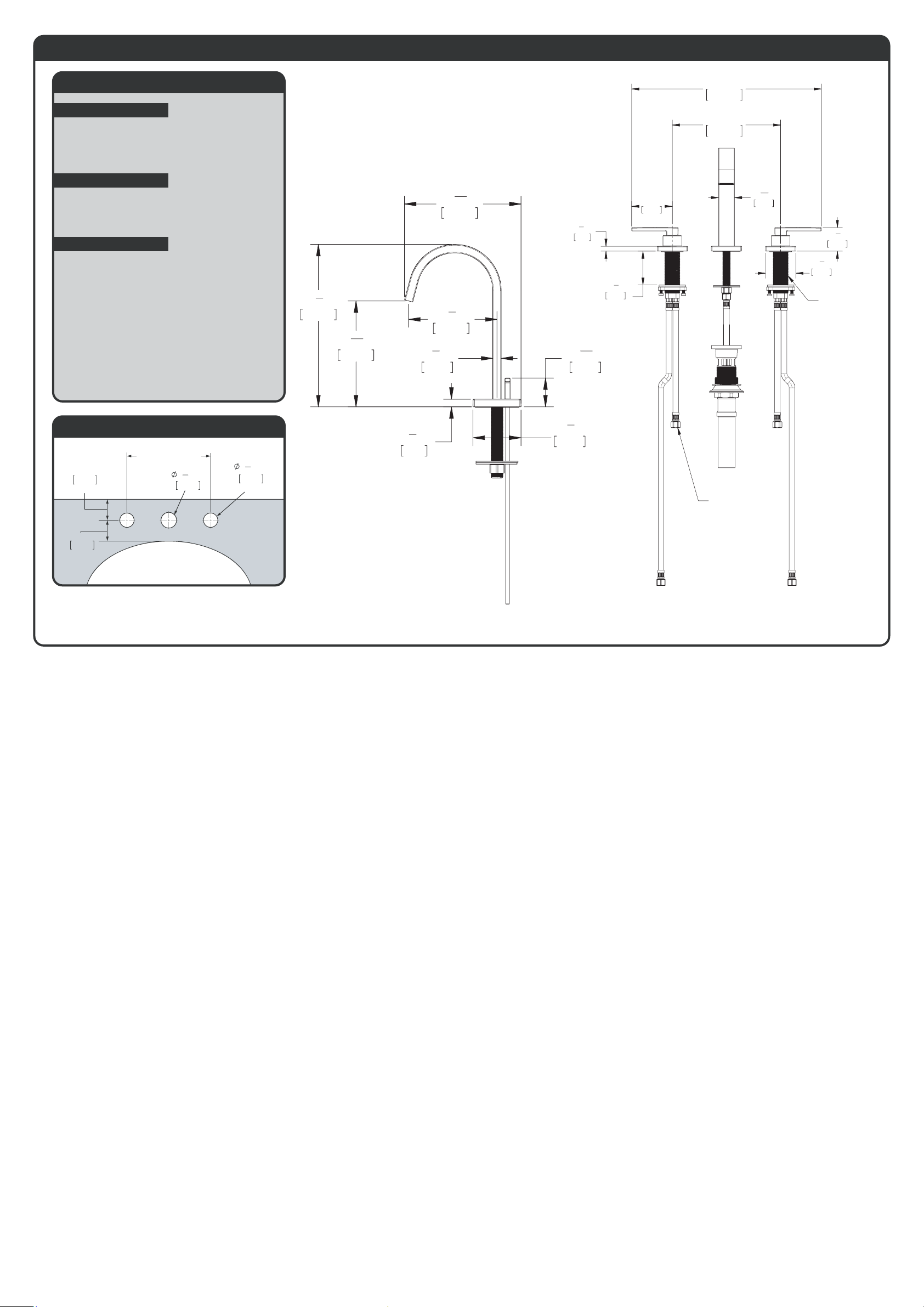

CD523 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTES:
COMPLIANCE:
FLOW:
CONNECTIONS:
ASME A112.18.1/CSA B 125.1
AB1953
NSF 372
NSF 61
Flow Rate: 1.2 gpm
Flow Type: Aerated
For flexible hose connection
Hot Supply- 9/16-24UNEF-2B
Cold Supply- 9/16-24UNEF-2B
Contractor to supply necessary connections
to the inlets of the end bodies.
2
1
4
"
57mm
TYP
3
8
"
10mm
1
11
32
"
34mm
3
8
"
9mm
5
7
16
"
138mm
7
5
8
"
193mm
4
15
16
"
126mm
4
1
8
"
105mm
SPOUT ONLY VIEW
2
1
4
"
57mm
SQUARE
(TYP)
1
3
4
"
44mm
8"
+
-
4"
2"
203mm
+-102
51
14"
+
-
4"
2"
356mm
+-102
51
3"
76mm
3
8
"
9mm
2
1
2
"
64mm
MAX DECK
THICKNESS
1
3
16
"
30mm
1-1/8-16-UN-2A
9/16-24UNEF-2B
(ALL HOSES)
2"
MIN. TO LEDGE
51mm
2"
MIN. TO WALL
51mm
LAVATORY ROUGH-IN
32mm
1
1
4
"
MIN
32mm
(TYP.)
1
1
4
"
MIN
6” MIN - 12” MAX
