Page 1
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
Architect/Engineer Approval Space:
P:
F:
W:
R:
Management Systems Registered to ISO 9001

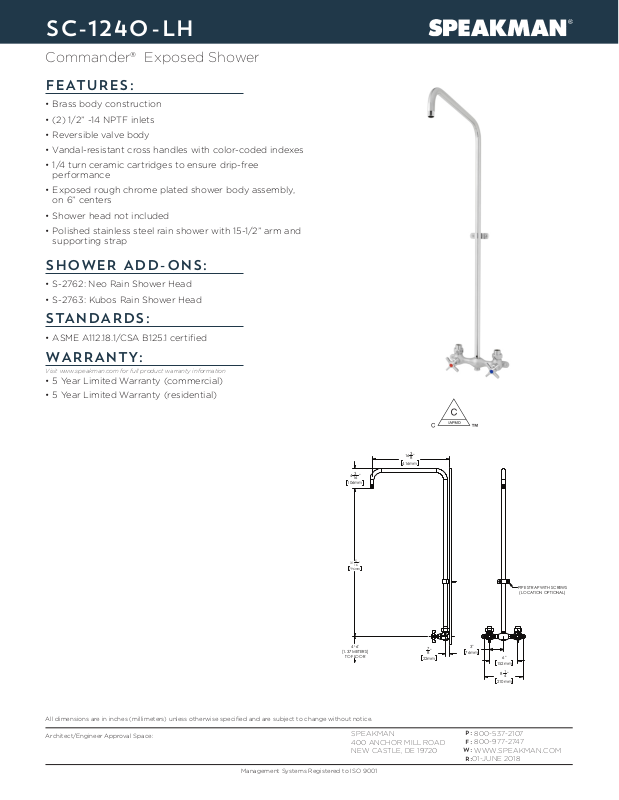

SC-1240-LH
Commander® Exposed Shower
FEATURES:
• Brass body construction
• (2) 1/2” -14 NPTF inlets
• Reversible valve body
• Vandal-resistant cross handles with color-coded indexes
• 1/4 turn ceramic cartridges to ensure drip-free
performance
• Exposed rough chrome plated shower body assembly,
on 6” centers
• Shower head not included
• Polished stainless steel rain shower with 15-1/2” arm and
supporting strap
SHOWER ADD-ONS:
• S-2762: Neo Rain Shower Head
• S-2763: Kubos Rain Shower Head
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (commercial)
• 5 Year Limited Warranty (residential)
3
4
16
106mm
31
16
796mm
3
16
"
8
416mm
"
5
"
PIPE STRAP WITH SCREWS
(LOCATION OPTIONAL)
4'-6'
[1.37 METERS]
TO FLOOR
7
8
22mm
"
3"
76mm
01-JUNE 2018
6"
152mm
1
8
"
4
210mm
800-537-2107
-977 -2747
80 0
WWW.SPEAKMAN.COM
