All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
Architect/Engineer Approval Space:
P:
F:
W:
R:
Management Systems Registered to ISO 9001

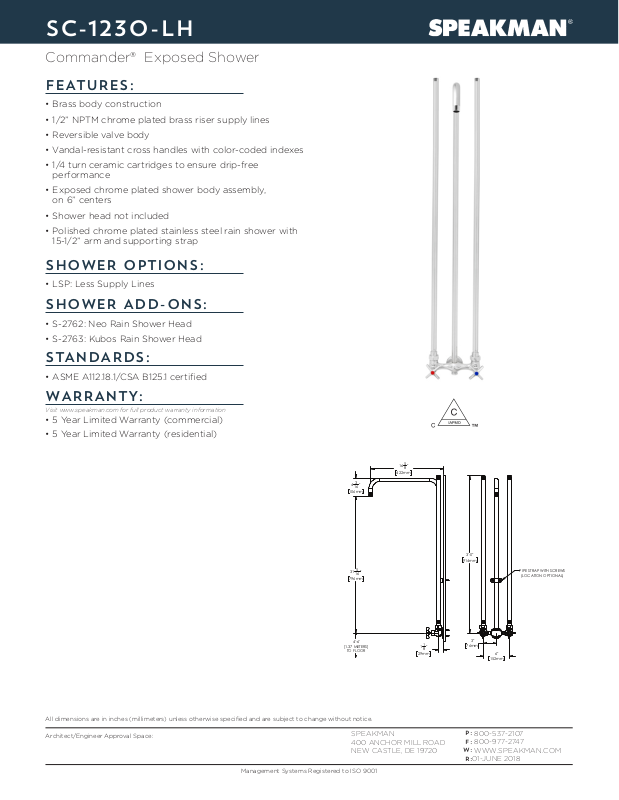

SC-1230-LH
Commander® Exposed Shower
FEATURES:
• Brass body construction
• 1/2” NPTM chrome plated brass riser supply lines
• Reversible valve body
• Vandal-resistant cross handles with color-coded indexes
• 1/4 turn ceramic cartridges to ensure drip-free
performance
• Exposed chrome plated shower body assembly,
on 6” centers
• Shower head not included
• Polished chrome plated stainless steel rain shower with
15-1/2” arm and supporting strap
SHOWER OPTIONS:
• LSP: Less Supply Lines
SHOWER ADD-ONS:
• S-2762: Neo Rain Shower Head
• S-2763: Kubos Rain Shower Head
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
WARRANTY:
Visit www.speakman.com for full product warranty information
• 5 Year Limited Warranty (commercial)
• 5 Year Limited Warranty (residential)
3
4
"
16
106mm
5
31
"
16
796mm
4'-6'
[1.37 METERS]
TO FLOOR
16
422mm
5
"
8
3'-0"
914mm
PIPE STRAP WITH SCREWS
(LOCATION OPTIONAL)
1
29mm
1
"
8
76mm
3"
6"
152mm
800-537-2107
-977 -2747
80 0
WWW.SPEAKMAN.COM
01-JUNE 2018
