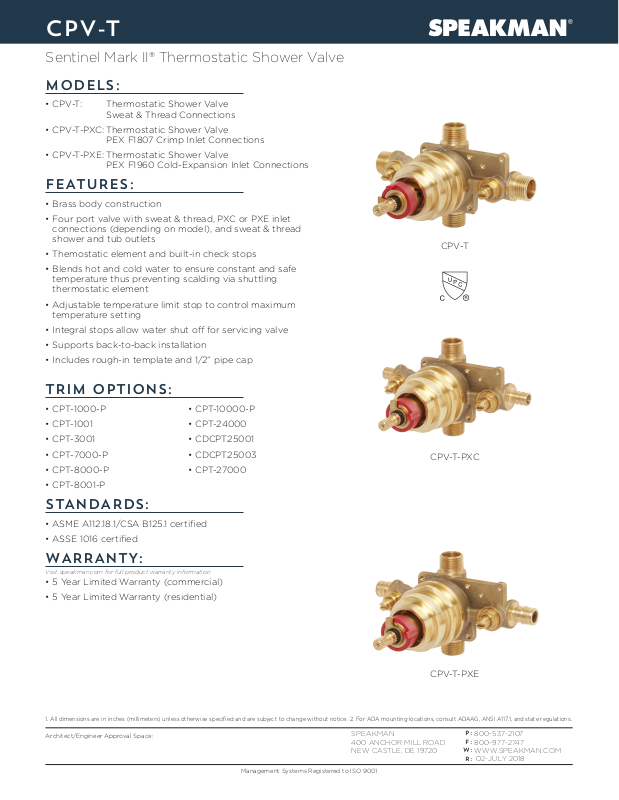

CPV-T
Sentinel Mark II® Thermostatic Shower Valve
MODELS:
• CPV-T: Thermostatic Shower Valve
Sweat & Thread Connections
• CPV-T-PXC: Thermostatic Shower Valve
PEX F1807 Crimp Inlet Connections
• CPV-T-PXE: Thermostatic Shower Valve
PEX F1960 Cold-Expansion Inlet Connections
FEATURES:
• Brass body construction
• Four port valve with sweat & thread, PXC or PXE inlet
connections (depending on model), and sweat & thread
shower and tub outlets
• Themostatic element and built-in check stops
• Blends hot and cold water to ensure constant and safe
temperature thus preventing scalding via shuttling
thermostatic element
• Adjustable temperature limit stop to control maximum
temperature setting
• Integral stops allow water shut o for servicing valve
• Supports back-to-back installation
• Includes rough-in template and 1/2” pipe cap
CPV-T
TRIM OPTIONS:
• CPT-1000-P
• CPT-1001
• CPT-3001
• CPT-7000-P
• CPT-8000-P
• CPT-8001-P
• CPT-10000-P
• CPT-24000
• CDCPT25001
• CDCPT25003
• CPT-27000
STANDARDS:
• ASME A112.18.1/CSA B125.1 certified
• ASSE 1016 certified
WARRANTY:
Visit speakman.com for full product warranty information
• 5 Year Limited Warranty (commercial)
• 5 Year Limited Warranty (residential)
CPV-T- PXC
CPV-T-PXE
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. 2. For ADA mounting locations, consult ADAAG, ANSI A117.1, and state regulations.
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
02 - J U LY 201 8
Page 2
A
CPV-T
A
(ADJUSTMENT)
95mm
133mm
A
(ADJUSTMENT)
133mm
Sentinel Mark II® Thermostatic Shower Valve
CPV-T
1"
25mm
HOLE FOR
6'-6" [2 METERS]
TO FLOOR
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTION
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
1/2" NPT MALE
1/2" SWEAT
CONNECTION
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
CPV-T-PXE
6'-6" [2 METERS]
TO FLOOR
COLD EXPANSION
PEX CONNECTION
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
ONLY)
ONLY)
1/2" F1960
1'-9" [533mm]
4" [102mm]
TO TOP OF
TUB LEDGE
1'-9" [533mm]
4" [102mm]
TO TOP OF
TUB LEDGE
1
"
3
2
89mm
1/2" NPT MALE
1/2" SWEAT
CONNECTIONS
A
1/2" NPT MALE
1/2" SWEAT
CONNECTION
1"
25mm
HOLE FOR
TUB SPOUT
15
"
5
16
150mm
1"
25mm
HOLE FOR
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
1/2" F1960
COLD EXPANSION
PEX CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTIONS
1"
25mm
HOLE FOR
TUB SPOUT
116mm
2-1/2" MIN
[64mm]
3-1/2" MAX
[89mm]
(ADJUSTMENT)
CPV-T- PXC
SHOWER ARM
5-1/2" (140MM) DIA.
HOLE FOR
VALVE ACCESS
"
1"
25mm
HOLE FOR
1/2" F1807 CRIMP
PEX CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTIONS
1"
25mm
HOLE FOR
TUB SPOUT
152mm
3-3/16" MIN
[81mm]
4-3/16" MAX
[106mm]
6"
15
2
"
16
75mm
3
3
"
4
9
"
4
16
3
"
3
4
95mm
6'-6" [2 METERS]
TO FLOOR
CONNECTION
1/2" NPT MALE
1/2" SWEAT
CONNECTIONS
1/2" F1807
CRIMP PEX
1'-9" [533mm]
4’-6" [1.4 METERS]
TO FLOOR
(SHOWER
INSTALLATION
4" [102mm]
ONLY)
TO TOP OF
TUB LEDGE
A
7"
1
3
178mm
2
89mm
1
5
"
3-3/16" MIN
[81mm]
4-3/16" MAX
[106mm]
4
1
6
"
8
A
1
3
"
7"
2
178mm
89mm
1
5
"
4
156mm
15
2
"
16
75mm
3
3
"
4
95mm
1. All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice. 2. For ADA mounting locations, consult ADAAG, ANSI A117.1, and state regulations.
Architect/Engineer Approval Space:
SPEAKMAN
400 ANCHOR MILL ROAD
NEW CASTLE, DE 19720
P:
800-537-2107
F:
80 0 -97 7-2 747
W:
WWW.SPEAKMAN.COM
R:
02 - J U LY 201 8
