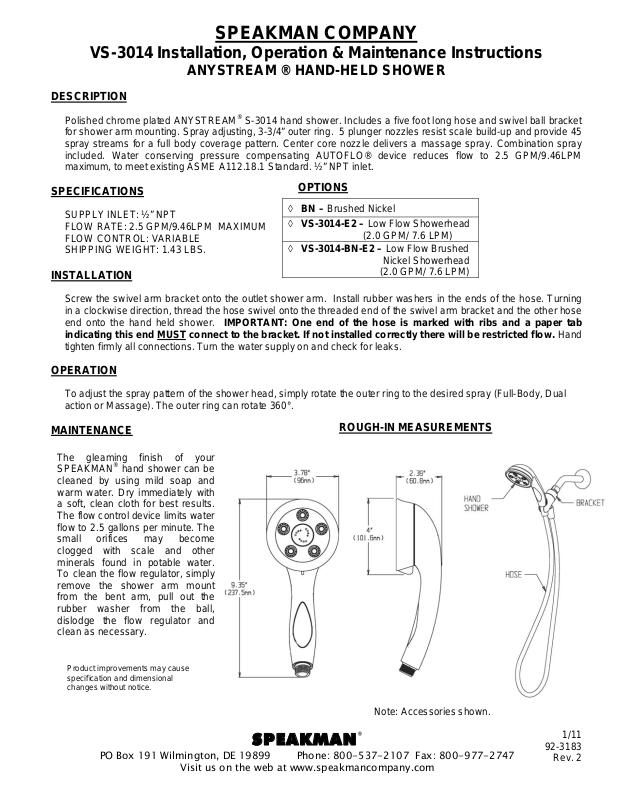

VS-3014 Installation, Operation & Maintenance Instructions

ANYSTREAM ® HAND-HELD SHOWER

DESCRIPTION

Polished chrome plated ANYSTREAM
for shower arm mounting. Spray adjusting, 3-3/4” outer ring. 5 plunger nozzles resist scale build-up and provide 45
spray streams for a full body coverage pattern. Center core nozzle delivers a massage spray. Combination spray
included. Water conserving pressure compensating AUTOFLO® device reduces flow to 2.5 GPM/9.46LPM
maximum, to meet existing ASME A112.18.1 Standard. ½” NPT inlet.

SPECIFICATIONS

SUPPLY INLET: ½” NPT
FLOW RATE: 2.5 GPM/9.46LPM MAXIMUM
FLOW CONTROL: VARIABLE
SHIPPING WEIGHT: 1.43 LBS.

INSTALLATION

Screw the swivel arm bracket onto the outlet shower arm. Install rubber washers in the ends of the hose. Turning
in a clockwise direction, thread the hose swivel onto the threaded end of the swivel arm bracket and the other hose
end onto the hand held shower. IMPORTANT: One end of the hose is marked with ribs and a paper tab

indicating this end MUST

tighten firmly all connections. Turn the water supply on and check for leaks.

connect to the bracket. If not installed correctly there will be restricted flow. Hand

OPERATION

To adjust the spray pattern of the shower head, simply rotate the outer ring to the desired spray (Full-Body, Dual
action or Massage). The outer ring can rotate 360°.

MAINTENANCE

®

S-3014 hand shower. Includes a five foot long hose and swivel ball bracket

OPTIONS

 BN – Brushed Nickel
 VS-3014-E2 – Low Flow Showerhead

(2.0 GPM/ 7.6 LPM)
 VS-3014-BN-E2 – Low Flow Brushed

Nickel Showerhead
(2.0 GPM/ 7.6 LPM)

ROUGH-IN MEASUREMENTS

The gleaming finish of your
SPEAKMAN
cleaned by using mild soap and
warm water. Dry immediately with
a soft, clean cloth for best results.
The flow control device limits water
flow to 2.5 gallons per minute. The
small orifices may become
clogged with scale and other
minerals found in potable water.
To clean the flow regulator, simply
remove the shower arm mount
from the bent arm, pull out the
rubber washer from the ball,
dislodge the flow regulator and
clean as necessary.

Product improvements may cause
specification and dimensional
changes without notice.

®

hand shower can be
