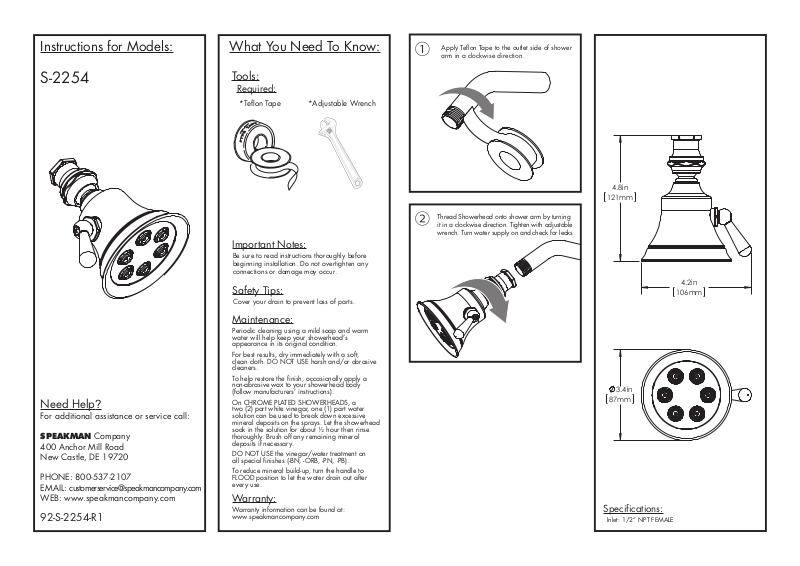

Page 1
Instructions for Models:
What You Need To Know:
Apply Teflon Tape to the outlet side of shower
arm in a clockwise direction.
S-2254
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: [email protected]
WEB: www.speakmancompany.com
92-S-2254-R1
Tools:
Required:
*Teflon Tape *Adjustable Wrench
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
Safety Tips:
Cover your drain to prevent loss of parts.
Maintenance:
Periodic cleaning using a mild soap and warm
water will help keep your showerhead’s
appearance in its original condition.
For best results, dry immediately with a soft,
clean cloth. DO NOT USE harsh and/or abrasive
cleaners.
To help restore the finish, occasionally apply a
non-abrasive wax to your showerhead body
(follow manufacturers’ instructions).
On CHROME PLATED SHOWERHEADS, a
two (2) part whi
solution can be used to break down excessive
mineral deposits on the sprays. Let the showerhead
soak in the solution for about ½ hour then rinse
thoroughly. Brush off any remaining mineral
deposits if necessary.
DO NOT USE the vinegar/water treatment on
all special finishes (-BN, -ORB, -PN, -PB).
To reduce mineral build-up, turn the handle to
FLOOD position to let the
every use.
Warranty:
Warranty information can be found at:
www.speakmancompany.com
te vinegar, one (1) part water
water drain out after
4.8in
121mm
Thread Showerhead onto shower arm by turning
it in a clockwise direction. Tighten with adjustable
wrench. Turn water supply on and check for leaks.
4.2in
106mm
3.4in
87mm
Specifications:
Inlet: 1/2” NPT FEMALE
