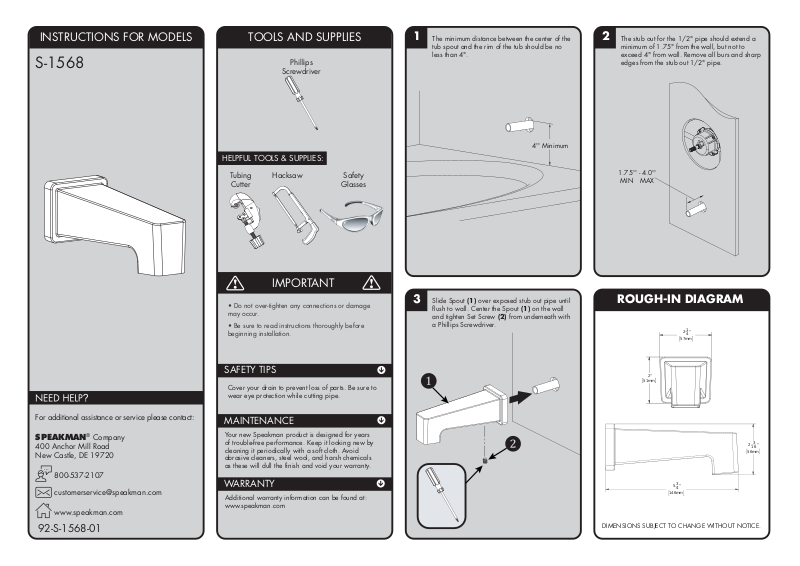

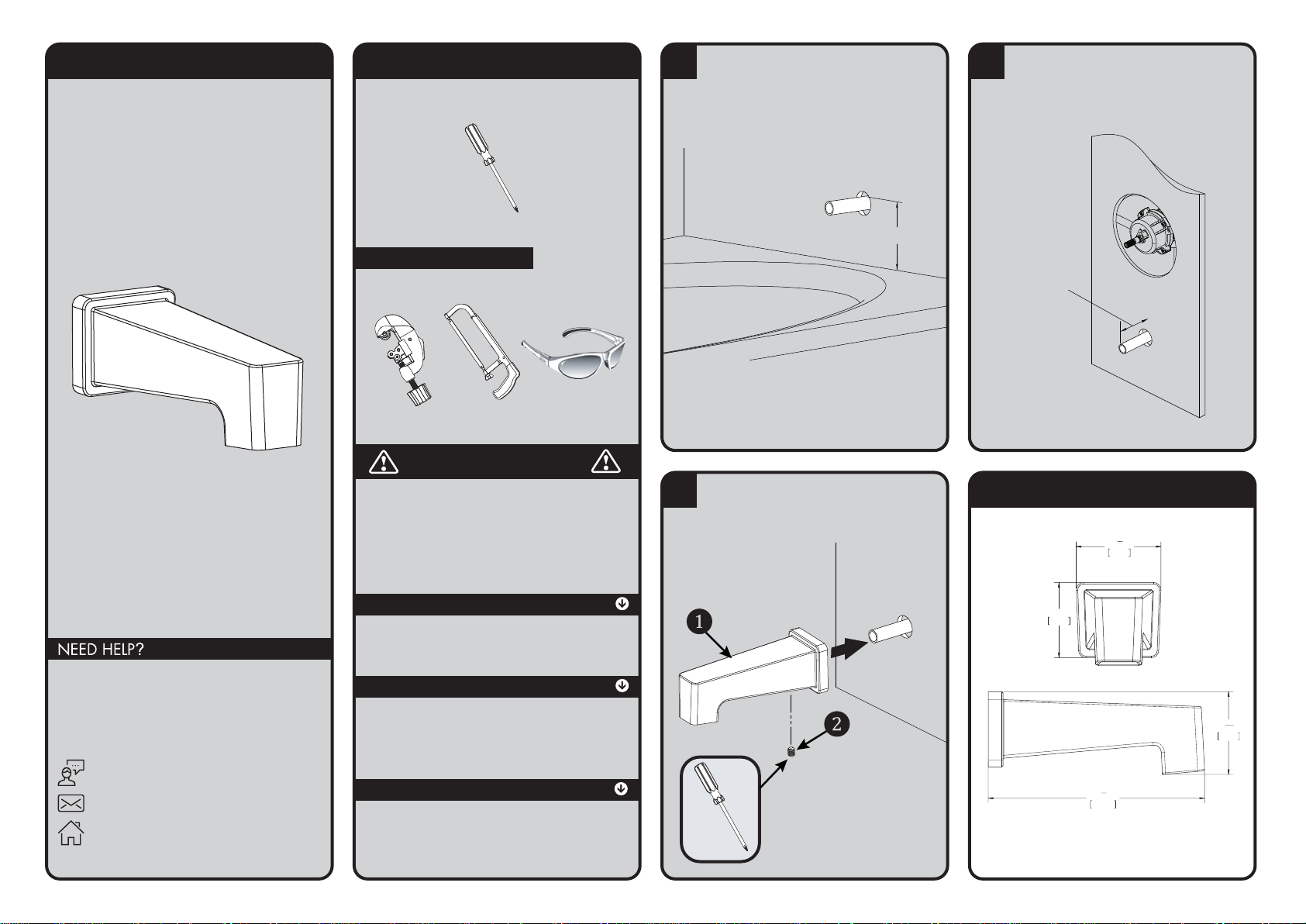

INSTRUCTIONS FOR MODELS
TOOLS AND SUPPLIES
1
The minimum distance between the center of the
tub spout and the rim of the tub should be no
less than 4".
4'' Minimum
2
The stub out for the 1/2" pipe should extend a
minimum of 1.75" from the wall, but not to
exceed 4" from wall. Remove all burs and sharp
edges from the stub out 1/2" pipe.
1.75'' - 4.0''
MIN MAX
3
Slide Spout (1) over exposed stub out pipe until
flush to wall. Center the Spout (1) on the wall
and tighten Set Screw (2) from underneath with
a Phillips Screwdriver.
ROUGH-IN DIAGRAM
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
S-1568
Phillips
Screwdriver
HELPFUL TOOLS & SUPPLIES:
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
www.speakman.com
Tubing
Cutter
Hacksaw Safety
Glasses
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Speakman product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
51mm
1
"
2
4
57mm
2"
3
"
2
16
56mm
3
"
5
4
146mm
92-S-1568-01
