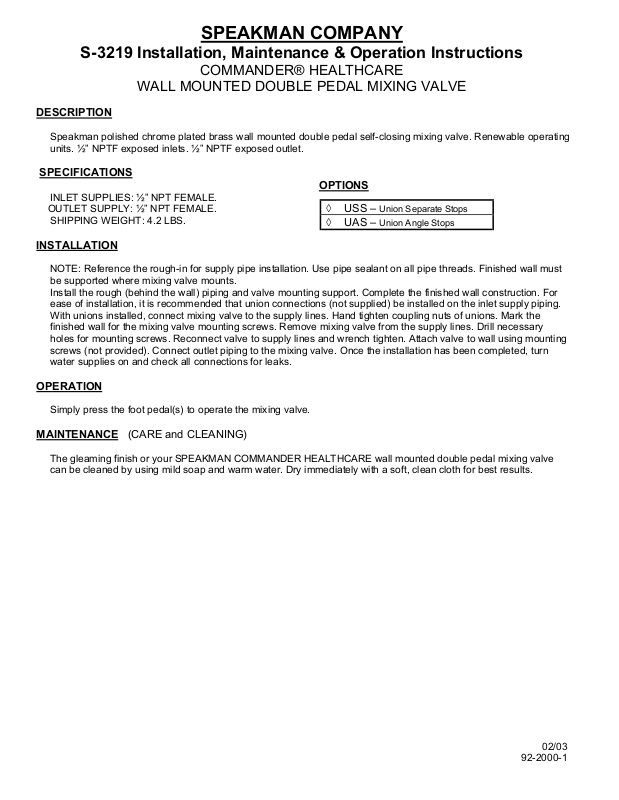

SPEAKMAN COMPANY
S-3219 Installation, Maintenance & Operation Instructions
COMMANDER® HEALTHCARE
WALL MOUNTED DOUBLE PEDAL MIXING VALVE
DESCRIPTION
Speakman polished chrome plated brass wall mounted double pedal self-closing mixing valve. Renewable operating
units. ½” NPTF exposed inlets. ½” NPTF exposed outlet.
SPECIFICATIONS
INLET SUPPLIES: ½” NPT FEMALE.
OUTLET SUPPLY: ½” NPT FEMALE.
SHIPPING WEIGHT: 4.2 LBS.
INSTALLATION
NOTE: Reference the rough-in for supply pipe installation. Use pipe sealant on all pipe threads. Finished wall must
be supported where mixing valve mounts.
Install the rough (behind the wall) piping and valve mounting support. Complete the finished wall construction. For
ease of installation, it is recommended that union connections (not supplied) be installed on the inlet supply piping.
With unions installed, connect mixing valve to the supply lines. Hand tighten coupling nuts of unions. Mark the
finished wall for the mixing valve mounting screws. Remove mixing valve from the supply lines. Drill necessary
holes for mounting screws. Reconnect valve to supply lines and wrench tighten. Attach valve to wall using mounting
screws (not provided). Connect outlet piping to the mixing valve. Once the installation has been completed, turn
water supplies on and check all connections for leaks.
OPERATION
Simply press the foot pedal(s) to operate the mixing valve.
MAINTENANCE
The gleaming finish or your SPEAKMAN COMMANDER HEALTHCARE wall mounted double pedal mixing valve
can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results.
(CARE and CLEANING)
OPTIONS
◊ USS –
◊ UAS –
Union Separate Stops
Union Angle Stops
02/03
92-2000-1
Page 2

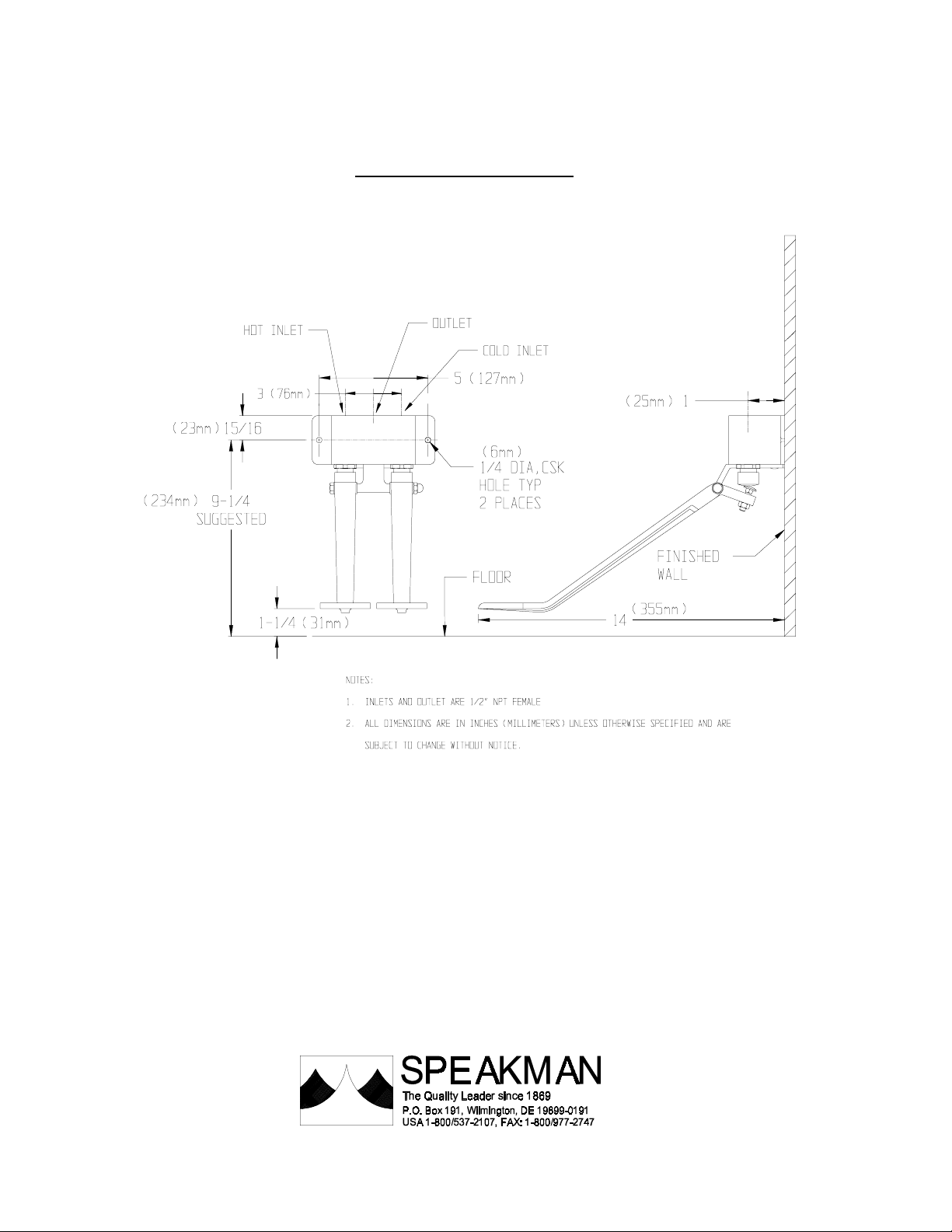

ROUGH-IN MEASUREMENTS
02/03
92-2000-1
