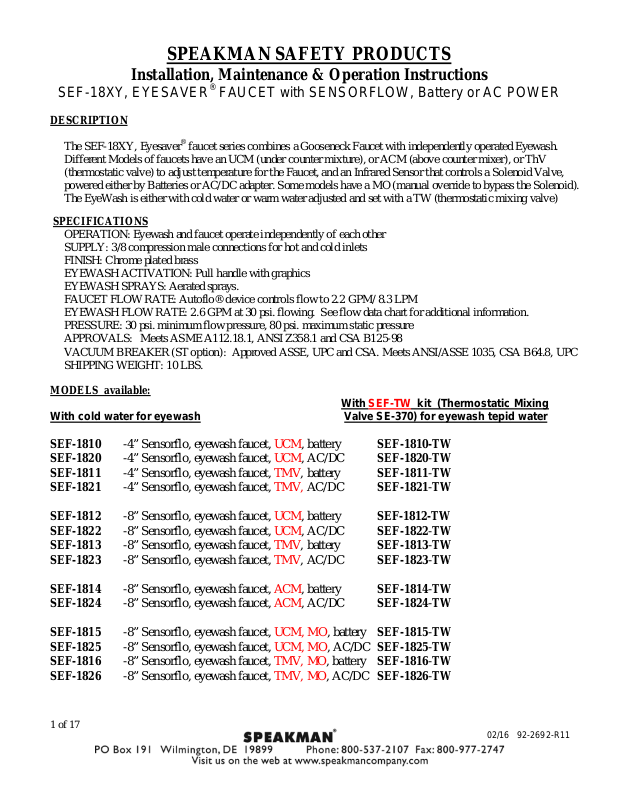

SPEAKMAN SAFETY PRODUCTS

Installation, Maintenance & Operation Instructions

SEF-18XY, EYESAVER® FAUCET with SENSORFLOW, Battery or AC POWER

DESCRIPTION

The SEF-18XY, Eyesaver Different Models of faucets have an UCM (under counter mixture), or ACM (above counter mixer), or ThV (thermostatic valve) to adjust temperature for the Faucet, and an Infrared Sensor that controls a Solenoid Valve, powered either by Batteries or AC/DC adapter. Some models have a MO (manual override to bypass the Solenoid). The EyeWash is either with cold water or warm water adjusted and set with a TW (thermostatic mixing valve)

SPECIFICATIONS

OPERATION: Eyewash and faucet operate independently of each other SUPPLY: 3/8 compression male connections for hot and cold inlets FINISH: Chrome plated brass EYEWASH ACTIVATION: Pull handle with graphics EYEWASH SPRAYS: Aerated sprays. FAUCET FLOW RATE: Autoflo® device controls flow to 2.2 GPM/ 8.3 LPM EYEWASH FLOW RATE: 2.6 GPM at 30 psi. flowing. See flow data chart for additional information. PRESSURE: 30 psi. minimum flow pressure, 80 psi. maximum static pressure APPROVALS: Meets ASME A112.18.1, ANSI Z358.1 and CSA B125-98 VACUUM BREAKER (ST option): Approved ASSE, UPC and CSA. Meets ANSI/ASSE 1035, CSA B64.8, UPC SHIPPING WEIGHT: 10 LBS.

MODELS available: With SEF-TW kit (Thermostati c Mixing With cold water f or eyew ash Valve SE-370) for eyewash tepid water

SEF-1810 -4” Sensorflo, eyewash faucet, UCM, battery SEF-1810-TW SEF-1820 -4” Sensorflo, eyewash faucet, UCM, AC/DC SEF-1820-TW SEF-1811 -4” Sensorflo, eyewash faucet, TMV, battery SEF-1811-TW SEF-1821 -4” Sensorflo, eyewash faucet, TMV, AC/DC SEF-1821-TW

SEF-1812 -8” Sensorflo, eyewash faucet, UCM, battery SEF-1812-TW SEF-1822 -8” Sensorflo, eyewash faucet, UCM, AC/DC SEF-1822-TW SEF-1813 -8” Sensorflo, eyewash faucet, TMV, battery SEF-1813-TW SEF-1823 -8” Sensorflo, eyewash faucet, TMV, AC/DC SEF-1823-TW

SEF-1814 -8” Sensorflo, eyewash faucet, ACM, battery SEF-1814-TW SEF-1824 -8” Sensorflo, eyewash faucet, ACM, AC/DC SEF-1824-TW

SEF-1815 -8” Sensorflo, eyewash faucet, UCM, MO, battery SEF-1815-TW SEF-1825 -8” Sensorflo, eyewash faucet, UCM, MO, AC/DC SEF-1825-TW SEF-1816 -8” Sensorflo, eyewash faucet, TMV, MO, battery SEF-1816-TW SEF-1826 -8” Sensorflo, eyewash faucet, TMV, MO, AC/DC SEF-1826-TW

1 of 17

02/16 92-2692-R11

faucet series combines a Gooseneck Faucet with independently operated Eyewash.

Page 2

OPTIONS:

With an UCM (under counter mixer) in the assembly, the following parts have been added:

|__ G20-1919 Under counter Mixer Assembly L/C |__ G56-0030 UCM Bracket and Screws |__ 92-6634 Mixing Valve Inst. Instruction Sheet OR: With a TMV (Thermo Mixing Valve) in the assembly, the following parts have been added: |__ G20-1968 Thermo Mixing Valve |__ G20-1968 IMO Thermo Mixing Valve Instruction Sheet

With a 4” Deck Plate in the assembly, the following parts have been added: |__ G66-0186-PC 4" Deck Plate Assembly

With an 8” Deck Plate in the assembly, the following parts have been added: |__ G66-0189-PC 8" Deck Plate Assembly |__ G66-0110 Deck Plate Hardware Assembly

With an ACM (above counter mixer) in the assembly, the following parts have been added:

|__ G20-1844 Above counter Mixer Assembly (no bypass) |__ G01-0050 Locknut Bag group |__ G66-0111 Handle Assembly-ACM mixer

With an 8” Deck Plate in the assembly, the following parts have been added: |__ G66-0188-PC 8" Deck Plate Assembly

With an MO + UCM (or TMV) (manual override) in the assembly, the following parts have been added:

With an 8” Deck Plate in the assembly, the following parts have been added: |__ G66-0187-PC 8" Deck Plate Assembly

With a Battery Power Module, use: |__G66-0169 (Batteries are inside the Power Module)

With an AC/DC Power Module, use: |__G66-0169-AC (AC Adaptor inside) |__66-0010 (Transformer Ac / 12 VDC)

For all models use -Adapter Solenoid: |__05-2361

-Bracket Solenoid: |__56-0168

Solenoid G76-0033-LBL with (RPG 76-0039) or Mini Solenoid G76-0059-LBL with (RPG 76-0059) For Aerator use: |__G05-0727-PC 2.2Gpm 15/16-27 Anti-Lime Aerator OR: |__G05-0820-PC-P 0.5Gpm Boca OR: |__G05-0554-PC 15/16-27 -2.0 Gpm Laminar Flow Outlet

SEF-18XY-TW has SEF-TW kit (with Thermostatic Mixing Valve SE-370) for eyewash tepid water

2 of 17

02/16 92-2692-R11

Page 3

BOCA – Vandal-Resistant 0.5 gpm Flow Control

AC/DC Transformer with Adaptor

Flowing Pressure- psi. (BAR)

(2.07)

(2.76)

(3.45)

(4.14)

(4.83)

(5.52)

Flow Rate- gpm (LPM)

2.6

(9.8)

2.9

(11)

3.0

(11.4)

2.8

(10.6)

2.8

(10.6)

3.0

(11.4)

Distance Eyewash ins. Plume, ’A’ - (cm.)

(33.0)

14-1/2

(36.8)

(38.1)

(40.6)

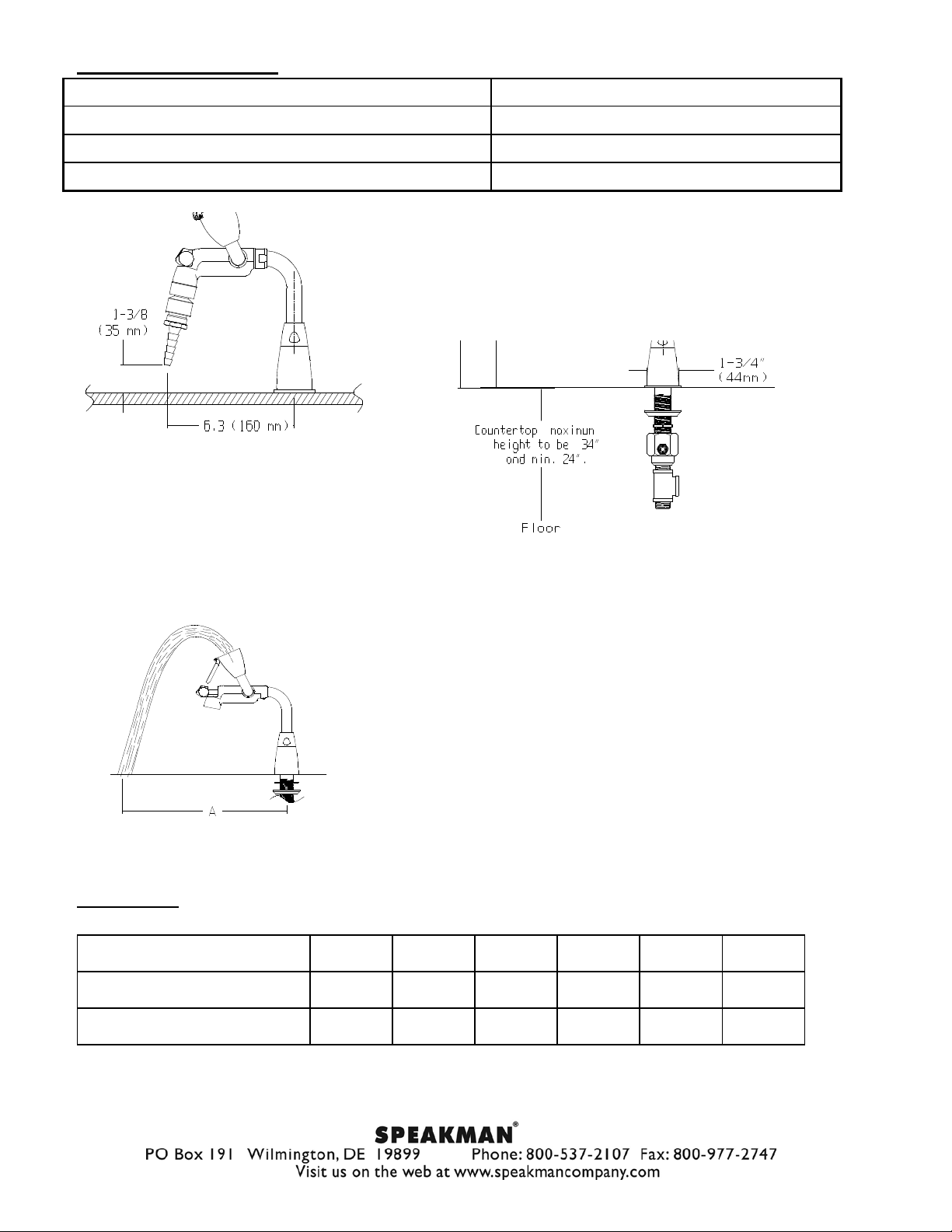

OPTIONS: for the Faucet

◊

◊ D75 – Diamond 75 Escut c heons ◊ 8 – 8” Gooseneck Depth (see figure) ◊ ST – Serrated Tip with Vacuum Breaker ◊ TW – Thermostatic Mixing Valve ◊ HS – Supply Hoses to Stops

FLOW DATA

3 of 17

02/16 92-2692-R11

Page 4

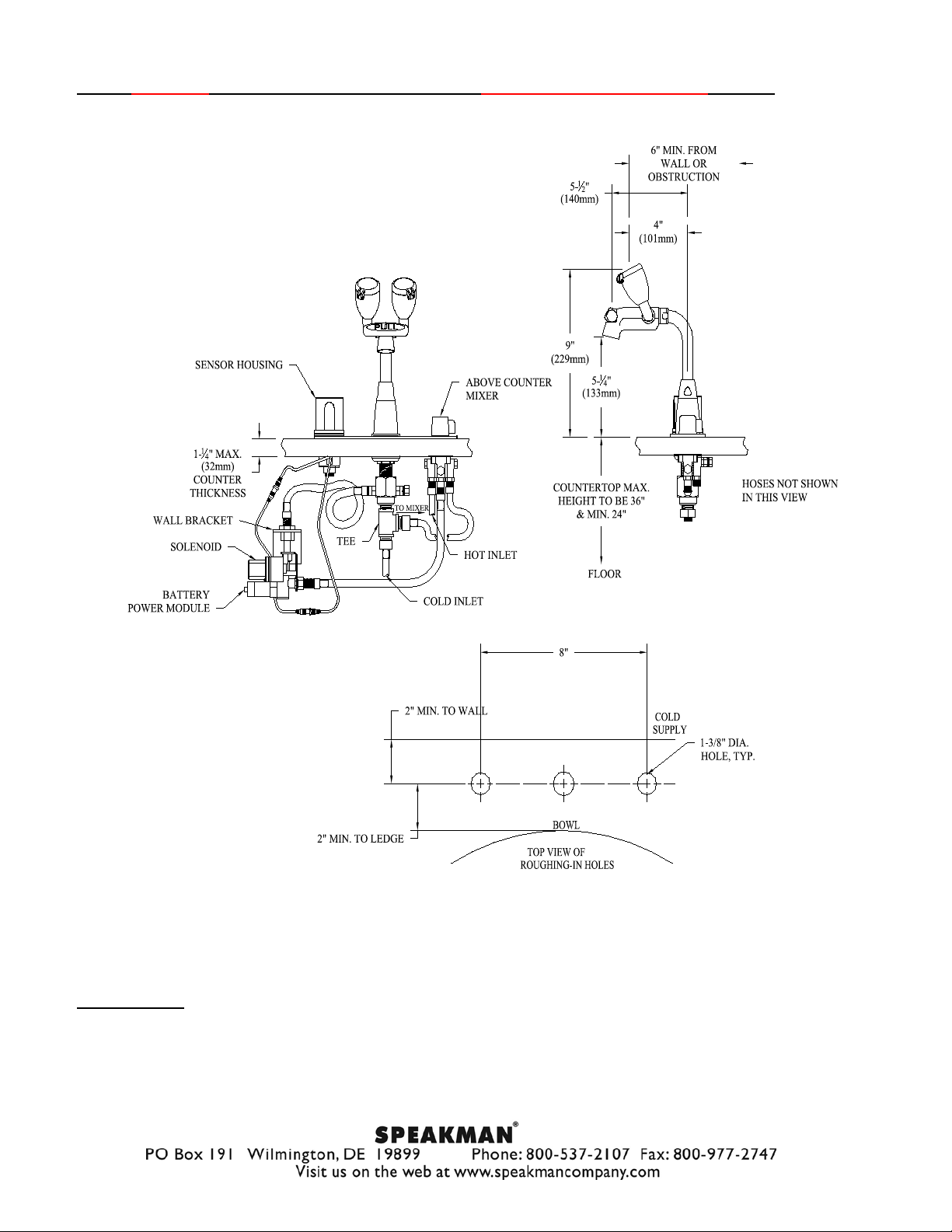

Model SEF-1814 -8” Sensorflow, eyewash faucet, ACM ( Above Counter Mixer), batt er y

IMPORTANT:

The supply line shall provide an uninterruptible flushing fluid at a minimum of 30 psi flow pressure. If shut off valves are installed in the eyewash supply line for maintenance purposes, provisions shall be made to prevent unauthorized shut off.

4 of 17

02/16 92-2692-R11

Page 5

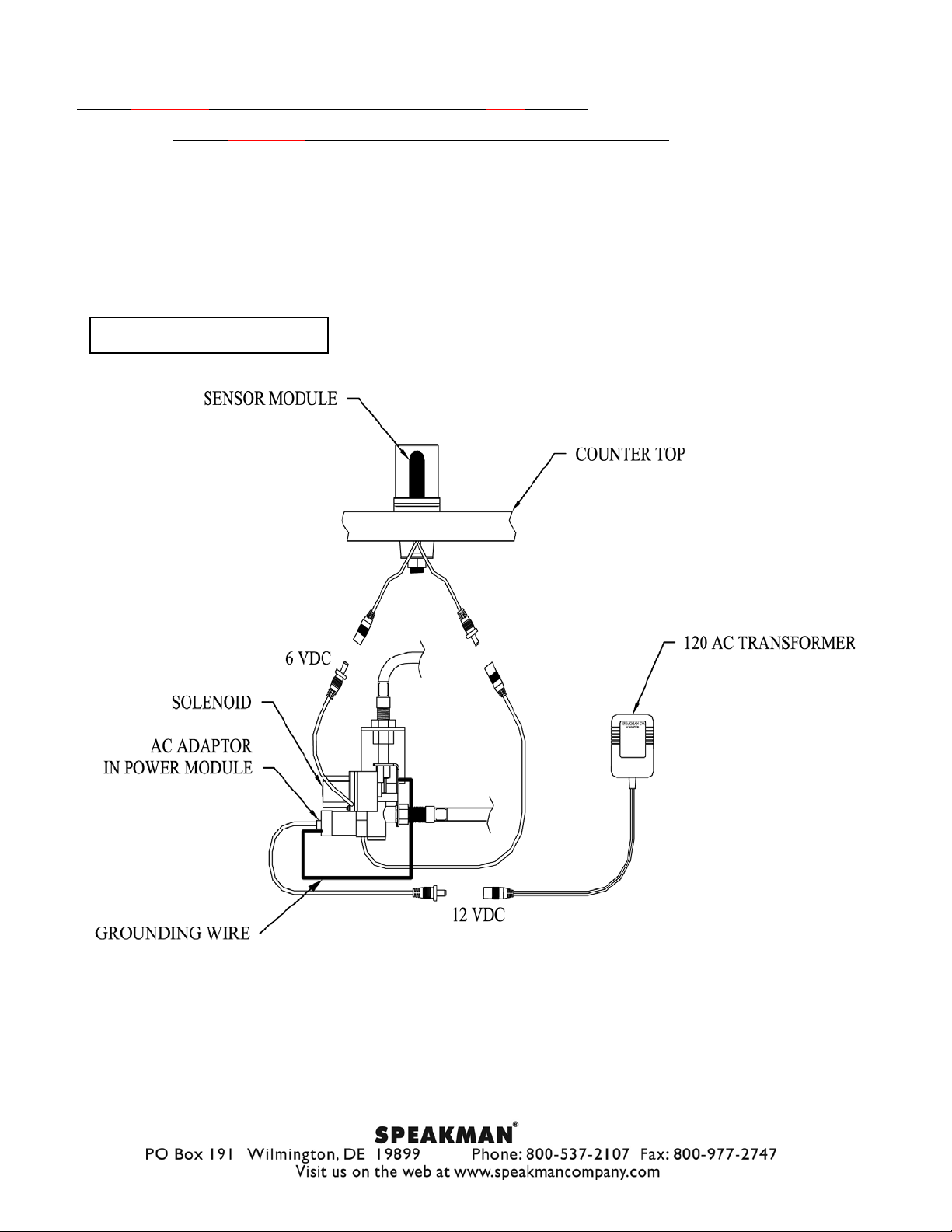

Wiring for AC/DC option:

Model SEF-1824 -8” Sensorflow, eyewash faucet, ACM, AC/DC

Is similar to Model SEF-1814 but with AC/DC adapter instead of batteries

For any option, when using 120VAC (alternative current supply), replace the G66-0169 (Battery Power Module) with G66-0169-AC (AC Power Module). Also add a Transformer 120VAC to 12VDC.

The Transformer supplies 12VDC (direct current) which is further stepped down and filtered to 6VDC by the AC Adapter for the 6V Solenoid.

5 of 17

02/16 92-2692-R11

Page 6

Item

Description

Qty.

Item

Description

Qty.

Above Counter Mixer

Sensor Housing Assembly

1 2 Valve Mounting Hardware Bag Group

Power Module

1 3 Cold Inlet ½” Tee

Aerator (BOCA- .5gpm or LF- 2.2gpm)

Serrated Tip and Vacuum Breaker for –ST option, (replaces item #12)

Base Tee adapter Assembly

3/8”Compression –to 1/2”NPSM Hose

1 6 Mini Solenoid 6VDC

3/8”Compression –to 3/8”Compression

1 7 Wall Bracket

Nipple ½”I.P -1” long

1 8 Sensor Mounting Hardware Group

05-1860 Threaded Bushing 1/2” x 3/8”

1 9 Gooseneck Mounting Hardware

05-2271 Adapter 3/8”NPTx 3/8”compr

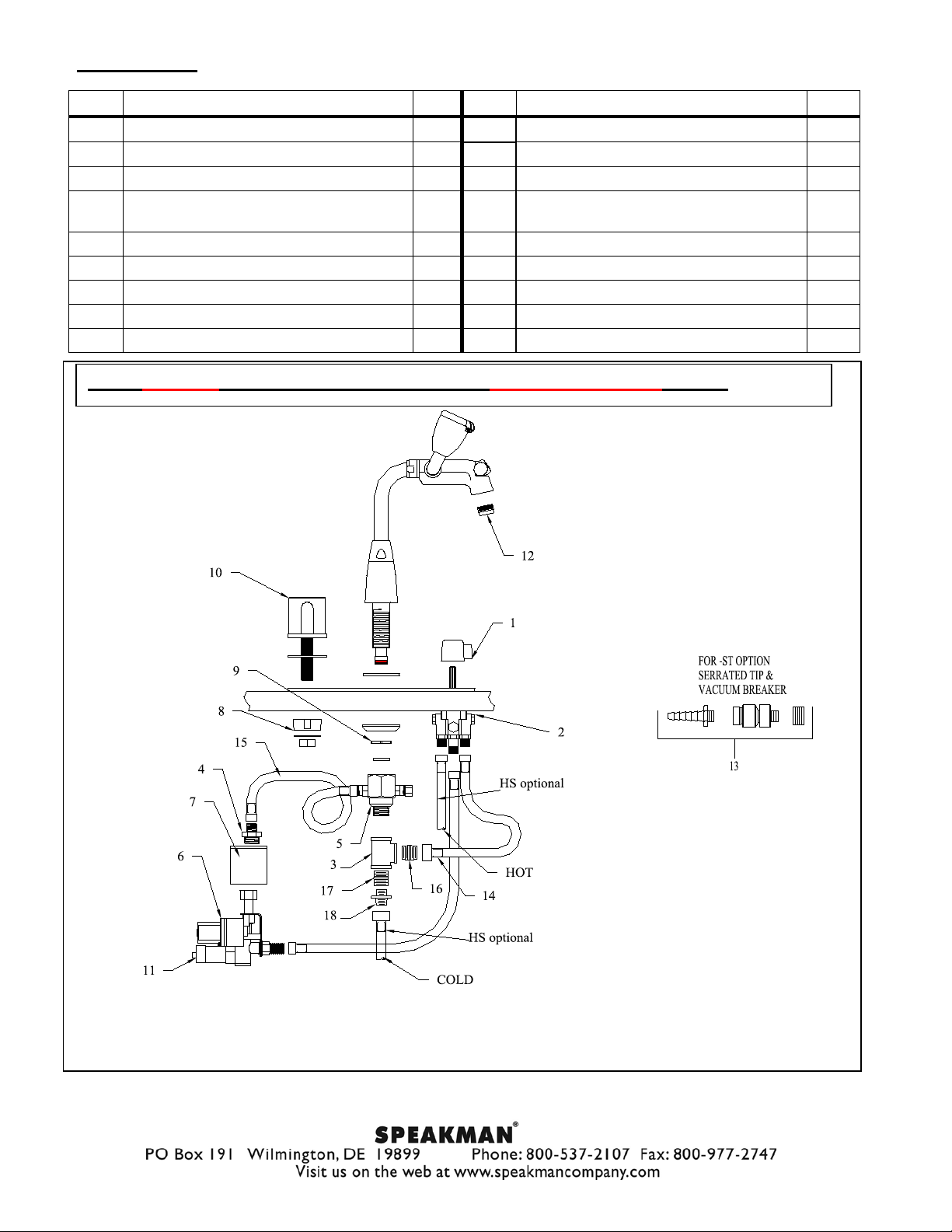

Model SEF-1814 -8” Sensorflo, Eyewash f aucet , Above Counter Mixer, battery

PACKING LIST

4 Adaptor for Solenoid 1 13

6 of 17

02/16 92-2692-R11

Page 7

Faucet Inlet

Solenoid Outlet

Mixer Outlet

Eyewash Inlet

Solenoid

Power Mod

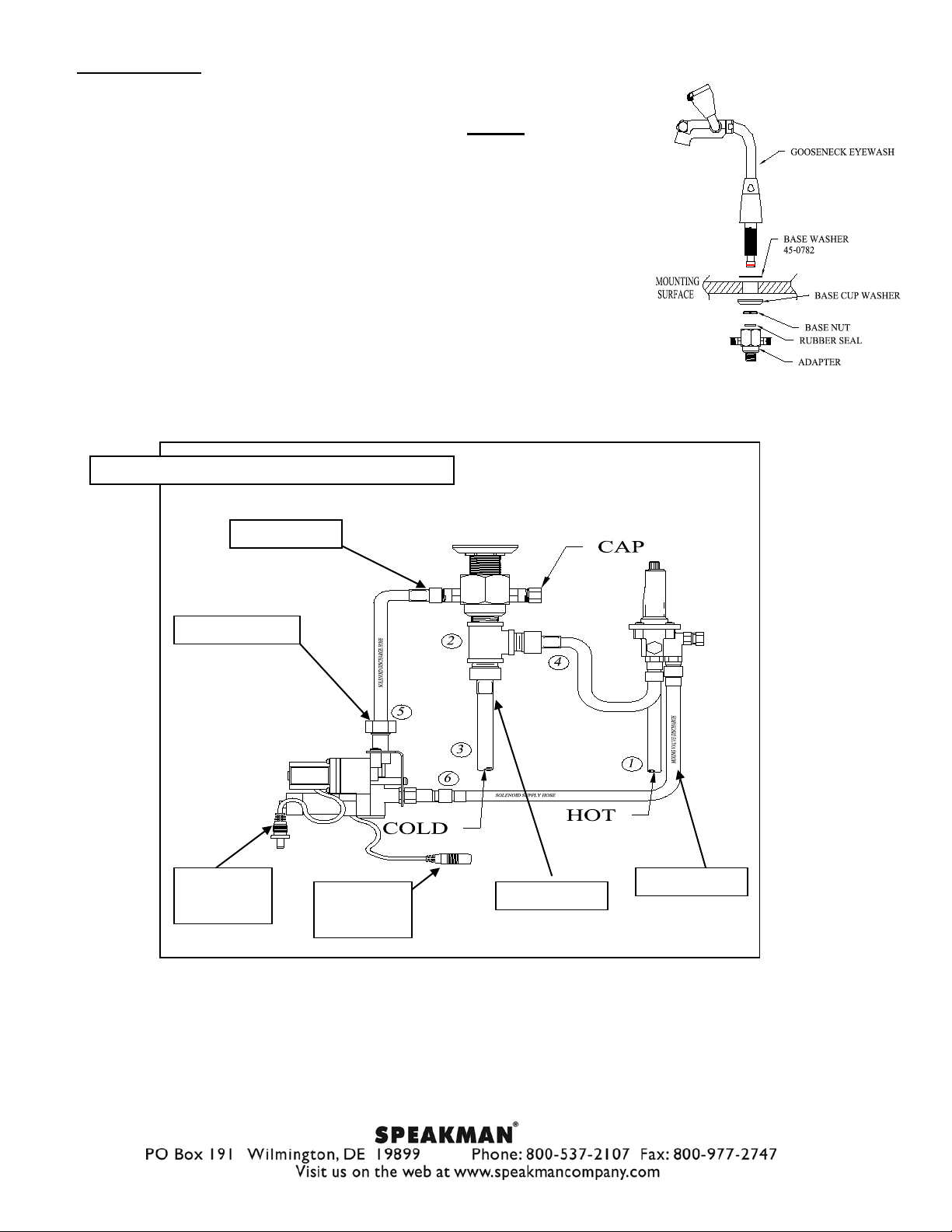

INSTALLATION

Step 1: Gooseneck Eyewash Mounting-

a. Place the gasket and deck plate onto the sink bowl or counter

top. Slip the grooved ø2.20” base washer 45-0782 onto the gooseneck and slip through center hole of sink.

b. The eyewash swivels through 200° of rotation. Position the base

of the gooseneck eyewash so the setscrew hole in the base is pointing towards the back of the sink or countertop. Note- For rigid gooseneck, position the gooseneck and tighten the setscrew in the mounting base. From below the sink slip the cup washer onto the shank and use the nut to tighten the assembly down onto the sink or countertop.

c. Important- Next i nsert the r ubber s eal i nto t he base a dapter and

screw the adapter onto the shank of the gooseneck eyewash until it bottoms out (Tape may be applied to the shank). If the adapter needs to be positioned for hose attachment, it can be backed off up to a max 1/2 turn.

d. Apply tape or sealant and connect the tee and nippl es so that t he

tee outlets are accessible.

7 of 17

02/16 92-2692-R11

Connector

1. Attach hot water main supply through the hose to HOT inlet port of Mixer.

2. Attach Base Tee Adaptor to eyewash inlet cold port of the gooseneck assembly.

3. Attach cold water main supply through the hose to the TEE on eye wash inlet.

4. Connect the same TEE to the COLD inlet port of Mixer with another hose.

5. Connect the solenoid outlet port to the si de inlet port of the gooseneck faucet, using enclosed Solenoid

adapter and wall mounting bracket. Ensure that the opposite side of the gooseneck inlet is capped off.

6. Connect the solenoid inlet port to the outlet of the Mixer valve.

Page 8

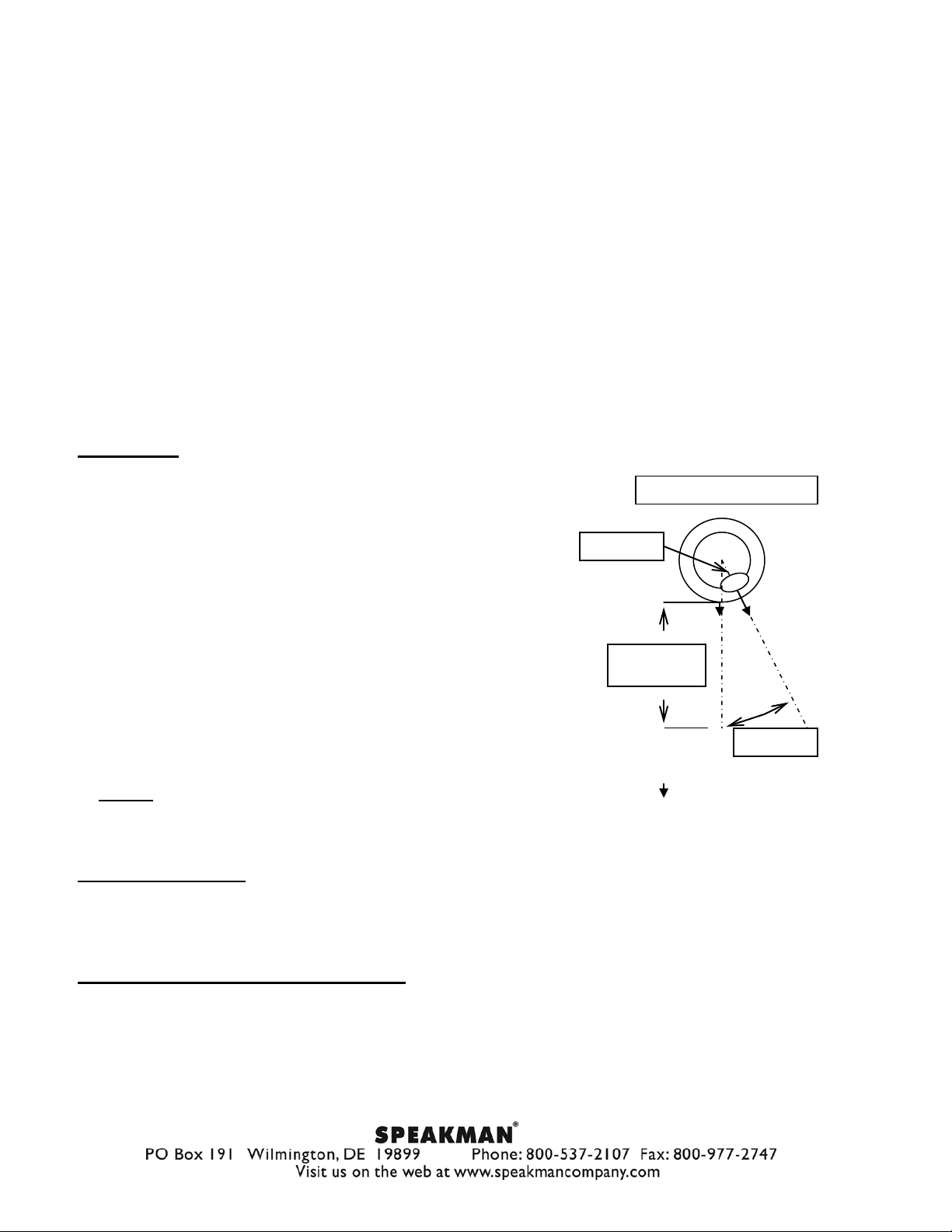

TOP view of SENSOR

9”-11”

Focal distance

15°- 25°

IR Sensor

Step 3: Solenoid Wall Mount Instructions-

a. After hoses are connected, and the wall bracket is in place, securely tighten the screws on the wall in a

convenient place.

b. The IR Sensor comes standard with Battery powered operation. The product can be purchased also with an

option that has AC/DC transformer and an Adapter that goes into Sensor in place of batteries.

Step 4: Unit Flushing-

a. After the assembly is complete, turn the hot and cold water

supplies on and check for leaks.

b. Activate the faucet to flush both the hot and cold sides of fixtur e.

Check all connections for leaks.

c. Install the aerator into the faucet outlet. d. Activate faucet and then activate the eyewash by pulling the handle and assure proper spray formation and no leaks.

OPERATION

Faucet- Place hands in IR sensor zone (Item 10) to activate the faucet. The sensor housing, located to the left of the faucet, contains a sensor module. The sensor utilizes a 9– 11 inch long invisible infrared sensing beam. For optimal use of the faucet, angle the sensor housing window between 15º and 25º toward the faucet stream from the center location. Temp. Control - To achieve the desired temperature, rotate the above counter mixer to desired comfort zone. Eyewash- The eyewash is activated by pulling its handle out. Once the eyewash is activated, the eyewash caps will flip off and water will come out of the aerated spray heads. The eyewash will continually discharge water until the handle is manually pushed back into the off position. The flow of spray heads is controlled by built-in flow controls. Each spray assembly is tested and aligned in the factory.

NOTE: On the rubber washer under the Sensor Unit there are 2 marks ( ) at 20° apart. Use them to orient the Sensor Lenses at 20° inclination as a start median suggested point. From that point you can further adjust the lenses inclination according to your specific needs.

TESTING PROGRAM

ANSI Z358.1 requires that all emergency equipment shall be tested weekly to verify proper operation and inspected annually to assure conformance with ANSI Z358.1 requirement.

MAINTENANCE (CARE and CL EANING)

Valves are washer-less and require no routine maintenance. The gleaming finish of your SPEAKMAN Eyesaver

faucet can be cleaned by using mild soap and warm water. Rinse thoroughly and dry immediately

with a soft, clean cloth for best results.

8 of 17

02/16 92-2692-R11

Page 9

Part or Group

Description

Refer to Packing List

RPG38-0388

Yellow spray head and aerator repair parts assembly

Part of item 11

RPG49-0003

Repair parts for internal seals of the gooseneck eyewash

Not shown

G05-0724-PC

Faucet 2.2 GPM aerator 15/16-27

Item 12

G05-0820-PC-P

Faucet 0.5 GPM aerator 15/16-27

Item 12

G05-0554-PC

Faucet with 15/16-27 Laminar Flow Outlet

Item 12

RPG04-0366

Eyewash handle with yellow text and set screw

Part of item 11

RPG 76-0033-LBL

Solenoid Valve Assembly

Item 6

RPG76-0039

Solenoid Repair Kit

Part of item 6

G66-0201

Infrared Sensor Assembly 9”-11” focal length

Part of item 10

RPG66-0044

Solenoid Filter Screen

Part of item 6

G66-0169

Battery Power Module

Item 17

RPG76-0041

3 volt Lithium Batteries (2)

For Battery Module only

G66-0169-AC

AC Power Module

See wiring for AC

G20-1919

UCM under counter mixer

G20-1968

TMV thermo mixing valve (for Faucet water)

G20-1844

ACM above counter mixer

SEF-TW Kit

SE-370 thermostatic mixing valve (for eyewash tepid water)

REPAIR PARTS LISTING

9 of 17

02/16 92-2692-R11

Page 10

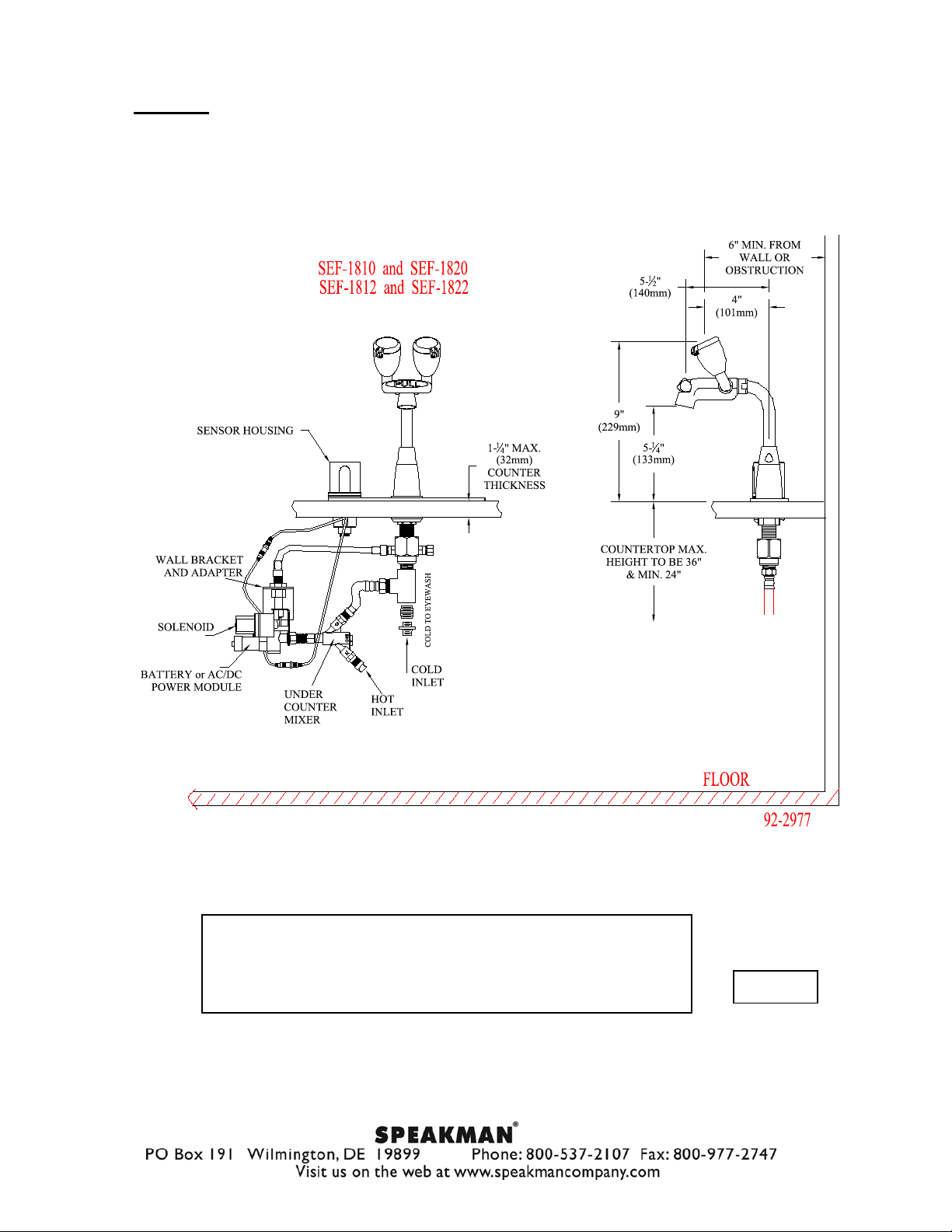

SEF-1810 -4” Sensorflow, eyewash faucet, UCM, battery

92-2977

Rough In

10 of 17

02/16 92-2692-R11

SEF-1820 -4” Sensorflow, eyewash faucet, UCM, AC/DC SEF-1812 -8” Sensorflow, eyewash faucet, UCM, battery SEF-1822 -8” Sensorflow, eyewash faucet, UCM, AC/DC

Page 11

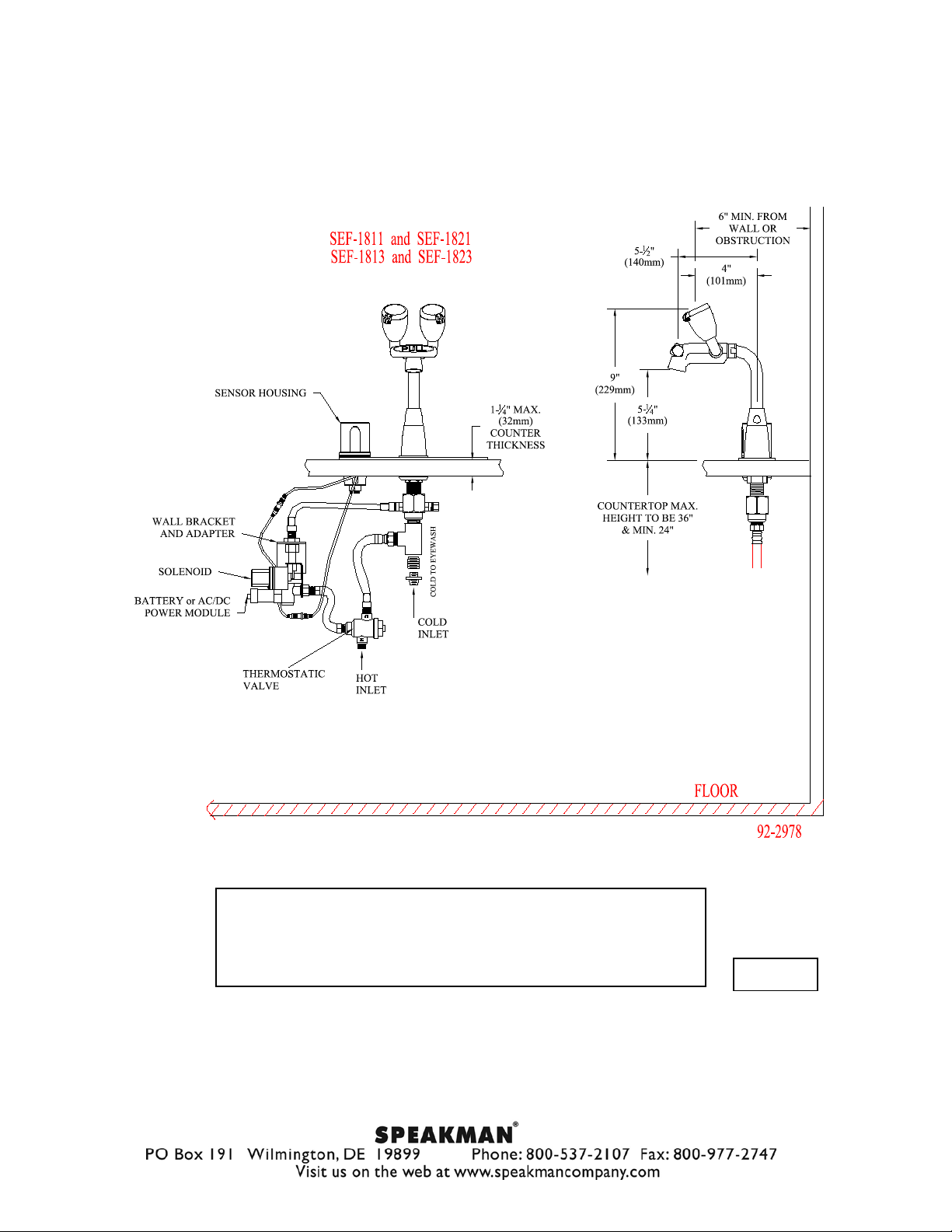

SEF-1811 -4” Sensorflow, eyewash faucet, TMV, battery

92-2978

SEF-1821 -4” Sensorflow, eyewash faucet, TMV, AC/DC SEF-1813 -8” Sensorflow, eyewash faucet, TMV, battery SEF-1823 -8” Sensorflow, eyewash faucet, TMV, AC/DC

11 of 17

02/16 92-2692-R11

Page 12

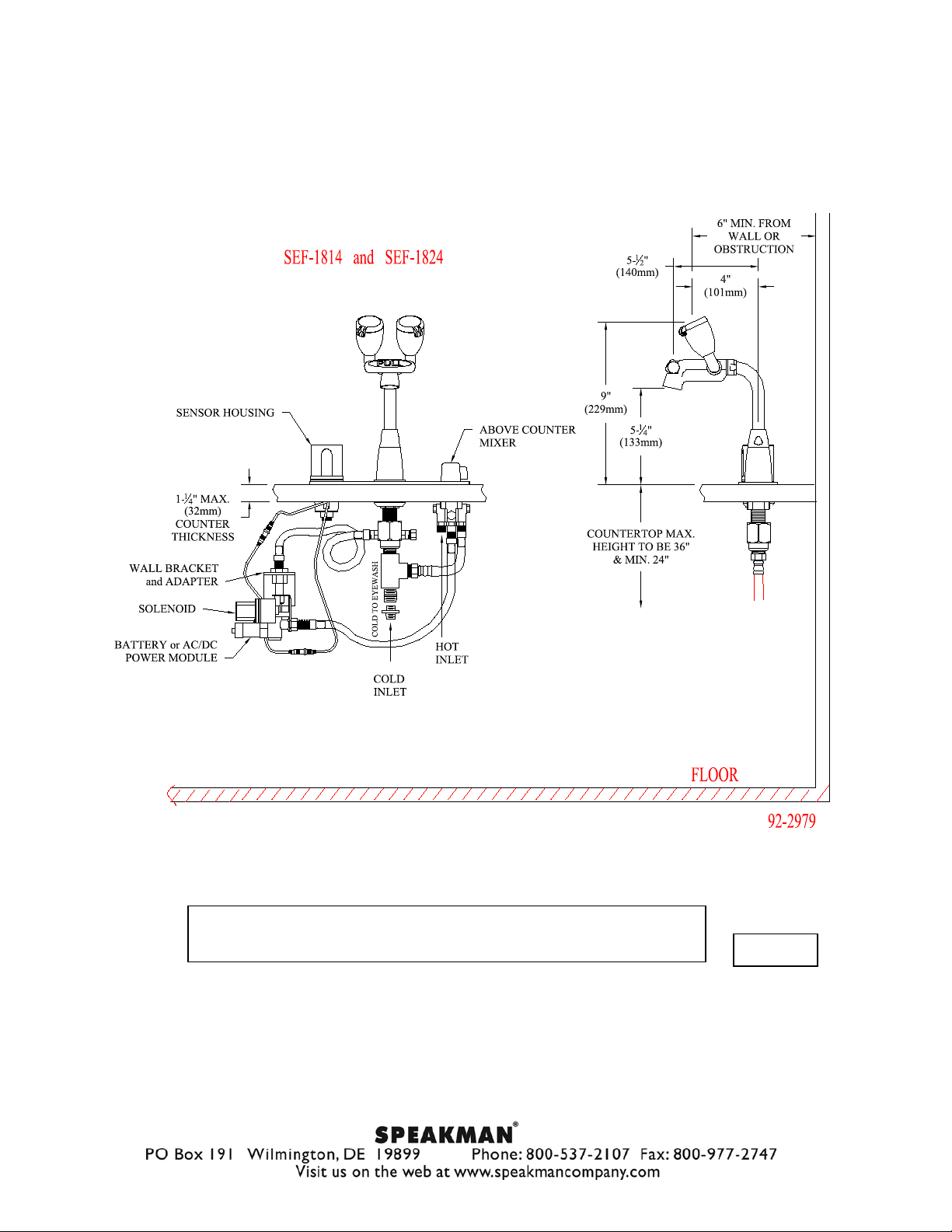

SEF-1814 -8” Sensorflow, eyewash faucet, ACM, battery 92-2979

SEF-1824 -8” Sensorflow, eyewash faucet, ACM, AC/DC

12 of 17

02/16 92-2692-R11

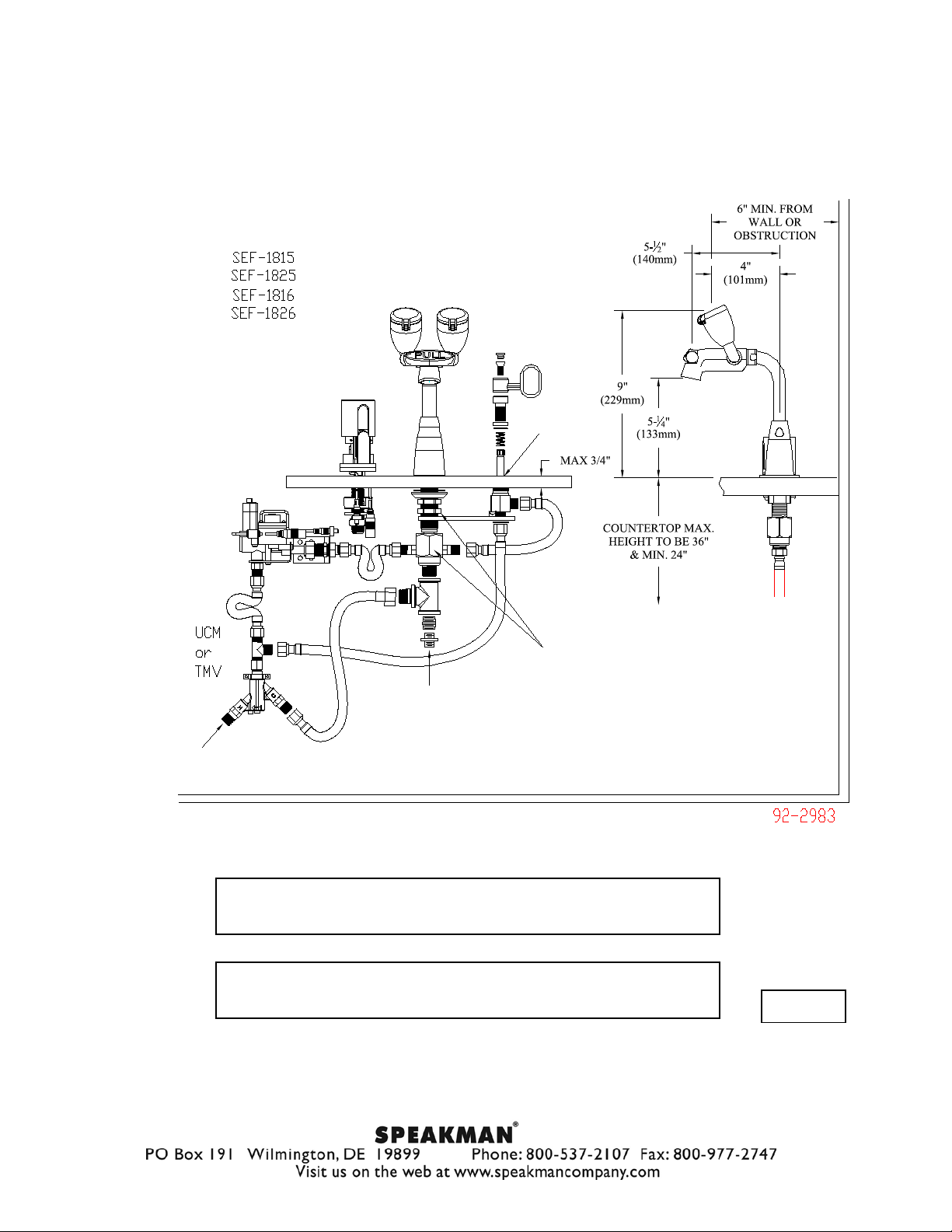

Page 13

1" HOLE

COLD INLET

HOT INLET

FLOOR

TIGHTEN THE TEE BEFORE TIGHTENING TOP NUT ONTO MANUAL OVERRIDE BRACKET

SEF-1815 -8” Sensorflow, eyewash faucet, UCM, MO, battery

SEF-1816 -8” Sensorflow, eyewash faucet, TMV, MO, battery 92-2983

SEF-1825 -8” Sensorflow, eyewash faucet, UCM, MO, AC/DC

SEF-1826 -8” Sensorflow, eyewash faucet, TMV, MO, AC/DC

13 of 17

02/16 92-2692-R11

Page 14

HOT INLET

FLOOR

COLD INLET

TIGHTEN THE TEE BEFORE TIGHTENING TOP NUT ONTO MANUAL OVERRIDE BRACKET

1" HOLE

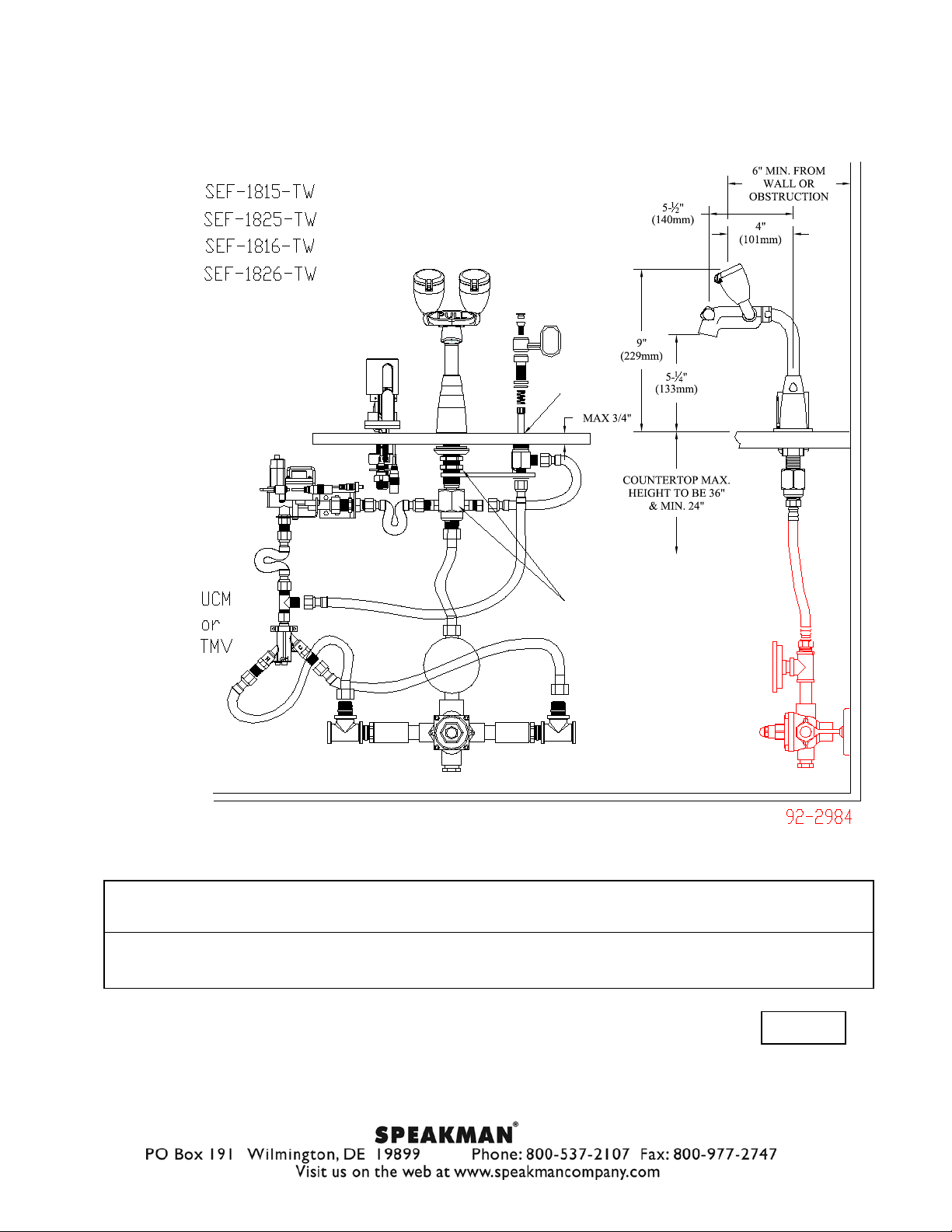

SEF-1815-TW -8” Sensorflow, eyewash faucet, UCM, MO, battery and Thermostatic Valve for Eyewash

SEF-1816-TW -8” Sensorflow, eyewash faucet, TMV, MO, battery and Thermostatic Valve for Eyewash 92-2984

SEF-1825-TW -8” Sensorflow, eyewash faucet, UCM, MO, AC/DC and Thermostatic Valve for Eyewash

SEF-1826-TW -8” Sensorflow, eyewash faucet, TMV, MO, AC/DC and Thermostatic Valve for Eyewash

14 of 17

02/16 92-2692-R11

Page 15

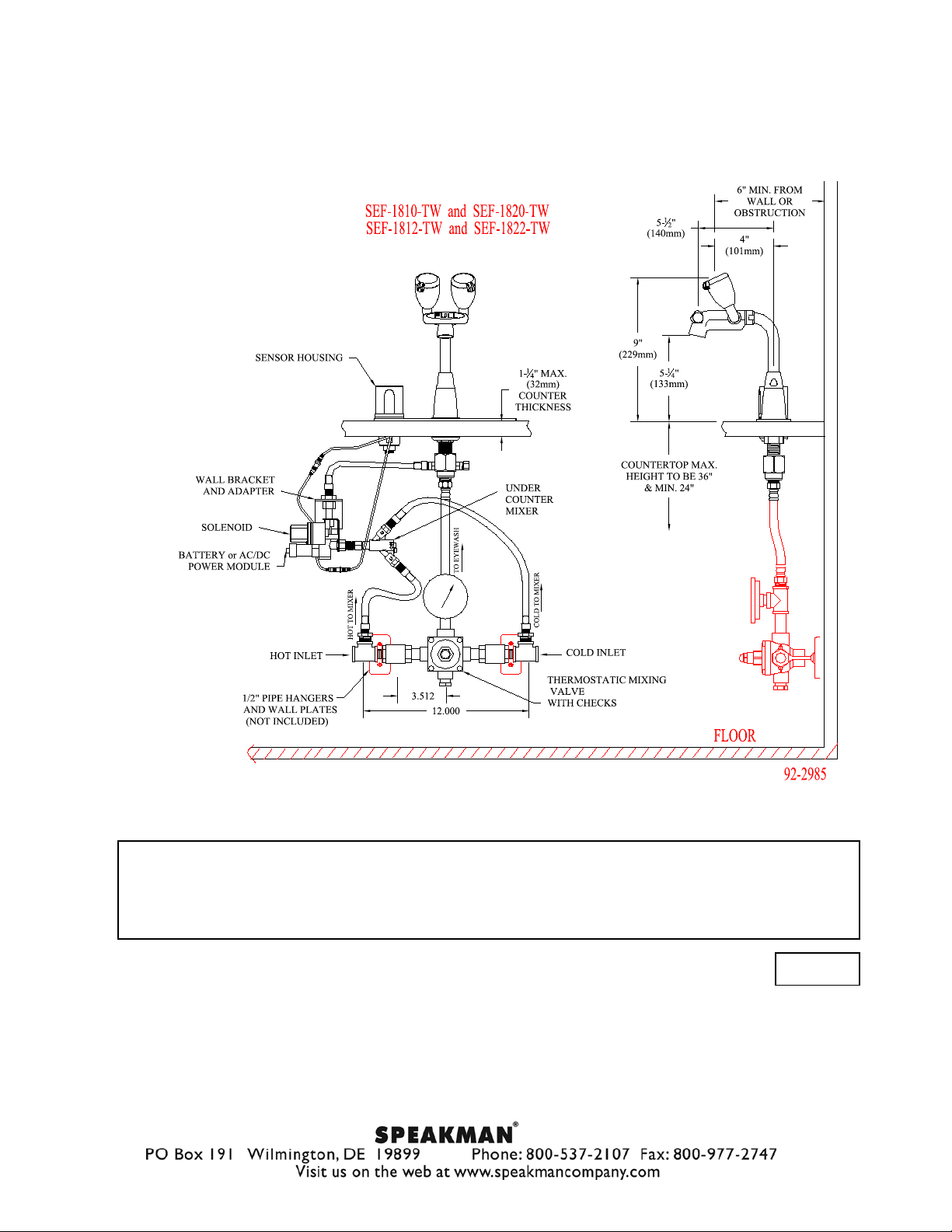

SEF-1810-TW -4” Sensorflow, eyewash faucet, UCM, battery and Thermostatic Valve for Eyewash

92-2985

15 of 17

02/16 92-2692-R11

SEF-1820-TW -4” Sensorflow, eyewash faucet, UCM, AC/DC and Thermostatic Valve for Eyewash SEF-1812-TW -8” Sensorflow, eyewash faucet, UCM, battery and Thermostatic Valve for Eyewash SEF-1822-TW -8” Sensorflow, eyewash faucet, UCM, AC/DC and Thermostatic Valve for Eyewash

Page 16

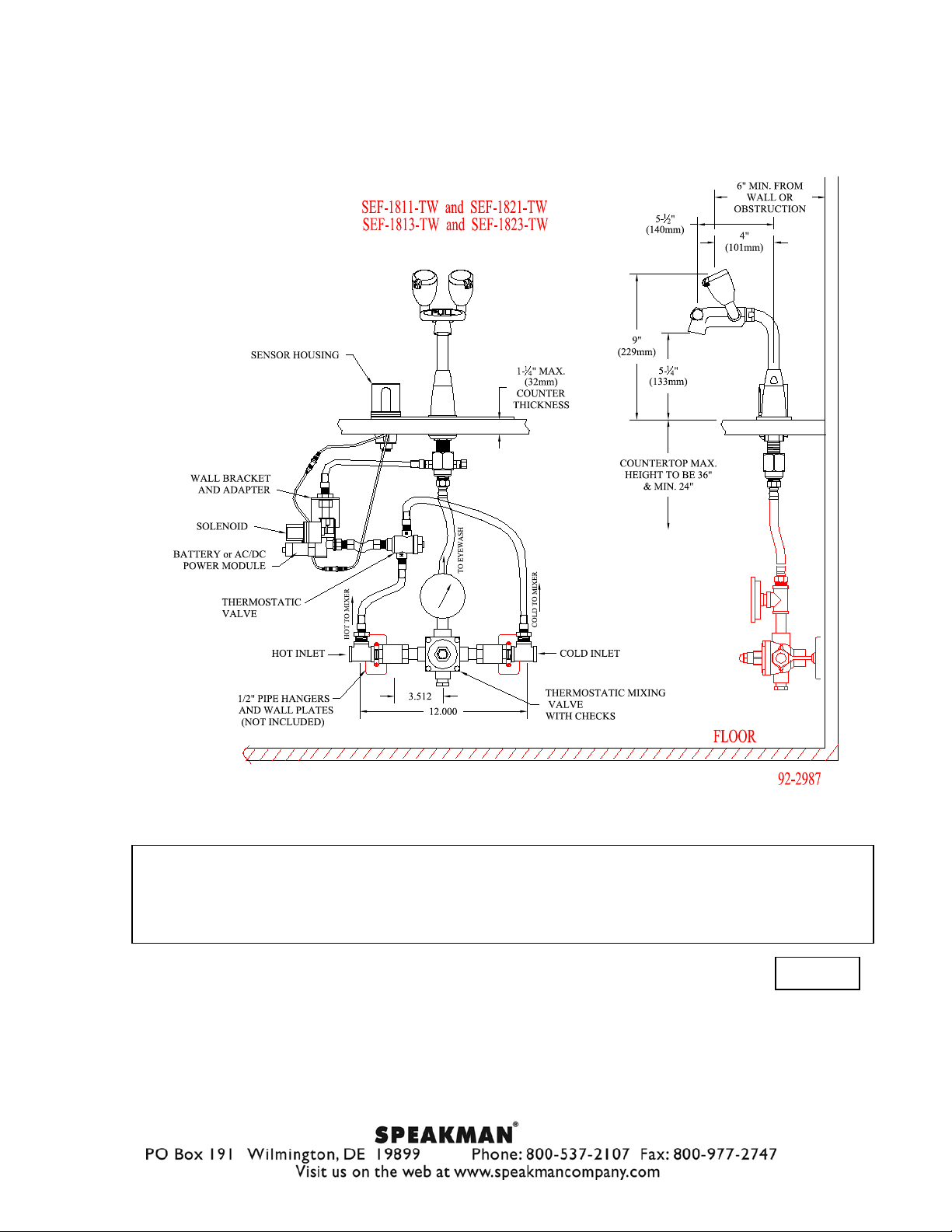

SEF-1811-TW -4” Sensorflow, eyewash faucet, TMV, battery and Thermostatic Valve for Eyewash

92-2987

SEF-1821-TW -4” Sensorflow, eyewash faucet, TMV, AC/DC and Thermostatic Valve for Eyewash SEF-1813-TW -8” Sensorflow, eyewash faucet, TMV, battery and Thermostatic Valve for Eyewash SEF-1823-TW -8” Sensorflow, eyewash faucet, TMV, AC/DC and Thermostatic Valve for Eyewash

16 of 17

02/16 92-2692-R11

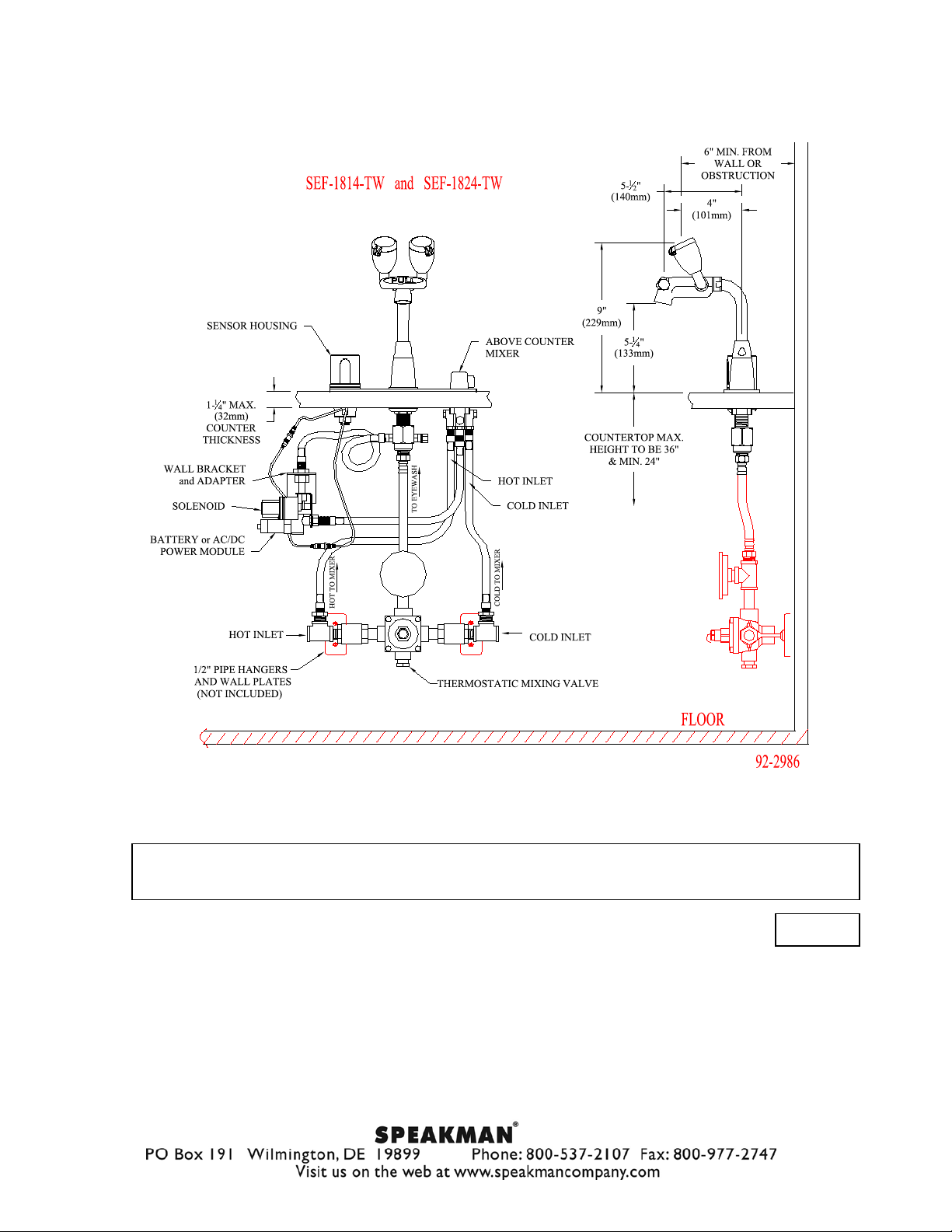

Page 17

SEF-1814-TW -8” Sensorflow, eyewash faucet, ACM, battery and Thermostatic Valve for Eyewash 92-2986

17 of 17

02/16 92-2692-R11

SEF-1824-TW -8” Sensorflow, eyewash faucet, ACM, AC/DC and Thermostatic Valve for Eyewash
