EXPERT 1.3K-FA
1.3KW SOLID STATE FULLY AUTOMATIC
LINEAR AMPLIFIER
USER MANUAL
Rev. 3.0
Third series
User manual
Expert Amp 1.3K-FA
INDEX Page. 2 of 91
Index
IMPORTANT ...................................................................................................................................................... 4
HOW TO READ THIS MANUAL ........................................................................................................................ 4
PRECAUTIONS .................................................................................................................................................. 5
UNPACKING ...................................................................................................................................................... 7
1. PANEL DESCRIPTION ............................................................................................................................. 8
1.1 Front Panel ........................................................................................................................................ 8
1.2 Rear Panel ......................................................................................................................................... 9
2. GENERAL INFORMATION .................................................................................................................... 10
2.1 Power supply ................................................................................................................................... 10
2.2 Input / Output .................................................................................................................................. 10
2.3 ALC / RELAY / CAT ....................................................................................................................... 10
3. INTERCONNECTION WITH THE TRANSCEIVER ................................................................................. 12
4. USE OF THE LINEAR AMPLIFIER ........................................................................................................ 13
4.1 SO2R (Single Operator Two Radio ) ................................................................................................. 14
4.2 Band-Pass Filters Set “SPE BPF1” .................................................................................................... 16
4.3 QSK (Full Break-In) Operation ......................................................................................................... 17
4.4 Tunable Antenna Control ................................................................................................................ 18
4.5 Setting Up of an Antenna for Reception only ................................................................................ 19
4.6 Can also be used on 5 MHz ............................................................................................................... 20
4.7 Two Possible Sets of Antennas (Bank A or Bank B) ............................................................................ 21
4.8 With or Without ATU ....................................................................................................................... 21
4.9 Gain Versions .................................................................................................................................. 21
5. EXTERNAL GROUND CONNECTION .................................................................................................. 22
6. ANTENNA ............................................................................................................................................. 23
7. POWER SUPPLY (PSU) ...................................................................................................................... 24
8. TUNER (ATU) ..................................................................................................................................... 26
9. PROTECTIONS / ALARMS .................................................................................................................... 28
10. PROGRAMMING ................................................................................................................................... 29
10.1 Ways to operate ............................................................................................................................... 29
11. INITIAL OPERATION OF THE AMPLIFIER .......................................................................................... 32
11.1 Initial Programming.......................................................................................................................... 32
11.2 Operating ......................................................................................................................................... 35
Setting Driving Levels .................................................................................................................... 35
12. CONNECTIONS ..................................................................................................................................... 37
12.1 CAT Connector ................................................................................................................................ 37
12.2 Icom ................................................................................................................................................ 38
CAT CI–V Interface ......................................................................................................................... 38
12.3 Kenwood ......................................................................................................................................... 41
CAT RS232 Interface ....................................................................................................................... 41
CAT 5V TTL Interface ..................................................................................................................... 41
12.4 Yaesu .............................................................................................................................................. 42
CAT RS232 Interface ....................................................................................................................... 42
CAT 5V TTL Interface ..................................................................................................................... 42
15.5 BAND DATA Interface .................................................................................................................... 43
12.6 Ten – Tec, Flex-Radio, Elecraft ....................................................................................................... 43
CAT RS232 Interface ....................................................................................................................... 43
ALC with Flex-Radio ..................................................................................................................... 44
12.6 Transceivers without CAT................................................................................................................. 45
13. OTHER CONNECTIONS ........................................................................................................................ 46
13.1 ALC, Relay Connections ................................................................................................................. 46
13.2 Remote- ON Link ............................................................................................................................. 46
13.3 Connections TX-INH, / TX-INH...................................................................................................... 47
TX-INH Link ................................................................................................................................... 47
/ TX-INH Link ................................................................................................................................ 48
13.4 AUX Connector ............................................................................................................................... 49
13.5 PORT Connector .............................................................................................................................. 50
User manual
Expert Amp 1.3K-FA
INDEX Page. 3 of 91
SteppIR cable: .................................................................................................................................. 50
Ultrabeam cable: .............................................................................................................................. 51
Serial connection to a standard PC RS-232 port for remoting use.......................................................... 51
14. TRANSCEIVER CONTROLLED BY PC ................................................................................................. 52
14.1 Icom CI-V Interface ........................................................................................................................ 52
14.2 RS232 Interface................................................................................................................................ 53
14.3 5V TTL Kenwood Interface.............................................................................................................. 53
14.4 5V TTL Yaesu Interface ................................................................................................................... 54
15. USE OF THE USB / RS232 PORTS ......................................................................................................... 55
15.1 Remote Control ............................................................................................................................... 56
15.2 Download ........................................................................................................................................ 56
16. MAINTENANCE .................................................................................................................................... 57
17. CHARACTERISTICS / SPECIFICATIONS.............................................................................................. 58
18. DIAGNOSTICS. ..................................................................................................................................... 60
19. TABLE .................................................................................................................................................. 61
20. APPENDIX 1 - REMOTE CONTROL ...................................................................................................... 62
20.1 SW (Software) installation. ............................................................................................................... 62
20.2 Term_1.3K_USB.exe usage .............................................................................................................. 67
20.3 Term_1.3K_232.exe usage ................................................................................................................ 77
Remote ON/OFF using RS-232. ........................................................................................................ 82
20.4 Firmware update............................................................................................................................... 83
21. GENERAL RESTORE ............................................................................................................................ 87
22. WARRANTY TERM ............................................................................................................................. 88
REPAIR FORM ................................................................................................................................................. 90
User manual
Expert Amp 1.3K-FA
INDEX Page. 4 of 91
We congratulate you on the choice of the EXPERT 1.3K-FA solid state linear
amplifier.
This amplifier has built-in the power supply (100 – 255 VAC with PFC) and an
Automatic Antenna Tuner capable of matching up to 5:1.
This amplifier is small, powerful and covers all the amateur bands from 1.8 to 50
MHz including the WARC bands and, where permitted, can be used on 5 MHz (60
meters).
It is completely automatic and can be used remotely.
Weighing only 9.5 kg. (20.9 Ibs), it is perfect for use in the shack and is superior to
all other amplifiers for DXpeditions.
All operating conditions (frequency, antenna, tuner etc.) are controlled from your
transceiver.
The operator only needs to move the frequency-tuning knob on the transceiver.
Plus, it is possible to connect our amplifier to every transceiver available on the
market, as it is extremely user-friendly, and is a product that is the best in its class.
IMPORTANT
Read this instruction manual carefully before operating your new linear amplifier.
Failure to follow these instructions will result in voiding the warranty.
Please keep this manual, as it contains important safety and operating instructions
for your SPE EXPERT 1.3K-FA.
The manual is subject to changes and updates, therefore please check for a
possible updated version on the website www.linear-amplifier.com.
The English language version is the official one.
This manual is valid only for the third series.
All future software releases can also be used by the Expert 1.3K-FA first and second
series whose hardware features remain as in the manuals rev.1.x and rev.2.x.
HOW TO READ THIS MANUAL
This manual is divided into four main parts:
• First part, from chapter 1 to chapter 9.
The characteristics of the amplifier are described, it is essential to read this to fully
understand this amplifier’s potential capabilities that make this product unique.
• Second part, from chapter 10 to chapter 11.
Programming and startup of the amplifier is described step by step. Some advice is
also given on how to manage various transmission modes.
• Third part, from chapter 12 to chapter 16.
This section details how to interface the amplifier with other equipment.
How to build cables, using USB/RS232 ports for remote control, downloads, etc.
• Fourth part, chapter 20.
Provides all the information for software management.
User manual
Expert Amp 1.3K-FA
INDEX Page. 5 of 91
PRECAUTIONS
Explicit definitions
WORD
DEFINITION
WARNING!
Risk of danger of fire or electric shock to people.
Possible damage to the amplifier.
NOTE:
Serious problems if not observed. Danger of fire or electric shock for the operator,
or damage to the equipment.
WARNING!
DO NOT disconnect any antenna from the amplifier during transmission.
This could cause a risk of electric shock, RF burns or fire.
WARNING!
DO NOT modify the internal wiring of the amplifier. Any modifications will invalidate the
warranty, and may reduce the performance of the linear amplifier or damage it.
WARNING!
Before using the linear amplifier, compare the value of voltage of your local AC mains
supply system with those required by the amplifier.
WARNING!
DO NOT turn ON the linear amplifier unless it has been properly grounded through the
GND conductor of the AC mains cord.
Do not disconnect this ground under any circumstances, this may lead to a risk of severe
or fatal electric shock.
WARNING!
DO NOT use an extension cord with the AC power cable unless it is correctly rated as
there will be a risk of fire or electric shock. And could compromise the operation of the
amplifier.
WARNING!
DO NOT allow metallic objects or wires to enter inside the amplifier.
WARNING!
DO NOT obstruct the cooling vents at both the sides, back and front of the amplifier.
Ensure that no objects impede the correct operation of the fans
WARNING!
DO NOT expose the linear amplifier to rain, snow or any liquids.
WARNING!
DO NOT install the linear amplifier in a place without good ventilation. This could limit heat
dissipation and the amplifier could be damaged.
User manual
Expert Amp 1.3K-FA
INDEX Page. 6 of 91
WARNING!
DO NOT touch the amplifier with damp or wet hands.
This could cause an electric shock.
Avoid opening the amplifier before you have disconnected it from the mains supply plus
wait at least 2 minutes for the electrolytic capacitors to complete their discharge.
To clean the amplifier DO NOT use chemical agents like alcohol or benzene as the plastic
surfaces could be damaged.
AVOID using the amplifier in areas with temperatures below 0° C (+32°F) or above +40°C
(+104°F).
AVOID using the linear amplifier in locations that are very dusty, damp, have high humidity
or that are in direct sunlight.
AVOID placing the linear amplifier against walls where the circulation of the air would be
obstructed and the noise of the fans would be reflected toward the operator.
AVOID permitting children to play with the amplifier.
If you do not use the linear amplifier for a long time, set the back main switch [I/O] to the
OFF position [O].
Information for Users on Collection and Disposal of Old Equipment and used
Batteries.
These symbols on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and batteries
should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used
batteries, please take them to applicable collection points, in accordance with
your national and local legislation.
This amplifier should only be operated by persons who have an appropriate radio
transmitting license.
You should observe your license conditions while using it in accordance with
national legislation (power, band, transmission mode etc.).
User manual
Expert Amp 1.3K-FA
INDEX Page. 7 of 91
UNPACKING
Remove the packaging and carefully check the contents. Please look closely for the plastic
pouch containing cables, fuses and connectors inside the box for your linear amplifier.
It may be in the inside pocket of the canvas carrying bag.
If you find any damage or if there are any parts missing, contact your distributor/dealer
immediately.
Keeping the shipping cartons and packaging materials for future transportation is
recommended.
Accessories included in the carton
a) Transport carry bag.
b) Two cables with RCA (phono) connectors for ALC, RELAY links.
c) One USB standard cable.
d) Three connectors DB-15, 1 connector DB-9.
e) CD-ROM containing the user manual and the software for remote use.
f) One 20 A spare fuse.
g) Spare air filter.
h) Certificate of compliance and warranty form.
.
e
b c d g a h
f
User manual
Expert Amp 1.3K-FA
INDEX Page. 8 of 91
1. PANEL DESCRIPTION
1.1 Front Panel
1) ON turns on unit.
2) OFF turns off unit when held down for three seconds.
3) DISPLAY toggles between display pages.
4) POWER switches output power between “MAX / MID / LOW“.
5) OP toggles back and forth between Standby/Operate modes.
6) SET used to program the amplifier.
7) ▼► used to program the amplifier.
8) ◄▲ used to program the amplifier.
9) INPUT selects one of the two inputs of the amplifier.
10) ◄BAND switches bands manually (downward in frequency).
11) BAND► switches bands manually (upward in frequency).
12) ANT switches the antennas when programmed for use.
13) CAT shows the current CAT interface setting.
14) TUNE: starts the automatic tuning process.
15) ◄C used for manual tuning.
16) C► used for manual tuning.
17) ◄L used for manual tuning.
18) L► used for manual tuning.
19) TX red LED, illuminates during transmission.
20) OP yellow LED, illuminates when the amplifier is in “Operate” state.
21) ON green LED, illuminates when the amplifier is “ON”.
22) SET green LED, illuminates during programming.
23) TUNE yellow LED, illuminates during tuning.
24) AL red LED, illuminates when there is an alarm.
25) LCD DISPLAY
26) AIR-FILTER GRID
Note: Pressing [CAT] key two times, will show the current firmware version.
User manual
Expert Amp 1.3K-FA
INDEX Page. 9 of 91
1.2 Rear Panel
1) ANT connectors for four available antennas.
2) SO2R connector for SO2R operations.
3) INPUT connectors to connect two exciters.
4) FANS
5) IN 1 ALC, RELAY, CAT connectors for exciter 1.
6) IN 2 ALC, RELAY, CAT connectors for exciter 2.
7) “PORT” connector.
8) “USB” connector.
9) “AUX” connector.
10) ON main switch.
11) AC mains power cable.
12) GND ground connection.
User manual
Expert Amp 1.3K-FA
INDEX Page. 10 of 91
2. GENERAL INFORMATION
(Read the specific chapters for more details).
2.1 Power supply
The amplifier uses a switching power supply that will automatically adapt to any AC
voltage supply that is between 100 and 255 Vac and is 50 or 60 Hz.
The main switch [I/O] is located on the rear panel.
In the [O] position all the internal circuitry is powered OFF, in the [I] position (red led ON)
some internal voltages in the amp are now present allowing the operator to turn ON or turn
OFF the linear amplifier in one of the following ways:
a) Using the [ON]/[ OFF] keys on the front panel.
b) Applying / removing 9 to 15 VDC on pin (8) of the CAT connector (see note
below).
c) Using the USB port and the management software.
This software can be downloaded from the website www.linear-amplifier.com .
Note: Almost all transceivers, when turned ON, will output 13.8 VDC. Using this voltage, the
linear amplifier can be automatically turned ON and OFF when the transceiver is
turned ON and OFF.
Note: There is an “inline fuse” located inside the amplifier (remove the lower cover).
2.2 Input / Output
The linear amplifier has two inputs (INPUT 1, INPUT 2) to which you can connect one or
two transceivers of any brand or type.
These inputs are selected with the [INPUT] key or automatically switched with the PTT of
each transceiver.
The amplifier easily manages up to four antennas (ANT 1, ANT 2, ANT 3 and ANT 4).
The amplifier can be programmed to automatically select any of the four antenna ports.
The SO2R functionality is implemented by its dedicated connector, appropriately marked.
2.3 ALC / RELAY / CAT
There are two transceiver inputs (IN 1, IN 2), allowing two distinct transceivers to be
connected at the same time.
ALC This is a negative voltage generated by the amplifier.
It is used to limit the output power of the transceiver in order to prevent over-
driving.
ALC allows maximum power of transceiver in STANDBY”, then the proper drive
power in “OPERATE”.
In this way the drive power from the exciter will be regulated automatically
without having to set it.
If the ALC port is not connected, it is mandatory to manually adjust the drive
from the transceiver, as happens in all other competitors.
The use of the ALC port is highly recommended.
Note: With this link, it is also possible when in the amplifier LOW power mode, with most
transceivers, to use the arrows [ ▼►] or [◄▲] to reduce the driving power to less
than 5W in order to set the amplifier’s output power within the country's limits.
User manual
Expert Amp 1.3K-FA
INDEX Page. 11 of 91
RELAY This essential port allows the amplifier to be switched into the transmit state.
To do that, the inner pin of the RCA phono connector must be switched to
ground potential. This is normally done by the transceiver with either a “closeto-ground” relay, or an open-collector transistor.
On the transceiver-side this link is often called SEND, PTT or TX GND.
Refer to your transceiver manual for more details.
Max current needed is only 2 mA or less.
CAT This port is highly recommended
Thanks to this port the linear amplifier will detect, while in the receive mode,
the operating frequency of the transceiver and t hen automatically control
changes of band, antenna and automatic antenna tuner.
All modern transceivers have CAT control options.
In older models, often elementary analog or digital information is sent from
the transceiver to the amplifier for band switching only.
To facilitate any possible connection, there is also a very efficient frequency
meter in the amplifier.
The management of the band, the antennas and the tuner is implemented in the
Expert with one of the following choices:
a) Through “CAT”, present in all recent transceivers. Band and sub-band are
automatically selected by the receiving transceiver without the aid of the
internal counter.
ABSOLUTELY RECOMMENDED SOLUTION AS IT IS THE MOST
SAFE AND TECHNICALLY CORRECT.
b) Using "BAND DATA", in this case the band is automatically set by the
transceiver while the internal frequency meter will select only the
sub-band during transmission.
c) Through “NONE” in the absence of a suitable data connection with the
transceiver. The fact that this condition does not require any connection
might seem a simplification, in reality this choice is not recommended
because band and sub-band will be selected by the internal frequency
meter only during transmission.
Use this condition only if the choices a) and b) are NOT PRACTICABLE.
GIVING THE POWER MANAGED , A DANGER CONDITIONS COULD BE
VERIFIED, IN PARTICULAR BAND CHANGES IF DONE IN OPERATE.
IT IS STRONGLY RECOMMENDED TO DO THIS IN STANDBY.
NOT FOLLOWING THIS RECOMMENDATION WILL BE CONSIDERED
"MISUSE" OF THE EQUIPMENT WITH CONSEQUENT LOSS OF
WARRANTY (an indelible internal log records every condition).
In condition c) also avoid putting two transmitting antennas very close
operating simultaneously on different bands, the resulting strong signals
could generate undue band changes or SWR alarms.
Note: In some transceivers the “RELAY” and “CAT” signals are activated by a
selection in the menu: in that case, please refer to their user’s manuals.
User manual
Expert Amp 1.3K-FA
INDEX Page. 12 of 91
3. INTERCONNECTION WITH THE TRANSCEIVER
The diagram shows the connections with one transceiver only. To connect the second
transceiver, repeat the same connections used for “IN 1”, now using the port “IN 2“
connections.
For ALC and RELAY connections, use a shielded cable (supplied) with RCA phono
connectors.
For CAT connection, this cable needs to be made by the owner, or purchased, for the
many different transceivers available for use with the amplifier.
This cable may also include ALC, RELAY ON / OFF (read the “CAT CONNECTIONS“
chapter of this manual).
For all other information about connecting a transceiver, please refer to the transceiver’s
manual.
Note: If the DB15 “CAT” connector is used for RELAY and ALC, do not also use the RELAY
and ALC RCA phono connectors.
User manual
Expert Amp 1.3K-FA
INDEX Page. 13 of 91
4. USE OF THE LINEAR AMPLIFIER
Block diagram.
The position of the contacts, as shown in the diagram, when the linear amplifier in the OFF
state.
The linear amplifier can be used in the following way:
1) OFF Only two direct connections are actuated:
between INPUT 1 and ANT 1
between INPUT 2 and SO2R
2) STANDBY All the functions are activated (band change, antenna change, tuner
control) and the transmission is from the transceiver only.
3) OPERATE All the functions are activated and the transmission is using the linear
amplifier.
Note: Regulation of the exciter’s power is automatically achieved through the ALC link.
With the ALC connected, the amplifier input power in OPERATE mode is automatically
adjusted to the correct driving level for the amplifier.
In STANDBY the amplifier will pass the output power as set by its POWER OUTPUT
control.
Without the ALC connection, you have to manually adjust the exciter power to correctly
drive the amplifier in order to avoid damaging the amplifier.
If you switch from MAX to MID or LOW without ALC connection, without previously
reducing the driving power, the amplifier will go into protection for "OVER
DRIVING".
Despite being protected, the amplifier is still exposed to risk with repeated
“OVER DRIVING" conditions.
If you persist without investigating the causes, you will lose the warranty.
User manual
Expert Amp 1.3K-FA
INDEX Page. 14 of 91
4.1 SO2R (Single Operator Two Radio )
Operation of this kind is used during a contest in order to acquire a new multiplier, as
quickly as possible.
The following connections are needed (see the diagram):
1. INPUT 1 connected to the first transceiver (RTX1).
2. INPUT 2 connected to the second transceiver (RTX2).
3. ANT 1/2/3/4 connected to the available antennas set.
4. SO2R connected to a multi-band antenna.
The operating mode could be the following:
If you are operating using RTX1 on a given band (e.g. 20m), the correct antenna (ANT
1/2/3/4) is automatically selected for listening and transmitting.
While RTX2 is connected to the multi-band antenna on the SO2R port, and is in the RX
mode, on another band (e.g. 40m).
If, when operating on 20 m, a multiplier of interest is heard on RTX2, the only action
needed is to push the PTT2 in order to connect RTX2 to the 40 m transmitting antenna. At
the same time RTX1 gets switched to the multiband antenna in order to receive on the 20
m band.
More generally, the appropriate antenna of the ANT 1/2/3/4 / park is associated with the
transmitting transceiver, while the multiband will pass to the other transceiver for reception
only.
User manual
Expert Amp 1.3K-FA
INDEX Page. 15 of 91
Instead of the multiband antenna it is possible to use one of the same antennas of the
ANT 1/2/3/4 park for reception. This possibility is offered by the use of the "AM-01
REMOTE SWITCH" external unit which also has the ability to extend the number of
usable antennas from 4 to 6 according to the following figure.
This unit is not simply a "remote antenna switch" for 6 antennas in SO2R mode, it also has
the ability to become a 1 x 6 matrix, perfect for simply remoting up to 6 antennas (in this
case the SO2R cable is not needed) .
This solution does not require any additional cable since the antenna coaxial cable is also
used to send the commands and to power the switch.
The control signals are provided by the SPE Expert 1.3K-FA according to the table that
already exists inside the linear that associates with the maximum flexibility of the antennas
to the bands.
For setting, see chapter 10 "Programming" and read the AMB-01 user manual.
Note: ATTENTION, the insulation between the transmitting antenna and the receiving
antenna must be high and therefore well studied.
This can be achieved by conveniently arranging the antennas and using suitable Band
Filters or Stubs.
SPE is not responsible for any damage resulting from the equipment.
User manual
Expert Amp 1.3K-FA
INDEX Page. 16 of 91
4.2 Band-Pass Filters Set “SPE BPF1”
To increase the isolation between the transmitting and the receiving antenna, SPE has
under design an optional unit called "SPE BPF1" which must be placed between RTX1
and INPUT1 or RTX2 and INPUT 2 of the linear.
The unit is controlled and powered from the AUX port.
(Contact the manufacturer or your distributor for availability).
The AUX port also provides all the information necessary to control a similar unit of
another manufacturer.
This unit automatically enables the following features:
1. DXpedition, Contest Multi / Multi.
In this situation the amplifier is connected to a single transceiver (INPUT 1 or INPUT 2).
"SPE BPF1 automatically selects the filter on the band to be used in the input where the
transceiver is connected, while the other unrelated input is left unused.
User manual
Expert Amp 1.3K-FA
INDEX Page. 17 of 91
2. Contest SO2R.
In this situation the amplifier is connected to two transceivers and two "SPE BPF1"
in order to automatically select the right filters in the output of both the transceivers.
These features can be possible, as well, with the simultaneous use of the unit "AMB-01”
(see item 4.1).
To ensure the proper functionality of these options, CAT connector control is mandatory.
4.3 QSK (Full Break-In) Operation
The Expert 1.3K-FA also allows QSK (FULL BREAK-IN) operation. Thanks to the correct
control used on the RX / TX switching relays, any possibility of "hot switching" is
avoided.
This feature is compatible with all modern transceivers, in fact the minimum delay required
before a transmission is usually less than 6 msec. (check the manual of the transceiver).
In the case (and it is very remote) of minor delay needed, you can use the link TX - INH
(see "CAT" paragraph).
Special very reliable, “noiseless”, with high mechanical performance, gold plated relays
are used so that the “vacuum relays” option is no longer required.
In QSK we do not recommend the use of the "AM-01 REMOTE SWITCH" for timing
reasons.
User manual
Expert Amp 1.3K-FA
INDEX Page. 18 of 91
4.4 Tunable Antenna Control
The use of tunable antennas (SteppIR, Ultrabeam) is becoming popular.
These antennas vary the physical dimensions of the elements according to the operating
frequency in order to ensure a perfect resonance.
The Expert 1.3K-FA, through the dedicated "PORT" socket linked to the antenna
controller, allows automatic control by tracking the tuning knob changes.
This dedicated link makes the following advantages possible:
- Simplification of wiring, such as the complication of adding additional wiring to the
CAT connector is no longer necessary.
- Compatibility with all types of CAT. The Expert 1.3K-FA converts the CAT protocol, so
two different transceivers (CATs) can be used simultaneously with the same controller
without any modification of the wiring.
- Thanks to the frequency counter inside the linear, the antenna can be controlled also
without the use of CAT (CAT NONE).
All of the automatic features of the linear are ensured even in the most complex
configurations.
Antennas of all kinds can be connected to the "ANT" PORTS and the Expert 1.3K-FA will
choose the antennas according to the set-up and will manage them according to their
characteristics.
The CAT is recommended, however, if the transceiver does not have the CAT or if it only
has the "Band Data", the Expert 1.3K-FA will continue to drive the antenna with the
frequency measured by the counter (data collected after the first transmission) .
The simplest possible configuration is a single tunable antenna according to the following
diagram:
The link is configurable for any position (ANT 1,2,3,4) you want use.
User manual
Expert Amp 1.3K-FA
INDEX Page. 19 of 91
To select a tunable antenna, refer to the “TUN ANT” item on the main menu.
After selection, on the display, next to the number of the antenna in use a “t” will
appear . In this case the ATU will be bypassed.
Set "Kenwood" in the control box as the communication protocol used, the speed
of the communication is “owner settable.”
For the connection cable, refer to chapter 13.5.
4.5 Setting Up of an Antenna for Reception only
In some cases it may be necessary to transmit with one antenna and receive with a more
appropriate one.
A unique feature allows the Expert 1.3K-FA to have a very flexible management of the
available antennas.
To select a receiving antenna, refer to the “RX ANT” item on the main menu.
One of the following functions can be selected for each antenna:
• RTX: this is the "default" condition, an antenna marked RTX can be used for both
transmission and reception regardless of whether it is in the first or second column
in the "ANTENNA" menu item.
• RX Also: an antenna marked RX Also if, in the "ANTENNA" menu item, it is placed
in the first column it behaves like a normal RTX, if it is placed in the second column
it provides reception after the antenna selected in the first column has transmitted.
• RX Only: an antenna marked RX Only is an antenna suitable for reception only
(e.g. Beverage) it can be inserted in the first or second column, the important thing
is that an RTX is present in the other column. Since with linear OFF the INPUT1 is
connected directly to ANT1, to avoid the danger of transmitting when the linear is off
with a receive-only antenna, it is not possible to select ANT1 as RX Only.
The program admits only one RX Only.
In the "ANTENNA" menu item, in the last two cases, an "r" will appear next to the number
of the selected antenna (e.g. 3r). On the main screen, the indication of the receiving
antenna is placed above the transmission one.
QSK does not recommend this feature for timing reasons.
As an example, the screens are shown in the case of using ANT1 as “RX Also”.
User manual
Expert Amp 1.3K-FA
INDEX Page. 20 of 91
“RX ANT setting”
“ANTENNA setting”
“OPERATE page”
If you want to exclude the receiving antenna at the moment and also receive with the
antenna with which it was transmitted, just press the [ANT] button on the front panel.
If using a preamplifier it is strongly suggested to use a sequencer.
4.6 Can also be used on 5 MHz
Where permitted, the Expert 1.3K-FA can provide the full power on 5 MHz (60 m.).
It should be noted that, although permitted, this band may have power limitation, follow the
laws of the country in which you operate.
User manual
Expert Amp 1.3K-FA
INDEX Page. 21 of 91
4.7 Two Possible Sets of Antennas (Bank A or Bank B)
The Expert 1.3K-FA amplifier is equipped with two different memory banks, "Bank A" and
"Bank B".
If you have two different QTH’s, then they would certainly have two different antenna
setups.
Therefore it would be useful to automatically recall data from one setup to the other with
no need to adjust the configuration and the subsequent ATU matching every time.
This feature is also particularly useful if you participate in a DXpedition.
If one of the memory banks is set as your home station, upon returning, just recall the
appropriate memory bank.
For setting, see chapter 11.1 "Initial Programming", refer to the “CONFIG” item on the
main menu.
4.8 With or Without ATU
As the standard configuration, the amplifier comes with the ATU, so as to have the
maximum flexibility of use.
In some cases (perfect antenna system or use of tunable antennas), the ATU may not be
necessary. In order to reduce the initial price one can buy the Expert 1.3K-FA without the
ATU (option).
If necessary, you can install the ATU later.
4.9 Gain Versions
This amplifier is provided at the same price in the following versions:
- Standard, with high gain.
- FCC, with reduced gain to meet the FCC rules.
Warning: In the standard version in LOW the gain is deliberately very high to allow the use
of QRP transceivers. In some 100W or higher transceivers it is not possible to reduce the
Pout to less than 5W, in these instances it is advisable not to use the LOW position to
avoid possible distortions.
With some transceivers, using the ALC, it is possible to go under 500 W output, proceed
as follows:
1. Set OPERATE and select LOW.
2. Select RTTY or FM.
3. Transmit and at the same time, by pressing the left arrow, reduce the Pout to the
desired value (depending on the transceiver).
In SSB it is also necessary to verify that an excessive reduction of its Pout does not
damage the linearity of the transceiver.
User manual
Expert Amp 1.3K-FA
INDEX Page. 22 of 91
5. EXTERNAL GROUND CONNECTION
WARNING! Before connecting an external ground as described below, check with a
qualified electrician that your national wiring codes permit such a connection.
To reduce TVI, BCI and other RF problems it is best to connect the amplifier to a good RF
ground. (Note that an RF ground is different to an electrical ground which is necessary for
the prevention of electrical shock.)
The inductance of such a connection needs to be low, so the connection to ground should
be as short and direct as possible.
Large-section copper conductors should be used for this purpose.
Terminating the earth connection with a small metal plate is suggested.
The best solution is to have several ground stakes, driven into the ground and these
ground stakes need also to be tied to your main grounds.
Good results can often be achieved by using correct earthing clamps, connected to the
main water supply pipe (attention, many water pipes are now in plastic).
DO NOT use central heating pipe work.
AVOID the electric circuit ground of the building (to be used for 50/60 Hz safety only).
WARNING! DO NOT connect to gas pipes as there will be a danger of explosion.
User manual
Expert Amp 1.3K-FA
INDEX Page. 23 of 91
6. ANTENNA
Because this is a high-power amplifier, it is necessary to use properly rated antennas,
connectors and feed line cables.
Take special care with antennas using baluns and traps, because balun and/or trap
warming can occur during periods of high-power transmission and a high SWR most likely
will result.
This dangerous situation is often not perceived by the operator because a normal measure
of SWR is made when a balun and antenna are not under stress or have cooled down.
Ensure that your baluns or antenna traps are appropriately rated !
A unique feature of this linear is that, measurements are made not only of the SWR after
the band pass filter matching, but also of the SWR of the system antenna and cable. This
allows the operator to always evaluate their antenna system despite the matching and the
power applied.
With the internal ATU, the amplifier is able to overcome mismatches up to 5:1.
Be aware that, with the tuner, the PA is matched but with a high VSWR the cable is
mismatched and there can be consequent loss of power, heating and high voltages
present.
Always operate with the best possible matching because, despite the amplifier’s protection
against high SWR, continuous use into a mismatched load (a bit lower than the protection
threshold) may lead to damage.
In the case of repeated "SWR EXCEEDING LIMITS" alarms while being protected,
the amplifier is still exposed to risk.
If you persist without investigating the causes, thus causing a failure, you will lose
the warranty.
It is suggested that suitable static protection be given to antenna feeder cables.
The software allows you to select up to two antennas for the same band.
Note: For a mismatch from 1.7:1 to 2.0:1 there is an alarm, above 2.0:1 the amplifier is switched
to STANDBY.
For setting, see chapter 10 "Programming", refer to the “ANTENNA” item on the main
menu.
User manual
Expert Amp 1.3K-FA
INDEX Page. 24 of 91
7. POWER SUPPLY (PSU)
The power supply of the SPE Expert 1.3K-FA, unique in its category, is switching with a
PFC (Power Factor Correction) that allows a drastic reduction of the harmonic components
in the mains in accordance with IEC555-2, that consists of two sources.
The first powers all the electronic circuits, with the PA being excluded.
The second feeds only the PA. Its output voltage is selected based on the required output
power level.
This design was adopted as it provides maximum efficiency and therefore less heat to
dissipate.
Every precaution has been adopted to eliminate any disturbances produced by switching,
the figure shows the spectrum analysis in the 10 m band.
As you can see, the result is practically the limit of the analyzer.
The power supply meets the following applicable standards: UL60950-1, TUV EN60950-1,
EN55022, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN5502.
Since the amplifier is sold all over the world, the power cord does not come with any mains
plug. Some SPE distributors will fit the plug appropriate to your domestic supply network
prior to purchase. Should it be necessary to rewire the plug due to relocation in a different
country, please ask for advice from a qualified electrician.
To fit the plug (20 A minimum rating below 120V AC, 10A minimum rating above 120V AC)
proceed according with the following fig.
User manual
Expert Amp 1.3K-FA
INDEX Page. 25 of 91
You should observe all precautions in accordance with national legislation.
The amplifier is supplied by a power supply that automatically adapts between 100 and
255 VAC, 47-63 Hz.
In some particular cases, mains that are 100 to 120 VAC, the power in MAX may be
reduced somewhat.
In the case of a "FATAL" alarm, the power supply is locked. To restore the linear, switch it
to OFF for about 30 seconds, via the rear switch, then back ON.
If the alarm persists, contact the Distributor.
Note: In some conditions it is possible to perceive a small "hiss" coming from the power supply.
This sound should not worry you as it is the action of the PFC, essential circuit mandatory
Circuit mandatory in the CE area, to optimize the efficiency of the power supply and to
reduce the introduction into the mains of noise generated by the request for high power.
The PFC takes Into account not only instantaneous load requests but also the
momentary conditions of the mains itself.
User manual
Expert Amp 1.3K-FA
INDEX Page. 26 of 91
8. TUNER (ATU)
The amplifier has an automatic tuner that handles load mismatches up to 5:1 VSWR (2.5:1
for 6 m).
The amplifier contains a look-up table with all the permitted bands.
For tuner management, antenna data and other working data are stored.
Every band has a sub-band set, and for each of those, data related to the antenna and
auto-ATU tuning is stored.
The CAT and the frequency counter detect the operating frequency and the correct subband.
Due to the stored data, the tuner and the antenna are automatically set correctly.
As described earlier (see item 4.6), the amplifier has two different memory banks.
It is possible to use the two different presets when the amplifier operates at two different
locations.
Furthermore, table-driven management is useful to inhibit operations of the amplifier, for
example, when an antenna for a particular band is not available.
All auto-tuner functions remain operational in standby, while using the transceiver only.
Setting of the match data to write to the tables is performed automatically by pressing the
[TUNE] key.
The system will then find the correct match for minimum SWR.
In some cases (low bands) it may be useful to repeat the above operation.
To achieve a better match than that achieved with the automatic tune procedure
( which is rather unlikely) it is possible to set the tuning manually by using the keys [◄C],
[C►], [◄L], [L►].
When a manual tuning is performed, it is possible to read the tuning value, the working
frequency and the associated sub-band on the appropriate screen page.
Both types of tuning must always be implemented in the “STANDBY“ mode.
Before starting a matching process, the tuner measures the SWR of the system cable /
antenna. If it is greater than 5:1, the procedure does not begin and an alarm is displayed.
It is possible to bypass the tuner with a specific command, in order to use an external
tuner.
NEVER USE THE INTERNAL TUNER WITH AN EXTERNAL ONE, IT COULD
SERIOUSLY DAMAGE THE LINEAR.
IF YOU WANT TO USE AN EXTERNAL TUNER, FIRST DISABLE THE INTERNAL ATU
AND THEN MATCH THE ANTENNAS ALWAYS IN STANDBY MODE, NEVER IN
OPERATE, YOU MAY SERIOUSLY DAMAGE THE AMPLIFIER.
WITH AN EXTERNAL TUNER IT IS NECESSARY TO DEACTIVATE ITS AUTOMATIC
MATCHING PROCEDURE, THE HIGH POWER COULD SERIOUSLY DAMAGE THE
AMPLIFIER FOR THE POSSIBLE STRONG MISMATCHING THAT MAY OCCUR
DURING THIS PROCESS.
FOR THIS REASON IT IS RECOMMENDED TO USE THE INTERNAL TUNER
BECAUSE IT GUARANTEES THE NECESSARY AUTOMATION EVEN WITH A HIGH
SWR RATIO (5: 1).
NOT FOLLOWING THESE RECOMMENDATIONS WILL BE CONSIDERED "MISUSE"
OF THE EQUIPMENT WITH CONSEQUENT LOSS OF WARRANTY.
User manual
Expert Amp 1.3K-FA
INDEX Page. 27 of 91
The internal tuner may be bypassed as follows:
- Totally.
- For single band.
- For a single band and a specific antenna.
It is always automatically bypassed:
- With a “receiving only” antenna (If set in programming).
.- With a tunable antenna (If set in programming).
Note: The tuner, like all analog circuits, introduces a loss (0.8 dB max.) that may vary with
matching conditions.
The power meter of the amplifier does not show this loss as the power is measured at
the tuner input where the load resistance is always constant (50 ohm).
Do not expect external power meters to match the displayed power.
It should be understood that an external measure of power might be lower depending on
the matching attenuation.
Note: Sometimes, especially in the low or high frequency bands , even if the cable/antenna
mismatches are lower than the declared maximum, it is not possible to reach an
acceptable match.
This is technically explainable with the help of Smith's chart where it appears that the
values of R and X for a certain SWR values are infinite, some of which are not technically
practicable for the ATU.
This is evident by going into the MANUAL MODE and verifying that C and/or L are at the
ends of their possible values.
Note: ATTENTION: When the amplifier is either in the “STANDBY” or in the “OPERATE”
mode, always disable the automatic tuner in your transceiver.
Note: On the display, next to the number of the antenna in use, the following indications may
appear.
Below identifies those meanings (see specific chapters):
"b" = ATU bypassed.
"t" = tunable antenna.
"r" = receiving antenna.
User manual
Expert Amp 1.3K-FA
INDEX Page. 28 of 91
9. PROTECTIONS / ALARMS
The SPE EXPERT 1.3K-FA has a sophisticated protection system that constantly monitors
and controls the amplifier’s most important parameters.
The main parameters are:
Temperature of the heatsink: max. / min. voltage on the PA; max. PA current; SWR;
reflected power; max voltage RF in the tuner; input power.
The protection system is carried out in two different ways:
1) Through hardware circuits to ensure minimum intervention time.
2) Through software, with a combined action of the two CPU’s, to ensure maximum
precision.
These two results get constantly compared; every difference produces a protection trip
and a consequent alarm.
There are three types of protections/alarms:
a) SIMPLE This is the most common case. An acoustic warning beep sounds,
but no operator intervention is required, as the control system
automatically restores the correct operating conditions.
b) SERIOUS When automatic system recovery is not possible (e.g. the
temperature climbs over the limits due to obstruction of the fans,
SWR is too high, etc.). In this case the amplifier switches back to
the standby mode and the alarm message gets stored.
Normally transmission will continue with the exciter only.
c) FATAL If the amplifier is in the (b) state, but one CPU has a fault or it can’t
continue operating or some fault appears in the power-supply
module, then the amplifier will be turned OFF with no further
warning. Obviously nothing can be written in the log.
To restart the amplifier, the main switch in the rear panel has to be
switched to [O], and then to the [I] position.
Note: It is possible to read the alarm history in the standby mode using [SET] and then
[ALARMS LOG] keys. To empty the alarm stack press [TUNE] and [OPERATE] keys
together.
For further details, please consult the next paragraphs.
Note: If the acoustic alarm is very frequent during transmission, the possible causes
should be investigated.
In order not to lose the warranty, in the event of a repeated serious
alarm, the possible causes must be investigated immediately.
Note: Before the temperature limits are reached, the output power will change from
MAX to MID automatically and then possibly from MID to LOW, so that
transmission with the amplifier may continue with reduced power If the
temperature, in LOW, is allowed to rise further, a “SERIOUS“ alarm will eventually
be activated and the linear amplifier switches back to STANDBY.
Note: During a SERIOUS alarm, there will be an acoustic alarm for 10 sec. Pressing the
[DISPLAY] key, will enable the system to switch back to ‘STANDBY’ state
immediately and the sound will cease.
Note: ATTENTION : when a “FATAL” alarm occurs, immediately contact your reseller.
User manual
Expert Amp 1.3K-FA
INDEX Page. 29 of 91
10. PROGRAMMING
The three keys: [SET], [◄▲] and [▼►], allow programming the amplifier.
They can be used in the following way:
[SET] Use this key to open a menu page, to validate choices and to exit from a
menu page.
[◄▲], [▼►] Use these keys to select options.
A green led illuminates during the programming process.
Programming the system is very easy. You will find your programming choices confirmed
by the items shown at the lower part of the display.
Note: Programming operations are only possible in ‘STANDBY’ mode.
Note: Programming changes take effect only after exiting from a menu page (the green led
turns off).
Pressing the [DISPLAY] key for more than 1 sec. it will immediately exit to
“STANDBY” with no programming effect.
10.1 Ways to operate
Pressing the [SET] key opens the menu page.
On the display there are the following options:
a) CONFIG: Select “BANK A” or “BANK B”, REMOTE/SO2R MATRIX”, “COMBINER”.
b) ANTENNA: An antenna may be assigned to each band selecting the (ANT 1,
ANT 2, ANT 3, ANT 4) connector.
If you don’t have an antenna for a particular band, set it to “NO”.
User manual
Expert Amp 1.3K-FA
INDEX Page. 30 of 91
This setup allows you to preset up to 2 antennas for the same band.
The selected antennas can be switched using the [ANT] key while
working either in the “OPERATE” or in the “STANDBY” mode and
there is no transmission in progress.
c) CAT: Allows you to program the amplifier to accept control commands from
specific transceiver types.
You should refer to your transceiver user manual to ensure that it is
correctly programmed to handle such a link.
Choose the brand of transceiver or function.
For the proper link wiring, see "CONNECTIONS" in this manual.
- ICOM Set to “CI-V“ protocol. You also need to choose the baud rate,
which is usually 9600.
- KENWOOD You have to choose the baud rate (almost always 9600).
- YAESU If you use the CAT connection ( read the CONNECTIONS”
chapter of this manual), select the model of the transceiver
and then select the baud rate (almost always 4800).If the
model isn’t in the list, select “Band Data“ and read the
“CONNECTIONS” chapter of this manual. For new transceiver
models not listed, select FT 2000/9000 or try "Kenwood".
- TEN-TEC Make the CAT connection (read the “CONNECTIONS” chapter
of this manual) and follow the menu instructions.
- FLEX-RADIO Make the CAT connection (read the “CONNECTIONS” chapter
of this manual) and follow the menu instructions.
- ELECRAFT Make the CAT connection (read the “CONNECTIONS” chapter
of this manual) and follow the same indications as for
KENWOOD.
- BAND DATA Alternative connection to the CAT
(see the chapter "CAT connections" of this manual).
- NONE (Not recommended), to be set only when the CAT connection
with the transceiver is not possible, only the internal frequency
meter is used (see page 11).
Note: When using the CAT link, check that the baud rate of your transceiver is set to the
same value as the amplifier.
Attention: if a new CAT is set up, the linear must be switched OFF and then ON.
User manual
Expert Amp 1.3K-FA
INDEX Page. 31 of 91
d) MANUAL TUNE: Allows you to tune the amplifier manually.
However achieving a better setting than that obtained by automatic
tuning is very unlikely.
Set your exciter to transmit a continuous RTTY or FM signal.
Then press the [◄ L], [L ►], [◄ C], [C ►] keys until you obtain the
minimum SWR.
To memorize, press the [TUNE] key in addition to the PTT.
The operating frequency and the sub-band are also shown on the
Display.
e) DISPLAY: Adjusts the backlight and the contrast of the display.
f) BEEP: On : All acoustic warning alarms operate and a beep confirms a
keystroke.
Off : In this condition, when you press a key there is no beep
feedback, but for all warning conditions and alarms, the
acoustic warnings are still functional.
g) START: Stby: Sets STANDBY mode at startup.
Oprt: Sets OPERATE mode at startup.
h) TEMP / FANS: Celsius: Displays the temperature expressed in “Celsius”.
Fahrenheit: Displays the temperature expressed in “Fahrenheit”.
Normal: The speed of the fans is set for minimum noise.
Contest: The speed of the fans is increased.
i) ALARMS LOG: Shows only the ten most recent "SERIOUS" alarms.
j) TUN ANT: Allows you to associate a tunable antenna to one of four ANT
connectors.
A "t" highlights the selected antenna and the ATU is in BYPASS.
k) RX ANT: Allows you to set a receiving antenna.
An "r" highlights the selected antenna.
User manual
Expert Amp 1.3K-FA
INDEX Page. 32 of 91
11. INITIAL OPERATION OF THE AMPLIFIER
Before turning ON the amplifier, read this manual carefully.
The following preliminary operations are necessary:
1) Ensure that the mains voltage is within the proper range of the amplifier’s
power supply requirements.
2) Connect the amplifier to a good ground circuit.
3) Connect the antennas.
4) Connect the amplifier to the transceiver ( read the “CONNECTIONS WITH
THE TRANSCEIVER” chapter of this manual).
Operate [I] on the main switch on the back panel. Press the [ON] key on the front panel.
Select the INPUT where the transceiver is connected, always perform programming with
the amplifier in STANDBY.
If you change memory BANK you have to repeat this programming.
Note: You may have to repeat some programming if you change antenna, transceiver, etc.
Note: ATTENTION: The ‘RELAY’ and ‘CAT’ signals in some types of transceivers are only
turned ON from a transceiver menu. Refer to the user manual.
Note: ATTENTION: When the amplifier is in the ‘ STANDBY’ and ‘OPERATE’ modes, always
disable the transceiver’s autotuner.
11.1 Initial Programming
You must carry out the next steps in the sequence below:
1) To Set CONFIG:
Press [SET] and open the “CONFIG“ menu page.
Select: [BNK A] or [BNK B].
If you are using the AMB-01 system or the CO1-2 Combiner, select also one of the
three other choices.
In this case “R”, “S” or “C” will appear before the antenna number.
If you are not using the AMB-01 or the Combiner, go directly to SAVE.
User manual
Expert Amp 1.3K-FA
INDEX Page. 33 of 91
2) To Set ANTENNAS:
Press [SET] and open the “ANTENNA“ menu page.
Assign an appropriate antenna output number for the desired band.
If you don’t have an antenna for that band, select “NO“.
To bypass the Tuner on a certain band and/or a certain antenna, just
press the [TUNE] key, you will see a "b" next to the antenna number.
To remove the bypass, just press [TUNE] again.
When all the antennas are programmed, press [SET] to exit and the screen will
go back to STANDBY.
To select a tunable antenna, refer to the “TUN ANT” item on the menu.
Next to the number of the tunable antenna in use will appear a “t”.
To select a receiving antenna, refer to the “RX ANT” item on the menu.
An “r” will appear next to the number of the receiving antenna in use.
3) To Set CAT:
Press [SET] and open the “CAT“ menu page
Select the transceiver brand and proceed with programming according to the
type of connection between the amplifier and the transceiver (read
the “CONNECTIONS” chapter of this manual).
At the end of programming, exit and go back into STANDBY.
To verify the correctness of your programming, press the [CAT] key, and all the
data stored will appear on the display.
To verify proper “CAT” operation, press [SET], step to “MANUAL TUNE” and push SET.
When moving your transceiver’s VFO you should see the same frequency on the display.
If “CAT” is set to "NONE", only the internal frequency meter will work, so as to check the
frequency transmit in RTTY or FM mode.
ATTENTION: to avoid possible inconveniences, limit the use of the "NONE" to only those
instances where the classic CAT connection is not feasible (see page 11).
If “BAND DATA“ is used, check that the amplifier follows band changes of the transceiver,
then transmit in RTTY or FM in order to verity the frequency.
Exit and return to STANDBY
If it does not do so, verify that your programming (or your connection) has been correctly
made.
User manual
Expert Amp 1.3K-FA
INDEX Page. 34 of 91
4) Use of the Automatic Tuner (Internal ATU)
To complete the programming it is necessary to match the antennas to the
amplifier by operating the “TUNE“ function (read the “TUNER“ chapter of
this manual).
Select each band (with the proper antenna) and then program the tuner for all
the sub-bands of every band.
Refer to the table in section 19 of this manual.
You are strongly advised to proceed with the utmost accuracy, not just match
the current frequency, but all the sub-bands of every band
Matching all the antennas on all bands that are available allows you to enjoy all
the features of the automatic linear.
To program the sub-bands, proceed as follows:
• For every band find the central frequency in the table of each sub-band (refer
to section 19 of this manual).
• Then set the transceiver to that frequency.
Next, prepare your transceiver to transmit a continuous tone (RTTY or FM).
• Now press the [TUNE] key and then activate the PTT of your transceiver. The
procedure for automatic tuning will start, you will hear the ATU relays operate
and when they stop, the SWR will be at a minimum.
Sometimes it is possible to improve the tuning by repeating this last step. The
use of the “MANUAL TUNE” sometimes helps.
• Repeat the previous steps for all sub-bands.
• Repeat the previous steps for the other antenna (if present) of the same
band after having selected it using the [ANT] key.
Note: If the ALC link is not used, it is very important to set the transceiver power to
about 30/40 Watts during the above operation.
The initial programming concludes after steps 1), 2), 3), 4).
User manual
Expert Amp 1.3K-FA
INDEX Page. 35 of 91
11.2 Operating
You need only take a few precautions when using the amplifier, thanks its high level of
automation.
The use of both the ALC and CAT connections is highly recommended.
If ALC is not used, SPE reminds you that it is better to lose a fraction of dB in transmitted
power, by slightly reducing the driving power, than to over drive the amplifier and have a
poor quality transmission and frequent alarms.
During transmission always glance periodically at the parameters on the display. SPE has
selected, designed and adjusted them with care for your use in monitoring your amplifier.
SPE recommends, when using the ALC link, that the transceiver be set to its maximum
output power as the ALC will automatically reduce the driving power to the optimum driving
level.
To reduce the linear output, if required, just switch the amplifier to “MID” or “LOW” with the
[POWER] key.
Of course you may also continuously regulate the amplifier’s output power by changing the
level of drive power from your transceiver , even with the ALC connected.
If an output power less than 1 KW or 500 Watts is desired, for best efficiency begin
reducing drive from the “MID” or “LOW” power state. It is not recommended to reduce
the drive while in MAX or MID to an output that is close to the next lower power.
For example, delivering only 500 Watts in MAX thinking not to stress the amplifier
you will get exactly the opposite result.
In fact in this case the MOSFET dissipates about 600 W, while in LOW delivering the
same output power would dissipate just 250.
350 W used only to raise the temperature of the MOSFET.
If the ALC link is not used, at each switching from MAX to MID or LOW, whether
automatic or not, remember to first manually reduce the driving power to avoid
dangerous overdriving.
Setting Driving Levels
a) SSB: Regulate the “MIC GAIN” of the transceiver until, speaking normally into the
microphone, the signal peaks on the display and does not quite reach the
maximum rated output power. Monitoring the transmission is a good way of
checking your settings. If there is however some distortion, decrease the
mike gain or decrease the power of the transceiver until a small
reduction of the output power of the amplifier is seen.
In any case the indication of the ALC on the transceiver display must be
respected.
b) CW: In key down, you get the maximum output power automatically.
User manual
Expert Amp 1.3K-FA
INDEX Page. 36 of 91
c) Digital modes: The amplifier is able to manage all modes currently in use.
A suitable SW automatically switches from MAX to MID for a transmission
longer than 8 sec.
In MID and LOW the amplifier is full I.C.A.S.
In the modes in which audio signals coming from PC are transmitted,
to bypass the possible delay action of the internal ALC of the
transceiver, we suggest:
1. Maintain the ALC link with the linear.
2. Set the transceiver Pout to maximum.
3. Adjust the PC audio output exclusively through PC commands
until the maximum (or less) available RF power is obtained.
The indication of the ALC on the transceiver display must be
respected.
Probably the most common causes of problems are overdriving the rig, and
ground loops. Avoiding ground loops is generally not too difficult if you use
isolated (galvanically or optically) inputs and outputs.
It is assumed that a fixed gain audio input is used in the transceiver.
In case of input via microphone connector, leave the "MIC GAIN" set in the
position used in SSB and adjust the audio level via PC.
The presence of the ALC connection allows you to adjust the driving signal
by switching to MID and LOW without having to readjust the signal via PC.
With Flex or Elecraft transceivers, where the ALC is not usable, always follow
steps 2 and 3. But you have to manually readjust the audio via PC if you
move from MAX to MID or LOW.
d) AM: This transmission mode radiates a continuous carrier which is 25% of its
PEP value (e.g. 400W PEP AM = 100W carrier power).
To get an output signal without distortion, proceed as follows:
Transmit the AM carrier with your transceiver’s “MIC GAIN” set to zero,
then increase the transceiver’s drive until the 25% of the maximum output
power you want have is reached.
Speak into the microphone normally, then set the ” MIC GAIN” of the
transceiver until the peak output power shown on the amplifier display is
no more than 800W (MID) or 400W (LOW).
SPE suggests to monitor your transmission closely to check that the “MIC.
GAIN” setting is correct.
e) FM: By monitoring your transmission you can easily get the correct emission by
adjusting the. "MIC GAIN".
User manual
Expert Amp 1.3K-FA
INDEX Page. 37 of 91
12. CONNECTIONS
12.1 CAT Connector
The pin outs are shown in the schematic below.
The connections are the same for our 1K-FA, 1.5K-FA and 2K-FA amplifiers.
pin n.
pin name
Description
1
RX 232
Used on KENWOOD and YAESU transceivers for linking with a
RS-232 connection.
9
TX 232
2
/ TX - INH
Open collector normally OFF, it stops transmission when
grounded. (ON).
10
RX TTL
Used on Icom, KENWOOD and YAESU transceivers for the
CAT 5V TTL connection.
3
TX TTL
11
KEN TTL
Connect to GND if CAT 5V TTL KENWOOD connection.
4
GND
Signal ground.
12
RELAY
Connected in parallel with the RCA phono RELAY connector.
5
ALC
Connected in parallel with the RCA phono ALC connector.
13
TX - INH
Normally to gnd. (550 ohm), it stops transmission when + 12V
6
DATA A
Bit A of Band Data.
14
DATA B
Bit B of Band Data.
7
DATA C
Bit C of Band Data.
15
DATA D
Bit D of Band Data.
8
REMOTE ON
Applying a voltage from 9 to 15 VDC, turns the amplifier ON.
User manual
Expert Amp 1.3K-FA
INDEX Page. 38 of 91
BAND DATA CODES
Band
BCD code
Band
BCD code
Band
BCD code
60 m.
0x0
30 m.
0x4
12 m.
0x8
160 m.
0x1
20 m.
0x5
10 m.
0x9
80 m.
0x2
17 m.
0x6
6 m.
0xA
40 m.
0x3
15 m.
0x7
New connectors are supplied with the amplifier.
Using the above information, an appropriate cable for your transceiver(s) may be
constructed.
Or you might order a cable specifically for your particular transceiver when you order your
amplifier from your local distributor.
The transceiver connectors (called “Radio” in the next diagram) are usually supplied with
the transceiver.
For connections to the Radio connectors, please refer to the transceiver operating manual.
12.2 Icom
CAT CI–V Interface
This interface is standard for all the Icom models equipped with CAT.
The cable always terminates into a 3.5 mm. mono plug.
It is possible to use a stereo plug according to the above diagram.
The plug is inserted into the "Remote" connector of the transceiver.
4
3
2 1 5
6 7 8 9 12
13
14
11
10
15
GND
DB15 M
RX TTL
RADIO
CONNECTOR
.
User manual
Expert Amp 1.3K-FA
INDEX Page. 39 of 91
From the Software release xx_xx_xx_V3 in addition to the standard cable which only
contemplates the passive reception function of the data coming from the transceiver, the
addition (optional) of the "TX interface" (see fig.) is foreseen to enable the amplifier to
interrogate the transceiver cyclically as happens in the Yaesu and Kenwood protocols.
By using the cable without said interface (standard cable), complete operation will be
achieved only in the presence of an external software that cyclically interrogates the
transceiver (e.g. LOG in a PC).
The addition of the "TX interface", despite its simplicity (only three components to be
inserted in the cable cover), gives the linear / transceiver system an exceptional operating
stability which is only necessary when no external element (e.g. PC) provides for a cyclical
request.
When using a standard cable, the CAT address in the Expert must be set as "DISABLED".
When using a cable with "TX interface", the CAT address in the Expert must be the
specific address of the transceiver.
In the transceiver menu:
Set “CI-V Output (for ANT) ON” (if present).
Set “CI-V Transceive ON” (in the absence of the previous one).
With one of the previous settings, the transceiver transfers the frequency at each tuning
variation even in the absence of the cyclic interrogation.
If the transceiver is still interrogated (PC or “TX interface”), “CI-V Transceive OFF” is also
a possible setting.
Make sure that the baud rate is the same on both the transceiver and the amplifier.
User manual
Expert Amp 1.3K-FA
INDEX Page. 40 of 91
The following simplified TX interface is possible, valid only if linear and transceiver are
simultaneously ON.
ATTENTION: If there is, in addition to the amplifier query, another CI-V query (e.g. Log,
FT8 or other program), a conflict could be generated.
If this happens, set the CAT as "DISABLED" in the amplifier.
User manual
Expert Amp 1.3K-FA
INDEX Page. 41 of 91
12.3 Kenwood
CAT RS232 Interface
The Radio connector could be DB-9 or DB-25 male connector or female connector (read
the specific manual). In the manual, also verify if the RTS–CTS link is required.
CAT 5V TTL Interface
The connector is described in the transceiver’s manual.
Verify if the RTS–CTS link is required by the transceiver.
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
RX
TX
DB15 M
RX TTL
TX TTL
KEN TTL
RTS
CTS
. 4 3 2 1
5 6 7 8 9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
DB15 M
RX 232
TX 232
RX 232
TX 232
.
RTS
CTS
(RXD)
(TXD)
User manual
Expert Amp 1.3K-FA
INDEX Page. 42 of 91
12.4 Yaesu
CAT RS232 Interface
The radio connector could be a DB-9 or DB-25 male connector or female connector (read
the specific manual). Verify from the manual if the RTS–CTS link is required.
CAT 5V TTL Interface
The connector is described in the transceiver’s manual.
Verify if the RTS–CTS link is required by the transceiver.
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
RX
TX
DB15 M
RX TTL
TX TTL
RTS
CTS . 4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
DB15 M
RX 232
TX 232
TX 232
RX 232
RTS
CTS
(RXD)
(TXD)
.
User manual
Expert Amp 1.3K-FA
INDEX Page. 43 of 91
15.5 BAND DATA Interface
Using Band Data, instead of CAT, use the four digital signals (Band A, Band B, Band C,
Band D) from the transceiver. Refer to the transceiver’s manual.
12.6 Ten – Tec, Flex-Radio, Elecraft
CAT RS232 Interface
The radio connector may be a DB-9 or DB-25 male connector or female connector (read
specific manual). Verify from the manual if the RTS–CTS link is required.
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
DB15 M
RX 232
TX 232
TX 232
RX 232
RTS
CTS
(RXD)
(TXD)
.
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
GND
RADIO
CONNECTOR
GND
DB15 M
BAND A
BAND B
BAND C
BAND D
BAND A
BAND B
BAND C
BAND D
User manual
Expert Amp 1.3K-FA
INDEX Page. 44 of 91
ALC with Flex-Radio
Since the analog ALC input is not usable in a Flex-Radio transceiver, its driving power
must be manually programmed in order to avoid the EXPERT’s overdrive protection
system intervention.
Connect the CAT connector with the CAT connector of the Flex (read the specific Flex
manual), in the menu page set FLEX as CAT, then set the power limits.
These following settings have to be done while in OPERATE Mode according to the
following:
For every ham band three settings are allowed (storage memories):
One setting for MAX mode.
One setting for MID mode.
One setting for LOW mode.
The following table shows an overall vision of these settings:
Band
160 m
80 m
60 m
40 m
30 m
20 m
17 m
15 m
12 m
10 m
6 m
MAX
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
Preset
Max
MID
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
Preset
Mid
LOW
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
Preset
Low
The user has to set, for every band of interest, the power limit according to the input power
needed. To do that using the keyboard without transmitting, you must set a parametric
value having the format “[PC=xxx]” (where xxx is a numerical value having a range from
000 to 100 which represents the transceiver’s power output expressed in percentage).
This value will appear just over the BAND label of the Status Bar.
This value is related to the tuned band and to the selected power modes of MAX, MID
and LOW.
The following picture shows (as an example) the Power Control of the 15 m band in MAX
power mode:
Pressing the arrow keys ([◄▲] [▼►]) this value can be decremented/incremented until it
reaches the desired value. At the completion of this operation, a time-out period (about 3
User manual
Expert Amp 1.3K-FA
INDEX Page. 45 of 91
seconds) must be allowed for the “[PC:xxx]” indication to expire before another
adjustment can be made.
ATTENTION! It is strongly recommended to start with a low preset value (e.g. 10) and
progressively increase its value.
This is to avoid overdriving the linear amplifier.
Once the numeric value has been set, switch to transmission (RTTY, CW) to check the
output power.
These Power Control setting affects both inputs at the same time.
The following empty table is suggested as a template for the FlexRadio user’s Power
Control adjustments.
Band
160 m
80 m
60 m
40 m
30 m
20 m
17 m
15 m
12 m
10 m
6 m
MAX
MID
LOW
12.6 Transceivers without CAT
Select CAT "NONE":
A special link is not necessary as the internal amplifier frequency counter will measure the
input frequency and will control the amplifier (not recommended if a CAT connection is
possible, see page 11).
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfacing.
User manual
Expert Amp 1.3K-FA
INDEX Page. 46 of 91
13. OTHER CONNECTIONS
On the CAT connector, in addition to the CAT signals, the ALC and RELAY controls are
the same as the RCA phone connectors. REMOTE ON, /TX–INH, TX–INH are also
available.
If you use this connector to connect the ALC and RELAY lines, the separate RCA phono
cables are not recommended. It is possible also to turn the amplifier on / off by turning on
/ off the transceiver using the REMOTE ON function.
The following are the possible solutions that could be integrated into the same CAT cable.
13.1 ALC, Relay Connections
13.2 Remote- ON Link
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
RADIO
CONNECTOR
GND
13.8V
DB15 M
REMOTE ON
GND
GND
RELAY
GND
ALC
GND
GND
RADIO
CONNECTOR
ALC
RELAY/
SEND/TX-GND
4 3 2 1 5 6 7 8 9
12
13
14
11
10
15
DB15 M
User manual
Expert Amp 1.3K-FA
INDEX Page. 47 of 91
13.3 Connections TX-INH, / TX-INH
All modern transceivers have a delay before the transmission to allow the linear to stabilize
their relays avoiding damage to the contacts as a result of "Hot Switching".
The Expert 1.3K-FA has a settling time of less than 6 msec. compatible with all modern
transceivers (see the manual of the transceiver).
Some transceivers have an input (called TX-INHIBIT, LINEAR, MUTE, etc..) which
disables the transmission.
This input can be used with transceivers that do not have such delay or, more generally, to
improve the safety of switching.
The Expert 1.3K-FA has two outputs that can be connected to the TX-INHIBIT of the
transceiver:
a) TX-INH, usually gnd. (550 ohm), stops the transmission when at a + 12VDC.
b) / TX-INH, open collector normally OFF, stops the transmission when this line
goes to ground (ON).
To choose a) or b) as well as to enable the TX-INHIBIT input , refer to the manual of the
transceiver.
TX-INH Link
User manual
Expert Amp 1.3K-FA
INDEX Page. 48 of 91
/ TX-INH Link
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfacing.
User manual
Expert Amp 1.3K-FA
INDEX Page. 49 of 91
13.4 AUX Connector
This connector provides data about the bands currently being switched on both INPUTs,
indicating which input is connected to the antenna ANT 1/2/3/4 and which is connected to
the SO2R socket.
In this way you will know which one of the two transceivers is currently
connected to the switched output antenna and when it is in transmission etc.
Pin n.
Pin name
Description
3
BIT A1
BIT A INPUT 1 (as for BAND DATA)
5
BIT B1
BIT B INPUT 1 (as for BAND DATA)
7
BIT C1
BIT C INPUT 1 (as for BAND DATA)
9
BIT D1
BIT D INPUT 1 (as for BAND DATA)
11
/ EN 1
INPUT 1 0 = not connected with ANT, 1 = connected with ANT
13
/ RLY 1
INPUT 1 0 = TX state 1 = RX state
1
GND
GND
4
BIT A2
BIT A INPUT 2 (as for BAND DATA)
6
BIT B2
BIT B INPUT 2 (as for BAND DATA)
8
BIT C2
BIT C INPUT 2 (as for BAND DATA)
10
BIT D2
BIT D INPUT 2 (as for BAND DATA)
12
/ EN 2
INPUT 2 0 = not connected with ANT, 1 = connected with ANT
14
/ RLY 2
INPUT 2 0 = TX state 1 = RX state
2
GND
GND
15
+ 12 Vcc
OUT + 12 VDC 0.2 A max.
Each output is an open collector.
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfaces.
User manual
Expert Amp 1.3K-FA
INDEX Page. 50 of 91
13.5 PORT Connector
This connector provides:
a) Data about the ANT port in use (each output is open collector).
b) RS 232 port for connection to a controller of a tunable antenna.
c) RS 232 port for remoting use (as an alternative of USB port).
Pin n.
Pin name
Description
1
BIT A
BIT A of the antenna number in use (see ANTENNA menu)
6
BIT B
BIT B of the antenna number in use (see ANTENNA menu)
9
BIT C
BIT C of the antenna number in use (see ANTENNA menu)
5
GND
GND
2
RXD
RS232 port Tunable Antenna
3
TXD
RS232 port Tunable Antenna
7
TX_232 (formerly RTS)
RS232 port Remote use
8
RX_232 (formerly CTS)
RS232 port Remote use
4
+ 12 VDC
+ 12 VDC 0.2 A max.
When connecting to a control box of a tunable antenna a suitable cable should be wired.
SteppIR cable:
User manual
Expert Amp 1.3K-FA
INDEX Page. 51 of 91
Ultrabeam cable:
Note: WARNING, these types of antennas, sometimes need several seconds to adjust to
resonance..
Transmitting with high power while the antenna elements are still moving may cause
damage to the antenna and the linear.
To avoid this danger you can utilize some circuitry that inhibits the PTT during the
movement of the motors, such as “tuning relays” that are available from the antenna
manufacturers.
This solution is highly recommended!!!
Serial connection to a standard PC RS-232 port for remoting use.
TX_232 / 7 2 / RX_PC
RX_232 / 8 3 / TX_PC
GND / 5 5 / GND
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfaces.
EXPERT
“PORT” connector
DB-9/M
STANDARD PC
“RS-232” connector
DB-9/F
User manual
Expert Amp 1.3K-FA
INDEX Page. 52 of 91
14. TRANSCEIVER CONTROLLED BY PC
If the transceiver is controlled by a PC using the CAT utility, the link with the amplifier can
be made as described in the following paragraphs.
Note: BEWARE, SPE assures only the direct connection between the Linear and
transceiver.
The use of external control software could create malfunctions that must be
resolved by the provider of such software and is totally the responsibility of
the owner/operator.
14.1 Icom CI-V Interface
If the PC has an RS232 port, use a CT17 or similar interface and the standard cable for
CI-V connection (see page 37).
If the PC has a USB port, use an external USB / RS232 converter.
If the transceiver has a USB CAT port, connect it directly to the PC and, with a standard
CI-V cable, connect the Expert 1.3K-FA to the “REMOTE” connector of the transceiver.
The following types of connections as described in sections 14.2, 14.3 and 14.4 are
common for Kenwood, Yaesu, TEN-TEC, Flex-Radio and ELECRAFT links. The DB-15
connector side of the amplifier remains the same. On the opposite end of the cable, it is
necessary to connect only the GND and RX 232 (RX TTL) to the cable PC / Radio.
In this way, the interrogation to the transceiver is no longer requested by the linear but is
requested by the PC. The linear analyzes only the data exchanged.
In this case, DO NOT CONNECT the TX 232 (TX TTL) of the linear because it would
create conflict in the software and could damage the hardware as well. (See
following diagrams)
User manual
Expert Amp 1.3K-FA
INDEX Page. 53 of 91

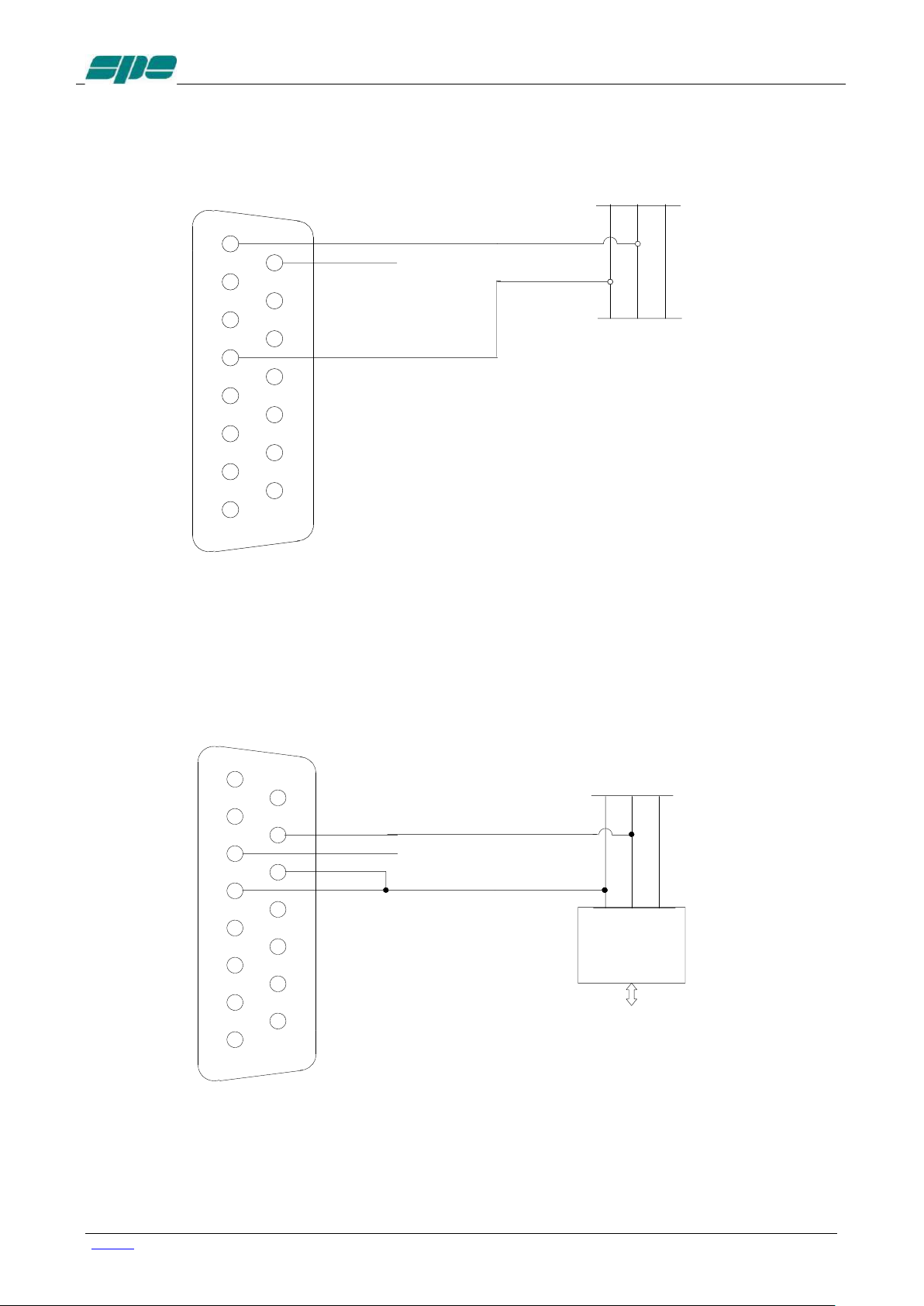

14.2 RS232 Interface
14.3 5V TTL Kenwood Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
TX
RX
GND
KENWOOD OR YAESU
RADIO CONNECTOR
PC CONNECTOR
TX
RX
RS232
RS232
DB15 M
RX 232
TX 232
X
GND
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
TX
RX
TTL INTERFACE
PC
GND
TX
RX
TTL
KENW OOD
RADIO CONNECTOR
DB15 M
RX TTL
TX TTL
KEN TTL
X
GND
User manual
Expert Amp 1.3K-FA
INDEX Page. 54 of 91
14.4 5V TTL Yaesu Interface
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfaces.
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
TX
RX
TTL INTERFACE
PC
GND
TX
RX
TTL
YAESU
RADIO CONNECTOR
DB15 M
RX TTL
TX TTL
X
GND
User manual
Expert Amp 1.3K-FA
INDEX Page. 55 of 91
15. USE OF THE USB / RS232 PORTS
Through the USB / RS232 ports on the rear panel it is possible to interface the amplifier
with a PC.
Two features are possible:
a) To remote the linear.
b) To download newer and updated firmware releases.
The USB port is recommended in order to directly link the linear with a PC.
In this case the Software “ Term_1.3K_USB” must be used.
The RS232 port (see“13.5 PORT Connector”) is more suitable for Internet use.
In this case the Software “Term_1.3K_232” must be used.
Both ports should not be used simultaneously !!
Only one port should be used at a time.
These programs can be downloaded from www.linear-amplifier.com
Note: For Internet use, please refer to the manual of the remote use equipment.
User manual
Expert Amp 1.3K-FA
INDEX Page. 56 of 91
15.1 Remote Control
The software provided allows the operator to display two separate windows.
The first window provides an exact copy of the display and is adjustable in size to fit any
need on the control screen.
The second window provides a copy of the keyboard. When not in use, it may removed to
make space on that screen.
This software allows the same operation as when standing in front of the amplifier.
See “Appendix 1” on this manual.
15.2 Download
The sophisticated design of the Expert 1.3K-FA allows you to download any new versions
of Software from the following site:
www.linear-amplifier.com
On this side software for vision-impaired people is also freely available as well as the
"Application Programmer’s Guide" where SPE provides its proprietary protocol and
necessary explanations.
User manual
Expert Amp 1.3K-FA
INDEX Page. 57 of 91
16. MAINTENANCE
The Expert 1.3K-FA linear amplifier does not need internal maintenance because it has a
cover without ventilation holes. Since HV tubes are not used, the natural attraction to dust
is eliminated. Therefore the user only needs to periodically check and clean the air filter
on the front panel.
The frequency of air filter inspection depends how dusty the amplifier location is and how
much it is used. We recommend monthly cleaning of the filter.
Twice yearly cleaning of the fans with a soft brush is also recommended.
To clean the filter
a) Remove the front grid cover with the two small screws.
Place small screws in a secure place. DO NOT LOSE THEM.
b) Remove the filter and clean it with care.
c) Reassemble the filter and the grid after having carefully cleaned the mechanical
structure that includes them. Dry filter before re-installing.
Note: Check the filter if an unexpected rise of temperature of the linear is noticed.
Note: Never operate without the filter, as dust could be deposited on the surface of the
heatsink limiting its ability to cool.
Note: To allow the most efficient heat-dissipation of the power amplifier circuits, large copper
parts have been used.
User manual
Expert Amp 1.3K-FA
INDEX Page. 58 of 91
17. CHARACTERISTICS / SPECIFICATIONS
- The smallest in its class:
Built-in Power supply and Automatic Antenna Tuner.
Dimension: L 28, H 12, P 38 cm ( 11.02” W, 4.72” H, 14.96” D ) connector
included. Weight without ATU 7.5 Kg.(16.5lbs), with ATU 9,5 Kg (20.9 lbs).
- The most technologically advanced in the world:
Two powerful CPUs are used.
Over 30,000 lines of software, for performance that cannot be found together in
any other amplifier.
- Fully automatic:
Easy connection with all models "ICOM, YAESU, KENWOOD, TEN-TEC, FLEXRADIO, ELECRAFT" for immediate management of the bands, tuner and
antennas.
Same performance with all makes and some homemade rigs.
The operator only has to move the “Frequency Tuning Knob” of the transceiver.
- Wide frequency coverage:
1.8 MHz to 50 MHz including WARCs.
60 m band, where permitted.
- Fully solid state:
Solid 1.3 KW out; HF (+/- 0.5 dB), 50 MHz (+/- 0.8 dB).
Switchable in MAX (full power), MID (900W) or LOW (500 W), power selected
according to the operator’s requirement or automatic for amplifier protection.
No warmup time, immediately ready!
Virtually limitless life of the amplification device.
Only one LD / MOSFET used rated of 1.5 KW out.
- Automatic antenna tuner built-in:
Capable of matching up to 5:1 SWR on HF, and 2.5:1 SWR on 6 meters.
Capable of program controlling 4 aerials (SO239 connectors).
Program up to 2 aerials for each band.
Management of SteppIR / Ultrabeam aerials (tunable).
Also measures the SWR of the antenna and cable system.
Bands, aerials, tuning conditions are changed in 10 msec.
Bands, aerials and tuning conditions are managed so that in “STBY“, only the
exciter is passed through to the output.
Max. attenuation 0.8 dB.
ATU bypass capable.
- SO2R.
- Two inputs available:
SO239 connectors.
- High power gain standard version or 15 dB FCC version:
In “OPERATE“ the required drive power is automatically set with the ALC
connection.
In “STANDBY“ the exciter is automatically reset to full power.
User manual
Expert Amp 1.3K-FA
INDEX Page. 59 of 91
- Very clean and low distortion output:
Spurious emissions FCC / CE / RCM (c-Tick) compliant.
3rd order distortion (two tone test) from -30 to -35 dB typ.
- Input 50 ohm always perfectly matched:
The same protection is realized in two different ways:
Via hardware circuits (HW) to assure great speed.
Via software (SW), to assure great accuracy.
Due to the sophisticated software, the transmit relay changeover is carried out with
zero current on the contacts.
- Full break-in operation (QSK).
- Quiet operation:
Linear management of the speed of the cooling fans of the heatsink.
The amplifier develops a significant amount of heat that must be removed.
Therefore, every precaution is taken to keep the fan noise at the lowest possible
level. Fan noise is significantly lower than with tube type amplifiers.
- Use:
Full I.C.A.S. in SSB and CW.
In FM and for all digital modes currently in use the amplifier automatically
switches to "MID" if for 8 sec. a continuous signal is emitted in "MAX" (room
temperature 20 ° C / 68 ° F).
- Switching power supply:
Continuously operable at inputs between 100 – 255 VAC, 47-63 Hz.
(100-120 VAC may cause slightly reduced output power).
PFC (Power Factor Correction).
- The linear can be switched ON / OFF by switching the exciter ON / OFF.
- Can be operated fully remotely.
- With a large LCD display, it is possible to have a great deal of information:
Watts pep out, Vpa, Ipa, Watts, temperatures, SWR (after and before the ATU),
input setting, CAT setting, band and other indications including the alarms log.
- Easy to operate:
Powerful and sophisticated software gives you a user-friendly unit.
- USB / RS232 ports:
For remote control.
For new software releases download.
- Easy transportation:
A sturdy carry-bag is supplied for QSY, FIELD DAY, DXpeditions etc.
- Certifications:
CE, FCC, RCM (C-Tick) N.B. These specifications are subject to change
without notice.
User manual
Expert Amp 1.3K-FA
INDEX Page. 60 of 91
18. DIAGNOSTICS.
During normal operation, the sophisticated monitoring system continuously monitors
several measurements directly acquired from internal test-points.
When a dangerous situation occurs, an alarm is generated.
The user can either immediately restore the Main Display Page by pressing the
[DISPLAY] key or wait for the visual alarm time-out expiration (about 10 seconds).
The following table shows all the “serious” alarm messages that are recorded in the
Alarm History stack (the amplifier is switched from OPERATE to STANDBY).
Message
Description
SWR EXCEEDING LIMITS
Protection for SWR greater than 2.5:1.
INPUT OVERDRIVING
Protection for excessive input power.
EXCESS OVERHEATING
Protection because the internal temperature has exceeded
safe limits.
LOW EFFICIENCY
High current with low output power.
HIGH DUTY CYCLE AT FULL POWER
In MAX a repetitive carrier greater than 8 sec, the amplifier will
switch automatically to "MID".
The following table shows all the main warning messages that are not recorded in the
Alarm History stack:
Message
Description
BAND NOT PERMITTED
Band not allowed or not set.
ANTENNA NOT AVAILABLE
Antenna not set.
TX ANTENNA NOT AVAILABLE
In the selected band only an antenna for reception is set.
STEADY OUTPUT POWER
EXCEEDING LIMITS
Appears when a non repetitive carrier is transmitted in "MAX”. After
15 seconds the amplifier will switch automatically to "MID".
INTERNAL OVERHEATING
Appears when the internal temperature reaches 88°C (190°F)).
The amplifier automatically switches to the next lowest power level.
HIGH SWR ANTENNA:
TUNING NOT ALLOWED
When the antenna SWR is over 5:1, the auto tuner is disabled.
ATU BYPASS:
TUNING NOT ALLOWED
Since the tuner is bypassed, it is not possible to match
automatically or manually.
NO INPUT POWER: TUNING
HALTED
The tuner cannot work at such a low input power.
CAN'T SWITCH-OFF:
POWER HELD BY REMOTE
The amplifier does not turn OFF by the keyboard because it is kept
ON by a remote device (transceiver or USB port).
CAT ERROR
Wrong hardware or software setting of the CAT.
BAND DATA ERROR
If the BAND DATA communicates an unknown code.
ATTENTION: In the case of repeated alarms, especially of the "serious" type, avoid
insisting but try to identify the problem.
Insisting without intervening does not cure the problem but you risk damaging the
amplifier thus losing the warranty due to "misuse".
User manual
Expert Amp 1.3K-FA
INDEX Page. 61 of 91
19. TABLE
BAND TABLE, SUB-BAND, CENTRAL FREQUENCY SUB-BAND
160 m
[ 0] 1785
[ 1] 1795
[ 2] 1805
[ 3] 1815
[ 4] 1825
[ 5] 1835
[ 6] 1845
[ 7] 1855
[ 8] 1865
[ 9] 1875
[ 10] 1885
[ 11] 1895
[ 12] 1905
[ 13] 1915
[ 14] 1925
[ 15] 1935
[ 16] 1945
[ 17] 1955
[ 18] 1965
[ 19] 1975
[ 20] 1985
[ 21] 1995
[ 22] 2005
[ 23] 2015
80 m
[ 24] 3470
[ 25] 3490
[ 26] 3510
[ 27] 3530
[ 28] 3550
[ 29] 3570
[ 30] 3590
[ 31] 3610
[ 32] 3630
[ 33] 3650
[ 34] 3670
[ 35] 3690
[ 36] 3710
[ 37] 3730
[ 38] 3750
[ 39] 3770
[ 40] 3790
[ 41] 3810
[ 42] 3830
[ 43] 3850
[ 44] 3870
[ 45] 3890
[ 46] 3910
[ 47] 3930
[ 48] 3950
[ 49] 3970
[ 50] 3990
[ 51] 4010
[ 52] 4030
60 m
[ 53] 5013
[ 54] 5038
[ 55] 5063
[ 56] 5088
[ 57] 5113
[ 58] 5138
[ 59] 5163
[ 60] 5188
[ 61] 5213
[ 62] 5238
[ 63] 5263
[ 64] 5288
[ 65] 5313
[ 66] 5338
[ 67] 5363
[ 68] 5388
[ 69] 5413
[ 70] 5438
[ 71] 5463
[ 72] 5488
40 m
[ 73] 6963
[ 74] 6988
[ 75] 7013
[ 76] 7038
[ 77] 7063
[ 78] 7088
[ 79] 7113
[ 80] 7138
[ 81] 7163
[ 82] 7188
[ 83] 7213
[ 84] 7238
[ 85] 7263
[ 86] 7288
[ 87] 7313
[ 88] 7338
30 m
[ 89] 10075
[ 90] 10125
[ 91] 10175
20 m
[ 92] 13975
[ 93] 14025
[ 94] 14075
[ 95] 14125
[ 96] 14175
[ 97] 14225
[ 98] 14275
[ 99] 14325
[100] 14375
17 m
[101] 18075
[102] 18125
[103] 18165
15 m
[104] 20975
[105] 21025
[106] 21075
[107] 21125
[108] 21175
[109] 21225
[110] 21275
[111] 21325
[112] 21375
[113] 21425
[114] 21475
12 m
[115] 24891
[116] 24963
[117] 25038
10 m
[118] 28050
[119] 28150
[120] 28250
[121] 28350
[122] 28450
[123] 28550
[124] 28650
[125] 28750
[126] 28850
[127] 28950
[128] 29050
[129] 29150
[130] 29250
[131] 29350
[132] 29450
[133] 29550
[134] 29650
[135] 29750
6 m
[136] 49875
[137] 50125
[138] 50375
[139] 50625
[140] 50875
[141] 51125
[142] 51375
[143] 51625
[144] 51875
[145] 52125
[146] 52375
[147] 52625
[148] 52875
[149] 53125
[150] 53375
[151] 53625
[152] 53875
[153] 54125
Note: [sub-band] Central frequency (KHz).
User manual
Expert Amp 1.3K-FA
INDEX Page. 62 of 91
20. APPENDIX 1 - REMOTE CONTROL
Overview:
With reference to that described in Section 15. “USE OF THE USB / RS 232 PORTS”, this
appendix contains the following sections:
SW installation
Term_1.3K_USB.exe usage
Term_1.3K_232.exe usage
Firmware update
The host PC must have the minimum of a correctly installed Windows XP operating
system, or a newer release of Microsoft’s operating system such as Windows Vista,
Windows 7, with a typical minimum of RAM and hard disk space.
20.1 SW (Software) installation.
The installation package is contained in a compressed .ZIP archive named
“Term_1.3K_Package_1_0.zip” which requires to be expanded into a work folder and
then processed as described. This package is included in the accessory CD or can be
downloaded from our website at www.linear-amplifier.com .
Once the compressed archive Term_1.3K_Package_1_0.zip has been stored into a work
folder, it must necessarily be expanded; that is all. the files therein contained must be
extracted and properly placed into the host system.
In this example the compressed archive Term_1.3K_Package_1_0.zip has been placed
into a folder named tmp which is, in turn, located on the local disk unit C: as shown in the
picture below:
Next step is the archive expansion. This can be obtained by selecting the filename and
then right-clicking over it. A local menu will appear, with Extract All… this process will
automatically sort unzip and sort the files:
User manual
Expert Amp 1.3K-FA
INDEX Page. 63 of 91
The default destination folder is good for this use, so complete this operation by using
the Extract key as shown in the picture above.
This step reveals a new uncompressed folder, having the same name of the original
compressed one contained in the installation package.
Everything is contained in our work folder as shown in the picture above:
User manual
Expert Amp 1.3K-FA
INDEX Page. 64 of 91
Once opened, the C:tmp\Term_1.3K_Package_1_0 folder will show the following
contents:
Where:
FT_232_RL is a folder containing the USB drivers and an automatic installation program,
which must be run just once to prepare the operating environment which sorts out
everything needed, such as the USB drivers and their support files on the Windows host
system.
Term_1.3K_USB.exe is the remote control application that can be launched only after
having installed the USB drivers properly.
ftd2xx.dll is a support library file for the Term_1.3K_USB.exe application. It must be
accessible by Term_1.3K_USB.exe application, so it is required to be either manually
copied into the same folder of the application or into another system-wide folder (e.g.
C:Windows\System32, which is one of the most used repositories for libraries and
application support files.
Term_1.3K_232.exe is the remote control application specially designed to establish a
connection using the devoted RS-232 serial port which is available on the rear panel of
the linear amplifier. This application does not require any preparation related to
FT_232_RL drivers, since it uses the proprietary Windows resources.
User manual
Expert Amp 1.3K-FA
INDEX Page. 65 of 91
Once opened, FT_232_RL folder will show the above contents.
A very important part of the installation procedure is the CDM20600 folder, which contains
among the other files, the CDM20600.exe Windows application as highlighted in the
picture below:
This application has been specially designed for a correct installation of the specific FTDI
USB drivers.
So, remove any physical link between the EXPERT 1.3K-FA and the PC for now.
Then double-click over the “red ball” icon of CDM20600.exe application and wait for its
preparatory job to be completed.
As soon as CDM20600.exe starts running, a DOS window similar to the one shown in the
following picture will pop-up for several seconds then disappear after its automatic
preparatory job is completed.
The next step is to connect the PC and the EXPERT 1.3K-FA by using the supplied
USB cable and waiting for the identification of the newly created USB connection.
A notification window will pop-up as shown in the picture below.
User manual
Expert Amp 1.3K-FA
INDEX Page. 66 of 91
The USB port installation and its setting is now complete.
Now that this fundamental step has been successfully completed, the application
Term_1.3K_USB.exe remote control application can be launched.
For this purpose a back-step to the starting uncompressed folder
Term_1.3K_Package_1_0 must be performed and double-click on the application
filename, as indicated in the picture below
Note: Do not forget that Term_1.3K_USB.exe requires full accessibility to the ftd2xx.dll
application extension.
So, in case the application itself gets copied into another work folder, please correct
that action.
A good practice is to copy both Term_1.3K_USB.exe and ftd2xx.dll into the same
work folder.
User manual
Expert Amp 1.3K-FA
INDEX Page. 67 of 91
20.2 Term_1.3K_USB.exe usage
To test, connect the USB cable from the PC and the linear and double-click on the
application’s icon (the USB icon symbol), by using the mouse left-button, just to see if
everything works fine.
It is a good idea to create a link to the application on the desktop.
As a result the applications main window will show up, as in the following picture:
This is the main window of Term_1.3K_USB.exe application.
It is a realistic reproduction of the EXPERT 1.3K-FA LCD display, and it is also equipped
with a pop-up virtual keypad having almost the same look and feel as the real keypad
placed on the front panel of the linear amplifier.
To activate/deactivate this keypad the user must check/uncheck the View/KeyPad On/Off
menu item as shown in the following screen snapshot:
User manual
Expert Amp 1.3K-FA
INDEX Page. 68 of 91
The View menu also contains five items related to the application window size presets
which can be either selected by the menu itself or by their equivalent [F1 … F5] shortcut
keys.
Feel free to test all the View menu options in order to find an optimal and comfortable
vision of the display main window.
The display window can easily be resized. That is, either enlarged or reduced by acting
on the right-bottom corner of the window. Also by using the mouse as shown in the picture
above and in the same way as any other window-resizing operation.
In case the user wants to restore the original size-preset lying behind any [F1…F5] key,
you must select the Fx preset and, then, press the Ctrl+Fx key combination on his PC
keyboard.
When Term_1.3K_USB.exe gets launched an automatic Connect command also starts
and if a USB link to the linear amplifier was already active, it should have shown a result
similar to the picture sequence above.
In case this doesn’t happen, there’s also a chance to try connecting by using the
File/Connect menu item (or by using its equivalent Ctrl+Q shortcut key…).
The final visual result will be a “bright backlight” display and a function-keys enabling of the
virtual keypad.
User manual
Expert Amp 1.3K-FA
INDEX Page. 69 of 91
In case the EXPERT linear is already switched on, after the connection established by
Term_1.3K_USB.exe, an immediate update on the current display contents will result.
However, if the EXPERT linear was already switched off, it would be turned on by using
the [ON] virtual key on the application keypad.
Similarly, all the other virtual keypad keys perform the same actions as their equivalent
mechanical keys forming the real front panel keyboard of the EXPERT 1.3K-FA.
The View menu is also equipped with the useful Home… and Park… items which have
been specially designed to allow an automatic repositioning of the application along the
PC desktop area.
In more detail:
• Home... (Ctrl+H) This item positions the display window to the upper-left corner of
the desktop area and aligns the keypad to its bottom edge.
• Park... (Ctrl+N) This item leaves the display window where it currently stays and
just aligns the keypad to its bottom edge.
The above described operations could be helpful whenever a quick and safe repositioning
of the application windows is desired.
User manual
Expert Amp 1.3K-FA
INDEX Page. 70 of 91
The Basic keypad... item in View menu allows you to set to a reduced-size keypad,
having fewer keys than the complete keypad, which could be useful when no setting
actions are required on the linear amplifier.
Note: The keypad types, both Full and Basic, are certainly very useful since they both can be
directly accessed using the mouse pointer. It is helpful to know that all the operations
allowed using the virtual keys can be also performed using short commands directly
typed on the PC keyboard.
The following one is the “shortcut-keys” table:
1.3 K-FA
Function key
Equivalent shortcut-key
from the PC keyboard
[INPUT]
I
[ANT]
A
[<L]
Ctrl+L
[L>]
L
[<BAND]
Ctrl+B
[BAND>]
B
[<C]
Ctrl+C
[C>]
C
[TUNE]
U
[DISPLAY]
D
[< -]
-
[> +]
+
[ON]
N
[POWER]
P
[CAT]
T
[SET]
S
[OFF] (*)
F
[OPERATE]
O
User manual
Expert Amp 1.3K-FA
INDEX Page. 71 of 91
Please bear in mind that the [OFF] command as accessed from the virtual keypad or by
shortcut key, that it always asks for a confirmation, to its amplifier shutdown operation, by
showing the dialog form below:
User manual
Expert Amp 1.3K-FA
INDEX Page. 72 of 91
When trying to connect the linear amplifier to a PC, some problems could occur
because other peripherals sharing the same USB internal hub may conflict with it.
To avoid this kind of conflict it is necessary to go to “selective addressing”.
Selective addressing thru the USB port.
This options has been designed to allow selective addressing of an EXPERT linear
amplifier connected to any given PC USB port.
In contrast to similar devices using the popular FT232RL USB microcontroller where the
typical way for providing selective addressing of a specific device is based upon its serial
port ID parameter (e.g. COM1, COM2, etc.), our method is based upon a unique feature of
the popular FTDI chip that is known as “ID String Property”.
That is a sequence of 8-alphanumeric characters, programmed by the FT232RL’s
manufacturer during the production process of their components, which is something
similar to the MAC address typical to any PC LAN card.
It is important to understand that this unique coding parameter does not allow addressing
ambiguity when correctly applied to FDTI chips that are connected to the same USB bus.
Preliminary programming for “ID string property” with Term_1.3K_USB.exe .
This special setting, based upon an easy “self-learning” procedure, must be performed
once, however only after having put the Expert 1.3K-FA into an OFF-LINE state. Then,
select File/Configure USB connection... from the main menu as shown in the picture
below:
User manual
Expert Amp 1.3K-FA
INDEX Page. 73 of 91
A dialog window will pop up:
Press the Acquire ID string key, marked in the picture above, in order to start the ID
string characters acquisition process across the USB data-link. This is a guided selflearning procedure.
In case more than one USB communications is linked to the system, directly or indirectly
thru an external USB hub, the following notification pop-up window will be shown:
In such a case the user should disconnect all other devices except the EXPERT amplifier
and to retry again using the acquisition procedure above described.
In case the user detaches all of the connected devices, including the linear amplifier, the
Term_1.3K_USB.exe acquisition system will notify the user by showing the following selfexplaining pop-up message.
User manual
Expert Amp 1.3K-FA
INDEX Page. 74 of 91
The following pop-up notification message will be displayed when a successful connection
via USB occurs:
The picture above shows the acquisition report of a device that its ID String Property is
A400F1MZ.
As explained earlier, this parameter is unique to any given specific chip, so it doesn’t allow
duplicates among other components from the same manufacture.
As soon as the notification message is validated, using its OK key, the dialog box
previoulsy popped-up will appear properly filled-in as the following picture shows:
Once the user validates the data acquisition, by pressing the OK key as marked in the
picture above, the Term_1.3K_USB.exe internal database will be properly updated and
as confirmation, the application status bar will be updated, as shown in the following
picture:
User manual
Expert Amp 1.3K-FA
INDEX Page. 75 of 91
When the above described steps are completed, Term_1.3K_USB,exe will only be able to
recognize and address the EXPERT linear amplifier whose unique ID String matches the
one written after the USB_ID: label of the picture above.
As explained earlier, this setting is permanent. So there is absolutely no need to repeat the
acquisition procedure described as long as the user connects to that specific unit.
Of course the acquisition procedure must be restarted again in the case of another
EXPERT linear amplifier be required to be addressed in the same selective way; this is
because a different device has acquired, by force of circumstances, another ID String
parameter to be reconsidered.
After having carried out all the setting and configuration steps listed in the earlier pages,
you should be all set for using the FT232RL selective addressing features as described so
far.
All the operations tied to the Connect / Disconnect menu items are still the same as in
the case of the non-selective addressing procedure.
User manual
Expert Amp 1.3K-FA
INDEX Page. 76 of 91
A last note.
If, for whatever reason, all the selective addressing capabilities are no longer needed, to
open a connection to an EXPERT linear thru its USB link, they can be temporarily
disabled.
The next operation is quite easy to perform.
After having recalled the Configure USB connection dialog box, using its specific item
contained into the File menu, using your mouse click on the Enable ID Addressing
option, as shown in the following picture, and confirm this entry using the OK button.
You will see this new setting in the application status bar with the “Not enabled”
attribute following the USB_ID: label, as shown below:
User manual
Expert Amp 1.3K-FA
INDEX Page. 77 of 91
20.3 Term_1.3K_232.exe usage
To start running the Term_1.3K_232.exe application, it is necessary to go back into the
Term_1.3K_Package_1_0 uncompressed folder and select the related filename as shown
in the picture below:
A suggestion is to create a link to the application and place it on the Windows desktop.
A double-click using the left-button of the mouse on the application icon should render a
result as the one shown in the following picture:
The very first time Term_1.3K_232.exe is launched, a notifying pop-up message, like the
one in the picture above, is shown.
This is just to warn the user that there is still no valid RS-232 port being set on the
application itself.
User manual
Expert Amp 1.3K-FA
INDEX Page. 78 of 91
To correct this, click OK on the pop-up window and select File/Virtual Com Port
setting, as shown in the following picture:
The above menu item makes it possible to access the following dialog box, which allows a
direct setting of the desired COMx serial port for connecting to the EXPERT 1.3K-FA.
If the number of an unused COM is unknown, proceed as the following page.
User manual
Expert Amp 1.3K-FA
INDEX Page. 79 of 91

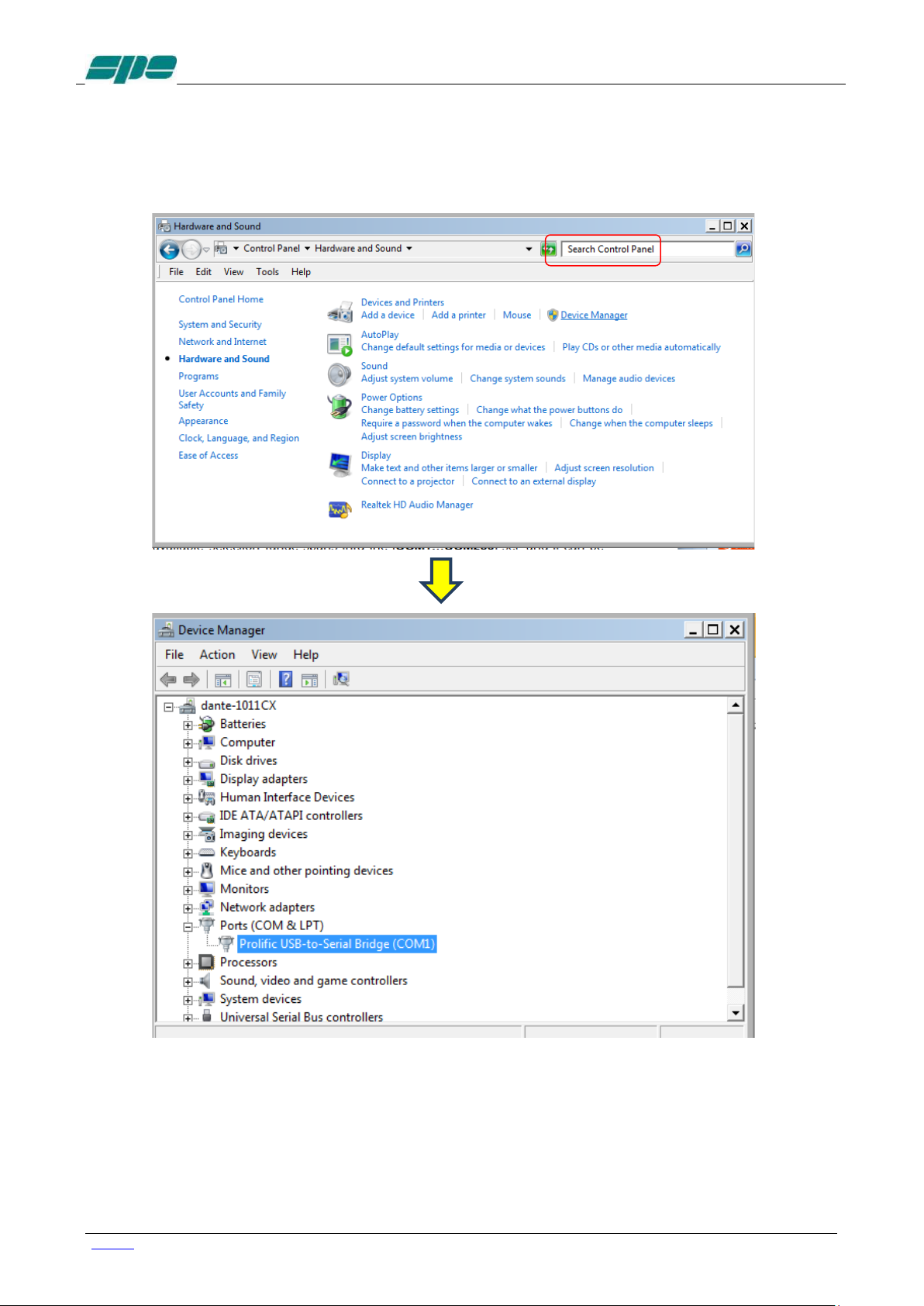

With all your serial resources properly connected, proceed to the Control Panel >>>
Hardware and Sound >>> Device Manager and choose a serial COM listed in the
hardware configuration that is not used by other applications.
In the case that USB-to-RS232 serial converters are being used, as shown in the picture
above, please proceed, as explained below, to check all the COM ports polled by the
system.
User manual
Expert Amp 1.3K-FA
INDEX Page. 80 of 91
To check a COM port identifier related to any given adapter, disconnect it from the USB
socket of the PC and detect which COM item disappears from the proposed list after this
configuration change.
In that case, use the detached COM port ID to properly set the Virtual Com Port dialog
box, as shown in the picture below, and then reconnect the serial adapter so that it can be
accessed by the application.
The available selection range spans thru the [COM1…COM256] set, which can be
accessed using the framed slider-control placed above the OK and CANCEL keys.
After the COM port setting is validated by pressing the OK key, all the other
communication parameters become set as follows:
• Baud rate: 115200
• Bit per character: 8
• Parity check: No
• Stop bit: 1
Also, the Baud-rate setting can be changed by pressing the Advanced settings… if
needed.
The Baud rate setting can be selected by using the available slider-control marked in the
picture above:
User manual
Expert Amp 1.3K-FA
INDEX Page. 81 of 91
• 9600 baud
• 14400 baud
• 19200 baud
• 28800 baud
• 38400 baud
• 57600 baud
• 115200 baud
And then by pressing the OK button.
All the other framing and parity parameters cannot be changed by the user because they
are set by the program initialization.
It should be noted that the Baud rate setting has to be set on the Term_1.3K_232.exe
application’s side before a remote connection can be made.
And it may need to be changed due to a previous setting of a different baud rate.
The reason for this is because it is a permanent setting, which is stored into a private database system, and will be recalled by the application whenever needed.
On the EXPERT 1.3K-FA side, the baud-rate is automatically synchronized by the datapattern being sent to it by Term_1.3K_232.exe upon any query to the linear.
As mentioned above, the application usage is still the same as for the USB interface
version described earlier, but there are just some minor “look-and-feel” changes as shown
in the picture below:
The use of RS 232 port becomes a necessity when the device needs to be remotely
controlled via the Internet. And since most specially designed devices, currently available
on the market, do not implement the USB port feature to being compliant to the USB frontend of the EXPERT linear amplifiers.
User manual
Expert Amp 1.3K-FA
INDEX Page. 82 of 91
Remote ON/OFF using RS-232.
With this software release, the [ON] and [OFF] keys are fully enabled and work the same
way as they work on the USB version of the application.
However, there is a small technical detail to take into account about the [ON] key's
behaviour.
Since the "PORT" connector on the rear panel of the amplifier is not equipped with any
DSR, the DTR output of the PC's RS-232 port is used to activate the [ON] function, which
generates a timed positive pulse about every second.
This pulse, duly integrated, is injected into the "Remote_ON" pin of one of the two CAT
connectors according to the following diagram
Cable with which you can control, turn on and turn off the amplifier using the RS 232 port.
A note about the DTR-link behaviour.
Even though this circuit seems to work correctly when driven by software, it could cause
unexpected switching-on of a connected linear amplifier having its rear panel's mainsswitch enabled, when the linked PC re-boots or when an external serial device (e.g. a USB
to serial adaptor...) is physically connected.
The reason for this odd behaviour is related to some uncontrolled OFF-to-ON transitions of
a DTR output line.
So, please, take this unpleasant side effect into account when using this kind of branch in
external links.
User manual
Expert Amp 1.3K-FA
INDEX Page. 83 of 91
20.4 Firmware update
A very useful feature of the Term_1.3K_USB.exe / Term_1.3K_232.exe applications is
one that enables software updating of the built-in firmware in the linear amplifier.
To update the linear amplifier it is necessary to use a suitable .PK2 firmware file, which
must be downloaded from our website www.linear-amplifier.com and then stored into a
proper working folder.
Switch the linear on leaving it set to the STANDBY mode during the firmware updating.
Under these conditions the File\Firmware update menu item becomes active and, after
being selected, it sets the EXPERT 1.3K-FA into its firmware update mode (FIRMWARE
UPDATE PROCEDURE).
Pressing [CAT] key two twice will show the current software revision.
NOTE: It is highly recommended that prior to carrying out a firmware update, that all cabling except
the AC power and USB cable, are disconnected from the SPE.
User manual
Expert Amp 1.3K-FA
INDEX Page. 84 of 91
After that a dialog box pops-up, and the user must select a proper firmware package, that
data will be sent to the linear amplifier to update all its embedded functions
Note the example in the picture below where a firmware package file named
07_07_14_A.pk2 has been selected:
After the necessary confirmation by the user for validating the procedure, the EXPERT
1.3K-FA switches its display off as the updating is being transferred to the
Term_1.3K_USB.exe application
User manual
Expert Amp 1.3K-FA
INDEX Page. 85 of 91
The main steps of the firmware update procedure are below:
• Checking and validation of updating firmware package
• A physical data transmission of the new firmware from the PC to the linear amplifier
User manual
Expert Amp 1.3K-FA
INDEX Page. 86 of 91
• A final validation for the completed firmware update
And as the last action, after a successful firmware update, the linear amplifier performs a
general auto-restart operation. Then full control of the updated device is restored to both
local and remote operations.
The user is then able to check the result of his firmware update operation directly on the
LCD display (both real and virtual…) by pressing the [CAT] key twice and only when in the
STANDBY mode.
This operation will be shown on the display as below:
User manual
Expert Amp 1.3K-FA
INDEX Page. 87 of 91
21. GENERAL RESTORE
A System General Restore can be performed by pressing the [INPUT] and the [OFF] keys
together for at least one second.
This operation is only possible from the linear amplifier front-panel physical keyboard.
The linear amplifier will switch off with a self-explaining system message.
Then, after it turns back on, all of the factory defaults will be restored.
User manual
Expert Amp 1.3K-FA
INDEX Page. 88 of 91
22. WARRANTY TERM
SPE warrants to the original Purchaser that this product shall be free from defects of
materials or workmanship.
SPE warrants for two (2) years from the date of original purchaser that SPE will
provide free of charge all parts and labour necessary to correct defects in material
or workmanship. The Purchaser only has to pay all the shipping expenses for
warranty service work.
Customers should address requests for warranty service work to the Distributor/ Dealer
where they made their purchase. As part of their reseller agreement with SPE, they are
responsible for service support.
If the Distributor/Dealer has closed down, or when the Purchaser moves into another area,
SPE will be directly responsible for warranty service at their factory in Rome. The shipping
expenses to and from SPE will then be paid by the customer. Any repair requests to other
dealers will be subject to specific direct negotiations between the customer and the dealer.
In order to not invalidate the warranty service, the original Purchaser must complete the
warranty registration card, and send it to SPE within 30 days from the date of purchase.
Unless otherwise agreed, the products will be delivered ex-works from the factory of the
seller.
The delivery, even in the event of a return for repair, is understood done with the delivery
of the goods to the carrier specified by the purchaser or, failing that, to the carrier chosen
by SPE.
The products will travel at the risk of the purchaser even if, at the request of the same
one or for other causes, SPE should carry out transport or choose the carrier.
If the original Purchaser finds some defects after having received the equipment, he must
immediately notify the Distributor/Dealer of the defects found by sending the completed
REPAIR FORM. Replacement of the amplifier may be offered by SPE in exceptional
circumstances only and at SPE’s complete discretion. However, nol replacement will be
offered after 21 days of original purchase.
In case of a purchase of a used amplifier, in order to retain the warranty’s validity, it is
necessary to notify SPE of the following data:
• Document for the second purchase (used)
• Invoice for the original purchase
• Serial number (s/n) of equipment
Replacement of equipment in these circumstances is not an option.
In any case the warranty period shall be two (2) years from the original purchase, and not
from any subsequent purchase.
Whenever the date of the first sale is not well specified or is greater than one year from
the date of the shipping from SPE to the Distributor/Dealer, the date of shipping from SPE
to the Distributor/Dealer will be considered the start of the warranty period.
The warranty does not apply either if the certificate of the first purchase (invoice) is
missing, the s/n is undecipherable / falsified or to any defect that SPE determines is
due to the following:
User manual
Expert Amp 1.3K-FA
INDEX Page. 89 of 91
1. Improper maintenance or repair by persons not authorised by SPE to carry out
such work, including the installation of parts or accessories that do not conform to
the quality and specifications of the original parts.
2. Acts of nature such as lightning, storm & tempest, moisture or water intrusion,
fire.
3. Misuse, abuse, neglect or improper installation, user’s manual non-observance.
4. Carelessness, accidental or intentional damage.
5. In the manual of the transceiver used it is clearly written that it cannot be
used with a solid state amplifier.
In addition and more specifically - possible damage caused by:
• Exceeding power ratings of transmission lines, baluns or antennas.
• Repeated input overdriving alarms.
• Repeated high SWR alarms.
SPE warrants only manufacturing defects and defects in the materials used, NOT inherent
and consequent damages.
It is mandatory, when sending SPE equipment to be repaired, to enclose:
- Invoice of the original purchase.
- Document of the second purchase (if any).
Particular agreements between retailer and Purchaser or particular obligations imposed in
other countries are matters for the local retailer and not for SPE.
In the event of dispute Rome’s court of competent jurisdiction will apply.
By purchasing SPE equipment, the Purchaser declares his acceptance of the above
Warranty Terms.
User manual
Expert Amp 1.3K-FA
INDEX Page. 90 of 91
REPAIR FORM
MODEL . . . . . . . . . . . . . . . . . . . . . SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . DATE . . . . . . . . . . . . . . . . .
CONNECTION STATUS AT THE MOMENT OF THE BREAKDOWN
TRANSCEIVER MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CAT CONNECTION YES NO
IF YES INDICATE THE ITEM HEADING IN THE USER MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IF NO BAND DATA INTERFACE YES
ANY LINK? YES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WAS THE ALC CONNECTED? YES NO
WAS THE DRIVING POWER OF THE TRANSCEIVER SET AT THE MAXIMUM LEVEL? YES NO
IF ‘NO’, WHAT POWER OUTPUT WAS SET? . . . . . . . . . . . . . . . . . . . . . . . . .
ON WHICH BAND DID THE FAULT HAPPEN? . . . . . . . . . . . . . . . . . . . . . . .
DID YOU CHANGE BANDS / ANTENNA IMMEDIATELY BEFORE THE FAULT HAPPENED? YES NO
PLEASE WRITE THE TRANSMISSION MODE: SSB CW QSK DIGITAL MODE/FM AM
FOR HOW LONG BEFORE THE FAILURE DID YOU SWITCH ON THE AMPLIFIER? . . . . . . . . . . . . . . . . . . . . . .
THE AMPLIFIER WAS IN THE: LOW MID MAX
WHICH INPUT WAS USED? INPUT 1 INPUT 2
WHAT WAS THE TEMPERATURE OF THE AMPLIFIER ? . . . . . . . . . . . . . . . . . . . . . . . . . .
WHAT FAULT INFORMATION WAS DISPLAYED ON THE LCD? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WHAT WAS THE MAINS VOLTAGE AT THE MOMENT OF THE BREAKDOWN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OTHER INFORMATION: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . ..
SPACE FOR THE REPAIRER
REPAIRER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DATE OF ARRIVAL . . . . . . . . . . . . . . . . . . . . . .
NOTES ABOUT THE AMPLIFIER WHEN YOU RECEIVED IT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .. . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . PARTS REPLACED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DATE OF TESTS SIGNATURE OF THE REPAIRER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User manual
Expert Amp 1.3K-FA
INDEX Page. 91 of 91
SPE s.r.l.
Via di Monteverde, 33 00152 Rome (Italy)
Tel. +390658209429
Fax. +390658209647
E-mail: info@linear-amplifier.com
Website: http://www.linear-amplifier.com
Loading...
