Spalding 211745 User Manual
1
12/04 P/N 211745
Toll-Free Customer Service Number for U.S.: 1-800-558-5234
http://www.huffysports.com
© COPYRIGHT 2004 by HUFFY SPORTS

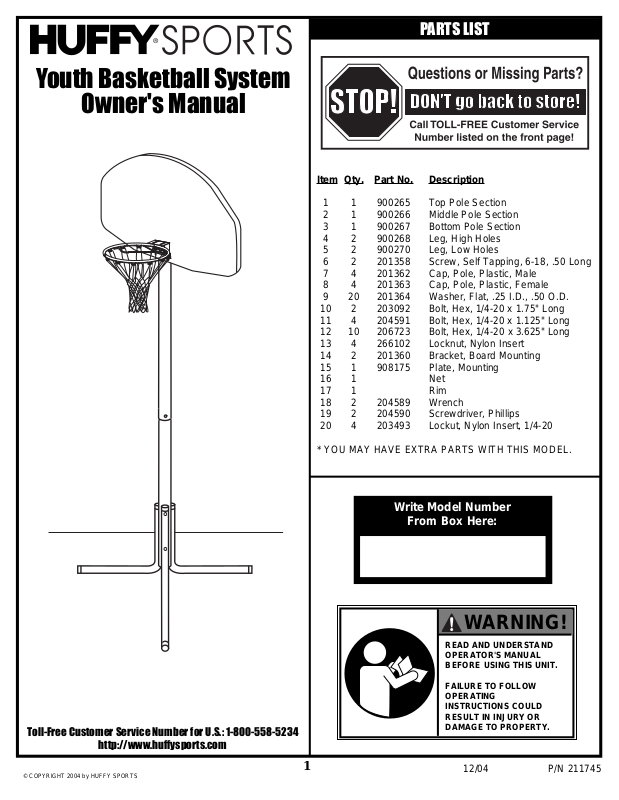

Youth Basketball System
Owner's Manual
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING
INSTRUCTIONS COULD
RESULT IN INJURY OR
DAMAGE TO PROPERTY.
WARNING!
Write Model Number
From Box Here:
PARTS LIST
Item Qty. Part No. Description
1 1 900265 Top Pole Section
2 1 900266 Middle Pole Section
3 1 900267 Bottom Pole Section
4 2 900268 Leg, High Holes
5 2 900270 Leg, Low Holes
6 2 201358 Screw, Self Tapping, 6-18, .50 Long
7 4 201362 Cap, Pole, Plastic, Male
8 4 201363 Cap, Pole, Plastic, Female
9 20 201364 Washer, Flat, .25 I.D., .50 O.D.
10 2 203092 Bolt, Hex, 1/4-20 x 1.75" Long
11 4 204591 Bolt, Hex, 1/4-20 x 1.125" Long
12 10 206723 Bolt, Hex, 1/4-20 x 3.625" Long
13 4 266102 Locknut, Nylon Insert
14 2 201360 Bracket, Board Mounting
15 1 908175 Plate, Mounting
16 1 Net
17 1 Rim
18 2 204589 Wrench
19 2 204590 Screwdriver, Phillips
20 4 203493 Lockut, Nylon Insert, 1/4-20
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
2
P/N 211745 12/04
Toll-Free Customer Service Number for U.S. : 1-800-558-5234
http://www.huffysports.com
2.
3.
Attach legs to ple assembly using bolts (8) and
nuts (13). Attach rim and board bracket to
backboard using bolts (11) and nuts (20).
13
1
Correctly identify the pole
sections. Line up holes as
shown and tap together.
NOTE: Make sure holes
remain lined up. Secure
poles as shown.
1.
10
9
9
13
10
9
9
2
3
7
12
12
13
13
WARNING
NOTE:
Hole pattern on legs
(4) & (5) are different.
Use correct legs.
9
9
9
9
11
20
POSITION OF BACKBOARD
REAR
Install net (16) to rim (17) as shown.
17
16
15
4
5
8
17
TOP OF ALL LEGS
MUST LINE UP, OR IT
MAY TIP OVER.
9
9
6
Do not
completely
tighten bolt
(11) and nut
(20) until step
3 is completed
NOTE:
Slide backboard assembly over top pole as
shown fully tightening bolts (11) and nuts (20).
Secure board by inserting screws (6) as shown.
5
4
14
