Spalding 21173402 User Manual

12/28/04 P/N 21173402

Model #

Manufactured & Distributed By:

A Company

Toll-Free Customer Service Number for U.S.: 1-800-558-5234

http://www.huffysports.com

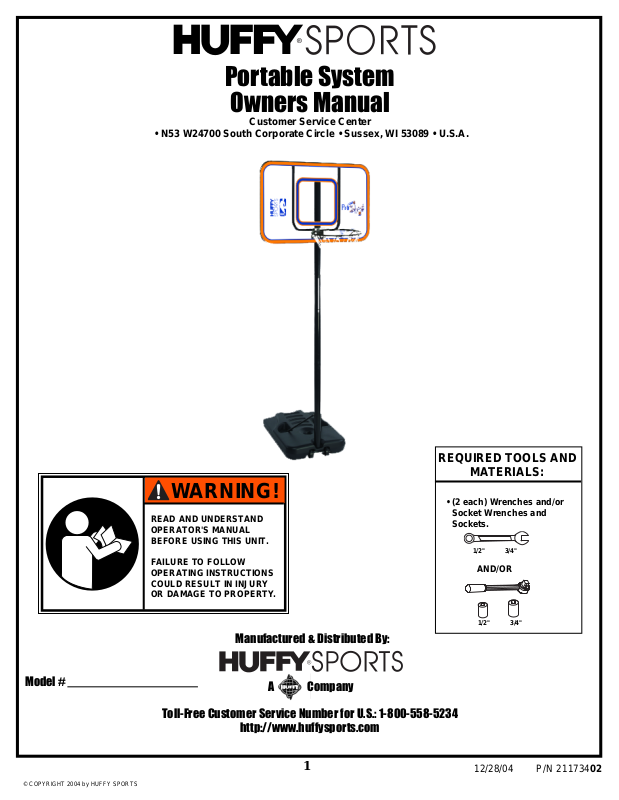

Portable System

Owners Manual

Customer Service Center

• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.

FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.

WARNING!

REQUIRED TOOLS AND

MATERIALS:

• (2 each) Wrenches and/or Socket Wrenches and Sockets.

1/2" 3/4"

AND/OR

P/N 21173402 12/28/04

Toll-Free Customer Service Number for U.S. : 1-800-558-5234 http://www.huffysports.com

IMPORTANT!

Remove all contents from boxes.

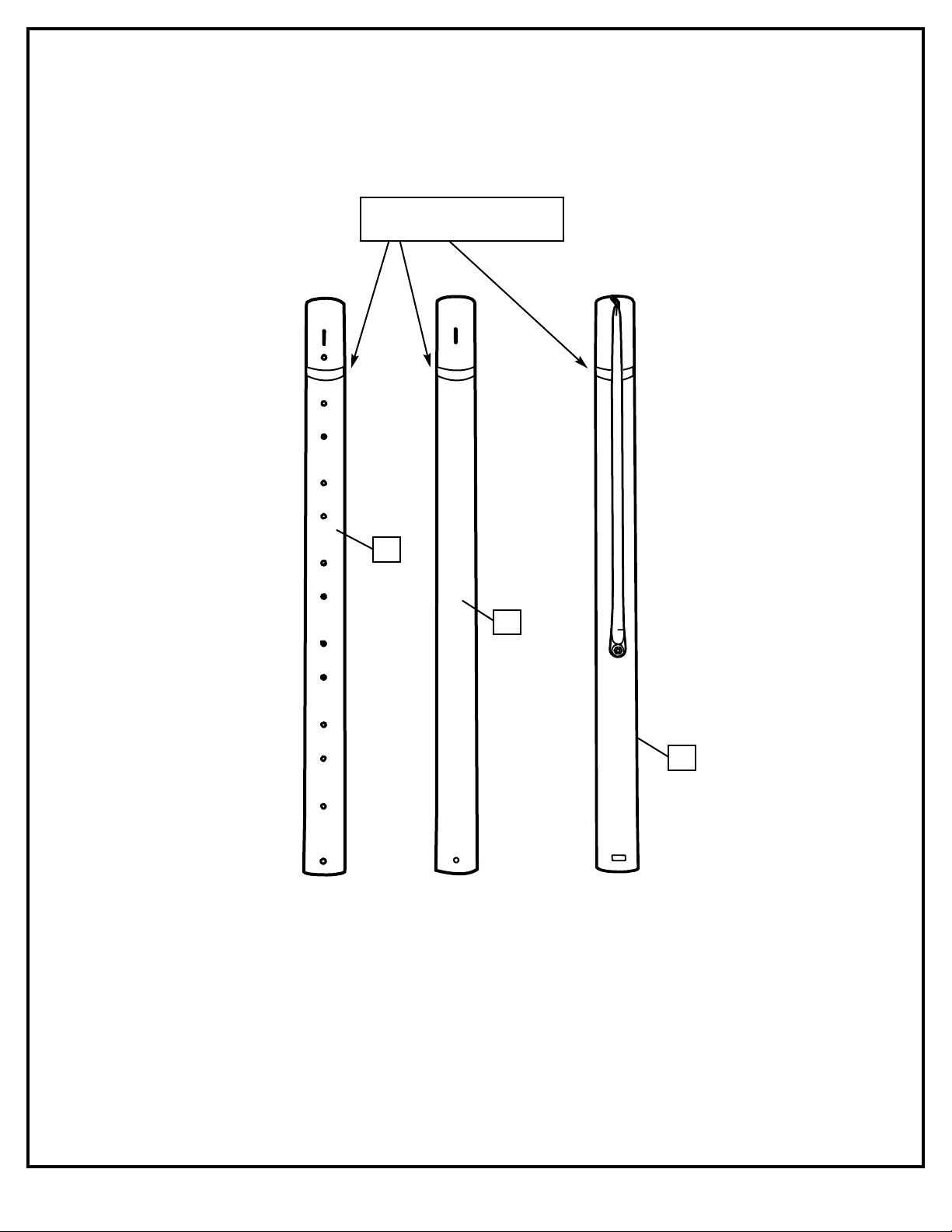

Be sure to check inside pole sections;

hardware and additional parts are packed inside.

NOTICE TO ASSEMBLERS

ALL Huffy Sports basketball Systems, including those used for DISPLAYS, MUST be assembled and ballasted with sand or water according to instructions. Failure to follow instructions could result in

SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY

AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use, and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

• If using a ladder during assembly, use extreme caution.

• Check base regularly for leakage. Slow leaks could cause the system to tip over unexpectedly

• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or during transport of the system.

• Climate, corrosion or misuse could result in system failure.

• If technical assistance is required, contact Huffy Sports.

• Minimum operational height is 6’6” (1.98m) to the bottom of backboard.

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this unit.

12/28/04 P/N 21173402

Toll-Free Customer Service Number for U.S. : 1-800-558-5234 http://www.huffysports.com

PARTS LIST

Item Qty. Part No. Description

1 1 206646 Tank (Black) 2 1 200628 Wheel Axle 3 2 226401 Wheel 4 1 900060 Top Pole Section 5 1 908057 Middle Pole Section with Label 6 1 900254 Bottom Pole Section Assembly 7 1 203041 Nut, Hex Flange, 3/8-16 8 1 Net

9 1 201342 Wheel Bracket 10 2 201651 Spacer, Wheel Axle 11 1 201568 T-Strap 12 1 206219 Cap 13 1 266001 Bolt, Carriage, 3/8-16 x 1.5 Long 14 1 203617 Tank Cap 15 1 200439 Label, Moving System and Height Adjust. 16 2 203084 Bolt, Carriage, 5/16-18 x 1.75 Long 17 4 201344 Knob, Plastic, 3-sided 18 1 Rim 19 12* 201219 Smart Clip, Net Holder 20 2 900057 Backboard Mounting Bracket 21 1 203124 Tie Down Stake 22 3 203309 Washer, .406 I.D. x 1.0 O.D. 23 2 203053 Bolt, Carriage 5/16-18 x 4 24 2 200837 Board Spacer 25 4 203100 Nut, Hex Flange, 5/16-18 26 1 900033 Slam Jam Bracket, Black 27 1 203796 Bolt, “Tee” 3/8 - NC x 5 Long 28 1 200318 Bracket Reinforcement, Slam Jam 29 1 203472 Spring, Black 30 1 203795 Nut, Special 3/8-NC 31 1 203470 Washer, Flat 5/8 I.D. x 1-1/2 O.D. 32 4 203104 Bolt, Hex-Flange 5/16-18 x 2" Long

* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.

P/N 21173402 12/28/04

Toll-Free Customer Service Number for U.S. : 1-800-558-5234 http://www.huffysports.com

WARNING

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT

IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and follow

these rules for safe operation of the system.

• DO NOT HANG on the rim or any part of the system including backboard, support braces or net.

• During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.

• Do not slide , climb, shake or play on base and/or pole.

• After assembly is complete , fill system completely with water or sand and stake to the ground. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.

• When adjusting height or moving system, keep hands and fingers away from moving parts.

• Do not allow children to move or adjust system.

• During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.

• Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.

• Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.

• Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.

• Check system before each use for proper ballast, loose hardware, excessive wear and signs corrosion and repair before use.

•

Check system before each use for instability.

• Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.

• Never play on damaged equipment.

• See instruction manual for proper installation and maintenance.

• When moving system, use caution to keep mechanism from shifting.

• Keep pole top covered with cap at all times.

• Do not allow water in tank to freez e. During sub-freezing weather add non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)

• Use extreme caution if placing system on sloped surface . System may tip over more easily.

201241 2/99

In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

12/28/04 P/N 21173402

Toll-Free Customer Service Number for U.S. : 1-800-558-5234 http://www.huffysports.com

PARTS IDENTIFIER- Hardware is actual size

28. Reinforcement Bracket-Qty (1)

17. Knob-Qty (4)

24. Board Spacer-Qty (2)

7. Nut, Hex Flange, 3/8-16-Qty (1)

10. Spacer, Wheel Axle-Qty (2)

16. Bolt, Carriage, 5/16-18 x 1.75 Long-Qty (2)

13. Bolt, Carriage, 3/8-16 x 1.5 Long-Qty (1)

22. Washer, .406 I.D. x 1.0 O.D.-Qty (3)

25. Nut, Hex Flange, 5/16-18-Qty (4)

9. Wheel Bracket-Qty (1)

26. Slam Jam Bracket-Qty (1)

29. Spring-Qty (1)

30. Special Nut-.-Qty (1)

27. "T" Bolt-Qty(1)

20. Backboard Mounting Bracket-Qty (2)

PARTS IDENTIFIER- Not actual size

32. Bolt, Hex Flange, 5/16-18 x 2"-Qty (4)

23. Bolt, Carriage, 5/16-18 x 4 Long-Qty (2)

31. Washer, 5/8 I.D. x 1/2 O.D.-Qty (1)

P/N 21173402 12/28/04

Toll-Free Customer Service Number for U.S. : 1-800-558-5234 http://www.huffysports.com

Get to know the basic parts of your basketball system.....

POLE

RIM

BASE

WHEEL

CARRIAGE

ASSEMBLY

BOARD
