SY-6ZE+

Motherboard

****************************************************

Pentium® III, Pentium® II & Celeron

Processor supported

82440 ZX AGP/PCI Motherboard

66&100MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Guide

Technical Reference

Page 2

SOYO™ SY-6ZE+

About This Guide

This User's Guide is for assisting system manufacturers and end users in setting up and installing the Motherboard. Information in this guide has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. The information in this document is subject to change without notice.

Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of this publication without express written permission of Soyo Computer Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise the manual or make changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or change. The information contained in this manual is provided for general use by our customers. Our customers should be aware that the personal computer field is the subject of many patents. Our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.277-7013.

Product Rights

Products mentioned in this manual are mentioned for identification purpose only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies. If you need any further information, please come to our home page on the Internet. The address is "http://www.soyo.com.tw".

Edition: January 1999 Version 1.0 6ZE+ SERIAL

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

100%

POST CONSUMER RECYCLED PAPER

Page 3

Table of Contents SY-6ZE+

Table of Contents

SY-6ZE+ MOTHERBOARD LAYOUT............................................1

CHAPTER 1 INTRODUCTION .....................................................2

1-1 KEY FEATURES......................................................2

1-2 HANDLING THE MOTHERBOARD..........................5

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5

CHAPTER 2 HARDWARE SETUP...............................................6

2-1 PREPARATIONS .....................................................6

2-2 UNPACKING THE MOTHERBOARD .......................7

2-3 INSTALLATION GUIDE............................................8

CHAPTER 3 BIOS SETUP UTILITY...........................................26

3-1 SOYO COMBO SETUP ......................................... 28

3-2 STANDARD CMOS SETUP ...................................33

3-3 BIOS FEATURES SETUP......................................36

3-4 CHIPSET FEATURES SETUP...............................41

3-5 POWER MANAGEMENT SETUP...........................44

3-6 PNP/PCI CONFIGURATION SETUP ......................48

3-7 LOAD SETUP DEFAULTS ..................................... 51

3-8 INTEGRATED PERIPHERALS...............................52

3-9 SUPERVISOR PASSWORD .................................. 56

3-10 USER PASSWORD ...............................................57

3-11 IDE HDD AUTO DETECTION................................58

CHAPTER 4 DRIVERS INSTALLATION...................................... 59

iii

Page 4

Motherboard Features SY-6ZE+

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

Intel

82371 EB

Intel

I/O Chipset

CHAFAN

IDE 1

IDE 2

Speaker

Keylock

Reset

PWRBT

Turbo

HDD LED

Wake on

(PC-PCI)

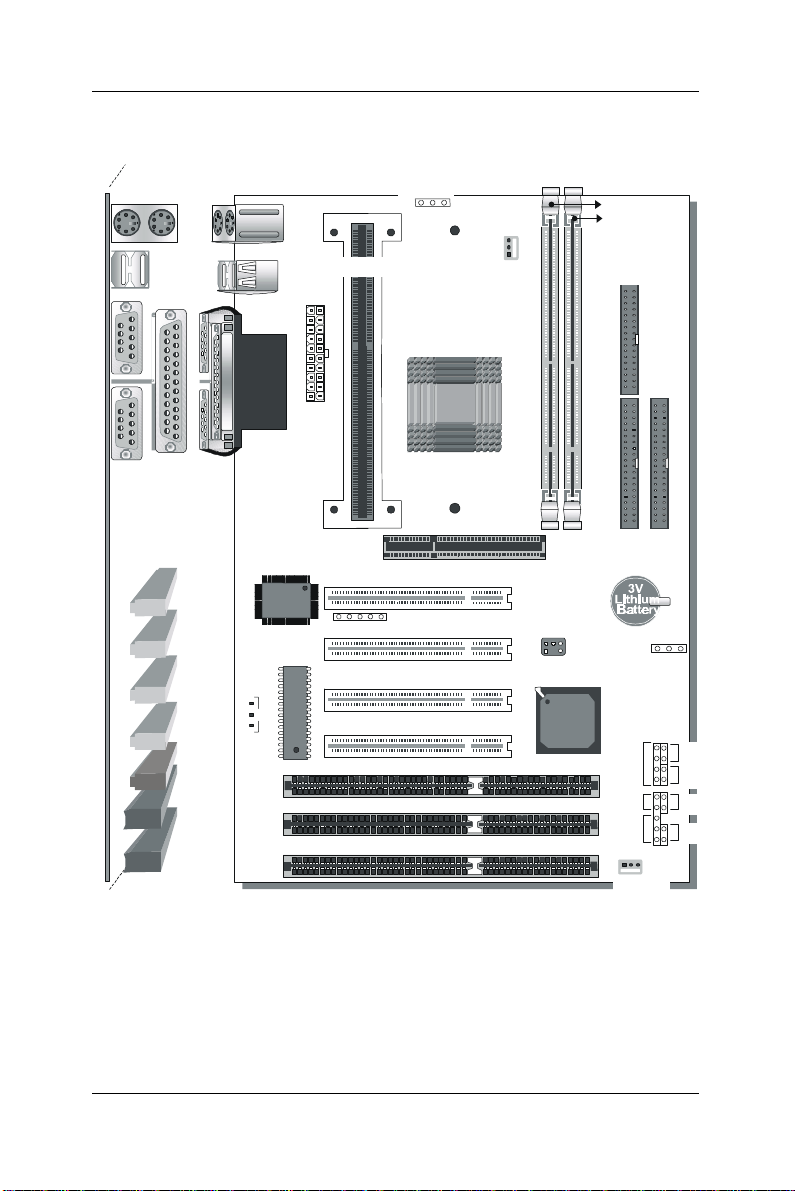

SY-6ZE+ MOTHERBOARD LAYOUT

PS/2 KB

PS/2 Mouse

Connector

USB 1

COM 1

Connector

USB 2

PRT

Slot 1

JP10

CPUFAN

DIMM 1

DIMM 2

FDC

COM 2

ATX

Power

82443 ZX

AGP Slot

ITE

IT8671F-A

IR1

JP44

LAN

BIOS Flash

ISA Slot #1

ISA Slot #2

ISA Slot #3

Back Panel SY-6ZE+ Platform

SB-LINK

JP5

LED

Power LED

Page 5

Introduction SY-6ZE+

Chapter 1

INTRODUCTION

The SY-6ZE+ AGP/PCI Motherboard is a high-performance Slot 1 processor supported ATX form-factor system board. SY-6ZE+ uses the 82440 ZX Chipset technology and supports Slot1 processors. This Motherboard is fully compatible with industry standards and adds many technical enhancements.

1-1 KEY FEATURES

Supports Intel Pentium processor (233-450MHz) & Celeron

III processor (450-500MHz), Pentium

processor (266-466MH) Auto-detect CPU voltage PC98, ACPI, Ultra DMA/33 Supports system memory up to 256 MBytes Power-on by modem or alarm Supports Wake-On-LAN (WOL) Supports power-on by keyboard Supports onboard hardware monitoring and includes Hardware Doctor™ utility Supports Creative SB-LINK™ (PC-PCI) for PCI audio 1 x 32-bit AGP slot 4 x 32-bit bus mastering PCI slots 2 x USB ports onboard 1 x IrDA port Supports multiple-boot function SOYO COMBO Setup

Page 6

Introduction SY-6ZE+

SY-6ZE+ PLATFORM FEATURES

Board Size 4-layer PCB, 18x30.5cm(7.1”x12”), ATX Form

Factor

Slot1 Slot 1 for Pentium® III, Pentium® II & Celeron

Processor

Ø Supports the following processors

u 100MHz FSB

Pentium® II 350/400/450 MHz Pentium® III 450/500 MHz

u 66MHz FSB

Pentium® II 233/266/300/333 MHz Celeron 300A/333/366/400/433/466 MHz Celeron 266/300 MHz

Ø Supports both boxed and non-boxed type of CPUs Ø Includes a CPU mount kit with retention clip Ø Features Auto-detection of CPU voltage

Chipset 82440 ZX AGP Set ATX Power 20-pin Male Connector CPUFAN 3-pin CPU Cooling Fan Connector Memory DIMM Bank (DIMM1~2)

Ø Two strips of 168-pin Unbuffered SDRAM DIMM Ø Supports 8/16/32/64/128MB DIMM modules in each

bank

Ø Provides up to 256 MBytes of main memory

BIOS System BIOS built-in, Award BIOS

Ø APM, ACPI and "Plug-and-Play" function Ø Supports multiple-boot function Ø Onboard FLASH memory for easy upgrade Ø Y2K Compliant

Bus Controller Compliant with v2.1 PCI specifications PCI Slots 4 x 32-bit Bus Mastering Slots AGP Slot 1 x 32-bit AGP Slot ISA Slots 3 x 16-bit ISA Slots IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports

Page 7

Introduction SY-6ZE+

Ø IDE1: Primary IDE Device Connector Ø IDE2: Secondary IDE Device Connector Ø Supports Ultra DMA/33MHz

FDC 1 Floppy Disk Drive (FDD) Port

(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

IR1 5-pin Serial Infrared Device Header Keylock 5-pin KeyLock Header Reset 2-pin Reset Switch Header Speaker 4-pin PC Speaker Header TB_LED 2-pin Turbo LED Header HDD_LED 2-pin IDE Device LED Header PWRBT ATX Power On/Off Switch 2-pin Header JP5 CMOS Clear Jumper JP10 Power On by Keyboard Jumper JP44 WOL (Wake-On-LAN) 3-pin Header SBLINK™ PCI Audio Card Header (PC-PCI)

SY-6ZE+ BACK-PANEL FEATURES

PRT 1 x Onboard 26-pin Female Parallel Printer Port

Ø ECP/EPP/SPP multi-mode parallel printer port

COM1, COM2 2 x Onboard RS-232 Serial Ports

Ø Feature 2 x high-speed UARTs (with 16550 FIFO)

PS/2 KB 1 x Onboard PS/2 Keyboard Port PS/2 Mouse 1 x Onboard PS/2 Mouse Port USB1, USB2 2 x Onboard USB

(Universal Serial Bus)

Ports

Page 8

Introduction SY-6ZE+

1-2 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while unpacking:

Ø Before handling the Motherboard, ground yourself by grasping

an unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold

the Motherboard by the edges and avoid touching its components.

Ø Check the Motherboard for damage. If any chip appears loose,

press carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears damaged. If there is damage to the board, contact your

dealer immediately.

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other system components. Electrostatic discharge can easily damage the components. Note that you must take special precautions when handling the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following precautions:

Ø Do not remove the anti-static packaging until you are ready to

install.

Ø Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion slot covers or other unpainted portions of the computer chassis.)

Ø Frequently ground yourself while working or use a grounding strap. Ø Handle the Motherboard by its edges and avoid touching its

components.

Page 9

Hardware Setup SY-6ZE+

Chapter 2

HARDWARE SETUP

Congratulations on your purchase of SY-6ZE+ Motherboard. You are about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective anti-static packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to complete the installation successfully:

1. Slot 1 processor with built-in CPU cooling fan (boxed type).

Note: This Motherboard supports non-boxed type CPUs. The heavier CPU cooling fan requires the installation of a CPU support stand.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Page 10

Hardware Setup SY-6ZE+

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

Ø The SY-6ZE+ 82440 ZX AGP/PCI Motherboard Ø This Quick Start Guide * Ø The Installation CD-ROM * Ø One IDE Device Flat Cable Ø One Floppy Disk Drive Flat Cable

* If your board comes with a driver disc and a paper manual, the Quick Start Guide and the CD-ROM are not included in the package.

Warning: Do not unpack the Motherboard from its antistatic packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged by electrostatic discharge. To avoid permanent damage to components ground yourself while working by using a grounding strap. Otherwise, ground yourself frequently by touching the unpainted portion of the computer chassis to drain the static charges. Handle the Motherboard carefully, holding it by the edges. You are now ready to start the installation.

Page 11

Hardware Setup SY-6ZE+

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow the step-by-step procedure designed to lead you to a complete and correct installation.

Warning: Turn off the power to the Motherboard, system chassis, and peripheral devices before performing any work on the Motherboard or system.

BEGIN THE INSTALLATION

Step 1. CPU Installation

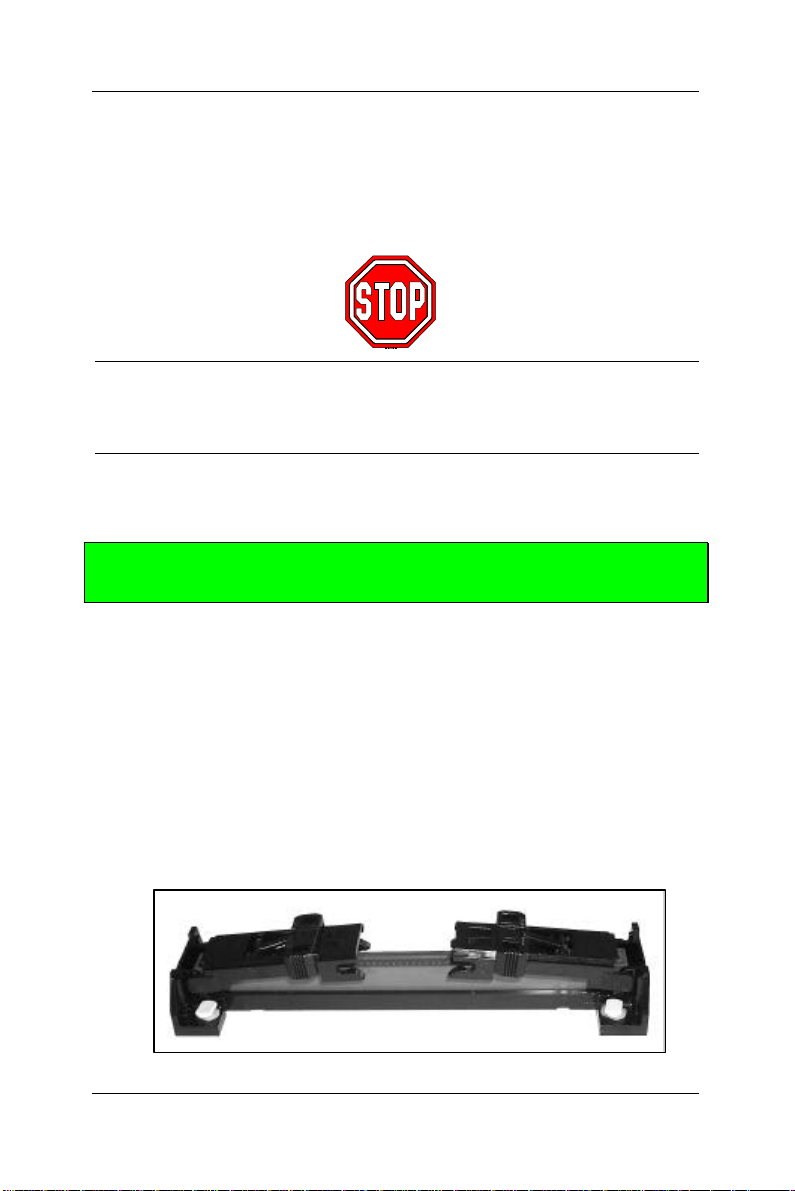

Your SY-6ZE+ motherboard comes with a CPU retention set kit. The retention set is used to hold the processor attached to the Slot 1 CPU connector on the motherboard.

Follow these instructions to install your Slot 1 processor correctly.

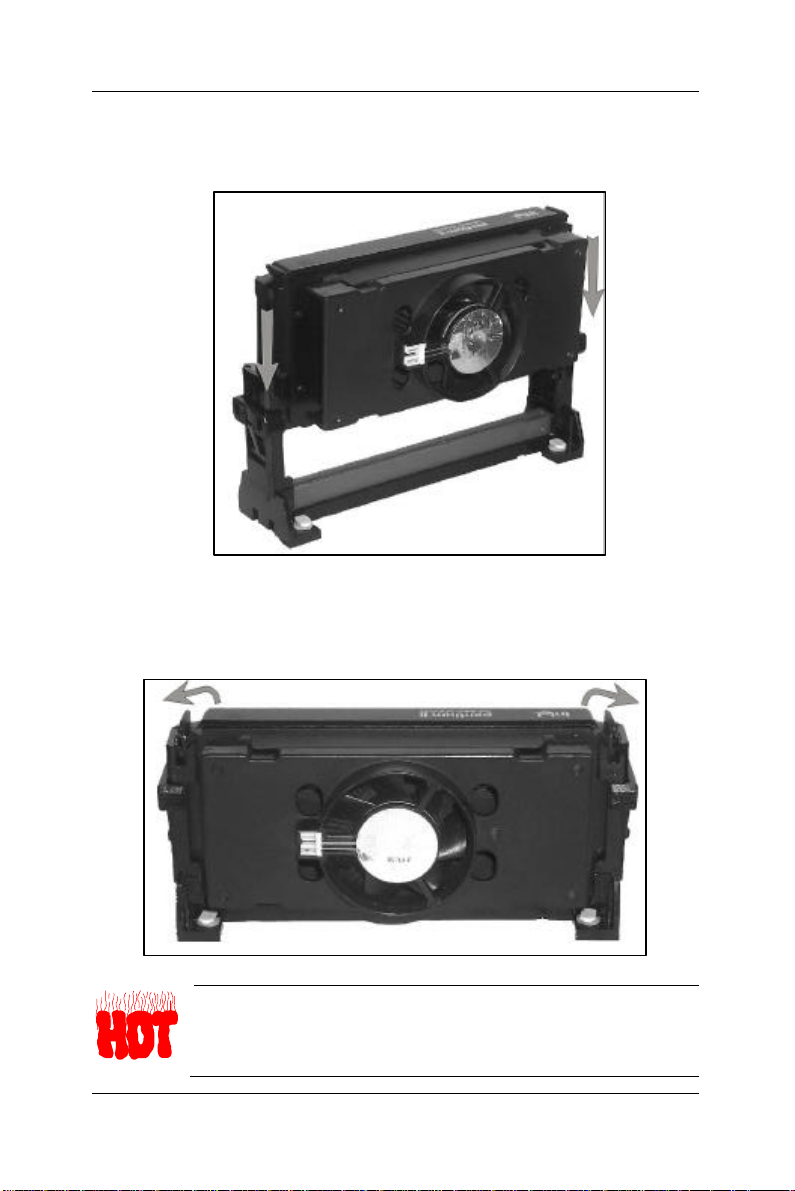

Ø Retention Module

Page 12

Hardware Setup SY-6ZE+

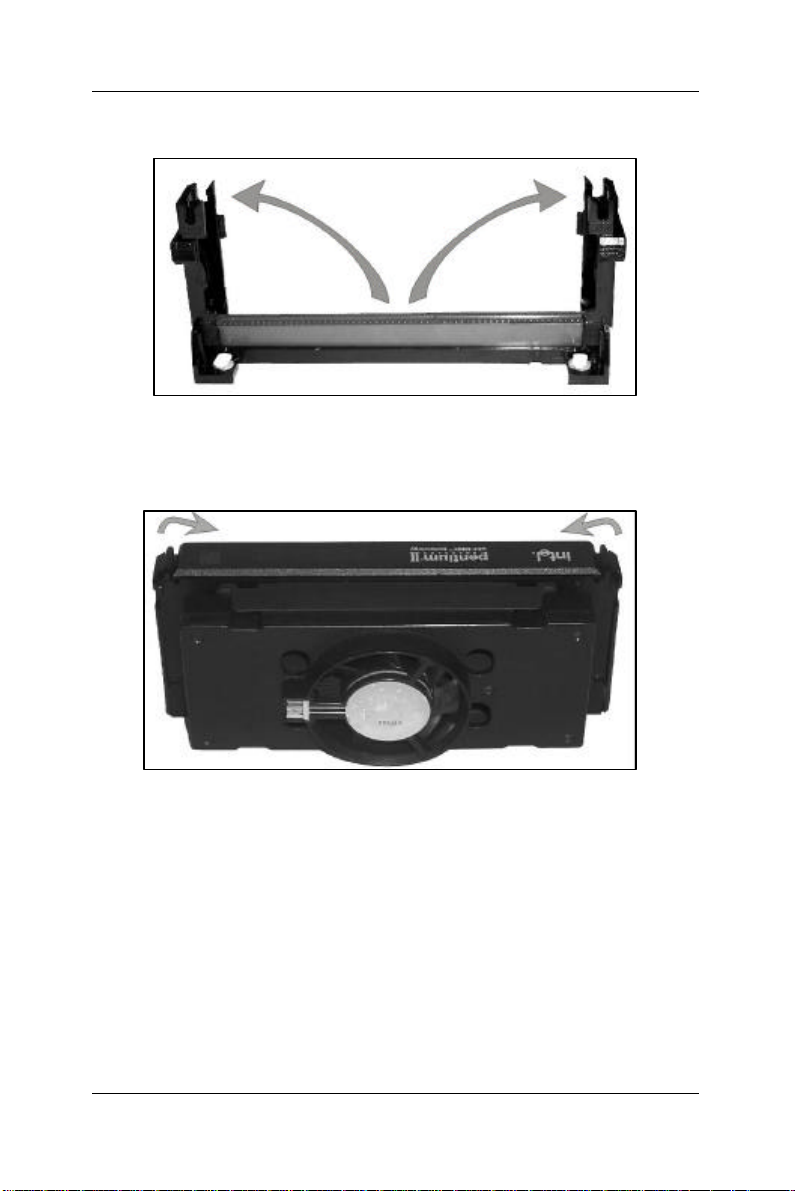

1. Open the two sides by folding them up.

2. Push the locks on top of the CPU inward.

Page 13

Hardware Setup SY-6ZE+

3. Insert the CPU into the retention module. The CPU fits in the CPU slot

in only ONE way, do not try to force it in.

4. After completely inserting the CPU, push the two locks on top of the

CPU outward. Now your CPU is ready for use.

To remove the CPU, press the two notches on top of the CPU inward. Now press the two slides on the retention module down

and remove the CPU.

Page 14

Hardware Setup SY-6ZE+

Note: Installing a heat sink and cooling fan on top of your CPU is necessary for proper heat dissipation. Failing to install these items may result in overheating and possible burn-out of your CPU.

Step 2. CPU Fan Installation

Your Slot 1 processor kit comes with a cooling fan. Mount the fan on the processor according to the instructions provided by the manufacturer. The fan is a key component that will ensure system stability. The fan prevents overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

Page 15

Hardware Setup SY-6ZE+

Step 3. SDRAM Memory Module Installation

Your board comes with two DIMM sockets, providing support for up to 256MB of main memory using DIMM modules from 8MB to 128MB. For 66MHz front side bus CPUs use 12ns or faster memory; for 100MHz front side bus CPUs use 8ns (100MHz, PC100 compliant) memory.

Memory Configuration Table

Number of Memory

Modules

1 2

RAM Type

Memory Module Size

(MB)

DIMM 1 DIMM 2

SDRAM

8/16/32/64/128 Mbytes

Important: It is of prime importance that you install DIMM modules as outlined in the table above in order to preserve signal integrity on 100MHz front side bus systems.

Step 4. IDE Device Installation (HDD, CD-ROM)

This Motherboard offers two primary and secondary IDE device connectors (IDE1, IDE2). It can support up to four high-speed HDD or CD-ROM.

Connect one side of the 40-pin flat cable to the IDE device (HDD or CD-ROM) and plug the other end to the primary (IDE1) or secondary (IDE2) directionally keyed IDE connector on the Motherboard. This Motherboard can support up to four HDDs.

Page 16

Hardware Setup SY-6ZE+

Reset

PWRBT

Turbo

HDD LED

Step 5. Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard supports a 3-mode (720KB/1.25MB/1.44MB) floppy commonly used in Japan. Connect one side of the 34-pin flat cable to the floppy drive and plug the other end to the floppy drive connector on the Motherboard. This Motherboard can support up to 2 floppy drives.

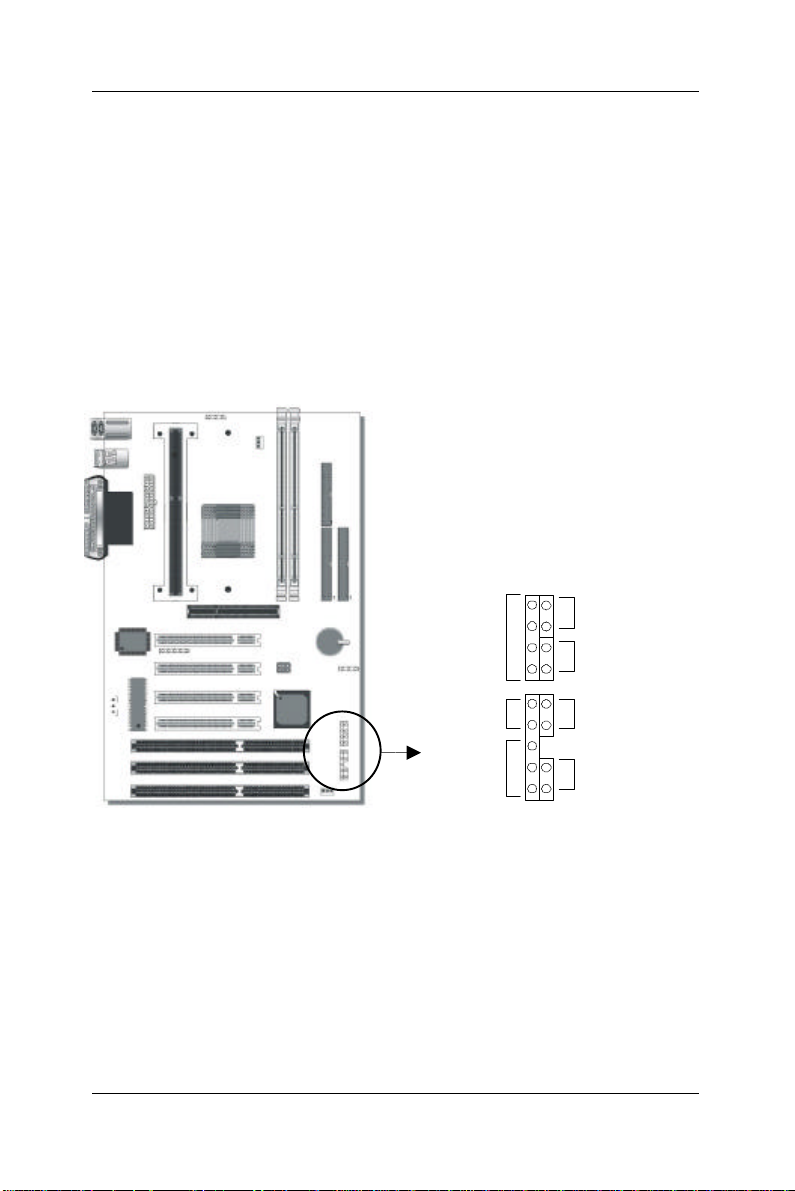

Step 6. Front Panel Connections

Speaker

LED

Plug the computer case's front panel devices to the corresponding headers on the Motherboard.

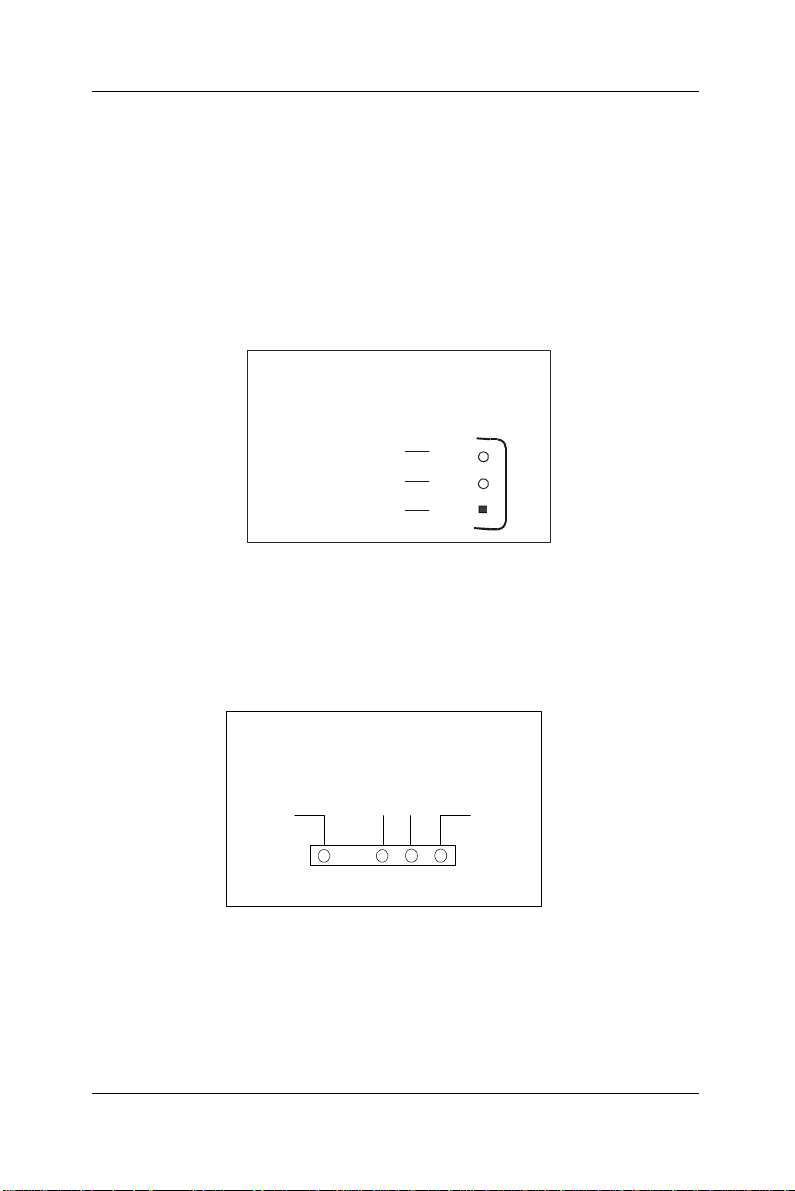

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock header. Some systems may feature a KeyLock function with a front panel switch for enabling or disabling the keyboard. Connect the KeyLock switch to the 5-pin Keylock header on the Motherboard.

Keylock

Power LED

Page 17

Hardware Setup SY-6ZE+

Please install according to the following pin assignment: pin 1,3 are for Power LED and pin 4,5 are for Keylock.

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the Motherboard. Pushing the Reset button on the front panel will cause the system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker header on the Motherboard.

4. Turbo LED

Connecting the 2-pin Turbo LED cable to the corresponding Turbo LED header will cause the LED to light whenever the system is in Turbo mode. The manufacturer has permanently set this Motherboard in Turbo mode due to most hardware and software compliance to turbo mode.

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE LED header on the Motherboard. This will cause the LED to lighten when an IDE (HDD, CD-ROM) device is active.

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for turning On or Off your ATX power supply.

Page 18

Hardware Setup SY-6ZE+

Step 7. Back Panel Connections

All external devices such as the PS/2 keyboard, PS/2 mouse, printer, modem, USB can be plugged directly onto the Motherboard back panel.

Only after you have fixed and locked the Motherboard to the computer case can you start connecting the external peripheral devices.

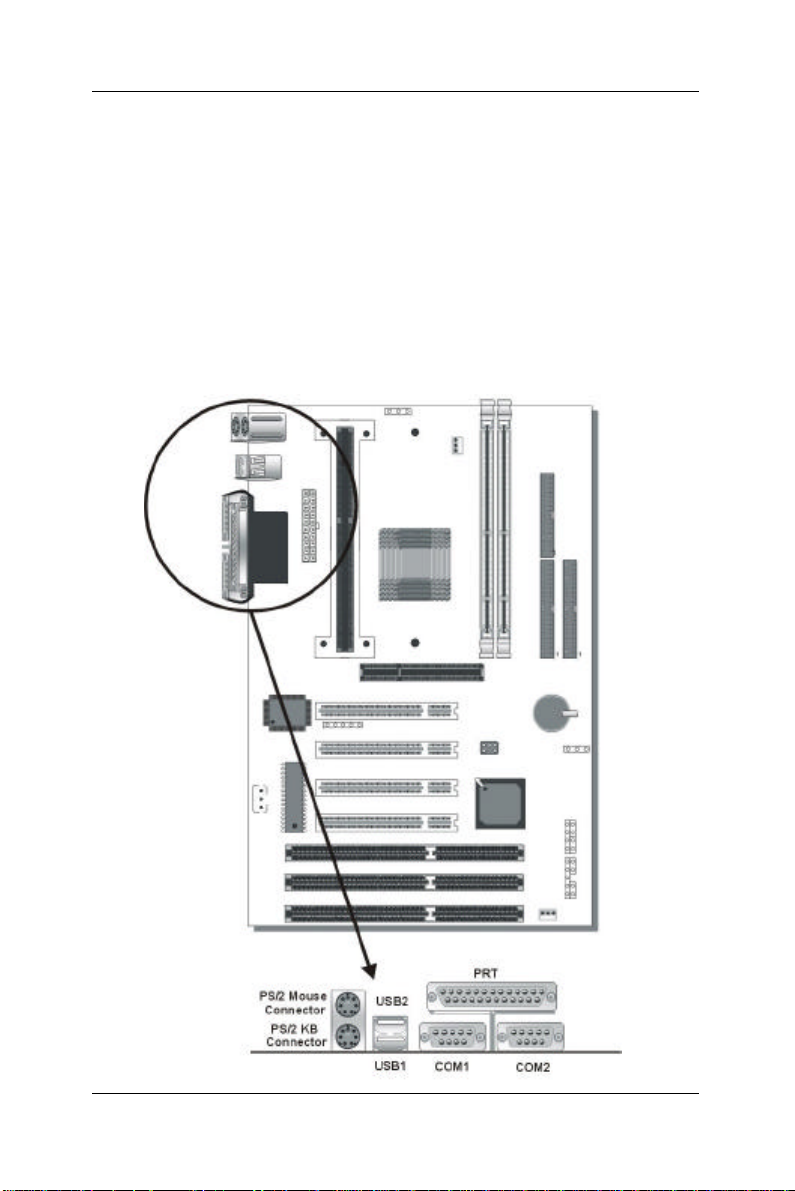

When connecting an external device, use the following figure to locate and identify which back panel connector to plug the device to.

Page 19

Hardware Setup SY-6ZE+

1. Onboard Serial Ports COM1/COM2

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem.

Plug the serial device cables directly into the COM1/COM2 9-pin male connectors located at the rear panel of the Motherboard.

2. Parallel Port PRT

This parallel port is used to connect the printer or other parallel devices. Plug the parallel device cable into the 25-pin female connector located at the rear panel of the Motherboard.

3. PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard connector located at the rear panel of the Motherboard.

4. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2 mouse connector.

5. Universal Serial Bus USB1/USB2

This Motherboard provides two USB ports for your additional devices. Plug the USB device jack into the available USB connector USB1 or USB2.

- USB devices under Win98 are allowed.

- With Win95, use the flow UniversalHCI specifications.

Page 20

Hardware Setup SY-6ZE+

IRTX

Infrared (IR1) Connector

Wake-On-LAN

JP44 Pin Assignment

Step 8. Other Connections

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the Wake-On-LAN (WOL) function to the JP44 header on the Motherboard. This WOL function lets users wake up the connected computer through the LAN card. Please install according to the following pin assignment:

MP - Wake-up

GND

5VSB

2. Infrared (IR1)

Plug the 5-pin infrared device cable to the IR1 header. This will enable the infrared transfer function. This Motherboard meets both the ASKIR and HPSIR specifications. Please install according to the following pin assignment:

IR1 Pin Assignment

VCCIRRXGND

1245

3. Other Display Cards

Insert other types of VGA cards into the PCI or ISA expansion slots according to card specifications.

Page 21

Hardware Setup SY-6ZE+

Step 9. Cooling Fan Installation

1. CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the 3-pin fan cable to the CPUFAN connector on the Motherboard. The fan will stop when the system enters into Suspend Mode. (Suspend mode can be enabled from the BIOS Setup Utility, [POWER MANAGEMENT] menu.) To avoid damage to the system, install according to the following pin assignment:

CPU Cooling Fan

CPUFAN Pin Assignment

SENSOR 12V

GND

3 2 1

2. Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features a CHAFAN connector to provide 12V power to the chassis fan. Connect the cable from the chassis fan to the CHAFAN 3-pin connector. Install according to the following pin assignment:

Chassis Cooling Fan

CHAFAN Pin Assignment

GND 12V SENSOR

1 2 3

Note: CPUFAN must be installed for this Motherboard, CHAFAN and PWRFAN are optional.

Page 22

Hardware Setup SY-6ZE+

Step 10. AGP VGA Card

Insert the AGP VGA card into the AGP slot. Then connect the monitor information cable to the AGP card back plane external connector. Follow the manufacturer's instructions to perform the AGP VGA drivers installation.

Other Display Cards: Insert other types of VGA cards into the PCI or ISA expansion slots according to card specifications.

Step 11. PCI Audio Card

Some PCI soundcards require a PC-PCI DMA channel. Attach the 5-pin cable from your PCI audio card to the SB-LINK™ header on the Motherboard. The SB-LINK™ will forward requests for legacy DMA channel to the PCI Bus.

Step 12. ATX Power Supply

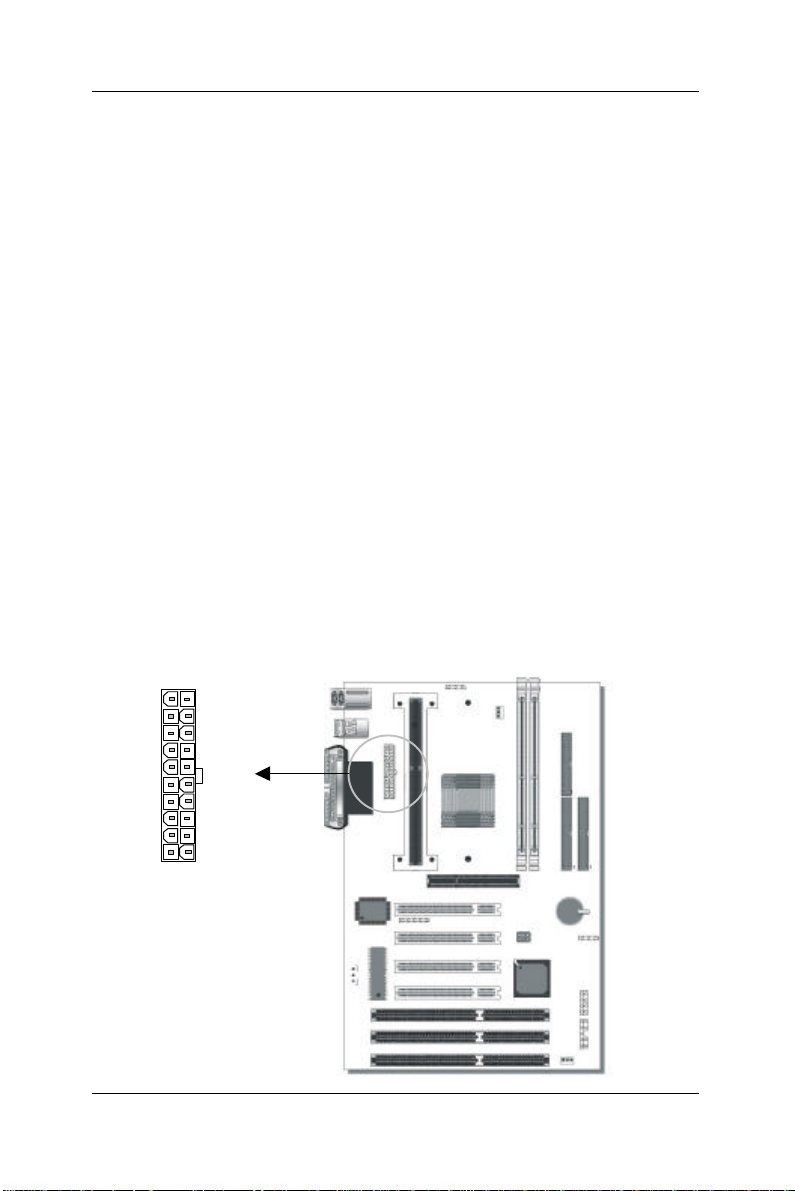

Plug the connector from the power directly into the 20-pin male ATX PW connector on the Motherboard, as shown in the following figure.

ATX Power

Page 23

Hardware Setup SY-6ZE+

Warning: Follow these precautions to preserve your Motherboard from any remnant currents when connecting to ATX power supply:

Turn off the power supply and unplug the power cord of the ATX power supply before connecting to ATX PW connector.

The Motherboard requires a power supply with at least 200 Watts and a "power good" signal. Make sure the ATX power supply can take at least 720 mA * load on the 5V Standby lead (5VSB) to meet the standard ATX specification.

* Note: If you use the Wake-On-LAN (WOL) function, make sure the ATX power supply can support at least 720 mAmp on the 5V Standby lead (5VSB).

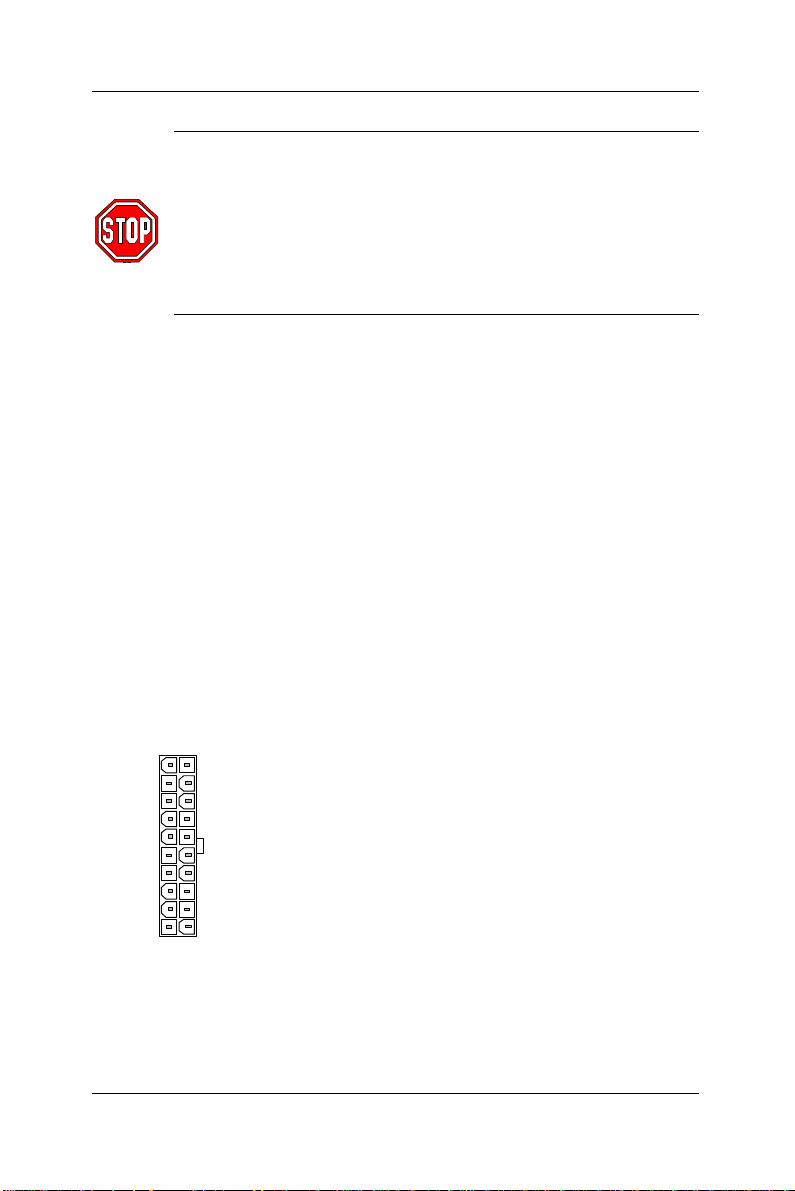

Please install the ATX power according to the following pin assignment:

ATX Power

12V

5VSB

PW-0K

GND

3.3V

5V 5V

-5V GND GND GND PS-ON GND

-12V

3.3V

Ø Pay special care to the directionality.

Page 24

Hardware Setup SY-6ZE+

32132132132

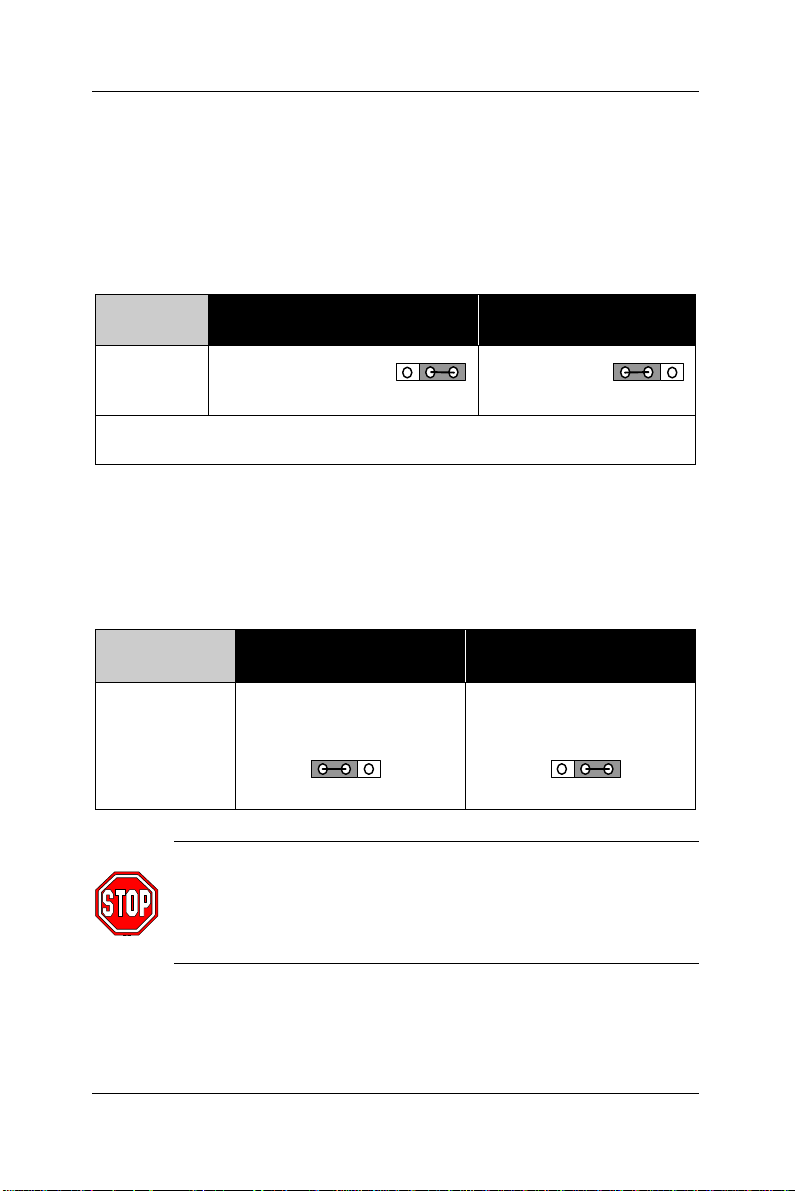

Step 13. CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory by momentarily shorting pins 2-3 on jumper JP5, for a few seconds. Then restore JP5 to the initial 1-2 jumper setting in order to recover and retain the default settings. Jumper JP5 can be easily identified by its white colored cap.

CMOS

Clearing

JP5

Setting

Clear CMOS Data Retain CMOS Data

Short pin 2-3 for

at least 5 seconds

to clear the CMOS

Short pin 1-2 to retain new

settings Note: You must unplug the ATX power cable from the ATX power connector when performing the CMOS Clear operation.

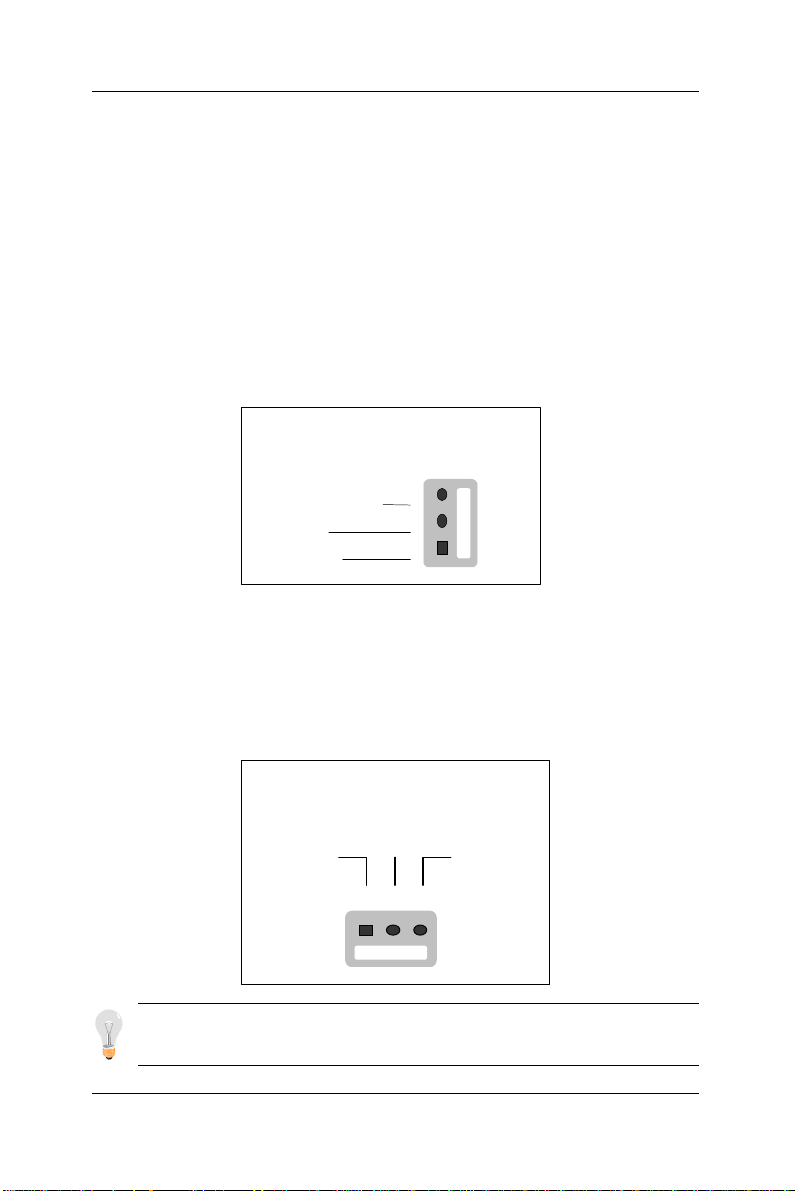

Step 14. Power-On by Keyboard Jumper (JP10)

You can choose to enable the Power-On by Keyboard function by shorting pin 1-2 on jumper JP10, otherwise, short pin 2-3 to disable this function.

Power-On by

Keyboard

Short pin 1-2 to enable

JP10 Setting

Note: When using the Power-On by Keyboard function, please make sure the ATX power supply can take at least 720mA load on the 5V Standby lead (5VSB) to meet the standard ATX specification.

Enable Disable

Short pin 2-3 and the

the Power-On by

Keyboard function.

Power-On by Keyboard

function is disabled.

Page 25

Hardware Setup SY-6ZE+

Step 15. Power On

You have now completed the hardware installation of your Motherboard successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the system is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot up sequence is completed. Then push the RESET button and press <DEL> key again at the beginning of boot-up, during diagnostic checks.

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc

: Quit

F10

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

Time, Date, Hard Disk Type…

: Select Item : Change Color

Page 26

Hardware Setup SY-6ZE+

Step 16. Quick BIOS Setup

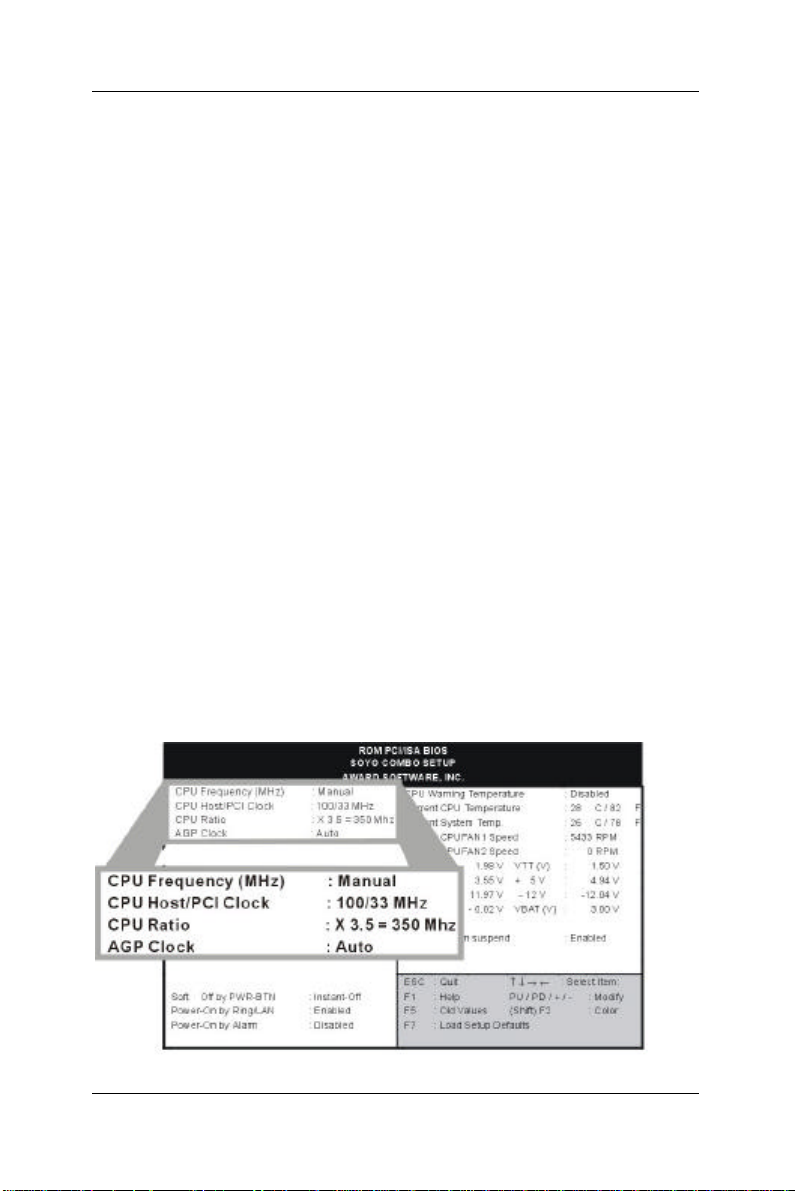

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS [SOYO COMBO SETUP]. The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS. After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Follow these steps to configure the CPU settings.

1. Select [LOAD SETUP DEFAULT]

Select the “LOAD SETUP DEFAULT” menu and type “ Y” at the prompt to load the BIOS optimal setup.

2. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to “Auto”.

3. Select [SOYO COMBO SETUP]

Move the cursor to the [CPU Frequency] field to set the CPU frequency, as shown in the following display.

Page 27

Hardware Setup SY-6ZE+

Available [CPU Frequency] settings on your SY-6ZE+ Motherboard are detailed in the following table. If you set this field to [Manual], you are then required to fill in the next two consecutive fields: (1) the CPU Host/PCI Clock, and (2) the CPU Ratio.

CPU Frequency

233MHz (66 x 3.5) 350MHz (100 x 3.5) 266MHz (66 x 4.0) 400MHz (100 x 4.0) 300MHz (66 x 4.5) 450MHz (100 x 4.5) 333MHz (66 x 5.0) 500MHz (100 x 5.0) 366MHz (66 x 5.5) 550MHz (100 x 5.5)

400MHz (66 x 6.0) 600MHz (100 x 6.0) 433MHz (66 x 6.5) 466MHz (66 x 7.0)

Select the working frequency of your Pentium® III, Pentium® II, Celeron processor among these preset values.

Note: Mark the checkbox that corresponds to the working frequency of your Pentium® III, Pentium® II, Celeron processor in case the CMOS configuration should be lost.

Note: if you use Bus Frequencies of 75 MHz, make sure that your PCI cards can cope with the higher PCI clock.

4. Select [SAVE & EXIT SETUP]

Press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.

Troubleshooting at First Start

l What should I do if the Motherboard refuses to start? The 350MHz setting is used as default so whenever the BIOS

settings are erased or reset, the board will be able to boot up. If the CPU frequency was set too high and the Motherboard refuses to start up, you can always load the default values by pressing the [Ins] key during boot up.

Page 28

Hardware Setup SY-6ZE+

Step 17. Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows

95/98 to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the powerbutton for less than 4 seconds, then your system will enter into

Suspend Mode.

You are now ready to configure your system with the BIOS setup program. Go to Chapter 3: BIOS SETUP

Page 29

BIOS Setup Utility SY-6ZE+

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA BIOS program from Award Software Inc. To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the

Award BIOS Setup Utility.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc

: Quit

F10

: Save & Exit Setup

Time, Date, Hard Disk Type…

↑ ↓ → ←

(Shift) F2

: Select Item : Change Color

Selecting items

l Use the arrow keys to move between items and select fields. l From the Main Menu press arrow keys to enter the selected

submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected

fields. Some fields let you enter values directly.

Page 30

BIOS Setup Utility SY-6ZE+

Esc

F10

(Shift) F2

Esc

F10

(Shift) F2

Hot Keys: Function keys give you access to a group of commands throughout the BIOS utility.

Function Command Description

Shift F2

F5 F6 F7

F10

[Esc]

Help Gives the list of options available for each item. Color Change the color of the display window. Old values Restore the old values. These are the values that

the user started the current session with. Load BIOS Defaults Load Setup

Loads all options with the BIOS Setup default

values.

Loads all options with the Power-On default values. Defaults Save & Exit

Saves your changes and reboots the system. Setup Quit Lets you return at anytime and from any location to

the Main Menu.

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to save data to CMOS and exit the setup utility. This option saves all your changes and causes the system to reboot.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

: Quit : Save & Exit Setup

AWARD SOFTWARE, INC.

SAVE to CMOS and EXIT (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

Type [Y] to save the changes and exit or [N] to return to the Main Menu and keep current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to abandon all data and exit setup, therefore ignoring all your changes.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

: Quit : Save & Exit Setup

AWARD SOFTWARE, INC.

Quit Without Saving (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

Type [Y] to abandon changes and exit or [N] to return to the Main Menu and keep current values.

Page 31

BIOS Setup Utility SY-6ZE+

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS [SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Then, select the [SOYO COMBO SETUP] option from the main menu and press the <Enter> key.

ROM PCI/ISA BIOS

SOYO COMBO SETUP

AWARD SOFTWARE, INC.

CPU Frequency (MHz) : Manual CPU Warning Temperature : Disabled CPU Host/PCI Clock : 100/33 MHz Current System Temp. : 26 ½ C / 78 ½ F CPU Ratio : X 3.5 = 350MHz Current CPU1 Temperature : 28 ½ C / 82 ½ F AGP Clock : Auto Current CPUFAN1 Speed : 5433 RPM

Current CPUFAN2 Speed : 0 RPM

CPU L2 Cache ECC Checking : Enabled Vcore : 1.98 V VTT (V) : 1.50 V

3.3 (V) : 3.55 V + 5 (V) : 4.94 V Boot Sequence : A,C,SCSI +12 (V) : 11.97 V -12 (V) : -12.04 V Quick Power On Self Test : Enabled - 5 (V) : - 0.02 V

POWER ON Function : BUTTON ONLY CPUFAN Off In Suspend : Enabled KB Power ON Password : Enter Hot Key Power ON : Ctrl-F1

ESC : Quit Soft – Off by PWR-BTTN : Instant-Off F1 : Help PU / PD / + / - : Modify Power-On by Ring/LAN : Enabled F5 : Old Values (Shift) F2 : Color Resume by Alarm : Disabled F7 : Load Setup Defaults

↑ ↓ → ←

: Select Item:

The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS.

Page 32

BIOS Setup Utility SY-6ZE+ 3-1.1 Quick CPU Frequency Setup

Quick CPU Frequency Setup

Setting Description Note

CPU Frequency

If [CPU Frequency] field is set to [Manual]

CPU Host/PCI Clock

If [CPU Frequency] field is set to [Manual]

CPU Ratio

Manual 233MHz (66 x 3.5) 266MHz (66 x 4) 300MHz (66 x 4.5) 333MHz (66 x 5) 366MHz (66 x 5.5) 400MHz (66 x 6) 433MHz (66 x 6.5) 466MHz (66 x 7) 350MHz (100 x 3.5) 400MHz (100 x 4) 450MHz (100 x 4.5) 550MHz (100 x 5.5) 600MHz (100 x 6) 650MHz (100 x 6.5)

66/33 MHz 75/37 MHz 83/41 MHz 100/33 MHz 103/34 MHz 112/33 MHz 124/41 MHz 133/44 MHz

After you have selected the host clock, choose the right multiplier for the CPU. Options are: [2, 2.5, 3.,

3.5, 4, 4.5, 5, 5.5,6,6.5,7.0,7.5,8.0]. The CPU frequency is then defined as [host clock freq.]x[multiplier], and should the working frequency of your Pentium® III, Pentium® II & Celeron processor.

Select the host clock of your Slot 1 processor among these values. Note: For the ZX chipset, 66 and 100 MHz host clock frequencies are acceptable. However, the system stability is not guaranteed for other frequencies due to the limitations of this chipset.

Select the working frequency of your Slot 1 processor among these preset values. Note: Setting this field to [Manual] requires you to fill in the next two consecutive fields: (1) the CPU Host/PCI Clock, and (2) the CPU Ratio.

Page 33

BIOS Setup Utility SY-6ZE+ Quick CPU Frequency Setup (Coninted)

Quick CPU Frequency Setup AGP Clock

3-1.2 L2 Cache Memory

Setting Description Note

Auto Default / 1

This option allows you to manually adjust the AGP host bus clock frequency to a value

/ 1.5

determined as a fraction of the CPU host clock.

For example:

With a CPU front side bus of 66MHz, [/ 1] sets à AGP Clock = 66MHz [ / 1.5] sets à AGP Clock = 44MHz

Setting Description Note

CPU L2 Cache ECC Checking

3-1.3 System Boot Control Settings System Boot

Control Settings Boot Sequence

Quick Power On Self Test

Disabled Enabled This option activates

the CPU L2 cache ECC checking function.

Setting Description Note

A, C, SCSI C, A, SCSI C, CD-ROM, A CD-ROM, C, A D, A, SCSI E, A, SCSI F, A, SCSI SCSI, A, C SCSI, C, A C only LS/ZIP, C

Disabled Enabled Provides a fast POTS at

Choose the boot sequence adapted to your needs, for example: l [A, C, SCSI] means

the BIOS will look for an operating system first in drive A, then in drive C, and eventually in SCSI device.

boot-up.

Default

Page 34

BIOS Setup Utility SY-6ZE+ 3-1.4 Power Management

PM Events Setting Description Note POWER ON

Function

If [POWER ON Function] is set to [KB Power ON Password]

KB Power ON Password

If [POWER ON Function] is set to [Hot Key]

KB Power ON Password

Soft-Off by PWR-BTTN

Power-On by Ring/LAN

BUTTON-ONLY Disables the Wake-Up by

Keyboard function. KB Power ON Password

Hot Key You can wake-up the system

Enter (your password)

Ctrl-F1~F12 Choose the key combination that will

Instant-off Default Delay 4 Sec. Turns off the system power 4

Disabled Default Enabled The system will self-power on

Enables you to wake-up the

system by entering a

password at the keyboard.

by pressing the key

combination of your choice

(Ctrl-F1~F12).

Set the password that will wake-up

your system.

wake-up the system. [Ctrl-F1 to Ctrl-

F12]

seconds after pushing the

power button.

me when the modem is

ringing.

Default

Resume by Alarm

Disabled The system ignores the alarm. Default Enabled Set alarm to power on the

system by the date (1-31) or

time (hh:mm:ss). If the date is

set to [0], the system will self-

power on by alarm everyday

at the set time.

Page 35

BIOS Setup Utility SY-6ZE+ 3-1.5 CPU Device Monitoring

CPU Device Monitoring

Setting Description Note

CPU Warning Temperature

Current System Temp.

Current CPU1 Temperature

Current CPUFAN1 Speed

Current CHAFAN2 Speed

Vcore, VTT, 3.3V, +12V, -5V, +5V,

-12V

Disabled Default Enabled Set CPU temperature from

50°C to 70°C. The CPU will slow down when CPU temperature goes beyond the preset value. The CPU will continue to run slow until the temperature returns back within the safe range.

°C/°F

Show the current status of the system temperature.

Show the current status of CPU temperature.

Show the current status of CPU Fan

Show the current status of the chassis Fan

Show the current voltage status.

CPUFAN Off In Suspend

Disabled Disables the PM timer. Enabled Switches off the CPU Fan

when the system enters Suspend Mode.

Default

Page 36

BIOS Setup Utility SY-6ZE+

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu and press [Enter] key.

ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy) Time (hh:mm:ss)

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master Primary Slave Secondary Master Secondary Slave

Drive A : 1.44M, 3.5 in. Drive B : None Floppy 3 Mode Support : Disabled

Video : EGA/VGA Halt On : All Errors

EscF1: Quit

: Help

: Fri, July 31 1998 : 11 : 30 : 33

: AUTO : None : None : None

↑ ↓ → ←

(Shift) F2

: Select Item : Change Color

0 0 0 0

Extended Memory:

0 0 0 0

Base Memory:

Other Memory:

Total Memory: 4096K

PU/PD/+/-F3: Modify

0 0 0 0

: Toggle Calendar

640K

3328K

128K

AUTO

- - - -

This screen allows you to modify the basic CMOS settings. After you have completed the changes, press [Esc] key to return to the Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date

mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to toggle

Time

hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as 15:15:00

Page 37

BIOS Setup Utility SY-6ZE+ 3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already installed.

Primary

Setting Description Note (Secondary) Master & Slave

Type

Auto BIOS detects hard disk type

automatically.

User User defines the type of hard

disk.

None

Mode

Auto BIOS detects hard disk mode

automatically. Normal Normal IDE hard disk <528MB LBA Enhanced IDE hard disk >528MB Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or mode, ask your hard disk provider or previous user for details.

3-2.3 Floppy Drives Floppy Drives Setting Description Note

Drives A & B

360KB, 5.25 in.

1.2MB, 5.25 in. 720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in. None Not installed

Default

Floppy 3-Mode Support

Disabled Default Drive A Drive B Both

Supports 3-mode floppy diskette: 740KB/1.2MB/

1.44MB on selected disk drive.

Special disk drive commonly used in Japan

Page 38

BIOS Setup Utility SY-6ZE+ 3-2.4 Video

Select the video mode: EGA/VGA (Default), CGA 40, CGA 80, Mono (Monochrome).

3-2.5 Halt On

When the BIOS detects system errors, this function will stop the system. Select which type of error will cause the system halt: All Errors (Default), No Errors, All But Diskette, All But Keyboard, All But Disk/Key.

Page 39

BIOS Setup Utility SY-6ZE+

3-3 BIOS FEATURES SETUP

Select the [BIOS FEATURES SETUP] option from the Main Menu and press [Enter] key.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Anti - Virus Protection : Enabled Assign IRQ For VGA : Enabled

CPU Internal Cache : Enabled HDD S.M.A.R.T. capability : Disabled External Cache : Enabled

Swap Floppy Drive : Disabled C8000-CBFFF Shadow : Disabled Report No FDD For WIN 95 : Yes CC000-CFFF Shadow : Disabled

Boot Up NumLock Status : On D4000-D7FFF Shadow : Disabled Security Option : Setup D8000-DBFFF Shadow : Disabled PCI/VGA Palette Snoop : Disabled DC000-DFFFF Shadow : Disabled OS Select For DRAM > 64

Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec) : 6 Typematic Delay (Msec) : 250 ESC : Quit

: Non-OS2

Video BIOS Shadow : Enabled

D000-D3FFF Shadow : Disabled

↑ ↓ → ←

F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F7 : Load Setup Defaults

: Select Item

After you have completed the changes, press [Esc] key and follow the instructions on your screen to save your settings or exit without saving.

Page 40

BIOS Setup Utility SY-6ZE+ 3-3.1 Virus Warning

Setting Description Note

Anti - Virus Protection

3-3.2 Cache Memory Options

CPU Internal Cache

Disabled Enabled If set to enabled, the

Paragon Anti-Virus. Function will scan your boot drive for boot virusses. If a boot virus is detected, the BIOS will display a warning message.

Setting Description Note

Disabled Enabled Enables the CPU's

internal cache.

Default

External Cache

3-3.3 Floppy Driver Settings Floppy Driver

Settings Swap Floppy

Drive

Report No FDD For WIN 95

Disabled Enabled Enables the external

Setting Description Note

Disabled Default Enabled Changes the sequence of A

and B drives.

Yes Windows will release IRQ line

6 (normally used by the Floppy Disk Drive) after you disable your on-board FDD and set this field to [Yes].

No Windows will reserve INT 6 for

your FDD, whether it is disabled or not.

Default

memory.

Page 41

BIOS Setup Utility SY-6ZE+ 3-3.4 Other Control Options

Other Control Options

Setting Description Note

Boot Up NumLock Status

3-3.5 Security Option

Use this feature to prevent unauthorized system boot-up or use of BIOS Setup. The following table describes the security settings.

Security Option

3-3.6 Other Control Options Other Control

Options PCI/VGA Palette Snoop

On Puts numeric keypad in

NumLock mode at boot-up.

Off Puts numeric keypad in arrow

key mode at boot-up.

Setting Description

System Each time the system is booted, the

password prompt appears.

Setup If a password is set, the password

prompt only appears when you attempt to enter the BIOS Setup program.

Setting Description Note

Disabled Default Enabled The color of the monitor may be altered when using an MPEG card. Enable this option to restore the monitor's normal color.

Default

OS Select for DRAM>64MB

OS2 When using an OS2 operating

system.

Non-OS2 When using another,

non-OS2 operating system.

Default

Page 42

BIOS Setup Utility SY-6ZE+ 3-3.7 Typematic Settings

Typematic Settings Setting Description Note Typematic

Rate Setting

Disabled Default Enabled Enables to adjust the

keystroke repeat rate.

The following [Typematic Rate] and [Typematic Delay] fields are active only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate

Typematic Delay

6 (Char/sec) 8 (Char/sec) 10 (Char/sec) 12 (Char/sec) 15 (Char/sec) 20 (Char/sec) 24 (Char/sec) 30 (Char/sec)

250 (msec) 500 (msec) 750 (msec) 1000 (msec)

Choose the rate at which a character is repeated when holding down a key.

Choose how long after you press a key down the character begins repeating.

Default

3-3.8 Other Control Options Other Control

Setting Description Note

Options Assign IRQ

For VGA

Disabled Enabled Use this default setting. Default

HDD S.M.A.R.T. capability

Disabled Enabled Enable this field when your

HDD supports the S.M.A.R.T. function. Consult your HDD provider for details.

Page 43

BIOS Setup Utility SY-6ZE+ Other Control Options

Other Control Options

Setting Description Note

Video or Adapter BIOS Shadow

Disabled Enabled The BIOS is shadowed in a 16K segment if it is enabled and if it has BIOS present. These 16 segments can be shadowed from ROM to RAM. BIOS shadow copies BIOS code from slower ROM to faster RAM. BIOS can then execute from RAM.

Default

Page 44

BIOS Setup Utility SY-6ZE+

3-4 CHIPSET FEATURES SETUP

Caution: Change these settings only if you are already familiar with the Chipset.

The [CHIPSET FEATURES SETUP] option changes the values of the chipset registers. These registers control the system options in the computer.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

CHIPSET FEATURES SETUP

Auto Configuration : Enabled Passive Release : Enalbed SDRAM RAS-to CAS Delay : 3 Delayed Transaction : Disabled SDRAM RAS Precharge Time : 3 SDRAM CAS latency Time : 3 AGP Aperture Size : 64 SDRAM Precharge Control : Disabled System BIOS Cacheable : Disabled Spread Spectrum : Disabled Video BIOS Cacheable : Disabled Video RAM Cacheable : Disabled

8 Bit I/O Recovery Time : 1 16 Bit I/O Recovery Time : 1 Memory Hole At 15M –16M : Disabled

ESC : Quit F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F7 : Load Setup Defaults

↑ ↓ → ←

: Select Item

After you have completed the changes, press [Esc] and follow the instructions on your screen to save your settings or exit without saving. The following table describes each field in the CHIPSET FEATURES SETUP Menu and how to configure each parameter.

Page 45

BIOS Setup Utility SY-6ZE+ CHIPSET FEATURES SETUP

CHIPSET FEATURES

Setting Description Note

Auto Configuration

SDRAM RAS-toCAS Delay

SDRAM RAS Precharge Time

SDRAM Cache Latency Time

SDRAM Precharge Control

System BIOS Cacheable

Video BIOS Cacheable

Disabled Enabled It is strongly recommended

to enable this option so that the system automatically sets all chipset feature options on the left panel of the screen (except for cache update & BIOS cacheable).

Use the default setting Default

2 3

Use the default setting Default

3 Use the default setting Default

Disabled

Enabled

Disabled Enabled The ROM area F0000H-

Disabled Enabled The video BIOS C0000H-

Use the default setting Default

FFFFFH is cacheable.

C7FFFH is cacheable.

Default

Video RAM Cacheable

8 BIT I/O Recovery Time

Disabled Default Enabled The ROM area A0000-

BFFFF is cacheable.

1 Use the default setting Default

Page 46

BIOS Setup Utility SY-6ZE+

CHIPSET FEATURES SETUP (Continued) CHIPSET

FEATURES 16 BIT I/O

Recovery Time Memory Hole At

15M-16M

Passive Release Delayed

Transaction AGP Aperture

Size

Spread Spectrum Modulated

Setting Description Note

1 Use the default setting Default

Disabled Default Enabled Some interface cards will

map their ROM address to this area. If this occurs, select [Enabled] in this field.

Enabled Use the default setting Default

4-256MB

Disabled Default Enabled When using Spread

AGP could use the DRAM as its video RAM. Choose the DRAM size that you wish to allocate as video RAM.

Spectrum Modulated 1.5% or 6% for FCC or DOC testing.

Default

Page 47

BIOS Setup Utility SY-6ZE+

3-5 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power saving functions.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function : Enabled ** Reload Global Timer Events ** PM Control by APM : Yes Video Off Method : V/H SYNC+Blank IRQ [3-7, 9-15], NMI : Disabled Video Off After : Standby Primary IDE 0 : Disabled MODEM Use IRQ : 3 Primary IDE1 : Disabled

Power Management : User Define Secondary IDE1 : Disabled Doze Mode : Disable Floppy Disk : Disabled Standby Mode : Disable Serial Port : Enabled Suspend Mode : Disable Parallel Port : Disabled HDD Power Down : Disabled

PCI/VGA Act-Monitor : Disabled IRQ 8 Break Suspend : Disabled

Secondary IDE 0 : Disabled

ESC : Quit ↑ ↓ → ← : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F7 : Load Setup Defaults

After you have completed the Power Management Setup, press [Esc] to return to the Main Menu.

Page 48

BIOS Setup Utility SY-6ZE+ 3-5.1 Power Management Controls

Power Management Controls

Setting Description Note

ACPI function

PM Control by APM

Video Off Method

Video Off After

MODEM Use IRQ

Disabled Default Enabled ACPI (Advanced

Configuration Power Management Interface)

Yes To use Advanced Power

Management (APM) you must run [power.exe] under DOS V6.0 or later version.

No V/H

Sync+Blank Blank screen DPMS Supported

Standby Suspend Doze

3 Default

3-11, NA

Selects the method by which the monitor is blanked.

Choose the PM mode you want video to go off after the mode is being active.

Assigns an IRQ# to the modem device.

Default

Page 49

BIOS Setup Utility SY-6ZE+ 3-5.2 PM Timers

PM Timers Setting Description Note Power

Management

User Define Lets you define the HDD and

system power down times.

Default

Disable Disables the Green PC

Features.

Doze timer

Standby timer

Suspend timer

HDD power down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min Max Saving 1 Min 1 Min 1 Min 1 Min

The following [Doze Mode] field may be configured only if [Power Management] is set to [User Define]

Doze Mode

Disable Default 1Min1Hour

When the set time has elapsed, BIOS sends a command to the system to

System clock drops to 33MHz.

enter Doze Mode.

The following [Standby Mode] field may be configured only if [Power Management] is set to [User Define]

Standby Mode

Disable Default 1Min1Hour

When the set time has elapsed, BIOS sends a command to the system to enter Standby Mode.

The following [Suspend Mode] field may be configured only if [Power Management] is set to [User Define]

Suspend Mode

HDD Power Down

Disable Default 1Min1Hour

In Suspend mode, the CPU stops completely (no instructions are executed.)

Only an SLEnhanced (or SMI) CPU can enter this mode.

Disabled Default 1-15Min When the set time has

elapsed, BIOS sends a command to the HDD to power down. This turns off the HDD motor.

Some older model HDDs may not support this advanced function.

Page 50

BIOS Setup Utility SY-6ZE+ 3-5.3 PM Events

PM Events Setting Description Note VGA Active

Monitor

Disabled Enabled Enables the power

management timers when a [no activity] event is detected.

IRQ 8 Break Suspend

Disabled Default Enabled Alarm function is active.

3-5.4 Reload Global Timer Events Power Down

Setting Description Note & Resume Events

IRQ [3-7,915], NMI

Disabled

Enabled The system monitors these

elements for activity. The system will resume if [IRQ activity] is detected.

IDE0, IDE1

Ø Primary

Ø Secondary

Floppy Disk Serial Port Parallel Port

Disabled Default

Enabled Enables the PM timers when

[No Activity Event] is detected.

Disabled Default

Enabled Enables the PM timers when

[No Activity Event] is detected.

Default

Page 51

BIOS Setup Utility SY-6ZE+

3-6 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual Slot 1/AGP Use IRQ No. : Auto Reset Configuration Data : Disabled Slot 2 Use IRQ No. : Auto

Slot 3 Use IRQ No. : Auto IRQ - 3 assigned to : Legacy ISA Slot 4/USB Use IRQ No. : Auto IRQ - 4 assigned to : Legacy ISA IRQ - 5 assigned to : PCI/ISA PnP Used MEM base addr : N/A IRQ - 7 assigned to : PCI/ISA PnP IRQ - 9 assigned to : PCI/ISA PnP IRQ - 10 assigned to : PCI/ISA PnP Assign IRQ For USB : Enabled IRQ - 11 assigned to : PCI/ISA PnP IRQ – 12 assigned to : PCI/ISA PnP PNP OS Installed : No IRQ - 14 assigned to : PCI/ISA PnP IRQ - 15 assigned to : PCI/ISA PnP

DMA - 0 assigned to : PCI/ISA PnP DMA - 1 assigned to : PCI/ISA PnP ESC : Quit ↑ ↓ → ← : Select Item DMA - 3 assigned to : PCI/ISA PnP F1 : Help PU/PD/+/- : Modify DMA - 5 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color DMA - 6 assigned to : PCI/ISA PnP F7 : Load Setup Defaults DMA - 7 assigned to : PCI/ISA PnP

Note: Starred (*) items will disappear when the [Resources Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc] and follow the instructions on your screen to save your settings or exit without saving.

Page 52

BIOS Setup Utility SY-6ZE+

3-6.1 PNP/PCI Configuration Controls PNP/PCI

Setting Description Note

Controls Resources

Controlled By

Manual BIOS does not manage PCI/ISA

PnP card IRQ assignment. Requires to assign IRQ-# and DMA-# to PCI or ISA PnP manually. IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _ DMA-0,1,3,5,6,7 assigned to: _ Auto The Plug-and-Play BIOS

Recommended

auto manages PCI/ISA

PnP card IRQ assignment

automatically.

Reset Configuration Data

Disabled Retain PnP configuration

data in BIOS. Enabled Reset PnP configuration

Default

data in BIOS.

3-6.2 PNP/PCI Configuration Setup PNP/PCI

Setting Description Note

Setup

If [Resources Controlled By] is set to [Manual]

IRQ-# and DMA-# assigned to:

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to PCI/ISA PnP card.

Legacy ISA Choose IRQ-# and

DMA-# assigned to Legacy ISA card.

Under this item the user can assign an IRQ to a PCI slot. However, there under some conditions the IRQ will not be assigned as selected under this item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the table below on how to free them:

IRQ-3,4,5,7,9,10, 11,12,14,15

DMA-0,1,3,5,6,7 IRQ-3,4,5,7,9,10,

11,12,14,15 DMA-0,1,3,5,6,7

Page 53

BIOS Setup Utility SY-6ZE+

PNP/PCI Configuration Setup (Continued) PNP/PCI

Setting Description Note

Setup

Interrupt Line IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes

Slot 1/2/3/4

How to set the BIOS to release the IRQ to the PnP Interrupt pool: PnP / PCI configuration Integrated Peripherals

Interrupt 12 will be released by the PnP BIOS automatically if the PS/2 Mouse Port is not used.

control to the OS, especially if you use Windows 95, 98 or NT.

Auto Default

Use IRQ NO. Used MEM

base addr

Assign IRQ For USB

PnP OS Installed

Memory length

8K,16K,32K,64K. (Please ask your card provider for the exactly memory length of this add-on card.)

Enabled BIOS will assign IRQ for

USB port.

Disabled BIOS won’ t assign IRQ

for USB port.

Yes Set this field to [Yes] if

you are running Windows 95, which is PnP compatible.

No If the OS you are

running does not support PnP configuration.

This item appears only when the [Based MEM base addr] set to I/O address.

Default

(If there is any doubt, set this field to [No])

Page 54

BIOS Setup Utility SY-6ZE+

3-7 LOAD SETUP DEFAULTS

Select the [LOAD SETUP DEFAULTS] option from the Main Menu to load the system values you have previously saved. This option is recommended if you need to reset the system setup and to retrieve the old values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

SOYO COMBO SETUP STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP

Load SETUP Defaults (Y/N)? _

POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to return to the Main Menu and keep current values.

AWARD SOFTWARE, INC.

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item

(Shift) F2

: Change Color

Warning: If you run into any problem after changing the BIOS configuration, please load the SETUP DEFAULTS for stable performance.

Page 55

BIOS Setup Utility SY-6ZE+

3-8 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of the chipset registers. These registers control the system options in the computer.

The following screen shows setup default settings.

ROM PCI/ISA BIOS

INTEGRATED PWEIPHERALS

AWARD SOFTWARD, INC.

IDE HDD Block Mode : Enabled Onboard FDC Controller : Enabled IDE Primary Master PIO : Auto Onboard Serial Port 1 : 3F8/IRQ4 IDE Primary Slave PIO : Auto Onboard Serial Port 2 : 2F8/IRQ3 IDE Secondary Master PIO : Auto IDE Secondary Slave PIO : Auto UR2 Mode : Standard IDE Primary Master UDMA : Auto IDE Primary Slave UDMA : Auto IDE Secondary Master UNMA : Auto Onboard Parallel Port : 378/IRQ7 IDE Secondary Slave UDMA : Auto Parallel Port Mode : SPP On-Chip Primary PCI IDE : Enabled On-Chip Secondary PCI IDE : Enabled

USB Keyboard Support : Disabled

Init Display First : PCI Slot

ESC : Quit ↑ ↓ → ← : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F7 : Load Setup Defaults

The following tables describe each field in the INTEGRATED PERIPHERALS Menu and provide instructions on how to configure the IDE controls, FDC controls, and the onboard serial and parallel ports.

Page 56

BIOS Setup Utility SY-6ZE+

3-8.1 IDE Device Controls IDE Controls Setting Description Note

IDE HDD Block Mode

Disabled Enabled Invokes multi-sector

Default transfer instead of one sector per transfer. Not all HDDs support this function.

IDE

Ø Primary Master PIO Ø Primary Slave PIO Ø Secondary Master PIO

Secondary Slave PIO

mode 0-4 0 is the slowest speed

4 is the fastest speed

Auto For better performance

and stability, we suggest you use the

Default

Auto setting to set the HDD control timing.

IDE

Ø Primary Master UDMA Ø Primary Slave UDMA Ø Secondary Master UDMA Ø Secondary Slave UDMA

On-Chip PCI IDE

Ø Primary Ø Secondary

Disabled Auto Select Auto to enable

Default Ultra DMA Mode support.

Disabled Turn off the on-board

IDE

Enabled Use the on-board IDE Default

3-8.2 Keyboard Controls Keyboard Controls Setting Description Note

USB Keyboard Support

Init Display First

Disabled Turn off the on-board

Default

IDE

Enabled Use a USB keyboard PCI Slot Default

AGP

Choose which card – AGP Display card or PCI VGA card – to initialize first.

Page 57

BIOS Setup Utility SY-6ZE+ 3-8.3 FDC Controls

FDC Controls Setting Description Note Onboard FDC

controller

3-8.4 Onboard Serial Ports Onboard Serial

Ports Onboard UART 1

Onboard UART 2

UR2 Mode

If [UR2 Mode] is set to [IrDA 1.0]/[ASKIR]/[FIR]

UR2 Duplex Mode

Disabled Turn off the on-board

floppy controller

Enabled Use the on-board

floppy controller

Setting Description Note

Disabled 3F8/IRQ4 Default

2F8/IRQ3 Default 3E8/IRQ4

2E8/IRQ3 Auto

Standard Supports a Standard IrDA 1.0

ASKIR Supports a Sharp FIR Fast Infrared Interface

Half Default Duplex

Choose serial port 1 & 2's I/O address. Do not set port 1 & 2 to the same address except for Disabled or Auto.

serial infrared IrDA.

serial interface format.

Choose [Half] or [Duplex] to set UR2 in half duplex mode or full duplex mode respectively. Refer to your IR device specifications to select the suitable mode.

Default

(port 1)

(port 2)

Default

Page 58

BIOS Setup Utility SY-6ZE+

If [Parallel Port Mode] is set to [ECP] mode

3-8.5 Onboard Parallel Ports Onboard Parallel

Setting Description Note

Ports Onboard Parallel

Port

378H/IRQ7 Default 3BCH/IRQ7

Choose the printer I/O address.

278H/IRQ5

Parallel Port Mode

ECP Mode use DMA

ECP/EPP Default SPP ECP EPP/SPP

The mode depends on your external device that connects to this port.

3 Choose DMA3 Default 1 Choose DMA1

3-8.6 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1 COM1 COM2

378H 7 ECP/EPP 3F8H 4 2F8H 3

Warning: If a default I/O address conflicts with other I/O cards such as sound card, you must change one of the I/O addresses to remedy to this address conflict. (I/O addresses can be adjusted from the BIOS Setup Utility)

Page 59

BIOS Setup Utility SY-6ZE+

3-9 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the [BIOS FEATURES SETUP] section, the password prevents access to the system or the setup program by unauthorized users. Follow this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and press [Enter]. Select the [Security Options] item and set the field to:

a. [System]: The password is required every time the system

is booted. This means only a person who knows the password can use this computer.

b. [Setup]: The password is required only when you attempt

to enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and press [Enter]. The following prompt appear:

Enter Password:

Warning: If you forget or lose the password, the only way to access the system is to set jumper JP5 to clear the CMOS RAM. All setup information is lost and you must run the BIOS setup program again.

Note: If you do not wish to use the password function, press [Enter] directly and the following message appears:

Password Disabled!!

Page 60

BIOS Setup Utility SY-6ZE+

F10

(Shift) F2

↔

Type the Password Press:

password, press

to exit

Type the Password

Press <Enter> without

After you confirm the password,

3. Enter your new password and press [Enter]. The following message appears, prompting to confirm the new password:

Confirm Password:

4. Re-enter your password and then press [Enter] to exit to the Main Menu.

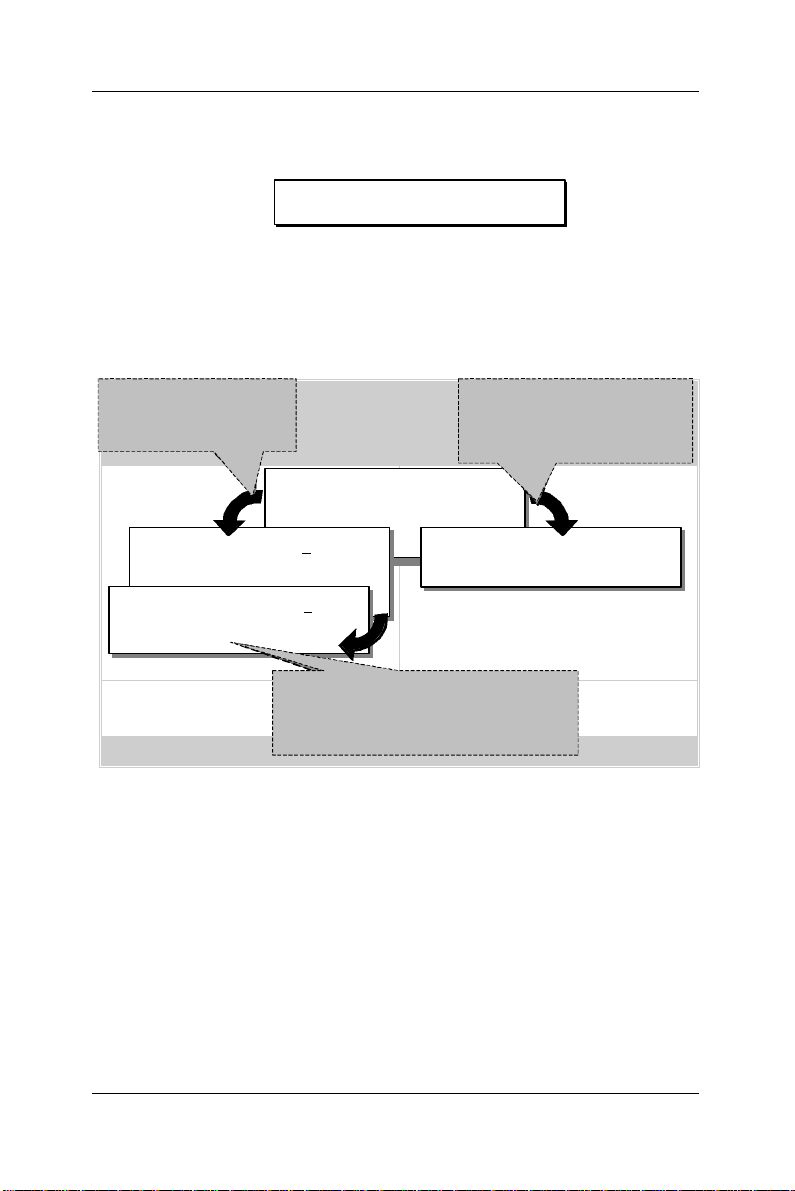

This diagram outlines the password selection procedure:

and Press: <Enter>

↔

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP

Enter Password:

POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION

Confirm Password:

LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

Esc

: Quit : Save & Exit Setup

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Enter Password:

∗∗∗∗∗

After you confirm the

press <Esc> to exit

Time, Date, Hard Disk Type…

ROM PCI/ISA BIOS

Press:

entering the password

Without entering password

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD

Password Disabled!!

IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

3-10 USER PASSWORD

When the user password option is on, you are not allowed to change any setting in the [CMOS SETUP UTILITY] except for changing the user's password.

The password setting procedure is similar to that for the [SUPERVISOR PASSWORD] (Refer to section 3-9).

Page 61

BIOS Setup Utility SY-6ZE+

3-11 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type and configures the STANDARD CMOS SETUP accordingly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master :

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE 2(Y) 1707 827 64 0 3308 63 LBA 1 1707 3309 16 65535 3308 63 NORMAL 3 1707 827 64 65535 3308 63 LARGE

Note: Some Oses( SCO-UNIX Before v5.0) must use “NORMAL” for installation

Select Primary Master Option (N=Skip) : N

ESC : Skip

Note: This function is only valid for IDE type of hard disk drives.

Page 62

Drivers installation SY-6ZE+

Chapter 4

DRIVERS INSTALLATION

Your SY-6ZE+ Motherboard comes with a CD-ROM labeled "SOYO CD." The SOYO CD contains the user's manual file for your new Motherboard, the drivers software available for installation, and a database in HTML format with information on SOYO Motherboards and other products.

The SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.

Step 1. Insert the SOYO CD into the CD-ROM drive

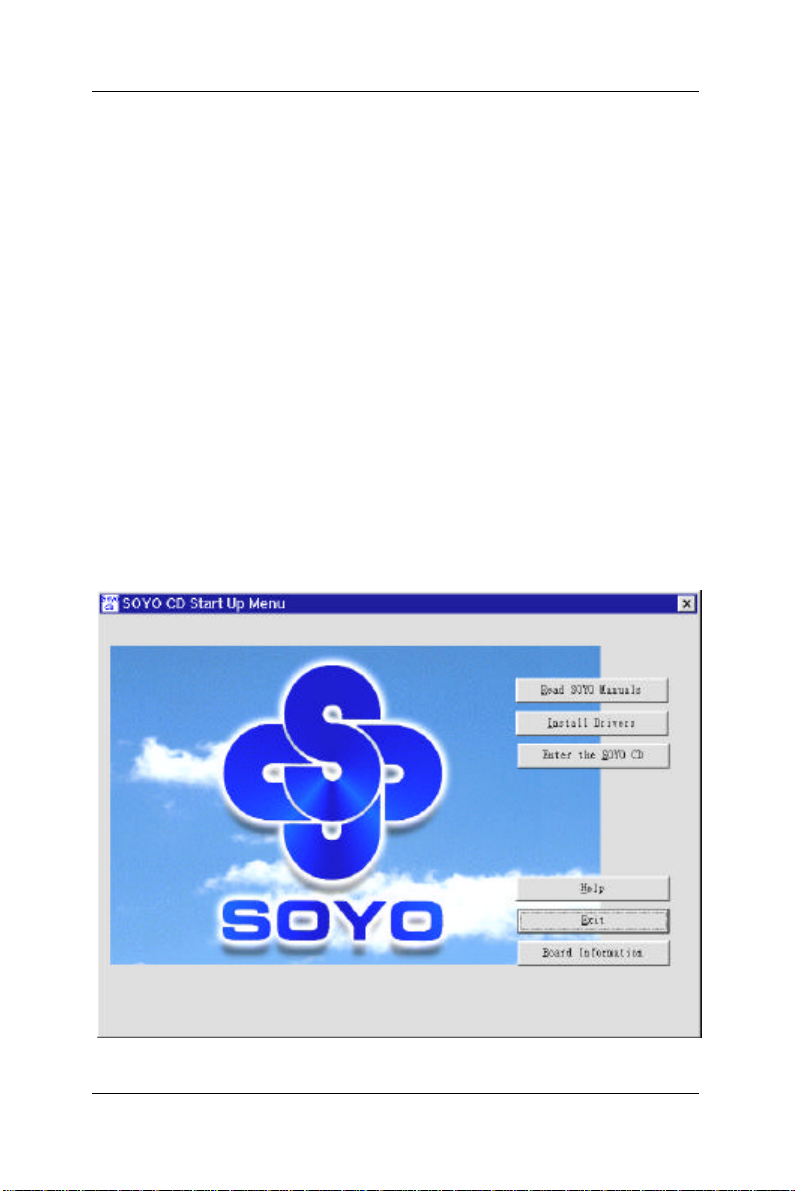

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will display as shown below.

Page 63

Drivers installation SY-6ZE+

Step 2. Install Drivers

Click the Install Drivers button to display the list of drivers software that can be installed with your Motherboard. The Start Up program displays the drivers available for the particular model of Motherboard you own. We recommend that you only install those drivers.

The following drivers are available for Windows 95

(Driver Installation Menu)

Page 64

Drivers installation SY-6ZE+

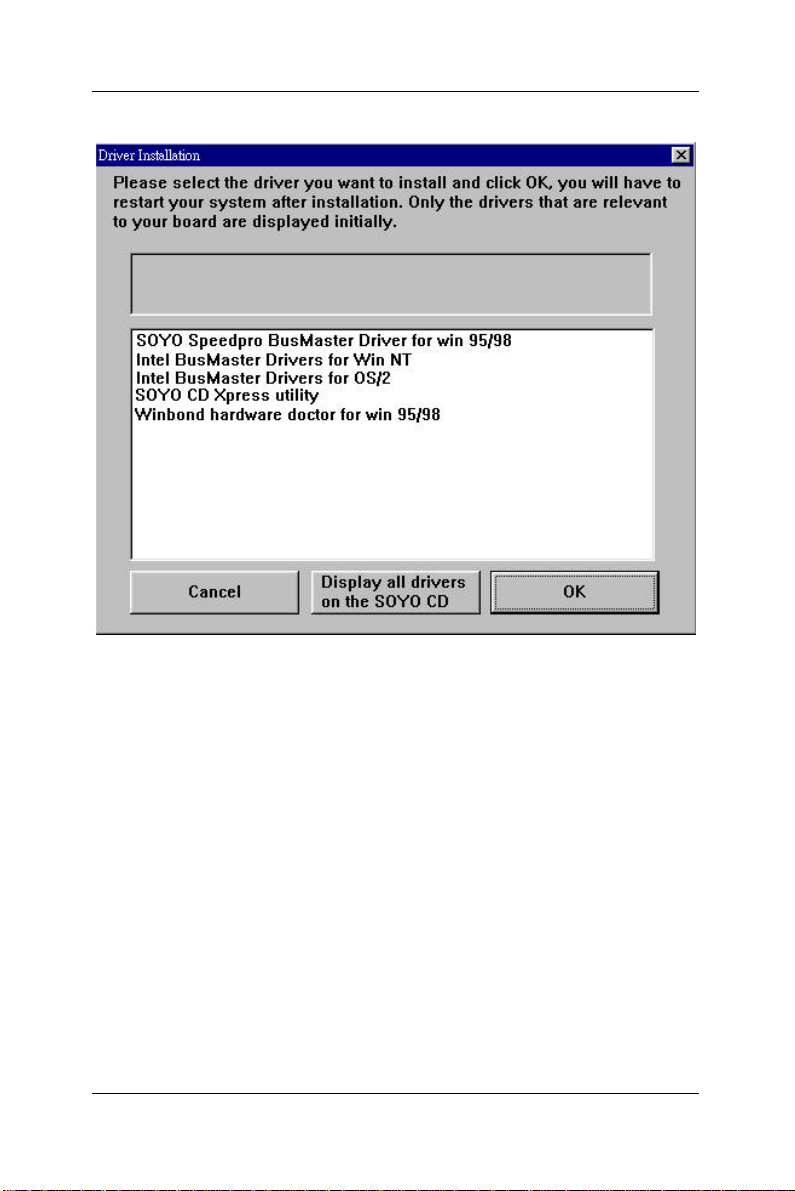

The following drivers are available for Windows 98

(Driver Installation Menu)

A short description of all available drivers follows: Ø Intel Southbridge Drivers Because Windows 95 does not recognize the Southbridge of the newer Intel chipsets (TX, BX, ZX etc) this utility has to be run, it will update the necessary Windows files. (Only for Windows 95) Ø SOYO SpeedPro Busmaster Driver for Win 95/98 Without the busmaster drivers the CPU will need to be involved every time data is read from or written to the Harddisk. The busmaster drivers make use of DMA (Direct Memory Access) to relieve the CPU of this burden, thus speeding up the system.

The SOYO SpeedPro driver makes use of an advanced caching algorithm, which gives it an advantage over other busmaster drivers.

Ø Intel Busmaster Drivers for Windows 95 Ø Intel Busmaster Drivers for Win NT

Page 65

Drivers installation SY-6ZE+

Ø Intel Busmaster Drivers for OS/2 These are the official busmaster drivers as supplied by Intel.

Note: Do NEVER install two types of busmaster drivers on

your system, this will lead to conflicts and system instability. Therefore, if you install the SOYO SpeedPro Busmaster driver you can NOT install the Intel Busmaster drivers. Before installing a new busmaster driver first UNINSTALL the old busmaster driver.

Ø SOYO CD Xpress Utility This utility will enhance your CD-ROM Drive data-thoughput by using space on the Harddisk as cache. This way application programs can access data faster. This utility is suitable for Windows 95/98.

Ø System Monitor Utility Your motherboard comes with a hardware monitoring IC. By installing this utility Temperature, Fan speed and Voltages can be monitored. It is also possible to set alarms when current system values exceed or fall below pre-set values.

Because the Hardware monitor comes with default monitoring settings that may not be appropriate to the configuration of the actual system, it is possible that the user will have to change some of these settings.

l Core voltage The core voltage differs between generations of Intel CPUs, if the Hardware monitor gives a warning, the settings for the safe range of the core voltage has to be adjusted. This can be done by simply clicking and dragging the upper and lower limit bars.

For example: Newer Slot 1 CPUs have a core voltage of 2.0V. Therefore, set the CPU Vcore limits to 1.8V and 2.2V. For 2.8V core voltage CPUs the limits would be 2.6V and 3.0V.

Page 66

Drivers installation SY-6ZE+

l Fan speed The Hardware monitor can keep track of three fans. If the user does not use all fans, the fans that are not in use should be disabled in the Hardware monitor program, otherwise the Hardware monitor will give an alarm. If this happens, make sure to disable monitoring for that fan.

Note: However, to display the list of all drivers software available with SOYO Motherboards, click the Display all drivers on the SOYO CD button. Please make sure to install only the drivers adapted to your system, or otherwise this cause system malfunctions.

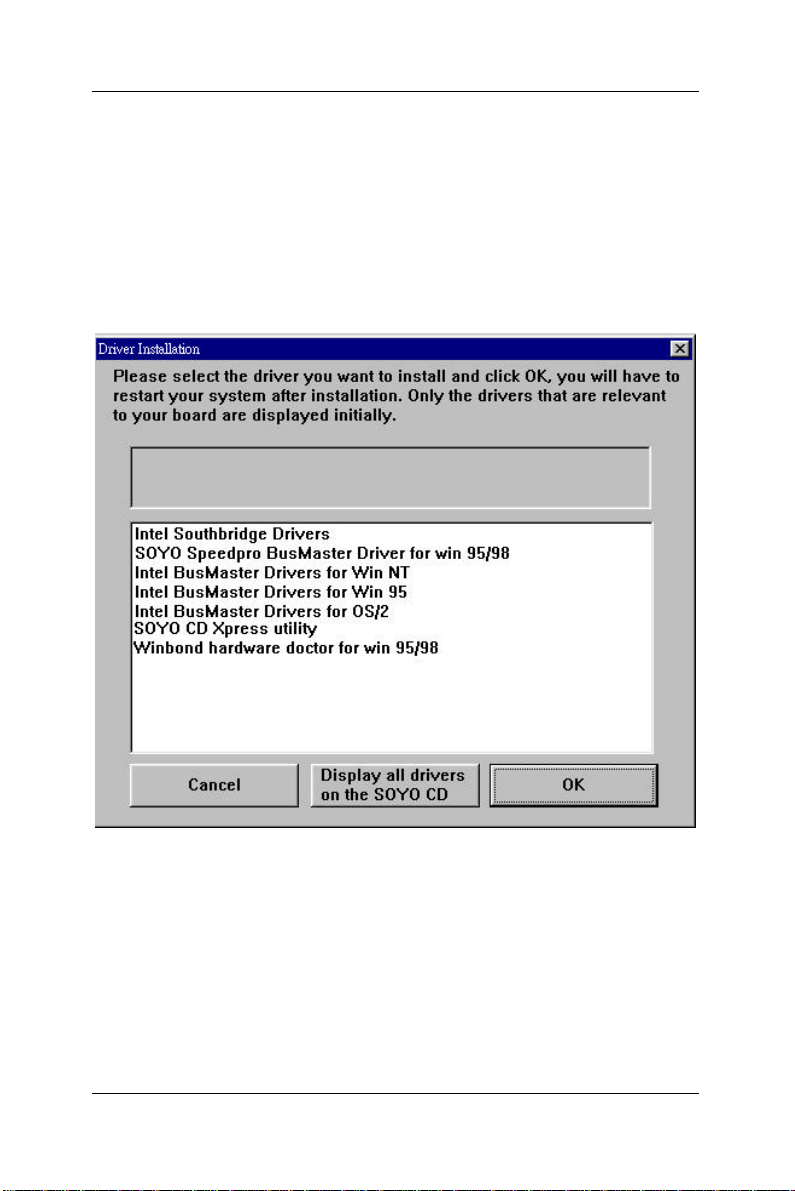

Step 3. Select which driver you want to install and

click OK

Notice 1: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.

Notice 2: You may click Cancel to abort the driver installation and return to the main menu.

Notice 3: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.

Page 67
