SY-6VCA

Motherboard

****************************************************

Pentium® III, Pentium® II & Celeron

Processor supported

VIA 694X AGP/PCI/AMR Motherboard

66/100/133 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

Page 2

SOYO™ SY-6VCA

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification purposes only. The registered trademarks and copyrights belong to their respective companies.

All rights reserved. This manual has been copyrighted by Soyo Computer Inc. No part of this manual may be reproduced, transmitted, transcribed, translated into any other language, or stored in a retrieval system, in any form or by any means, such as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to amend the manual or revise the specifications of the product described in it from time to time without obligation to notify any person of such revision or amend. The information contained in this manual is provided to our customers for general use. Customers should be aware that the personal computer field is subject to many patents. All of our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing the Motherboard. Information in this guide has been carefully checked for reliability; however, to the correctness of the contents there is no guarantee given. The information in this document is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: April 2001 Version 1.1 6VCA SERIAL

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

100%

RECYCLED PAPER

Page 3

Table of Contents SY-6VCA

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION.............................1

1-1 INTRODUCTION...........................................................1

1-2 KEY FEATURES............................................................ 1

1-3 HANDLING THE MOTHERBOARD.............................5

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS ........ 5

1-5 SY-6VCA MOTHERBOARD LAYOUT.........................6

1-6 SY-6VCA MOTHERBOARD COMPONENTS............... 7

1-7 MICROPROCESSOR .....................................................9

1-8 SY-6VCA MOTHERBOARD COMPONENTS.............10

1-9 MICROPROCESSOR ................................................... 12

1-10 I/O INTERFACE CONTROLLER.................................16

1-11 HARDWARE MONITOR .............................................18

1-12 WAKE ON LAN TECHNOLOGY.................................19

CHAPTER 2 HARDWARE INSTALLATION ................................. 20

2-1 PREPARATIONS..........................................................20

2-2 UNPACKING THE MOTHERBOARD.........................21

2-3 INSTALLATION GUIDE.............................................. 22

2-3.1 CPU Fan Installation ................................................. 23

2-3.2 SDRAM Memory Module Installation ......................... 26

2-3.3 Motherboard Connector ............................................. 28

2-3.4 Jumper Setting............................................................ 42

2-3.5 CMOS Clear (JP5) ..................................................... 43

2-3.6 Power On................................................................... 43

2-3.7 Quick BIOS Setup....................................................... 44

2-3.8 Troubleshooting at First Start..................................... 46

2-3.9 Power Off ................................................................... 50

CHAPTER 3 BIOS SETUP UTILITY.............................................. 51

iii

Page 4

Table of Contents SY-6VCA

3-1 SOYO COMBO SETUP.................................................54

3-2 STANDARD CMOS SETUP.......................................... 59

3-3 ADVANCED BIOS FEATURES ....................................62

3-4 ADVANCED CHIPSET FEATURES..............................66

3-5 INTEGRATED PERIPHERALS..................................... 71

3-6 POWER MANAGEMENT SETUP ................................76

3-7 PNP/PCI CONFIGURATION SETUP ............................80

3-8 PC HEALTH STATUS.................................................... 83

3-9 LOAD FAIL-SAFE DEFAULTS.....................................85

3-10 LOAD OPTIMIZED DEFAULTS...................................86

3-11 SUPERVISOR PASSWORD ..........................................87

3-12 USER PASSWORD........................................................ 88

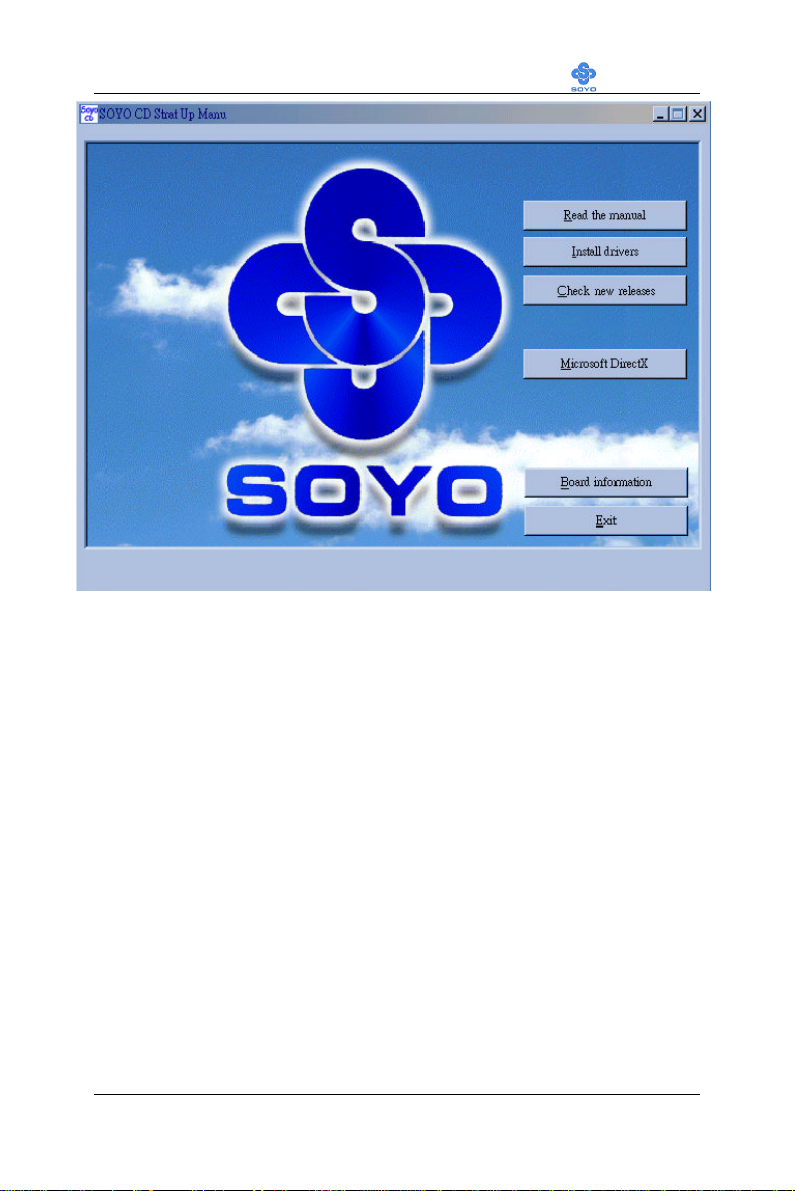

CHAPTER 4 DRIVERS INSTALLATION........................................89

Page 5

Motherboard Description SY-6VCA

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-6VCA AGP/PCI/AMR Motherboard is a high-performance Slot 1 ATX form-factor system board. The SY-6VCA uses VIA Chipset technology and supports Slot 1 class processors. This Motherboard is fully compatible with industry standards and adds many technical enhancements.

1-2 KEY FEATURES

Ø CPU SUPPORT

The SY-6VCA supports a wide range of INTEL CPUs:

n FSB 133MHz: Intel Pentium® III 533~866 MHz n FSB 100MHz: Intel Pentium® II 350~450 MHz

Intel Pentium® III 450~800 MHz

n FSB 66MHz: Intel Pentium® II 233~333 MHz

Intel Celeron® 266~433 MHz New released Intel Slot 1 CPUs will very likely be supported by the SY6VCA as well.

Ø CPU SETTINGS

The SY-6VCA provides the user with a very complete and convenient CPU setting environment. The CPU settings are all adjusted through the special SOYO COMBO page in the BIOS, therefore rendering the use of jumpers obsolete.

n CPU FSB Frequency

The SY-6VCA supports an incredible wide range of CPU FSB frequency settings: 66, 75, 81, 83, 90, 95, 100, 105, 110, 112, 113, 115, 117, 118, 120, 122, 124, 126, 133, 135, 137, 138, 140, 142, 144, 150 and 155 MHz. This ensures that the SY-6VCA has an overwhelming overclocking potential.

Page 6

Motherboard Description SY-6VCA

n CPU Multiplier

The SY-6VCA supports a wide range of multipliers:

2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.5x and

8.0x

Ø EXPANDABILITY

The SY-6VCA provides all the standard expansion slots, and many more additional expansion features:

u Expansion slots

n 1 x 32-bit bus master AGP slot n 5 x 32-bit bus master PCI slots n 1 x 16-bit ISA slots

u Enhanced IO

n Floppy disk controller n 2x EIDE controllers with support for up to 4 Ultra DMA 33/66

devices

n Standard/EPP/ECP parallel port n 2x 16550 compatible serial ports n IrDA compatible infrared port n 4x USB (Universal Serial Bus) connectors n PS/2 mouse connector n PS/2 keyboard connector

Page 7

Motherboard Description SY-6VCA

Ø ADVANCED FUNCTIONS

The SY-6VCA supports advanced functions such as:

n Wake-On-LAN Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is provided by the SY-6VCA to support this function).

n Multiple boot The SY-6VCA supports booting from devices such as CD-ROM. n Power on by modem or alarm If the SY-6VCA system is in suspend mode, it can be switched back on through the modem or RTC alarm through this function. This opens a lot of possibilities, such as remote access that switches the system on only after the modem receives a call.

Ø FAIL SAFE

The SY-6VCA comes with added functionality to make managing the system easy and safe.

u Hardware Monitor

The integrated Hardware Monitor IC and Hardware doctor software enables the user to monitor system voltages, temperatures and FAN speeds. This makes sure that the user is full control of the system

u Power Failure Resume Function

This function can be set in the BIOS, and determines whether the system will automatically turn on again after a power failure. This function is indispensable for server systems that need to always be on line.

u 5VSB Indicator

This green LED gives an indication of the presence of the 5V Standby voltage. This voltage is always fed into the motherboard and is used for functions such as WOL.

Ø NORTON SOFTWARE PACK

n Antivirus n Ghost

Page 8

Motherboard Description SY-6VCA

n Virtual Drive

Ø COMPLIANCE

The SY-6VCA complies with all important industry standards. The following underlines the reliability of the SY-6VCA, a motherboard to trust.

n PC99, ACPI compliant

Ø USER FRIENDLY

n SOYO Combo Setup n Jumperless design n You can set up the following options trough the BIOS setting

 CPU FSB frequency  CPU multiplier  CPU Vcore voltage  PCI clock  AGP Clock  SDRAM Clock

Page 9

Motherboard Description SY-6VCA

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while unpacking:

Ø Before handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

Ø Check the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears damaged. If there is damage to the board, contact your dealer immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other system components. Electrostatic discharge can easily damage the components. Note that you must take special precautions when handling the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following precautions:

Ø Do not remove the anti-static packaging until you are ready to install. Ø Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion slot covers or other unpainted portions of the computer chassis.)

Ø Frequently ground yourself while working or use a grounding strap. Ø Handle the Motherboard by its edges and avoid touching its

components.

Page 10

Motherboard Description SY-6VCA

PCI Slot #1

PCI Slot #3

PCI Slot #5

PCI Slot #4

Lithium

FDC

ATX Power

Jumper

CMOS Clear

DIMM 1

DIMM 2

DIMM 3

PCI Slot #2

HDD

LED

Reset

PWRBT

SDRAM

SIRCON

Slot 1

AGP Slot

Pentium II or Pentium III

ISA Slot #1

686A

USB3

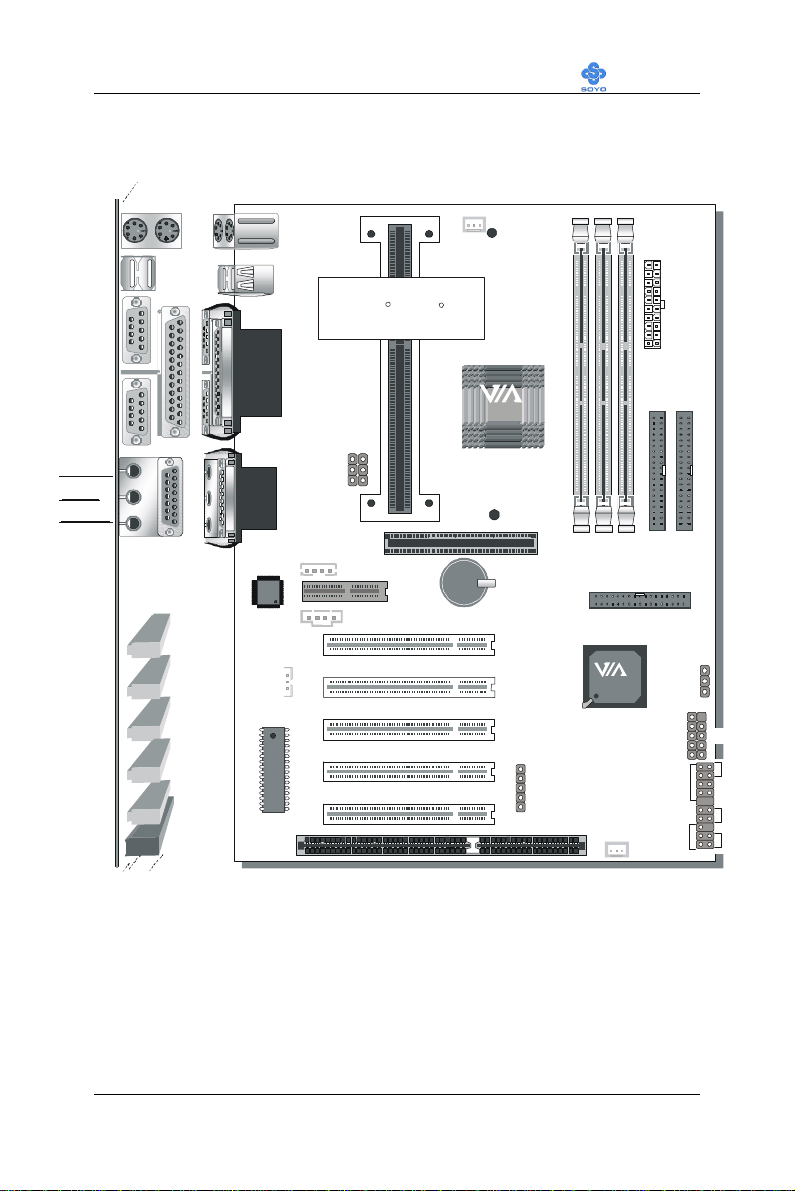

1-5 SY-6VCA MOTHERBOARD LAYOUT

PS/2 KB

PS/2 Mouse

Connector

CPUFAN

USB 1

COM 1

USB2

PRT

For

(SECC& SECC2)

Processors

COM2

JOYSTICK

VJ1

LINE-OUT LINE-IN MIC JACK

CODEC AC97

JP10

WOL

Header

Flash BIOS

CDIN2

AMR

CDIN1

694X

Battery

USB4

CHAFAN

IDE 2IDE 1

JP5

Speaker

Power

LED

Back Panel SY-6VCA Platform

Page 11

Motherboard Description SY-6VCA

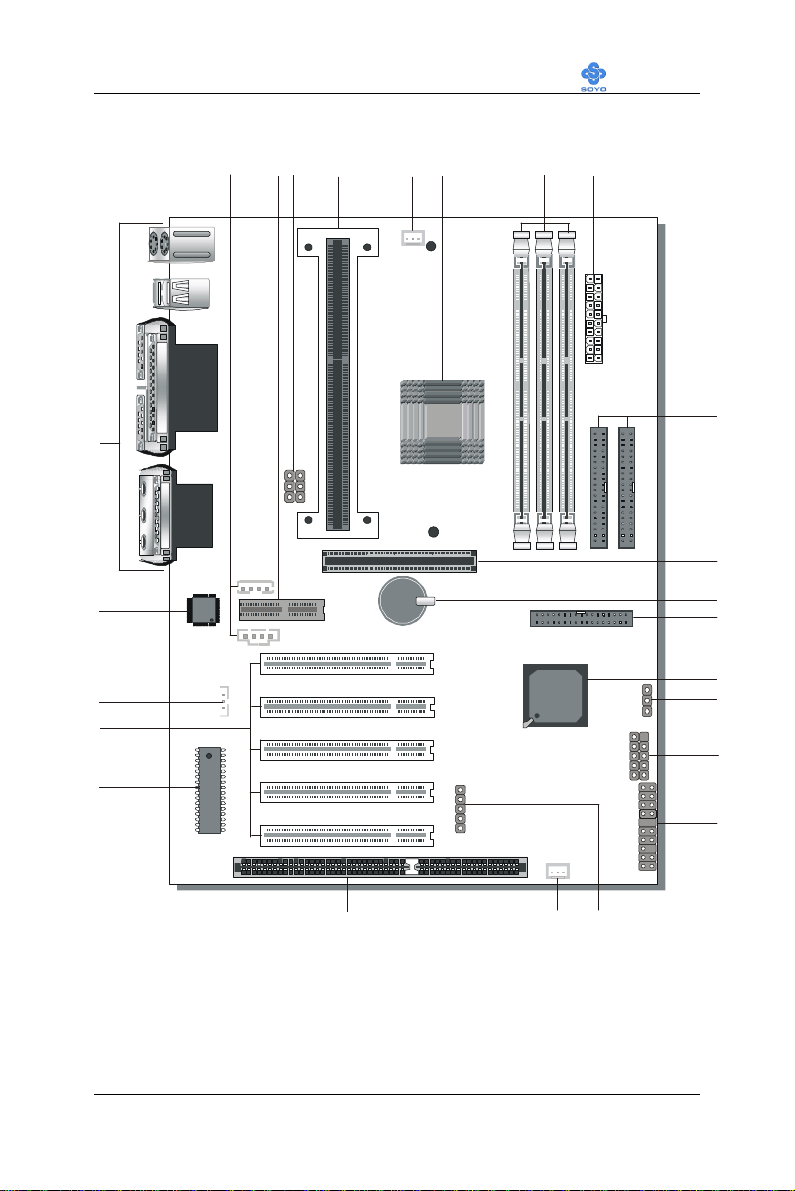

1-6 SY-6VCA MOTHERBOARD COMPONENTS

V U

SDRAM

Page 12

Motherboard Description SY-6VCA

A CD-IN Connectors B Audio Modem Riser Slot C CPU Core Voltage Adjust Jumper Setting D Slot 1 Connector E CPU Cooling Fan Connector

F Via 694X North Bridge chip G DIMM Banks H ATX Power Supply Connector

I Bus Mastering e-IDE/ATAPI Ports

J 32-bit AGP Slot K 3V Lithium Battery

L Floppy Disk Drive (FDD) Port

M Via 686A South Bridge Chip

N CMOS Clear Jumper

O USB Ports

P Front panel connectors Q Serial Infrared (IrDA) Device Header

R Chassis Cooling Fan

S 16-bit ISA Slot

T Flash BIOS U 32-bit PCI Mastering Slots V Wake-On-LAN (WOL) Header

W AC97 Codec Chip

X Back panel Connectors

Page 13

Motherboard Description SY-6VCA

1-7 MICROPROCESSOR

The motherboard supports a single Slot 1 processor. The processor’s VID pins automatically program the voltage regulator on the motherboard to the required processor voltage. In addition, the front side bus speed (100 MHz and 133 MHz) is automatically selected. The motherboard supports all current Slot 1 processor speeds, voltages, and bus frequencies.

1-7.1 Microprocessor Packaging

The processor is packaged in a Single Edge Contact Cartridge (S.E.C.C) or Single Edge Processor Package (S.E.P.P). The cartridge includes the processor core, second-level cache subsystem, thermal plate, and back cover. The processor connects to the motherboard through the Slot1 connector, a 242-pin edge connector. When mounted in Slot1, the processor is secured by a retention mechanism attached to the motherboard. A passive heatsink is stabilized by the heatsink supports.

1-7.2 Second Level Cache

The second-level cache is located on the substrate of the CPU package. The cache includes 0KB/128KB (Celeron) or 512 KB (PII/PIII) of synchronous pipelined burst static RAM. All supported onboard memory can be cached.

1-7.3 Microprocessor Upgrades

The motherboard can be upgraded with Slot 1 processors that run at higher speeds. When upgrading the processor, use the BIOS configuration mode to change the processor speed.

Page 14

Motherboard Description SY-6VCA

1-8 MEMORY

1-8.1 Main Memory

The motherboard has three DIMM sockets. SDRAM can be installed in one, two, or three sockets. Using the serial presence detect (SPD) data structure, programmed into an E²PROM on the DIMM, the BIOS can determine the SDRAM’s size and speed. Minimum DIMM memory size is 8 MB; maximum DIMM memory size is 256/512 MB. Memory size and speed can vary between sockets. The motherboard supports the following memory features:

 DRAM interface synchronous with host CPU (66/100/133MHz) or

AGP (66MHz) for most flexible configuration

 DRAM interface may be faster than CPU by 33 MHz to allow use

of PC100 memory modules with 66MHz Celeron or use of PC133 with 100MHz Pentium II or Pentium III

 DRAM interface may be slower than CPU by 33 MHz to allow use

of older memory modules with newer CPUs (e.g., PC66 memory modules with 100MHz Pentium II or Pentium III)

 Concurrent CPU, AGP, and PCI access  Supports FP,EDO, SDRAM, ESDRAM and VCM SDRAM

memory types

 Different DRAM types may be used in mixed combinations  Different DRAM timing for each bank  Dynamic Clock Enable (CKE) control for SDRAM power

reduction in high speed system.

 Mixed 1M/2M/4M/8M/16M/32MxN DRAMs  The 6VCA supports 3 DIMMs or 6 banks at 133MHz for 1.5GB

max memory

 Flexible row and column addresses  64-bit data width only  3.3V DRAM interface with 5V-tolerant inputs  Programmable I/O drive capability for MA, command, and MD

signals

Page 15

Motherboard Description SY-6VCA

 Dual copies of MA signals for improved drive  Optional bank-by-bank ECC (single-bit error correction and multi-

bit error detection) or EC(error checking only) for DRAM integrity

 Two-bank interleaving for 16Mbit SDRAM support  Two-bank and four bank interleaving for 64Mbit SDRAM support  Independent SDRAM control for each bank  Seamless DRAM command scheduling for maximum DRAM bus

utilization (e.g., precharge other banks while accessing the current bank)

 Four cache lines (16quadwords) of CPU to DRAM write buffers  Four cache lines of CPU to DRAM read prefetch buffers  Read around write capability for non-stalled CPU read  Speculative DRAM read before snoop result  Burst read and write operation  x-2-2-2-2-2-2-2 bank-to-back accesses for EDO DRAM from CPU

or from DRAM controller

 x-1-1-1-1-1-1-1 back-to back accesses for SDRAM  BIOS shadow at 16KB increment  Decoupled and burst DRAM refresh with staggered RAS timing  CAS before RAS or self refresh

Page 16

Motherboard Description SY-6VCA

1-9 CHIPSET

Ø VT82C694X

The VIA 694X is a high performance, cost-effective and energy efficient chip set for the implementation of AGP/PCI/ISA desktop personal computer systems from 66MHz, 100MHz and 133MHz based on 64-bit Slot 1 super-scalar processors. The Via 694X chip set consists of the VT82C694A system controller (510 pin BGA) and the VT82C686A PCI to ISA bridge (324 pin BGA). The system controller provides superior performance between the CPU, DRAM, AGP bus, and PCI bus with pipelined, burst, and concurrent operation. The VT82C694X supports eight banks of DRAMs up to 1.5GB. The DRAM controller supports standard Fast Page Mode (FPM) DRAM, EDO-DRAM, Synchronous DRAM (SDRAM) and Virtual Channel SDRAM (VC SDRAM), in a flexible mix / match manner. The Synchronous DRAM interface allows zero wait state bursting between the DRAM and the data buffers at 66/100/133 MHz. The eight banks of DRAM can be composed of an arbitrary mixture of 1M/2M/4M/8M/16M/32MxN DRAMs. The DRAM controller also supports optional ECC (single-bit error correction and multi-bit detection) or EC (error checking) capability separately selectable on a bank-by-bank basis. The DRAM controller can run at either the host CPU bus frequency (66/100/133 MHz) or at the AGP bus frequency (66 MHz) with built-in PLL timing control. The VT82C694X system controller also supports full AGP v2.0 capability for maximum bus utilization including 2x mode transfers, SBA (Side Band Addressing), Flush/Fence commands, and pipelined grants. An eight level request queue plus a four level post-write request queue with thirty-two and sixteen quad words of read and write data FIFO’s respectively are included for deep pipelined and split AGP transactions. A single-level GART TLB with 16 full associative entries and flexible CPU/AGP/PCI remapping control is also provided for operation under protected mode

Page 17

Motherboard Description SY-6VCA

operating environments. Both Window 95 VxD and Windows 98 /NT5.0 mini port drivers are supported for interoperability with major AGP-based 3D and DVD- capable multimedia accelerators. The VT82C694X supports two 32-bit 3.3/5V system buses (one AGP and one PCI) that are synchronous/ pseudo-synchronous to the CPU bus. The chip also contains a built-in bus-to-bus bridge to allow simultaneous concurrent operations on each bus. Five levels (double words) of post write buffers are included to allow for concurrent CPU and PCI operation. For PCI master operation, forty-eight levels (double words) of post write buffers and sixteen levels (double words) of prefetch buffers are included for concurrent PCI bus and DRAM/cache accesses. The chip also supports enhanced PCI bus commands such as Memory-Read-Line, Memory-ReadMultiple and Memory-Write-Invalid commands to minimize snoop overhead. In addition, advanced features are supported such as snoop ahead, snoop filtering, L1 write-back forward to PCI master, and L1 writeback merged with PCI post write buffers to minimize PCI master read latency and DRAM utilization. Delay transaction and read caching mechanisms are also implemented for further improvement of over all system performance. The 352-pin Ball Grid Array VT82C686A PCI to ISA bridge supports four levels (double words) of line buffers, type F DMA transfers and delay transaction to allow efficient PCI bus utilization The VT82C686A also includes an integrated keyboard controller with PS/2 mouse support, integrated DS12885 style real time clock with extended 256 byte CMOS RAM, integrated master mode enhanced IDE controller with full scatter/ gather capability and extension to UltraDMA-33/66 for 33/66 MB/sec transfer rate, integrated USB interface with root Hub and two function ports with built-in physical layer transceivers, Distributed DMA supports, and On Now/ ACPI compliant advanced configuration and power management interface. For sophisticated power management, the Via 694X provides independent clock stop control for the CPU/SDRAM, PCI, and AGP buses and

Page 18

Motherboard Description SY-6VCA

Dynamic CKE control for powering down of the SDRAM. A separate suspend-well plane is implemented for the SDRAM control signals for Suspend-to-DRAM operation. Coupled with the VT82C686A south bridge chip, a complete power conscious PC motherboard can be implemented with no external TTLs. The Via 694X chipset is ideal for high performance, high quality, high energy efficient and high integration desktop and notebook AGP / PCI / ISA computer systems.

Ø VT82C686A

The VT82C686A PSIPC (PCI Super-I/O integrated Peripheral Controller) is a high integration, high performance, power-efficient, and high compatibility device that supports Intel and non-Intel based processor to PCI bus bridge functionality to make a complete Microsoft PC99compliant PCI/ISA system In addition to complete ISA extension bus functionality, the VT82C686A includes standard intelligent peripheral controllers:

1) Master mode enhanced IDE controller with dual channel DMA engine

and interlaced dual channel commands. Dedicated FIFO coupled with scatter and gather master mode operation allows high performance transfers between PCI and IDE \devices. In addition to standard PIO and DMA mode operation, the VT82C686A also supports the UltraDMA-33 standard to allow reliable data transfer rates up to 33MB/sec throughput. The VT82C686A also supports the UltraDMA-66 standard. The IDE controller is SFF-8038I v1.0 and Microsoft Windows-family compliant.

2) Universal Serial Bus controller that is USB v1.1 and Universal HCI

v1.1 compliant. The VT82C686A includes the root hub with four function ports with integrated physical layer transceivers. The USB controller allows hot plug and play and isochronous peripherals to be inserted into the system with universal driver support. The controller also implements legacy keyboard and mouse support so that legacy software can run transparently in non-USB-aware operating system

Page 19

Motherboard Description SY-6VCA

environment.

3) Keyboard controller with PS2 mouse support.

4) Real Time Clock with 256 byte extended CMOS. In addition to the

standard ISA RTC functionality, the integrated RTC also includes the date alarm, century field, and other enhancements for compatibility with the ACPI standard.

5) Hardware monitoring subsystem for managing system/ motherboard

voltage levels, temperatures, and fan speeds

6) Full System Management Bus (SMBus) interface.

7) Two 16550-compatible serial I/O ports with infrared communications

port option. A third serial port is available to be dedicated to the IR interface.

8) Integrated PCI-mastering dual full-duplex direct-sound AC97-link-

compatible sound system. Hardware soundblaster-pro and hardwareassisted FM blocks are included for Windows DOS box and real-mode DOS compatibility. Loopback capability is also implemented for directing mixed audio streams into USB and 1394 speakers for high quality digital audio

9) Two game ports and One MIDI port

10) ECP/EPP-capable parallel port

11) Standard floppy disk drive interface

12) Distributed DMA capability for support O ISA legacy DMA over

the PCI bus. Serial IRQ is also supported for docking and non-docking application.

13) Plug and Play controller that allows complete steerability of all PCI

interrupts and internal interrupts/ DMA channels to any interrupt channel. One additional steerable interrupt channel is provided to allow plug and play and reconfigurability of onboard peripherals for Windows family compliance.

The VT82C686A also enhances the functionality of the standard ISA peripherals. The integrated interrupt controller supports both edge and level triggered interrupts channel by channel. The integrated DMA

Page 20

Motherboard Description SY-6VCA

controller supports type F DMA in addition to standard ISA DMA modes. Compliant with the PCI2.2 specification, the VT83C686A supports delayed transactions and remote power management so that slower ISA peripherals do not block the traffic of the PCI bus. Special circuitry is built in to allow concurrent operation without causing dead lock even in a PCIto PCI bridge environment. The chip also includes eight levels (doublewords) of line buffers from the PCI bus to the ISA bus to further enhance overall system performance.

1-10 I/O INTERFACE CONTROLLER

The motherboard uses the VT82C686A Super-I/O controller which features:

Ø Supports 2 serial ports, IR port, parallel port, and floppy disk

controller functions

Ø Two UARTs for Complete Serial Ports

 Even, odd, stick or no parity bit generation and detection  Programmable baud rate generator  High speed baud rate (230Kbps, 460Kbps) support  Independent transmit/receiver FIFOs  Modem Control  Plug and play with 96 base IO address and 12 IRQ options

Ø One dedicated IR port

 Third serial port dedicated to IR function  IR function either through the two complete serial ports or the

third dedicated port

 Infrared-IrDA (HPSIR) and ASK (Amplitude Shift Keyed) IR

Ø Multi-mode parallel port

 Standard mode, ECP and EPP support  Plug and play with 192 base IO address, 12 IRQ and 4 DMA

options

Ø Floppy Disk Controller

 16bytes of FIFO  Data rates up to 1Mbps

Page 21

Motherboard Description SY-6VCA

 Perpendicular recording driver support  Two FDDs with drive swap support  Plug and play with 48 base IO address, 12 IRQ and 4 DMA

options

The Setup program provides configuration option for the I/O controller.

1-10.1 Serial Ports

The motherboard has two 9-pin D-Sub serial port connectors located on the back panel. The NS16C5450-compatible UARTs support data transfers at speeds up to 115.2 Kbits/sec with BIOS support.

1-10.2 Parallel Port

The connector for the multimode bi-directional parallel port is a 25-pin DSub connector located on the back panel of the motherboard. In the Setup program, there are four options for parallel port operation:

l Compatible (standard mode) l Bi-directional (PS/2 compatible) l Bi-directional EPP. A driver from the peripheral manufacturer is

required for operation.

l Bi-directional high-speed ECP

1-10.3 Diskette Drive Controller

The I/O controller is software compatible with the 82077 diskette drive controller and supports both PC-AT and PS/2 modes. In the Setup program, the diskette drive interface can be configured for the following diskette drive capacities and sizes.

l 360 KB, 5.25-inch l 1.2 MB, 5.25-inch l 720 KB, 3.5-inch l 1.2 MB. 3.5-inch (driver required) l 1.25-1.44 MB, 3.5-inch l 2.88 MB, 3.5-inch

Page 22

Motherboard Description SY-6VCA

1-10.4 PS/2 Keyboard and Mouse Interface

PS/2 keyboard and mouse connectors are located on the back panel of the motherboard. The +5 V lines to keyboard and mouse connectors are protected with a fuse that prevents motherboard components from being damaged when an over-current condition occurs.

Note

The mouse and keyboard can be plugged into either PS/2 connector. Power to the computer should be turned off before a keyboard or mouse is connected or disconnected.

The keyboard controller contains code, which provides the traditional keyboard and mouse control functions, and also supports Power On/Reset password protection. Power On/Reset password can be specified in the BIOS Setup program.

The keyboard controller also supports the hot-key sequence <Ctrl><Alt><Del>, software reset. This key sequence resets the computer’s software by jumping to the beginning of the BIOS code and running the Power On Self Test (POST).

1-10.5 Infrared Support

On the front panel I/O connector, there are six pins that support Hewlett Packard HSDL-1000 compatible infrared (IR) transmitters and receivers. In the Setup program, Serial Port B can be direct4d to a connected IR device. (In this case, the Serial Port B connector on the back panel cannot be used.) The IR connection can be used to transfer files to or from portable devices like laptops, PDAs, and printers. The Infrared Data Association (IrDA) specification supports data transfers of 115Kbits/sec at a distance of 1 meter.

1-11 HARDWARE MONITOR

The optional hardware monitor subsystem provides low-cost instrumentation capabilities. The features of the hardware monitor

Page 23

Motherboard Description SY-6VCA

subsystem include:

Ø An integrated ambient temperature sensor Ø Fan speed sensors, which monitor the fan 1 and fan 2 connector. Ø Power supply voltage monitoring to detect levels above or below

acceptable values When suggested ratings for temperature, fan speed, or voltage are exceeded, an interrupt is activated. The hardware monitor component connects to the SMBus.

1-12 WAKE ON LAN TECHNOLOGY

Wake on LAN technology enables remote wakeup of the computer through a network. Wake on LAN technology requires a PCI add-in network interface card (NIC) with remote wakeup capabilities. The remote wakeup connector on the NIC must be connected to the onboard Wake on LAN connector. The NIC monitors network traffic at the Ethernet interface; upon detecting a Magic Packet, the NIC asserts a wakeup signal that powers up the computer. This feature uses the Wake on LAN connector.

CAUTION

For Wake on LAN, the 5-V standby line for the power supply must be capable of delivering +5V ±5 % at 720 mA. Failure to provide adequate standby current when implementing Wake on LAN can damage the power supply.

Page 24

Hardware Installation SY-6VCA

Chapter 2

HARDWARE INSTALLATION

Congratulations on your purchase of SY-6VCA Motherboard. You are about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective antistatic packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to complete the installation successfully:

1. Slot 1 processor with built-in CPU cooling fan (boxed type).

Note: This Motherboard supports non-boxed type CPUs. The heavier

CPU cooling fan requires the installation of a CPU support stand.

2. DIMM memory module (s)

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Page 25

Hardware Installation SY-6VCA

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

u The SY-6VCA VT82C694X AGP/PCI/AMR Motherboard

u This Quick Start Guide

u The Installation CD-ROM

u SOYO 3-in-1 Bonus Pack CD-ROM (Norton AntiVirus,

Ghost and Virtual Drive)

u The Foldable URM (Universal Retention Mechanism) Set

(Factory installed on this motherboard)

u One IDE Device ATA 66 Flat Cable

u One Floppy Disk Drive Flat Cable

Warning: Do not unpack the Motherboard from its anti-static packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged by electrostatic discharge. To avoid permanent damage to components ground yourself while working by using a grounding strap. Otherwise, ground yourself frequently by touching the unpainted portion of the computer chassis to drain the static charges. Handle the Motherboard carefully, holding it by the edges. You are now ready to start the installation.

Page 26

Hardware Installation SY-6VCA

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow the step-by-step procedure designed to lead you to a complete and correct installation.

Warning: Turn off the power to the Motherboard, system chassis, and peripheral devices before performing any work on the Motherboard or system.

BEGIN THE INSTALLATION

Page 27

Hardware Installation SY-6VCA

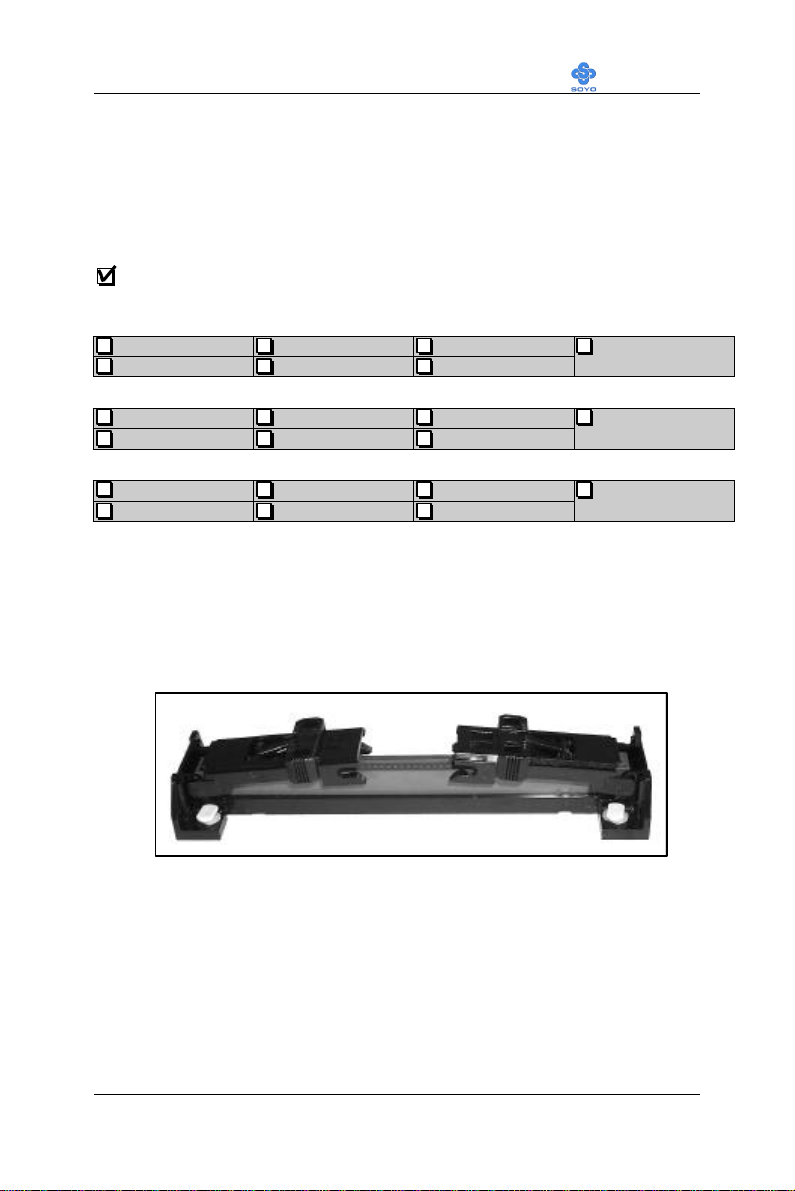

2-3.1 CPU Installation

Your SY-6VCA motherboard comes with a CPU retention set kit. The retention set is used to hold the processor attached to the Slot 1 CPU connector on the motherboard.

Mark your CPU Frequency:

your CPU that should be clearly marked on the CPU cover.

Record the working frequency of

FSB 66MHz

266MHz (66 x 4.0) 333MHz (66 x 5.0) 400MHz (66 x 6.0) 300MHz (66 x 4.5) 366MHz (66 x 5.5) 433MHz (66 x 6.5)

FSB 100MHz

350MHz (100 x 3. 5) 450MHz (100 x 4.5) 550MHz (100 x 5.5)

400MHz (100 x 4.0) 500MHz (100 x 5.0) 600MHz (100 x 6.0)

FSB 133MHz

400MHz (133 x 3.0) 533MHz (133 x 4.0) 666MHz (133 x 5.0) 466MHz (133 x 3.5) 600MHz (133 x 4.5) 733MHz (133 x 5.5)

Follow these instructions to install your Slot 1 processor correctly.

Ø Retention Module

Page 28

Hardware Installation SY-6VCA

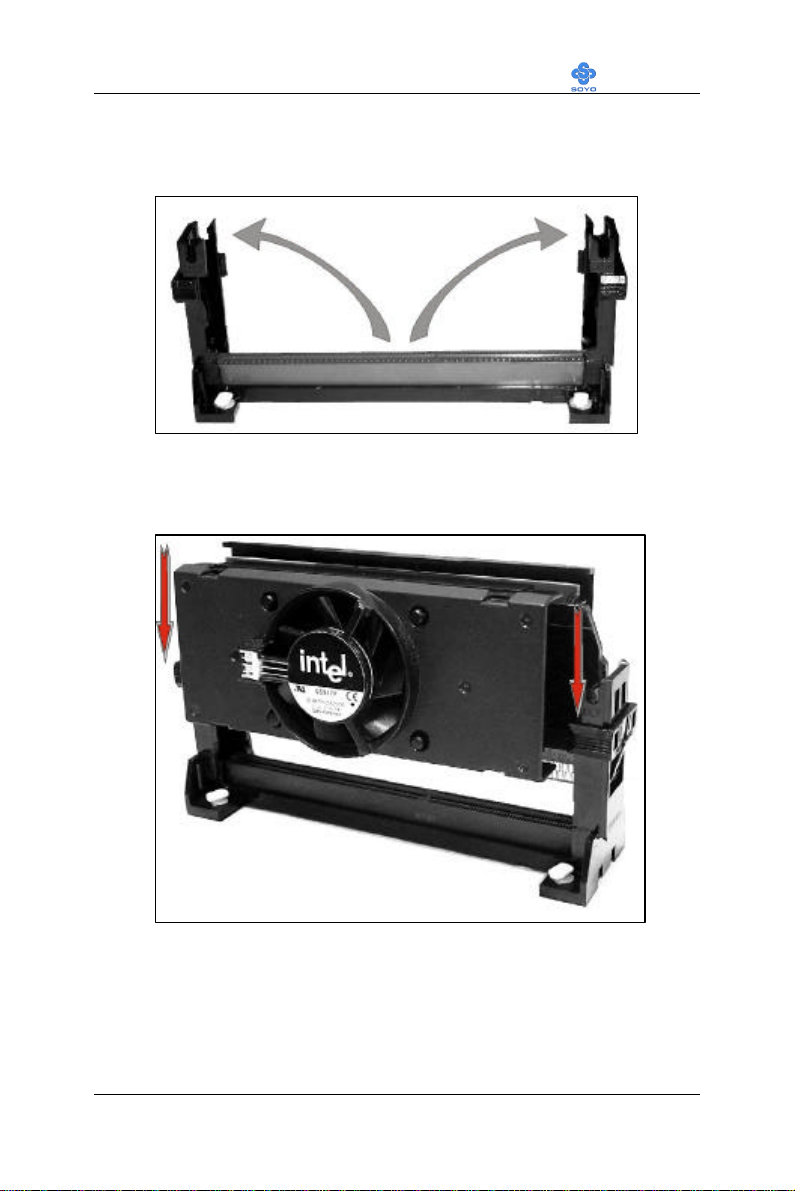

1. Open the two sides by folding them up.

2. Insert the CPU into the retention module. The CPU fits in the CPU

slot in only ONE way, do not try to force it in.

Page 29

Hardware Installation SY-6VCA

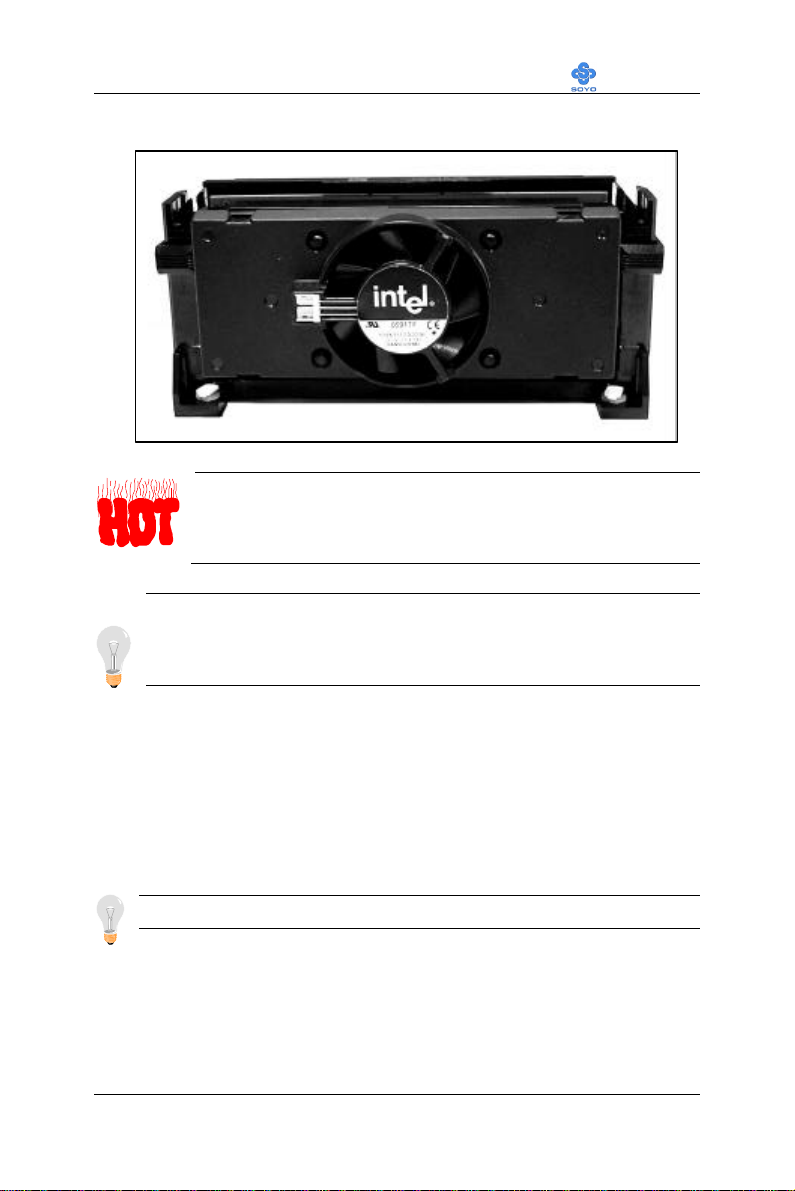

3. After completely inserting the CPU, Now your CPU is ready for use.

To remove the CPU, press the two notches on top of the CPU inward. Now press the two slides on the retention module down and remove

the CPU.

Note: Installing a heat sink and cooling fan on top of your CPU is necessary for proper heat dissipation. Failing to install these items may result in overheating and possible burn-out of your CPU.

2-3.1.1 CPU Fan Installation

Your Slot 1 processor kit comes with a cooling fan. Mount the fan on the processor according to the instructions provided by the manufacturer. The fan is a key component that will ensure system stability. The fan prevents overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

Page 30

Hardware Installation SY-6VCA

DIMM 2

DIMM 3

2-3.2 SDRAM Memory Module Installation

SDRAM

MM 1

Your board comes with three DIMM sockets, providing support for up to

1.5GB of main memory using unbuffered and registered DIMM modules from 8MB to 512MB. On this motherboard, DRAM speed can be set independent from the CPU front side bus speed. Depending on the DRAM clock speed setting in the BIOS setup (Chapter 3), appropriate memory modules must be used. For 66MHz DRAM speed, use PC66 memory; for 100MHz DRAM speed, use PC100 memory; for 133MHz DRAM speed, use PC133 memory.

Page 31

Hardware Installation SY-6VCA

Memory Configuration Table

Number of Memory

Modules

RAM Type

Memory Module Size

(MB)

Note:Always install memory modules in the order prescribed in

this table.

DIMM 1 DIMM 2 DIMM 3

SDRAM

8/16/32/64/128/256/512 MB

Page 32

Hardware Installation SY-6VCA

40-pin

80-Conductor

2-3.3 Motherboard Connector

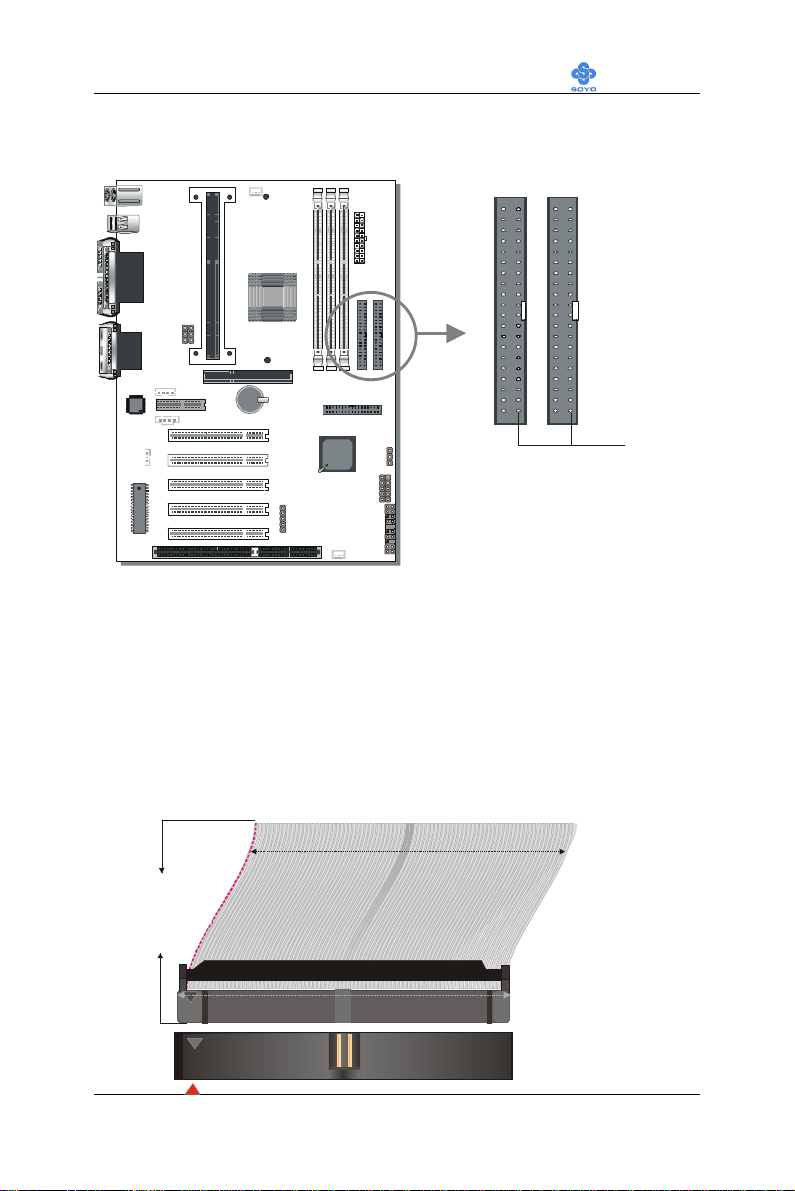

2-3.3.1 IDE Device Installation (HDD, CD-ROM)

SDRAM

Pin -1

IDE 2 IDE 1

Secondary

IDE

This Motherboard offers two primary and secondary IDE device connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA 33/66HDD or CD-ROM.

Connect one side of the ATA66 flat cable to the IDE device (HDD or CDROM) and plug the other end to the primary (IDE1) or secondary (IDE2) directionally keyed IDE connector on the Motherboard. The ATA66 cable is backward compatible with ATA33 HDDs. This Motherboard can support up to four HDDs.

Primary

IDE

ATA 66

Flat Cable

Page 33

Hardware Installation SY-6VCA

FDC

Pin -1

Connector

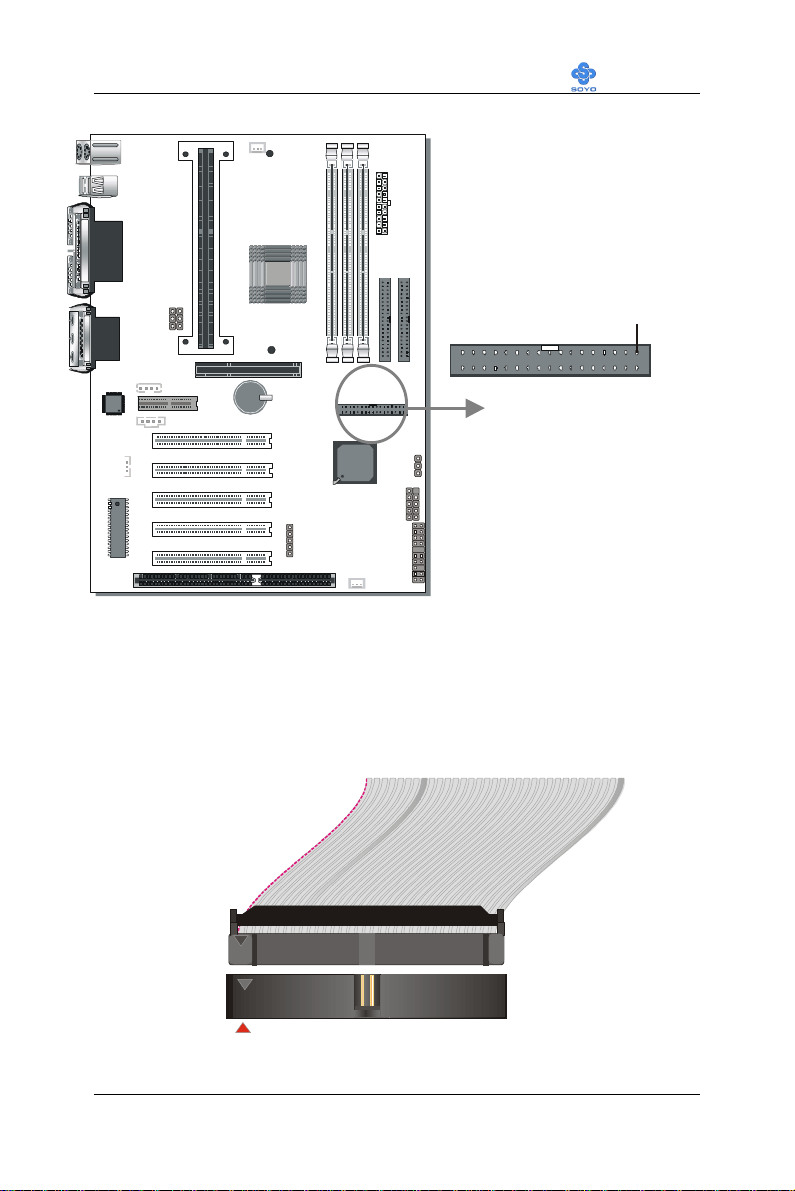

2-3.3.2 Floppy Drive Installation

SDRAM

Floppy Drive

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. Connect one side of the 34-pin flat cable to the floppy drive and plug the other end to the floppy drive connector on the Motherboard. This Motherboard can support up to 2 floppy drives.

Page 34

Hardware Installation SY-6VCA

Power LED

Pin Assignment

GND

HDD LED

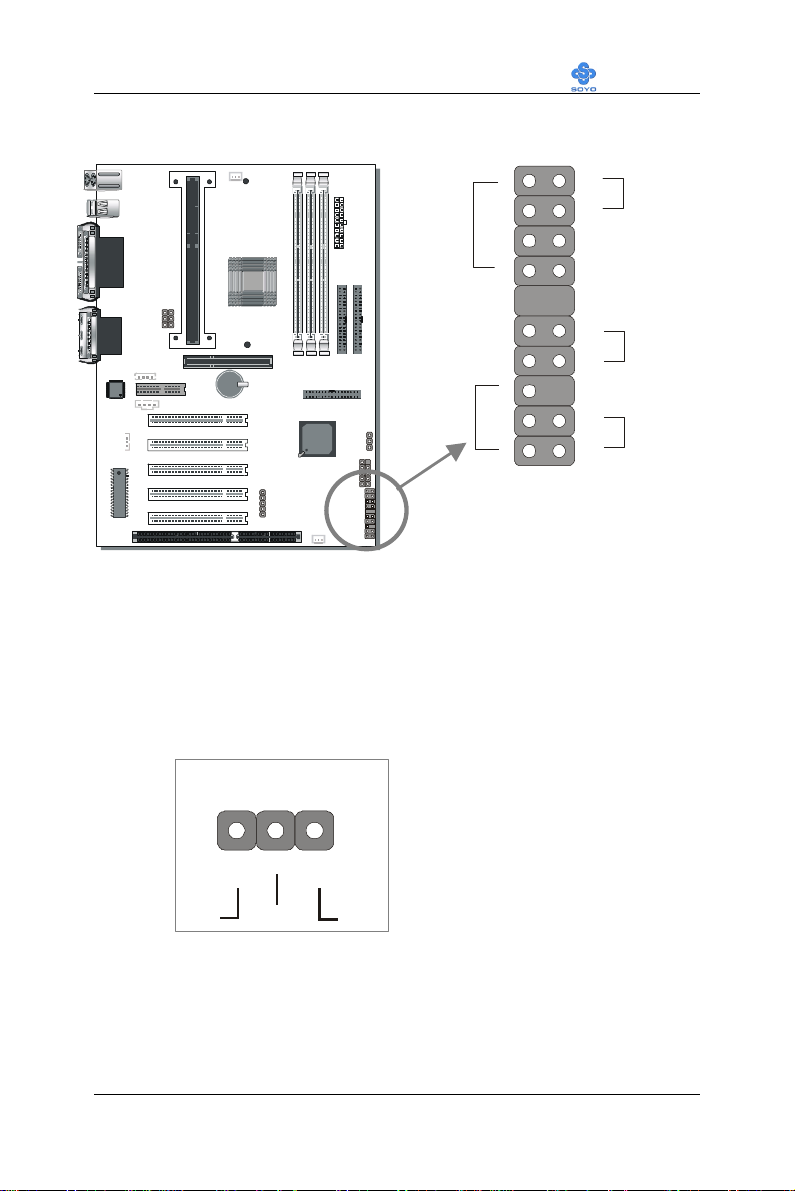

2-3.3.3 Front Panel Connections

PWRBT

SDRAM

Speaker

Power

LED

Plug the computer case's front panel devices to the corresponding headers on the Motherboard.

1. Power LED

Please install according to the following pin assignment: pin 1,3 are for Power LED.

Reset

+5V+5V

NCNC

Page 35

Hardware Installation SY-6VCA

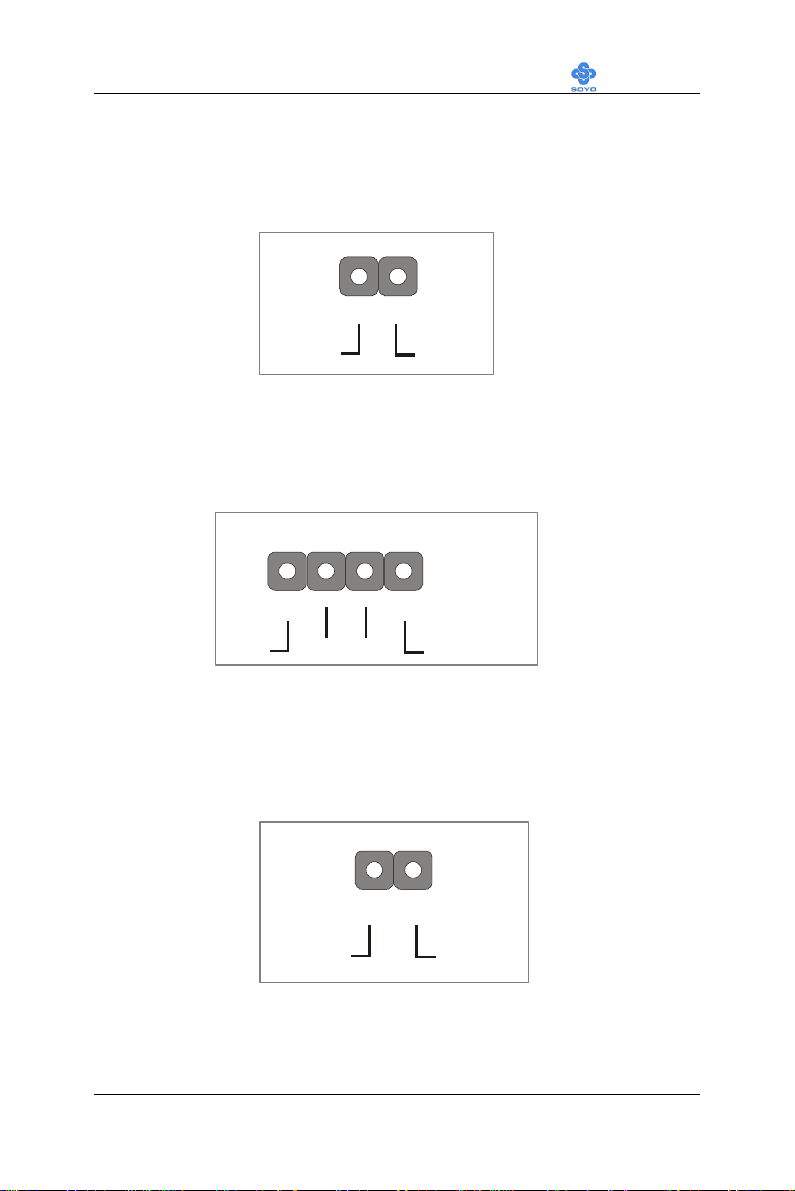

Reset Pin Assignment

Power Good

GND

Speaker Pin Assignment

Speaker out

HDD LED Pin Assignment

LED Anode

LED Cathode

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the Motherboard. Pushing the Reset button on the front panel will cause the system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker header on the Motherboard.

+5V

4. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE LED header on the Motherboard. This will cause the LED to light up when an IDE (HDD, CD-ROM) device is active.

NC NC

Page 36

Hardware Installation SY-6VCA

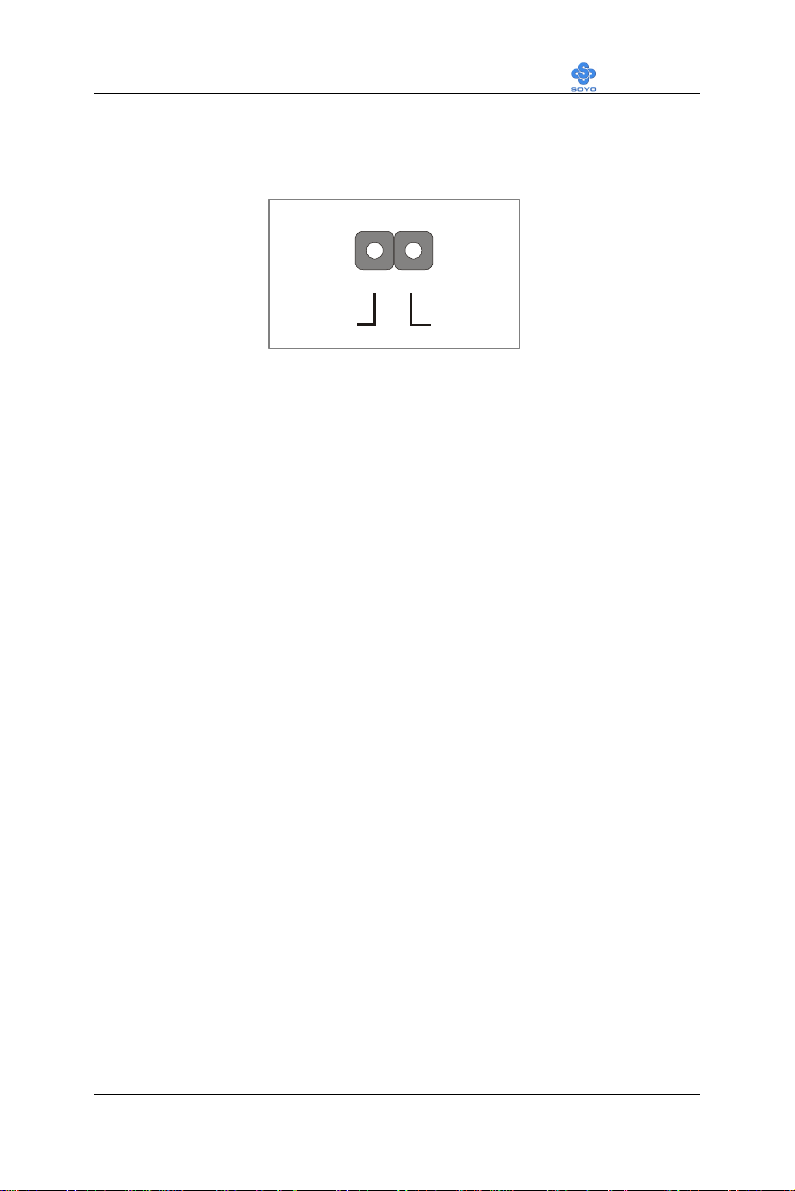

PWRBT Pin Assignment

Power On/Off

GND

5. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for turning On or Off your ATX power supply.

Page 37

Hardware Installation SY-6VCA

PRT

PS/2 KB

Connector

PS/2 Mouse

MIC JACK

JOYSTICK

COM2

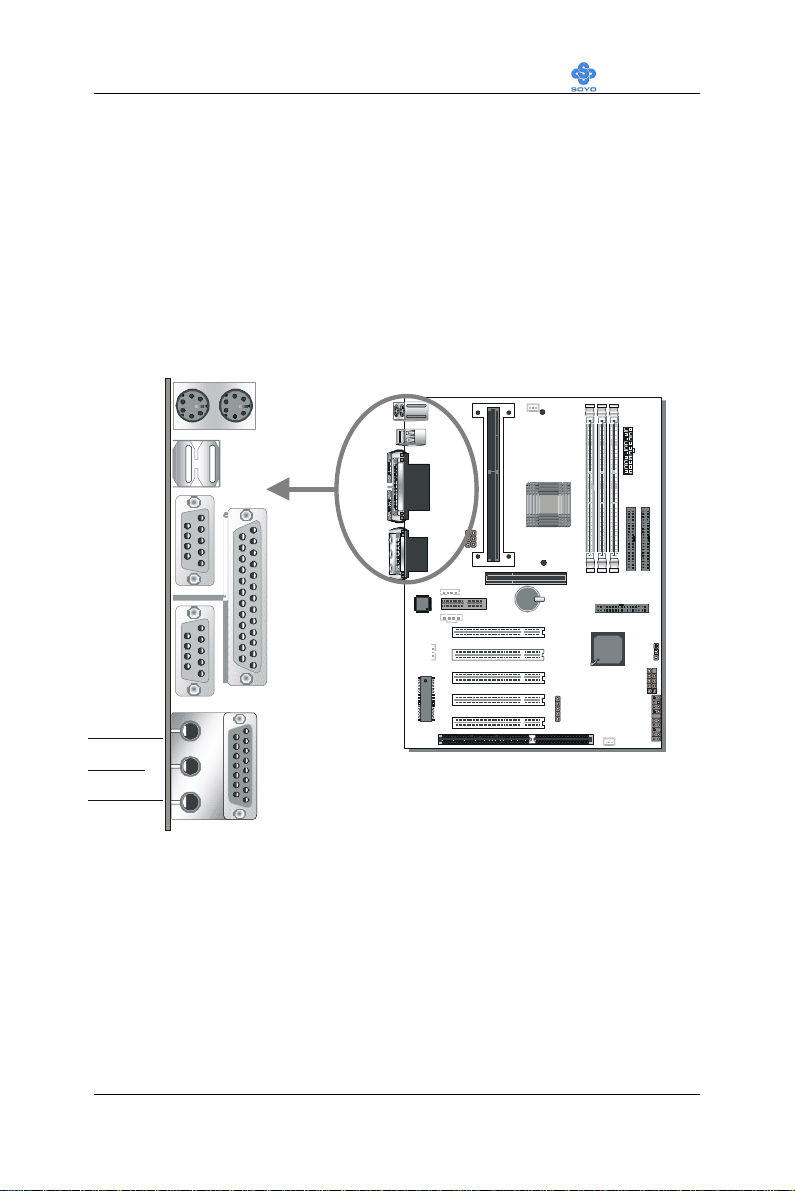

2-3.3.4 Back Panel Connections

All external devices such as the PS/2 keyboard, PS/2 mouse, printer, modem, USB can be plugged directly onto the Motherboard back panel.

Only after you have fixed and locked the Motherboard to the computer case can you start connecting the external peripheral devices.

When connecting an external device, use the following figure to locate and identify which back panel connector to plug the device to.

Connector

USB 1

COM 1

LINE-OUT LINE-IN

USB2

SDRAM

Page 38

Hardware Installation SY-6VCA

Pin5

KBD Clock

Pin5

Mouse Clock

1. Onboard Serial Ports COM1/COM2

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem. Plug the serial device cables directly into the COM1/COM2 9-pin male connectors located at the rear panel of the Motherboard.

2. Parallel Port PRT

This parallel port is used to connect the printer or other parallel devices. Plug the parallel device cable into the 25-pin female connector located at the rear panel of the Motherboard.

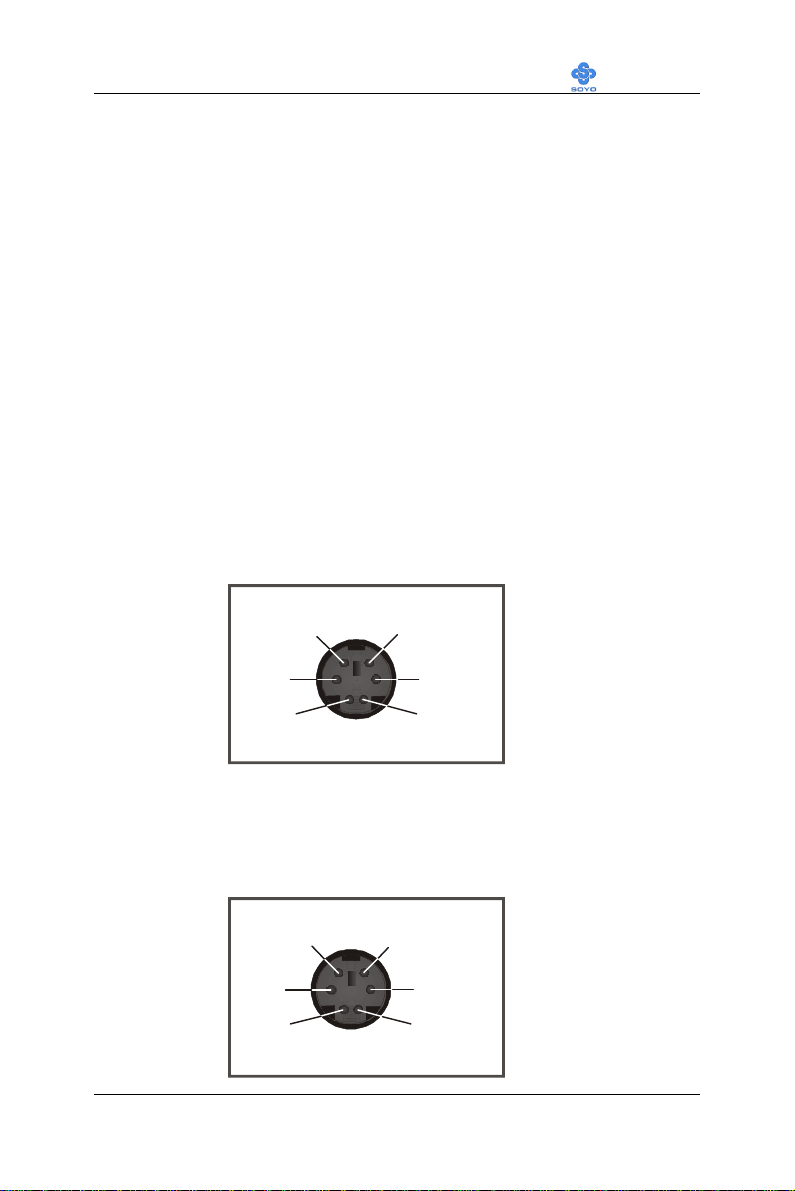

3. PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard connector located at the rear panel of the Motherboard.

Pin6

Pin4 VCC

Pin2

Pin3 GND

Pin1

KBD DATA

4. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2 mouse connector.

Pin6

Pin4 VCC

Pin2

Pin3

GND

Pin1

Mouse DATA

Page 39

Hardware Installation SY-6VCA

GND

(+)Data

(-)Data

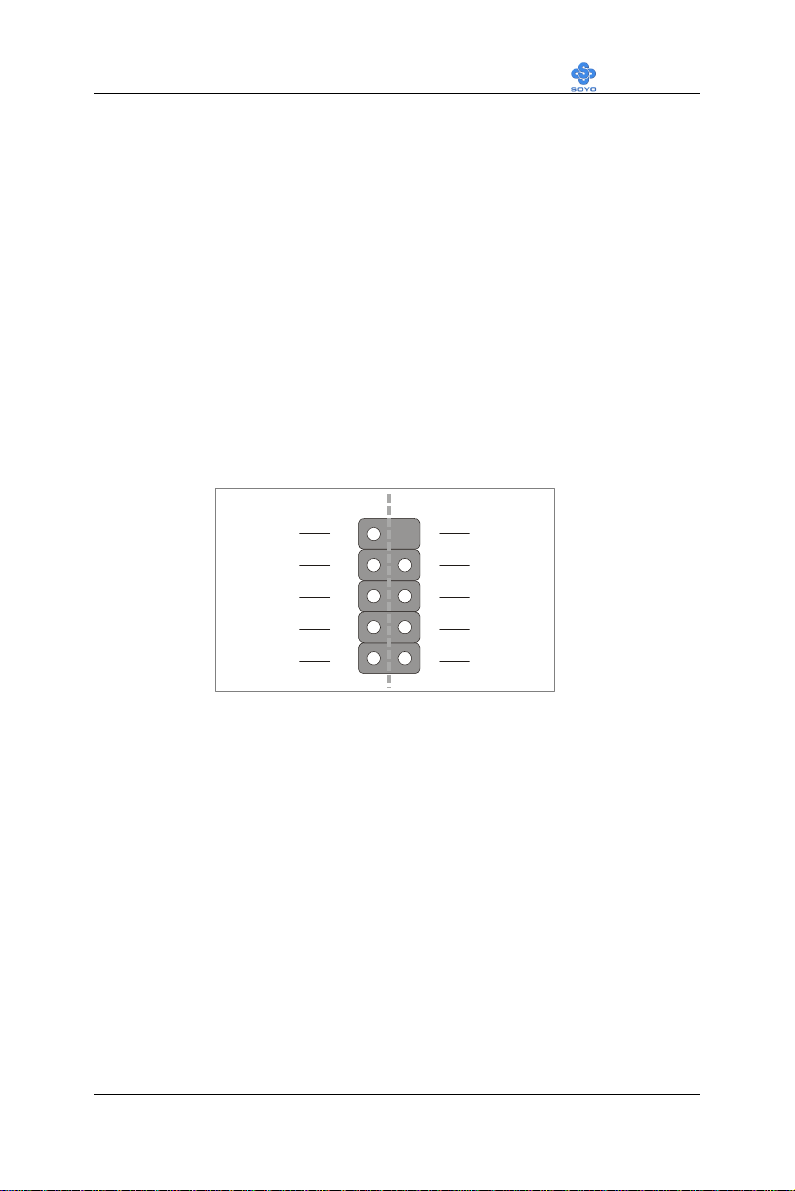

USB4

USB3

5. Universal Serial Bus USB1/USB2/(USB3, USB4)

This Motherboard provides four USB ports for your additional devices. Plug the USB device jack into the available USB connector USB1 or USB2.

- Standard device drivers come with the Win98 for commonly used

USB devices.

- With Win95, use the flow UHCI specifications. To use USB devices

under Win95, usually you have to install the device that driver comes

with the USB device you have purchased. USB3 and 4 are available. To make use of these USB ports, purchase a USB cable from your dealer. The lay-out of USB3 and 4 is as follows:

GND GND

(+)Data

(-)Data

Power

6. Onboard Joystick port/audio

This Motherboard provides Joystick port and audio.

- Attach the joystick cable to the 15-pin JOYSTICK port at the rear

panel of you motherboard.

- This Motherboard features three built-in audio-stereo ports (labeled

line-in, line-out, and mic jack) convenient to directly plug-in all your

external audio devices.

5 4 3 2 1

Power

Page 40

Hardware Installation SY-6VCA

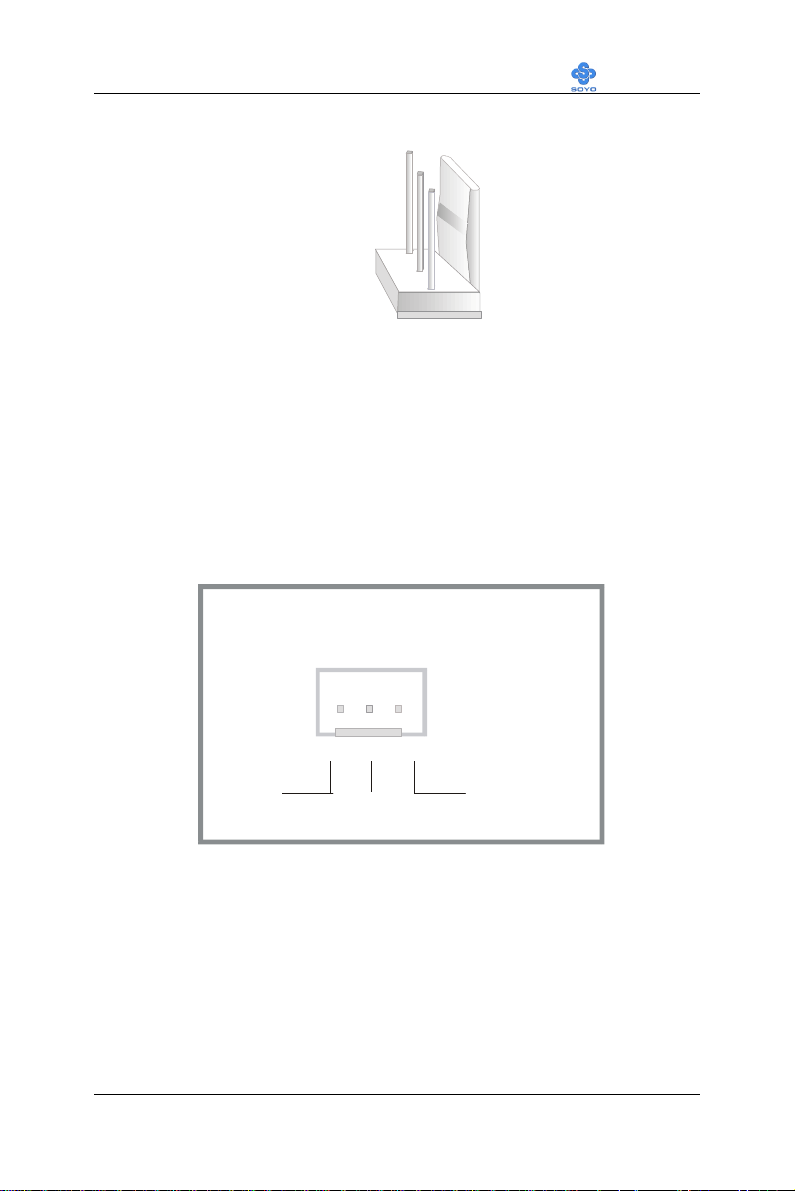

Wake-On-LAN

2-3.3.5 Other Connections

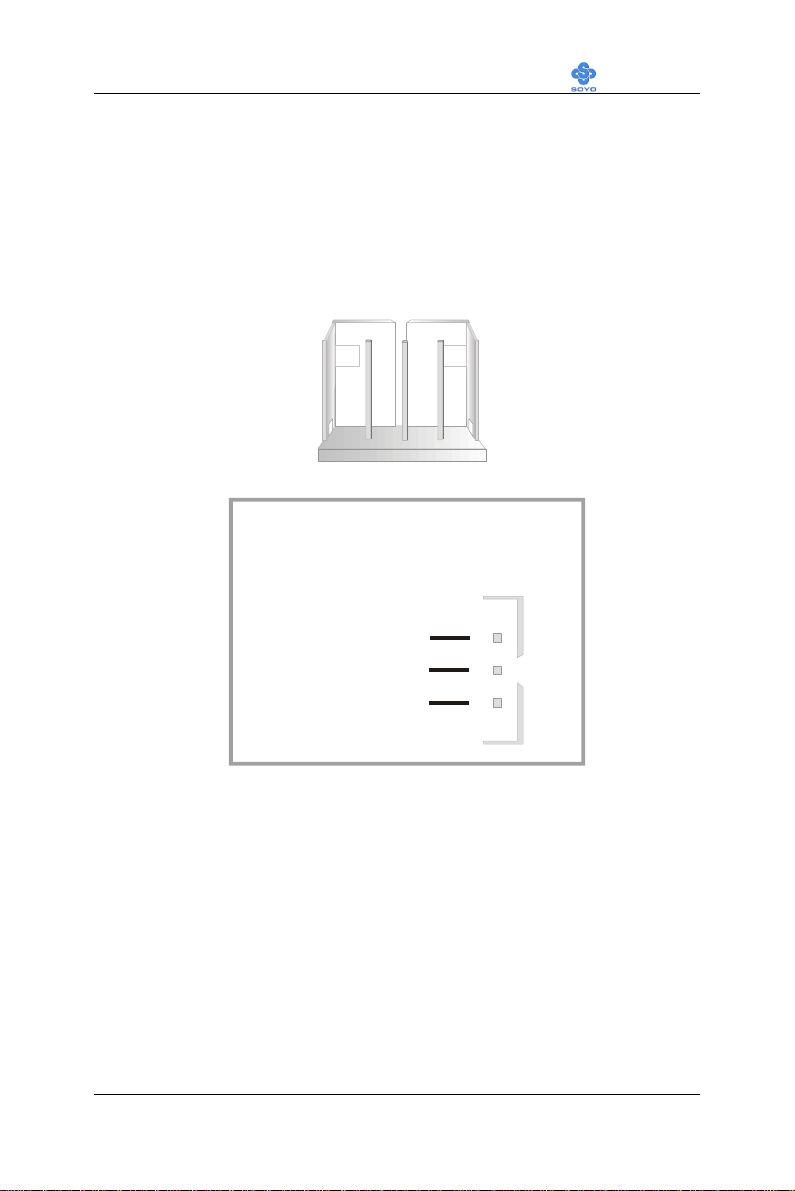

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the WakeOn-LAN (WOL) function to the JP10 header on the Motherboard. This WOL function lets users wake up the connected computer through the LAN card.

Please install according to the following pin assignment:

JP44 Pin Assignment

MP-Wake-up

5VSB 1

GND

3 2

Page 41

Hardware Installation SY-6VCA

Serial Infrared (IR1) Connector

IRTX

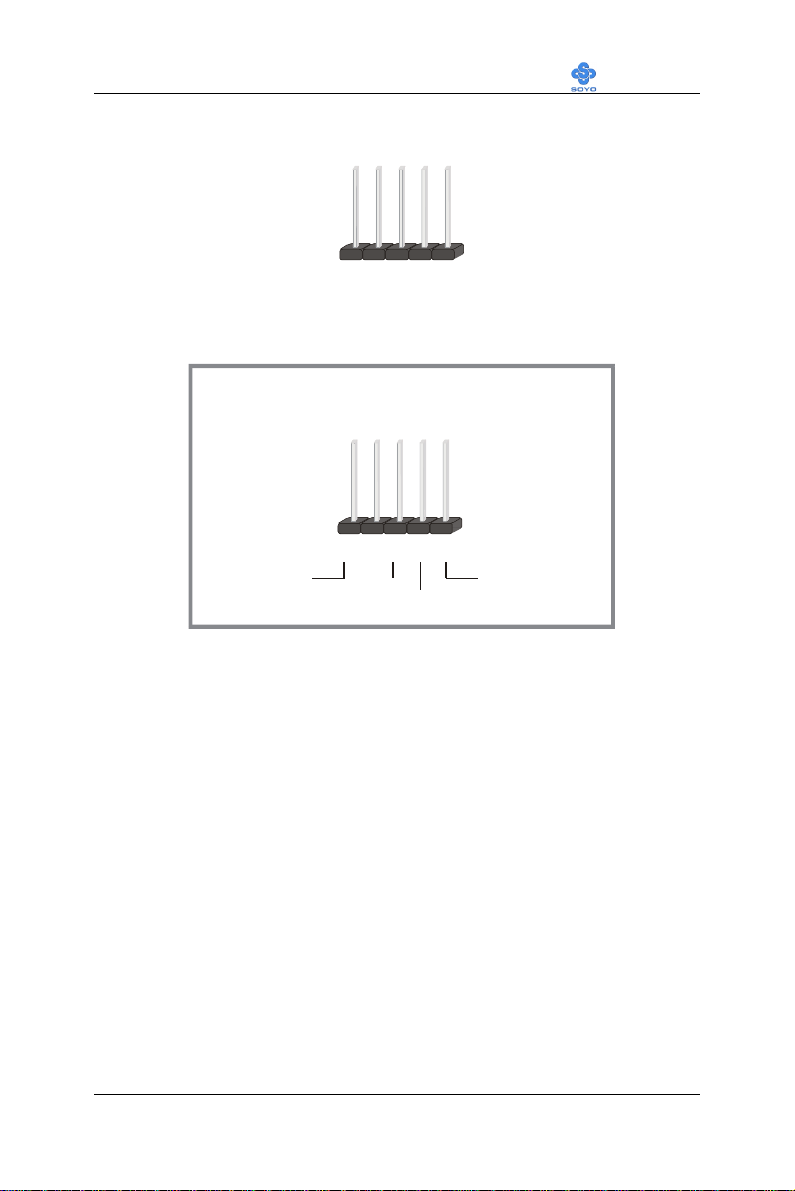

2. Infrared (IR1)

Plug the 5-pin infrared device cable to the IR1 header. This will enable the

infrared transfer function. This Motherboard meets both the ASKIR and HPSIR specifications. Please install according to the following pin assignment:

IR1 Pin Assignment

VCC

IRRX

GND

3. Other Display Cards

Insert other types of VGA cards into the PCI or ISA expansion slots according to card specifications.

Page 42

Hardware Installation SY-6VCA

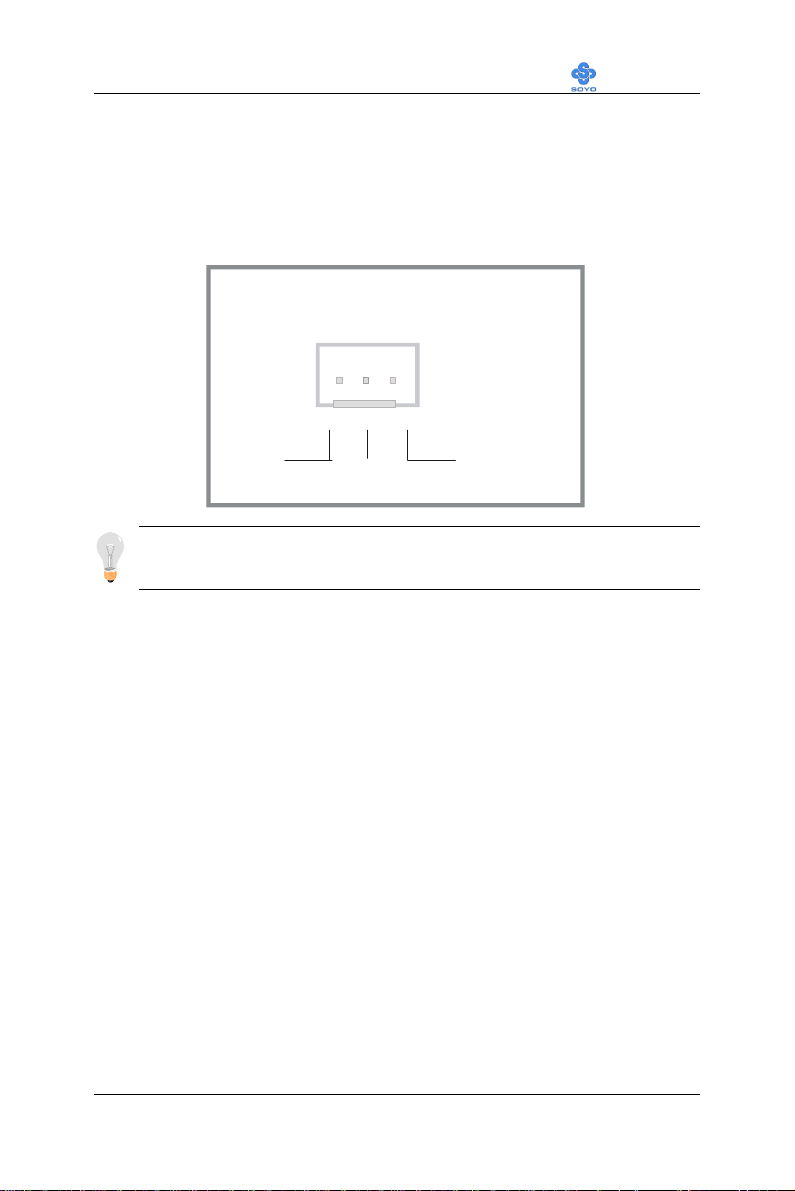

CPU Cooling Fan

CPUFAN Pin Assignment

SENSOR

4. Cooling Fan Installation

(1) CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the 3-pin fan cable to the CPUFAN connector on the Motherboard. The fan will stop when the system enters into Suspend Mode. (Suspend mode can be enabled from the BIOS Setup Utility, [POWER MANAGEMENT] menu.) To avoid damage to the system, install according to the following pin assignment:

132

12VGND

Page 43

Hardware Installation SY-6VCA

SENSOR

(2) Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features a CHAFAN connector to provide 12V power to the chassis fan. Connect the cable from the chassis fan to the CHAFAN 3-pin connector. Install according to the following pin assignment:

Chassis Cooling Fan

CHAFAN Pin Assignment

132

12VGND

Note: CPUFAN must be installed for this Motherboard, CHAFAN is optional.

Page 44

Hardware Installation SY-6VCA

Right

Pin Assigment

Right

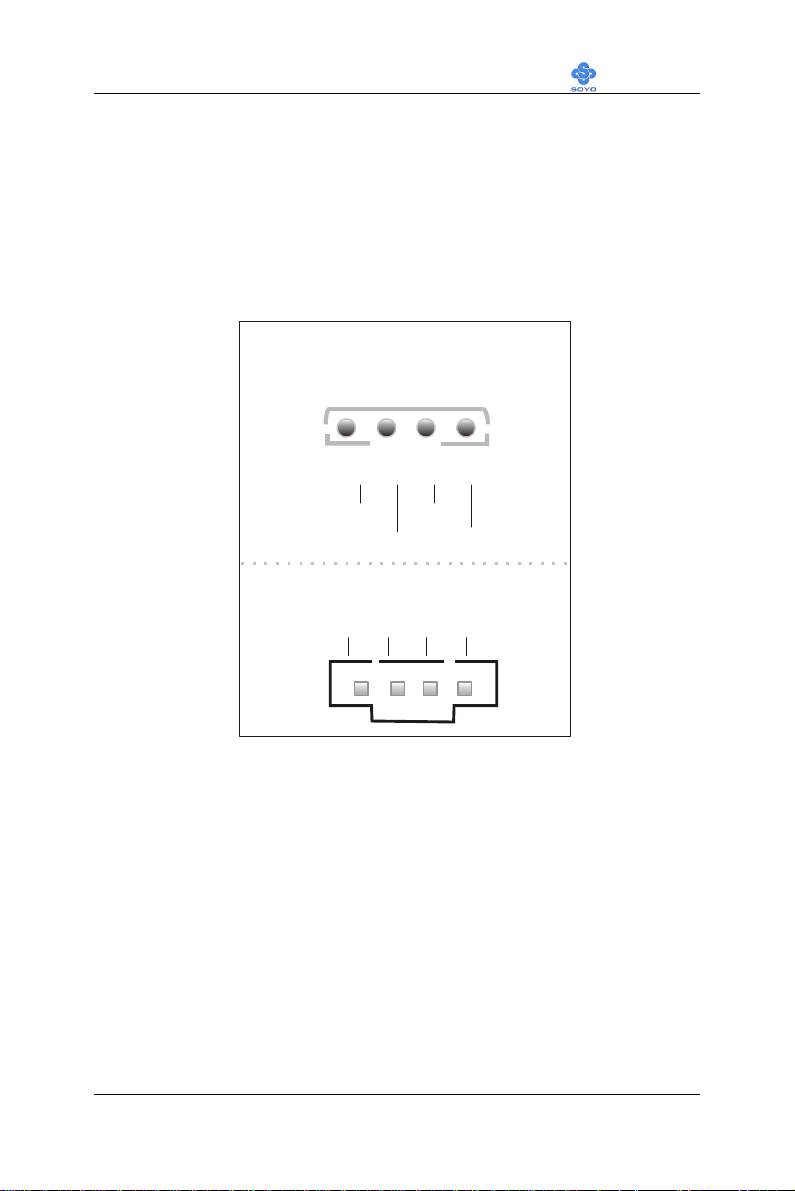

5. CD Line-in (CDIN1,CDIN2)

This Motherboard provides two CD-Line in connectors. Please connect the 4-pin audio cable from your CD-ROM drive to either CDIN1 or CDIN2. (It fits in only one, depending on the cable that came with your CD-ROM drive) Please install according to the following pin assignment:

CDIN1,CDIN2(CD Line-in)

CDIN2

Left

GND

Left

4433221

GND

CDIN1

2-3.3.6 AGP VGA Card

Insert the AGP VGA card into the AGP slot. Then connect the monitor information cable to the AGP card back plane external connector. Follow the manufacturer's instructions to perform the AGP VGA drivers installation.

Page 45

Hardware Installation SY-6VCA

ATX Power

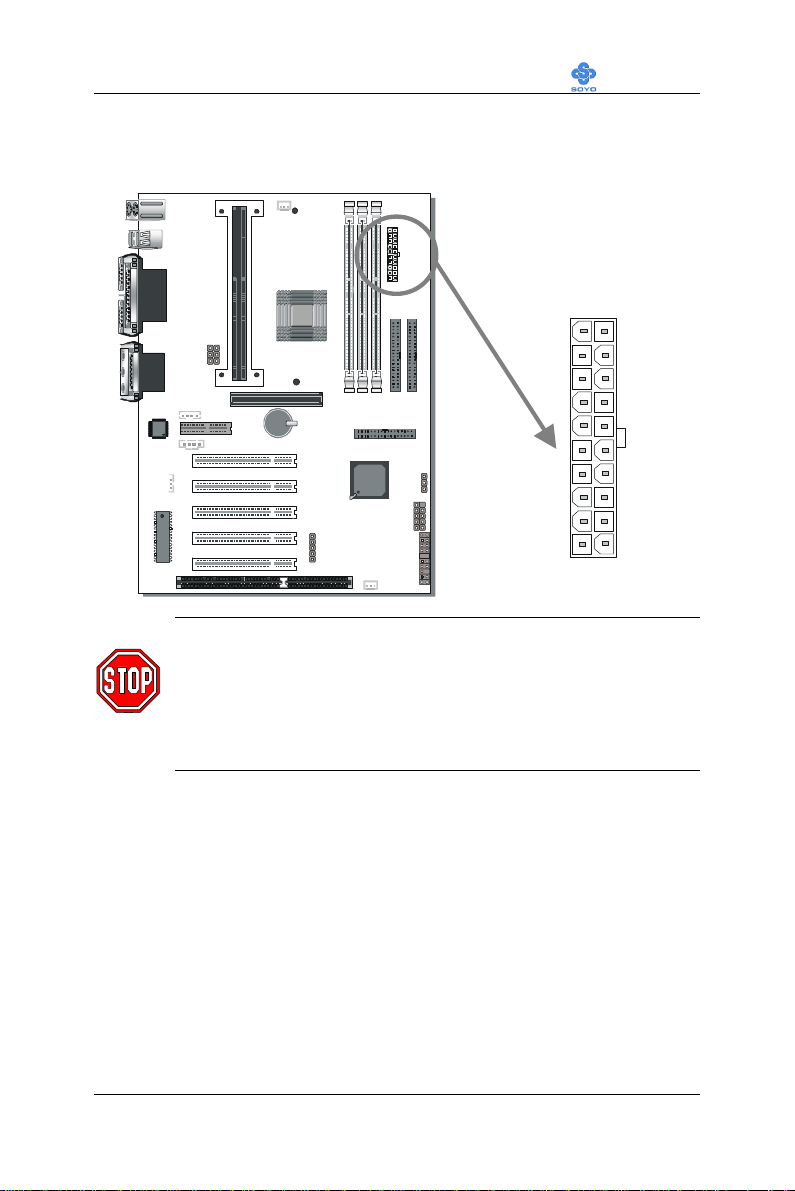

2-3.3.7 ATX Power Supply

Plug the connector from the power directly into the 20-pin male ATX PW connector on the Motherboard, as shown in the following figure.

SDRAM

Warning: Follow these precautions to preserve your Motherboard from any remnant currents when connecting to ATX power supply:

Turn off the power supply and unplug the power cord of the ATX power supply before connecting to ATX PW connector.

The Motherboard requires a power supply with at least 200 Watts and a "power good" signal. Make sure the ATX power supply can take at least 720 mA * load on the 5V Standby lead (5VSB) to meet the standard ATX specification.

* Note: If you use the Wake-On-LAN (WOL) function, make sure the ATX power supply can support at least 720 mA on the 5V Standby lead (5VSB).

Page 46

Hardware Installation SY-6VCA

3.3V

-12V

PS-ON

ATX Power

14253

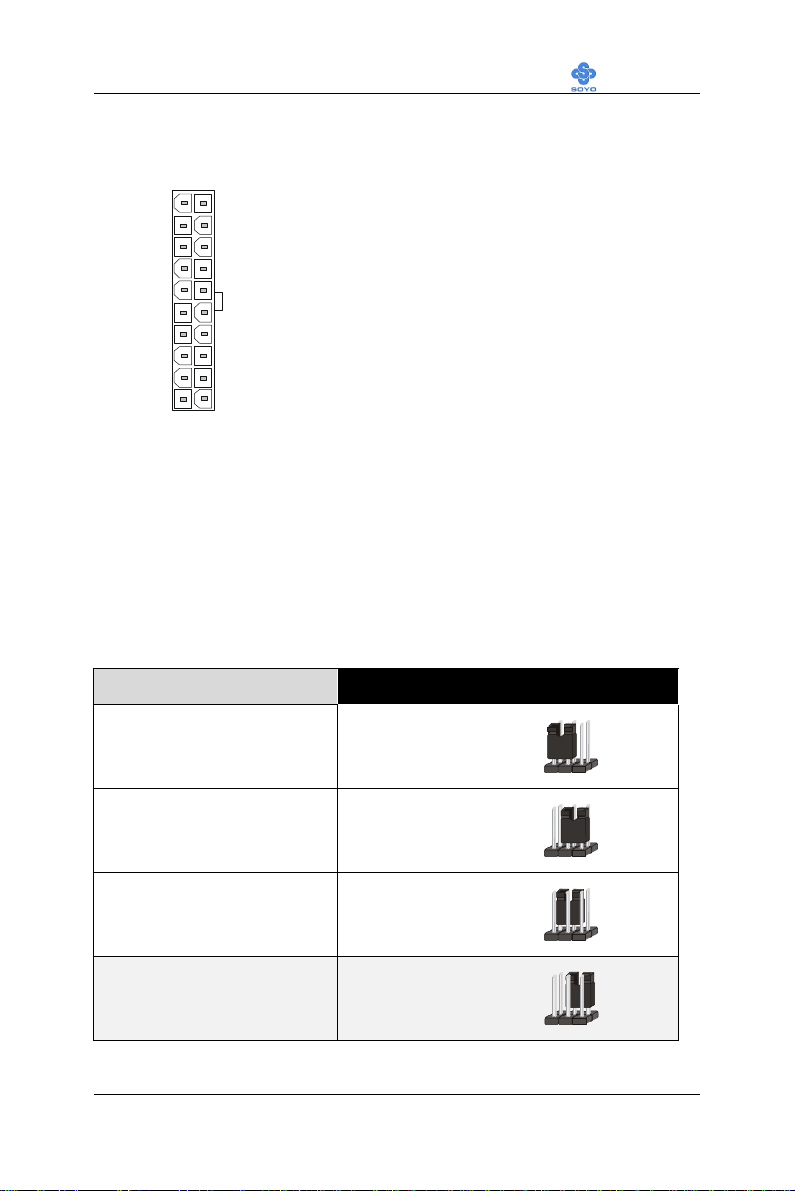

Please install the ATX power according to the following pin assignment:

12V

5VSB

PW-OK

GND

3.3V

5V 5V

-5V GND GND

Ø Pay special care to the directionality.

GND

2-3.4 Jumper Setting

Step 1. CPU Core Voltage Adjust (VJ1)

In case your CPU is running on a frequency higher then it is specified for, increasing its core voltage can enhance its stability. Over-clocking your CPU does however force your system to operate outside of its specifications, and therefore SOYO can not guarantee system stability.

CPU Core Voltage Adjust VJ1 Setting

Default Vcore Short pin 1-2

2.5% higher Short pin 2-3

5% higher Short pin 4-5

7.5% higher Short pin 5-6

Page 47

Hardware Installation SY-6VCA

123

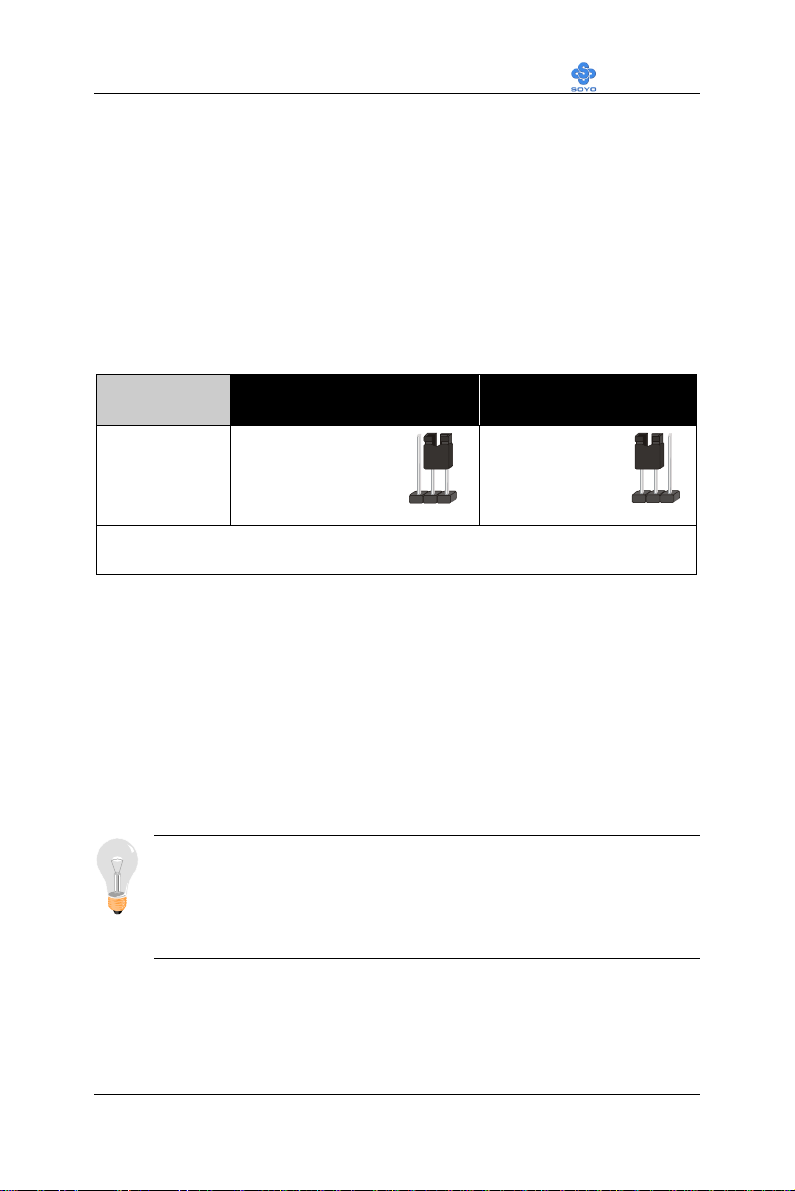

2-3.5 CMOS Clear (JP5)

In some cases the CMOS memory may contain wrong data, follow the steps below to clear the CMOS memory.

1. Clear the CMOS memory by momentarily shorting pin 2-3 on jumper

JP5. This jumper can be easily identified by its white colored cap.

2. Then put the jumper back to 1-2 to allow writing of new data into the

CMOS memory.

CMOS

Clearing

JP5 Setting

Clear CMOS Data Retain CMOS Data

Short pin 2-3 for at least 5 seconds to clear the CMOS

Short pin 1-2 to

retain new

settings

Note: You must unplug the ATX power cable from the ATX power connector when performing the CMOS Clear operation.

2-3.6 Power On

You have now completed the hardware installation of your Motherboard successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the system

is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot up sequence is completed. Then push the RESET button and press <DEL> key again at the beginning of boot-up, during diagnostic checks.

Page 48

Hardware Installation SY-6VCA

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

4SOYO COMBO Feature 4PC Health Status 4Standard CMOS Features Load Optimized Defaults 4Advanced BIOS Features Load Fail - Safe Defaults 4Advanced Chipset Features Set Supervisor Password 4Integrated Peripherals Set User Password 4Power Management Setup Save & Exit Setup 4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

2-3.7 Quick BIOS Setup

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS [SOYO COMBO SETUP]. The [SOYO COMBO SETUP] combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS. After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Follow these steps to configure the CPU settings.

Page 49

Hardware Installation SY-6VCA

Step 1. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to “Auto”.

Step 2. Select [LOAD OPTIMIZED DEFAULTS]

Select the “Load Optimized Defaults” menu and type “Y” at the prompt to load the BIOS optimal setup.

Step 3. Select [SOYO COMBO SETUP]

Move the cursor to the [CPU / PCI Frequency] field to set the CPU frequency.

Available [CPU / PCI Frequency] settings on your SY-6VCA Motherboard are detailed in the following table.

CPU / PCI Frequency

(MHz)

HW Default 109 / 36 MHz 140 / 35 MHz 66 / 33 MHz 112 / 37 MHz 141 / 35 MHz 68 / 34 MHz 114 / 38 MHz 143 / 35 MHz 75 / 37 MHz 115 / 38 MHz 145 / 36 MHz 80 / 40 MHz 118 / 39 MHz 147 / 36 MHz 83 / 41 MHz 120 / 40 MHz 150 / 37 MHz 85 / 28 MHz 124 / 31 MHz 154 / 38 MHz 90 / 30 MHz 126 / 31 MHz 160 / 40 MHz 95 / 31 MHz 129 / 32 MHz 166 / 41 MHz

100 / 33 MHz 133 / 33 MHz 103 / 34 MHz 135 / 33 MHz

Select the working frequency of your Pentium® III, Pentium® II, Celeron processor among these preset values.

Note: Mark the checkbox that corresponds to the working frequency of your Pentium® III, Pentium® II, Celeron processor in case the CMOS configuration should be lost.

105 / 35 MHz 138 / 34 MHz

Step 4. Select [SAVE & EXIT SETUP]

Press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.

Page 50

Hardware Installation SY-6VCA

2-3.8 Troubleshooting at First Start

Video (no display) related issues

I built a new computer system using a Soyo board and nothing happens when turning it on, no video and no beeps from the PC speaker. What is happening and how can it be fixed?

No screen and no beeps mean that your CPU and motherboard do not work at all. It could be that the CPU is not seated correctly or that a component on the M/B is grounded (shorted) with the case. Also make sure to check the voltage setting switch (110V/220V) on the back of the power supply. To isolate the problem do the following:

1. Press and hold down on the “Ins” (insert) key while turning on the computer until you get video. If you do not get video then,

2. Double-check jumpers setting on you motherboard and remove all add-on cards, unplug all hard-disk and floppy-disk drive cables and see if you can hear some beeps. If you still do not get any beeps, then try putting the motherboard on the table (to isolate it from the case) with the CPU and speaker only, and give it one more try.

I hear a series of beeps and I do not get anything from my monitor. What could be wrong?

The following lists some basic beep codes and their possible meanings:

• One long beep and 3 very short beeps - The video card is not

detected by the motherboard. Please re-seat your video card. If you are using an AGP card, please push your AGP card down real hard. You may have to push VERY hard without the AGP card mounting screw. Make sure not to insert the card the other way around.

• Continuous beeps – One or more of the memory modules is not

seated correctly in its socket.

Page 51

Hardware Installation SY-6VCA My PCI VGA card works fine with my system, but when I put in a

new AGP card, it does not give me any video. Is my AGP slot bad?

This is a common problem with AGP video cards. The reason is that your AGP card did not get seated into the AGP slot fully and firmly. Please push your AGP card down into the socket real hard, it should snap twice. You may have to unscrew the AGP card to allow the card to go further down. Do take care not to damage the card by using too much force.

I get distorted video my AGP card right after I save my bios. Why is that?

The cause is likely that your AGP card is not running at the correct bus speed. To fix this, please clear the CMOS via JP5 and if it still does not work, please upgrade your motherboard bios to the latest version.

BIOS Issues

Where can I find the BIOS revision of my mainboard?

It will be displayed on the up-left corner on the screen during boot-up. It will show as your board type followed by the revision number, such as 5EH_2CA1 (meaning revision 2CA1 for the SY-5EH board) or 6BA+ IV_2AA2 which means SY-6BA+ IV motherboard with 2AA2 bios.

Where can I find the latest BIOS of my motherboard?

Please go to the technical support page of one of the SOYO websites (Taiwan: www.soyo.com.tw), and look up your motherboard to find the latest BIOS revision.

Hard disk, floppy drive, CD-ROM etc

When I boot up my new computer I got "floppy boot failure" and the LED on the floppy stays on

Make sure the red wire of floppy ribbon cable goes to Pin1 on the floppy drive side (don't trust the "key lock" or "notch") and use the end-connector of the cable (don't use middle one).

Modem issues

I get an "I/O Conflict" message when I turn on my system and I can not get my modem to work

Page 52

Hardware Installation SY-6VCA

What you need to do is to disable 'COM2' (or UART2 or serial port 2) in the bios under integrated peripheral setup.

I have installed my modem drivers several times and I still cannot get my modem to work. Why?

If you are sure that the modem driver has been installed correctly, then you need to install the VIA 4 in 1 driver from the SOYO CD, this is because Windows does not properly recognize relatively new chipsets.

Audio Issues

I do not get any sound from my sound card. What could be wrong?

Please make sure the speaker is connected to the speaker out port on your sound card.

In Device Manager, I keep getting yellow exclamation signs on my sound port even though I have installed my sound driver several times and I could not get my sound card to work. What is wrong?

It is likely that you did not have the correct driver installed. If you are sure that the correct sound driver has been installed, then please install the 'VIA 4 in 1' driver for the motherboard.

The sound is working in my system, but when I play CD music from the CD-ROM, I do not get any sound. What is wrong?

This is because the 3-wire audio cable from the CD-ROM to the sound card is not connected or it is loose.

The sound from my sound card is distorted when Windows starts. What is wrong?

First, if you are using an ISA sound card, please make sure the IRQ needed for the sound card is set to 'Legacy ISA' in the bios. In other words, if your ISA sound card takes IRQ5, then set IRQ5 to 'Legacy ISA'. Next, install the ' VIA 4 in 1' driver for the motherboard.

The sound and everything else works fine except that the recorder and microphone do not work. What is wrong?

Page 53

Hardware Installation SY-6VCA

This is because the recorder and microphone in the Windows are not enabled. Please go to sound properties and enable them.

Lock up (freeze)

When I boot up my system, everything works fine. It sees my CPU and memory, detects my hard drive, floppy drive and CD-ROM but locks up at "Verify DMI pool data... ", and it won’t go any further. What should I do?

Please clear the CMOS via JP5 then choose 'load optimized default' in the bios and save the bios and exit. Next, unplug all other add-on cards except the video card and floppy drive controller, and see if it can boot from floppy. Then put back the peripherals one by one to identify which one causes the lockup. If you are running a Cyrix CPU, make sure the 'linear burst function' is enabled in the bios.

I can not get my board to run properly.

Please make sure you have the latest bios and driver from the SOYO web site at: http://www.soyo.com

Note on Over-clocking Capability

The SY-6VCA provides over-clocking capability. Due to the overclocking setting your system may fail to boot up or hang during run time. Please perform the following steps to recover your system from the abnormal situation :

1. Turn off system power (If you use an ATX power supply, and

depending on your system, you may have to press the power button for more than 4 seconds to shut down the system.)

2. Set the JP8 and JP9 to short if you use a FSB 66MHz CPU

3. Press and hold down the <Insert> key while turning on the system

power. Keep holding down the <Insert> key until you see the message of the CPU type and frequency shown on the screen.

Page 54

Hardware Installation SY-6VCA

4. Press the <Del> key during the system diagnostic checks to enter the

Award BIOS Setup program.

5. Select [SOYO COMBO SETUP] and move the cursor to the [CPU /

PCI Frequency] field to set the proper working frequency.

6. Select [Save & Exit SETUP] and press <Enter> to save the new

configuration to the CMOS memory, and continue the boot sequence.

Note: SOYO does not guarantee system stability if the user over clocks the system. Any malfunctions due to over-clocking are not covered by the warranty.

2-3.9 Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows 95/98

to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the power-button for less than 4 seconds, then your system will enter into Suspend Mode.

You are now ready to configure your system with the BIOS setup program. Go to Chapter 3: BIOS SETUP

Page 55

BIOS Setup Utility SY-6VCA

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA BIOS program from Award Software Inc. To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the Award

BIOS Setup Utility.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

4SOYO COMBO Feature 4PC Health Status 4Standard CMOS Features Load Fail - Safe Defaults 4Advanced BIOS Features Load Optimized Defaults 4Advanced Chipset Features Set Supervisor Password 4Integrated Peripherals Set User Password 4Power Management Setup Save & Exit Setup 4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Selecting items

l Use the arrow keys to move between items and select fields. l From the Main Menu press arrow keys to enter the selected submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected fields.

Some fields let you enter values directly.

Page 56

BIOS Setup Utility SY-6VCA Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

General Help Previous

Values Load FailSafe Defaults

Gives the list of options available for each item. Restore the old values. These are the values that the user started the current session with. Loads all items with the most conservative values.

Load

Optimized

Loads all options with the optimize values.

Defaults

F10

[Esc] Exit

[Enter]

Save Saves your changes and reboots the system.

Returns at anytime and from any location to the Main Menu.

Select

Will display a overlapping window with all options for the current item. Using the +, –, Page Up and Page Down

[+/–/PU/PD] Value

keys the user can toggle the value of the current item.

Page 57

BIOS Setup Utility SY-6VCA

Esc

F10

(Shift) F2

Esc

F10

(Shift) F2

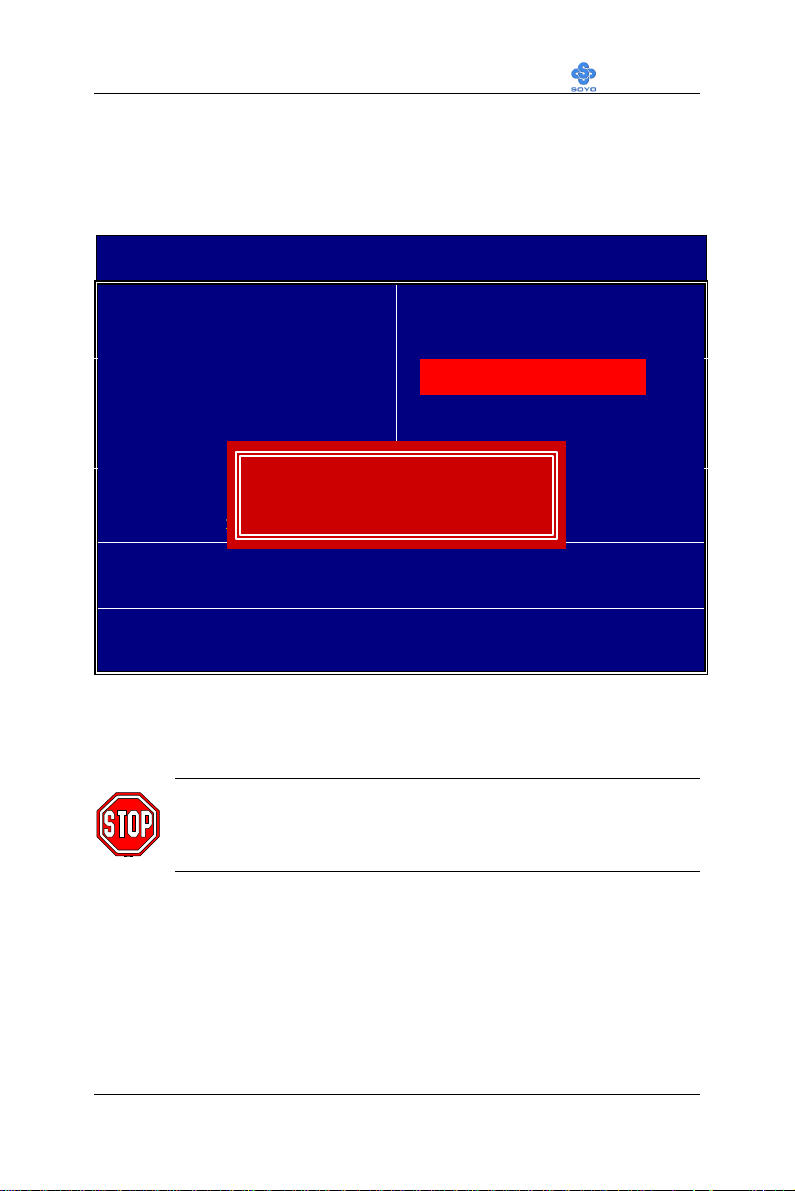

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to save data to CMOS and exit the setup utility. This option saves all your changes and causes the system to reboot.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

: Quit : Save & Exit Setup

AWARD SOFTWARE, INC.

SAVE to CMOS and EXIT

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

Type [Y] to save the changes and exit or [N] to return to the Main Menu and keep current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to abandon all data and exit setup, therefore ignoring all your changes.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

: Quit : Save & Exit Setup

AWARD SOFTWARE, INC.

Quit Without Saving (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

Type [Y] to abandon changes and exit or [N] to return to the Main Menu and keep current values.

Page 58

BIOS Setup Utility SY-6VCA

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS

[SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Then, select the [SOYO COMBO SETUP] option from the main menu and press the <Enter> key.

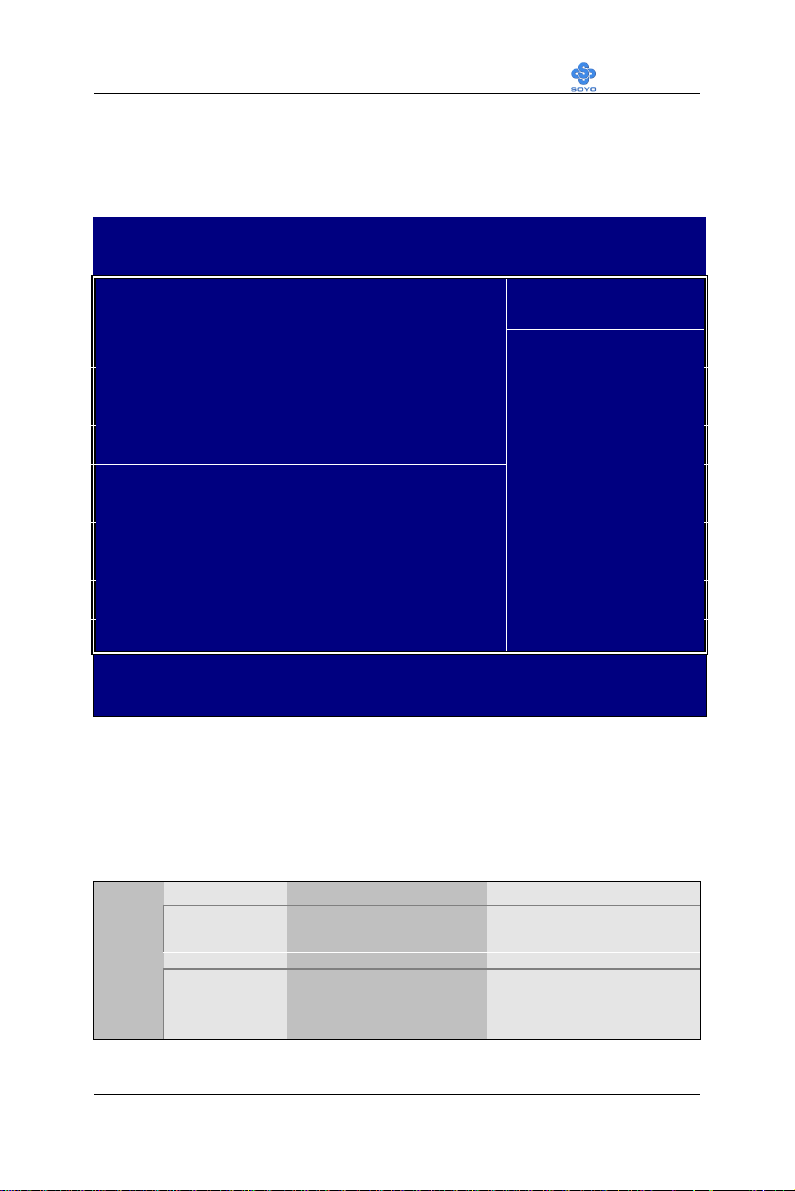

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

SOYO COMBO Feature

CPU/PCI Frequency HW Default CPU Ratio X 3 CPU L2 Latency Control Default

x CPU L2 Latency Value 0

CPU L2 Cache ECC Checking Enabled C.I.H. 4-WAY Protection Enabled Processor Number Feature Disabled Quick Power On Self Test Enabled

First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device LS/ZIP Boot Other Device Enabled

OnChip Sound Auto OnChip Modem Auto

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Item Help

The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS.

Page 59

BIOS Setup Utility SY-6VCA

3-1.1 Quick CPU Frequency Setup

Quick CPU Frequency Setup

Setting Description Note

CPU Host/PCI Clock

CPU Ratio

HW Default 120/40 MHz 66/33 MHz 124/31 MHz 68/34 MHz 126/31 MHz 75/37 MHz 129/32 MHz 80/40 MHz 133/33 MHz 83/41 MHz 135/33 MHz 85/28 MHz 138/34 MHz 90/30 MHz 140/35 MHz 95/31 MHz 141/35 MHz 100/33 MHz 143/35 MHz 103/34 MHz 145/36 MHz 105/35 MHz 147/36 MHz 109/36 MHz 150/37 MHz 112/37 MHz 154/38 MHz 114/38 MHz 160/40 MHz 115/38 MHz 166/41 MHz 118/39 MHz

After you have selected the host clock, choose the right multiplier for the CPU. Options are: [2, 2.5, 3., 3.5, 4, 4.5, 5,

5.5,6,6.5,7.0,7.5,8.0]. The CPU frequency is then defined as [host clock freq.]x[multiplier], and should the working frequency of your Pentium® III & Pentium® II processor.

Select the host clock of your Slot 1 processor among these values. Note: For the Via 694X chipset, 66 and 100 and 133 MHz host clock frequencies are acceptable. However, the system stability is not guaranteed for other frequencies due to the limitations of this chipset.

Page 60

BIOS Setup Utility SY-6VCA

3-1.2 L2 Cache Memory

Setting Description Note

CPU L2 Latency Control

CPU L2 Latency Value

Default Default Manual

1~15 If the item above is set to

If set to Default, the CPU default value for L2 cache latency is used. If set to manual, the ‘Latency Value’ item will allow you to specify a latency value.

‘manual’, a latency value ranging from 1 to 15 can be set. The smaller the number, the faster the performance. However, the system may become unstable at higher speeds.

Page 61

BIOS Setup Utility SY-6VCA

L2 Cache Memory (Continued)

Setting Description Note

CPU L2 Cache ECC Checking

Disabled Enabled

This option activates the CPU L2 cache ECC checking function.

3-1.3 C.I.H. 4-WAY Protection Settings

Setting Description Note

C.I.H. 4WAY Protection

Disabled Enabled

When set to enabled, the BIOS can only be programmed through AWDFLASH, making sure that any virus is unable to program the system BIOS. Set to disable the BIOS can be programmed the traditional way.

3-1.4 Processor Number Feature

Setting Description Note

Processor Number Feature

Disabled Default Enabled

Setting this item to enabled will allow application programs to read the IDcode in your Pentium III CPU, disabling this item will not allow any program to read the CPU ID code.

3-1.5 Quick Power On Self Test

Setting Description Note

Default

Quick Power On Self Test

Disabled Enabled Provides a fast POTS at boot-up. Default

Page 62

BIOS Setup Utility SY-6VCA

3-1.6 System Boot Control Settings

System Boot Control Settings

Setting Description Note

First /Second/Third Boot Device

Boot Other Device

OnChip Sound/Mode m

Floppy LS/ZIP HDD-0 SCSI CDROM HDD-1 HDD-2 HDD-3 LAN Disabled

Disabled Enabled

Disabled Auto

Select Your Boot Device Priority

This item allows you to control the onboard AC 97 audio/ MC 97 Modem.

Default

Page 63

BIOS Setup Utility SY-6VCA

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu and press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Standard CMOS Features

Date (mm:dd:yy) Fri, Jan 1 1999 Time (hh:mm:ss) 1 : 22 : 12

4 IDE Primary Master Press Enter None 4 IDE Primary Slave Press Enter None 4 IDE Secondary Master Press Enter None 4 IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5 in. Drive B None Floppy 3 Mode Support Disabled

Video EGA/VGA Halt On All Errors

Base Memory 640K Extended Memory 30720K Total Memory 31744K

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Item Help

This screen allows you to modify the basic CMOS settings. After you have completed the changes, press [Esc] key to return to the Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date

mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to toggle

Time

hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as 15:15:00

Page 64

BIOS Setup Utility SY-6VCA

3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already installed.

Primary (Secondary) Master & Slave

Setting Description Note

IDE HDD AutoDetection

IDE Primary Slave (User Type)

Press Enter

Auto BIOS detects hard disk type

User User defines the type of hard disk.

To auto-detect the HDD’s size, head… on this channel

automatically.

None

Access Mode

Auto BIOS detects hard disk mode

automatically. Normal Normal IDE hard disk <528MB LBA Enhanced IDE hard disk >528MB Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or mode, ask your hard disk provider or previous user for details.

3-2.3 Floppy Drives

Floppy Drives Setting Description Note Drives A & B

360KB, 5.25 in.

1.2MB, 5.25 in. 720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in. None Not installed

Default

Floppy 3-Mode Support

Disabled Default Drive A Drive B Both

Supports 3-mode floppy diskette: 740KB/1.2MB/

1.44MB on selected disk drive.

Special disk drive commonly used in Japan

Page 65

BIOS Setup Utility SY-6VCA

3-2.4 Others Optional

Setting Description Note

Video

Halt On

EGA/VGA Default CGA 40 CGA 80 MONO (Monochrome)

ALL Errors Default No Errors All, But Keyboard All, But Diskette All, But Disk/Key

Select the video mode.

When the BIOS detects system errors, this function will stop the system. Select which type of error will cause the system halt.

Page 66

BIOS Setup Utility SY-6VCA

3-3 ADVANCED BIOS FEATURES

Select the [Advanced BIOS Features] option from the Main Menu and press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Advanced BIOS Features

Anti-Virus Protection Enabled CPU Internal Cache Enabled External Cache Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Disabled Boot Up NumLock Status On Gate A20 Option Fast

Typematic Rate Setting Disabled

x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250

Security Option Setup

OS Select For DRAM > 64MB Non-OS2

Report No FDD For WIN 95 Yes

Video BIOS Shadow Enabled

C8000-CBFFF Shadow Disabled

CC000-CFFFF Shadow Disabled

D0000-D3FFF Shadow Disabled

D4000-D7FFF Shadow Disabled

D8000-DBFFF Shadow Disabled

DC000-DFFFF Shadow Disabled

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level 4

After you have completed the changes, press [Esc] key and follow the instructions on your screen to save your settings or exit without saving.

Page 67

BIOS Setup Utility SY-6VCA

3-3.1 Virus Warning

Setting Description Note Anti - Virus Protection

Disabled

Enabled

If set to enabled, the Paragon Anti-Virus. Function will scan your boot drive for boot virusses. If a boot virus is detected, the BIOS will display a warning message.

Default

3-3.2 Cache Memory Options

Setting Description Note

CPU Internal Cache

Disabled Enabled Enables the CPU's internal

cache.

Default

External Cache

Disabled Enabled Enables the external

memory.

3-3.3 Floppy Driver Settings

Setting Description Note

Swap Floppy Drive

Disabled Default Enabled Changes the sequence of A and B

drives.

3-3.4 Boot Up Floppy Seek

Setting Description Note

Boot Up Floppy Seek

Disabled Seeks disk drives during boot up.

Disabling speeds boot up.

Enabled

3-3.5 Boot Up NumLock Status

Setting Description Note

Boot Up NumLock Status

On Puts numeric keypad in

NumLock mode at boot-up.

Off Puts numeric keypad in arrow key

mode at boot-up.

Default

Page 68

BIOS Setup Utility SY-6VCA

3-3.6 Gate A20 Options

Setting Description Note

Gate A20 Options

Normal Lets chipset control GateA20. Fast A pin in the keyboard controller

Default

controls GateA20.

3-3.7 Typematic Settings

Typematic Settings Setting Description Note Typematic

Rate Setting

Disabled Keystrokes repeat at a rate

determined by the keyboard.

Enabled When enables , the

typematic rate and typematic delay can be selected.

The following [Typematic Rate] and [Typematic Delay] fields are active only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate

6 (Char/sec) 8 (Char/sec) 10 (Char/sec) 12 (Char/sec) 15 (Char/sec) 20 (Char/sec) 24 (Char/sec) 30 (Char/sec)

Choose the rate at which a character is repeated when holding down a key.

Default

Typematic Delay

250 (msec) 500 (msec) 750 (msec) 1000 (msec)

Choose how long after you press a key down the character begins repeating.

Default

Page 69

BIOS Setup Utility SY-6VCA

3-3.8 Security Option

Use this feature to prevent unauthorized system boot-up or use of BIOS Setup. The following table describes the security settings.

Setting Description

Security Option

System Each time the system is booted, the

password prompt appears.

Setup If a password is set, the password prompt

only appears when you attempt to enter the BIOS Setup program.

3-3.9 Other Control Options

Other Control Options

Setting Description Note

OS Select for DRAM>64MB

Report No FDD For WIN 95

Video BIOS Shadow

OS2 When using an OS2 operating

system.

Non-OS2 When using another,

non-OS2 operating system.

Yes Windows will release IRQ line 6

(normally used by the Floppy Disk Drive) after you disable your on-board FDD and set this field to [Yes].

No Windows will reserve INT 6 for

your FDD, whether it is disabled or not.

Disabled Enabled The BIOS is shadowed in a 16K segment if it is enabled and if it has BIOS present. These 16 segments can be shadowed from ROM to RAM. BIOS shadow copies BIOS code from slower ROM to faster RAM. BIOS can then execute from RAM.

Default

Page 70

BIOS Setup Utility SY-6VCA

3-4 ADVANCED CHIPSET FEATURES

Caution: Change these settings only if you are already familiar with the Chipset.

The [Advanced Chipset Features] option changes the values of the chipset registers. These registers control the system options in the computer.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Advanced Chipset Features

Bank 0/1 DRAM Timing SDRAM 10ns Bank 2/3 DRAM Timing SDRAM 10ns Bank 4/5 DRAM Timing SDRAM 10ns

SDRAM Cycle Length 3 Bank Interleave 4 way DRAM Clock Host CLK Memory Hole Disabled P2C/C2P Concurrency Enabled Fast R-W Turn Around Enabled System BIOS Cacheable Disabled Video RAM Cacheable Disabled AGP Aperture Size 64M AGP-4 Mode Enabled AGP Driving Control Auto

x AGP Driving Value DA

OnChip USB Enabled USB Keyboard Support Disabled CPU to PCI Write Buffer Enabled PCI Dynmic Bursting Enabled PCI Master 0 WS Write Enabled PCI Delay Transaction Enabled PCI#2 Access #1 Retry Enabled AGP Master 1 WS Write Disabled AGP Master 1 WS Read Disabled Memory Parity/ECC Check Disabled 6

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Item Help

Page 71

BIOS Setup Utility SY-6VCA

After you have completed the changes, press [Esc] and follow the instructions on your screen to save your settings or exit without saving. The following table describes each field in the Advanced Chipset Features Menu and how to configure each parameter.

3-4.1 CHIPSET FEATURES SETUP

CHIPSET FEATURES

Setting Description Note

Bank 0/1, 2/3, 4/5 DRAM Timing

SDRAM Cycle Length

Bank Interleave

DRAM Clock

Memory Hole

SDRAM 10ns EDO 50ns, EDO 60ns, Slow, Medium, Fast, Turbo.

2 3

Disabled 2 way 4 way

HCLK-33M Default

Host Clock

Disabled Default Enabled Some interface cards will map their

This item allows you to select the value in this field, depending on whether the board has paged DRAMs or EDO (extended data output) DRAMs.

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.

Increase DRAM performance.

This item allows you to control the DRAM speed.

ROM address to this area. If this occurs, select [Enabled] in this field.

Default

P2C/C2P Concurrency

Fast R-W Turn Around

Disabled Enabled

Disabled

Enabled

This item allows you to enable/disable the PCI to CPU, CPU to PCI concurrency

This item controls the DRAM timing. It allows you to enable/ disable the fast read/write turn around.

Default

Page 72

BIOS Setup Utility SY-6VCA

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

System BIOS Cacheable

Video RAM Cacheable

AGP Aperture Size

AGP-4 Mode

AGP Driving Control

Disabled Enabled The ROM area F0000H-FFFFFH is

cacheable.

Disabled Default Enabled

64M Default 4M, 8M, 16M, 32M, 128M, 256M.

Disabled Enabled

Auto Default Manual

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer

Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.

This item allows you to enable / disable the AGP-4X Mode.

This item allows you to adjust the AGP driving force. Choose Manual to key in a AGP Driving Value in the next selection. This field is recommended to set in Auto for avoiding any error in your system.

Default

AGP Driving Value

OnChip USB

Min=0000 ~ Max=00FF

Disabled Enabled

This item allows you to adjust the AGP driving force.

This should be enabled if your system has a USB installed on the system board and you want to use it. Even when so equipped, if you add a higher performance controller, you will need to disable this feature.

Default

Page 73

BIOS Setup Utility SY-6VCA

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

USB Keyboard Support

CPU to PCI Write Buffer

PCI Dynmic Bursting

PCI Master 0 WS Write

Disabled Default Enabled Select Enabled if your system

contains a Universal Serial Bus (USB) controller and you have a USB keyboard.

Disabled Enabled

Disabled Enabled When Enabled, writes to the PCI

When this field is Enabled, writes from the CPU to the PCI bus are buffered, to compensate for the speed differences between the CPU and the PCI bus. When Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle.

When Enabled, every write transaction goes to the write buffer. Burstable transactions then burst on the PCI bus and nonburstable transactions don’t.

bus are executed with zero wait states.

Default

PCI Delay Transaction

PCI#2 Access #1 Retry

Disabled Enabled

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

When disabled, PCI#2 will not be disconnected until access finishes (difault). When enabled, PCI#2 will be disconnected if max retries are attempted without success.

Default

Page 74

BIOS Setup Utility SY-6VCA

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

AGP Master 1 WS Write

AGP Master 1 WS Read

Memory Parity/ECC Check

Disabled Default Enabled When Enabled, writes to the

AGP(Accelerated Graphics Port) are executed with one wait states.

Disabled Default Enabled When Enabled, read to the AGP

(Accelerated Graphics Port) are executed with one wait states.

Disabled Default Enabled This item enabled to detect the

memory parity and Error Checking & Correcting.

Page 75

BIOS Setup Utility SY-6VCA

3-5 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of the chipset registers. These registers control the system options in the computer. The following screen shows setup default settings.

Integrated Peripherals

OnChip IDE Channel0 Enabled OnChip IDE Channel1 Enabled IDE Prefetch Mode Enabled Primary Master PIO Auto Primary Slave PIO Auto Secondary Master PIO Auto Secondary Slave PIO Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto Init Display First PCI Slot IDE HDD Block Mode Enabled Onboard FDD Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3

UART 2 Mode Standard

x IR Function Duplex Half x TX,RX inverting enable No, Yes

Onboard Parallel Port 378/IRQ7

Onboard Parallel Mode Normal

x ECP Mode Use DMA 3 x Parallel Port EPP Type Epp1.9

Onboard Legacy Audio Enabled

Sound Blaster Disabled

SB I/O Base Address 220H

SB IRQ Select IRQ 5

SB DMA Select DMA 1

MPU-401 Disabled

MPU-401 I/O Address 330-333H

Game Port (200-207H) Enabled 6

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Item Help

Page 76

BIOS Setup Utility SY-6VCA

The following tables describe each field in the INTEGRATED PERIPHERALS Menu and provide instructions on how to configure the IDE controls, FDC controls, and the onboard serial and parallel ports.

3-5.1 IDE Device Controls

IDE Controls Setting Description Note On-Chip PCI IDE

Ø Primary Ø Secondary

IDE

Ø Primary Master PIO Ø Primary Slave PIO Ø Secondary Master PIO

Ø Secondary Slave PIO

Disabled Turn off the on-board

IDE

Enabled Use the on-board IDE Default mode 0-4 0 is the slowest speed

4 is the fastest speed

Auto For better performance

Default and stability, we suggest you use the Auto setting to set the HDD control timing.

IDE

Ø Primary Master UDMA Ø Primary Slave UDMA Ø Secondary Master UDMA Ø Secondary Slave UDMA

Disabled Auto Select Auto to enable

Ultra DMA Mode support.

Default

3-5.2 Keyboard Controls

Keyboard Controls Setting Description Note Init Display First

PCI Slot Default AGP

Choose which card – AGP Display card or PCI VGA card – to initialize first.

3-5.3 IDE HDD Block Mode

Setting Description Note

IDE HDD Block Mode

Disabled Enabled Invokes multi-sector

Default transfer instead of one sector per transfer. Not all HDDs support this function.

Page 77

BIOS Setup Utility SY-6VCA

3-5.4 FDC Controls

FDC Controls Setting Description Note Onboard FDD

controller

Disabled Turn off the on-board

floppy controller

Enabled Use the on-board floppy

controller

3-5.5 Onboard Serial Ports

Onboard Serial Ports

Onboard Serial Port 1 / Serial Port 2

UART Mode Select

If [UART Mode Select] is set to [IrDA]/[ASKIR]

IR Function Duplex

Setting Description Note

Disabled 3F8/IRQ4 Default

2F8/IRQ3 Default

3E8/IRQ4 2E8/IRQ3 Auto

Standard Default IrDA ASKIR

Half Default Duplex

Choose serial port 1 & 2's I/O address. Do not set port 1 & 2 to the same address except for Disabled or Auto.

The second serial port offers these InfraRed interface modes.

Choose [Half] or [Duplex] to set UR2 in half duplex mode or full duplex mode respectively. Refer to your IR device specifications to select the suitable mode.

Default

(port 1)

(port 2)

TX,RX inverting enable

No,Yes Default No, No/ Yes, No/ Yes, Yes.

This item allow you to enable the TX, RX inverting which depends on different H/W requirement. This field is not recommended to change its default setting for avoiding any error in your system

Page 78

BIOS Setup Utility SY-6VCA

If [Parallel Port Mode] is set to [ECP] mode

If [Parallel Port Mode] is set to [EPP] mode

3-5.6 Onboard Parallel Ports

Onboard Parallel Ports

Setting Description Note

Onboard Parallel Port

Parallel Port Mode

ECP Mode use DMA

Parallel Port EPP TYPE

Disabled 378/IRQ7 Default 3BC/IRQ7 278/IRQ5

Normal Default EPP ECP ECP+EPP

3 Choose DMA3 Default 1 Choose DMA1

EPP 1.9 Select EPP port type 1.9 EPP 1.7 Select EPP port type 1.7 Default

Choose the printer I/O address.

The mode depends on your external device that connects to this port.

3-5.7 Onboard Legacy Audio

This field controls the onboard legacy audio.

Setting Description Note

Onboard Legacy Audio

Disabled Enabled

Set this item to Enabled if using software (like DOS games) that needs a ‘legacy’ audio device.

Default

Sound Blaster

SB I/O Base Address

SB IRQ Select

SB DMA Select

Disabled Default Enabled

220H Default

IRQ 5 Default

DMA1 Default

Set this item to enabled if your onboard audio-chip is sound Blaster compatible.

Select the base address for your sound Blaster (SB) compatible Audio IC.

Select the IRQ your SB Audio IC uses.

Select the DMA channel your SB Audio IC uses.

Page 79

BIOS Setup Utility SY-6VCA

Onboard Legacy Audio (Continued)

This field controls the onboard legacy audio.

Setting Description Note

MPU-401

MPU-401 I/O Address

Game Port (200-207H)

Disabled Default Enabled

330333H

Disabled Enabled

Set this item to enabled to make use of MIPI.

Select the I/O address for your MIDI functionality.

Set this item to enabled to make use of the game port.

Default

Page 80

BIOS Setup Utility SY-6VCA

3-6 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power saving functions.

Power Management Setup

ACPI Function Enabled Item Help Power Management Press Enter PM Control by APM Yes Video Off Option Suspend -> Off Video Off Method V/H SYNC+Blank MODE Use IRQ 3 Soft-Off by PWRBTN Instant-Off State After Power Failure Off Wake Up Events Press Enter

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Wake Up Events

VGA OFF Item Help LPT & COM LPT/COM HDD & FDD ON PCI Master OFF PowerOn by PCI Card Disabled Modem Ring Resume Disabled RTC Alarm Resume Disabled

Primary INTR ON IRQs Activity Monitoring Press Enter

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Menu Level 4

Page 81

BIOS Setup Utility SY-6VCA

After you have completed the Power Management Setup, press [Esc] to return to the Main Menu.

3-6.1 Power Management Controls

Power Management Controls

Setting Description Note

ACPI function

Power Management

PM Control by APM

Video Off Option

Disabled Enabled ACPI (Advanced Configuration

Power Management Interface)

User Define Lets you define the HDD and

system power down times. Doze timer

Min Saving 1 Hour 1 Hour 1 Hour 15 Min Max Saving 1 Min 1 Min 1 Min 1 Min

Yes Default NO

Suspend --> Off Always On Susp,Stby --> Off All Modes -> Off

When enabled, an Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU internal clock. If Advance Power Management (APM) is installed on your system, selecting Yes gives better power savings.

When enabled, this feature allows the VGA adapter to operate in a power saving mode.

Standby timer

Suspend timer

Default

HDD power down

Default

Video Off Method

V/H Sync+Blank Blank screen DPMS

Selects the method by which the monitor is blanked.

Default

Page 82

BIOS Setup Utility SY-6VCA

Power Management Controls (Continued)

Power Management Controls

Setting Description Note

MODEM Use IRQ

Soft-Off by PWR-BTTN

State After Power Failure

Wake Up Events

3 Default

3-11, NA

Instant-off Default Delay 4 Sec. Turns off the system power 4

On The system will switch on when

Off The system will remain off

Auto The system will return to the

Press Enter Select items that will wake up

Assigns an IRQ# to the modem device.

seconds after pushing the power button.

power comes back after a power failure.

Default when power comes back after a power failure.

state it was in before the power failure when power returns. (i.e: If the system was on, it will switch on again, if it was off, it will remain off)

your system when in one of sleep modes. Press enter to go the select item page.

Wake Up Events

VGA

LPT & COM

Setting Description Note

OFF Default ON You can set the VGA awakens the

system.

LPT/COM NONE, LPT, COM

When On of LPT & COM, any activity from one of the listed system peripheral devices or IRQs wakes up the system.

Default

Page 83

BIOS Setup Utility SY-6VCA

HDD & FDD

PCI Master

Wake Up Events

PowerOn by PCI Card

Modem Ring Resume

Resume by Alarm

OFF Default ON When On of HDD & FDD, any

activity from one of the listed system peripheral devices wakes up the system.

OFF ON When On of PCI Master, any

activity from one of the listed system peripheral devices wakes up the system

Setting Description Note

Disabled Enabled

Disabled The system ignores the alarm. Default Enabled Set alarm to power on the system by

If enabled any PCI interrupt will wake up the system.

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state.

the date (1-31) or time (hh:mm:ss). If the date is set to [0], the system will self-power on by alarm everyday at the set time.

Default

IRQs Activity Monitoring (Press Enter)

Primary IRQ3(COM2), IRQ4(COM1),

IRQ5(LPT2), IRQ6(Floppy Disk), IRQ7(LPT1), IRQ12(PS/2 mouse), IRQ13(Coprocessor), IRQ14(HardDsik)

Secondary IRQ9(IRQ2 Redir),

IRQ10( Reserved), IRQ11(Reserved)

Disabled IRQ8 (RTC Alarm), IRQ15

(Reserved)

Page 84

BIOS Setup Utility SY-6VCA

3-7 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

PnP/PCI Configurations

PNP OS Installed NO Reset Configuration Data Disabled

Resources Controlled By Auto (ESCD)

x IRQ Resources Press Enter x DMA Resources Press Enter

PCI/VGA Palette Snoop Disabled

Assign IRQ For VGA Enabled

Assign IRQ For USB Enabled

INT Pin 1 Assignment Auto

INT Pin 2 Assignment Auto

INT Pin 3 Assignment Auto

INT Pin 4 Assignment Auto

Item Help

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc] and follow the instructions on your screen to save your settings or exit without saving.

Page 85

BIOS Setup Utility SY-6VCA

3-7.1 PNP/PCI Configuration Controls

PNP/PCI Controls

Setting Description Note

PnP OS Installed

Yes Set this field to [Yes] if you

are running Windows 95, which is PnP compatible.

Reset Configuration Data

No If the OS you are running

does not support PnP configuration.

Disabled Retain PnP configuration

data in BIOS.

Enabled Reset PnP configuration data

Default

(If there is any doubt, set this field to [No])

Default

in BIOS.

Resources Controlled By

Manual BIOS does not manage PCI/ISA PnP

card IRQ assignment. Requires to assign IRQ-# and DMA-# to PCI or ISA PnP manually. IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _ DMA-0,1,3,5,6,7 assigned to: _ Auto (ESCO)

The Plug-and-Play BIOS

auto manages PCI/ISA PnP

Recommended

card IRQ assignment

automatically.

If [Resources Controlled By] is set to [Manual]

IRQ-# and DMA-# assigned to:

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to PCI/ISA PnP card.

Legacy ISA Choose IRQ-# and

DMA-# assigned to Legacy ISA card.

Under this item the user can assign an IRQ to a PCI slot. However, there under some conditions the IRQ will not be assigned as selected under this item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the table

below on how to free them:

IRQ-3,4,5,7,9,10, 11,12,14,15

DMA-0,1,3,5,6,7 IRQ-3,4,5,7,9,10, 11,12,14,15

DMA-0,1,3,5,6,7

Page 86

BIOS Setup Utility SY-6VCA

PNP/PCI Configuration Setup (Continued)

PNP/PCI Setup

Interrupt Line IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Setting Description Note

How to set the BIOS to release the IRQ to the PnP Interrupt pool: PnP / PCI configuration Integrated Peripherals

Interrupt 12 will be released by the PnP BIOS automatically if the PS/2 Mouse Port is not used.

Assign IRQ For VGA/USB

Disabled BIOS will assign IRQ for

VGA/USB port.

Enabled BIOS won’t assign IRQ for

Default

VGA/USB port.

5. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Auto DefaultINT Pin

1/2/3/4

Set to Auto the BIOS will using IRQs Automatically.

Assignment

Page 87

BIOS Setup Utility SY-6VCA

3-7.2 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1 COM1 COM2

378H 7 ECP/EPP 3F8H 4 2F8H 3

Warning: If a default I/O address conflicts with other I/O cards such as sound card, you must change one of the I/O addresses to remedy to this address conflict. (I/O addresses can be adjusted from the BIOS Setup Utility)

3-8 PC HEALTH STATUS

This option sets the Motherboard's PC Health Status.

PC Health Status

Current CPU Temp. 25 º C / 77 º F Current System Temp. 40 º C / 104 º F Current CPUFAN Speed 5192 RPM Current CHSFAN Speed 0 RPM Vcore 2.02 V

2.5V 2.50 V

3.3V 3.31 V 5V 4.97 V 12V 11.70 V

Menu Level 4

Item Help

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources Controlled By] option is set to [Auto].

Page 88

BIOS Setup Utility SY-6VCA

3-8.1 CPU Device Monitoring

CPU Device Monitoring

Setting Description Note

Current CPU Temp.

Current System Temp.

Current CPUFAN Speed

Current CHAFAN Speed

Vcore, 2.5V,

3.3V, +5V, +12V

°C/°F

RPM

Show the current status of CPU temperature.

Show the current status of the system temperature.

Show the current status of CPU Fan

Show the current status of the chassis Fan

Show the current voltage status.

Page 89

BIOS Setup Utility SY-6VCA

3-9 LOAD FAIL-SAFE DEFAULTS

Select the [Load Fail-Safe Defaults] option from the Main Menu to load the system values you have previously saved. This option is recommended if you need to reset the system setup and to retrieve the old values.

4Soyo Combo Feature 4PC Health Status 4Standard CMOS Features Load Fail - Safe Defaults 4Advanced BIOS Features Load Optimized Defaults 4Advanced Chipset Features Set Supervisor Password 4Integrated Peripherals Set User Password 4Power Management Setup Save & Exit Setup 4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Load Fail - Safe Defaults (Y/N)? Y

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS configuration, please load the Optimized Defaults for stable performance.

Page 90

BIOS Setup Utility SY-6VCA

3-10 LOAD OPTIMIZED DEFAULTS

Select the [Load Optimized Defaults] option from the Main Menu to load the system values you have previously saved. This option is recommended if you need to reset the system setup and to retrieve the old values.

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Load Optimized Defaults (Y/N)? Y

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS configuration, please load the Optimized Defaults for stable performance.

Page 91

BIOS Setup Utility SY-6VCA

3-11 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the [BIOS FEATURES SETUP] section, the password prevents access to the system or the setup program by unauthorized users. Follow this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and press

[Enter]. Select the [Security Options] item and set the field to:

a. [System]: The password is required every time the system is

booted. This means only a person who knows the password can use this computer.

b. [Setup]: The password is required only when you attempt to

enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and

press [Enter]. The following prompt appear:

Enter Password:

Warning: If you forget or lose the password, the only way to access the system is to set jumper JP5 to clear the CMOS RAM. All setup information is lost and you must run the BIOS setup program again.

Note: If you do not wish to use the password function, press [Enter] directly and the following message appears:

Password Disabled!!

Page 92

BIOS Setup Utility SY-6VCA

F10

(Shift) F2

↔

Type the Password Press:

password, press

to exit

Type the Password

Press <Enter> without

After you confirm the password,

3. Enter your new password and press [Enter]. The following message

appears, prompting to confirm the new password:

Confirm Password:

4. Re-enter your password and then press [Enter] to exit to the Main

Menu.

This diagram outlines the password selection procedure:

and Press: <Enter>

↔

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP

Enter Password:

POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION

Confirm Password:

LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

Esc

: Quit : Save & Exit Setup

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Enter Password:

∗∗∗∗∗

After you confirm the

press <Esc> to exit

Time, Date, Hard Disk Type…

ROM PCI/ISA BIOS

Press:

entering the password

Without entering password

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD

Password Disabled!!

IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item : Change Color

3-12 USER PASSWORD

When the user password option is on, you are not allowed to change any setting in the [CMOS SETUP UTILITY] except for changing the user's password.

The password setting procedure is similar to that for the [SUPERVISOR PASSWORD] (Refer to section 3-9).

Page 93

Via SoundChip Drivers installation SY-6VCA

Chapter 4

DRIVERS INSTALLATION

Your SY-6VCA Motherboard comes with a CD-ROM labeled "SOYO CD." The SOYO CD contains the user's manual file for your new Motherboard, the drivers software available for installation, and a database in HTML format with information on SOYO Motherboards and other products.

Step 1. Insert the SOYO CD into the CD-ROM drive

If you use Windows NT, the SOYO-CD will not detect your motherboard type. In that case the following dialog will pop up, please choose your motherboard and press OK. Now the SOYO-CD Start Up Menu will be shown.

Please Select Your Board

7IWA-F 7IWA-F V1.0 6IWM/L 6IWM 6IWA

(SOYO CD Start Up Program Menu)

If you use Windows 95 or 98, the SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.

LI-7000 7IWB 7IWB V1.0 7IWM 7IWM/L V1

Cancel

Page 94

Via SoundChip Drivers installation SY-6VCA

The user's manual files included on the SOYO CD are in PDF (Postscript Document) format. In order to read a PDF file, the appropriate Acrobat Reader software must be installed in your system.

Note: The Start Up program automatically detects if the Acrobat Reader utility is already present in your system, and otherwise prompts you on whether or not you want to install it. You must install the Acrobat Reader utility to be able to read the user's manual file. Follow the instructions on your screen during installation, then once the installation is completed, restart your system and re-run the SOYO CD.

Page 95

Via SoundChip Drivers installation SY-6VCA

Step 2. Install Drivers

Click the Install Drivers button to display the list of drivers software that can be installed with your Motherboard. The Start Up program displays the drivers available for the particular model of Motherboard you own. We recommend that you only install those drivers.

driver revision:

VIA 4 in 1 Driver Package for Win 9x/NT/2000 VIA Onboard Audio Driver for Win 9x/NT/2000 VIA hardware monitor for (Win 95/98)

Cancel OK

(Driver Installation Menu)

A short description of all available drivers follows:

Ø VIA 4in1 Driver Package for Win 9x/NT/2000

The 4 in 1 driver package includes all drivers your motherboard needs. After selecting this driver package, one driver will be installed automatically (the IRQ remapping utility), the other three are installed if selected. By default all three drivers are selected. A description of the 4 drivers follows:

 Bus Master PCI IDE Driver

This driver will speed up the data-transfer rate to and from the harddisk.

 AGP VxD Driver

This driver must be installed in order to be able to make use of the on-board AGP Video functionality.

Page 96

Via SoundChip Drivers installation SY-6VCA

 VIA Chipset Functions Registry

This driver will make the necessary changes to the Windows registry, in order to make sure that Windows has no problems recognizing your VIA chipset.

 IRQ remapping utility (This driver is installed automatically)

This utility will remap the IRQ lines to make sure that everything functions properly under Windows.

Ø VIA Onboard Audio Driver for Win 9x/NT/2000

You have to install the drivers before installing any application for the Onboard Audio.

Ø VIA hardware monitor for (Win 95/98)

Your motherboard comes with a hardware monitoring IC. By installing this utility Temperature, Fan speed and Voltages can be monitored. It is also possible to set alarms when current system values exceed or fall below pre-set values.

Select which driver you want to install and click OK, or click Cancel to abort the driver installation and return to the main menu. Note: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.

Step 3. Check the Latest Releases

Click the 'Check the latest Releases' button to go the SOYO Website to automatically find the latest BIOS, manual and driver releases for your motherboard. This button will only work if your computer is connected to the internet through a network or modem connection. Make sure to get your modem connection up before clicking this button.

Page 97
