1 Introduction

The 82440 LX PCI mainboard is a high-performance AT architecture
system board that supports 686 (PII) family CPUs. This mainboard is
fully compatible with industry standards, and adds many technical
enhancements.

Key Features

¥ Processor supports:

ÑPentium II CPU up to 66 MHz host bus frequency (233 ~ 333

MHz)

Ñauto detection of CPU voltage
ÑSlot 1 support

¥ DRAM controller:

Ñsupports 3 strips of 168-pin EDO /SDRAM Unbuffered

DIMM

Ñsupports auto detection of memory type

Ñsupports ECC or Parity configuration

Ñhas onboard memory configurations from 8MB to 384MB

¥ BUS controller:

Ñcomplies with the PCI specifications v2.1
Ñfour 32-bit PCI slots (Masters), two ISA slots, one 32-bit AGP

slot, and 4-layer PCB

Ñsupports Universal Serial BusÑUSB (Optional cable)

¥ Peripheral controller:

ÑSystem BIOS built-in NCR4.0 SCSI/SY-S8115 SCSI/SY-V325-

2M Card BIOS and ÒPlug and PlayÓ function

Ñonboard built-in PCI Master IDE controller and floppy

controller

Ñonboard supports for two high speed UARTS (w/i 16550 FIFO)

and Multimode parallel port for Standard, Enhanced (EPP) and
high speed (ECP) modes, PS/2 mouse function

Ñonboard FLASH Memory for easy upgrade BIOS

Ñonboard IR support (optional cable)

ÑAT/ATX power supply connectors available

2 Introduction

Unpacking the Mainboard

The mainboard package contains:

¥ The 82440LX Mainboard
¥ One CD (including Manuals/Drivers/Utilities)

Note: Do not unpack the mainboard until you are ready to install it.

Follow the precautions below while unpacking the mainboard.

1. Before handling the mainboard, ground yourself by grasping an
unpainted portion of the systemÕs metal chassis.

2. Remove the mainboard from its anti-static packaging and place it on
a grounded surface, component side up.

3. Check the mainboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.

Do not apply power if the mainboard appears damaged. If there is
damage to the board contact your dealer immediately.

Electrostatic Discharge Precautions

Make sure you ground yourself before handling the mainboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precaution when handling
the mainboard in dry or air-conditioned environments.

Take these precautions to protect your equipment from electrostatic
discharge:

¥ Do not remove the anti-static packaging until you are ready to install

the mainboard and other system components.

¥ Ground yourself before removing any system component from its

protective anti-static packaging. To ground yourself grasp the
expansion slot covers or other unpainted portions of the computer
chassis.

¥ Frequently ground yourself while working, or use a grounding strap.
¥ Handle the mainboard by the edges and avoid touching its

components.

Introduction 3

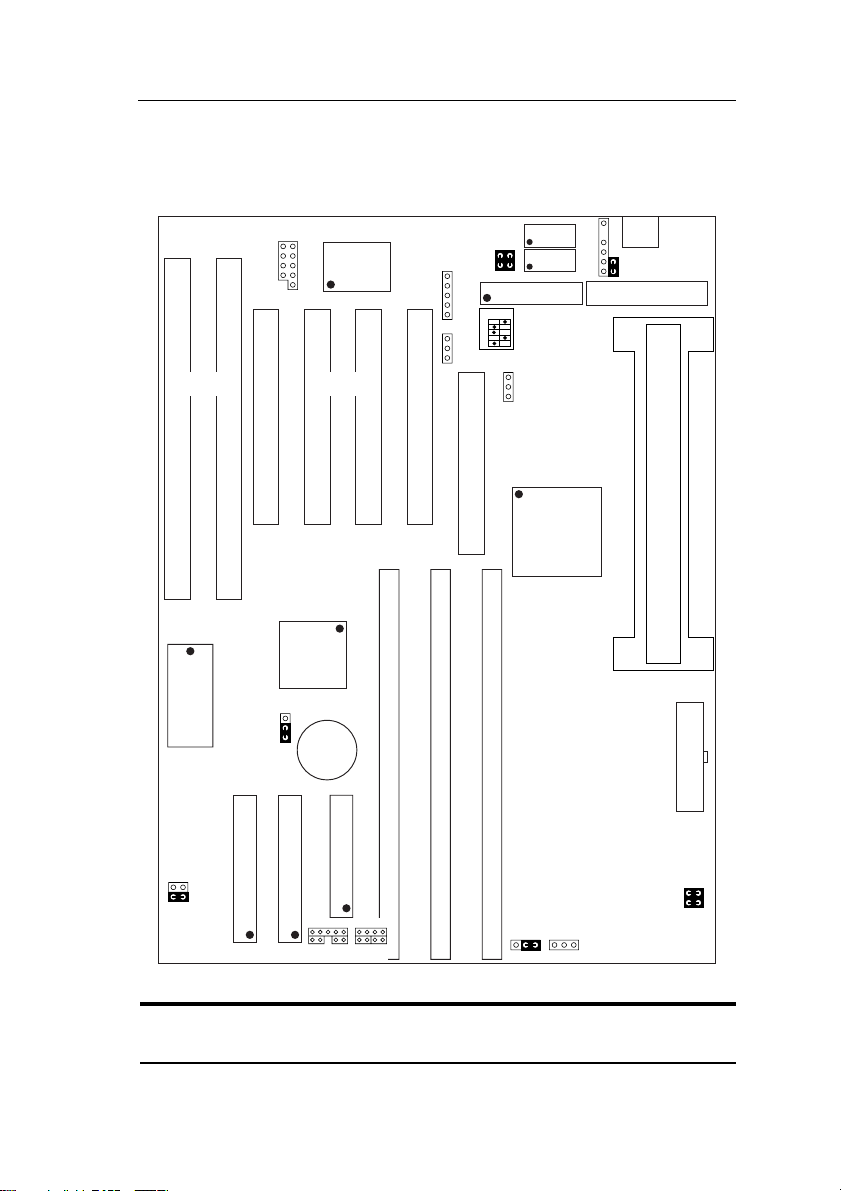

Mainboard Layout w/ Default Settings

11

3

5

6

12 14

8

13

1

2

2

4

16

7

15

9 9

10

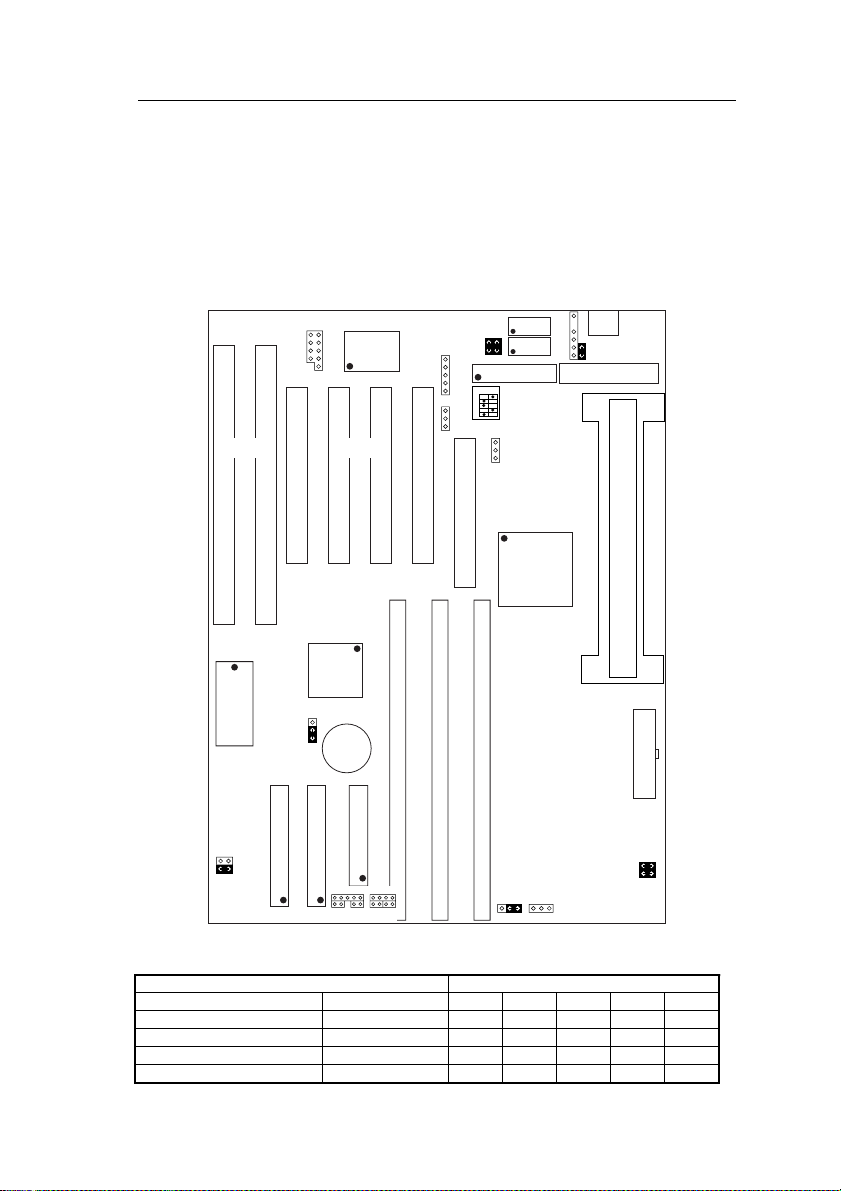

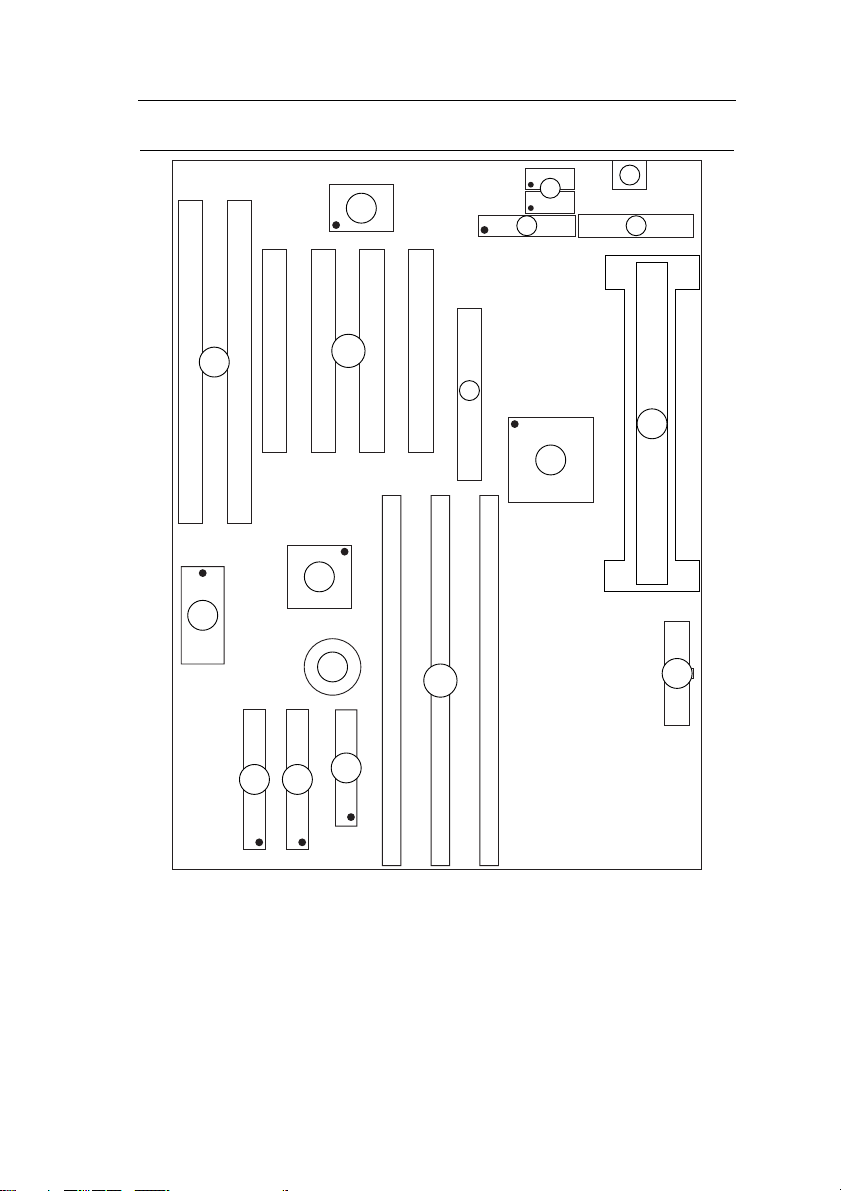

Figure 1Ð1. Mainboard Layout

1. Slot 1 for PII CPU 9. IDE1/IDE2 Connector

2. 82440LX Chipset 10. Floppy Connector

3. Ultra I/O Chip 11. COM1/COM2 Connector

4. PnP FLASH BIOS 12. Parallel Port Connector

5. ISA Slot 13. Keyboard Connector

6. PCI Slot 14. AT Power Connector

7. DIMM Memory Bank 15. ATX Power Connector

8. AGP Port 16. CMOS Battery (Lithium

battery, 3V)

4 Introduction

Default settings are as follows: Pentium II 233MHz CPU, On-board

PCI Bus IDE Enabled, FDC Enabled, 2 high speed UARTS Enabled
(w/ 16550 FIFO), 1 EPP/ECP port (ECP + EPP mode), and AT
Power Supply.

1

KB

COM2
COM1

2

Conn

3

J8

4
5

JP11

6

ISA Slot

J3

145

USB

W9777FA

9

PCI Slot

1

5

1
2
3

JP5

JP6

JP7

IR

PRT AT PW

ON

54231

SW1

1
2
3

JP10

#1 #2 #3 #4

AGP Port

82443LX

#1 #2

82371AB

JP3

1

IDE0

2
3

Lithium
Battery

IDE1

Keylock

1

Reset

3V

PW/SW

FDC

Speaker

1

TB-LED

HDD

DIMM1

DIMM2

DIMM3

123

JP8

123

JP9

Flash BIOS

JP16
JP15

Figure 1Ð2. Mainboard Default Setting

Important: Make sure the system is well ventilated to prevent

overheating and ensure system stability.

Slot 1 (for Pentium II CPU)

ATX PW

JP12

132

4

2 Hardware Setup

This chapter explains how to configure the mainboardÕs hardware. After
you install the mainboard, you can set jumpers, install memory on the
mainboard, and make case connections. Refer to this chapter whenever
you upgrade or reconfigure your system.

CAUTION: Turn off power to the mainboard, system chassis, and

peripheral devices before performing any work on the

mainboard or system.

Jumpers

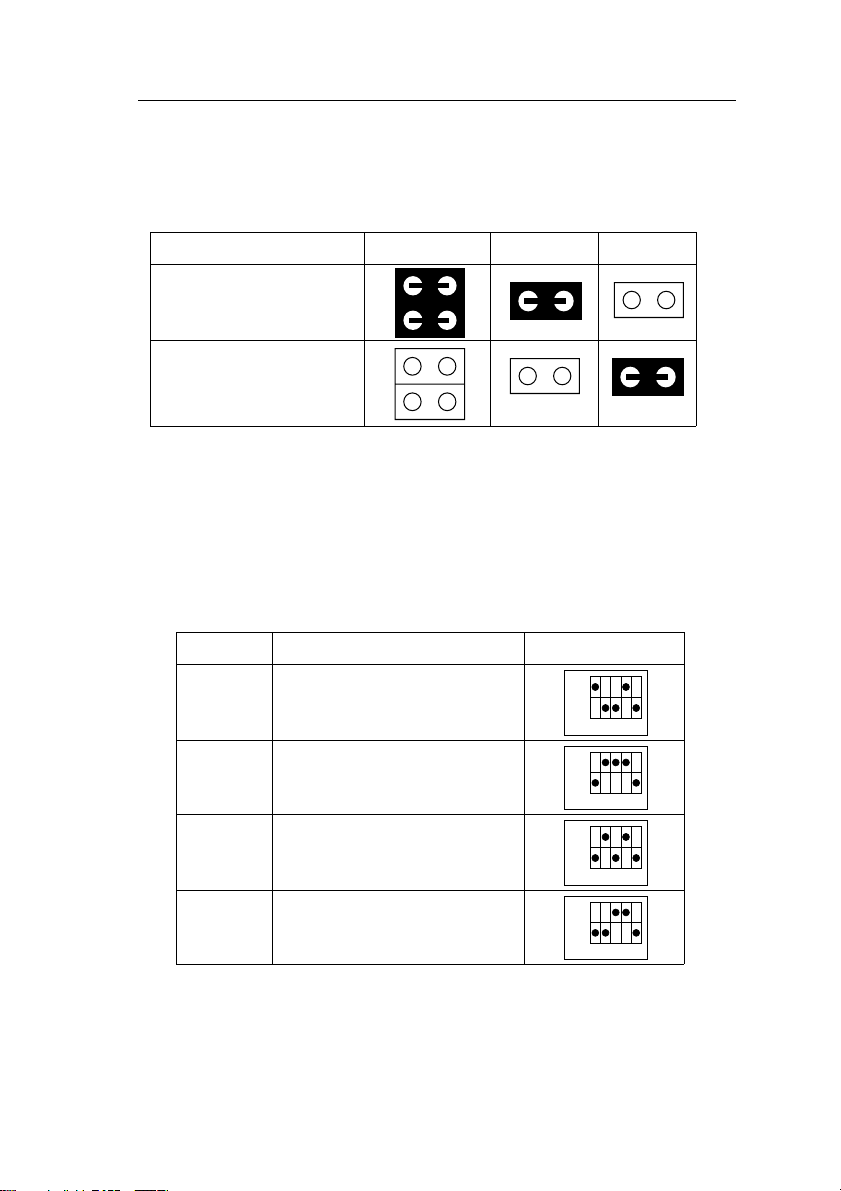

JP3: CMOS Clear Jumper

Clear the CMOS memory by momentarily shorting this jumper; then
open the jumper to retain new settings.

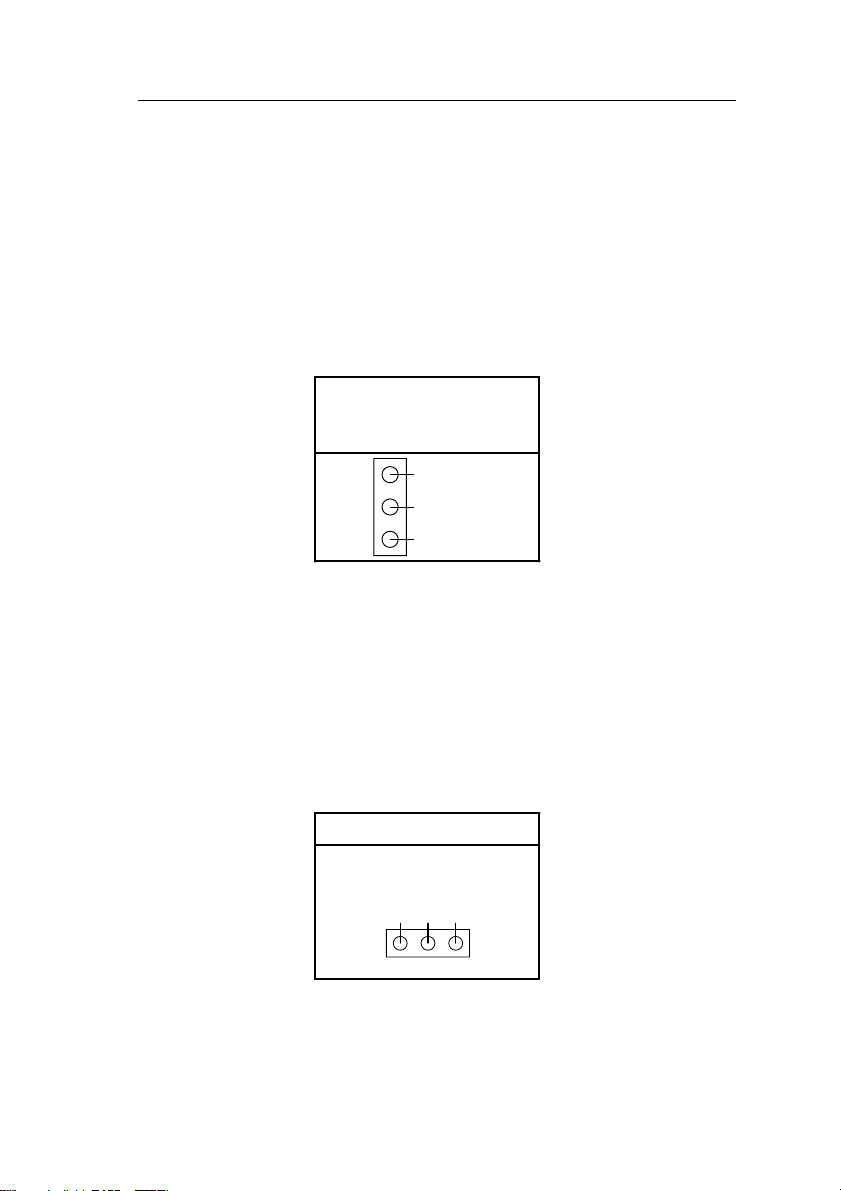

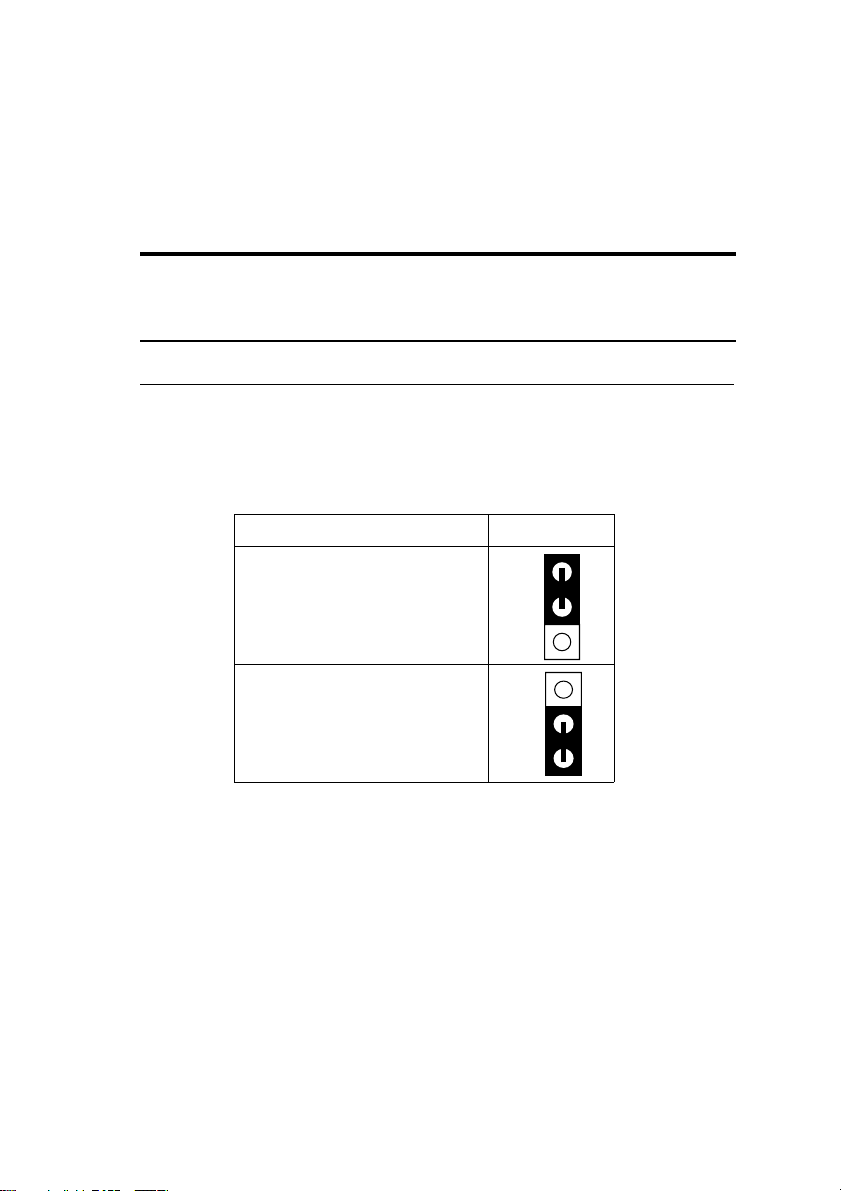

CMOS Setting JP3

Clear CMOS data

Retain CMOS data

(default)

1

1

6 Hardware Setup

JP12/JP15/JP16: Power Supply Selection Jumper

These jumpers let you select either the AT or ATX power supply. Use
only one power supply at a time on this mainboard.

JP12 JP15 JP16

AT Power Supply

(default)

1
3

1

2
4

2

ATX Power Supply

3

4

JP6/JP7/JP11: CE Test Jumper Pin

These jumpers are reserved for the CE test. If you run into problems
during the CE test, unplug these jumper pins and try again.

SW1: Bus Fraction Core/Bus Ratio Select Jumper

Set this jumper according to your CPU clock.

Ratio 686 (PII) Family SW1

3.5x

686 (PII) Ð 233 MHz

(default)

4.0x 686 (PII) Ð 266 MHz

4.5x 686 (PII) Ð 300 MHz

ON

54231

ON

54231

ON

54231

5.0x 686 (PII) Ð 330 MHz

ON

54231

Hardware Setup 7

CPU Type Configuration

Set the mainboardÕs CPU switch SW1 according to CPU type as
described below.

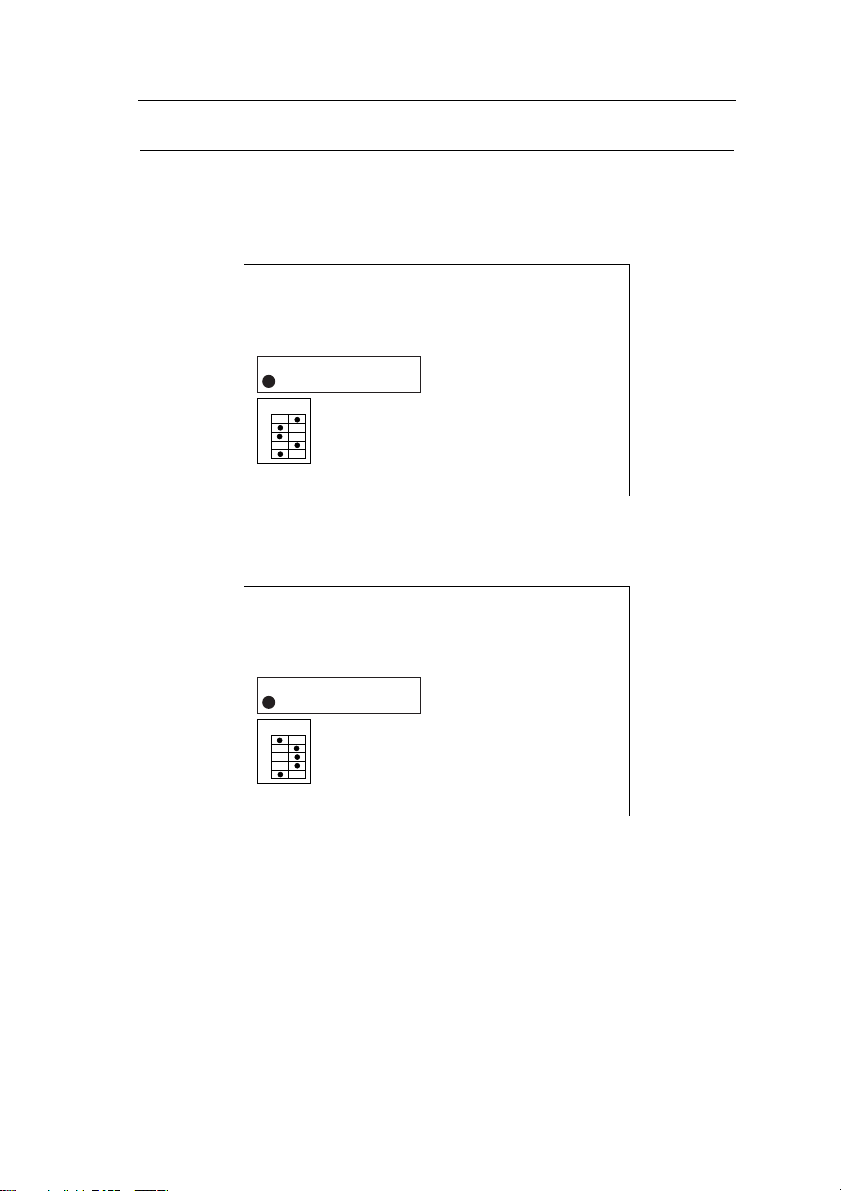

686 (PII) Ð 233 CPU Settings (3.5 x clock)

PRT

ON

54231

SW1

Figure 2Ð1Ð1. CPU Jumper Settings

686 (PII) Ð 266 CPU Settings (4.0 x clock)

PRT

ON

54231

SW1

Figure 2Ð1Ð2. CPU Jumper Settings

8 Hardware Setup

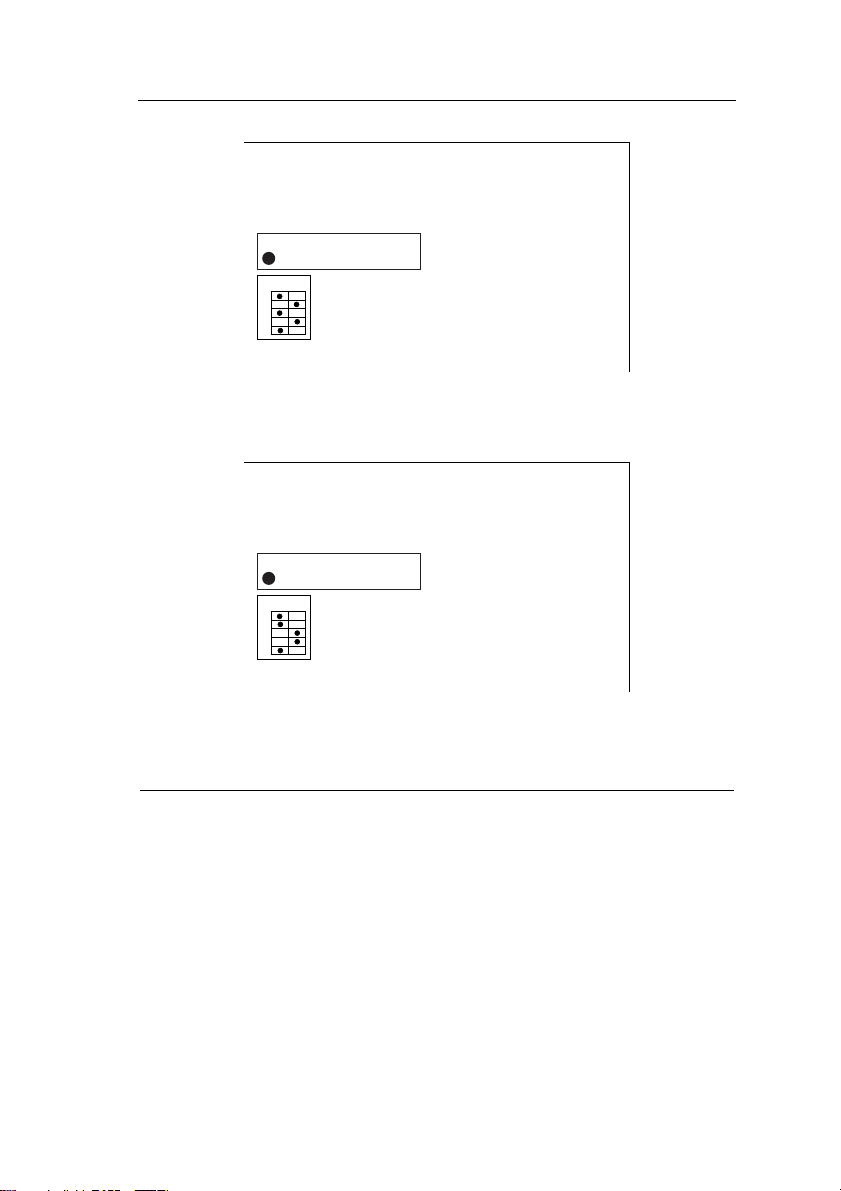

686 (PII) Ð 300 CPU Settings (4.5 x clock)

PRT

ON

54231

SW1

Figure 2Ð1Ð3. CPU Jumper Settings

686 (PII) Ð 330 CPU Settings (5.0 x clock)

PRT

ON

54231

SW1

Figure 2Ð1Ð4. CPU Jumper Settings

Memory Configuration

The mainboard supports three banks of 168-pin 3.3V EDO/SDRAM
Unbuffered DIMM. The mainboard supports from 8 to 384 Mbytes

with no other restrictions on memory configurations. You can install
DRAM in any combination without having to rely on a memory
configuration table. Memory configuration is thus ÒTable-FreeÓ in any
bank.

Hardware Setup 9

Multi I/O Port Addresses

Default settings for multi-I/O port addresses are shown in the table
below.

Port I/O Address IRQ Status

LPT1* 378H 7 ECP + EPP
COM1 3F8H 4
COM2 2F8H 3

* If default I/O port addresses conflict with other I/O cards (e.g. sound

cards or I/O cards), you must adjust one of the I/O addresses to avoid
address conflict. (You can adjust these I/O addresses from the BIOS.)

Note: Some sound cards have a default IRQ setting for IRQ7, which may

conflict with printing functions. If this occurs do not use sound

card functions at the same time you print.

Connectors

Attach the mainboard to case devices, or an external battery, via
connectors on the mainboard. Refer to Figure 1-1 for connector locations
and connector pin positions.

AT PW — Power Supply Connectors

The mainboard requires a power supply with at least 200 watts and a
Òpower goodÓ signal. AT PW has two 6-pin male header connectors.

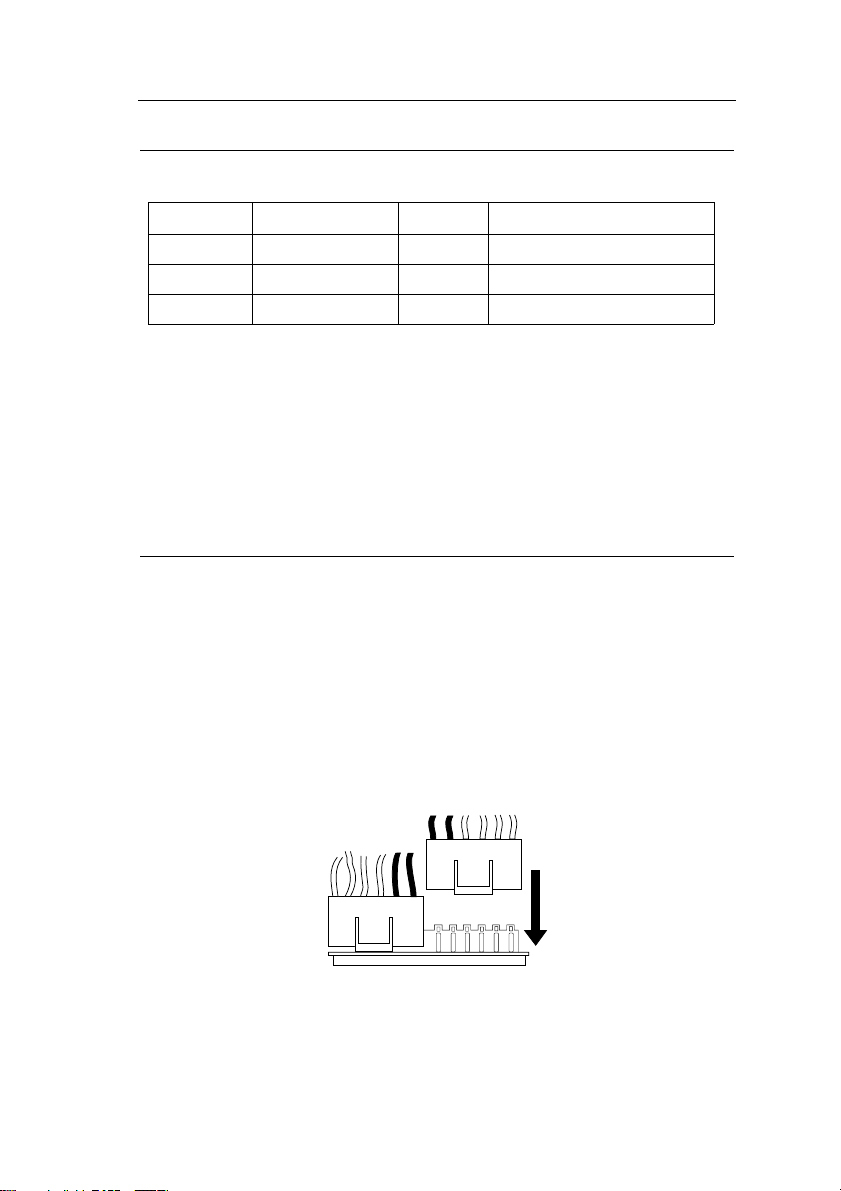

Plug the dual connectors from the power directly onto the board
connector while making sure the black leads are in the center.

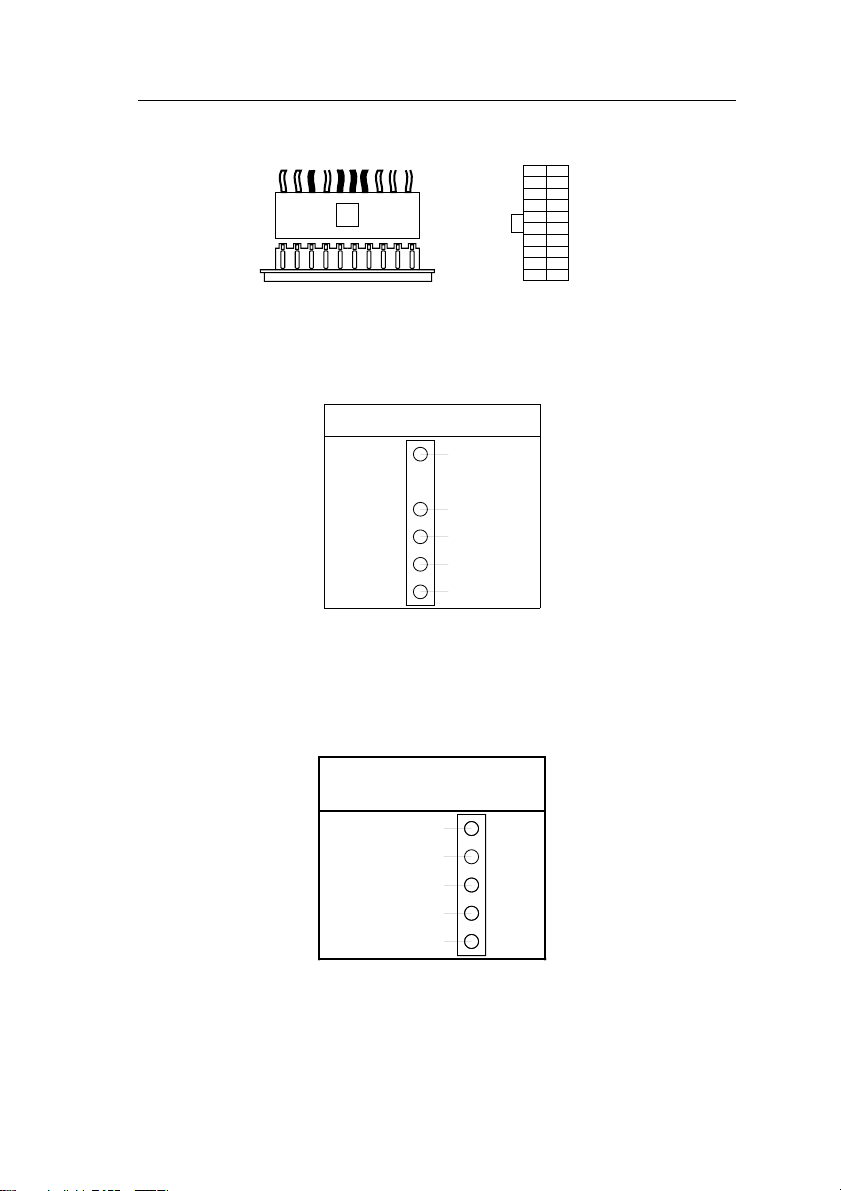

ATX PW — ATX Power Supply Connectors

The motherboard provides an ATX power supply connector. It is a
twenty-pin male header connector. Plug the connector from the power

10 Hardware Setup

directly onto the board connector while making sure the pin1 is in its
position.

3.3V

–12V

GND

PS-ON

GND
GND
GND

–5V

5V
5V

3.3V

3.3V
GND
5V
GND
5V
GND
PW-0K
5VSB
12V

J8 — PS/2 Keyboard Connector

Attach a 5-pin male PS/2 mouse cable to this connector to enable the
PS/2 mouse function.

PS/2 Pin Assignment

1
2
3
4
5
6

IR – IR Connector

A five-pin wafer connector is for connecting to the IR device. Use the
device that has the ASKIR or HPSIR specification and choose
ASKIR/HPSIR from the BIOS setup.

IR Connector

Pin Assignment

VCC 1

FIRRX 2

IRRX 3

GND 4
IRTX 5

Keylock — Keylock & Power LED Connector

This connector is for a lock that may be installed on the system case for
enabling or disabling the keyboard. This connector also attaches to the
caseÕs Power LED. (Pin 1, 3 for power LED, pin 4, 5 for keylock.)

Hardware Setup 11

SPEAKER – Speaker Connector

Attach the system speaker to connector SPK.

RESET – Hardware Reset Control

Attach the Reset switch to RESET. Closing the Reset switch restarts the
system.

IDE1/IDE2 – On-board Primary/Secondary IDE HDD
Connectors

Attach on-board hard disk drives to these connectors.

COM1/COM2 Connectors

Connect COM1/COM2 devices to these connectors.

HDD LED – IDE HDD LED Connectors

Attach on-board IDE device LEDs to this connector. The LED lights
when an IDE device is active.

FDC Connector

Attach floppy cable to this connector.

PRT – Parallel Port Connector

Attach parallel port cable to this connector.

USB (J3) – (Universal Serial Bus) Connector

Attach USB cable to these connectors for external USB device. Please
ask your dealer for the cable.

PW/SW – ATX Power Supply On/Off Switch Connector
(Momentary Type)

Attach a two-pin switch to this connector for turning the ATX power
supply on/off. DonÕt forget to remove all jumper caps on JP12 to enable
the ATX power supply function.

12 Hardware Setup

TB LED — Turbo LED Connector

Attach a 2-pin turbo LED cable to it. The LED lights when the system is
in turbo mode. Manufacture default has set the board in turbo mode due
to most of hardware and software are compliance to turbo mode.

FAN (JP10) — CPU Cooling Fan Connector

This 3-pins connector provides 12V power for the CPU cooling fan
which matches the pin assignment of this connector. If you enable the
Suspend Mode function in BIOS setup, this fan will stop when the
system is into the suspend mode.

CPU Cooling Fan

Connector

(Pin Assignment)

1
2
3

GND
12V
SENSOR

Note: Make sure the pin assignment of our CPU Cooling Fan is matched

with this connector before connecting it, otherwise, you may
damage either the mainboard or the cooling fan.

JP9 – Wake-On-LAN (WOL) Header

Attach a 3-pin connector from the LAN card which supports the Wake­On-LAN (WOL) function. This function lets users wake up the
connected computer through the LAN card. (The cable should be
included with the LAN card.)

JP9 Pin Assignment

SENSOR

GND

STB5V

1

2

3

Hardware Setup 13

Slot 1 Installation Guide

This mainboard provides a non-boxed 686 (PII) CPU retention set to
secure the CPU on this board. Follow the steps below to secure this type
of CPU on to your motherboard.

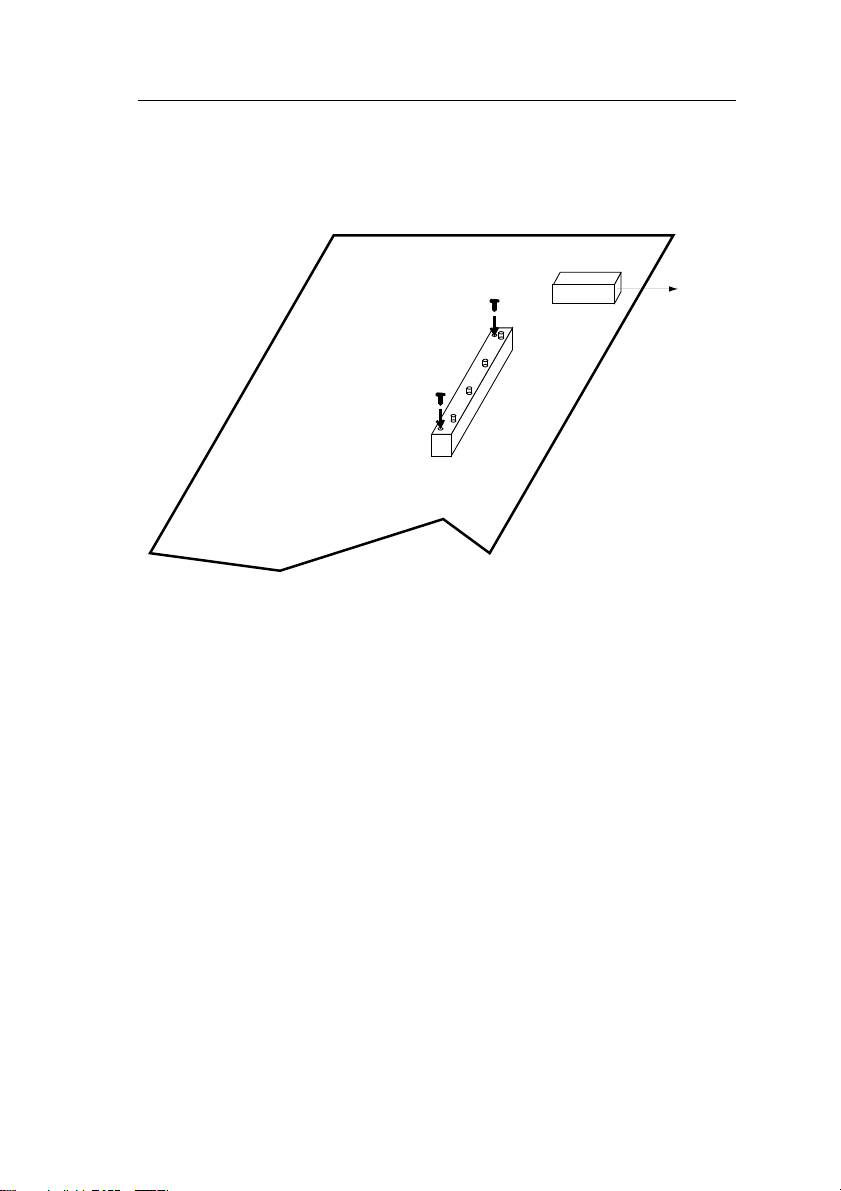

Step 1:

Find the ATX PW and the Slot 1 on the board and set the board in the
direction as follows before doing any installation.

AT PW

Slot 1 (for Pentium II CPU)

Install the 2 pairs of screws, as shown in the following figure, from the
bottom of the motherboard upward onto the mainboard.

14 Hardware Setup

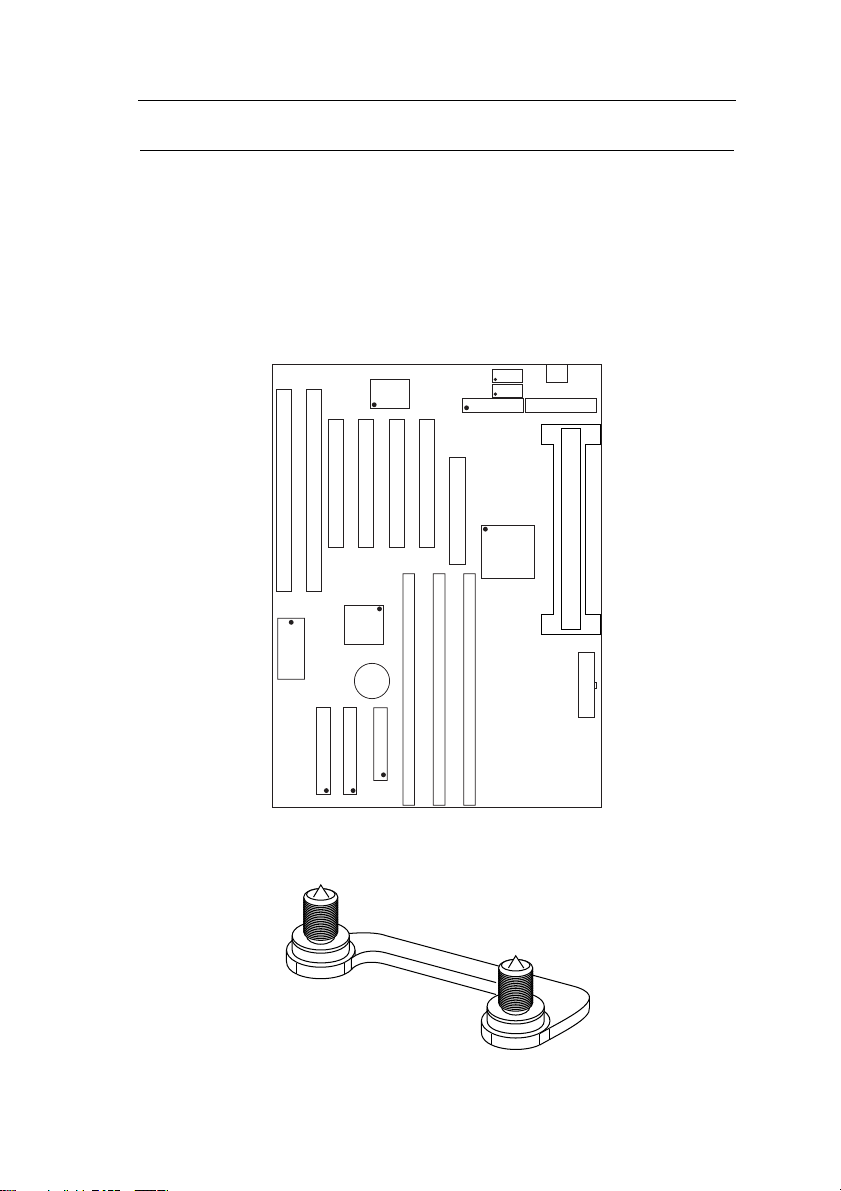

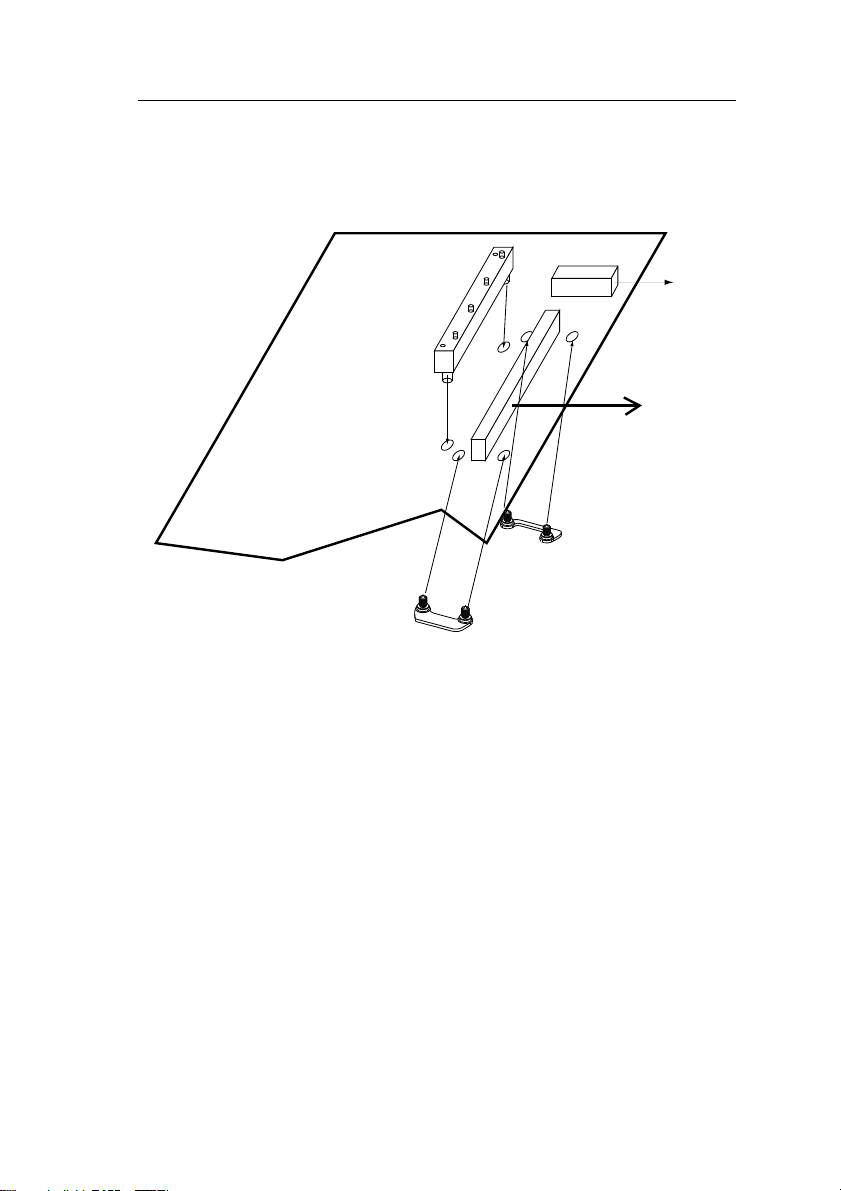

Step 2:

Insert the supporting base, which is shown below, into the two holes
directly to the left of the 2 sets of screws that have just been inserted on
to the board.

AT PW

Slot 1

15 Hardware Setup

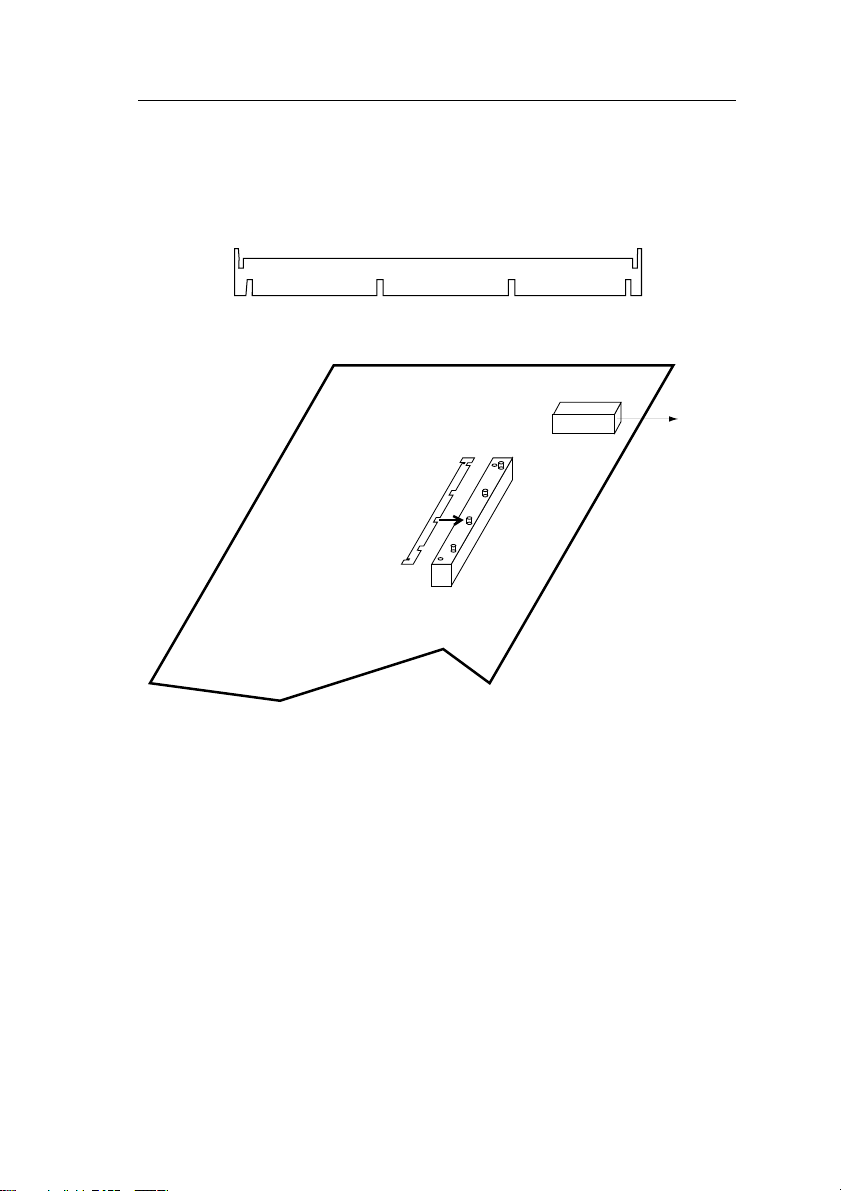

Step 3:

Insert the clip portion of the CPU supporter, which is shown below, so
that the heat sink can sit on the top of the whole CPU supporter.

Top View of CPU Support Clip

AT PW

Hardware Setup 16

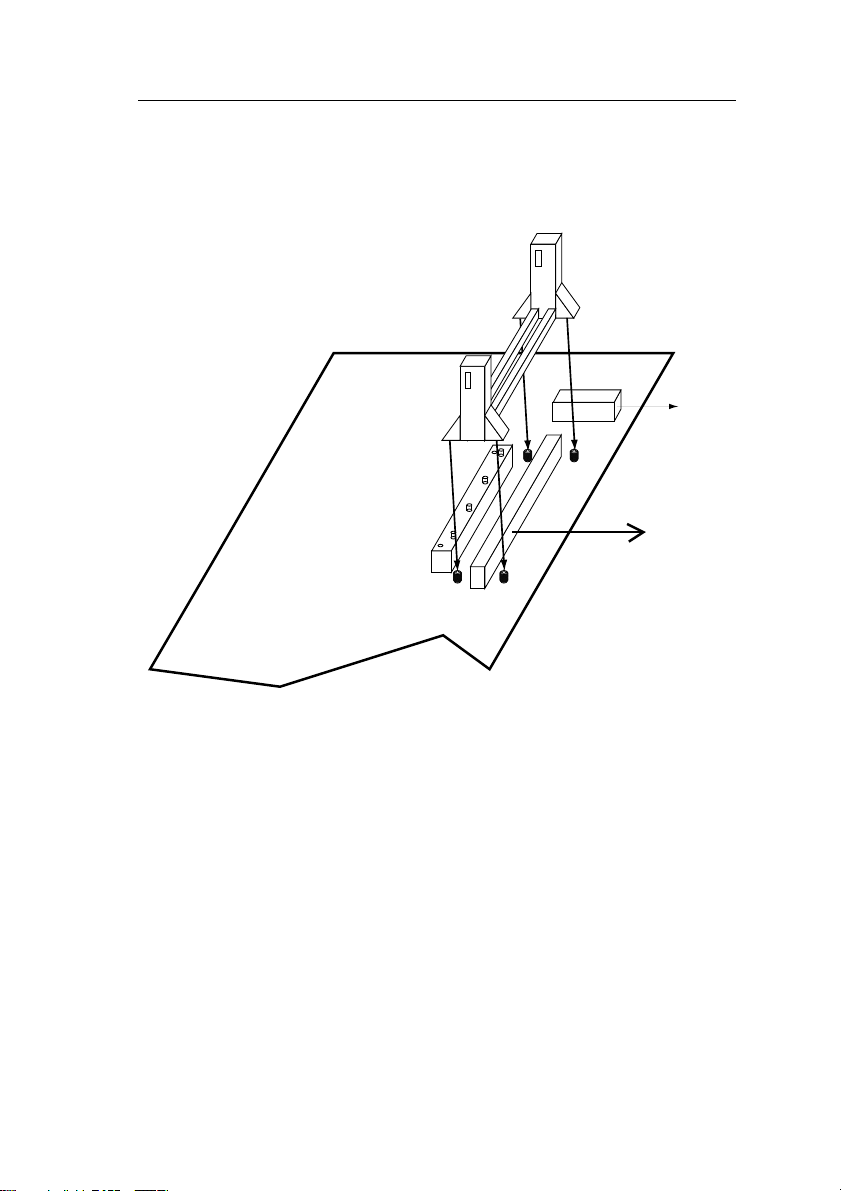

Step 4:

Insert the 2 latches into the two holes of the supporting base and then
turn them 90¡ to secure the CPU.

AT PW

17 Hardware Setup

Step 5:

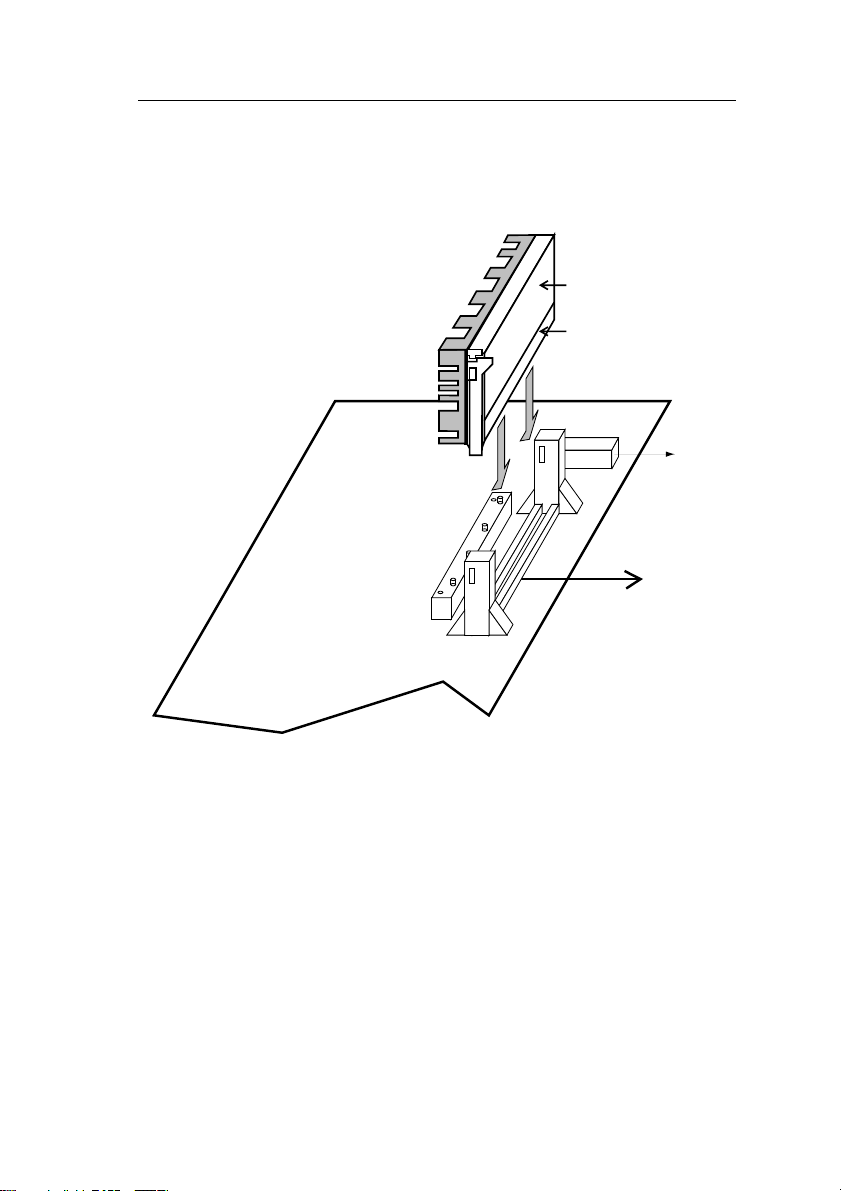

Set the retention clip right on the top of the 2 sets of screws which are
along the sides of Slot1 and then tighten the 4 screws on the retention
clip.

AT PW

Slot 1

Hardware Setup 18

Step 6:

Insert the CPU into the retention clip and notice that the heat sink is on
the left hand side of the board. Lock the two latches on the sides of the
CPU to secure the CPU.

Non-boxed Pentium II

Golden Finger

AT PW

Slot 1

3 BIOS Setup

The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from
Award Software Inc. Enter the Award BIOS programÕs Main Menu as
follows:

1. Turn on or reboot the system. After a series of diagnostic checks, you
are asked to press DEL to enter Setup.

2. Press the <DEL> key to enter the Award BIOS program and the main
screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

Esc : Quit ↑ ↓ → ← : Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color

Time, Date, Hard Disk Type...

3. Choose an option and press <Enter>. Modify the system parameters
to reflect the options installed in the system. (See the following
sections.)

4. Press <ESC> at anytime to return to the Main Menu.

5. In the Main Menu, choose ÒSAVE AND EXIT SETUPÓ to save your
changes and reboot the system. Choosing ÒEXIT WITHOUT
SAVINGÓ ignores your changes and exits the program.

The Main Menu options of the Award BIOS are described in the sections
that follow.

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

20 BIOS Setup

Standard CMOS Setup

Run the Standard CMOS Setup as follows.

1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen
appears.

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy) : Fri, Feb 1 1995
Time (hh:mm:ss) : 7 : 30 : 33

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : AUTO 0 0 0 0 0 0 AUTO

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

Drive A : 1.44M, 3.5 in.
Drive B : None
Floppy 3 Mode Support : Disabled

Video : EGA/VGA
Halt On : All Errors

Esc : Quit ↑ ↓ → ← : Select Item PU/PD/+/– : Modify
F11 : Help (Shift) F2 : Change Color F3 : Toggle Calendar

2. Use arrow keys to move between items and select values. Modify
selected fields using PgUp/PgDn/+/Ð keys. Some fields let you enter
values directly.

Base Memory: 640K

Extended Memory: 3328K

Other Memory: 128K

Total Memory: 4096K

Date (mm/dd/yy) Type the current date.

Time (hh:mm:ss) Type the current time.

Primary
(Secondary)
Master & Slave

Choose from the standard hard disk types 1 to

46. Type 47 is user definable. If a hard disk is
not installed choose ÒNot installed.Ó (default)

Drive A & B Choose 360KB , 5 1/4 in.,

1.2MB , 5 1/4 in.,
720KB , 3 1/2 in.,

1.4M , 3 1/2 in.(default),

2.88 MB, 3 1/2 in. or
Not installed

BIOS Setup 21

Video Choose Monochrome,

Color 40x25,
VGA/EGA (default),
Color 80x25

Floppy 3 Mode
Support

Halt On Choose halt mode when BIOS detects system

3. When you finish, press the <ESC> key to return to the Main Menu.

Choose Disabled (default) or Enabled. When

enables this function, the system
will support
720KB/1.25MB/1.44MB 3 different
modes floppy diskette.

Note: This function is for a special disk drive

which happens to be popular in Japan.

errors:
All Errors (default) All, But Diskette
No Errors All, But Keyboard

All, But Disk/Key

22 BIOS Setup

BIOS Features Setup

Run the BIOS Features Setup as follows.

1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a
screen with a list of items appears. (The screen below shows the
BIOS default settings.)

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning : Disable
CPU Internal Cache : Enabled
External Cache : Enabled
Quick Power on Self Test : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Boot Up NumLock Status : On
Boot Up System Spped : High
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select for DRAM >64MB : Non-OS2

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/Ð keys. <F> keys
are explained below:

<F1>: ÒHelpÓ gives options available for each item.

Shift <F2>: Change color.

<F5>: Get the old values. These values are the values with
which the user started the current session.

<F6>: Load all options with the BIOS Setup default values.
<F7>: Load all options with the Power-On default values.

Video BIOS Shadow : Enabled
C8000-CBFFF Shadow : Disabled
CC000-CFFFF Shadow : Disabled
D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
D8000-DBFFF Shadow : Disabled
DC000-DFFFF Shadow : Disabled

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of screen items follows:

Virus Warning Enable this option will allow BIOS to protect the

boot sectors and partition tables of your hard disk.
Any attempt to write to them will cause the system to
halt and display a warning message.

CPU Internal
Cache

This option enables/disables the CPUÕs internal
cache. (The Default setting is Enabled.)

External Cache This option enables/disables the external cache

memory. (The Default setting is Enabled.)

BIOS Setup 23

Quick Power
On Self Test

Boot Sequence Choose the boot device sequence as your need. For

Enabled provides a fast POST at boot-up .

example, ÒA, C, SCSIÓ means that BIOS will look
for an operating system first from drive A, drive C,
then SCSI device. Options of this function are:
A, C, SCSI;
C,A, SCSI;
C, CD-ROM, A;
CD-ROM, C, A;
D, A, SCSI;
E, A, SCSI;
F, A, SCSI;
SCSI, A, C;
SCSI, C, A;
C only;
LS/ZJP.C.

Swap Floppy
Drive

Boot Up Flppy
Seel

Boot Up Num
Lock Status

Boot Up System
Speed

Gate A20
Option

Typematic Rate
Setting

Typematic Rate
(Chars/Sec)

Typematic
Delay (Msec)

Enabled changes the sequence of the A: and B:
drives. (The Default setting is Disabled.)

Choose Enabled then the BIOS will look for the
floopy while the system is booting up.

Choose On or Off. On puts numeric keypad in Num
Lock mode at boot-up. Off puts this keypad in arrow
key mode at boot-up.

Choose the boot-up speed. Options are either high or
low.

Choose Fast (default) o Normal. Fast allows RAM
accesses above 1MB using the fast gate A20 line.

Enable this option to adjust the keystroke repeat rate.

Choose the rate a character keeps repeating.

Choose how long after you press a key that a
character begins repeating.

24 BIOS Setup

Security Option Choose Setup or System. Use this feature to prevent

unauthorized system boot-up or use of BIOS Setup.
ÒSystemÓ Ð Each time the system is booted the
password prompt appears.
ÒSetupÓÐ If a password is set, the password prompt
only appears if you attempt to enter the Setup
program.

PCI/VGA
Palette Snoop

OS Select for
DRAM >64MB

Video or
Adapter BIOS
Shadow

3. After you have finished with the BIOS Features Setup program, press
the <ESC> key and follow the screen instructions to save or
disregard your settings.

Enabled: The color of the monitor may be incorrect

if uses with MPEG card. Enable this
option to make the monitor normal.

Disabled: Default setting.

OS2: Choosing this when you are using OS/2

operation system.

Non-OS/2: Choosing this when you are using no-

OS/2 operation system.

BIOS shadow copies BIOS code from slower ROM
to faster RAM. BIOS can then execute from RAM.
These 16K segments can be shadowed from ROM to
RAM. BIOS is shadowed in a 16K segment if it is
enabled and it has BIOS present.

BIOS Setup 25

Chipset Features Setup

The Chipset Features Setup option changes the values of the chipset
registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Chipset Features Setup as follows.

1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and
the following screen appears. (The screen below shows default
settings.)

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Auto Configuration : Enabled
DRAM Speed Selection : 60 ns
MA Wait State : Slow
EDO RAS# To CAS# Delay : 3
EDO RAS# Precharge Time : 3
EDO DRAM Read Burst : x3/3/3
EDO DRAM Write Burts : x3/3/2
DRAM Data Integrity Mode : Non-ECC
CPU-TO-PCI IDE Posting : Enabled
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
8 Bit I/O Recovery Time : 3
16 Bit I/O Recovery Time : 2
Memory Hole At 15M-16M : Disabled
Passive Release : Enabled
Delay Transaction : Disabled
AGP Aperture Size (MB) : 64
SDRAM RAS-to-CAS Delay : Slow
SDRAM RAS Precharge Time : Slow

SDRAM CAS Latency Time : 3
Spread Spectrum Modulated : Disabled
CPU Warning Temperature : Disabled
Current CPU Temperature : 40
Current System Temperature: 44
Current CPUFAN1 Speed : 5113 RPM

3.3(V) : 2.78 V VTT(V) : 1.50V
+12(V) : 11.84V –12(V) : –11.45V
–5(V) : –4.88V

ESC : Quit ↑ ↓ → ← : Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

o

C/104oF

o

C/111oF

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:
Auto Configuration Enable this option (strongly

recommended) and the system
automatically sets all options on the left
side of the screen (except cache update
mode & BIOS cacheable).
If this option is Enabled you must boot
from Turbo mode.

MA Wait State Use the default setting.

EDO RAS# to CAS#

Use the default setting.

Delay

26 BIOS Setup

EDO RAS# Precharge
Time

EDO DRAM Read Burst Use the default setting.

DRAM Write Burst Use the default setting.

Use the default setting.

DRAM Data Integrity
Mode

CPU-TO-PCI IDE
Posting

System BIOS Cacheable Disabled: The ROM area F0000H-

Video BIOS Cacheable Disabled: The video BIOS C0000H-

8Bit I/O Recovery Time Use the default setting.

16Bit I/O Recovery Time Use the default setting.

Memory Hole At 15M­16M

Passive Release Use the default setting.

Choose Non-ECC (default) or ECC
according to the DRAM type you have.

Use the default setting.

FFFFFH is not cached.

Enabled: The ROM area F0000H-

FFFFFH is cacheable if cache
controller is enabled.

C7FFFH is not cached.

Enabled: The video BIOS C0000H-

C7FFFH is cacheable if cache
controller is enabled.

Choose Enabled or Disabled (default).
Some interface cards will map their ROM
address to this area. If this occurs, you
should select Enabled, otherwise use
Disabled.

Delayed Transaction Use the default setting.

AGP Aperture Size AGP could use the DRAM as its video

RAM. Choose the DRAM size that you
want it to be used as video RAM. The
range is from 4MB to 256MB.

BIOS Setup 27

SDRAM RAS-to-CAS
Delay

Use the default setting.

SDRAM RAS Precharge
Time

SDRAM CAS Latency
Time

Spread Spectrum
Modulated

CPU Warning
Temperature

Current CPU
Temperature;
System Temp and CPU
FAN1 Speed;
Vcore

3. After you have finished with the Chipset Features Setup, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Use the default setting.

Use the default setting.

Enabled it when you want to run the FCC
or DOC testing.

Choose Disabled (default) or Enabled.
Set CPU temperature from 50¼C to 70¼C.
The system will slow down automatically
when CPU temperature goes beyond the
preset value. CPU will continue to run
slow until the CPU temperature returns
back within the safe range.

Show the current status of CPU.

28 BIOS Setup

Power Management Setup

The Power Management Setup option sets the systemÕs power saving
functions.
Run the Power Management Setup as follows.

1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu
and a screen with a list of items appears.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

POWER MANAGEMENT SETUP

Power Management : Disabled
PM Control by APM : Yes
Video Off Method : V/H SYNC+Blank
Video Off After : Standby
Modem Use IRQ : 3

Doze Mode : Disabled
Standby Mode : Disabled
Suspend Mode : Disabled
HDD Power Down : Disabled
Throttle Duty Cycle : 62.5%
ZZ Active in Suspen : Disabled
VGA Active Monitor : Enabled
Soft-Off by PWR-BTN : Instant-Off
Resume by Ring : Disabled
Resume by Alarm : Disabled

IRQ 8 Break Suspand : Disabled

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/- keys.

** Relead Global Timer Events **
IRQ [3-7.9-15], NMI : Disabled
Primary IDE 0 : Disabled
Primary IDE 1 : Disabled
Secondary IDE 0 : Disabled
Secondary IDE 1 : Disabled
Floppy Disk : Disabled
Serial Port : Enabled
Parallel Port : Disabled

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of selected screen items follows:

Power
Management

Options are as follows:
User Define LetÕs you define the HDD and

system power down times.

Disabled Disables the Green PC Features.
Min Saving Doze timer = 1 Hour

Standby timer = 1 Hour
Suspend timer = 1 Hour
HDD Power Down = 15 Min

Max Saving Doze timer = 1 Min

Standby timer = 1 Min
Suspend timer = 1 Min
HDD Power Down = 1 Min

PM Control by
APM

Choose Yes or No (default). APM stands for
Advanced Power Management. To use APM,
you must run Òpower.exeÓ under DOS v6.0 or
later version.

BIOS Setup 29

Video Off Method Choose V/H Sync+Blank (default), Blank

screen, or DPMS for the selected PM mode.

Video Off After Choose the mode you want video to goes off

after the modeis being active. Options are
Standby, Suspend, and Doze.

Doze Mode When the set time has elapsed, the BIOS sends a

command to the system to enter doze mode
(system clock drops to 33MHz). Time is
adjustable from 1 Min to 1 Hour.

Standby Mode The default is Disabled. Time is adjustable from

1 Min to 1 Hour.

Suspend Mode The default is Disabled. Only an SL-Enhanced

(or SMI) CPU can enter this mode. Time is
adjustable from 1 Min to 1 Hour. Under Suspend
mode, the CPU stops completely (no instructions
are executed.)

HDD Power Down When the set time has elapsed, the BIOS sends a

command to the HDD to power down, which
turns off the motor. Time is adjustable from 1 to
15 minutes. The default setting is Disabled.
Some older model HDDs may not support this
advanced function.

Throttle Duty
Cycle

ZZ Active in
suspend

VGA Active
Monitor

Using the default setting.

Using the default setting.

Choose Enabled (default) or Disabled.
Enabled Ð enables the power management

timers when a Òno activityÓ event is
detected.

Soft-Off by POR­BTTN

Choose Instant-off (default) or Delay 4 Sec.
Delay 4 Sec turns off the system power 4

seconds after pushing the power button

30 BIOS Setup

Resume by Ring Choose Enabled or Disabled (default). This

function only works when the computer is
powered on.
Enabled: The system will resume active when

modem is ringing.

Disabled: The system will not resume when

modem is ringing.

Resume by Alarm Choose Enabled or Disabled (default).

Enabled: Set alarm to wake up the system

either by the date (1-31) or time
(hh:mm:ss), and if the date is set to 0,
it means that the system will wake up
by the alarm everyday.

Disabled: The system ignores the alarm.

IRQ8 Clock Event Choose Enabled or Disabled (default). Alarm

function will be activated when this function is
enabled.

IRQ[3-7,9-15],
NMI

Primary/
Secondary IDE0
Primary/
Secondary IDE1

Floppy Disk/serial
Port/Parallel Port

3. After you have finished with the Power Management Setup, press the
<ESC> key to return to the Main Menu.

Choose Enabled (default) or Disabled. The
BIOS monitors these items for activities. If
activity occurs from the Enabled item the system
then wakes up.

Choose Enabled or Disabled (default).
Enabled: enables the power management

timers when Òno activityÓ event is
detected.

Choose Enabled or Disabled.
Enabled: enables the power management

timers when Òno activityÓ event is
detected.

BIOS Setup 31

PNP/PCI Configuration Setup

This option sets the mainboardÕs PCI Slots. Run this option as follows:

1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main
Menu and the following screen appears. (The screen below shows
default settings.)

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : Legacy ISA*
IRQ-4 assigned to : Legacy ISA*
IRQ-5 assigned to : PCI/ISA PnP*
IRQ-7 assigned to : Legacy ISA*
IRQ-9 assigned to : PCI/ISA PnP*
IRQ-10 assigned to : PCI/ISA PnP*
IRQ-11 assigned to : PCI/ISA PnP*
IRQ-12 assigned to : PCI/ISA PnP*
IRQ-14 assigned to : Legacy ISA*
IRQ-15 assigned to : Legacy ISA*
DMA-0 assigned to : PCI/ISA PnP*
DMA-1 assigned to : PCI/ISA PnP*
DMA-3 assigned to : PCI/ISA PnP*
DMA-5 assigned to : PCI/ISA PnP*
DMA-6 assigned to : PCI/ISA PnP*
DMA-7 assigned to : PCI/ISA PnP*

*: These items will disappear when Resource Controlled. is Auto.

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

PCI IRQ Actived By : Level
PCI IDE IRQ Map To : PCI-AUTO
Primary IDE INT# : A
Secondary IDE INT# : B

ESC : Quit ↑ ↓ → ← : Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of screen items follows:

Resources
Controlled By

Manual: BIOS doesnÕt manage PCI/ISA PnP

card (i.e., IRQ) automatically.

Auto: BIOS auto manage PCI and ISA PnP

card (recommended).

Reset
Configuration
Data

Disabled: Retain PnP configuration data in

BIOS.

Enabled: Reset PnP configuration data in

BIOS.

32 BIOS Setup

IRQX and
DMAX assigned
to

PCI IRQ
Activated By

PCI IDE IRQ
Map To

Primary IDE
INT#

Secondary IDE
INT#

3. After you have finished with the PCI Slot Configuration, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Choose PCI/ISA PnP or Legacy ISA. If the first
item is set to Manual, you could choose IRQX
and DMAX assigned to PCI/ISA PnP card or ISA
card.

PCI/ISA PnP: BIOS auto assigns IRQ/DMA to

the device.

Legacy ISA: User assigns IRQ/DMA to the

device.

Choose Edge or Level. Most PCI trigger signals
are Level. This setting must match the PCI card.

Select PCI-AUTO, ISA, or assign a PCI SLOT
number (depending on which slot the PCI IDE is
inserted). The default setting is PCI-AUTO. If
PCI-AUTO does not work, then assign an
individual PCI SLOT number.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTA#.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTB#.

Load Setup Defaults

This item loads the system values you have previously saved. Choose
this item and the following message appears:

ÒLoad SETUP Defaults (Y/N)? NÓ

To use the SETUP defaults, change the prompt to ÒYÓ and press
<Enter>.

Note: The SETUP Defaults are optimized for the most stabilized

performance.

BIOS Setup 33

Load BIOS Defaults

Choose this item and the following message appears:

ÒLoad BIOS Defaults (Y/N)?NÓ

To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>.

Note: BIOS DEFAULTS values are adjusted for high performance. If

you run into any problems after loading BIOS DEFAULTS, please

load the SETUP DEFAULTS for the stable performance.

Integrated Peripherals

The Integrated Peripherals option changes the values of the chipset
registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Integrated Peripherals as follows.

1. Choose ÒIntegrated PeripheralsÓ from the Main Menu and the

following screen appears. (The screen below shows default
settings.â

IDE HDD Block Mode : Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
On-Chip Primary PCI IDE: Enabled
On-Chip Secondary PCI IDE: Enabled
PCI Slot IDE 2nd Channel : Enabled

Onboard FDD Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
UART 2 Mode : Standard
Onboard Parallel Port : 378H/IRQ7
Onboard Parallel MODE : ECP/EPP
ECP Mode Use DMA : 3
Parallel Port EPP Type : EPP1.9

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

USB Controller : Enabled

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values.

Modify selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

34 BIOS Setup

IDE HDD Block Mode Choose Enabled (default) or Disabled.

Enabled invokes multi-sector transfer
instead of one sector per transfer. Not all
HDDs support this function.

IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master
PIO
IDE Secondary Slave
PIO

On-chip Primary/
Secondary PCI IDE

PCI Slot IDE 2nd
Channel

Onboard FDC Controller Enabled: Use the on-board floppy

Onboard Serial Port 1
Onboard Serial Port 2

Choose Auto (default) or mode 0~4.
Mode 0 is the slowest speed, and HDD
mode 4 is the fastest speed. For better
performance and stability, we suggest you
use the Auto setting to set the HDD
control timing.

Enabled: Use the on-board IDE (default)
Disabled: Turn off the on-board IDE

Choose Enabled (default) or Disabled.
When Enabled is set, IRQ15 is dedicated
for secondary IDE use. When Disabled is
set, IRQ15 is released for other devices.

controller (default).

Disabled: Turn off the on-board floppy

controller.

Choose serial port 1 & 2Õs I/O address.
Do no set port 1 & 2 to the same value
except for Disabled.
COM 1/3F8H | COM3/3E8H
COM 2/2F8H | COM4/2E8H
(default) |

UART 2 Mode Standard: Use standard UART mode

(default).

ASK IR: Use UART with ASK. IR

function enable.

HPSIR: Use UART with HP.. Serial IR

function enable.

Onboard Parallel Port Choose the printer I/O address:

378H/IRQ7 (default), 3BCH/IRQ7,
278H/IRQ5

BIOS Setup 35

Onboard Printer Mode Choose SPP, ECP, EPP/SPP, or ECP/EPP

mode. The mode depends on your
external device that connects to this port.

ECP Mode Use DMA Choose 3 (default) or 1 to select DMA3 or

DMA1 when using the ECP device.

Parallel Port EPP Type Choose EPP specification Ver. 1.7

(default) or 1.9.

USB Controller Enable it when you are using the USB

device.

Supervisor Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒSUPERVISOR PASSWORDÓ in the Main Menu and press
<Enter>. The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.
(If you do not wish to use the password function, you can just press

<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You have the right to change any changeable settings in the ÒCMOS
SETUP UTILITY.Ó

Important: If you forget or lose the password, the only way to access the

system is to set jumper JP5 to clear the CMOS RAM. All

setup information is lost and you must run the BIOS setup

program again.

36 BIOS Setup

User Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒUSER PASSWORDÓ in the Main Menu and press <Enter>.
The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.
(If you do not wish to use the password function, you can just press

<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You are not allowed to change any setting in ÒCMOS SETUP
UTILITYÓ except change userÕs password.

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.

All setup information is lost and you must run the BIOS

setup program again.

BIOS Setup 37

IDE HDD Auto Detection

This Main Menu item automatically detects the hard disk type and
configures the STANDARD CMOS SETUP accordingly.

Note: This function is only valid for IDE hard disks.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Do you accept this drive C (Y/N)? N

ESC : Skip

38 Quick Installation Guide

Quick Installation Guide

This Quick Installation Guide leaflet is designed for those people who
are familiar with motherboard settings to set up this new motherboard in
order to boot up the system. Refer back to the proper chapters if you
have run in to any problems.

Motherboard Layout

1

KB

COM2
COM1

2

Conn

3

J8

4
5

JP11

6

ISA Slot

145

USB

J3

9

W9777FA

PCI Slot

JP6

IR

1

5

1
2
3

JP5

JP7

PRT AT PW

ON

54231

SW1

1
2
3

JP10

#1 #2 #3 #4

AGP Port

82443LX

#1 #2

Slot 1 (for Pentium II CPU)

82371AB

JP3

1

IDE0

2

3V

3

Lithium

Battery

IDE1

Keylock

1

Reset

PW/SW

FDC

Speaker

1

TB-LED

HDD

DIMM1

DIMM2

DIMM3

123

JP8

123

JP9

ATX PW

JP12

132

4

Flash BIOS

JP16
JP15

CPU Jumper Settings

Processor Type Multiplier 12345
Pentium II 233MHz 3.5x (default) on off off on off
Pentium II 266MHz 4.0x off on on on off
Pentium II 300MHz 4.5x off on off on off
Pentium II 330MHz 5.0x off off on on off

CPU Frequency Settings SW1

Quick Installation Guide 39

Memory Configurations

DIMM BANKS

DIMM1

DIMM2 DIMM3

RAM Type EDO/SDRAM

Size 8/16/32/64/128

Note: This mainboard requires 3.3V DIMM with an access time of 70ns

or less, it supports memory size from 8 to 512MB and you may use
any combination of DIMMs in the banks.

Connectors and Jumper Settings

CMOS clear: JP3 USB1 and 2 (J3) CPU Cooling Fan: FAN (JP10)

Retain CMOS 2Ð3 Connect your USB devices to these pin 1 2 3
data (default) headers function GND 12V sensor

Clear CMOS data 1Ð2 Please connect the WOL cable from

Power supply selection Jumper: JP12/JP15/JP16 SPEAKER Keylock

AT Power Supply (default) JP12: 1Ð2 & 3Ð4

ATX Power Supply JP12: Open

ATX Power Supply On/Off Switch: PW/SW

Connect your power switch to this jumper (momentary switct type). TB Led PRT
CE Test Jumper Pins: JP6/JP7/JP11 Connect your printer cable

These connectors are reserved for the CE test. If you run into any
problems during the CE test, unplug these jumper pins and try again.

wake on LAN jumper: JP9 RESET HDD

your LAN card to this jumper.

JP15: 1Ð2
JP16: Open

JP15: Open
JP16: Close

Connect the reset
button to this
jumper.

Connect the cable
of speakers to this
jumper

Turbo led to this
jumper.

Connect the HDD
led to this jumper.

Connect keyboard
lock switch to this
jumper

header

Default I/O Settings

PORT I/O Address IRQ Functionality

LPT1 378H 7 ECP + EPP
COM1 3F8H 4 Ð
COM2 2F8H 3 Ð

Note: If the default I/O settings conflict with those of other I/O cards,

such as soundcards you will have to adjust the settings of one of
them. The default settings for the onboard I/O can be changed in
the BIOS setup. Enter BIOS Setup by pressing <Delete> key
during boot-up. The I/O settings can be found under ÒIntegrated
PeripheralsÓ.
