6KD
82440 LX PCI Mainboard
User’s Guide &
Technical Reference
Page 2
®
E
™
About This Guide
This UserÕs Guide is for assisting system manufacturers and end users in setting
up and installing the mainboard. Information in this guide has been carefully
checked for reliability; however, no guarantee is given as to the correctness of the
contents. The information in this document is subject to change without notice.
Copyright Notice
Copyright 1997, Soyo Computer Inc. All rights reserved. This manual is
copyrighted by Soyo Computer Inc. You may not reproduce, transmit, transcribe,
store in a retrieval system, or translate into any language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise,
any part of this publication without express written permission of Soyo Computer
Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the
property of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the
contents of this manual. We reserve the right to revise the manual or make
changes in the specifications of the product described within it at any time
without notice and without obligation to notify any person of such revision or
change. The information contained in this manual is provided for general use by
our customers. Our customers should be aware that the personal computer field is
the subject of many patents. Our customers should ensure that they take
appropriate action so that their use of our products does not infringe upon any
patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of
third parties and not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at 252.277-7013.
Product Rights
Product mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies.
If you need any further information, please come to our home page on internet.
The address is Òhttp://www.soyo.com.twÓ.
Edition: November 1997
Version 1.1
Tested To Comply
C
C
F
With FCC Standards
FOR HOME OR OFFICE US
6KD SERIAL
Page 3
iii
Table of Contents
Chapter 1: Introduction .................................................. 1
Key Features ............................................................................... 1
Unpacking the Mainboard........................................................... 2
Electrostatic Discharge Precautions............................................ 2
Mainboard Layout w/ Default Settings ....................................... 3
Chapter 2: Hardware Setup ............................................ 5
Jumpers ....................................................................................... 5
JP5: CMOS Clear Jumper .................................................... 5
CPU Type Configuration ............................................................ 5
Memory Configuration ............................................................... 6
Multi I/O Port Addresses ............................................................ 6
Connectors .................................................................................. 7
ATX PW Ñ ATX Power Supply Connectors ....................... 7
PS/2 Keyboard Connector ..................................................... 7
PS/2 Mouse Connector.......................................................... 7
IR Ð IR Connector ................................................................. 8
Keylock & Power LED Connector........................................ 8
SPK Ð Speaker Connector ..................................................... 8
RST Ð Hardware Reset Control ............................................. 8
IDE1/IDE2 Ð On-board Primary/Secondary IDE HDD
Connectors ............................................................................. 8
COM1/COM2 Connectors..................................................... 8
IDE LED Ð IDE HDD LED Connectors ............................... 9
FDC Connector ..................................................................... 9
PRT Ð Parallel Port Connector .............................................. 9
USB1/USB2 Ð Universal Serial Bus Connector ................... 9
PWRBT Ð ATX Power Supply On/Off Switch Connector
(Momentary Type)................................................................. 9
JP42, JP43: CPU Cooling Fan Connector ............................ 9
JP14 Ð Wake-On-LAN (WOL) Header ............................... 10
JP15 Ð PCI Audio Card Connector ..................................... 10
Slot 1 Installation Guide ........................................................... 11
Chapter 3: BIOS Setup.................................................. 17
Standard CMOS Setup .............................................................. 18
BIOS Features Setup ................................................................. 19
Chipset Features Setup.............................................................. 22
Power Management Setup ........................................................ 25
PNP/PCI Configuration Setup .................................................. 28
Load BIOS Defaults & Load Setup Defaults............................ 29
Integrated Peripherals ............................................................... 30
Page 4
iv
Hardware Monitor ..................................................................... 32
Supervisor Password ................................................................. 33
IDE HDD Auto Detection ......................................................... 34
Quick Installation Guide ................................................ 35
Motherboard Layout............................................................ 35
Memory Configurations ...................................................... 35
Connectors and Jumper Settings ......................................... 36
Default I/O Settings ............................................................. 36
Page 5
1 Introduction
The 82440 LX PCI mainboard is a high-performance ATX architecture
system board that supports the (Dual) Pentium II processor family. This
mainboard is fully compatible with industry standards, and adds many
technical enhancements.
Key Features
¥ Processor supports:
Ñ Intel Pentium II CPU up to 66 MHz host bus frequency (233 ~
333 MHz)
Ñ auto detection of CPU voltage
Ñ supports (Dual) Intel Pentium II processors
¥ DRAM controller:
Ñ supports 4 strips of 168-pin EDO /SDRAM Unbuffered
DIMM
Ñ supports auto detection of memory type
Ñ supports ECC or Parity configuration
Ñ has onboard memory configurations from 8MB to 512MB
¥ BUS controller:
Ñ complies with the PCI specifications v2.1
Ñ five 32-bit PCI slots (Masters) and two ISA slots
Ñ supports Universal Serial BusÑUSB onboard
¥ Peripheral controller:
Ñ System BIOS built-in NCR4.0 SCSI/SY-S8115 SCSI/SY-V325-
2M Card BIOS and ÒPlug and PlayÓ function
Ñ onboard built-in PCI Master IDE controller and floppy
controller
Ñ onboard support for two high speed UARTS (w/i 16550 FIFO)
and Multimode parallel port for Standard, Enhanced (EPP) and
high speed (ECP) modes, PS/2 mouse function
Ñ onboard FLASH Memory for easy upgrade BIOS
Ñ onboard supports for IR function
Ñ One 32-bit AGP slot onboard
Page 6
2 Introduction
Unpacking the Mainboard
The mainboard package contains:
¥ The 82440LX Mainboard
¥ One CD (including Manuals/Drivers/Utilities)
Note: Do not unpack the mainboard until you are ready to install it.
Follow the precautions below while unpacking the mainboard.
1. Before handling the mainboard, ground yourself by grasping an
unpainted portion of the systemÕs metal chassis.
2. Remove the mainboard from its anti-static packaging and place it on
a grounded surface, component side up.
3. Check the mainboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.
Do not apply power if the mainboard appears damaged. If there is
damage to the board contact your dealer immediately.
Electrostatic Discharge Precautions
Make sure you ground yourself before handling the mainboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precaution when handling
the mainboard in dry or air-conditioned environments.
Take these precautions to protect your equipment from electrostatic
discharge:
¥ Do not remove the anti-static packaging until you are ready to install
the mainboard and other system components.
¥ Ground yourself before removing any system component from its
protective anti-static packaging. To ground yourself grasp the
expansion slot covers or other unpainted portions of the computer
chassis.
¥ Frequently ground yourself while working, or use a grounding strap.
¥ Handle the mainboard by the edges and avoid touching its
components.
Page 7
Introduction 3
Mainboard Layout w/ Default Settings
1111
3
10
16
12
15
13
15
14
1
5
2
8
17
4
9 9

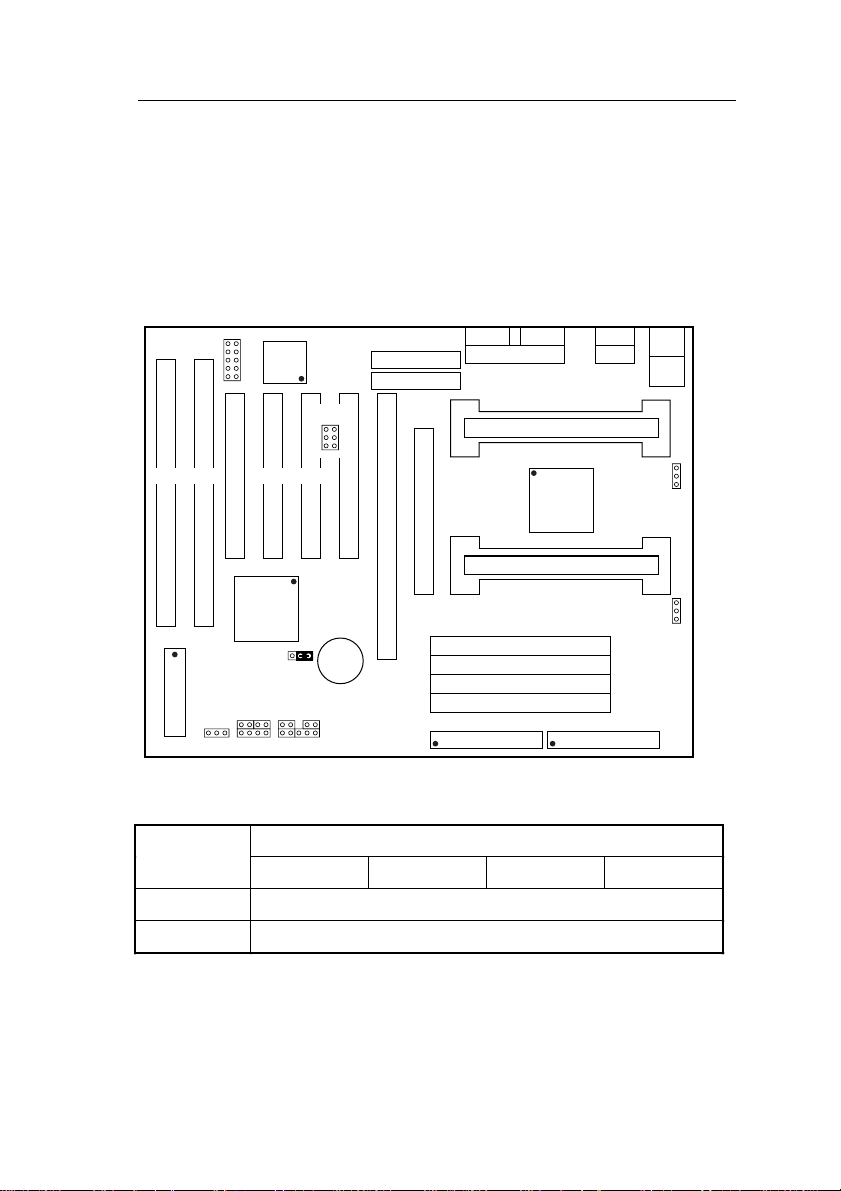

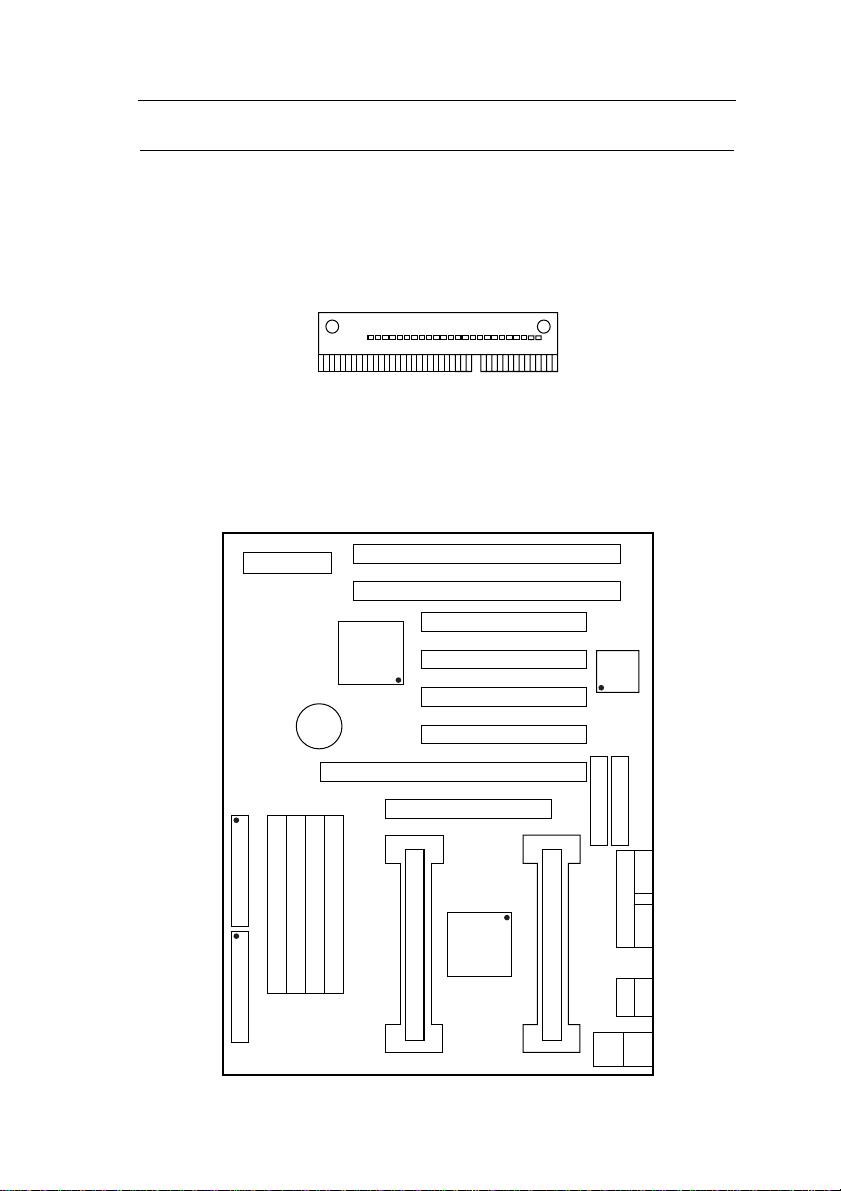

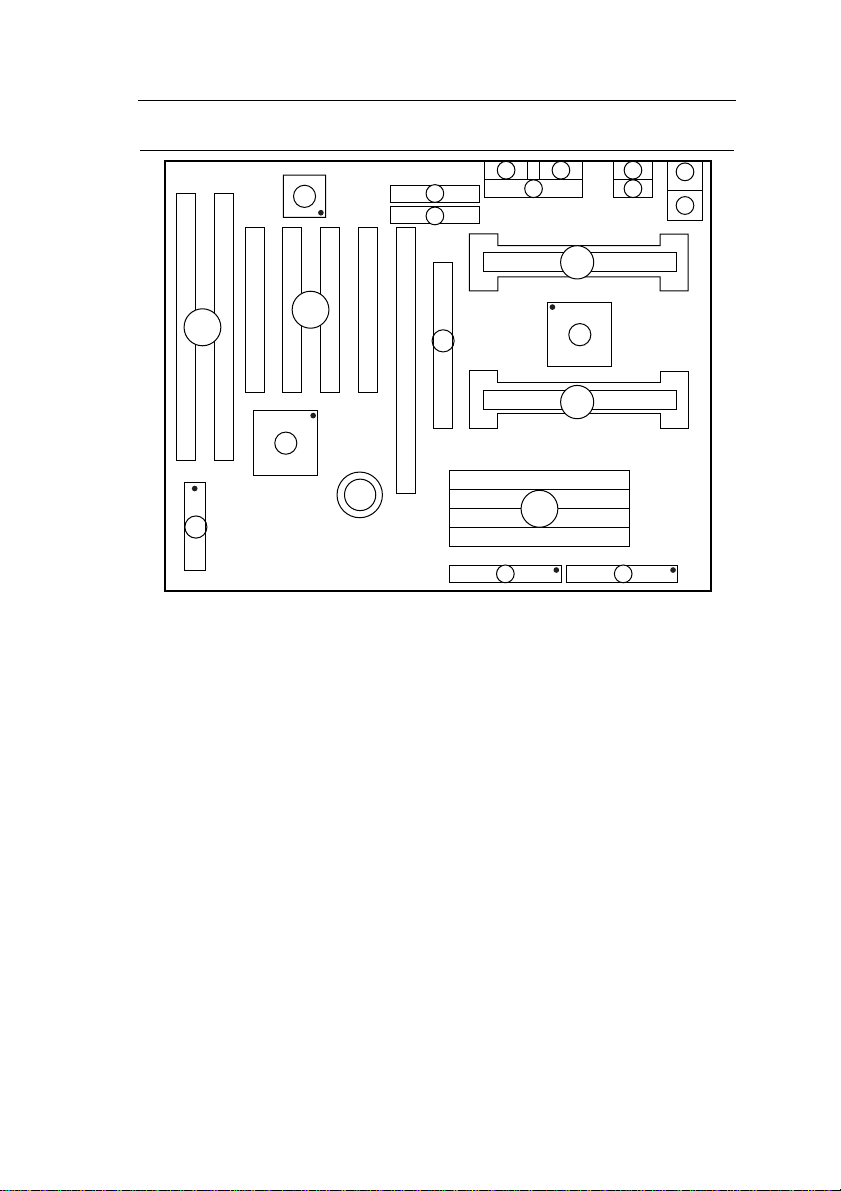

Figure 1Ð1. Mainboard Layout
1. Slot 1 for PII CPU 9. IDE1/IDE2 Connector
2. 82440LX Chipset 10. Floppy Connector
3. Ultra I/O Chip 11. COM1/COM2 Connector
4. PnP FLASH BIOS 12. Parallel Port Connector
5. ISA Slot 13. PS/2 Keyboard Connector
6. PCI Slot 14. PS/2 Mouse Connector
7. DIMM Memory Bank 15. USB 1/2 Connector
8. AGP Port 16. ATX Power Connector
17. CMOS Battery (Lithium
battery, 3V)
2
1
7
6
Page 8
4 Introduction
Default settings are as follows: 686 (PII) 133MHz* CPU, On-board
PCI Bus IDE Enabled, FDC Enabled, 2 high speed UARTS Enabled
(w/ 16550 FIFO), 1 EPP/ECP port (ECP + EPP mode), and ATX
Power Supply.
ISA SLOT
#2 #1
FLASH
BIOS
IR
16
510
83977TF
JP15
12
56
FDC
ATX PW
PCI SLOT
AGP Port
#5
JP14
IDE
LED
1
82371AB
TB
LED
+–+–
KeylockSPK
JP5
#1
#2#3#4
1
3V
Lithium
Battery
RSTPWRBT
PW
+–+– + –
LED

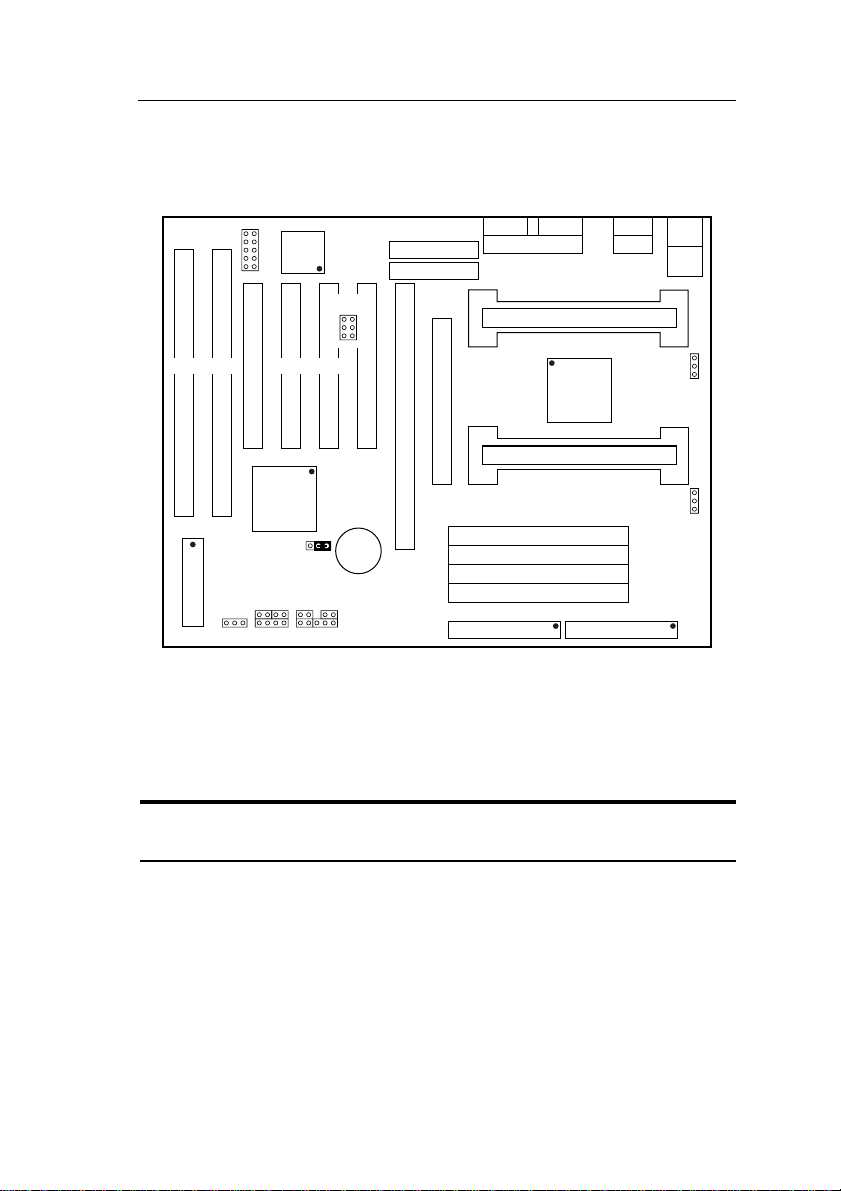

Figure 1Ð2. Mainboard Default Setting
COM2 COM1 USB1
PRT
USB2
Slot 1 (for Pentium II CPU) #1
82443LX
Slot 1 (for Pentium II CPU) #2
DIMM 4
DIMM 3
DIMM 2
DIMM 1
IDE1
IDE2
PS/2
KB
Conn.
PS/2
Mouse
Conn.
JP43
JP42
1
1
* There is no 133MHz in the Pentium II CPU family. 133MHz setting
is used as default and as a ÒsafeÓ frequency to allow the board to
boot-up at any time when the BIOS settings are erased or reset. Refer
to the ÒCPU Type ConfigurationÓ section of Chapter 2.
Important: Make sure the system is well ventilated to prevent
overheating and ensure system stability.
Page 9
2 Hardware Setup
This chapter explains how to configure the mainboardÕs hardware. After
you install the mainboard, you can set jumpers, install memory on the
mainboard, and make case connections. Refer to this chapter whenever
you upgrade or reconfigure your system.
CAUTION: Turn off power to the mainboard, system chassis, and
peripheral devices before performing any work on the
mainboard or system.
Jumpers
JP5: CMOS Clear Jumper
Clear the CMOS memory by momentarily shorting this jumper; then
open the jumper to retain new settings.

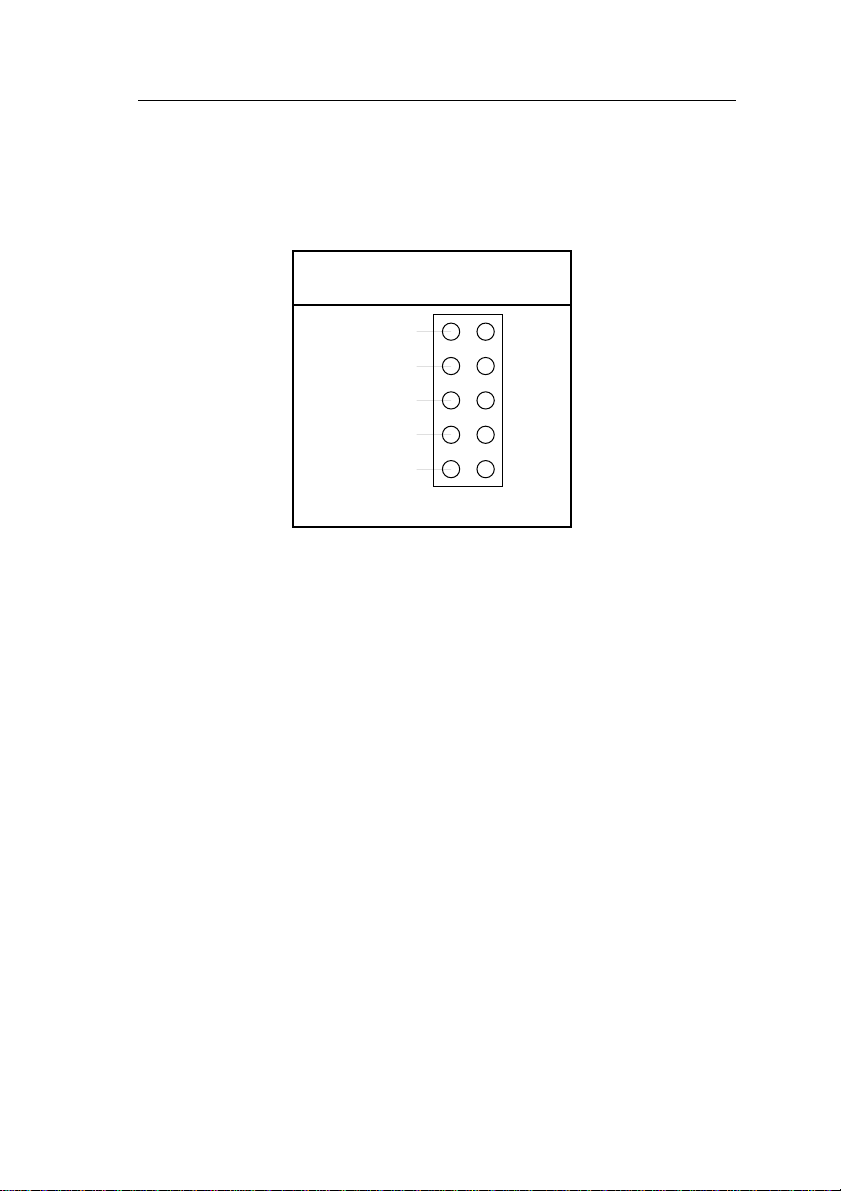

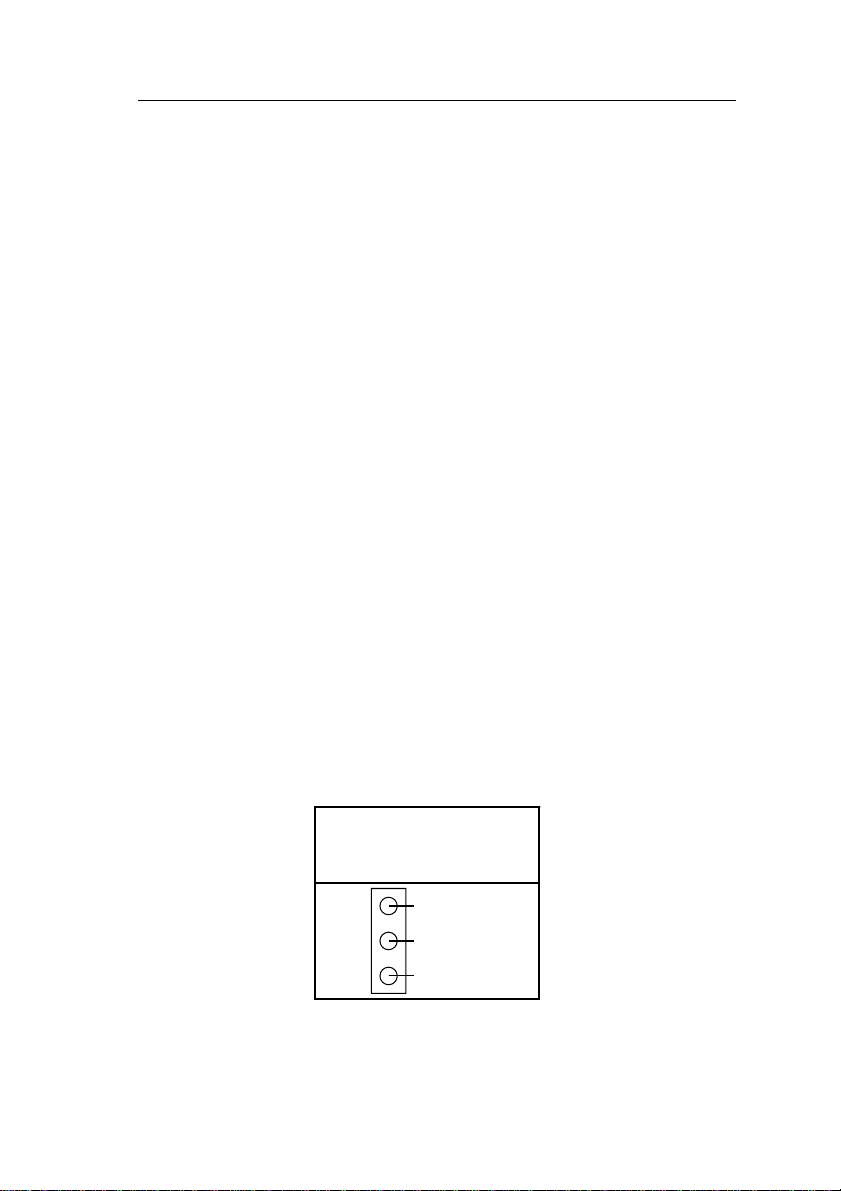

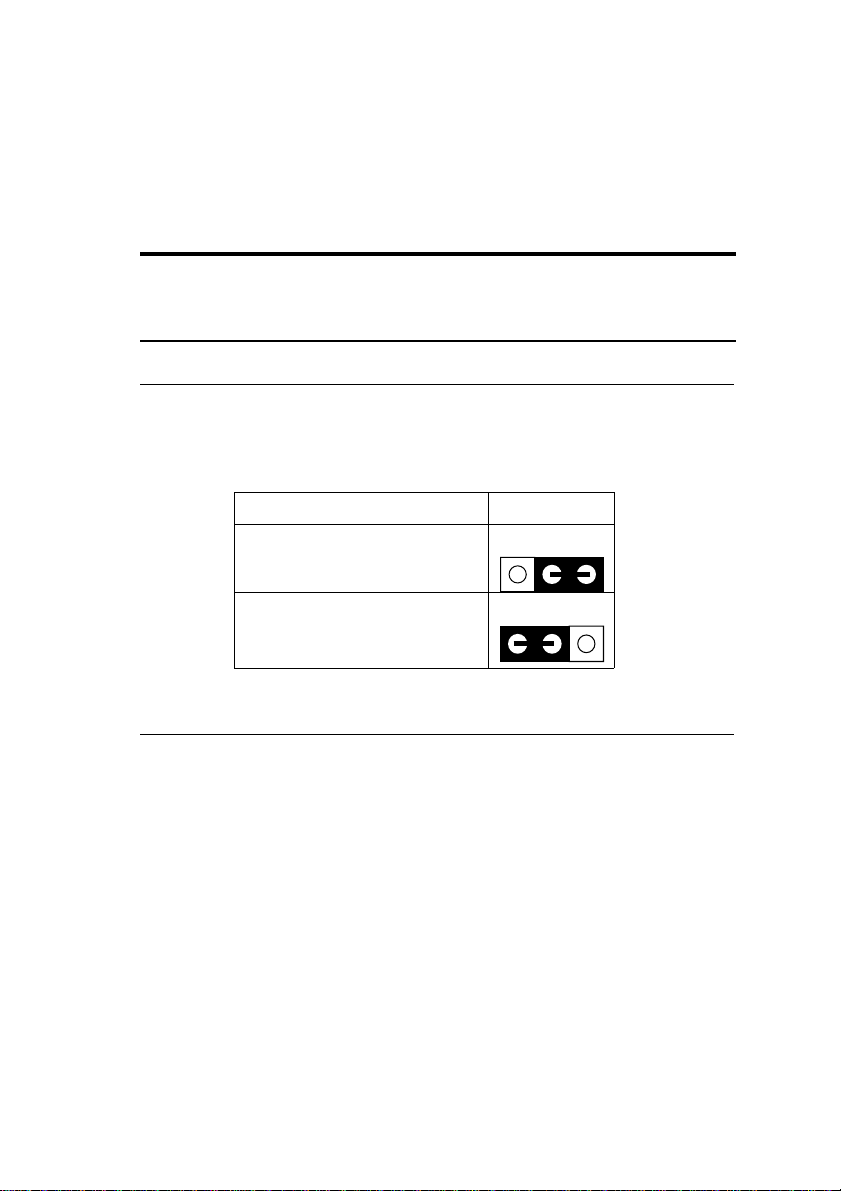

CMOS Setting JP5
Retain CMOS data
(default)
Clear CMOS data
123
123
CPU Type Configuration
This mainboard is designed so that it is not necessary to use any jumpers
to set the CPU frequency and multipliers onboard. Instead of using
jumpers, the settings for the CPU frequency are set through the BIOS
Setup which allows you to use any type of CPU from the Pentium II
familyÕs 233-333 range.
In order to change the CPU type, you need to enter the BIOS by pressing
the <Delete> key during boot-up and then select the ÒChipset Features
SetupÓ menu. There is an item called ÒCPU Frequency Pentium IIÓ
under this setup section and it allows you to set the frequency according
tot the speed of the Pentium II CPU that you have, which should be
clearly indicated on the case. The choices of settings are 133, 233, 266,
300, and 333 MHz. The 133 MHz setting is used as default and as a
ÒsafeÓ frequency which means the board can be boot-up at any time even
if the BIOS settings are erased or reset, however, there is no Pentium II
CPU of that frequency.
Page 10
6 Hardware Setup
If the frequency is set too high, the CPU will not be able to function
properly and the board will not boot up. By pressing the <Insert> key a
few times while turning on the computer, the frequency will be set back
to the default value, 133MHz, and you will be able to enter the BIOS
Setup to correct the CPU frequency value.
Memory Configuration
The mainboard supports four banks of 168-pin 3.3V EDO/SDRM
Unbuffered DIMM. The mainboard supports from 8 to 512 Mbytes
with no other restrictions on memory configurations. You can install
DRAM in any combination without having to rely on a memory
configuration table. Memory configuration is thus ÒTable-FreeÓ in any
bank.
Multi I/O Port Addresses
Default settings for multi-I/O port addresses are shown in the table
below.
Port I/O Address IRQ Status
LPT1* 378H 7 ECP + EPP
COM1 3F8H 4
COM2 2F8H 3
* If default I/O port addresses conflict with other I/O cards (e.g. sound
cards or I/O cards), you must adjust one of the I/O addresses to avoid
address conflict. (You can adjust these I/O addresses from the BIOS.
Note: Some sound cards have a default IRQ setting for IRQ7, which may
conflict with printing functions. If this occurs do not use sound
card functions at the same time you print.
Page 11
Hardware Setup 7
Connectors
Attach the mainboard to case devices, or an external battery, via
connectors on the mainboard. Refer to Figure 1-1 for connector locations
and connector pin positions.

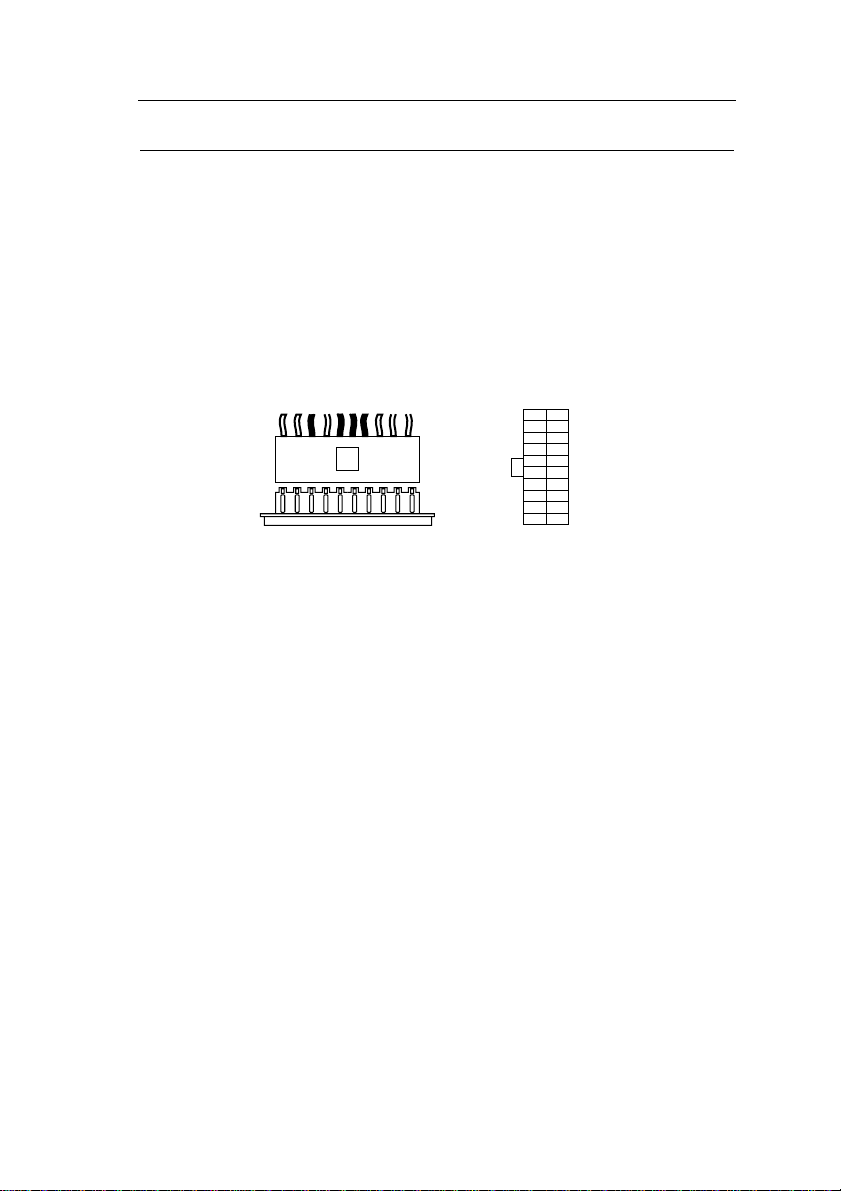

ATX PW — ATX Power Supply Connectors
The motherboard provides an ATX power supply connector. It is a
twenty-pin male header connector. Plug the connector from the power
directly onto the board connector while making sure the pin1 is in its
position.
3.3V
–12V
GND
PS-ON
GND
GND
GND
–5V
5V
5V
PS/2 Keyboard Connector
A six-pin female PS/2 keyboard connector is located at the rear of the
board. Plug the keyboard jack into this connector.
3.3V
3.3V
GND
5V
GND
5V
GND
PW-0K
5VSB
12V
PS/2 Mouse Connector
A six-pin female PS/2 mouse connector is located at the rear of the
board. Plug the mouse jack into this connector.
Page 12
8 Hardware Setup
IR – IR Connector
A five-pin wafer connector is for connecting to the IR device. Use the
device that has the ASKIR or HPSIR specification and choose
ASKIR/HPSIR from the BIOS setup.
IR Connector
Pin Assignment
VCC 1
FIRRX 2
IRRX 3
GND 4
IRTX 5
(6–10 Reserved)
6
10
Keylock & Power LED Connector
This connector is for a lock that may be installed on the system case for
enabling or disabling the keyboard. This connector also attaches to the
caseÕs Power LED. (Pin 1, 3 for power LED, pin 4, 5 for keylock.)
SPK – Speaker Connector
Attach the system speaker to connector SPK.
RST – Hardware Reset Control
Attach the Reset switch to RST. Closing the Reset switch restarts the
system.
IDE1/IDE2 – On-board Primary/Secondary IDE HDD
Connectors
Attach on-board hard disk drives to these connectors.
COM1/COM2 Connectors
Connect COM1/COM2 devices to these connectors.
Page 13
Hardware Setup 9
IDE LED – IDE HDD LED Connectors
Attach on-board IDE device LEDs to this connector. The LED lights
when an IDE device is active.
FDC Connector
Attach floppy cable to this connector.
PRT – Parallel Port Connector
Attach parallel port cable to this connector.
USB1/USB2 – Universal Serial Bus Connector
Attach USB cable to these connectors for external USB device.
PWRBT – ATX Power Supply On/Off Switch Connector
(Momentary Type)
Attach a two-pin switch to this connector for turning the ATX power
supply on/off.
JP42, JP43: CPU Cooling Fan Connector
This 3-pins connector provides 12V power for the CPU cooling fan
which matches the pin assignment of this connector. If you enable the
Suspend Mode function in BIOS setup, this fan will stop when the
system is into the suspend mode.
CPU Cooling Fan
Connector
(Pin Assignment)
1
2
3
Note: Make sure the pin assignment of our CPU Cooling Fan is matched
with this connector before connecting it, otherwise, you may
damage either the mainboard or the cooling fan.
GND
12V
SENSOR
Page 14
10 Hardware Setup
JP14 – Wake-On-LAN (WOL) Header
Attach a 3-pin connector from the LAN card which supports the WakeOn-LAN (WOL) function. This function lets users wake up the
connected computer through the LAN card. (The cable should be
included with the LAN card.)
JP14 Pin Assignment
1
2
3
5V
GND
SENSOR

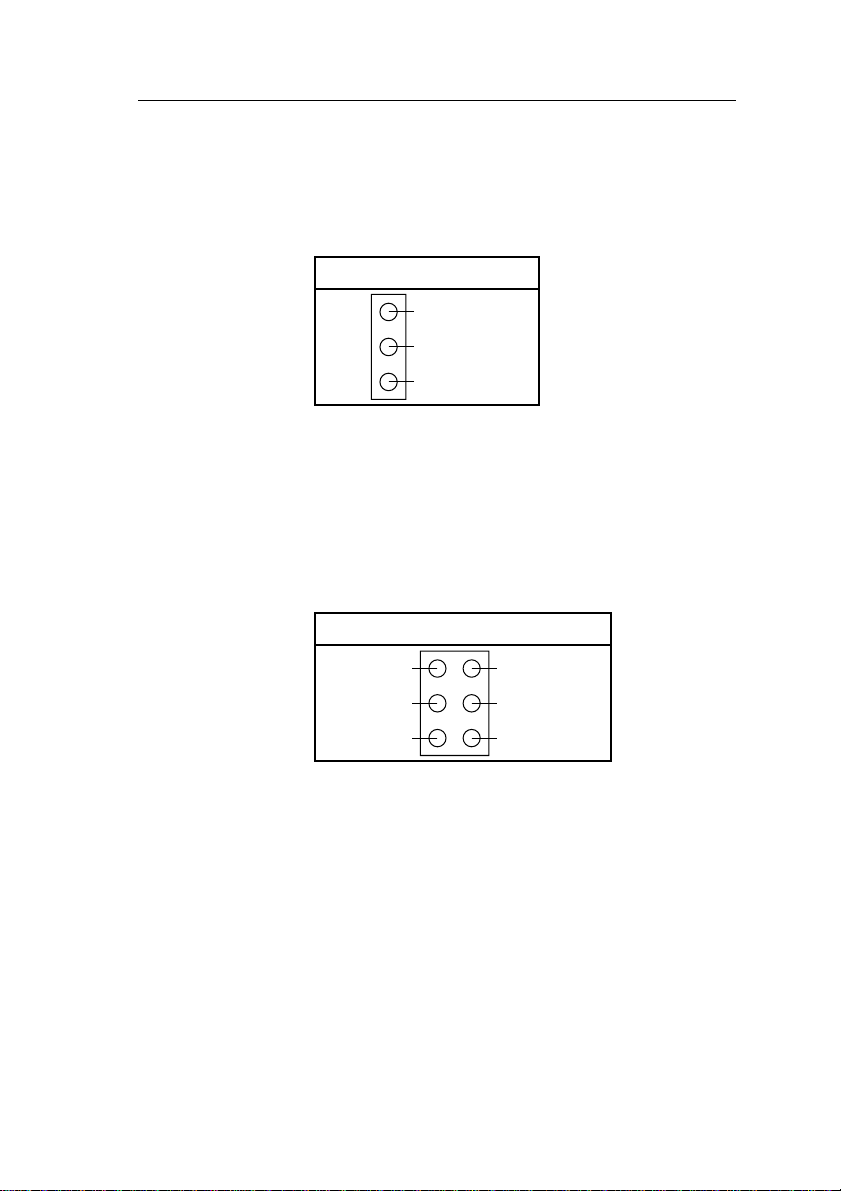

JP15 – PCI Audio Card Connector
This 6-pin connector is used for plugging the PCI Audio cardÕs PCI
request/grant sideband signals connector into. Through this connector
requests for legacy DMA channel support as needed by some soundcards
are forwarded to the PCI Bus. Your soundcard package should include a
cable for this feature if it requires it.
JP15 Pin Assignment
GNT#
KEY
DGND
1
3
5
2
DGND
4
REQ#
6
SERIRQ
Page 15
Hardware Setup 11
Slot 1 Installation Guide
This board provides a non-boxed 686 (PII) CPU retention set to secure
the CPU to the board. Follow the steps below to secure this type of CPU
on to your motherboard. These steps are the same for both Slot 1 CPUs.
In case you use only one CPU you will have to use the termination card
that came with the board, we advise you to insert your CPU into slot #1
and insert the termination card into slot #2.
Termination Card
Step 1:
Find the ATX PW and the Slot 1 on the board and set the board in the
direction as follows before doing any installation.
Slot 1 (for Pentium II CPU) #2
Slot 1 (for Pentium II CPU) #1
ATX PW
Page 16
12 Hardware Setup

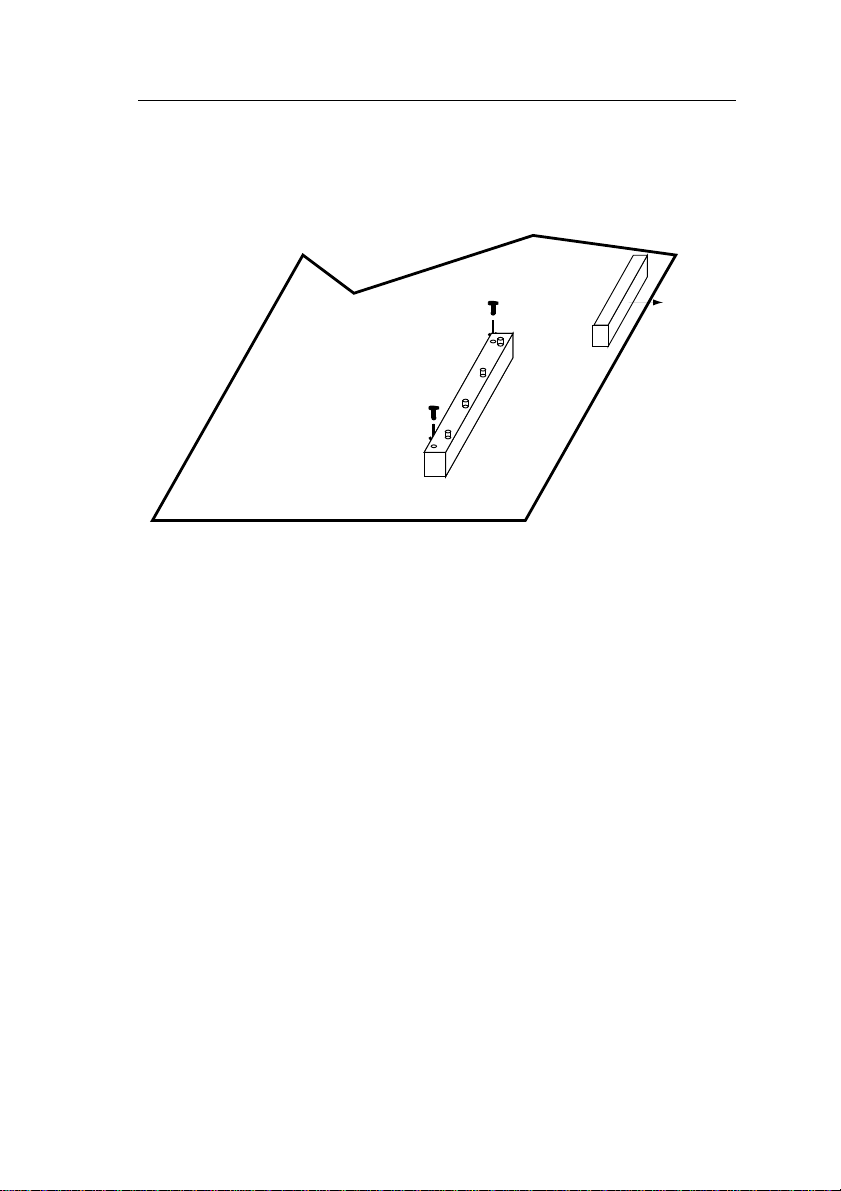

Install the 2 pairs of screws, as shown in the following figure, from the
bottom of the motherboard upward onto the mainboard.

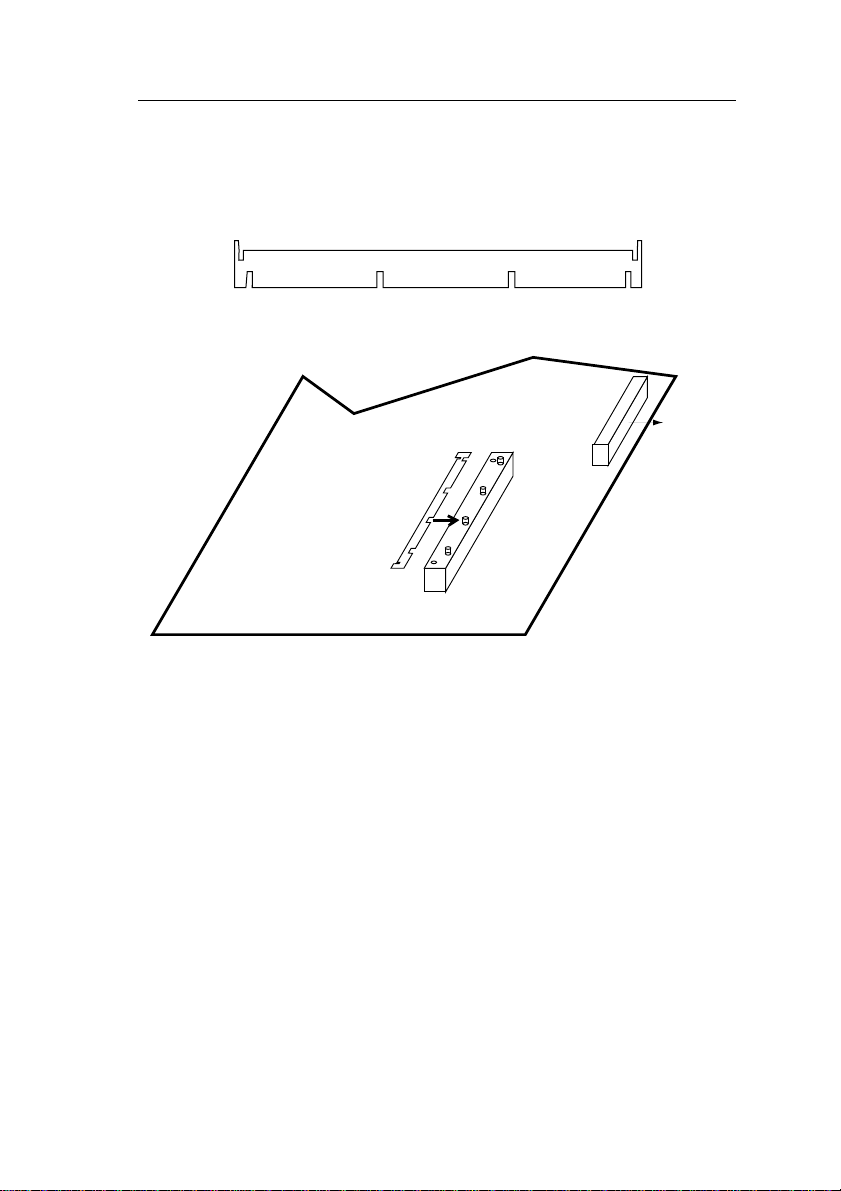

Step 2:
Insert the supporting base, which is shown below, into the two holes
directly to the left of the 2 sets of screws that have just been inserted on
to the board.

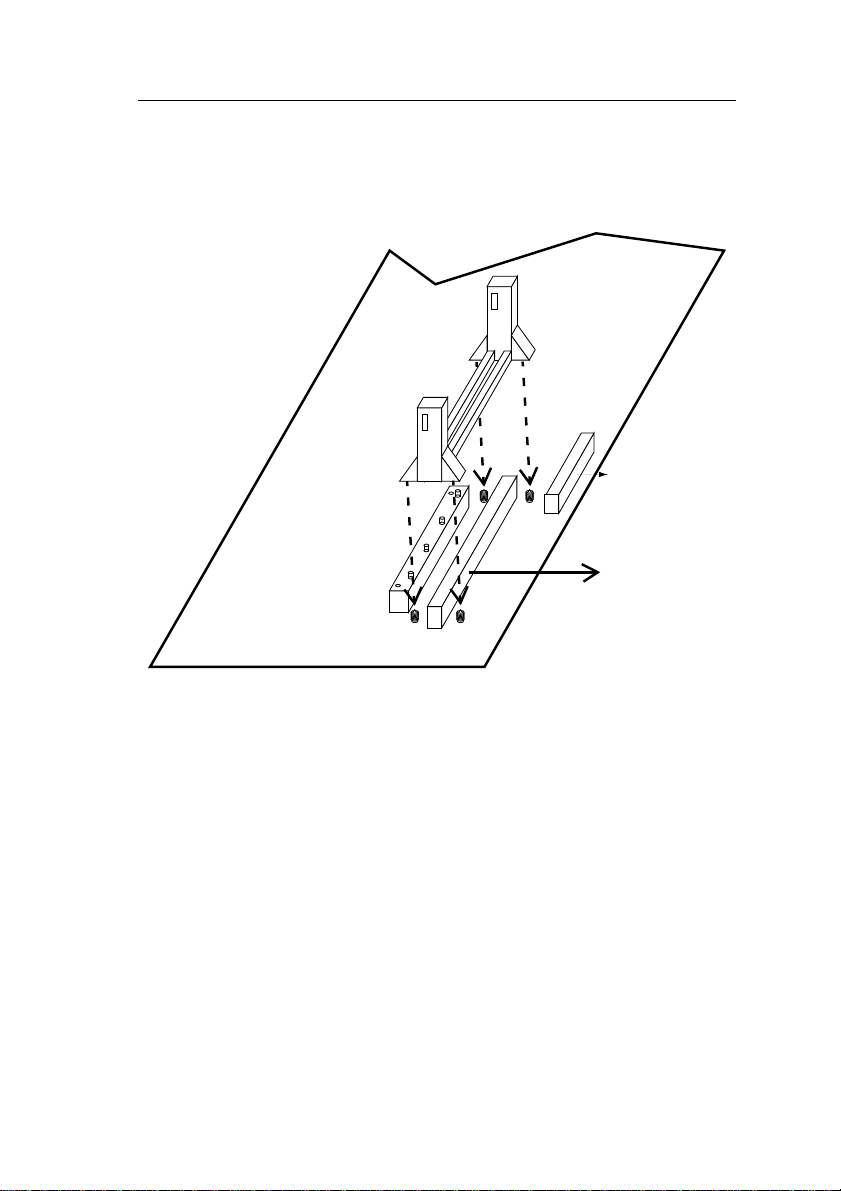

ATX PW
Slot 1
Page 17
Hardware Setup 13
Step 3:

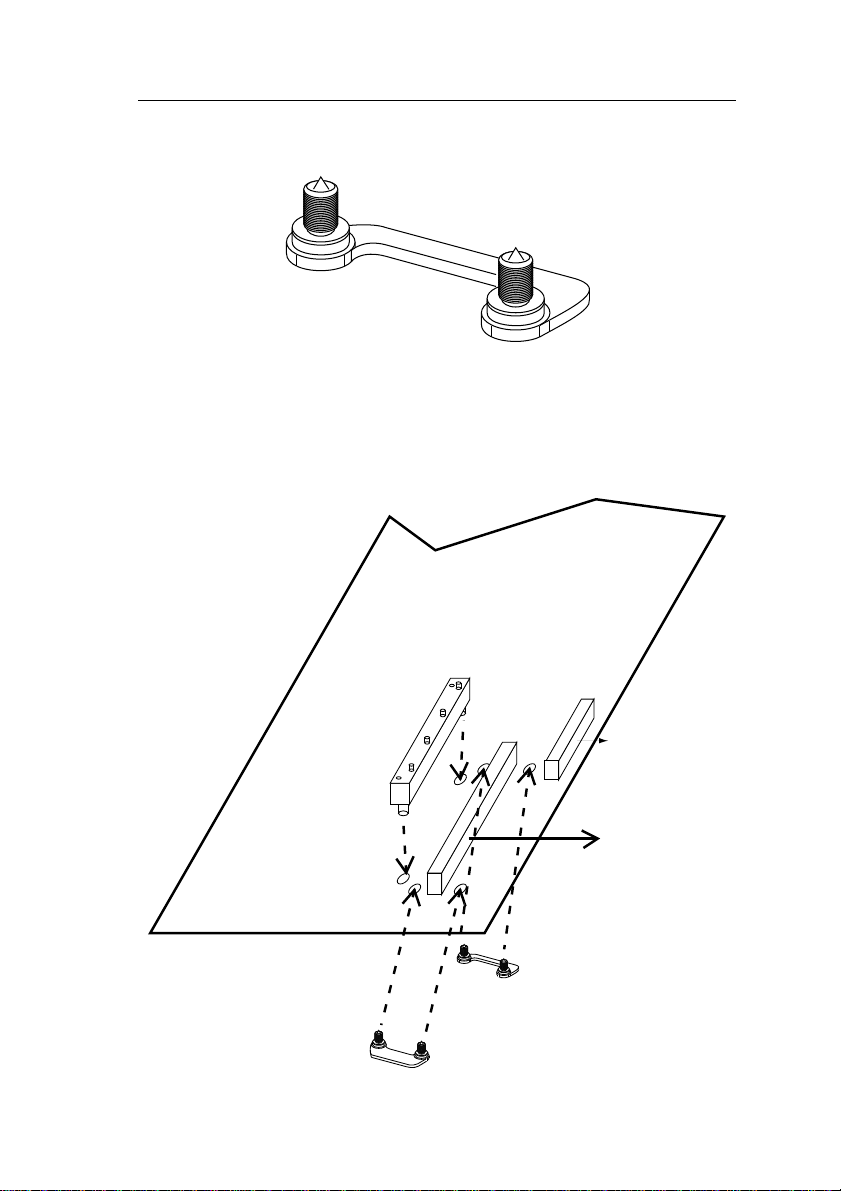

Insert the clip portion of the CPU supporter, which is shown below, so
that the heat sink can sit on the top of the whole CPU supporter.
Top View of CPU Support Clip
ATX PW
Page 18
14 Hardware Setup
Step 4:
Insert the 2 latches into the two holes of the supporting base and then
turn them 90¡ to secure the CPU.
ATX PW
Page 19
Hardware Setup 15
Step 5:
Set the retention clip right on the top of the 2 sets of screws which are
along the sides of Slot1 and then tighten the 4 screws on the retention
clip.
ATX PW
Slot 1
Page 20
16 Hardware Setup

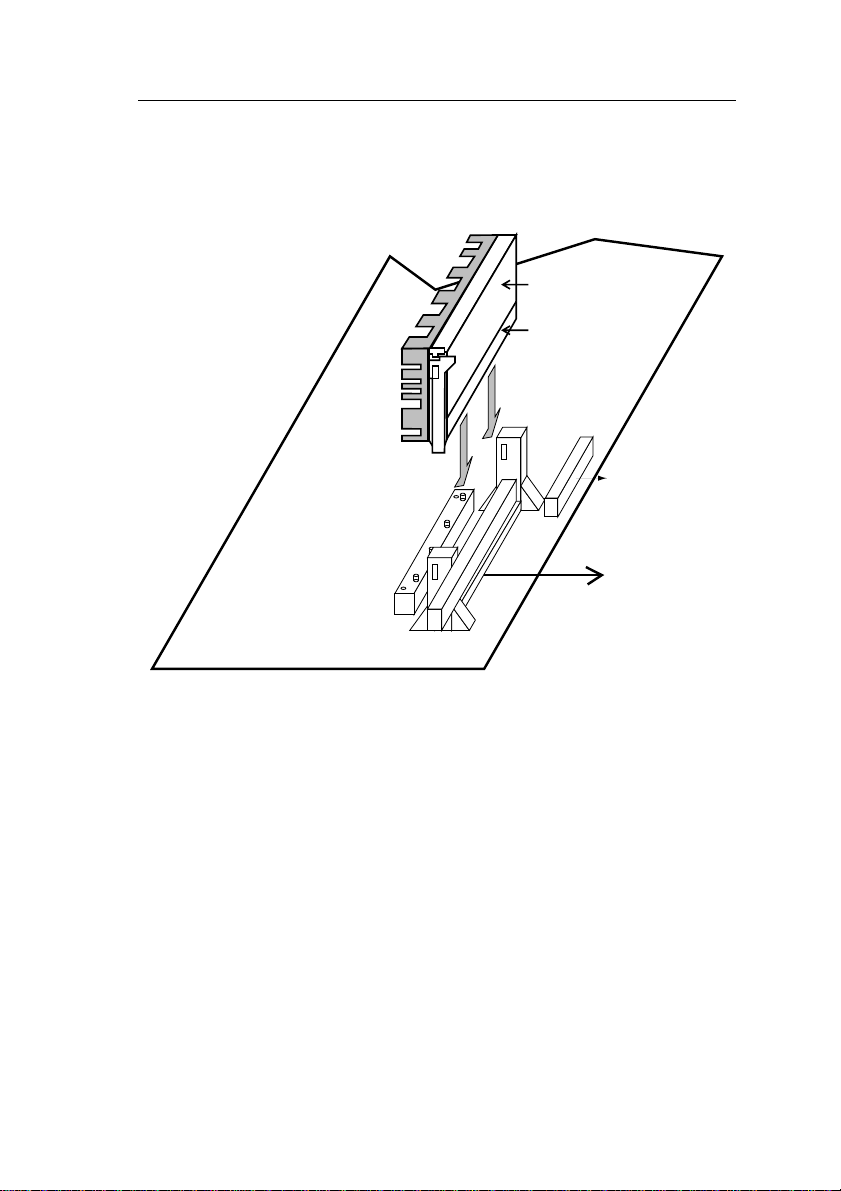

Step 6:
Insert the CPU into the retention clip and notice that the heat sink is on
the left hand side of the board. Lock the two latches on the sides of the
CPU to secure the CPU.
Non-boxed Pentium II
Golden Finger
ATX PW
Slot 1
Page 21
Hardware Setup 17
Page 22
3 BIOS Setup
The mainboardÕs BIOS setup program is the PCI/ISA BIOS from AMI
Software Inc. Enter the AMI BIOS programÕs Main Menu as follows:
1. Turn on or reboot the system. After a series of diagnostic checks, you
are asked to press <DEL> to enter Setup.
2. Press the <DEL> key to enter the AMI BIOS program and the main
screen appears:
AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.13
(C)1997 American megatrends, Inc. All Rights Reserved
STANDARD CMOS SETUP
BIOS CMOS SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PN/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS
Esc: Quit ↑ ↓ → ←: Select Item (Shift) F2: Change Color F5: Old Values
F6: Optional values F7: Fail Safe Values F10 : Save&Exit
Time, Date, Hard Disk Type, . . .
INTEGRATED PERIPHERALS
HARDWARE MONITOR SETUP
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
3. Choose an option and press <Enter>. Modify the system parameters
to reflect the options installed in the system. (See the following
sections.)
4. Press <ESC> at anytime to return to the Main Menu.
5. In the Main Menu, choose ÒSAVE AND EXIT SETUPÓ to save your
changes and reboot the system. Choosing ÒEXIT WITHOUT
SAVINGÓ ignores your changes and exits the program.
The Options listed in the Main menu will be described in more detail in
the sections that follow.
Page 23
BIOS Setup 19
Standard CMOS Setup
Run the Standard CMOS Setup as follows.
1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen
appears.
AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.13
(C)1997 American megatrends, Inc. All Rights Reserved
Date (mm:dd:yy) : Thu Oct 16, 1997
Time (hh:mm:ss) : 03 : 33 : 37
LBA Blk PIO 32Bit
TYPE SIZE CYLS HEAD WFoom Sec Mode Mode Mode Mode
Pri Master : AUTO On
Pri Slave : AUTO On
Sec Master : AUTO On
Sec Slave : AUTO On
Floppy Drive A : 1.44M, 3.5"
Floppy Drive B : Not Installed
Month: Jan - Dec ESc : Exit
Day: 01 - 31
Year : 1901 : 2099 PU/PD/+/- : Modify
(Shift) F2 : Color
2. Use arrow keys to move between items and select values. Modify
selected fields using PgUp/PgDn/+/Ð keys. Some fields let you enter
values directly.
Base Memory: 640Kb
Other Memory: 384Kb
Extended Memory: 31Mb
↑ ↓ → ← : Select Item
32Mb
Date (mm/dd/yy) Type the current date.
Time (hh:mm:ss) Type the current time.
Primary
(Secondary)
Master & Slave
Choose from the standard hard disk types 1 to
46. Type 47 is user definable. If a hard disk is
not installed choose ÒNot installed.Ó (default)
Drive A & B Choose 360KB , 5 1/4 in.,
1.2MB , 5 1/4 in.,
720KB , 3 1/2 in.,
1.4M , 3 1/2 in.(default),
2.88 MB, 3 1/2 in. or
Not installed
Page 24
20 BIOS Setup
Boot Sector Virus
Protection
3. When you finish, press the <ESC> key to return to the Main Menu.
Setting this item to Enabled will make the
BIOS verify that the boot sector of your
harddisk is not corrupted by a virus, by warning
you when a change of the boot sector is
detected.
BIOS Features Setup
Run the BIOS Features Setup as follows.
1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a
screen with a list of items appears. (The screen below shows the
BIOS default settings.)
(C)1997 American Megatrends, Inc. All Rights Reserved
Quick Boot Disabled
1st Boot Device Floppy
2nd Boot Device IDE-0
3rd Boot Device CDROM
Try other Boot Devices Yes
Initial Display Mode BIOS
Floppy Access Control Read-Write
Hard Disk Access Control Read-Write
S.M.A.R.T. for Hard Disks Disabled
Boot Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display Absent
Password Check Setup
Boot To OS/2 > 64MB No
CPU MicroCode Updation Enabled
Internal Cache WriteBack
Systen BIOS Cacheable Enabled
C000, 16K Shadow Cached
AMIBIOS SETUP - BIOS FEATURES SETUP
C400, 16K Shadow Cached
C800, 16K Shadow Disabled
CC00, 16K Shadow Disabled
D000, 16K Shadow Disabled
D400, 16K Shadow Disabled
D800, 16K Shadow Disabled
DC00, 16K Shadow Disabled
ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/Ð keys. <F> keys
are explained below:
<F1>: ÒHelpÓ gives options available for each item.
Shift <F2>: Change color.
<F5>: Get the old values. These values are the values with
which the user started the current session.
<F6>: Load all options with the BIOS Setup default values.
<F7>: Load all options with the Power-On default values.
Page 25
BIOS Setup 21
A short description of screen items follows:
Quick Boot Set this option to Enabled to shorten the boot-up
time. (Some of the Power On Self Tests will not be
performed.)
1st Boot Device
2nd Boot Device
3rd Boot Device
Try Other Boot
Device
Initial Display
Mode
Floppy Access
Control
Hard Disk
Access Control
SMART for
Harddisks
Boot-Up
Numlock
Floppy Drive
Swap
Set these options to select the device that you want
the system to boot from. Choices are: Floppy,
Floptical (RS 120), CD ROM, SCSI device,
network, IDE 0, IDE 1, IDE 2, and IDE 2.
Set this option to Yes if you want the system to
further check for boot devices if it doesnÕt find
anything in the three options specified above.
Set this option to either Silent or BIOS.
Set this option to enable to write to floppy disks.
Choices are either Read/Write or Read Only.
Set this option to enable to write to hard disks.
Choices are either Read/Write or Read Only.
Choose Enabled only with SMART enabled
harddisks and to make use of the failure warning
system that some new harddisk types provide.
Set this option to On if you want to automatically
set your keyboard to numlock on boot-up.
Set this option to Enabled will switch you original
Drive A to Drive B.
Floppy Drive
Seek
PS/2 Mouse
Support
Primary Display Set this option to either Absent or VGA, EBA.
Set this option to either Enabled or Disabled.
Enable this option to use a PS/2 Mouse.
Page 26
22 BIOS Setup
Password Check Always: the system will ask you to enter your
password both at boot-up and on entering
the BIOS Setup.
Setup: the system only asks you for the
password on entering the BIOS Setup.
Boot to OS/2 >
64Mb
CPU Microcode
Updating
Internal Cache Select the Internal Cache Mode from Disabled,
System BIOS
Cacheable
Shadow
Segments
3. After you have finished with the BIOS Features Setup program, press
the <ESC> key and follow the screen instructions to save or
disregard your settings.
Set this option to Yes when your operating system
is OS/2.
Set this option to either Disabled or Enabled.
Write Through, or Write Back.
Setting this option to Enabled speeds up the BIOS
operations by keeping the most frequent used
routines in cache memory.
These segments allow you to load the BIOS ROM
into RAM (shadowing) to improve BIOS speed.
Select one of the following settings for each
segment: Disabled, Enabled (load into RAM),
Cached (make the segment cacheable.)
Page 27
BIOS Setup 23
Chipset Features Setup
The Chipset Features Setup option changes the values of the chipset
registers. It is recommended that you change these settings only if you
are familiar with teh chipset.
1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and
the following screen appears. (The screen below shows default
settings.)
(C)1997 American Megatrends, Inc. All Rights Reserved
Auto Configure EDO DRAM Tim Enabled
EDO DRAM Speed (ns) 60
EDO Read Burst Timing x222
EDO Write Burst Timing x222
EDO RAS Precharge Timing 3 Clocks
EDO RAS to CAS Delay 3 Clocks
MA Wait State Slow
******** SDRAM Timing ********
SDRAM RAS to CAS Delay 2 Clks
SDRAM CAS Lattency 3 Clks
SDRAM RAS Precharge Time 2 Clks
DRAM Integrity Mode Non ECC
VGA Frame Buffer USWC Disabled
PCI Frame BUffer USWC Disabled
Fixed Memory Hole Disabled
CPU To PCI IDE Posting Enabled
USWC Write I/O Post Disabled
A.G.P Aperture Size 64MB
USB Passive Release Enabled
PIIX4 Passive Release Enabled
AMIBIOS SETUP - CHIPSET FEATURES SETUP
PIIX4 Delayed Transaction Disabled
Clock for DIMM/PCI Slot Enabled
Clock for Spread Spect. Disabled
Turbo Mode (75Mhz) Disabled
CPU Frequency PentiumII 233Mhz
USB Function Enabled
USB Keyboard Legacy support Disabled
ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.
A short description of screen items follows:
Auto Configure EDO
DRAM
Enable this option (strongly recommended)
and the system automatically sets all
options for memory management.
EDO RAM Speed(ns) Select the speed of your memory: 70, 60,
or 50ns.
Page 28
24 BIOS Setup
EDO Read Burst
Timing;
EDO Write Burst
Timing;
EDO RAS Precharge
Timing;
EDO RAS to CAS
Delay;
MA Wait State;
SDRAM RAS to CAS
Delay;
SDRAM CAS Latency;
SDRAM RAS
Precharge Timing;
DRAM Integrity Mode Non ECC: No error checking at all.
Use the default setting for all these options.
EC Only: Checks for parity errors (parity
memory necessary)
ECC: Checks for and corrects errors
(ECC memory necessary)
VGA Frame Buffer
USWC;
PCI Frame Buffer
USWC
Fixed Memory Hole Set this option to Disabled, 512Kb-640Kb,
CPU To PCI IDE
Posting;
USWC Write I/O Post
AGP Aperture Size Choose from: 4, 8, 16, 21, 64, or 128Mb.
USB Passive Release:
PIIX4 Passive Release;
PIIX4 Delayed
Transaction;
Clock for DIMM//PCI
Slot
Set these options to either Enabled or
Disabled.
or 15Mb Ð 16Mb.
Use the default setting for these two
options.
Set these options to either Enabled or
Disabled.
Page 29
BIOS Setup 25
Clock for Spread Spect. Set this option to either Disabled or one of
the following spread percentages: 0.5%,
1.0%, 1.5%, or 3.0%.
Turbo Mode (75Mhz) Enabled: Your Pentium II CPU will run
on a 75Mhz busclock which will
increase the speed of your
system. This busclock falls
without the specifications of
INTEL, however, so no
guarantees of proper functioning
are made. In addition you have
to use high quality Add-On
cards and memory Modules
when running the system at a
busclock of 75Mhz to avoid
problems.
Disabled: Your system will run on the
INTEL specified busclock of
66Mhz.
CPU Frequency Select the frequency of your Pentium II
CPU from the following: 233, 266, 300, or
333 MHz. The 133MHz setting is the
default setting and it allows you to boot-up
the system at any time when a wrong
setting does not allow the board to boot up.
USB Function Enable this option if you plan to use the
USB ports.
USB Keyboard Legacy
Support
3. After you have finished with the Chipset Features Setup, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.
Set this option to Enabled if you use a USB
keyboard.
Page 30
26 BIOS Setup
Power Management Setup
The Power Management Setup option sets the systemÕs power saving
functions.
Run the Power Management Setup as follows.
1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu
and a screen with a list of items appears.
(C)1997 American Megatrends, Inc. All Rights Reserved
Power Management/APM Disabled
Green Monitor Power State Stand By
Video Power Down Mode Suspend
Hard Disk Power Down Mode Suspend
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50-62.5%
Modem Use IO Port N/A
Modem USE IRQ N/A
Display Activity Ignore
Device 6 (Serial port 1) Monitor
Device 7 (Serial port 2) Monitor
Device 8 (Parallel port) Ignore
Device 5 (Floppy Disk) Monitor
Device 0 (Primary Master ID)Monitor
Device 1 (Primary Slave ID) Ignore
Device 2 (Sec Master ID) Monitor
Device 3 (Sec Slave ID) Ignore
System Thermal Ignore
Thermal Slow Clock Ratio 50-62.5%
AMIBIOS SETUP - POWER MANAGEMENT SETUP
CPU Critical Temperture Disabled
Power Button Function On/Off
Ring Resume From Soft Off Enabled
RTC Alarm Resume From Soft Disabled
RTC Alarm Date 15
RTC Alarm Hour 12
RTC Alarm Minute 30
RTC Alarm Second 30
ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/- keys.
A short description of selected screen items follows:
Power
Management
Set this option to Disabled to disable all power
saving functions and many of the options on this
menu will be unavailable.
Green Monitor
Power State;
Video Power Down
Mode;
Harddisk Power
Down Mode
These three options can be set to Disabled, Stand
by, or Suspend to determine which mode will be
entered when the standby and suspend timers run
out. Stand by is entered when the Standby timer
runs out and the clock will be slowed down to a
x% of the original clock speed. X is determined
by the ÔThrottle Slow clock RatioÕ setting.
Suspend mode stops the CPU and is entered
when the suspend timer runs out.
Page 31
BIOS Setup 27
Standby Time out
(Minute)
Sets the Standby Timer, ranges from 1 to 60
minutes.
Suspend Time out
(Minute)
Throttle Slow
Clock Ratio
Modem Use I/O
Port
Modem Use IRQ Set this option to the IRQ number that your
Display Activity;
Device 6, 7, 8, 5, 0,
1, 2, 3
System Thermal Choose Ignore or Monitor.
Sets the Suspend Timer, ranges from 1 to 60
minutes.
Sets the percentage of the original clock speed to
which the CPU will slow down when entering
the Standby mode.
Set this option to the I/O address that your
modem is using. Choose from 3F8,/COM1,
2F8/COM2, 3E8/COM3, 2E8/COM4, or N/A.
modem is using. Choose from 3, 4, 5, 7, 9, 10,
11, or N/A.
Choose either Monitor or Ignore for all these
devices.
Monitor: Makes the BIOS check for activity on
these devices, resetting the standby
and suspend timers if activity is
detected.
Monitor: CPU slows down to a frequency of
x% of the original clock speed. X
can be set by changing the Thermal
Slow Clock Ratio option below and
the critical temperature at which the
CPU will slow down can be set by
changing the CPU Critical
Temperature option.
Thermal Slow
Clock Ratio
CPU Critical
Temperature
Sets the percentage of the original clock speed to
which the CPU will slow down when
overheating.
Sets the temperature at which the CPU slows
down to avoid overheating problems, however,
the system thermal has to be Enabled. The
choices are 45, 50, 55, 60, 65, 70, or 75¡C.
Page 32
28 BIOS Setup
Power Button
Function
On/Off: the system will power on and power
off with a short touch on the power
button.
Suspend:
Suspend Power Mode State Diagram:
System
Power Off
Push
Power Button
System
Power On
Push
Power Button
Push
Power Button
Enter
Suspend Mode
(system can
restart fast)
Longer
than 4S?
Yes
No
Ring Resume from
Soft Off
Setting this option to Enabled will cause the
system to wake up when the modem detects an
incoming call.
RTC Alarm
Resume from Soft
Off
Set this option to Enabled will enable the system
to wake up at a predetermined time as set by the
next four items. The system will compare the
settings of the options below to the time in the
RTC (as displayed in the Standard CMOS Setup)
and wake up at the desired time.
RTC Alarm Date;
RTC Alarm Hour;
These four options set the date and the time for
the system to wake up at a desired moment.
RTC Alarm
Minute;
RTC Alarm
Second
3. After you have finished with the Power Management Setup, press the
<ESC> key to return to the Main Menu.
Page 33
BIOS Setup 29
PNP/PCI Configuration Setup
This menu controls the system resources. Run this option as follows:
1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main
Menu and the following screen appears. (The screen below shows
default settings.)
(C)1997 American Megatrends, Inc. All Rights Reserved
Plug and Play Aware O/S No
Clear NVRAM on Every Boot No
PCI Latency Timer 64
PCI VGA Palette Snoop Disabled
Allocate IRQ to PCI VGA Yes
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 PCI/PnP
IRQ4 PCI/PnP
IRQ5 PCI/PnP
IRQ7 PCI/PnP
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP
IRQ12 PCI/PnP
IRQ14 PCI/PnP
IRQ15 PCI/PnP
AMIBIOS SETUP - PNP/PCI CONFIGURATION
Reserved Memory Size Disabled
Reserved Memory Address C8000
ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.
A short description of screen items follows:
Plug and Play
Aware O/S
Choose Yes or No. When this option is set to No,
the DMA and IRQ settings will have to be set
manually.
Clear NVRAM
on Every Boot
Yes: PnP information will be erased and collected
again at every boot.
PCI Latency
Timer
PCI VGA Palette
snoop
Choices are 32, 64, 96, 128, 160, 192, 224, or
248.
This option should be set to Enabled when video
cards, such as 3D accelerators and MPEG
decoders, are used to allow a correct decoding of
colors.
Page 34
30 BIOS Setup
Allocate IRQ to
PCI VGA
Choose either Disabled or Enabled depending on
whether or not your VGA card requires an IRQ.
DMA Channel
List
IRQ List Each option on this list can be set to either
Reserved
Memory Size
Reserved
Memory Address
3. After you have finished with the PCI Slot Configuration, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.
Each option on this list can be set to either PnP or
ISA/EISA. Default is PnP. If you have an ISA
card that requires a DMA channel, set it to
ISA/EISA here.
PCI/PnP or ISA/EISA. Default is PnP. If you
have an ISA card that requires an IRQ, set it to
ISA/EISA here.
Choose from the following settings: 16k, 32k,
64k, or Disabled.
Set the address through this option.
Load BIOS Defaults & Load Setup Defaults
These two items both set the BIOS settings back to their default values.
The difference between the two is that BIOS Defaults loads the most
conservative values, meaning that it is best to load the BIOS defaults
whenever you are experiencing problems; on the other hand, Setup
Defaults setting are optimized for speed and are usually the best settings
to load.
Default settings can be loaded through choosing one of two items after
which a message appears:
ÒLoad SETUP Defaults (Y/N)? NÓ
OR
ÒLoad BIOS Defaults (Y/N)?NÓ
Pressing <Enter> key will not load the defaults, you need to press Y and
then <Enter> key to load the default values.
Page 35
BIOS Setup 31
Integrated Peripherals
The Integrated Peripherals option changes the values of the chipset
registers. These registers control system options in the computer.
Note: Change these settings only if you are familiar with the Chipset.
Run the Integrated Peripherals as follows.
1. Choose ÒIntegrated PeripheralsÓ from the Main Menu and the
following screen appears. (The screen below shows default
settings.)
(C)1997 American Megatrends, Inc. All Rights Reserved
OnBoard FDC Auto
OnBoard Serial PortA Auto
OnBoard Serial PortB Auto
Serial PortB Mode N/A
IR Duplex Mode N/A
IrDA Protocol N/A
IR Port Support Disabled
IR Mode Select N/A
IR Base Address Select N/A
IR IRQ Select N/A
IR DMA Select N/A
OnBoard Parallel Port Auto
Parallel Port Mode ECP
EPP Version N/A
Parallel Port IRQ Auto
Parallel Port DMA Auto
K/B Wake-up Function N/A
Mouse Wake-up Function N/A
OnBoard IDE Both
AMIBIOS SETUP - INTEGRATED PERIPHERALS
ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
2. Use the arrow keys to move between items and select values.
Modify selected fields using the PgUp/PgDn/+/Ð keys.
A short description of screen items follows:
On Board FD Auto: System detects the floppy
drive automatically.
Disabled: Disable the onboard floppy
controller.
Page 36
32 BIOS Setup
On Board Serial Port A Auto: System detects the Serial Port
A and assign an address to it
automatically.
Disabled: Disable the onboard floppy
controller.
The serial port address can also be chosen
manually from the following:
3F8/COM1, 2F8/COM2, 3E8/COM3,
2E8/COM4.
On Board Serial Port A Auto: System detects the Serial Port
B automatically.
Disabled: Disable the onboard floppy
controller.
The serial port address options are the
same as those for serial port A, however,
do not select the same address for both
serial port A and B.
IR Port Support Select either Enabled or Disabled. Set to
Enabled when IR port options below
needed to be changed.
IR Mode Select Select from the following protocols:
IrDA, ASK IR, FIR, or CIR.
IR Base Address Select Select the Base Address from the
following addresses: 3E8, 2E8, 3E0, or
2E0.
IR IRQ Select Choose the IR port IRQ from : 3, 4, 9, 10,
or 11.
IR DMA Select Choose the DMA channel from: 0, 1, 3, or
Disabled.
Page 37
BIOS Setup 33
On Board Parallel Port Choose from: Auto, Disabled, 378, 278,
or 3BC.
Auto: Set the parallel port to an IO
address automatically.
Disabled: Disable the onboard parallel
port and the parallel port
options below will not be
available for change.
Parallel Port Mode Choose from: Normal, Bi-Dir, EPP, or
ECP.
EPP Version If EPP is selected rom the above option,
choose either 1.7 or 1.9 version here.
Parallel Port IRQ Choose either IRQ 5 or 7 for the parallel
port.
Parallel Port DMA
Channel
K/B Wake Up Function Set this option to Enabled to enable the
Mouse Wake-up
Function
Onboard IDE Set this option to Both for normal use. If
Choose either DMA channel 1 or 3 if
appropriate.
Keyboard Wake Up function.
Set this option to Enabled to enable the
Mouse Wake Up function.
need to disable the onboard IDE
controllers, choose from the following:
Disabled, Primary (disable secondary),
Secondary (disable primary).
Hardware Monitor
The hardware Monitor allows you to monitor your system variables, such
as temperature, FAN speed, and voltages, all can be monitored through
this page. There are no settings that can be changed on this page.
Supervisor Password
The main difference between the User and Supervisor Password is that
the Supervisor Password allows access to all BIOS settings, however on
Page 38
34 BIOS Setup
the other hand, the User Password offers only restricted access which
means that the Chipset Features Setup, Power Management Setup, and
PnP/PCI Configuration are all restricted for a user that entering the BIOS
Setup by using only a User Password. The User Password is set to
Disabled by default and only after defining a supervisor password the
User Password can be defined. The following procedure shows you how
to set or change a supervisor password:
1. Choose ÒSUPERVISOR PASSWORDÓ from the Main Menu and
press <Enter>. If you have already defined a password, type in the
password first in order to proceed. The following message appears:
ÒEnter Password:Ó
2. Enter a password and press <Enter>.
(If you do not wish to use the password function, you can just press
<Enter> and a ÒPassword disabledÓ message appears. )
3. After you enter your password, the following message appears
prompting you to confirm the new password:
ÒConfirm Password:Ó
4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.
The User Password option is available only after setting the Supervisor
password and the procedure of setting the User Password is done the
same way as the Supervisor Password.
Important: If you forget or lose the password, the only way to access
the system is to set jumper JP5 to clear the CMOS RAM.
All setup information is lost and you must run the BIOS
setup program again.
Page 39
BIOS Setup 35
IDE HDD Auto Detection
Selecting this item will make the system automatically scan for all the
IDE compatible devices, such as Harddisks and CD ROM drives, which
are connected to the system. The correct settings will automatically be
stored into Standard CMOS Setup and after finishing the auto detection
process, the Standard CMOS Setup page is then displayed for the user to
see the results.
Page 40
36 Quick Installation Guide
Quick Installation Guide
This Quick Installation Guide leaflet is designed for those people who
are familiar with motherboard settings to set up this new motherboard in
order to boot up the system. Refer back to the proper chapters if you
have run in to any problems.
Motherboard Layout
ISA SLOT
#2 #1
FLASH
BIOS
IR
16
510
LED
1
JP14
83977FX
PCI SLOT
82371AB
TB
IDE
LED
COM2 COM1 USB1
FDC
ATX PW
JP15
12
56
#4
#3#2#1
AGP Port
PRT
Slot 1 (for Pentium II CPU)
82443LX
USB2
Slot 1 (for Pentium II CPU)
3V
Lithium
Battery
PW
LED
#5
IDE1
DIMM 4
DIMM 3
DIMM 2
DIMM 1
IDE2
1
JP5
RSTPWRBT
+–+–
+–+– + –
KeylockSPK
PS/2
KB
Conn.
PS/2
Mouse
Conn.
JP43
JP42
1
1
Memory Configurations
DIMM BANKS
DIMM1
RAM Type FPM/EDO/SDRAM
Size 8/16/32/64/128
Note: This mainboard requires 3.3V DIMM with an access time of 70ns
or less, it supports memory size from 8 to 512MB and you may use
any combination of DIMMs in the banks.
DIMM2 DIMM3 DIMM4
Page 41
Quick Installation Guide 37
Connectors and Jumper Settings
CMOS clear: J5 ATX Power Supply: JP15 CPU Cooling Fan: JP42 and JP43
Retain CMOS 1-2 please insert the ATX power supply pin 1 2 3
data (default) plug into this header. function GND 12V sensor
Clear CMOS data 2-3 Please connect the WOL cable from
USB1 and 2 PRT SPK Keylock
Connect your USB devices to these headers printer cable header Connect the cable Connect keyboard
ATX Power Supply On/Off Switch: PWRBT of speakers to lock switch to this
Connect your power switch to this jumper (momentary switct type). this jumper jumper
IrDA (Infrared Devices Connector: IR (pin 6-10 reserved) TB Led PW Led
pin12345Connect your Connect the
function Vcc FIRRX IRRX GND IRTX Turbo led to this
wake on LAN jumper: J14 RST IDE Led
your LAN card to this jumper.
Connect the reset
button to this
jumper.
jumper.
Connect the HDD
led to this jumper.
power led to this
jumper.
Default I/O Settings
PORT I/O Address IRQ Functionality
LPT1 378H 7 ECP + EPP
COM1 3F8H 4 Ð
COM2 2F8H 3 Ð
Note: If the default I/O settings conflict with those of other I/O cards,
such as soundcards you will have to adjust the settings of one of
them. The default settings for the onboard I/O can be changed in
the BIOS setup. Enter BIOS Setup by pressing <Delete> key
during boot-up. The I/O settings can be found under ÒIntegrated
PeripheralsÓ.
Loading...
